Conditional Inactivation of the DNA Damage Response Gene in Mouse Testis Reveals Separable Roles for Components of the RAD9-RAD1-HUS1 Complex in Meiotic Chromosome Maintenance

Summary

The RAD9-RAD1-HUS1 (9-1-1) complex is a heterotrimeric PCNA-like clamp that responds to DNA damage in somatic cells by promoting DNA repair as well as ATR-dependent DNA damage checkpoint signaling. In yeast, worms, and flies, the 9-1-1 complex is also required for meiotic checkpoint function and efficient completion of meiotic recombination; however, since Rad9, Rad1, and Hus1 are essential genes in mammals, little is known about their functions in mammalian germ cells. In this study, we assessed the meiotic functions of 9-1-1 by analyzing mice with germ cell-specific deletion of Hus1 as well as by examining the localization of RAD9 and RAD1 on meiotic chromosomes during prophase I. Hus1 loss in testicular germ cells resulted in meiotic defects, germ cell depletion, and severely compromised fertility. Hus1-deficient primary spermatocytes exhibited persistent autosomal γH2AX and RAD51 staining indicative of unrepaired meiotic DSBs, synapsis defects, an extended XY body domain often encompassing partial or whole autosomes, and an increase in structural chromosome abnormalities such as end-to-end X chromosome-autosome fusions and ruptures in the synaptonemal complex. Most of these aberrations persisted in diplotene-stage spermatocytes. Consistent with a role for the 9-1-1 complex in meiotic DSB repair, RAD9 localized to punctate, RAD51-containing foci on meiotic chromosomes in a Hus1-dependent manner. Interestingly, RAD1 had a broader distribution that only partially overlapped with RAD9, and localization of both RAD1 and the ATR activator TOPBP1 to the XY body and to unsynapsed autosomes was intact in Hus1 conditional knockouts. We conclude that mammalian HUS1 acts as a component of the canonical 9-1-1 complex during meiotic prophase I to promote DSB repair and further propose that RAD1 and TOPBP1 respond to unsynapsed chromatin through an alternative mechanism that does not require RAD9 or HUS1.

Introduction

The requirement for effective genome maintenance is particularly notable in germ cells, which must transmit high quality DNA to future generations. Therefore, germ cells must employ DNA damage response mechanisms that are at least as stringent as those present in somatic cells. Meiosis, which includes the intentional generation and subsequent repair of DNA double-strand breaks (DSBs), involves a variety of DNA repair mechanisms as well as cell cycle checkpoints that monitor chromosomal integrity; however, much remains unknown about how these mechanisms operate in mammalian cells. In this study, we investigated how an essential DNA repair and DNA damage checkpoint complex, the RAD9-RAD1-HUS1 (9-1-1) complex, functions to maintain genome integrity in the germline.

The 9-1-1 complex is a heterotrimeric ring that shares extensive structural similarity with PCNA, the sliding clamp that functions in DNA replication and repair [1]. In mammalian somatic cells, the best characterized role of 9-1-1 is in activation of ATR pathway DNA damage checkpoint signaling following replication-associated DNA damage [2]. In response to stalled replication forks or lesions involving single-stranded DNA, the 9-1-1 complex is loaded onto 5′ recessed ends by the RAD17-RFC clamp loader complex. The ATR kinase is independently loaded onto RPA-coated single-stranded DNA through the interaction of ATR-interacting protein (ATRIP) with both ATR and RPA [3]. The phosphorylated RAD9 C-terminus physically recruits the ATR activator TOPBP1, which then stimulates the kinase activity of ATR [reviewed in 4]–[6]. Once active, ATR phosphorylates downstream effectors such as CHK1 that promote cell cycle arrest, DNA repair, or apoptosis.

In addition to its known checkpoint signaling function, the 9-1-1 clamp physically interacts with a variety of DNA repair proteins, indicating that, like PCNA, 9-1-1 may also function as a scaffold for recruiting DNA repair proteins to damage sites. Indeed, 9-1-1 has been shown to interact with RAD51 in human cells [7], and 9-1-1 complexes from yeast, mouse, and human physically interact with, and in some cases, stimulate the activity of, translesion polymerases [8] as well as base excision repair factors, including DNA Polymerase β [9], [10], FEN1 [11], [12], APE1 [10], DNA ligase I [13], and the NEIL1, TDG, OGG1, and MutY glycosylases [14]–[18]. Other 9-1-1 physical interactors are as varied as HDAC1 histone deacetylase [19], WRN helicase [20], mismatch repair factors MSH2, MSH3, MSH6, and MLH1 [21], [22], and the ATR co-activator RHINO [23]. That 9-1-1 interacts with and stimulates numerous DNA repair factors points to a direct role of 9-1-1 in facilitating DNA repair apart from its ATR-dependent checkpoint signaling activities, though in vivo evidence for this proposed function for the mammalian 9-1-1 complex remains limited.

During meiosis, homologous chromosomes pair, synapse, and undergo recombination. The ATR signaling pathway has been proposed to monitor both meiotic chromosomal synapsis and recombination as part of the pachytene DNA damage checkpoint that is believed to prevent cells with unrepaired breaks or synapsis defects from progressing beyond meiotic prophase I. ATR and its activator TOPBP1 localize to unsynapsed autosome cores in zygotene spermatocytes and to the sex body domain during pachytene [24]–[26], where the mostly unsynapsed X and Y chromosomes in males are packaged into a unique chromatin territory [27], [28]. Phosphorylation of histone H2AX to γH2AX, which marks the entire sex body domain, is thought to be ATR-dependent, whereas H2AX phosphorylation at DSB sites on autosomes during leptotene and early zygotene stages appears to depend primarily on another checkpoint kinase, ATM [26], [29]. In the sex body, ATR promotes transcriptional silencing of the X and Y chromosomes in a process termed meiotic sex chromosome inactivation (MSCI) [30], which is required for male fertility [31]. ATR and TOPBP1 also promote meiotic silencing of unsynapsed chromatin (MSUC), a process fundamentally similar to MSCI that functions at sites of autosomal asynapsis during pachytene [24], [25], [30], [32]. MSUC and MSCI require BRCA1 loading at asynapsed chromatin, and both BRCA1 and the HORMA domain-containing protein HORMAD2 must be present at asynapsed axes in order for ATR to be recruited [26], [33]. While TOPBP1 localizes to the sex body and sites of failed autosomal synapsis and is a known ATR activator, it is unclear whether it is strictly required for MSCI and MSUC, and also whether its recruitment is dependent upon the 9-1-1 complex, as during somatic responses to replication stress. The canonical model for mammalian ATR activation predicts a requirement for 9-1-1 in meiotic ATR activation, perhaps after HORMAD2 or BRCA1 loading, although this has remained untested until this study.

Studies in several organisms indicate that the 9-1-1 complex plays critical roles during meiosis, not only for activation of the pachytene meiotic checkpoint in response to DNA damage or synapsis defects [34]–[36], but also in DSB repair. Yeast rad17 (mRad1) mutants exhibit persistent RAD51 foci [37], in addition to increased rates of ectopic recombination and altered crossover frequencies during meiosis [38], and DDC1 (mRAD9) colocalizes with RAD51 [35]. In Drosophila, meiotic DSBs are not repaired efficiently in the absence of Hus1 [39]. Additionally, Spo11-deficient mouse mutants, which lack meiotic DSBs, have reduced Hus1 expression, suggesting that 9-1-1 functions depend upon DSB formation [40]. The same is true for expression of Mre11 and Brca2, which are known to be involved in DSB repair, further supporting the idea that 9-1-1 may function at meiotic DSBs.

The existing evidence from lower eukaryotes, together with reported physical interactions with mammalian DNA repair and meiotic proteins, suggests a possible critical role for the 9-1-1 complex during mammalian meiosis, either through activation of ATR-dependent checkpoint functions or direct roles in DNA repair at damage sites. Although mouse RAD1 has been determined to localize to both synapsed and unsynapsed meiotic chromosomes [41], little is known about the requirements for 9-1-1 complex components in mammalian germ cells because mutation of Rad9, Rad1, or Hus1 results in embryonic lethality [42]–[45]. We addressed this by producing mice with germ cell-specific Hus1 deletion. Two conditional knockout models were generated, utilizing Stra8-Cre expressed in spermatogonia and Spo11-Cre expressed in spermatocytes, and in both cases, Hus1 inactivation in testicular germ cells resulted in persistent meiotic DNA damage, chromosomal defects, and germ cell depletion. Meiotic silencing, on the other hand, appeared unaffected, indicating that HUS1 is dispensable for at least some meiotic ATR functions, including meiotic sex chromosome inactivation. Intriguingly, Hus1 inactivation resulted in complete loss of RAD9 but not RAD1 foci from meiotic chromosomes, suggesting that RAD1 has additional meiotic functions, likely related to the monitoring of unsynapsed chromatin based on its localization pattern. Together, these data indicate that efficient DSB repair, proper maintenance of the sex body domain, and preservation of chromosome integrity during meiosis require HUS1, and additionally highlight novel roles for 9-1-1 components outside of the conventional heterotrimeric complex.

Results

Generation of germ cell-specific Hus1 conditional knockout mice

Several lines of evidence from non-vertebrate organisms suggest that the mammalian 9-1-1 complex, the components of which are highly expressed in mouse and human testis, is likely to be critical for normal germ cell development and completion of meiosis. In order to assess the meiotic functions of the 9-1-1 complex, we generated mice in which the Hus1 gene was conditionally inactivated specifically in testicular germ cells. We combined a conditional floxed Hus1 allele (Figure S1A; [46]) with two Cre-expressing lines, Stra8-Cre and Spo11-Cre. Stra8-Cre mice begin to express the CRE recombinase in spermatogonia [47], which undergo several rounds of mitotic division prior to meiosis, whereas CRE expression in Spo11-Cre mice begins in spermatocytes that have initiated meiosis (Figures S1 and S2; Text S1). We focused our analysis on mice made with Stra8-Cre and used the Spo11-Cre line to confirm our findings and to assess whether defects we observed originated during pre-meiotic or meiotic processes. Hus1 deletion in the testis was confirmed by Southern blot detection of Hus1^Δ2,3, the null allele produced by CRE-mediated recombination (Figures S1C, S1D and S2D). As shown in Figure 1A and Figure S3B, Western blotting of whole testis lysates further confirmed that Hus1 gene deletion using Stra8-Cre resulted in a drastic reduction in HUS1 protein level in the testis. Despite high genomic Hus1 deletion efficiency, the reduction in HUS1 protein levels was more subtle in Spo11-Cre Hus1 conditional knockout (CKO) mice, consistent with expectation that CRE expression from the Spo11 promoter would result in HUS1 loss in a more restricted subset of cells and with delayed kinetics relative to that in mice with Stra8-Cre (Figure S3C). Hus1 loss also led to a significant reduction in total RAD9 and RAD1 protein levels in testes from Stra8-Cre Hus1 CKO animals (Figure S3A, S3B), indicating that the entire 9-1-1 complex was destabilized in the absence of HUS1.

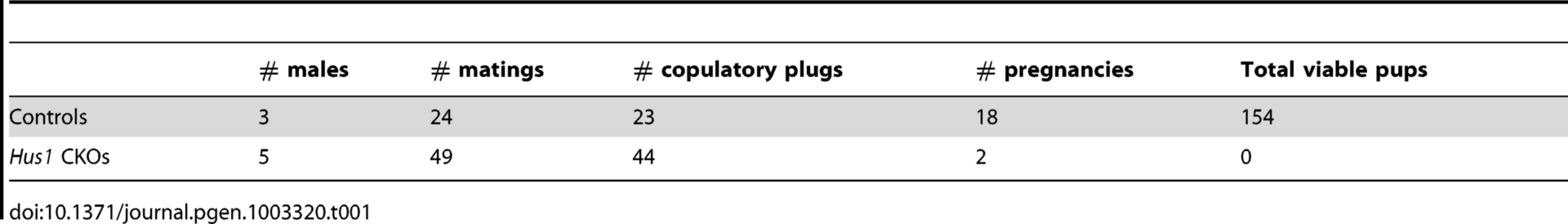

Conditional Hus1 inactivation results in reduced testis size, reduced epididymal sperm count, and severely compromised fertility

In both the Stra8-Cre and Spo11-Cre Hus1 CKO models, Hus1 loss resulted in reduced adult testis size (Figure 1B, 1E). As expected, the phenotype was more severe in Stra8-Cre Hus1 CKOs with earlier Hus1 loss than Spo11-Cre Hus1 CKOs. Testis weights were significantly reduced in Stra8-Cre Hus1 CKO males as early as postnatal day 17 (Figure 1C), raising the possibility of roles for Hus1 during early meiotic and/or pre-meiotic stages, including during spermatogonial DNA replication given the role of 9-1-1 during S-phase in somatic cells [2], [48]–[50]. Spo11-Cre Hus1 CKO males, on the other hand, exhibited normal testis sizes at 17 and 28 days but significantly reduced testis weight in adults (Figure 1F; data not shown), consistent with meiotic defects beginning at the spermatocyte stage when the Spo11 promoter is active. Due at least in part to greater fecundity in the FVB strain background, experimental mice were produced more readily using Stra8-Cre (FVB) compared to Spo11-Cre (129/B6) mice, and we therefore focused our further analysis of meiotic chromosome stability on the Stra8-Cre Hus1 CKO model. As described below, our data indicate that the majority of meiotic phenotypes associated with Hus1 inactivation are similar in both models.

The reduction in testis size in Stra8-Cre and Spo11-Cre Hus1 conditional knockout animals was accompanied by significant reductions in the production of spermatozoa. The number of sperm in the caudal epididymis of 12-week old Stra8-Cre or Spo11-Cre conditional Hus1 knockout males was reduced by approximately 10-fold and 2-fold, respectively (Figure 1D, 1G). To test sperm function in these mice, we mated Stra8-Cre Hus1 conditional knockout males to wild-type female mice. While control matings produced 18 pregnancies and 154 viable pups, 49 matings with 5 different Stra8-Cre Hus1 CKO males produced only 2 pregnancies and no viable pups (Table 1). Overall, we conclude that HUS1 is required for normal spermatogenesis and fertility.

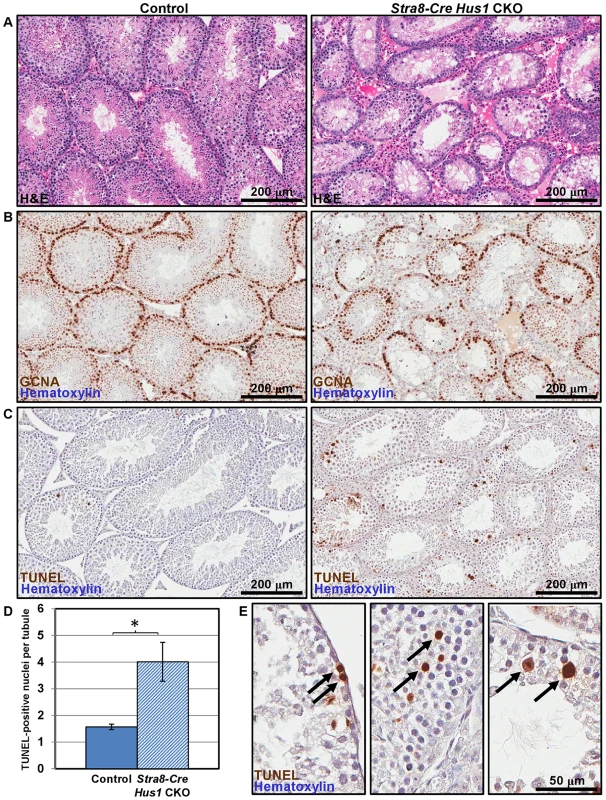

Hus1 loss results in germ cell depletion

To determine the underlying cause of the fertility defects in Hus1-deficient mice, we analyzed testes from Stra8-Cre Hus1 CKO and control animals. As shown in Figure 2A, Stra8-Cre Hus1 CKO adult testes exhibited a marked decrease in tubule size and cellularity, with many tubules lacking spermatogenic cells within the lumen, and an abundance of both pyknotic nuclei as well as multinucleate spermatid giant cells. We additionally performed immunohistochemical staining with GCNA1 antibody to detect germ cells in testis sections. Stra8-Cre Hus1 CKO testes exhibited significant loss of germ cells, including spermatogonia (Figure 2B). To further assess germ cell loss, we utilized TUNEL staining to detect fragmented DNA in Stra8-Cre Hus1 CKO nuclei. Hus1 mutant testes exhibited a significant increase in TUNEL-positive nuclei at both 17 days (Figure S4) and 12 weeks (Figure 2C–2E). Interestingly, a significant proportion of TUNEL-positive nuclei appeared to have progressed beyond pachytene stage to the first meiotic division (arrows, Figure 2E, right panel). 21% of all TUNEL-positive tubules contained apoptotic metaphase cells, although the majority of TUNEL-positive tubules (75%) contained apoptotic cells of a morphology consistent with zygotene/pachytene spermatocytes (Figure 2E, arrows, center panel). Spo11-Cre Hus1 CKO animals, in which Hus1 inactivation occurred later in germ cell development, also exhibited a decrease in testis cellularity and an increase in both multinucleate spermatid giant cells and TUNEL-positive cells (Figure S5). Altogether, these data indicate a requirement for Hus1 and the 9-1-1 complex for germ cell maintenance and development.

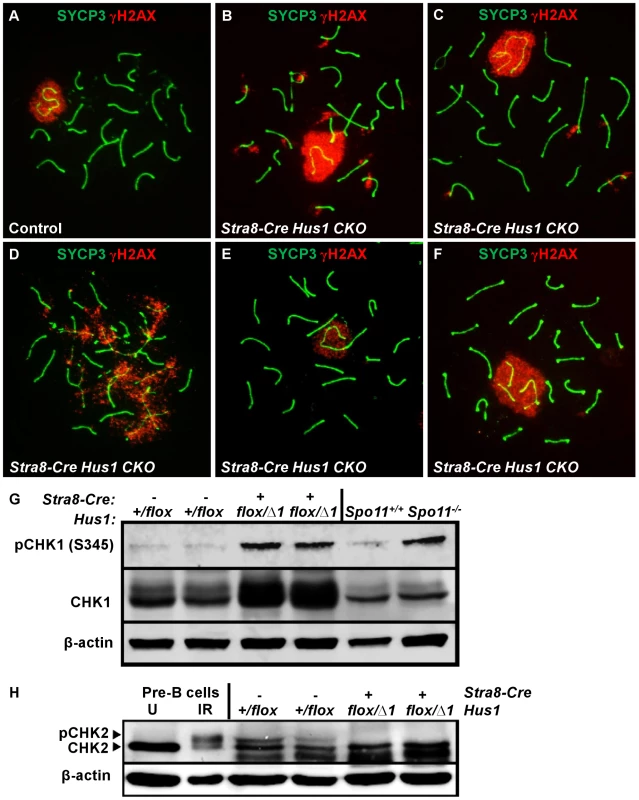

Hus1 loss results in abnormal γH2AX localization and increased CHK1 phosphorylation

Because the 9-1-1 complex protects chromosomal integrity in somatic cells, we hypothesized that germ cell loss in Hus1 CKOs might be due to DNA damage accumulation. We prepared meiotic chromosome spreads and assessed the localization of γH2AX, the phosphorylated form of the histone variant H2AX, by indirect immunofluorescence. γH2AX marks DSBs as well as unsynapsed chromatin, and is phosphorylated by the ATM and ATR kinases [26], [29]. We found that γH2AX staining during leptotene and zygotene, when meiotic DSBs are generated and processed, was similar in Hus1 CKOs and controls. Furthermore, γH2AX localized normally to the sex body domain in pachytene Hus1 CKO spermatocytes (Figure 3), suggesting that ATR-dependent H2AX phosphorylation is independent of HUS1 as is also true during responses to replication stress [51]. However, in Hus1 mutant spermatocytes, the sex body domain marked by γH2AX was enlarged and extended, and often encompassed parts of or entire autosomes (Figure 3B, 3C, 3F). 56% of mutant pachytene spermatocytes showed some type of sex body abnormality (compared to 13% of control nuclei), with 39% of Stra8-Cre Hus1 CKO nuclei having sex body extensions or protrusions and 33% with autosome inclusion (compared to 4% and 9%, respectively, in control spermatocytes; Table 2). Similar phenotypes were also observed in Spo11-Cre Hus1 CKO spermatocytes (Table 2). Autosomes included in the sex body domain often appeared synapsed (based on chromosome number and SYCP3 staining intensity), though asynapsed chromosomes and parts of chromosomes were also included in the sex body, as shown in Figure 3F. Additionally, a substantial number of meiotic nuclei harbored apparent end-to-end fusions between the X chromosome and an autosome (Figure 3E). In such cases, the X and Y chromosomes were synapsed at the pseudoautosomal region (PAR) and were contained within the sex body domain containing γH2AX, while the autosome remained outside of the sex body domain and was devoid of γH2AX. The frequency of X-autosome fusions was significantly increased in Stra8-Cre Hus1 CKO pachytene spermatocytes, from 2% in controls to 12% in CKO mice (p<0.001; Table 2).

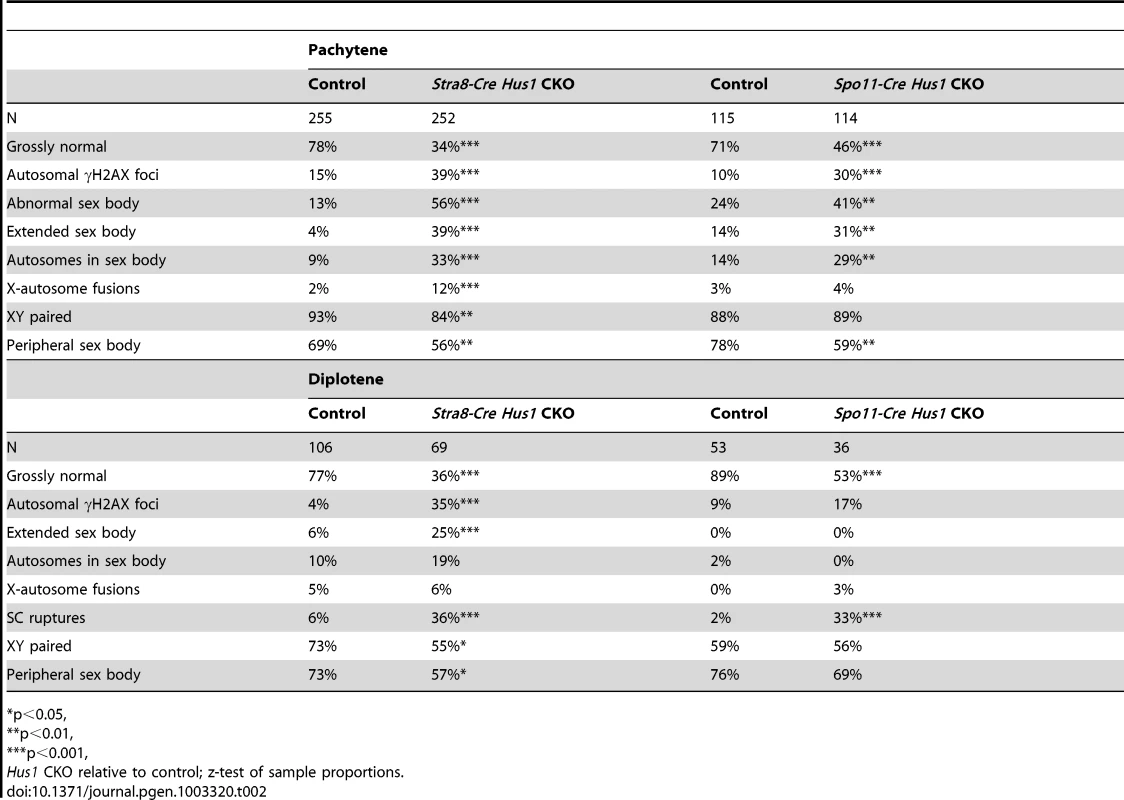

Extended sex body domains marked by γH2AX persisted in diplotene-stage Stra8-Cre Hus1 CKOs (25% of Hus1 CKO nuclei versus 6% of controls; Table 2), indicating that these cells did not arrest at the pachytene/diplotene transition despite chromatin abnormalities. Additionally, the sex body domain in both pachytene and diplotene spermatocytes was located at the nuclear periphery less often in both Stra8-Cre and Spo11-Cre Hus1 CKOs than in controls (Table 2), indicating a perturbation in the normal compartmentalization or localization of the sex chromatin. Although we cannot entirely rule out the possibility that the 9-1-1 complex directly promotes sex body maintenance through stimulation of ATR activity or other roles, we favor the idea that defects in maintenance of sex body integrity following Hus1 loss could instead be related to aberrant responses to meiotic DSBs. In cases where autosomes were asynapsed, clouds of γH2AX surrounded the unsynapsed regions (Figure 3D), supporting the idea that ATR-mediated responses to unsynapsed chromatin remain intact despite Hus1 loss. Consistent with the idea that expanded sex body domains marked by γH2AX reflect upregulation of ATR kinase activity, we also observed that Hus1 loss was associated with increased levels of both total and phosphorylated CHK1 (Figure 3G and Figure S3), the latter being an established indicator of ATR activity in somatic cells [52]. Increased phosphorylated CHK1 was also observed in extracts prepared from Spo11-deficient testes (Figure 3G), which have severe defects in chromosome synapsis.

A significant percentage of pachytene Stra8-Cre Hus1 CKO nuclei exhibited γH2AX staining on fully synapsed autosomes (39% versus 15%, p<0.001; Table 2), generally in a burst-like pattern perpendicular to the synaptonemal complex, indicative of unrepaired DSBs (Figure 3B). This eruption-like pattern of γH2AX staining on Hus1 CKO cores is consistent with previously described γH2AX L-foci [53], which are proposed to be sites of delayed or unregulated DSB repair events, and have been observed in several other meiotic mutants with break repair defects [54]–[56]. A similar pattern of γH2AX staining was observed in Spo11-Cre- and Stra8-Cre-driven Hus1 CKO mice (Table 2), suggesting that many of the persistent breaks originate during meiosis and are not due exclusively to aberrant pre-meiotic replication in the absence of Hus1. The autosomal γH2AX staining in Hus1 CKOs persisted into diplotene (Figure 3C), with 35% of Hus1 mutant nuclei containing bursts of autosomal γH2AX at this stage compared to 4% of control nuclei (Table 2). Persistence of these γH2AX foci into diplotene indicates that homologous chromosomes began to desynapse despite incomplete DSB repair, and that these aberrant spermatocytes did not arrest in the pachytene stage in the absence of Hus1. Consistent with the possibility of impaired DSB-induced DNA damage checkpoint signaling following Hus1 loss, we observed that the phosphorylated form of the DSB-responsive checkpoint kinase CHK2, which was evident in extracts from control testes, was absent in those from adult Hus1 CKO mice (Figure 3H and Figure S3B).

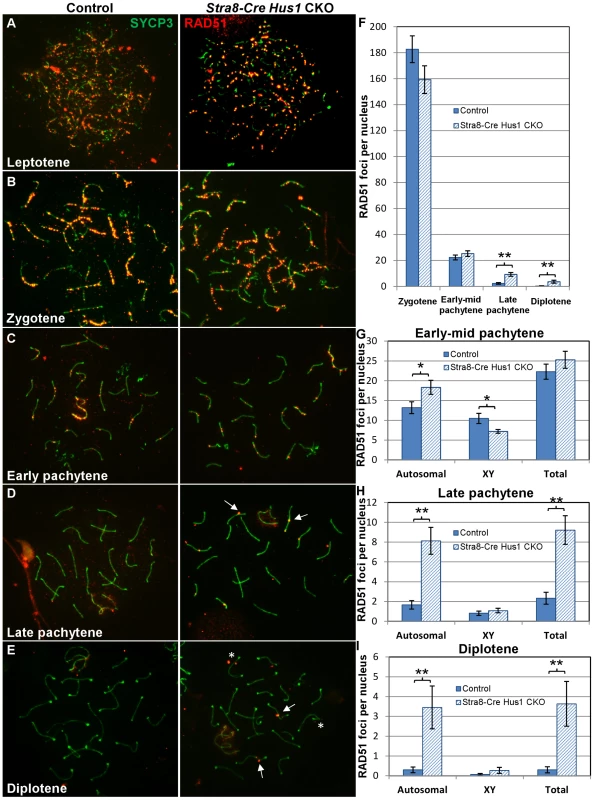

RAD51 foci persist in Hus1-deficient spermatocytes, primarily at sites lacking MLH1

Since increased numbers of γH2AX foci were present on Hus1 CKO meiotic chromosomes, we further investigated whether the RAD51 strand exchange protein accumulated normally on Hus1-deficient chromosomes. During the early stages of meiotic DSB repair in zygotene and early pachytene spermatocytes, RAD51 properly localized to punctate structures along meiotic chromosome cores in the absence of Hus1 (Figure 4A). By late pachytene, when most RAD51 foci are normally lost from autosomal and XY chromosome cores, all Hus1 CKO spermatocytes exhibited persistent localization of RAD51 to the autosomes as well as the X chromosome, indicative of a DSB repair defect (Figure 4C). These foci persisted into diplotene as well (Figure 4D), demonstrating that nuclei with unrepaired DSBs were also able to progress beyond the pachytene stage. RAD51 focus numbers were quantified at each of these stages (Figure 4F–4I), and the number of foci in Hus1 CKO nuclei was significantly increased in late pachytene and diplotene. While the number of persistent RAD51 foci per nucleus was modest, the total number of nuclei with at least one RAD51 focus was high in Hus1 CKOs, at 100% of Hus1 CKO nuclei versus 52% of controls in late pachytene, and 73% of Hus1 CKOs versus 17% of controls in diplotene (Figure 4). Further, the reduction in the frequency of cells with RAD51 foci from 100% to 73% of Hus1 CKO nuclei from late pachytene to diplotene could indicate that Hus1 mutants can repair DSBs, albeit inefficiently in some cases, such that repair is significantly delayed. We conclude that HUS1 is critical for efficient completion of DNA repair at a subset of meiotic DSBs.

To determine whether Hus1 loss alters later stages in DSB repair such as crossover formation, we assessed MLH1 localization in pachytene spermatocytes. The mismatch repair complex MLH1-MLH3 is required for the formation of Class I crossover events, which account for approximately 90% of all meiotic crossovers in mice [57], [58]. Mouse and human RAD9 proteins have been shown to interact with MLH1 [21], although it is unclear whether this interaction is relevant for meiotic crossover recombination or whether it is limited primarily to post-replicative DNA mismatch repair. As shown in Figure S6A, the total number of MLH1 foci per nucleus was not significantly different in Hus1 CKO cells relative to controls, with one to two MLH1 foci per homolog pair. Hus1 CKOs exhibited a mean of 25.4±0.3 MLH1 foci per nucleus, compared to 25.9±0.3 in controls (Figure S6B), suggesting that Hus1 loss does not significantly impair crossover formation. However, a general impairment of meiotic DSB repair in the absence of functional 9-1-1 complex might manifest as only a modest reduction in the number of MLH1 foci per nucleus, as 10% of crossovers are not dependent on MLH1-MLH3 and the majority of meiotic DSBs are repaired as noncrossovers [59]. To determine whether the persistent RAD51 foci observed in Hus1 CKOs were primarily associated with noncrossover or crossover events, we assessed the relative localization of RAD51 and MLH1. As shown in Figure S6C, the majority of persistent RAD51 foci in late pachytene were exclusive of MLH1, though an occasional single RAD51 focus localized at or adjacent to an MLH1 focus. These data indicate that while some meiotic DSBs are not repaired efficiently in the absence of Hus1, these unrepaired breaks consist primarily of MLH1-independent repair events (most likely noncrossovers) but can include MLH1-dependent crossovers.

Since a significant proportion of TUNEL-positive Hus1 CKO germ cells appeared to be in meiotic metaphase, it remained possible that Hus1 CKOs might be deficient in crossover formation, despite the normal complement of MLH1 foci we observed. Thus, we prepared meiotic diakinesis chromosome spreads from control and Hus1 CKO testes to assess chromosome integrity at the end of prophase I, when the SC has disintegrated and chiasmata are first evident. As shown in Figure S6D–S6E, the majority of nuclei had 20 bivalents, indicating that each homolog pair received at least the one obligate crossover necessary for proper chromosome segregation. Taken together, these results indicate that while HUS1 is critical for repair of a subset of meiotic DSBs, it appears to be dispensable for crossover formation.

Hus1 inactivation results in meiotic chromosome defects

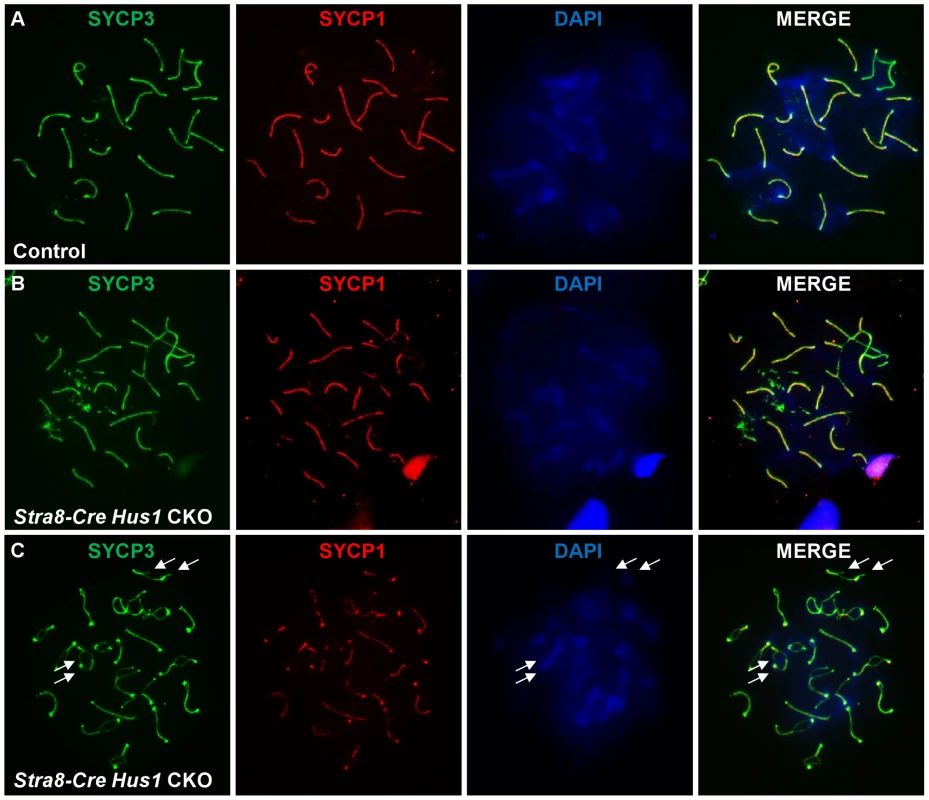

To investigate additional causes for germ cell loss in Hus1 CKOs, we assessed the localization of various meiotic markers on chromosome spreads from control and Stra8-Cre Hus1 CKO males. Meiotic chromosome synapsis appeared normal in most Hus1 mutant nuclei, with colocalization of the synaptonemal complex proteins SYCP1 and SYCP3 in pachytene spermatocytes and the presence of 19 pairs of fully synapsed homologs in addition to the X and Y chromosomes paired at the pseudoautosomal region. However, as shown in Figure 5B, a significant number of Stra8-Cre Hus1 CKO nuclei exhibited synapsis defects, usually involving the X chromosome (14% of Hus1 CKOs versus 3% of controls; N = 161 and 185, respectively; p<0.001). Notably, Hus1 CKOs also frequently displayed ruptures in the synaptonemal complex during diplotene (36% of Stra8-Cre Hus1 CKOs and 33% of Spo11-Cre Hus1 CKOs compared to 2–6% of controls; Table 2). In these cases, there were clear discontinuities in synaptonemal complex protein staining and the ends of the broken SC were spatially separated (Figure 5C, arrows), indicating either a defect in SC integrity or breakage of chromosomal DNA in the absence of HUS1.

TOPBP1 localization and RNA Pol II exclusion from the sex body remain intact in the absence of Hus1

During meiosis, TOPBP1 normally colocalizes with ATR at sites of unsynapsed chromatin, including unsynapsed autosomes in early spermatocytes as well as the XY chromatin throughout prophase I [24], [60]. In mammalian somatic cells, the best characterized function of 9-1-1 is to recruit TOPBP1 to sites of DNA damage, where it physically interacts with and stimulates the kinase activity of ATR [61]–[63]. Therefore, we next tested whether Hus1 loss affected the meiotic localization of TOPBP1. In contrast to the 9-1-1-dependent mechanism elucidated in somatic cells, TOPBP1 localization to the asynapsed sex chromatin was unperturbed in Hus1 CKO mice (Figure 6). Additionally, TOPBP1 localized to autosomes that resided within the sex body domain (Figure 6B, asterisk), and to perpendicular foci on some autosomes in Stra8-Cre Hus1 CKOs (Figure 6C) similar to the γH2AX eruptions described above, indicating that HUS1 loss does not preclude assembly of TOPBP1 on chromatin and results in TOPBP1 localization to abnormal autosomes as well as to unsynapsed sex chromatin.

Because the downstream consequence of ATR action at asynapsed meiotic chromatin is meiotic silencing [30], [32], we also assessed the localization of RNA Polymerase II, which indicates sites of active transcription. Consistent with the apparently normal TOPBP1 localization following Hus1 deletion in germ cells, RNA Pol II immunofluorescence staining revealed no difference in transcriptional silencing of the XY chromatin, as indicated by a similar lack of RNA Pol II signal in the sex body domain of cells from both Hus1 CKO and control mice (Figure 6D, 6E). Together, these results indicate that despite the absence of the HUS1 component of the 9-1-1 complex in Hus1 CKO spermatocytes, TOPBP1- and ATR-dependent responses to unsynapsed chromatin remained intact. These findings raise the possibility that ATR activation in response to at least some signals during mammalian meiosis, such as unsynapsed chromatin, may occur through a distinct mechanism independent of the canonical 9-1-1 complex.

RAD9 localizes to DSB sites on meiotic chromosomes during prophase I

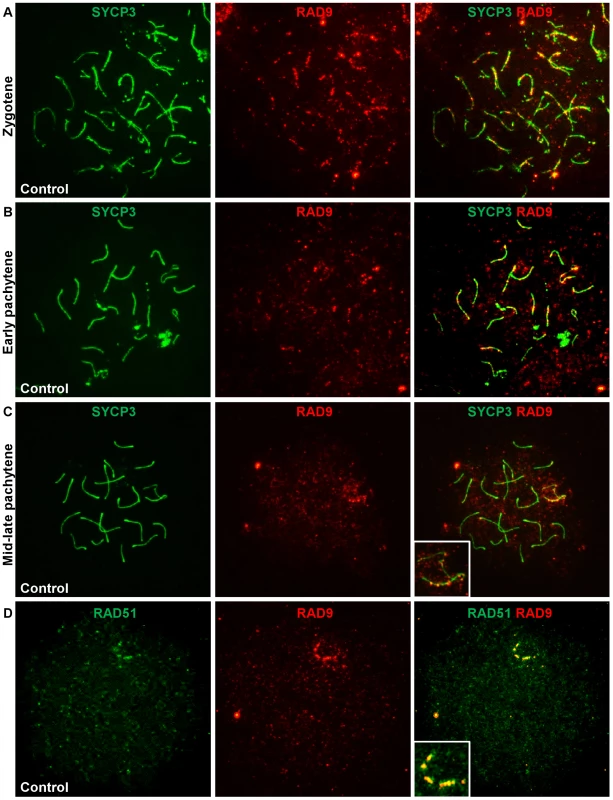

Since Hus1 disruption resulted in chromosomal defects without affecting TOPBP1 localization, we next analyzed RAD9 localization to meiotic chromosomes to gain insights into the normal functions of 9-1-1. As shown in Figure 7A–7C, RAD9 localized to meiotic chromosome cores during prophase I, with many foci on both unsynapsed and synapsed chromosomes during zygotene stage, fewer autosomal foci and prominent X chromosome foci in early pachytene, and even fewer foci by mid- to late-pachytene stage when most staining was confined to bright foci along the X chromosome core. By diplotene stage, RAD9 foci were not detectable on meiotic chromosomes. Thus, the RAD9 subunit of 9-1-1 is appropriately positioned for a potential role in genome maintenance during meiosis.

The pattern and timing of the RAD9 signal on meiotic chromosomes was reminiscent of that of the DSB repair factor RAD51, particularly with respect to its presence at late-persisting breaks along the X chromosome core. To determine whether RAD9 colocalized with RAD51, we simultaneously stained meiotic chromosomes for RAD9 and RAD51. In pachytene-like nuclei, the majority of RAD9 foci colocalized with RAD51 foci, most notably along what is presumably the X chromosome axial element (Figure 7D). Thus, RAD9 appears to localize to DSBs undergoing homologous recombinational repair. To further assess RAD9 function in DSB repair, we also analyzed RAD9 localization in Spo11^−/− mutants [64], which lack meiotic DSBs, and Dmc1^−/− mutants [65], which harbor persistent unrepaired DSBs. As shown in Figure S7, RAD9 staining was much reduced in the absence of meiotic DSBs and elevated in the presence of increased DSBs. Thus, RAD9, and likely its partner HUS1 (see below), function together at meiotic DSBs at a stage overlapping with RAD51/DMC1.

The distribution of RAD9 and RAD1 on meiotic prophase I chromosomes is only partially overlapping

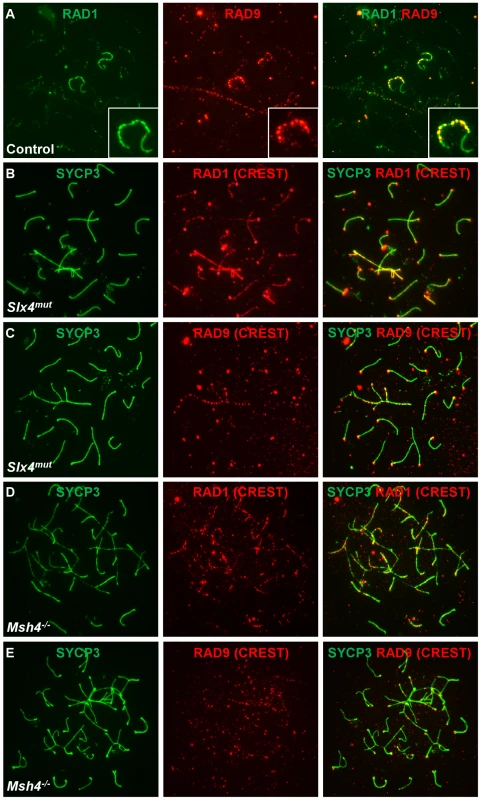

The RAD1 subunit of 9-1-1 was previously determined to localize to meiotic chromosomes, where RAD1 foci outnumber RAD51 foci and nearly continuously coat pachytene chromosome cores, especially along the unsynapsed X and Y [41]. To reconcile this staining with our observations of fewer, more punctate RAD9 foci, we assessed the colocalization of RAD1 and RAD9 subunits in control nuclei. These experiments revealed that RAD1 had a broader distribution than RAD9, with RAD1 foci present along the entire unsynapsed regions of the X and Y while RAD9 was detected primarily in bright foci along the X. Overall, only 23% of RAD1 foci colocalized with RAD9 (16% of autosomal and 46% of XY RAD1 foci colocalized with RAD9). A larger percentage (64%) of RAD9 foci colocalized with RAD1, particularly on the sex chromosomes (52% of autosomal and 86% of XY RAD9 foci colocalized with RAD1). We next assessed both RAD1 and RAD9 localization on abnormal chromosomes in Slx4^mut/mut and Msh4^−/− mutant spermatocytes, which exhibit asynapsis as well as inclusion of autosomes within the sex body domain [55], [66]. Consistent with the co-staining results, RAD1 localized along synapsed autosomal cores and to a greater extent along asynapsed autosomal and XY cores (Figure 8B, 8D). RAD9 on the other hand localized in a more punctate pattern along chromosome cores in the sex body domain and on asynapsed autosomes (Figure 8C, 8E). Together, these results indicate that RAD1 and RAD9 partially colocalize along abnormal chromosomes and the sex chromosome cores, and that a subset of RAD1-containing sites lack RAD9.

Hus1 loss differentially affects the localization of RAD9 and RAD1 on meiotic chromosomes

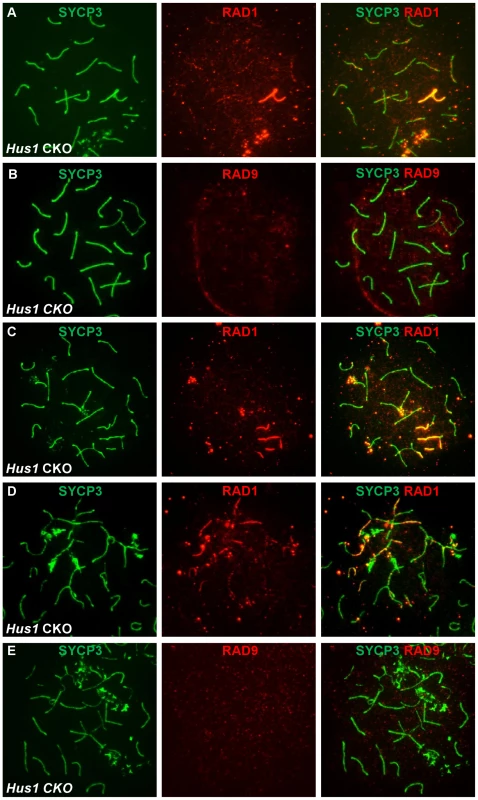

Prompted by the differences in RAD1 and RAD9 localization described above, we next assessed localization of these 9-1-1 subunits in Hus1 CKO spermatocytes. Since the chromatin association and nuclear localization of the 9-1-1 complex in somatic cells requires all three subunits [48], we expected RAD9 and RAD1 to be depleted from chromosomes in the absence of HUS1. However, the more extensive RAD1 staining observed in normal and aberrant spermatocytes suggested a possible separation of functions for the individual subunits. Remarkably, bright RAD1 staining of XY cores as well as punctate staining of autosomes persisted upon Hus1 deletion (Figure 9A). By contrast, RAD9 foci were undetectable in nuclei from Hus1 CKO mice (Figure 9B). Whereas RAD9 staining was readily detected in all control nuclei, approximately 99% of Stra8-Cre Hus1 CKO pachytene nuclei lacked RAD9 foci. The continued presence of RAD1 on meiotic chromosomes following Hus1 loss despite the significant reduction in total RAD1 levels (Figure S3) may indicate that a fraction of RAD1 protein participates in chromatin-associated complexes that remain stable independently of HUS1, while the remaining pool of RAD1 is unstable in the absence of HUS1.

The occasional occurrence of asynapsed homologs and the presence of autosomes within the sex body domain of pachytene Hus1 CKO cells additionally allowed for evaluation of the dependency on Hus1 for RAD9 and RAD1 recruitment to abnormal structures during meiosis. Similar to our observation that the localization of TOPBP1 was unperturbed in Hus1 CKOs, RAD1 clearly localized to autosomes within the vicinity of the sex body domain (Figure 9C) and to asynapsed autosomes (Figure 9D) in the absence of Hus1. The localization of RAD9 on the other hand appeared strictly Hus1-dependent, as RAD9 was not detected on asynapsed chromosomes or sex chromosome cores in Hus1 CKOs (Figure 9E), although it did localize to such structures in Hus1-expressing cells (Figure 7 and Figure 8). Together with the results described above, these data indicate that RAD9 and RAD1 have overlapping Hus1-dependent functions that intersect with RAD51, and that RAD1 has additional meiotic functions that may involve TOPBP1 but are independent of its traditional binding partners, HUS1 and RAD9.

Discussion

In order to examine the role of the 9-1-1 complex during mammalian meiosis, we analyzed mice with germ cell-specific Hus1 deletion and evaluated the localization of the RAD9 and RAD1 subunits to normal and aberrant meiotic chromosomes. Most notably, we report that the RAD9 and RAD1 subunits of the 9-1-1 complex exhibit overlapping yet distinct localization patterns along mammalian meiotic chromosomes and are differentially affected by loss of the HUS1 subunit. RAD1 forms more foci along chromosome cores than RAD9 (this study) or RAD51 [41], and we show that it preferentially localizes to the axial elements of asynapsed chromosomes or autosomes included within the sex body domain in a manner that is independent of Hus1. Previous electron microscopy analysis indicated that while RAD1 localizes to meiotic chromosomes cores, it does not colocalize with DMC1 [41], which is consistent with our finding of RAD1 at asynaptic sites. We show here that only a subset of RAD1 foci colocalize with RAD9, raising the possibility that RAD1 is present both at DSBs, as part of the canonical 9-1-1 complex, and at other chromosomal sites.

We propose a model in which meiotic genome maintenance involves several distinct checkpoint clamp complexes, some of which function in DSB repair, and others of which carry out separate functions, possibly including ATR activation through TOPBP1 in response to asynapsis. Of particular note are the previous findings that the mouse and human genomes contain paralogs of RAD9 and HUS1, termed RAD9B and HUS1B, respectively, that are highly expressed in the testis [67], [68]. Given that RAD1 localized to some chromosomal sites that lacked RAD9 and did so following genetic ablation of Hus1, it is tempting to speculate that RAD9B and HUS1B associate with RAD1 to form an alternative 9-1-1-like heterotrimer, although it remains possible that RAD1 localizes to chromosomes on its own or in conjunction with other cofactors. In this regard, it is worth noting that a substantial portion of RAD1 protein in cultured human cells exists in monomeric form, independent of the heterotrimeric 9-1-1 complex [69]. Overall, our results are consistent with formation of the canonical 9-1-1 complex composed of RAD9, RAD1, and HUS1 at meiotic DSBs, as well as with RAD1 assembling on chromosomes independently of HUS1 and RAD9 in patterns overlapping with TOPBP1 and ATR.

Despite a well-established role for 9-1-1 in ATR activation in somatic cells, we observed unperturbed localization of the 9-1-1-interacting, ATR-activating TOPBP1 protein and similarly no change in RNA Polymerase II exclusion from the XY body domain in Hus1 CKO spermatocytes. These findings indicate that ATR-dependent responses to unsynapsed chromatin, including meiotic silencing via MSUC and MSCI, do not require HUS1, which is in distinct contrast to the canonical model of mammalian ATR activation in which 9-1-1-mediated TOPBP1 recruitment to damaged DNA allows TOPBP1 to contact and activate ATR. Since RAD1 localization to asynapsed meiotic cores was also unperturbed in the absence of Hus1, it is possible that a RAD1-containing complex functions along with TOPBP1 to activate ATR at such sites, in a manner that may be at least in part distinct from established mechanisms for 9-1-1 loading and function at DNA damage sites. The meiosis-specific HORMAD1 and HORMAD2 proteins are required for ATR recruitment to sites of unsynapsed chromatin [33], [70], and together with BRCA1, which is also required for ATR recruitment [26], these proteins could provide an alternative mechanism for ATR activation that is independent of 9-1-1 and typical substrates for 9-1-1 loading. We favor the idea that alternative complexes involving RAD1 and possibly RAD9B and HUS1B might engage in a 9-1-1-like interaction with TOPBP1. It remains to be determined whether the recruitment of such a complex to asynaptic sites is facilitated by particular DNA structures or binding partners that would not attract conventional 9-1-1 complexes.

Conditional Hus1 deletion in germ cells resulted in numerous chromosomal defects, including asynapsis, unrepaired meiotic DSBs, X-autosome end-to-end fusions, autosomes incorporated into the sex body domain (which presumably are inappropriately transcriptionally silenced), and SC ruptures. We propose that some of these defects (asynapsed chromosomes, X-autosome fusions, and autosomes incorporated into the sex body domain) lead to loss of cells during the pachytene stage in Hus1 CKOs, consistent with an absence of cells with such abnormalities in diplotene (Table 2), whereas other defects (unrepaired DSBs, extended sex body domains, and SC ruptures; Table 2) either may not be actively monitored or may normally require HUS1 for checkpoint-dependent clearance and therefore persist beyond pachytene into diplotene in Stra8-Cre Hus1 CKOs. The latter set of phenotypes was less prominent in Spo11-Cre Hus1 CKO mice, with fewer defective cells persisting into diplotene, suggesting that HUS1-dependent checkpoint monitoring may be an earlier function that is less affected by mid-prophase I loss of Hus1. Notably, SC ruptures were still prominent in diplotene cells of both Stra8-Cre and Spo11-Cre Hus1 CKOs, affecting one-third of the diplotene cell population. Thus, HUS1 is required for some aspect of chromosome integrity that affects the SC, the failure of which may contribute to the high level of metaphase germ cell loss. This SC rupture phenotype (Figure 5C; Table 2) is particularly striking and may be a key driver of the fertility defect observed following Hus1 loss, as no significant change was observed in the number of MLH1 foci in Hus1 mutant pachytene spermatocytes or in the number of bivalents seen at diakinesis (Figure S6). The molecular cause of the SC rupture defect remains unresolved, although it could be related to incomplete repair of meiotic DSBs.

It is still unclear why Hus1 CKO cells have a small number of persistent DSBs, and why many of these are associated with death at metaphase I. Perhaps the 4–8 remaining unrepaired breaks are not sufficient to trigger the pachytene checkpoint (or cannot, due to a requirement for HUS1), but lead to a defect that is recognized at metaphase by the spindle checkpoint. It is possible that the persistent breaks are not simple D-loop intermediates containing RAD51 and γH2AX, but are complex multi-chromatid intermediates, such as those seen in Blm/Sgs1 helicase mutants [71], [72]. The symmetrical RAD51 foci seen on either side of the chromosome cores in 9% of diplotene nuclei from Hus1 CKOs (see Figure 4, asterisks) would support this, pointing to RAD51/DMC1 presence on more than one homolog during homolog separation. Clearly, the extent of the DNA repair defect in Hus1 CKO mice is less severe than that observed in other meiotic mutants. For instance, Trip13 mutant spermatocytes have been reported to exhibit between 99 and 138 RAD51 foci during pachytene compared to 11–18 foci in controls [54], [73], whereas we observed an average of 25 RAD51 foci in early to mid-pachytene Hus1 CKOs (compared to 22 foci in controls) and 9 RAD51 foci in late pachytene (compared to 2 foci/nucleus in controls). These results are consistent with the idea that HUS1 has a relatively late and restricted role in DSB repair, perhaps related to the completion of a subset of late recombination events.

The persistent γH2AX and RAD51 foci on Hus1-deficient meiotic chromosomes as well as the colocalization of RAD9 with RAD51 on normal chromosomes suggest that the 9-1-1 complex is critical for the efficient repair of a subset of meiotic DSBs. Several lines of evidence in somatic cells also indicate that 9-1-1 functions directly in homologous recombination (HR) repair of DSBs. In human cells, 9-1-1 is reported to physically interact with RAD51, and Rad9 knockdown results in reduced HR [7]. In a separate system using human cells with conditional Rad9 repression, RAD9 enhances survival and DNA repair in response to ionizing radiation [74], and similarly, mouse Rad9^−/− ES cells are sensitive to γ-irradiation [43]. Reducing Hus1 expression in mouse cells via siRNA also decreases the efficiency of HR repair [75]. In contrast to the situation in yeast where 9-1-1 is proposed to be important for the loading or assembly of RAD51 complexes onto meiotic chromosomes [37], we propose that mammalian 9-1-1 may be important for later steps of meiotic recombination, since we did not observe delayed loading of RAD51, and RAD51 foci persisted in the absence of Hus1. Among the known 9-1-1 binding partners are DNA ligase I [13] and DNA Polymerase β [9], [10], the latter of which is known to play critical roles during mammalian meiosis [76], [77], raising the possibility that 9-1-1 may recruit Pol β and DNA ligase to recombination intermediates to complete repair. Alternatively, interactions between the 9-1-1 complex and translesion synthesis polymerases [8], which have been implicated in HR in somatic cells [78]–[80], could promote the extension of the 3′ ends subsequent to RAD51-mediated strand exchange. The requirement for 9-1-1 could be accentuated due to unique features of genome maintenance in meiotic cells. For instance, non-homologous end joining, a major mechanism for DSB repair in somatic cells, is suppressed during meiosis [29], [81]. In addition, the unique structure of SPO11-induced meiotic DSBs may create a greater demand for 9-1-1 complex-mediated repair functions than a typical mitotic DSB. The repair of most meiotic DSBs occurred normally in the absence of HUS1, suggesting that the 9-1-1 complex may be necessary to deal with only a subset of breaks, perhaps ones that prove difficult to repair because of the sequence context, chromatin structure, or other factors.

The production of haploid gametes during meiosis clearly raises challenges for genome maintenance, many of which are distinct from those in somatic cells. Based on the findings reported here, we propose that mammalian 9-1-1 components have acquired specialized roles during meiosis, with the canonical RAD9-RAD1-HUS1 complex functioning at DSBs and an alternative RAD1-containing complex functioning at sites of asynapsis. The mouse models described here represent powerful systems to elucidate how the mammalian 9-1-1 complex promotes meiotic chromosome integrity, in some cases distinct from the well-established roles of 9-1-1 in TOPBP1- and ATR-dependent checkpoint signaling, and highlight the intriguing possibility of alternative checkpoint clamps functioning in various capacities in the mammalian germline.
