Aberration in DNA Methylation in B-Cell Lymphomas Has a Complex Origin and Increases with Disease Severity

Summary

Despite mounting evidence that epigenetic abnormalities play a key role in cancer biology, their contributions to the malignant phenotype remain poorly understood. Here we studied genome-wide DNA methylation in normal B-cell populations and subtypes of B-cell non-Hodgkin lymphoma: follicular lymphoma and diffuse large B-cell lymphomas. These lymphomas display striking and progressive intra-tumor heterogeneity and also inter-patient heterogeneity in their cytosine methylation patterns. Epigenetic heterogeneity is initiated in normal germinal center B-cells, increases markedly with disease aggressiveness, and is associated with unfavorable clinical outcome. Moreover, patterns of abnormal methylation vary depending upon chromosomal regions, gene density and the status of neighboring genes. DNA methylation abnormalities arise via two distinct processes: i) lymphomagenic transcriptional regulators perturb promoter DNA methylation in a target gene-specific manner, and ii) aberrant epigenetic states tend to spread to neighboring promoters in the absence of CTCF insulator binding sites.

Introduction

Follicular lymphomas (FLs) and diffuse large B-cell lymphomas (DLBCLs) are the most common non-Hodgkin lymphomas [1]. Follicular lymphomas represent a spectrum from low- to high-grade tumors and, while predominantly diagnosed as indolent tumors, progress to more aggressive lymphomas like DLBCL over the course of several years [2]. DLBCLs are high-grade tumors that are sub-classified based on gene expression profiling into a typically chemo-responsive germinal center B-like (GCB) subtype and a more refractory activated B-like (ABC) subtype (Figure 1A) [3]. Although FL and DLBCL have markedly distinct clinical phenotypes, they both originate from mature B-cells transiting the germinal center (GC) reaction. When resting naïve B-cells are activated by exposure to T-cell dependent antigens, they migrate within lymphoid follicles and initiate massive clonal expansion while simultaneously undergoing somatic hypermutation and class switch recombination. Genetic defects arising as a byproduct of this immunoglobulin affinity maturation process are believed to give rise to FLs and DLBCLs [4]. Consistent with this hypothesis, genomic resequencing studies identified a large number of mutations occurring in FL and DLBCL. While it is known that FLs accumulate new mutations as they progress, the underlying cause of the different phenotype of de novo FL and DLBCL, which share many of the same mutant alleles, remains unclear. Emerging data suggest that epigenetic gene regulation through cytosine methylation is perturbed in FLs and DLBCLs, yet very little is known about how aberrant DNA methylation contributes to the disease phenotype, the genomic features of epigenetic defects in these tumor types, and mechanisms through which these defects occur. Recently we demonstrated that DNA methylation patterning plays a key role in hematopoietic development [5] and that DNA methylation and expression signatures define molecular subtypes of diffuse large B-cell lymphomas [6]. Here, we hypothesized that direct comparison of DNA methylation patterning in normal B-cells, FLs and DLBCLs would provide clues about gene deregulation during lymphomagenesis and explain the nature of the different clinical behavior of these lymphoma subtypes.

Results/Discussion

DNA methylation heterogeneity is associated with increasing disease aggressiveness

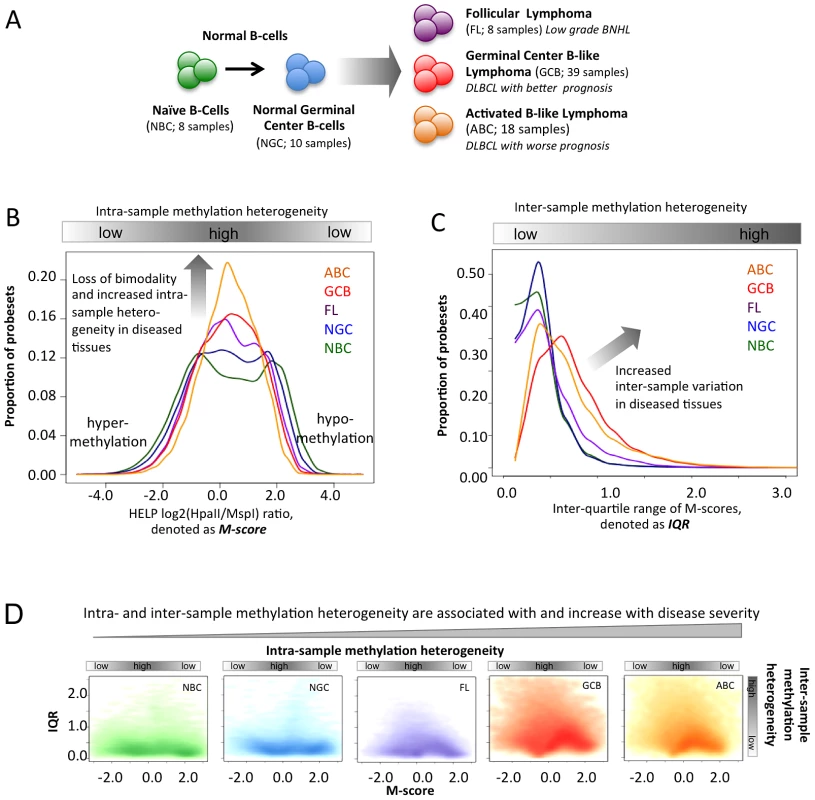

We examined the DNA methylation profiles of normal naïve B-cells (NBC, 8 samples), normal germinal center B-cells (NGC, 10 samples), follicular lymphomas (FL, 8 samples), germinal center B-like DLBCLs (GCB, 39 samples), and activated B-like DLBCLs (ABC, 18 samples) (Figure 1A, Methods and Text S1, Module 1; ) using the HELP assay [7] and custom-designed NimbleGen microarrays with probesets representing >50,000 CpGs corresponding to regulatory regions of roughly 14,000 human genes. In the HELP assay, the normalized array signal intensity corresponds to the degree of methylation associated with each probeset (Methods, [6], [8]). For any given probeset, a positive or negative normalized signal intensity indicates that the respective CpGs are either unmethylated or methylated (Figure S4). In contrast, intermediate probeset signal intensity indicates that a fraction of cells within the sample are unmethylated while others are methylated, thus reflecting the heterogeneity of methylation. We performed technical validation for the HELP array and validated DNA methylation profiles of six DLBCL samples using orthogonal base-pair resolution quantitative bisulfite sequencing based assays: ERRBS and MassARRAY assays (Text S1, Module 1 and Figures S5, S6, S7, S8). Overall mapping of probesets according to their positions along the human chromosomes indicated that sites of hypo- and hyper-methylation were distributed across all chromosomes in both normal and lymphoma samples (Text S1, Module 1, and Figure S9). However, we noted a higher abundance of intermediate methylation states in lymphomas and hypothesized that epigenetic heterogeneity might contribute to the clinical features of the disease.

In order to address this question we derived two parameters:

• The “M-score”, a measurement of intra-sample DNA methylation heterogeneity. The M-score specifically reflects the degree of methylation at a given probeset and thus the uniformity with which specific CpGs are methylated or unmethylated; an intermediate score (around zero) reflects the presence of balanced hypo- and hyper-methylated CpGs within the cells of a sample and thus high intra-sample variation (Figure 1B).

• The inter-quartile range (IQR) of the M-score, a measurement of inter-sample heterogeneity, derived from comparing the differences in signal intensity of given probesets across different samples of the same normal or tumor cell type. The IQR reflects the extent of inter-sample methylation variation by measuring the spread of the distribution of M-scores (Figure 1C).

Using these indicators for normal cell types, we observed a strong bimodal distribution of probeset intensities, indicating that the vast majority of gene promoter CpGs were predominantly either unmethylated or methylated within the cells of a sample, as represented by the two modes at positive or negative M-scores, respectively (Figure 1B). This observation is consistent with previous studies noting the bimodality of DNA methylation distributions in normal tissues [7], [9]. In contrast, the distribution of DNA methylation in lymphoma samples was significantly different from those of normal cells (Figure 1B; Kolmogorov-Smirnov test between pairs of normal and lymphoma samples; FDR corrected p-value<2.2×10⁻¹⁶). All lymphoma subtypes showed a significantly greater proportion of probes with an intermediate M-score, indicating increased intra-sample variation, and most notably, such variation increased progressively from FL to GCB to ABC DLBCLs. This intra-sample variation was not due to sample purity, which was high for both lymphoma and normal (NBC, NGC; >90% purity) samples as confirmed by flow cytometry, and was not accounted for by differences in cellularity among the samples [10] (Text S1, Module 1). In order to prove that intra-sample variation is an inherent feature of neoplastic transformation, rather than a technical artifact or a result of a confounding biological factors, we performed analysis controlling for (i) copy number variations using SNP data (Figure S1), (ii) sample purity using % purity data (Figure S3), (iii) exclusion of low signal-to-noise ratio probes from the analysis (Figure S4), (iv) differences in mitotic rate using cell line data with known doubling times (Figure S11; Table S2), and (v) potential age differences between controls and DLBCL patients (Figure S12). Finally, we validated the observation of increasing intra-sample heterogeneity in DLBCLs using the MassARRAY and ERRBS orthogonal assays, which supported our findings (Text S1, Module 1, and Figures S5, S6, S7).

Likewise, we then found that the IQR values, which represent inter-sample variation, were small in normal B-cell controls, but again progressively increased in FL and the GCB and ABC subtypes of DLBCL (Figure 1C; Mann-Whitney test between pairs of normal and lymphoma tissues; FDR corrected p-value<2.2×10⁻¹⁶). We also obtained consistent results using alternative approaches to profile methylation changes as well as an alternative definition of inter-sample variation (Text S1 Module 1, Figure S10). Since higher-grade lymphomas are known to display genomic instability, we verified that the observed differences in methylation in lymphomas were not due to gain or loss of genomic material by controlling for copy number alterations using SNP data from the same patients (Text S1, Module 1, and Figure S1). Variability was also independent of whether the probes were localized in CpG islands or not (Text S1, Module 2; Figure S13). We found that the promoter regions with high CpG density usually were more hypo-methylated than others, as observed using both HELP and ERRBS assays, but that the CpG density did not affect patterns of inter-sample variation (Text S1, Module 2; Figures S14, S15 S16). Notably, the probes with high intra-sample variation (i.e., M-scores near zero) were also likely to have high inter-sample variation (i.e., high IQR) in normal and lymphoma samples (Figure 1D); this finding is consistent with the identification of variable CpGs in solid tumors [11].

In summary, since FLs are diagnosed most often as indolent tumors while GCB and ABC DLBCLs have progressively worse prognosis, our findings suggest that the extent of intra-and inter-sample variation in DNA methylation increases with disease aggressiveness. Based on our cell line data (Text S1, Module 1, and Figure S11) it is unlikely that the greater epigenetic heterogeneity in more aggressive tumors is a reflection of higher proliferative rates that lead to stochastic variation in the DNA methylation distribution. Alternatively, heterogeneity could be related to loss of function of specific epigenetic regulators that normally tightly control DNA methylation patterns. Either way, epigenetic diversity could foster the survival of subpopulations of lymphoma cells after exposure to cytotoxic drugs, thus contributing to the greater risk of relapse in ABC DLBCLs. We found that DNA methylation diversity initiates within NGC, which are more heterogeneous than NBCs (Figure 1B–1D), which is consistent with recent findings [10]. All three lymphoma subtypes originate via different molecular and likely epigenetic mechanisms from a common precursor – germinal center B-cells. Each subtype is characterized by a different extent of epigenetic heterogeneity, which likely reflects different mechanisms of lymphomagenesis. Epigenetic diversity might then cooperate with somatic mutations in predisposing NGC towards malignant transformation.

The patterns of aberrant DNA methylation predict patient survival

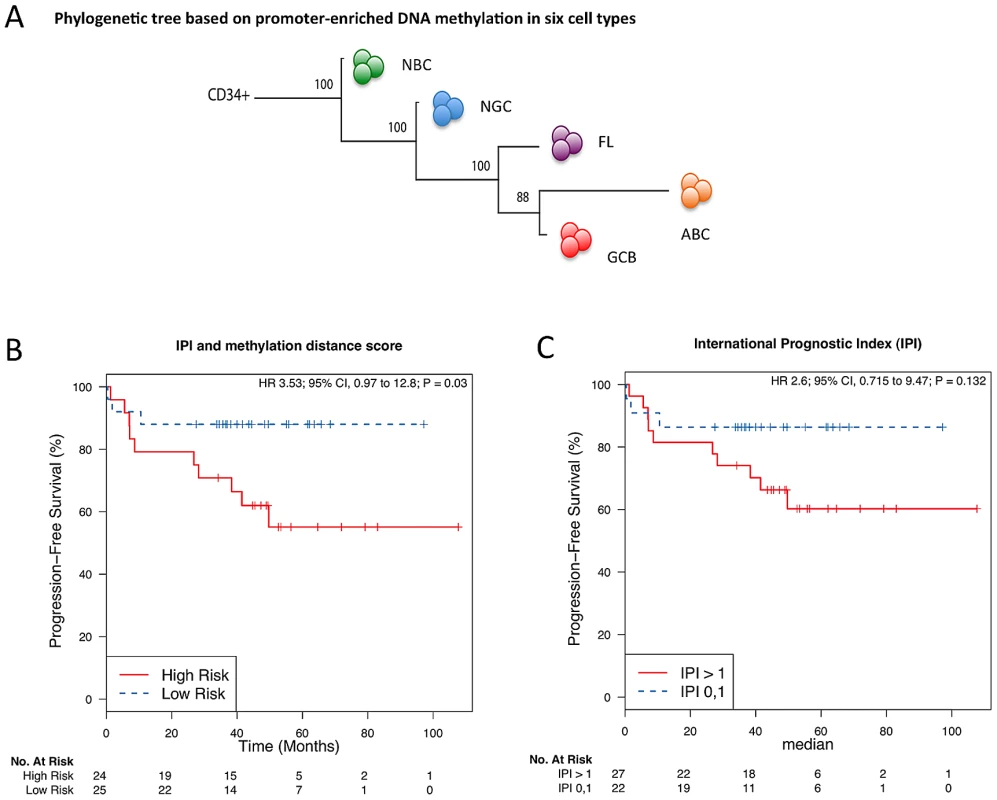

It is not known whether alterations in DNA methylation patterning are associated with clinical outcome in lymphomas. Using a phylogenetic clustering approach [12], which arranges samples according to their distance in methylation patterning from that of undifferentiated cells, we found that genome-wide DNA methylation undergoes progressive changes from bone marrow CD34+ hematopoietic progenitor cells to NBC and NGC, FL and then DLBCL (Figure 2A). This finding reflects the ontogeny of normal B-cell development, the origin of B-cell lymphomas in NGC, and the increased aggressiveness of DLBCL subtypes. We then performed a Kaplan-Meier analysis using a methylation heterogeneity score derived from the distances of the methylation pattern of each tumor to that of the methylation pattern of NGC (Text S1, Modules 1 and 3; Figures S18, S19; Tables S3, S4). Cox models incorporating the International Prognostic Index (IPI) [13] and methylation heterogeneity score as covariates were then utilized for stratification of patients into high- and low-risk groups, depending on whether their estimated risk scores were above or below the cohort median. Analyzing the GCB and ABC samples together, we found that the methylation heterogeneity score improved the concordance [14] of the predictions of the IPI from 0.64 to 0.7 (ΔC 0.06; 95% CI −0.08–0.20; Text S1, Module 3) and yielded a significant risk stratification (HR = 3.85, p<0.03; Figure 2B). Thus, we found that the extent of aberrant methylation, as measured by the distance of a patient sample in terms of its methylation patterning from that of normal B-cells, is a significant predictor for survival: disease types with high intra-sample methylation variation have a poor prognosis and short survival while disease types with low intra-sample methylation variation have a good prognosis and long survival. Increased epigenetic heterogeneity may reflect the presence of diverse tumor cell populations in the patient, which in turn increases the risk of resistance and of the emergence of more aggressive clones, thus leading to poor prognosis. In a complementary analysis, we grouped the FL samples according to grade and found that DNA methylation patterning becomes increasingly heterogeneous with an increase in disease severity in FL (Text S1, Module 3; Figure S20). Taken together, our results demonstrate that the landscape of epigenetic DNA modifications is associated with the degree of neoplastic transformation and aggressiveness of a tumor.

Aberrant cytosine methylation patterning is dependent on chromosomal regions and local gene density

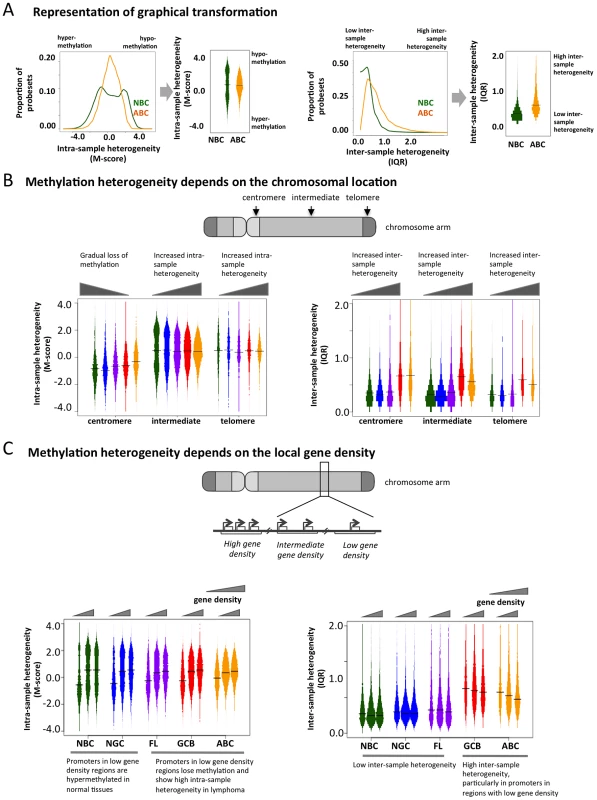

To determine whether genomic features direct the aberrant cytosine methylation distribution in lymphomas, we examined DNA methylation diversity at the chromosomal regional level. In order to facilitate the visualization of intra-sample (M-scores) and inter-sample (IQR) heterogeneity in DNA methylation, we transformed the histograms shown in Figure 1B and 1C into a “violin” plot format (Figure 3A). Chromosomes were separated into telomeric, centromeric, and intermediate regions. We observed that centromeric regions were hyper-methylated in normal cells but exhibited a gradual loss of methylation in lymphomas (Figure 3B). Intermediate chromosomal regions displayed increasing intra-sample variation with disease severity, i.e. NBC<NGC<FL<GCB<ABC (p-value for NBC-FL, NBC-GCB and NBC-ABC pairs<2.2×10⁻¹⁶; Kolmogorov-Smirnov test), suggesting that much of the heterogeneity observed in the initial analysis is localized in these regions. All three regions displayed an overall tendency towards greater inter-sample variation in lymphoma cells compared to normal cells throughout all three chromosomal regions. These results were also validated using the ERRBS assay (Text S1, Module 2; Figure S17).

To investigate whether disruption of cytosine methylation is associated with gene density, we divided the genome into non-overlapping windows classified as gene-rich, intermediate, or gene-poor (Methods section). We found that in normal B-cells, gene-rich regions displayed a bimodal methylation pattern, while gene-poor regions were mostly hyper-methylated. This distribution was perturbed in lymphomas, which exhibited increased intra-sample variation in gene-rich regions, while gene-poor regions displayed progressive hypo-methylation compared to normal B-cells (Figure 3C). Inter-sample variation was low in normal cells in both gene-poor and gene-dense regions, but significantly increased in the lymphoma subtypes for both categories (FL: p-value<1×10⁻³, GCB and ABC: p-value<1×10⁻¹⁰; Mann Whitney test). Our findings were robust even after excluding centromeric and telomeric regions (Text S1, Module 4; Figure S21). Taken together, our results show that abnormal methylation patterns in lymphoma samples depend on chromosomal regions and local gene density. This differential aberration in gene-poor versus gene-rich areas suggests that these changes are not random, but are directed by genomic or epigenomic modifiers.

Aberrant DNA methylation patterning spreads locally between genes but is limited by CTCF

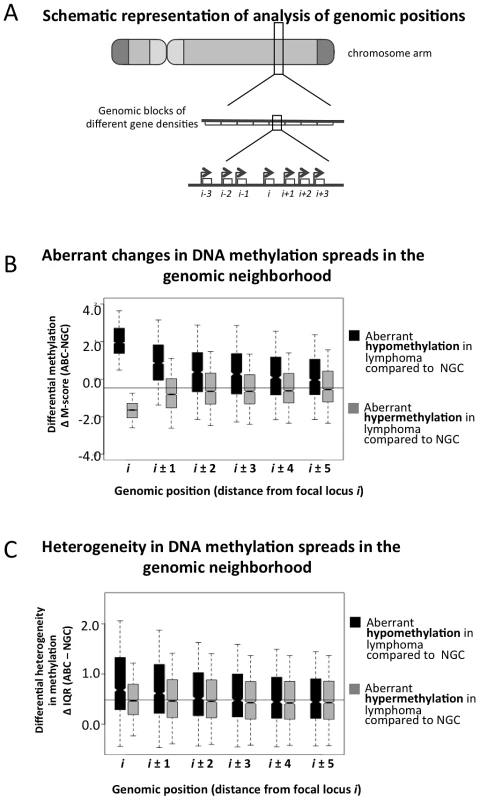

We next focused at the level of specific genes and their impact on DNA methylation of neighboring genes (Figure 4A). We found that 3,414 and 2,044 probesets were significantly hyper- and hypo-methylated in ABC vs. NGC specimens, respectively (FDR-corrected p-value<5.0×10⁻³, Text S1, Module 5). For each of these hypo- and hyper-methylated promoters (denoted as “i” in Figure 4A and 4B), we investigated their neighboring promoter probesets (“i+1”, “i−1”, “i+2”, “i−2” up to “i−5” and “i+5”). For both hyper- and hypo-methylated promoter probesets, we found that their neighboring promoter probesets also displayed a change in methylation in the same direction (Figure 4B), and that this effect weakened with increasing distance, i.e. decayed from i+1 (or i−1) to i+5 (or i−5). Therefore, when a promoter displayed aberrant hypo- or hyper-methylation in lymphoma samples, their neighboring promoters were also likely to follow a similar trend. For instance, when the i-th promoter probeset was aberrantly hypo-methylated (ΔM-score>0), then the i±1 (i.e. i+1 and i−1) promoter probesets were also significantly aberrantly hypo-methylated (ΔM-score>0; p-value: 4.56×10⁻⁵); and when the i-th promoter probeset was aberrantly hyper-methylated (ΔM-score<0), then the i±1 positions were also significantly aberrantly hyper-methylated (ΔM-score>0; p-value: 3.11×10⁻³). This effect was stronger for hypo-methylated loci. For instance, when the i-th probeset was aberrantly hypo-methylated (ΔM-score>0), then the s±5 (i.e. i+5 and i−5) positions were also significantly aberrantly hypo-methylated (ΔM-score>0; p-value: 3.01×10⁻³), but the effect was not significant in the case of aberrant hyper-methylation (ΔM-score<0; p-value>0.05 at i±5 positions). We then found that the aberrantly hypo-methylated promoters, but not the hyper-methylated ones, generally displayed a greater extent of inter-sample variation among ABC lymphomas (Figure 4C). Our results were similar for the other lymphoma subtypes (Text S1 Module 5; Figures S22 and S23), and at par with published reports that local DNA methylation and histone modification (H3K9me3) patterns spreads to neighboring regions. [15]–[17] Thus it is likely that abnormal promoter methylation, especially hypo-methylation, tends to spread to neighboring promoters along the chromosomes; however, at this stage we cannot rule out other possibilities.

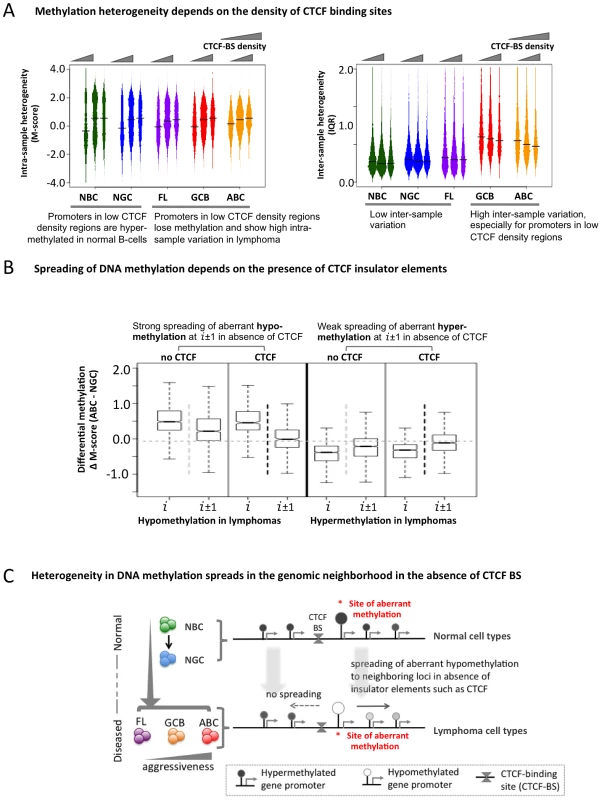

The transcriptional repressor CTCF contributes to the organization of chromatin domains and the spatial delimitation of epigenetic marks [18]. Hence, we investigated whether CTCF was associated with the DNA methylation status of genes in normal and lymphoma cells. Overlaying published genome-wide CTCF ChIP-seq data [18], [19], we found that promoters in CTCF-binding site (BS)-poor regions were usually hyper-methylated in normal B-cells, but hypo-methylated in lymphomas (FL, GCB and ABC) (Figure 5A–5B). There was little inter-sample variation in normal cells regardless of the density of CTCF binding, whereas in the lymphoma subtypes, CTCF-BS-poor regions displayed significantly greater inter-sample variation than CTCF-BS-dense regions (p-value for NBC: 1.040×10⁻⁶; NGC: 6.656×10⁻⁷; FL: 2.9×10⁻¹³; GCB: 1.367×10⁻¹¹; ABC: <2.2×10⁻¹⁶, Mann Whitney test). Our findings were robust even after excluding centromeric and telomeric regions (Text S1, Module 6; Figure S24). These data suggest that CTCF-BS-poor regions are more susceptible to epigenetic deregulation.

Since CTCF can establish boundaries between genomic regions, we tested whether it might affect DNA methylation spreading between loci and whether this function was perturbed in lymphomas. We divided the probesets into two groups: those in which neighboring promoter probesets were separated by at least one CTCF-BS, and those in which neighboring promoter probesets were not separated by any CTCF-BS. First, focusing on the promoters hypo-methylated in ABC versus NGC, we found that promoter pairs not containing intervening CTCF–BS displayed greater spreading of aberrant hypo-methylation from one promoter (probe set i) to the neighboring promoters (probe sets i+1 and i−1) compared to those that had one or more intervening CTCF-BS (Figure 5B, comparing probe sets i+1, i−1 between the two groups, p-value = 2.2×10⁻⁸, Mann Whitney test). In contrast, we did not observe any impact of CTCF on genes with hyper-methylation in DLBCL (Figure 5B, p-value>0.05 at probesets i±1, Mann Whitney test). We obtained similar results for the FL and GCB samples and using the ERRBS assay instead of the HELP assay data (Text S1, Module 6; Figures S25, S26). Thus, CTCF is suspected to play a gatekeeper role in the spreading of aberrant hypo-methylation among genes in DLBCL (Figure 5C), although more work is necessary to rule out other possibilities.

Lymphomagenic regulatory proteins contribute to aberrant DNA methylation patterning in DLBCL

We then investigated potential factors associated with the abnormal DNA methylome in lymphomas. We first investigated whether in general, there was an association between promoter methylation status and the expression of the same gene and found a positive correlation (Text S1, Module 7), which suggests that genes with a loss of promoter methylation were likely to experience increased expression. We then obtained genomic localization data, detected by genome-wide CHIP-chip or CHIP-seq studies, of four master regulators of lymphoid differentiation and lymphomagenesis: BCL6 [20], EZH2 [21], MYC (newly reported herein), and AICDA [22], and overlaid promoter methylation information (Text S1, Module 7; Figures S27, S28, S29). BCL6 is a transcriptional repressor that is expressed in NGCs and also in most DLBCLs and FLs [23], and its constitutive expression is known to drive malignant transformation of NGCs [24]; EZH2 is a Polycomb repressor protein also expressed in NGC [25] that is highly expressed in most DLBCLs [26] and is sometimes targeted by gain of function mutations [27]; and the MYC oncogene, is aberrantly expressed in DLBCLs, often through chromosomal translocations [20], [28]. AICDA is a cytosine deaminase that mediates single- and double-strand DNA breaks during somatic hypermutation and class switch recombination [29]. We first investigated the extent of change in the DNA methylation status of the BCL6 and MYC loci, including the surrounding genes, in lymphoma samples compared to that in the NBC samples, and found that both BCL6 and MYC loci experienced loss of promoter methylation in lymphoma samples compared to normal samples (Text S1, Module 7; Figure S29). Furthermore, we found that the target gene promoters of MYC, BCL6 and EZH2 were hypo-methylated in normal B-cells and became increasingly hyper-methylated in lymphoma samples (Figure 6A–6C; p-value<1×10⁻⁴ for all three cases; Mann-Whitney test). Gain of methylation at the promoters of the target genes of MYC, BCL6, and EZH2 in lymphomas was significantly higher than that at the promoters of other genes (Mann Whitney test, p-value<1×10⁻⁵ in each case). Since BCL6 and EZH2 are transcriptional repressors, accumulation of DNA methylation may reflect their constitutive activity at their targets in lymphoma cells. Notably, a previous report showed that EZH2 and H3K27 are mostly mutually exclusive with DNA methylation in NGC B-cells, but that this opposing relation is disrupted in DLBCL [21]. The reason for MYC targets acquiring hypermethylation is not as clear, but it is notable that the MYC and BCL6 ChIP-on chip binding patterns are highly overlapping (data not shown). In contrast, target genes of AICDA, such as BRCA2, GATA1 and LMO1 [22], displayed a loss of bimodality (Figure 6D). However, hypomethylation of promoters of AICDA target genes was not immediate apparent, perhaps indicating disruption or variability in AICDA binding to the genome in malignant cells. Nevertheless, AICDA expression was associated with a loss of DNA methylation at a genome-wide scale, as discussed in the following section in detail, which is consistent with the role of AICDA in demethylation [6], [30], [31]. AICDA plays a role in gene demethylation downstream of TET family protein-mediated hydroxylation of methylcytosine [30]. Moreover, we recently reported that genes that are hypo-methylated in NGC B-cells tend to be known direct targets of AICDA [10]. Collectively, aberrant DNA methylation in lymphomas is related in part to the action of constitutively expressed lymphomagenic regulatory factors during lymphomagenesis (Figure 6E).

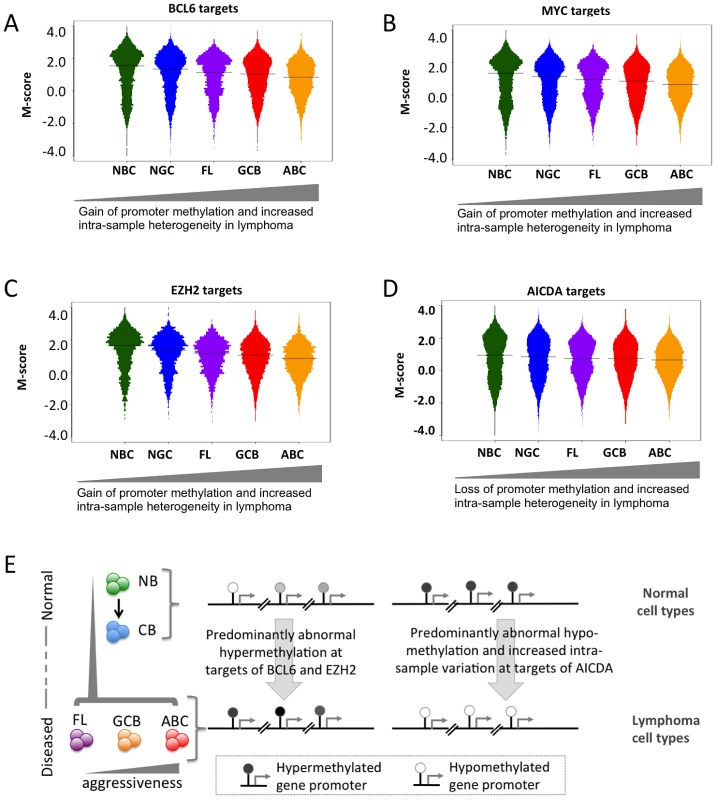

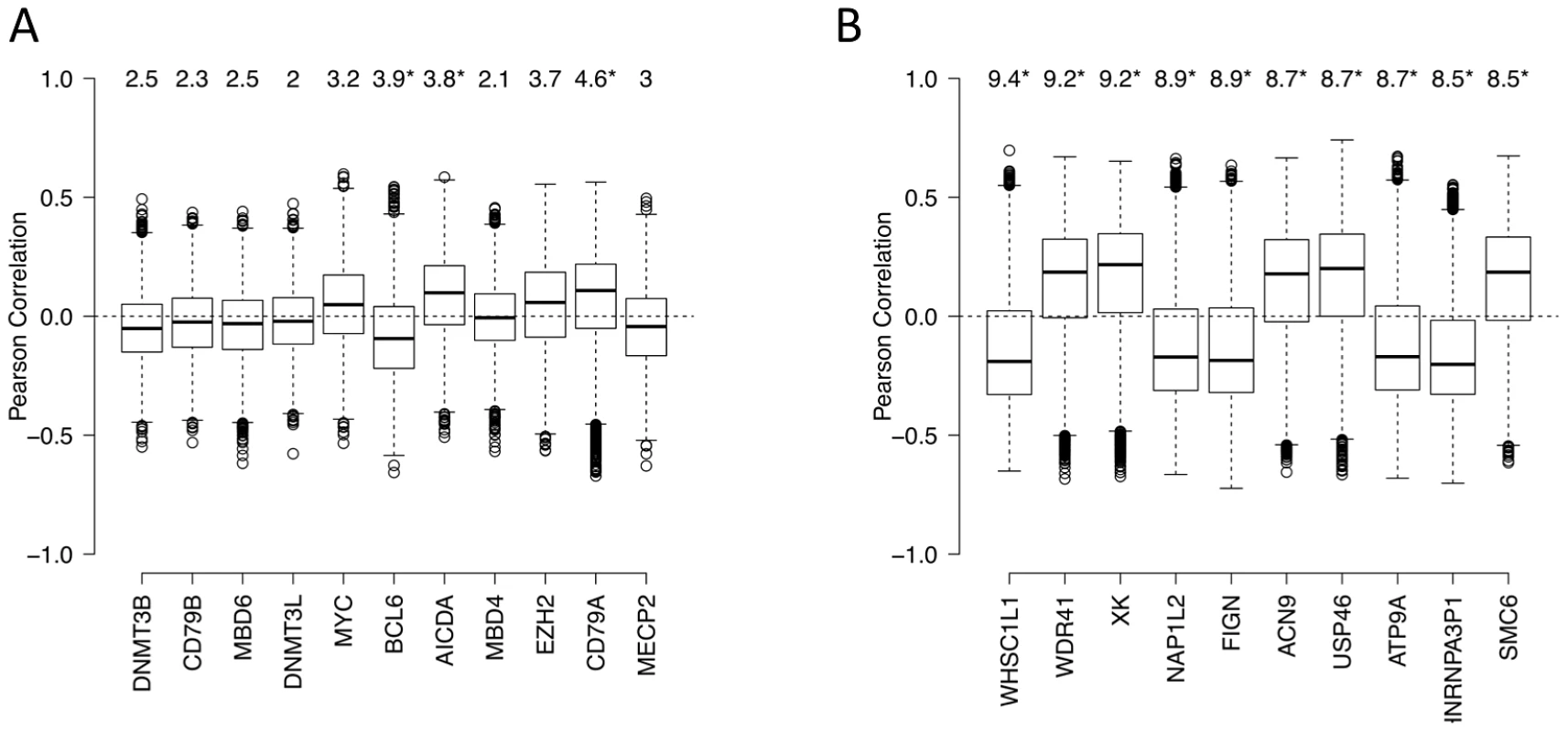

We next used an independent approach, integrating DNA methylation and gene expression profiling data in a subset of our cases, to identify factors driving or associated with the aberrant lymphoma methylome. First, we focused on a set of genes: DNMT3A, DNMT3B, DNMT3L, MYC, BCL6, AICDA, MBD4, MBD6, CD79A, CD79B and MECP2 – which include DNA methyltransferases, methyl-CpG binding domain proteins, as well as signaling and transcription factors involved in lymphoid differentiation and lymphomagenesis. We investigated whether the expression levels of these genes correlated with genome-wide aberrant DNA methylation patterns in DLBCL samples (see Text S1, Module 7 for details of the method). We found the following trends (Figure 7A): (i) the BCL6 expression level was significantly correlated with aberrant hyper-methylation at a genome-wide scale (p-value<0.05), which is consistent with a transcriptional repressor role of this gene, and (ii) expression levels of AICDA and CD79A were significantly correlated with aberrant hypo-methylation at a genome-wide scale (p-value<0.05 in both cases). This finding was significant given the role of AICDA in demethylation, as noted above [6], [30], [31]. The association was not significant for other genes in the list for our dataset. Larger patient cohorts will be necessary to test those cases systematically.

Some the above factors, such as DNMT3B, are associated with the maintenance of methylation in simple repeat sequences [32]. Indeed, overlaying DNA repeat sequence information, we found that both low-complexity repeats and simple repeats exhibited hypo-methylation in normal cells, but displayed an increasing extent of hyper-methylation in lymphoma samples (Text S1, Module 8; Figure S30). Note that the effect size of expression levels of each of the 11 genes, including DNA methyltransferases, is relatively modest; this may be at least partly due to the fact that these modifier genes influence the epigenetic state of their target genes by the recruitment of other enzymes or cofactors, and that the lymphoma samples show a high level of intra-sample variation. A completely unbiased genome-wide analysis exploring whether other genes on the expression array showed significant associations with the aberrant methylation pattern in lymphomas yielded a list of candidates provided in Figure 7B (see Text S1, Module 7 for details). Interestingly, some of the top genes are known epigenetic modifiers. For instance, the top candidate of the list, WHSC1L1, is a known histone methyltransferase and plays a key role in chromatin integrity [33]–[35]. Other top hits are important for the genomic and epigenomic integrity of the cell, such as NAP1L2, which promotes histone acetylation [36], and SMC6, which regulates chromosomal stability [37], [38]. Many of these genes are known epigenetic modifiers, downstream targets or co-factors of the shortlisted genes described in the paragraph above, while others may be novel factors associated with perturbation of DNA methylation patterning in DLBCLs. Systematic characterization of these candidates will be pursued further in forthcoming work.

Conclusions

Through integrative analysis of DNA methylation, copy number variation, genomic sequence, gene expression and genomic localization data, our study provides insights into the architecture and biology of aberrant DNA methylation patterning in a human malignancy. Based on these analyses, we report three key findings: (a) DNA methylation exhibits considerable heterogeneity, both within individual lymphoma samples and between patients, and the degree of heterogeneity and departure from the DNA methylation pattern of normal B-cells correlates with disease severity and patient survival, (b) these abnormal methylation patterns are not randomly distributed but instead associate with chromosomal regions, local gene density, and the methylation status of neighboring genes, and (c) the pattern of DNA methylation abnormalities is at par with the effects of at least two distinct processes: i) lymphomagenic transcriptional regulators, such as BCL6 and EZH2, perturb DNA methylation in a target gene-specific manner; and ii) aberrant methylcytosine marks, especially promoter hypo-methylation, tend to spread to neighboring promoters in the absence of insulator elements such as CTCF. We propose that focal aberrant hyper- and hypo-methylation via target-specific recruitment of master regulators and non-specific spreading of aberrant methylation drives the generation of epigenetic abnormalities in follicular lymphoma and DLBCL. While our results themselves cannot pinpoint causality, they are consistent with emerging reports that highlight the roles of lymphomagenic transcriptional regulators [23], [24], [26] and that DNA methylation patterns tend to spread in a genomic neighborhood [15]–[17]. Recently, Lai et al. showed that BCL6 expression is maintained during lymphomagenesis in part through DNA methylation that prevents CTCF-mediated silencing [39], and our results confirm their conclusions. The fact that epigenetic diversity is first observed in NGC B-cells further suggests that epigenetic heterogeneity may originate in these rapidly dividing cells and potentially contributes to malignant transformation. Since epigenetic abnormalities increase with disease aggressiveness and are a predictor of patient survival, clonal epigenetic diversity and evolution may increase the survival advantage of lymphoma cells, leading to more aggressive and chemo-resistant tumors. Heterogeneity in DLBCL DNA methylation patterning does not preclude the co-existence of subtype-specific DNA methylation profiles, in which specific genes are differentially methylated. Indeed, we previously observed that ABC and GCB DLBCLs feature distinct and specific DNA methylation signatures, involving genes of potential functional significance, most notably including hypermethylation of a TNFα gene network in ABC DLBCLs [6]. These signatures represent a core of stably affected loci within the larger context of more variable DNA methylation disruption as reported herein. While previous studies including ours aimed at identifying key genes and pathways dysregulated in lymphomas, here we add another dimension to these studies by highlighting the implications of epigenetic heterogeneity at a genome-wide scale, and also the complex interaction between master regulators and insulator elements that contribute to establishing an abnormal methylome during lymphomagenesis. Our approach can be used to analyze other tumor types and delineate the contribution of aberrant methylation patterning to the development of human cancers.

Methods

Sample collection

Samples used in the study included naïve B-cells (NBC; 8 samples), normal germinal center B-cells (NGC; 10 samples), follicular lymphoma (FL: grades 1 and 2 representing lower grade lymphoma than Diffuse Large B-cell Lymphoma (DLBCL); 8 samples), germinal center B-cell-like DLBCL (GCB: DLBCL with better prognosis; 39 samples), and activated B-cell-like DLBCL (ABC: DLBCL with worse prognosis; 18 samples). All FL and DLBCL samples used in the study were selected based on their high content of neoplastic cells from primary diagnostic material preceding treatment and were obtained by the Vancouver Cancer Center in British Columbia, Canada. The FL and DLBCL samples represent soft tissue biopsy material. The percent of neoplastic cells in the biopsy was determined based on pathologic evaluation using morphologic criteria and immunohistochemical characteristics of the neoplastic cells (expression of CD79B, CD20, BCL2, CD10, CD43, BCL6 antigens).The use of human tissue was in agreement with IRB of the Vancouver Cancer Center and Weill Cornell Medical Center. Primary NBC and NGC B-cells were purified from reactive human tonsillar specimens. Tonsils were minced on ice and mononuclear cells were isolated using Histopaque density centrifugation. All washes were performed in PBS/2% Bovine Serum Albumine/2% EDTA. All antibodies were used at 1∶100 dilution in cold PBS and staining was done for 10 min on ice, followed by 3 washes. The B-cell populations were separated using the AutoMACS system (Milteny Biotec, Auburn, CA) using the “posselD” program. In brief, NBC cells were separated using depletion of GC cells, T-cells, plasma and memory cells (CD10, CD3, CD27), followed by enrichment for IgD+ B-cells; GCB cells were separated by positive selection with CD77 (anti-CD10: BD Biosciences cat# 555373 Lot 59624, anti-CD3: BD Biosciences cat# 555332 Lot 59347, anti-CD27: BD Biosciences cat# 555439 Lot 71274, anti-CD77: Serotec cat# MCA579 Batch 180510, anti-IgD: BD Biosciences cat# 555778 Lot 58641). While the tissue environment of the collected normal and lymphoma cells (e.g. cytokine exposure level) differ, this is unlikely to bias our analyses. All NBC and NGC samples yielded a purity of >90%. For patient characteristics (Table S1) see Shaknovich et al. [6] and GEO number GSE23967.

HELP assays and analysis of DNA methylation data

We assayed genome-wide patterns of promoter methylation using HELP assays and custom-designed oligonucleotide arrays. HELP assays were performed based on the standard protocol [7]. One µg of high molecular weight genomic DNA was digested with HpaII and MspI (NEB, Ipswich, MA), digestion products were extracted with phenol-chloroform and resuspended in 10 mM TRIS-HCl pH8, after which they were subjected to ligation of HpaII adapter using T4 DNA Ligase. This approach was followed by PCR amplification and labeling of HpaII and MspI digestion products and co-hybridization to custom NimbleGen HELP microarrays (NimbleGen, Inc. Madison, WI). The microarray design was previously published and represents >50,000 CpGs corresponding to 14,000 promoters [6], [7].

Data processing was performed using the published HELP pipeline [40]. Intra- and inter-array normalization was performed by subtracting mean random probe intensity separately within HpaII and MspI channels, after which quantile normalization was performed within each channel independently. Quantile normalized log2(HpaII/MspI) values, denoted as M-scores, were subsequently used for all further analysis. The probes whose intensity of Msp1 channel was less than 2.5 mean absolute standard deviations from the mean of log2(Hpa2/Msp1) of random probes were considered failed and removed from the analysis. Since the Msp1 channel served as an internal control, it allowed us to remove the probes that had low intensities due to genomic deletions, thus avoiding false positives for hypermethylation. We also calculated the inter-quartile range (IQR) of the M-scores between the samples within the same normal or disease group at a given locus to reflect inter-sample methylation diversity. The analysis was based on the Human Reference Genome version hg19 [41] and the list of human protein-coding genes was obtained from Ensembl v59 [42]. HELP arrays for DLBCLs can be found in GEO number GSE23967 and for CD34+ cells in GEO number GSE18700. NBCs, NGCs and FLs data is pending GEO accession number.

Phylogenetic tree analysis

HELP methylation data for CD34+ hematopoietic progenitor cells was obtained from the NCBI Geo database (GSE18700). HELP was performed in the same manner as the normal (NBC and NGC) and lymphoma (FL, GCB and ABC) samples, hybridized on the same methylation microarray and normalized using the same protocol together with the normal and lymphoma samples. Only promoter methylation probes without missing values were considered for further analysis. M-scores were averaged for each group (CD34+, NBC, NGC, FL, GCB and ABC) on each probe. Pairwise distances between groups were then calculated with the Pearson correlation distance on the group-averaged M-scores. This approach was repeated 1000 times, with bootstrapping of promoter methylation probesets and samples. Then, phylogenetic trees were constructed using the FastME method, implemented in the ape R package, on these 1000 distance matrices. A consensus tree was calculated in Dendroscope. The code is available as R package at https://github.com/lima1/maphylogeny.

Gene expression analysis

We obtained both genome-wide promoter methylation and gene expression data for 4 NBC and 45 DLBCL samples (13 ABC and 32 GCB samples). Expression data for NBC were obtained from GSE15271, generated using Affymetrix HG133_Plus2_microarray and mas5 normalized together with the expression data for the DLBCL samples (GSE23501). The processing of RNA, hybridization, and image scanning were performed as per Affymetrix protocols. The trimmed mean target intensity of each array was set to 500. Expression-based classification labels GCB and ABC were assigned as published in Shaknovich et al. [6]. The gene expression data for all DLBCLs was deposited to GEO number GSE23501.

ChIP-on-chip analysis

MYC ChIP-on-chip analysis was performed using Ramos cells. First, Ramos cells were fixed in 1% formaldehyde for 10 min, quenched with glycine and washed three times with PBS. Cells were then resuspended in lysis buffer and sonicated 6×30 sec (amplitude 55%) in an Ultrasonic Dismembrator Model 500 (Fisher) to shear the chromatin to an average length of 500 bp. Supernatants were precleared using protein-A agarose beads (Roche) and 10% input was collected. Immunoprecipitation was performed in 10⁷ cells using antibodies against MYC (Santa Cruz). DNA-protein complexes were pulled down using protein-A agarose beads and washed. DNA was recovered by overnight incubation at 65°C to reverse cross-links and purified using QIAquick PCR purification columns (Qiagen). ChIP products and their respective input genomic fragments were amplified by ligation-mediated PCR [43]. Q-ChIP was repeated after amplification to verify that the enrichment ratios were retained. The genomic products of three biological ChIP replicates were labeled with Cy5 (for ChIP products) and Cy3 (for input) and co-hybridized on a NimbleGen human promoter array representing 1.5 kb of promoter sequence from >24,000 genes (human genome version 35, May 2004) according to manufacturer's protocol (Roche NimbleGen, Inc., Madison, WI). The enrichment for each promoter was calculated by computing the log ratio between the probe intensities of the ChIP product and input chromatin, which were co-hybridized on the same array. Thereafter, for each of the >24,000 promoter regions, the maximum average log ratio of three neighboring probes in a sliding window was calculated and compared with random permutation of the log ratios of all probes across the entire array. The MYC ChIP-on-chip data is available on GEO (accession number GSE31110).

The Chip-chip data for BCL6 and EZH2 were previously published [20], [21]. AICDA ChIP-seq data was obtained from the recently published study in mouse activated B-cells [22] (GEO accession number GSE24178). Short reads were aligned to the mm9 genome and ChIP-seq peaks were called using the ChIPSeeqer program (http://icb.med.cornell.edu/wiki/index.php/Elementolab/ChIPseeqer_use). Peaks within RefSeq gene promoters, defined as 4 kb windows centered on transcription start sites, were then extracted. Human and mouse unambiguous orthologs were then determined using the reciprocal best BLAST strategy with protein sequences obtained from RefSeq (and matched with RefSeq transcripts). Human genes whose mouse orthologs were associated with 1 or more AICDA peaks in mouse activated B-cells were then determined.

We obtained CTCF binding site data from InsulatorDB (http://insulatordb.uthsc.edu; downloaded Jan, 2011), where CTCF binding sites (CTCF-BS) were determined using ChIP-on-chip and computational approaches [18], [19], [44]. We performed our analysis using experimentally determined CTCF-BS from this database, and obtained similar results using computationally predicted CTCF-BS from this database.

All statistical analyses were performed in R.
