Loss of Prohibitin Membrane Scaffolds Impairs Mitochondrial Architecture and Leads to Tau Hyperphosphorylation and Neurodegeneration

Summary

Fusion and fission of mitochondria maintain the functional integrity of mitochondria and protect against neurodegeneration, but how mitochondrial dysfunctions trigger neuronal loss remains ill-defined. Prohibitins form large ring complexes in the inner membrane that are composed of PHB1 and PHB2 subunits and are thought to function as membrane scaffolds. In Caenorhabditis elegans, prohibitin genes affect aging by moderating fat metabolism and energy production. Knockdown experiments in mammalian cells link the function of prohibitins to membrane fusion, as they were found to stabilize the dynamin-like GTPase OPA1 (optic atrophy 1), which mediates mitochondrial inner membrane fusion and cristae morphogenesis. Mutations in OPA1 are associated with dominant optic atrophy characterized by the progressive loss of retinal ganglion cells, highlighting the importance of OPA1 function in neurons. Here, we show that neuron-specific inactivation of Phb2 in the mouse forebrain causes extensive neurodegeneration associated with behavioral impairments and cognitive deficiencies. We observe early onset tau hyperphosphorylation and filament formation in the hippocampus, demonstrating a direct link between mitochondrial defects and tau pathology. Loss of PHB2 impairs the stability of OPA1, affects mitochondrial ultrastructure, and induces the perinuclear clustering of mitochondria in hippocampal neurons. A destabilization of the mitochondrial genome and respiratory deficiencies manifest in aged neurons only, while the appearance of mitochondrial morphology defects correlates with tau hyperphosphorylation in the absence of PHB2. These results establish an essential role of prohibitin complexes for neuronal survival in vivo and demonstrate that OPA1 stability, mitochondrial fusion, and the maintenance of the mitochondrial genome in neurons depend on these scaffolding proteins. Moreover, our findings establish prohibitin-deficient mice as a novel genetic model for tau pathologies caused by a dysfunction of mitochondria and raise the possibility that tau pathologies are associated with other neurodegenerative disorders caused by deficiencies in mitochondrial dynamics.

Introduction

The dynamic behavior of mitochondria that constantly divide and fuse is pivotal to maintain their pleiotropic activities and their distribution within cells. Conserved protein machineries in the outer and inner membrane of mitochondria mediate membrane fusion events, ensure cristae formation and regulate the interaction of mitochondria with the endoplasmic reticulum [1]–[3]. Loss of mitochondrial fusion leads to neuronal loss in mice, highlighting the vulnerability of neurons for deficiencies in mitochondrial dynamics [4]–[6]. Mutations in the dynamin-like GTPases MFN2 and OPA1, which mediate mitochondrial membrane fusion, cause neurodegeneration in Charcot-Marie-Tooth disease type 2A and autosomal dominant optic atrophy, respectively [7]–[9]. Moreover, defects in mitochondrial dynamics are associated with multiple neurodegenerative diseases, including Parkinson's, Alzheimer's (AD) and Huntington's disease [10]–[12].

Recent evidence identified prohibitins in the mitochondrial inner membrane as novel modulators of mitochondrial fusion [13]–[15]. Prohibitins comprise a conserved and ubiquitously expressed protein family [16], [17]. Two homologous proteins, prohibitin-1 (PHB1) and prohibitin-2 (PHB2), assemble into large ring complexes in the inner membrane with putative functions as protein and lipid scaffolds [18]. The genetic interaction of yeast PHB1 and PHB2 with genes involved in the mitochondrial cardiolipin and phosphatidyl ethanolamine metabolism suggests that prohibitin complexes may also affect the lipid distribution in the inner membrane [19]. Consistently, PHB1 and PHB2 are homologous to members of the SFPH-family that were found in association with membrane microdomains in various cellular membranes [20], [21].

Despite emerging evidence for a scaffold function of prohibitins [16], only limited information is available on the physiological relevance of a defined spatial organization of the inner membrane for mitochondrial activities. Loss of prohibitin genes in Caenorhabditis elegans and mice results in embryonic lethality, pointing to essential functions during embryonic development [22], [23]. Knockdown of PHB1 and PHB2 in adult, non-neuronal tissues of C. elegans influences aging by moderating fat metabolism and energy production [24]. However, it remained unclear whether prohibitins affect mitochondrial respiratory activities directly. In mammalian cells, prohibitins appear to affect mitochondrial respiration in a cell-type specific manner. While knockdown of PHB1 impaired complex I activity in endothelial cells [25], mitochondrial respiratory function was not affected in prohibitin-deficient mouse embryonic fibroblasts (MEFs) [13]. These studies identified the processing of OPA1 as the central process regulated by prohibitins in vitro. The function of OPA1 in mitochondrial fusion and cristae morphogenesis depends on the presence of both long and short forms of OPA1, the latter being generated by proteolytic processing of long forms [26]–[29]. Loss of PHB2 destabilizes long OPA1 forms and inhibits mitochondrial fusion, resulting in the fragmentation of the mitochondrial network and an increased susceptibility of the cells towards apoptotic stimuli [13], [15]. Interestingly, a destabilization of long OPA1 forms has also been observed in cells lacking m-AAA proteases [30], ATP-dependent quality control enzymes with regulatory functions during mitochondrial biogenesis [4], which assemble with prohibitin complexes in the inner membrane of yeast, mammalian and plant mitochondria [31], [32]. Mutations in m-AAA protease subunits cause axonal degeneration in spinocerebellar ataxia, hereditary spastic paraplegia, and a spastic-ataxia neuropathy syndrome [33]–[35].

These results prompted us to assess in vivo the role of prohibitins in neurons, which contain high levels of prohibitins and are particularly vulnerable to disturbances in mitochondrial dynamics. Using conditional gene ablation in mice, we demonstrate that a post-natal loss of PHB2 in the forebrain triggers massive neurodegeneration which is associated with the accumulation of aberrant mitochondria and hyperphosphorylation of the microtubule-associated protein tau.

Results

Forebrain-specific PHB2-deficient mice

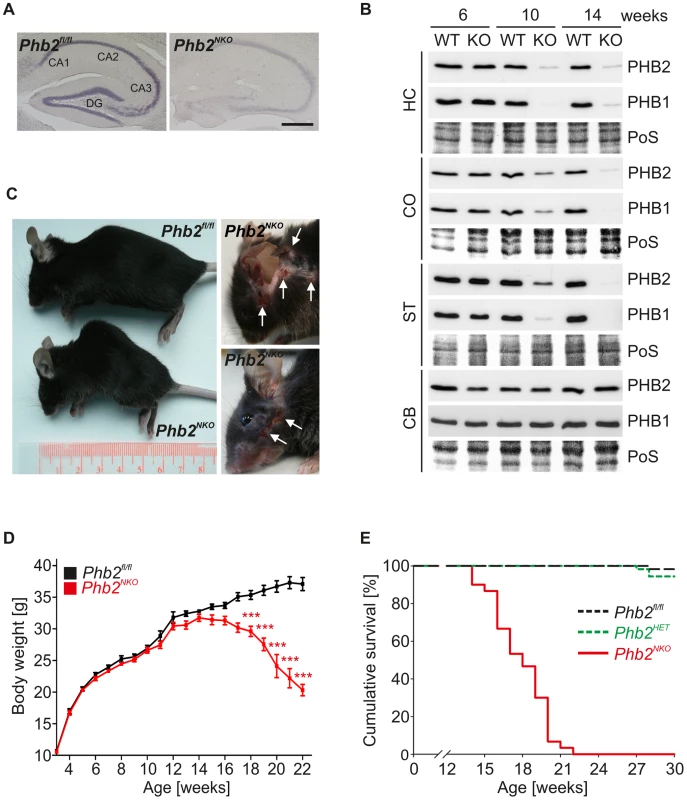

Previous experiments using a genetic loss-of-function approach to uncover physiological functions of PHB2 revealed an early embryonic lethality phenotype in mice [13], [23]. To circumvent gene ablation during embryogenesis, conditional Phb2 mice (Phb2^fl/fl) were bred to mice expressing the Cre recombinase under control of the postnatally expressed CaMKIIα promoter (CaMKIIα-Cre) [36] resulting in neuron-specific PHB2-deficient mice (Phb2^{fl/fl;CaMKIIα-Cre}; hereafter referred to as Phb2^NKO mice). This mouse line shows a defined and restricted recombination pattern and a progressive increase in recombination efficiency after completed neuronal development [36]. Histological examinations of brains derived from CaMKIIα-Cre mice crossed to ROSA26-LacZ reporter mice revealed selective Cre-mediated recombination in forebrain regions including the cortex, striatum and hippocampus, to a minor extent in hypothalamic regions, but not in hind- and midbrain regions like the cerebellum (Figure S1) [37]. To demonstrate efficient depletion of Phb2, in-situ hybridization against the endogenous Phb2 mRNA was performed. Notably, Phb2 mRNA was virtually depleted in hippocampal neurons of 8-week-old Phb2^NKO mice (Figure 1A). Consistently, immunoblotting of tissue lysates prepared from various brain compartments of mice of different age revealed maximal depletion of PHB2 in Cre-expressing tissues at 14-weeks, but not in the cerebellum where Cre recombinase is not expressed (Figure 1B). Notably, PHB2 depletion was accompanied by efficient loss of its assembly partner PHB1 (Figure 1B). This observation is consistent with previous findings in cultured MEFs [13] and demonstrates that prohibitin subunits are functionally interdependent in neurons in vivo.

Homozygous Phb2^NKO mice were born at expected mendelian ratios, showed normal fertility and were anatomically indistinguishable from their WT littermates. From 12 to 14 weeks of age, however, Phb2^NKO mice progressively developed aging-related phenotypes, including weight loss, cachexia and kyphosis (Figure 1C, 1D; Figure S2). Furthermore, Phb2^NKO mice, but not control littermates, showed an excessive pathological grooming behavior characterized by facial hair loss and self-inflicted facial lesions (Figure 1C). An extensive analysis of behavioral and cognitive abilities in early-stage 8-week-old Phb2^NKO animals revealed decreased hippocampus-dependent learning abilities and memory formation (Figure S3), and an impairment of innate fear behavior and motor coordination (Figure S4) (for details, see Text S1). The phenotypes of Phb2^NKO animals deteriorated with age and led to premature death of Phb2^NKO mice starting at the age of 14 weeks (Figure 1E). The maximal lifespan of Phb2^NKO mice was 22 weeks only. Survival was not affected in homozygous Phb2^fl/fl or heterozygous Phb2^{fl/WT;CaMKIIα-Cre} (Phb2^HET) mice (Figure 1E). We therefore conclude that PHB2 in the forebrain is essential for postnatal mouse survival.

Progressive forebrain atrophy and neuronal loss in Phb2^NKO mice

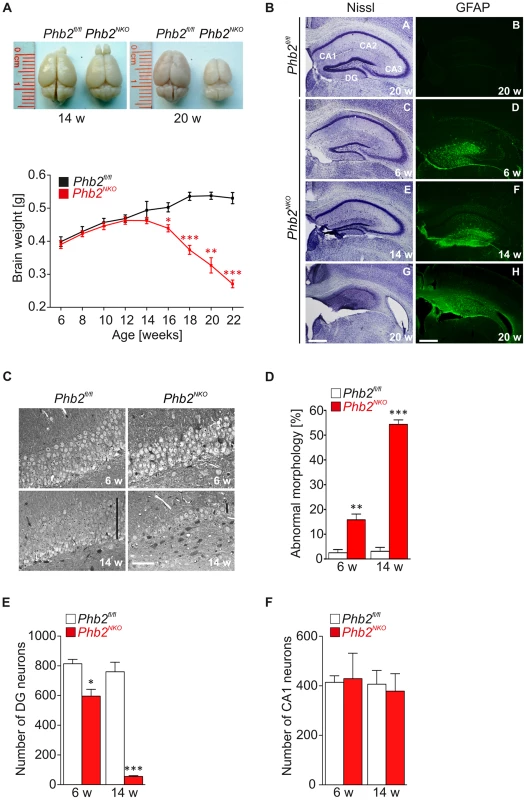

To investigate the underlying defects at the cellular level, we analyzed gross brain morphology of Phb2^NKO and control brains. Phb2^NKO brains were indistinguishable from controls in size, weight and gross morphology at 14 weeks of age (Figure 2A). In contrast, at the age of 20 weeks we observed a massive atrophy of Phb2^NKO forebrains, which was accompanied by a severe total brain weight loss (Figure 2A). Histological examinations of Phb2^NKO brains further supported the progressive nature and severity of the phenotypes. Nissl stainings and semithin sections from Phb2^NKO animals revealed that the region most prominently affected was the hippocampus, which undergoes progressive degeneration over time, culminating in the almost complete loss of neurons in both the dentate gyrus (DG) and cornu ammonis (CA) regions at 20 weeks of age (Figure 2B, Figure S5A). At this age, cortical neurons in all layers also appeared affected in Phb2^NKO mice, showing shrinkage of the cell body and loss of processes (Figure S5B). Since the hippocampal region appeared to be a preferential target in the absence of PHB2, we analyzed this area in more detail. Neuronal loss was accompanied by a progressive development of astrogliosis, as demonstrated by increased GFAP reactivity already observable at 6 weeks of age in the DG (Figure 2B). At this age, a significant fraction of DG neurons in Phb2^NKO mice appeared vacuolated and neuronal loss was already apparent (Figure 2D, 2E). At 14 weeks, the DG consisted of only one neuronal layer, with more than 50% of residual neurons showing degenerative features (Figure 2C–2E). Remarkably, while DG neurons were markedly reduced in number already at 14 weeks (Figure 2E), neurons in the CA1 region were less affected and neuronal loss became apparent only in 20-week-old Phb2^NKO mice (Figure 2F, Figure S6). TUNEL staining of the hippocampal DG regions revealed few positive neuronal cell bodies, suggesting that neuronal loss in Phb2^NKO brains is at least partially caused by apoptosis (Figure S5). We therefore conclude that PHB2 is generally required for neuronal survival in vivo. However, the time-course and severity of neuronal degeneration show regional differences.

Loss of prohibitins affects the structural integrity and distribution of mitochondria in neurons

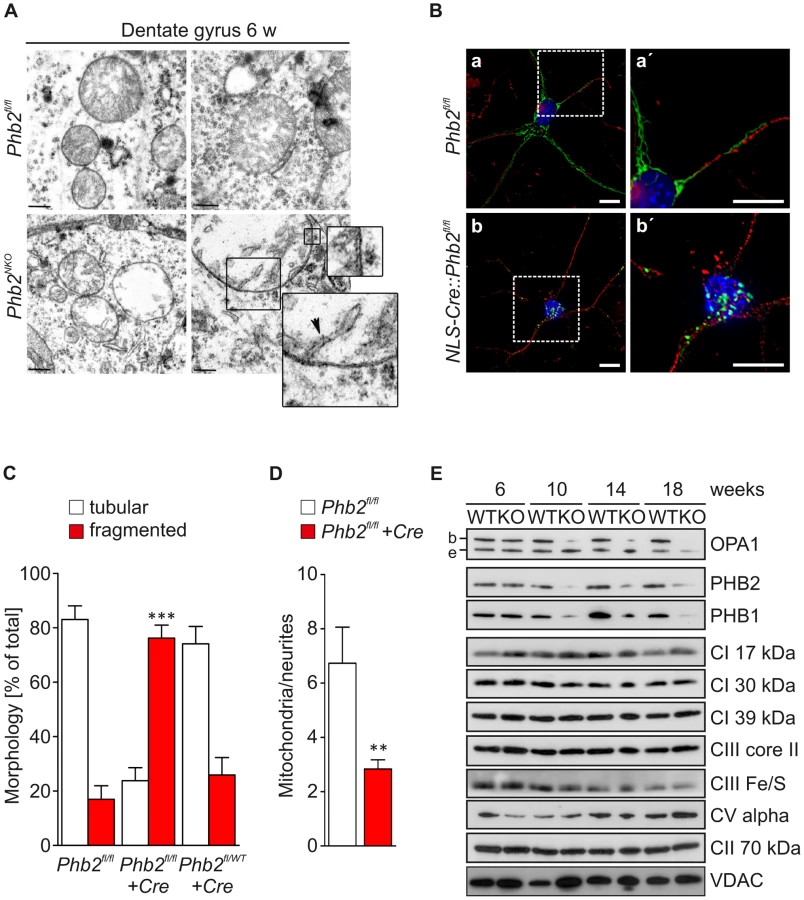

To define whether the depletion of PHB2 affects mitochondrial ultrastructure in neurons at early stages of the pathological process, we analyzed the DG of young Phb2^NKO mice by transmission electron microscopy. DG neurons of 6-week-old Phb2^fl/fl control mice contained mitochondria with a normal appearance characterized by lamellar-shaped cristae inside double-membrane layered organelles (Figure 3A). In contrast, several neurons in the DG of Phb2^NKO mice contained mitochondria with almost complete absence of lamellar cristae (Figure 3A). Moreover, in some cases these mitochondria appeared moderately swollen. These ultrastructural features account for the appearance of vacuolated neurons observed in semithin sections (Figure 2C). The number of neurons containing mitochondria with defective ultrastructure was further enhanced in 14-week-old animals confirming the progressive nature of this pathology (not shown).

To further investigate whether lack of PHB2 affects the mitochondrial network in neurons in a cell-autonomous manner, we isolated primary hippocampal neurons from conditional E18.5 Phb2^fl/fl and Phb2^fl/WT embryos and infected them with lentiviruses expressing nuclear-targeted Cre recombinase to genetically inactivate Phb2 in vitro. The mitochondrial network in these neurons was visualized by the simultaneous infection with lentiviral particles encoding a mitochondrially targeted EGFP (Su9-EGFP). Tubular mitochondria were present in the cell body and along the neurites in Phb2^fl/fl (Figure 3B; a, a′) and Phb2^fl/WT neurons, which were infected with Cre-expressing lentiviruses (NLS-Cre::Phb2^fl/WT) (Figure 3C). In contrast, mitochondria were greatly fragmented and clustered in perinuclear regions of >70% of infected Phb2^fl/fl neurons (NLS-Cre::Phb2^fl/fl) (Figure 3B; b, b′). We further evaluated the mitochondrial distribution in Phb2-depleted neurons and determined the total number of mitochondria protruding into the neurites. Strikingly, neurites of Cre-infected Phb2^fl/fl neurons contained fewer mitochondria when compared to controls consistent with the perinuclear clustering of fragmented mitochondria after acute loss of prohibitins (Figure 3D).

Different isoforms of the dynamin-like GTPase OPA1 with seemingly varying activities exist, which are expressed in a tissue-specific manner in mice [38]. The expression of OPA1 isoform 1 predominates in the central nervous system giving rise to bands b (L-OPA1) and, upon proteolytic processing, to band e (S-OPA1) [38]. To examine whether depletion of PHB2 affects the accumulation of OPA1 in neuronal tissue in vivo, we analyzed Phb2^NKO and control forebrain lysates by immunoblotting with OPA1-specific antibodies. The loss of prohibitins was accompanied by the selective loss of the L-OPA1 isoform b in the hippocampus (Figure 3E), cortex and striatum but not in the cerebellum (Figure S7). These alterations occurred in a time-dependent manner simultaneous with the depletion of prohibitins and were already detected at 10 weeks of age. This does not reflect a general impairment of the biogenesis of mitochondrial inner membrane proteins, as various subunits of respiratory chain complexes accumulated at similar levels in the brain of Phb2^NKO and control animals (Figure 3E; Figure S7). Overall, these data demonstrate that neuronal PHB2 ensures stabilization of L-OPA1 and the maintenance of the mitochondrial network and ultrastructure in vivo.

Tau hyperphosphorylation in PHB2-deficient neurons

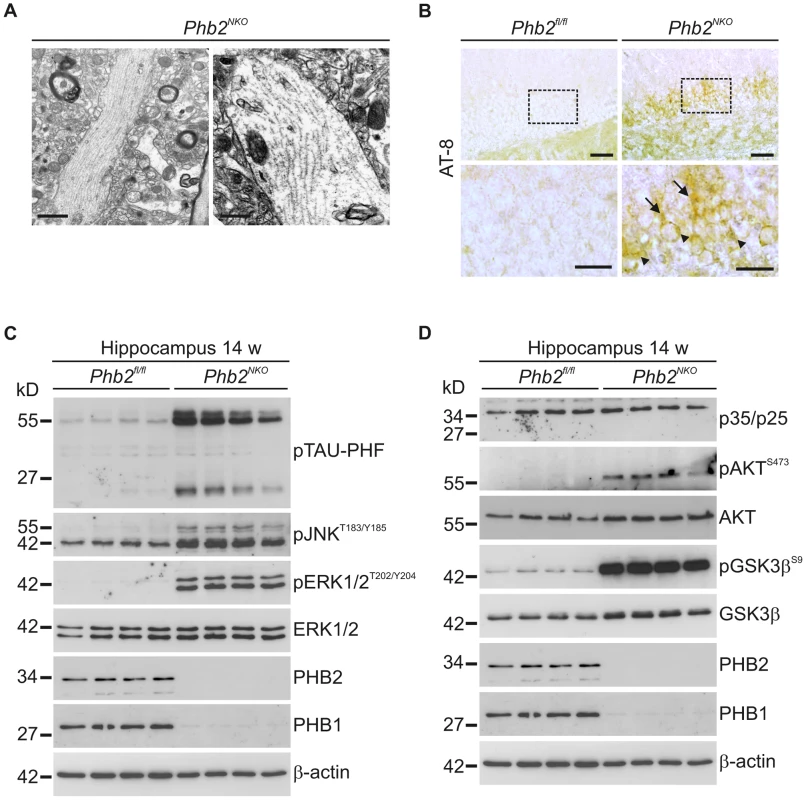

Surprisingly, ultrastructural examination of hippocampi of 14-week-old Phb2^NKO mice revealed the accumulation of straight tubular structures in unmyelinated neuronal processes. These filamentous structures measure about 12–20 nm in diameter (mean 20.8 nm±0.323; range 9.9–25.72 nm) and are reminiscent of inclusions composed of aberrantly phosphorylated species of the microtubule-associated protein tau. Although morphologically distinct from paired helical filaments (PHF), they are similar to those found in ‘classical’ intracytoplasmic inclusions of tau-positive astrocytes and neurons, which are observed in several neurodegenerative conditions such as frontotemporal dementia and other tauopathies (Figure 4A) [39].

To explore a role for Phb2 in tau phosphorylation, hippocampal tissue sections were immunostained with AT-8 antibodies, which selectively recognize phosphorylated species of tau (phospho-Ser202 and phospho-Thr205). Intraneuronal inclusions were detected in the DG but not in other hippocampal regions of Phb2^NKO mice as early as at 6 weeks but not in control littermates, and accumulated in both cell body and neurites (Figure 4B). We substantiated these observations by immunoblotting using phospho-tau specific AT-8 antiserum (Figure 4C). Several hyperphosphorylated tau species selectively accumulated in hippocampal lysates from 14-week-old Phb2^NKO mice, but not in lysates from control mice (Figure 4C).

Several kinases have been implicated in tau phosphorylation both in vitro and in vivo [40], [41]. We therefore assessed the activation status of candidate kinases by immunoblotting of hippocampal extracts of Phb2^NKO mice. Phosphorylated, active forms of the extracellular signal-regulated MAP kinases ERK1/2 and of the c-Jun N-terminal kinase JNK were detected specifically in Phb2^NKO mice (Figure 4C). In contrast, the β-form of glycogen synthase kinase (GSK3), another putative major tau kinase, was robustly inactivated by phosphorylation at Ser position 9 (Figure 4D). Concomitantly, this was accompanied by the parallel activation of the upstream kinase AKT suggesting that the AKT-GSK3 axis might not be causative for the increased tau pathology in Phb2^NKO mice (Figure 4D). Similarly, cyclin-dependent kinase 5 (CDK5) apparently does not contribute to tau hyperphosphorylation in Phb2^NKO mice as we did not detect proteolytic conversion of its substrate p35 to p25 in Phb2-deficient hippocampal lysates (Figure 4D).

Taken together, we conclude from these experiments that deletion of Phb2 activates MAP kinases leading to tau hyperphosphorylation and the deposition of aberrant filamentous structures in hippocampal neurons.

Late-onset mitochondrial dysfunction and selective mtDNA loss in Phb2^NKO tissues

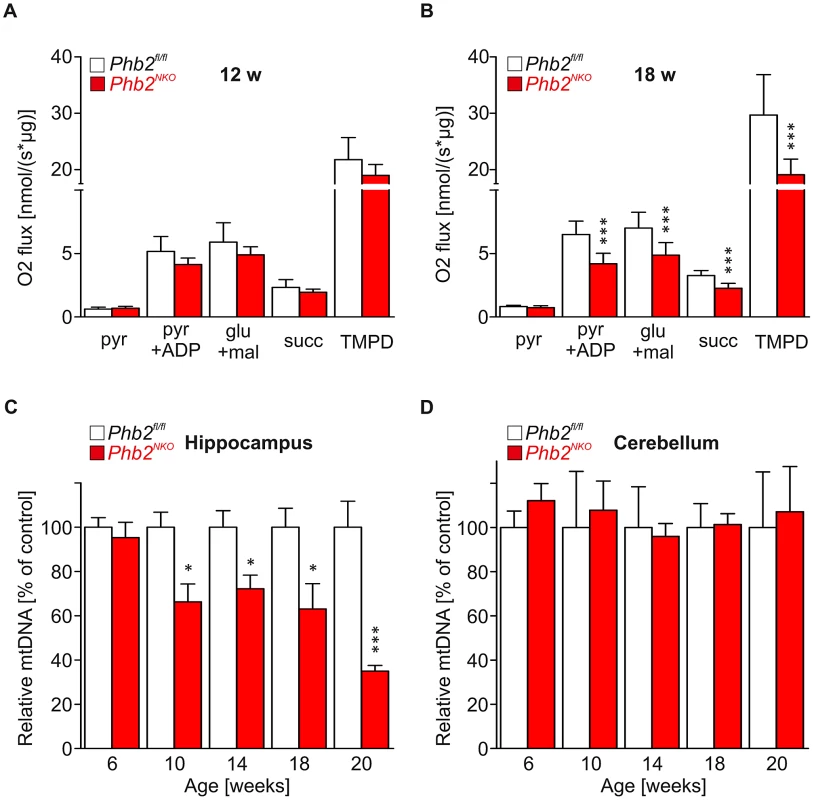

Mitochondrial dysfunction is an early phenomenon in many human tauopathies [42], [43]. To examine whether compromised mitochondrial respiratory function might be the underlying defect causing tau pathology and neurodegeneration in Phb2^NKO mice, we monitored respiratory activities in situ and in isolated PHB2-deficient brain mitochondria. Enzymatic COX/SDH stainings on whole brain cryosections of 6-week-old Phb2^NKO brains did not provide evidence for the presence of respiratory deficient cells (Figure S8). Consistently, substrate-driven respiration was not affected in mitochondria that had been isolated from hippocampal tissues of 12-week-old Phb2^NKO mice (Figure 5A). Consistently, we obtained no evidence for increased ROS production and oxidative damage in 14-week-old Phb2^NKO mice (Figure S9).

While not apparent in young mice, OXPHOS activities declined with age and were decreased significantly in 18-week-old Phb2^NKO mice (Figure 5B). Mitochondria isolated from hippocampi of these mice were generally able to consume oxygen, as the basal mitochondrial respiration in the presence of pyruvate was similar in 18-week-old Phb2^NKO and control mitochondria. However, respiration rates in PHB2-deficient mitochondria decreased significantly in the presence of saturating concentrations of ADP to maximally stimulate respiration, indicating that coupling is impaired in mitochondria depleted of PHB2. Moreover, enzymatic activities of complex I (monitored in the presence of glutamate and malate), complex II (in the presence of succinate) and of complex IV [in the presence of TMPD (N,N,N′,N′-Tetramethyl-1,4-phenylendiamine)] were significantly reduced in mitochondria isolated from 18-week-old Phb2^NKO mice suggesting that respiratory activities in hippocampal tissues progressively deteriorate over time in the absence of PHB2 (Figure 5B).

The broad functional impairment of respiratory complexes in aged PHB2-deficient mice could be explained by a loss of the mitochondrial genome (mtDNA), which encodes essential respiratory chain subunits. We therefore determined mtDNA levels by quantitative real-time PCR analysis of mtDNA isolated from several neuronal tissues of Phb2^NKO and control mice. Strikingly, mtDNA levels relative to nuclear DNA deteriorated in a progressive manner in the hippocampus and striatum but not in the cerebellum of Phb2^NKO mice (Figure 5C, 5D, Figure S10). In 20-week-old Phb2^NKO animals, relative mtDNA levels were reduced to 30% of controls in the hippocampus, providing a rationale for the decreased respiratory activities in these mice. It is noteworthy that mtDNA levels were not affected in cortical PHB2-deficient mitochondria (Figure S10), pointing to neuronal-specific differences in the mechanisms that stabilize mtDNA.

In conclusion, these experiments demonstrate that PHB2 is required for the maintenance of mtDNA in neuronal mitochondria. The loss of PHB2 in the forebrain leads to a progressive destabilization of mtDNA and ultimately to an impaired respiratory function. However, respiratory deficiencies become apparent at significantly later stages than tau phosphorylation suggesting that they are not the primary cause for the tau pathology in PHB2-deficient mice.

Discussion

Our analysis of Phb2^NKO mice unravelled essential functions of prohibitins for the survival of adult neurons in vivo. Impaired OPA1 processing and hyperphosphorylation of tau manifest early during this degeneration process. Our observations therefore establish the requirement of prohibitins for mitochondrial fusion and ultrastructure in neurons and provide a novel model for tau pathologies induced by mitochondrial dysfunctions.

Prohibitins are required for neuronal survival

We observe massive degeneration of PHB2-deficient neurons in the forebrain. Neurons expressing Cre recombinase are lost or severely affected in Phb2^NKO mice, demonstrating a general requirement of prohibitins for neuronal survival in vivo. TUNEL stainings of DG neurons suggest that apoptosis contributes to neuronal loss but other types of cell death cannot be excluded. Consistently, depletion of prohibitins was found to facilitate apoptosis in different cell types in vitro [13], [44], [45]. It is noteworthy that the susceptibility towards apoptosis appears to vary between different cell types [13], [44], [45]. Similarly, the loss of PHB2 in Phb2^NKO mice leads to faster death of DG neurons when compared to CA1 neurons, pointing to neuron-specific differences.

The loss of hippocampal neurons in Phb2^NKO mice is associated with anxiolytic behavior and deficiencies in memory function and in learning abilities. Moreover, Phb2^NKO mice develop progressive cachexia and kyphosis. In view of massive neuronal loss in the hippocampal region of Phb2^NKO mice, it appears likely that reduced food intake causes these phenotypes. As Phb2 might only be partially deleted in the hypothalamic region of Phb2^NKO mice [36], it remains to be determined how the loss of PHB2 in the forebrain causes these phenotypes, which are reminiscent of other mouse lines harboring dysfunctional mitochondria [46], [47]. Regardless, they are likely the consequence of the massive neuronal loss in Phb2^NKO mice rather than reflecting specific functions of prohibitins in the forebrain.

Prohibitins as mitochondrial membrane scaffolds in neurons

Ring complexes formed of multiple PHB1 and PHB2 subunits act as scaffolds in the inner membrane affecting the spatial organization of membrane proteins and lipids [16], [48]. Previous studies in proliferating cells in vitro revealed that prohibitin complexes ensure the accumulation of L-OPA1 within mitochondria [13]. We now extend these findings to adult neurons in vivo and establish an essential role of prohibitins for the maintenance of mitochondrial ultrastructure. Destabilization of L-OPA1 in the absence of PHB2 likely inhibits fusion and ongoing fission events lead to the fragmentation of the mitochondrial network in hippocampal neurons. Moreover, we demonstrate that prohibitin scaffolds are required to maintain the mitochondrial genome, which is progressively lost in neurons lacking PHB2 and likely explains respiratory deficiencies that occur in aged PHB2-deficient neurons. Notably, mtDNA is absent in fusion-incompetent mitochondria in MFN2-deficient fibroblasts [5], indicating that mitochondrial fusion or the protein machinery involved is required to maintain mtDNA. It is therefore conceivable that neurons lacking PHB2 lose mtDNA because mitochondrial fusion is inhibited. Alternatively, PHB2 acting as a membrane scaffold may directly affect the stability of mitochondrial nucleoids in neurons. Prohibitins have been identified as peripheral components of mitochondrial nucleoids and were found to maintain their organization and stability at least in some cell lines in vitro [14], [49]. In yeast, depletion of prohibitins in combination with components affecting the accumulation of phosphatidyl ethanolamine in mitochondrial membranes induces the loss of the mitochondrial genome [19], [50], supporting a critical role of the membrane environment for the maintenance of mtDNA.

Taken together, our observations demonstrate that neuronal survival in vivo critically depends on prohibitin scaffolds in the inner membrane and identify the processing of OPA1 and the stability of the mitochondrial genome as processes within mitochondria, whose perturbation leads to neurodegeneration in the absence of prohibitins.

Loss of PHB2 causes tau hyperphosphorylation and neurodegeneration

Our findings also provide insight into the cellular mechanisms through which a dysfunction of mitochondria leads to neurodegeneration. The observation of impaired OPA1 processing and defective mitochondrial ultrastructure preceding massive neuronal loss in Phb2^NKO mice supports emerging evidence that neurons are particularly susceptible to perturbations in mitochondrial dynamics. Studies on the cerebellum of MFN2-deficient mice revealed electron transport deficiencies of Purkinje cells prior to neuronal death, which are consistent with the lack of mtDNA nucleoids observed in fibroblasts [5]. The dependence of mtDNA stability and respiratory activity on mitochondrial fusion provides an elegant mechanism to explain neuronal loss in MFN2-deficient mice [5]. However, while the lack of PHB2 destabilizes mtDNA in the hippocampus and striatum, respiratory deficiencies manifest only in aged Phb2^NKO mice, indicating that alternative mechanisms lead to neurodegeneration in this model.

The analysis of mitochondrial morphology in PHB2-deficient hippocampal neurons suggests that deficiencies in mitochondrial distribution may trigger neuronal loss. Fragmented mitochondria accumulate in the perinuclear region of hippocampal neurons lacking PHB2 in vitro and are depleted from neurites. The surprising observation of tau hyperphosphorylation and aggregation provides a possible explanation for the altered distribution of mitochondria in PHB2-deficient neurons. Consistent with an important role for neurodegeneration, we detected tau phosphorylated at AT-8 sites already in 6-week-old Phb2^NKO mice, i.e. before neuronal loss becomes apparent. Tau is predominantly present in axons, where it binds and stabilizes microtubules and regulates axonal transport processes [43], [51], [52]. Hyperphosphorylated forms of tau were found to detach from microtubules, accumulate in the soma and are prone to aggregation. Consistently, phosphorylated tau was found to interfere with the binding of kinesin motors to mitochondria and distinct vesicles affecting cargo-selective anterograde transport in cultured neurons [52]. Moreover, phosphorylation of tau at AT-8 sites was recently found to modulate mitochondrial movement in cortical neurons [53]. It is therefore conceivable that tau hyperphosphorylation in the absence of PHB2 causes mitochondrial transport deficiencies triggering progressive neuronal loss in Phb2^NKO mice.

Hyperphosphorylation of tau has been observed in AD brains [54]. Stress-activated kinases like JNK and ERK1/2 have been implicated in the hyperphosphorylation of tau during AD. In fact, fibrillar Aβ can induce ERK activation, abnormal phosphorylation of Tau, and progressive neurodegeneration [55]. In addition, JNK-related kinases are activated in AD brains and are associated with the development of amyloid plaques [56]. However, despite extensive studies on tau hyperphosphorylation, the complexity of kinases and phosphatases involved has precluded to define its pathogenic role for AD until now [57].

Regardless, the discovery of tau hyperphosphorylation and filament formation upon loss of PHB2 sheds new light on the possible role of mitochondria in neurodegeneration in AD and related disorders. While mitochondrial dysfunction has been recognized as a prominent, early event in a number of tauopathies including AD [51], it remained open whether mitochondrial defects are of direct pathogenic relevance or secondary to other cellular deficiencies. Our analysis of Phb2^NKO mice provides first genetic evidence that a dysfunction of mitochondria can trigger tau hyperphosphorylation and aggregation. We detected phosphorylated tau in PHB2-deficient hippocampal neurons lacking apparent respiratory defects or evidence for oxidative damage strongly suggesting that other mechanisms induce tau pathologies in this model. Perturbations in mitochondrial dynamics and ultrastructure that occur early in Phb2^NKO mice and may interfere with axonal trafficking are attractive candidates. Our findings therefore raise the possibility that tau pathologies might be associated with other neurodegenerative disorders caused by deficiencies in mitochondrial dynamics. Studies along these lines may turn out to be of relevance for tauopathies as well.

Materials and Methods

Histology and immunohistochemistry

Animals were anesthetized with avertin and perfused intracardially with 4% paraformaldehyde in PBS. Brain were removed, post-fixed overnight with 4% paraformaldehyde in PBS and conserved in 0.12 M phosphate buffer. Immunohistochemistry and immunofluorescence were performed on 30 µm sagittal vibratome sections, as previously described [58]. Anti-GFAP antibodies were purchased by NeoMarkers (Fremont, CA, USA). Anti-4-HNE antibodies were purchased from Abcam (Cambridge, UK). Immunohistochemistry with anti-AT-8 (Thermo Fisher Scientific,Walthman, MA, USA) was performed with Vector M.O.M. Immunodetection kit (Vector Lab, Burlingame, CA, USA) according to the manufacturer's protocol. For TUNEL assays, tissues were frozen on liquid nitrogen vapour for 5 s after fixation and then conserved in liquid nitrogen. TUNEL assays were performed on 20 µm thick coronal frozen sections with ApopTag Plus Peroxidase In Situ Apoptosis Detection Kit (Chemicon International Temecula, CA) according to the manufacturer's protocol. All immunohistochemical and immunofluorescence analyses were performed on at least three mice per genotype.

Neuropathology and ultrastructural analysis

Age-matched Phb2^NKO and control mice (n = 3 for each genotype) were anesthetized intraperitoneally with avertin and perfused with 2% glutaraldehyde in PBS. Brains were removed and postfixed in 0.12 M phosphate buffer/2% glutaraldehyde. After treatment with osmium tetroxide, brains were embedded in Epon (Fluka, Buchs SG, Switzerland). Semithin (1 µm) coronal sections were cut from hippocampus and cerebral cortex. To quantify the number of DG neurons with degenerative features, we performed morphometry on semithin sections by scoring the percentage of DG neurons with abnormal morphology and vacuoles in the cytoplasm, and by counting the number of neurons in the DG and CA1 areas (n = 3 per genotype). Morphometric analyses were performed blinded to the mouse genotype. For ultrastructural analyses, blocks of tissue were selected for electron microscopy after light microscopy examination of semithin sections. Ultrathin sections (70 nm) were cut, collected on 200 mesh copper grids (Electron Microscopy Sciences, Hatfield, PA, USA) and stained with uranium acetate (Plano GMBH, Wetzlar, Germany) and lead citrate (Electron Microscopy Sciences).

RNA in situ hybridization

To obtain specific probes for in situ hybridization, the coding sequence of the mouse Phb2 (nucleotides 1–900) cDNA was PCR-amplified from mouse liver cDNA, subcloned and used as templates to transcribe either sense or antisense digoxygenin-labeled riboprobes using the DIG RNA labeling kit (Roche). Vibratome sections were permeabilized with proteinase K (10 µg/ml) for 10 min. In situ hybridization was performed essentially as described previously [59].

Enzyme activity staining of brain cryosections

Frozen brain cryosections were thawed and incubated in COX staining solution (DAB, cytochrome c, sucrose, catalase, phosphate buffer pH 7.4), SDH staining solution (succinic acid, phosphate buffer pH 7.4) or both in a humid chamber for 15 min at 37°C. Slides were washed three times with water for 5 min. For dehydration samples were incubated in increasing concentrations of ethanol: 90% EtOH for 1 min, 95% EtOH for 1 min and 100% EtOH for 1 min. Subsequently, the sections were washed two times in xylol for 2 min each and finally mounted in mounting medium.

Primary neuronal cultures

Mouse primary hippocampal neurons were isolated from E18.5 embryos (Phb2^fl/fl and Phb2^fl/wt) and grown on coverslips for 7 DIV before transduction with lentiviral vectors. Detailed experimental procedures are found in the supplement.
