Toll-Like Receptor 8 Agonist and Bacteria Trigger Potent Activation of Innate Immune Cells in Human Liver

Summary

The ability of human pathogens, like HBV, HCV or Plasmodium spp. to infect the liver might be influenced by its tolerogenic features. However, hepatic tolerance is not absolute since protective immunity can be triggered. Our goal was to define how to deliberately elicit an intrahepatic protective immune response. To achieve this, we purified immune cells residing in the vascular bed of human livers and we probed their reactivity against different pathogen-associated molecules, mimicking signature components of viruses or bacteria. We found that robust production of anti-viral cytokine IFN-γ was induced only by the TLR8 agonist ssRNA40. Mechanistically, ssRNA40 triggered hepatic monocytes to produce IL-12 and IL-18 cytokines, which stimulated IFN-γ production by liver-resident CD161Bright MAIT and CD56Bright NK cells. We also demonstrated that ssRNA40-mediated activation could occur in pathologic (HBV- or HCV-chronically infected) livers and that a similar cytokine-mediated activation of intrahepatic cells could also be triggered upon bacterial infection. Thus, we showed that the liver immune cells can respond vigorously to specific pathogen-associated molecules. The selective production of IFN-γ by liver-resident cells could have therapeutic implications for the treatment of chronic liver infections.

Introduction

The liver is an essential organ at the center of carbohydrate, lipid and protein metabolisms. It is crucial for clearing toxins and pathogens that reach the circulatory compartment from the gut. The liver is also home to abundant populations of innate immune cells (monocytes, NK and NKT cells) whose local activation needs to be tuned in order to avoid severe liver damage with life-threatening consequences [1], [2]. For these reasons, the immunological environment of the liver has been primarily associated with tolerogenic features: abundance of immunosuppressive cytokines/ligands (e.g., IL-10 or PD-L1), tolerance to LPS stimulation and production of inhibitory enzymes (e.g., arginase) that can suppress immune responses [3], [4]. The ability of pathogens like HBV, HCV and Plasmodium spp. to establish persistent infections in the liver can be facilitated by such immunotolerant features.

The hypo-responsiveness of liver-resident immune cells is, however, not absolute and selective triggers are known to activate hepatic NK or CD56⁺ T cells: for example, liver-resident iNKT cells are activated in mice infected with Borrelia burgdorferi [5]. Using human immune cells purified from a donor liver for transplant, it was also shown that while Toll-like receptor 4/TLR4 and TLR2 agonists triggered a tolerogenic response and preferential IL-10 production, a TLR3 agonist activated hepatic NK cells through IL-18-mediated stimulation [6].

The difficulty in obtaining a substantial number of intrahepatic human cells has precluded a comprehensive analysis of the signals necessary to activate liver immunity. Furthermore, there is a general problem of translating murine findings to the human liver. The vast population of liver-resident T cells expressing NK markers are mostly composed by MR1-restricted mucosal-associated invariant T (MAIT) cells in humans and not by the classical CD1d-restricted NKT cells, which are abundant in mice [7]. Thus, studies on human hepatic immune cells are crucial. Utilizing intrasinusoidal samples obtained during the procedure preceding living-donor liver transplantation, we characterized the requirements for selective activation of human intrahepatic immune cells and the cellular subsets responsible for inducing a potent immune response in the human liver microenvironment.

Results

Selective stimulation of liver intrasinusoidal cells by a TLR8 agonist

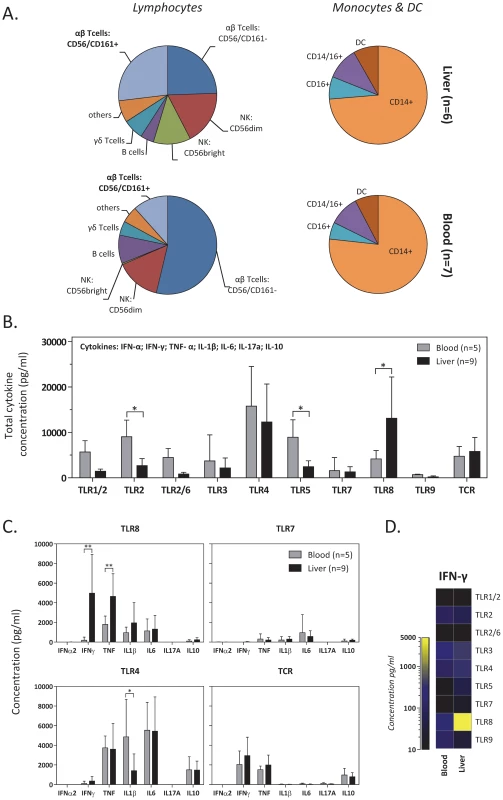

To test whether liver intrasinusoidal cells can be differentially activated by various pathogen-associated molecules, mononuclear cells purified from healthy liver grafts preceding living-donor liver transplantations (called liver-derived cells/LDCs) were stimulated with TLR agonist 1/2, 2, 2/6, 3, 4, 5, 7, 8, or 9 (respectively Pam3CSK4, HKLM, FSL-1, poly(I:C), LPS, flagellin, imiquimod, ssRNA40, or CpG ODN2216) or anti-CD3/CD28-coupled beads (TCR) as a control. We used TLR agonists at the concentration that triggered maximal activation in PBMCs (not shown). After 18 hours of incubation, supernatants were collected and the concentrations of antiviral (IFN-α, IFN- γ), pro-inflammatory (IL-1β, IL-6, IL-17A, TNF-α) and immunosuppressive (IL-10) cytokines were measured. The purity and cell composition of LDCs were recently described in detail [8]. For clarity, the differential composition of lymphocytes and of monocytes and dendritic cells/DCs obtained from the liver (n = 6) or peripheral blood (n = 7) of age-matched healthy subjects are shown again in Fig. 1A. Liver-derived lymphocytes are enriched in CD56^Bright NK and T cells expressing NK markers CD56 and CD161 which are mainly mucosal-associated invariant T (MAIT) cells [8]. The frequency of different monocyte subsets (CD14⁺⁺CD16⁻, CD14⁺CD16⁺ and CD14^dimCD16⁺) and of DCs were in contrast similar in LDCs and PBMCs.

Fig. 1B shows the total production of IFN-α, IFN-γ, IL1β, IL-6, IL-10, TNF-α obtained in PBMCs of 5 healthy subjects and LDCs from 9 healthy liver donors (matched for age). The tested TLR agonists activated higher production of cytokines in PBMCs than LDCs with the single notable exception of the TLR8 agonist ssRNA40. Analysis of the single cytokines produced in ssRNA40-activated LDCs showed a very high quantity of IFN-γ, followed by TNF-α and IL-1β (Fig. 1C). IFN-γ quantity produced by ssRNA40-activated LDCs (∼5000 pg/mL) was higher than the IFN-γ triggered by anti-CD3/CD28-coupled beads (∼3000 pg/mL) and by the other TLR agonists (<500 pg/mL) (Fig. 1C and 1D). ssRNA40-activated LDCs also produced high quantities of IL-1β and TNF-α, but the differences between LDCs and PBMCs were not as dramatic as that observed for IFN-γ: on average 27 times higher in LDCs than PBMCs (Fig. 1C and 1D). The TLR4 agonist LPS elicited also a high production of cytokines in LDCs (Fig. 1B). The pro-inflammatory IL-1β, IL-6 and TNF-α and the immunoregulatory IL-10 cytokines were the most highly produced with levels similar between PBMCs and LDCs (IL-6, TNF-α, IL-10) or higher in PBMCs than LDCs (IL-1β) (Fig. 1C). IFN-α was detectable only at low concentrations (∼63 pg/mL) upon TLR9 activation with production higher in PBMCs than in LDCs (not shown). TLR agonists did not induce production of IL-17A, which was only detectable at low levels in LDCs and PBMCs (∼57 and ∼124 pg/mL, respectively) upon TCR stimulation (not shown).

MAIT and CD56^Bright NK cells are the main IFN-γ-producing sources within ssRNA40-activated LDCs

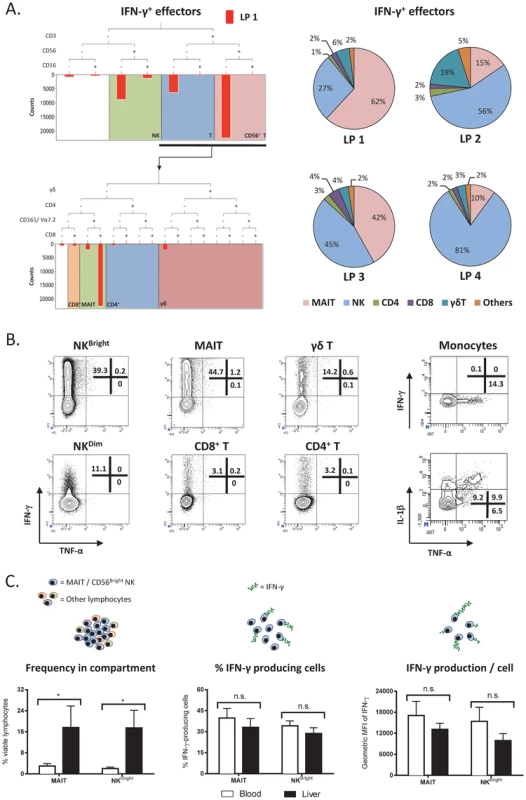

We next characterized the cellular component responsible for the high IFN-γ, TNF-α and IL-1β production in LDCs after ssRNA40 stimulation. Visualization of cytokine-producing cells was performed by intracellular staining, adding the protein transport inhibitor brefeldin A either immediately or only in the last 5 hours of the stimulation. IFN-γ-producing cells within both the CD3⁺ and CD3⁻ lymphocyte populations were visualized only with the addition of brefeldin A in the final 5 hours as the overnight presence of brefeldin A resulted in a diminished response (not shown). Characterization of the cellular composition of IFN-γ producers based on NK- and T-cell subsets (see tree diagram in Fig. 2A) revealed that despite different frequencies in different individual samples (pie charts in Fig. 2A), three lymphocyte populations were responsible for the majority of IFN-γ production upon ssRNA40 stimulation: CD3⁻CD56⁺CD16⁻ (CD56^Bright NK or NK^Bright cells), CD3⁺γδ⁻CD4⁻CD161⁺Valpha 7.2⁺ (MAIT cells) and to a lesser extent, CD3⁺γδ⁺ cells (γδ T cells). CD56^Dim NK (NK^Dim cells) and conventional T cells were, in contrast, weakly activated (Fig. 2A and 2B). Importantly, as shown in the dot plots of a representative sample in Fig. 2B, ssRNA40-activated lymphocytes produced only IFN-γ, while TNF-α and IL-1β were produced by activated monocytes (Fig. 2B).

The higher production of IFN-γ by ssRNA40-activated LDCs in comparison to PBMCs can be explained by the preferential liver compartmentalization of MAIT and NK^Bright cells (Fig. 2C first panel). However we also tested whether liver-derived MAIT and NK^Bright cells were more efficiently activated than blood-derived cells. As shown in Fig. 2C, the frequency of IFN-γ-producing MAIT or NK^Bright subset within the total population present in liver or blood (Fig. 2C second panel) and their capacity to produce IFN-γ, measured by geometric MFI (Fig. 2C third panel) were not different in relation to their anatomical origin. Therefore, the higher production of IFN-γ in the supernatant of ssRNA40-stimulated LDCs in comparison to PBMCs is likely a consequence of the specific enrichment of MAIT and NK^Bright cells in the hepatic environment.

Characterization of ssRNA40-mediated activation of intrahepatic immune cells

We conducted a series of experiments to characterize the mechanism of ssRNA40-mediated activation of intrahepatic immune cells. We first blocked the generation of endolysosomes that are necessary for TLR8 signaling upon ssRNA40 stimulation [9] by using the endosomal acidification inhibitor chloroquine and the vacuolar-type H+ ATPase inhibitor bafilomycin A1. The experiments demonstrated that inhibition of endolysosome acidification indeed blocked ssRNA40-mediated activation (Fig. S1), confirming the essential role of TLR8 in ssRNA40 stimulation. We also confirmed that the production of IFN-γ was dependent on uracil-rich ssRNA40, but not seen with its control, adenine-rich ssRNA41 [10], or its vehicle, Lyovec (Fig. S2).

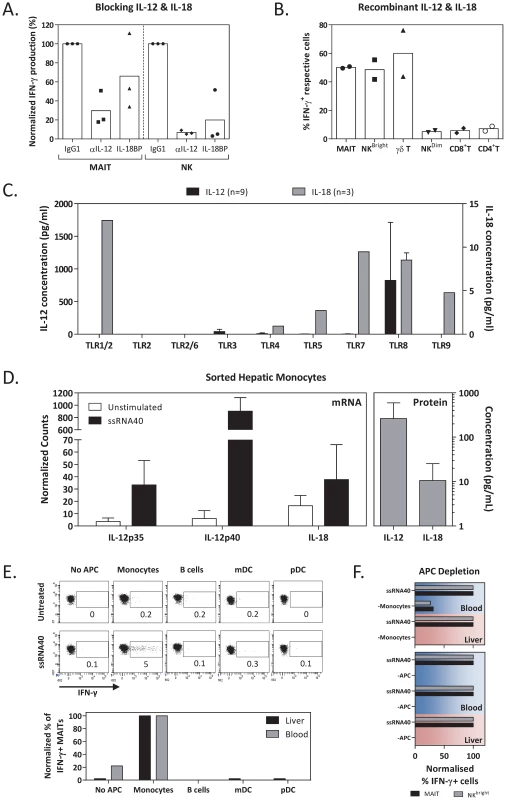

We next analyzed how ssRNA40 activates MAIT and NK^Bright cells. A previous study of hepatic NK-cell activation demonstrated that IL-18 and IL-12p70 (hereby stated as IL-12) production by hepatic monocytes is necessary for their activation [6]. MAIT cells are instead known to be principally triggered by microbial riboflavin metabolites presented by MR1 molecules on APCs [11], even though recent studies by others [12] and us [13] indicated that upon overnight co-culture with bacteria, circulating MAIT-cell activation was dependent on the MR1 recognition as well as on the presence of IL-12 and IL-18. We therefore analyzed the role played by IL-12 and IL-18 in the ssRNA40-mediated activation of intrahepatic lymphocytes. LDCs from three different donors were stimulated with ssRNA40 in the presence or absence of anti-IL-12 or anti-IL-18 neutralizing antibodies. Anti-IL-12 or anti-IL-18 antibodies inhibited activation of hepatic MAIT and NK cells (Fig. 3A). Furthermore, addition of recombinant IL-12 and IL-18 to LDCs induced IFN-γ production selectively in MAIT, NK^Bright and also γδ T cells, similarly to what observed in ssRNA40-mediated stimulation of LDCs (Fig. 3B).

The importance of IL-12 and IL-18 cytokines in the ssRNA40-mediated activation of intrahepatic immunity was further supported by the observation that across all tested TLR agonists, only ssRNA40 elicited a production of both IL-12 and IL-18 cytokines in LDCs (Fig. 3C). More importantly, ssRNA40 was the only TLR agonist that stimulated a significantly large (mean: 824.2 pg/mL) production of IL-12 (P<0.0001).

Human monocytes, particularly the CD14^dimCD16⁺ population, have been shown to sense nucleic acids through TLR8 receptors [14]. We therefore directly tested whether hepatic monocytes produce IL-12 and IL-18 upon ssRNA40 stimulation. Hepatic monocytes were sorted from 2 different donors of LDCs and then stimulated with ssRNA40 for 18 hours. IL-12 and IL-18 production were detected both at mRNA and protein levels (Fig. 3D).

To directly test the ability of ssRNA40-activated monocytes to stimulate IFN-γ production by NK and MAIT cells, we sorted different populations of APC and lymphocytes (NK and MAIT) from one normal liver and one healthy peripheral blood. Regardless of their anatomical origin (Fig. 3E), only monocytes were able to stimulate IFN-γ production in NK and MAIT cells.

The ability of intrahepatic and circulating monocytes to activate NK and MAIT cells after ssRNA40 activation was further confirmed in depletion experiments. These were performed in cells purified in two distinct healthy liver and blood samples. Depletion of monocytes or total APC from bulk cell populations abolished the ssRNA40-mediated activation of MAIT and NK cells (Fig. 3F).

Activation of hepatic MAIT cells by IL-12 and IL-18 upon bacterial infection

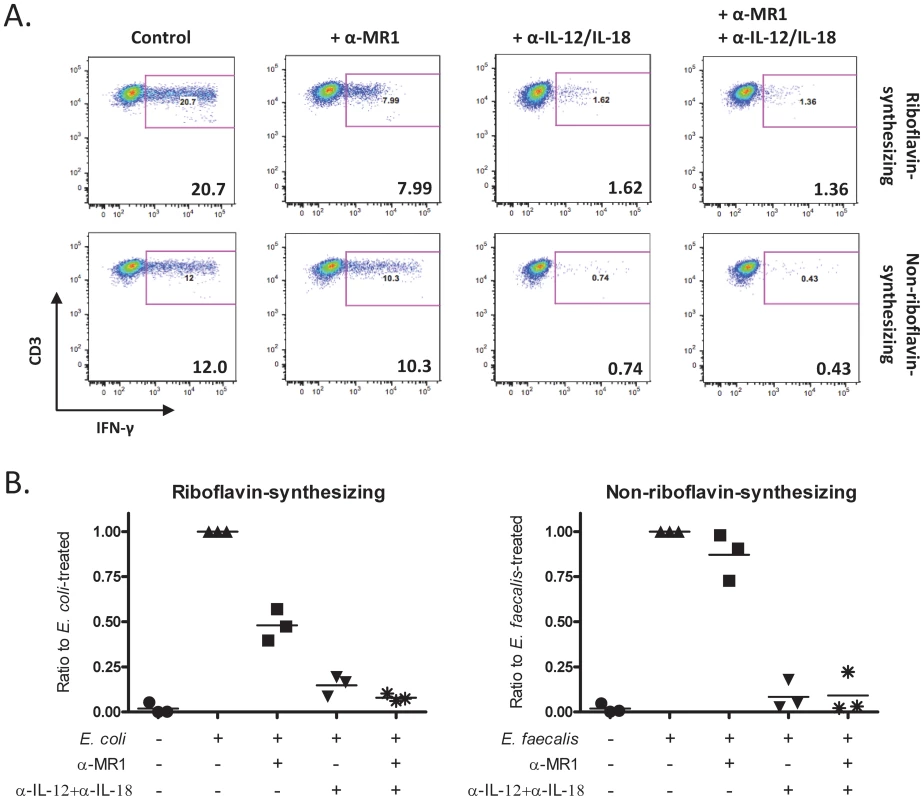

We recently demonstrated that overnight bacterial stimulation of healthy PBMCs activated MAIT cells to produce IFN-γ directly via MR1 as well as indirectly via IL-12- and IL-18-dependent mechanisms [13]. To test if this finding was true in LDCs, we stimulated bulk population with riboflavin- and non-riboflavin-synthesizing bacteria (E. coli and E. faecalis respectively): only riboflavin-synthesizing bacteria can produce a ligand presented by MR1 [11]. The bacterial stimulation was performed for 20 hours in the presence or absence of blocking antibodies against MR1 or IL-12 and IL-18. Importantly, we observed that upon overnight co-culture with riboflavin-synthesizing bacteria, hepatic MAIT cells were activated by both IL-12 and IL-18 cytokines and by MR1-restricted ligand (Fig. 4A and 4B). In contrast, activation by non-riboflavin-synthesizing bacteria was entirely dependent upon IL-12 and IL-18. Similar results were obtained using THP1 cells, a monocytic cell line, as APCs. Consistent with our findings with blood-derived MAIT cells [13], early activation (5 hours) of liver-derived MAIT cells with riboflavin-synthesizing bacteria was MR1-dependent, while later activation (20 hours) was dependent upon both MR1 and IL-12 and IL-18 (Fig. S3). Similarly, experiments using non-riboflavin-synthesizing bacteria reinforced the important role of cytokines in MAIT-cell activation to produce IFN-γ.

Activation of hepatic MAIT cells by ssRNA40 mimics MAIT-cell activation upon bacterial infection

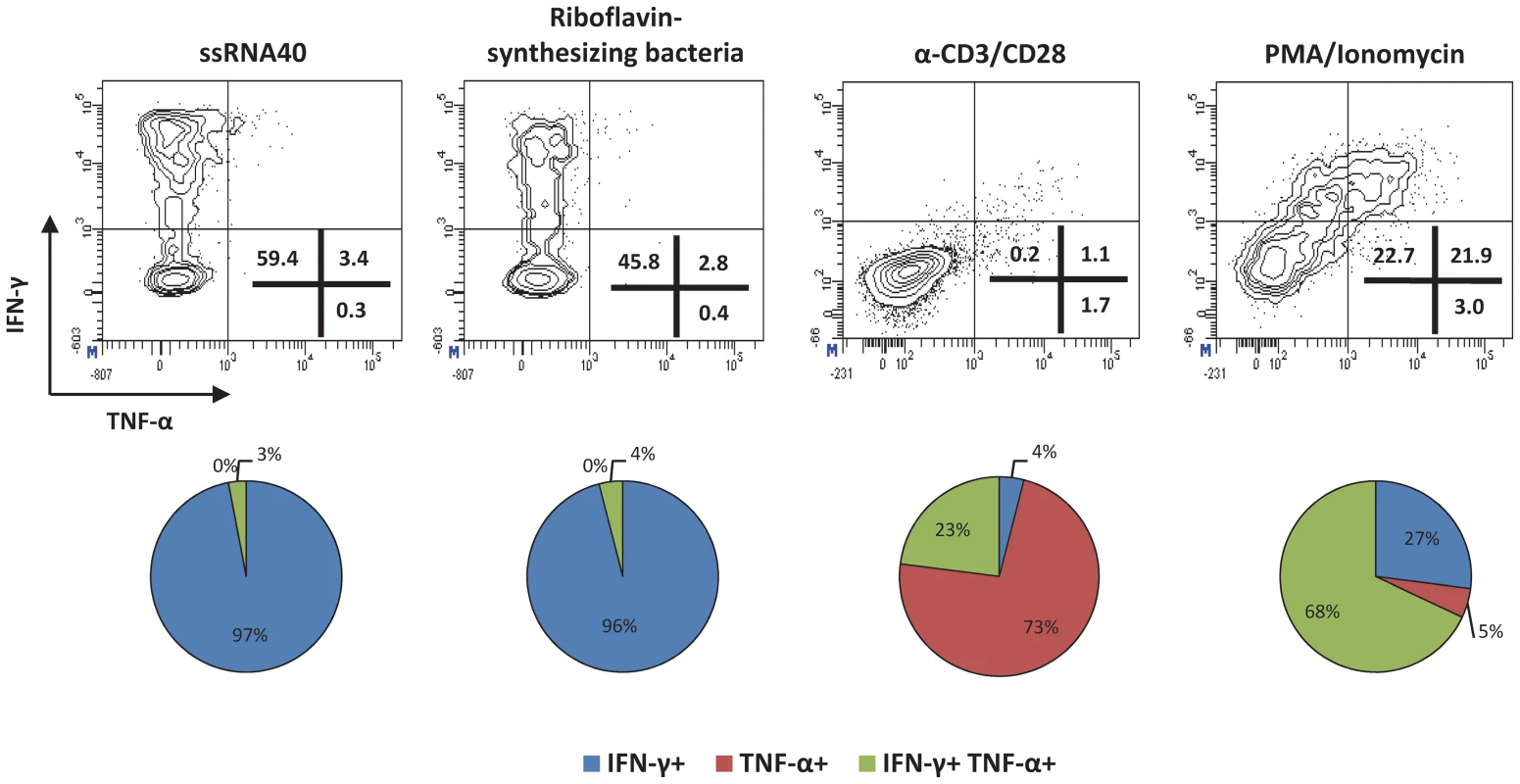

To further analyze whether TLR8-mediated activation mimics bacterial stimulation in the intra-hepatic environment, we pulsed LDCs with ssRNA40, riboflavin-synthesizing bacteria (P. aeruginosa), anti-CD3/CD28-coupled beads or PMA/Ionomycin and characterized cytokines produced by hepatic MAIT cells after overnight incubation. Fig. 5 shows that ssRNA40 elicited a cytokine profile in intrahepatic MAIT cells similar to that induced upon bacterial infection, but different to those obtained by anti-CD3/CD28-coupled beads or PMA/Ionomycin. MAIT cells exclusively produced IFN-γ without a concomitant major production of TNF-α (Fig. 5) or IL-17A (not shown) when stimulated with ssRNA40 or bacteria. In contrast, significant proportions of TNF-α mono-producers and IFN-γ/TNF-α double producers were observed only when MAIT cells were stimulated with anti-CD3/CD28-coupled beads or PMA/Ionomycin. Taken together, ssRNA40 induced an intrahepatic immune response that resembles the one triggered by bacterial infection.

TLR8-activated immune response in diseased livers

The demonstration that a TLR8 agonist, through production of IL-12 and IL-18 from intrahepatic monocytes, stimulated a robust production of IFN-γ in liver resident lymphocytes could have therapeutic implications. In HBV transgenic mice, for example, IL-12 and IL-18 treatment causes an inhibition of HBV replication that was mediated by IFN-γ production from NK and NKT cells [15], [16]. However, pathological processes can alter the cellular composition and the cytokine milieu of the liver microenvironment which can result in the inhibition of T- and NK-cell function [17]. A recent characterization of the immunological profile in chimpanzees treated with an oral TLR7 agonist has for example shown a reduced cytokine and chemokine production in chronic HBV-infected animals in comparison to the healthy ones [18]. We therefore tested whether liver pathological processes can alter the ability of TLR8 agonist to activate intrahepatic immunity.

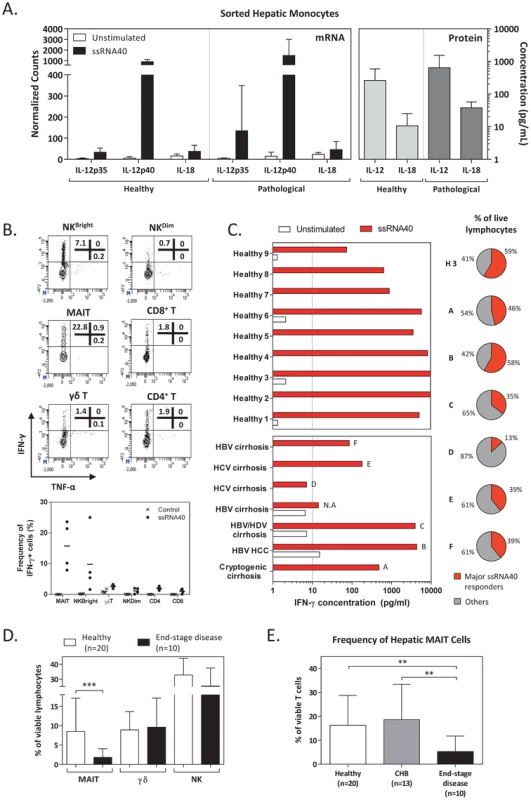

The limited number of cells obtained in diagnostic liver biopsies is insufficient to perform any functional analysis. Thus we purified hepatic immune cells from HBV- or HCV-associated liver explants due to the end-stage liver disease following the identical cold perfusion method applied for healthy livers. In all cases, the pathological processes were very advanced, i.e., either cirrhosis or hepatocellular carcinoma. The functionality of the sorted whole monocytes from pathological liver explants to respond to ssRNA40 stimulation was first evaluated at protein (4 pathologic livers) and mRNA (5 pathologic livers) levels. Upon ssRNA40 overnight stimulation, pathological liver-derived monocytes were able to produce IL-12 and IL-18 cytokines. The cytokine concentrations in pathological livers were slightly higher than observed in healthy livers, even though they didn't reach statistical significance (Fig. 6A).

We next tested the ability of pathological LDCs to produce IFN-γ after ssRNA40 stimulation. Intracellular analysis of IFN-γ production confirmed that also in responding pathological livers, MAIT and NK^Bright cells were the major IFN-γ-producing innate immune cells (Fig. 6B). In most of the LDCs of pathological livers (5 out of 7), ssRNA40 stimulated IFN-γ production from viable intrahepatic lymphocytes even though to levels lower than those observed in healthy LDCs (mean±SD: 1292±1957 vs 4975±3948, P = 0.0311; Fig. 6C). Taken together, these data show that ssRNA40 can mediate activation of intrahepatic immunity also in livers with advanced pathological process.

Since the lower IFN-γ quantity detected in the advanced pathological livers might be a direct consequence of the low intrahepatic frequencies of cells responding to ssRNA40, we characterized the composition of liver-derived cells in samples from both end-stage liver diseases and in less advanced liver pathologies, such as chronic hepatitis B. In the latter, low cell numbers have severely limited our analysis only to the frequencies of MAIT cells.

Among the major ssRNA40-responding cells (MAIT, γδ T and NK cells), patients with end-stage liver disease have a significantly lower frequency of MAIT cells compared to healthy subjects (Fig. 6D). In addition, a viable population of monocytes were clearly detectable in LDCs purified from pathological livers with the only difference being an increased frequency of CD16⁺ monocytes (comprising both CD14⁺CD16⁺ and CD14^dimCD16⁺ subsets) in pathological compared to healthy livers (15.3% vs 5.5% of total CD45⁺HLA-DR⁺ cells; P = 0.05), confirming previous results obtained in chronic hepatitis [19].

MAIT cells were, similar to NK^Bright cells [20], enriched in the liver compartment of untreated CHB patients and, unlike in end-stage liver disease, hepatic MAIT-cell frequency remains similar to that found in healthy subjects (Fig. 6E). Thus, the intrahepatic innate lymphocyte population is relatively conserved at least in chronic HBV-infected livers and might be potentially triggered by ssRNA40 stimulation.

Discussion

We demonstrate here that the human liver environment is specifically equipped with a network of innate immune cells (monocytes, MAIT and NK^Bright cells), which is not intrinsically tolerant or hyporesponsive. On the contrary, this cellular network can sense distinct pathogen-associated molecules and can generate a robust immune response. We show that substantial intrahepatic production of IFN-γ is preferentially activated in LDCs by the TLR8 agonist ssRNA40 and we identified CD161^Bright MAIT and NK^Bright cells as the principal liver-resident IFN-γ-producing lymphocytes. We also show that their activation is mediated by IL-12 and IL-18 produced by the TLR8-activated hepatic monocytes. The demonstration that intrahepatic immune cells were strongly activated by ssRNA40, but not by exposure to LPS, flagellin or other bacterial products, shows that the immune cells residing within the liver vascular system modulate their immunological responses to different pathogen-associated molecules [3]. In this context the TCR specificity of the MAIT cells is not critical and indeed the CD161^Bright CD8⁺ T-cell population as a whole, of which the MAIT cells are the key subset, possesses the innate feature to preferentially respond to cytokine-mediated stimulation [13].

Even though TLR8-mediated recognition has been associated with viral infections, new findings link TLR8 sensing to viable bacterial infection [21], [22] and unmodified RNAs, a hallmark of viable bacteria [23], [24]. We might therefore hypothesize that the strong activation of intrahepatic immunity selectively triggered by TLR8 agonist reflects the ability of intrahepatic cells - in particular MAIT cells well known for their antimicrobial capability [25] - to control active bacterial infection while ignoring intestinal floral products that leak into the intrahepatic blood circulation. The strong activation of intrahepatic immunity observed in our experiments utilizing three different bacteria strains (P. aeruginosa, E. coli and E. faecalis) further support such an hypothesis. Nevertheless, our data might indicate that TLR8-mediated activation of intrahepatic immunity might also take place during other pathological conditions, e.g., acute viral hepatitis and hepatic flares during chronic viral hepatitis. Unmodified RNAs, the possible trigger of TLR8-mediated immune response, are also highly enriched within mitochondria and as such can be released during flares when cells are damaged or die [23]. In this context, our observation that ssRNA40-mediated activation could be detected in pathologic liver-derived cells suggests that the ssRNA40-generated immune response can be induced during chronic viral infection even though the impact of hepatotropic viruses on the TLR8-mediated activation of intrahepatic immunity requires more in depth analysis. At the moment, our attempts to activate hepatic MAIT cells (as well as NK^Bright) by exposing LDCs to purified HBV virions (unpublished results) have been unsuccessful.

Irrespective of their biological role during infections, the network of innate immune cells able to respond to TLR8 agonist within the liver sinusoids can open new therapeutic opportunities. TLR7 agonists are the most studied TLR agonists for the treatment of liver pathologies [18], [26] due to their ability to suppress HCV replication in hepatocytes [27] and stimulate robust IFN-α production in plasmacytoid dendritic cells [28]. However, our data shows that a TLR8 agonist could be advantageous for liver-specific treatment as such an agonist preferentially activates innate immune cells within the liver compartment while TLR7 agonists do not display any preference and do not induce robust IL-12 and IFN-γ production. The selective liver-localized production of IFN-γ could exert an efficient antiviral effect, as HBV clearance was shown to be mediated by IFN-γ in infected chimpanzees [29] and HBV transgenic mice [30]. In this respect it is important to note that the recent demonstration of therapeutic efficacy in HBV-infected chimpanzees of a novel synthetic TLR agonist (GS-9620; labeled as a TLR7 agonist) was not only associated with serum detection of IFN-α, but also of increased IL-12 and CXCL10 levels [18]. Such a cytokine/chemokine profile is also consistent with a TLR8-mediated response and can be explained by the TLR7/TLR8 degeneracy of this synthetic compound at high doses [31].

In addition to its ability to activate NK^Bright and MAIT cells, IL-12 production following TLR8 activation might have other immunomodulatory effects, since IL-12 can induce partial functional recovery of exhausted HBV-specific CD8⁺ T cells [32]. This concept is also supported by data from a murine model of persistent HBV infection where single-stranded RNA could reverse immune tolerance [33].

On the other hand, the robust activation of intrahepatic cellular immunity via TLR8 needs to be tightly controlled, both during natural infection or if a TLR8 agonist is to be exploited for therapy of chronic viral infections. IFN-γ is not only an antiviral cytokine but also further induces production of inflammatory chemokines, e.g., CXCL10, by hepatocytes [34]. CXCL10 can induce rapid recruitment of circulating memory T cells into solid organs [35] but can also aggravate inflammatory events that may lead to severe liver damage [36]. In this respect, the balance between protective or damaging effects of intrahepatic innate immune-cell activation will have to be carefully evaluated in vivo.

In conclusion, we demonstrate that a network of hepatic innate immune cells responds to TLR8-mediated activation by inducing a potent immune response. The strategic positioning of such cells in the liver can constitute an advantage to immediately sense and control the presence of viable bacteria in the gastrointestinal circulation and might also open new therapeutic options for the treatment of different liver diseases.

Materials and Methods

Human samples

Collection of healthy human LDCs (n = 24) and PBMCs (n = 7) was performed as previously reported [8]. Due to ethical considerations, immune cells derived from healthy liver donors were instead compared to those of age-matched healthy donors of PBMCs [8]. Liver biopsies were performed on untreated chronic HBV-infected/CHB patients (n = 13). These biopsies were cultured in medium for 24 hours to gently release mononuclear cells, (‘walk-out’ method) [37]. Cell viability collected using this method exceeded 80%. Among these CHB patients, 10 subjects donated blood as well, from which PBMCs were collected. Mononuclear cells were also collected from HBV/HCV-related liver explants due to end-stage liver disease through perfusion using cold buffer solution (n = 6).

Ethics statement

All participants in this study are adults. The study was approved by the local ethical boards of the Asian American Liver Centre and the Royal London Hospital and all participants gave written informed consent.

Antibodies and reagents

Monoclonal antibodies of anti-human-CD3-eFluor605NC (clone OKT3) or –FITC or PE-Cy7 (UCHT1), anti-CD4-eFluor650NC (RPA-T4), anti-CD7-FITC (4H9), anti-CD161-PerCP-Cy5.5 (HP-3G10), anti-HLA-DR-AlexaFluor700 (LN3) were obtained from eBioscience (San Diego, CA). Anti-CD8-V500 (RPA-T8), anti-CD14-PE-Cy7 (M5E2), anti-CD45-V500 (HI30), anti-CD56-PE-Cy7 (B159), anti-IFN-γ-V450 (B27), anti-TNF-α-APC (6401.1111) antibodies were obtained from Becton Dickinson (BD, San Jose, CA). Anti-CD16-APC-Cy7 (3G8), anti-CD19-FITC (HIB19), anti-CD20-FITC (2H7), anti-CD56-FITC or APC-Cy7 (HCD56), anti-Vα7.2 TCR-PE or -APC (3C10) antibodies were obtained from Biolegend (San Diego, CA). Anti-CD161-APC (191B8) and IFN-γ-FITC (45-15) antibodies were obtained from Miltenyi Biotec (UK). Anti-TCRγδ-FITC or -PE (5A6.E9) antibody and Live/Dead Fixable Dead Cell Stain Kit (yellow) were obtained from Invitrogen (Carlsbad, CA). Agonists for human TLR1/2 (Pam3CSK4; 1 µg/mL), TLR2 (HKLM; 10⁸cells/mL), TLR2/6 (FSL-1; 1 µg/mL), TLR3 (Poly(I:C); 10 µg/mL), TLR4 (E. coli K12 LPS; 1 µg/mL), TLR5 (S. typhimurium flagellin; 1 µg/mL), TLR7 (Imiquimod; 5 µg/mL), TLR8 (ssRNA40; 1 µg/mL or otherwise stated) and TLR9 (CpG ODN2216; 5 µM) were obtained from Invivogen (San Diego, CA). Anti-CD3/CD28-coupled beads were obtained from Invitrogen (1∶1 bead-to-cell ratio). Brefeldin A (2 µg/mL for overnight incubation or otherwise stated), bafilomycin A1 (10 nM), chloroquine diphosphate (5 µg/mL), PMA (2 ng/mL) and Ionomycin (1 µg/mL) were obtained from Sigma-Aldrich (Saint Louis, Missouri).

Quantification of secreted cytokines

LDCs or PBMCs were plated at 100,000 cells per well in 96-well plates and stimulated with TLR agonists or anti-CD3/CD28-coupled beads for 18 hours. Sorted monocytes were plated at 150,000 cells per well in 96-well plates and stimulated with ssRNA40 for 18 hours. Supernatant was collected subsequently and cytokine concentrations were assessed via cytokine multiplex bead-based assay according to the manufacturer's instructions (Luminex, Austin, TX). ELISA of IL-18 was performed according to the manufacturer's instructions (R&D Systems).

Flow cytometry

The experiment was performed as previously reported [8]. Data was analysed using FACSDiva (BD), FlowJo (Tree Star) or Kaluza (Beckman Coulter) software.

Cell sorting and depletion

Hepatic MAIT cells were sorted as previously reported [8]. Subsets of hepatic lineage positive (CD3⁺CD7⁺CD56⁺) and antigen-presenting cells (CD3⁻CD7⁻CD56⁻HLA-DR⁺) were sorted using a BD FACS Aria. Subsets of hepatic APCs were subsequently sorted based on the expression of CD14⁺⁺ and CD16⁺ (monocytes), CD20⁺ (B cells), CD11c⁺ (mDCs) or CD123⁺ (pDCs). Pan monocytes were depleted from the bulk population using the pan monocyte isolation kit (Miltenyi Biotec).

Direct co-culture assay

Sorted hepatic lineage positive cells were co-cultured with sorted APCs at an effector-to-target (E∶T) ratio of 1∶4 in the presence of ssRNA40 overnight with addition of brefeldin A (10 µg/mL) in the final 5 hours. The intracellular production of IFN-γ was assessed by staining and FACS as above.

Blockade of MR1 or of IL-12 and IL-18 upon ssRNA40 stimulation

LDCs or PBMCs were stimulated with ssRNA40 overnight in the presence of anti-MR1 monoclonal antibody at 10 µg/mL (clone 26.5, kindly provided by Ted. H. Hansen). Alternatively, the stimulated cells were cultured in the presence of anti-IL-12p70 monoclonal antibody (clone 24910) or rhIL-18 binding protein (clone 136007) at concentration 20 µg/mL (R&D Systems). Brefeldin A (10 µg/mL) was added in the final 5 hours. The intracellular production of IFN-γ was determined by flow cytometry.

Bacterial stimulation of MAIT cells

The bulk population of liver-derived cells was stimulated overnight with two groups of bacteria, i.e., the ones that synthesize riboflavin (Escherichia coli or Pseudomonas aeruginosa) and the one that does not (Enterococcus faecalis). Two million paraformaldehyde-fixed E. coli or E. faecalis were added for 20 hours in the presence or absence of blocking antibodies against IL-12p70 (R&D Systems) and IL-18 (MBL International, USA) at concentration 5 µg/mL or against MR1 (10 µg/mL) as indicated. Alternatively, to characterize the early and late activation of MAIT cells, THP1 cell line was used as APCs. To assess the cytokine produced by MAIT cells upon infection with riboflavin-synthesizing bacteria, viable P. aeruginosa was added overnight at MOI 10 per monocyte. Brefeldin A (10 µg/mL) was added for the final 4–5 hours of culture. Intracellular cytokine staining was performed to detect production of IFN-γ and TNF-α by MAIT cells.

Statistical analysis

The nonparametric Mann-Whitney U test was used to determine the statistical significance of differences.
