Ancestral Chromatin Configuration Constrains Chromatin Evolution on Differentiating Sex Chromosomes in

Summary

DNA is packaged with proteins into two general types of chromatin:
the transcriptionally active euchromatin and repressive heterochromatin. Sex chromosomes typically evolve from a pair of euchromatic autosomes. The Y chromosome of Drosophila is gene poor and almost entirely heterochromatic; the X chromosome, in contrast, has evolved a hyperactive euchromatin structure and globally up-regulates its gene expression, to compensate for loss of activity from the homologous genes on the Y chromosome. The evolutionary trajectory along which sex chromosomes evolve such opposite types of chromatin configurations remains unclear, as most sex chromosomes are ancient and no longer contain signatures of their transitions. Here we investigate a pair of unusual young sex chromosomes (termed ‘neo-Y’ and ‘neo-X’ chromosomes) in D. busckii, which formed through fusions of a largely heterochromatic autosome (the ‘dot chromosome’) to the ancestral sex chromosomes. We show that nearly 60% of the neo-Y genes have already become non-functional within only 1 million years of evolution. Gene expression is lower on the neo-Y than on the neo-X, which is associated with a higher level of binding of a silencing heterochromatin mark. The neo-X, on the other hand, shows no evidence of evolving hyperactive chromatin for dosage compensation. Our results show that the Y chromosome can degenerate quickly, but the tempo and mode of chromatin evolution on the sex chromosomes may be constrained by the ancestral chromatin configuration.

Introduction

Sex chromosomes have originated independently many times from ordinary autosomes in both plants and animals [1]. A common feature of heteromorphic sex chromosomes is that while X chromosomes maintain most of their ancestral genes, Y chromosomes often degenerate due to their lack of recombination, with only few functional genes remaining (for a recent review see [2]). The loss of gene function is often accompanied by an accumulation of repetitive DNA on ancient Y chromosomes, and a switch of chromatin structure from euchromatin to genetically inert heterochromatin [2,3]. Loss and silencing of Y-linked genes drives the evolution of dosage compensation on the X chromosome, which is often mediated by chromosome-wide epigenetic modifications. Drosophila males, for example, acquire a hyperactive chromatin conformation of their single X, while one of the two X’s in female mammals becomes heterochromatic [4,5].

Studies of young sex chromosomes have improved our understanding of the genomic and epigenomic mechanisms driving the divergence between X and Y [6–9]. Neo-sex chromosomes of Drosophila are formed by chromosomal fusions between the ancestral sex chromosomes and ordinary autosomes. The neo-Y, which is the autosome that became linked to the Y, entirely lacks recombination since it is transmitted through males only, which in Drosophila do not undergo meiotic recombination. Consistent with theoretical predictions that selection is ineffective on non-recombining chromosomes [10], neo-Y chromosomes in several Drosophila taxa have undergone chromosome-wide degeneration, and the extent of gene loss roughly corresponds to the age of the neo-Y. In particular, the very recently formed neo-Y of D. albomicans (<0.1 million year old) still contains most of its protein coding genes with <2% being putatively non-functional [11], but a large fraction of neo-Y genes (roughly 40%) are down-regulated [9], suggesting that transcriptional silencing might be initiating Y degeneration. The older neo-Y chromosome of D. miranda (1.5 million years old) has acquired stop codons and frame-shift mutations in almost half of its genes, shows a dramatic accumulation of transposable elements (between 30–50% of its DNA is composed of TEs) [12,13], and most neo-Y genes are expressed at a lower level than their neo-X homologs [11]. These changes at the DNA sequence level are accompanied by a global change in chromatin structure, and the D. miranda neo-Y is adopting a heterochromatic appearance marked by histone H3 lysine 9 di-methylation (H3K9me2) [3]. The neo-X of D. miranda, in contrast, has maintained most of its ancestral genes but is evolving partial dosage compensation, by co-opting the canonical dosage-compensation machinery of Drosophila (the MSL-complex). This complex is targeted to the ancestral X of Drosophila species, and up-regulates gene expression through changes of the chromatin conformation of the X, mediated by histone H4 lysine 16 acetylation (H4K16ac) [14,15]. The neo-sex chromosome shared by members of the D. pseudoobscura species group was formed about 15 million years ago, and has evolved the typical properties of old sex chromosomes: the neo-Y is completely degenerate and heterochromatic, while the neo-X is fully dosage compensated by the MSL machinery [3,16].

Well-studied neo-sex chromosome systems are all derived from euchromatic autosomes, and studying a neo-sex chromosome that originated from an autosome with some features similar to heterochromatin may allow a more general understanding of the evolutionary principles of chromatin formation on sex chromosomes. Here, we collect data on the genome, transcriptome and epigenome of D. busckii, a species with a poorly characterized neo-sex chromosome derived by a fusion (and supposedly followed by a pericentric inversion on the X) between the ancestral sex chromosomes and the “heterochromatic” dot chromosome (Fig 1A) [17,18]. The age, and the extent of sequence, expression and epigenetic divergence of the neo-sex chromosomes of D. busckii are unknown, but the dot chromosome has an unusual evolutionary history and a unique chromatin structure. It was a sex chromosome in an ancestor of higher Diptera, and only reverted to an autosomal inheritance in the ancestor of the Drosophilidae family [19,20]. Studies on the assembled distal arm (~1.2Mb) of the D. melanogaster dot chromosome have revealed several features that distinguish it from other autosomes: it has a very low recombination rate and a high repeat content [21–23], harbors less than 100 genes [24] that have low codon usage bias[25] and which show evidence of reduced levels of positive and purifying selection [26]. Genes on the dot chromosome are embedded into a unique heterochromatin-like milieu that is regulated differently from canonical pericentric heterochromatin [21,27]. Both dot-linked genes and genes located in pericentric heterochromatin are enriched for the ‘silencing’ histone marks H3K9me2 and H3K9me3 and the heterochromatin protein HP1a relative to euchromatin, but show a depletion of these marks at the transcriptional start sites of active genes. In addition, expression of dot-linked genes (but not genes in pericentric heterochromatin) requires binding of the chromosomal protein Painting of Fourth (POF) and the histone methyltransferase EGG, and the gene bodies of transcribed genes show an enrichment of the histone modification H3K9me3 (but not H3K9me2) that is not observed at active genes located in pericentromeric heterochromatin. Genes on the dot chromosome that are not expressed and repetitive regions on the dot chromosome probably adopt a more general POF/EGG independent mechanism of heterochromatin packaging that is shared with pericentromeric regions [28].

Intriguingly, in three Drosophila species including D. busckii, POF was found to bind the X chromosome specifically in males [29]. This mimics the localization of the MSL complex, the canonical dosage compensation machinery of Drosophila, but unlike in other Drosophila species, immunostaining to polytene chromosomes detected no binding of the MSL complex on the X chromosome of D. busckii [16,29]. The phylogenetic position of D. busckii is uncertain, and some early studies placed it as a sister to all other Drosophila species [16,30]. These findings, together with the discovery that the dot was actually the ancestral sex chromosome in Diptera led to the hypothesis that D. busckii might harbor a more ancestral mechanism of dosage compensation mediated by POF [31], which may have been derived from a dosage compensation system in an ancestor of Drosophilidae where the dot was the X chromosome [19]. Here, we collect DNA sequence, transcriptome and chromatin data characteristic of dosage compensation and heterochromatin together with immunostaining of polytene chromosomes, to characterize the formation of a sex chromosome from a heterochromatic ancestor, and also to disentangle the relationship between POF and MSL.

Results

Genome assembly and annotation

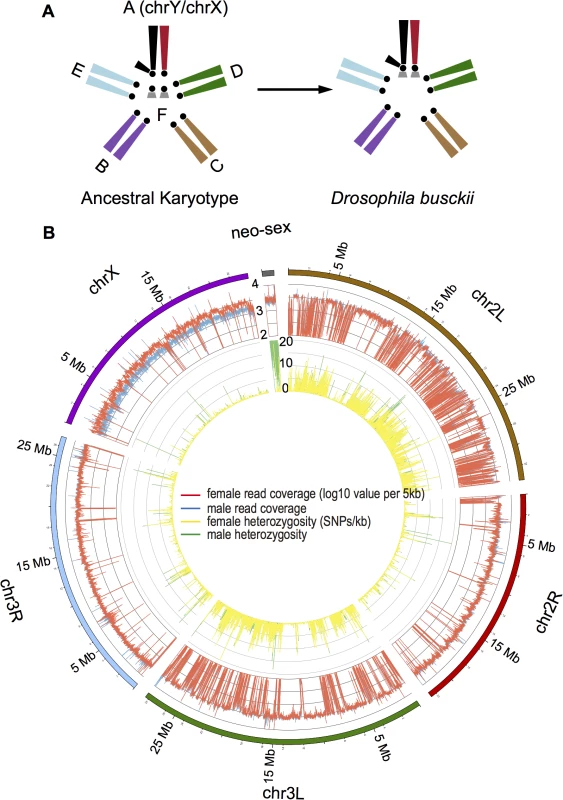

We sequenced the D. busckii female genome to an extremely high sequencing coverage (>150 fold, S1 Table) with libraries spanning a gradient of insert sizes (up to 10kb) to produce a highly continuous de novo assembly (scaffold N50: 946kb, average scaffold size: 60.8kb) with a total assembled length of 152.7Mb. Orthologous Drosophila chromosomes show high conservation (>95%) in their gene content [32], and we assign the chromosomal locations of D. busckii genome scaffolds based on their alignments with D. melanogaster chromosomes. 89% of the sequences could be assigned to individual linkage groups, and we further tested our chromosomal assignments by sequencing the male genome. The ancestral X chromosome is hemizygous in males, and mapped male read depth is indeed only half of the female read depth along the entire X chromosome, while read depths are very similar between sexes on autosomes (median log10 coverage value of male vs. female: 3.50 vs. 3.46; P>0.05, Wilcoxon test) (Fig 1B). Interestingly, coverage in both sexes is also very similar along the dot chromosome and only slightly reduced in males (median of male vs. female: 3.42 vs. 3.44), implying that the neo-X and neo-Y still share considerable sequence homology. This suggests that the age of the neo-sex system of D. busckii is younger than that of D. miranda, which shows significantly reduced male read depth (by about 25%) along its neo-sex chromosome due to neo-X/Y divergence [11].

We annotate 13.1% of the assembled genome as consisting of repetitive elements, with the dot chromosome containing the highest repeat content (17.3%) among all chromosomes. We also produce transcriptomes of male and female D. busckii third instar larvae and adults, and integrated them during gene annotation. A total of 12,648 protein-coding genes were annotated using D. melanogaster proteins as query, 11,859 (93.6%) of which have one-to-one D. melanogaster orthologs. We find a higher proportion of annotated genes actively expressed in male than in female (69.4% vs. 53.8%) with a normalized expression level RPKM (average RNA-seq reads per kilobase of gene per million fragments mapped) higher than 5, and also a generally lower male expression level on the X chromosome relative to autosomes (Wilcoxon test, P<0.05, S1 Fig), in both developmental stages. These patterns are consistent with sex-biased expression patterns found in D. melanogaster [33,34], and a similar ‘demasculinization’ found on the X chromosomes in other Diptera [19,20].

Phylogenetic position of D. busckii

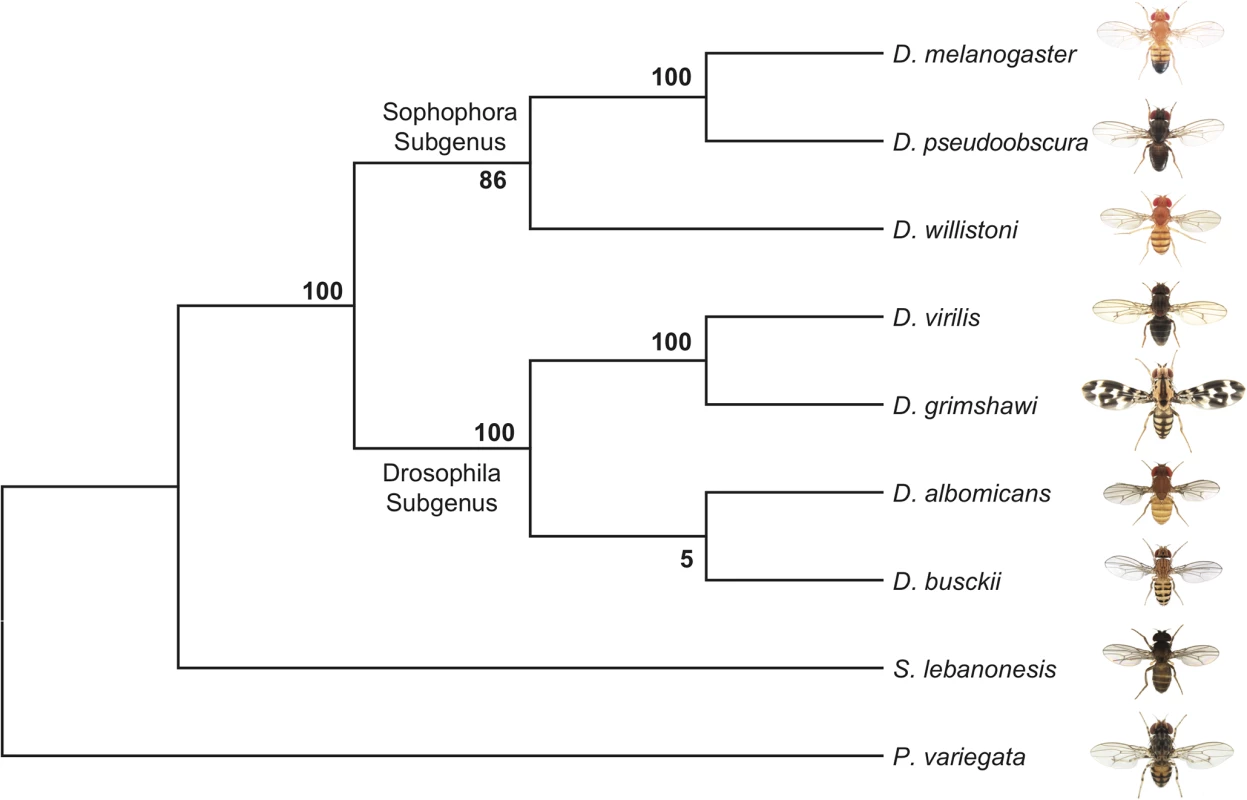

The phylogenetic relationship of D. busckii within the Drosophila genus is unclear. Some studies placed it as a sister to all other Drosophila species [16,30], while others put it within the Drosophila subgenus [35]. This uncertainty in the phylogenetic position of D. busckii could have resulted from the small number of genes that were previously investigated, and we use whole-genome sequence alignments of representative Drosophila species and other Drosophilidae, to generate a phylogenomic tree. Our alignments include D. melanogaster, D. pseudoobscura and D. willistoni from the Sophophora subgenus; D. albomicans [11], D. grimshawi and D. virilis from the Drosophila subgenus, D. busckii and two recently sequenced Diptera species within the Drosophilidae family: Scaptodrosophila lebanonensis [36] and Phortica variegata [19] as outgroups to the Drosophila genus [35–37]. In total, we aligned CDS sequences of 6189 orthologous genes spanning a total of 19.1Mb from each species and acquired a consensus tree with high bootstrapping values (Fig 2). D. busckii consistently clusters with the Drosophila subgenus species (D. albomicans, D. grimshawi and D. virilis) rather than being placed at the base of all Drosophila. This phylogenetic analysis suggests that D. busckii is not a member of an early divergent Drosophila lineage, but originated within the Drosophila subgenus.

Sequence degeneration of the D. busckii neo-Y

We assembled and mapped a total of 1.17Mb (with 6.9% of the sequence as gaps) of dot chromosome sequence in D. busckii, in comparison to 1.35Mb of assembled dot sequence in D. melanogaster. The D. busckii dot chromosome overall shows more than 10 times higher levels of heterozygosity (1.56 SNPs per 100bp on average) in male than in female, predominantly due to nucleotide sequence divergence between the neo-X and neo-Y chromosomes (Fig 1B). The median level of pairwise divergence at silent sites between neo-X and neo-Y alleles is 0.84%, which is about 3 times lower than synonymous divergence between neo-sex-linked genes of D. miranda (2.8%) [11]. Assuming a mutation rate of 5 x 10⁻⁹ per bp (as estimated in D. melanogaster) [38] and 10 generations a year, this indicates that the D. busckii neo-sex chromosomes originated only about 850,000 years (0.85 MY) ago. Note that while the fixation of ancestral polymorphisms can contribute to the neo-X/Y divergence, the low level of silent site diversity on the dot [23] implies that ancestral polymorphism is expected to have very limited impact on our estimate of the age of the neo-sex chromosomes of D. busckii. The recent formation of the D. busckii neo-sex chromosome is consistent with the similar level of read depth observed between sexes along the neo-X chromosome, suggesting this system is still at an initial stage of differentiation (Fig 1B).

We annotate a total of 86 neo-sex linked genes (vs. 80 protein-coding genes on the D. melanogaster dot chromosome, see notes in Materials and Methods), all of which show the same level of read depth between sexes (S2 Fig). Thus, unlike on the older neo-Y chromosome of D. miranda [11], none of the protein-coding genes has yet been deleted from the neo-Y of D. busckii. However, we find male-specific SNPs or indels (i.e., mutations on the neo-Y) that cause premature stop codons and/or frameshift mutations in 50 neo-sex linked genes, implying that there is a large number of genes on the neo-Y that supposedly have lost their normal functions (Fig 3A). The proportion of putative non-functional genes (58.2%) is much higher on the neo-Y of D. busckii than on that of D. miranda (34.2%) [11]. This is unexpected, since there has been less time for degeneration on the younger neo-Y chromosome of D. busckii. In addition, the much smaller size of the dot chromosome predicts weaker effects of Hill-Robertson interference [10,39] and thus a lower rate of degeneration on the D. busckii neo-Y. However, simulation results have shown that the effects of interference asymptote quite fast with the number of genes [40]. Several other factors could help to explain the large fraction of non-functional genes on the recently formed neo-Y of D. busckii. First, genes located on the dot generally show lower levels of evolutionary constraint [41,42]. Consistent with reduced levels of purifying selection on dot-linked genes, we find that the neo-X alleles show a significantly lower level of codon usage bias than genes on autosomes and the X chromosome (Wilcoxon test, P<0.05; S3 Fig). Note that it is possible that selection for optimal codon usage has become more efficient for dot-linked genes on the neo-X since the dot/X fusion, which may have placed them within a more highly recombining environment, as has been observed for D. willistoni [43]. In this case, ancestral levels of codon usage bias may have been even lower for dot-linked genes.

Further, the median rate of protein evolution (as measured by the ratio of nonsynonymous vs. synonymous substitutions using PAML) at the ancestral branch before the neo-X/Y divergence is higher than that of other autosomes (median K_a/K_s = 0.082 vs. 0.075), and non-functional genes show a higher ancestral rate of protein evolution than genes with a functional copy on the neo-Y (median K_a/K_s = 0.086 vs. 0.068; S4 Fig). Although both differences are not statistically significant, probably due to the low number of genes on the dot chromosome, these results are consistent with the idea that genes under lower selective constraints are becoming pseudogenized more quickly on a degenerating neo-Y, as observed on the neo-Y of D. miranda [11,44]. In addition, the gene content of the dot chromosome appears feminized / demasculinized, that is, dot genes in Drosophila and in other Diptera species are over-expressed in ovaries, and under-expressed in testis [19]. Genes with female function are under less purifying selection on the male-limited neo-Y chromosome, which may contribute to accelerated rates of pseudogenization. Neo-X homologs of neo-Y genes that are functional are expressed at a significantly higher level in both male larvae (S5B Fig) and adults (Fig 3B) than neo-X homologs of neo-Y genes that have become pseudogenized (Wilcoxon test, P = 0.0087). This indicates that the loss of functional Y-linked genes preferentially starts from lowly-expressed genes with less selective constraints, consistent with our findings on the neo-Y of D. miranda [44]. Finally, hemizygosity of dot-linked genes is generally tolerated in D. melanogaster [42], and null mutations at dot-linked genes may have a negligible effect on fitness if heterozygous. Thus, lower levels of evolutionary constraints, an excess of female-biased genes, and general haplosufficiency of dot genes may contribute to their rapid degeneration on the neo-Y of D. busckii.

Transcriptomic and epigenomic evolution of the neo-Y

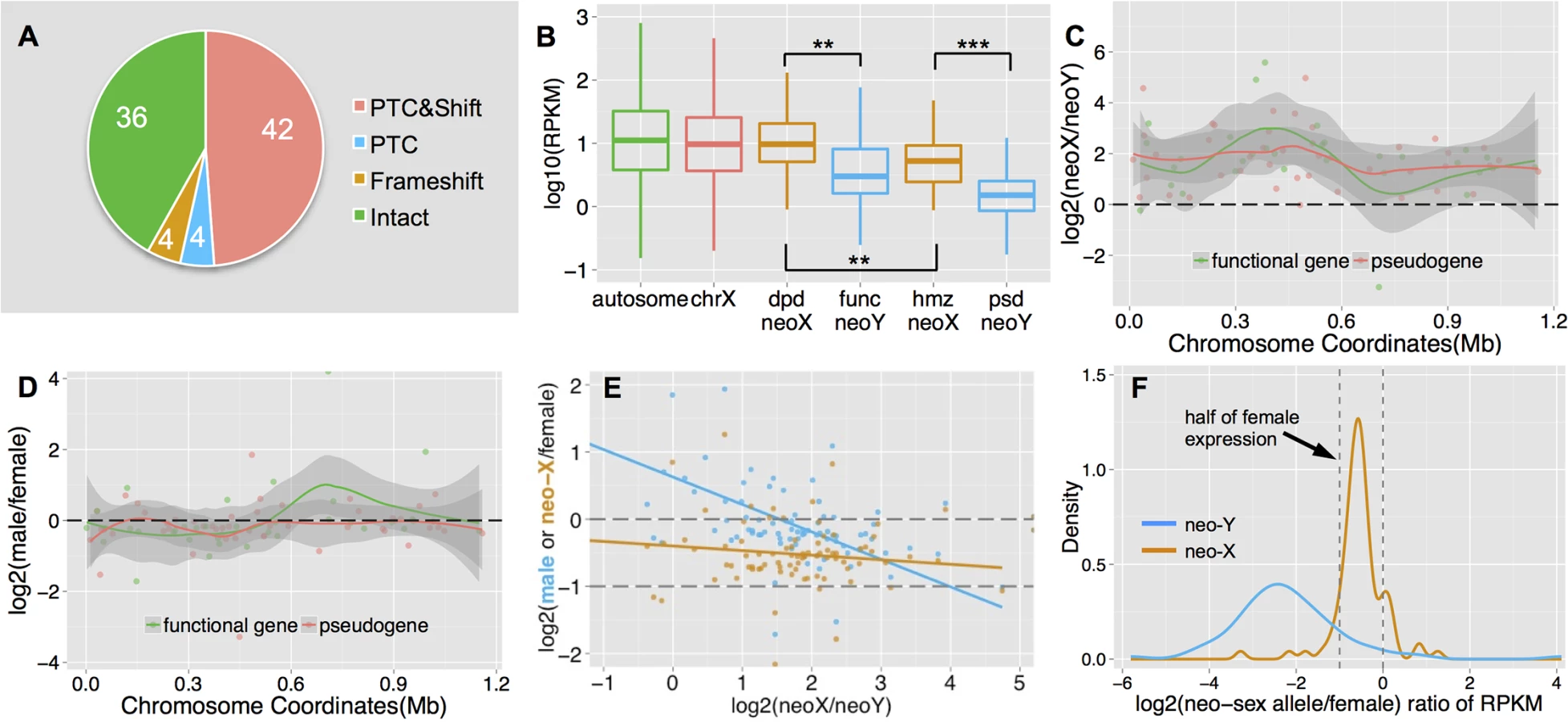

In addition to functional decay in protein coding sequences, we also found a chromosome-wide expression bias for neo-sex linked genes (Fig 3C): 75 genes (88%) display significantly higher expression from the neo-X chromosome relative to the neo-Y in male adults (Fisher’s exact test, P<0.05, see Methods), and a similar pattern was observed in male larvae (S3A Fig). Putative pseudogenes on the neo-Y tend to show a slightly more severe (but not statistically significant) expression bias than functional genes (median log2 ratio of neo-X vs. neo-Y expression: 1.80 vs. 1.71; Wilcoxon test, P = 0.41). This chromosome-wide expression bias for neo-sex linked genes could be caused by down-regulation of neo-Y alleles and/or up-regulation of neo-X alleles (i.e., dosage compensation). Although many genes (77.9%) show a similar level of expression for male (with neo-X/Y gene expression levels combined) and female (less than 1.5 fold difference; Fig 3D), genes with lower relative expression from the neo-Y tend to be more female-biased (Fig 3E, blue line, Spearman’s rank correlation coefficient: -0.47, P = 1.04e-5). This suggests that neo-X-biased expression is partly due to down-regulation of neo-Y linked genes. The single neo-X chromosome in males is transcribed at a higher level than a single neo-X chromosome in females (Fig 3F), which suggests that some form of dosage compensation has evolved on the neo-X. However, there is no significant correlation between down-regulation of neo-Y genes (i.e. neo-X vs. neo-Y expression bias), and up-regulation of neo-X genes in males (i.e. expression of the neo-X in males vs. females, Fig 3E, orange line; F-statistic P>0.05). This may suggests that dosage compensation is not gene-specific, but could also reflect a lack of statistical power due to the low number of genes on the dot.

The neo-Y chromosome of D. miranda has become partially heterochromatic within 1.5 million years. It is enriched for the silencing histone modification H3K9me2 relative to the neo-X and other chromosomes [3], and expression of neo-Y genes is down-regulated chromosome-wide. To investigate whether an accumulation of silencing histone marks may cause down-regulation of neo-Y linked gene expression in D. busckii, we obtained ChIP-seq profiles of both H3K9me2 and H3K9me3 from male larvae. The two histone modification marks are strongly correlated with each other and HP1a in pericentric heterochromatin, but have distinctive distributions on the dot chromosome of D. melanogaster: H3K9me3 shows an unusual correlation with POF over actively transcribed gene bodies, while H3K9me2 strongly associates with silenced genes [27,45].

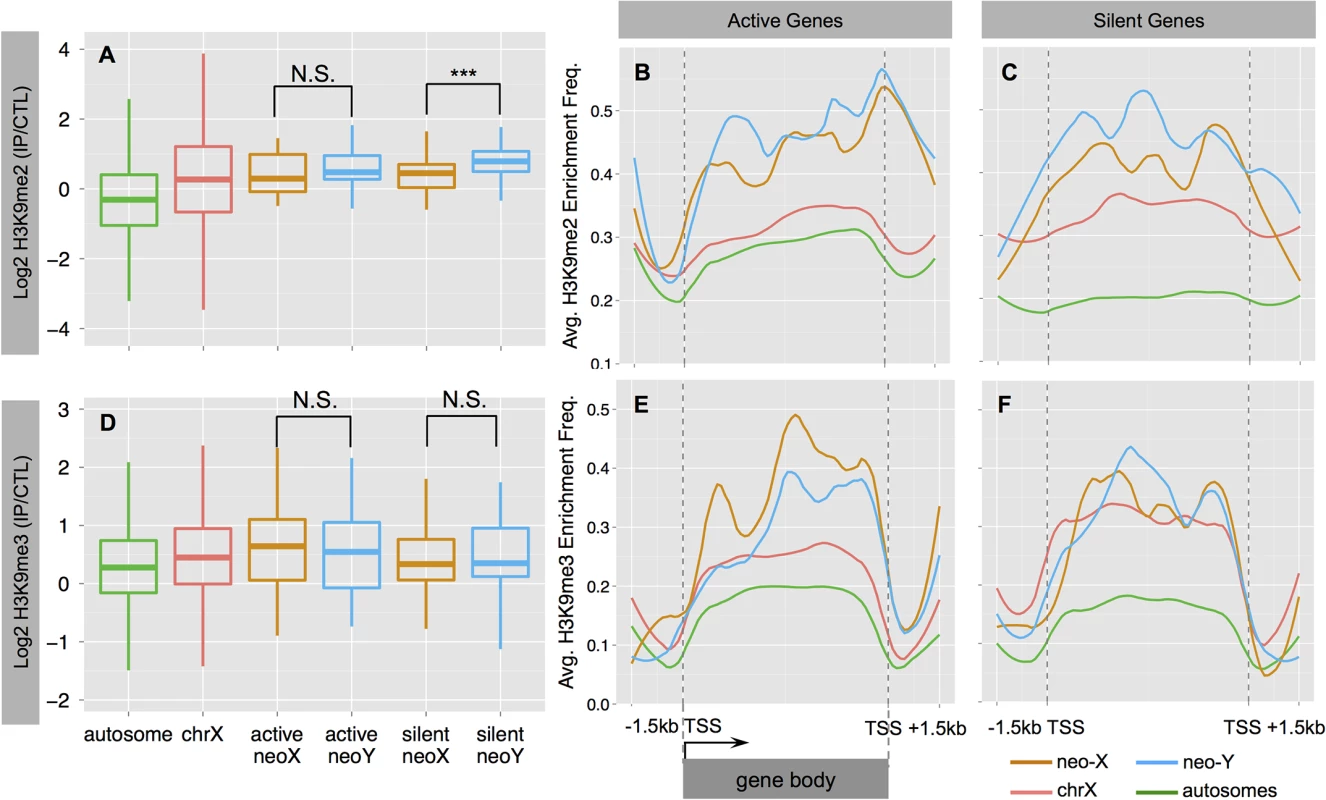

We analyzed the distribution of H3K9me2 and H3K9me3 at active and silent genes (expression status defined from S1 Fig), and find that both marks are significantly enriched on the dot chromosomes of D. busckii relative to autosomes (Wilcoxon test, P<0.05; see Methods, Fig 4A and 4D). H3K9me3 shows a similar level of enrichment between the neo-Y and the neo-X (Wilcoxon test, P>0.05, Fig 4D), and enrichment tends to be higher at active relative to silent genes on both the neo-X and neo-Y (Wilcoxon test P>0.05; Fig 4D–4F). In contrast, H3K9me2 levels are significantly increased at neo-Y genes relative to their neo-X homologs (Wilcoxon test, P = 0.000637, Fig 4A), particularly on those that are transcriptionally silenced (Wilcoxon test, P = 0.000381, Fig 4A–4C), and non-functional neo-Y genes show a significant increase in H3K9me2 binding relative to their neo-X homologs (Wilcoxon test, P = 0.0001494; S6 Fig). The H3K9me2 enrichment level of silent neo-Y genes is higher than that of active neo-Y genes (median value: 0.79 vs. 0.47, Wilcoxon test P = 0.089, Fig 4A), and the enrichment level of H3K9me2, but not H3K9me3, is negatively correlated with the gene expression level of neo-Y but not neo-X alleles (S7 Fig, Spearman’s rank correlation coefficient -0.23, P = 0.04). We further analyzed metagene enrichment profiles, and find both H3K9me2 and H3K9me3 to be enriched at gene bodies relative to their flanking regions. The increase of H3K9me2 enrichment on silent neo-Y genes is not restricted to gene bodies but extends into flanking regions as well (Fig 4C). These results suggest that down-regulation of neo-Y gene expression may be caused by H3K9me2 modification, but it is also possible that some genes are first silenced through mutations in their regulatory region, and then preferentially become targeted by H3K9me2. Overall, our results provide robust evidence that the neo-Y chromosome of D. busckii is becoming more heterochromatic, mediated by H3K9me2 enrichment, which further contributes to the degeneration of neo-Y genes.

MSL-dependent dosage compensation on ancestral X but not on neo-X

Most genes on the ancestral X of D. busckii are expressed at similar levels in males and females, i.e. they are dosage compensated (S8 Fig). The molecular mechanism of dosage compensation in D. busckii has been unclear, and in situ hybridization experiments to polytene chromosomes to stain for components of the MSL machinery, using antibodies derived from D. melanogaster, have previously failed to identify MSL binding on the ancestral X chromosome of D. busckii [16]. Instead, an antibody designed against the POF protein in D. melanogaster was found to coat the entire X chromosome of D. busckii in males only [29], and to co-localize with H4K16ac, a histone marker for dosage compensation in Drosophila [46]. This has led to the proposal that D. busckii does not utilize the MSL machinery to compensate its X chromosome, but instead is using a regulatory mechanism that involves POF [47]. However, it is unclear whether the MSL antibodies tested are just too diverged to produce a reliable hybridization signal, or if MSL-dependent dosage compensation is indeed absent in D. busckii.

To evaluate the mechanism of dosage compensation in D. busckii, we utilized both bioinformatics and experimental approaches. First, we annotated the intact open reading frames and gene expression patterns of the key MSL complex proteins and non-coding RNAs, as well as the POF protein and a duplicated copy of POF found in D. busckii. Transcriptome profiling revealed that MSL-2, POF, roX-1 and roX-2 non-coding RNA all exhibit male-biased expression patterns (S9 Fig), similar to their orthologs in D. melanogaster. We further performed immunostaining with a new D. melanogaster MSL-2 antibody, and find weak but male-specific staining of the X chromosome in D. busckii (Fig 5A). In D. melanogaster, the MSL complex catalyzes the deposition of the activating histone mark H4K16ac, and ChIP-seq profiling in D. busckii clearly reveals that H4K16ac is significantly enriched on the ancestral male X relative to autosomes and the neo-sex chromosomes (Wilcoxon test, P<2.2e-16, Fig 5B). This is consistent with MSL-dependent dosage compensation in D. busckii, and orthologous X-linked genes show a significant correlation in their enrichment levels of H4K16ac between larvae samples of D. busckii and D. melanogaster (Spearman’s rank correlation coefficient: 0.36, P<2.2e-16; Fig 5C), suggesting that a similar set of genes is being targeted by the dosage compensation complex on the X in both species. Finally, our metagene analysis of the H4K16ac mark reveals a distinctive 3’ bias specifically over active X-linked gene bodies (Fig 5D), consistent with the pattern mediated by the MSL complex in D. melanogaster [46,48]. Taken together, these results suggest that D. busckii shares the same mechanism of dosage compensation for the ancestral X chromosome as D. melanogaster, despite their distant phylogenetic relationship (Fig 2) and their different sex chromosome karyotype.

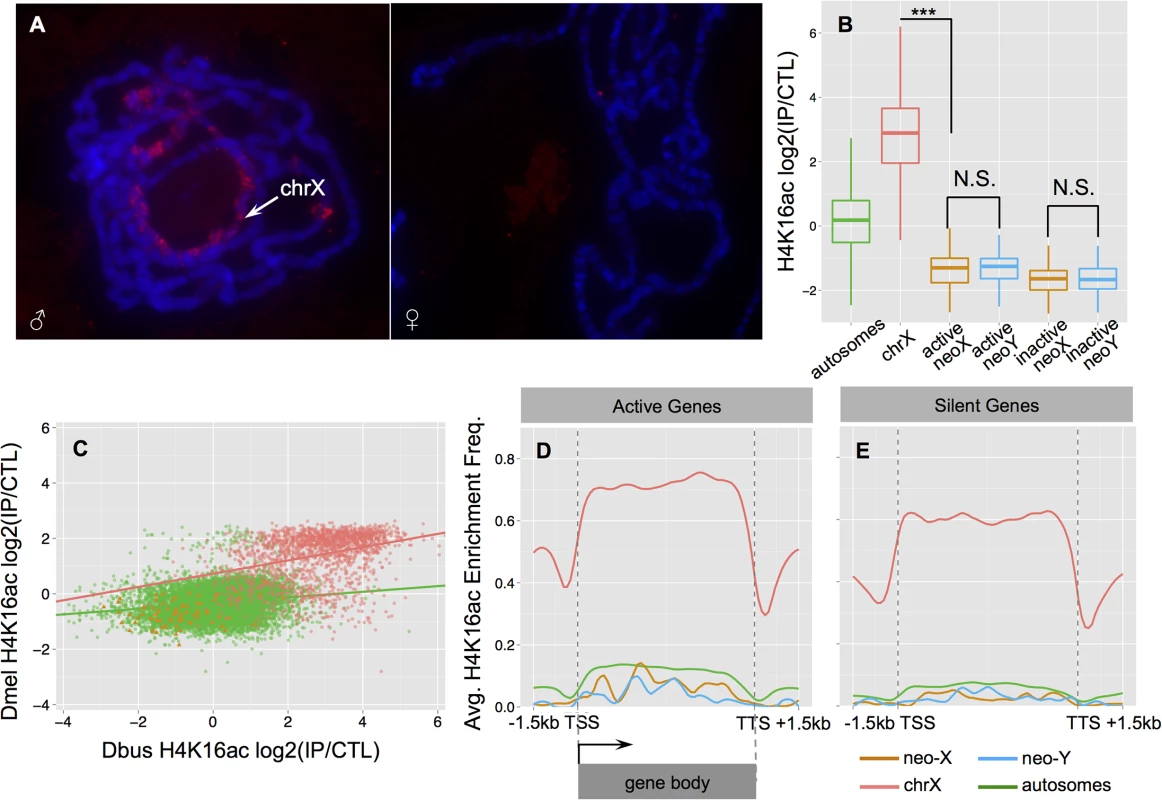

Degeneration and down-regulation of neo-Y genes should select for the acquisition of dosage compensation on the D. busckii neo-X. If the MSL-complex were co-opted on the neo-X in D. busckii to achieve dosage compensation, we would expect similar enrichment of H4K16ac along the neo-X in males. Instead, we find that neo-X linked genes are significantly depleted for H4K16ac relative to autosomes (Wilcoxon test, P<2.28e-13) (Fig 5B), similar to the H4K16ac depletion patterns on the dot in D. melanogaster (S10 Fig). This indicates a lack of MSL-dependent dosage compensation on the D. busckii neo-X chromosome, in contrast to other neo-sex chromosome systems where a substantial fraction of the neo-Y has become pseudogenized [3,16]. Instead, it suggests that an ancestrally repressive chromatin structure, as is the case for the dot, may severely constrain the evolution of hyperactive chromatin, despite rampant Y degeneration.

Discussion

We have performed a detailed investigation of the genomic and epigenomic evolution of the young neo-sex chromosomes of D. busckii. All previously studied neo-sex chromosome systems are derived from euchromatic autosomes, but the D. busckii neo-sex chromosome originated from the dot chromosome and its unique, more heterochromatic conformation is probably dictating its unusual patterns of chromatin evolution. We found that both the neo-X and neo-Y chromosome are enriched for both H3K9me2/3 relative to other chromosomes, but only H3K9me2 was reported to have a silencing function on the heterochromatic dot chromosome in D. melanogaster [45]. Consistent with the idea that increased heterochromatin formation may contribute to the observed down-regulation of neo-Y gene expression (Fig 3B), we find that H3K9me2 is enriched at silenced neo-Y linked genes relative to their neo-X homologs, and these genes also tend to become pseudogenized more quickly on the neo-Y. This is consistent with our results in D. miranda, and suggests that genes on the neo-Y under lower selective constraints are more likely to become heterochromatic and non-functional early on [3,44]. In contrast, the H3K9me3 mark is not associated with silent chromatin on the dot chromosome of D. melanogaster, and instead enriched along actively transcribed genes on the dot chromosome [45]. We found that neo-Y linked genes show a similar level of H3K9me3 enrichment relative to their neo-X homologs, and no difference between active and silenced genes, suggesting that H3K9me3 does not contribute significantly to expression differences between the neo-X and neo-Y of D. busckii. One important caveat in the above analysis is that we can only measure relative expression or histone modification changes on the neo-sex chromosomes, but cannot distinguish whether those changes occurred on the neo-X or neo-Y. It is formally possible that the neo-X has evolved reduced levels of H3K9me2 (but not H3K9me3), relative to the neo-Y. No close relatives of D. busckii that lack the neo-sex chromosome fusion are known, preventing us from directly distinguishing between those possibilities.

Two chromosome-wide regulatory systems have been characterized in D. melanogaster: one that is mediated by the MSL complex and that targets the male X chromosome; and the other that is mediated by POF and that targets the dot chromosome in both sexes. POF has been shown to bind the nascent RNA of actively transcribed genes on the dot chromosome, and increases levels of expression of these genes [49]. Since some studies placed D. busckii as a sister to all other Drosophila species, an apparent lack of MSL-binding to the X chromosome [29] has led to the intriguing hypothesis that POF may represent an ancestral dosage compensation system. However, our phylogenomic analysis demonstrates that D. busckii in fact belongs to the Drosophila subgenus (Fig 2), and we show that MSL-dependent dosage compensation appears to be conserved in D. busckii. The MSL complex is present in D. busckii males and its components show similar male-biased expression patterns as found in D. melanogaster (S9 Fig), it binds the X chromosome of D. busckii males (Fig 5A), and the H4K16ac dosage compensation mark is found along actively transcribed X-genes in D. busckii (Fig 5B). This calls for a re-examination of the proposed role of POF in dosage compensation in D. busckii [29]. Despite clear evidence for dosage compensation of the ancestral X chromosome of D. busckii by the MSL complex, we found no signs of MSL-mediated dosage compensation on its neo-X. Rampant neo-Y degeneration (i.e. almost 60% of neo-Y genes have frameshift mutations or stop codons) should in principle select for the evolution of dosage compensation on the neo-X of D. busckii. Indeed, in other Drosophila species with neo-sex chromosomes, dosage compensation was found to evolve rapidly after their formation and degeneration of neo-Y genes, by co-opting the ancestral MSL machinery. In D. miranda, the neo-X chromosome has evolved partial dosage compensation through the acquisition of novel MSL-binding sites that recruit the MSL-complex to the neo-X [14, 15], and MSL-binding was found to be associated with H4K16ac enrichment. Even older neo-X chromosomes, like the one shared by members of the D. pseudoobscura subgroup, have evolved full MSL-mediated dosage compensation [3,16]. In contrast, we did not detect any enrichment of the H4K16ac modification on the neo-X of D. busckii. This is probably due to the younger age of the D. busckii neo-X chromosome, the fact that the dot chromosome contains only few genes and flies with a single copy of the dot chromosome are fully viable in D. melanogaster (due to compensation mediated by POF [50]), and/or the difficulty of evolving a hyper-active chromatin structure for dosage compensation from an ancestrally more heterochromatic background. Our previous work in D. miranda showed that dosage compensation preferentially evolves in chromatin regions that are ancestrally active [3], probably due to an antagonism between forming repressive, condensed heterochromatin and hyperactive, open chromatin resulting in dosage compensation [50]. Despite down-regulation of neo-Y genes and a lack of MSL-mediated dosage compensation of neo-X genes, we find that transcription of the single neo-X chromosome in males is not simply half that in females, and neo-sex linked genes do not exhibit strong sex-biased expression patterns. This suggests that the down-regulation of neo-Y linked genes is either at least partially compensated by transcriptional buffering mechanism [47], which may play an important role during early sex chromosome differentiation, before the establishment of global dosage compensation on young X chromosomes. Alternatively, a POF-mediated regulatory mechanism might compensate for reduced gene dose of neo-Y linked genes. It will be of great interest to further investigate the evolutionary and functional relationship between these two chromosome-wide compensatory mechanisms that have been described in Drosophila.

Methods

Data collection genomic DNA and transcriptome

An iso-female line of D. busckii provided by J. Larsson and originally caught in Tallinn, Estonia in the year 2000 was used for this study. About 50 virgin adult male and female were used for genomic DNA extraction using Puregene Core Kit A (Qiagen, Inc). Total RNA from about 50 larvae and virgin adult flies of each sex were extracted by RNAeasy Mini Kit (Qiagen, Inc). Library preparation and genomic or poly-A selected transcriptome sequencing were then performed at Beijing Genomic Institute or UC Berkeley Sequencing facility following the standard Illumina protocol. We sequenced the libraries by paired-end sequencing with 90bp read length for all the RNA-seq libraries and most of the genomic libraries, and 50bp for long-insert libraries. Female DNA was sequenced to very high coverage (172 fold, S1 Table) for de novo assembly of a reference genome, and male DNA was sequenced to medium coverage (27 fold).

Genome assembly & annotation

We assembled the reference genome by ALLPATHS-LG [51] with standard parameters. The output scaffold sequences were aligned to D. melanogaster chromosomal sequences (v5.46) downloaded from FlyBase by LASTZ (http://www.bx.psu.edu/~rsharris/lastz/) using a nucleotide matrix for distant species comparison. Alignment results were filtered using a cutoff of at least 30% of the entire scaffold aligned with 50% sequence identity. We wrote customized perl scripts to build pseudo-chromosomal sequences of D. busckii. We further used RepeatMasker and RepeatModeler (http://www.repeatmasker.org) to annotate the repeat content of the D. busckii genome.

RNA-seq reads from both sexes were separately aligned to the chromosome sequences of D. busckii by tophat [52]. The alignments were then provided to cufflinks [53] for transcriptome annotation. We integrated the annotation results from cufflinks and used a non-redundant protein sequence set of D. melanogaster (v5.46) to annotate the D. busckii genome using the MAKER pipeline [54]. We annotated 79 out of 80 dot-linked D. melanogaster protein-coding genes in the D. busckii genome. 71 of them are located on the dot chromosome of D. busckii, and the remaining 8 genes are located on the X chromosome or other autosomes, including 4 genes whose D. virilis orthologs also map to other chromosomes [55]. The additional 15 genes annotated on the D. busckii dot chromosome are either predicted by a combination of RNA-seq evidence and de novo open reading frame annotation, or have a D. melanogaster ortholog located on another chromosome. We compared the distributions of normalized expression level (measured by Reads Per Kilobase per Million, RPKM) in gene regions and intergenic regions, and used the value where the two distributions separate as a cutoff (log₁₀ RPKM = 0.65; S1 Fig) to define genes that are transcriptionally active or not. We analyzed the codon usage bias of all annotated D. busckii genes by CodonW (http://codonw.sourceforge.net/).

SNP calling and allelic specific analyses

We used the standard GATK pipeline [56] for calling SNPs in male and female DNA samples. In brief, sequencing reads were aligned to the D. busckii genome with bowtie2 [57] and PCR duplicate reads were removed using the Picard tool (http://broadinstittute.github.io/picard). We used UnifiedGenotyper for calling variants, and discarded SNPs/indels with low qualities (Quality<30), low coverage (Depth<5), strand biases or clustering patterns for initial SNP filtering. To account for the different sequencing coverage of the male and female samples, we further plot the distributions of variant qualities of male and female SNPs to determine a different variant quality cutoff for the second round of filtering. We identified a total of 16977 heterozygous SNP sites from the male sample and only 496 female heterozygous sites on the dot chromosome. After excluding the sites that are shared by both sexes, we used the quality-filtered male-specific SNPs/indels as the putative fixed neo-X/Y divergence sites, and introduced the alternative nucleotides to the reference neo-X genome to produce the reference genomic sequence of the neo-Y chromosome. Note that only individuals from a single inbred line were sequenced; this means that some of the fixed differences between the neo-X and neo-Y are not actually fixed in the population but may be segregating on either chromosome. Based on the female-specific heterozygous sites, we estimated that only 1.5% of the divergence sites maybe derived from segregating polymorphic sites. We then used GeneWise [58] and annotated the non-functional genes of the neo-Y using the proteins annotated from the female reference genome as query.

To analyze neo-X and neo-Y allele-specific gene expression and histone profiles (see below), we aligned the male RNA-seq or ChIP-seq reads against the female reference genome and specifically collected reads that overlapped the male-specific SNP sites. These reads encompass informative neo-X/Y divergence sites, and we used customized perl scripts to assign their linkage to either the neo-X or neo-Y, dependent on whether the SNP is male-specific or not. To correct for potential mapping biases, we normalized the count of RNA-seq reads against the DNA-seq reads from males, whose ratios between neo-X and neo-Y alleles are expected to be 1. To test the significance of biased gene expression between neo-X/Y alleles, we used Fisher’s tests with the allelic-specific DNA-seq read count and allelic-specific RNA-seq read count of the neo-X or neo-Y allele for the 2×2 table. This should account for potential mapping biases of neo-X and neo-Y derived reads, and their ratio is expected to be similar between neo-X/Y alleles if they are transcribing at a similar level. Since the enrichment of ChIP-seq profiles is calculated by normalizing against the input DNA-seq control, we did not do any further correction. When comparing the binding level between the neo-X/Y alleles or different chromosomes, we calculated the ratio of aligned read numbers of ChIP experiment vs. input DNA control, spanning the gene body and 1.5 kb flanking regions.

Phylogenomic and PAML analyses

We collected CDS sequences from D. pseudoobscura (v3.1), D. virilis (v1.2), D. willistoni (v1.3), D. grimshawi (v1.3) and D. albomicans from FlyBase, and two Diptera species Scaptodrosophila lebanonensis and zoophilic fruitfly (Phortica variegata) whose genomes have been recently produced in our lab [19,36]. Orthologous relationships of genes between species were determined through reciprocal BLAST or precomputed annotation from FlyBase. We aligned all the orthologous sequences for the same gene by translatorX [59], a program that performs codon-based nucleotide sequence alignment and removed low-quality alignment regions by Gblock [60]. The alignments were then concatenated and provided to RAxML for constructing maximum-likelihood trees with the GTRCAT algorithm, with P. variegate assigned as an outgroup to all Drosophila species. We bootstrapped the tree 1,000 times and calculated confidence values for each node as described in the manual of RAxML [61].

Branch-specific evolutionary rates were calculated for the resulting high-confidence tree using the PAML package [62]. To collect data for as many genes as possible, we only used D. melanogaster and D. virilis as outgroups of D. busckii in the input tree. We calculated lineage specific synonymous or nonsynonymous substitution rates using codeml under the ‘free-ratio’ model, which assumes each phylogenetic branch has a different rate of evolution.

Polytene chromosome staining and ChIP-seq

Polytene chromosomes were dissected from male third instar larvae and processed for immunostaining with primary MSL-2 antibody (Santa Cruz Biotechnology, sc-32458, dilution ratio: 1:10, room temperature, overnight) and secondary fluorescence antibody Alexa Fluor 555 Dye (Life Technologies, room temperature, 2 hours). Approximately 5g of male third instar larvae were used for chromatin extraction. Chromatin was cross-linked with formaldehyde and sheared by sonication. Chromatin pull-down with IgG agarose beads (Sigma, A2909) was performed as described previously [63]. We used the following antibodies for ChIP-seq experiments: (1) H3K9me3 (Abcam ab8898; 3 μl/IP) (2) anti-H4K16ac (Millipore 07–329; 5 μl/IP) (3) H3K9me2 (Abcam ab1220; 3μl/IP). Immunoprecipitated and input DNAs were purified and processed according to the standard paired-end Solexa library preparation protocol. Paired-end 100-bp DNA sequencing was performed on the Illumina Genome Analyzer located at UC Berkeley Vincent J. Coates Genomic Sequencing Facility. ChIP-seq and input control reads were aligned to the D. busckii genome by bowtie2 [57]. The resulting alignments were filtered using a cutoff for mapping quality higher than 30, and provided to MACS [64] to call peaks of enrichment along the chromosomes. We use MEME [65] to identify targeting sequence motifs within peak regions. For metagene analyses, we first determine a cutoff to define ‘bound’ or ‘unbound’ states of certain chromatin marks within each scaled bin of genes or flanking regions, by comparing the distribution of their normalized enrichment levels between chromosomes (S11 Fig). Then for each bin, we calculated the average bound level across all the studied genes, after dividing them into different groups of chromosomes and active/silent genes.

ChIP-seq data of male D. melanogaster is downloaded from NCBI SRA database (accession#: PRJEB3015) [66] and orthologous relationship between D. busckii and D. melanogaster genes was determined using reciprocally best BLAST searches.
