Development of a Transformation System for : Restoration of Glycogen Biosynthesis by Acquisition of a Plasmid Shuttle Vector

Summary

Chlamydia trachomatis remains one of the few major human pathogens for which there is no transformation system. C. trachomatis has a unique obligate intracellular developmental cycle. The extracellular infectious elementary body (EB) is an infectious, electron-dense structure that, following host cell infection, differentiates into a non-infectious replicative form known as a reticulate body (RB). Host cells infected by C. trachomatis that are treated with penicillin are not lysed because this antibiotic prevents the maturation of RBs into EBs. Instead the RBs fail to divide although DNA replication continues. We have exploited these observations to develop a transformation protocol based on expression of β-lactamase that utilizes rescue from the penicillin-induced phenotype. We constructed a vector which carries both the chlamydial endogenous plasmid and an E.coli plasmid origin of replication so that it can shuttle between these two bacterial recipients. The vector, when introduced into C. trachomatis L2 under selection conditions, cures the endogenous chlamydial plasmid. We have shown that foreign promoters operate in vivo in C. trachomatis and that active β-lactamase and chloramphenicol acetyl transferase are expressed. To demonstrate the technology we have isolated chlamydial transformants that express the green fluorescent protein (GFP). As proof of principle, we have shown that manipulation of chlamydial biochemistry is possible by transformation of a plasmid-free C. trachomatis recipient strain. The acquisition of the plasmid restores the ability of the plasmid-free C. trachomatis to synthesise and accumulate glycogen within inclusions. These findings pave the way for a comprehensive genetic study on chlamydial gene function that has hitherto not been possible. Application of this technology avoids the use of therapeutic antibiotics and therefore the procedures do not require high level containment and will allow the analysis of genome function by complementation.

Introduction

C. trachomatis is a major human pathogen with a unique intracellular developmental cycle [1], [2]. This cycle begins when the extracellular, infectious form of the microorganism, the EB, binds to susceptible host cells [3], [4]. EBs are taken up into a phagocytic vesicle which is modified to become a chlamydial inclusion where individual EBs differentiate into the metabolically active, replicative form of the microorganism, the RB [5]. RBs divide by binary fission and, when 8–10 divisions have elapsed, they differentiate back into EBs that are released by cell lysis [6].

C. trachomatis has a small and highly conserved genome of some 1,000 kb [7]. In addition, most C. trachomatis isolates carry a plasmid of 7.5kb [8] which encodes eight genes. All eight genes are transcribed [9] and translated during the developmental cycle [10]. Despite the availability of the plasmid as a potential vector, the development of a simple robust genetic transformation system for the chlamydiae has remained a significant challenge [11]. The demand for such a system is evidenced by the recent development of a means to mutate the C. trachomatis chromosome [12] but to reach its full potential this requires a complementary gene transfer system. An approach using chromosomal integration was used to make recombinants in C. psittaci EBs by allelic exchange using exogenous DNA introduced by electroporation [13]. This was limited to the 16S rDNA region and only allowed integration of a short 1 kb marker at extremely low efficiencies. C. psittaci requires high levels of containment and therefore is not readily available to the wider research community. Electroporation of EBs was used in 1994 in an attempt to transform C. trachomatis with an episomal vector based on the chlamydial plasmid [14]. No stable transformants were isolated although inclusions were present for up to four passages under chloramphenicol selection. There have been reports of plasmid free strains of C. trachomatis but only three viable, naturally occurring plasmid-free isolates of C. trachomatis have been described [15]–[17], thus most C. trachomatis isolates carry the 7.5 kbp plasmid, its biological function is unknown although its presence has for a long time been linked to the ability of C. trachomatis to synthesise glycogen [18]. We tried unsuccessfully to cure a lymphogranuloma venereum (LGV) strain of C. trachomatis L2 of its plasmid [19] but recently curing of the plasmid from a genital tract C. trachomatis D has been described [20]. This plasmid-cured strain and the naturally occurring plasmid-free strains do not stain for glycogen [21]; the plasmid does not encode glycogen synthesis genes thus the phenomenon involves complex interaction(s) between the plasmid and the chlamydial genome to elicit the glycogen staining phenotype [22]. However, formal proof associating this property with the plasmid alone is necessary but can only be achieved by re-introducing the plasmid into a plasmid-free strain. This has not been possible because of the absence of a means to genetically manipulate C. trachomatis.

We report here the first successful development of a simple, robust, reproducible plasmid-based genetic transformation system for C. trachomatis using penicillin selection and calcium chloride (CaCl₂) treatment of EBs to render them competent. Penicillin causes C. trachomatis to enter a persistent non-infectious state [6], [23]–[25]; therefore our experimental plan was to select genetically stable, penicillin-resistant transformants by recovery of Chlamydiae from penicillin-arrested division. To demonstrate the effectiveness and reproducibility of the procedure, we have engineered a strain of C. trachomatis that is penicillin resistant and that expresses GFP. We have also proven the role of the chlamydial plasmid in glycogen biosynthesis by re-introducing the plasmid into a C. trachomatis strain that is plasmid-free (C. trachomatis L2 (25667R)) [15]. We have demonstrated that as a result of this genetic transformation the previously plasmid-free strain C. trachomatis L2 (25667R) acquired the ability to synthesize and accumulate glycogen within inclusions.

Results/Discussion

Our primary aim was to develop a transformation protocol using a chlamydial plasmid-based shuttle vector. Our scientific aim was to determine whether glycogen biosynthesis, a distinctive characteristic of C. trachomatis which has been linked to the presence of the plasmid, could be restored in a plasmid-free, glycogen-free variant of C. trachomatis, by re-introducing the plasmid DNA.

Plasmid shuttle vector - design and choice of selectable marker(s)

To enable the selection of transformants for plasmid vectors, antibiotic resistance markers offer the most attractive choices. There are a range of single gene antibiotic resistance markers that are safely used worldwide for the routine and stable transformation of bacteria. These markers are popular because it is not possible to generate transformants unless an intact gene is acquired thus eliminating the problem of background resistance through spontaneous mutation. The markers used in routine selection of bacterial transformants include tetracycline resistance, chloramphenicol resistance and β-lactamase (penicillin/ampicillin resistance) [26]. Tetracycline resistance markers have been used in allelic transfer experiments for chlamydiae [27], but tetracycline is a controversial choice because it is used routinely to treat C. trachomatis infections [28]. C. trachomatis is sensitive to chloramphenicol but it is difficult to reproduce a minimal inhibitory assay as this antibiotic causes mitochondrial stress [29] limiting chlamydial growth and is thus not so useful for selection and continuous passaging of transformants. By contrast, the effects of penicillin on C. trachomatis are well studied [6], [25], it is bacteriostatic giving a resistant phenotype and penicillin is not recommended for the treatment of chlamydial infections [30]. Following penicillin treatment, the developmental cycle is slowed and the transition to EBs ceases with the formation of giant, aberrant RBs. The normal developmental cycle resumes upon removal of penicillin (at low concentrations) from the culture media and the resultant normal chlamydial inclusions are easily detectable by phase contrast microscopy [6]. We reasoned that rescue of infectious C. trachomatis from the penicillin-induced aberrant developmental cycle through transformation and β-lactamase expression would present a distinctive phenotype that could be easily selected microscopically and transformants could be recovered under penicillin selection. We tested a range of penicillin concentrations on the growth of normal C. trachomatis L2 and determined that 10 units/ml of penicillin was a suitable concentration for inhibition of C. trachomatis and hence this was the antibiotic concentration chosen for the C. trachomatis transformation work. Penicillin resistance was introduced into a C. trachomatis plasmid (pL2) by ligating a pBR325 plasmid and the pL2 plasmid (pBR325::L2). This was a simple, standard recombinant plasmid from our collection that had an intact β-lactamase gene and the complete chlamydial plasmid. Ligation into the Bam HI site of pBR325 plasmid created an insertional inactivation of the tet gene but still conferred penicillin and chloramphenicol resistance. The Bam HI site in the pL2 plasmid is located in coding sequence 1 (CDS1), a region which is susceptible to mutation/deletion without affecting plasmid stability [8], [19]. The plasmid map is shown in Figure 1.

Strains of C. trachomatis

We chose the well-studied, laboratory-adapted strain C. trachomatis L2/434/Bu (ATCC VR902B) as the recipient strain because we already had a full complement of biological and genetic information for this strain (the complete genome sequence and defined proteome) [31], [32]. The vector with which we started the work contained the cognate pL2 plasmid cloned from C. trachomatis L2/434/Bu genomic DNA [33]. Furthermore, the LGV strains [34] that we used: C. trachomatis L2/434/Bu and (later) the plasmid-free C. trachomatis L2 (25667R) have relatively low particle to infectivity ratios [35] and do not need centrifugation to achieve efficient cell infection, thus these bacteria have a higher viability than standard genital tract isolates and have a faster developmental cycle giving a quicker turn around of experiments [4].

Transformation of C. trachomatis L2/434/Bu

We wanted to investigate whether it was possible to transform EBs using a simple standard protocol and a defined buffer that could be reproduced in any laboratory. Standard bacterial transformations are based on the primary observation that bacteria treated with ice cold solutions of CaCl₂ followed by brief heating can be induced to take up foreign DNA [36]. Therefore we initially used such a protocol, developed for E. coli, to attempt transformation of gradient purified C. trachomatis L2/434/Bu EBs and selected transformants with 10 units/ml penicillin. However, we found that heat shock was not necessary and that the whole transformation protocol could be achieved at room temperature (RT) simply by gently mixing EBs, vector DNA and McCoy cells in CaCl₂/Tris buffer. This protocol is described in the Materials and Methods and the selection procedure is described in Table S1. For selection our reasoning was to allow recovery of transformants, without penicillin selection in the first round of infection (developmental cycle) and then apply selection with penicillin initially at 10 units/ml (10 units  = 6 µg penicillin). After three rounds of selection, all the untransformed penicillin-inhibited C. trachomatis were lost and the culture was overgrown by penicillin-resistant transformants that appeared to grow with similar kinetics and inclusion morphology as the parental strain. It was possible to increase the concentration of penicillin to 20 and 100 units/ml at passages 3 and 4 to speed up the selection process. In each experiment regular observation of the cultures under phase contrast microscopy allows some flexibility in deciding precisely when the next passage is needed, taking into account the size, form and number of inclusion bodies observed at each stage.

The frequency of transformation, defined as the proportion of EBs or trypsinised cells receiving the shuttle vector DNA and still keeping the ability to start chlamydial proliferation, is a parameter that cannot be measured. The efficiency of recovery is dependent on the percentage of the transformed EBs present in the total population of EBs after each stage of selection. Each passage is performed by infecting cell cultures with cell lysates from the previous passage (see Materials and Methods, and Table S1). Following lysis of the McCoy cells, the untransformed Chlamydia, present as non-infectious RBs, fail to passage. Thus only transformed EBs and a diminishing number of carry-over untransformed EBs infect new host cells. The recovery increases with each passage until only transformed Chlamydia remain.

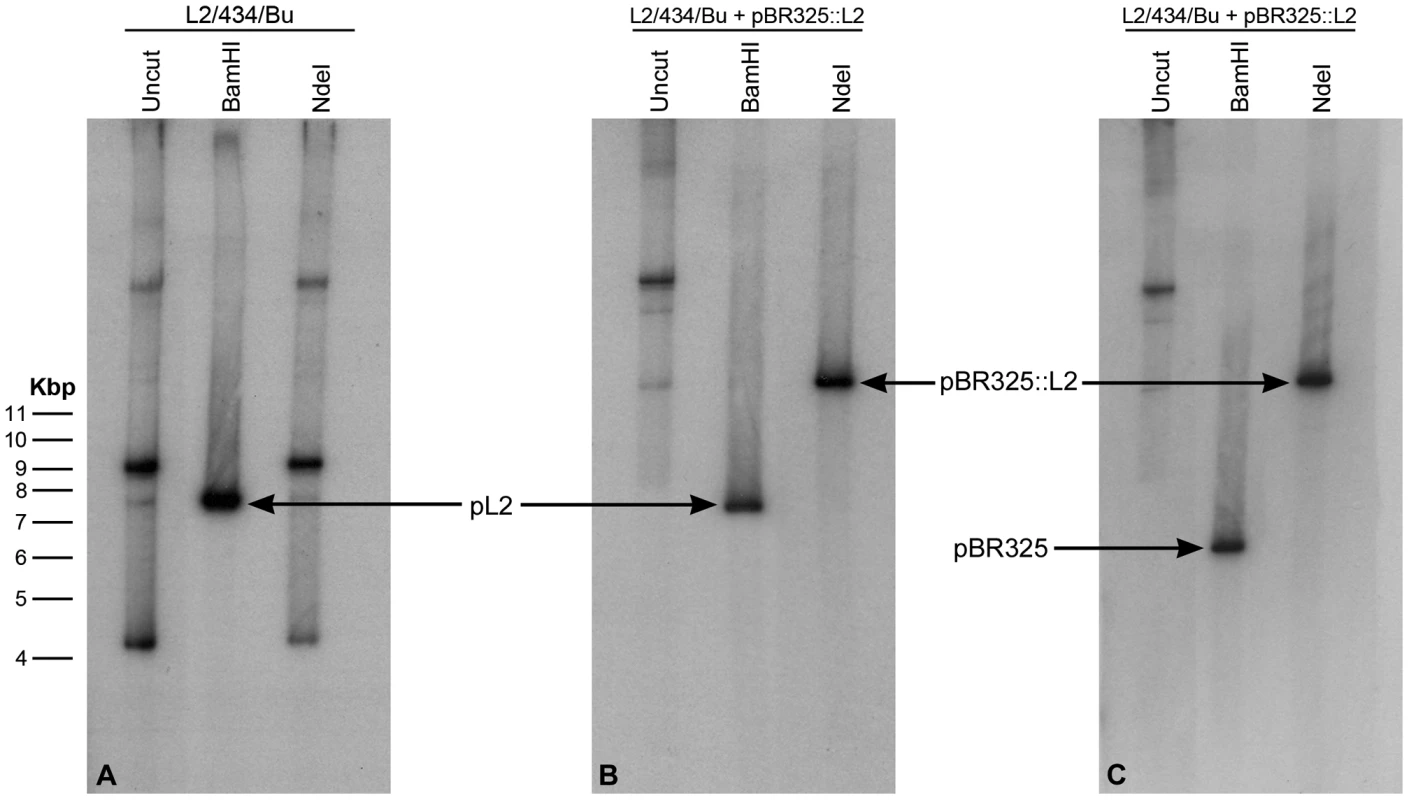

The pBR325::L2 transformed C. trachomatis L2/434/Bu strain was plaque purified (x3), expanded, and EBs and RBs were purified for detailed characterization. Southern blotting of chromosomal DNA purified from EBs with a vector probe (β-lactamase gene) and a chlamydial plasmid probe proved that transformation had occurred and revealed no changes in either the E. coli vector (pBR325) or the L2 plasmid (pL2), although by these passages the endogenous chlamydial plasmid had been eliminated from the transformed strain (Figure 2). There was no evidence for recombination/integration of the transforming plasmid with the recipient C. trachomatis chromosomal DNA.

Properties of pBR325::L2 transformed C. trachomatis L2/434/Bu

The copy number of pBR325::L2 was similar to that of the endogenous pL2 as accurately measured by qPCR (Figure S1).

To investigate the effects of transformation by plasmid pBR325::L2 on the strain C. trachomatis L2/434/Bu, we compared the growth characteristics of the parental strain and the transformed strain with or without penicillin selection. These data are summarized in Figure 3 and clearly show that the parental strain (L2) grows well in McCoy cells, as previously demonstrated, and there was no recovery of infectious EBs in the presence of penicillin when it was added at 10 units/ml from the start of the developmental cycle.

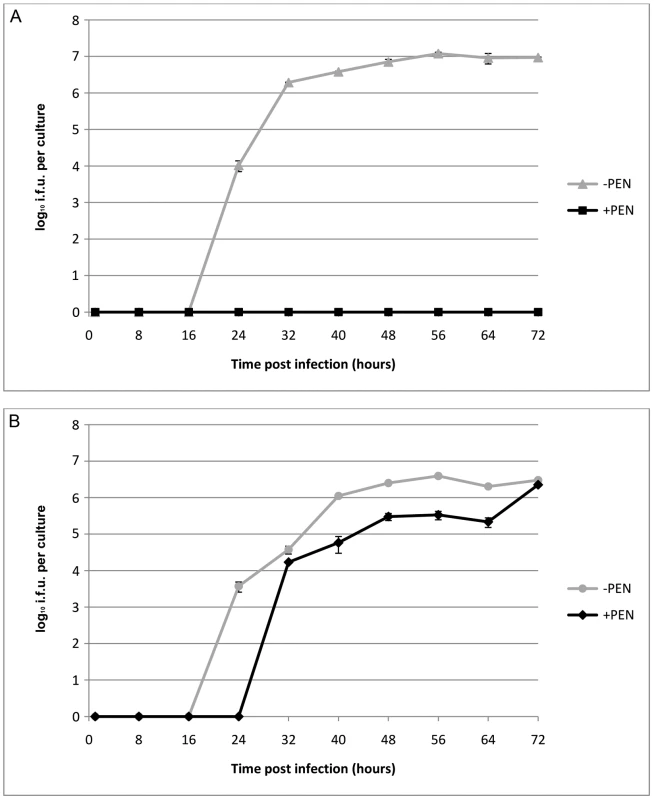

By contrast, the transformed strain grew in both the presence (10 units/ml) and absence of penicillin (up to 8 passages) giving similar recoveries of infectious EBs at the end of developmental cycle. Nevertheless the presence of a large transforming plasmid (pBR325::L2) has a measurable effect and the developmental cycle was lengthened and the yield slightly reduced compared to the untransformed C. trachomatis L2/434/Bu. Transmission electron microscopy of infected cells at late stages of the developmental cycles show no obvious phenotypic differences for transformed or untransformed C. trachomatis in the absence of penicillin but in the presence of penicillin untransformed C. trachomatis produced large aberrant RBs whereas transformed C. trachomatis inclusions appeared normal (Figure S2).

The vector was recovered from pBR325::L2- transformed C. trachomatis L2 by genomic DNA preparation and analysed by direct sequencing. These data showed no evidence for the presence of the original pL2 and also confirmed that there were no rearrangements or recombination events with pL2 or within the pBR325::L2 vector, although there were a few base changes from the sequences deposited in the database for the original pBR325 vector (Figure S3). These were attributable to errors in the original sequencing and annotation rather than adaptive mutations or subsequent transformation of the DNA in to E. coli. Analysis of multiple colonies carrying the recovered pBR325::L2 from E. coli by mini-plasmid preparation and restriction digestion showed they were all clonal and appeared to be unchanged from the transforming vector. One of these recovered plasmids was also sequenced and was identical to the sequence obtained direct from the transformed C. trachomatis.

Immunoblotting of purified EBs and RBs with commercially available antibodies (Figure S4) showed the presence of both β-lactamase and chloramphenicol acetyl transferase enzymes consistent with the observation that pBR325::L2- transformed C. trachomatis L2 was, in contrast to the untransformed C. trachomatis L2, resistant to penicillin up to 100 units/ml and able to grow in medium containing chloramphenicol concentrations up to 3 µg/ml (data not shown).

Interestingly, both the processed and mature forms of β-lactamase were detectable by immunoblotting in EBs showing that the signal peptide [37] was functional in C. trachomatis and the pre-protein was cleaved completely in RBs (Figure S4A). Chloramphenicol acetyl transferase levels (as assessed by immunoblot) were the same in both RBs and EBs (Figure S4B).

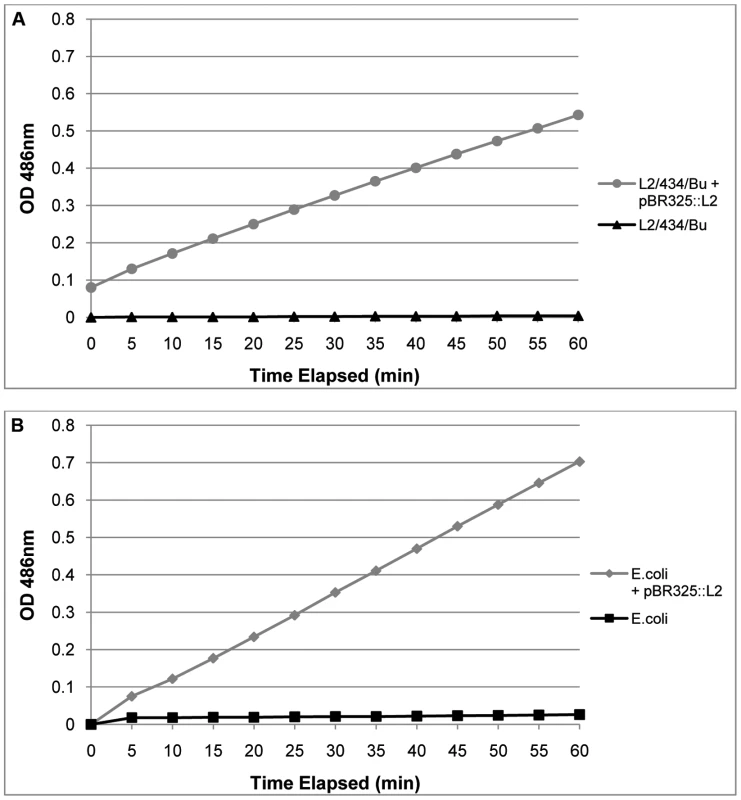

The transformed C. trachomatis L2 grew under penicillin selection and whilst the presence of β-lactamase, as shown by Western blotting, indicated that resistance to penicillin is likely through the mechanism of action of this enzyme, it did not prove that the enzyme is active. Thus to prove formally that the resistance to penicillin was indeed due to acquisition of an active β-lactamase, purified RBs (the actively growing form of C. trachomatis) were assayed for β-lactamase activity. Figure 4 shows that pBR325::L2- transformed C. trachomatis RBs have β-lactamase activity whereas RBs from the untransformed parental strain do not.

These results, taken together, established that pBR325::L2 could be selected from a background of untransformed C. trachomatis and this vector could also replicate in E. coli, therefore providing the basis of a functional shuttle vector. They showed proof of principle that the functions for retaining and replicating the plasmid in C. trachomatis were unaffected in the shuttle vector and we have established that standard E. coli promoters for both β-lactamase and chloramphenicol acetyl transferase operate in C. trachomatis. Further, the β-lactamase is active and the type 1 signal peptidase mechanism from C. trachomatis [38] is able to cleave the β-lactamase precursor to a mature form of the correct molecular weight in RBs, the actively growing form of the micro-organism.

In our experiments deriving a transformation frequency as a percentage of EBs receiving vector DNA is not a relevant measure and we have no means of measuring how many survive selection in the first round of culture. We considered it might be possible to do this if we had a marker such as green fluorescence that we could use to identify live transformed Chlamydia.

Expression of the green fluorescent protein in C. trachomatis L2/434/Bu

To show that the transformants obtained in the first series of experiments were useful for general application and not just the outcome from a serendipitous choice of a single, vector configuration (pBR325::L2) it was essential to repeat the work but with more than one (and different) marker. For this purpose we chose the mutated plasmid from the Swedish new variant which has a characteristic 377 bp deletion in CDS1 and a 44 bp duplication in the 5′ terminus of CDS3 [8]. This plasmid was cloned into an E. coli vector able to express the GFP. The complete plasmid map of the shuttle vector carrying the mutated plasmid from SW2 is shown in Figure 5.

Plasmid pGFP::SW2 contains a β-lactamase gene together with a red-shifted green fluorescent protein gene fused to the chloramphenicol acetyl transferase gene under control of a neisserial promoter. The map of the original plasmid pRSGFPCAT that provided the fused rsgfp-cat cassette including the neisserial promoter is shown in Figure S5.

E. coli cells transformed with pRSGFPCAT are resistant to penicillin and chloramphenicol and fluoresce green under blue illumination (data not shown).

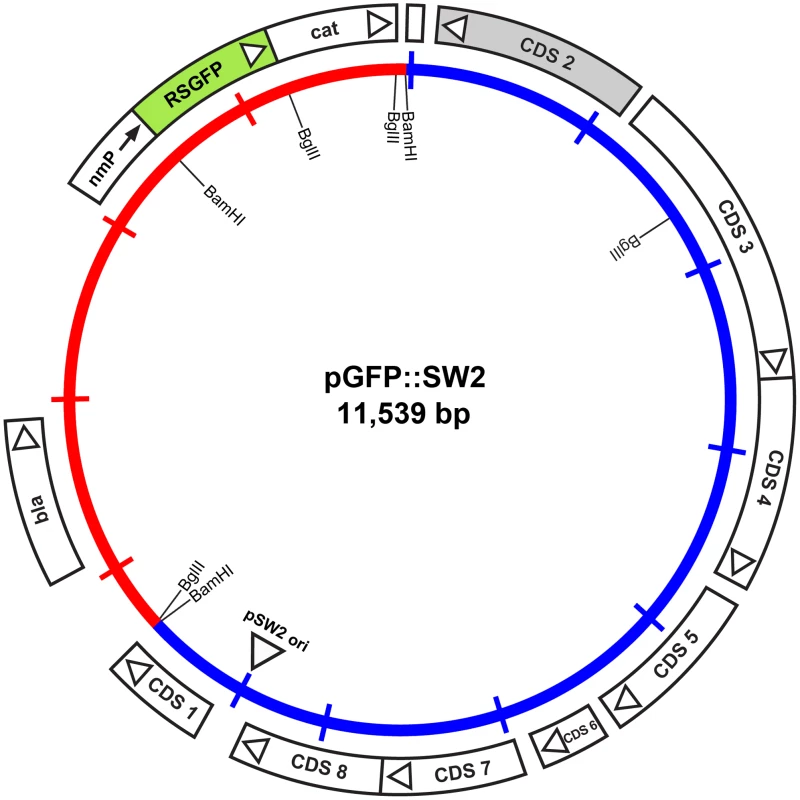

The plasmids and DNA used to make this final shuttle vector (pGFP::SW2) are summarized in Figure S6. The complete sequence and list of features for pGFP::SW2 are summarized in Figure S7.

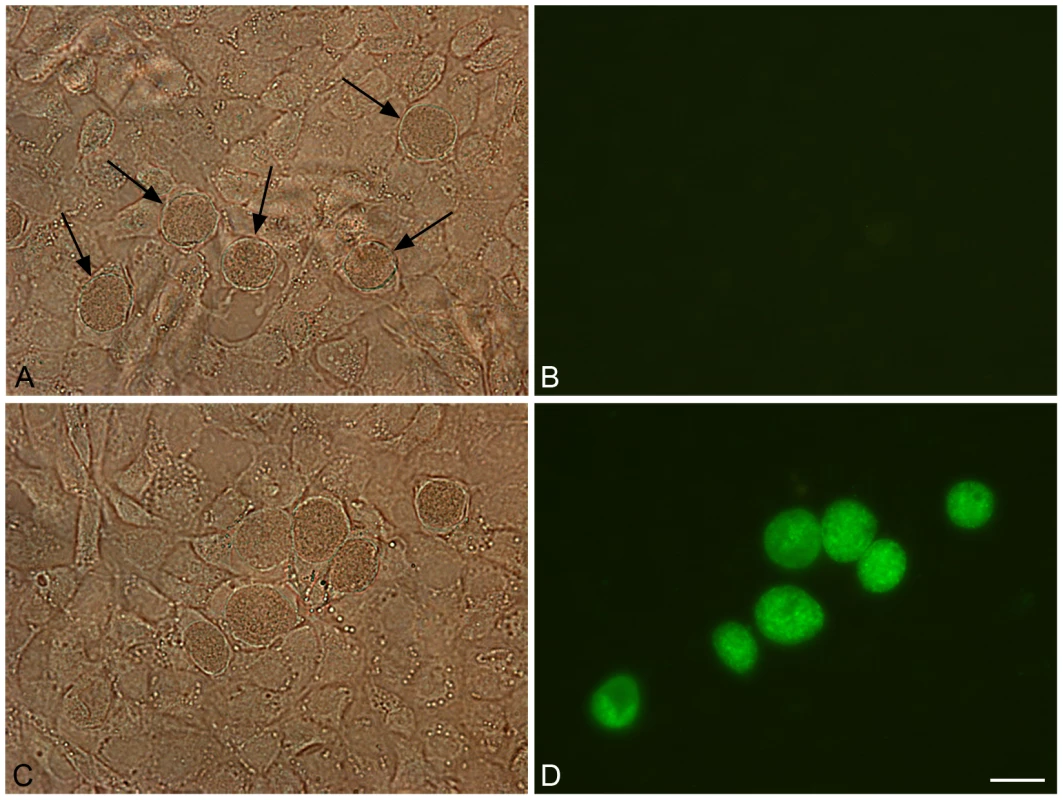

Transformation of C. trachomatis L2/434/Bu with pGFP::SW2 was successfully achieved on six occasions and yielded a penicillin-resistant strain that had green fluorescent inclusions (Figure 6). Green fluorescent inclusions became visible at 24 h post infection, once the transformants had been selected by multiple passages; however, we were unable to observe green fluorescent inclusions in the first developmental cycle post-transformation.

The green fluorescent protein is expressed as a fusion protein with the chloramphencol acetyl transferase (GFPCAT). To show that the fluorescence observed in inclusions was derived from the GFPCAT fusion protein, transformed Chlamydia were immunoblotted with anti-GFP monoclonal antibodies as shown in Figure S8.

Transformation of plasmid-free C. trachomatis with pGFP::SW2 restores the ability to biosynthesise glycogen

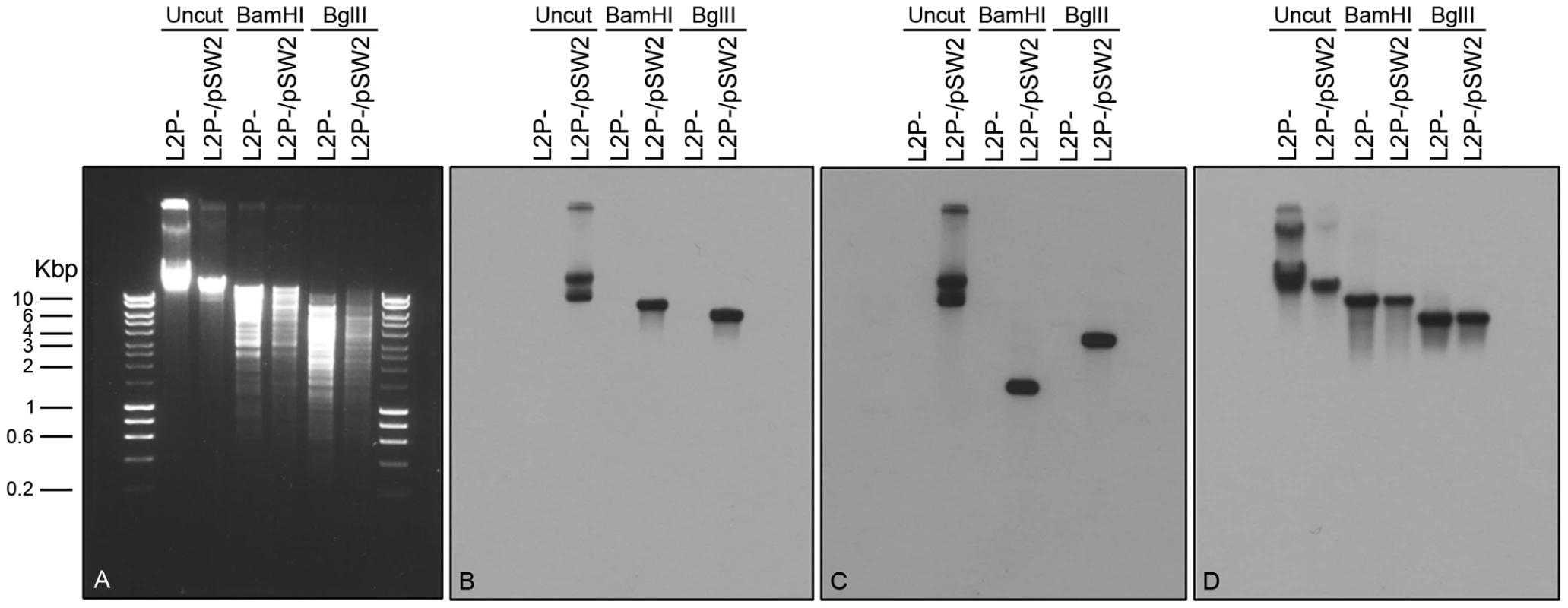

The ability to stain for the presence of glycogen in chlamydial inclusions is a property that has been linked to the presence of the plasmid although it has not been possible to prove formally the association as no system has previously existed for the introduction of plasmids into C. trachomatis [21]. The C. trachomatis L2 (25667R) strain is plasmid-free and not able to accumulate glycogen. We were unsure whether it would be possible to transform this strain as it was plasmid-free and may have lost the ability to retain the plasmid. Nevertheless, we attempted transformation of this C. trachomatis L2 strain with the vector pGFP::SW2 and obtained stable penicillin-resistant transformants that had green fluorescent inclusions. However, transformation of C. trachomatis L2 (25667R) strain with the basic cloning plasmid pSP73 alone did not yield transformants showing that the chlamydial plasmid (pSW2) was necessary to provide the replication functions of the shuttle vector pGFP::SW2 in C. trachomatis [8], [19]. We were able to recover the intact pGFP::SW2 vector from transformed C. trachomatis L2 (25667R) by genomic DNA preparation and re-transform the DNA into E. coli. Southern blotting of DNA extracted from transformed plasmid-free C. trachomatis L2 (25667R) confirmed the presence of pGFP::SW2 (Figure 7) and proved that transformation had occurred.

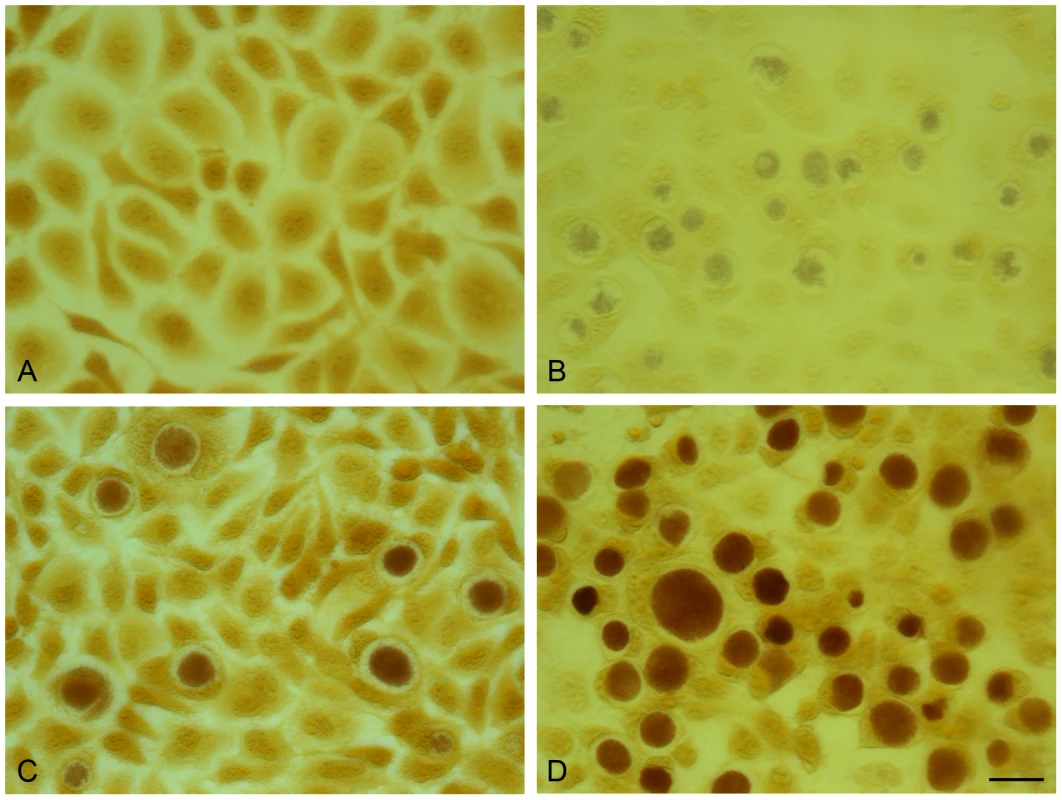

The pGFP::SW2-transformed C. trachomatis L2 (25667R) had inclusions which stained positive for glycogen (Figure 8). This observation confirms that glycogen biosynthesis is a trait that is dependent on the presence of the chlamydial plasmid. Every inclusion from the pGFP::SW2-transformed C. trachomatis L2 (25667R) stained for glycogen, demonstrating stable transformation at the individual level as well as the population level (as shown by the Southern blots).

Conclusions

• We have developed a simple and reproducible genetic transformation protocol for C. trachomatis based on calcium chloride treatment of EBs.

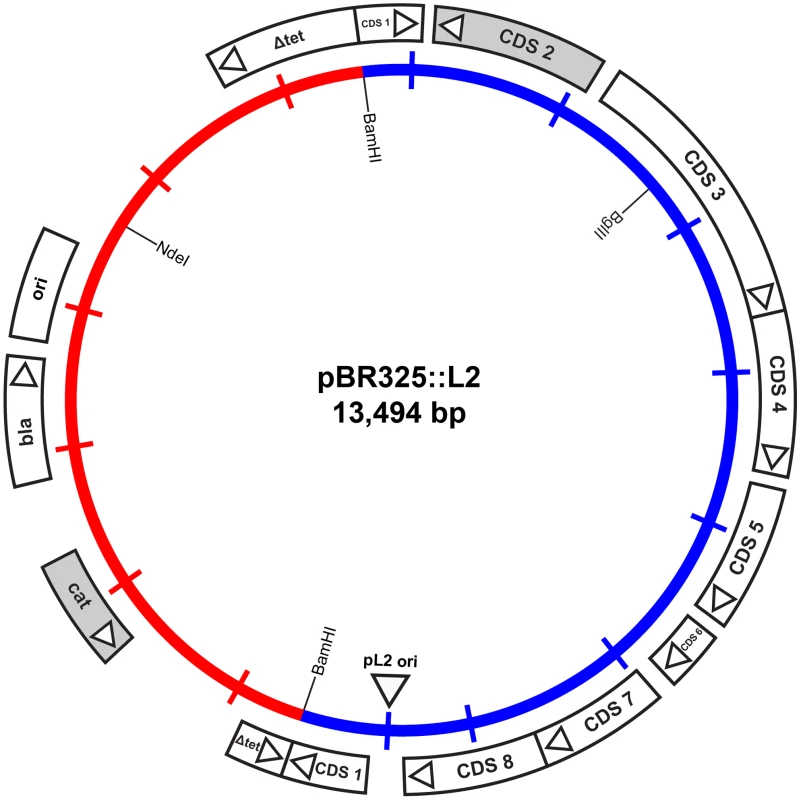

• We have designed a shuttle vector based on the 7.5 kb chlamydial plasmid and the E. coli plasmid pBR325. This vector replicates in both C. trachomatis and E. coli and selection is based on penicillin resistance.

• C. trachomatis L2/434/Bu transformed by the shuttle vector pBR325::L2 shows similar growth characteristics and inclusion formation as the untransformed strain.

• We have developed a second smaller shuttle vector pGFP::SW2 that conveys penicillin resistance through beta-lactamase expression and that also expresses the GFP.

• C. trachomatis L2/434/Bu transformed with pGFP::SW2 produces green fluorescent inclusions.

• Transformation of a plasmid-free strain of C. trachomatis L2 (25667R) with pGFP::SW2 generates green fluorescent inclusions and also restores the glycogen staining phenotype confirming that this property is a plasmid-dependent property.

• The development of a simple and reproducible transformation method will open the way to a better understanding of chlamydial genetics and could lead to the development of new approaches to chlamydial vaccines and therapeutic interventions aimed at modulating chlamydial pathogenesis.
