Wall Teichoic Acids of Limit Recognition by the Drosophila Peptidoglycan Recognition Protein-SA to Promote Pathogenicity

Summary

The cell wall of Gram-positive bacteria is a complex network of surface proteins, capsular polysaccharides and wall teichoic acids (WTA) covalently linked to Peptidoglycan (PG). The absence of WTA has been associated with a reduced pathogenicity of Staphylococcus aureus (S. aureus). Here, we assessed whether this was due to increased detection of PG, an important target of innate immune receptors. Antibiotic-mediated or genetic inhibition of WTA production in S. aureus led to increased binding of the non-lytic PG Recognition Protein-SA (PGRP-SA), and this was associated with a reduction in host susceptibility to infection. Moreover, PGRP-SD, another innate sensor required to control wild type S. aureus infection, became redundant. Our data imply that by using WTA to limit access of innate immune receptors to PG, under-detected bacteria are able to establish an infection and ultimately overwhelm the host. We propose that different PGRPs work in concert to counter this strategy.

Introduction

The complex cell surface of bacteria has been directly or indirectly associated with different strategies that bacterial pathogens use to interact with the host. These include acquisition of specific adhesion factors, formation of biofilms, adaptation to an intracellular environment, production of a protective capsular polysaccharide or evasion of innate immune defences (e.g. lysozyme) [1]. The host counters these strategies by targeting conserved molecules (pathogen associated molecular patterns or PAMPs), unique in bacteria, that are either present at the bacterial surface or are released by bacteria as they attempt to establish infection. Bacterial PAMPs include Peptidoglycan (PG), a heterogeneous polymer of glycan chains cross-linked by short peptides of variable length and amino acid composition [2]. Although PG recognition is essential to trigger an inflammatory response, this macromolecule may not be easily accessible for recognition at the surface of bacteria.

In Gram-positive bacteria, PG is buried within a complex cell surface consisting of different molecules [3]–[5]. Such molecules include surface proteins, covalently linked or tightly associated with PG, capsular polysaccharides, usually required for the ability of different bacteria to cause disease [6] and wall teichoic acids (WTA), phosphate-rich glycopolymers involved in the resistance of bacteria to environmental stress and regulation of bacterial division [7]. It is not clear therefore, how the host would be able to sense bacterial PG buried within such complex structures. One hypothesis is that the innate immune system recognises soluble PG fragments that are released from the bacterial cell surface through the activity of enzymes produced by bacteria (such as autolysins) or by the host (such as lysozyme) [2], [8]. However, certain bacteria have the ability to modify their PG, turning it more resistant to the action of such enzymes [9], thus preventing the release of small soluble fragments capable of triggering an innate immune response in the host. This may be the case for Listeria monocytogenes that has the ability to de-N-acetylate its PG allowing them to survive the action of lysozyme and evade the host innate immune system [10]. Another hypothesis is that the components of the host innate immune system are able to bind directly to PG present within the bacterial cell surface. As discussed earlier, PG is decorated with a variety of large molecules that may sterically block access of host receptors to the underlying PG. In Gram-positive bacteria, cell wall glycopolymers, including WTA may play this role [1]. The role of WTA protecting the PG from recognition would have important implications regarding the onset of infection by major human pathogens such as Staphylococcus aureus (S. aureus) [1]. Recently, it has been shown that different components, present at the cell wall of S. aureus bacteria, may determine the survival of infected Drosophila. Specifically, S. aureus strains impaired in the expression of enzymes involved with the metabolism of cell wall components were unable to kill flies [11]. Moreover, it has been proposed that D-alanylation of the WTA produced by S. aureus may inhibit the recognition of PG by host receptors. This inhibitory effect was observed in vitro not only when WTA was covalently attached to polymeric PG but, surprisingly, also when WTA was covalently attached to monomeric PG [12].

The fruit fly Drosophila melanogaster recognises Gram-positive bacteria by either direct binding to PG or its smallest components [13]. Based on in vitro data [14] and infection studies of mutants [14], [15], the current working hypothesis is that a flexible system of pattern recognition receptors (PRRs) can be deployed by the host immune system to detect Lysine-type PG from different Gram-positive bacterial pathogens. Two Peptidoglycan Recognition Proteins (PGRPs), namely PGRP-SA and PGRP-SD are major components of this system [15], [16]. Depending on the bacterium, each, or both of these PGRPs – along with Gram-Negative Binding Protein1 (GNBP1) [17] – interacts with PG and activate a downstream proteolytic cascade, which culminates in Toll receptor signalling. The signal reaches the cytoplasmic NF-κB/I-κB complex via a receptor/adaptor complex comprising dMyD88, Tube and the IRAK homologue Pelle. At that point the I-κB homologue Cactus is phosphorylated and targeted for degradation while the NF-κB homologue Dif is free to enter the nucleus of host cells and regulate target genes [18]. Prominent among these genes, is a group of potent antimicrobial peptides (AMPs), which are synthesised by the fat body and secreted into the haemolymph. An AMP frequently used as a read-out for the Toll pathway is Drosomycin (Drs). AMPs and local melanization, along with the phagocytic activity of haemocytes constitute respectively the humoral and cellular arm of the fruit fly response to infection [18].

Here, we report for the first time that Drosophila PGRP-SA, a non-lytic PGRP was able to bind intact live bacteria in vivo. Access to PG was limited by the presence of WTA: binding of PGRP-SA to various live Gram-positive bacteria was minimal, but binding to purified PG, stripped of covalent modifications (including WTA) was far greater. Through inhibiting WTA synthesis, either by the addition of an antibiotic or genetically, we were able to potentiate detection of these bacteria by PGRP-SA. For S. aureus, this correlated with a reduced ability of the bacteria to proliferate within the host, and a reduced susceptibility of the host to infection in a PGRP-SA/GNBP1 dependent manner. We also observed that PGRP-SD, essential for sensing wild type S. aureus, became redundant as WTA levels were reduced. Overall, our results suggest that WTA may be part of a general mechanism used by Gram-positive bacteria, which limits the access of innate receptors to PG, thereby enabling bacteria to evade detection and establish infection.

Results

To address the question of whether Gram-positive bacteria counter host recognition by limiting access of innate sensors to PG, we constructed a fluorescent derivative of the fruit fly Lys-type PG receptor, PGRP-SA (mCherry-PGRP-SA). This construct and an untagged version (rPGRP-SA) were expressed in Escherichia coli and the resulting proteins were purified. As shown in the supplementary material (Figure S1A), injection of mCherry-PGRP-SA, or rPGRP-SA, into PGRP-SA deficient flies restored Drs-GFP production induced by infection with Micrococcus luteus (M. luteus). Endogenous Drs expression was also restored as confirmed by qPCR (Figure S1B). These observations were consistent with our previous results when using a recombinant PGRP-SA expressed in the lepidopteran cell line Sf9 [19]. Taken together, these results showed that the fluorescently tagged PGRP-SA and the untagged versions are functional and capable of restoring an innate immune response in PGRP-SA deficient flies.

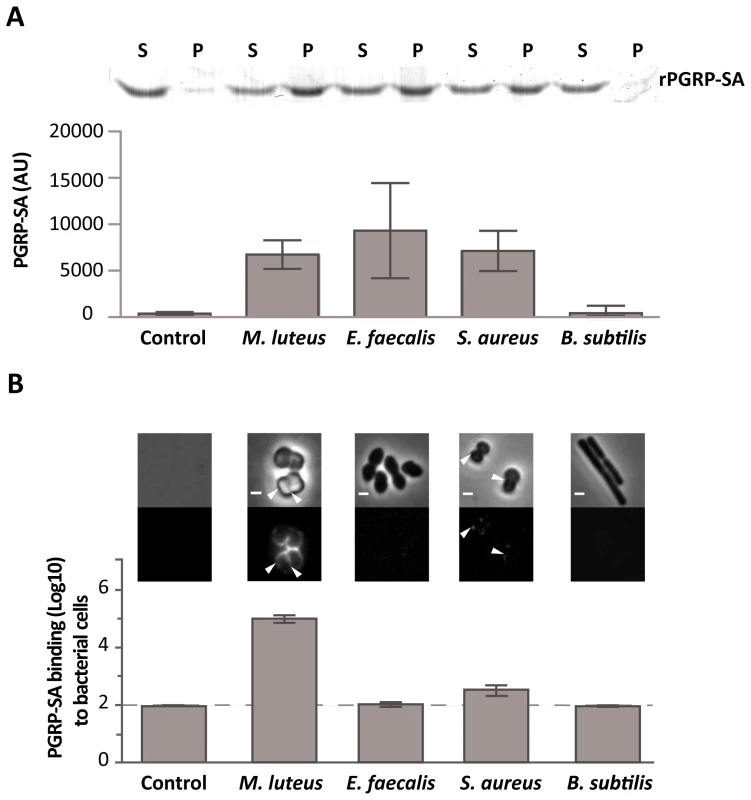

Initially, we used rPGRP-SA and mCherry-PGRP-SA in co-precipitation experiments in order to study binding to PG from different Gram-positive bacteria. Both bound with similar affinity to PG purified from M. luteus, Enterococcus faecalis (E. faecalis), and S. aureus (data not shown and Figure 1A, respectively). For details of PG composition of these bacteria see Figure S2. Importantly, this indicated that the mCherry-tag appeared not to interfere with PGRP-SA binding, and thus, demonstrated that both proteins were able to bind Lys-type PG of different composition. We therefore assessed in vitro, the binding of mCherry-PGRP-SA to the surface of live bacteria harvested during exponential growth phase. Notably, the binding of the recombinant protein to live bacteria exhibited a range of different affinities in contrast to their respective purified PG. Binding to live E. faecalis and S. aureus was significantly reduced, when compared to binding to M. luteus (Figure 1B). However, the binding levels of PGRP-SA to the purified PG from these bacteria were similar (Figure 1A). We also noticed that while mCherry-PGRP-SA was capable of binding the entire surface of M. luteus cells, it bound at specific sites at the surface of S. aureus cells, similar to what has been described recently for mammalian bactericidal PGRPs [20]. These results suggested that although the three types of bacterial PG were similarly recognized by PGRP-SA, the presence of other components found at the surface of live bacteria might have prevented PGRP-SA from finding its PG ligand.

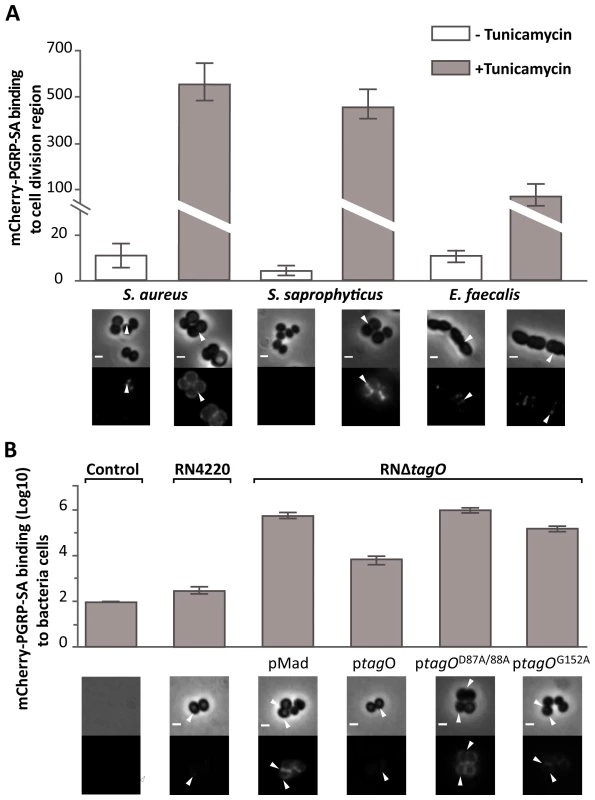

The cell surface of a Gram-positive bacterium is a complex structure consisting of a thick layer of PG, surface proteins and glycopolymers such as capsular polysaccharides and WTA. As previous studies had shown that certain PG-binding proteins, such as bacterial autolysins, have a higher affinity for the surface of bacterial strains lacking WTA [21]–[23], it was decided to investigate whether presence of WTA could be preventing PGRP-SA from binding to the surface of live bacteria. Further support for the choice of WTA came from the fact that different Gram-positive bacteria can produce WTA with a variable composition [24]–[26]. M. luteus, for which mCherry-PGRP-SA displayed the highest affinity, does not produce WTA [24], [27], (Figure S2C). To test whether WTA mediated the differential binding of PGRP-SA, we cultured bacteria in the presence of tunicamycin, thereby inhibiting their ability to synthesize WTA. At lower, sub-inhibitory concentrations as those used in this study, tunicamycin specifically inhibits TagO [28]: a glycosyltransferase that specifically localizes to the division septum of S. aureus [29] and is required for the initial step of WTA biosynthesis, namely, the transfer of GlcNAc to the C55-P lipid anchor bactoprenol. We observed higher levels of mCherry-PGRP-SA binding to the newly synthesized cell material, located at the division septum, when Gram-positive bacteria cells were treated with tunicamycin (Figure 2A). S. aureus and S. saprophyticus exhibited a similar increase in binding, 63× and 84× respectively, whilst E. faecalis binding increased 8×. It should be noted that the effect of tunicamycin in these bacteria was not the same. While addition of the antibiotic resulted in binding of mCherry-PGRP-SA to the entire cell surface of S. aureus, binding was observed predominantly at the division septum in S. saprophyticus and exclusively at this region in E. faecalis. We attribute these differences to how and where the new cell wall synthesis occurs in these bacteria. Nevertheless, the results described above suggested that WTA in different bacteria might protect PG from exposure to host receptors.

To confirm that WTA were indeed required to reduce access of PGRP-SA at the cell surface, we quantified the binding of mCherry-PGRP-SA to S. aureus mutants that produced varying amounts of WTA due to mutations in the tagO gene [29]. We chose S. aureus because it is a major human pathogen with a well-characterised WTA synthetic pathway [30], [31]. A complete absence of WTA, which occurs when tagO is entirely deleted (RNΔtagO pMAD), or when two highly conserved residues have been mutated (RNΔtagO ptagO^D87A/D88A), resulted in equivalently enhanced levels of mCherry-PGRP-SA binding, when compared to the wild type strain (∼2×10³ and ∼3.3×10³-fold respectively, Figure 2B). To verify that the observed result was indeed due to the loss of WTA, we expressed wild type tagO in the RNΔtagO background (RNΔtagO ptagO): this rescued the loss of WTA (WTA levels restored to 90% of wild type levels) [29], and reduced mCherry-PGRP-SA binding to levels close to those observed for the wild type strain (Figure 2B). A tagO mutant that could only support production of a reduced amount of WTA (RNΔtagO ptagO^G152A; 24% levels of WTA compared to wild type) exhibited an intermediate level of mCherry-PGRP-SA binding relative to all strains (6×10²-fold increase relative to the wild type strain, Figure 2B). Overall, our data indicated that WTA found in the cell wall of different live Gram-positive bacteria restricted PGRP-SA from binding their PG, and in S. aureus this occurs in a dose dependent manner.

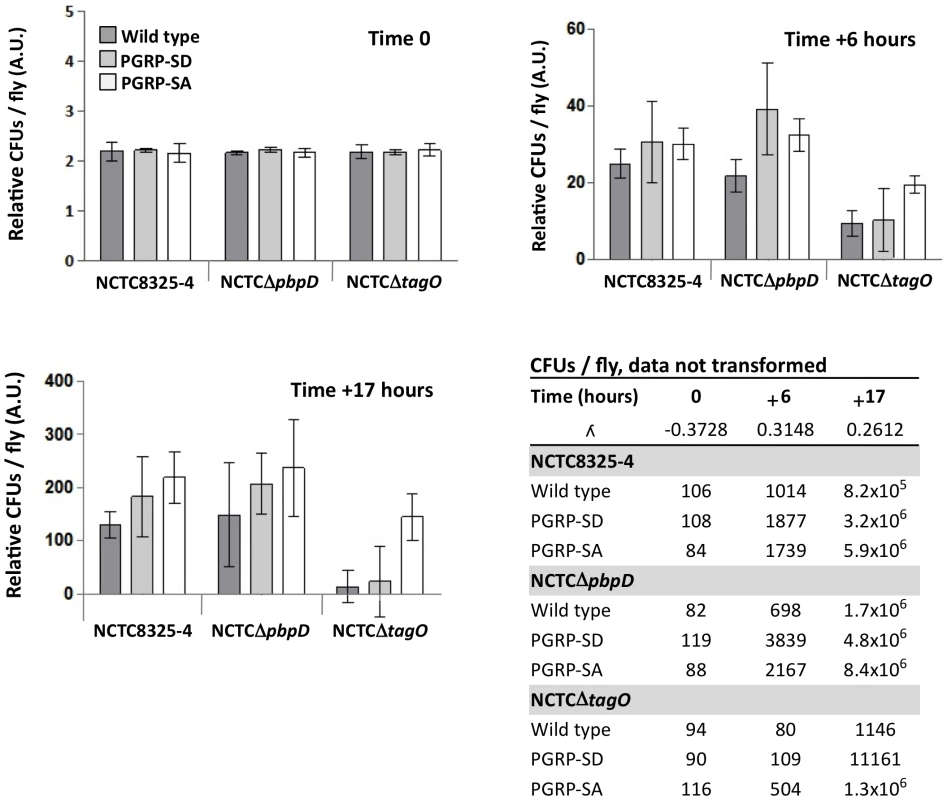

We next wanted to examine whether increased PGRP-SA binding – due to a lack of WTA – affected the ability of bacteria to survive in an in vivo system. We chose D. melanogaster because it is a well-established model for dissecting pattern recognition in innate immunity [18]. We know for example that in vitro, three PRRs – PGRP-SD/PGRP-SA/GNBP1 – form a ternary complex for binding to the PG of S. aureus [14]. As a first approach wild type and mutant S. aureus strains were injected into wild type flies and also into flies defective for PGRP-SD or PGRP-SA. We then determined the number of CFUs 6 and 17 hours post-infection; the latter time point being when the first flies succumb to infection (Figure 3 and S5). All flies were inoculated with low and statistically identical numbers of bacteria (∼10² CFUs per fly; Figure 3, Time 0). Our rationale was to induce infections that were comparable and that could evolve over time. For example, flies generally succumb to bacterial infection when their numbers increase beyond 10⁶ CFUs per fly [18], [32], and therefore, high initial loads (e.g. 10⁴–10⁵ CFUs per fly) may overwhelm the host and consequently may not be informative regarding the course of an infection. We observed that wild type S. aureus (NCTC8325-4) CFUs increased in all fly backgrounds over the period of infection to numbers that were statistically separable, with PGRP-SA deficient flies carrying the heaviest load (Figure 3). In contrast, the numbers of the S. aureus mutant, which lacked WTA (NCTCΔtagO) [29], did not significantly increase in the wild type or PGRP-SD mutant background. However, the number of NCTCΔtagO bacteria in the PGRP-SA mutant was significantly higher at both the 6 and 17 hours time points (Figure 3). Two-way ANOVA revealed a significant interaction between the bacteria and fly strains, which was due to the large increase of NCTCΔtagO bacteria in the PGRP-SA mutant. Together, these data indicated that WTA were fundamental for S. aureus to counter recognition by PGRP-SA, and consequently, the bacteria were able to increase their number during the initial course of infection.

We have previously observed that PG produced by NCTCΔtagO bacteria has reduced levels of cross-linking relative to the wild type strain [29]. To evaluate whether this contributed to the inability of NCTCΔtagO bacteria to increase their number in wild type or PGRP-SD mutant flies, we assessed mCherry-PGRP-SA binding to NCTCΔpbpD and determined CFUs at 6 and 17 hours. NCTCΔpbpD is a derivative of NCTC8325-4 in which pbpD (the gene encoding to penicillin binding protein 4, PBP4) has been deleted. Deletion of pbpD results in a strain that produces PG with a similar level of cross-linking to that found in NCTCΔtagO [29], but which still produces WTA. The inability of NCTCΔpbpD and NCTCΔtagO to produce a highly crosslinked PG did not interfere with bacteria growth in culture, as its duplication time at 30°C was very similar to the parental NCTC8325-4 strain (Figure S3B). In both experiments, NCTCΔpbpD behaved as the wild type bacteria. Firstly, binding mcherry-PGRP-SA similarly (Figure S3C) and secondly, for each fly background attaining numbers that were statistically inseparable from those for NCTC8325-4 (Figure 3, Time +17 hours).

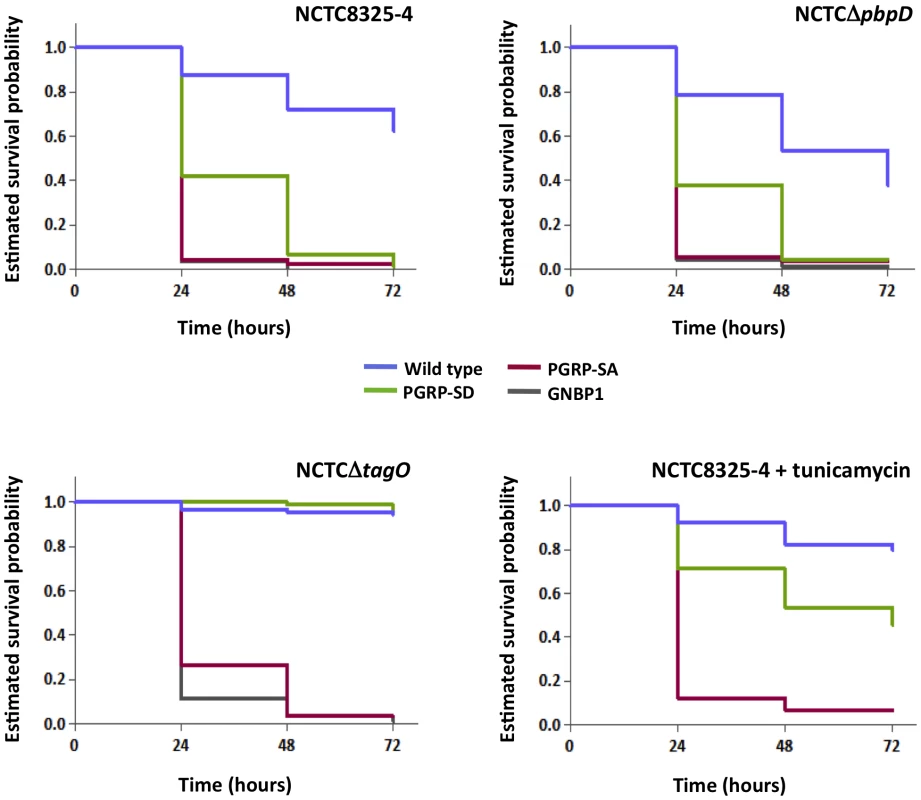

To assess whether the developing trend in bacterial numbers at 17 hours post-infection resolved into differences in how flies survive, we monitored the number of flies alive at 24 hour intervals over 3 days. In addition, we infected GNBP1 mutant flies, because GNBP1 has been postulated to work as part of a complex with PGRP-SA [14], [17]. Survival curves for a particular fly background when infected with either NCTC8325-4 or NCTCΔpbpD were statistically inseparable, except for those obtained for the wild type background, where flies succumbed more to NCTCΔpbpD (Figure 4; 62% and 38% survival at 72 hours post-infection, respectively). Nearly all PGRP-SA and GNBP1 mutant flies had died by 24 hours, whereas ∼40% of PGRP-SD mutant flies survived beyond this time point, succumbing to infection around 48 hours (∼5% of flies surviving). In contrast, ∼95% of wild type and PGRP-SD mutant flies survived the NCTCΔtagO infection up to 72 hours (furthermore, taking CFUs at this time-point revealed that NCTCΔtagO had been eliminated from these flies, 0 CFUs per fly). The majority of PGPR-SA and GNBP1 flies had succumbed to infection by 48 hours (3% of flies surviving). A similar trend in survival outcome was observed with NCTC8325-4 after treatment with tunicamycin (Figure 4). These data confirmed that WTA were indeed required to counter host immunity, because without them, infection could be controlled in a PGRP-SA/GNBP1 dependent manner. Differences in CFUs were apparent 6 hours post-infection suggesting that recognition and reduction of propagation or killing of bacteria, occurs rapidly following infection. Interestingly, these results also showed that a requirement for PGRP-SD was bypassed when WTA are removed and PGRP-SA has far greater access to PG.

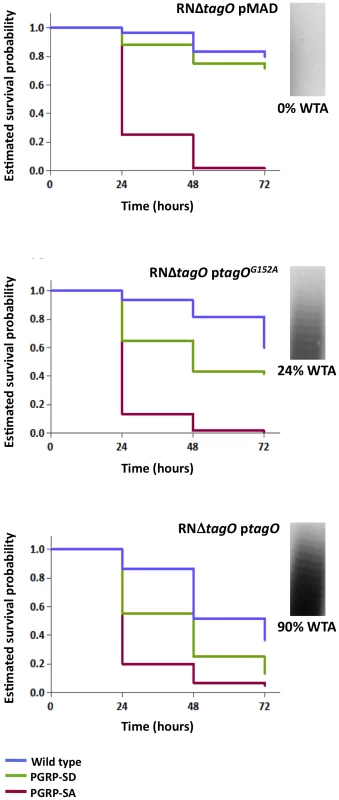

To further demonstrate the necessity for WTA to protect PG from host recognition, we monitored survival of flies infected with the aforementioned TagO point mutations (Figure 2B and Figure 5). In these experiments, we wanted to rule out unknown causes that may occur due to the absence of the TagO protein per se, and also, lessen adverse effects that may occur due to a complete lack of WTA. The survival trend for flies infected with RNΔtagO pMAD, that lacks tagO and carries an empty pMAD plasmid vector (vector control), was similar to that for NCTCΔtagO: the PGRP-SA mutant succumbed rapidly, whereas the PGRP-SD mutant and wild type flies generally survived, their curves being statistically inseparable (Figure 5). The injection of the complemented strain (RNΔtagO ptagO) resulted in survival outcomes that were characteristic of NCTC8325-4, with PGRP-SD mutant and wild type flies succumbing to the infection, with their curves being statistically separated (Figure 5). Notably, wild type and PGRP-SD mutant flies infected with RNΔtagO ptagO^G152A (which produces ∼24% WTA relative to RNΔtagO ptagO but produces similar levels of the TagO protein) [29] survived to intermediary levels (Figure 5). Overall, survival of wild type flies decreased as WTA levels increased (with a concomitant decrease in PGRP-SA binding, Figure 2B), and likewise for the PGRP-SD mutant; with the difference between wild type and PGRP-SD mutant survival successively increasing. In contrast, survival of PGRP-SA mutant flies was independent of WTA levels, with flies succumbing strongly for all infections in a statistically inseparable manner (Figure 5). These data confirmed that it was indeed in vivo protection of PG by WTA against the consequences of PGRP-SA binding, and furthermore, suggested that a requirement for PGRP-SD gradually became redundant as WTA levels decreased.

It has been reported previously that D-alanylation of WTA is also required for the pathogenicity of S. aureus [11]; D-alanylation is a process that incorporates D-alanine residues into the glycerol-/ribitol-phosphate backbone of WTA, thereby reducing the negative charge of the polymer [33]. We examined therefore, whether a S. aureus mutant that lacks the D-alanylation pathway (RNΔdltABCD) bound mCherry-PGRP-SA equivalently to RNΔtagO. Binding of, mCherry-PGRP-SA to RNΔdltABCD was similar to the binding to the wild type bacteria (Figure S3). This prompted us to assess how RNΔdltABCD affected survival of the wild type, PGRP-SD and PGRP-SA mutant flies. In contrast to RNΔtagO, PGRP-SA mutant flies did not succumb strongly to RNΔdltABCD infection, with 83% surviving at 72 hours post-infection (Figure S4); furthermore, survival was statistically inseparable for the different fly backgrounds (Figure S4). These data demonstrated that D-alanylation is not necessary for WTA to limit the access of PGRP-SA, that neither PGRP-SD nor PGRP-SA were required to control the RNΔdltABCD infection and consequently, the reduced killing effect of RNΔdltABCD had nothing to do with recognition.

Discussion

The results shown here indicate that in respect to Gram-positive bacteria, where the cell wall is not concealed by outer membrane (e.g. staphylococci), pathogen recognition, via recognition of PG, is tightly linked to host survival. Our studies bring forward the notion that one of the strategies used by pathogens to reduce recognition is to restrict accessibility to inflammatory non-self components of the cell wall. Specifically, the results here show that presence of WTA in a range of Gram-positive bacteria impaired PGRP-SA binding. The use of tunicamycin to abolish WTA synthesis dramatically improved receptor recognition of bacteria as well as host survival of flies infected antibiotic treated S. aureus. Genetically deleting a major component of the WTA synthesis (TagO) in S. aureus also increased PGRP-SA binding leading to increased host survival. It should also be noted that, rPGRP-SA was capable of binding in vitro significantly better to WTA-free PG than to WTA-linked PG that were purified from wild type S. aureus bacteria, treated with trypsin to remove any attached surface proteins and adjusted to the same concentration of PG (Figure S2). This observation confirmed the results obtained with live bacteria and allowed us to eliminate the notion that deletion of tagO gene may influence the amount of protein present at the cell surface and that this change in protein levels was influencing the binding of PGRP-SA. Effectively during the course of this work we have removed WTA from PG by treatment with antibiotic, by deletion of the tagO gene and finally we have chemically removed them from PG. In all the cases binding of PGRP-SA to PG has increased.

S. aureus produces WTA composed of about 40 ribitol phosphate-repeating units modified with N-acetylglucosamine (GlcNAc) and D-alanine [7]. The latter modification is mediated by the D-Alanine ligase DltA and partially neutralizes the negative charge of the cell surface thus reducing attraction of cationic AMPs [33]. ΔdltA mutants are more susceptible to killing by cationic AMPs and neutrophils in vitro and have markedly reduced virulence in several animal infection models including Drosophila [11], [34]. In one of these studies [11], Tabuchi and colleagues showed that S. aureus producing WTA without D-alanylation were impaired in their ability to kill Drosophila. Surprisingly, the ΔdltA mutant was more impaired in the ability to kill flies than an independently generated tagO mutant [11]; the latter according to the authors had the same pathogenicity as wild type S. aureus [11], contrary to our findings.

There is a crucial point to be made in reference to this however, which is at the heart of our experimental design and gives physiological relevance to our results. We propose that WTA are important to reduce S. aureus recognition by the host and thus help the pathogen increase its numbers inside the fly. The host uses PGRP-SA to control bacterial numbers and the more PGRP-SA binds to the cell wall (see Figure 2B) the more the bacterial load is controlled (as seen by comparing CFUs between wild type NCTC8325-4 S. aureus and NCTCΔtagO in Figure 3A). In PGRP-SA mutants the control mechanism is absent and NCTCΔtagO was able to proliferate and kill the host (Figure 3B). We were able to observe this because we started from a low bacterial load (10² cells/initial infection/fly) and followed the progress of pathogen load inside the host. Tabuchi et al. injected 10⁴–10⁶ cells per fly for all bacterial strains used [11]. In our hands this concentration overwhelmed the host from the beginning and it is not surprising that these authors were unable to resolve statistical differences in host survival.

In order to rule out possible pleiotropic effects produced by the inactivation of the tagO due to the insertion of non-replicative plasmids or reversion of the mutation by elimination of the plasmid from the chromosome, we have specifically deleted the tagO gene in a manner that left no resistance marker in the bacterial chromosome and thus minimized possible alterations on the transcription of neighbouring genes. Finally, in order to increase the confidence of our results, we have complemented the tagO null mutant with plasmids that allowed the expression of a partially active (TagO^G152A), TagO protein and have statistically analyzed the estimated host survival probability curves obtained. Finally we should emphasize that deletion of the tagO gene in NCTC8325-4 strain (an agr positive strain) and in RN4220 (an agr negative strains) resulted in similar outcomes (Figure S3) - a reduced pathogenicity in the Drosophila infection model and the production of a bacterial cell surface that was better recognized by mCherry-PGRP-SA.

In parallel experiments we have also generated a ΔdltA deletion mutant (this study) as well as a deletion of the ΔdltA operon (ΔdltABCD) [29] and found that both were indeed less pathogenic than wild type S. aureus (Figure S4), similar to what was previously reported [11]. However, this reduced pathogenicity was also observed in PGRP-SA and PGRP-SD single mutant flies (in contrast to ΔtagO). This indicated that the non-pathogenicity of ΔdltA was not linked to recognition by PGRP-SA or PGRP-SD.

We propose that increased “visibility” of PG to PGRP-SA when WTA were removed, dramatically improved survival of the host. However, alternative interpretations of our results may exist. In the following section we will attempt to challenge and rule them out:

• We have recently reported that removal of WTA has an impact on PG cross-linking and consequently on the susceptibility to host lysozyme [29]. The possibility that the increased host survival may be the result of decreased pathogen resistance to the lysozyme constitutively expressed in the fly (due to the reduced PG cross-linking in the S. aureus tagO null mutant) rather than removal of a physical entity (WTA), which blocked access to PG, was ruled out as follows. We generated an S. aureus mutant unable to produce high-level PG cross-linking but capable of producing regular levels of WTA, by deleting the pbpD gene [29]. The pbpD gene encodes to PBP4 which is responsible for the final stages of PG maturation and results in highly cross-linked PG. As shown in Figure 4, bacteria that produce PG with a low level of cross-linking, but normal levels of WTA, were able to kill wild type flies similarly to the parental S. aureus strain. In addition, similar amounts of mCherry-PGRP-SA bound to the surface of both wild type bacteria and NCTCΔpbpD (Figure S3C). These results indicate that in ΔtagO increased recognition by mCherry-PGRP-SA and the inability to kill flies is due to the absence of the WTA and not due to modifications in PG cross-linking.

• The hypothesis that the absence of teichoic acids could turn S. aureus bacteria more susceptible to enzymes present in the haemolymph of Drosophila, such as lysozyme-like enzymes, which would make the bacteria unable to kill flies, was also considered and ruled out. In accordance with previous reports [34] we have verified that the S. aureus tagO null mutant is as resistant to lysozyme as the parental strain. The tagO null mutant only becomes susceptible to lysozyme when an additional mutation in the oat gene, encoding a protein responsible for PG O-acetylation, is introduced (data not shown). Most importantly, injection of S. aureus tagO null mutant into PGRP-SA mutant flies was lethal, indicating that the S. aureus tagO null mutant bacteria were able to multiply in the haemolymph of flies if undeterred by PGRP-SA.

• The possibility that PGRP-SA is responsible for directly killing bacteria lacking WTA was also ruled-out as there was no alteration in the growth rate of S. aureus tagO null mutant when grown in the presence of recombinant PGRP-SA (data not shown). PGRP-SA is believed to be non-lytic [35]. Nevertheless, this is a working hypothesis and has not been formally proven. In contrast, an unusual L,D-carboxypeptidase activity has been observed towards PG of some Gram-negative bacteria [36]. At the present moment, we cannot exclude that a protein existing in the haemolymph is capable of mediating killing of S. aureus tagO in complex with PGRP-SA. In accordance to the latter hypothesis we have previously shown that PGRP-SA enhances the weak endomuramidase activity of GNBP1 for PG of M luteus, the cell wall of which (like tagO), is devoid of WTA [37].

• The possibility that the absence of WTA could turn S. aureus bacteria more susceptible to AMPs (produced as a consequence of the recognition of an invading pathogen) was also tested. Injection of S. aureus tagO null mutant into mutant flies affected in the ability to produce AMPS, such as Dif¹-key¹, spz^rm7 and spz¹ was not lethal to the flies, indicating that the S. aureus tagO null mutant bacteria were being eliminated in a way that was dependent on recognition by PGRP-SA but not dependent upon activation of the production of AMPs (Figure S6). At the moment we are unable to identify how Drosophila flies are killing invading S. aureus tagO null mutant bacteria. It is possible that bacteria, upon recognition by PGRP-SA, are more easily phagocytised or that, as in Tenebrio molitor [38], PGRP-SA binding recruits the local melanization cascade, triggering such a response.

Our results underline an important aspect of pathogen recognition by the host, which remains relatively unexplored. Namely, how does the host recognition machinery respond to changes in the surface of bacteria? Here we manipulated the amount of WTA on the cell surface of S. aureus. Previously, two host PGRPs, PGRP-SA and PGRP-SD were found to be involved in recognition of wild type S. aureus [14], [15]. We found here that when WTA were genetically removed, the requirement for PGRP-SD was abolished. Flies deficient for PGRP-SD had estimated survival probabilities comparable to wild type flies following infection by S. aureus ΔtagO or ΔtagOptagO^D87/D88A. When a small amount of WTA was left on the surface through the residual activity of the S. aureus ΔtagOptagO^G152A then PGRP-SD mutants were less able to survive infection. However this sensitivity was not as pronounced as when infected with S. aureus ΔtagOptagO, the strain with reconstituted wild type levels of WTA. Previous studies have established that PGRP-SD does not bind Gram-positive Lys-type PG [14], [39]. However, in its presence, PGRP-SA was able to bind substantially better to cell wall from S. aureus and S. saprophyticus [14]. Our results, combined with the latter observation, support a role for PGRP-SD in neutralizing the effect of WTA obstructing access to PG. The alternate hypothesis that PGRP-SD may directly recognize WTA, and is therefore not necessary when flies are infected with bacteria that lack teichoic acids, is also a possibility.

The role of teichoic acids in concealing PG at the surface of Gram-positive bacteria may be also effective in preventing recognition by innate immune sensors of other organisms. It is now established that insect PGRPs have mammalian homologues and mice and humans express four genes encoding members of this family [35]. Our results correlate with data, which attributed a significantly reduced virulence of tagO mutants in cotton rat nasal colonisation model [40] as well as a mouse endophthalmitis model [41] and suggest a mechanism for how this may happen: absence of teichoic acids may render PG at the bacteria surface more exposed to the host immune system.

Materials and Methods

Microbial and fly strains

Isogenic wild type flies (Bloomington #25174) were used as the wild type control. For the survival and bacterial Colony Forming Unit (CFU) experiments, and DD1 flies for assaying Drs levels visually or via qPCR; the latter carries a Drs-GFP and a Diptericin-lacz reporter [42]. The PGRP-SA and PGRP-SD mutant backgrounds are, respectively: flies with the semmelweis mutation in PGRP-SA [16] and a 1499 bp deletion in PGRP-SD (PGRP-SD^Δ3) [15]. The spz^rm7 [43] and spz¹ [44] Toll pathway mutant backgrounds, and the Dif¹-key¹ [45] Toll-IMD pathways double mutant background, were used to assess survival of flies deficient for AMPs. All fly stocks were reared at 25°C. Bacterial strains are listed below. S. aureus strains were grown in tryptic soy broth medium (TSB; Difco) supplemented with antibiotic (erythromycin 10 µg/ml; Sigma-Aldrich) when required. E. faecalis was grown in brain heart infusion medium (BHI; Fluka). M. luteus was grown in Luria-Bertani medium (LB; Difco). Bacteria were plated from -80°C stocks every 7 days Growth of all bacteria cultures were done at 30°C as S. aureus mutants impaired in the synthesis of teichoic acids are thermosensitive [46].

S. aureus strains

NCTC8325-4 (S. aureus reference strain from R. Novick); NCTCΔtagO (NCTC8325-4 tagO null mutant [29]); RN4220 (Restriction deficient derivative of S. aureus NCTC8325-4 that can be electroporated); RNΔtagO (RN4220 tagO null mutant [29]); RNΔtagOpMAD (RNΔtagO transformed with pMAD [29]– shuttle vector with a thermosensitive origin of replication for Gram-positive bacteria); RNΔtagO ptagO (RnΔtagO transformed with ptagO [29]); RNΔtagO ptagO^D87A/D88A (RNΔtagO transformed ptagO^D87A/D88A [29]); RNΔtagO ptagO^G152A; RNΔtagO transformed with ptagO^G152A, [29]); RNΔdltABCD (RN4220 dltABCD null mutant [29]); RNΔdltABCD (RN4220 dltABCD null mutant [29]); RNΔdltA (RN4220 dltA null mutant, this study). M. luteus strain: DMS20030 [47]; E. faecalis strain: JH2-2 [48]; B. subtilis strain MB24 [49].

Construction of the RNΔdltA null mutant

To delete the dltA gene from the chromosome of S. aureus RN4220 we started by amplifying two 0.55 Kb DNA fragments from the genome of S. aureus NCTC 8325-4 strain, corresponding to the upstream (primers 5′-AGATCTgaatgtatatatttgcgctgatg-3′ and 5′-gtaaaatcaccatatggaatcatattaagtctccctcattagaactc-3′) and downstream (primers 5′- gagttctaatgagggagacttaatatgattccatatggtgattttac-3′ and 5′-GAATTCcgaaacgtttgtaacgatcg-3′) regions of the dltA gene. The two fragments were joined by overlap PCR using primers P33 and P36 and the resulting PCR product was digested with BglII and EcoRI and cloned into the pMAD vector, producing the plasmid pΔdltA. This plasmid was sequenced and electroporated into S. aureus RN4220 strain. Insertion and excision of pΔdltA into the chromosome of RN4220 was performed as previously described [29] with the exception of the incubation temperature after excision of the plasmid, which was 30°C (instead of 43°C) due to the thermosensitive nature of the cells lacking D-alanylation. Deletion of dltA was confirmed by PCR, and the resulting strain was named RNΔdltA.

Survival experiments and determination of CFUs

Overnight 10 ml cultures of bacteria were washed and resuspended in an equal volume of sterile phosphate buffered saline (PBS), and further diluted 1/1000. Healthy looking adult flies from uncrowded bottles, 2–4 days old, were injected in the thorax with 32 nl of a bacterial cell suspension or PBS using a nanoinjector (Nanoject II, Drummond Scientific). For determination of CFUs, injected flies (6 females) were crushed immediately in media appropriate for the bacteria injected and the homogenates were diluted and plated on tryptic soy agar-media (TSA). The plates were incubated at 30°C for 20–30 hours and the colony forming units (CFUs) per fly were measured by counting the number of colonies on each plate, the CFUs per fly were used to adjust the initial dose of bacteria injected to approximately 100 CFUs per fly. For the time course (0, 6, 17 hours) determination of CFUs, each value represents an arithmetic average derived from three biological repeat experiments (n = 3). Flies for survival and PGRP-SA mutant rescue assays were inoculated concurrently with those for determining CFUs, with ten or fifteen flies of each sex injected per bacteria-fly strain combination (or PBS-fly strain); each combination being repeated independently three times (n = 3). Following injection, flies were transferred to 30°C and survival assessed every 24 hours over a period of 3 days. Since the trends in survival were the same (i.e. survival curves were positioned similarly relative to one another) for each independent biological repeat, the data for each bacteria-fly strain combination was added (n = 60 or n = 90) and estimates of survival curves constructed. Flies injected with PBS were mostly unaffected for all fly backgrounds.

Purification of recombinant rPGRP-SA and mCherry-PGRP-SA from E.coli

A truncated version of PGRP-SA (in which the N-terminal sorting sequence was replaced with a T7 tag, and a poly-histidine tag was added to the C-terminus) was expressed in E. coli and purified using cobalt affinity resin (Talon; BD Biosciences) under denaturing conditions. A mCherry tagged derivative, mCherry-PGRP-SA was produced using the same procedure. Proteins were stored in 20 mM Tris-HCl pH 8.0 and 150 mM NaCl.

Protein functionality assays

Functionality assays of the rPGRP-SA and mCherry-PGRP-SA proteins were performed as previously described [14]. Drs-GFP expression was monitored after 24 hours of the M. luteus infection through the production of fluorescent signal produced by the infected flies; and by qPCR using as template RNA extracted from 6 infected female flies, similar to what was previously described [50].

Purification of peptidoglycan

Peptidoglycan was prepared from exponentially growing cultures of S. aureus, B. subtilis, M. luteus, and E. faecalis as previously described [13].

PGRP-SA-peptidoglycan co-precipitation assay

50 µg of recombinant PGRP-SA was incubated with 0.2 mg of peptidoglycan and 17 µg of BSA (New England Biolabs) in 20 mM Tris-HCL pH 8.0 and 300 mM NaCl in a final volume of 300 µl. Incubation was at 25°C with agitation for 30 minutes. Peptidoglycan and co-precipitated proteins were harvested by centrifugation, washed twice with 20 mM Tris-HCl pH 8.0, 300 mM NaCl and then resuspended in 1× SDS loading buffer, boiled for 5 minutes and run on 12% SDS PAGE mini gels. An aliquot of the supernatant, representing unbound protein, was also run. Gels were stained with Coommasie stain, destained and imaged using an ImageScanner (Amersham Biosciences/GE Healthcare). Quantifications of bands performed using ImageJ software [51]; each value represents an arithmetic average derived from three biological repeat experiments (n = 3).

mCherry-PGRP-SA binding to bacteria

Bacteria were grown to mid-exponential phase. Washed cell cultures in PBS (500 µl) were incubated with 50 µl of mCherry-PGRP-SA (2 mg/ml in 150 mM NaCl, 20 mM Tris pH 8.0) for 5 minutes on ice. The cells were washed twice with PBS and harvested at 4°C (3000 rpm, 10 minutes). Finally the bacteria were resuspended in 20 µl PBS. A drop of this culture was placed on a PBS, 1% agarose slide and visualised. Images were obtained using a Zeiss Axio ObserverZ1 microscope equipped with a Photometrics CoolSNAP HQ2 camera (Roper Scientific using Metamorph software, Meta Imaging series 7.5) and analyzed using ImageJ software.

WTA extraction

WTA were extracted by alkaline hydrolysis from overnight cultures were analyzed by native polyacrylamide gel electrophoresis and visualized by combined alcian blue silver staining, as previously described [52]. ImageJ software [51] was used to quantify the percentage of WTA produced by each strain as previously described [29]. The signal intensity of each lane was quantified and normalized against the corresponding value for the wild type (considered as 100%).

WTA inhibition

Tunicamycin minimum inhibitory concentration (MIC) assays were performed as previously described [28]. Overnight cultures of bacteria were grown in antibiotic free medium or in the presence of a subinhibitory concentration of tunicamycin (0.8 ug/ml for E. faecalis – 17× less than the MIC - and 0.4 ug/ml for S. aureus and S. saprophyticus – 32× less than MIC), that doesn't interfere with the bacterial growth rate. For mCherry-PGRP-SA binding assays, overnight cultures were diluted 1∶100 into fresh medium, with or without tunicamycin at the appropriate concentration, and were grown until mid-exponential phase. For survival experiments, we used S. aureus overnight culture grown with tunicamycin as above described.

Data analysis

As nonparametric tests lack statistical power with small samples, when required, data sets with three biological repeats (n = 3) were transformed to give a normal distribution (Lilliefors test, P>0.05) and then checked for equal variance (Levene's test, P>0.05); subsequently, data was analysed using parametric tests.

Binding assays

Data for the PGRP-SA-peptidoglycan co-precipitation assay was normal with equal variance, thus not transformed; One-way ANOVA was applied to the data. For the mCherry-PGRP-SA binding to bacteria assays data (n = 50) was non-normal but with equal variance, therefore nonparametric Kruskal-Wallis test followed by Dunn's multiple comparison was applied.

CFUs

The complete CFU data set exhibited neither normality nor equal variance, and attempts to rectify this by transforming the data failed. Therefore, the data was separated into 6 groups, which were independently transformed via a Box-Cox transformation (Box-Cox returns a λ number, where a transformed data-point  =  data-point^λ – 1/λ) to give a normal distribution with equal variance, and statistical analysis performed as described. Firstly, for each bacterial strain (groups 1–3, graphical representations not shown), Repeated Measures Two-way ANOVA was used to look for differences over time and between the fly backgrounds. However, due to interactions between these two factors, Repeated Measures One-way ANOVA with 95% Tukey's HSD Intervals was used to look for differences over time for each particular bacteria strain and fly background combination (i.e. 9 separate tests, data for each was normally distributed with equal variance). Secondly, at each time point (groups 4–6, Figure 3), Two-Way ANOVA was used to look for differences between the bacterial strains and between the fly backgrounds; where there was an interaction between these two factors, One-way ANOVA with 95% Tukey's HSD Intervals was used to look for differences between the fly backgrounds for a particular bacterial strain.

Fly survival

Estimated survival curves were constructed from the raw data sets and the Log-rank (Mantel-Cox) test used to determine statistical significance between the curves. For clarity in display, 95% confidence intervals have been omitted from the graphs. All data was plotted and analyzed using GraphPad Prism 5 (GraphPad Software, Inc.) or MATLAB R2009a.
