Allelic Variation on Murine Chromosome 11 Modifies Host Inflammatory Responses and Resistance to
Anthrax is a potentially fatal disease resulting from infection with Bacillus anthracis. The outcome of infection is influenced by pathogen-encoded virulence factors such as lethal toxin (LT), as well as by genetic variation within the host. To identify host genes controlling susceptibility to anthrax, a library of congenic mice consisting of strains with homozygous chromosomal segments from the LT-responsive CAST/Ei strain introgressed on a LT-resistant C57BL/6 (B6) background was screened for response to LT. Three congenic strains containing CAST/Ei regions of chromosome 11 were identified that displayed a rapid inflammatory response to LT similar to, but more severe than that driven by a LT-responsive allele of the inflammasome constituent NRLP1B. Importantly, increased response to LT in congenic mice correlated with greater resistance to infection by the Sterne strain of B. anthracis. The genomic region controlling the inflammatory response to LT was mapped to 66.36–74.67 Mb on chromosome 11, a region that encodes the LT-responsive CAST/Ei allele of Nlrp1b. However, known downstream effects of NLRP1B activation, including macrophage pyroptosis, cytokine release, and leukocyte infiltration could not fully explain the response to LT or the resistance to B. anthracis Sterne in congenic mice. Further, the exacerbated response in congenic mice is inherited in a recessive manner while the Nlrp1b-mediated response to LT is dominant. Finally, congenic mice displayed increased responsiveness in a model of sepsis compared with B6 mice. In total, these data suggest that allelic variation of one or more chromosome 11 genes in addition to Nlrp1b controls the severity of host response to multiple inflammatory stimuli and contributes to resistance to B. anthracis Sterne. Expression quantitative trait locus analysis revealed 25 genes within this region as high priority candidates for contributing to the host response to LT.
Published in the journal:
. PLoS Pathog 7(12): e32767. doi:10.1371/journal.ppat.1002469
Category:
Research Article
doi:
https://doi.org/10.1371/journal.ppat.1002469
Summary
Anthrax is a potentially fatal disease resulting from infection with Bacillus anthracis. The outcome of infection is influenced by pathogen-encoded virulence factors such as lethal toxin (LT), as well as by genetic variation within the host. To identify host genes controlling susceptibility to anthrax, a library of congenic mice consisting of strains with homozygous chromosomal segments from the LT-responsive CAST/Ei strain introgressed on a LT-resistant C57BL/6 (B6) background was screened for response to LT. Three congenic strains containing CAST/Ei regions of chromosome 11 were identified that displayed a rapid inflammatory response to LT similar to, but more severe than that driven by a LT-responsive allele of the inflammasome constituent NRLP1B. Importantly, increased response to LT in congenic mice correlated with greater resistance to infection by the Sterne strain of B. anthracis. The genomic region controlling the inflammatory response to LT was mapped to 66.36–74.67 Mb on chromosome 11, a region that encodes the LT-responsive CAST/Ei allele of Nlrp1b. However, known downstream effects of NLRP1B activation, including macrophage pyroptosis, cytokine release, and leukocyte infiltration could not fully explain the response to LT or the resistance to B. anthracis Sterne in congenic mice. Further, the exacerbated response in congenic mice is inherited in a recessive manner while the Nlrp1b-mediated response to LT is dominant. Finally, congenic mice displayed increased responsiveness in a model of sepsis compared with B6 mice. In total, these data suggest that allelic variation of one or more chromosome 11 genes in addition to Nlrp1b controls the severity of host response to multiple inflammatory stimuli and contributes to resistance to B. anthracis Sterne. Expression quantitative trait locus analysis revealed 25 genes within this region as high priority candidates for contributing to the host response to LT.
Introduction
Microbial pathogens have evolved various mechanisms to block host immune responses and thereby increase virulence. The MAP kinase (MAPK) signaling pathways have a central role in innate immune responses mounted by both plants and animals, and are common targets that are inactivated by a variety of bacterial toxins and effector molecules [1], [2]. B. anthracis produces anthrax lethal toxin (LT), a bipartite toxin that contributes to immunosuppression and pathology in the host [3]. The catalytic moiety of anthrax LT, lethal factor (LF), is a zinc-dependent metalloprotease that cleaves the N-termini of MAPK kinases (MKKs). By inactivating MKKs, LT blocks production of proinflammatory chemokines and cytokines such as TNF-α and inhibits survival signals activated via downstream MAPKs [4]–[11]. Thus, LT-mediated cleavage of MKKs leads to the silencing of a pro-inflammatory response, effectively repressing host immunity and favoring bacterial survival [9], [12], [13].
In response to such pathogenic mechanisms, eukaryotic hosts have evolved means to detect and counter pathogen encoded virulence factors that target intracellular signaling pathways. Specifically, nucleotide-binding domain leucine-rich repeat (NLR) proteins sense bacterial products or host cell-derived danger signals to initiate defense pathways. NLR-mediated responses can function locally through induction of cell death and/or distally through production and release of antimicrobial products and signaling molecules. Allelic variation at the NLR gene, Nlrp1b, in rodents is one mechanism that controls the host cellular response to LT and subsequent sensitivity to B. anthracis infection [14]–[16]. Specifically, LT-responsive alleles of Nlrp1b drive caspase-1 mediated proinflammatory cell death, termed pyroptosis, of macrophages and dendritic cells. Increased resistance to B. anthracis is correlated with LT activation of the NLRP1B inflammasome, resulting in IL-1β release and pyroptosis [15], [17].
Sensitivity of multiple animal species to anthrax varies inversely with sensitivity to injection of purified LT [18]. This inverse relationship holds true when comparing inbred strains of mice [19]. Therefore, genetic comparison of mouse strains is predicted to reveal mechanisms of the host response to B. anthracis. Indeed, differential sensitivity of mouse strains to B. anthracis infection is known to be influenced by allelic variations in at least two genes: Nlrp1b and Hc encoding complement C5 [15], [17], [19]–[23]. Allelic variation of these genes does not, however, fully account for differential sensitivity to infection or to intoxication by LT [17], [24]. Therefore, we hypothesized that additional genes may contribute to host susceptibility to anthrax. Due to the critical role of LT as a virulence determinant for B. anthracis, a genome-wide collection of congenic mouse strains was screened for altered responses to this toxin. Here we report the identification of a quantitative trait locus (QTL) on chromosome 11 that influences host response to multiple inflammatory stimuli including LT, resulting in increased resistance to B. anthracis Sterne infection.
Results

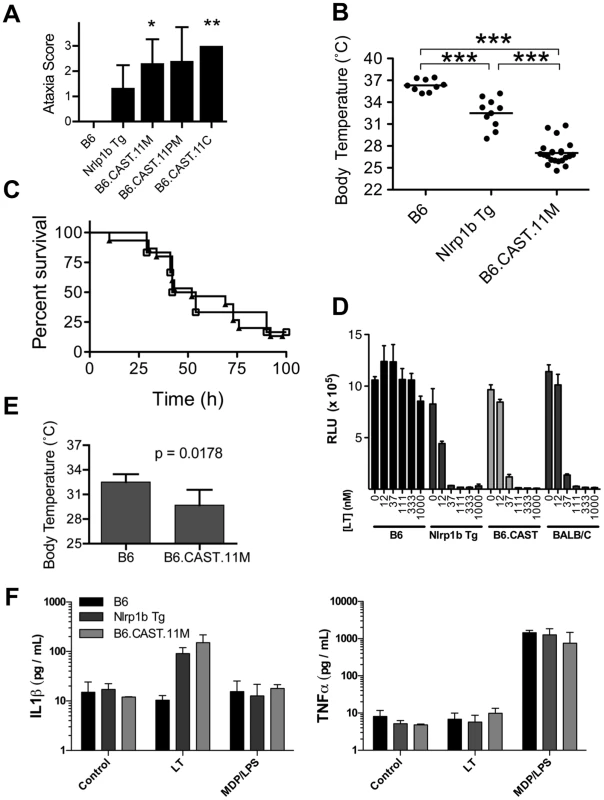

CAST/Ei Alleles on Chromosome 11 Are Associated with a Rapid and Severe Inflammatory Response to LT and Endotoxin
To identify chromosomal regions affecting response to LT, a library of congenic mice consisting of homozygous CAST/Ei segments on a B6 background was screened. The genome coverage of this library spans roughly 80% of the autosomal chromosomes and consists of approximately three strains per chromosome in which CAST/Ei segments are introgressed onto the C57BL/6J (B6) background in an overlapping manner [25]. Three strains, B6.CAST.11 medial (B6.CAST.11M), B6.CAST.11 proximal medial (B6.CAST.11PM), and B6.CAST.11 complete (B6.CAST.11C), all harboring CAST/Ei segments on chromosome 11, displayed a rapid and transitory response following LT injection similar to the early response phenotype (ERP) previously observed in LT-challenged B6Nlrp1b(129S1) transgenic mice [15]. The latter express a 129S1/SvImJ(129S1)-derived LT-responsive allele of Nlrp1b on an otherwise LT-resistant B6 background. Akin to the ERP of LT-injected B6Nlrp1b(129S1) transgenic mice, chromosome 11 B6.CAST mice presented with ataxia (Figure 1A), hypothermia (Figure 1B) and one or more of the following: bloat, dilated vessels on pinnae, loose/watery feces, labored abdominal breathing (not shown). This response developed as early as 30 min post LT injection, and all animals presented by 4 h (not shown). Importantly, the ERP displayed by chromosome 11 B6.CAST mice was significantly more pronounced compared to that in B6Nlrp1b(129S1) animals as evidenced by a more severe ataxia score (Figure 1A) as well as a more severe hypothermic state (Figure 1B). Other congenic strains and B6 mice did not display clinical signs associated with the ERP (data not shown). Upon careful observation, CAST/Ei and BALB/c strains displayed a very mild, inconsistent version of these early signs (data not shown), indicating that the mixture of CAST/Ei alleles of chromosome 11 genes with B6 alleles accounting for the rest of the genome likely resulted in increased expressivity of a toxin-responsive phenotype present in LT-responsive strains. The response to LT was independent of route of toxin administration and was present when mice were administered toxin intravenously (i.v.) (not shown). Interestingly, i.v. LT challenge produced an accelerated presentation of the ERP that was observed as quickly as 18 min post challenge (not shown). Following the ERP, chromosome 11 B6.CAST mice typically recovered to normal behavior within 4–25 h post LT injection and subsequently relapsed into a second round of clinical signs, eventually succumbing to moribund state and/or death within the same timeframe as parental B6 mice (Figure 1C, and not shown). Endotoxin contamination of protective antigen (PA), the host cell-binding moiety of LT, or LF was not responsible for the ERP or ultimate lethality, as no response was detected following injection of a 2X dose of individual toxin components (data not shown).
Anthrax LT induces a rapid pyroptotic cell death in macrophages derived from mice with LT-responsive alleles of Nlrp1b. Five murine alleles of Nlrp1b have been described [14]. Allele 2, encoded by B6 mice, and alleles 3 and 4 do not respond to LT, while allele 1, encoded by 129S1 and Balb/C mice, and allele 5, encoded by CAST/Ei mice, are LT-responsive. Responsiveness to LT is fully dominant and macrophages from heterozygous mice with one LT-responsive and one LT-resistant allele display sensitivity to LT indistinguishable from macrophages encoding two LT-responsive alleles ([26] and data not shown). The kinetics of ERP in mice is consistent with timing of macrophage and DC pyroptosis treated with LT ex vivo. Therefore, we sought to determine whether allelic variation of Nlrp1b influenced sensitivity of macrophages to LT. Bone marrow derived macrophages (BMDMs) from B6Nlrp1b(129S1) and B6.CAST.11M mice, as well as those from BALB/c mice encoding an LT-sensitive allele of Nlrp1b (allele 1) displayed similar sensitivity to LT ex vivo (Figure 1D). Further, BMDMs from B6Nlrp1b(129S1) and B6.CAST.11M mice displayed similar IL-1β responses to LT (Figure 1F). Together, these data demonstrate that the more severe ataxia and hypothermia observed in B6.CAST.11M mice did not result from alterations in LT-induced macrophage pyroptosis.
We next tested whether B6.CAST.11M mice have an altered response to additional inflammatory stimuli. Preliminary studies indicated that B6.CAST.11M mice, but not B6 controls, display ataxia and clinical signs associated with inflammation following challenge with recombinant IL-1β (not shown). To further text LT-independent inflammatory responses, an established model of sepsis was employed whereby mice were injected i.p. with muramyl dipeptide (MDP) and lipopolysaccharide (LPS), resulting in a rapid TNFα-dependent hypothermia [27]. Using this model, B6.CAST.11M mice displayed exacerbated ataxia (not shown) and hypothermia (Figure 1E) compared to B6 control animals. This response was not due to alterations in macrophage responsiveness to MDP/LPS as determined by TNFα and IL-1β release (Figure 1F). These results are consistent with a heightened responsiveness of CAST/Ei chromosome 11 alleles to multiple inflammatory stimuli.
Previously, we reported that the LT-induced ERP in B6Nlrp1b(129S1) mice was associated with release of proinflammatory cytokines [15]. To determine whether a proinflammatory cytokine response also accompanies the LT-induced ERP phenotype in chromosome 11 B6.CAST mice, sera from LT-challenged animals were analyzed. As predicted, proinflammatory cytokines previously identified as induced in B6Nlrp1b(129S1) mice were also induced in B6.CAST.11M mice following LT challenge (Figure 2A). Interestingly, these cytokines were induced to a similar level and with similar kinetics in both strains despite the exacerbated ERP displayed by B6.CAST.11M mice compared to B6Nlrp1b(129S1) [15]. This finding is consistent with the observation that BMDMs derived from these strains displayed similar pyroptotic responses to LT (Figure 1D, F). Endotoxin contamination of PA or LF was not responsible for the cytokine induction observed, as no response was detected following injection of a 2X dose of individual toxin components (not shown). To further test whether alterations in cytokine responses could explain the altered phenotype severity, a panel of additional cytokines and chemokines were assayed following LT challenge (Figure 2B–D). A total of 27 cytokines were induced in B6.CAST.11M and/or B6Nlrp1b(129S1) but not B6 mice (Figure 2A –C), while five cytokines showed no response in any strain (Figure 2D). Only four out of 27 cytokines that responded to LT were differentially induced in the sera from B6Nlrp1b(129S1) mice compared to sera from B6.CAST.11M mice (Figure 2C). Interestingly, all four of these cytokines were preferentially induced in B6Nlrp1b(129S1) mice compared to B6.CAST.11M mice. Of the cytokines differentially induced, three function as pro-inflammatory mediators while one cytokine, IL-4, exhibits both pro- and anti-inflammatory properties [28].

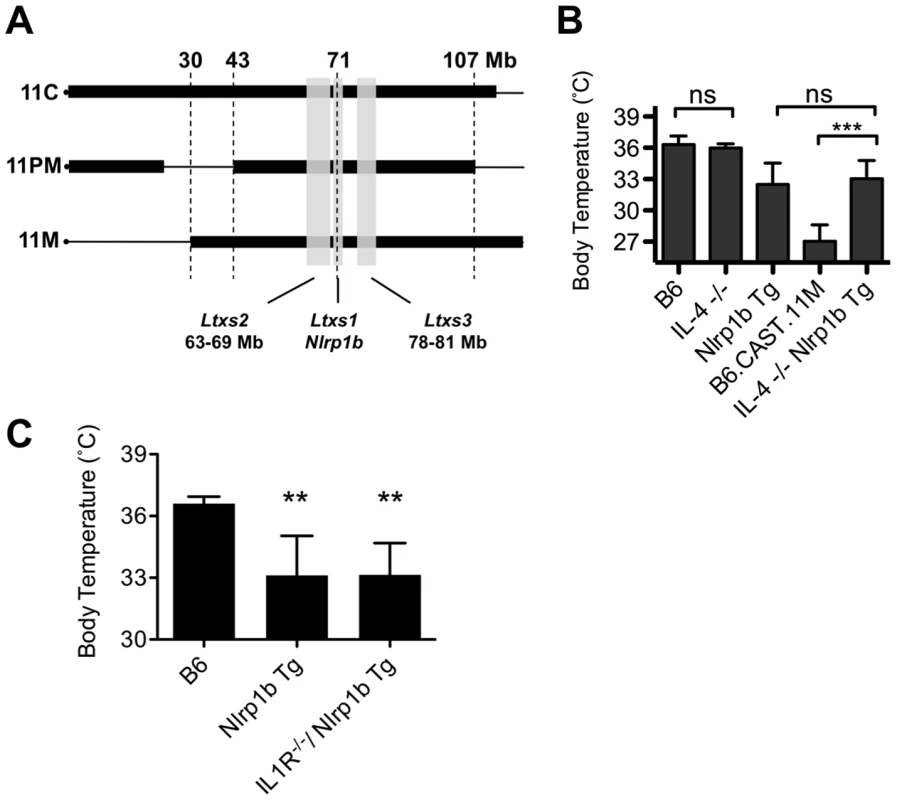

Role of IL-4 and IL-1 in ERP
B6.CAST congenic strains displaying the LT-mediated ERP share a CAST/Ei derived critical region between 43–107 Mb on chromosome 11 (Figure 3A). A single cytokine, IL-4, preferentially induced in B6Nlrp1b(129S1) mice during the LT-induced ERP relative to B6.CAST.11M mice (Figure 2C) maps to this critical region and is encoded at 53.4 Mb on chromosome 11. Interestingly, IL-4 functions as a Th2 cytokine, and elevated expression of IL-4 has been linked to reduced inflammation during sepsis in humans [29]. To determine the role of IL-4 in the inflammatory response to LT, mice deficient in IL-4 but expressing a LT-responsive allele of Nlrp1b were generated and tested for their response to LT. If reduced IL-4 levels in B6.CAST.11M mice are responsible for the exacerbated LT-induced ERP, then B6Nlrp1b(129S1);IL4−/− mice would be predicted to display a strong ERP akin to that in B6.CAST.11M mice. However, B6Nlrp1b(129S1);IL4−/− mice displayed an ERP equal in strength to B6Nlrp1b(129S1) mice following LT injection (Figure 3B), indicating that the absence of IL-4 does not affect ERP severity following LT challenge.
Nlrp1b inflammasome activation results in ASC-dependent maturation of cytokines including IL-1β, as well as ASC-independent cell lysis [30]. The ERP is associated with high serum concentrations of multiple cytokines, of which IL-1β is one of the earliest detectable (Figure 2A). To determine whether IL-1β is required for the ERP, B6.CAST.11M, and B6Nlrp1b(129S1) mice were pretreated with a blocking antibody to IL-1β, then challenged with LT. Notably, this treatment had no significant effect on ERP as determined by ataxia scoring (not shown). However, it remained possible that the anti IL-1β antibody treatment was not sufficient to block the LT-induced release of this cytokine. Therefore, mice deficient in the type 1 IL-1 receptor (IL-1R) and expressing the LT-responsive 129S1 allele of Nlrp1b were tested for response to LT. Consistent with the antibody studies, IL-1R deficient B6Nlrp1b(129S1) animals displayed ataxia (not shown) and hypothermic responses indistinguishable from B6Nlrp1b(129S1) mice (Figure 3C).

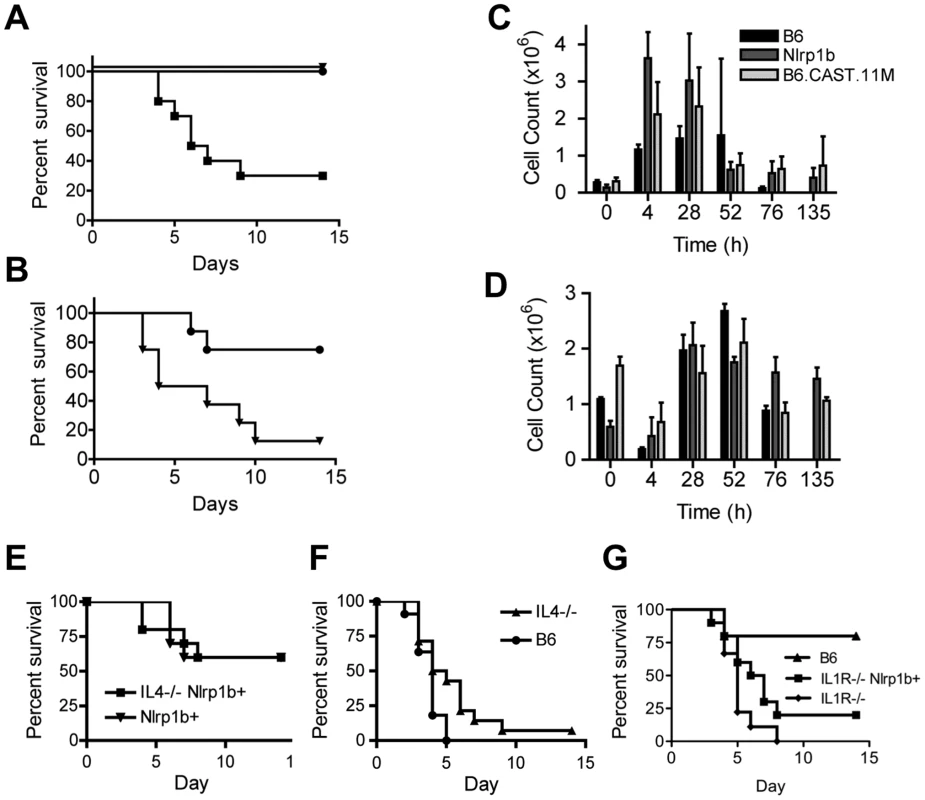

B6.CAST. 11M Mice Display Resistance to Infection by Bacillus anthracis Sterne Strain
Presentation of the ERP in response to LT correlates with an increased resistance to B. anthracis Sterne infection [15]. To determine whether the more severe ERP displayed by chromosome 11 B6.CAST mice correlates with an increased resistance to B. anthracis spore challenge, B6.CAST.11M, B6Nlrp1b(129S1), and B6 mice were challenged i.p. with 3×107 Sterne strain spores. At this dose, all B6.CAST.11M and B6Nlrp1b(129S1) mice survived to the experimental endpoint whereas the majority of B6 animals succumbed to the infection (Figure 4A). Using a ∼13 fold higher dose of 4×108 Sterne spores revealed that B6.CAST.11M mice were significantly more resistant to infection compared to B6Nlrp1b(129S1) mice (Figure 4B). Therefore, a more robust ERP correlates with increased protection from B. anthracis Sterne infection. Further, allelic variation of a chromosome 11– encoded gene(s) contributes to the increased ability of B6.CAST.11M congenic mice to limit B. anthracis Stern infection.
To determine the cellular mediators providing infection resistance, mice were challenged with Sterne spores i.p. and peritoneal exudates were collected and analyzed at various time points following challenge. A significant increase in the number of PMNs was observed in both B6Nlrp1b(129S1) and B6.CAST.11M mice at earlier time points following spore challenge compared to nontransgenic (i.e. B6) control mice (Figure 4C). These results correspond to previously reported data indicating a role for PMNs in bacterial clearance following B. anthracis spore challenge [12], [15], [21]. However, no significant differences were observed in the PMN response between B6Nlrp1b(129S1) and B6.CAST.11M mice that could explain their differential resistance to B. anthracis. Indeed, at 4 h, neutrophil influx in B6Nlrp1b(129S1) animals was significantly greater than that in B6.CAST.11M mice (p = 0.04). Similarly, monocytic infiltration could not explain the increased resistance seen in B6.CAST.11M mice (Figure 4D).
Given that leukocyte infiltration did not account for the difference in susceptibility to B. anthracis, we next considered whether the differential cytokine response could explain the increased resistance in B6.CAST.11M animals. Although IL-4 did not contribute to hypothermia (Figure 3B) or ataxia (not shown) following LT challenge, it remained possible that this cytokine still affected resistance to spore challenge. Indeed, as a Th2 cytokine, IL-4 can function by altering PMN and macrophage activity [31], [32]. Alteration of phagocyte function may contribute to differential responses in long-term studies such as resistance to spore challenge, but not contribute to immediate phenotypes such as ataxia and hypothermia following LT challenge (Figure 3B). To test the role of IL-4 in resistance to B. anthracis, B6Nlrp1b(129S1);IL4−/− mice were challenged i.p. with Sterne strain spores (Figure 4E). IL-4 deficiency did not affect host susceptibility to spore challenge in the presence of the LT-responsive allele of Nlrp1b, excluding this gene as a candidate. Interestingly, in the absence of an LT-responsive allele of Nlrp1b, the loss of IL-4 resulted in a slightly higher resistance to anthrax (Figure 4F).
Next, the role of IL-1β in Nlrp1b-mediated resistance to B. anthracis Sterne was tested. LT dampens the host cytokine response in the absence of LT-responsive Nlrp1b [9], [10], [33], [34]. However, this immunosuppression is not absolute and IL-1β contributes to resistance to B. anthracis even in the absence of LT-responsive Nlrp1b; animals expressing LT-resistant alleles of Nlrp1b and lacking IL-1R or MyD88 (required for TLR and IL-1R signaling) show increased sensitivity to infection by B. anthracis [35]–[38]. A critical role for IL-1R was further validated in mice expressing LT-responsive alleles of Nlrp1b [17]. However, it is still unknown whether increased resistance to B. anthracis mediated by LT-responsive alleles of Nlrp1b requires IL-1β. Of note, inflammasome-mediated resistance to Francisella tularensis is mediated by both IL-1β and IL-18, and mice deficient in either cytokine are resistant to tularemia, while those deficient in both IL-1β and IL-18 are sensitive [39]. To address the mechanism by which Nlrp1b mediates resistance to B. anthracis, B6Nlrp1b(129S1);IL-1R−/− mice were challenged with Sterne strain spores and viability was compared to that of spore-challenged B6IL-1R−/− mice. Both strains showed similar susceptibility to B. anthracis (Figure 4G), indicating that Nlrp1b-mediated protection from anthrax requires IL-1β signaling.

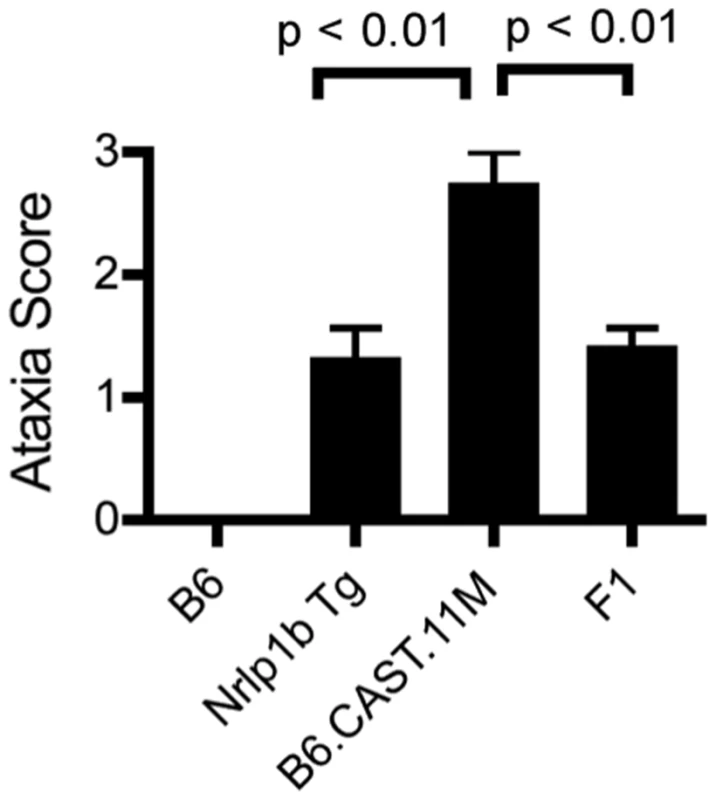

Severe LT-Induced ERP in B6.CAST.11 Mice Is Inherited in a Recessive Manner
We previously demonstrated that a LT-responsive 129S1 allele of Nlrp1b is sufficient to drive the ERP in B6Nlrp1b(129S1) mice [15]. The CAST/Ei allele of Nlrp1b is also LT-responsive, though distinct from the 129S1 allele [14]. To determine the contribution of the CAST/Ei allele of Nlrp1b in the B6.CAST.11 response to LT, B6.CAST.11M mice were crossed to B6 animals, and the resulting [B6.CAST.11M x B6] F1 mice were subsequently challenged with LT. LT-responsive alleles of Nlrp1b behave in a fully dominant and penetrant manner in controlling activation of caspase-1 and resulting macrophage pyroptosis [14], [26]. We therefore predicted that if allelic variation of Nlrp1b was responsible for the exacerbated ERP displayed by B6.CAST.11 mice, [B6.CAST.11M x B6] F1 offspring expressing one CAST/Ei allele of Nlrp1b would display an ERP equal in strength to the ERP presented by B6.CAST.11M mice. Strikingly, F1 animals displayed the ERP at a much weaker strength (Figure 5). Thus, the ERP observed in B6.CAST.11 mice is controlled by a gene or genes that behave in a recessive fashion.

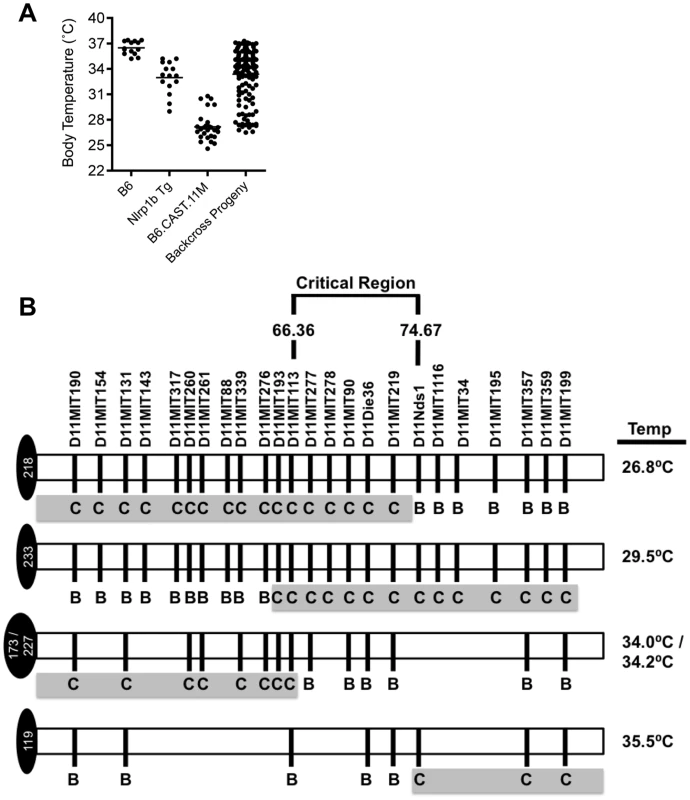

Critical Region Encoding Modifiers of the LT-Induced ERP Isolated to 66.36–74.67 Mb Region on Chromosome 11
To refine the critical region controlling the increased inflammatory response to LT, we undertook a positional cloning strategy. B6.CAST.11M mice were crossed to B6, and the resulting [B6.CAST.11M x B6] F1 mice were backcrossed to B6.CAST.11M animals. Backcross progeny (n = 139) were intoxicated and scored for ERP presentation based on ataxia and body temperature (Figure 6A). To correlate phenotype with genotype within the chromosome 11 critical region, backcross progeny were genotyped at multiple positions along the critical region using chromosome 11 microsatellite markers (Figure 6B). A subset of mice displaying a robust ERP following LT challenge, as evidenced by a body temperature less than 30°C and severe walking ataxia score, was heterozygous (i.e. CAST/Ei and B6) at multiple microsatellite markers localized within the original critical region on Chromosome 11 (Figure 6B). Conversely, several mice displayed a weak ERP, as evidenced by a body temperature greater than 34°C and mild walking ataxia score, despite retaining homozygous CAST/Ei alleles over a significant fraction of the critical region (Figure 6B). Comparison of the genotypes of these groups of mice revealed that a gene(s) that modifies host response to LT lies within the 66.36–74.67 Mb region on chromosome 11.
To identify candidate genes that contribute to host response to LT from the 273 genes in the current critical region, we employed expression quantitative trait locus (eQTL) analysis [40]–[42]. This approach relies on the hypothesis that differential gene expression is linked to phenotypic changes [40]–[43]. Transcript levels can be analyzed as genetic traits in the same way that phenotypes such as LT sensitivity can be analyzed [44], [45]. Using a single, large cross between two strains of mice, genetic loci, i.e. eQTL, that control differential transcript levels can be mapped. Importantly, data from a single experiment can be analyzed iteratively to identify a unique eQTL associated with every gene with an altered transcript level. If the transcript levels are controlled by structural variation of a gene that influences its rate of transcription or the maturation or stability of the transcript, the eQTL would be expected to map directly over the gene in question. Such an eQTL is termed a cis-acting eQTL. The approach of examining the segregation of transcript levels in a genetic cross should be distinguished from a study in which transcript levels are simply compared between two different strains. In the latter study, differences in transcript levels can be identified, but it is not possible to determine from such data whether any differences observed are the result of cis-acting genetic differences or trans-acting differences. In contrast, the combined genetic/gene expression approach makes it possible to identify genes and pathways that are perturbed by the cis- acting genetic variations.
Analysis of a dataset consisting of over 1,600 microarray experiments performed on 442F2 (B6 x CAST/EiJ) mice identified 81 cis-acting eQTL with a LOD score >4.3 within the refined critical region (Table S1). Comparison of genomic sequences of CAST/EiJ and B6 revealed multiple single nucleotide polymorphisms (SNPs) within the predicted mature mRNA sequences of 74 of the 81 eQTL, including non-synonymous changes in the coding regions (not shown). Further refinement based on reported gene function and expression pattern resulted in a list of 25 high-priority candidate genes (i.e., genes known to participate in immune or inflammatory processes) (Table S1).
Discussion
We previously reported a role for a LT-sensitive Nlrp1b allele in controlling an inflammatory response to LT that we termed the ERP [15]. This response was characterized by the release of proinflammatory cytokines, noticeable ataxia and a reduction in body temperature that were not present in B6 animals encoding only LT-resistant alleles of Nlrp1b [15]. The ERP reported here in multiple B6.CAST.11 strains was more severe compared to the response exhibited by B6Nlrp1b(129S1) animals (Figure 1A, B), and this correlated with increased resistance to B. anthracis (Figure 4B). Two models exist that may explain the altered response to LT between B6.CAST.11 and B6Nlrp1b(129S1) animals. First, variation between CAST/Ei and 129S1 alleles of Nlrp1b may directly contribute to ERP severity. Indeed, the current critical region contains Nlrp1b, and CAST/Ei alleles of this gene are LT-responsive yet genetically distinct from other LT-responsive alleles [14]. However, this explanation would require that CAST/Ei alleles of Nlrp1b contribute to phenotypes, such as response to MDP + LPS (Figure 1E, F), not currently associated with the Nlrp1b inflammasome. Further, two established mechanisms by which inflammasomes drive innate immune responses, macrophage pyroptosis (Figure 1D) and cytokine responses (Figs. 1F, 2), cannot account for altered severity of host response to LT in B6.CAST.11 mice. Finally, [B6.CAST.11M x C57BL/6] F1 mice showed loss of the severe LT-induced ERP (Figure 5), indicating a recessive mode of inheritance that is inconsistent with the well-established dominance of LT-sensitive alleles of Nlrp1b [14], [26]. Interestingly, the ataxia scores in F1 mice match those seen in C57BL/6Nlrp1b(129S1) transgenic mice, consistent with retention of one dominant LT-responsive allele of Nlrp1b, and further suggesting that both CAST/Ei and 129S1 alleles do in fact function in a similar, dominant manner to drive a less severe ERP. Therefore, we propose a second model, wherein at least one additional gene in the critical region of chromosome 11 is required for full expressivity of the ERP and high-level resistance to spore challenge. While we cannot exclude a novel role in inflammation and/or mechanism of action for the CAST/Ei allele of Nlrp1b, the findings presented here are more consistent with contributions by an additional gene. Of note, this model does not rule out the possibility that multiple or different genes contribute to the host response to MDP + LPS, LT, and/or spores. Indeed, the critical region contains numerous genes with established or proposed roles in inflammation (Table S1).
Three murine QTL, Lethal toxin sensitivity 1-3 (Ltxs1-3), and one gene, Nlrp1b (within Ltxs1), have been reported to control macrophage and/or whole animal sensitivity to LT [14], [46], [47]. Although backcross mapping data presented here eliminates a role for Ltxs3 contributing to the ERP, it is possible that one or more genes within Ltxs1 and/or 2 contribute to the severity of this phenotype. Notably, while the gene at Ltxs1 responsible for macrophage pyroptosis was identified as Nlrp1b [14], a dominantly inherited resistance to LT was also mapped to this region [46], indicating that more than one overlapping QTL may exist at Ltxs1. Indeed, in contrast to LT-resistance phenotypes reported for Ltxs1 and Ltxs2 [46], allelic variation in B6.CAST.11 animals does not alter susceptibility to LT, defined as time to moribund behavior, compared to B6 mice (Figure 1C). Therefore, we propose that additional QTL influencing host response to LT reside within this critical region.
In order to identify candidate genes within the critical region that potentially contribute to ERP and resistance to B. anthracis Sterne, we mined a gene expression dataset from a B6 x CAST/EiJ F2 cross for cis-acting eQTL. Variation in basal transcription levels of genes within a disease QTL has been used previously to identify candidate genes controlling phenotypic variation [42], [48]. Given the rapid response to LT, as quickly as 18 minutes post i.v. challenge, we reasoned that alterations in basal gene expression levels and/or protein activity could account for altered ERP strength between B6.CAST.11M and C57BL/6Nlrp1b(129S1) transgenic mice. We further refined the selection criteria for candidate genes to include the presence of single nucleotide polymorphisms within the coding region and known association of candidate genes with inflammatory responses. Finally, we considered other genes previously identified as candidates for host response to LT. The gene encoding inducible nitric oxide synthase (iNOS/NOS2) was previously studied with respect to host response to lethal toxin and was identified as overlapping with Ltxs3 [24], [36], [46], [49]. However, Nos2 falls outside the critical region reported here and was therefore excluded. Within the current critical region, one gene, Mgl1/Clec10a, and one QTL controlling susceptibility to Salmonella infection, Ity2, were proposed as candidates for controlling host response at Ltxs2 [46]. Mgl1/Clec10a, and the neighboring Mgl2, were identified here as high-priority candidates as they encode galactose/N-acetyl-galactosamine binding lectins expressed on alternatively activated macrophages [50]. Alternatively activated macrophages modulate inflammatory responses and Mgl1−/− mice displayed more severe inflammation in a model of experimental colitis [51].
From the list of high priority eQTL candidates, it is noteworthy that several play a role in inflammatory responses by acting through lipid mediators. Alox8, Alox12e and Alox15 belong to a family of arachidonate lipoxygenases responsible for production of anti-inflammatory lipoxins from arachidonic acid. Lipoxins are predicted to suppress vascular changes induced by inflammatory mediators [52]. Similarly, proteins encoded by phospholipase D2, Pld2, phospholipid scramblase 3, Plscr3, phosphoinositide-3-kinase, regulatory subunit 6 Pik3r6, and spinster homolog 2, Spns2, are involved in phospholipid synthesis and/or signaling events associated with inflammatory responses including leukocyte migration, phagocytosis, oxidative burst, and vascular permeability.
β-arrestin 2 (Arrb2) and netrin 1 (Ntn1) are two additional high priority candidates, and are involved in signaling in response to inflammatory stimuli [53]–[56]. Indeed, Arrb2 regulates LPS-induced inflammatory response and endotoxemia [54], [55], while Ntn1 can minimize inflammatory damage associated with ischemia-reperfusion injury [56]. Additional eQTLs were identified in mediators of host innate immunity, including complement C1q binding protein, C1qBP, and the chemokine CXCL16. CXCL16 is elevated in patients with inflammatory bowel disease, and Cxcl16−/− mice display less inflammation in a murine model of enterocolitis [57]. Platelet-activating factor acetylhydrolase, isoform 1b, subunit 1 (Pafah1b1), another high-priority candidate, was implicated in susceptibility to necrotizing enterocolitis in humans, and Pafah1b1 deficiency in mice led to increased susceptibility to this disease [58]. Finally, two eQTLs were identified that have opposite functions in protein metabolism. Eukaryotic initiation factor 4A-I, Eif4a1, is a component of the ribosome involved in protein translation, while Psmb6 (proteasome (prosome, macropain) subunit, beta type 6) is a component of the proteasome involved in protein degradation. Interestingly, PSMB6 is replaced by an alternative proteasome subunit, LMP2, to form an “immunoproteasome” in response to interferon signaling, and has been identified as a candidate gene contributing to autoimmune type-1 diabetes in mice [59].
While differential gene expression has been used extensively with positional cloning efforts to identify candidate genes [42], [59], [60], it is possible that genes responsible for ERP and resistance to B. anthracis Sterne infection are not differentially regulated at the level of transcription. For example, the critical region encodes two paralogues of Nlrp1b, Nlrp1a and Nlrp1c, that were not identified as cis-acting eQTL. Very little is known regarding these paralogues, and it is possible that they have a role in the increased severity of ERP seen in B6.CAST.11 animals.
NLRP1B inflammasome formation allows for the processing and extracellular release of proinflammatory cytokines. The LT-induced ERP is coupled with the induction of several cytokines, of which IL-1β is one of the earliest detectable in the sera of intoxicated mice (Figure 2). IL-1β activity was not required for the ERP, as LT-challenged B6Nlrp1b(129S1);IL-1R−/− animals showed ataxia and hypothermic responses that were indistinguishable from B6Nlrp1b(129S1) mice (Figure 3C). Interestingly, B6.CAST.11M, but not B6 mice challenged i.p. with recombinant IL-1β displayed ataxia (J.K.T. and S.M.L., unpublished observation), suggesting that this cytokine is sufficient but not necessary to bestow the ERP. In contrast, IL-1R deficient B6Nlrp1b(129S1) mice were equally susceptible to infection compared to IL-1R deficient mice expressing only B6 alleles of Nlrp1b, demonstrating that this cytokine is required for Nlrp1b-mediated resistance to B. anthracis. In total, these data indicate that IL-1β plays different roles, i.e., for the ERP it is sufficient but not necessary, but for resistance to anthrax it is necessary. One interpretation is that NLRP1B-mediated pyroptosis results in release of IL-1β that can induce multiple other inflammatory cytokines and/or inflammatory mediators that contribute, in a redundant manner, to ataxia, hypothermia, and other ERP-associated clinical signs, but that only a few are critical for resistance to B. anthracis. Indeed, we did not observe TNFα release from LT-treated BMDMs (Figure 1F), indicating that other cell types may be responsible for the TNFα response, and possibly hypothermia, in LT-treated mice (Figures 1B, 2). This may occur either directly, in response to LT, or indirectly, in response to IL-1β. Conversely, TNFα, but not IL-1β was released from BMDMs derived from all three mouse strains in response to MDP/LPS under the conditions tested (Figure 1F), consistent with a Nlrp1b-independent role for TNFα in LPS-induced hypothermia. Whether the exacerbated response of B6.CAST.11M mice to LT and MDP/LPS derive from a common mediator, or whether these congenic mice are more responsive to multiple mediators is not currently known. The identities and mechanisms of action of such mediators are currently under investigation.
Our understanding of the role of cytokines in response to LT challenge and B. anthracis infection has recently changed. Studies presented here and [15] indicate that cytokines are not a major influence of mortality in response to purified LT injection as once thought, and we find no evidence of alterations in time-to-death as a result of Nlrp1b allele status. In contrast, a modest influence of LT-responsive alleles of Nlrp1b has been reported in a different murine intoxication model [17], [24]. Regardless of the role of cytokines in response to LT challenge, it is clear that IL-1β is critical for resistance during infection with B. anthracis Sterne [17], [36], [37], [61]. Importantly, we extend these prior findings and demonstrate here for the first time that IL-1β is required for protection from infection bestowed by LT-responsive alleles of Nlrp1b.
Septic shock and autoinflammatory diseases such as vitiligo, Crohn's disease, Muckle-Wells syndrome, and gout, among others, result from overactive release of proinflammatory cytokines including IL-1β [62]. Based on differential inflammatory response to disparate stimuli such as LT and LPS/MDP, we propose that B6.CAST.11 and B6Nlrp1b(129S1) mice may provide a unique system to further analyze inflammatory syndromes. Systemic Inflammatory Response Syndrome (SIRS) is a term used for the generalized inflammatory reaction that occurs in patients undergoing sepsis or a non-septic trauma, such as pancreatitis, hemorrhagic shock, thermal injury, or severe surgery [63]. Accordingly, SIRS is defined by the presentation of two or more of the following clinical markers that match LT-induced ERP: a body temperature higher than 38°C or lower than 36°C, endothelial dysfunction and increased microvascular permeability, and platelet sludging causing maldistribution of blood flow [64], [65]. A second inflammatory syndrome, Compensatory Anti-inflammatory Response Syndrome (CARS), was more recently defined as a counter-regulatory response to the overzealous inflammatory reaction that occurs in SIRS [29]. This adaptive response is characterized by the increased induction of anti-inflammatory molecules IL-10 and IL-4 [29]. Although attenuation of inflammation may be beneficial in some instances, CARS patients are often more susceptible to secondary bacterial infections [29], [66]. Interestingly, B6Nlrp1b(129S1) transgenic mice display a weaker ERP (Figure 1), are more susceptible to B. anthracis infection (Figure 4), and release higher levels of IL-4 than B6.CAST.11M mice in response to LT (Figure 2). Because the gene encoding IL-4 resides at 53.4 Mb on chromosome 11 (part of the original critical region), we tested the role of this cytokine in the differential response to LT. B6Nlrp1b(129S1);IL4−/− mice showed no alteration in the ERP or resistance to B. anthracis compared to B6Nlrp1b(129S1) animals, indicating this cytokine cannot, on its own, account for differences in hypothermia, ataxia, or resistance to B. anthracis between B6Nlrp1b(129S1) and B6.CAST.11M animals. However, mice lacking both an LT-responsive allele of Nlrp1b and the IL4 gene were slightly more resistant to B. anthracis spores compared to B6 animals (Figure 4F), suggesting a negative role for Th2 responses in the outcome of B. anthracis infection. Further mapping confirmed that IL4 lies outside the current critical region (Figure 6), eliminating it as a candidate involved in the regulation of the ERP. Notably, IL-10 levels were equivalent between B6Nlrp1b(129S1) and B6.CAST.11M mice following LT challenge (Figure 2). Therefore, we hypothesize allelic variation of gene(s) in the chromosome 11 critical region represent a novel genetic control mechanism for a SIRS/CARS like inflammatory response to LT. B6.CAST.11M mice further showed increased responsiveness to a MDP + LPS model of sepsis compared with B6 controls (Figure 1E), indicating that gene(s) within the critical region may play a role in multiple inflammatory syndromes including sepsis. Currently, no single treatment for sepsis exists [67], and there is little understanding of mechanisms driving resolution of shock/sepsis [68], [69]. We predict that identification of genetic and molecular mechanisms controlling severity of LT-induced ERP and/or host response to MDP + LPS will provide insight into novel intervention strategies for sepsis and other inflammatory diseases.
Materials and Methods
Animal Maintenance and Breeding
All studies involving the use of mice were conducted in compliance with the Animal Welfare Act and other federal statutes and regulations relating to animals and experiments involving animals and adheres to principles stated in the Guide for the Care and Use of Laboratory Animals, National Research Council, 1996. All studies involving the use of mice were approved by the University of California Animal Research Committee and/or the USAMRIID Animal Care and Use Committee (Permit numbers: 2005-122 and 2007-019). UCLA and USAMRIID are fully accredited by the Association for the Assessment and Accreditation of Laboratory Animal Care International.
B6 and CAST/EiJ mice were purchased from the Jackson laboratory (Bar Harbor, ME). Transgenic mice expressing a 129S1/SvImJ (129S1)-derived LTS allele of Nlrp1b/Nalp1b on a LT-resistant (LTR) B6 background (B6Nlrp1b(129S1)) and backcrossed to B6 for seven generations were obtained from Drs. E. Boyden and W. Dietrich (Harvard Medical School) [14], [15]. B6Nlrp1b(129S1) mice both heterozygous and homozygous for the Nlrp1b transgene were used for experiments reported here as no difference in response to LT or Sterne spores was observed. The library of congenic mice consisting of introgressed segments of CAST/Ei DNA on a B6 background (B6.CAST) has been described [25]. B6.CAST.11M mice were crossed to B6 to obtain [B6.CAST.11M x B6] F1 offspring used for intoxication experiments and for determining the mode of inheritance. Backcross progeny were generated by crossing B6.CAST.11M mice to B6 mice, and backcrossing the [B6.CAST.11M x B6] F1 mice to B6.CAST.11M mice.
Mouse Genotyping
Genomic DNA was isolated from tail biopsies using Qiagen DNeasy blood and tissue kit. Presence of Nlrp1b(129S1) transgene was monitored as previously described [15]. Mutant and wild type alleles of Il1r1 were identified using PCR primers oIMR000160, oIMR0161, oIMR7898, and oIMR7899 as per supplier's protocol (Jackson Laboratory, Bar Harbor, ME). Mutant and wild type alleles of Il4 were identified using PCR primers oIMR0077, oIMR0078, and oIMR0079 (Jackson Laboratory, Bar Harbor, ME). [B6.CAST.11M x B6] F1 x B6.CAST.11M backcross progeny were genotyped at multiple positions within the region of interest using chromosome 11 microsatellite markers that distinguish CAST/Ei and B6 alleles (Mouse Genome Informatics (MGI) database (http://www.informatics.jax.org)). All 139 backcross progeny were genotyped at D11MIT190 (47.6 Mbp), D11MIT131 (55.9 Mpb), D11MIT260 (61.6 Mbp), D11Die36 (70.9 Mbp), D11MIT357 (90.1 Mbp), and D11MIT199 (101.7 Mbp) by PCR and gel electrophoresis. Backcross progeny that displayed genetic recombination within this region and/or presented with a strong ERP were further genotyped at the polymorphic microsatellite markers indicated in Figure 6B.
Toxin Preparation
LT components were expressed and purified as previously described [15]. Specifically, the PA expression plasmid, PA-pET22b was provided by Dr. John Collier (Harvard Medical School) and transformed into Escherichia coli BL21 DE3 cells. A fresh colony was inoculated into a 20 mL starter culture of Luria Bertani (LB) Lennox media (EMD Biosciences, Inc.) with 100 mg/mL ampicillin and grown overnight at 37°C. The following day a 1∶50 dilution was made into a 2 L baffled Erlenmeyer flask of LB Lennox supplemented with 100 mg/mL ampicillin. The culture was grown at 37°C and shaking at 250 rpm until an optical density of 1.0 was reached. The culture was then induced with a final concentration of 1 mM isopropyl β-D-1-thiogalactopyranoside and allowed to grow at 30°C and shaking at 250 rpm for 4 h. PA was isolated from the periplasm and purified over a Macro-Prep HighQ (BioRad) column. LF expressed and purified from B. megaterium was obtained from Dr. Jeremy Mogridge (University of Toronto), and resuspended in pharmaceutical grade saline for all animal experiments. A dose of 5 µg PA and 2.5 µg LF per g body weight was diluted in pharmaceutical grade saline and injected i.p. Alternatively, PA and LF were purified from B. anthracis strain BH450 as described [70]. LF produced from strain BH450 displayed 3-fold lower activity [71], and consequently a dose of 15 µg PA and 7.5 µg LF per g body weight was used to achieve a similar mortality rate [15]. Endotoxin was removed from PA and LF protein preparations using the Detoxi-Gel Endotoxin Removing Gel (Pierce). Purified proteins were assayed for endotoxin using the Limulus Amebocyte Lysate kit (BioWhittaker/Lonza Bioscientific), which detects a minimum of 0.03 endotoxin units/mL.
Lethal Toxin Challenge
A total of 36 B6.CAST congenic strains were screened for LT response. For each strain, ∼5 mice of mixed gender and ∼8 weeks of age were administered LT by i.p. injection at a dose that induced mortality in B6 control animals with a mean time to death of ∼60 h (see above). Larger-scale secondary screens were performed using 5–10 additional animals of each candidate or control strain. Upon injection, mice were closely monitored for ∼2 h and then every 2–3 h for clinical signs consisting of ataxia, bloat, lethargy, loose feces and/or hunched posture. Ataxia was measured using a grading system in which mice were scored as displaying a mild, moderate, or severe phenotype. A mild phenotype was defined as reduced exploratory behavior or rearing on hindlimbs, a slower and/or less steady gait, but free ambulation throughout the cage. A moderate score was defined as a preferred sedentary state, but the mouse was able to generate a slow, unsteady (e.g. wobbly) gait for up to ∼7 sec before resting. A severe score was defined as a stationary state, but upon stimulation the mouse could generate a few unstable steps (e.g. severe wobble and/or tremor) before stopping.
For experiments focused on the acute presentation of clinical signs, mice were closely monitored for ∼6–8 hours then euthanized. Mouse body temperatures were measured following LT injection using a rectal thermometer probe. Baseline temperatures were determined prior to LT injection and no differences were observed between animal groups (not shown). Temperatures were recorded hourly for up to 7 h following LT injection. Some mice were injected i.p. with recombinant murine IL-1β (R & D Systems) at a dose of 100 ng per mouse immediately prior to LT injection and observed as described above.
In vitro BMDM intoxication studies were performed as previously described [72]. Briefly, bone marrow was flushed from femur and tibia bones of 8-week old mice using DMEM supplemented with 10% fetal bovine serum (FBS) and 1% penicillin-streptomycin-glutamine (PSG) cocktail (Invitrogen). Marrow was then briefly centrifuged at 1500 rpm and resuspended in 1x ACK Lysis Buffer (150 mM NH4Cl, 1 mM KHCO3, 100 µM Na2-EDTA, pH 7.2) for 5 min. Cells were briefly centrifuged at 1500 rpm and resuspended in DMEM supplemented with 10% FBS, PSG, and 2% conditioned medium of CMG14-12 cells as a source of M-CSF. Ten million cells were seeded per 15 cm plate and incubated at 37°C, 5% CO2 for 6–7 days, then harvested and seeded at 5×104 cells per well in a 96 well plate in DMEM supplemented with 10% FBS, PS cocktail (Invitrogen), 25 mM HEPES, and Glutamax (Invitrogen). PA and LF were titrated in a final volume of 100 µL / well and incubated for 4 h prior to addition of ATPlite 1-step reagent (PerkinElmer, Waltham, Massachusetts). Luminescence intensity was measured using Victor 3V (PerkinElmer) plate reader. Alternatively, BMDMs were exposed to 0.1 µg/mL MDP and 0.1 ng/mL LPS for 8 hr [27], or 250 ng/mL PA and 250 ng/mL LF for 3 hr prior to collecting cell culture supernatant for cytokine analysis.

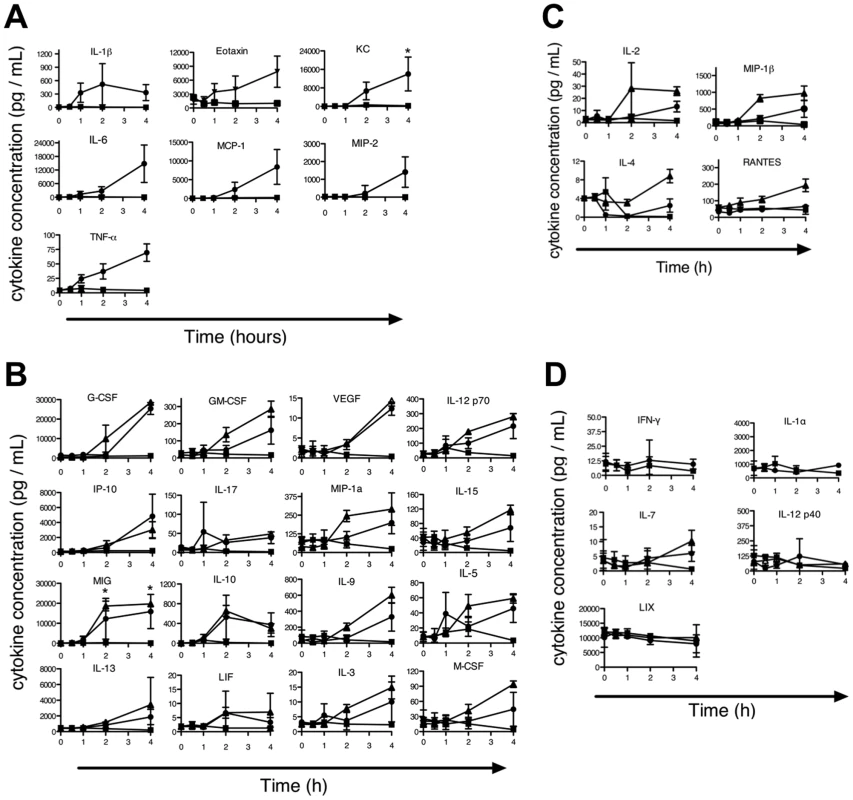

Cytokine Analysis
For cytokine analysis, mice were injected i.p. with LT at a dose of 15 µg PA and 7.5 µg LF per g body weight. Blood was collected via cardiac puncture and allowed to coagulate for ∼1 h. Samples were centrifuged, and sera was collected and stored at −80°C. Cytokines were detected using the Millipore Milliplex MAP Mouse Cytokine Kit per manufacturer's instructions and read on a Luminex 100 IS or BioRad Bioplex 200 instrument. Serum from each mouse was analyzed in duplicate and average values from these independent measurements were used to calculate a mean for each animal group (n = 5). For BMDM experiments, at least two independent mice per strain were used, and cells from each mouse were tested in duplicate. All cytokine data were analyzed using MILLIPLEX Analyst software (EMD-Millipore) with five parameter logistic curve fitting.
Spore Challenge and Cellular Analysis Experiments
B6.CAST.11M, B6Nlrp1b(129S1), and non-transgenic littermate/cagemate (i.e. B6) mice were challenged with unencapsulated, toxigenic Sterne strain (7702) by i.p. injection as indicated in figure legends and monitored daily for 14 days. B6.CAST.11M, B6Nlrp1b(129S1), and B6 mice were also used for peritoneal cellular infiltration determination following spore challenge. For cellular analysis, mice were infected i.p. with ∼1.6×107 Sterne spores and euthanized at 4, 28, 52, 76, and 135 h post infection. Uninfected mice were used to determine baseline cell populations in the peritoneal cavity of each strain (t = 0). Peritoneal exudates from infected mice were harvested by injecting 7 ml sterile HBSS and 3 ml air into the peritoneal cavity. The fluid was agitated within the cavity and then extracted. The fluids were analyzed as follows from three mice per group at each time point, except where indicated. Total cell counts were determined microscopically by using a hemocytometer; four fields for each mouse were counted and averaged. The cells from an aliquot of sample were then collected onto slides with a Cytospin centrifuge (Shandon, Inc., Pittsburgh, PA). The slides were fixed in methanol, stained with Diff-Quik (Harleco, Philadelphia, PA), and then evaluated microscopically to determine the percentages of cell types (i.e., percentages of monocytes, PMN). The average % of each cell type per mouse group was calculated, and the total number of each cell type was determined by multiplying the mean proportion of each cell type by the mean hemocytometer count for each mouse group. These values were plotted including standard deviation for each mouse group.
Expression QTL Analysis
Comprehensive mapping of gene expression in adipose, brain, liver and muscle of 442 F2 progeny of a cross between C57BL/6J and CAST/Ei mice was previously described [73]. From this dataset, we selected genes with strong (LOD >4.3) cis-acting expression-QTLs located in the region between 66.36 and 74.67 on Chromosome 11. Peak LOD scores for each tissue are reported on Table S1. Gene names, positions, and functions were compared to NCBI build 37.1 and MGI annotation datasets. Genes were prioritized by biological function as determined by MGI genome analysis tools (www.informatics.jax.org/tools.shtml) combined with manual curation (www.ncbi.nlm.nih.gov/gene). B6 and CAST/Ei nucleotide sequences were compared using fully sequenced genomes from each strain available at http://www.sanger.ac.uk/cgi-bin/modelorgs/mousegenomes/snps.pl to identify single nucleotide polymorphisms (SNPs). Consistent with genetic divergence between these strains, 64,102 SNPs were identified between 63.36–74.67 Mbp. The search was refined to analyze only predicted mRNA sequences, resulting in 2,421 SNPs that mapped to 74 out of the 81 eQTL.
Supporting Information
Zdroje
1. BrodskyIEMedzhitovR 2009 Targeting of immune signalling networks by bacterial pathogens. Nat Cell Biol 11 521 526
2. PitzschkeASchikoraAHirtH 2009 MAPK cascade signalling networks in plant defence. Curr Opin Plant Biol 12 421 426
3. BanksDJWardSCBradleyKA 2006 New insights into the functions of anthrax toxin. Expert Rev Mol Med 8 1 18
4. DangONavarroLAndersonKDavidM 2004 Cutting edge: anthrax lethal toxin inhibits activation of IFN-regulatory factor 3 by lipopolysaccharide. J Immunol 172 747 751
5. ErwinJLDaSilvaLMBavariSLittleSFFriedlanderAM 2001 Macrophage-derived cell lines do not express proinflammatory cytokines after exposure to Bacillus anthracis lethal toxin. Infect Immun 69 1175 1177
6. HsuLCParkJMZhangKLuoJLMaedaS 2004 The protein kinase PKR is required for macrophage apoptosis after activation of Toll-like receptor 4. Nature 428 341 345
7. ParkJMGretenFRLiZWKarinM 2002 Macrophage apoptosis by anthrax lethal factor through p38 MAP kinase inhibition. Science 297 2048 2051
8. PopovSGVillasmilRBernardiJGreneECardwellJ 2002 Effect of Bacillus anthracis lethal toxin on human peripheral blood mononuclear cells. FEBS Lett 527 211 215
9. HsuLCAliSRMcGillivraySTsengPHMariathasanS 2008 A NOD2-NALP1 complex mediates caspase-1-dependent IL-1beta secretion in response to Bacillus anthracis infection and muramyl dipeptide. Proc Natl Acad Sci U S A 105 7803 7808
10. CuiXLiYLiXHaleyMMoayeriM 2006 Sublethal doses of Bacillus anthracis lethal toxin inhibit inflammation with lipopolysaccharide and Escherichia coli challenge but have opposite effects on survival. J Infect Dis 193 829 840
11. BergmanNHPassalacquaKDGaspardRShetron-RamaLMQuackenbushJ 2005 Murine macrophage transcriptional responses to Bacillus anthracis infection and intoxication. Infect Immun 73 1069 1080
12. LiuSMiller-RandolphSCrownDMoayeriMSastallaI 2010 Anthrax toxin targeting of myeloid cells through the CMG2 receptor is essential for establishment of Bacillus anthracis infections in mice. Cell Host Microbe 18 455 462
13. CoteCKDimezzoTLBanksDJFranceBBradleyKA 2008 Early interactions between fully virulent Bacillus anthracis and macrophages that influence the balance between spore clearance and development of a lethal infection. Microbes Infect 10 613 619
14. BoydenEDDietrichWF 2006 Nalp1b controls mouse macrophage susceptibility to anthrax lethal toxin. Nat Genet 38 240 244
15. TerraJKCoteCKFranceBJenkinsALBozueJA 2010 Cutting edge: resistance to Bacillus anthracis infection mediated by a lethal toxin sensitive allele of Nalp1b/Nlrp1b. J Immunol 184 17 20
16. NyeSHWittenburgALEvansDLO'ConnorJARomanRJ 2007 Rat survival to anthrax lethal toxin is likely controlled by a single gene. Pharmacogenomics J 8 16 22
17. MoayeriMCrownDNewmanZLOkugawaSEckhausM 2010 Inflammasome sensor Nlrp1b-dependent resistance to anthrax is mediated by caspase-1, IL-1 signaling and neutrophil recruitment. PLoS Pathog 6 e1001222
18. LincolnREWalkerJSKleinFRosenwaldAJJonesWIJr 1967 Value of field data for extrapolation in anthrax. Fed Proc 26 1558 1562
19. WelkosSLKeenerTJGibbsPH 1986 Differences in susceptibility of inbred mice to Bacillus anthracis. Infect Immun 51 795 800
20. WelkosSLFriedlanderAM 1988 Pathogenesis and genetic control of resistance to the Sterne strain of Bacillus anthracis. Microb Pathog 4 53 69
21. WelkosSLTrotterRWBeckerDMNelsonGO 1989 Resistance to the Sterne strain of B. anthracis: phagocytic cell responses of resistant and susceptible mice. Microb Pathog 7 15 35
22. WelkosSLVietriNJGibbsPH 1993 Non-toxigenic derivatives of the Ames strain of Bacillus anthracis are fully virulent for mice: role of plasmid pX02 and chromosome in strain-dependent virulence. Microb Pathog 14 381 388
23. HarvillETLeeGGrippeVKMerkelTJ 2005 Complement depletion renders C57BL/6 mice sensitive to the Bacillus anthracis Sterne strain. Infect Immun 73 4420 4422
24. MoayeriMMartinezNWWigginsJYoungHALepplaSH 2004 Mouse susceptibility to anthrax lethal toxin is influenced by genetic factors in addition to those controlling macrophage sensitivity. Infect Immun 72 4439 4447
25. DavisRCJinARosalesMYuSXiaX 2007 A genome-wide set of congenic mouse strains derived from CAST/Ei on a C57BL/6 background. Genomics 90 306 313
26. RobertsJEWattersJWBallardJDDietrichWF 1998 Ltx1, a mouse locus that influences the susceptibility of macrophages to cytolysis caused by intoxication with Bacillus anthracis lethal factor, maps to chromosome 11. Mol Microbiol 29 581 591
27. ShikamaYKuroishiTNagaiYIwakuraYShimauchiH 2011 Muramyldipeptide augments the actions of lipopolysaccharide in mice by stimulating macrophages to produce pro-IL-1{beta} and by down-regulation of the suppressor of cytokine signaling 1 (SOCS1). Innate Immun 17 3 15
28. BiedermannTRockenM 2005 Pro- and anti-inflammatory effects of IL-4: from studies in mice to therapy of autoimmune diseases in humans. Ernst Schering Res Found Workshop 235 242
29. Adib-ConquyMCavaillonJM 2009 Compensatory anti-inflammatory response syndrome. Thromb Haemost 101 36 47
30. JonesJWKayagakiNBrozPHenryTNewtonK 2010 Absent in melanoma 2 is required for innate immune recognition of Francisella tularensis. Proc Natl Acad Sci U S A 107 9771 9776
31. HartPHVittiGFBurgessDRWhittyGAPiccoliDS 1989 Potential antiinflammatory effects of interleukin 4: suppression of human monocyte tumor necrosis factor alpha, interleukin 1, and prostaglandin E2. Proc Natl Acad Sci U S A 86 3803 3807
32. VannierEMillerLCDinarelloCA 1992 Coordinated antiinflammatory effects of interleukin 4: interleukin 4 suppresses interleukin 1 production but up-regulates gene expression and synthesis of interleukin 1 receptor antagonist. Proc Natl Acad Sci U S A 89 4076 4080
33. CuiXMoayeriMLiYLiXHaleyM 2004 Lethality during continuous anthrax lethal toxin infusion is associated with circulatory shock but not inflammatory cytokine or nitric oxide release in rats. Am J Physiol Regul Integr Comp Physiol 286 R699 709
34. TournierJNQuesnel-HellmannAMathieuJMontecuccoCTangWJ 2005 Anthrax edema toxin cooperates with lethal toxin to impair cytokine secretion during infection of dendritic cells. J Immunol 174 4934 4941
35. HughesMAGreenCSLowchyjLLeeGMGrippeVK 2005 MyD88-dependent signaling contributes to protection following Bacillus anthracis spore challenge of mice: implications for Toll-like receptor signaling. Infect Immun 73 7535 7540
36. KalnsJScruggsJMillenbaughNVivekanandaJShealyD 2002 TNF receptor 1, IL-1 receptor, and iNOS genetic knockout mice are not protected from anthrax infection. Biochem Biophys Res Commun 292 41 44
37. KangTJBasuSZhangLThomasKEVogelSN 2008 Bacillus anthracis spores and lethal toxin induce IL-1beta via functionally distinct signaling pathways. Eur J Immunol 38 1574 1584
38. OkugawaSMoayeriMEckhausMACrownDMiller-RandolphS 2011 MyD88-dependent signaling protects against anthrax lethal toxin-induced impairment of intestinal barrier function. Infect Immun 79 118 124
39. HenryTMonackDM 2007 Activation of the inflammasome upon Francisella tularensis infection: interplay of innate immune pathways and virulence factors. Cell Microbiol 9 2543 2551
40. DossSSchadtEEDrakeTALusisAJ 2005 Cis-acting expression quantitative trait loci in mice. Genome Res 15 681 691
41. SchadtEELambJYangXZhuJEdwardsS 2005 An integrative genomics approach to infer causal associations between gene expression and disease. Nat Genet 37 710 717
42. SchadtEEMonksSADrakeTALusisAJCheN 2003 Genetics of gene expression surveyed in maize, mouse and man. Nature 422 297 302
43. LanHRabagliaMEStoehrJPNadlerSTSchuelerKL 2003 Gene expression profiles of nondiabetic and diabetic obese mice suggest a role of hepatic lipogenic capacity in diabetes susceptibility. Diabetes 52 688 700
44. JansenRCNapJP 2001 Genetical genomics: the added value from segregation. Trends Genet 17 388 391
45. JansenRC 2003 Studying complex biological systems using multifactorial perturbation. Nat Rev Genet 4 145 151
46. McAllisterRDSinghYDu BoisWDPotterMBoehmT 2003 Susceptibility to anthrax lethal toxin is controlled by three linked quantitative trait Loci. Am J Pathol 163 1735 1741
47. WattersJWDietrichWF 2001 Genetic, physical, and transcript map of the Ltxs1 region of mouse chromosome 11. Genomics 73 223 231
48. HubnerNWallaceCAZimdahlHPetrettoESchulzH 2005 Integrated transcriptional profiling and linkage analysis for identification of genes underlying disease. Nat Genet 37 243 253
49. SebastianiGOlienLGauthierSSkameneEMorganK 1998 Mapping of genetic modulators of natural resistance to infection with Salmonella typhimurium in wild-derived mice. Genomics 47 180 186
50. RaesGBrysLDahalBKBrandtJGrootenJ 2005 Macrophage galactose-type C-type lectins as novel markers for alternatively activated macrophages elicited by parasitic infections and allergic airway inflammation. J Leukoc Biol 77 321 327
51. SabaKDenda-NagaiKIrimuraT 2009 A C-type lectin MGL1/CD301a plays an anti-inflammatory role in murine experimental colitis. A J Pathol 174 144 152
52. GodsonCMitchellSHarveyKPetasisNAHoggN 2000 Cutting edge: lipoxins rapidly stimulate nonphlogistic phagocytosis of apoptotic neutrophils by monocyte-derived macrophages. J Immunol 164 1663 1667
53. WangYTangYTengLWuYZhaoX 2006 Association of beta-arrestin and TRAF6 negatively regulates Toll-like receptor-interleukin 1 receptor signaling. Nat Immunol 7 139 147
54. FanHBittoAZingarelliBLuttrellLMBorgK 2010 Beta-arrestin 2 negatively regulates sepsis-induced inflammation. Immunology 130 344 351
55. PorterKJGonipetaBParvataneniSAppledornDMPatialS 2010 Regulation of lipopolysaccharide-induced inflammatory response and endotoxemia by beta-arrestins. J Cell Physiol 225 406 416
56. TadagavadiRKWangWRameshG 2010 Netrin-1 regulates Th1/Th2/Th17 cytokine production and inflammation through UNC5B receptor and protects kidney against ischemia-reperfusion injury. J Immunol 185 3750 3758
57. UzaNNakaseHYamamotoSYoshinoTTakedaY 2011 SR-PSOX/CXCL16 plays a critical role in the progression of colonic inflammation. Gut 60 1494 1505
58. LuJPierceMFranklinAJillingTStafforiniDM 2010 Dual roles of endogenous platelet-activating factor acetylhydrolase in a murine model of necrotizing enterocolitis. Pediatr Res 68 225 230
59. IvakineEAGulbanOMMortin-TothSMWankiewiczEScottC 2006 Molecular genetic analysis of the Idd4 locus implicates the IFN response in type 1 diabetes susceptibility in nonobese diabetic mice. J Immunol 176 2976 2990
60. Sancho-ShimizuVKhanRMostowySLariviereLWilkinsonR 2007 Molecular genetic analysis of two loci (Ity2 and Ity3) involved in the host response to infection with Salmonella typhimurium using congenic mice and expression profiling. Genetics 177 1125 1139
61. AliSRTimmerAMBilgramiSParkEJEckmannL 2011 Anthrax toxin induces macrophage death by p38 MAPK inhibition but leads to inflammasome activation via ATP leakage. Immunity 35 34 44
62. FranchiLEigenbrodTMunoz-PlanilloRNunezG 2009 The inflammasome: a caspase-1-activation platform that regulates immune responses and disease pathogenesis. Nat Immunol 10 241 247
63. CastellheimABrekkeOLEspevikTHarboeMMollnesTE 2009 Innate immune responses to danger signals in systemic inflammatory response syndrome and sepsis. Scand J Immunol 69 479 491
64. TakahashiHTsudaYKobayashiMHerndonDNSuzukiF 2006 CCL2 as a trigger of manifestations of compensatory anti-inflammatory response syndrome in mice with severe systemic inflammatory response syndrome. J Leukoc Biol 79 789 796
65. KlempnerMSTalbotEALeeSIZakiSFerraroMJ 2010 Case records of the Massachusetts General Hospital. Case 25-2010. A 24-year-old woman with abdominal pain and shock. N Engl J Med 363 766 777
66. TorreDTambiniRAristodemoSGavazzeniGGoglioA 2000 Anti-inflammatory response of IL-4, IL-10 and TGF-beta in patients with systemic inflammatory response syndrome. Mediators Inflamm 9 193 195
67. PeyssonnauxCCejudo-MartinPDoedensAZinkernagelASJohnsonRS 2007 Cutting edge: Essential role of hypoxia inducible factor-1alpha in development of lipopolysaccharide-induced sepsis. J Immunol 178 7516 7519
68. AyalaAChungCSGrutkoskiPSSongGY 2003 Mechanisms of immune resolution. Crit Care Med 31 S558 571
69. MartinonF 2010 Update on biology: uric acid and the activation of immune and inflammatory cells. Curr Rheumatol Rep 12 135 141
70. ParkSLepplaSH 2000 Optimized production and purification of Bacillus anthracis lethal factor. Protein Expr Purif 18 293 302
71. GuptaPKMoayeriMCrownDFattahRJLepplaSH 2008 Role of N-terminal amino acids in the potency of anthrax lethal factor. PLoS One 3 e3130
72. AveretteKMPrattMRYangYBassilianSWhiteleggeJP 2009 Anthrax lethal toxin induced lysosomal membrane permeabilization and cytosolic cathepsin release is Nlrp1b/Nalp1b-dependent. PLoS ONE 4 e7913
73. SchadtEEMolonyCChudinEHaoKYangX 2008 Mapping the genetic architecture of gene expression in human liver. PLoS Biol 6 e107
