MAPK Signaling Pathway Alters Expression of Midgut ALP and ABCC Genes and Causes Resistance to Cry1Ac Toxin in Diamondback Moth

Summary

Biopesticide and transgenic crops based on Bacillus thuringiensis (Bt) Cry toxins are widely used worldwide, yet the development of field resistance seriously threatens their sustainability. Unraveling these resistance mechanisms are of great importance for delaying insect field resistance evolution. The diamondback moth was the first insect to evolve field resistance to Bt biopesticides and it is an excellent model for the study of Bt resistance mechanisms. In this work, we present strong empirical evidence supporting that (1) field-evolved resistance to Bt in P. xylostella is tightly associated with differential expression of a membrane-bound alkaline phosphatase (ALP) and a suite of ATP-binding cassette transporter subfamily C (ABCC) genes, and (2) a constitutively transcriptionally-activated upstream gene (MAP4K4) in the MAPK signaling pathway is responsible for this trans-regulatory signaling mechanism. These findings identify key resistance genes and provide the first comprehensive mechanistic description responsible for the field-evolved Bt resistance in P. xylostella. Given that expression alterations of multiple receptor genes result in Bt resistance in many other insects, it can now be tested to determine whether the previously unidentified trans-regulatory mechanism characterized in this study is also involved in these cases.

Introduction

The Gram-positive entomopathogen Bacillus thuringiensis (Bt) is the most widely used biopesticide due to its highly specific activity and environmental safety [1]. The insecticidal activity of Bt is largely attributed to diverse δ-endotoxins (Cry toxins) produced during sporulation [2]. Transgenic crops harboring Bt toxin genes (Bt crops) are the most successful insecticidal biotechnology, with >75 million hectares planted worldwide [3]. However, high adoption of Bt crops and concurrent use of Bt pesticides represent high selection pressure for insect resistance evolution. To date, cases of field-evolved resistance to Bt sprays or Bt crops have been reported in at least seven insect species [4,5]. The economic and environmental importance of Bt insecticides highlight the significance of clarifying the molecular mechanisms of insect field-evolved resistance to Bt.

The mode of action of Bt Cry toxins includes a critical binding step to receptors in the insect midgut, which is conducive to formation of a toxin pore on the enterocyte membrane that leads to osmotic cell death [6]. The importance of this binding step is further highlighted by high levels of resistance to Bt Cry toxins being almost exclusively associated with alterations in receptor genes [7]. While a number of insect midgut proteins have been proposed as functional receptors for diverse Cry toxins [8], high levels of resistance to Cry1 toxins due to reduced toxin binding have been genetically linked to mutations or expression alterations of receptor genes such as cadherin, aminopeptidase-N (APN) and alkaline phosphatase (ALP) [6]. Recently, mutations in ATP-binding cassette transporter subfamily C member 2 (ABCC2) gene [9–13] have been reported to be linked to high levels of resistance to Bt Cry toxins in diverse lepidopteran insects, and it has been proved to be a functional receptor for Bt Cry toxins in Bombyx mori [14]. Although expression alterations of ABCC genes have been reported to result in chemical insecticide resistance in many insects [15,16], whether the expression alterations of ABCC genes can be involved in insect Bt resistance is unclear. In addition, although altered ALP gene expression seems to be commonly associated with lepidopteran resistance to Cry1 toxins [17,18], there is currently no available functional or genetic evidence for these ALP proteins in Bt resistance.

The diamondback moth, Plutella xylostella (Lepidoptera: Plutellidae), is a global notorious pest that can rapidly evolve resistance to insecticides and cause US $4–5 billion in management costs annually [19]. Thus far, field-evolved resistance to Bt sprays has only been described in P. xylostella [20] and greenhouse populations of Trichoplusia ni [21]. In both cases, resistance was monogenic and transmitted as an autosomal recessive trait associated with reduced toxin binding to the midgut [22,23]. In T. ni, this reduced Cry1Ac toxin binding is associated with reduced expression of a midgut aminopeptidase gene (APN1) [24] possibly trans-regulated by an unidentified gene located in a resistance locus containing the ABCC2 gene [10]. In P. xylostella, cis-acting mutations in putative toxin receptor genes are not linked to field-evolved resistance to Cry1Ac [25,26]. As in T. ni, resistance to Cry1Ac in P. xylostella also mapped to a multigenic resistance locus (BtR-1) containing the ABCC2 gene [10]. However, the detailed genetic makeup of this resistance locus and the potential trans-acting regulatory effect on Cry toxin receptors by resident genes remain unknown.

High-level resistance phenotype to Bt Cry toxins in insects is often autosomal recessive and controlled by a single gene, however, the fact that many players responsible for resistance suggests there may be a common pathway that links all these receptor genes. Mitogen-activated protein kinase (MAPK) signaling pathway has been described to control immune defensive responses to Bt Cry toxins in nematodes [27,28] and insects [29,30]. The MAPK signaling pathway consists of a four-kinase cascade module (MAP4K, MAP3K, MAP2K and MAPK) that can positively or negatively regulate expression of diverse functional genes via different transcription factors [31,32]. Therefore, it is plausible that the MAPK signaling pathway may be the common pathway that can regulate the expression of diverse receptor genes to result in insect resistance to Bt Cry toxins.

In this study, we identify a novel major mechanistic pathway that the MAPK signaling cascade trans-regulating differential expression of ALP and ABCC genes confers high-level resistance to Cry1Ac in both field-evolved and laboratory-selected strains of P. xylostella. This discovery greatly advances our comprehensive understanding of insect resistance mechanisms to Bt Cry1Ac toxin and provides new insights into how insects evolve resistance to Bt entomopathogen.

Results

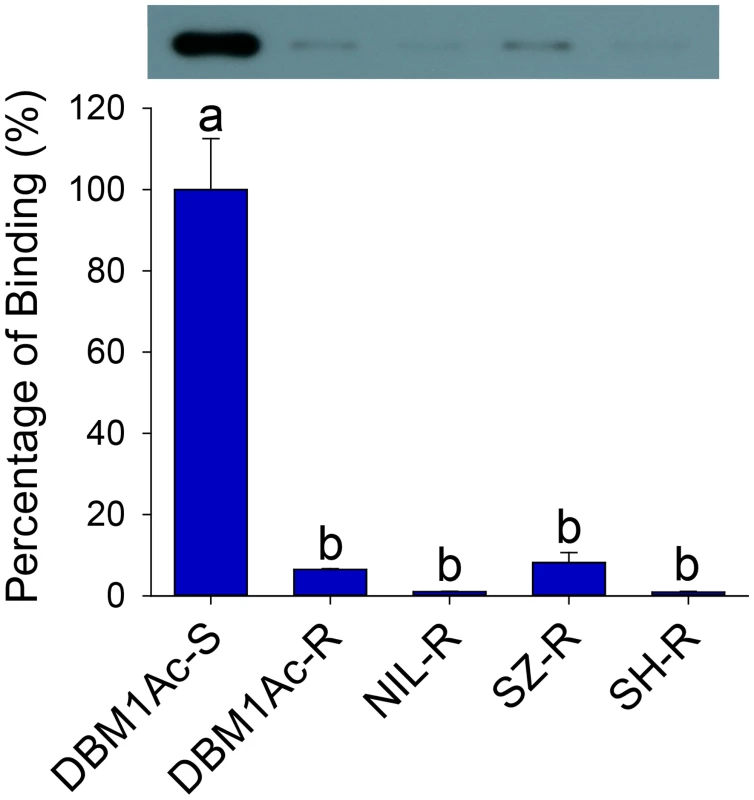

Reduced Cry1Ac toxin binding in four resistant P. xylostella strains

Bioassays confirmed high-level Bt resistance in diamondback moth strains originally collected from Florida (DBM1Ac-R, >3500-fold), Shenzhen (SZ-R, 458-fold Cry1Ac) and Shanghai (SH-R, 1890-fold, Bt var. kurstaki) (S1 Table). A fourth near-isogenic strain (NIL-R) was generated to control for variation in genetic backgrounds that may be observed between strains, and was highly resistant to both Cry1Ac (>3900-fold) and Btk (>2800-fold). Despite their diverse origins, reduced Cry1Ac toxin binding to midgut BBMV proteins was a common phenotype observed in all resistant samples compared to a Bt susceptible reference strain DBM1Ac-S (Fig 1), suggesting midgut receptor alterations as a likely resistance mechanism.

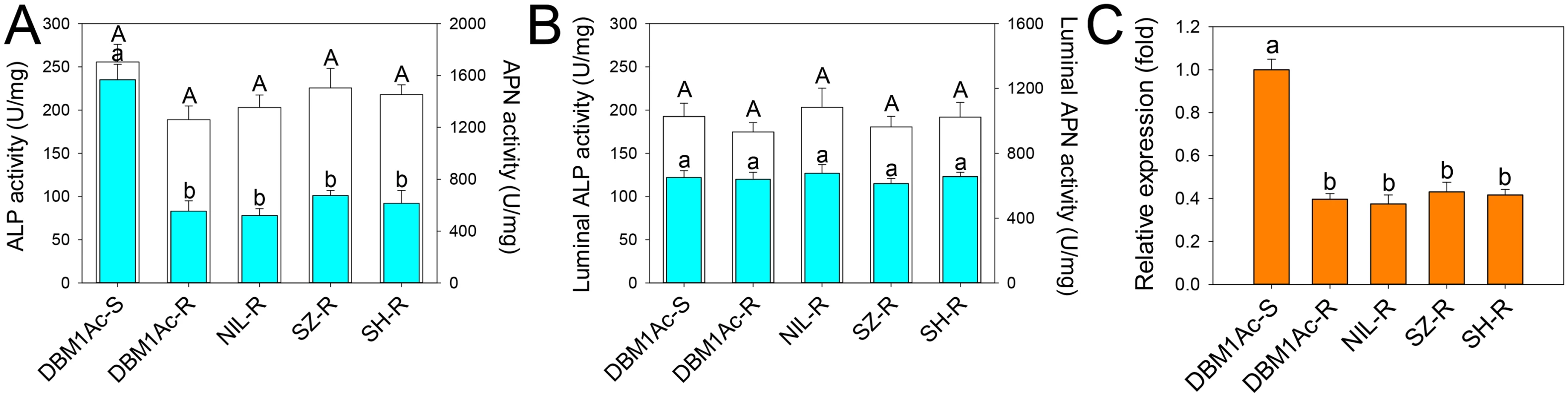

Reduced alkaline phosphatase expression is associated with Cry1Ac and Btk resistance

Multiple previously reported midgut receptors for Bt Cry toxins including cadherin, APN and ALP were first investigated. Recently, we have determined that the midgut cadherin is not involved in Cry1Ac resistance in all of our Cry1Ac/Btk resistant P. xylsotella strains [33]. In this study, we further detected that reduced Cry1Ac toxin binding was significantly associated with reduced ALP enzymatic activity in BBMV from larvae of all resistant strains (P < 0.05; Holm-Sidak’s test; n = 3), while APN activity did not differ (Fig 2A). In contrast, we did not detect significant differences in ALP or APN enzymatic activity when comparing gut luminal contents (Fig 2B), supporting a reduction of membrane-bound ALP (mALP) might be responsible for reduced toxin binding, but not soluble ALP (sALP).

As ALP activity was significantly reduced in resistant strains, we cloned the full length cDNA of a novel mALP gene (PxmALP, GenBank accession no. KC841472) from the DBM1Ac-S larval midgut tissue (S2 Table). The deduced PxmALP protein sequence displays typical structure features of a mALP protein (S1 Fig), and GenBank database search with the PxmALP protein sequence detected high identity to mALPs in diverse insect species. Phylogenetic analysis (S2 Fig) showed that PxmALP is clearly grouped into the same cluster of a clade containing many other lepidopteran mALPs reportedly involved in Bt resistance, suggesting the PxmALP may be a functional Cry1Ac toxin receptor as other lepidopteran mALPs [34,35].

Full length PxmALP sequencing using larval midgut cDNA from four resistant P. xylostella strains didn’t identify any constant non-synonymous substitutions or indels, suggesting PxmALP mutations are not linked with Cry1Ac resistance. However, qPCR analysis confirmed a significant reduction (>50%) in PxmALP expression in larvae from all the resistant strain (Fig 2C), which is also reflected by our RNA-Seq transcriptome profiling data [36] (S3 Table). Moreover, the reduced expression level of PxmALP gene is congruent with reduced ALP activity in the resistant strains.

PxmALP is a functional Cry1Ac receptor in P. xylostella larvae

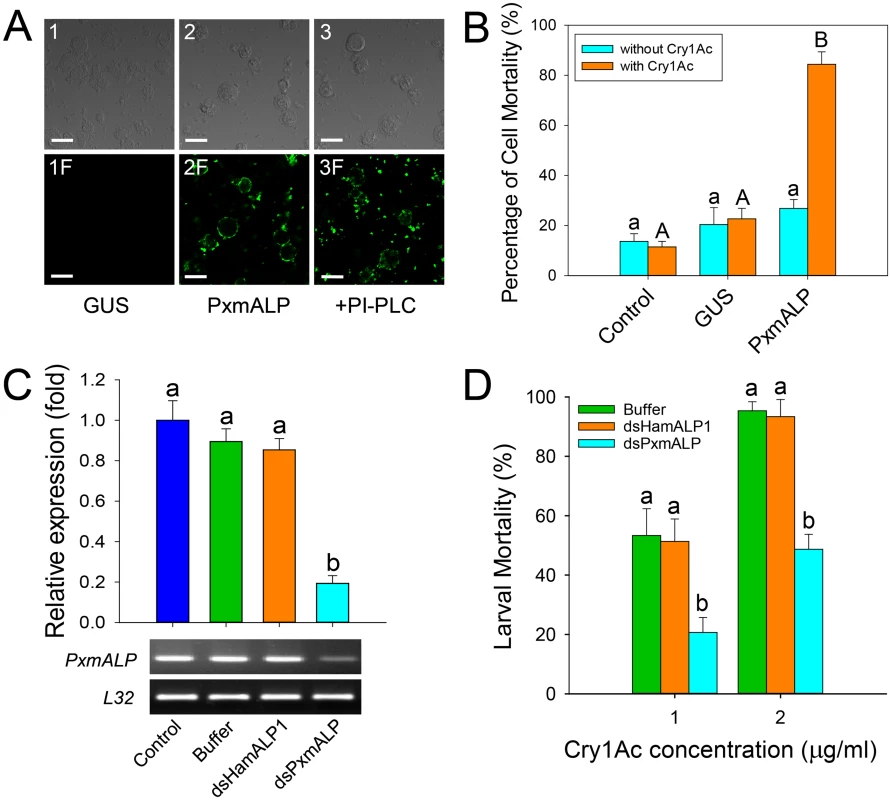

To determine whether PxmALP can serve as a functional Cry1Ac receptor in P. xylostella, heterologous expression of recombinant PxmALP was conducted in Spodoptera frugiperda Sf9 cell culture, and we detected it by Western blotting and ALP activity assays using cells transfected with an empty bacmid or a bacmid containing the Arabidopsis thaliana β-glucuronidase (GUS) gene as controls (S3A Fig). Localization of PxmALP to the surface of transfected cells was demonstrated by releasing GPI-anchored proteins through cleavage with phosphatidylinositol-specific phospholipase C (PI-PLC) and detecting most of the recombinant ALP activity in the supernatant (S3B Fig). When expressed on the surface of the Sf9 cells, PxmALP bound Cry1Ac toxin as detected by confocal fluorescence microscopy (Fig 3A) and ELISA assays (S3C Fig), while no Cry1Ac toxin binding was detected in untransfected or cells expressing the GUS gene. As expected from the GPI-attachment to the membrane of the recombinant PxmALP, release of PxmALP from the surface of Sf9 cells by PI-PLC treatment resulted in Cry1Ac toxin binding being localized to aggregates in the media, probably containing the released PxmALP, rather than to the surface of the Sf9 cells (Fig 3A, compare panels 2F and 3F). Moreover, binding of Cry1Ac toxin to the Sf9 cells expressing PxmALP was conducive to cytotoxicity (Fig 3B), while cell viability was unaffected in untransfected and Sf9 cells expressing the GUS gene.

To further test PxmALP as functional Cry1Ac receptor, we silenced PxmALP gene expression and detected larval susceptibility to Cry1Ac protoxin. Both dsRNA concentration and timing of silencing were optimized in preliminary experiments (S4 Fig). As negative controls, we used non-injected or buffer-injected larvae, while to control for unintended off-target effects, we used larvae injected with dsRNA targeting the PxmALP ortholog in Helicoverpa armigera (HamALP1, GenBank accession no. EU729322.1). Sequence similarity in the dsRNA fragments targeting PxmALP or HamALP1 reached to about 56%, but no consensus motifs were longer than 19 bp to avoid possible off-target effects [37]. Microinjection of dsRNA targeting an internal region of PxmALP (nucleotides 510 to 883) resulted in about 80% reduction in expression levels compared to controls 48 h post-injection, whereas no significant changes in expression were detected when injecting dsRNA targeting HamALP1 (Fig 3C). Subsequent bioassays at 48 h post-injection for 72 h demonstrated that PxmALP silencing resulted in significantly decreased larval susceptibility to Cry1Ac protoxin (P < 0.05; Holm-Sidak’s test; n = 3) compared to controls (Fig 3D). Specifically, about 55% mortality was observed in control larvae treated with 1.0 μg/ml of Cry1Ac, while only 19% mortality was observed in larvae injected with dsPxmALP (mortality in non-injected larvae fed control diet was < 5%). When the toxin concentration was increased to 2.0 μg/ml, 95% mortality was observed in controls while only 48% mortality was detected in larvae injected with dsPxmALP.

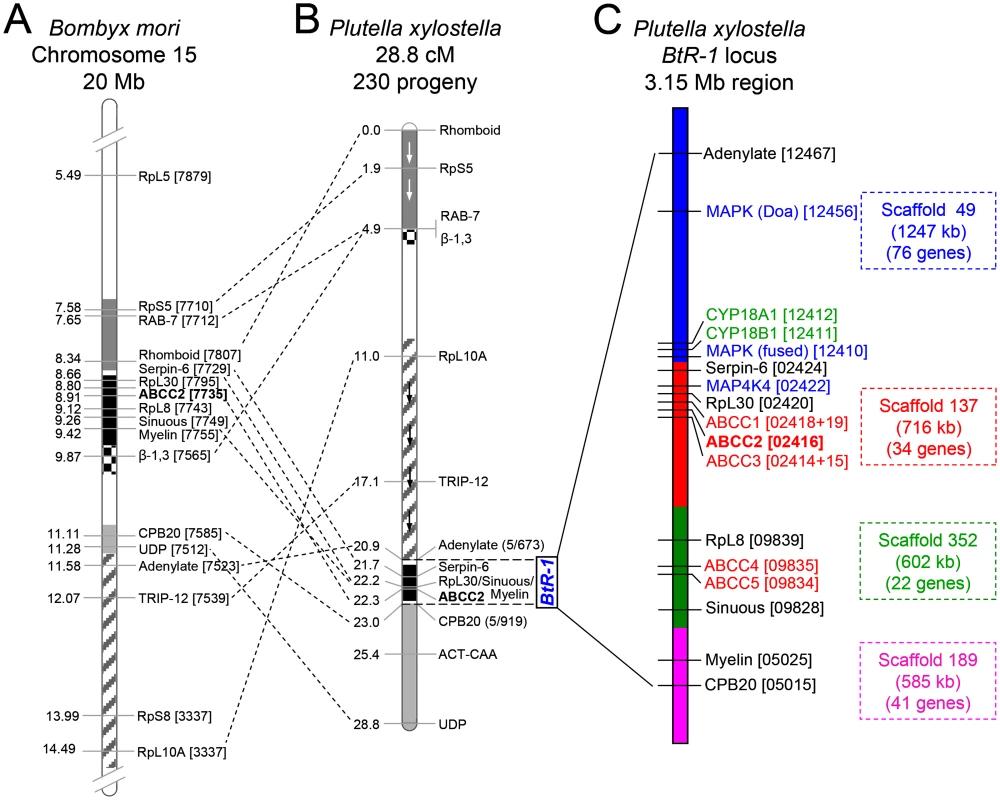

Assembly and candidate gene determination in the BtR-1 resistance locus

While resistance to Cry1Ac in the DBM1Ac-R (previously called Cry1Ac-R) and NO-QA P. xylostella strains maps to the same BtR-1 resistance locus [38], the PxmALP gene is located on a separate chromosome [26]. We assembled the approximately 3.15 Mb chromosome region representing BtR-1 locus (Fig 4) assisted by linkage mapping data [10], genomic data of B. mori [39] and P. xylostella [40], and the genetic synteny between P. xylostella and B. mori. The BtR-1 locus contains four P. xylostella genome scaffolds and more than 130 annotated genes (S4 Table). Presence of seven known genetic mapping marker genes [10] were confirmed and ten candidate resistance genes, including two P450 genes (CYP18A1 and CYP18B1), five ABCC genes (ABCC1-5) and three genes involved in the MAPK signaling pathway (two MAPK genes and one MAP4K gene), were identified (Fig 4). Considering previous reports suggesting their involvement in Bt Cry toxins intoxication [9,29], we focused our subsequent work on potential alterations in the ABCC and MAPK genes in BtR-1.

Resistance to Cry1Ac and alterations in five ABCC genes within the BtR-1 resistance locus

Previous study showed that a 30-bp deletion in exon 20 of ABCC2 gene is linked to Cry1Ac resistance in the NO-QAGE strain of P. xylostella [10], however, we did not detect any indels or constant non-synonymous substitutions in this region in our resistant strains, which led us to further study all the five ABCC genes in the BtR-1 resistance locus. We assembled the full-length coding sequences of PxABCC1-5 by in silico analysis, PCR cloning and sequencing, and the bona fide full-length cDNA sequences of these five ABCC genes (GenBank accession nos. KM245560–KM245564) as they were incorrectly annotated in the draft P. xylostella genome. Cloning and comparison of the full-length PxABCC1-5 cDNA sequences from midgut pools of susceptible or resistant larvae detected sequence variations in the region encompassing exons 4 to 11 of PxABCC1-3, which did not result in changes in the number or size of amplified bands in PCR assays targeting PxABCC1 (S5A Fig, left figure), but led to additional amplicons observed for PxABCC2 and PxABCC3 (S5B and S5C Fig, top figures). Sequencing of these amplicons from each strain allowed us to detect one PxABCC1 isoform, eleven PxABCC2 isoforms and four PxABCC3 isoforms, probably resulting from alternative splicing of the PxABCC1-3 mRNA precursor (S6 Fig). Some of the identified alternative splicing isoforms contained premature stop codons in the transmembrane domain (TMD) or the subsequent nucleotide binding domain 1 (NBD1), which would result in truncated and possibly non-functional proteins. However, their relative distribution was similar (S5A Fig, right figure; S5B and S5C Fig, bottom figures) among untreated individual susceptible (DBM1Ac-S) larvae and larvae of the NIL-R resistant strain surviving exposure to an extremely high dose of Cry1Ac protoxin (10000 μg/ml, causes 100% mortality in DBM1Ac-S larvae), supporting no associations between ABCC isoforms in that region and resistance to Cry1Ac. The lack of large inversions or deletions was also tested and confirmed using one-step amplification of the full-length PxABCC1-5 cDNA followed by nested PCR with overlapping primer sets (S5–S9 Tables).

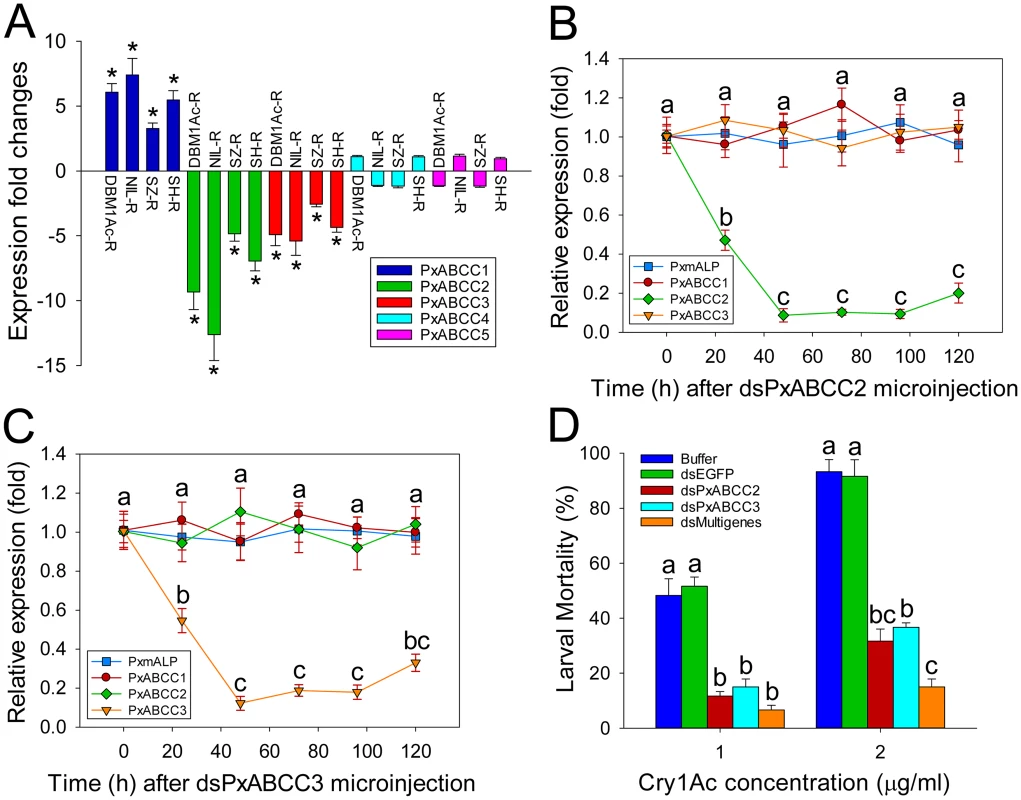

Since no association between mutations in PxABCC genes and resistance was observed, we subsequent compared levels of expression for all five ABCC genes in the BtR-1 locus in susceptible and resistant strains using qPCR (Fig 5A). These analyses revealed that three of the five ABCC genes (PxABCC1-3) showed significant differences in gene expression between susceptible and resistant strains, whereas no obvious expression alteration for PxABCC4 or PxABCC5 was found. Interestingly, while PxABCC2 and PxABCC3 were significantly down-regulated, PxABCC1 was dramatically up-regulated in all the resistant compared to susceptible P. xylostella strains (P < 0.05; Holm-Sidak’s test; n = 3). These observations (except PxABCC2 differences) were also detected after re-analyzing of our RNA-Seq transcriptome profiling data [36] (S3 Table).

The observed association between differential PxABCC gene expression and resistance led us to investigate the relationship among the three PxABCC genes. Protein sequence analysis showed that these genes share typical structural features of ABCC family members, including two transmembrane domains (TMDs) and two nucleotide binding domains (NBDs). The genomic structure showed that these three PxABCC genes display high protein sequence similarity (about 59%), extremely similar exon size and number, and the same intron phase (S10 Table; see also S7A Fig), which indicating they are paralogs derived from an ancient gene duplication event. Phylogenetic analysis showed that the P. xylostella ABCC1-3 genes share high sequence identity with homologs from Spodoptera exigua (S7B Fig), which have been recently proved to be involved in resistance to Cry1 toxins [12].

To determine the effect of PxABCC2 and PxABCC3 down-regulation on susceptibility to Cry1Ac toxin, we silenced their expression by RNAi and tested susceptibility (LC₅₀ and LC₉₀) in silenced larvae. Expression levels for both genes were significantly reduced at 24 h after dsRNA injection, with lowest expression levels detected after 48 h and lasting at least 72 h in both cases (Fig 5B and 5C). Silencing was specific to each ABCC gene and did not affect PxmALP expression levels (Fig 5B and 5C). Bioassays performed at 48 h post-injection for 72 h showed a marked decrease in susceptibility to Cry1Ac toxin in both dsPxABCC2- and dsPxABCC3-treated larvae compared to the buffer- or dsEGFP-injected larvae. Moreover, silencing of multiple genes simultaneously (combinational RNAi) by injection of a combination of dsRNAs targeting PxmALP, PxABCC2 and PxABCC3 (dsMultigenes) resulted in a comparatively higher reduction in susceptibility to Cry1Ac (P < 0.05; Holm-Sidak’s test; n = 3) (Fig 5D). Specifically, about 50% mortality was observed in control larvae treated with 1.0 μg/ml of Cry1Ac (LC₅₀ value), while only 12%, 15% and 6% mortality was observed in larvae injected with dsPxABCC2, dsPxABCC3 and dsMultigenes, respectively (mortality in non-injected larvae fed control diet was <5%). When using 2.0 μg/ml (LC₉₀ value), 92% mortality was observed in controls while only 32%, 37% and 15% mortality was detected in larvae injected with dsPxABCC2, dsPxABCC3 and dsMultigenes. All three silencing treatments had significant effects (LSD test; P < 0.05; n = 3) on fitness components, including decreased pupation rate, reduced pupal weight, shortened pupal time and lower eclosion rate when compared to control treatments, and no differences (LSD test; P > 0.05; n = 3) were detected among control treatments (S11 Table).

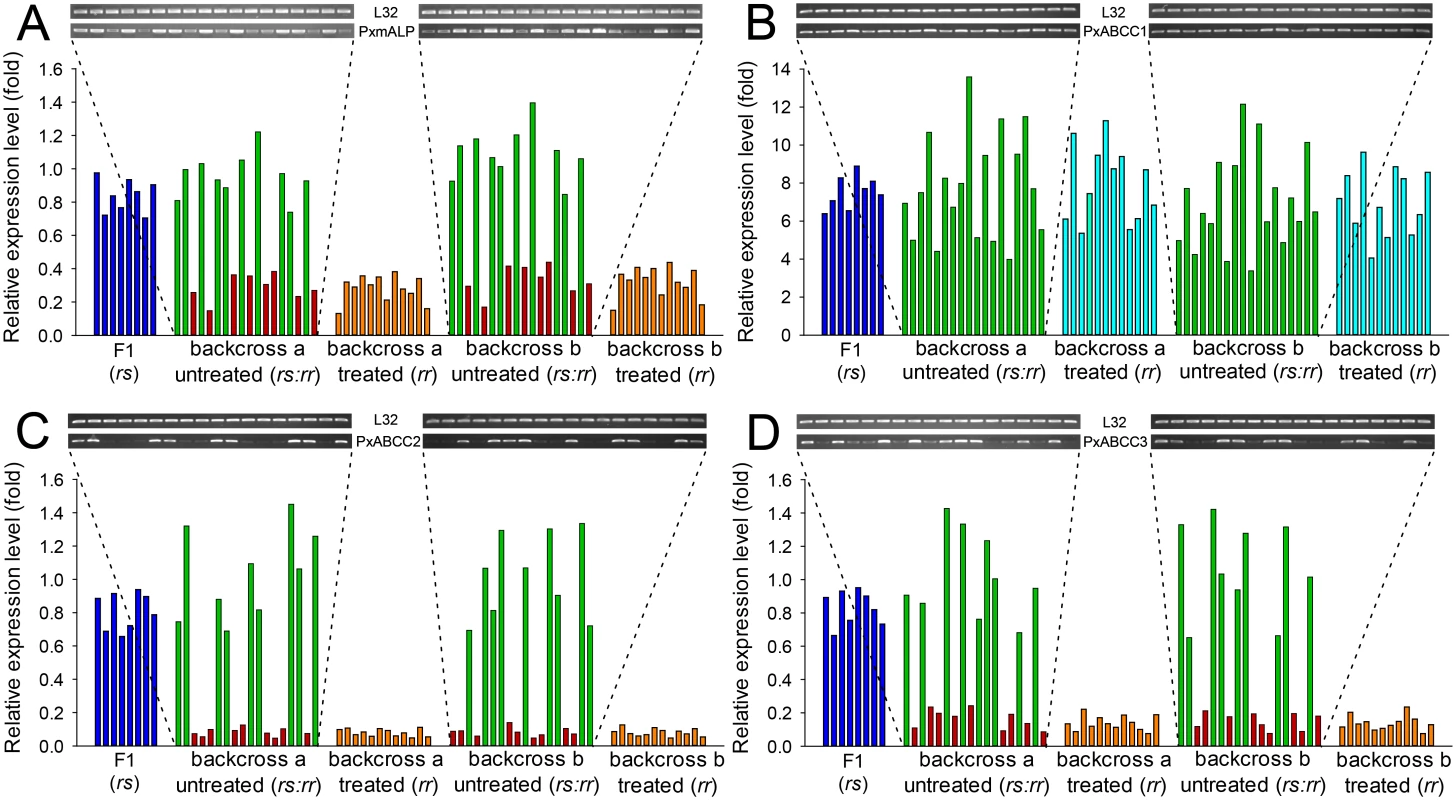

Testing linkage of reduced PxmALP, PxABCC2 and PxABCC3 expression with resistance to Cry1Ac

We further performed genetic linkage analysis to test non-cosegregation of alternative ABCC1-3 gene splicing isoforms or cosegregation of differentially altered expression of the PxmALP and PxABCC1-3 genes with resistance to Cry1Ac toxin in the NIL-R strain. Reciprocal F2 backcross families from crossing the near-isogenic NIL-R (resistant) and DBM1Ac-S (susceptible) strains were generated and selected on cabbage with or without a lethal dose of Cry1Ac protoxin (S8 Fig). Comparison of distribution and sequencing of PxABCC1-3 cDNA isoforms among individual larvae from backcross families exposed or not to Cry1Ac toxin demonstrated no association between PxABCC1-3 isoforms and resistance to Cry1Ac (S9 Fig).

Quantification of PxmALP and PxABCC1-3 expression levels in individual larval midguts from backcross families not exposed to Cry1Ac selection showed two distinct groups (Fig 6). One group demonstrated significantly reduced expression levels of PxmALP (< 0.4-fold), PxABCC2 (< 0.15-fold) and PxABCC3 (< 0.25-fold), while the other group displayed expression levels similar to larvae from the susceptible parental strain (DBM1Ac-S) or the F1 generation from NIL-R × DBM1Ac-S crosses (Fig 6A, 6C and 6D). The ratio between the numbers of individuals in each group, 8:10, 9:9 and 9:9 in backcross family a and 9:9, 9:9 and 10:9 in backcross family b, for the PxmALP, PxABCC2 and PxABCC3 genes, respectively, were statistically validated to follow the 1:1 random assortment ratio (P > 0.10 or P = 1.0; χ² test). Rearing of neonates from both backcross families on Cry1Ac resulted in about 50% mortality (55% backcross family a, 47.5% in family b), consistent with the expected Mendelian inheritance of the recessive resistance trait. All the surviving larvae in both backcross families had reduced PxmALP (< 0.4-fold), PxABCC2 (< 0.15-fold) and PxABCC3 (< 0.25-fold) expression levels compared to larvae from the DBM1Ac-S strain or the F1 generation, demonstrating tight linkage (cosegregation) with resistance to Cry1Ac in NIL-R (P < 0.001, χ² test). However, the expression levels for the PxABCC1 gene in both Cry1Ac-selected and non-selected larvae were similarly up-regulated (4- to 14-fold) compared to susceptible larvae (Fig 6B). Although the unselected backcross individuals exhibited two distinct groups with differing PxmALP, PxABCC2 and PxABCC3 expression levels, both groups of larvae had similar PxABCC1 expression levels (t test, P > 0.10), supporting no correlation between down-regulation of PxmALP, PxABCC2, or PxABCC3 and up-regulation of PxABCC1 expression in the larvae.

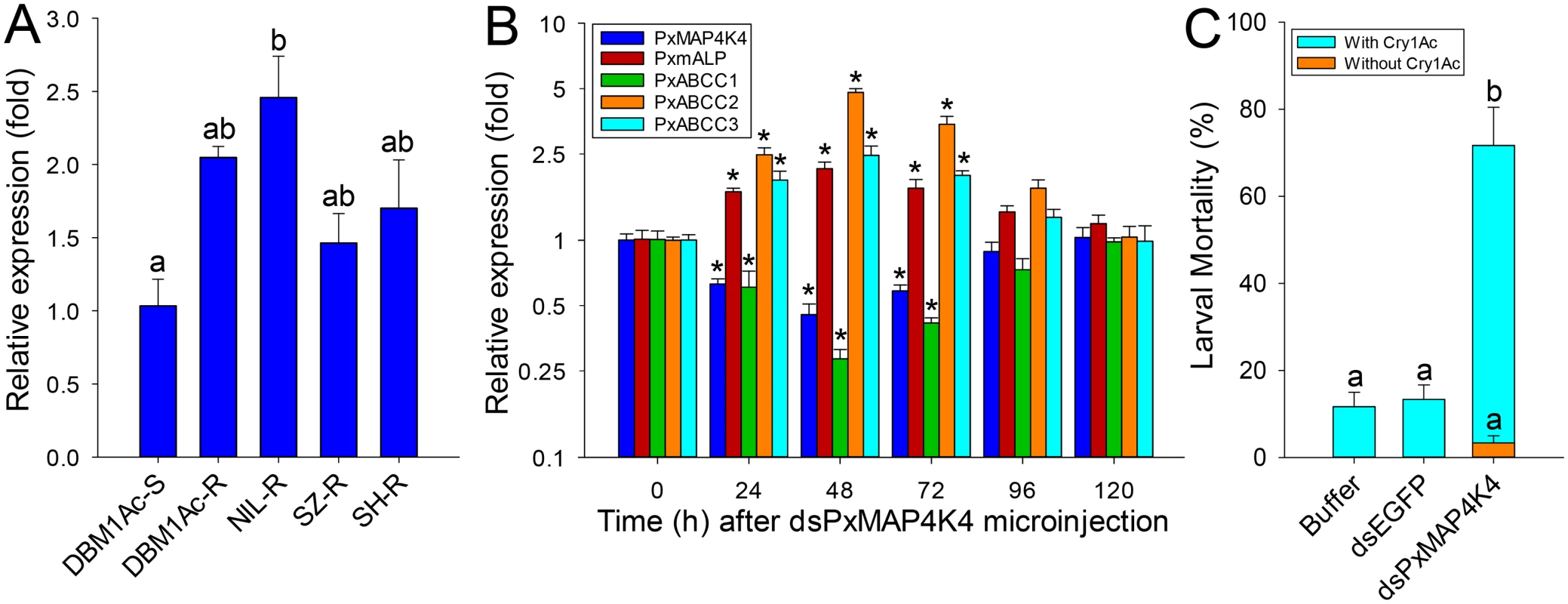

Silencing of PxMAP4K4 gene in BtR-1 locus recovers expression of PxmALP and three PxABCC genes thereby restoring Cry1Ac susceptibility in NIL-R larvae

Analysis of the BtR-1 locus found three genes (two MAPK genes and one MAP4K gene) involved in MAPK signaling pathways (S4 Table; see also Fig 4). Unlike the two MAPK genes, the PxMAP4K4 gene locates extremely close to the three PxABCC genes within the core BtR-1 locus and shows perfect genetic synteny between P. xylostella and B. mori (S4 Table; see also S10 Fig). Using specific primers (S12 Table), we cloned and corrected the full-length cDNA sequence of the incorrectly annotated PxMAP4K4 gene in the P. xylostella genome (DBM-DB, Gene ID Px002422), the bona fide full-length cDNA sequence has been deposited in the GenBank database (accession no. KM507871). Sequence alignment of the deduced amino acid sequences showed conserved N-terminal kinase (Serine/threonine kinase catalytic domain, STKc) and the C-terminal regulatory (citron/NIK homology domain, CNH) domains of PxMAP4K4 gene in homologs from different species (S11 Fig).

Comparisons of PxMAP4K4 expression levels between susceptible and resistant strains by qPCR showed that this gene was constitutively up-regulated in larvae from all resistant strains compared to the susceptible strain (Fig 7A). Moreover, toxin induction assays showed that the expression level of PxMAP4K4 was significantly increased (P < 0.05; Holm-Sidak’s test; n = 3) in the susceptible strain DBM1Ac-S but didn’t alter (P > 0.05; Holm-Sidak’s test; n = 3) in the resistant strain NIL-R when treated with respective median lethal concentration of Cry1Ac in both strains, suggesting that the high expression levels of PxMAP4K4 in resistant strain was constitutive rather than induced (S12 Fig).

To confirm the significance of this observation, we silenced PxMAP4K4 expression by RNAi in resistant NIL-R larvae and tested larval susceptibility to Cry1Ac post-RNAi. Microinjection of dsRNA targeting the CNH domain region of the PxMAP4K4 mRNA resulted in about 55% reduction (0.45-fold) in expression levels at 48 h post-injection, with expression returning to control levels at 120 h post-injection (Fig 7B). Correspondingly, the expression levels of PxmALP, PxABCC2 and PxABCC3 were significantly increased by 2.1-, 4.8- and 2.5-fold at 48 h post-injection, whereas the expression level of PxABCC1 was dramatically reduced 0.28-fold (77% reduction) at this time point (Fig 7B). Subsequent bioassays performed at 48 h post-injection for 72 h demonstrated that silencing of PxMAP4K4 gene expression resulted in a significant increase in larval susceptibility to Cry1Ac protoxin (P < 0.05; Holm-Sidak’s test; n = 3) when compared to the buffer- or dsEGFP-injected larvae (Fig 7C). Specifically, about 3% and 12% mortality was observed in respective control larvae untreated or treated with 1000 μg/ml of Cry1Ac (LC₁₀ value), while approximately 72% mortality was observed in larvae injected with dsPxMAP4K4, and mortality in dsPxMAP4K4-treated larvae not exposed to toxin was < 4%.

Discussion

Field insect populations can develop resistance to entomopathogens used as biopesticides, such as B. thuringiensis (Bt), limiting their potential efficacy for pest management. Multiple Cry1A midgut receptors have been reported in Lepidoptera, which should theoretically make resistance evolution difficult, however, genetic analysis has commonly shown resistance to be a single autosomal locus [41]. Data in this study provides a comprehensive mechanistic description of resistance to Cry1Ac and a Btk biopesticide in larvae from diverse P. xylostella strains. Although previous reports supported that mutations in the PxABCC2 gene localized to the BtR-1 locus are responsible for resistance to Cry1Ac in P. xylostella [10], we did not detect any mutations in the PxABCC2 or other PxABCC genes in BtR-1 associated with resistance in any of our tested strains. In contrast, our findings clearly support that differential expression of a midgut membrane-bound alkaline phosphatase (PxmALP) gene and a suite of PxABCC genes (including PxABCC2) is associated with high levels of resistance to Cry1Ac and Btk in P. xylostella. This is the first report showing that expression alterations, not gene mutations, of ABCC2 and other ABCC genes can be involved in insect Bt resistance. More importantly, for the first time, we identify a transcriptionally-activated upstream gene in the MAPK signaling pathway (PxMAP4K4) within the BtR-1 locus can trans-regulate differential altered expression of the PxmALP and PxABCC genes in BtR-1 to result in Cry1Ac resistance. This novel molecular mechanism of Cry1Ac resistance in P. xylostella is summarized in Fig 8.

Resistance to Cry1Ac in our field-evolved strain DBM1Ac-R [42] and the near isogenic strain NIL-R [43] fits the “Mode 1” type characterized by high levels of resistance to at least one Cry1A toxin, recessive inheritance, reduced binding of at least one Cry1A toxin, and lack of cross-resistance to Cry1C toxin [44]. Reduction in Cry1Ac binding is associated with “Mode 1” type resistance in nearly all cases of field-evolved P. xylostella resistance [7]. This observation, coupled with the Cry toxin binding site model developed for P. xylostella [45] and our Cry1Ac toxin binding data, clearly suggested that “Mode 1” resistance in our strains was due to alterations in at least one Cry1A toxin receptor. While a number of putative Cry receptors have been proposed [8], only alterations in cadherin, APN, ALP and ABCC2 genes have been found to associate with high resistance to Cry1Ac in Lepidoptera [6]. Dramatically reduced ALP enzymatic activity in BBMV samples of resistant P. xylostella larvae prompted us to clone the full-length cDNA of this gene for further functional studies. Sequence analysis showed that the cloned PxmALP is identical to the partial ALP1 gene sequence (GenBank accession no. EF579960, a partial genomic sequence including an intron). In agreement with Cry1Ac resistance not genetically mapping to ALP1 [26], we did not detect any mutations in PxmALP associated with resistance among our P. xylostella strains, however, the PxmALP expression levels were significantly reduced. This observation is also supported by our prior reports demonstrating down-regulation of ALP1 in the DBM1Ac-R (Cry1Ac-R in that report) strain [46] and a more detailed analysis of our recent RNA-Seq survey (S3 Table) [36]. In agreement with these observations, current data support ALPs as relevant Cry1A toxin binding proteins [47,48]. Importantly, altered ALP levels were described as associated with “Mode 1” type resistance to Cry1Ac in lepidopteran hosts [17,18], yet no mechanistic or linkage evidence were provided. Based on the functional and linkage data here, we propose a model for “Mode 1” resistance in P. xylostella in which PxmALP serves as a “lethal receptor” for Cry1Ac toxin. Down-regulation of PxmALP expression in resistant larvae results in reduced toxin binding to the midgut cells and survival. Our definition of PxmALP as a “lethal receptor” is based on its effectiveness as Cry1Ac receptor in cell assays, and the similar susceptibility in heterozygous and homozygous susceptible larvae, as previously suggested in Cry1Ac-resistant H. virescens [49].

Previous complementation tests have suggested that the same resistance locus (BtR-1) containing the mutant PxABCC2 gene [10] is responsible for resistance to Cry1Ac in P. xylostella strains from the continental US (PEN from Pennsylvania, SC1 from South Carolina and DBM1Ac-R originally collected from Florida), Hawaii (NO-QA and NO-QAGE), and China (SZBT) [22,25,38]. Since that the PxmALP gene is not located in the BtR-1 locus [26], our first hypothesis to reconcile the available data on P. xylostella resistance was that mutations or altered expression of PxABCC2 or other PxABCC genes in BtR-1 could result directly or indirectly in reduced expression of PxmALP. In support of this observation, resistance to a Bt pesticide in S. exigua [12,50] and to Cry1Ac in T. ni [10,24] was linked to mutations in ABCC2 and a concomitant down-regulation of an APN gene. However, unlike previous reports [10], we did not detect any mutations in PxABCC2 associated with resistance. Instead, we detected alternative splicing of ABCC subfamily genes, as previously reported in other insects [51–53]. Some of the splicing isoforms can lead to truncated ABCC proteins, which in heterozygotes would be masked by the susceptible allele, as previously proposed for cadherin gene [49]. Thus, these alternative splicing isoforms may represent a natural system to generate recessive gene mutation pools for Bt resistance selection. Intriguingly, alternative ABCC splicing was limited to the exon 4–11 region, suggesting that this cDNA region is more prone to allow mutations. This mechanism would explain rapid appearance of field-evolved resistance to Bt sprays in P. xylostella.

Although gene mutations of PxABCC genes were excluded, our further study corroborated differential expression alterations of these PxABCC genes were associated with Cry1Ac intoxication in P. xylsotella. However, our RNAi results showed that silencing of PxABCC2 or PxABCC3 genes did not affect PxmALP expression, which suggests PxABCC genes can’t regulate the expression level of PxmALP gene. Then, an independent role of PxABCC and PxmALP genes in Cry1Ac susceptibility is suggested as our second hypothesis. In support of this observation, similar effects on Cry1Ac susceptibility were detected when silencing PxABCC or PxmALP genes separately, and the comparatively higher reduction in Cry1Ac susceptibility was observed after performing combinatorial RNAi to simultaneous silencing of PxmALP, PxABCC2 and PxABCC3 genes. Therefore, it is plausible to postulate that an uncharacterized trans-regulatory gene in the BtR-1 locus could potentially control differential altered expression of both PxABCC and PxmALP resistance genes. Not incidentally, a similar hypothesis was proposed to explain allelic expression alteration of ABCC2 and APN3 genes in B. mori [54], and APN down-regulation in Cry1Ac-resistant T. ni [24] and Cry1Ab-resistant Ostrinia nubilalis [55].

While genes modulating ALP and ABCC expression in insects have not been reported, genes in the MAPK signaling pathway have been shown to modulate mammalian ALP [56–58] and human ABCC gene expression [59–62]. The MAPK signaling pathway can be activated as a defensive response to Bt Cry toxins [27–30]. Consequently, it is plausible that altered PxmALP and PxABCC gene expression in resistant P. xylostella may result from a primary enhanced defensive response involving activation of a trans-acting gene in the MAPK signaling pathway located in the BtR-1 locus. As expected, we found three MAPK genes in BtR-1 and identified the PxMAP4K4 gene in proximity to the three ABCC genes (S10 Fig). Of particular note, homologs of this PxMAP4K4 gene in mammals, Caenorhabditis elegans, and Drosophila are all upstream components of the MAPK signaling pathway and play important physiological roles in these species [63–65]. Accordingly, we found that the expression level of this gene can be induced in the susceptible strain when challenged by low concentration of Cry1Ac toxin, and functional data in this study demonstrated that this gene is constitutively transcriptionally-activated in resistant larvae to trans-regulate PxmALP and PxABCC expression levels thereby dramatically affecting Cry1Ac susceptibility, which finally attests to the involvement of the MAPK signaling pathway in P. xylostella Cry1Ac resistance. Since that cadherin can mediate the intracellular MAPK signaling pathway in mammal or insect cells [32,66,67], and considering that alteration of cadherin gene expression is associated with resistance to Cry toxins in several other lepidopteran insects [68,69], it will be very interesting to examine the possible feedback regulation of MAPK signaling in cadherin gene expression regulation. Moreover, since diverse upstream cytokines in the MAPK signaling pathway can regulate expression of APN genes in mammals [70,71], and considering that alteration of APN gene expression is associated with resistance to Cry toxins in several other lepidopteran insects [24,50,54,55,72], it will be very interesting to examine the possible involvement of MAPK signaling in APN gene expression regulation. Recently, we have found that down-regulation of a novel ABC transporter gene (PxABCG1 or Pxwhite) possibly trans-regulated by the MAPK signaling pathway can also be involved in P. xylostella Cry1Ac resistance, suggesting the MAPK signaling pathway may trans-regulate numerous ABC transporters from different subfamilies [73]. Therefore, it is plausible that this novel trans-regulatory mechanism might be a common regulation event of diverse Bt receptor genes in all of these cases.

Duplication or amplification of functional genes is thought to be a major driving force for adaptive evolution of insect response to environmental stress [74] and development of insecticide resistance [75,76]. Whole genomic analyses support that the ABC transporter superfamily has undergone apparent gene duplication in the P. xylostella genome [40], and this duplication may allow for functional redundancy. Based on their extremely similar genomic structure and high sequence similarity, it is highly possible that the PxABCC1-3 genes in BtR-1 locus may have been generated through gene duplication and share similar functions. Considering that PxABCC1 gene up-regulation was not linked to Cry1Ac resistance, we speculate that PxABCC1 may have lost the ability to bind Cry1Ac toxin but retained substrate transport function to functionally rescue the reduced PxABCC2 and PxABCC3 phenotype in resistant larvae. Likewise, transcriptionally-activated MAPK signaling induced by Cry5B intoxication in C. elegans up-regulated a target cation efflux transporter gene (ttm-1) possibly involved in removing cytotoxic cations generated by toxin-induced pore formation [27]. This phenomenon would also resemble up-regulation of APN6 in Cry1Ac-resistant T. ni with down-regulated APN1 expression [24]. Since silencing of PxABCC2 and PxABCC3 genes result in obvious fitness costs in P. xylostella larvae, rescue of ABCC gene function in resistant P. xylostella by PxABCC1 would also help explain lack of fitness costs in the DBM1Ac-R strain [77]. These data suggest that functional redundancy in ABCC genes can reduce fitness costs and thus increase the probability of resistance evolution in the field, which may threaten the continued effectiveness of Bt sprays/Bt crops and the currently adopted refuge strategy. In this case, we should attach great importance to this observation and perform continuous field monitor of insect resistance in such form.

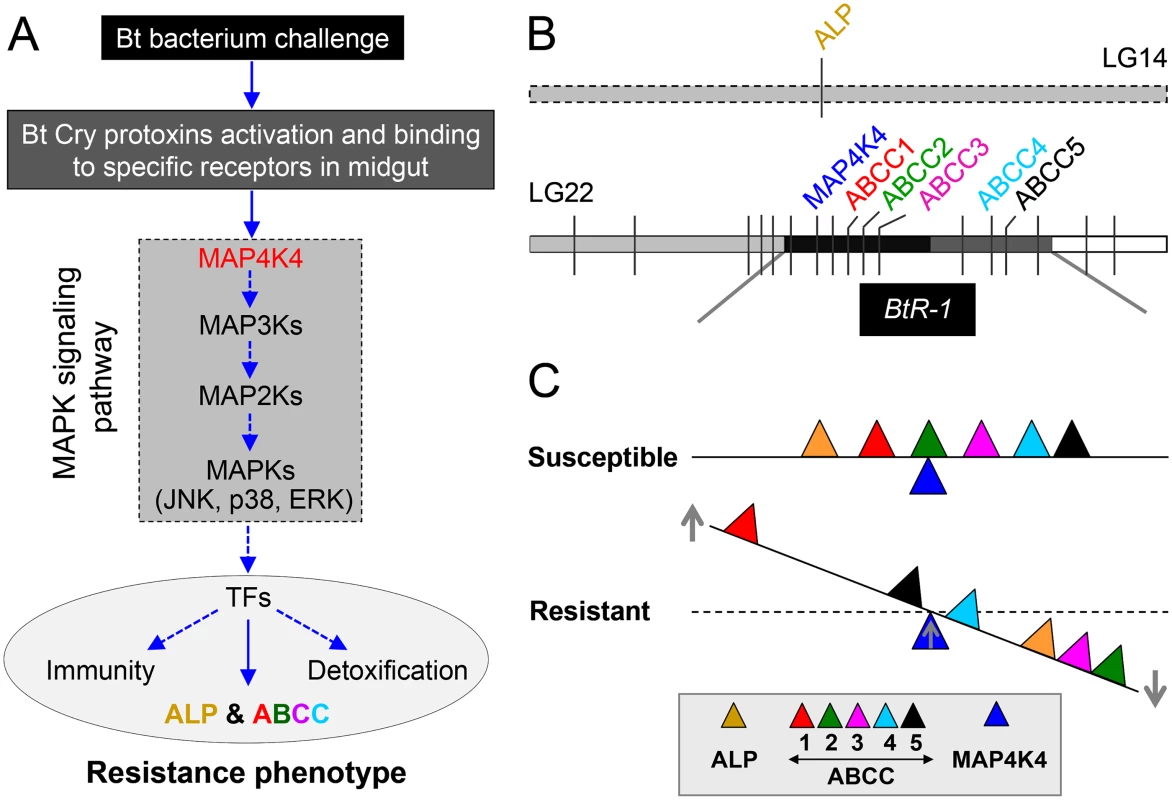

In summary, the present study shows that alteration in expression of multiple putative Cry1Ac receptors is linked to “Mode 1” type resistance in P. xylostella, and that this altered gene expression is trans-regulated by the MAPK signaling pathway. Although the data presented do not directly address the participation of additional elements and the full repertoire of the MAPK signaling pathway, they do provide strong evidence for an important role of this signaling pathway in insect susceptibility to Cry1Ac toxin. Further work is needed to identify additional toxin receptor genes (e.g. cadherin and APN) that may also be controlled by this pathway and other MAPK genes or downstream transcription factors involved in Bt resistance in insects. The present data deepens our understanding of how insect target cells counter Cry intoxication through functionally sophisticated intracellular responses to result in Bt resistance. Moreover, the identified pivotal genes and their expression regulation mechanism responsible for resistance to Cry toxins in this study are critical for sensitive and efficient monitoring and management practices to delay field-evolved insect resistance to Bt pesticides and Bt crops.

Materials and Methods

Insect strains

The susceptible DBM1Ac-S and resistant DBM1Ac-R (previously referred to as Cry1Ac-R) strains of P. xylostella were originally provided by Drs. J. Z. Zhao and A. Shelton (Cornell University, USA) in 2003. The DBM1Ac-R strain originated from insects with field-evolved resistance to Javelin (Bt var. kurstaki) from Loxahatchee (Florida, USA) [78] that were crossed with the DBM1Ac-S (Geneva 88) strain (originated from Geneva, NY, USA) and further selected with Cry1Ac-expressing broccoli [79]. Resistance to Cry1Ac in DBM1Ac-R is autosomal, incompletely recessive and mostly monogenic [77]. The SZ-R (previously referred to as T2-R) and SH-R strains were originated from moths collected in China at Shenzhen (2003) and Shanghai (2005), respectively. The SZ-R strain was generated by selection in the laboratory with Cry1Ac while the SH-R strain was selected with a Bt var. kurstaki (Btk) formulation (WP with potency of 16000 IU/mg, provided by Bt Research and Development Centre, Agriculture Science Academy of Hubei Province, China). The DBM1Ac-S strain was kept unselected while the DBM1Ac-R and SZ-R strains have been kept under constant selection with a Cry1Ac protoxin solution killing 50–70% of the larvae sprayed on cabbage leaves. The near-isogenic NIL-R strain has been generated at the time this study was carried out and has been described elsewhere [43]. For this work, all strains were reared on JingFeng No.1 cabbage (Brassica oleracea var. capitata) without exposure to any Bt toxins or chemical pesticides at 25°C, 65% RH and 16D:8L photoperiod. Adults were fed with a 10% sucrose solution.

Cry1Ac toxin preparation and bioassay

The Cry1Ac protoxin was extracted and purified from Bt var. kurstaki strain HD-73 as previously described [80]. Both purified Cry1Ac protoxin and trypsin-activated toxin were quantified by densitometry as described elsewhere [81].

Toxicity of Cry1Ac toxin or Btk formulation in 72 h bioassays with larvae from five different strains of P. xylostella using a leaf-dip method as described elsewhere [33]. Ten third instar P. xylostella larvae were tested for each of seven toxin concentrations and bioassays replicated four times. Mortality data were corrected using Abbott’s formula [82] and experiments with control mortality exceeding 10% were discarded and repeated. The LC₅₀ values were calculated by Probit analysis [83].

Midgut dissection and sample preparation

Fourth-instar larval midguts (about 2000) from each P. xylostella strain were dissected in cold MET buffer [17 mM Tris–HCl (pH 7.5), 5 mM EGTA, 300 mM mannitol] plus protease inhibitors (1mM PMSF). Midgut brush border membrane vesicles (BBMV) were prepared as described elsewhere [84]. Purified BBMV proteins were quantified using the method of Bradford [85] with bovine serum albumin (BSA) as standard, and then flash frozen and kept in aliquots at -80°C until used. Between 5–8 fold enrichment in specific APN activity using L-leucine-p-nitroanilide (Sigma) was detected when comparing to initial midgut homogenates.

Midgut luminal contents were obtained as described elsewhere [18] by homogenization of pools of dissected midguts of actively feeding fourth-instar P. xylostella larvae with an electric pestle in a 1.5 ml centrifuge tube containing 100 μl of phosphate-buffered saline (PBS) buffer (137 mM NaCl, 2.7 mM KCl, 10 mM Na₂HPO₄, 2.0 mM KH₂PO₄, pH 7.4). Homogenates were vigorously vortexed and centrifuged at 4°C (10 min at 16000×g). Supernatants were used for subsequent enzymatic assay measurements or flash frozen and kept in aliquots at -80°C until used.

Enzymatic activity assays

Specific APN and ALP activity assays were performed using L-leucine-p-nitroanilide and p-nitrophenyl phosphate disodium (pNPP) as substrates, respectively, as described elsewhere [86]. Enzymatic activity was detected as the changes in optical density (OD) at 405 nm for 5 min at room temperature in a SpectraMax M2^e (Molecular Devices) microplate reader. One enzymatic unit was defined as the amount of enzyme that would catalyze production of the chromogenic product from specific substrate per min and mg of BBMV protein at 37°C. Data shown are the means from triplicate measurements from three independent BBMV preparations and were analyzed for significance with a one-way ANOVA using Holm-Sidak’s tests (overall significance level = 0.05) with the SPSS Statistics (ver. 17.0) software (SPSS Inc.).

BtR-1 resistance locus assembly

The seven mapped genes in Baxter et al. [10] were used as markers to find P. xylostella genome scaffolds within the chromosome region of the BtR-1 resistance locus in the Diamondback moth Genome Database (DBM-DB, http://iae.fafu.edu.cn/DBM), and their locations determined the final jointed pattern of all P. xylostella genome scaffolds. Homologs of the genes within this locus between P. xylostella and B. mori were identified through Blastp searches in each genome database. The detailed genetic makeup of the BtR-1 resistance locus is listed in S4 Table.

RNA extraction and cDNA synthesis

Fourth-instar larvae from different P. xylostella strains were anesthetized on ice and the midgut tissues were immediately dissected in RNase-free water containing 0.7% NaCl. Total RNA was extracted from single or pool of these dissected midguts using TRIzol reagent (Invitrogen) according to different experiments. Integrity of the RNA was determined using 1% TBE agarose gel electrophoresis, and then quantified by a NanoDrop 2000c spectrophotometer (Thermo Fisher Scientific Inc.). For gene cloning, the first-strand cDNA was prepared using 5 μg of total RNA with the PrimeScript Ⅱ 1st strand cDNA Synthesis Kit (TaKaRa) following manufacturer’s recommendations. For qPCR analysis, the first-strand cDNA was prepared using 1 μg of total RNA with the PrimeScript RT kit (containing gDNA Eraser, Perfect Real Time) (TaKaRa) following manufacturer’s recommendations. The synthesized first-strand cDNA was immediately stored at -20°C until used.

Gene cloning and sequencing

For PxmALP cloning, degenerate primers (S2 Table) were designed to target two highly conserved regions among selected lepidopteran mALP sequences (Bombyx mori, BAB62745; Helicoverpa armigera, ACF40806; Heliothis virescens, ACP39712; and Ostrinia furnacalis, AEM43806). The PCR parameters were as follows: one cycle of 94°C for 3 min; 35 cycles of 94°C for 30 s, 59°C for 45 s and 72°C for 1 min; a final cycle of 72°C for 10 min. The generated 536 bp midgut cDNA fragment was sequenced and used in Rapid Amplification of cDNA Ends (RACE) to obtain the full length ALP cDNA with 3′-Full RACE Core Set Ver.2.0 (TaKaRa) and SMARTer RACE cDNA Amplification (Clontech) kits following manufacturer’s protocols. Once a full-length cDNA for PxmALP was obtained the full coding sequence was validated by PCR amplification. Large-scale sequencing and comparing of the full-length midgut PxmALP was performed among all the susceptible and resistant P. xylostella strains. The full length midgut PxmALP cDNA sequence has been deposited in the GenBank (accession no. KC841472).

To first detect the reported PxABCC2 mutation (30 bp deletion in Exon 20) correlated with Bt resistance in P. xylostella strain NO-QAGE [10], one specific primer pair covering this region was designed based on the published partial PxABCC2 cDNA sequence (GenBank accession no. JN030490) (S6 Table). The PCR amplification of all the cDNA sequences of five ABCC genes in the BtR-1 resistance locus was performed using the strategy described elsewhere [87]. We first in silico assembled and corrected the full-length sequences of ABCC1-5 based on their putative coding sequences in the DBM-DB database (http://iae.fafu.edu.cn/DBM, Gene ID: Px002418+19, Px002416, Px002414+15, Px009835 and Px009834) and their unigenes in our P. xylostella transcriptome database [88] (S3 Table), then their cDNA was amplified by designing full-length primer pairs with four or five overlapping fragments (S5–S9 Table). The full length ABCC1-5 cDNA sequences have been deposited in GenBank (accession nos. KM245560–KM245564). In addition, the occurrence of large inversions or deletions was tested in a second amplification strategy by amplifying the whole cDNA sequence with specific full-length primers (S5–S9 Table) in a first step, followed by nested PCR amplification using the same full-length primer pairs with four or five overlapping fragments as described above. Amplicons were sequenced and the distribution of alternatively spliced transcripts of ABCC1-3 was compared among samples from untreated and larvae surviving Cry1Ac exposure. Using the same strategy as for ABCC genes, we cloned and obtained the full-length cDNA sequence of the PxMAP4K4 gene (GenBank accession no. KM507871).

The PCR reactions (25 μl total volume) contained 18.5 μl of double-distilled H₂O (ddH₂O), 2.5 μl of 10×LA Taq or Ex Taq Buffer, 2 μl of dNTP Mix, 5 μM of each specific primer, 1 μl of first-strand cDNA template, and 0.25 μl LA Taq HS or Ex Taq HS polymerase (TaKaRa). Reactions (35 cycles) were then performed in an S1000 or C1000 Thermal Cycler PCR system (BioRad) with the following parameters: one cycle of 94°C for 6 min; 35 cycles of 94°C for 30 s, 50–59°C for 45 s and 72°C for 5 min; a final cycle of 72°C for 15 min. The nested PCR parameters were as follows: one cycle of 94°C for 6 min; 35 cycles of 94°C for 30 s, 59°C (PxABCC2 and PxMAP4K4)/54°C (other four PxABCC genes) for 45 s and 72°C for 2 min; a final cycle of 72°C for 10 min.

All the cloning primers for each gene were designed in the Primer Premier 5.0 software (Premier Biosoft). Amplicons of the expected size were excised from 1.5–2.5% agarose gels, purified using the Gel Mini Purification Kit (Generay), and subcloned into the pEASY-T1 (Transgen) or pMD18-T vectors (TaKaRa) before transformation into Escherichia coli TOP10 competent cells (Transgen) for sequencing.

In silico gene sequence analysis and phylogenetic tree construction

Gene sequence assembling, multiple sequence alignment and exon-intron analysis were carried out with DNAMAN 7.0 (Lynnon BioSoft). The open reading frame of the target nucleotide sequence is found by the ORF Finder tool at NCBI website (http://www.ncbi.nlm.nih.gov/gorf/gorf.html). The nucleotide sequence-similarity analyses were performed through BLAST tool at NCBI website (http://blast.ncbi.nlm.nih.gov/). The deduced protein sequence was obtained by an ExPASy translate tool Translate (http://web.expasy.org/translate/) from the Swiss Institute of Bioinformatics. The N-terminal signal peptide was determined using the SignalP 4.0 server (http://www.cbs.dtu.dk/services/SignalP/). The transmembrane region and membrane topology was analyzed by the TOPCONS online software (http://topcons.cbr.su.se/). Protein specific motif was searched and analyzed using the Myhits software (http://myhits.isbsib.ch/cgi-bin/motif_scan), the Prosite software (http://www.expasy.ch/prosite/) and CDD (conserved domain database) at NCBI. Two GPI modification site prediction servers (big-PI Predictor: http://mendel.imp.ac.at/sat/gpi/gpi_server.html and GPI-SOM: http://gpi.unibe.ch/) were used to predict the GPI-anchor signal sequence and GPI anchoring site. Presence of N- and O-glycosylation sites on the predicted protein sequence were tested using the NetNGlyc 1.0 (http://www.cbs.dtu.dk/services/NetNGlyc/) and NetOGlyc 4.0 server (http://www.cbs.dtu.dk/services/NetOGlyc/), respectively.

Protein sequences of the ALP and ABCC genes used for phylogenetic analyses were extracted from different databases: GenBank (http://www.ncbi.nlm.nih.gov/), SilkDB (http://silkworm.genomics.org.cn/), DBM-DB (http://iae.fafu.edu.cn/DBM) and Manduca Base (http://agripestbase.org/manduca/), and sequence alignment was carried out after eliminating vast redundant ALP or ABCC sequences. All the selected insect ALP and ABCC amino acid sequences were subjected to analysis through Clustal W alignment using Molecular Evolutionary Genetic Analysis software version 5.0 (MEGA 5) [89], then the phylogenetic tree was constructed using the neighbor-joining (NJ) method with “p-distance” as amino acid substitution model, “pairwise deletion” as gaps/missing data treatment and 1000 bootstrap replications.

Quantitative PCR (qPCR) analysis

Gene-specific primers to the PxmALP gene were selected and used in PCR reactions (25 μl) containing 11.95 μl of ddH₂O, 11.25 μl of 2.5×SYBR Green MasterMix (TIANGEN), 4 μM of each specific primer, and 1 μl of first-strand cDNA template. The qPCR program included an initial denaturation for 6 min at 94°C followed by 40 cycles of denaturation at 94°C for 30 s, annealing for 30 s at 61°C, and extension for 35 s at 72°C. Gene-specific primers for PxABCC and PxMAP4K4 genes were designed in the cDNA regions without alternative splicing and used in PCR reactions (25 μl) containing 9.5 μl of ddH₂O, 12.5 μl of 2×SuperReal PreMix Plus (TIANGEN), 7.5 μM of each specific primer, 1 μl of first-strand cDNA template and 0.5 μl 50×ROX Reference Dye (TIANGEN). The qPCR program included an initial denaturation for 15 min at 95°C followed by 40 cycles of denaturation at 95°C for 15 s, annealing for 30 s at 53°C (PxABCC2)/55°C (other four PxABCC genes)/63°C (PxMAP4K4), and extension for 32 s at 72°C. For melting curve analysis, an automatic dissociation step cycle was added. Reactions were performed in an ABI 7500 Real-Time PCR system (Applied Biosystems) with data collection at stage 2, step 3 in each cycle of the PCR reaction. Amplification efficiencies were calculated from the dissociation curve of quadruplicate replicates using five 2-fold serial dilutions (1:1, 1:2, 1:4, 1:8, and 1:16). Only results with single peaks in melting curve analyses, 95–100% primer amplification efficiencies, and >0.95 correlation coefficients were used for subsequent data analysis. Negative control reactions included ddH₂O instead of cDNA template, which resulted in no amplified products. The amplified fragments were sequenced to confirm that potential expression differences were not due to sequence mutations in the targeted genes. Relative quantification was performed using the 2^-ΔΔCt method [90] and normalized to the ribosomal protein L32 gene (GenBank accession no. AB180441) as validated elsewhere [40,91]. Four technical replicates and three biological replicates were used for each treatment. One-way ANOVA with Holm-Sidak’s tests (overall significance level = 0.05) were used to determine the significant statistical difference between treatments.

Heterologous expression of PxmALP in Sf9 cell cultures

The Bac-to-Bac Baculovirus Expression System (Invitrogen) was used to express the recombinant PxmALP protein in Spodoptera frugiperda Sf9 cell cultures. The full-length PxmALP cDNA was cloned and amplified by high fidelity PCR with specific primers (S2 Table). Amplicons were purified, subcloned and sequenced as described above. Recombinant plasmids with correct insertion were verified by endonuclease digestion, PCR and sequencing. The verified positive clone was digested with EcoRI and XbaI for 3 h and then ligated into the pFastBac TH B donor plasmid vector to generate the recombinant pFastBac HT B-PxmALP bacmid. The recombinant plasmids (pFastBac HT B-PxmALP) were then transformed into DH10Bac competent cells (Invitrogen) and positive recombinant bacmid DNAs were detected by antibiotic selection and confirmed by PCR amplification.

For heterologous expression, transfections were performed in sterile six-well plates (Costar). Briefly, Sf9 cultures (8×10⁵ cells/well) with >97% viability were cultured in Grace’s insect medium supplemented with 10% fetal bovine serum and transfected with 1 μg of pFastBac HT B-PxmALP in Cellfectin II Reagent (Invitrogen) following manufacturer’s instructions. Cells were incubated at 27°C until the viral infection was clear (3 days post-infection) and then the P1 viral stock was harvested by centrifugation at 480×g for 5 min at room temperature. The viral titer was determined using absolute quantification with standard curve by qPCR. The optimized viral stock with multiplicity of infection (MOI) of 0.1 was used to infect 2.0×10⁶ Sf9 cells/well, and the supernatant at 72 h post-infection representing the P2 viral stock was collected and used to infect Sf9 cells (2.0×10⁶ cells/well) at an optimized high MOI value (3–5). Non-infected cells and Sf9 cells infected with either an empty bacmid or a bacmid containing the Arabidopsis thaliana β-glucuronidase (GUS) gene (pFastBac-GUS) were used as controls.

Transfected Sf9 cell pellets were harvested 3 days post-infection, washed three times with PBS buffer (pH 7.4) and lysed using the I-PER Insect Cell Protein Extraction Reagent (Thermo Fisher Scientific Inc.) plus 1 μg/ml aprotinin (Sigma) with gentle agitation at 4°C for 10 min. After centrifugation at 15000×g at 4°C for 15 min, the supernatants containing recombinant proteins were quantified as described above, and stored at -80°C until used.

Cry1Ac toxin binding assays

Binding of Cry1Ac to BBMV proteins was tested as described elsewhere [92] in 100 μl (final volume) reactions containing 10 nM Cry1Ac toxin and 10 μg P. xylostella BBMV in PBS binding buffer (PBS, pH 7.4 containing 0.1% BSA and 0.1% Tween-20). After electrophoresis with a constant current of 300 mA at 4°C for 1 h and then incubation with blocking buffer (PBS, 0.1% Tween-20, 3% BSA) for 1 h with constant shaking, bound toxin was detected with rabbit anti-Cry1Ac polyclonal antisera (1:100000 dilution) followed by goat anti-rabbit secondary antibody conjugated to horseradish peroxidase (HRP) (1:5000 dilution, CWBIO). The bound Cry1Ac was visualized using the SuperSignal West Pico (Pierce) reagent. Relative Cry1Ac binding was quantified using densitometry with the ImageJ v.1.47 software (http://rsbweb.nih.gov/ij/) with intensity in the DBM1Ac-S BBMV sample considered 100% binding. Data presented are the means and standard errors from assays using three independent BBMV experiments per strain.

Immunolocalization of Cry1Ac toxin binding to Sf9 cells expressing PxmALP was tested as previously [93] with slight modifications. Transfected cell cultures were incubated in 300 μl of PBS (pH 7.4) alone or with 1 U of phosphatidylinositol-specific phospholipase C (PI-PLC) (Invitrogen) at 4°C for 2 h with gentle agitation, and then washed thrice with PBS and incubated with Cry1Ac toxin (100 μg/ml) at 27°C for 2 h. Cultures were washed and then fixed in ice-cold 4% paraformaldehyde for 15 min. After washing and blocking with 1% BSA for 1 h at room temperature, the cells were probed sequentially with primary rabbit polyclonal anti-Cry1Ac antibody and FITC-conjugated goat anti-rabbit secondary antibody, each with 1:100 dilution and incubation for 1 h at 27°C. Finally, the cells were pipetted onto glass slides, mounted with coverslips and examined immediately under a LSM 700 confocal laser scanning microscope (Carl Zeiss) using excitation at 488 nm and 20× objective with additional zooming. Image acquisition of the controls (Non-infected Sf9 cells and GUS-infected Sf9 cells) and data processing were performed under the same conditions.

Enzyme Linked Immunosorbent Assays (ELISA) were performed as described elsewhere [47,94]. To test for Cry1Ac binding to PxmALP, 10 nM trypsin-activated Cry1Ac toxin was fixed into ELISA plates (Costar) overnight at 4°C, followed by five washes with 200 μl PBST buffer (PBS, pH 7.4; 0.05% Tween-20). The plates were then blocked by incubating with 100 μl 1% BSA at 37°C for 1.5 h, and washed five times with 200 μl PBST. After incubating with 0.5 μg of solubilized Sf9 cell culture proteins transfected with empty bacmid, expressing the GUS protein or PxmALP, bound PxmALP to Cry1Ac was detected using a 1:5000 dilution of anti-His antibody coupled to horseradish peroxidase (HRP) and subsequent 1:5000 dilution of anti-mouse antibody (CWBIO). Finally, the plates were incubated with 150 μl TMB (3,3′,5,5′-tetramethylbenzidine) Horseradish Peroxidase Color Development Solution (Beyotime), and the enzymatic reaction was stopped with 50 μl 2M H₂SO₄ and absorbance values (OD values) were read at 450 nm in microplate reader. As controls, wells coated with Cry1Ac but incubated without any of the three expressed proteins and revealed with the same antibodies above. The OD values of controls were all below 0.2 and subtracted from the experimental OD values. The experiments were repeated for three times using protein samples from independent batches and each with three replications.

Cytotoxicity assays

Susceptibility to Cry1Ac in transfected Sf9 cell cultures was assessed by counting cells stained by trypan blue using an IX-71 Inverted Microscope (Olympus). Cells at 3-day post-infection were washed twice with PBS and then incubated with 100 μg/ml of Cry1Ac toxin in Sf9 cell medium. After 3 h at 27°C with gentle agitation, cells were washed once with 1 ml of PBS and then resuspended in 1 ml of a 0.4% trypan blue solution in PBS. The numbers of live (unstained) and dead (stained blue) cells in three replicates for each cell type and from three independent transfections were counted in a hemocytometer. Relative percentage mortalities were calculated using the total cell number in each replicate. Mortality data from diverse treatments were tested for significant differences using two-way analysis of variance (ANOVA) and Holm-Sidak’s multiple pairwise comparison tests (overall significance level = 0.05).

Toxin induction assays

Toxin induction assays of the PxMAP4K4 gene were performed using third instar larvae from the susceptible strain DBM1Ac-S and the near-isogenic resistant strain NIL-R. We selected the DBM1Ac-S or NIL-R larvae with 1 or 3500 μg/ml Cry1Ac protoxin (respective LC₅₀ value in each strain) for 72h as the leaf-dip method used in bioassay, the unselected larvae from both strains were used as control groups. After 72h, larval midguts were dissected from survivors, and subsequent total RNA extraction, cDNA synthesis, qPCR analysis of the PxMAP4K4 gene expression were as described above. Three independent experiments were conducted, and one-way ANOVA with Holm-Sidak’s tests (overall significance level = 0.05) were used to determine the significant statistical difference between control and treatment groups.

dsRNA synthesis and RNAi assays

The expression of PxmALP, PxABCC2, PxABCC3 and PxMAP4K4 genes was silenced using injection of dsRNA in early 3rd instar P. xylostella larvae. Specific primers containing a T7 promoter sequence at the 5′ end to generate dsRNA targeting PxmALP (GenBank accession no. KC841472) and mALP1 from H. armigera (GenBank accession no. EU729322.1), or EGFP (GenBank accession no. KC896843) were designed using the SnapDragon tool (http://www.flyrnai.org/cgi-bin/RNAi_find_primers.pl). Primers to generate dsRNA to PxABCC2 (GenBank accession no. KM245561) and PxABCC3 (GenBank accession no. KM245562) were designed to the specific transmembrane region lacking alternative splicing and not in the intergenic conserved nucleotide binding domain (NBD) to avoid potential off-target effects. Primers for dsRNA of PxMAP4K4 (GenBank accession no. KM507871) were designed to the constant C-terminal CNH domain region lacking alternative splicing (S11 Fig). After amplification from P. xylostella or H. armigera total larval midgut RNA and confirmation by sequencing, the amplicons (438 bp for dsPxmALP, 538 bp for dsHamALP1, 469 bp for dsEGFP, 603 bp for dsPxABCC2, 531 bp for dsPxABCC3, and 582 bp for dsPxMAP4K4) were used as template for in vitro transcription reactions to generate dsRNAs using the T7 Ribomax Express RNAi System (Promega). The synthesized dsRNAs were suspended in injection buffer (10 mM Tris–HCl, pH 7.0; 1 mM EDTA), and then they were subjected to 1% agarose gel electrophoresis and quantified spectrophotometrically prior to microinjection. To increase dsRNA stability and facilitate dsRNA delivery, injection was carried out with a 1:1 volume ratio of Metafectene PRO transfection reagent (Biontex) after incubation for 20 min at 25°C. A combinatorial RNAi approach involving simultaneous knockdown of PxmALP, PxABCC2 and PxABCC3 genes was performed by mixing equal amounts (300 ng each) of the corresponding dsRNAs for microinjection of larvae from the susceptible DBM1Ac-S strain. In contrast, silencing of PxMAP4K4 was performed in the near-isogenic Cry1Ac resistant strain NIL-R displaying increased PxMAP4K4 expression. None of the larvae were exposed to Cry1Ac toxin before dsRNA microinjection to avoid detection of transcriptome changes due to exposure to the toxin. Optimal time to detect silencing and dsRNA amounts were optimized for PxmALP in preliminary experiments (S4 Fig).

Microinjection was carried out under a SZX10 microscope (Olympus). The volume of sample microinjected into each larvae was determined to result in <20% larval mortality 5 days post-injection. The Nanoliter 2000 microinjection system (World Precision Instruments Inc.) with sterilized fine glass capillary microinjection needles pulled by P-97 micropipette puller (Sutter Instrument) were used to deliver 70 nanoliters of injection buffer (containing Metafectene PRO solution) or dsRNAs (300 ng) into the hemocoel of early 3rd instar DBM1Ac-S or NIL-R P. xylostella larvae.

Larvae were starved for 6 h and anesthetized for 30 min on ice before microinjection. More than twenty or fifty larvae were injected for each treatment and three independent experiments performed. Injected larvae were allowed to recover for about 3 h at room temperature and then returned to normal rearing conditions for the subsequent qPCR assays to determine gene silencing and bioassays.

Effectiveness of RNAi was tested by qPCR 0–120 h post-injection using cDNA prepared from isolated total midgut RNA as described above. Leaf-dip bioassays were performed for 72 h using larvae at 48 h after dsRNA injection and Cry1Ac protoxin concentrations representing approximately the LC₅₀ (1 μg/ml) and LC₉₀ (2 μg/ml) values for non-injected DBM1Ac-S larvae and LC₁₀ (1000 μg/ml) values for non-injected NIL-R larvae. Bioassays were performed with forty larvae per RNAi treatment and toxin concentration, and each bioassay replicated three times. Mortality in control treatments was below 5% and bioassay data processing was as described above. One-way or two-way ANOVA with Holm-Sidak’s tests (overall significance level = 0.05) were used to determine the significant statistical difference between qPCR and bioassay treatments, respectively.

Effects of RNAi on fitness costs were analyzed by comparing biological parameters, including pupation percentage, pupal weight, pupation duration and eclosion percentage. Larvae injected with buffer containing Metafectene PRO transfection reagent were used as a negative control. All the larvae used in the test were fed on fresh cabbage leaves without exposure to Cry1Ac toxin. Each treatment was replicated three times with ten larvae per replicate. Least squared difference (LSD) tests (overall significance level = 0.05) were used to determine statistical significance of differences in biological parameters between control and treated groups.

Genetic linkage analysis

The near-isogenic NIL-R (resistant) and DBM1Ac-S (susceptible) strains were used for genetic linkage analysis as described elsewhere [24]. A single-pair cross was prepared between a male from the NIL-R and a female from the DBM1Ac-S strain to generate an F1 progeny. A diagnostic Cry1Ac toxin dose killing 100% of the F1 (heterozygous) larvae was determined in bioassays as described above. Reciprocal crosses between an F1 and NIL-R moths were made to generate two backcross families (S8 Fig). The progenies from each backcross family (total of 40 larvae per family) were reared on control (cabbage) or experimental (cabbage with 20 μg/ml of Cry1Ac toxin) diets.

Purified RNA from single backcross family individuals surviving no treatment or exposure to Cry1Ac was used for cDNA synthesis. Linkage between the existence of multiple PxABCC gene isoforms or differential alteration of PxmALP and PxABCC gene expression and resistance to Cry1Ac was tested using PCR amplification and qPCR conditions as described above.
