Comparative Genomic Analysis of N-Fixing and Non-N-Fixing spp.: Organization, Evolution and Expression of the Nitrogen Fixation Genes

Summary

We sequenced the genomes of 11 N2-fixing Paenibacillus strains and demonstrated the genomic diversity of the genus Paenibacillus by comparing these strains to each other and to 20 other strains (4 N2-fixing and 16 non-N2-fixing strains) that were sequenced previously. Phylogenetic analysis of the concatenated 275 single-copy core genes suggests that ancestral Paenibacillus did not fix nitrogen and the N2-fixing strains fall into two sub-groups, which were likely originated from a N2-fixing common ancestor. A minimal and compact nif cluster comprising nine nif genes encoding Mo-nitrogenase is highly conserved in the 15 N2-fixing strains. Variations in the nif cluster and in the chromosomal regions surrounding the nif cluster between two sub-groups imply at least two independent acquisitions with insertion of distinct nif cluster variants in different genomic sites of Paenibacillus in early evolutionary history. Phylogeny of the concatenated NifHDK sequences suggests that Paenibacillus and Frankia are sister groups. The nif cluster, a functional unit for nitrogen fixation, was lost, producing some non-N2-fixing strains. There were recent events of acquisition of vnf and anf genes, causing further diversification of some strains. The evolution of nitrogen fixation in Paenibacillus involves a mix of gain, loss, HGT and duplication of nif/anf/vnf genes.

Introduction

Biological nitrogen fixation, the conversion of atmospheric N₂ to NH₃, plays an important role in the global nitrogen cycle and in world agriculture [1]. Nitrogen fixation is mainly catalyzed by the Mo-nitrogenase. The ability to fix nitrogen is widely, but sporadically distributed among Archaea and Bacteria which includes these families: Proteobacteria, Firmicutes, Cyanobacteria, Actinobacteria and Chlorobi [2]. Also, the contents and organization of nitrogen fixation (nif) genes vary significantly among the different N₂-fixing organisms. For example, in Klebsiella pneumoniae, twenty nif genes are co-located within a ∼24 kb cluster [3], whereas in Azotobacter vinelandii the nif genes are more dispersed and distributed as two clusters in the genome [4]. The random distribution pattern and the difference in contents and organization of nif genes raise the question of origins and evolution of Mo-nitrogenase. Phylogenetic inference based on the sequences of nif genes is generally used to understand the evolution of nif genes [5]–[7]. Two conflicting hypotheses for origins of Mo-nitrogenase have been proposed on the basis of phylogenetic examination of Mo-nitrogenase protein sequences (NifHDK) [8]–[11]. One is the last common ancestor (LCA) hypothesis which implies that the Mo-nitrogenase had its origin in a common ancestor of the bacterial and archaeal domains. According to the LCA model gene loss has been extensive and accounts for the fact that nitrogenase is found neither in eukaryotes nor in many entire phyla of prokaryotes. The other is the methanogen origin hypothesis which implies that nitrogen fixation was originated in methanogenic archaea and subsequently was transferred into a primitive bacterium via horizontal gene transfer (HGT).

Remarkable progress in sequencing technology has advanced in understanding genetics and phylogenetic history of nitrogen fixation. For example, genome sequences of several diazotrophs, such as Pseudomonas stutzeri A1501 [12], Herbaspirillum seropedicae SmR1 [13] and Wolinella succinogenes [14], revealed that the Mo-nitrogenase genes constitute a nitrogen fixation cluster or island. The nif genes of P. stutzeri, including nifQ, nifA, nifL, nifH, nifD, nifK, nifT, nifY, nifE, nifN, nifX, nifS, nifU, nifW, nifZ, nifM and nifF are distributed in a 49-kb region. The nif genes of H. seropedicae, including nifA, nifB, nifZ, nifZ1, nifH, nifD, nifK, nifE, nifN, nifX, nifQ, nifW, nifV, nifU and nifS are in a region spanning 37 kb interspersed with fix, mod, hes, fdx, hsc and other genes. Variation of G+C content between the nif cluster and the genome average in P. stutzeri A1501 and existence of transposase near the nif cluster in H. seropedicae SmR1 are indicative of HGT of nif gene clusters [13]. However, since nitrogen fixation is an ancient complex process and is widely, but sporadically distributed among prokaryote families, further extensive genome sequences are needed to completely resolve the evolutionary history of nitrogenase.

Mo-nitrogenase is composed of two proteins, dinitrogenase (MoFe protein) and dinitrogenase reductase (Fe protein). The MoFe protein is an α₂β₂ heterotetramer (encoded by nifDK) that contains the iron–molybdenum cofactors (FeMo-co) and P clusters. The FeMo-co is a [Mo-7Fe-9S-homocitrate] cluster which serves as the active site of substrate binding and reduction. The P-cluster is a [8Fe-7S] cluster which shuttles electrons to the FeMo-co. The Fe protein is a γ₂ homodimer (encoded by nifH) bridged by an intersubunit [4Fe-4S] cluster that serves as the obligate electron donor to the MoFe protein. In addition to the structural genes nifHDK, other genes nifE nifN, nifX nifB, nifQ, nifV, nifY, nifU, nifS, nifZ and nifM contribute to the synthesis of FeMo-co and maturation of nitrogenase [15]–[17]. Although the majority of present-day biological N₂ reduction is catalyzed by the Mo-nitrogenase, two homologous alternative nitrogenases: V- and Fe-nitrogenase are important biological sources of fixed nitrogen in environments where Mo is limiting [18]. V- and Fe-nitrogenase are encoded by the vnf and anf genes. The Mo-, V- and Fe-nitrogenases are not equally distributed in nature. Most of diazotrophs, such as K. pneumoniae, possesses only the Mo-nitrogenase [19]. While some organisms, like A. vinelandii, possess all three types of nitrogenases [20] and other organisms, like Rhodobacter capsulatus and Rhodospirillum rubrum, carry the Mo- and Fe-nitrogenases [21], [22].

Paenibacillus is a large genus of Gram-positive, facultative anaerobic, endospore-forming bacteria. Members of this genus are biochemically and morphologically diverse and are found in various environments, such as soil, rhizosphere, insect larvae, and clinical samples [23]–[26]. Originally Paenibacillus was included within the genus Bacillus, however in 1993 it was reclassified as a separate genus [27]. At that time, the genus Paenibacillus encompassed 11 species including the three N₂-fixing species Paenibacillus polymyxa, Paenibacillus macerans and Paenibacillus azotofixans [27]. The genus Paenibacillus currently comprises more than 120 named species, more than 20 of which have nitrogen fixation ability, including the following 8 novel species described by our laboratory: Paenibacillus sabinae, Paenibacillus zanthoxyli, Paenibacillus forsythiae, Paenibacillus sonchi, Paenibacillus sophorae, Paenibacillus jilunlii, P. taohuashanense and P. beijingensis [28]–[35]. Although diazotrophic Paenibacillus strains have potential uses as a bacterial fertilizer in agriculture, genomic information to date is limited and the genetics and evolution of nitrogen fixation of these diazotrophs are unknown.

Here we sequenced 11 N₂-fixing Paenibacillus strains and compared these strains to each other and to 20 other strains (4 N₂-fixing and 16 non-N₂-fixing strains) that were sequenced previously. These strains were obtained from plant rhizhospheres, hot spring and human body and from Brazil, China, Korea, Israel, France, Belgium, United States of America, etc. (Table 1). Our study revealed that a nif gene cluster comprising nifB, nifH, nifD, nifK, nifE, nifN, nifX, hesA and nifV encoding Mo-nitrogenase is highly conserved in the 15 N₂-fixing strains. Also, two homologous alternative nitrogenases: V- and Fe-nitrogenase encoded by the vnf and anf genes, respectively, are found in some Paenibacillus species. HGT, gene loss and gene duplication of nif, vnf and anf genes have contributed to evolution of nitrogen fixation in Paenibacillus. This study not only reveals the organization and distribution of nif/anf/vnf genes and the evolutionary patterns of nitrogen fixation in Paenibacillus, but also provides support for the methanogen origin hypothesis for nif evolution [10], [11].

Results

Genomic features

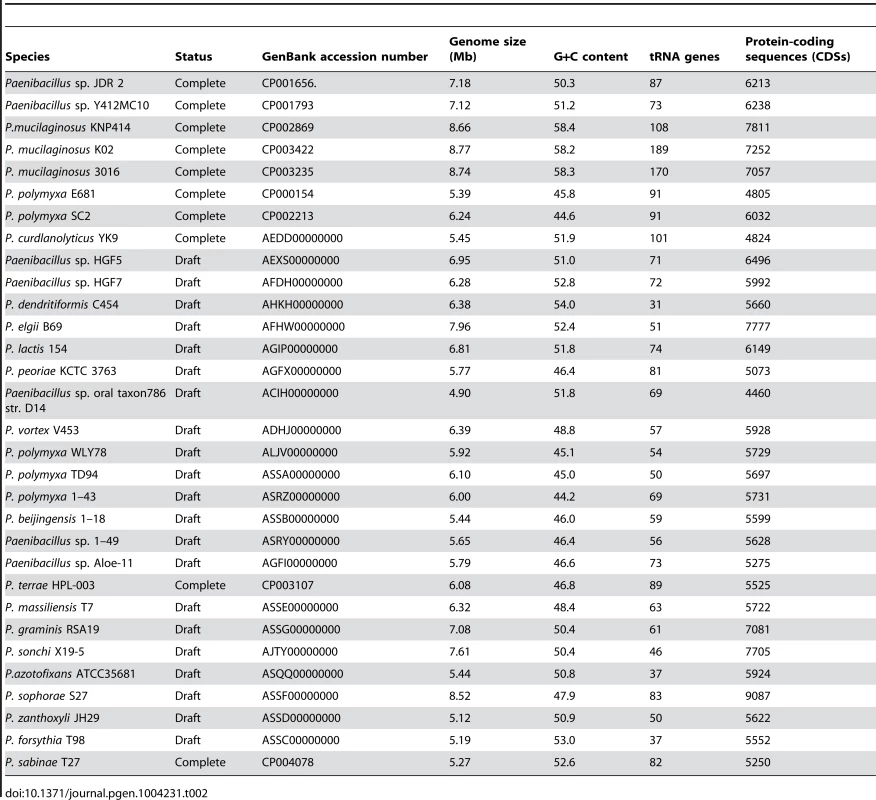

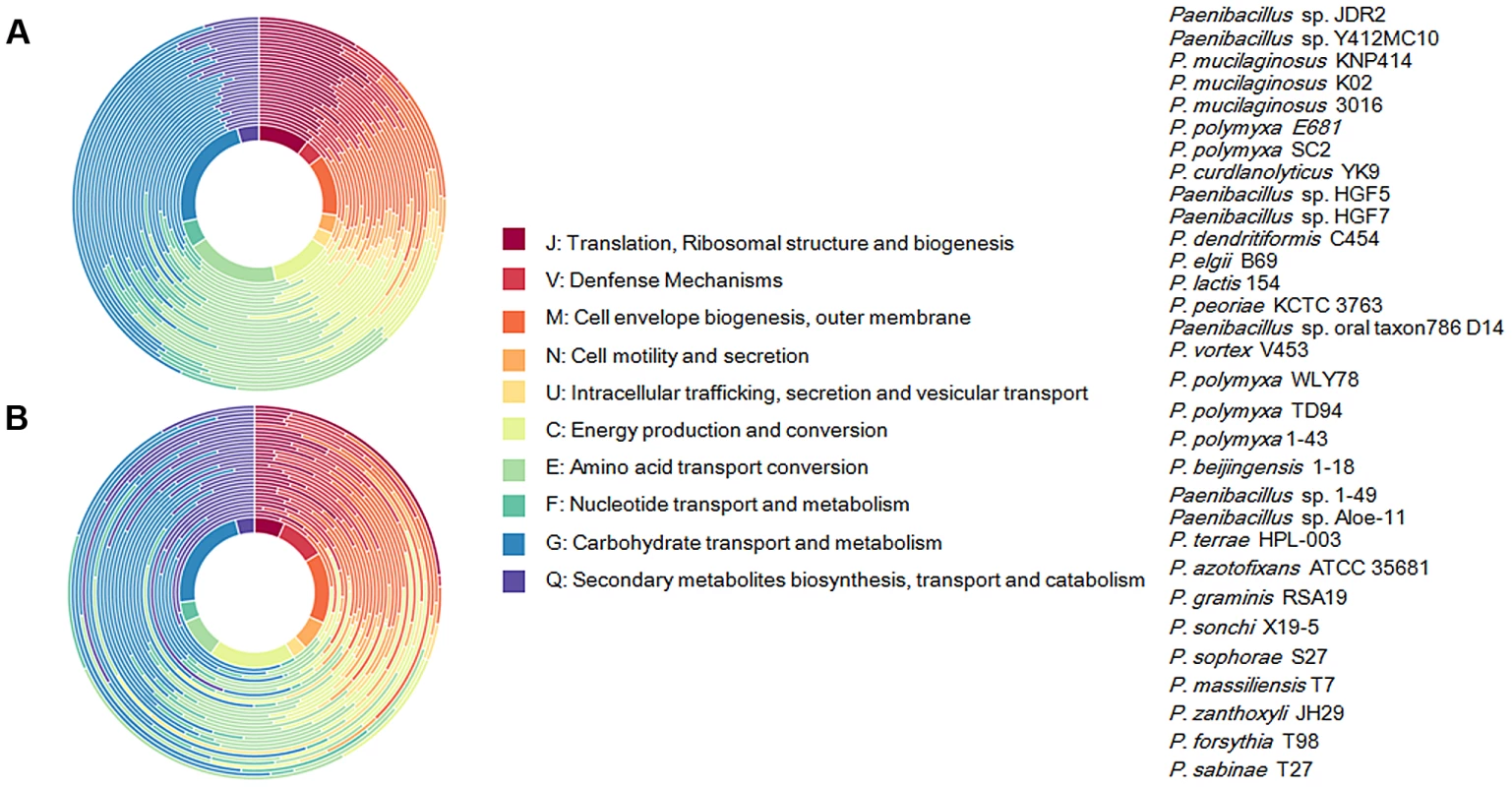

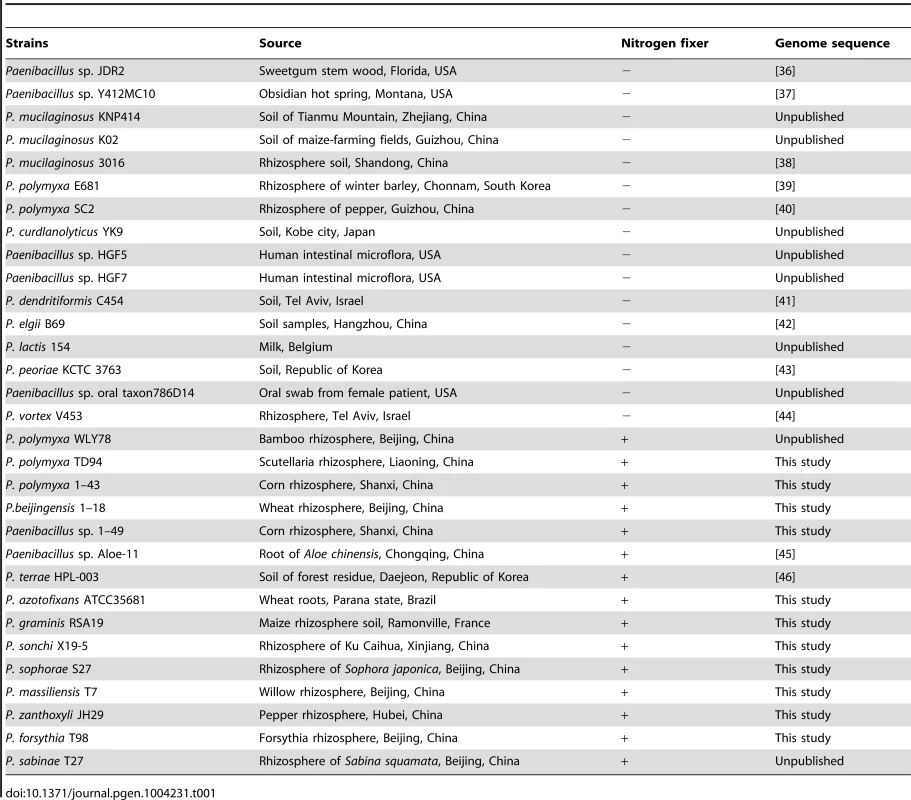

A summary of the features of each of the 11 newly-sequenced genomes of N₂-fixing Paenibacillus strains and 20 previously-sequenced genomes of Paenibacillus strains (4 N₂-fixers and 16 non-N₂-fixers) is shown in Table 2. The characteristics (size, GC content, predicted number of coding sequences, and number of tRNA genes) of the 11 newly-sequenced genomes are within the range of previously-sequenced genomes of Paenibacillus strains (Table 2, Table S1). The 31 genomes vary in size by approximately three megabases (ranging from 4.90–8.77 Mb) with the number of CDSs ranging from 4460–9087, indicating substantial strain-to-strain variation. The G+C contents of the 31 genomes range from 44.2–58.4. The genome of Paenibacillus sophorae S27 has a larger size than those of the newly-sequenced strains.

Core and pan-genome analysis

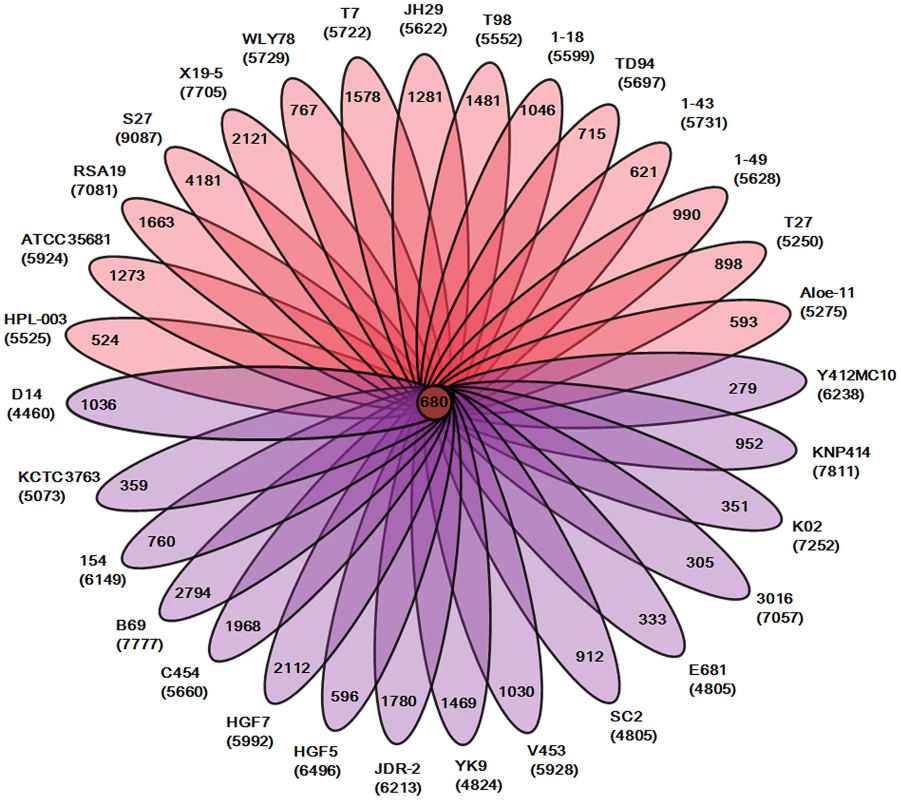

Our analysis of the total 31 genomes reveals that a pan genome contains 55504 putative protein-coding genes in the genus Paenibacillus. Of the 55504 putative protein-coding genes, 37105, which made up 66.9% of the genes in the pan genome, were represented in only one genome of Paenibacillus spp., suggesting a high frequency of horizontal gene acquisition from other taxa. In contrast to the pan-genome, the genus Paenibacillus had the core genome of 680 putative protein-coding genes, which represents only 9% to 15% of the repertoire of protein coding genes of each strain, illustrating a large degree of genomic diversity in this group of bacteria (Figure 1). The genomic data are consistent with the fact that Paenibacillus strains are morphologically and physiologically diverse.

We further comparatively analyze the core genome of 15 N₂-fixing and 16 non-N₂-fixing Paenibacillus strains. We found that non-N₂-fixing strains had the core genome of 908 putative protein-coding genes, which made up 12–20% of protein-coding genes in each strain. N₂-fixing strains had the core genome of 1264 putative protein-coding genes, which code 14–24% of the protein pool in each genome. Further, we use Cluster of Orthologous Groups (COG) assignments to determine whether there were differences in the proportion of the core genome attributable to a particular cellular process (Figure 2 and Table S2). Interestingly, core genome of N₂-fixing strains was found to be disproportionally enriched in cell motility and chemotaxis genes (Fisher's exact test; P value<0.01). Since these N₂-fixing strains were isolated from plant rhizospheres, cell motility and chemotaxis are of importance for bacterial adaptation to the ever-changing rhizosphere environment [47].

Transposable elements

In this study, transposons were identified using the ISfinder database (http://www-is.biotoul.fr/) and only expectation values of 10⁻⁵ and below were considered as significant matches during searches. Each Paenibacillus genome in this study contains a unique set of transposons (Table S3). The number of transposon copies pergenome ranges from 3 (P. polymyxa SC2) to 118 (P. sophorae S27). Members of the IS3, IS4, IS5, IS1182 and IS200/IS605 families are most common. However, there is not a large difference in numbers of transposable elements between other N₂-fixing and non-N₂-fixing strains.

Prophage

Here prophages were identified using PHAST. Each genome of the 31 strains contains 1–10 prophages and/or prophage remnants, ranging in size from 14.4 to 59.1 kb. Collectively, the 31 genomes have 16 intact prophages and 69 prophage remnants. The newly-sequenced genomes have 38 prophages, most of which have a set of cargo genes that encode putative bacteriocins, DNA replication protein DnaD, ABC transporter ATP-binding protein, Non-ribosomal peptide synthase module containing protein adenine- and cytosine-specific DNA methyltransferases, and DNA/RNA helicase (Table S4). However, there is not a large difference in numbers of prophages between other N₂-fixing and non-N₂-fixing strains.

The nif gene cluster is highly conserved in Paenibacillus

Comparison of COG assignments between non-N₂-fixing and N₂-fixing Paenibacillus strains (Table S2) revealed that 9 core genes in the N₂-fixing strains: nifB, nifH, nifD, nifK, nifE, nifN, nifX, hesA and nifV, which are organized as a nif gene cluster arranged within an 10.5–12 kb genomic region, are conserved in all of the 15 N₂-fixing strains (Figure 3, Table S5). The nifH, nifD and nifK are structural genes for Mo-nitrogenase, and the nifB, nifE, nifN, nifX and nifV are involved in synthesis of FeMo-cofactor. The gene hesA, which is located between nifX and nifV, is also found in the nif clusters of Frankia [48] and cyanobacteria [49]. HesA (also being called NAD/FAD-binding protein) is a member of the ThiF-MoeB-HesA family, which is involved in molybdopterin and thiamine biosynthesis. Our recent studies demonstrated that HesA is required for efficient nitrogen fixation in Paenibacillus [50]. As shown in Figure S1, the numbers of nif genes and size of the nif cluster of Paenibacillus are much smaller than those of Frankia, cyanobacteria, Chlorobia (green sulfur) and Proteobacteria.

Although the nif gene cluster composed of nifB, nifH, nifD, nifK, nifE, nifN, nifX, hesA and nifV is highly conserved among the 15 N₂-fixing Paenibacillus strains, there are some variations in DNA sequences of the nif clusters, which can be divided to two sub-groups: Sub-group I and Sub-group II. The 9 genes nifBHDKENXhesAnifV of the nif gene cluster within Sub-group I are contiguous, while there is an orf of 261–561 bp, whose predicted product is unknown, between nifX and hesA within Sub-group II. Except those of P. massiliensis T7 within Sub-group I, and P. sonchi X19-5 and P. graminis RSA19 within Sub-group II, the nif gene clusters generally exhibited more than 90% identity among each Sub-group and about 80% identity between two Sub-groups,

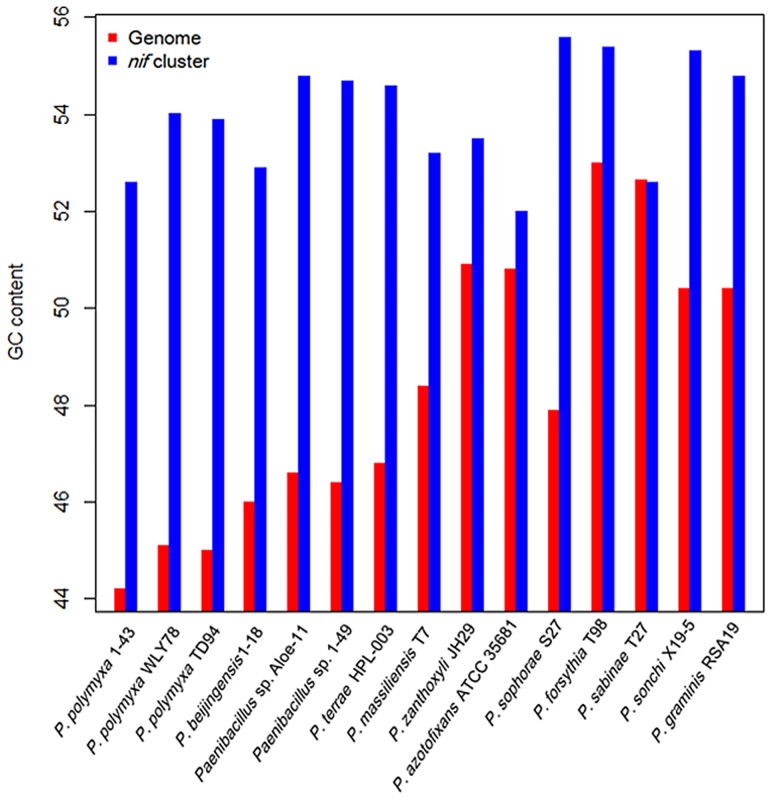

The G+C contents of the nif clusters are higher than those of the average of the entire genomes in other 14 N₂-fixing Paenibacillus strains (52–55 vs. 44–54) except that the nif cluster of P. sabinae T27 has the same G+C with the genome (Figure 4). There is a transposase gene, an indicative of HGT, near the nif clusters of Paenibacillus sp. Aloe-11 and P. sabinae T27 (Figure S2). These data suggest that the nif clusters were acquired in Paenibacillus strains by HGT.

Evolution of the nif gene cluster in Paenibacillus

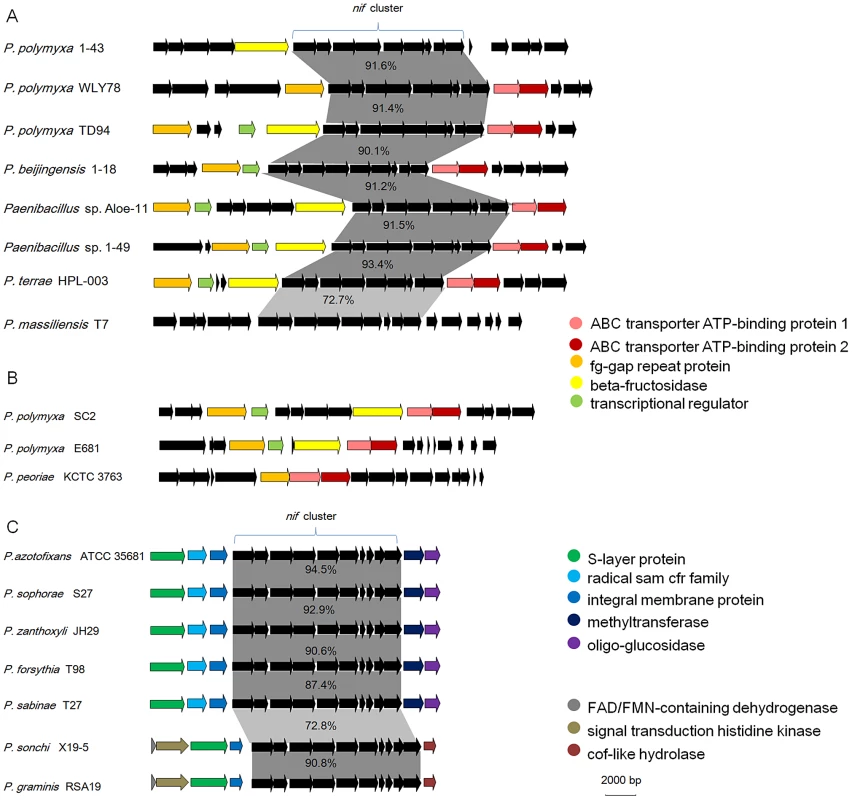

To elucidate the evolution of the nif gene cluster in Paenibacillus strains, we further compared the chromosomal regions flanking the nif gene clusters to each other among the 15 N₂-fixing Paenibacillus strains and to the corresponding chromosomal regions of the non-N₂-fixing Paenibacillus strains. We found that ABC transporter ATP-binding protein gene and beta-fructosidase gene/fg-gap repeat protein gene were conserved in the downstream and upstream, respectively, of the nif clusters in the 7 N₂-fixing Paenibacillus strains (P. polymyxa 1–43, P. polymyxa WLY78, P. polymyxa TD-94, P. beijingensis 1–18, Paenibacillus. sp. Aloe-11, Paenibacillus sp. 1–49 and P. terrae HPL-003) within Sub-group I (Figure 5A). Unlike in Sub-group I, integral membrane protein gene and FAD/FMN-containing dehydrogenase gene/methyltranferase gene were conserved in the downstream and upstream, respectively, of the nif clusters in all of the 7 N₂-fixing Paenibacillus species (P. sonchi X19-5, P. graminis RSA19, P. azotofixans ATCC 35681, P. sophorae S27, P. zanthoxyli JH29, P. forsythia T98 and P. sabinae T27) within Sub-group II (Figure 5C). Combination of the findings that nif clusters fall into two sub-groups according to their identities, these data imply at least two independent acquisitions with insertion of distinct nif variants in different genomic sites of Paenibacillus.

Notably, the chromosomal regions flanking the nif gene clusters within Sub-group I are homologous to the corresponding regions of the non-N₂-fixing P. polmyxa SC2, P. polmyxa E681 and P. peoriae KCTC 3763, suggesting that the nif cluster was lost in these strains (Figure 5B). Our results are consistent with the report that nif gene cluster was lost in cyanobacteria [49].

Sporadic occurrence of alternative nitrogenase

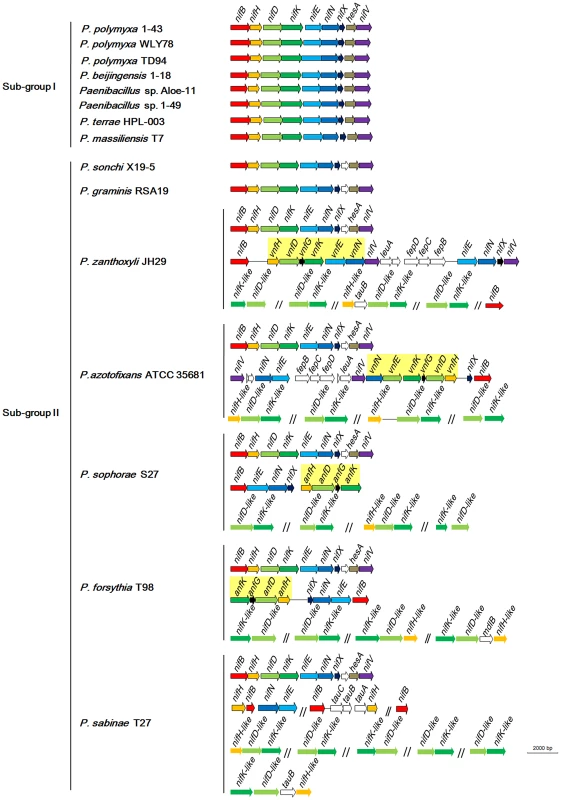

As shown in Figure 3, in addition to the nif cluster encoding Mo-nitrogenase, 2 strains have vnfHDGKEN encoding V-nitrogenase and 2 strains have anfHDGK encoding Fe-nitrogenase. In P. sophorae S27 and P. forsythia T98, anfHDGK are linked with nifBENX, forming a 9.1–9.7 kb cluster. In P. zanthoxyli JH29 and P. azotofixans ATCC 35681, vnfHDGKEN are linked with nifBENXV, fepBCD (encoding iron-enterobactin transporter subunits), leuA and other unknown genes, forming a 20.4–20.9 kb cluster. These anf/vnf clusters are flanked by genes coding for hypothetical proteins. Each alternative nitrogenase cluster contains, as a minimum, vnf/anfH, D, G, and K. The organizations of vnf or anf are largely consistent, but distinct with those of A. vinelandii and Methanococcus maripaludis [4], [51]. It is most likely that anf or vnf gene cluster was recently horizontally transferred to N₂-fixing strains which have already had a nif cluster, producing the P. sophorae S27, P. forsythia T98, P. zanthoxyli JH29 and P. azotofixans.

The origin of nif/vnf/anf in Paenibacillus

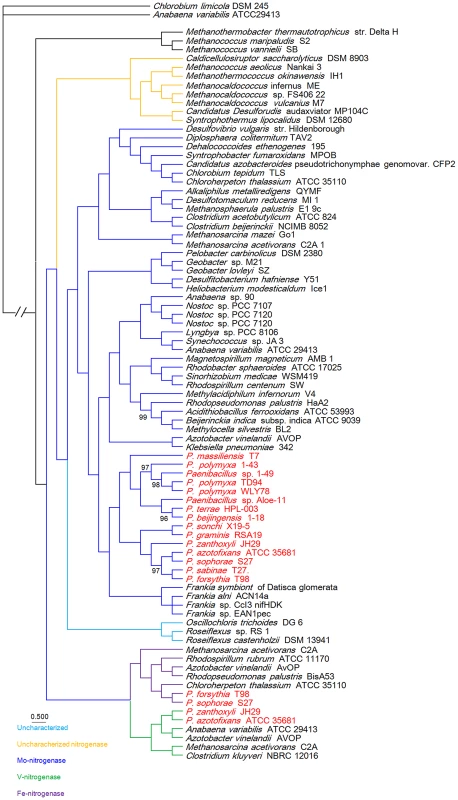

To gain insights into the origin of nif/vnf/anf genes in Paenibacillus, a Bayesian inferred phylogenetic tree was constructed based on the concatenated Nif/Vnf/AnfHDK proteins. Results shown in Figure 6 indicate that Nif/Vnf/AnfHDK proteins of Paenibacillus strains fall into three distinct lineages. This phylogeny exhibits that NifHDK protein homologs formed two distinct clades, one of which was comprised of proteins from hydrogenotrophic methanogens and the other was comprised of proteins from both bacterial and methanogen genomes, in agreement with methanogen origin hypothesis of nitrogen fixation proposed by Boyd et al [10]. Our phylogenetic analysis of the concatenated NifHDK derived from the nifHDK of the nif clusters reveals that all of the 15 N₂-fixing Paenibacillus strains form a coherent cluster consisting of two sub-groups, in agreement with the two sub-groups of nif clusters (Figure 7). Notably, the phylogeny reveals that Paenibacillus and Frankia are sister groups to the exclusion of the Firmicute Clostridium, implying that Paenibacillus and Frankia have a common nif gene ancestor. Phylogenies derived from each of the individual NifB, H, D, K, E, N, X and V are congruent with the phylogeny of the concatenated NifHDK (Figure S3, S4, S5, S6, S7, S8, S9, S10).

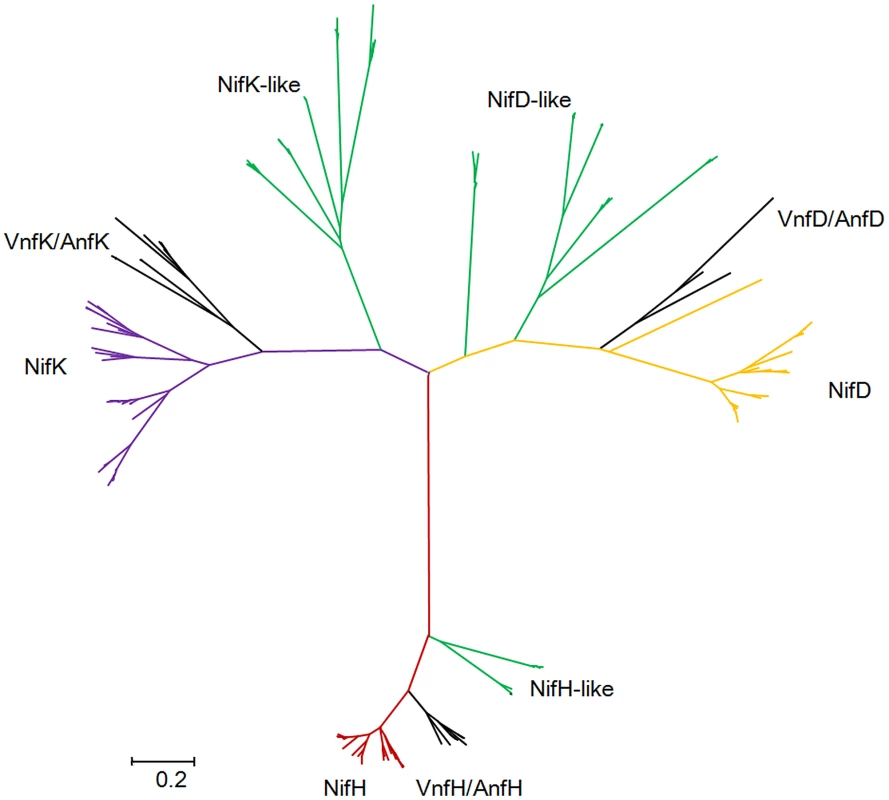

This phylogeny shows that Vnf/Anf proteins of Paenibacillus strains fall into the corresponding homologous lineages. Phylogeny derived from each of the individual VnfH/AnfH, D, G, K, E, N and X is congruent with the phylogeny of the concatenated Vnf/AnfHDK (Figure S3, S4, S5, S6, S7, S8, S9, S10). anf and vnf of Paenibacillus are nested with those of archaeon M. acetivorans, supporting that the ancestor of anf and vnf may originate from archaea.

Phylogenetic analysis

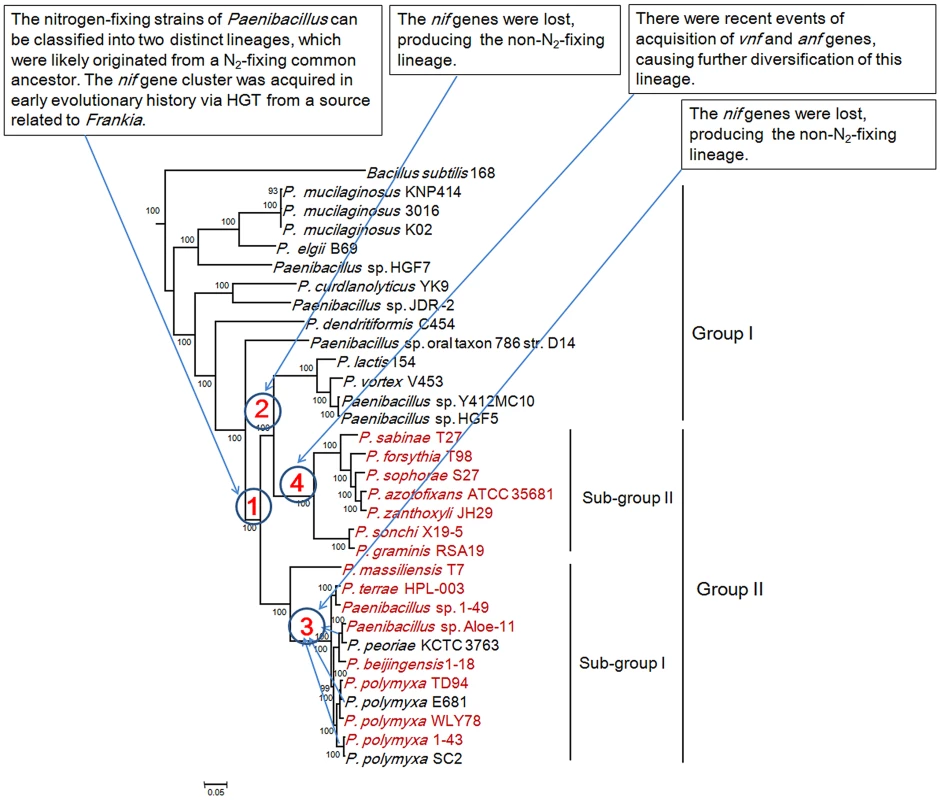

We reconstructed the phylogeny of the 31 genomes based on the concatenation of the 275 core genes that are present in single copy in a genome. The 18 strains including 15 N₂-fixing strains and 3 non-N₂-fixing strains form a large group including two sub-groups and the other 13 non-N₂-fixing strains fall into a large group (Figure 7). The clustering resulting from phylogenetic analysis corresponds well with the species assignments based on average nucleotide identity (ANI) using MUMmer (ANIm) (Table S6) [52]. For examples, P. mucilaginosus K02, P. mucilaginosus 3016 and P. mucilaginosus KNP414 have higher ANIm (98%). N₂-fixing strains P. polymyxa 1–43, P. polymyxa WLY78 and P. polymyxa TD94 isolated from China, and non-N₂-fixing strains P. polymyxa SC2 and P. polymyxa E681 isolated from China and South Korea, respectively, have higher ANIm (>95%). It is noteworthy that the other 2 unnamed strains Aloe-11 (ANIm≤87%) and 1–49 (ANIm<93%) may represent a novel species, respectively.

This phylogeny suggests that the Paenibacillus ancestor was probably non-fixing and the N₂-fixing Paenibacillus strains appeared to occur much later than non-N₂-fixing strains. Combination of the data that the nif cluster is conversed in the 15 N₂-fixing Paenibacillus strains and the G+C contents of the nif clusters are higher than those of the average of the entire genomes, we proposed that N₂-fixing Paenibacillus strains were generated by acquiring the nif cluster via HGT.

The N₂-fixing strains of Paenibacillus fall into a large group composed of 2 distinct sub-groups (Sub-group I and Sub-group II), which were likely originated from a N₂-fixing common ancestor. This species phylogeny is congruent with the phylogeny of nif genes. The phylogeny suggests that the 8 N₂-fixing strains and the 3 non-N₂-fixing strains within Sub-group I are most closely related. Nitrogen fixation may have been present in the ancestor of the 8 N₂-fixing strains (P. polymyxa 1–43, P. polymyxa WLY78, P. polymyxa TD-94, P. beijingensis1–18, Paenibacillus. sp. Aloe-11, Paenibacillus sp. 1–49, P. terrae HPL-003 and P. massiliensis T7) and the 3 non-N₂-fixing strains (P. polymyxa SC2, P. polymyxa E681 and P. peoriae KCTC 3763), and was later lost in the 3 non-N₂-fixing strains. This phylogeny also shows that the 7 N₂-fixing strains within Sub-group II (P. sonchi X19-5, P. graminis RSA19, P. azotofixans ATCC 35681, P. sophorae S27, P. zanthoxyli JH29, P. forsythia T98 and P. sabinae T27) are sister group with the 4 non-N₂-fixing strains P. lactis 154, P. vortex V453, Paenibacillus sp. Y412MC10 and Paenibacillus sp. HGF5. Nitrogen fixation may have been present in the ancestor of the 7 N₂-fixing and 4 non-N₂-fixing strains and the nif genes were lost, producing the non-N₂-fixing P. lactis 154 lineage.

Taken together, the Paenibacillus ancestor was probably non-fixing and the N₂-fixing strains of Paenibacillus can be classified into 2 distinct sub-groups, which were likely originated from a N₂-fixing common ancestor with minor variation in nif sequences. N₂-fixing Paenibacillus strains were generated by acquiring the nif cluster in early evolutionary history via HGT from a source related to Frankia. After these initial acquisitions of the nif gene clusters, the strains that have them now have inherited them by vertical transmission. However, during the process of evolution, the nif cluster was lost, producing the 3 non-N₂-fixing strains P. polmyxa SC2, P. polmyxa E681 and P. peoriae KCTC 3763 and the non-N₂-fixing lineage P. lactis 154. There were recent events of acquisition of vnf and anf genes, causing further diversification of strains within Sub-group II. The most likely pathways of nitrogen fixation evolution are summarized in Figure 7.

The nif gene cluster is a functional unit for nitrogen fixation

To investigate that the nif gene cluster is a functional unit for nitrogen fixation, the contiguous nine genes nifBHDKENXhesAnifV of the nif cluster and the nifB promoter from P. beijinesis 1–18, a representative of N₂-fixing Paenibacillus strains, was PCR amplified and then constructed to vector pHY300PLK and further transferred to E. coli JM109. This yielded the recombinant E. coli strain 1–18. Nitrogenase activity was determined using the acetylene reduction assay (expressed as nmol C₂H₄/hr/mg protein) [53] and a ¹⁵N₂ enrichment assay (expressed as δ¹⁵N) [54]. As shown in Figure S11, the nine genes nifBHDKENXhesAnifV within the nif cluster enabled E. coli to fix nitrogen, in agreement with our recent report obtained in P. polmyxa WLY78 [50]. The results indicate that the nif cluster is a functional unit for nitrogen fixation, and also a unit of HGT.

The nif gene cluster possesses a σ⁷⁰-dependent promoter and a GlnR/TnrA-binding site

We recently determined that the nine genes nifB, nifH, nifD, nifK, nifE, nifN, nifX, hesA and nifV within the nif gene cluster in P. polmyxa WLY78 were organized as an operon and that the nifB promoter of the nif cluster is a σ⁷⁰-dependent promoter −35 (TTGACT) and −10 (TAAGAT) [50]. Here we revealed using bioinformatics analysis that the nif genes within the nif gene clusters among the other 14 N₂-fixing Paenibacillus strains are organized as an operon and each of the nif clusters has a σ⁷⁰-dependent promoter (Figure S12). The σ⁷⁰-dependent promoter is very distinct from the typical σ⁵⁴-dependent −24/−12 promoters found upstream of nif genes in Gram-negative N₂-fixing bacteria, such as K. pneumoniae and A. vinelandii, whose nif gene expression requires the activation of the transcriptional activator NifA according to the concentration of ammonium and oxygen [55]. Although the σ⁷⁰-dependent promoter is highly conserved among the 15 N₂-fixing Paenibacillus strains, there are some variations in length of interval sequence between the putative transcriptional start site (TSS) and translation start codon (ATG) of nifB (Figure S12).

Unlike in Gram-negative diazotrophs, there is neither nifA gene encoding transcriptional activator NifA, nor NifA-binding site in the promoter region of the nif gene cluster. However, the genomes of the 15 N₂-fixing Paenibacillus strains have glnR gene. In the Gram-positive model organism Bacillus subtilis, two transcriptional factors, TnrA and GlnR, control gene expression in response to nitrogen availability [56], [57]. TnrA activates and represses gene transcription when nitrogen is limiting for growth, while GlnR represses gene expression during growth with excess nitrogen. The two proteins bind to DNA sequences (GlnR/TnrA-sites) with a common consensus sequence (TGTNAN7TNACA) [56], [57]. Here we found that the GlnR/TnrA-binding sites exist in the nif promoter regions of the 15 N₂-fixing Paenibacillus genomes (Figure S12). The GlnR/TnrA-binding sites are located upstream of the σ⁷⁰-dependent promoter (−35 and −10) region in Sub-group I strains and some Sub-group II strains, while they are located downstream of the −35 and −10 regions in some Sub-group II strains. The existence of GlnR/TnrA-sites in nif promoter region suggests that regulation mechanisms of nitrogen fixation in Paenibacillus may be different from those of Gram-negative N₂-fixing organisms.

Suf system encoding [Fe–S] cluster is highly conserved in N₂-fixing and non-N₂-fixing Paenibacillus strains

Mo-nitrogenase is a complex [Fe-S] enzyme and the [Fe-S] clusters of nitrogenase play a critical function in electron transfer and in the reduction of substrates driven by the free energy liberated from Mg-ATP hydrolysis [19]. NifU and NifS are generally thought to be specialized for the nitrogenase [Fe-S] cluster assembly of nitrogen-fixing bacteria [58]. However, the genomes of the 15 N₂-fixing Paenibacillus strains involved in this study do not possess homologues of nifU and nifS. Here we discovered that a Suf system (sufCDSUB operon) responsible for the formation of [Fe-S] clusters is highly conserved in N₂-fixing and non-N₂-fixing Paenibacillus strains. Suf system has been reported in E. coli (sufABCDSE) and some other organisms [59]. We deduce that sufCDSUB operon in N₂-fixing Paenibacillus strains are involved in synthesis of the [Fe-S] clusters of nitrogenase and other FeS proteins. Perhaps it is because there is a sufCDSUB operon in non-N₂-fixing Paenibacillus strain, a single event of HGT of the nif gene cluster will transfer a non-N₂-fixing Paenibacillus strain to a N₂-fixing Paenibacillus strain.

Multiple nif genes in Paenibacillus

In addition to nifBHDKENXhesAnifV within the nif gene cluster, there is a set of additional nifBEN which are linked together with vnf or anf in the 4 species: P. zanthoxyli JH29 and P. azotofixans ATCC 35681, P. sophorae S27 and P. forsythia T98. Since the additional nifBEN form a cluster with vnf or anf, it is likely that they were horizontally transferred to the 4 species with vnf or anf. There are a cluster of nifHBEN, 2 nifB and 1 nifH located at different sites outside of the nif gene cluster in P. sabinae T27. The phylogenetic trees based on each of the individual NifB, NifH, NifE and NifN protein sequences (Figure S3, S4, S5, S6, S7, S8, S9, S10) show that each of them is clustered with its homolog derived from the nif gene clusters of Paenibacillus, suggesting that these genes derived from gene duplication. Transposases near the nifBHEN and nifB in P. sabinae T27 suggest that these genes may originate from gene duplication (Figure S2). Our previous results demonstrated that the 3 nifH genes from P. sabinae T27 could complement the K. pneumoniae nifH⁻ mutant [60], suggesting that these nifH genes are functional in nitrogen fixation. However, we are not sure that the multiple nifHBEN are positively related to high nitrogenase activity.

Multiple nitrogenase-like genes in Paenibacillus

Our studies revealed that there are nitrogenase-like genes including 1–2 nifH-like and 4–6 pairs of nifDK-like genes in the 5 species within Sub-group II: P. azotofixans ATCC 35681, P. sophorae S27, P. zanthoxyli JH29, P. forsythia T98 and P. sabinae T27 (Figure 3). Alignments of NifH-like sequences with NifH sequences show that 4Fe-4S iron sulfur cluster ligating cysteines (Cys97 and Cys132), ADP-ribose binding arginine (Arg101) and the P-loop/MgATP binding motif are invariant, suggesting that NifH-like proteins may function analogously to NifH (γ subunit of nitrogenase) (Figure S13). Conversely, NifD/NifK-like sequences are highly diverged from both α and β subunits of nitrogenase. For example, FeMoco-ligating residues at αCys275 and αHis442, and P-cluster-ligating residues at Cys62, Cys88 and Cys154 of NifD, are not conserved in NifD-like sequences (Figure S14). The residues ligating P-cluster at Cys70, Cys95 and Cys153 of NifK are not conserved in NifK-like sequences (Figure S15). Our results are in agreement with previous reports obtained in studies with Archaea and Firmicutes Clostridium [4], [8]. Further, phylogenetic analysis reveals that the NifH/NifD/NifK-like sequences form distinct groups which are clearly divergent from conventional nitrogenase (Figure 8).

Discussion

In this study, we sequenced the genomes of 11 N₂-fixing Paenibacillus strains and made a comparative genomic analysis with 20 other strains (4 N₂-fixing and 16 non-N₂-fixing strains) that were sequenced previously. Our analysis of the total 31 genomes revealed that of the 55504 putative protein-coding genes, 37105, which made up 66.9% of the genes in the pan genome, were represented in only one genome of Paenibacillus spp., suggesting a remarkable degree of HGT in shaping the genomes of each of the genus. It is generally accepted that abundance of mobile genetic elements correlates positively with the frequency of HGT. We discovered that each genome of all of the 31 strains contains 1–10 prophages and/or prophage remnants and 3–118 IS elements, supporting that these strains are rich in mobile genetic elements. The existence of transposable elements and prophage near the nif gene and nif gene cluster suggest that they may be involved in HGT and loss of nif genes. Our demonstration that the nif cluster from P. beijinesis 1–18 enabled E. coli to have nitrogen fixation ability supports that the nif cluster is a functional unit for nitrogen fixation and also a unit of HGT.

Genomic islands are known to have contributed to the evolution of microbial genomes by HGT in many bacteria, influencing traits such as antibiotic resistance, symbiosis and fitness, and adaptation in general [61]. The evolutionary advantage of genomic islands is that a large number of genes (e.g. operon, gene clusters encoding related functions) may be horizontally transferred and incorporated en bloc into the recipient genome in a single step [62]. Genome sequence analysis here revealed that nine genes nifB, nifH, nifD, nifK, nifE, nifN, nifX, hesA and nifV which are organized as a cluster arranged within 10.5–12 kb region are highly conserved in the 15 N₂-fixing Paenibacillus strains. The sizes of nif clusters of Paenibacillus fall into the range of 10–200 kb genome islands in length. Also, the G+C contents of the nif clusters are higher than those of the average of the genomes in 14 N₂-fixing strains except P. sabinae T27, in agreement with genome islands whose G+C content often differs from that of the rest of the genome. This favored the hypothesis that the nif region in Paenibacillus constitutes a nitrogen fixation island, as discovered in other nitrogen fixers [14], [63]. For example, nif genes are part of an island in Wolinella succinogenes [14] and in Rhizobium leguminosarum [63]. nif genes organized as clusters are also found in many other N₂-fixing organisms. For examples, 20 nif genes are organized in 8 operons (nifJC, nifHDKTY, nifEN, nifUSVW, nifZM, nifF, nifLA, nifBQ) within ca. 24 kb of DNA in the chromosome of K. pneumoniae [3]. A total of 17–20 ORFs including 9–11 nif genes were organized as a cluster arranged within 17.3–18.5 kb regions among 4 Frankia strain: Frankia sp. EuIK1, Frankia sp. EAN1pec, Frankia sp. ACN14a and Frankia sp. HFPCcI3 [48]. In the Cyanothece 51142 genome, a representative of nonheterocystous cyanobacteria, the majority of genes involved in nitrogen fixation are located in a contiguous 28 kb cluster of 34 genes [49]. The different gene content and organization of nif genes indicate that complex evolutionary history of nif genes, and also suggest differences in protein requirements for nitrogenase synthesis and regulation of nitrogen fixation.

Phylogeny of the concatenated NifHDK proteins revealed that Paenibacillus and Frankia are sister groups to the exclusion of the Firmicute Clostridium, implying that Paenibacillus and Frankia have a common nif gene ancestor. Our results are consistent with the previous reports that Frankia and cyanobacterium Anabaena were sister groups to the exclusion of the Firmicute Clostridium [7]. Some common features found in the nif clusters support that Paenibacillus and Frankia are closely related. The first common feature is hesA, which is conserved in the nif clusters of Paenibacillus, Frankia and cyanobacteria, but not in N₂-fixing Gram-negative and other Gram-positive bacteria, such as Clostridium. The second common feature is the compact organized nifHDKENX which is found in the nif clusters of Paenibacillus and Frankia, but not in Clostridium spp. In contrast, gene content and organization varied greatly between the nif clusters of Paenibacillus and Clostridium, although both genera Paenibacillus and Clostridium belong to the low G+C and Gram-positive Firmicutes. For example, nifN-B fusion gene was found in the nif gene clusters of the three species of Clostridia: C. acetobutylicum, C. beijerinckii, and C. pasteurianum [59], [64]. Also, the nif gene clusters of C. acetobutylicum and C. beijerinckii have nifI1 and nifI2 (homologs of glnB), which are involved in post-translational regulation of nitrogenase activity in response to fixed nitrogen [65]. These data suggest that the gene content and organization of the nif cluster of anaerobic Clostridium spp. are similar with those of M. acetovorans and M. maripaudis whose nif clusters also contain nifI1 and nifI2 located between nifH and nifDK [51], [65].

Phylogeny of the concatenated 275 single-copy core genes (Figure 7) suggests that the ancestral Paenibacillus did not fix nitrogen. Genome sequencing revealed that the nif cluster is highly conserved in all of the 15 N₂-fixing strains and the G+C contents of the nif clusters are higher than those of the average of the genomes in 14 N₂-fixing strains except P. sabinae T27. Also, phylogeny of the concatenated NifHDK proteins (Figure 6) revealed that Paenibacillus and Frankia are sister groups. All of these facts and evidences indicate that N₂-fixing Paenibacillus strains may be generated by acquiring the nif cluster via HGT from a source related to Frankia in early evolutionary history. Strain phylogeny (Figure 7) also shows that the 15 N₂-fixing strains of Paenibacillus fall into 2 distinct sub-groups, consistent with phylogeny of nif genes (Figure 6). The nif clusters show some variation between two sub-groups, and the genes surrounding the nif clusters from two Sub-groups are conserved and distinct. These data imply at least two independent acquisitions with insertion of distinct nif variants in different genomic sites of Paenibacillus.

Furthermore, strain phylogeny suggests that nitrogen fixation may have been present in the ancestor of the 8 N₂-fixing strains (P. polymyxa 1–43, P. polymyxa WLY78, P. polymyxa TD94, P. beijingensis1–18, Paenibacillus. sp. Aloe-11, Paenibacillus sp. 1–49, P. terrae HPL-003 and P. massiliensis T7) and the 3 non-N₂-fixing strains (P. polmyxa SC2, P. polmyxa E681 and P. peoriaeKCTC 3763) within Sub-group I, and was later lost in the 3 non-N₂-fixing strains (P. polmyxa SC2, P. polmyxa E681 and P. peoriae KCTC 3763). Notably, the model P. polymyxa is a N₂-fixing species, and now this species includes both N₂-fixing and non-N₂-fixing strains. These closely related strains of this group were isolated from plant rhizospheres and from different geological locations of China, South Korea and Republic of Korea. Likewise, it is likely that nitrogen fixation may have been present and was later lost in the non-N₂-fixing lineage P. lactis 154. The members of this lineage were isolated from complex locations. For examples, P. lactis 154 was isolated from milk, Paenibacillus sp. HGF5 from human intestinal microflora and Paenibacillus sp. Y412MC10 from hot spring, and P. vortex V453 is known to develop complex colonies with intricate architectures.

The newly sequenced genomes revealed that the 4 Paenibacillus species P. sophorae S27, P. forsythia T98, P. zanthoxyli JH29 and P. azotofixans have the second nif cluster which carrying vnf or anf, in addition to the nif cluster. anfHDGK are clustered with nifBENX in a 9.1–9.7 kb region in P. sophorae S27 and P. forsythia T98, vnfHDGKEN are clustered with nifBENXV, fepBCD, leuA and other unknown genes in a 20.4–20.9 kb region in P. zanthoxyli JH29 and P. azotofixans ATCC 35681. Phylogeny of the concatenated Nif/Anf/VnfHDK proteins indicates that anfHDGK and vnfHDGKEN of Paenibacillus originate differently from nifHDK, and may be not duplicated from their nifHDK. It is most likely that the nif cluster carrying anf/vnf genes was recently horizontally transferred to N₂-fixing strains which have already had the nif cluster, producing P. sophorae S27, P. forsythia T98, P. zanthoxyli JH29 and P. azotofixans. These species were isolated from plant rhizosphere from China and Brazil. Our results are consistent with the recent reports that both Nif and Anf evolved in the methanogenic archaea, and anf or vnf derived from duplication of nif [8]. As described above, phylogenies of the concatenated Anf/VnfHDK and each of individual Anf/VnfH, D and K show that Paenibacillus strains fall into Anf and Vnf clusters, respectively. However, we found that the conserved residues in the P-loop binding motif of AnfH do not exist in P. sophorae S27, and the residues ligating P-cluster at Cys70 and Cys95 of VnfK do not exist in P. zanthoxyli JH29. Perhaps the residues ligating P-cluster or in P-loop binding motif are located on the other sites in VnfK and AnfH, respectively.

This study reveals that HGT of nif/anf/vnf gene cluster contributed to evolution of nitrogen fixation in Paenibacillus. Usually, a vehicle is needed to transfer genes efficiently between different species. It is thought that foreign DNAs are mainly transferred by means of plasmids or bacteriophages, as well as direct uptake by the host itself [58], [66], [67]. The best studied example of HGT of nif genes is symbiosis island of Mesorhizobium loti. The symbiosis island, a 502-kb chromosomally integrated element containing nif genes, was integrated into a phenylalanine tRNA gene mediated by a P4-type integrase encoded at the left end of the symbiosis island [68]–[70]. However, a phenylalanine tRNA gene near the nif cluster is not found, suggesting that it may be not transferred by P4-type integrase. But we found that there is a transposase gene, an indicative of HGT, near the nif clusters of Paenibacillus sp. Aloe-11 and P. sabinae T27 and near the anf cluster of P. sophorae S27. Also, a transcriptional regulator gene of araC type, which is known to be involved primarily in regulating pathogenicity islands in some bacteria but is also present in nonpathogenic organisms [62], neighbors the nif clusters of P. polmyxa TD94 and Paenibacillus sp. 1–11.

The deviant G+C content is one of the indicative used to detect HGT [67]. The G+C contents of the nif clusters are higher than those of the average of the entire genomes (52–55 vs. 44–53) in the 14 N₂-fixing Paenibacillus strains except P. sabinae T27, supporting that the nif gene clusters in these strains are acquired by HGT. The similar G+C contents and high identities of nif genes among the 15 nif clusters suggest that these nif clusters originated from a common ancestor with minor variation. The G+C contents of the anf cluster is higher than the average of the genome in P. sophorae S27 (51% vs. 40%), and is lower than the average of the genome in P. forsythia T98 (51% vs. 53%). The G+C contents of the vnf cluster is the same (51% vs. 51%) as the average of the chromosomal genome in P. azotofixans ATCC 35681 and P. zanthoxyli JH29. A higher G+C contents of the nif cluster were found in some N₂-fixing bacteria, such as P. stutzeri A1501 (66.8% vs. 63.8%) [12]. In rhizobia, the nif genes are located on either plasmids or genomic islands, which are prone to transfer between related bacteria [71]. However, the G+C contents of these plasmids and genomic islands are generally lower than the average of the chromosomal genome [72]–[74]. However, the G+C contents of the nif clusters are similar with those of the average of the entire genomes in the sequenced Frankia strains (69% vs. 70% in Frankia sp. HFPCcI3, 70% vs. 71% in Frankia sp. EAN1pec and 71% vs. 72% in Frankia alni ACN14a). It is generally accepted that although the deviant G+C content can be used to detect HGT, detection of HGT depends on a combination of several methods. This is because it is hard to detect HGT via deviant G+C content, if HGT occurred between the organisms with the same G+C contents [67].

Our genome sequencing revealed that there are nitrogenase-like genes including 1–2 nifH-like and 4–6 pairs of nifDK-like genes in the 5 species within Sub-group II: P. azotofixans ATCC 35681, P. sophorae S27, P. zanthoxyli JH29, P. forsythia T98 and P. sabinae T27 (Figure 3 and Table S5). Alignment of conserved residues ligating 4Fe-4S in NifH and ligating P-cluster and FeMoco and phylogenetic analysis in in NifD/K revealed that the nif-like and nifDK-like genes are clustered with those of archaea and Firmicutes such as Clostridia [4]. The data that NifH/NifD/NifK-like sequences fall into distinct groups by phylogenetic analysis suggest that multiple nifH-like and nifDK-like genes may result from gene duplication. The existence of transposases near the nifDK-like genes also suggested that multiple nifDK-like genes may result from gene duplication. It was proposed that Nif emerged from a nitrogenase-like ancestor approximately 1.5–2.2 Ga [10]. We wonder why there are so many nifDK-like genes in these Paenibacillus species. The determination of the function of nitrogenase-like genes will clarify their relation with nitrogen fixation.

Materials and Methods

Genome sequencing, assembly, and annotation

The draft sequences of 11 test Paenibacillus strains were produced by using Illumina paired-end sequencing technology at the BGI–Shenzhen (Table 2). Assembly was conducted by using SOAPdenovo v. 1.04 assembler [75]. Gene prediction was made using Glimmer v3.0 [76]. Annotation of protein coding sequence was performed by using the Basic Local Alignment Search Tool (BLAST) against the COG, Kyoto Encyclopedia of Genes and Genomes (KEGG) databases and NCBI nr protein database. The draft genomes of the 11 test Paenibacillus strains have been deposited in GenBank and the project accession numbers are listed in Table 2. Prophage was identified using PHAST [77].

Comparative genomics

Pan Genome Analysis Pipeline of PGAP [78] was used to identify all of the orthologous pairs between test Paenibacillus genomes. The common dataset of shared genes among test strains was defined as their core genome. The total set of genes within test genomes was defined as the pan genome. The set of genes in each strain not shared with other strains was defined as unique genes. The average nucleotide identity (ANI) between strains of the 31 sequenced genomes were calculated using MUMmer [52]. Multiple alignment of conserved genomic sequence was using Mauve [79]. The genomes sequenced in this study are listed in Table S1.

Phylogenetic analysis

Single gene alignments were aligned with molecular evolutionary genetics analysis (MEGA) [80]. The neighbor-joining trees were constructed by using the same software, and 1,000 bootstraps were done. Bayesian inferred phylogenetic tree of concatenated HDK homologs was generated using the MrBayes package [81]. A maximum-likelihood phylogenetic tree of Paenibacillus species was constructed based on 275 single-copy core proteins shared by 31 Paenibacillus genomes and the genome of Bacillus subtilis 168 according to the following methods: (i) multiple alignment of amino acid sequences were carried out by ClustalW (version 2.1) [82] (ii) conserved blocks from multiple alignment of test protein were selected by using Gblocks [83] (iii) ML tree were constructed using PhyML (version 3.0) [84] software (iv) CONSEL program [85] was used to select the best model of the trees.

Construction of the recombinant plasmid and E. coli strain

Genomic DNA of diazotrophic P. beijingensis 1–18 was used as a template for cloning nif genes. A 10.7 kb Xba I -BamH I DNA fragment containing the nif cluster (a 300 bp promoter region and the contiguous nine genes nifBHDKENXhesAnifV and 184 bp downstream of the stop codon TAA of nifV) was PCR amplified with primers nif cluster-up (5′-TGCTCTAGAGGGAATATAACGTGGAGAGG-3′) and nif cluster-down (5′-CGCGGATCCCATTATACAGCACTATATTG-3′) and then ligated to Xba I and BamH I sites of pHY300PLK, yielding plasmid pHY300-18 (Pnif+nif cluster). The plasmid was then transferred to E. coli JM109, yielding the recombinant E. coli 1–18.

Acetylene reduction assays

For acetylene reduction assays, P. beijingensis 1–18 and the recombinant E. coli strain 18 were grown overnight in LD medium, then diluted into nitrogen-deficient medium and grown for 15–18 h. Following this stage, the cultures were collected and resuspended in an N-free medium to an OD₆₀₀ of 0.2–0.4 in a serum bottle for nitrogenase derepression. The serum bottle was vacuumed and charged with argon gas. After 5–6 h, C₂H₂ (10% of the headspace volume) was injected into the serum bottle. After 30 min to 1 h, C₂H₄ was analyzed by Gas Chromatography [53].

¹⁵N₂ incorporation assay

Paenibacillussp.1–18 and the recombinant E. coli strain 1–18 were grown overnight in LD medium. The cultures were collected and resuspended in 70 ml N-free medium to an OD₆₀₀ of 0.4 in the 120 ml serum bottle. The serum bottles were filled with N₂ gas, and then 8-ml gas was removed and 5 ml ¹⁵N₂ (99%+, Shanghai Engineering Research Center for Stable Isotope) gas was injected. After 72 hours of incubation at 30°C, the cultures were collected, freeze dried, ground, weighed and sealed into tin capsules. Isotope ratios are expressed as δ¹⁵N whose values are a linear transform of the isotope ratios ¹⁵N/¹⁴N, representing the per mille difference between the isotope ratios in a sample and in the atmospheric N₂ [54].

Data access

The genome sequences used in this study were submitted to the GenBank, the accession number was shown in Table 2.
