H2A.Z Acidic Patch Couples Chromatin Dynamics to Regulation of Gene Expression Programs during ESC Differentiation

Summary

The histone H2A variant H2A.Z is essential for embryonic development and for proper control of developmental gene expression programs in embryonic stem cells (ESCs). Divergent regions of amino acid sequence of H2A.Z likely determine its functional specialization compared to core histone H2A. For example, H2A.Z contains three divergent residues in the essential C-terminal acidic patch that reside on the surface of the histone octamer as an uninterrupted acidic patch domain; however, we know little about how these residues contribute to chromatin structure and function. Here, we show that the divergent amino acids Gly92, Asp97, and Ser98 in the H2A.Z C-terminal acidic patch (H2A.Z^AP3) are critical for lineage commitment during ESC differentiation. H2A.Z is enriched at most H3K4me3 promoters in ESCs including poised, bivalent promoters that harbor both activating and repressive marks, H3K4me3 and H3K27me3 respectively. We found that while H2A.Z^AP3 interacted with its deposition complex and displayed a highly similar distribution pattern compared to wild-type H2A.Z, its enrichment levels were reduced at target promoters. Further analysis revealed that H2A.Z^AP3 was less tightly associated with chromatin, suggesting that the mutant is more dynamic. Notably, bivalent genes in H2A.Z^AP3 ESCs displayed significant changes in expression compared to active genes. Moreover, bivalent genes in H2A.Z^AP3 ESCs gained H3.3, a variant associated with higher nucleosome turnover, compared to wild-type H2A.Z. We next performed single cell imaging to measure H2A.Z dynamics. We found that H2A.Z^AP3 displayed higher mobility in chromatin compared to wild-type H2A.Z by fluorescent recovery after photobleaching (FRAP). Moreover, ESCs treated with the transcriptional inhibitor flavopiridol resulted in a decrease in the H2A.Z^AP3 mobile fraction and an increase in its occupancy at target genes indicating that the mutant can be properly incorporated into chromatin. Collectively, our work suggests that the divergent residues in the H2A.Z acidic patch comprise a unique domain that couples control of chromatin dynamics to the regulation of developmental gene expression patterns during lineage commitment.

Introduction

Precise control of gene expression is critical for lineage commitment and proper development in all multicellular organisms. Regulation of chromatin structure has emerged as an important mechanism for modulating gene expression patterns in response to developmental cues. While post-translational histone modifications can influence chromatin structure and transcriptional activity, less is known about the role of histone variants. Histone variants are incorporated in a replication-independent manner and appear to mark structurally and functionally distinct chromatin domains [1]–[3]. The histone H2A variant H2A.Z is highly conserved among eukaryotes and is of particular interest because it plays an essential but poorly understood role in metazoan development including mammals [4]–[6]. H2A.Z has been implicated in a range of DNA-mediated processes such as gene expression, DNA repair, and genomic stability [7]–[9]. Notably, H2A.Z is required for proper execution of developmental gene expression programs during embryonic stem cell (ESC) differentiation [10], suggesting that H2A.Z has specialized functions to regulate lineage commitment.

A role for H2A.Z in gene regulation is supported by genome-wide localization studies showing that this variant flanks the nucleosome-free region at transcription start sites in a wide range of cell types [11], [12]. In particular, H2A.Z is incorporated at the majority of H3K4me3 modified promoter nucleosomes including bivalent promoters in ESCs that harbor both H3K4me3 and H3K27me3, marks of Trithorax and Polycomb, respectively [10], [11]. Bivalent promoters in ESCs are associated with lineage specific genes that are poised, but remain competent for activation [13], [14]. These studies suggest that H2A.Z contributes to formation of distinct chromatin states and that its incorporation at bivalent promoters may be necessary to allow for induction of lineage programs in response to developmental cues. Consistent with this idea, H2A.Z levels decreased at promoters upon gene activation [11], [15]–[17]. H2A.Z also occupied regulatory elements such as enhancers and boundary elements [11], [18], [19], indicating that H2A.Z is incorporated at regions that are subject to considerable chromatin regulation.

H2A.Z shares extensive homology with the major type histone H2A throughout the histone fold domain. However, divergent regions in the amino- and carboxy-terminal domains as well as the L1 loop region within the histone fold suggest that the two histones have different structural and functional properties. In vitro biophysical studies showed that H2A.Z incorporation stabilizes the dimer-tetramer interface and strongly favors formation of 30 nm fibers over formation of higher order chromatin folding that require fiber-fiber interactions when compared to canonical H2A, consistent with the idea that unique features of the variant contribute to specialized chromatin domains [20]–[22]. Moreover, H2A.Z and the histone H3 variant H3.3 can occupy the same nucleosome resulting in a double variant nucleosome that is enriched at active promoters as well as at highly regulated chromatin regions [23], [24]. These hybrid nucleosomes are characterized as unstable and highly salt labile, consistent with its presence in dynamic chromatin domains [25], [26]. Thus, dissecting the features of H2A.Z that distinguish it from core H2A is key to understanding its functional specialization and may provide new insights into the essential role of this variant during development.

The H2A.Z carboxy-terminal acidic patch comprises substitutions of H2A residues Asn89, Asn94, Lys95 for Gly92, Asp97, and Ser98. While the overall structure of the H2A.Z nucleosome appears similar to H2A-containing nucleosomes, these three divergent residues form an uninterrupted acidic patch that extends across the surface of the H2A.Z octamer resulting in a solvent-exposed cavity in the center of the nucleosome [27]. In Drosophila, domain-swap experiments demonstrated that the H2A.Z carboxy-terminus including the acidic patch is essential for development [28]. Later work in Xenopus involving site-specific mutagenesis of the divergent H2A.Z acidic patch residues resulted in embryos that exhibited significant developmental defects [6]. These studies suggest that the unique H2A.Z acidic patch plays an important role in establishing a novel chromatin state that is essential for embryonic development. In yeast, replacement of two residues in the H2A.Z acidic patch resulted in low nucleosome occupancy at the PHO5 promoter, suggesting that the acidic patch is necessary for interaction with its deposition complex and for proper incorporation into chromatin [29]. However, the amino acids mutated in this study are conserved between H2A.Z and canonical H2A, indicating that this phenotype is not likely specific to H2A.Z. Other loss-of-function studies in yeast have shown that the H2A.Z carboxy-terminal docking domain is critical for H2A.Z function; however, these studies examined truncations that retained an intact acidic patch domain [30], [31]. Thus, we currently lack a detailed mechanistic understanding of how this domain regulates chromatin conformation during development and whether it plays a similar role in mammals.

We investigated the role of the divergent H2A.Z acidic patch during ESC differentiation. ESCs are an ideal model for investigating how H2A.Z influences mammalian development because these cells maintain the potential to differentiate into all somatic cell types [32], [33]. We generated a mutant form of H2A.Z (denoted H2A.Z^AP3), where the three divergent acidic patch residues in H2A.Z are replaced with the corresponding H2A amino acids. H2A.Z^AP3 ESCs maintained the ability to self-renew, but these cells failed to differentiate properly. We found that while H2A.Z^AP3 interacted with its deposition complex and displayed a highly similar distribution pattern compared to expression of the wild-type H2A.Z transgene (denoted H2A.Z^WT), its enrichment levels were reduced at target promoters and were particularly diminished at the +1 nucleosome. Further analyses revealed that H2A.Z^AP3 was less tightly associated with chromatin compared to H2A.Z^WT suggesting that the mutant is more dynamic. Notably, bivalent genes that are poised for activation in ESCs displayed significant changes in expression compared to active genes suggesting that the poised state is more sensitive to H2A.Z regulation. Moreover, this group of genes showed reduced levels of the repressive chromatin mark H3K27me3 at H2A.Z^AP3 target gene promoters compared to H2A.Z^WT and displayed higher H3.3 enrichment, a variant associated with high chromatin flux. Consistent with this observation, we further showed that H2A.Z^AP3 displayed higher mobility in chromatin compared to H2A.Z^WT by fluorescence recovery after photobleaching (FRAP). Remarkably, ESCs treated with the transcriptional inhibitor flavopiridol partially restored the H2A.Z^AP3 mobile fraction to wild-type levels and resulted in an increase in H2A.Z^AP3 occupancy at target genes. Collectively, our results demonstrate that the divergent H2A.Z acidic patch mediates chromatin dynamics and indicate that control of H2A.Z dynamics is critical for the regulation of gene expression patterns during lineage commitment.

Results

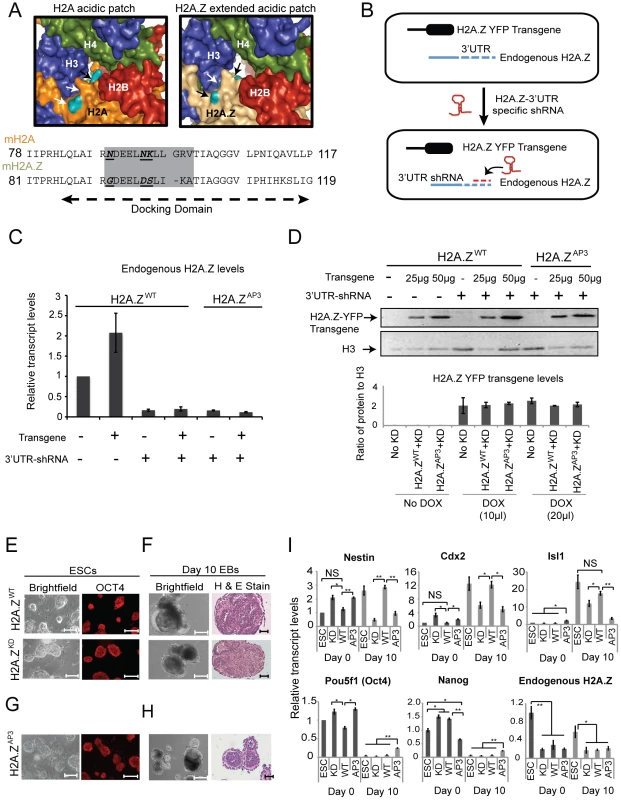

H2A.Z acidic patch is necessary for ESC differentiation

The H2A acidic patch domain resides on the nucleosome surface, and in the case of H2A.Z contains three divergent residues that comprise an extended acidic patch [27] (Figure 1A). While disruption of the H2A.Z acidic patch results in early developmental defects in Drosophila and Xenopus, how it functions to regulate chromatin structure and whether this domain plays a similar role in mammals is unknown [6], [28]. In mouse, H2A.Z is encoded by two isoforms that differ by only 3 amino acid residues, denoted H2AFZ (H2A.Z) and H2AFV [34], [35] (Figure S1A). H2A.Z knockout mice die around the time of implantation [5], suggesting that H2AFV is unable to compensate for loss of H2A.Z and that the two isoforms are functionally distinct. We analyzed the relative abundance of H2A.Z and H2AFV in ESCs by mass spectrometry. While we detected both isoforms in ESCs, H2A.Z is ∼20-fold more abundant than H2AFV (Figure S1B). Thus, given the essential role of H2A.Z and its abundance in ESCs compared to H2AFV, we focused on dissecting the function of the divergent acidic patch in H2A.Z.

Since H2A.Z and H2AFV share nearly identical amino acid sequences, available antibodies cannot distinguish between the two isoforms. To circumvent this limitation, we generated ESC lines that harbor a stably integrated Tet-inducible H2A.Z transgene fused to YFP (Figure 1B). Upon induction by doxycycline, we sorted for YFP expression and collected cells that displayed transgene expression comparable to endogenous H2A.Z levels for further analysis. To specifically test transgene function, we integrated short hairpins directed against the H2A.Z 3′ UTR into the inducible ESC lines (Figure 1B). This system allowed for targeted depletion of endogenous H2A.Z (denoted H2A.Z^KD for knock-down) (Figure 1C, Figure S1D) without affecting transgene levels or H2AFV expression (Figure 1D, Figure S1C). Consistent with our previous work, H2A.Z^KD ESCs displayed typical colony morphology, cell cycle kinetics, and normal expression of the pluripotency marker Pou5f1 (Oct4) suggesting that H2A.Z depletion does not affect self-renewal (Figure 1E, Figure S1E, F). To test differentiation potential, wild-type H2A.Z-YFP (denoted H2A.Z^WT) and H2A.Z^KD ESCs were induced to differentiate by allowing these cells to aggregate into embryoid bodies (EBs) in the absence of the pluripotency growth factor LIF. EBs are similar to egg cylinder stage embryos, albeit disorganized, and are capable of differentiation into tissues representing the three germ layers. H2A.Z^KD ESCs failed to differentiate properly, and lacked the distinct differentiated structures observed in Day 10 EBs compared to H2A.Z^WT (Figure 1F). Additionally, EBs from H2A.Z^KD ESCs failed to activate developmental genes to levels observed in H2A.Z^WT cells (Figure 1I), consistent with the idea that H2A.Z regulates lineage programs [11]. Importantly, expression of H2A.Z^WT rescued the H2A.Z^KD phenotype as measured by the restoration of ESC gene expression patterns as well as their capacity for multi-lineage differentiation (Figure 1F,I), whereas H2A-YFP did not compensate for loss of H2A.Z (data not shown). These data indicate that expression of the H2A.Z^WT transgene recapitulates normal H2A.Z function. Thus, we used this system to dissect the role of the H2A.Z acidic patch during lineage commitment.

We replaced the divergent H2A.Z acidic patch residues by site-directed mutagenesis of Gly92, Asp97, and Ser98 to the equivalent residues in H2A- Asn89, Asn94, and Lys95 (Figure 1A). Similar to H2A.Z depletion, expression of the acidic patch mutant (denoted H2A.Z^AP3) in H2A.Z^KD ESCs did not affect self-renewal, colony morphology, or levels of the pluripotency marker OCT4 (Figure 1G). We observed, however, that H2A.Z^AP3 EBs were smaller, morphologically distinct, and failed to differentiate properly compared to H2A.Z^WT EBs as demonstrated by the lack of differentiated cell types at Day 10 and the inability to activate developmental gene expression programs during lineage commitment (Figure 1H,I). The smaller size of H2A.Z^AP3 EBs was not a result of altered cell cycle kinetics, proliferation, or differences in levels of apoptotic cells relative to H2A.Z^WT (Figure S1E–I). Moreover, the number of cells recovered from Day 10 H2A.Z^AP3 EBs was comparable to that recovered from H2A.Z^WT, and H2A.Z^KD EBs (Figure S1J). Rather, we observed a larger number of small EBs in H2A.Z^AP3 cultures compared to H2A.Z^WT. Taken together, these data suggest that the divergent residues in the H2A.Z acidic patch are necessary for proper ESC differentiation.

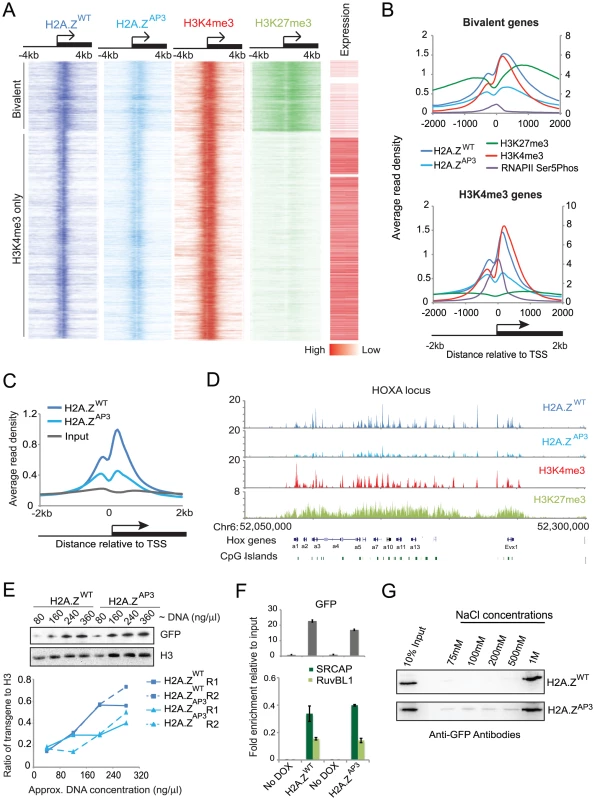

H2A.Z acidic patch mutant is enriched at typical H2A.Z target genes

H2A.Z containing nucleosomes occupy majority of promoters from yeast to human as determined by genome-wide localization studies and its incorporation is critical for proper gene regulation [10], [11], [36]. Thus, we analyzed the localization pattern of the acidic patch mutant relative to H2A.Z. Given that current H2A.Z antibodies cannot distinguish between H2A.Z and H2AFV isoforms, we performed ChIP-Seq in ESCs using GFP antibodies that recognize the H2A.Z-YFP tag. This analysis revealed significant H2A.Z-specific enrichment at ∼11,000 promoters in ESCs (Table S1). We found by ChIP-Seq that H2A.Z enrichment overlapped with the majority of H3K4me3 promoters, a histone modification that is normally associated with transcriptional competence (Figure 2A) [11], [37]. Our H2A.Z data are similar to other genome wide reports using pan H2A.Z antibodies in ESCs [11], [36], indicating that the YFP tag does not affect H2A.Z incorporation.

In addition to its enrichment at active promoters, H2A.Z was enriched at bivalent promoters consistent with our prior ChIP-chip analysis [10]. Bivalent promoters are characterized by the enrichment of H3K4me3 and H3K27me3 marks, and these genes display low expression levels and reduced enrichment of RNA Polymerase II (RNAP2) (Figure 2A, B top) [13], [14]. In contrast, H2A.Z enrichment at active promoters (H3K4me3-only) was coincident with a strong RNAP2 peak at the TSS and higher expression of associated genes (Figure 2A, B bottom). Our analysis also revealed a bimodal H2A.Z distribution pattern around TSSs with a marked enrichment at the +1 nucleosome (Figure 2C), consistent with reports showing that H2A.Z flanks the nucleosome-depleted region [11]. Notably, we observed a broader distribution pattern of H2A.Z and H3K4me3 at bivalent genes compared to their enrichment at active genes suggesting that the chromatin structure differs at these two classes of promoters. In addition to promoters, we found that H2A.Z was enriched at a subset of distal enhancers identified in ESCs [38] (Table S1), similar to recent data using a pan-H2AZ antibody [36]. The enrichment at promoters as well as distal regulatory elements suggests that H2A.Z is incorporated at regions subject to considerable chromatin regulation.

We next analyzed H2A.Z^AP3 localization across the ESC genome by ChIP-Seq. While H2A.Z^AP3 enrichment was globally decreased, it occupied a highly similar set of promoter regions as well as distal enhancers (Figure 2C, Table S1). For example, H2A.Z^AP3 displayed a similar overall spatial pattern of enrichment, albeit reduced compared to H2A.Z^WT as shown across the large bivalent region encompassing the HOXA locus in ESCs (Figure 2D). Importantly, H2A.Z^AP3 was expressed at similar levels as H2A.Z^WT (Figure 1D, Figure S2A, B), indicating that reduced H2A.Z^AP3 enrichment was not due to its lower abundance in ESCs. Interestingly, we observed a dramatic reduction in H2A.Z^AP3 enrichment downstream of the TSS in ESCs, which is thought to mark the +1 nucleosome (Figure 2C). A number of studies have suggested that the +1 nucleosome possesses significant regulatory potential and that remodeling of this promoter nucleosome may be important for controlling gene expression by recruiting RNAP2 or by facilitating transcriptional elongation [39], [40]. Collectively, these data suggest that altered levels of H2A.Z^AP3 as well as a particular reduction in the +1 nucleosome at promoters have consequences on the regulation of gene expression states.

One possibility for the observed lower levels of H2A.Z^AP3 is that replacement of the divergent amino acids with those of H2A lead to its incorporation via a similar pathway as core histones. We expected that if H2A.Z^AP3 is more broadly distributed along chromosomes, then its overall chromatin-associated fraction would be similar or higher relative to H2A.Z^WT. To this end, we performed chromatin fractionation and probed for H2A.Z^WT and H2A.Z^AP3 using GFP antibodies in the respective transgenic ESC line (Figure S2B). Semi-quantitative immunoblots showed that the fraction of H2A.Z^WT associated with chromatin is approximately 1.85 fold higher than H2A.Z^AP3 suggesting that depletion of the mutant at TSSs does not lead to its random accumulation in chromatin (Figure 2E). Given recent evidence demonstrating that H2A.Z is redistributed during the cell cycle from promoters to heterochromatin regions in mouse trophoblast stem (TS) cells [41], next we examined the levels of H2A.Z^AP3 at these regions. We first analyzed metaphase chromosomes (a time point when H2A.Z is enriched at heterochromatin in TS cells) and found that unlike the broad distribution of H2A across the chromosome H2A.Z^AP3 ESCs showed a non-uniform distribution pattern and depletion at centromeric regions similar to H2A.Z^WT (Figure S2C). Consistent with this observation, we found both H2A.Z^AP3 and H2A.Z^WT showed overall low enrichment at repetitive elements associated with heterochromatin including major satellite repeats in cycling cells (Figure S2D). Additionally, we found no change in the levels of H3K9me3, a modification highly enriched in heterochromatin, in H2A.Z^WT and H2A.Z^AP3 ESCs as well as in Day 5 RA differentiated cells by ChIP-qPCR (Figure S2E). The lower levels of H2A.Z at heterochromatin regions in ESCs compared to TS cells may reflect differences in cell cycle dynamics between the two cell types, as ESCs have a notably short G1. Together, these data suggest that mutations in the H2A.Z acidic patch do not result in the inappropriate incorporation of H2A.Z^AP3 or disruption of heterochromatin.

H2A.Z acidic patch domain is necessary for stable chromatin association

The observed lower levels of H2A.Z^AP3 at promoters suggested that the mutant is either more dynamically associated with chromatin or that it is not properly incorporated by its deposition complex. In yeast, deletion of either the carboxy-terminal docking domain or mutation of conserved residues within the acidic patch resulted in low H2A.Z occupancy at target genes [29]–[31]. This decrease in H2A.Z occupancy was attributed to the inability of the carboxy-terminal mutant to interact with its deposition complex SWR1. Site-specific incorporation of H2A.Z in mammalian cells is accomplished by the ATPase complex SRCAP (Snf2-related CREBBP activator protein), and in yeast H2A.Z removal appears to require the INO80 complex [42], [43]. Thus, we tested the ability of H2A.Z^AP3 to interact with components of both of these complexes. We performed co-immunoprecipitation followed by immunoblot and found that H2A.Z^AP3 interacted with SRCAP (catalytic component of SRCAP) and RUVBL1 (component of Tip60, SRCAP, and INO80 complexes) similar to H2A.Z^WT (Figure S2F, Figure 2F). While it is possible that H2A.Z^AP3 renders the deposition complex catalytically inactive, this scenario is unlikely because endogenous H2A.Z enrichment at promoters was unchanged over multiple passages in cells that also expressed the H2A.Z^AP3 transgene (Figure S2G).

While H2A.Z specific chaperones such as CHZ1 have been identified in yeast [44], the CHZ1 homolog or chaperones that play similar roles in mammalian cells have not been studied in detail. Nevertheless, NAP1 is also a critical chaperone for histone incorporation in mammals including H2A.Z so we sought to test whether alterations in the acidic patch affected its interaction with this histone chaperone. Thus, we quantified the interaction between NAP1L1 and H2A.Z^AP3, H2A.Z^WT, as well as core H2A (Figure S2H, I). We found by co-immunoprecipitation using GFP antibodies that the amount of NAP1L1 bound to H2A.Z^AP3 was modestly higher (<2-fold) compared to H2A.Z^WT (Figure S2H, I). Surprisingly, we observed that lower levels of NAP1L1 co-immunoprecipitated with H2A compared to H2A.Z^WT (Figure S2H, I). This result may be due to the much higher levels of stably associated H2A in chromosomes, of which only a fraction of H2A would interact with NAP1L1 unlike the continuous dynamic replacement of H2A.Z. Thus, these data are consistent with the idea that H2A.Z^AP3 is more dynamic, resulting in a higher fraction of the mutant available to interact with histone chaperones.

We next tested the idea that H2A.Z^AP3 is less tightly associated with chromatin compared to H2A.Z^WT. To this end, we performed salt titrations on nuclei isolated from H2A.Z^WT and H2A.Z^AP3 ESCs. This analysis showed that while H2A.Z^WT was stably associated with chromatin up to 500 mM NaCl and largely depleted at 1M NaCl (dimer loss typically occurs between 600–800 nM NaCl), a fraction of H2A.Z^AP3 dissociates at the lower salt concentrations (75 mM–200 mM NaCl) (Figure 2G), suggesting that H2A.Z^AP3 is less tightly associated with chromatin. The finding that H2A.Z^AP3 is less tightly associated with chromatin by salt titration is consistent with the higher proportion of H2A.Z^AP3 associated with NAP1L1 in ESCs. While we cannot rule out that H2A.Z^AP3 incorporation is less efficient or that a small fraction is randomly distributed similar to incorporation of H2A, our data are consistent with the model that the unique H2A.Z extended acidic patch is critical for regulating its dynamic association with chromatin. These data also suggest that control of H2A.Z dynamics is important for regulation of gene expression programs during lineage commitment.

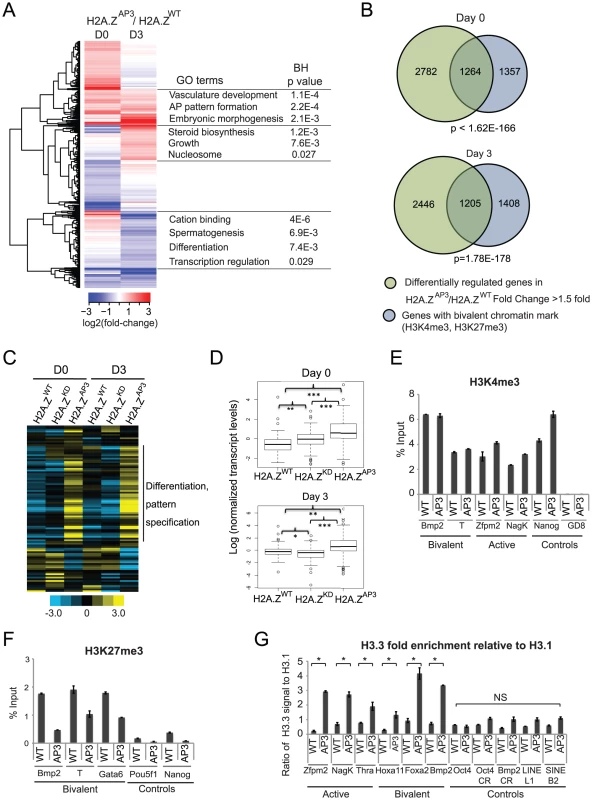

H2A.Z acidic patch is necessary for regulation of bivalent genes during ESC differentiation

H2A.Z knock-out mice die around the time of gastrulation when complex gene expression patterns are established during embryogenesis [5]. Moreover, ESCs depleted of H2A.Z fail to execute developmental gene expression programs when signaled to do so [10]. Furthermore, in vitro biophysical studies showed that an intact H2A.Z acidic patch is necessary for the ability of a nucleosomal template to fold into a 30-nm chromatin fiber and for the efficient repression of transcription [45], [46]. Thus, we analyzed global gene expression patterns in H2A.Z^WT and H2A.Z^AP3 cells in ESCs (Day 0 or D0) and at Day 3 (D3) of ESC differentiation (Table S2). We observed that a subset of genes showed higher expression levels in H2A.Z^AP3 at D0 and that many of these genes remained expressed at higher levels in Day 3 H2A.Z^AP3 EBs relative to H2A.Z^WT (Figure 3A). These de-repressed genes have functions in vasculature development, pattern formation, and embryonic morphogenesis (e.g. Tbx20, Hoxb4, Foxc1) (Figure 3A). Genes that displayed higher expression levels in H2A.Z^AP3 specifically at D3, function in steroid biosynthesis, signaling, and growth (e.g. Cyp51, Mvd, Wnt5a). In contrast, genes with lower expression levels at D3 in H2A.Z^AP3 have roles in differentiation and transcription regulation (e.g. Notch4, Spag1, Neurod1, Wnt5a). These results indicate that H2A.Z^AP3 incorporation leads to significant changes in the expression of genes with important developmental functions.

While H2A.Z is enriched at the majority of H3K4me3 marked promoters, we previously observed that bivalent genes exhibited significant changes upon H2A.Z depletion [10]. In ESCs, H2A.Z incorporation at bivalent promoters is required for precise regulation of developmental programs during the initial stages of lineage commitment. Notably, genes that showed changes in H2A.Z^AP3 ESCs comprised a large cohort of developmental regulators (Figure 3A). Thus, we further tested the connection between H2A.Z and the regulation of bivalent genes. We compared the differentially regulated genes in H2A.Z^AP3 cells (D0 and D3) with genes containing either bivalent (H3K4me3 and H3K27me3) or active (H3K4me3 only) histone marks. We found a significant overlap between genes that are differentially regulated and genes with bivalent marks (P<10⁻¹⁰⁰, Figure 3B), whereas no significant overlap was observed with H3K4me3 only (active) genes (Figure S3A, top). Reciprocally, we grouped target genes as active or bivalent according to histone modification patterns and compared the expression levels of these two groups. Similarly, bivalent genes (H3K4me3, H3K27me3) in H2A.Z^AP3 cells showed significant deviations in expression relative to H2A.Z^WT, whereas active genes did not exhibit significant differences (Figure S3A, bottom, Table S2).

We focused further attention on the class of bivalent genes and compared their expression in H2A.Z^AP3 relative to H2A.Z^WT during ESC differentiation using the Nanostring mCounter assay as an independent measure of gene expression (Figure 3C, Table S4). The subset of genes in the Nanostring probe set included developmental regulators, lineage specific genes as well as pluripotency factors and housekeeping genes, comprising a subset of known H2A.Z target genes and negative controls (Table S4). Consistent with our RNA-Seq data, genes involved in differentiation and pattern specification were expressed at higher levels in H2A.Z^AP3 ESCs (Figure 3C,D). Interestingly, bivalent genes are expressed at higher levels in H2A.Z^AP3 relative to H2A.Z^KD ESCs, suggesting that incorporation of the mutant results in a distinct chromatin state compared to loss of H2A.Z. Consistent with this idea, H2A.Z^KD ESCs failed to activate lineage markers in D3 EBs [10], whereas many of these genes were expressed at higher levels in H2A.Z^AP3 EBs (Figure 3C,D). The distinct transcriptional output of H2A.Z^AP3 relative to H2A.Z^KD may be due to the replacement of H2A.Z with H2A rather than its loss [36], whereas incorporation of H2A.Z^AP3 may result in a constitutively dynamic nucleosome.

Given that H2A.Z is enriched at active genes and poised bivalent genes in ESCs (Figure 2A), next we analyzed H3K4me3 and H3K27me3 patterns by ChIP-qPCR in H2A.Z^WT and H2A.Z^AP3 ESCs (Figure 3E,F). While H3K4me3 enrichment patterns did not vary significantly between H2A.Z^WT and H2A.Z^AP3 at either class of H2A.Z target genes (Figure 3E), we found that H3K27me3 enrichment was reduced at bivalent genes in the acidic patch mutant ESCs. This observation is consistent with the de-repression of bivalent genes in H2A.Z^AP3 ESCs. Together, these results suggest that the divergent H2A.Z residues play key roles in the formation of specialized chromatin domains that are necessary for maintenance of the poised state and for responding to developmental cues.

H2A.Z exists in hybrid nucleosomes along with the histone H3 variant H3.3 whose incorporation marks active promoters, enhancers, and insulator elements [23]–[25]. These double variant nucleosomes are characterized as highly unstable and salt labile, consistent with its enrichment in regions of highly dynamic chromatin. Given that H2A.Z^AP3 appears to be loosely associated with chromatin relative to H2A.Z^WT by salt titration, next we asked whether H3.3 was enriched at bivalent promoters in H2A.Z^AP3 ESCs compared to H2A.Z^WT. Since H3.3 differs from H3 by only three amino acids, antibodies against H3.3 cannot be used to effectively distinguish the variant from canonical H3. To circumvent this issue, we transfected an H3.3 C-terminal HA-Flag construct into H2A.Z^WT and H2A.Z^AP3 transgenic ESCs depleted of endogenous H2A.Z (Figure S3B). Similar lines were created with H3.1 C-terminal HA-Flag constructs (Figure S3B). ChIP-qPCR analyses using Flag and HA antibodies revealed that the ratio of H3.3 enrichment relative to H3.1 was higher at target promoters in H2A.Z^AP3 ESCs relative to H2A.Z^WT (Figure 3G). Given that H3.3 is associated with hyperdynamic chromatin, including active genes in ESCs [24]–[26], [47], the increase in H3.3 enrichment at TSSs is consistent with the dynamic nature of H2A.Z^AP3 nucleosomes and de-repression of target genes in these cells. Taken together, our results demonstrate that the regulation of bivalent genes is highly sensitive to H2A.Z incorporation compared to active genes. In particular, the finding that a subset of genes remained highly expressed in H2A.Z^AP3 cells during lineage commitment suggests that the acidic patch may be necessary to maintain the poised, silent chromatin state at bivalent genes.

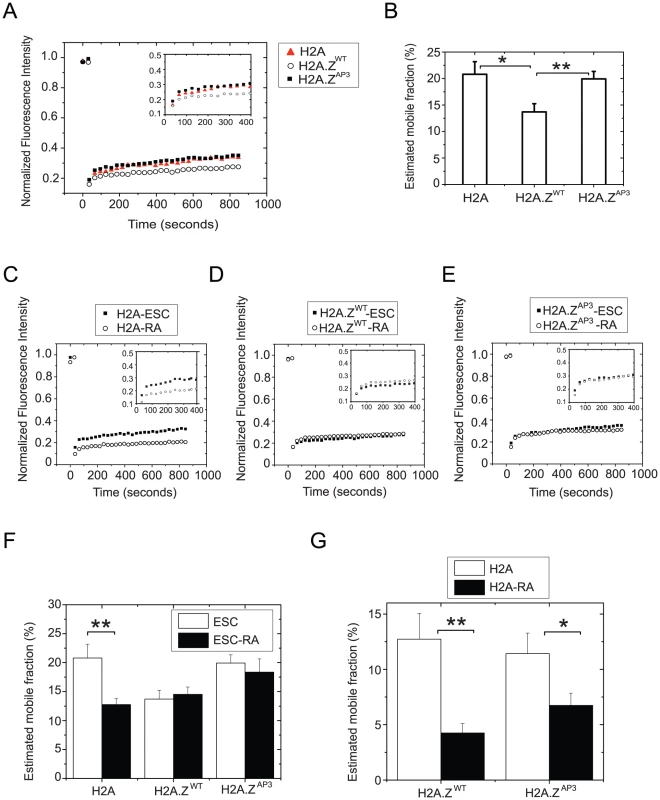

Divergent acidic patch residues regulate H2A.Z dynamics

Nucleosome dynamics have important functional consequences on gene regulation [47]–[49]. Our data suggest that disruption of the divergent residues in the acidic patch results in a more dynamic association of H2A.Z^AP3 in chromatin. Single cell analysis by fluorescence recovery after photobleaching (FRAP) has been used previously to probe the mobility and dynamics of chromatin-associated proteins in mammalian nuclei [48], [50]–[52]. FRAP studies showed that the mobility of core histones H2B-GFP and H3-YFP are significantly higher in ESCs compared to differentiated cell types [47]. These analyses led to the idea that ESC chromatin is in a hyperdynamic and transcriptionally-permissive state, whereas heterochromatin formation during differentiation leads to a decrease in core histone dynamics [47]. Furthermore, in vitro biophysical studies showed that H2A.Z-containing nucleosomal arrays impeded higher order chromatin folding compared to canonical nucleosomes, suggesting that H2A.Z incorporation may contribute to a unique chromatin environment [53]. Thus, we analyzed the recovery kinetics of H2A.Z^WT-YFP relative to H2A-YFP in ESCs. As expected, H2A-YFP displayed recovery kinetics in ESCs similar to previous reports for H2B-GFP (∼20% mobile fraction) (Figure 4A,B, Table S5) [47]. Interestingly, the dynamics of H2A.Z^WT was reduced compared to H2A in ESCs. For example, the mobile fraction of H2A was ∼20% compared to ∼13% for H2A.Z^WT (P<0.02) (Figure 4B). Importantly, unbleached photo-imaging controls showed that imaging conditions did not incur inadvertent bleaching and loss of histone fluorescence signal during the experiment (Figure S4A, B). The higher mobility of H2A in ESCs is consistent with a global, transcriptionally permissive chromatin environment in ESC, while the slower recovery of H2A.Z^WT is suggestive of a more specialized and distinct H2A.Z chromatin state. Our data are also consistent with prior work indicating that H2A.Z incorporation leads to a more stable nucleosome [21], [54] and that H2A.Z nucleosomes promote formation of 30 nm fibers [53].

Next we probed H2A.Z^WT dynamics upon lineage commitment. ESCs were differentiated by addition of retinoic acid (RA) for five days and fluorescence recovery was measured on the final day. Consistent with an increase in chromatin condensation during lineage commitment due to heterochromatin formation, we found that H2A was less dynamic upon RA differentiation, as indicated by the reduction in the mobile fraction (∼20% in ESCs versus ∼12.5% in RA differentiated cells, P<0.02) (Figure 4C, F). In contrast, the recovery rate of H2A.Z^WT was similar in ESCs and differentiated cells (Figure 4D, F, Table S5). The inability of H2A.Z to form more highly condensed chromatin structures typical of heterochromatin regions may explain why H2A.Z^WT dynamics does not display a further reduction upon ESC differentiation. These data also suggest that H2A.Z dynamics is regulated via a different pathway compared to H2A.

Given that H2A.Z^AP3 enrichment was lower in ESC chromatin by ChIP-Seq, we investigated its mobility in ESCs. We found that H2A.Z^AP3 recovers significantly faster than H2A.Z^WT and displays recovery kinetics similar to H2A (Figure 4A, B). For example, the H2A.Z^AP3 mobile fraction was higher in ESCs compared to H2A.Z^WT (20% versus 13%; P<0.006) and similar to H2A, suggesting that the divergent acidic patch residues play an important role in regulating H2A.Z dynamics. These observations are consistent with in vitro solution studies demonstrating that H2A.Z-containing nucleosome arrays harboring mutations in the acidic patch exhibited chromatin folding kinetics similar to H2A [55]. In contrast, the H2A.Z^AP3 mobile fraction remained significantly higher upon differentiation compared with H2A, suggesting that H2A.Z^AP3 nucleosomes are structurally distinct (P<0.044) (Figure 4E, F, Table S5). Taken together, these observations indicate that the reduced occupancy of H2A.Z^AP3 in ESCs is likely due to its increased dynamics and suggest that the divergent H2A.Z acidic patch is important for formation of specialized chromatin states.

The difference in H2A.Z^AP3 mobility upon RA differentiation relative to H2A may result from failure of these cells to properly differentiate. To determine if the mobile fraction was reflective of impaired differentiation capacity or purely a result attributable to H2A.Z^AP3 dynamics, we introduced an H2A-mCherry transgene into H2A.Z^WT and H2A.Z^AP3 ESCs. To determine the mobile fraction of H2A-mCherry in both H2A.Z^WT and H2A.Z^AP3, we performed FRAP on Day 0 and Day 5 RA-differentiated ESCs. We found that the H2A dynamics was similar in H2A.Z^WT and H2A.Z^AP3 ESCs (Figure 4G, Figure S4C, D, Table S5) (12.7% and 11.4% respectively), suggesting that expression of the mutant variant does not significantly alter global H2A dynamics in the undifferentiated state. The relative differences in the percent mobile fraction for H2A-mCherry and H2A-YFP (22% versus 12.7%) is likely due to differences in their respective fluorophore properties [56]. Upon RA differentiation, we found H2A dynamics decreased in H2A.Z^WT (4.3% in RA cells), consistent with formation of condensed heterochromatin during lineage commitment (Figure 4G, Figure S4C, Table S5). Similarly H2A dynamics was also reduced in H2A.Z^AP3 retinoic acid induced cells (6.7% in RA cells), indicating that these cells form chromatin structures more similar to differentiated cell types (Figure 4G, Figure S4D, Table S5). Collectively, these data suggest that the acidic patch region is necessary for proper regulation of H2A.Z dynamics and that its incorporation directly controls gene expression during lineage commitment.

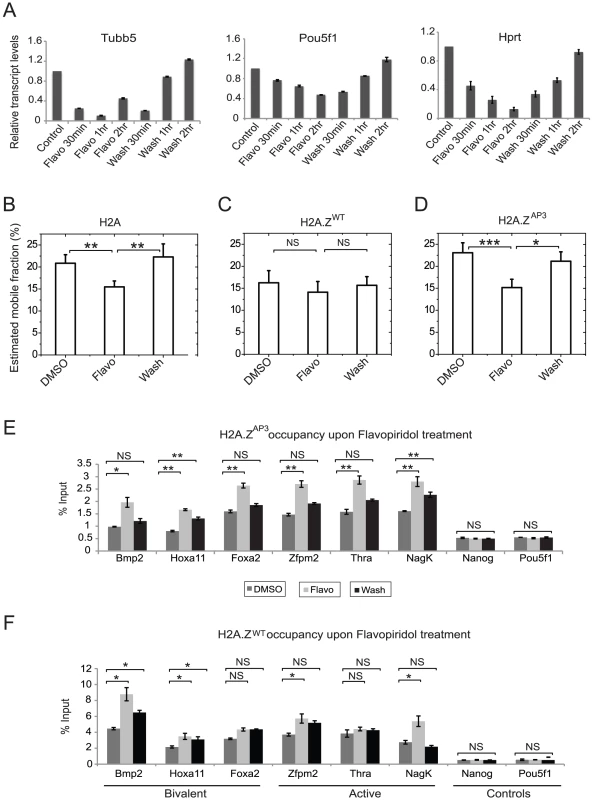

H2A.Z acidic patch is necessary for transcription-dependent chromatin dynamics

Active transcription is accompanied by rapid exchange of histone H2A/H2B dimers to accommodate the transiting RNA polymerase [48], [49], [51], [52]. Given that H2A.Z^AP3 incorporation leads to altered chromatin dynamics and changes in gene expression, we hypothesized that the increase in H2A.Z^AP3 mobility was linked to transcription. To test this idea, H2A.Z^WT, H2A.Z^AP3, and H2A ESCs were treated with flavopiridol, a reversible inhibitor of CDK9 that rapidly decreases RNAP2-dependent transcription. Consistent with previous observations, treatment of H2A.Z^WT ESCs with 1 µM flavopiridol for 2 hrs resulted in a 30–44% decrease in RNAP2-dependent transcripts [57], [58] (Figure 5A). Notably, transcript levels were restored to control levels 2 hrs after the wash step. Prior FRAP studies in differentiated cells (HeLa) demonstrated a 3% reduction in the H2B mobile fraction upon treatment with the transcription inhibitor 5,6-Dichlorobenzimidazole 1-β-D-ribofuranoside (DRB) [52]. While this overall fraction is low, it is expected that only a small subset of total H2B is associated with transcription given its broad distribution across the genome. Similarly, we found that H2A treated with flavopiridol exhibited an approximately 6% decrease in the mobile fraction in ESCs by FRAP relative to the DMSO control (P<0.02) (Figure 5B, Figure S5A). Importantly, H2A dynamics were restored to normal levels 2 hrs after removal of flavopiridol, suggesting that at least 6% of H2A in ESCs is linked to transcription (Figure 5B, Table S5). In contrast, we did not detect a measurable change in H2A.Z^WT dynamics upon flavopiridol treatment as compared with untreated ESCs, suggesting H2A.Z^WT dynamics is not specifically dependent on active transcription (Figure 5C, Figure S5B, Table S5). This result is consistent with the idea that H2A.Z incorporation results in an inherent steady-state dynamic at promoters [21], [54]. It is also possible that ESCs treated with flavopiridol show a moderate reduction in the H2A.Z^WT mobile fraction that cannot be effectively resolved by FRAP [59]. In contrast, H2A.Z^AP3 dynamics was decreased in ESCs upon flavopiridol treatment relative to H2A.Z^WT (Figure 5D and Figure S5C). For example, we detected a ∼6% decrease in the H2A.Z^AP3 mobile fraction upon flavopiridol treatment (P<0.01) similar to H2A, which was restored to near normal levels 2 hrs after flavopiridol removal. These observations were independently confirmed using DRB, an irreversible inhibitor of CDK9 and RNAP2-dependent transcription (Figure S5D–G, Table S5). Thus, our analysis suggests that the altered dynamics observed in H2A.Z^AP3 ESCs are, in part, linked to transcription. These data are also consistent with disruption of a repressive chromatin state and higher expression of bivalent genes in H2A.Z^AP3 cells.

To determine if the transcription-dependent decrease in H2A.Z^AP3 dynamics is coincident with increase in H2A.Z^AP3 occupancy at target genes, we performed ChIP on H2A.Z^AP3 ESCs treated with DMSO, flavopiridol (Flavo) and 2 hours post flavopiridol removal (Wash). Consistent with our hypothesis, we found a significant increase in H2A.Z^AP3 enrichment at target gene promoters with flavopiridol and partial reversal of this trend upon removal of flavopiridol (Figure 5E), suggesting that the decrease in H2A.Z^AP3 dynamics upon flavopiridol treatment is coincident with higher H2A.Z chromatin occupancy. These data also support our findings that H2A.Z^AP3 is properly incorporated at promoters. Similar ChIP analyses in H2A.Z^WT ESCs revealed a more modest increase in H2A.Z^WT occupancy at some but not all target genes upon flavopiridol treatment relative to H2A.Z^AP3 (Figure 5F). This is also consistent with the FRAP data which indicates minimal change in H2A.Z^WT mobile fraction upon flavopiridol treatment. These data are also consistent with in vitro biophysical studies showing that an intact H2A.Z acidic patch is necessary for the ability of a nucleosomal template to fold into a 30-nm chromatin fiber and for the efficient repression of transcription [45], [46]. Taken together, our work demonstrates that the divergent acidic patch is an important structural feature that mediates H2A.Z dynamics and maintenance of chromatin states necessary for regulation of inducible gene expression programs during lineage commitment.

Discussion

The essential histone variant H2A.Z has specialized functions that distinguish it from canonical H2A. The functional distinction between histone variants and core histones is mediated in large part by divergent regions in their respective amino acid sequences. These differences can impact how each histone is incorporated, the stability of the resulting nucleosome, higher order chromatin structure and its interactions with other factors. For example, H2A.Z harbors a unique extended acidic patch that contains three divergent residues compared to H2A. This region of H2A.Z is essential for development in Drosophila and Xenopus suggesting that it contributes specialized functions [6], [28], [60]. How the acidic patch domain influences H2A.Z function, however, is poorly understood. Here, we find that control of H2A.Z dynamics is mediated through the unique acidic patch region and that this regulation is critical for proper induction of developmental gene expression programs (Figure 6).

H2A.Z acidic patch is necessary for proper regulation of bivalent genes and formation of specialized chromatin states during ESC differentiation

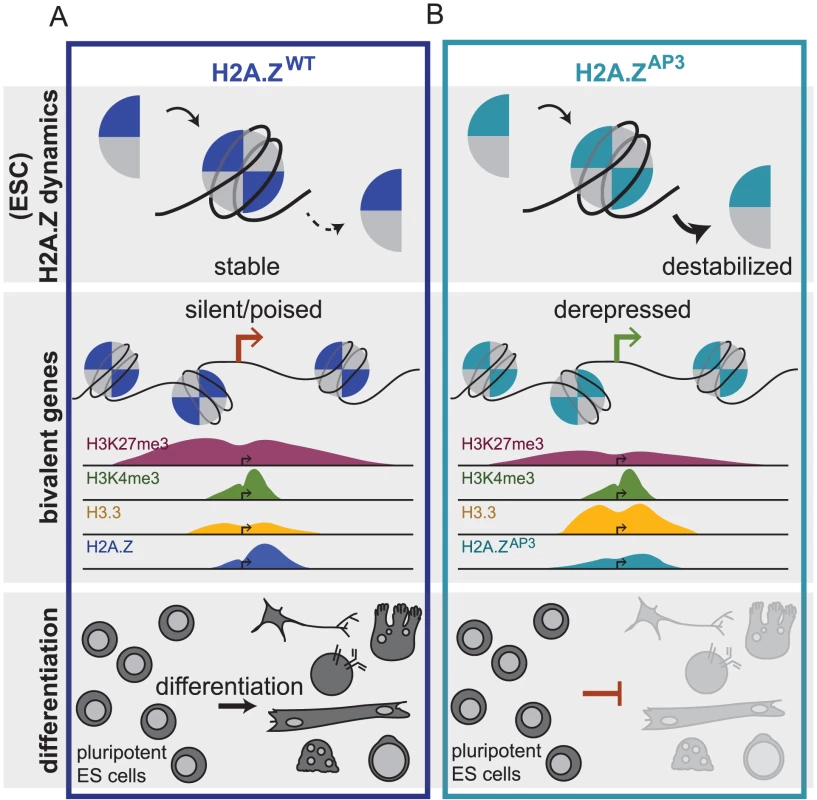

We analyzed the role of the three divergent H2A.Z acidic patch residues during ESC differentiation. While disruption of the acidic patch domain did not affect the global distribution of H2A.Z, its levels at target gene promoters were reduced, suggesting that the divergent acidic patch domain is an important determinant of H2A.Z incorporation or dynamics. We found that H2A.Z^AP3 is less stably associated with chromatin relative to H2A.Z^WT by salt extraction studies, suggesting that an intact acidic patch is necessary for stabilizing H2A.Z nucleosome structure. The dynamic association of H2A.Z^AP3 with chromatin is also consistent with its lower enrichment at genomic sites. Prior in vitro studies show that H2A.Z forms stable 30 nm fibers at the expense of self-association [53], indicating that the unique acidic patch may be important for mediating distinct higher order chromatin structures.

H2A.Z is found at most H3K4me3 promoters of both active and poised genes and often flanks the nucleosome free region (NFR) around TSSs. We observed a particular reduction in H2A.Z^AP3 levels in regions corresponding to the nucleosome downstream of the TSS, which likely represents the +1 nucleosome. The +1 nucleosome possesses significant regulatory potential and it is an important mediator of how a gene responds to environmental and developmental cues [39]. For example, a physical interaction between +1 nucleosome and stalled RNAP2 was demonstrated in Drosophila S2 cells and studies in C. elegans and Drosophila suggested that H2A.Z incorporation at the +1 nucleosome is important for maintaining the paused state of promoters [61]–[63]. Consistent with these findings, the accessibility of the TSS is determined in part by the displacement of the +1 nucleosome, which is important for recruitment of RNAP2. Additionally, the +1 nucleosome appears to be important for regulating transcriptional elongation through interactions with Mediator components [40]. Thus, H2A.Z incorporation at the +1 nucleosome may be critical for determining the specific transcriptional response to developmental cues. A similar phenomenon regarding the role of the H2A.Z +1 nucleosome has been observed in plants in response to changes in ambient temperature [15]. Notably, specific transcriptional responses cannot be achieved by replacement with H2A reinforcing the idea that H2A.Z incorporation leads to specialized chromatin states. Similarly, while H2A can substitute for H2A.Z upon loss of the variant in ESCs, target genes fail to activate properly during ESC differentiation [10], [36]. In contrast, incorporation of H2A.Z^AP3 at TSSs, which is associated with a decrease in the +1 nucleosome, would allow for recruitment of RNAP2 and/or transcriptional elongation consistent with the persistent higher expression of bivalent genes during ESC differentiation (see below). Together, these data point to a critical role for regulating H2A.Z dynamics, particularly at the +1 nucleosome.

The decrease in H2A.Z^AP3 enrichment led to changes in gene expression particularly at bivalent genes during ESC differentiation. H2A.Z is largely associated with active genes whose promoters are marked by H3K4me3 and it is enriched at a smaller subset of bivalent genes (comprising H3K4me3 and H3K27me3 modifications) in ESCs that are silent yet competent for activation. Why is the regulation of bivalent genes more sensitive to mutations in the acidic patch relative to active genes? We propose that the acidic patch is necessary for mediating H2A.Z dynamics or nucleosome stability upon incorporation at both poised and active target genes. Mutations in the acidic patch increase H2A.Z mobility and possibly alter the stability of the +1 nucleosome, which leads to expression of bivalent genes. Conversely, the increase in H2A.Z dynamics may have little impact on the expression of actively transcribed genes since elongation is occurring at these genes and perhaps other modes of regulation prevail to maintain genes in an active state [48]. This idea is also consistent with the observation that H2A.Z levels decrease upon gene activation [8].

In addition to H2A.Z, Polycomb Repressive Complexes (e.g. PRC1 and PRC2) are enriched at bivalent genes [10], [11]. PRCs are important for establishment and maintenance of repressed chromatin states and play key roles in dynamic regulation of gene expression during lineage commitment [64]. We suggest that disruption of the H2A.Z acidic patch alters the chromatin state and loss of PcG-mediated repression at bivalent genes. Consistent with this idea, we found that H3K27me3 levels were reduced at bivalent genes in H2A.Z^AP3 ESCs, whereas H3K4me3 levels remained largely unchanged. These data further support our prior findings that functional coordination between PRCs and H2A.Z is important for regulating developmental gene expression patterns during ESC differentiation [10], [65]. Thus, the unique H2A.Z acidic patch may generally restrict the mobility of nucleosomes in ESCs. Changes in local chromatin compaction due to incorporation of the mutant may lead to changes in gene expression and subsequent loss of PRCs leading to a shift in the balance of chromatin associated factors that promote activation. In support of this model, we found that bivalent promoters gained H3.3 in H2A.Z^AP3 ESCs, a histone variant typically incorporated at highly dynamic chromatin regions. Together, our data suggest that the divergent H2A.Z acidic patch is necessary for the formation of specialized chromatin states that allow for maintenance of the poised state and for proper induction of gene expression programs in response to developmental cues (Figure 6).

The H2A.Z acidic patch mediates histone dynamics in response to transcriptional cues

Given that H2A.Z displayed reduced chromatin association in ESCs compared to H2A.Z^WT, we used single cell analysis to further analyze its dynamic association with chromatin. Interestingly, FRAP measurements revealed that H2A.Z was less dynamic than H2A as indicated by its reduced mobile fraction. These data are consistent with the idea that H2A.Z incorporation leads to the formation of a more stable nucleosome and the H2A.Z containing nucleosome arrays promote formation of 30 nm fibers [53]. While FRAP measurements represent overall steady-state chromatin dynamics, little is known regarding the on- and off-rates of H2A.Z. We suggest that this equilibrium is altered upon disruption of the divergent acidic patch residues resulting in a higher off rate and increased transcriptional output at genes that required H2A.Z for maintenance of the poised state (Figure 6). Moreover, our data suggest that the divergent acidic patch is a critical determinant of H2A.Z dynamics and that this region may be important for rapid activation of developmental programs. Remarkably, we show that while H2A.Z^AP3 appears more dynamic, treatment with the transcriptional inhibitor flavopiridol led to a decrease in its mobile fraction as well as increased occupancy at target promoters. Thus, H2A.Z^AP3 dynamics may also be regulated by the local chromatin environment as well as by interactions with other factors. Consistent with this idea, studies in Arabidopsis showed that H2A.Z is an important component of the thermosensory response. For example, H2A.Z was less sensitive to nuclease digestion at silent, inducible genes at normal temperature [15]. Upon activation of these genes by increasing temperature, H2A.Z-containing nucleosomes become more accessible to nuclease digestion suggesting that the variant is dynamically remodeled in response to inductive cues. Thus, it remains possible that H2A.Z modifications or interaction with other factors may mediate the function of the divergent acidic patch.

H2A.Z localization and dynamics is regulated from yeast to human in large part by two ATP-dependent remodelers, SRCAP and INO80, [66]–[69]. Thus, future studies will be important to determine how the divergent acidic patch cooperates with chromatin remodelers. For example, INO80 appears to be an important regulator of H2A.Z removal by catalyzing the exchange of H2A.Z for H2A [69]. Thus, one possibility is that H2A.Z^AP3 is a better substrate for INO80 leading to a higher off rate and increased dynamics. Interestingly, Swc2 in yeast, a conserved subunit of SRCAP, binds directly to H2A.Z [70] and recent work indicates that this interaction may function as a “lock” that prevents rapid exchange of H2A.Z in chromatin [71]. Notably, domain swap experiments in yeast, where the H2A.Z C-terminal domain including the extended acidic patch is replaced with the analogous region of H2A blocks interaction with Swc2 and many other components of the SWR1 remodeling complex [70]. In contrast, deletion of the H2A.Z C-terminal region distal to the extended acidic patch maintained interactions with SWR1 [30]. Consistent with these observations, we found that H2A.Z^AP3 interacted with SRCAP; however, it is possible that mutations in the extended acidic patch interfere with a specific interaction with YL1, the mammalian Swc2 homologue. Thus, an alternative scenario is that H2A.Z^AP3 incorporation leads to SRCAP-mediated exchange of H2A.Z for H2A, which would likely influence dynamics.

The acidic patch has been proposed to mediate interactions with histone tails from neighboring nucleosomes, and this domain may also form a novel interaction surface for recruitment of other chromatin factors and downstream effectors [27], [53], [55], [60]. Thus, the unique H2A.Z acidic patch may interact with distinct subsets of factors that determine its specialized functions compared to H2A. In support of this idea, a recent proteomics analysis identified a number of chromatin-associated proteins enriched with H2A.Z [72]. These interactions may be important for regulating transcriptional output at target genes, ultimately allowing the cell to tune signals into specific responses that lead to changes in cell fate. In addition to its divergent structural features, H2A.Z is also subject to numerous posttranslational modifications (PTMs). For example, acetylation of the H2A.Z amino-terminus is a hallmark of active genes and has been implicated in gene regulation and chromosome stability [73]–[76], whereas the carboxy-terminal domain is modified by ubiquitylation and sumolyation, and these marks have been implicated in heterochromatin formation and DNA repair, respectively [77], [78]. As such, PTMs may regulate H2A.Z dynamics by promoting or inhibiting interactions with regulatory factors or by affecting its interactions with neighboring nucleosomes. Overall, our work provides critical insights into the role of the divergent H2A.Z acidic patch residues as a structural determinant that links chromatin dynamics, gene regulation, and ultimately cell fate. Moreover, these data provide a mechanistic explanation for the essential role of the divergent acidic patch during metazoan development.

Materials and Methods

Culture of mouse embryonic stem cells (mESCs)

V6.5 (129SvJae and C57BL/6) ESCs were plated with irradiated murine embryonic fibroblasts (MEFs) and grown under typical ESC conditions on gelatinized tissue culture plates. Briefly, cells were grown in Knockout DMEM (Invitrogen) supplemented with 10% fetal bovine serum (Hyclone), leukemia inhibitory factor [16], non-essential amino acids (Invitrogen), L-glutamine (Invitrogen), and penicillin/streptomycin (Invitrogen) as previously described [79]. ESCs used for ChIP-Seq, RNA-Seq and qRT-PCR experiments were plated without MEFs for the final passage.

Transgenic ESC lines

H2A.Z^WT-YFP, Mutant H2A.Z^AP3-YFP and H2A-YFP constructs were generated from the pAd-cDNA (Addgene), which contains a dox-inducible CMV-promoter. The H2A.Z^AP3 mutant was generated by replacing H2A.Z residues G92, D97, and S98 with the corresponding H2A amino acids (N, N and K respectively) using the instructions provided in the Quikchange Site Directed Mutagenesis Kit (Stratagene). We then replaced GFP in the vector with YFP (YFP exhibits lower background for imaging) to generate an in frame fusion C-terminal to H2A.Z. The resulting lentiviral constructs were transfected into 293 cells using the protocol outlined by the RNAi consortium (BROAD Institute, http://www.broadinstitute.org/rnai/public/). The viral supernatant generated 48 hrs after transfection was used to infect KH2 ESCs [80] to generate wild-type and mutant H2A.Z transgenic ESC lines. The YFP transgenic ESCs were induced with 1 µg/ml of doxycycline and FACS sorted for YFP positive cells.

shRNA-mediated depletion of endogenous H2A.Z

Lentiviral constructs expressing short hairpins specifically directed at the 3′ UTR of endogenous H2A.Z were introduced into the wild-type and mutant H2A.Z transgenic KH2 ESC lines. Sequences of the different H2A.Z 3′UTR-directed hairpin oligos are as follows: sh#1 5′- AACAGCTGTCCAGTGTTGGTG-3′; sh#2 5′- AATTAGCCTTCCAACCAACCA-3′. Hairpin oligos were annealed and cloned into pLKO.1 vector (Sigma) as detailed by the RNAi consortium, BROAD (http://www.broadinstitute.org/rnai/trc/lib). Since KH2 cells are puromycin resistant [80], blasticidin was used as a selection marker for the generation of endogenous H2A.Z-depleted transgenic KH2 ESCs. The puromycin marker in the pLKO.1 vector was removed by digestion with BamHI and KpnI and replaced with blasticidin. The blasticidin cDNA was PCR amplified from pLenti6.2/V5-DEST Gateway Vector (Invitrogen). V6.5 (129SvJae and C57BL/6) and the YFP transgenic ESCs were cultured as previously described [79]. The endogenous H2A.Z-depleted transgenic KH2 ESCs were cultured in the presence of blasticidin (5 µg/ml) on blasticidin-resistant feeder cells [81].

ESC differentiation

Retinoic acid-induced differentiation was performed by plating mESCs onto gelatinized tissue culture plates without MEFs and grown in the same mESC media as above but without LIF and supplemented with 1 µM all-trans retinoic acid (Sigma, R2625). Cells were collected after five days. mESCs were induced to form embryoid bodies [68] by plating on non-adherent plates from a starting density of 1–2 million ESCs per 10 ml of mESC media lacking LIF.

RNA isolation and quantitative real-time PCR

RNA was extracted using TRIzol (Invitrogen, 15596-018) or Izol (5PRIME, 2302700). Purified RNA was reverse transcribed using SuperScript III (Invitrogen, 18080-044) or M-MLV reverse transcriptase (Invitrogen, 28025-013) and random hexamers according to manufacturer protocols. Quantitative PCR reactions were performed with SYBR Green Master Mix (Roche). Primer sequences are listed in Table S4. Relative mRNA levels were determined in triplicate for each transcript using the manufacturer's software (Advanced Relative Quantification with Roche Lightcycler 480 Software Version 1.5) using control genes (Hprt, Gapdh, or Tubb5 levels) for normalization.

RNA-Seq library preparation and analysis methods

RNA was isolated using the protocol mentioned above. The purified RNA was the subjected to oligo (dT) selection, fragmentation and first and double strand synthesis with the Illumina Tru-Seq kit (RS-930-20 01) according to the manufacturer's instructions. DNA fragments above 30 bp was purified using SPRI-TE beads (Beckmann Coulter, Agencourt, A63880) according to manufacturer's instructions. The purified DNA was end-repaired and single A bases for adaptor ligations. The adaptor-ligated DNA was then subjected to double SPRI-TE purification to select for ∼200 bp fragments. These fragments were enriched and barcoded by PCR for multiplexing. A final SPRI-TE purification was performed to clean up the barcoded RNA-Seq libraries.

RNA-Seq data were aligned against the mouse reference genome (mm9) using Tophat 1.4.1 and Bowtie 0.12.7 in single-end mode, tolerating up to 2 mismatches and matches up to 20 locations transcriptome-wide. Gene expression was quantified with Cufflinks 1.3.0, and pairwise differential expression was analyzed using Cuffdiff 1.3.0. H3K4me3 and H3K27me3 enrichment peaks were obtained from our previous work [38]. Histone mark enrichment peaks whose boundaries fell within a region +/−2 kilobases (kbs) of a transcription start sites (TSS, based on RefSeq annotation of the mm9 mouse genome assembly) were identified and the number of H3K4me3 and H3K27me3 TSSs were recorded. RNA-Seq-based isoform expression data from Cufflinks (in RPKMs) were summed over each TSS and used as a metric for the transcriptional output originating from each TSS (Table S2). Median summed isoform expression levels were computed across all isoforms with H3K4me3- or H3K4me3/H3K27me3-marked TSSs in the different ESCs (H2A.Z^WT, H2A.Z^KD, and H2A.Z^AP3) and EB differentiation time points and compared by t-test. Similarly, the overlap between these subsets and the genes differentially regulated upon H2A.Z modulation was tested using the hypergeometric test. Finally, cumulative distribution of isoform expression differences upon H2A.Z modulation were computed by stratifying log2-tranformed isoform fold changes based on the presence of H3K4me3 and H3K27me3-bound regions within +/−2 kbs of the TSS. The significance of the differences between the cumulative distributions plots was assessed using the Kolmogorov-Smirnov test. All the sequencing results in the article have been deposited in GEO under the accession number GSE40065.

Chromatin Immunoprecipitation (ChIP)

ChIP was performed as described [38] with the following modifications. Diagenode Bioruptor (UCD-200) was used to sonicate with 30 cycles of 30 sec on, 30 sec off. The samples were sonicated in 15 ml polystyrene tubes at 4°C while samples were immersed in ice cold water. Antibodies used for ChIP include: GFP (Abcam, ab290), H2A.Z (Abcam, ab4174), H3K27me3 (Cell Signaling Technology, #9733), H3K4me3 (Millipore, #07-473), Suz12 (Bethyl, A302-407A) and RNAP2 Ser5P (Abcam, ab5131).

ChIP and site-specific PCR

ChIP enriched DNA was quantified by quantitative PCR and the data analyses performed as described in [10]. qPCR reactions using SYBR Green (Roche) and gene-specific primers (Table S4) were performed on ChIP and whole cell extract (WCE) DNA. Reactions were performed in triplicate on the Roche LightCycler 480. % Input was calculated with the following formula: % Input = 2^{(Cp(WCE)-Cp(IP))}×(% WCE).

ChIP-Seq library preparation and analysis methods

Approximately 200 ng of DNA was submitted to SPRI-works Fragment Library System I (Beckman Coulter) for each library prepared and sequenced on Illumina GAII. ChIP-seq reads were aligned to the mm9 genome assembly using Bowtie 0.12.3, allowing for two mismatches. To determine regions of the genome enriched for H2A.Z, mapped reads were extended to 200 bp (average fragment length) and allocated in 25-bp bins. A Poissonian model was used to determine statistically enriched bins with a P-value threshold set at 1E-9 as described previously [82]. Additionally, we required that genomic bins were at least 5 fold over input to be considered enriched peaks. All the sequencing results in the article have been deposited in GEO under the accession number GSE40065.

Fluorescence recovery after photobleaching (FRAP) analysis

ESCs were plated in the absence of MEFS on 0.2% gelatin in 2 mm Lab-Tek Chambered #1 borosilicate cover glass chambers containing a 1 mm glass slide 24 hours prior to imaging. Phenol-red free DMEM (Invitrogen 21063-045) was used to make ESC media for imaging purposes to minimize medium auto fluorescence. For differentiation experiments, ESCs were treated with 1 µM retinoic acid and plated on 0.2% gelatin in Lab-Tek Chambered cover glass 24 hours prior to imaging. YFP transgenic cells were additionally induced with 1 µg/ml of doxycycline 24 hours prior to imaging. Confocal fluorescence imaging was performed on a LSM 510 microscope (Carl Zeiss, Jena, Germany) with a 514 nm wavelength laser for YFP excitation, a 520–550 nm bandpass emission filter and a 100× 1.4 N. A. oil immersion objective. FRAP experiments were performed by photobleaching for a short 5.4 sec exposure to 100% laser intensity. To minimize error in the quantification of fluorescence recovery induced by the movement of unbleached chromatin into the bleached region due to the dynamic nature of ESC chromatin and changes in nuclear morphology, a 20 pixel sub-region within the 75 pixel bleached region was used was used to quantify fluorescence recovery using custom-written MATLAB routines (Mathworks, Natick, MA). In all cases the bleached region was sufficiently smaller than the size of the nucleus to minimize the effect of the original loss of fluorescent protein due to bleaching on maximal recovery. In any case, such loss would result in a uniform underestimation of mobile fractions in all tested instances, and not affect relative differences. Images were acquired using 30 sec acquisition intervals for approximately 14 mins with scan speed and imaging intervals optimized to minimize photobleaching during the recovery process. A minimum of 14 cells were analyzed for each FRAP experiment, with background correction performed by normalizing intensities to the maximum initial mean intensity in the bleach spot prior to photobleaching to generate individual FRAP curves. Mean data shown in results constitute the average of individual recovery curves. Mobile fractions (MF) were calculated from individual curves using MF = (I_dip−I_sat)/(1−I_dip), where I_dip is the value of the mean intensity immediately after the bleaching pulse, and I_sat is the mean intensity at the end of the monitored recovery period. Student's t-test was used to calculate the statistical significance of the differences between estimated mobile fractions. For the flavopiridol experiments, cells were treated with 1 µM flavopiridol 2 hours before conducting photobleaching experiments. The post-wash FRAP experiments were performed on ESCs 2 hrs after washing away the inhibitor. For DRB experiments, ESCs were treated with 15 µM DRB for 2 hours and then imaged for FRAP as described above. All mobile fractions and the respective standard errors are listed in Table S5.

Histone extraction

Histone extracts were prepared by harvesting the cells first with ice-cold PBS supplemented with 5 mM sodium butyrate (10⁶–10⁷ cells). The cells were then washed in cold filter sterilized Lysis buffer (0.25M Sucrose, 3 mM CaCl₂, 1 mM Tris pH 8.0, 0.5% NP-40). The nuclei were spun down at 3900 rpm for 5 min at 4°C. The supernatant was removed leaving the pellet of 50 µl of nuclei. This pellet was washed again with Wash solution (300 mM NaCl, 5 mM MgCl₂, 5 mM DTT, 0.5% NP40) and spun under the same conditions as mentioned above. The supernatant was removed and the nuclei were resuspended in 50 µl of Extraction solution (0.5M HCl, 10% glycerol, 0.1M 2-mercaptoethylamine-HCl). The nuclei were then left in ice for 30 min after which they were spun at 13,000 rpm for 5 min at 4°C. The supernatant was transferred to siliconized tubes and 500 µl of acetone was added. The resulting solution was incubated at −20°C overnight. The resulting histone precipitate was spun at 13,000 rpm for 5 min for further analyses. Rabbit anti-H2A.Z antibody (Abcam, ab4174) and Rabbit anti-GFP antibody (Abcam, ab290) was used for western blot at concentrations recommended by the manufacturer.

Immunoblot analysis

Histone extracts, lysates and co-immunoprecipitated samples were resolved on SDS-PAGE gels and transferred on PVDF membrane (Bio-rad, 162-0177) using the Mini-Trans-Blot (Bio-rad, 170-3930). The transferred blot is then blocked with 5% milk in TBST (0.1% Tween-20 in 1× Tris-buffered saline-pH 7.4) for 1 hour at room temperature and incubated with the indicated antibodies prepared in TBST with 5% milk. The blots were then washed with TBST three times and incubated with species-specific HRP-conjugated secondary antibodies (Calbiochem). After incubation with secondary antibodies, the immunoblots was washed again with TBST and visualized using HRP substrate from Biorad (170-5070).

Immunostaining and histology

Cells were fixed with 4% paraformaldehyde for 20 minutes at room temperature, washed 3× with PBS, permeabilized in PBS with 0.2% TritonX, 0.1% Tween-20 for 30 minutes at room temperature, washed twice with PBS and blocked with PBS containing 0.1% Tween-20, 2% CCS (Cosmic Calf Serum, Invitrogen) for 1 hour at room temperature. The cells were then stained with anti-Oct4 antibody (mouse monoclonal, Santa Cruz, sc-5279, 1∶100) for 1 hour at room temperature, then washed twice more with block and stained with anti-mouse secondary (Alexafluor 594). After washing twice more, the cells were imaged using Nikon Eclipse Ti-S.

For histology, the EBs were fixed in 10% formalin for 20–30 mins and washed with PBS. Fixed EBs were then dehydrated by treating with a gradient of 70%, 80%, 90% and 100% ethanol for 20 mins each. The dehydrated EBs were finally cleared in xylene and embedded in paraffin overnight at 60°C. Sections of EBs at 0.4 microns were generated and placed on slides for staining. The sections are deparaffinized with xylene, rehydrated and stained with Harris Hematoxylin (Surgipath, 01560) and Eosin (Polyscientific, s176).

Qualitative and quantitative (SILAC) proteomics analyses

ESCs were cultured in ¹³C₆/¹⁵N₂-lysine(+8) ¹³C₆/¹⁵N₄-arginine(+10) (“SILAC heavy”) or naturally occurring lysine and arginine (“SILAC light”) medium according to [83]. Histones were purified from ES and differentiated cells essentially as described [84] except that a Zorbax C8 HPLC column was employed (Agilent). Each 1 min fraction collected from the HPLC separation of the histones was subjected to SDS-PAGE. Subsequent LC-MS/MS experiments were performed on an LTQ Velos-Orbitrap mass spectrometer (ThermoFisher Scientific) fed by an Agilent 1200 nano-HPLC system (Agilent) following procedures analogous to those described elsewhere [85]. First, the Coomassie-stained visible bands on PAGE separations of the HPLC fractions were interrogated by tryptic and chymotryptic digestion. Peptides unique to H2A.Z (and not derived from other H2A variants) were detected in bands of ∼14 kDa and ∼20 kDa. The ∼14 kDa variant of H2A.Z co-HPLC-separated with Histone H4 (∼12 kDa) while the ∼20 kDa variant co-HPLC-separated with Histone H2B (∼14 kDa). Next, these bands (from a parallel preparation) were subject to in-gel propionylation using propionic anhydride according to [86]. To study the C-terminal ubiquitination of H2A.Z, chymotryptic peptides were analyzed. To study the N-terminal acetylation of H2A.Z, tryptic peptides were analyzed. M/z values corresponding to the various acetylated and ubiquitin-residual peptides (The proteases will cleave ubiquitin as well as H2A.Z, leaving a branched peptide residual) were calculated. Separate acquisition methods were designed for the study of acetylation or ubiquitination. Selective-ion monitoring (SIM) windows were designed around these m/z as appropriate and data-independent MS/MS scans were acquired at these m/z ratios as dictated by each experiment. The sample was introduced to the mass spectrometer via liquid chromatography with conditions identical to those described [87].

Cell cycle and apoptosis analyses

Cell cycle kinetics using PI

A total of 5 million ESCs were resuspended in ice cold PBS to single-cell suspension and fixed using 95% ethanol at 4°C overnight. The fixed cells were then resuspended in PBS containing 1% BSA containing 50 µg/ml of propidium iodide (PI). The cells were then treated with RNAse A at a final concentration of 1 mg/ml at 37°C for 30 mins. The cells were then resuspended in PBS. DNA peak profiles were generated on a FACSCalibur (Becton Dickinson) flow cytometer at the Swanson Biotechnology Center Flow Cytometry Facility at the Koch Institute-MIT.

Cell cycle kinetics using BrdU incorporation

A total of 2 million cells were used for incorporation of BrdU using the BD Pharmingen APC BrdU Flow Kit (Cat.No: 552598) instructions. The ESCs were incubated with a final concentration of 10 µM BrdU for an hour. Day 5 RA-induced ESCs were incubated with the same concentration of BrdU for 3 hrs.

Annexin V staining

5 million cells were used for staining with Cy5 Annexin V using the BioVision Annexin V-Cy5 Apoptosis Kit (K103-25) according to manufacturer's instructions.

Cells counted from Day 10 embryoid bodies (EBs)

The Day 10 EBs are collected and washed with PBS. The washed EBs were resuspended in trypsin for 5 mins. The trysin was inactivated with ESC media containing serum. The cells were then counted using the Nexcelom Cell counter (Cellometer Auto T4).

Chromatin spreads

Chromosome spread analysis was performed as described in [88]. The cells were treated with a final concentration of 1 µg/ml of Nocodazole for 8 hours at 37°C. The treated cells were then washed with PBS. The mitosis-arrested cells were then collected and spread on slides using a Cytospin 4 (Thermo, Waltham, MA) [89]. The spread cells were then fixed with paraformaldehyde and permeabilized with detergent. The fixed slides were then stained for CENP-A at a dilution of 1∶800 (Cell Signaling Technology, #2048) and visualized with Alexa 594 secondary antibodies (1∶500). The DNA was visualized using DAPI and the GFP signal was from the YFP-fused transgene expression.
