Septation of Infectious Hyphae Is Critical for Appressoria Formation and Virulence in the Smut Fungus

Summary

Differentiation of hyphae into specialized infection structures, known as appressoria, is a common feature of plant pathogenic fungi that penetrate the plant cuticle. Appressorium formation in U. maydis is triggered by environmental signals but the molecular mechanism of this hyphal differentiation is largely unknown. Infectious hyphae grow on the leaf surface by inserting regularly spaced retraction septa at the distal end of the tip cell leaving empty sections of collapsed hyphae behind. Here we show that formation of retraction septa is critical for appressorium formation and virulence in U. maydis. We demonstrate that the diaphanous-related formin Drf1 is necessary for actomyosin ring formation during septation of infectious hyphae. Drf1 acts as an effector of a Cdc42 GTPase signaling module, which also consists of the Cdc42-specific guanine nucleotide exchange factor Don1 and the Ste20-like kinase Don3. Deletion of drf1, don1 or don3 abolished formation of retraction septa resulting in reduced virulence. Appressorium formation in these mutants was not completely blocked but infection structures were found only at the tip of short filaments indicating that retraction septa are necessary for appressorium formation in extended infectious hyphae. In addition, appressoria of drf1 mutants penetrated the plant tissue less frequently.

Introduction

Penetration of the plant cuticle is a prerequisite for the establishment of many plant-fungal interactions and involves the formation of specialized infection structures, called appressoria. These structures mediate plant penetration in parasitic as well as in symbiotic fungi [1], [2]. Appressoria are often melanized and contain thickened cell walls, which are necessary to generate the mechanical force to break through the cuticle of the plant epidermis. This process is driven by turgor-derived osmotic pressure and often involves targeted secretion of lytic enzymes [2]–[4]. Induction of appressorium formation is intricately regulated and triggered by chemical signals, hydrophobicity and surface texture [2], [5]. These external stimuli are transmitted through mitogen activated protein kinases and cAMP signaling [6], [7]. The massive reorganisation of the fungal cell observed during differentiation of infection structures is also coupled to cell cycle regulation [2].

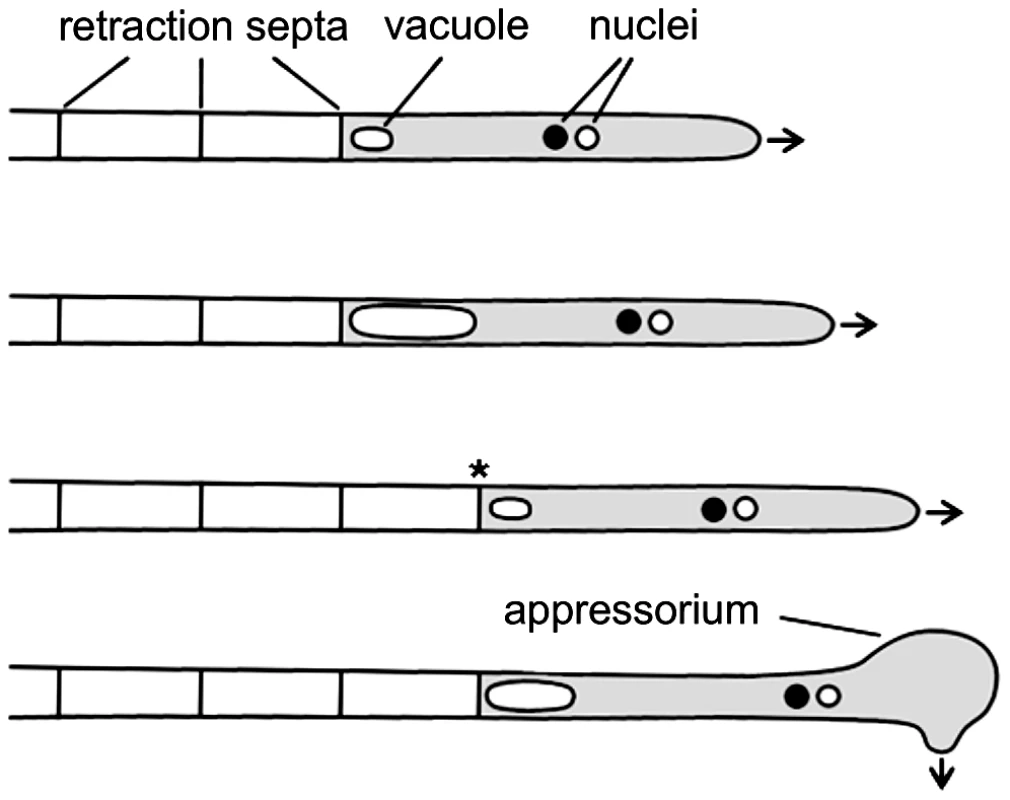

The basidiomycetous fungus Ustilago maydis infects maize plants and causes smut disease [8], [9]. To infect its host, compatible haploid sporidia fuse and form dikaryotic filaments spreading on the plant surface. These hyphae grow unipolar, do not branch and are arrested in the G2 phase of the cell cycle [8], [10]. At the distal end of the growing filament, regularly spaced retraction septa are inserted, which delimit the cytoplasm-filled tip compartment from empty hyphal sections. Retraction septa are found in many filamentous fungi and ensure high-speed movement without mitosis and de novo generation of cytoplasm (Figure 1) [11]. In U. maydis appressorium formation at the tip of filaments is triggered by surface hydrophobicity and cutin monomers [12]. These appressoria are unmelanized and are thought to penetrate the cuticle predominantly by secretion of lytic enzymes, rather than by mechanical force [13]. After penetration cell cycle arrest is released, the fungus proliferates within the plant and induces the formation of tumours, in which diploid teliospores are generated [14].

In U. maydis cell fusion is controlled by a pheromone/receptor system encoded by the a locus, while subsequent establishment of infectious hyphae depends on an active heterodimer of the homeodomain transcription factors expressed from the multiallelic b locus [15]–[17]. It has been shown that b is the master regulator of pathogenic development. An effector of b, the transcription factor Clp1 is important for the release of the cell cycle arrest when infectious hyphae have invaded the host and mitotic proliferation of hyphae is initiated [18]. For successful plant infection the Rho family GTPase Cdc42 is required [19]. In addition, Cdc42, the Cdc42 specific guanine nucleotide exchange factor (GEF) Don1 and the Ste20-like protein kinase Don3 are required for cell separation of haploid sporidia during budding growth [19]–[22].

Morphogenesis and differentiation of eukaryotic cells involve reorganisation of the actin cytoskeleton. Formin proteins catalyze polymerization of monomeric actin into linear filaments [23], [24] and thus play an important role in the organisation of the actin cytoskeleton [25]. Formins are large multidomain proteins and contain the highly conserved formin homology 2 (FH2) domain at the C-terminus, which is responsible for actin nucleation [26]. Incorporation of monomeric actin is stimulated by the profilin-binding formin homology 1 (FH1) domain [27]. The diaphanous formin was first described in Drosophila melanogaster where it is required for cytokinesis [28]. Formins of the diaphanous family are characterized by the presence of an N-terminal Rho family GTPase binding domain and a C-terminal autoregulatory domain [29]. Binding of GTPases of the Rho/Rac-family relieves the autoinhibition between the diaphanous autoregulatory domain (DAD) at the C-terminus and the diaphanous inhibitory domain (DID) resulting in stimulation of actin polymerization [28], [30], [31].

Here we report that in U. maydis the diaphanous-related formin Drf1 acts as an effector of Cdc42. Interestingly, drf1 as well as don1 and don3 mutants were unable to form septa in cell cycle arrested infectious hyphae. We observed that these mutants develop infection structures only in short filaments while longer filaments lack appressoria. Therefore, we conclude that in U. maydis hyphal septation is critical for appressorium development and plant infection.

Results

Mutants lacking drf1 do not form retraction septa

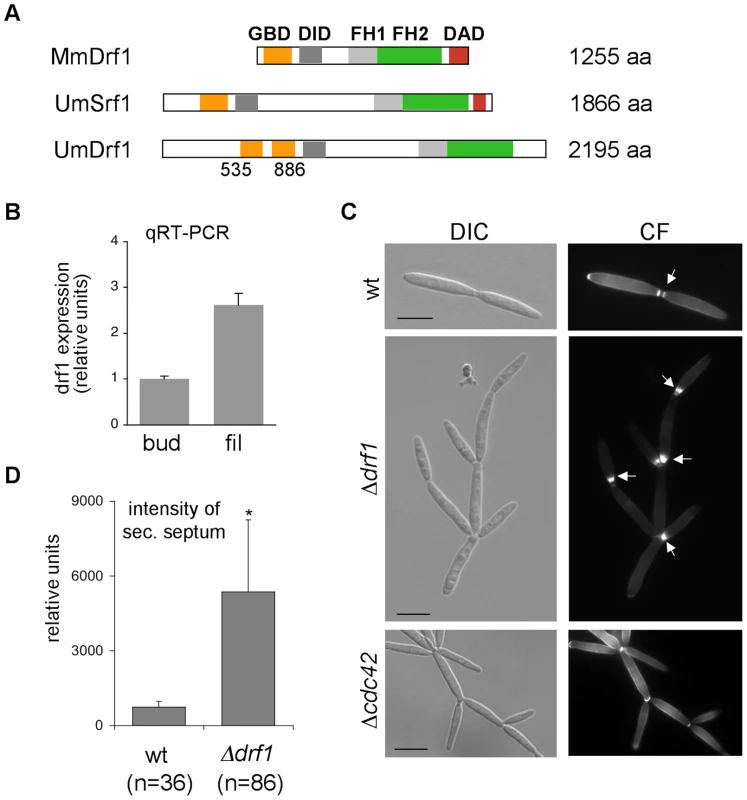

U. maydis contains two members of the formin family, the SepA-related Srf1 and the diaphanous-related formin Drf1 (Figure 2A). Both proteins contain the characteristic FH1, FH2 and DID domains. Interestingly, in Drf1 the GTPase binding domain (GBD) is split and the protein lacks the conserved DAD domain (Figure 2A). Genome wide expression analysis revealed that expression of drf1 but not of srf1 is significantly induced during b-dependent filament formation [18]. This suggests a role for this formin during pathogenic development, which in U. maydis is controlled by the heterodimeric bE/bW homeodomain transcription factor. We confirmed the filament-specific induction of drf1 expression using qPCR (Figure 2B). For this purpose we used the strain AB31, in which filamentation can be induced by arabinose dependent transcription of bW/bE [32].

To investigate the cellular function of Drf1 we deleted drf1 in the U. maydis wild type strain Bub8. Cells lacking drf1 were viable and exhibited normal cell shape. However, Δdrf1 cells formed clusters of up to 20 cells (Figure 2C), indicating that cell separation between mother and daughter cells is affected in the absence of Drf1. Normally budding cells form two distinct septa at the site of cell separation. The primary septum is sufficient to separate the cytoplasm of mother and daughter cells and is formed at the mother side of the bud neck. The secondary septum is needed to completely separate cells from each other and is formed at the daughter side of the bud neck [22]. The secondary septum was not formed in drf1 mutants, which could account for the cell separation defect. Interestingly, drf1 mutants deposited massive amounts of cell wall material at the site where the secondary septum is usually formed and this most likely leads to a delayed cell separation (Figure 2C). We also quantified these accumulations and found that their intensity is about six times increased in comparison with secondary septa of wild type budding cells (Figure 2D). These accumulations of cell wall material were not detected in cdc42 mutants, which also display a cell separation defect (Figure 2C). This indicates additional functions of Cdc42 during cell separation, maybe in chitin deposition [19].

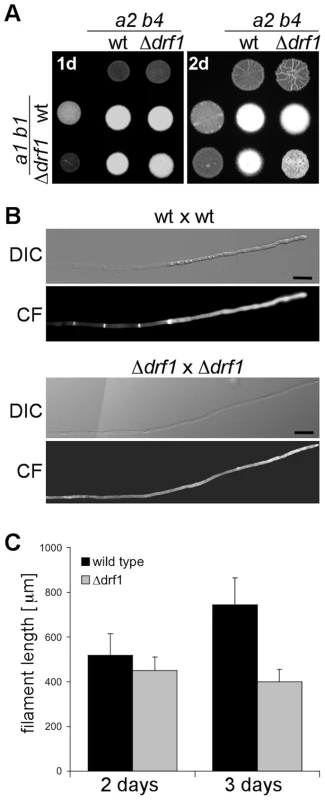

To investigate the role of Drf1 during mating and filament formation we performed mating assays on charcoal-containing agar plates. In this assay, fusion of compatible haploid cells and the subsequent switch to hyphal growth results in the formation of a white mycelium [33]. If compared to wild type cells, drf1 mutants exhibited significantly reduced mycelium formation on charcoal agar (Figure 3A). Interestingly, this difference became obvious only after two days while after 24 hours a comparable number of short hyphae was visible on the surface of colonies (Figure 3A). This suggests that drf1 mutants are not affected in cell fusion during mating but exhibit a defect in hyphal development.

Microscopic analysis of calcofluor white stained filaments revealed that drf1 mutants lack hyphal septa in all filament-inducing conditions tested during this study (Figures 3B, S1). By contrast wild type filaments display regularly spaced retraction septa at the rear end of the growing tip compartment (Figures 3B, S1) [11]. In wild type cells, the sections between these hyphal septa were empty and the cytoplasm of the dikaryotic cell was confined to the apical compartment (Figures 1, 3B) [34]. In drf1 mutants, the lack of hyphal septation resulted in a marked elongation of the apical cytoplasmic compartment. Since drf1 mutants displayed reduced mycelium formation in the plate-mating assay (Figure 3A) we asked whether deletion of drf1 affects the growth rate of filaments. Two days after fusion, filaments of wild type strains and drf1 mutants were indistinguishable in length and reached approximately 400 µm. After three days Δdrf1 filaments had stopped elongation while wild type filaments continued to elongate (Figure 3C). This observation suggests that U. maydis hyphae require distal retraction septa formation to cover long distances.

We wondered whether depletion of Drf1 influences polar exocytosis as it has been shown for AgBni1 in Ashbya gossypii [35]. This could possibly cause the growth defect of b-induced filaments in absence of Drf1. Therefore we fused the Rab GTPase Sec4 to GFP and analyzed the localization of the fusion protein in AB31 and AB31Δdrf1 filaments. Remarkably, in U. maydis Sec4 did not show predominant tip localization as it has been observed in A. gossypii [35], but was found on moving vesicles throughout the filament (Figure S2). Longer filaments derived from drf1 mutants showed a reduced density of these vesicles presumably due to the enlarged cytoplasmic volume in the absence of retraction septa (Figure S2).

The ability to form a secondary septum appears to be prerequisite for hyphal septation

drf1 mutants not only lack hyphal septa but also display a pronounced cell separation defect during budding (see above), which resembles the phenotype of U. maydis strains deleted for don1, don3 and cdc42. These genes constitute a Cdc42 GTPase signaling network that regulates secondary septum formation during cytokinesis [19], [22], [36]. don1, don3 and cdc42 mutants are unable to separate daughter cells after mitosis, but in contrast to drf1 mutants accumulations of cell wall material are not detectable [19], [22]. We tested whether Cdc42 signaling is also required for hyphal septation. In plate-mating assays on charcoal plates, Δdon1 and Δdon3 mutants formed colonies with reduced mycelium comparable to Δdrf1 mutant colonies (Figure 4A). Since Δcdc42 mutants are already affected in cell fusion [19], colonies on charcoal plates showed only scattered mycelia (Figure 4A). Microscopic analysis of Δdon1 and Δdon3 filaments revealed that these mutants were also defective in hyphal septation (Figure S3) suggesting that this process involves the same regulatory network as secondary septum formation during budding.

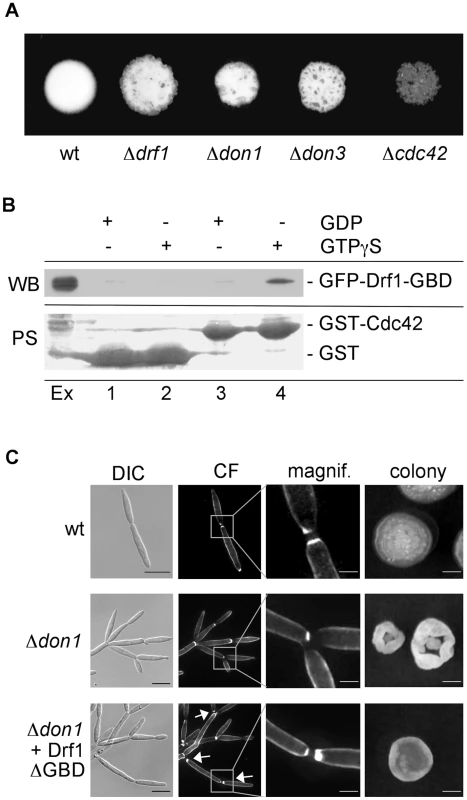

Drf1 acts as an effector of Cdc42

The genetic interaction between Cdc42 signaling and Drf1 during hyphal septation suggests that the N-terminal GTPase binding domain (GBD) of Drf1 (Figure 2A) may interact with Cdc42. We used GST-Cdc42 to perform pull-down experiments with U. maydis whole cell extract. GFP-GBD_Drf1 was able to interact with Cdc42 in its active GTP-bound form but not in its inactive GDP-bound form (Figure 4B).

Deletion of the GBD can result in constitutive active formin variants [37]. When drf1ΔGBD was introduced into a Δdrf1 strain, transformants displayed normal cell separation and retraction septum formation during filamentous growth. This observation shows that Drf1ΔGBD is fully functional (Figures S4B, C). Furthermore, Drf1ΔGBD partially suppressed the cell separation defect of don1 mutants (Figure 4C). We were able to detect secondary septa in don1 mutants, which expressed Drf1ΔGBD. These septa were never detected in Δdon1 cell clusters (Figure 4C). Moreover, the colony morphology of don1 mutants appeared to be similar to wild type colony morphology when Drf1ΔGBD was expressed (Figure 4C). This indicates that the truncated protein is constitutively active. Drf1ΔGBD was unable to rescue the cell separation defect of cdc42 mutants (Figure S5), implying additional functions of Cdc42 during cell separation. These functions might be regulated by other Cdc42-specific GEFs, which already have been identified in U. maydis (Britta Tillmann, unpublished data). Altogether we assume that in U. maydis the diaphanous-related formin Drf1 acts as an effector of Cdc42 during cell separation and during hyphal septation on the plant surface.

drf1 mutants are unable to form contractile actomyosin rings in filaments

During budding growth U. maydis forms two septa to facilitate separation of mother and daughter cells. Both, the primary and secondary septation event in U. maydis involve the formation of a contractile actomyosin ring (CAR) [36], [38]. It has been shown that the Cdc42-GEF Don1 and the Ste20-like protein kinase Don3 are required to trigger CAR formation specifically during the secondary septation event but not during primary septation [38]. To visualize CAR formation during hyphal septation we expressed the F-BAR domain protein Cdc15-GFP in strain AB31. Cdc15 is an integral part of the CAR during both primary and secondary septum formation in U. maydis [36]. When filament formation of AB31 was induced with arabinose a ring-like accumulation of Cdc15-GFP fluorescence was detected during retraction septa formation (Figure 5A). In AB31Δdrf1 no ring-like accumulation of Cdc15-GFP could be observed (Figure 5B). CAR formation was also abolished in hyphae of don1 and don3 mutants (Figure S6, protocol S1). Furthermore drf1 mutants failed to assemble the CAR at the site of secondary septation in haploid cells (Figure S7). Together, these data suggest that hyphal septation involves assembly of a CAR, which requires beside the formin Drf1 also the Cdc42/Don1/Don3 signaling network.

To further analyze the role of Drf1 during CAR-formation we created GFP fusion proteins of Drf1. Unfortunately, neither N-terminal nor C-terminal GFP-tagged Drf1 was able to rescue the Δdrf1 phenotype (data not shown). Thus, we fused gfp to the C-terminus of the putative dominant active drf1ΔGBD, expressed this fusion protein in drf1 mutants and investigated the localization of Drf1ΔGBD-GFP in budding cells and in b-induced filaments, respectively. We found Drf1ΔGBD-GFP to be able to complement the phenotype of drf1 deletions, indicating that the protein is functional. In budding cells, Drf1ΔGBD-GFP localized at punctuated structures. Furthermore, during separation of budding cells Drf1ΔGBD-GFP clearly co-localized with the secondary septum at the daughter site (Figure S4D). In b-induced filaments Drf1ΔGBD-GFP localized at the site where retraction septa form (Figure 5C). These results confirm the specific function of Drf1 during both, secondary septa formation in budding cells and retraction septa formation during filamentous growth.

Formation of septin rings depends on Drf1

It has been shown previously that formation of the secondary septum in U. maydis involves the formation of a septin collar at the site of secondary septum formation [38]. This collar is subsequently disassembled followed by CAR-formation. After CAR formation a septin ring assembles de novo and cell separation can be carried out [38]. We wondered whether septin organistion is impaired in drf1 mutants and consequently performed localization studies with a RFP-tagged septin (Cdc10-RFP). We found that in budding Δdrf1 cells a septin collar structure formed at the expected site of the secondary septum (Figure S8B). We never detected the transition to septin rings (Figures S8A, B). The assembly of septin rings seems to depend on Drf1. We also studied the localization of Cdc10-RFP in b-induced filaments. Cdc10-RFP was found to co-localize with calcofluor white stained retraction septa in wild type cells while in drf1 mutants no ring structures were observed (Figure S8C, D). Moreover, Cdc10-RFP localized in dispersed patches throughout the filament as described previously [39]. This type of localization was not changed in drf1 mutants.

U. maydis drf1 mutants display reduced virulence

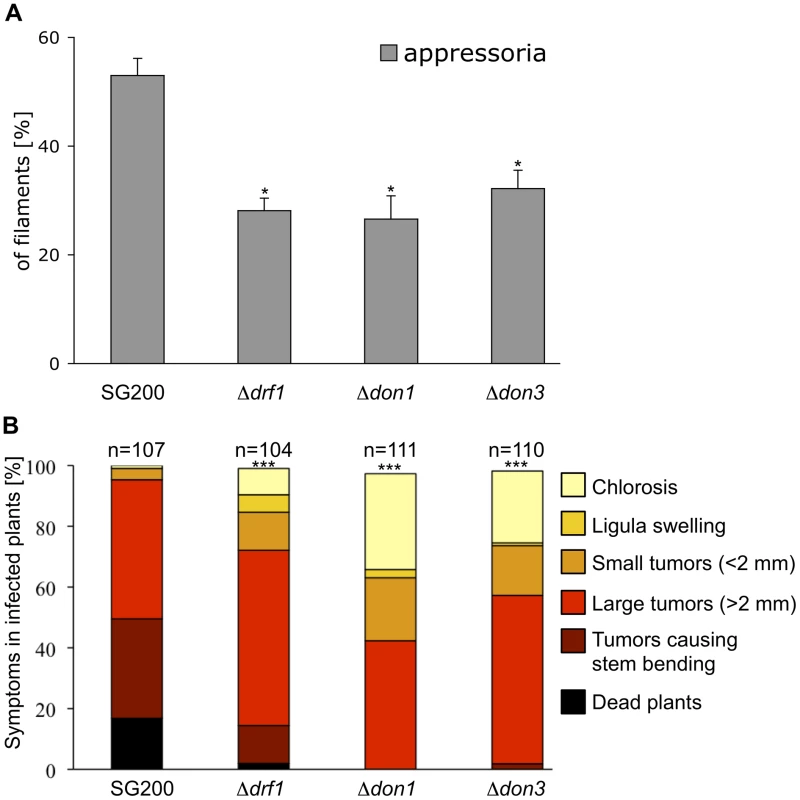

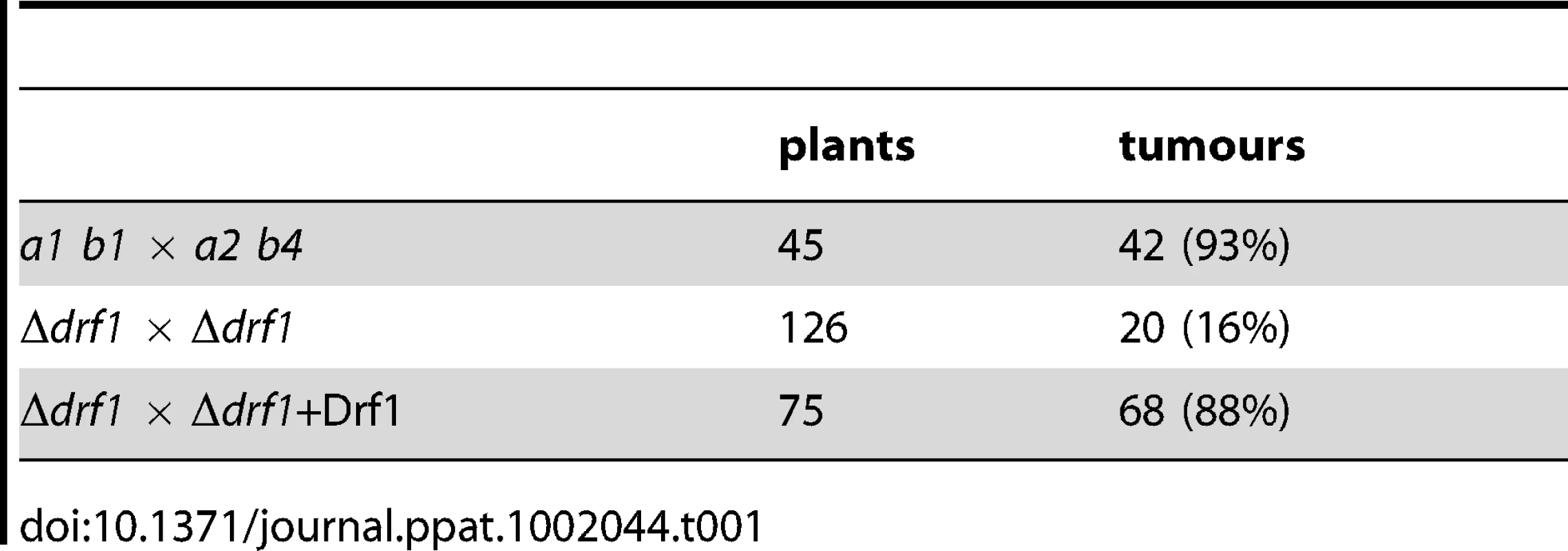

To examine, if the inability to form retraction septa affects pathogenic development of U. maydis, we determined the virulence of drf1 mutants. Wild type and drf1 mutant cells were used to infect seven-day-old maize seedlings. While injection of wild type cells triggered tumour formation in 96% of infected plants (14 days post infection, dpi), plants inoculated with drf1 mutant cells displayed significant attenuated symptoms and induced tumours in only 16% of infected plants (Table 1). Virulence was completely restored when the open reading frame of drf1 under control of the constitutive otef promoter was reintroduced into the mutants (Table 1) [40]. In the complemented strains, normal cell separation and hyphal septation have also been restored (Figures S4A, C).

Retraction septa are critical for virulence since they are required for appressorium formation in longer filaments

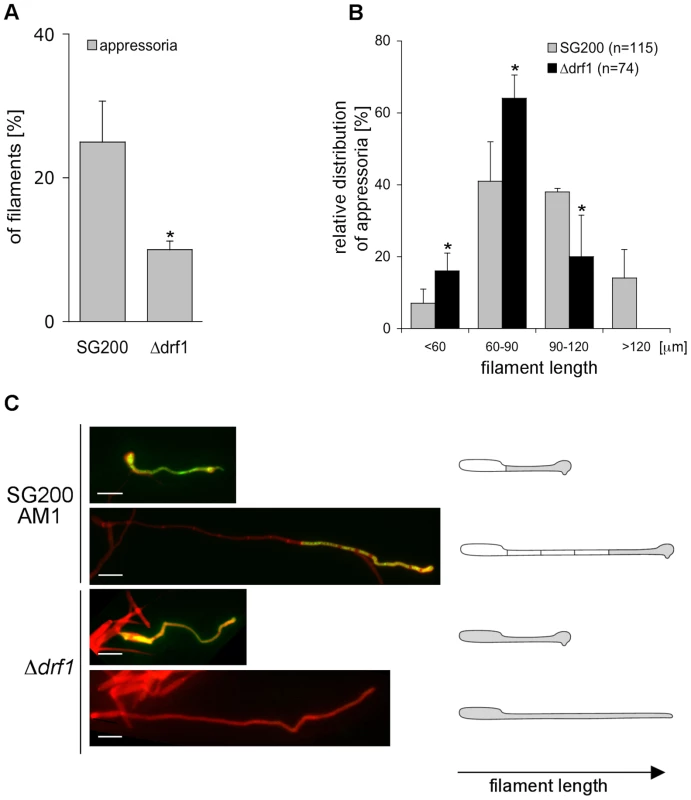

Next we asked whether the hyphal septation defect of drf1 mutants is responsible for reduced virulence. Since virulence defects may result from reduced penetration or from reduced growth within the plant, we analyzed the infection process. The first step during infection is the formation of appressoria. Because appressoria in U. maydis are difficult to detect, we used the solopathogenic strain SG200AM1, which expresses an appressorium specific GFP reporter [9], [12]. drf1, don1 or don3 were deleted in SG200AM1 and appressorium formation was investigated on the plant surface. We found that all three mutants differentiate appressorial structures (Figure S9). However, quantification of these infection structures revealed a significant reduction of appressorium development in Δdrf1, Δdon1 and Δdon3 strains (Figure 6A). Furthermore, we determined virulence of the SG200AM1 derivative don1, don3 and drf1 mutants. The progenitor strain SG200AM1 induced tumours in 95% of the plants. SG200AM1Δdon1, SG200AM1Δdon3 and SG200AM1Δdrf1 showed significantly reduced virulence (Figure 6B). In particular the severest symptoms, i.e. dead plants were observed in only 2% of SG200AM1Δdrf1 infected plants, while 19% dead plants were scored for SG200AM1 infections (Figure 6B). This reduction of virulence supports our notion that Drf1, Don1 and Don3 play an important role in the initial phase of pathogenic development.

Appressorium formation can also be induced on an artificial hydrophobic surface in the presence of long-chain hydroxy fatty acids [12]. Under these in vitro conditions appressorium formation of drf1 mutants was again significantly reduced if compared to the progenitor strain SG200AM1 (Figure 7A). The appressorial structures of SG200AM1 and SG200AM1Δdrf1 were indistinguishable in morphology and had a similar diameter (Figure S11). However, we noticed that appressorium formation in Δdrf1 mutants occurred predominantly at the tip of short filaments (60–90 µm) while in wild type filaments appressoria were formed also at the tip of longer filaments (Figures 7B, C and S10). Remarkably, filaments of drf1 mutants, which exceeded 120 µm were unable to form appressoria (Figure 7B). Together these data suggest that formation of retraction septa in U. maydis is not required for appressorium formation in short infectious hyphae while appressorium differentiation in longer filaments (>120 µm) requires hyphal septation. We conclude that a limited, cytoplasm-filled tip compartment is critical for appressorisum formation.

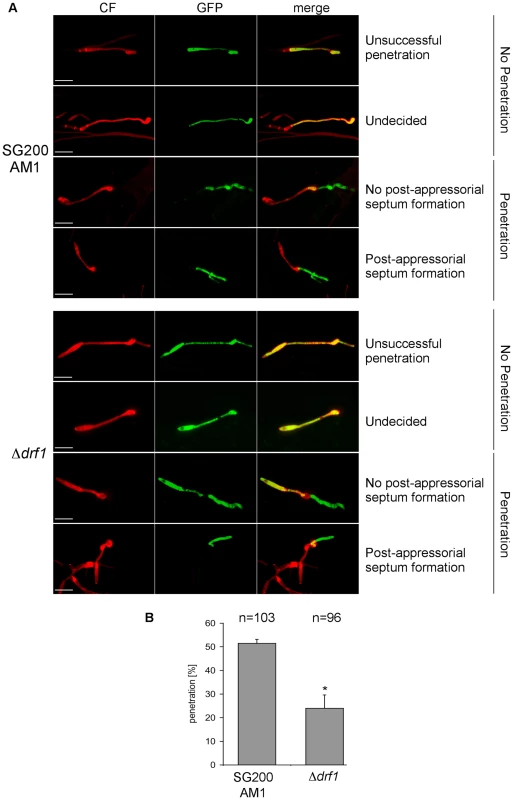

Appressoria derived from drf1 mutants penetrate the host cuticle less frequently

So far we have analyzed the connection between appressorium differentiation and retraction septum formation. We also wondered if the ability to penetrate the plant cuticle was impaired in drf1 mutants. We therefore compared the penetration frequencies between appressoria derived by SG200AM1 and SG200AM1Δdrf1. Using confocal microscopy 18 h after inoculation of maize plants, appressoria were found either to penetrate the plant surface, to continue growth on the leaf surface or to be in-between these decisions (Figure 8A). Appressoria derived by SG200AM1Δdrf1 penetrated the plant cuticle significantly less if compared to appressoria derived by SG200AM1 (Figure 8B). Only about 25% of appressoria successfully invaded the host in drf1 mutants while about 50% of SG200AM1 appressoria reached the host tissue (Figure 8B). This indicates that the penetration ability of differentiated appressoria is also affected in the absence of retraction septa. Interestingly, drf1 mutants were found to be capable of forming septa after having penetrated the plant surface (Figure 8A), indicating that septation events inside the plant are independent of Drf1.

Drf1/Don1/Don3 are dispensable for cytokinesis in the host

After penetration G2 arrest is released and hyphae grow intracellularly. Thereby mitotic septa are formed to separate nuclei [41]. Therefore we investigated the role of the Don1/Cdc42/Drf1/Don3 signaling network during the biotrophic phase of U. maydis. We observed that hyphal growth of drf1, don1 and don3 mutants in planta was indistinguishable from wild type hyphae with respect to septum formation (Figure 9). Overall, our results demonstrate that U. maydis produces two distinct classes of septa. The primary septum of haploid budding cells, as well as septa formed during growth in the plant are coupled to mitosis and do not require the Cdc42 signaling module. By contrast, the secondary septum of haploid budding cells and septa of infectious hyphae are independent of mitosis and require the Cdc42 signaling module.

Discussion

In this study we could show that formation of retraction septa in U. maydis infectious hyphae depends on the diaphanous-related formin Drf1. Drf1 acts as an effector of the small GTPase Cdc42 and is together with the Cdc42-GEF Don1 and the Ste20-like kinase Don3 required for the formation of a contractile actomyosin ring during septation. Remarkably, non-septated infectious hyphae, that have exceeded a certain length, are unable to form appressoria, while short hyphae lacking retraction septa form appressoria. This led to a significant reduction in the formation of functional infection structures and thus explains the attenuated virulence of drf1, don1 and don3 mutants.

Formins are major players in actin organisation. The genome of U. maydis encodes along with the diaphanous-related formin Drf1, a second formin, Srf1, which belongs to the subfamily of SepA-related formins (MIPS U. maydis data base) [29]. While srf1 is an essential gene (B. Sandrock, unpublished data), we found that drf1 deletion mutants in U. maydis display delayed cell separation during budding growth as well as a complete block in hyphal septation. In fungi, diaphanous-related formins have been characterized so far only in ascomycetes, where they regulate actin polymerisation during polar growth and cytokinesis [42]–[44]. S. cerevisiae and A. gossypii contain two diaphanous-related formins, which are functionally redundant and synthetically lethal [35], [45], [46].

We observed that U. maydis drf1 mutants were unable to form a contractile actomyosin ring (CAR) during growth of G2 arrested infectious hyphae. We have previously shown that in budding cells Cdc42, its activator Don1 and the protein kinase Don3 are required for CAR formation specifically during secondary septum formation but not during the primary septation event [36]. Here we found that in budding cells Drf1 is essential for CAR formation during secondary septation and also for the subsequent assembly of septin rings. This confirmed that CAR formation is a prerequisite for septin ring assembly during secondary septum formation in budding U. maydis cells as it has been suggested previously [38]. Drf1 might fulfil similar functions during CAR formation in U. maydis as the formin Cdc12p in fission yeast [47]. It is well established that Cdc12p in S. pombe is necessary for CAR formation and also for the regulation of cytokinesis [48]–[50]. In U. maydis don1/cdc42/don3 mutants showed a defect in hyphal CAR formation and thus lack retraction septa. Therefore we assume that the same cellular machinery operates both in formation of the secondary septum and the retraction septum. The fact that drf1 mutants are not affected in CAR formation during cytokinesis suggests that Srf1 could be responsible for CAR formation during the primary septation event in budding cells. In higher eukaryotes, diaphanous-related formins interact with diverse GTPases such as RhoA, RhoD and Cdc42 and regulate formation of actin stress fibres, endosome dynamics and cytokinesis [51]. In Dictyostelium discoideum dDia2 binds to Rac1 and controls dynamics of filopodia [52]. We demonstrate here that Drf1 binds Cdc42 in its active GTP-bound form, but not in its inactive status. Together with the finding that a constitutive active variant of Drf1 is able to suppress the cell separation defect of don1 mutants we conclude that in U. maydis Drf1 acts as an effector of Cdc42. Retraction septa are also found in other fungi where similar signaling events and mechanisms might operate [53], [54].

Prior to plant invasion U. maydis forms infectious hyphae. During this developmental stage the cell cycle is arrested and the filaments grow only at their tips. At the distal end of the cytoplasm-filled tip cell regularly spaced septa are laid down, leaving empty compartments of the collapsed hyphae behind [11], [34]. By this mechanism, the cytoplasm-filled tip compartment is maintained at a constant length of about 150 µm [11]. In drf1 mutants the cytoplasmic tip compartment was significantly stretched reaching up to 400 µm. Since these mutants stopped hyphal elongation, the super-sized length of the cytoplasmic compartment appears to be limiting for further growth. Hence, the ability to form retraction septa is a prerequisite for the rapid elongation of infectious hyphae, which continue to grow over several days and can reach up to 2000 µm within 24 h [11]. We found that appressorium development in SG200Δdrf1 strains was restricted to short hyphae up to 120 µm. By contrast, corresponding wild type filaments were able to differentiate appressoria independently of filament length. Consequently, drf1 mutants were reduced in appressorium formation and virulence. We observed that virulence of mixtures of compatible haploid Δdrf1 strains was more attenuated than virulence of solopathogenic drf1 mutants. Since compatible haploid cells have to form conjugation tubes and to fuse prior to infection, this suggests that the additional length of conjugation tubes may further restrict the ability of Δdrf1 strains to form infection structures.

All mutants affected in formation of retraction septa characterized in this study were reduced in appressorium formation. This raises the question how appressorium formation is affected in these mutants. The exact mechanism, by which U. maydis form appressoria is currently unknown [13]. The rice pathogen M. grisea forms a highly melanized appressorium, which accumulates massive amounts of glycerol to generate enormous turgor pressure to penetrate the leaf cuticle mainly by mechanical force [2], [3], [55], [56]. Our results open the possibility that for appressoria formation of U. maydis turgor pressure might be of importance. The distal septum could act as mechanical support to generate sufficient turgor pressure during appressorium formation. Alternatively, the extended volume of the cytoplasmic tip cell results in dilution of osmotically active substances and hence insufficient turgor pressure is generated to differentiate appressoria. This is supported by the finding that appressoria derived from drf1 mutants frequently fail to penetrate the plant surface (Figure 8A). It has been suggested that secretion of lytic enzymes is necessary for plant penetration by U. maydis [13], [57]. Because we observed a reduction in the density of exocytotic vesicles in drf1 mutants it is possible that secretion of lytic enzymes is reduced. In M. grisea nuclear migration into the appressorium and subsequent autophagic programmed cell death of the conidial mother cell is a prerequisite for successful penetration [58], [59]. Interestingly, M. oryzae sep1 mutants form irregular septa during germ tube and appressorium formation and are also unable to differentiate functional appressoria [60]. While M. grisea appressorium formation displays hallmarks of a strict developmental program and occurs only in the close vicinity of the conidium, U. maydis is able to cover long distances before initiation of infection structures. Under natural conditions efficient infection might require growth or movement over long distances to reach young meristematic tissue, which is prerequisite for U. maydis to enter the plant [61]. The fact that non-septated filaments of U. maydis stopped extension upon a length of approximately 400 µm and were unable to differentiate appressoria when exceeded a length of 120 µm emphasizes the importance of septa for virulence of U. maydis. In wild type hyphae the cytoplasm-filled tip compartment can reach up to 150 µm and appressorium differentiation still remains unaffected. Interestingly, drf1, don1 or don3 deletion strains fail to form appressoria when exceeded this particular length. Thus, 150 µm seems to be the critical length for U. maydis filaments to differentiate appressoria.

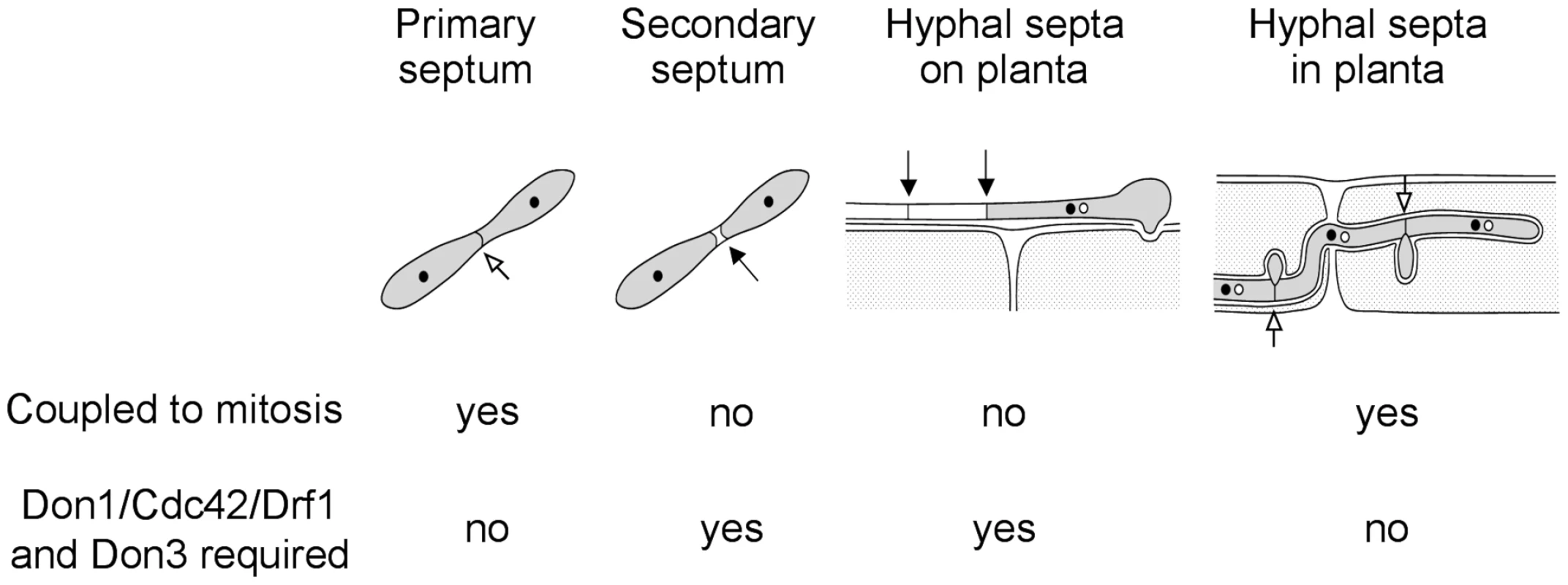

In this study we investigated four different events of septum formation in the life cycle of U. maydis. During budding growth formation of the primary septum is coupled to mitosis, while the secondary septum permits cell separation (Figure 10) [22]. We have shown previously that secondary septum formation requires Cdc42, Don1 and Don3 [19], [22]. G2 arrested infectious hyphae form septa, which are not coupled to mitosis. Here we could demonstrate that the Don1/Cdc42/Drf1/Don3 signaling network is not only required for formation of the secondary septum in budding cells, but also during septation of infectious hyphae (Figure 10). Finally, we investigated septum formation of proliferating hyphae inside the plant, a septation event that is coupled to mitosis [41]. We found that the Cdc42 signaling network is not required during this developmental stage and the ability to form septa returns immediately after plant penetration when cell-cycle arrest is released. Consequently, U. maydis uses at least two different mechanisms to produce septa, a mitosis uncoupled mechanism, which requires Cdc42 and a mitosis coupled mechanism, which does not require Cdc42 (Figure 10). The specific importance of the described Cdc42 signaling module during non-mitotic septation is shown by the distinct phenotypes of drf1 mutants. Drf1 is only needed for the formation of the actomyosin ring during formation of the secondary septum and during hyphal septation albeit the contractile actomyosin ring is already formed during primary septation coupled to mitosis of haploid budding cells. It is well established that the GTPase RhoA defines the division site of eukaryotic cells and requires spindle microtubules [62]. How the Don1/Cdc42/Drf1 module coordinates the positioning of hyphal septa in G2 arrested filaments and secondary septa during budding growth is yet unclear but remains an exciting topic to be elucidated. Especially how the regularity of septa in filaments is established would be interesting to understand [11]. Is the position of the nucleus important or could changes in cytoplasmic volume account for this regularity?

Taken together, our data provide new insights into the role of septation during pathogenic development of U. maydis. Cell cycle independent septation is unusual among eukaroytes [63], which makes infectious hyphae of U. maydis a valuable model system to study this kind of septation.

Methods

Strains

Escherichia coli strain DH5a and Top10 were used for cloning and amplification of plasmid DNA. U. maydis strains FB1, Bub8, AB31 [32] and SG200AM1 [12] were utilized as wild type backgrounds for all strains created for this manuscript. FB1Δdon3, Bub8Δdon3, FB1Δdon1, Bub8Δdon1, FB1Δcdc42 and Bub8Δcdc42 have been described elsewhere [19], [22], [35]. All strains used are listed in table S1.

Alignment

According to the NCBI database these reference sequences were used: M. musculus: MmDrf1: NP_031884; U. maydis: Srf1 (um12254): XP_760288, UmDrf1 (um01141): XP_757288.

Generation of strains

In general, transformation of U. maydis was performed as described [64]. For expression studies constructs expressing drf1 or drf1ΔGBD under control of the etef-promoter were integrated into the cbx-locus by homologous recombination [65]. Deletion mutants and the endogenous gfp-fusion of cdc15 were generated as described [66]. For septin localization in the AB31 and the AB31Δdrf1 strain the Cdc10-RFP construct was used as described previously [38].

Plasmid construction

For overexpression in U. maydis the open reading frame of drf1 (6588 bp) was cloned into the SmaI- and NotI-sites of pETEF-MXN-GFP, which is derived from p123 and resulted in pETEF-drf1 [67]. The GBD (aa 534–886) was deleted from this plasmid to generate pETEF-drf1ΔGBD. For the C-terminal fusion of GFP the ORF of Drf1ΔGBD was cloned in the NcoI-site of pETEF-MXN-GFP to generate pETEF-drf1ΔGBD-GFP. For exocyst localization in U. maydis the ORF of Sec4 (um03865) was amplified and cloned into p123 to generate p123-GFP-Sec4. All constructs have been confirmed by sequencing. Primer sequences will be supplied by the corresponding author (B. S.) on request. Deletion constructs for drf1 and don1 were generated using the SfiI-technique as described previously [66].

GST pull-down experiment

An excess of bacterial expressed GST or GST-Cdc42 proteins was immobilized on glutathione resin according the manufacturer's instructions (Macherey-Nagel) and pretreated with either 1 mM GDP or 1 mM GTPgS in the presence of 2 mM EDTA for 1 h at 4°C. The GTP/GDP loading was stopped with 40 mM MgCl₂ and washed three-times with TBS. U. maydis protein extract was made as described [68] and directly used for the pull-down for 16 h at 4°C. GFP-fusion proteins were detected using a GFP-monoclonal antibody from Santa Cruz Biotechnology (sc-9996).

Analysis of appressoria

The in vitro system for inducing filaments and appressoria in U. maydis was applied as described previously [12] with minor modifications. Briefly, SG200AM1 and derivative strains were grown in YEPSL medium (0.4% yeast extract, 0.4% peptone, 2% sucrose) at 28°C to an OD₆₀₀ of 0.8. The cells were resuspended in 2% YEPSL to an OD₆₀₀ of 0.2 and supplemented with 100 µM (f.c.) 16-hydroxyhexadecanoic acid (Sigma-Aldrich). Cells were sprayed (EcoSpray Labo Chimie, France) on Parafilm M and incubated by 100% humidity at 28°C for 20 h. The samples were stained by calcofluor white to visualize fungal cells and the ratio of filamentous cells expressing the AM1 marker (indicative for appressorium formation) to the total amount of filaments was determined using fluorescence microscopy. The experiment was done in three biological replicates.

The diameter of appressoria was measured using the ImageJ software (NIH, USA).

For examination of appressoria on the leaf surface, AM1 derivatives were inoculated into seven-day-old maize seedlings 1 cm above ground. After 20 hours the third oldest leaf was prepared, washed in water and incubated for 30 s with calcofluor white. Appressorium formation was quantified as described above.

Plant infections

Solopathogenic strains or compatible haploid strains were grown in YEPSL to an OD₆₀₀ of 0.8 and concentrated in H₂O to a final OD₆₀₀ of 1.0. This suspension was used to infect seven-day-old seedlings of Early Golden Bantam (Olds Seeds, Madison) by injecting 0.5 ml into each seedling. 12 days after infection disease symptoms were evaluated according to the disease rating criteria reported by Kämper et al. [9]. The experiment was done in three biological replicates.

Plate and drop mating assays

Plate-mating assays were performed by placing mixtures of compatible strains on PD-plates containing 1% activated charcoal followed by incubation at room temperature [33]. For filament formation analysis a drop of such mixture was covered by a small glass platelet allowing filamentous growth onto the glass surface. After two and three days the platelets were analyzed on a microscope slide.

Microscopy

U. maydis cells from logarithmically growing cultures were placed on agarose cushions. Cells were visualized by differential interference contrast (DIC) and epifluorescence microscopy using a Zeiss Axiophot 200 microscope (Göttingen, Germany). Calcofluor white staining was performed as described previously [22]. Briefly, to stain fungal material, samples were incubated in Calcofluor Fluorescent Brightner 28 (100 µg/ml in 0.2 M Tris/HCl, pH 8; Sigma-Aldrich) for 30 s. Images were taken using a cooled CCD camera (Hamamatsu Orca-ER, Herrsching, Germany) with an exposure time of 50–300 ms. Image acquisition and deconvolution were performed using Improvision Volocity software (Perkin-Elmer, Rodgau, Germany) and processing was carried out with Photoshop (Adobe) and ImageJ (NIH, USA).

The intensity of calcofluor white staineing of secondary septa was analyzed using ImageJ (NIH, USA).

To investigate septum formation of fungal hyphae inside the plant, three days after infection the third oldest leaf was destained in ethanol, transferred to 10% KOH, incubated at 85°C for 4 hours, washed three times with PBS buffer (140 mM NaCl, 16 mM Na₂HPO₄, 2 mM KH₂PO₄, 3.5 mM KCl, and 1 mM Na₂-EDTA, pH 7.4), and incubated under vacuum in staining solution (10 µg/ml propidium iodide and 10 µg/ml WGA-AF 488 in PBS, pH 7.4) according to Doehlemann et al. [57]. WGA-AF 488 was purchased from Invitrogen, propidium iodide from Sigma-Aldrich. Images were taken and processed as described above.

Confocal microscopy was performed using a TCS-SP5 confocal microscope (Leica Microsystems). For GFP fluorescence, an excitation of 488 nm and detection at 495–530 nm was used. Propidium iodide fluorescence was excited with 561 nm and detected at 580–630 nm. To visualize WGA-AF 488, an excitation of 488 nm and detection at 500–540 nm was used. Calcofluor white was excited with a 405 nm laser and detected at 415–460 nm. Images were processed using LAS-AF software (Leica Microsystems).

Nucleic acid procedures and quantitative real time PCR

For RNA isolation the U. maydis strain AB31 was grown 7 hours in 2% glucose or arabinose containing YNB-liquid media. 25 ml culture was harvested and ground in liquid nitrogen. RNA was extracted with Trizol (Invitrogen, Karlsruhe, Germany) and purified using RNeasy kit (Qiagen, Hilden, Germany). For qRT-PCR cDNA was synthesised using the First Strand cDNA kit (Fermentas, Mannheim, Germany) employing 1 µg total RNA. qRT-PCR was performed using the MAXIMA SYBR-Green qPCR Master-Mix (Fermentas, Mannheim, Germany) on a Biorad iCycler. Reaction conditions were as follows: 5 min 95°C followed by 45 cycles of 15 sec 95°C/15 sec 60°C/30 sec 72°C. Primers used for amplification were for the control gene: TCGACATCGTCAAGGCTATC (5′ppi RT) and CGATGGTGATCTTGGACTTG (3′ppi RT). To amplify a drf1-fragment we used: TCAGGGTCAAGCAAAGTCAG (5′drf1 RT) and GTCAGTCATTCGAGATCGT (3′drf1 RT). Ratios of drf1/ppi were calculated for each timepoint and the glucose value was set to 1.

Statistical analysis

Data are expressed as means ±SD of triplicate samples. Statistical significance was assessed using Statistical Calculators (www.danielsoper.com) and considered significant if p values were <0.05. We performed a Wilcoxon rank-sum test to compare the distributions of disease symptoms induced by U. maydis strains. For this purpose we used a web-calculator (http://faculty.vassar.edu/lowry/wilcoxon.html).

Accession numbers

UM accession numbers are from MUMDB (http://mips.helmholtz-muenchen.de/genre/proj/ustilago/) and XP/XM/NP accession numbers are from NCBI (http://blast.ncbi.nlm.nih.gov/Blast.cgi): Drf1 (um01141) XP_757288, Don1 (um10152) XP_758565, Don3 (um05543) XP_761690, Cdc42 (um00295) XP_756442, Cdc15 (um00168) XP_756315, Cdc10 (um10644) XP_759364, Sec4 (um03865) XP_760012, Ppi (um03726) XM_754780, Srf1 (um12254) XP_760288, mmDrf1 NP_031884.
