Protective Efficacy of Serially Up-Ranked Subdominant CD8 T Cell Epitopes against Virus Challenges

Summary

Immunodominance in T cell responses to complex antigens like viruses is still incompletely understood. Some data indicate that the dominant responses to viruses are not necessarily the most protective, while other data imply that dominant responses are the most important. The issue is of considerable importance to the rational design of vaccines, particularly against variable escaping viruses like human immunodeficiency virus type 1 and hepatitis C virus. Here, we showed that sequential inactivation of dominant epitopes up-ranks the remaining subdominant determinants. Importantly, we demonstrated that subdominant epitopes can induce robust responses and protect against whole viruses if they are allowed at least once in the vaccination regimen to locally or temporally dominate T cell induction. Therefore, refocusing T cell immune responses away from highly variable determinants recognized during natural virus infection towards subdominant, but conserved regions is possible and merits evaluation in humans.

Introduction

In any one individual, CD4⁺ and CD8⁺ T cell responses elicited by virus infection or vaccination focus on a relatively small number of epitopes [1]. This immunodomination results from an interplay of multiple factors, which on one hand determine the abundance of displayed peptide-loaded MHC determinants on the surface of APCs and, on the other hand, affect the numbers of naïve T cells and their capacity to efficiently compete for their cognate determinants and generate effector and memory CD8⁺ T cell populations [2]–[6]. A consequence of immunodominance is that potentially protective responses to a majority of virus-carried determinants might not be used to their full potential or at all by the host immune system.

This issue is particularly pertinent to the human immunodeficiency virus type 1 (HIV-1). Given the huge quasi-speciation of HIV-1 in human populations [7] and its rapid escape from the dominant T cell responses in infected individuals [8]–[11], exploitation of subdominant T cell epitopes by vaccines might stimulate T cell responses against HIV-1 that are more effective than those that occur naturally. The first natural T cell responses to the first-recognized immunodominant epitopes in HIV-1 infection almost invariably lead to rapid selection of escape mutants, while more effective responses to conserved epitopes only arise later [9]. The importance of subdominant epitopes in control of HIV-1 replication in vivo was also implied in a study, where HIV-1-infected individuals with a stronger cytotoxic reactivity against several subdominant epitopes had lower virus load than the subjects lacking such activity, while the most immunodominant response against the same epitope in either subjects was identical [12]. Some virus and tumour mouse models have also shown that CD8⁺ T cells specific for subdominant epitopes can contribute to the protective immunity [5], [13]–[17]. Thus, better understanding of the rules governing immunodominance may lead to novel rational strategies for induction of broader, more protective T cell responses against HIV-1 and other viruses.

In preclinical evaluation of HIV vaccines, in the absence of simple functional correlates of protection against HIV-1 [18], various in vitro T cell parameters, such as IFN-γ production, are used to evaluate immune responses stimulated by candidate vaccines. However, these assays may not measure the true protective functions. Therefore, we established two surrogate virus challenge models of mice in order to examine how vaccine-stimulated T cell responses protected against a real virus infection in vivo. These models employ a replication competent vaccinia virus strain Western Reserve sharing with vaccines the HIV-1-derived immunogen [19], [20], and EcoHIV, which carries a gene coding for envelope gp80 of ecotropic murine leukemia virus in place of the HIV-1 envelope and therefore can efficiently infect mouse cells through receptor called cationic amino acid transporter type 1 [21]–[23]. In this report, we employ these two model challenges for evaluation of the protective efficacies of T cells specific for subdominant HIV-1 CD8⁺ T cell epitopes.

In the experiments reported here, we used the candidate HIV-1 vaccine immunogen HIVA [24], mapped its CD8⁺ T cell epitopes in BALB/c mice and determined their hierarchy [25], [26]. This allowed us to test, by removing more immunodominant epitopes, whether or not cellular immune responses focused on the subdominant determinants could be protective. This question is very important for the HIV-1 vaccine development, because, besides the problem of early virus escape from T cell responses, the enormous variability of the infecting virus could also be tackled by stimulating T cell responses against subdominant epitopes [27] in the most invariant regions of the HIV-1 proteome common to the major clades [28], [29]. We investigated this by removing dominant epitopes from the vaccine and testing whether different vaccine vectors affect the pattern of dominance. We also asked if vaccine administration into anatomically separate sites partially overcomes epitope competition and increases the breadth of elicited CD8⁺ T cell responses. Finally, we assessed the protective efficacy of these up-ranked CD8⁺ T cell responses against virus challenges. The results strongly support further development of the conserved region vaccine strategy and its evaluation in humans.

Results

Mapping of CD8⁺ T cell epitopes and their immunodominance hierarchy

Our research interests lie in development of the T cell component of HIV-1 vaccines stimulating protective CD8⁺ T cell responses. The first-generation T cell immunogen, designated HIVA (Figure 1A) [24], has served as an extremely useful tool for iterative improving of CD8⁺ T cell induction by experimental vaccines in mice, non-human primates and humans [reviewed in [30]]. To increase the power of T cell analysis and study the role of subdominant determinants, H-2^d class I-restricted epitopes contained in the HIVA immunogen were mapped in detail. Thus, the most immunodominant epitope of HIVA is RGPGRAFVTI [Env residues 311–320 [31], by us historically designated H for ‘HIV’ [32]] restricted by H-2D^d and H-2L^d molecules [31], [33]. The H epitope was attached to the C-terminus of HIVA to facilitate quality control of clinical vaccine batches. The H-specific response dominated CD8⁺ T cell responses to other well defined epitopes in HIVA such as H-2K^d-restricted AMQMLKDTI (Gag residues 197–205, designated G1) and TTSTLQEQI (Gag residues 239–247, designated G2) [34]. Particularly the G1 epitope was previously reported to be immunodominant in BALB/c mice [26], [35], but from HIVA induced hardly detectable responses (Figure 1B and D top). Note that HIV-1 clade A in epitope position 7 contains aspartate rather than glutamate, which is a less immunogenic epitope variant [26]. Using 15-mer peptides overlapping by 11 amino acids (15/11) across the whole HIVA protein [36], a strong CD8⁺ T cell response was detected to the polyepitope region of HIVA in addition to epitope H, which was subsequently narrowed to sequence IFQSSMTKI (Pol 258–266, designated P; Figure 1C). This epitope is not processed from its natural Pol context (E-JI, TH unpublished) due to an adjacent proline immediately upstream of the epitope, which prevents NH₂-terminal trimming [37]; in that position, HIVA contains alanine. To distinguish impaired G1 epitope processing from other mechanisms of immunodominance, modified immunogen HIVAdH was constructed, from which epitope H was physically removed (Figure 1A), and used to immunize BALB/c mice. While the frequencies of IFN-γ-producing CD8⁺ cells responding to the G1 peptide, and indeed to the P peptide, were noticeably, though not significantly increased, responses to peptide G2 remained in the ex vivo ICS assay undetectable (Figure 1D). Nevertheless, G2 responses were primed, because a specific IFN-γ production was detected in HIVAdH-immune splenocytes following a 5-d G2 peptide-driven culture expansion (Figure 1E) in an experimental setting that is highly unlikely to support priming of naïve CD8⁺ T cells. Relative to the HIVA vaccination, increased in vivo lysis of G1- and P-pulsed targets was also observed in HIVAdH vaccinated mice (Figure 1F). Thus, this series of experiments demonstrated that a single strong epitope can dominate CD8⁺ T response to vaccination and significantly narrow the specificity of the total response.

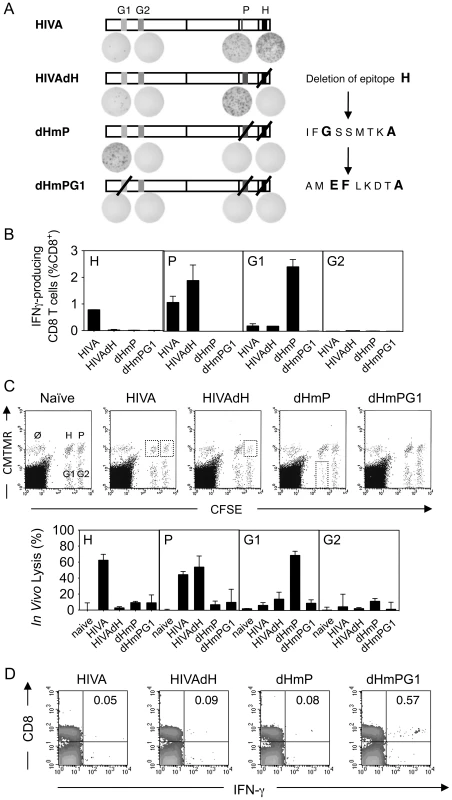

Serial up-ranking of subdominant epitopes by inactivation of dominant epitopes

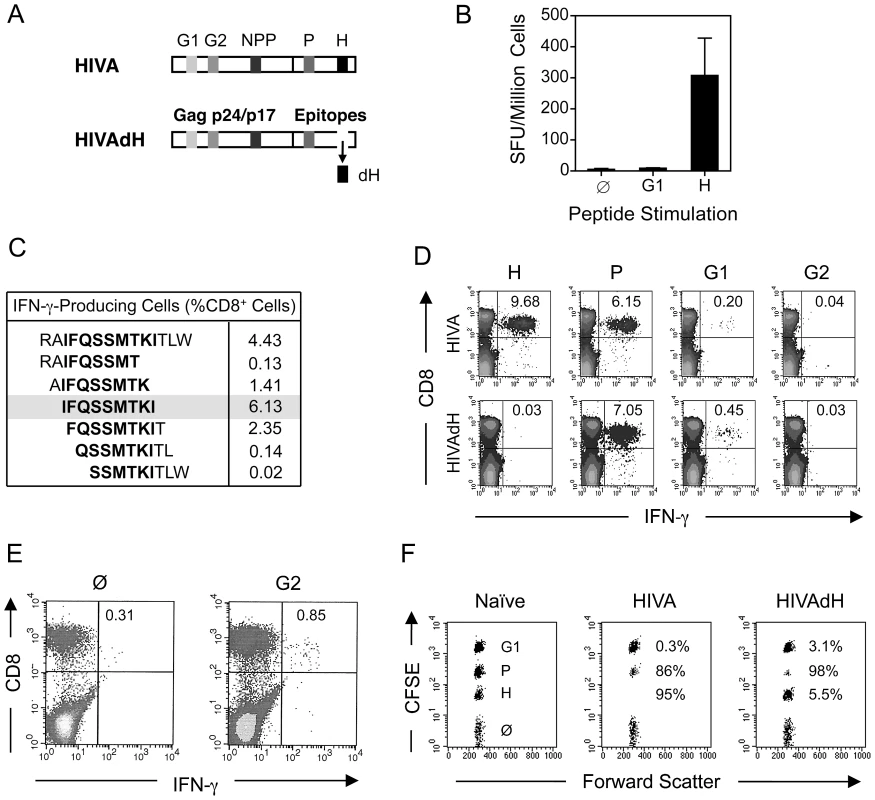

Deletion of immunodominant epitope H had a limited impact on restoring responses to epitopes G1 and G2. To further investigate this phenomenon, we serially inactivated CD8⁺ T cell epitopes in the order of their immunodominance. To maintain the HIVA protein integrity, epitopes P and G1 were mutated rather than deleted by substituting the anchor amino acid residues required for a strong binding to the H-2K^d molecule (Figure 2A). The resulting double and triple mutants of the HIVA immunogen were called dHmP and dHmPG1, respectively. Their comparable intracellular expression levels and half-life were demonstrated (Figure S1A), and the altered peptide sequences IFGSSMTKA and AMEFLKDTA were confirmed to be unable to bind H-2K^d in a T2 binding assay (Figure S2A). Groups of BALB/c mice were immunized 2x using the modified HIVA immunogens vectored by plasmid DNA and the immune responses were measured in IFN-γ ELISPOT, ICS and in vivo killing assays. First, it was confirmed by the absence of IFN-γ production that splenocytes from mice immunized with mutated HIVA vaccines dHmP and dHmPG1 were unable to recognize the altered P and G1 peptides, respectively (Figure 2A and B). Second, consistently in all three assays, immune responses directed against subdominant epitopes were serially recovered, however, not to the same extent. A significant restoration of G1-specific T cell responses, now comparable to those against H and restored P, was observed in dHmP-immunized group, while immunization with dHmPG1 vaccine failed to restore the G2-specific response (Figure 2B and C). Because the response to the G2 epitope remained undetectable even in the dHmPG1-immunized mice, overlapping 15/11 peptides across the whole HIVA immunogen were used again to search for another yet unidentified epitope of a higher rank. Indeed, a response was detected and mapped to a 15-mer peptide NPPIPVGDIYKRWIILGLNK (Figure 2D). This peptide contains a known BABL/c CD4⁺ T helper epitope present in the Los Alamos National Laboratory HIV Sequence Database, and peptide NPPIPVGDI, designated NPP, was shown to be restricted by H-2D^d and H-2L^d (Figure S2B). Thus, step-wise deletion of immunodominant CD8⁺ T cell epitopes restores responses to the subdominant epitopes in the hierarchy.

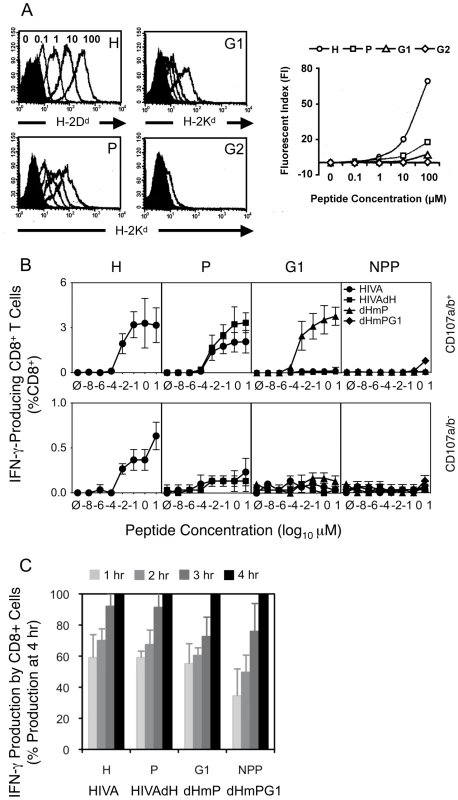

Peptide-MHC affinity, T cell avidity and response kinetics contribute to immunodominance

In the previous section, we established the hierarchy of T cell responses against HIVA-derived epitopes 10 d after immunization to be H>P>>G1>NPP>>G2. To characterize and compare the corresponding peptides, we assessed the binding affinities of the H, P, G1 and G2 peptides for their respective MHC class I using TAP-deficient T2 cell lines stably transformed with H-2D^d, H-2K^d or H-2L^d complexes and found that the peptide binding affinities directly correlated with the immunodominance hierarchy (Figure 3A).

We also measured avidities of T cell responses recovered through the sequential HIVA epitope up-ranking. First, responsiveness of immune splenocytes following 3 plasmid DNA deliveries was measured in an ICS assay upon re-stimulation with peptide concentrations ranging from 10⁻⁸ to 10 µM for 5 h (Figure 3A). Judging from the curve slopes and in vitro peptide concentrations achieving maximum IFN-γ⁺CD107a/b⁺CD8⁺ cell frequencies, 10- to 100-fold less H peptide for HIVA-induced responses was necessary relative to the P peptide for the HIVAdH-induction and G1 peptide for the dHmP-induction. This could in part reflect the predominant binding of H peptide to H-2D^d, and P and G1 peptides to H-2K^d. For individual determinants when dominant, the peak cell frequencies at 10 µM peptide concentration were 3.2%, 3.3%, 3.8% and 0.8% of total CD8⁺ splenocytes for peptide H in group HIVA, peptide P in group HIVAdH, peptide G1 in group dHmP and peptide NPP in group dHmPG1, respectively. Thus overall, epitopes H, P and G1 have similar intrinsic immunofgenicities when not dominanted by stronger epitopes. In non-degranulating IFN-γ⁺CD107a/b⁻CD8⁺ cells, only peptide H induced low, but significant IFN-γ response in 0.65% of total CD8⁺ cells following the HIVA vaccination (Figure 3B, bottom).

Finally, a constant 0.1 µM concentration of one of the four H, P, G1 or NPP peptides was used to restimulate immune splenocytes initially for 90 min as a pre-incubation period followed by additional 1 to 4 h (Figure 3C) sufficient for the IFN-γ expression to reach maximum [38]. The time-course suggested a trend whereby the more immunodominant epitopes reached their full IFN-γ/CD107a/b response faster (Figure 3C). Thus, peptide affinity for MHC, T cell avidity and response kinetics are mechanisms contributing to immunodomination of epitopes within HIVA.

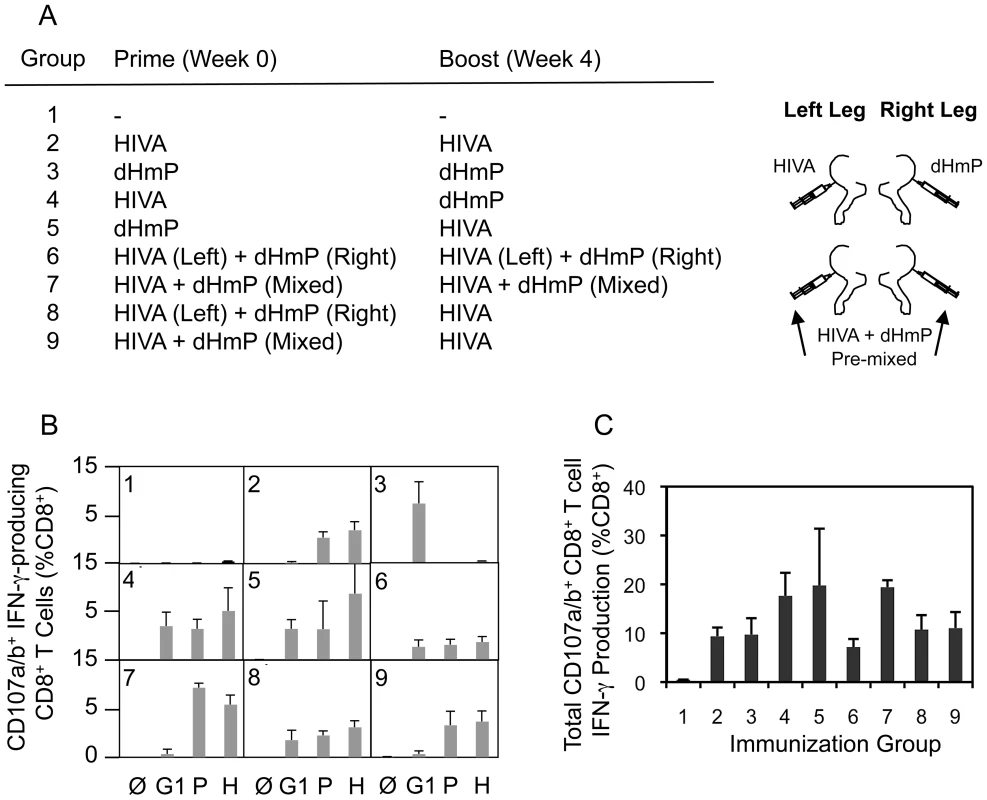

Spatial and/or temporal dominance is required for efficient induction of subdominant responses

Next, we wanted to assess whether responses to subdominant epitopes can be improved to the level of the dominant ones by separating their induction either anatomically or in time from the dominant determinants. Employing the HIVA and dHmP constructs, mice were immunized using various regimens of mixed or split injections depicted in Figure 4A. After a 23-wk rest, the mice were briefly re-stimulated with vaccinia virus strain Western Reserve WR.HIVA, sacrificed and their responses were analyzed using a multicolour flow cytometry (Figure 4, also see Figure S3 for representative dot plots). A number of observations were made. Thus, responses to the G1 epitope were significantly increased relative to those specific for epitopes H and P following both HIVA-dHmP and dHmP-HIVA prime-boost regimens (Fig 4B, groups 4 and 5). As for anatomical separation, split vaccine administration for both priming and boosting yielded equivalent T cell frequencies against all three epitopes (4B, groups 6 and 8), while pre-mixed vaccines injected into 2 sites failed to induce anti-G1 responses (Figure 4B, groups 7 and 9). Finally, physically separated (Figure 4B, group 8), but not mixed (Figure 4B, group 9) priming followed by HIVA only boosting also induced equal responses to all three epitopes. Therefore, either temporal or spatial separation of subdominant from dominant epitopes increases the breadth of the T cell responses.

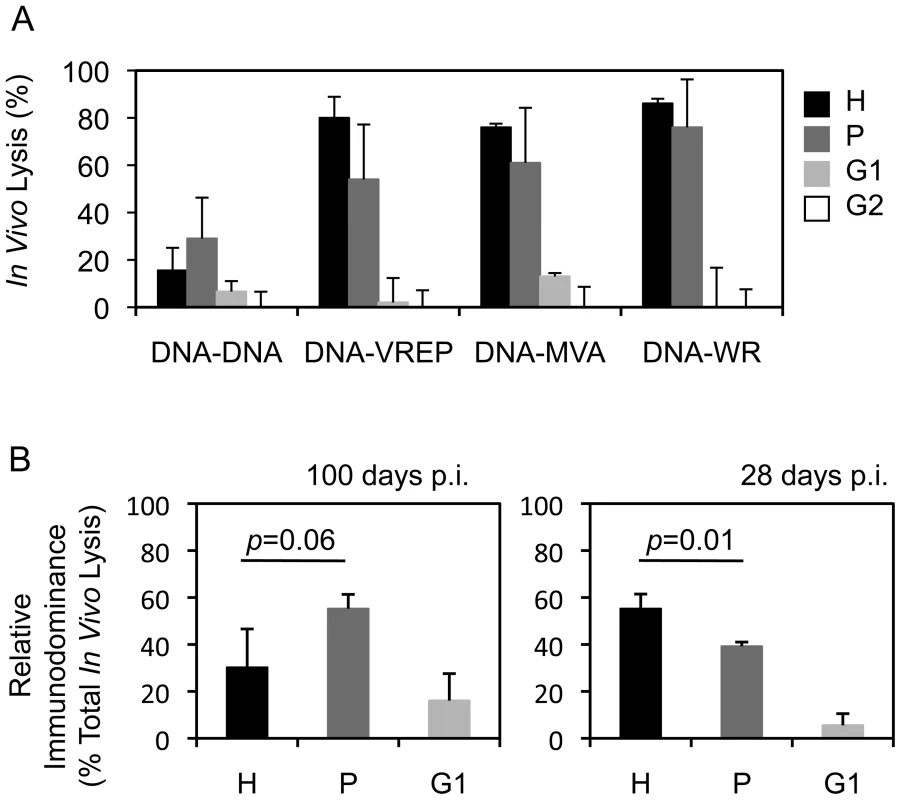

Epitope hierarchy is affected by vector regimen and can change with time

Vaccine vectors can affect responses to the transgene product by differential activation of innate immunity e.g. through pattern-recognition receptors [39] and by generating CD8⁺ T cell epitopes derived from the vector, which can undesirably interfere or compete with the induction of insert-specific responses [40], [41]. To investigate the influence of vector delivery on the hierarchy of epitopes, groups of BALB/c mice were primed with pTH.HIVA plasmid DNA and boosted with one of four vaccines: pTH.HIVA, MVA.HIVA [24], Semliki Forest Virus replicons VREP.HIVA [42], or a replication-competent vaccinia virus WR.HIVA [20]. Because long-term vaccine protection requires establishment of T cell memory, responses to epitopes H, P, G1 and G2 were measured 100 d after the last vaccination. The most striking difference was observed between the DNA-DNA and the heterologous regimens in that the DNA-DNA-induced H-specific memory T cells no longer dominated the anti-HIVA response and were replaced by T cells specific for peptide P (Figure 5A). This change in the epitope hierarchy over time was confirmed in separate experiments specifically comparing CD8⁺ T cell responses at 100 and 28 d post vaccination (Figure 5B).

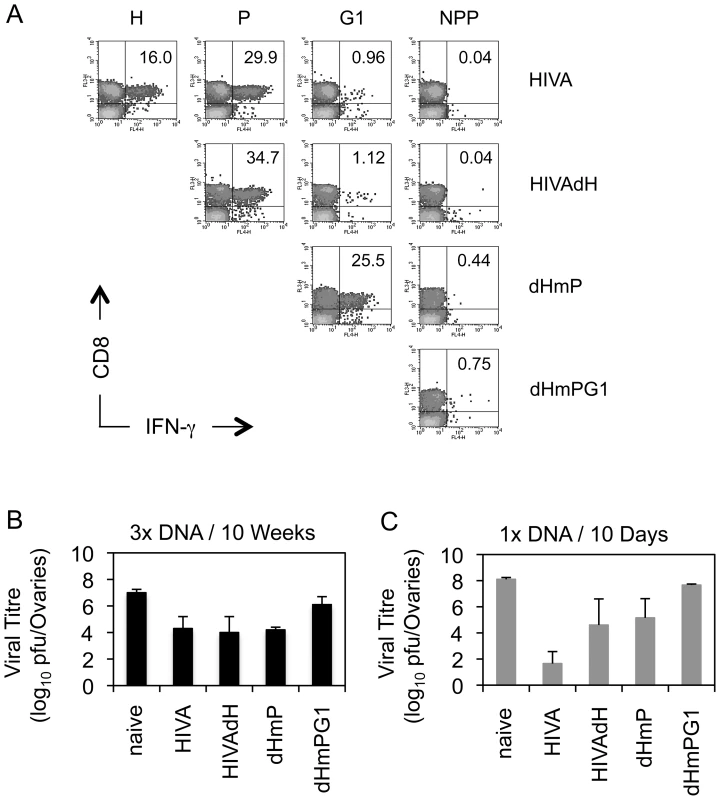

Mutated HIVA vaccines partially protect against vaccinia virus WR.HIVA challenge

Next, protective efficacy of the mutated HIVA immunogens was assessed. Because mice cannot be challenged with HIV-1, replicating vaccinia virus WR.HIVA was used as a surrogate virus challenge. In this model, the WR.HIVA load in ovaries 5 d after challenge serves as the infection quantitative readout [20]. Thus, BALB/c mice were vaccinated 3x with the intact or mutated HIVA immunogens delivered by pTH plasmid DNA. Nine wk after the last vaccination, analysis of the T cell memory induced to the H, P, G1 and NPP determinants in circulating PBMC were carried out prior to the challenge and confirmed shifts in the response hierarchy induced by mutated HIVA immunogens observed above including the loss of the H epitope superiority at this late time point (Figure 6A). One week after the bleed, mice where challenged with WR.HIVA. Consistent with the immunogenicity data, the groups of mice that received the HIVA, HIVAdH and dHmP immunogens showed a similar, approximately 1000-fold decrease in the virus load relative to the naïve group, while the protection induced by dHmPG1 vaccine was 100-fold lower (Figure 6B). To assess the initial dominance of the anti-H response, groups of BALB/c mice were also immunized once with the DNA vaccines and challenged 10 d later. Indeed, early after vaccination, the HIVA immunogen conferred the best protection decreasing the WR.HIVA load by 6 orders of magnitude (Figure 6C). Thus, together the early and late challenge experiments indicated that subdominant epitopes contribute to the protective efficacy and their contribution inversely correlates with their position in the epitope hierarchy: for the HIVA immunogen and WR.HIVA challenge, the stronger response they induce, the bigger their protective role is. Their relative protective efficacy can change with time.

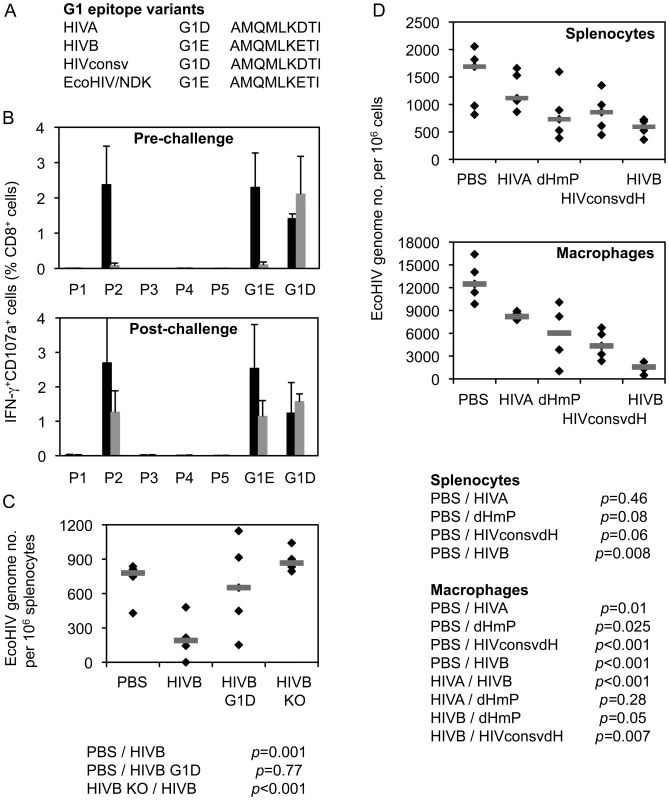

G1 epitope alone protects against EcoHIV if not dominated

Protective efficacy against chimaeric EcoHIV/NDK [21], [22] provided by the G1 epitope was assessed when generated from several different immunogens. EcoHIV is particularly suitable for the first, quick assessment of efficacy of T cell-inducing vaccines as it does not express the HIV-1 Env and, therefore, does not carry the H epitope, but contains the clade D version of G1 AMQMLKETI, designated G1E (Figure 7A). Immunogen HIVB is a clade B near-equivalent of HIVA [23], which also contains the G1E epitope, but not the H epitope. In mice immunized twice with pTH.HIVB DNA, both pre- and post-challenge ICS analysis indicated that the G1 epitope generated the only detectable CD8⁺ T cell response (Figure 7B). These G1E-specific responses correlated with lower EcoHIV/NDK load in splenocytes of challenged BALB/c mice (p = 0.001). Amino acid 7E-for-D substitution in the G1 epitope of the HIVB vaccine decreased this protection (p = 0.77) and the epitope knock-out abolished completely vaccine efficacy (Figure 7C). Inferior protection by the G1D epitope was also observed using the HIVA mutant dHmP and our second-generation immunogen HIVconsvdH [28] (Figure 7D). Finally, there was a trend indicating that intact HIVA immunogen was less efficient in inducing protective responses than dHmP presumably because in HIVA, the protective G1D epitope was dominated by irrelevant epitopes H and P (Figure 7D). Thus, G1 when up-ranked as the most immunodominant vaccine epitope is sufficient to induce protective efficacy; this protection may be compromized by irrelevant/non-protective, but superior epitope.

Discussion

There is a very appealing rationale to focus vaccine-induced HIV-1-specific CD8⁺ T cell responses on invariant determinants of the HIV-1 proteome [12], [28], [29], [43]. In the work presented here, we provide further experimental evidence in support of this approach by demonstrating the protective potential of subdominant epitopes against two surrogate virus challenges. A number of important observations have been made.

First, the pattern of CD8⁺ T cell immunodominance can be altered by modifying vaccine immunogens, therefore, immunodomination is a relative relationship between epitopes rather than an epitope's absolute status. Although the shift in the immunodominance was demonstrated previously for a loss of a single epitope [5], [14], [16], [17], [26], [44], the extent to which this phenomenon applies to other subdominant epitopes within the same protein immunogen of a subunit vaccine has not been investigated. Here, we show that sequential inactivation of three CD8⁺ T cell epitopes on the top of the immunodominance hierarchy leads to a gradual epitope up-ranking reflected in increased magnitudes of the remaining responses.

Second, subdominant epitopes have the potential to replace the stronger ones on the top of the immunodominance hierarchy. This is an important prerequisite for anti-HIV-1 vaccine strategies, which aim to deal with the HIV-1 diversity and escape by directing prophylactic CD8⁺ T cell responses away from the hypervariable regions recognized during primary HIV-1 infection [9] to subdominant, but invariable parts of the HIV-1 proteome [12], [28], [29], [43]. Early focus on the HIV-1 functionally conserved protein sequences, which cannot change without a likely high cost to HIV-1 fitness [45], [46], may provide host immune responses with the critical extra edge in the chase of the ‘ever’-escaping HIV-1 during the primary infection [9], [47]–[50] as well as offer a global universal cross-clade vaccine [28].

Third, we demonstrated that epitope hierarchy can change with time and this change may depend on the means of the immunogen delivery. In the case presented here, the boosting vaccine vector influenced the relative position of epitopes H and P in the order of hierarchy, whereby following a double or triple DNA prime-boost regimen, epitope H was the strongest at 28 d post vaccination, but, by 100 d, was dominated by epitope P. This was not observed for the other investigated boosting vaccine vectors and, thus, the choice of a vaccine vector may have a profound effect on the pattern of dominance within the transgene product. It remains untested whether such hierarchy swap happens only after a single pTH.HIVA DNA delivery. The mechanism for this phenomenon is not known, but it is not likely caused by exhaustion of the H-specific CD8⁺ T cells. We published previously long-term immunogenicity of one pTH.HIVA DNA delivery to BALB/c mice and, although the read out involved only peptide H and not peptide P, 182 days later 51±17 SFU/10⁶ of ex vivo H-specific splenocytes were detected in an IFN-γ ELISPOT assay, and following an additional 5-day-in vitro re-stimulation with H peptide, expanded effectors specifically lysed 25% of ⁵¹Cr-labeled target cells. In the same experiment, 2x pTH.HIVA DNA induced 89±39 SFU/10⁶ and yielded similar levels of H-specific ⁵¹Cr release. Thus these cells at least for these two effector functions appeared normal [42]. Other studies investigated response hierarchies to the whole viruses rater than a single protein. For epitopes expressed from poxviruses, shaping of immunodominance during boost, but not prime, was attributed to cross-competition of CD8⁺ T cells [51]. Changes in epitope hierarchy were also reported for other viruses such as lymphocytic choriomeningitis virus (LCMV), influenza virus and herpes viruses and the suspected underlying mechanisms included T cell exhaustion, kinetics of viral protein expression and cross-presentation [4], [52]–[54]. Change with time in epitope hierarchy is well documented for responses to Epstein-Barr virus (EBV) lytic and latent proteins (reviewed in [55]) and shapes the immunodominance of anti-LCMV cytotoxic T cell responses [4]. In both EBV and LCMV infections, this phenomenon was explained by the biology of the virus; in contrast, the H and P epitopes are expressed from the same protein. For the HIVA epitopes, the epitope hierarchy was mirrored by T cell avidity for the MHC-peptide complexes and relative kinetics of individual peptide-specific T cell responses. A degree of competition depending on the affinity of responding T cells was also reported for peptide-pulsed dendritic cells and was much more pronounced for T cells with the same epitope specificity [56], [57]. Thus, a number of mechanisms determine the epitope ranking and their relative importance is likely specific for each antigen and virus/vaccine vector combination studied.

Fourth, generation of a broad CD8⁺ T cell response is a major goal of current vaccine strategies particularly against highly variable infectious agents such as HIV-1 and various ways towards achieving this are suggested in the literature. For example, anatomic separation and heterologous prime-boost regimens partially overcame epitope competition and generated co-dominant responses against two [14] or a number of [29] unequal epitopes derived from HIV-1. Using a string of five human melanoma epitopes, immunodominance could be overcome by boosting of DNA-primed responses using a mixture of recombinant viruses, each encoding different antigenic determinants [58]. Our data suggest that either priming or boosting of responses to subdominant epitopes can be used to increase the response breadth as long as the weaker epitope is allowed to dominate at least once locally or in time. Again, the subtle discrepancies with some published results can be most likely reconciled by differences in individual experimental and/or vaccine designs.

Finally, we demonstrated that subdominant up-ranked epitopes can be protective in vivo against viral challenge if a protocol for efficient T cell stimulation by these epitopes can be developed. These results confirm and expand several previous observations [5], [13]–[17] and have implications for design of vaccines inducing CD8⁺ T cell responses in general. However, whether or not a full protective potential of subdominant epitopes can be harnessed by a rational vaccine design also depends on the efficiency of processing and presentation of these subdominant determinants on the surface of HIV-1-infected cells during natural infection. CD4⁺ T cells, the main cells of HIV-1 replication, are not ‘professional primers’ of CD8⁺ T cells (although are likely to expand already primed responses) and many, if not most, T cell responses in natural HIV-1 infection must be initiated by cross-priming [59]. Therefore, detection of responses to subdominant epitopes measured by recognition of peptide-pulsed targets does not guarantee that HIV-1-infected cells express that epitope on their surface. Although escape mutations do occur in conserved regions [60] pointing to an efficient presentation/recognition of at least some epitopes, escape in these regions is less frequent. Indeed, differences between recognition of peptide-pulsed and HIV-1-infected targets were previously reported [61]–[64] and will be the focus of our clinical studies with HIVconsv. Here, we demonstrated that subdominant HIVA epitopes contribute to in vivo protection against surrogate WR.HIVA infection and responses to a single subdominant epitope G1 (AMQ) in Gag led to an enhanced clearance of EcoHIV/NDK infection. CD8⁺ T cells specific for a single epitope protected mice against e.g. Plasmodium berghei and LCMV [65], [66] and protection after removing dominant epitopes was reported for an experimental infection of rhesus macaques with simian immunodeficiency virus [67]. Without a clear definition of functional correlates of T cell protection against HIV-1 in humans, protection against surrogate virus challenges provides a useful readout for studying the ability of vaccine-elicited responses to control real virus infection in vivo. It does remain that these challenge models serve more as experimental tools for studying the workings of the immune system rather than predictors of efficacy of candidate HIV-1 vaccines in humans.

Taken together, the findings reported in this paper provide an important reassurance for vaccine strategies targeting pathogens' subdominant determinants. By the same token, higher-ranked non-protective determinants may over-compete and likely delay T cell induction against potentially protective epitopes. For some natural virus infections, such as by HIV-1, responses to the conserved regions may come too late to win the race with the virus [9].

Materials and Methods

Vaccine construction and preparation

Design, construction and preparation of HIVA, HIVB and HIVconsv vaccines were described previously [23], [24], [28]. The epitopes of HIVA (Im,) and HIVB (Hong, D.Phil Thesis, University of Oxford, 2009) genes were deleted or serially mutated using standard techniques of recombinant DNA technology.

Mice, immunizations, bleeding and preparation of splenocytes

Groups of 5- to 6-wk-old female BALB/c mice were used. Under general anaesthesia, mice were immunized i.m. with indicated doses of plasmid DNA or 5×10⁶ PFU of recombinant MVA (rMVA). Mice were bled using a superficial vein. On the day of sacrifice, spleens and peritoneal macrophages were collected. Splenocytes were isolated by pressing spleens individually through a 70-µM nylon cell strainer (BD Falcon) using a 5-ml syringe rubber plunger. Following the removal of red blood cells with RBC Lysing Buffer Hybri-Max (Sigma), splenocytes were washed and resuspended in R10 for ELISPOT and intracellular cytokine staining (ICS) assays. For in vitro expansion of cells, splenocytes were resuspended in Lymphocyte Medium [R-10 (RPMI 1640 supplemented with 10% FCS, penicillin/ streptomycin), 20 mM HEPES and 15 mM 2-mercaptoethanol] and incubated for 5 d in the presence of peptides or peptide pools (2 µg/ml).

Ethics statement

All animal procedures and care conformed strictly to the United Kingdom Home Office Guidelines under The Animals (Scientific Procedures) Act 1986. The protocol was approved by the local Research Ethics Committee (Clinical Medicine, University of Oxford). Experiments were carried out under Project Licence no. 30/2406 held by TH with a strict implementation of the Replacement, Reduction and Refinement (3Rs) principles.

Peptide synthesis

Individual peptides of 9- to 20-mer in length were synthesized in an in-house facility using the Advanced Chemtech automated synthesizer and yielded a purity of >95%. All peptides were dissolved in DMSO (Sigma-Aldrich) to yield a stock of 10 mg/ml, and stored at −80°C.

T2 peptide binding assay

TAP2 (Transporter Associated Protein 2)-deficient T2 cell lines stably expressing D^d, K^d, and L^d molecules kindly provided by Dr. Ted Hansen (Washington university, U.S.A.) were used to assess the ability of MHCs to bind each peptide. In brief, 1×10⁵ cells were incubated with 0/0.1/1.0/10/100 µM peptides in no-serum RPMI (R-0) for 14 h at 37°C, 5% CO₂ in a flat-bottomed 96-well plate. 14 h later, cells were transferred to a round-bottomed 96-well plate and washed with PBS before staining the cells with anti-H-2K^d/H-2D^d-PE or anti-H-2L^d-PE (eBioscience) monoclonal antibodies. Cells were then analyzed on a FACS flow cytometer.

In vivo killing assay

Naïve syngeneic mice were sacrificed, the splenocytes prepared as above and the isolated splenocytes incubated with or without peptides in R-10 at 37°C, 5% CO2 for 90 min and washed 3x. Peptide-unpulsed target cells were labeled with CMTMR (Cell Tracker Orange, Molecular Probes) only, while peptide-pulsed target cells were labeled with CFSE (Molecular Probes) and combined with or without CMTMR as described previously [25]. Differentially labeled cell cultures were washed, resuspended in PBS and combined for intravenous adoptive transfer, with each animal receiving approximately 2×106 cells of each population. After 12 h, animals were sacrificed, and their splenocytes were isolated and analyzed using flow cytometry. Cytotoxicity was calculated using the following formula: Adjusted % survival = 100 x (% survival of peptide-pulsed cells/mean % survival of peptide unpulsed cells), followed by the calculation of % specific lysis = 100 - adjusted % survival [68].

Intracellular cytokine staining

ICS assay was performed as described previously [25] and stored at 4°C until analysis. Anti-CD107a-FITC/anti-CD107b-FITC (BD Biosciences), anti-CD16/32 (BD Biosciences) at 4°C for 30 minutes. All subsequent antibody stains were performed using the same conditions. Cells were then washed and stained with anti-CD8-PerCP/Pacific Blue, anti-CD4-APC-Cy7 (BD Biosciences), anti-IFN-γ-APC and anti-TNF-α-PE (BD Biosciences) mAbs were used.

IFN-γ ELISPOT assay

The ELISPOT assay was performed using the Mouse IFN-γ ELISpot kit (Mabtech) according to the manufacturer's instructions. Spots were visualised using sequential applications of a biotin-conjugated secondary anti-IFN-γ mAb (R4-6A2, Rat IgG1), an alkaline phosphatase and a chromogenic substrate (Bio-Rad) and counted using the AID ELISpot Reader System (Autoimmun Diagnostika).

Vaccinia virus WR.HIVA challenge/protection assay

Groups of BALB/c female mice naïve or immunized were challenged with 2×10⁶ PFU of vaccinia virus WR.HIVA i.p. Four d later, ovaries were collected and homogenized using MagNA Lyser Green Beads (Roche) in a bead-based homogenizer. Confluent Hu-TK^-143B cells in 6-well plates were infected in duplicates with 10-fold serial dilutions of the homogenized ovaries. Cells were stained with 0.1% crystal violet in 20% ethanol and the numbers of plaques were counted.

FACS analysis

All chromogen-labeled cells were acquired using FACSCalibur and CyAn ADP (Dako) flow cytometer and analyzed with CellQuest software (BD Biosciences) and Flowjo (Tree Star), respectively.

Preparation of EcoHIV/NDK stock and challenge

EcoHIV/NDK stocks were prepared as described previously [22]. Briefly, plasmid DNA containing the infectious viral genome was transfected into 293T cells, the virus was harvested from the culture supernatant after two sequential 1-d incubations, concentrated by centrifugation and quantified by determination of the Gag p24 content (Zeptometrix Corporation, Buffalo, NY) and stored at −80°C until use. Mice were challenge with 2 µg p24 cell-free virus by i.p. injection.

Quantitative real-time PCR (qPCR)

DNA from splenocytes and macrophages was isolated on the day of euthanasia and qPCR was conducted using primers sense: 5′-FTTAGCACTTGCTTGGGACGA, antisense: 5′-TGTCCCAGAAGTTCCACART, Doubledye Taqman probe 5′-TWGCACTTWTCTGGGACGA (F = G or C; R = A or G; W = A or T) and ABI Prism 7700 instrument. Data are reported as numbers of viral DNA copies per 10⁶ of cells, cell numbers were obtained by qPCR amplification of normalizing gene using gDNA kit. Custom primers and probes detecting challenge virus DNA, but not vaccines, and the house keeping gene were designed and optimized by PrimerDesign (Southampton, UK).

Statistical analysis

The p values associated with an unpaired Student's t-Test with a two-tailed distribution were determined for differences between both frequencies of vaccine-induced HIV-1-specific T cells and EcoHIV/NDK genome copy numbers following challenge.
