Mre11 and Blm-Dependent Formation of ALT-Like Telomeres in Ku-Deficient

Summary

The majority of cancer cells use a special enzyme called telomerase to maintain telomeres. However, some cancer cells do not possess telomerase and use instead the so-called ALT mechanism to maintain telomeres. ALT is a complex pathway that entails the action of many factors, and the telomere DNAs of ALT cancer cells are extremely abnormal (e.g., they are often detached from the rest of the chromosomes and often exist in single-stranded forms). Currently, there are few manipulations that one can use to induce normal cells to engage in the ALT mechanism. The lack of a good “model” system poses a major obstacle to the understanding of this pathway and the development of effective counter-measures against ALT cancer cells. By removing Ku and a checkpoint factor from U. maydis (a yeast-like fungus), we generated clones that exhibit many of the characteristic abnormalities of ALT cancer cells. Moreover, we identified two factors (i.e., Mre11 and Blm) that when deleted, abolished the ALT phenotypes. Further analysis of this model may lead to the development of new strategies for shrinking the telomeres of cancer cells, thereby arresting their proliferation.

Introduction

Eukaryotic chromosome ends, or telomeres, consist of repetitive DNA sequences and a plethora of protective proteins that are crucial for chromosome stability [1,2]. Aberrations in the DNA repeat tracts or the protective telomere proteins have been shown to induce chromosome re-arrangements. Owing to the “end-replication” problem, chromosome termini experience progressive telomere loss with each cell division [3]. This process eventually generates critically short telomeres that limit further cell proliferation by triggering a DNA-damage response [4]. Progressive telomere loss can be counter-balanced by telomerase reverse transcriptase, which extends telomeres by using an integral RNA component as the template [5,6]. Telomerase expression is repressed in normal somatic cells, but up-regulated in cancer cells, conferring these cells with increased proliferative potential. Telomerase inhibition has been validated as a useful anti-cancer strategy and telomerase inhibitors are in clinical trials for treating a variety of cancers [7].

While the majority of cancer cells utilize telomerase to replenish telomeres, a subset of tumor cells employs an alternative, recombination-based mechanism known as ALT (alternative lengthening of telomeres) [8,9]. The telomere DNAs in ALT cells are characterized by length heterogeneity, accumulation of unpaired telomere C-strand (the strand that is rich in C-residue and that carries the 5’ end), and a substantial increase in extra-chromosomal telomere repeats (ECTR), which comprise both circular and linear repeats. In particular, extra-chromosomal C-circles are believed to be an especially specific and quantifiable marker of ALT activity [10]. In addition, ALT is associated with extensive genome rearrangements, marked micronucleation, defects in the G2/M checkpoint, and altered double-strand break (DSB) repair [11]. While many recombinational repair proteins have been linked to ALT (including e.g., the MRN and the 9-1-1 complex), this pathway is clearly distinguished from the canonical homology-directed DNA repair (HDR) pathway [12,13]. For example, RAD51 is the central catalyst of HDR, yet knockdown of RAD51 either fails to suppress or exacerbates ALT phenotypes [14,15]. In addition, a key feature of the HDR pathway is the generation of long 3’ overhangs, yet ALT is characterized by the accumulation of telomere 5’ overhangs [15]. Despite intensive efforts, including high throughput screening of driver mutations in ALT, the mechanisms that underlie ALT induction and maintenance remain incompletely understood [11]. One potential contributing factor for ALT is a defect in the chromatin remodeling protein ATRX. ATRX mutations are frequently observed in ALT, and exogenous expression of ATRX in some ALT cells can repress ALT phenotypes [16]. However, knockdown of ATRX is not sufficient to trigger the ALT pathway [11], implying the existence of other necessary contributing factors. The current lack of knowledge on the ALT pathway hampers the development of mechanism-based inhibitors against this subset of cancer cells [17].

Recombination-mediated telomere extension pathways have also been analyzed in fungi, including S. cerevisiae and S. pombe [18]. Such pathways are typically activated in telomerase null mutants, and have been classified as Type I or Type II according to the sequence amplified at chromosome ends and the factor requirements [19]. A common weakness of existing fungal models of ALT is that they do not recapitulate the characteristic aberrations of ALT cells. For example, none of the S. cerevisiae or S. pombe telomerase mutant survivor has been reported to accumulate excess C-strand overhangs or C-circles. Alternative and more relevant models are therefore desirable. An attractive model organism is the genetically tractable yeast-like fungus Ustilago maydis, which bears a telomere repeat unit that is identical to the mammalian sequence and an average telomere tract of ~300–400 bp [20,21]. U. maydis also contains a shelterin-like telomere nucleoprotein complex, and a recombination-repair machinery that is remarkably similar to the mammalian machinery [22]. Two recent observations highlight the striking resemblance of the U. maydis telomere regulatory mechanisms to those in humans. First, as in human cells but different from budding or fission yeast, the two central components of HDR in U. maydis (i.e., Rad51 and the BRCA2 ortholog Brh2) are each required for normal telomere maintenance in telomerase-positive cells [21,23]. Second, just like the human Ku complex, the U. maydis Ku complex is essential for cell viability and loss of Ku expression causes massive telomere aberrations [24,25]. In the current study, we further characterized the Ku-deficient U. maydis cells, and found that they initially exhibit telomere abnormalities that are very similar to those observed in ALT cancer cells, including telomere length heterogeneity, the accumulation of C-strands and extrachromosomal telomere repeats (ECTR). The level of C-circles, a highly specific marker of ALT, is dramatically increased in the mutant as well. Moreover, we found that the induction of aberrant telomeres in the Ku-deficient mutant is largely suppressed by deletion of mre11 and fully eliminated by deletion of blm, consistent with previous characterization of ALT cell lines [10,13]. By contrast, deletion of rad51 or other DNA damage response and repair factors had disparate effects on various telomere abnormalities, suggesting that these factors process ALT intermediates or products. Interestingly, in the presence of normal checkpoint function, the ku mutants eventually experience permanent cell cycles arrest, which is accompanied by the disappearance of telomere repeats from chromosome ends and a further increase in short ECTRs. Our findings illustrate the complexity of the ALT-like pathway in U. maydis and begin to suggest factors and mechanisms that may mediate the formation of aberrant telomeres in ALT cells.

Results

Telomere aberrations in the U. maydis ku mutants resemble those in ALT cancer cells

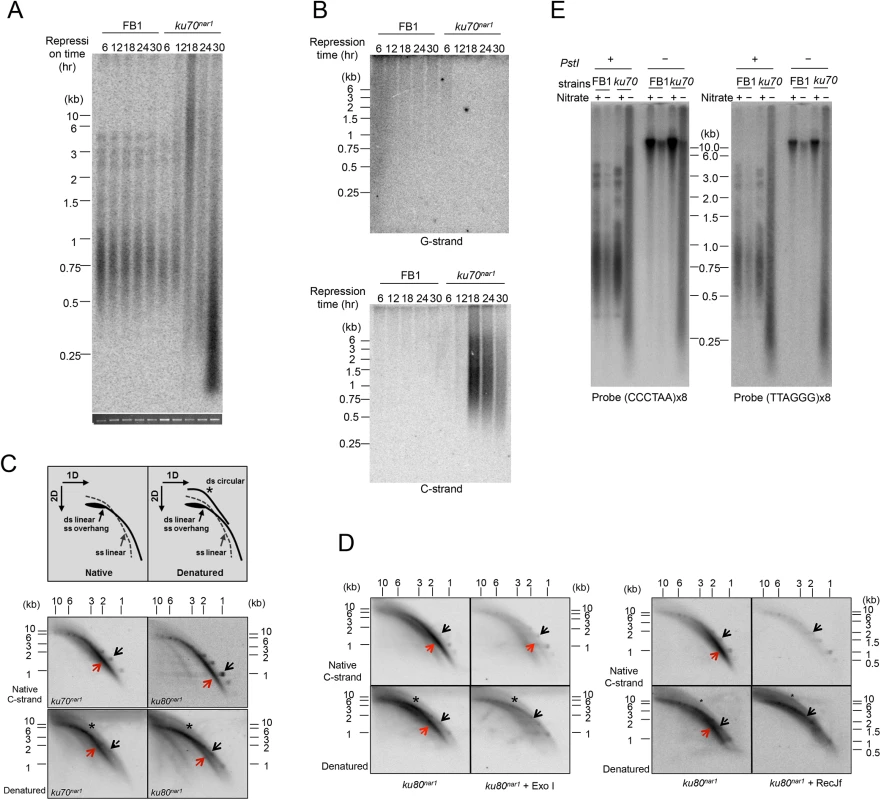

Previous analysis revealed DNA damage signaling from the telomeres of ku70 and ku80-deficient U. maydis cells that leads to permanent cell cycle arrest. (To simplify the discussion, we will refer to the Ustilago maydis uku70 and uku80 genes and mutants as ku70 and ku80.) The investigation made use of U. maydis strains that conditionally express ku70 or ku80 in nitrate-containing medium (named ku70^nar1 and ku80^nar1). Following 18–20 hr of incubation in YPD (a medium that represses ku expression), the ku mutants cease to proliferate and experience complete G2 arrest as judged by cell morphology (with elongated bud and a single nucleus) and FACS analysis [24]. Drastic telomere restriction fragment (TRF) length heterogeneity and elevated levels of t-circles were also detected [24]. To characterize in greater detail the dynamics of the telomere defects, we further analyzed TRF length distribution at multiple time points following transcriptional repression of the ku70^nar1 allele (Fig 1A). Increased total telomere hybridization signal and TRF length heterogeneity became evident ~12 hr post ku70 repression, and these alterations grew more severe over time, reaching a maximum at ~18 hr. This initial TRF length distribution is superseded at ~30 hr by a terminal distribution characterized by the disappearance of extremely long telomere fragments and a further increase (~ 3 fold) in very short telomere fragments (~0.1 to 0.5 kb). To determine if these abnormal TRFs are chromosomal or extra-chromosomal, we compared the Southern hybridization patterns of the DNA samples with and without prior PstI treatment (S1A Fig). Interestingly, omitting PstI digestion reduced but did not eliminate the long TRF signal at 18 hr, indicating that only a portion of this signal is due to ECTR. In contrast, the very short telomere fragments at 30 hr are almost entirely due to ECTRs (and henceforth abbreviated as vsECTRs). Prolonged exonuclease treatment eliminated only the faster migrating portion of the vsECTRs, suggesting that the smallest vsECTRs are linear whereas the remaining ones are circular DNAs (S1B Fig). We also quantified the chromosome-associated telomere signals and total telomere DNA signals using the undigested samples, and found the former were reduced by 50% and 90% after 18 hr and 30 hr of repression, whereas the latter were increased by 50% and 3-fold at the same time points (S1C Fig). Hence, the loss of Ku in U. maydis results in a progressive loss of telomere DNAs from the chromosomes, as well as a drastic accumulation of ECTRs, which are initially long and heterogeneous, but subsequently dominated by very short linear and circular fragments.

Next, we examined single stranded telomeres in the Ku-deficient mutant at multiple time points using in-gel hybridization assays and observed the disappearance of unpaired G-strand at 6 hr, and the drastic accumulation of unpaired C-strand at 18 hr and thereafter (Fig 1B). We note that while there is a good correlation between the size distribution of TRFs in standard Southern analysis and that of unpaired C-strand, the unpaired G-strand signals are disproportionately concentrated in the high molecular weight region of the gel (Fig 1B). The G-strand signals may therefore arise from a subset of the molecules, perhaps recombination or replication intermediates, which are expected to migrate slower than linear DNAs. More study is required to ascertain the nature of the G-strand signals. Interestingly, despite the dramatic increase in the amount of vsECTRs in the standard telomere Southern analysis, no such increase was detected in either the G-strand or C-strand assays, indicating that vsECTRs are primarily double stranded. The distinct kinetics of the various telomere alterations suggest that the genesis of aberrant telomeres in the ku mutant is a multi-step process that entails the action of many DNA-processing factors.

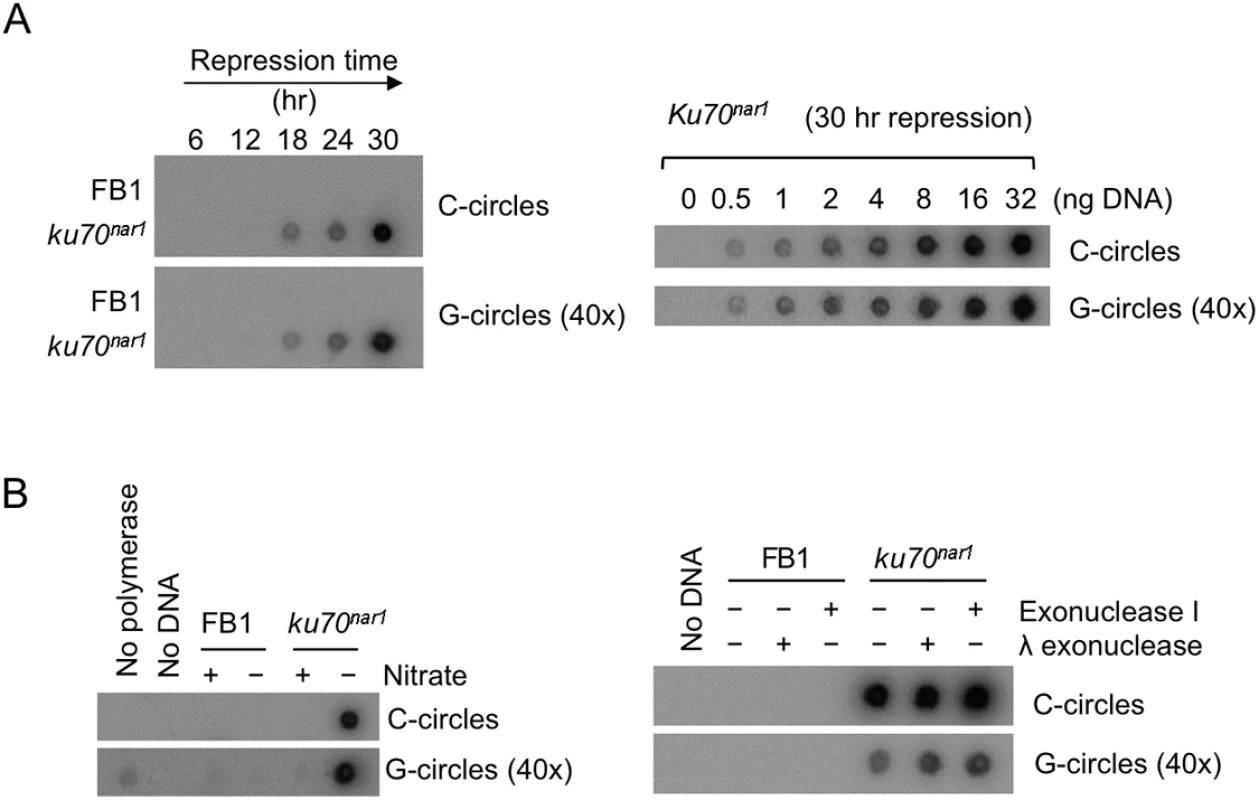

Preferential accumulation of unpaired C-strand has not been reported for other fungal mutants but is characteristic of ALT cancer cells [15]. To characterize this structure in more detail, we subjected 18 hr DNA samples from the ku70^nar1 mutant to 2-D gel analysis followed by in-gel hybridization using a G-strand probe (Fig 1C). We found that a substantial portion of the C-strand signals migrate as an arc below the ds linear arc, and are therefore likely due to ss linear DNA (Fig 1C, marked by red arrows). Following denaturation and re-hybridization, signals corresponding to ds linear and ds circular DNAs are detected as well (Fig 1C, marked by black arrows and asterisks). Treatment of the DNA with E. coli RecJ_f (a 5’ to 3’ ssDNA exonuclease) prior to 2D-gel fractionation caused a substantial reduction in the C-strand signals, supporting the presence of 5’ ssDNA overhangs (as predicted based on the polarity of the C-strand) (Fig 1D). We also compared the C-strand signals in 1-D native gels before and after subjecting the ku70^nar1 DNA to Klenow mediated fill-in synthesis, which is expected to convert 5’ overhangs to duplexes (S2 Fig). Again this treatment eliminated part but not all of the C-strand signals, consistent with the presence of 5’ C-strand overhangs in a fraction of the molecules. Surprisingly, treatment with E. coli Exo I (a 3’ to 5’ ssDNA exonuclease) also reduced the C-strand signal, which is not consistent with unpaired C-strand at the ends of chromosomes. Instead, this results indicates that a portion of the signal may come from ss extra-chromosomal linear DNA; both purely single-stranded DNA and single-stranded DNA bearing an internal duplex should be susceptible to both Exo I and RecJ_f. This result is also consistent with the finding from 2D gel analysis that a significant fraction of the signals is from ss linear DNA. To confirm the existence of ECTRs, we performed standard telomere Southern analysis on samples that had not been treated with restriction enzyme (Fig 1E). Consistent with our hypothesis, the heterogeneous telomere fragments of the ku70^nar1 and ku80^nar1 mutants are observed in the absence of PstI cleavage, whereas the typical telomere patterns of control cells are only observed with PstI treatment. Hence we conclude that the U. maydis ku mutants are characterized by the possession of abundant ECTRs that bear a high level of unpaired C-strand, a substantial portion of which exists as ss linear DNA.

As noted before, unpaired C-strand is believed to be a distinguishing feature of ALT [15]. Other features shared by the U. maydis ku mutants and ALT cells include telomere length heterogeneity and ECTR, suggesting substantial mechanistic resemblances between the two systems. Notably, a recent study identified extra-chromosomal C-circles (i.e., circular DNA comprised of continuous C-strand and G-strand nicks/gaps) as an especially specific and quantifiable marker of ALT activity [10]. We therefore examined the levels of C-circles in the U. maydis mutant and found a dramatic increase of such circles in the ku70^nar1 strain upon transcriptional repression of ku70 (Fig 2A). The signals are proportional to the amounts of input DNA, and quantification revealed in the mutant at 30 hr post ku repression ~30,000 fold more C-circles than the control cells. Similar to ALT cells, G-circles (i.e., circles comprised of continuous G-strand and C-strand nicks/gaps) are also elevated in the ku mutant, but to a lesser extent (~1,500 fold) (Fig 2A). As expected, the C- and G-circle signals require both input DNA and the Φ29 polymerase, and are unaffected by prior exonuclease treatments (Fig 2B). Thus, the U. maydis ku mutant appears to suffer from very similar telomere defects as ALT cancer cells, and may be engaged in the same set of reactions at telomeres. Moreover, these defects exhibit distinct kinetics (see S3 Fig for a summary of the temporal dynamics of the defects) and may thus represent different intermediates in a complicated pathway.

The telomere abnormalities are reversible

To assess the reversibility of the disparate abnormalities, we first subjected the ku70^nar1 and ku80^nar1 strains to transcriptional repression for 18 hr to induce the ALT-like defects, and then re-expressed the ku genes by switching the cells to a nitrate-containing medium, followed by telomere analysis at various time-points. Remarkably, the ku mutants rapidly resumed growth when switched from the restrictive to permissive medium. They underwent the first cell division at ~4 hr after the switch, and continue to divide with a generation time of ~210 minutes thereafter. In addition, the telomere aberrations of the mutants are fully reversible, and similar to the induction process described earlier, different aberrations are reversed with distinct kinetics (S4 Fig). The level of extra-long TRFs (5 to >20 kb) becomes substantially reduced at 24 hr following ku re-expression and is similar to control cells at 48 hr, whereas the level of extremely short fragments bearing telomere repeats (<0.5 kb) does not return to normal until 72 hr post re-expression (S4A Fig). A difference in kinetics is also observed between the disappearance of unpaired C-strand and the appearance of unpaired G-strand during phenotypic reversal; the former is complete at 24 hr after ku re-expression, but the latter is only complete at 48 hr (S4B Fig and S4C Fig). These results again support the notion that the generation of the telomere defects is likely to be a multi-step process, and that different telomeric structures may represent distinct intermediates along a complicated pathway.

The formation of the ALT-like telomeres is independent of U. maydis telomerase

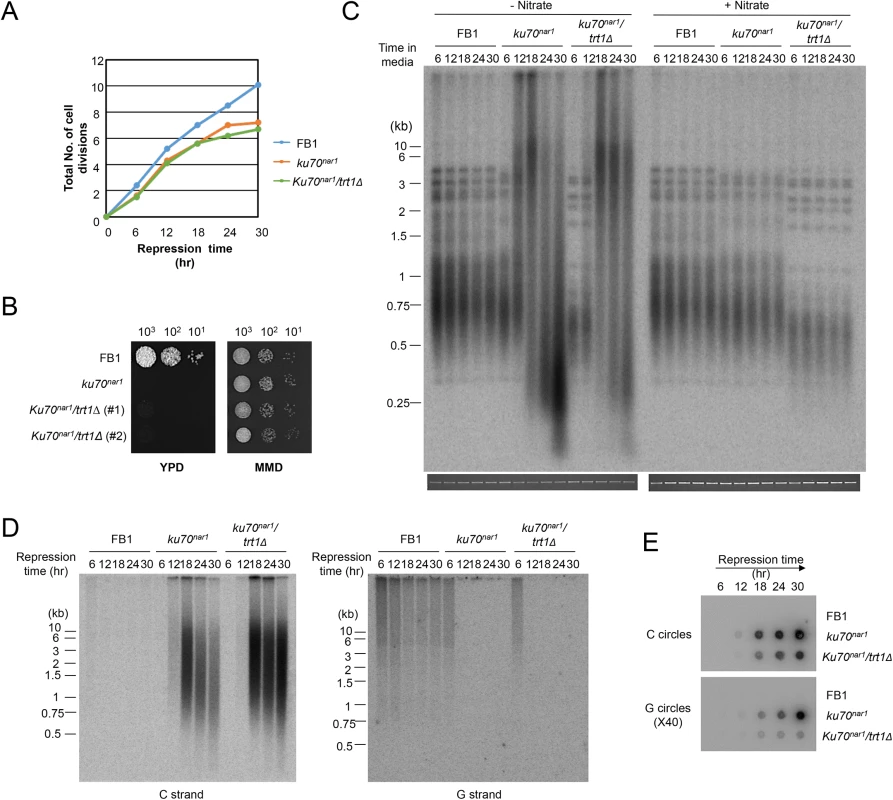

In some organisms, Ku has been observed to modulate the activity of telomerase [26,27]. To assess the potential contribution of telomerase activity to the ALT-like telomeres in the U. maydis ku mutants, we analyzed several independent trt1 ku70^nar1 double mutants, which were constructed by first deleting the trt1 gene (encoding the telomerase reverse transcriptase in U. maydis [28]) and then introducing the ku70^nar1 allele. Similar to the ku70^nar1 single mutant, the double mutant experienced growth arrest when switched to the restrictive condition for ku70 expression (Fig 3A and 3B), and exhibited profound telomere aberrations (Fig 3C, 3D and 3E). Interestingly, while the same aberrations are observed in the double mutant, they occur with a slightly delayed kinetics. For example, while high levels of vsECTRs are evident following 18 hr of ku70 repression in the single mutant, they are not observed until 24 hr after ku70 repression in the double mutant (Fig 3C). Similarly, while unpaired C-strand signals peak at 18 hr after ku70 repression and decline thereafter in the single mutant, the C-strand signals remain near the peak level after 30 hr of repression (Fig 3D). A delay or a mild reduction in C- and G-circle formation is also evident in the double mutant relative to the single mutant (Fig 3E). Thus, while none of the ALT telomere aberrations requires trt1, the loss of trt1 (or the shorter initial telomere lengths of the double mutant (Fig 3C)) appears to affect the severity or kinetics of the phenotypes. We conclude that telomerase is not an essential component of the U. maydis ALT pathway, but may act on some of the telomere structures generated during the induction of this pathway.

ALT telomere aberrations are slightly ameliorated and stabilized by atr1 and chk1 deletion

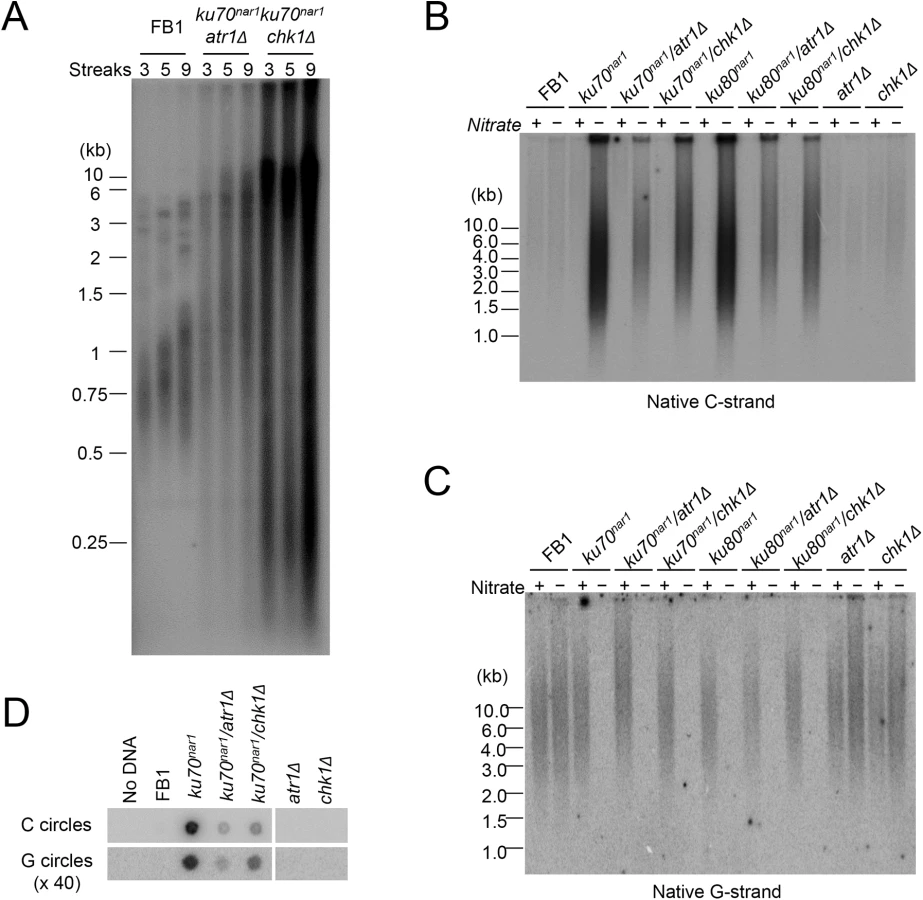

ALT cells invariably exhibit checkpoint defects [11], and we have previously shown that atr1 or chk1 deletion enables the U. maydis ku70 and ku80-deficient cells to proliferate without suppressing the telomere length heterogeneity in these cells [29]. To determine in greater detail how the combined loss of checkpoint and ku proteins affects telomeres, we measured the levels of chromosome-associated telomere repeats and other aberrant telomere structures in atr1 ku70^nar1 and chk1 ku70^nar1 double mutants at multiple time points following ku repression. Interestingly, unlike the ku70^nar1 single mutant, the double mutants retained substantial amounts of chromosome-associated telomere repeats and accumulated lower levels of ECTRs after 30 hr of repression (S1C Fig). Even after more than ~225 generations (~ 9 streaks) of passage on YPD plates, the double mutants do not progress to the “terminal telomere phenotype” characterized by the predominance of vsECTRs (Fig 4A), implying that the checkpoint proteins are necessary for this progression. Interestingly, we reproducibly detected higher telomere DNA content in the chk1 ku70^nar1 mutant in comparison with the atr1 ku70^nar1 mutant (Fig 4A and S1C Fig), suggesting some mechanistic differences between the two checkpoint proteins in the ALT pathway. The nature of this difference remains to be determined.

With respect to the accumulation of ss telomere DNAs, deleting either atr1 or chk1 reduced the accumulation of unpaired C-strand by ~ 2 fold in the ku70^nar1 strain, but had little effect on the disappearance of unpaired G-strand (Fig 4B and 4C). The C- and G-circle levels of the double mutants were also lower than that of the ku70^nar1 single mutant (Fig 4D). Thus the checkpoint proteins appear to play a role in exacerbating a subset of the telomere aberrations in the ku mutant. As expected, deleting atr1 or chk1 alone does not induce any obvious telomere defects (Fig 4B, 4C and 4D), suggesting that these checkpoint factors enhance the telomere aberrations only in the context of ku loss.

Telomere aberrations are altered by 9-1-1 and rad51 mutations, and largely suppressed by deletion of mre11

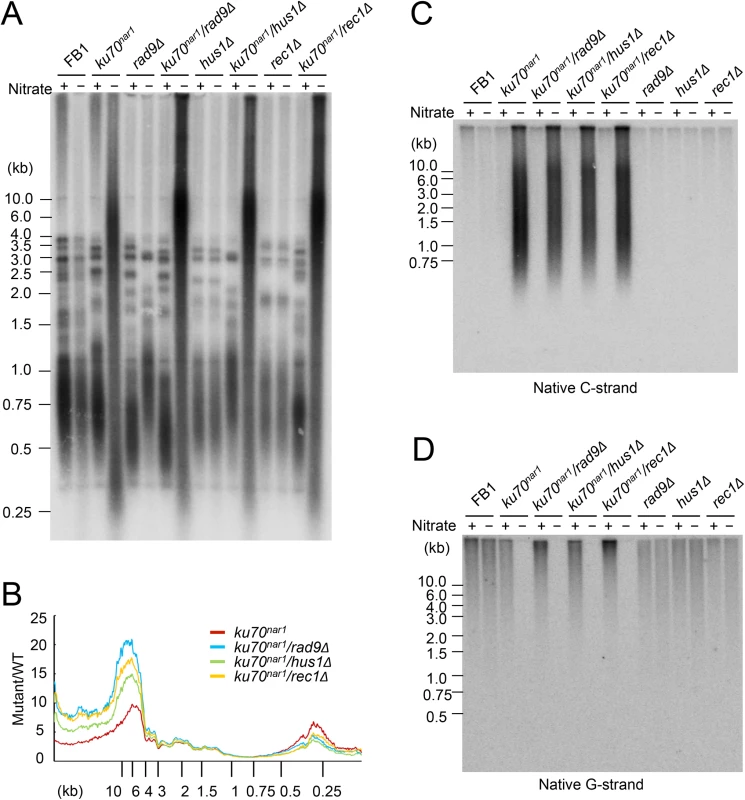

The foregoing analysis hints at the complexity of ALT-like pathway in the U. maydis ku mutants. To begin to identify factors involved in the pathway, we first surveyed a number of factors involved in DDR and repair. These factors, including 9-1-1 subunits, Rad51, and Mre11, were previously examined in regard to their roles in the non-viability and telomere length heterogeneity of the ku70^nar1 mutant, but not their roles in other ALT-like phenotypes. Specifically, the previous study showed that deleting subunits of the rad9-hus1-rec1 complex or rad51 could not suppress the lethality or telomere length heterogeneity of the ku70^nar1 mutant [29]. More detailed and comprehensive characterization of the telomeres of these combination mutants revealed in fact exacerbation of selected telomere phenotypes (Fig 5). For example, in each of the 9-1-1 ku70^nar1 combination mutants, the levels of extremely long telomeres are further elevated relative to the ku70^nar1 single mutant (Fig 5A and 5B), whereas the levels of G- and C-strand are comparable to those of the single mutants (Fig 5C and 5D). The effect of deleting rad51 in the ku70^nar1 mutant is even more complex (S5 Fig). Both the levels of very long and short telomeres are increased in the double mutant. The level of unpaired C-strand is also increased, but that of C-circle slightly reduced.

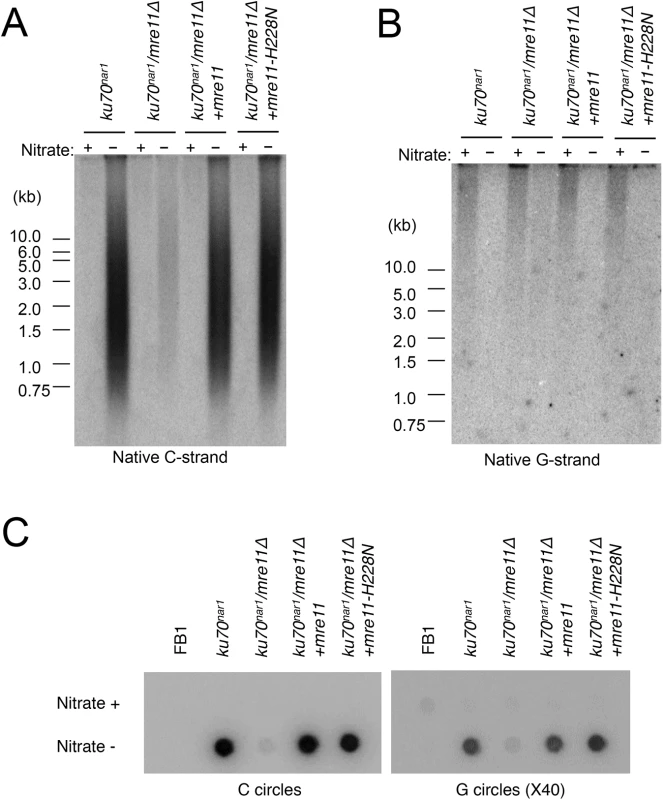

Previous analysis also revealed strong suppression of the lethality and telomere heterogeneity of the ku70^nar1 mutant by mre11 deletion, but not the mre11-H228N (nuclease deficient) allele. More detailed characterization of the combination mutants revealed suppression of almost all the telomere aberrations of the ku70^nar1 mutant by mre11 deletion; the levels of G-strand, C-strand and C-circles in the combination mutant are all quite similar to the wild type parental strain (Fig 6A, 6B and 6C). In contrast, the mre11-H228N ku70^nar1 double mutants have telomeres that closely mimic those of the ku70^nar1 single mutant, indicating that a non-nuclease activity of Mre11 confers lethality and is required for the induction of telomere defects upon the loss of ku.

The contributions of multiple DNA processing factors to the U. maydis ALT pathway

The apparently antagonistic effect of the Ku and MRN complexes at the U. maydis telomeres is reminiscent of their relationships in DSB resection in S. cerevisiae [30]. In particular, the resection defect of the S. cerevisiae MRN mutants can be suppressed by concurrent mutations in yKu subunits. However, a significant distinction between S. cerevisiae Ku and U. maydis Ku is that the former suppresses the formation of 3’ overhangs at DSBs, whereas the latter reduces the production of 5’ overhangs at telomeres by MRN. While the basis for this difference is unclear, MRN is known to interact with many DDR and DNA processing factors, and the distinct nucleoprotein structures of broken DNAs and telomeres could play a role in the distinct outcomes of the two systems.

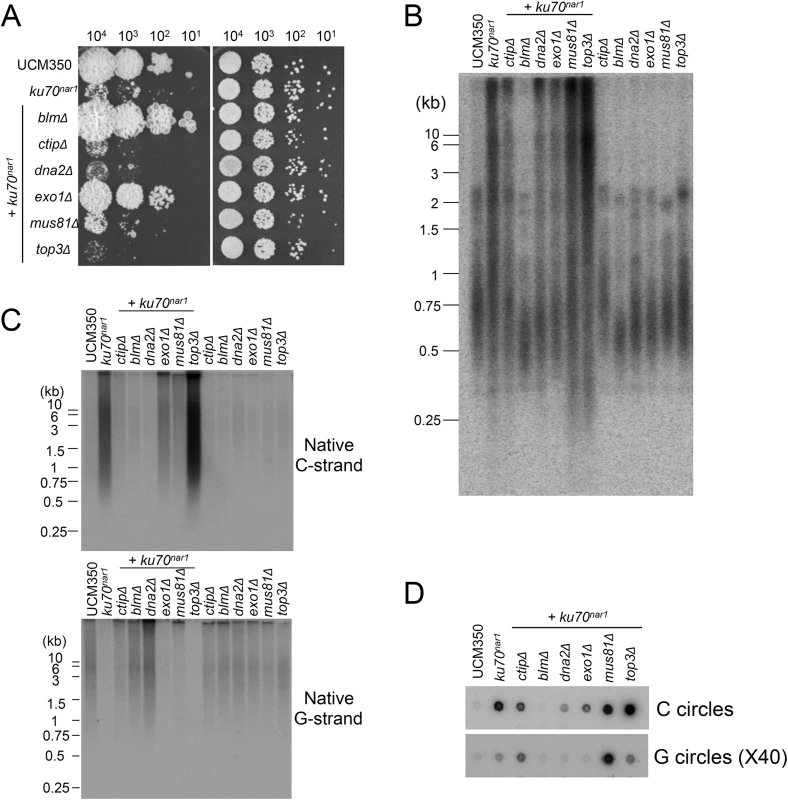

To address the roles of factors implicated in resection and other processing events downstream of the resection on the ALT pathway in U. maydis, we analyzed additional combination mutants. For this study, the ku70^nar1 allele was introduced into a set of largely isogenic strains (initially derived from the UCM350 parental strain), each harboring a single deletion (of blm, ctip, dna2, exo1, mus81, top3). These combination mutants, as well as the single mutants, were subjected to growth analysis and the panel of telomere assays (Fig 7). Remarkably, the deletion of two genes, namely blm and exo1, significantly restored growth to the ku70^nar1 mutant, whereas deletion of others did not (Fig 7A). Interestingly, there is only partial correlation between the suppression of growth and telomere defects (Fig 7B, 7C and 7D). In the case of blm deletion, we observed complete suppression of telomere length heterogeneity, as well as C-strand and C-circle accumulation (Fig 7B, 7C and 7D). Consistent with these findings, the blm ku70^nar1 double mutant grows as well as wild type cells in YPD (Fig 7A). In the case of exo1 deletion, we observed only partial reduction of the telomere phenotypes, and accordingly only partial suppression of the growth defect (compare colony sizes of the blm ku70^nar1 and exo1 ku70^nar1 mutant, Fig 7A). In addition, exo1 deletion could not suppress the lethality of ku70 in a different strain background [29]. Exo1 is thus not necessary for the manifestation of all ku70 phenotypes. On the other hand, the dna2 ku70^nar1 and ctip ku70^nar1 mutants exhibit telomere aberrations that are similar to or milder than those in the exo1 ku70^nar1 mutant, yet the former two grow considerably worse than the latter (Fig 7B, 7C and 7D). Finally, none of the deletions except that of blm substantially reduced the high level of vsECTRs that is characteristic of the terminal stage of ku mutant (S6 Fig). Overall, the results suggest that Blm plays a critical role in the ALT pathways, and some blm-dependent telomere aberration is needed to trigger the signals and damages that fully arrest growth. In addition, many factors implicated in DSB resection play significant roles in the U. maydis ALT pathway. However, it seems likely that not all telomere aberrations contribute equally to the loss of cell viability.

A critical function for the Blm helicase activity in the U. maydis ALT pathway

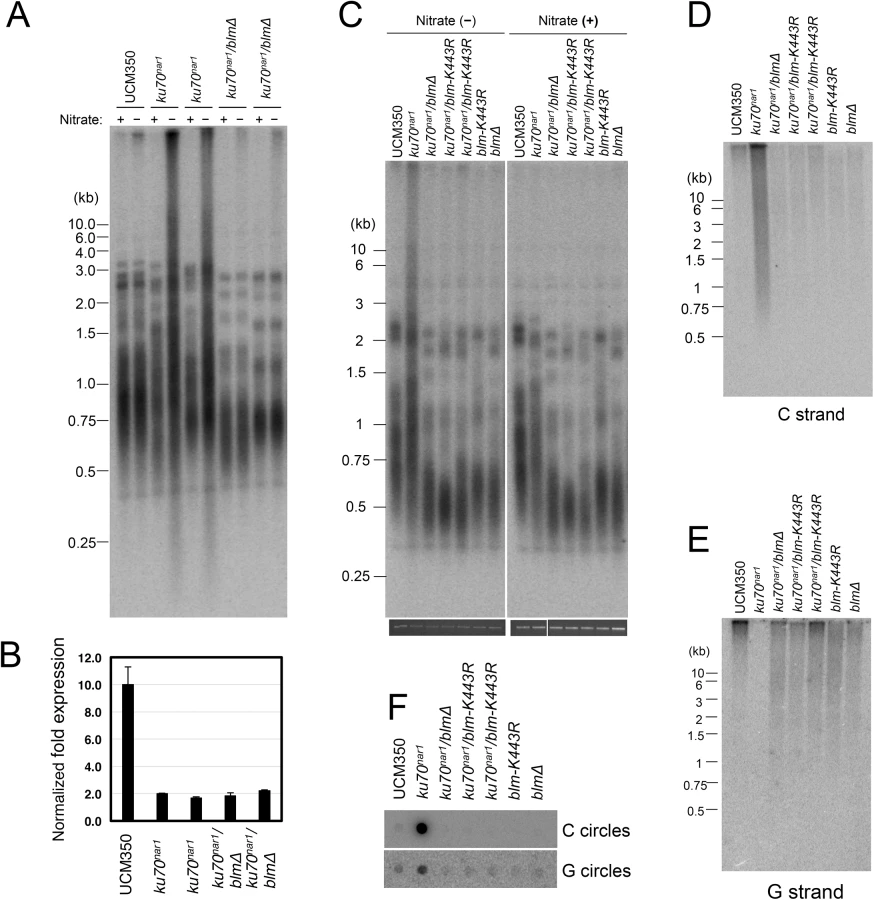

The apparently complete suppression of the U. maydis ALT pathway by blm deletion prompted us to examine the role of this helicase further. First, we validated the suppression in two independent clones of blm ku70^nar1 double mutants, and showed that these clones exhibit the same degree of ku repression as the ku70^nar1 single mutant when grown in YPD (Fig 8A and 8B). Hence the effects of blm deletion cannot be attributed to unrelated genetic mutations or leaky ku70 expression. Second, we analyzed the effect of abolishing just the helicase activity of Blm on the ALT pathway. Based on alignment with well-characterized homologues, we surmise that the K443R substitution in U. maydis Blm should render the protein without helicase activity [31]. Consistent with this hypothesis, we found previously that introducing this point mutation compromised the DNA-damage sensitivity of U. maydis [31]. Notably, repressing ku70 in strains with this point mutation failed to induce any ALT telomere phenotypes (Fig 8C, 8D, 8E and 8F), implying that the blm helicase activity is essential for the ALT pathway.

It is worth noting that the blm null and blm-K443R mutations alone caused significant telomere shortening (Fig 8A and 8C), suggesting that the helicase helps to maintain telomeres in telomerase-positive U. maydis. While the mechanistic basis for this phenomenon remains to be worked out, we speculate based on studies with mammalian BLM that the U. maydis Blm may play a role in facilitating telomere replication [32]. Failure to fully replicate the telomere tracts, if not adequately compensated by telomerase-mediated extension, may lead to the shortening of average telomere length.

Discussion

The telomere phenotypes of the U. maydis ku mutants described in this report bear remarkable resemblance to those in the human ALT cancer cells, making these mutants valuable tools for understanding the DNA processing reactions that underlie ALT induction and maintenance. Below we highlight the unique features of the current model that are not present in previously characterized yeast survivors. We also discuss the potential mechanisms of ALT in light of the central roles of Ku, MRN, and Blm in our model (see Fig 9 for a model of the U. maydis ALT pathway).

Similarities of the U. maydis ku mutants to ALT cancer cells

The telomeres of ALT cancer cells are characterized by complex aberrations including extreme telomere length heterogeneity, accumulation of unpaired telomere C-strand, and substantial increase in extra-chromosomal telomere repeats (ECTR). Recent studies have accentuated the utility of C-circles as a specific and quantifiable marker of ALT [10]. The abundance of C-circles is reported to be 100 times that of the complementary G-circle, highlighting the specific nature of the former abnormality [10]. Notably, all of the ALT telomere features, including the drastic and specific elevation of C-circles, are recapitulated in the U. maydis ku mutants. The resemblance of the telomere phenotypes of the Ustilago mutants to those of ALT cancer cells clearly distinguishes the current model from all previously characterized fungal “survivors” that employ recombination-based telomere maintenance mechanisms. For example, none of the budding or fission yeast survivors have been reported to accumulate preferentially C-strand overhangs or C-circles, even though many do manifest highly heterogeneous telomere lengths [18].

With respect to the factors involved in the generation and processing of ALT telomeres, the U. maydis model likewise exhibits genetic requirements that are consistent with previous studies of ALT cells. For example, a previous report indicates that RAD17 and the 9-1-1 complex are localized to APB and may be involved in ALT telomere metabolism [33]. In support of this notion, we found that deletion of the U. maydis 9-1-1 subunits exacerbated the telomere length heterogeneity of the ku mutant. In addition, despite the central role of RAD51 in standard homologous recombination, previous studies indicate that this protein is not required for ALT [10,14]. Interestingly, we found that deletion of U. maydis rad51 reduced the formation of C-circles, but increased the levels of extra-long telomeres, suggesting that while Rad51 is not essential for ALT induction, it may act in intermediate steps of the complex ALT pathway to influence the levels of various products. Finally, analysis of ALT cancer cells strongly suggests that MRN and BLM complex are both required for telomere recombination in these cells [10,13,34,35]. Similarly, we found that U. maydis mre11 and blm deletion dramatically reduced all of the telomere abnormalities associated with the ku mutants, implying a key role for these proteins. Importantly, some residual defects can still be detected in the ku mre11 double mutants, implying the existence of an alternative, albeit minor pathway for generating abnormal telomeres.

Similarities between the U. maydis and human Ku mutants and the action of checkpoint proteins in these mutants

While we have shown earlier that the U. maydis and human Ku proteins share the property of being essential for viability and for telomere protection, the telomere phenotypes of the human and U. maydis mutants do not appear to be the same. The human KU mutant was reported to suffer massive deletion through excision of t-circles, resulting in signal-free ends (i.e., chromosome ends that are free of telomere FISH signals) [25]. In contrast, we reported previously that the U. maydis ku70^nar1 mutant, while possessing numerous t-circles, also accumulates long and heterogeneous telomeres [29]. However, as reported in the current work, these constitute an initial phenotype that is eventually superseded by the terminal phenotype characterized by the loss of telomere repeats from chromosome ends and appearance of abundant vsECTRs (Fig 9). It is unclear how such high levels of ECTRs can be generated in the mutant. Perhaps ECTRs can be replicated autonomously through an aberrant reaction. Alternatively, long telomere repeat tracts may first be added to chromosome ends (e.g., through rolling circle replication of telomere circles) and then released from the ends through cleavage or recombination. Regardless of the precise mechanisms, our observation indicates that the terminal phenotype of the ku70^nar1 mutant exhibits greater resemblance to the human KU mutant than previously realized, further highlighting the relevance of the U. maydis model.

A surprising observation is that the terminal telomere phenotypes of the ku70^nar1 mutant do not materialize in the absence of chk1 or atr1. Checkpoint proteins may thus render the ku70^nar1 mutant non-viable not only by signaling DNA damage, but also by contributing to the excision of telomere repeats from chromosome ends, and the accumulation of vsECTRs (Fig 7). Flynn et al. recently showed that an ATR inhibitor selectively reduced the proliferation of ALT cancer cells in comparison with telomerase-positive cells [36], suggesting that ATR can confer benefits to ALT cells. While this result may reflect a significant difference between the roles of checkpoint proteins in ALT cancer cells and the U. maydis model, it is worth noting that the U. maydis ku70^nar1 atr1 mutant also grows substantially slower than the wild type strain and slower than the ku70^nar1 chk1 mutant [24]. Perhaps Atr1 in U. maydis can affect ku70 mutant growth both positively and negatively through multiple pathways. More studies will be necessary to determine the detailed mechanisms of Atr1 in Ku-deficient U. maydis and to assess the extent of similarity between the fungal model and ALT cancer cells.

Similarities between ALT and DSB resection

Interestingly, the production of ALT phenotypes appears to share many features of DSB resection (DSBR). For example, the antagonism of the Ku and MRN complex in the production of ALT telomeres is quite reminiscent of the interplay between the two complexes in DSBR [30]. Specifically, the radiation sensitivity defect of S. cerevisiae mre11∆ can be suppressed by eliminating Ku, suggesting that Ku antagonizes the function of Mre11 in DSB repair. Another parallel between ALT and DSBR concerns the Mre11 nuclease activity, which is not essential for either pathway [37]. In DBSR, the main function of the MRN complex is to recruit other resection factors such as Exo1, Dna2, and Blm. This may also be the function of MRN in ALT [38]. An implication of these similarities is that similar “downstream” factors may be responsible for both DSBR and ALT telomere production. A significant conundrum for this hypothesis is presented by the distinct overhangs produced by ALT and DSBR; the former generates primarily 5’ and the latter 3’ overhangs. One way to rationalize the distinct overhangs is to postulate that the specific nucleoprotein structure of telomeres or telomere factors alters the activity of the resection factors. For example, the intrinsic nuclease activity of Dna2 can act on ssDNA with a free 5’ or 3’ end, but in the presence of RPA, the activity on the free 3’ end is repressed, resulting in the production of 3’ overhangs in DSBR [39,40]. It is conceivable that Dna2 and other potential resection factors may act differently on telomere repeats because of the presence of specific telomere DNA-binding proteins. Such a model would have to be addressed by a combination of biochemical assays in vitro and genetic analysis in vivo.

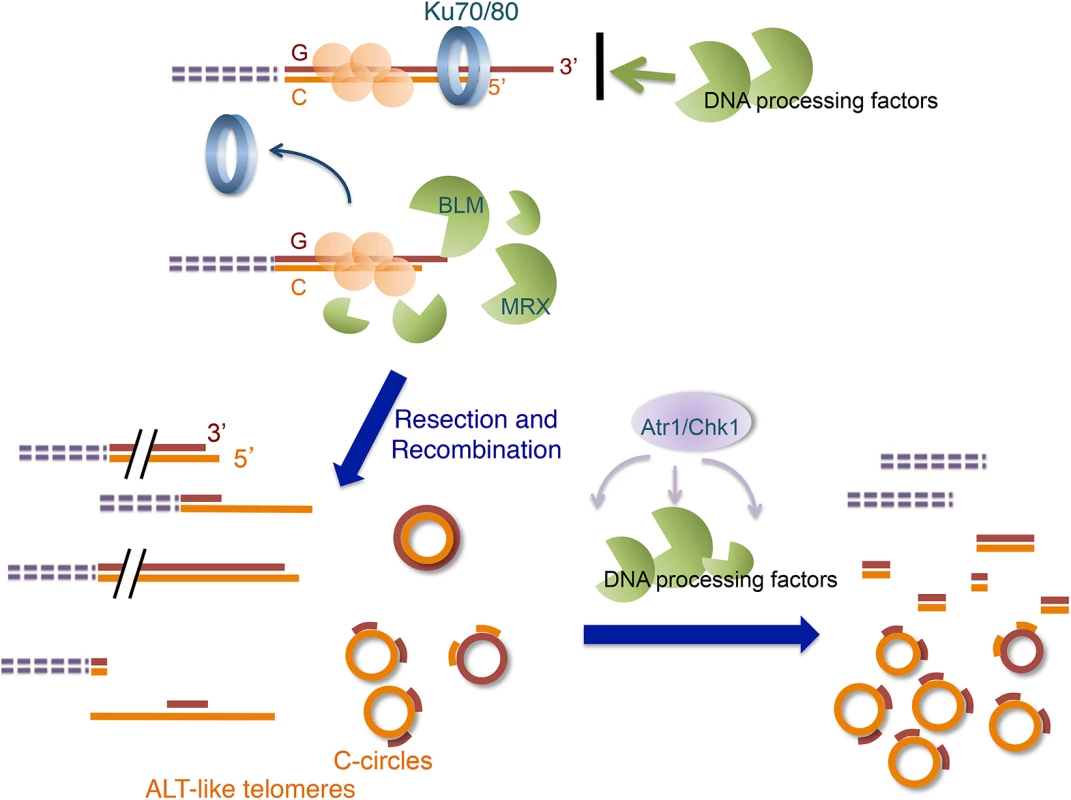

In summary, we have shown that elimination of ku in U. maydis leads to an attractive model for ALT. The two special strengths of the model are (i) its reversibility and accurate recapitulation of many characteristic features of ALT telomeres, and (ii) its ready amenability to molecular genetic manipulations, including the construction of null mutants to access the role of putative ALT factors. In contrast to previous knockdown studies in ALT cell lines or ALT models, the current use of null mutants reveals complete (or nearly complete) suppression of this pathway with the loss of Mre11 and Blm, implicating their products as prime targets for inhibitor development. Continued analysis of this model should provide mechanistic insights on the complex reactions that mediate the production of ALT telomeres, and suggest useful strategies for therapeutic intervention.

Methods

Ustilago maydis strains and growth conditions

U. maydis strains were derived from the FB1or UCM350 genetic background [41,42] and are listed in S1 Table. Cells were grown in YPD (restrictive medium), which represses the nar1 promoter, or MMD (permissive medium), which induces the nar1 promoter [43]. Additional nutritional supplements (0.2 μg/ml of pantothenic acid and 50 mM of proline) were added in MMD (MMD+) for UCM350-drived cells. Controlled expression of ku genes under the nar1 promoter was performed as described previously [21,44]. Null mutants were constructed by replacing the entire open reading frames with cassettes expressing resistance to hygromycin (Hyg^R), nourseothricin (Nat^R), or geneticin (G418^R) [45,46]. Disruption cassettes for ctip and dna2 null strains were freshly generated for this study using Gibson Assembly (NEB) according to the manufacturer’s instructions. Briefly, three sets of primers (S2 Table) were used to generate three overlapping fragments: (i) 5’ UTR of dna2 (or ctip) linked to 5’ end of the hygromycin ORF, (ii) the complete hygromycin ORF flanked by short segments from the 5’ and 3’UTR of dna2 (or ctip), and (iii) 3’ end of the hygromycin ORF linked to 3’ UTR of dna2 (or ctip). Genomic DNAs and a plasmid for hygromycin resistance cassettes were used as the source of template for PCR. The PCR fragments were used as starting substrates for the Gibson Assembly reaction, and the full-length reaction products were cloned into a vector for further application.

Growth of U. maydis strains for telomere analysis

U. maydis strains were grown for ~ 36 hr in MMD and diluted into fresh YPD (at OD₆₀₀ of 0.005 ~ 0.01) to repress the expression of Ku proteins, or into fresh MMD (at OD₆₀₀ of 0.04) as controls. Typically, after growth for 18~20 hrs, the cultures were collected for DNA isolation. For time course experiments, the cultures were grown in YPD for varying durations (6, 12, 18, 24, and 30 hr), and then harvested for DNA isolation. For de-repression studies, cells were first grown for 18 hr in YPD to repress Ku expression, and then transferred into fresh MMD medium. After varying durations (0, 24, 48, 72, and 96 hr), the cultures were harvested, and their DNAs isolated for telomere analysis.

Growth analysis

Serial ten-fold dilutions samples of U. maydis cultures (containing 10⁴, 10³, 10², and 10 cells) were applied to agar plates containing YPD, MMD, or MMD supplemented with pantothenic acid and proline (MMD+). The YPD plates were incubated at 30°C for 2 days, and the MMD and MMD+ plates for 3 days, and then photographed.

Telomere length analyses

Standard telomere Southern analysis was performed as described previously with some modifications [21,47]. Briefly, chromosomal DNAs were digested with Pst I (or without Pst I) and fractionated in 1.2% agarose gels. Following transfer to nylon membranes, the telomere restriction fragments were detected using ³²P-labeled UmC8 or UmG8 probe that corresponds to eight copies of the Ustilago C-strand or G-strand telomere repeat. Signals obtained by scanning the Phosphor plates were quantified using ImageQuant software (Molecular Dynamics Inc.). For this analysis as well as for other telomere assays, we examined the telomeres of at least two independent clones of the same genotype, and the results are quite reproducible.

G- and C-strand analysis

The standard in-gel hybridization analysis was performed using a combination of established protocols for U. maydis [21] with minor modification. The labeled UmG4 and UmC4 oligonucleotides (S2 Table), corresponding to four copies of the U. maydis telomeric G-strand and C-strand repeats, were used as the probes, and hybridization was performed in the Church Mix at 45°C. For more detailed analysis of single- and double-stranded telomeric DNA in the ku mutants, two-dimensional gel electrophoresis was performed in a combination with in-gel hybridization assay. The samples applied to the 2-D gels include both PstI-digested genomic DNA and labeled double stranded DNA ladders (used as markers for ds DNA arc). In some experiments, chromosomal DNAs were treated either Exonuclease I (2.5 U/μg) or RecJ_f (4 U/μg) prior to PstI digestion. The first dimension (0.5% agarose) was run at 0.5 V/cm for 16 h in the absence of ethidium bromide (EtBr). The gel was stained with 0.3 μg/ml EtBr to visualize the size standards and bulk chromosomal DNA. Gel strips containing DNA in the 0.5 kb to 15 kb size range are excised and impregnated in a 1.2% agarose gel containing 0.3 μg/ml EtBr. Electrophoresis was then performed in the orthogonal direction at 5 V/cm for 5 h. The gel was further processed according to the standard in-gel hybridization analysis as described above.

C-circle and G-circle assays

The C-circle assay was carried out by the rolling circle amplification method as described previously [10] with some modificatons. Genomic DNAs (10 ng for C-circles and 20 ng for G-circles) were combined with 10 μl 0.2 mg/ml BSA, 0.1% Tween, 1 mM each dATP, dGTP and dTTP, 1× Φ29 Buffer and 5 U Φ29 DNA polymerase (NEB) and incubated at 30°C for 16 h. Φ29 DNA polymerase was then inactivated at 65°C for 20 min. For quantification, the reaction products were dot-blotted onto a 2× SSC-soaked nylon membrane and the DNAs were UV-cross-linked onto the membrane. G-strand products of C-circle assays were hybridized at 45°C with ³²P-labeled UmC8 probe (S2 Table). The membranes were further processed according to the standard telomere Southern protocol as described above. Signals obtained by scanning the Phosphor plates were quantified using ImageQuant software (Molecular Dynamics Inc.). The G-circle assay was carried out in the same way except that dATP, dCTP and dTTP were used for polymerization and the reaction products were probed with labeled UmG8 (S2 Table).

In some experiments, chromosomal DNAs were first treated with exonuclease λ (2.5 U/μg) or exonuclease I (2.5 U/μg) to eliminate linear DNAs, and then subjected to rolling circle amplification. The linearity of the C-circle and G-circle assays was also confirmed with serial dilutions of genomic DNA. However, we do not know if the two types of circles are amplified with identical efficiency by the Φ29 DNA polymerase.
