The Polyproline Site in Hinge 2 Influences the Functional Capacity of Truncated Dystrophins

Summary

Mutations in dystrophin can lead to Duchenne muscular dystrophy or the more mild form of the disease, Becker muscular dystrophy. The hinge 3 region in the rod domain of dystrophin is particularly prone to deletion mutations. In-frame deletions of hinge 3 are predicted to lead to BMD, however the severity of disease can vary considerably. Here we performed extensive structure-function analyses of truncated dystrophins with modified hinges and spectrin-like repeats in mdx mice. We found that the polyproline site in hinge 2 profoundly influences the functional capacity of a microdystrophin^{ΔR4-R23/ΔCT} with a large deletion in the hinge 3 region. Inclusion of polyproline in microdystrophin^{ΔR4-R23/ΔCT} led to small myofibers (12% smaller than wild-type), Achilles myotendinous disruption, ringed fibers, and aberrant neuromuscular junctions in the mdx gastrocnemius muscles. Replacing hinge 2 of microdystrophin^{ΔR4-R23/ΔCT} with hinge 3 significantly improved the functional capacity to prevent muscle degeneration, increase muscle fiber area, and maintain the junctions. We conclude that the rigid α-helical structure of the polyproline site significantly impairs the functional capacity of truncated dystrophins to maintain appropriate connections between the cytoskeleton and extracellular matrix.

Introduction

Duchenne muscular dystrophy (DMD) is a lethal X-linked recessive disease caused by mutations in the 2.2 MB dystrophin gene [1]–[3]. In skeletal muscle, dystrophin provides a flexible connection between the cytoskeleton and the dystrophin-glycoprotein complex at the sarcolemma, myotendinous junction (MTJ) and neuromuscular junction (NMJ) [4]–[6]. Mutations that affect the mechanical integrity of this molecular scaffold render muscles more susceptible to contraction-induced injury leading to cycles of necrosis and regeneration [3].

As a general rule, most frame-shift mutations in dystrophin lead to DMD whereas internal truncations (in-frame deletions) lead to a milder form of the disease called Becker muscular dystrophy (BMD) [7]–[14]. The severity of BMD can also vary depending on whether a critical region of dystrophin is deleted and the amount of dystrophin being expressed [7]–[14]. Dystrophin consists of a N-terminal actin-binding domain, a large central rod domain, a cysteine rich region and a C-terminal domain (Figure 1A) [15], [16]. The central rod domain contains 24 spectrin-like repeats, 4 hinges and a second actin-binding domain [15]–[20]. The locus encoding the N-terminal actin-binding domain and the region near hinge 3 of dystrophin are more susceptible to deletion mutations [7]–[13]. In-frame deletions of the central rod domain typically lead to a mild BMD [8]–[13]. However, in-frame deletions at the “hot spot” near hinge 3 can lead to more variable phenotypes [8]–[13], [21].

The role of dystrophin in vivo has been largely defined by the structure-function relationship of truncated dystrophins in humans and mice [8]–[13], [22]–[24]. Rational design of dystrophin mini-genes has been highly effective in preventing and reversing functional abnormalities of dystrophic muscles [22]–[29]. In particular, we previously developed a microdystrophin (ΔR4-R23/ΔCT; defined as those with 4 or fewer spectrin-like repeats [24]) that accommodates the limited cloning capacity of recombinant adeno-associated viral vectors (rAAV) [24]. Intravenous injection of rAAV vectors pseudotyped with serotype 6 capsid (rAAV6) expressing microdystrophin^{ΔR4-R23/ΔCT} can prevent and reverse most aspects of dystrophic pathology in mdx muscles [24], [28], [30]–[35]. Microdystrophin^{ΔR4-R23/ΔCT} also significantly protects muscles from contraction-induced injury [24], [28], [30]–[35].

While the microdystrophin^ΔR4-R23 transgene provides a clear benefit to dystrophic muscles [24], more detailed analyses have revealed a potentially serious abnormality in some muscle groups. The microdystrophin^ΔR4-R23/mdx transgenic mice have chronic Achilles myotendinous strain injury, which leads to the formation of ringed fibers and fragmentation of the neuromuscular junctions [33], [36]. In the present study we examined whether the domain composition or the small size of microdystrophin^{ΔR4-R23/ΔCT} led to this myopathy in mdx mice. We found that the hinge regions of microdystrophin, rather than its small size can profoundly influence skeletal muscle maintenance, maturation and structure.

Results

Dystrophin hinge domains influence the maintenance and maturation of skeletal muscles

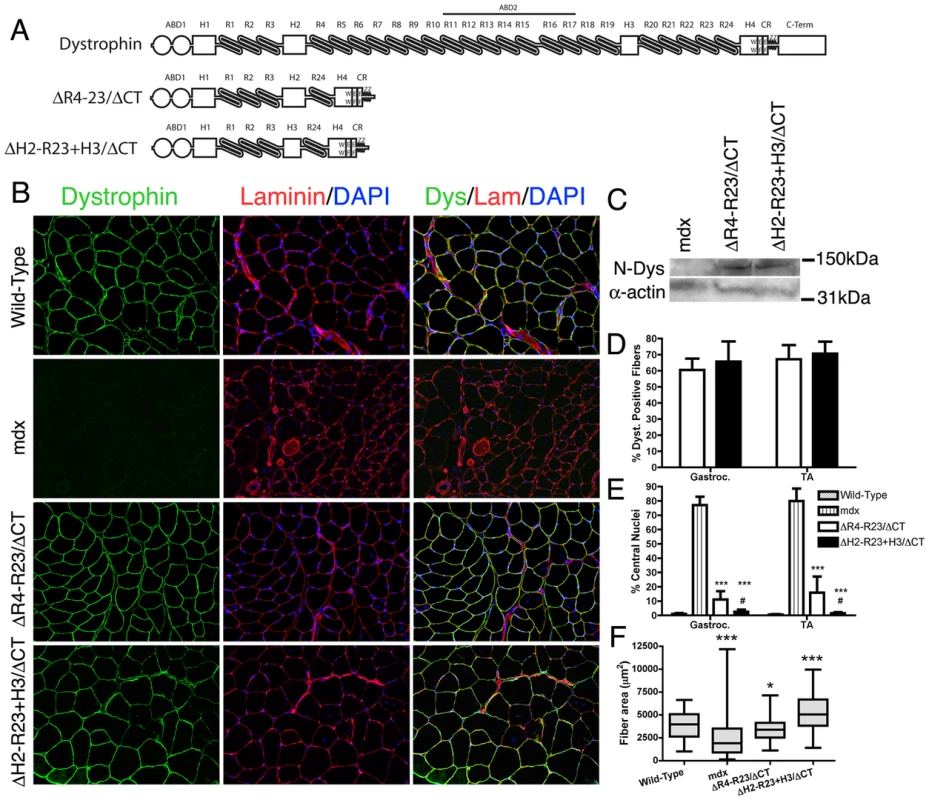

We initially screened several truncated dystrophins and found that inclusion of hinge 2, but not hinge 3 could lead to the structural abnormalities we observed in some muscles of the microdystrophin^ΔR4-R23 transgenic mice (Text S1; Figures S1, S2, S3). We subsequently compared the efficacy of two microdystrophins that differ only in their inclusion of hinge 2 (microdystrophin^{ΔR4-R23/ΔCT}) or hinge 3 (microdystrophin^{ΔH2-R23+H3/ΔCT}) (Figure 1A) to examine whether the hinge composition of microdystrophin could influence various aspects of muscle disease.

We administered a sub-optimal dose of 2×10¹² vector genomes of a rAAV6 pseudotyped vector expressing either microdystrophin^{ΔR4-R23/ΔCT} or microdystrophin^{ΔH2-R23+H3/ΔCT} intravenously into 2 week-old mdx^4cv mice. We used a sub-optimal dose of rAAV6-microdystrophins so that we could examine whether changing the hinge domain increased or decreased the functional capacity of microdystrophin. Six months after treatment, both microdystrophins were expressed in a similar percentage of gastrocnemius and tibialis anterior (TA) muscle fibers (ranging from approximately 61% to 71%; P = 0.238 when comparing between the microdystrophins; Figure 1B and 1D). Western blots confirmed similar expression levels of truncated dystrophins in treated gastrocnemius muscles (Figure 1C). Both microdystrophins restored dystrophin-associated proteins to the sarcolemma except for nNOS (Text S1; Figure S4). Microdystrophin^{ΔR4-R23/ΔCT} containing hinge 2 significantly prevented muscle degeneration (∼11% central nuclei for treated muscles verse ∼78% for untreated mdx muscles; P<0.001), and limited the fiber area of skeletal muscles (12% smaller than wild-type; P<0.05; Figure 1E), consistent with previous studies [24], [32], [33]. Microdystrophin^{ΔH2-R23+H3/ΔCT} containing hinge 3 was significantly better able to prevent muscle degeneration (1–2% central nuclei; P<0.05 compared to microdystrophin^{ΔR4-R23/ΔCT}), and surprisingly increased average muscle fiber cross sectional area (34% larger than wild-type; P<0.001; Figure 1E). Thus, replacing hinge 2 of microdystrophin^{ΔR4-R23/ΔCT} with hinge 3 significantly improved its capacity to prevent muscle degeneration and promote skeletal muscle maturation.

Dystrophin hinge domains influence myotendinous junction injury and formation of ringed fibers

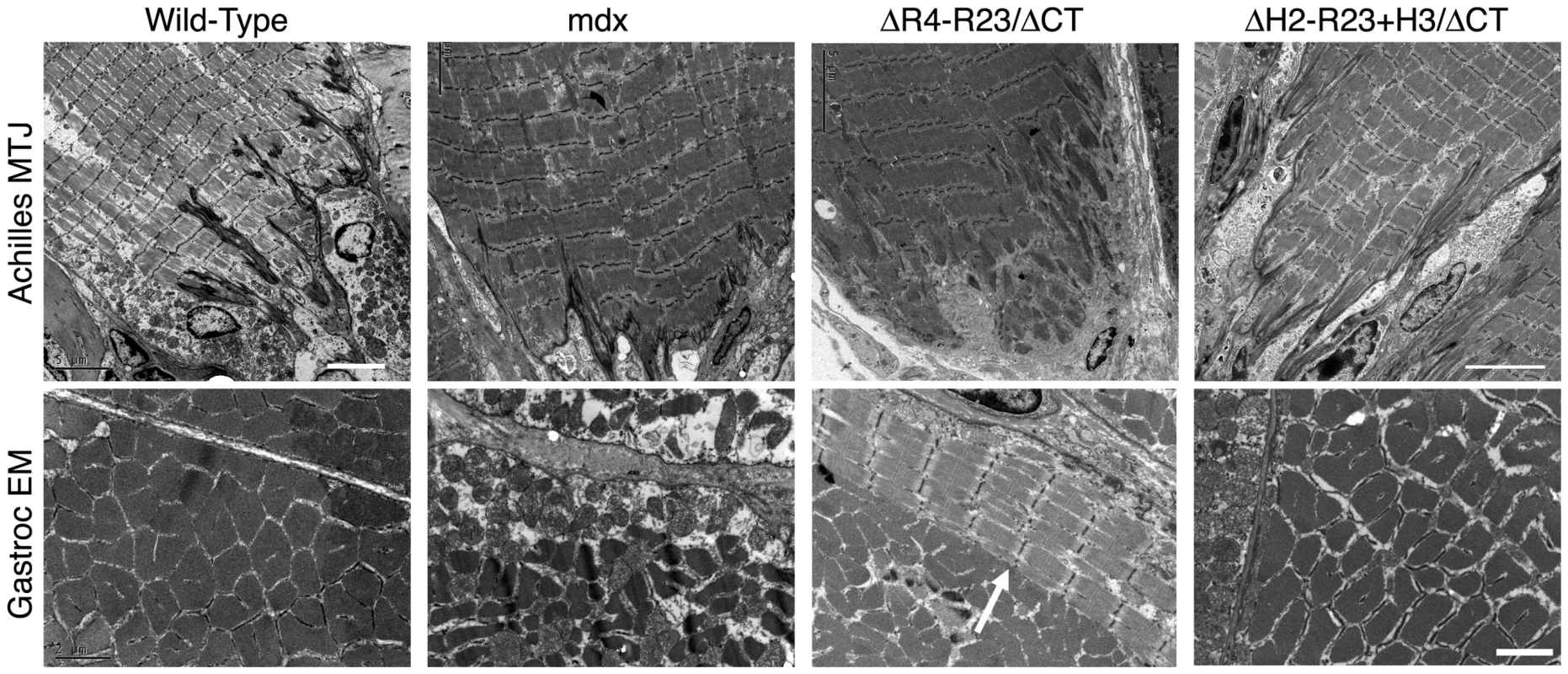

The tendon extends deep folds into wild-type skeletal muscles to minimize membrane stress under shear (Figure 2)[37]. Most of the folds in the mdx junctions did not extend as far into the gastrocnemius muscles (Figure 2). rAAV6-microdystrophin^{ΔR4-R23/ΔCT} severely disrupted the Achilles myotendinous junctions in mdx mice. Many of the junctional folds were missing and myofibril degeneration was evident (Figure 2). Approximately 17% of the adjoining mdx gastrocnemius muscles had ringed fibers. In contrast, rAAV6- microdystrophin^{ΔH2-R23+H3/ΔCT} with hinge 3 retained the normal architecture of the Achilles myotendinous junction and we found no ringed fibers in the adjoining gastrocnemius muscles (Figure 2). Thus, the hinge domains influenced whether microdystrophin was capable of maintaining the myotendinous junction and myofibril structure in mdx gastrocnemius muscles.

Dystrophin hinge domains influence neuromuscular synapse structure

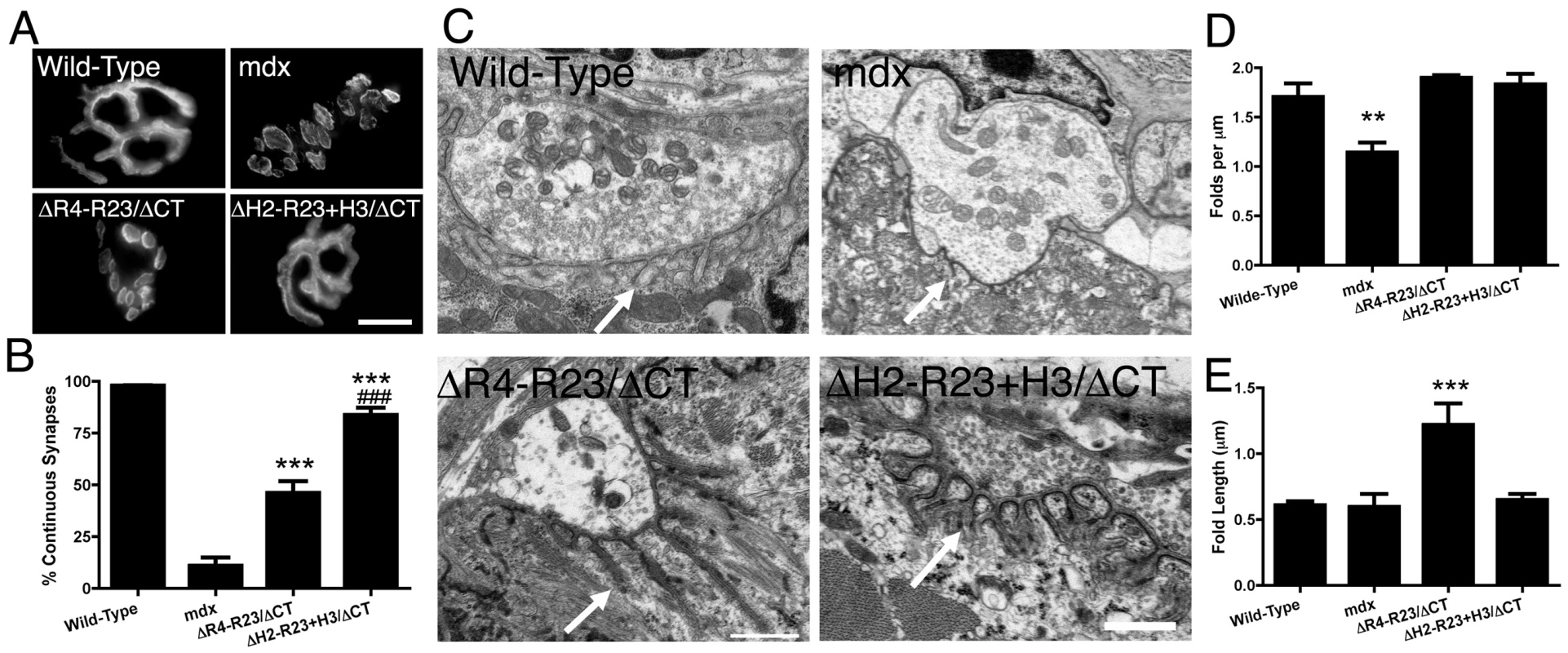

We also examined neuromuscular synapses in mdx mice treated with rAAV6-microdystrophins. Most neuromuscular synapses in wild-type mice (∼97%) form a continuous tertiary structure as shown by staining whole muscle fibers with α-bungarotoxin (Figure 3A). Neuromuscular synapses in mdx mice begin to fragment temporally coincident with muscle degeneration [38]. Approximately 89% of neuromuscular synapses were fragmented in the gastrocnemius muscles of mdx mice (Figure 3B). We had previously shown that the neuromuscular synapses in transgenic microdystrophin^ΔR4-R23/mdx gastrocnemius muscles fragmented temporally coincident with the formation of ringed fibers [36]. In the present study we found that rAAV6- microdystrophin^{ΔR4-R23/ΔCT} containing hinge 2 maintained continuous synapses in only 46% of the mdx gastrocnemius muscles (Figure 3A and 3B). In contrast, approximately 84% of synapses were continuous in mdx gastrocnemius muscles treated with rAAV6-microdystrophin^{ΔH2-R23+H3/ΔCT} containing hinge 3 (Figure 3A and 3B).

Neuromuscular synapses also contain folds in the postsynaptic membrane that align directly adjacent to vesicle release sites (active zones) in the pre-synaptic nerve terminal (arrows; Figure 3C). The number of synaptic folds in mdx mice was significantly reduced compared to wild-type (P<0.01; Figure 3C and 3D) as previously described [4], [39]. The number of folds was restored in microdystrophin^{ΔR4-R23/ΔCT} and microdystrophin^{ΔH2-R23+H3/ΔCT} treated muscles (Figure 3C and 3D). The synaptic folds extended significantly further into microdystrophin^{ΔR4-R23/ΔCT} treated mdx muscles compared to wild-type muscles (P<0.001; Figure 3C and 3E), as previously described in transgenic microdystrophin^ΔR4-R23/mdx mice [36]. In contrast, the number and length of synaptic folds in microdystrophin^{ΔH2-R23+H3/ΔCT} treated mdx muscles was similar to wild-type (Figure 3C–3E). Thus, microdystrophin^{ΔH2-R23+H3/ΔCT} containing hinge 3 can maintain the structure of neuromuscular junctions in mdx muscles.

Mechanical properties of muscles expressing microdystrophins with either hinge 2 or hinge 3

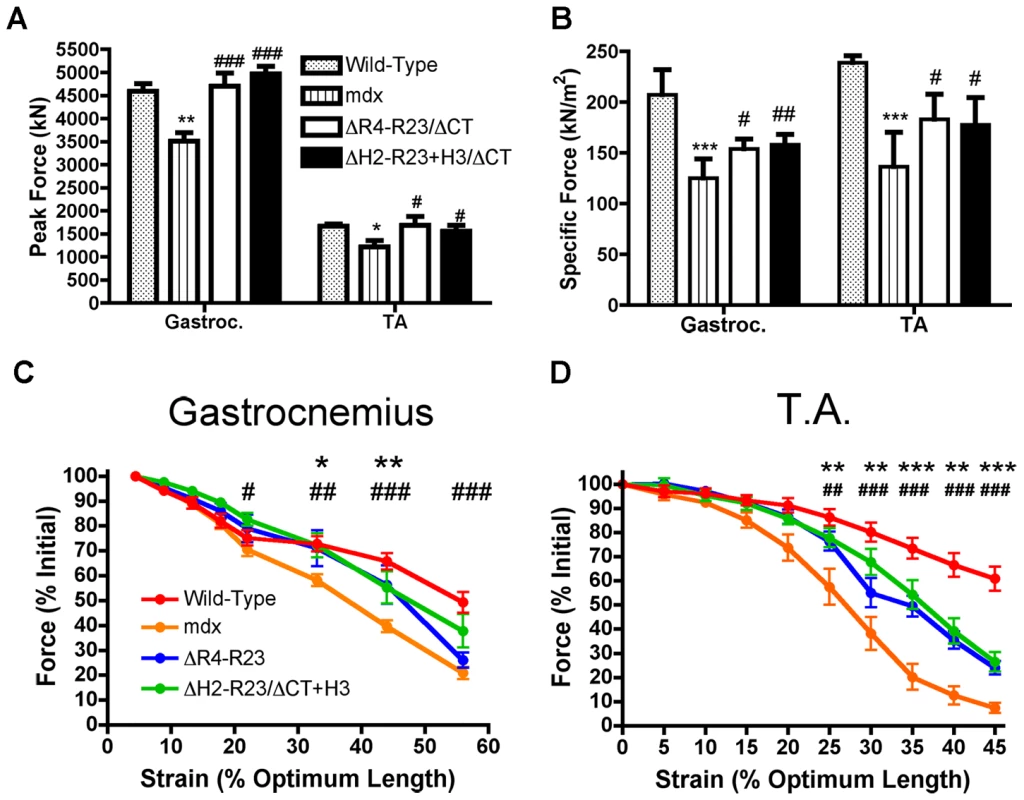

Contraction-induced injury can initiate muscle degeneration in mdx mice [40]. Skeletal muscles from mdx mice have a lower force producing capacity than wild-type muscles and are more susceptible to contraction-induced injury (Figure 4). We found that sub-optimal doses of both rAAV6-microdystrophin^{ΔR4-R23/ΔCT} and rAAV6- microdystrophin^{ΔH2-R23+H3/ΔCT} maintained the peak force producing capacity of mdx gastrocnemius and tibialis anterior muscles (Figure 4A). Both microdystrophins also significantly improved the specific force (force per cross sectional area of muscle) production in mdx muscles (P<0.05; Figure 4B). The specific force was not restored to wild-type partly because the sub-optimal dose of rAAV6-microdystrophin did not prevent the pseudo hypertrophy normally found in mdx muscles (P = 0.454 when comparing the muscle mass between mdx and treated mdx muscles; one-way ANOVA). Each microdystrophin significantly protected the treated limb muscles from contraction-induced injury (P<0.001; Figure 4C and 4D). However, we found no significant difference between the peak force, specific force or protection from contraction-induced injury when comparing between the two microdystrophins with either hinge 2 or hinge 3.

Polyproline in hinge 2 influences the pathology of skeletal muscle fibers

Together, our results suggested that the structural abnormalities observed in some treated mdx muscles could be traced to the presence of hinge 2 within the microdystrophin. We next examined the molecular composition of the hinges to define what was unique about hinge 2. The hinges in dystrophin are defined as such because of the higher concentration of proline residues, which function to limit the continuation of the α-helical coiled-coils of the spectrin-like repeats through the entire length of the dystrophin rod domain [19]. Both hinge 2 and hinge 3 have six proline residues and the lengths of these hinges are similar [19]. We hypothesized that the placement of the prolines most likely results in their different functions [5], [19]. Hinge 2 has 5 consecutive proline residues (polyproline; Figure 5A) whereas the proline residues in hinge 3 are more evenly distributed throughout the hinge [19]. Polyproline residues are thought to have their own defined rigid helical structure [41], [42], and this could affect the functional capacity of microdystrophin^{ΔR4-R23/ΔCT}.

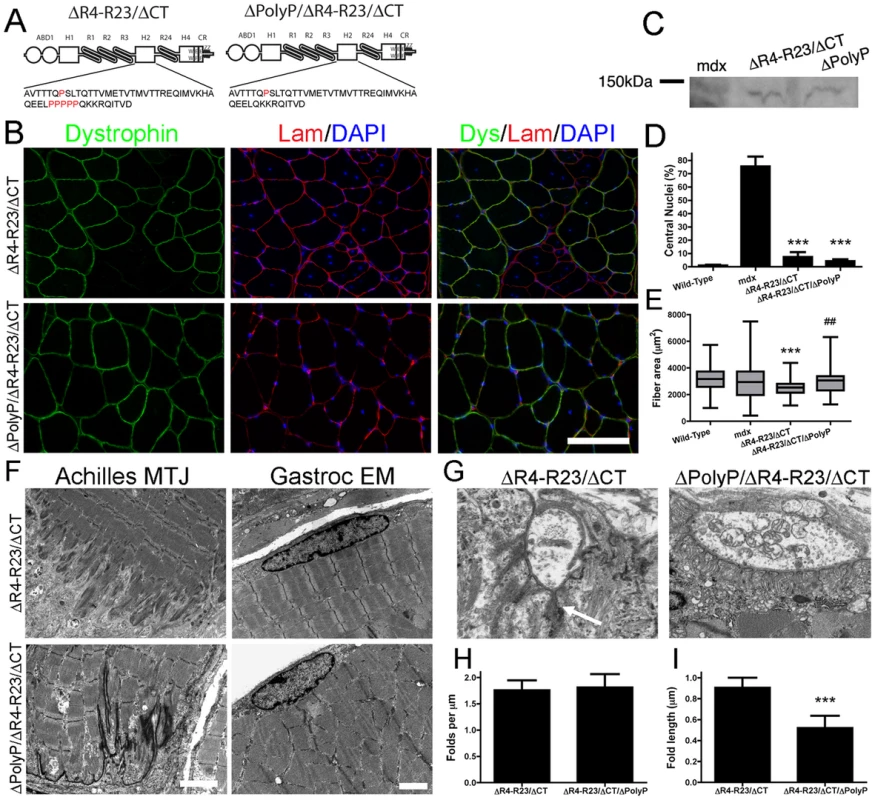

To test this hypothesis we compared muscles expressing the original microdystrophin^{ΔR4-R23/ΔCT} with a newly developed microdystrophin^{ΔpolyP/ΔR4-R23/ΔCT} that lacks the polyproline site in hinge 2 (Figure 5A). We delivered 6×10¹⁰ vg of each microdystrophin into mdx gastrocnemius muscles at 2 days of age and examined the mice 7 weeks after treatment. Both microdystrophins were expressed in a similar percentage of muscle fibers (Figure 5B; 59–68%), and were expressed at similar levels (Figure 5C). Each microdystrophin significantly reduced muscle fiber degeneration (Figure 5D). As expected, the original microdystrophin^{ΔR4-R23/ΔCT} limited muscle fiber cross-sectional area (Figure 5E), was associated with disrupted myotendinous junctions (Figure 5F), led to the formation of ringed fibers (Figure 5F), and perturbed neuromuscular junctions (Figure 5G–5I). In contrast, the mdx muscles treated with microdystrophin^{ΔpolyP/ΔR4-R23/ΔCT} did not show any abnormalities in muscle fiber maturation or structure (Figure 5). Thus, the presence of this polyproline site in hinge 2 of microdystrophin^{ΔR4-R23/ΔCT} prevented the appropriate integration of muscles into the nerve-tendon environment.

Discussion

Most gene therapy strategies for DMD require the generation of highly functional truncated dystrophins. rAAV is an efficient and safe vector for systemically delivering truncated dystrophins to striated muscles to prevent muscle degeneration in animal models of DMD ([28]; reviewed in [43]). We had previously generated a microdystrophin^ΔR4-R23 that was highly capable of mitigating muscle degeneration and improving the mechanical function of mdx skeletal muscles [24], [28]. However, the microdystrophin^ΔR4-R23 transgene leads to chronic strain injury at the Achilles myotendinous junction [33]. This led to the formation of ringed fibers that function to protect skeletal muscles from contraction-induced injury, even better than wild-type mice [33]. The formation of the rings led to fragmentation of the neuromuscular junctions [36]. Other effects of the transgene included smaller muscle fibers [24], and increased length of synaptic folds [36]. Here we found that each of these phenotypic changes was recapitulated in mdx gastrocnemius muscles treated with rAAV6-microdystrophin^{ΔR4-R23/ΔCT}. A screen of several newly developed dystrophin mini-genes revealed that the hinge 2 region influenced the functional capacity of microdystrophin^{ΔR4-R23/ΔCT}. Replacing hinge 2 with hinge 3 led to several advantages such as better protection of skeletal muscles (only 1–2% central nuclei 6 months post treatment), larger muscle fibers and normal junctions. Deleting the polyproline site from hinge 2 of microdystrophin^{ΔR4-R23/ΔCT} also prevented these structural abnormalities.

Mechanical properties of skeletal muscles expressing microdystrophins

Microdystrophin^{ΔH2-R23+H3/ΔCT} with hinge 3 significantly increased peak force, specific force and protected muscles from contraction-induced injury. However, the morphological improvements of microdystrophin^{ΔH2-R23+H3/ΔCT} treated muscles did not translate into a functional improvement compared to microdystrophin^{ΔR4-R23/ΔCT} treated muscles. This could result from the molecular and cellular responses to myotendinous strain injury that help protect the rAAV6-microdystrophin^{ΔR4-R23/ΔCT} treated muscles from contraction-induced injury [33]. Another possibility is that the presence of some dystrophin negative fibers masked any functional difference between the two proteins. The inclusion of hinge 2 in microdystrophin limited muscle fiber area whereas the inclusion of hinge 3 increased muscle fiber area (Figure 1). Larger muscle fibers in microdystrophin^{ΔH2-R23+H3/ΔCT} treated mice could have two distinct advantages: They could replace some of the muscle mass lost in advanced stages of disease and they could be better protected from contraction-induced injury [44]. However, the sub-optimal dose of either rAAV6-microdystrophin did not prevent the pseudo hypertrophy in mdx mice and no mechanical advantages could be discerned when comparing treatments. Saturating levels of rAAV6-microdystrophins or transgenic mice will most likely be required to detect minor differences in the mechanical properties of muscles expressing various truncated dystrophins.

How does polyproline influence the functional capacity of truncated dystrophins?

Our most effective truncated dystrophins developed for gene therapy have been designed to maximize functional interactions between specific spectrin-like repeats and hinge domains. This design has been influenced by genetic studies in mice and man as well as biophysical studies in vitro on the structure, folding and physical properties of both individual and tandemly expressed spectrin-like repeats and hinge domains [24], [45]–[52]. Individual spectrin-like repeats are not all interchangeable, and ones adjacent to hinges have distinct properties from those flanked by other spectrin-like repeats [21], [24], [47], [51], [52]. Also, spectrin-like repeats rarely function as isolated units [15], [24], [50]–[53]. Instead, they appear to fold into nested domains interrupted by various insertions (hinges) that disrupt the uniformity and rigidity of the spectrin-like repeat rod domain [24], [45]–[48], [53]–[55]. These interruptions appear important for the elastic and flexible structure that dystrophin requires in its role as a force transducer and shock absorber in muscle [56]–[59]. Our studies suggest that the most functional truncations of dystrophin retain a central hinge domain that is flanked by spectrin-like repeats found adjacent to a hinge in the wild-type dystrophin [24]. Disruption of this linkage could influence protein folding, stability and function leading to the variable phenotypes in patients associated with deletions at or near hinge 3, which is encoded on exons 50–51 [21].

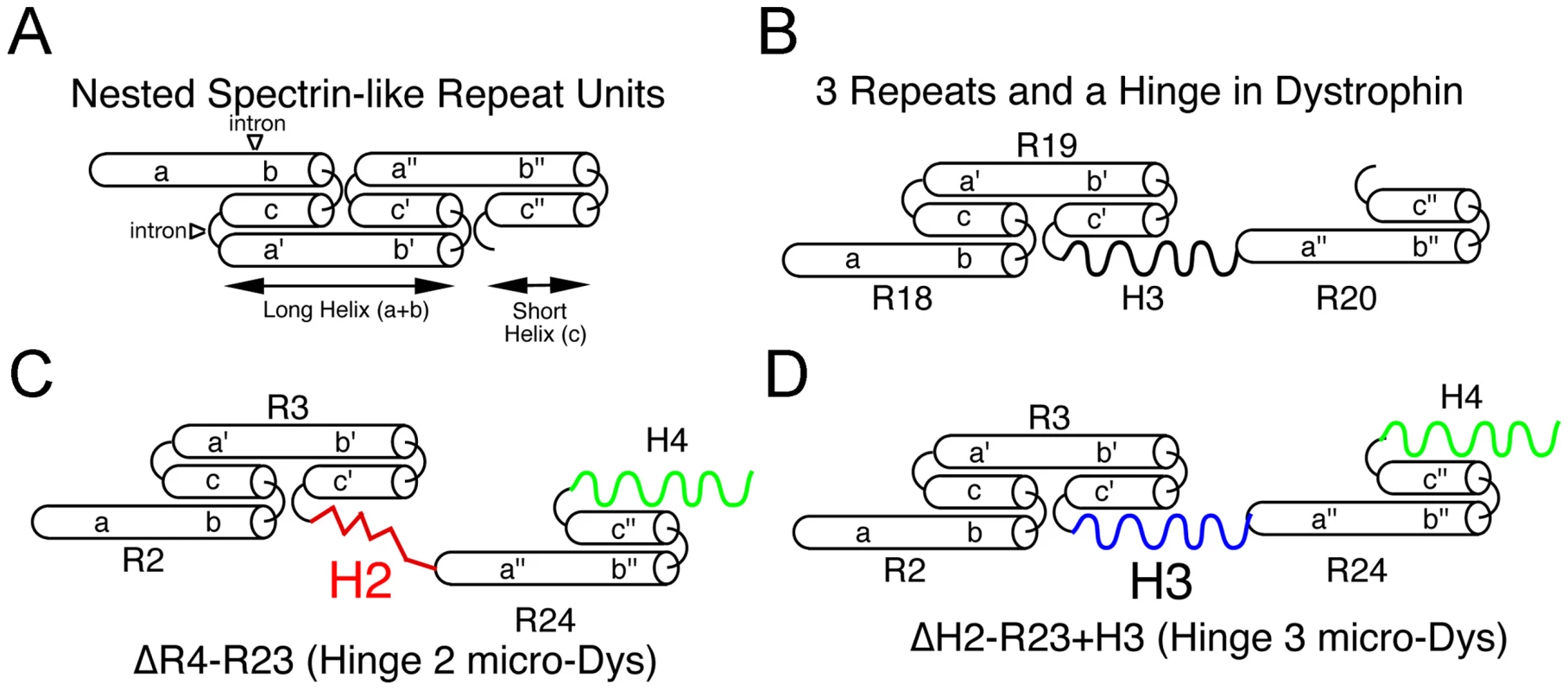

Individual spectrin-like repeats are composed of 3 helical domains connected by non-helical linkers, which fold into a triple helical coiled coil structure (Figure 5A; [45], [47]). The linker regions between discreet repeats are also typically short and relatively unstructured to allow a smooth connection between the third helix of a preceding repeat and the first helix of the next repeat (Figure 6A). However, hinge domains interrupt the nested nature of adjacent spectrin-like repeats and allow more flexibility in the rod domain (Figure 6B). This degree of flexibility appears to be significantly different when hinge 2 or hinge 3 is present. While both hinges contain 6 prolines, which act to disrupt alpha helical structures, in hinge 3 they are dispersed whereas 5 of the 6 prolines in hinge 2 are clustered together (Figure 5A, Figure 6C and 6D; [10]). Polyproline residues form a rigid α-helix [41], [42], much like a molecular ruler [60]. We suggest that the location of this polyproline sequence within a highly truncated rod domain induces a severe structural disruption that can affect the ability of dystrophin to form a mechanically flexible connection between F-actin and β-dystroglycan. Spectrin-like repeats 1-3 have been shown to associate with the sarcolemmal membrane, while the WW domain in hinge 4 forms a critical portion of the β-dystroglycan binding domain [45], [61]. A rigid rod domain induced by polyproline in hinge 2 may directly impair the ability of microdystrophin to form a flexible interaction with either or both of these structures (Figure 6C). In contrast, when hinge 2 is present in full-length dystrophin, a significantly greater number of spectrin-like repeats are present between the hinge and the β-dystroglycan binding domain, allowing greater flexibility in the overall structure.

It is difficult to predict the function of the polyproline site from patients with in frame deletions of exon 17 (hinge 2) of dystrophin. The described deletions (Leiden Muscular Dystrophy Pages) usually encompass larger regions of dystrophin than the polyproline site and it is not clear how these deletions affect protein stability. Our finding that hinge 3 microdystrophin can prevent muscle degeneration suggests that the polyproline site is not a necessary component of dystrophin, similar to previous reports on longer forms of truncated dystrophins [24], [62].

Flanigan et. al., 2009 has proposed that approximately 62% of all DMD patients could be treated with oligonucleotides that skip exons 45–55 (from spectrin-like repeat 18–22)[14]. This would create a truncated dystrophin that contains hinge 2 but not hinge 3, similar to, but much larger than our microdystrophin^ΔR4-R23 transgene. It will therefore be of interest to determine whether the polyproline site in hinge 2 can influence the functional capacity of larger, truncated dystrophins. It will also be of interest to examine whether the polyproline site affects the functional capacity of truncated utrophin constructs that are designed for gene therapy of DMD [63], [64].

Materials and Methods

Mice and ethics statement

We utilized C57Bl/10 wild-type mice and mdx^4cv mice. All experiments are in accordance with the institution of animal care and use committee (IACUC) of the University Of Washington.

Generation of constructs

The expression vector CMV-ΔR4-R23/ΔCT which uses the cytomegalovirus immediate early promoter and enhancer to drive expression of a microdystrophin cDNA was generated as previously described [32]. We generated the ΔH2-R24/ΔCT, ΔR2-R23+R18-H3/ΔCT, ΔH2-R23+H3/ΔCT and ΔPolyP/ΔR4-R23/ΔCT constructs using recombination PCR with CMV-ΔR4-R23/ΔCT as the template [65]. The primers used to generate ΔH2-R24/ΔCT, ΔR2-R23+R18-H3/ΔCT, ΔH2-R23+H3/ΔCT and ΔPolyP/ΔR4-R23/ΔCT are found in Table S1. The resulting expression vectors were sequenced and co-transfected with the pDGM6 packaging plasmid into HEK293 cells to generate recombinant AAV vectors comprising serotype 6 capsids that were harvested, purified, and quantitated as described previously [29]. The resulting titer was determined by comparison to previously known concentrations of rAAV6-CMV-lacZ and ΔR4-R23/ΔCT by Southern analyses with a probe to the CMV promoter. The rAAV6-microdystrophins were delivered intravenously by tail vein injection at two weeks of age or directly into the mdx gastrocnemius muscles at 2 days of age while the mice were anaesthetized.

Gross muscle morphology and morphometry

Gross muscle morphology was analyzed as previously described [24], [32]. Primary antibodies included the N-terminus of dystrophin (1∶800; [23]), utrophin A (1∶300; gift from Stanley Froehner, University of Washington), mouse monoclonal anti-α-dystrobrevin (Transduction laboratories; 1∶200), rabbit polyclonal anti-Syn17 (α-syntrophin; 1∶200; [66]), rabbit polyclonal anti-nNOS (Alexis; 1∶200). Secondary antibodies included Alexa 488, Alexa 594 rabbit polyclonal or Alexa 488 mouse monoclonal secondary antibodies (Molecular Probes; 1∶800). The sections were mounted in anti-fade mounting media containing DAPI (Vector Labs). Fluorescent sections were imaged using a Nikon eclipse E1000 fluorescent microscope (Nikon; NY) and captured using a DeltaVision fluorescence microscope. Muscle fiber areas were quantified using Image J (NIH).

Immunoblotting

For immunoblots, n = 4 gastrocnemius muscles from mdx mice and mdx mice treated with rAAV6-microdystrophin^{ΔR4-R23/ΔCT} or rAAV6-microdystrophin^{ΔH2-R23+H3/ΔCT} were thawed from OCT blocks and placed into extract buffer (50 mM Tris-HCl, 150 mM NaCl, 0.2% sodium dodecyl sulfate, 10% glycerol, 24 mM Na Deoxycholate, 1% NP40, 47.6 mM Na Fluoride, 200 mM Na orthovanadate, Roche). Protein concentrations were determined by Coomassie Plus Bradford Assay (Peirce). Equal amounts of protein (15 mg) were resolved on a 4–12% SDS polyacrylamide gel. The blots were incubated in rabbit polyclonal antibodies to dystrophin (1∶500; kind gift from James Ervasti, University of Minnesota) and mouse monoclonal antibodies to α-sarcomeric actin (1∶500; SIGMA).

We also performed immunoblots on frozen tissue sections from n = 4 gastrocnemius muscles treated with rAAV6-microdystrophin^{ΔR4-R23/ΔCT} and microdystrophin^{ΔPolyP/ΔR4-R23/ΔCT} as previously described [67], with minor modifications. Briefly, we cut twenty-five 20 µm sections and diluted the sections into 200 µl lysis buffer (4% SDS, 25 mM Tris pH 8.8, 40% glycerol, 0.5 M phenylmethylsulfonyl fluoride, 100 mM dithiothreitol and bromophenol blue). Samples were briefly sonicated (10 sec at 4°C), heated to 95°C for 5 minutes, centrifuged for 5 minutes at 13,200×g and electrophoresed on a 4–12% SDS-polyacrylamide gel. The blots were incubated in primary rabbit polyclonal antibody against the N-terminus of dystrophin (1∶500; kind gift from James Ervasti, University of Minnesota). All blots were developed with ECL Plus (Pierce) and scanned with the Storm 860 imaging system (Amersham Biosciences).

Electron microscopy

Electron microscopy was performed as previously described [33]. The junctional fold number and lengths were measured from n = 4 mice at 6 months of age using Image J (NIH) and compared using Students t-test (Prism). The counts represent the fold numbers and lengths from all fibers (dystrophin positive and negative).

Quantitation of ringed fibers

We quantitated the number of ringed myofibers in EM images and thick (1 µm) toluidine blue sections from at least 4 animals per group. At least 300 muscle fibers from n = 4 gastrocnemius muscles were examined from wild-type, mdx^4cv and mdx^4cv mice expressing the various microdystrophins.

Quantification of neuromuscular synapses

Neuromuscular synapses were analyzed in whole mount immunofluorescence stained muscles and quantitated as previously described [36]. The acetylcholine receptor clusters were stained with TRITC conjugated α-bungarotoxin (αBTX; 1∶800; Molecular Probes). Synapses were classified as continuous if they presented with 3 or less continuous regions of AChR clustering and discontinuous if they presented with more than 3 regions of AChR clustering. More than 50 synapses were analyzed from treated and untreated gastrocnemius skeletal muscle fibers from n = 4 mice. The counts in treated muscles include both dystrophin positive and negative fibers. We compared the proportion of continuous synapses using a Students t-test.

Muscle physiology

Muscle physiology was performed as previously described for tibialis anterior [29] and gastrocnemius [33] muscles. We examined six-month-old wild-type, mdx, and mdx mice treated with rAAV6-microdystrophin^{ΔR4-R23/ΔCT} or rAAV6-microdystrophin^{ΔH2-R23+H3/ΔCT} (n = 5).
