Molecular Mechanisms of Ethanol-Induced Pathogenesis Revealed by RNA-Sequencing

Summary

Acinetobacter baumannii is a common pathogen whose recent resistance to drugs has emerged as a major health problem. Ethanol has been found to increase the virulence of A. baumannii in Dictyostelium discoideum and Caenorhabditis elegans models of infection. To better understand the causes of this effect, we examined the transcriptional profile of A. baumannii grown in the presence or absence of ethanol using RNA-Seq. Using the Illumina/Solexa platform, a total of 43,453,960 reads (35 nt) were obtained, of which 3,596,474 mapped uniquely to the genome. Our analysis revealed that ethanol induces the expression of 49 genes that belong to different functional categories. A strong induction was observed for genes encoding metabolic enzymes, indicating that ethanol is efficiently assimilated. In addition, we detected the induction of genes encoding stress proteins, including upsA, hsp90, groEL and lon as well as permeases, efflux pumps and a secreted phospholipase C. In stationary phase, ethanol strongly induced several genes involved with iron assimilation and a high-affinity phosphate transport system, indicating that A. baumannii makes a better use of the iron and phosphate resources in the medium when ethanol is used as a carbon source. To evaluate the role of phospholipase C (Plc1) in virulence, we generated and analyzed a deletion mutant for plc1. This strain exhibits a modest, but reproducible, reduction in the cytotoxic effect caused by A. baumannii on epithelial cells, suggesting that phospholipase C is important for virulence. Overall, our results indicate the power of applying RNA-Seq to identify key modulators of bacterial pathogenesis. We suggest that the effect of ethanol on the virulence of A. baumannii is multifactorial and includes a general stress response and other specific components such as phospholipase C.

Introduction

Acinetobacters are Gram-negative bacteria that belong to the Moraxellaceae family [1]. The members of the Acinetobacter group are metabolically versatile since they can metabolize an important number of compounds such as aliphatic alcohols, some amino acids, decarboxylic and fatty acids, unbranched hydrocarbons, aromatic compounds, mandelate, and n-hexadecane. [2]. Moreover, accumulation of wax esters has been described for various Acinetobacter species [3]. These features have attracted attention toward several species of the genus given their potential use in the chemical industry.

Recently, A. baumannii has emerged as an opportunistic pathogen. Nosocomial and community acquired infections are associated with a wide spectrum of clinical manifestations, including pneumonia (the most frequent pathology associated with this microorganism), urinary tract infections, bacteremia and meningitis [4]-[7]. Furthermore, there has been a recent emergence of multidrug-resistant (MRD) isolates of A. baumannii strains resistant to a wide range of antimicrobial drugs such as aminopenicillins, ureidopenicillins, cephalosporins, chloramphenicol, and tetracycline [8],[9]. Indeed, 89% of Acinetobacter strains isolated from patients injured in Iraq and Afghanistan were resistant to at least two major classes of antibiotics [10],[11].

So far, lipopolysaccharide (LPS) [12],[13], an outer membrane protein named OmpA [14],[15], the pili [16], and two siderophore mediated iron-acquisition systems [17]–[19] have been proposed as determinants of A. baumannii pathogenicity. It is conceivable that additional elements could be involved in the pathogenesis of this bacterium. The complete genome sequences of several isolates of this species revealed the presence of homologues of virulence genes from other pathogens [20]–[23]. Examples include homologues of luxI and luxR that allow cell-cell communication, genes that encode two-component systems, genes that code for several hydrolytic enzymes, efflux pumps, and genes involved with resistance to antibiotics. However, in most cases, evidence regarding the contribution of each of these elements to Acinetobacter pathogenicity is lacking.

It was previously observed, that co incubation of yeast with A. baumannii promotes bacterial growth; the molecule responsible for this effect was shown to be ethanol. It was demonstrated that low concentrations of ethanol not only stimulated A. baumanni growth but also helped the ability of this bacteria to endure salt stress. Furthermore, in the presence of ethanol A. baumannii showed increased pathogenicity towards C. elegans [24]. It was subsequently reported that the increased pathogenicity of ethanol-fed A. baumannii was also observed when D. discoideum was used as a model host [25]. Furthermore, genes associated with A. baumannii virulence were identified by insertional mutagenesis; one of the genes identified by this strategy is homologous to pstC, which encodes a component of the high affinity phosphate transport system [25]. Interestingly, in some pathogenic bacteria the phosphate regulon appears to be part of a network that controls virulence and a particular stress response (recently reviewed by [26]). Another gene identified in the insertional screen was rpoH, which in many species, encodes the sigma factor that is responsible of the transcriptional induction of the genes that mediate the heat-stress response (HSR) [27]. The HSR has been shown to be required for full virulence in other pathogenic bacteria [28]–[31]. Thus, the potential contribution of the HSR to the virulence of A. baumannii remains as an attractive possibility.

To explore the underlying basis for the increased virulence of A. baumannii in the presence of ethanol, we characterized the transcriptional profile of A. baumannii grown in rich medium in the presence or absence of ethanol. Seventy genes whose expression is altered by the presence of ethanol in the growth medium were identified. Based on our results we suggest that the increased virulence of A. baumannii in the presence of ethanol is due to increased metabolic capacity, coupled with the expression of several key factors mostly related with stress responses that likely contribute to the virulence of this bacterium. In addition, ethanol promotes the expression of plc1, which encodes an A. baumannii-specific phospholipase C. We found that a plc mutant showed a reduction in A. baumannii-induced cytotoxicity of epithelial cells, suggesting that phospholipase C acts as a virulence factor in this bacterium.

Results/Discussion

Transcriptional profiling of A. baumannii by high throughput RNA sequencing

To identify genes important for an inducible virulence response in Acinetobacter, we first search for genes that were differentially expressed in the presence of ethanol. Total RNA was isolated from A. baumannii cells grown to mid-log phase in the absence or presence of ethanol (see Methods section). For the first set of samples, the mRNA was selectively enriched through a single step of rRNA depletion. These samples were fragmented and used to obtain cDNA libraries that were sequenced as described in Methods section. A total of 6,441,146 and 6,603,654 28 nt reads were obtained for each library (“no ethanol” and “ethanol”, respectively). Of these, 4,364,106, (no ethanol) and 4,824,047 (ethanol) reads mapped to multiple targets in the genome and only 312,266 (no ethanol) and 546,498 (ethanol) mapped uniquely. Analysis of 1% of the reads that mapped to the genome multiple locations revealed that most were derived from 23S, 16S, and 5S rRNA. In order to obtain a more representative sampling of the coding regions, the libraries were sequenced an additional two times. Additional RNA samples were prepared in duplicate experiments and subjected to three-cycles of rRNA depletion followed by size exclusion to remove small RNAs, but no substantial improvement in the number of unique reads was achieved with this procedure.

Combining all of the sequencing from both experiments produced a total of 3,596,474 unique reads that represent a total of 100,701,272 nucleotides (28 nt per read), a 25.3 fold average coverage of the A. baumannii genome. The sequences obtained from these experiments were mapped to the A. baumannii genome using the current annotation in Genbank (accession: CP000521 version CP000521.1). As expected, between 72 and 84% of the unique sequences correspond to previously annotated coding regions, whereas the remainder correspond to intercistronic regions, RNA molecules such as the tmRNA, ribonuclease P, 7S RNA, and possible regulatory RNAs, such as the TPP riboswitch. Two previously unannotated genes were also identified. These genes are a putative ferredoxine located downstream of A1S_0845, and a gene located upstream of A1S_2262 that has sequence similarity to SirA.

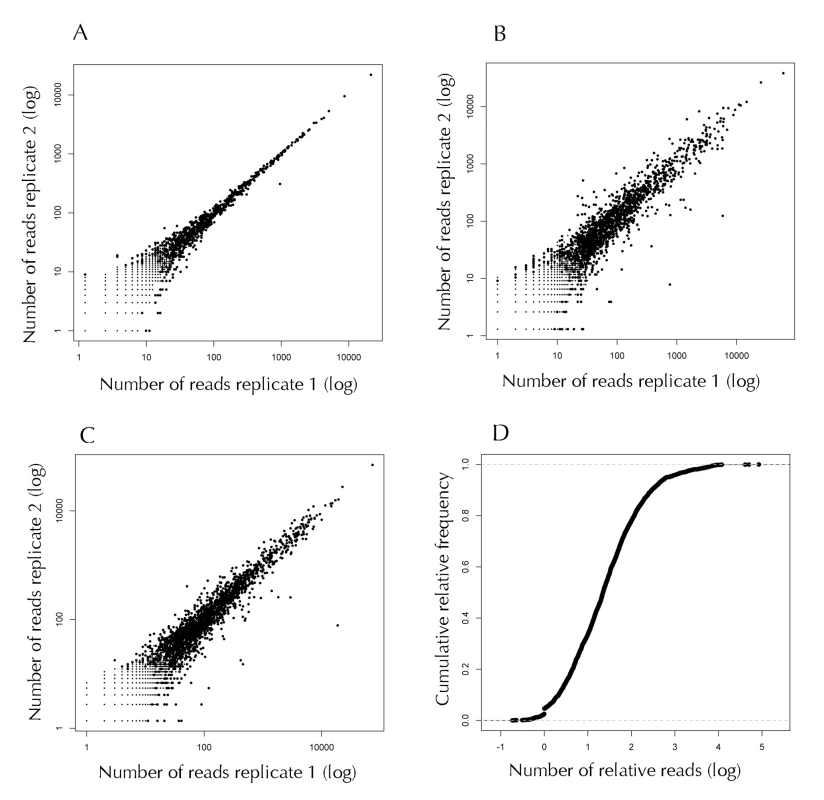

Two different approaches were used to demonstrate that the number of reads that map to a particular open reading frame correlate with the expression level of that gene. In the first approach, mRNA from two different tissues was analyzed using microarrays and RNA-Seq [32]. In the second one, microarray and RNA-seq data were compared with protein expression data obtained by shotgun mass spectroscopy [33]. In both cases, good levels of correlation were observed. Therefore, we computed the total number of reads for each gene, and this number was divided into windows of 250 bp to calculate the number of relative reads (NRR) per window. We observed that the highest NRR mapped to the loci corresponding to the tmRNA and RNase P, followed by the genes A1S_2840 (NRR 50,000), and A1S_2218 (NRR 41,000) that encode OmpA (Outer Membrane Protein A), and the pili subunit CsuA/B, respectively. The NRR was also high for genes encoding proteins related to transcription, translation and energy generation. We detected 163 genes with a NRR less than 1 (Table S1), suggesting that some genes are expressed at a low level or that these are not readily detected because of experimental bias. As shown in Figure 1, 50% of Acinetobacter genes have NRR values of approximately 150. Both technical and biological duplicates showed high reproducibility (Fig. 1).

To identify the genes that are induced or repressed by ethanol, we normalized the number of reads for each pair of libraries, and the number of reads for each gene was compared. The genes that reproducibly showed a ratio larger than 1.9 or below 0.5 in both biological replicates and a P value of 0.05 or less were considered as regulated by ethanol. From 101 genes that passed the first criterion, only 70 showed a P-value below 0.05. From these, 21 genes were repressed and 49 were induced by ethanol (Table 1).

We also extracted total RNA from cultures grown to stationary phase in the presence of ethanol and performed a more limited RNA-Seq experiment that produced 146,170 unique reads. The NRR for each gene was calculated and arranged by rank order (Table S2). RNA from stationary phase cells with ethanol exhibited a large number of reads for genes related with the synthesis of siderophores and iron uptake. In fact, in this sample, 33 genes related with iron acquisition are among the 10% of the genes that showed the highest NRR values (Table S2). Interestingly, a putative operon encoding four proteins similar to the high-affinity phosphate transport system were also found among the 10% of the genes with highest NRR. Given the relevance of Fe and phosphate acquisition to bacterial pathogenesis we further explored the expression of these genes by qRT-PCR or using lacZ as reporter gene (see below).

Metabolic effect of ethanol

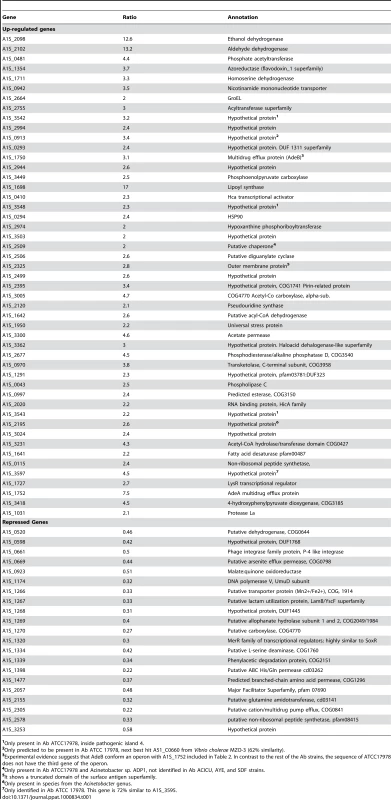

We examined in detail the genes that were induced by growth in the presence of ethanol during exponential phase. The most strongly induced genes encode proteins related to central metabolism or with ethanol/acetate assimilation. These included ethanol dehydrogenase (A1S_2098) and aldehyde dehydrogenase (A1S_2102), which showed an average induction of 12.6 and 13.2-fold, respectively. A. baumannii has two other genes that potentially encode a Fe-dependent ethanol dehydrogenase, i.e., A1S_2053, and A1S_2702; these genes are transcriptionally active since they showed a NRR of 28 and 194. However, their expression is not induced by ethanol. Other genes that may encode additional ethanol dehydrogenases are A1S_1788 and A1S_3436. We observed a slight induction of A1S_1788 by ethanol, but it showed a p-value higher than the selected cutoff (Table 2). Therefore, under our experimental conditions, A. baumannii seems to be oxidizing ethanol to acetate by the activity of the enzymes encoded by A1S_2098, A1S_2102 and perhaps A1S_1788 (Fig. 2).

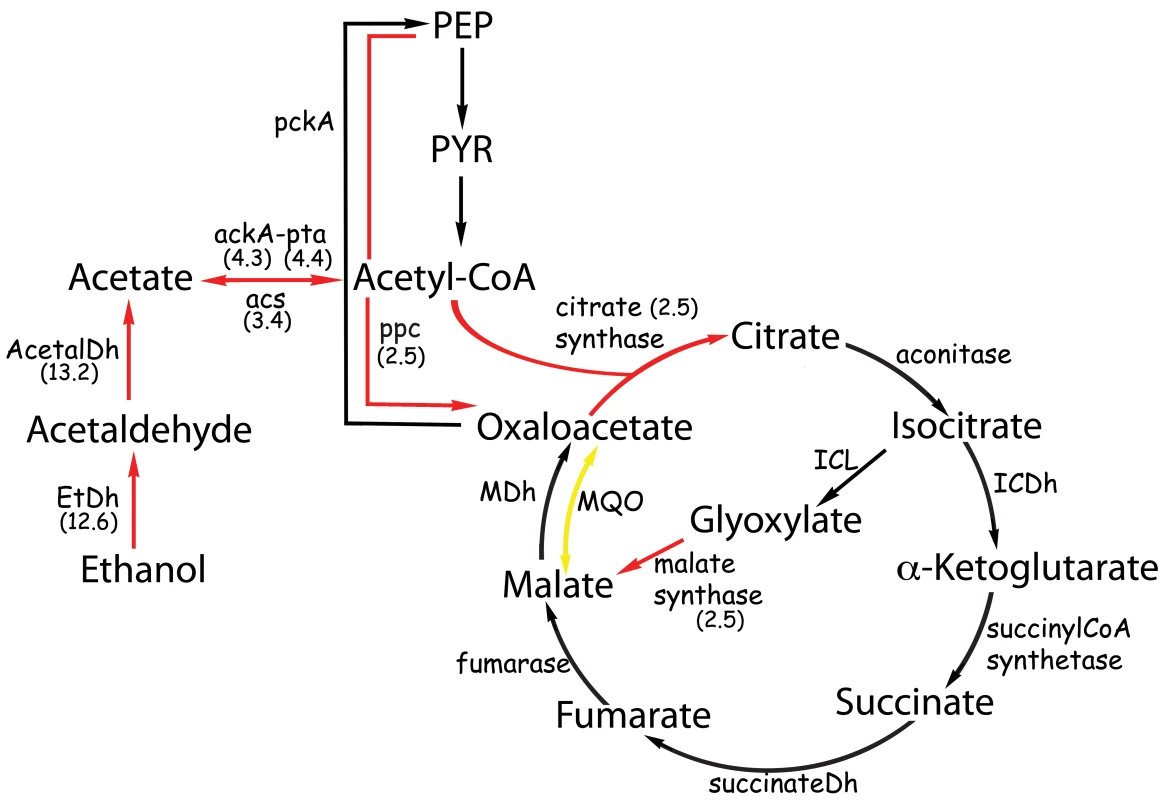

In many bacteria, after conversion to acetate, ethanol is further metabolized into acetyl-CoA and then assimilated through the glyoxylate cycle [34],[35]. Acetyl-CoA synthesis occurs by the action of ackA and pta (acetate kinase and phosphate acetyltransferase, respectively) as has been demonstrated for Corynebacterium glutamicum [36],[37] or through acs (acetyl-CoA synthetase) as has been demonstrated for Escherichia coli [38],[39]. In these bacteria, ackA and pta are arranged in a bicistronic operon [40],[41]. In A. baumannii, these genes are contiguous in the chromosome and therefore may be part of a single operon. From our data, we found that the genes coding for pta (A1S_0481) and ackA (A1S_0482) showed a 4.4 (Table 1) and 5.3 (Table 2) fold induction in the presence of ethanol. The same situation was found for the gene A1S_2148, which encodes acs which was induced 3.4 fold. Both acs and ackA showed a p-value higher than the threshold (Table 2), but nonetheless, evidence obtained by quantitative RT-PCR corroborated the induction of these two genes by ethanol (see below).

Interestingly, A1S_3300, which encodes an acetate permease, was induced 4.6 fold (Table 1). In E. coli, acetate is excreted into the culture medium during exponential phase when the cells are grown in the presence of a high concentration of acetogenic sugars. However, when the culture begins the transition into stationary phase, acetate assimilation begins. In exponential phase, pyruvate is converted to acetate through the action of ackA and pta, whereas in stationary phase, acetate is assimilated by acs [38]. This does not seem to be the case in A. baumannii, since our results indicate that during exponential phase all these genes are simultaneously expressed. Therefore, a balance between assimilation and excretion may be occurring.

In many organisms, acetate is metabolized through the glyoxylate cycle, which in conjunction with other reactions of the citric acid cycle (TCA) allows the net synthesis of succinate from two molecules of acetyl-CoA. At the first step of this cycle, acetyl-CoA and oxaloacetate are used to form citrate. Isocitrate is then converted to glyoxylate and succinate, and finally malate is formed from glyoxylate and acetyl-CoA (Fig. 2). The enzymes that carry out these reactions are citrate synthase, aconitase, isocitrate lyase, and malate synthase [34],[35],[42],[43]. We observed that the genes encoding citrate synthase (A1S_2710), and malate synthase G (A1S_1601) were induced 2.5 and 2.7 fold respectively but with a p-value above the threshold (Table 2). qRT-PCR experiments verified that both genes are indeed induced by ethanol (see below). Therefore, acetate assimilation appears to take place through the glyoxylate cycle in A. baumannii. In E. coli there are two different malate synthases (i.e., malate synthase A and G encoded by aceB and glcB, respectively) [44]–[46]. This latter gene, glcB, codes for a secondary malate synthase that can replace the malate synthase A when aceB is mutated [44]. In contrast, only the malate synthase G is present in A. baumannii, similar to the situation found in C. glutamicum [37].

Unexpectedly, we did not observe an induction of the gene encoding isocitrate lyase (A1S_1008). This may be due to the presence of glucose in the media we used in these experiments, which may have repressed the expression of the isocitrate lyase gene. This result suggests that under these conditions, control of the isocitrate dehydrogenase by phosphorylation is sufficient for activation of the glyoxylate cycle. In A. baumannii the genes encoding isocitrate lyase, malate synthase and isocitrate kinase are not encoded by the same operon. Therefore, it is conceivable that these genes are differentially regulated.

We also detected the induction (2.5 fold) of A1S_3449, a gene encoding a putative phosphoenolpyruvate carboxylase (PEPCx) (Table 1). In other bacteria, this enzyme converts phosphoenolpyruvate to oxaloacetate accomplishing an anaplerotic function (Fig. 2) [47]. Another ethanol-induced enzyme related to the metabolism of acetate is a putative acetyl-CoA hydrolase/transferase, encoded by A1S_3231. The product of this gene is highly similar to proteins found in other bacteria, and it is 62% similar to Ach1 (acetyl-CoA hydrolase) from Saccharomyces cerevisiae. In S. cerevisiae, it has been shown that ach1 is not involved in the hydrolysis of acetyl-CoA, as originally thought. Instead, Ach1 transfers CoASH from succinyl-CoA to acetate, and this activity is required to support growth in acetate [48]. Due to the high similarity between CoA tranferases and hydrolases the actual activity of A1S_3231 in A. baumannii remains to be determined.

We detected a two-fold repression of A1S_3025 which encodes a putative malate∶quinone reductase (MQO). A. baumannii, like many other bacteria, possesses two genes that encode for a malate dehydrogenase, a membrane-associated malate∶quinone oxidoreductase (MQO) (A1S_0923), and a cytoplasmic malate dehydrogenase (MDH) (A1S_3025). Our results indicate that the expression level of A1S_3025 did not change in response to ethanol whereas the putative MQO A1S_0923 was down regulated by 50%. Given that MQO is repressed, MDH should be the main enzyme responsible for malate oxidation in this condition (Fig. 2). Similarly, MQO does not seem to play a significant role in malate oxidation in E. coli [49], but for C. glutamicum it has been shown that the malate∶quinone reductase (MQO) is the main enzyme catalyzing the oxidation of malate to oxalacetate [50]. A 2-fold reduction was also observed for A1S_1334 encoding L-serine deaminase. The reaction catalyzed by this enzyme yields pyruvate and ammonia. It is possible that this reduction helps prevent a further increase in the availability of acetyl-CoA above the level that ethanol catabolism produces.

Overall these results indicate that a variety of metabolic genes are affected by the presence of ethanol and show for the first time the metabolic pathways involved in ethanol assimilation in this bacterium.

Ethanol induces genes involved in the stress response and pathogenesis

In exponential phase, ethanol elicits the induction of 11 genes that encode hypothetical proteins that do not belong to any pfam or COG already described (Table 1). Five of these genes are unique to A. baumannii ATCC17978, and three of them are located in pathogenicity island 4 [20]. Of the remaining six, A1S_2195 is only present in organisms that belong to the Acinetobacter genus, and the other five have homologues in many other bacteria (Table 1). Of particular interest, A1S_2509 is present only in A. baumannii ATCC17978 and the non-pathogenic A. baylyi ADP1. The proteins encoded by these organisms are 40% identical; the first 50 residues of this protein showed high similarity with DjlC (DnaJ- containing domain protein) from E. coli and its homologues in other bacteria [28]. Interestingly, A1S_2509 is adjacent to a gene encoding an HSP70-like protein, and this arrangement is conserved among several bacteria [51]. It has been shown that DjlC produces a 10-fold activation of the ATPase activity of the HSP70-like protein [52], and it was proposed that DjlC and HSP70-like were required to respond to certain stress conditions. Therefore, it is possible that A1S_2509 may help to resist the ethanol stress together with A1S_2510 (HSP70-like). Consistent with this hypothesis, we observed that A1S_2510 (HSP70-like) is mildly induced by ethanol (1.4 fold, p-value 0.006) (data not shown).

The A1S_1641 gene, which encodes a fatty acid desaturase, was induced 2.2 fold (Table 1). In other microorganisms, it has been shown that an increase in the amount of unsaturated fatty acids facilitates adaptation to stressful conditions such as acid pH, ionic stress and ethanol [53]–[56]. Other genes induced by ethanol are A1S_1750 and A1S_1752, that likely are part of an operon and encode for an RND-type efflux pump that confers resistance to various antibiotics in A. baumannii BM4454 [57]. Interestingly, it has been shown that an RND efflux pump contributes to drug resistance and virulence of Francisella tularensis in mice [58]. We also observed the induction of A1S_1950, which encodes a protein that belongs to the universal stress protein family. It is known that members of this family are induced when the cell is exposed to agents that induce stress [59]–[61]. Interestingly, A. baumannii has five proteins that belong to this family A1S_1950, A1S_2692, A1S_2072, A1S_0214 and A1S_1246, but only A1S_1950 was induced by ethanol.

Recently, it was shown that overexpression of rpoH in E. coli, induces a set of genes that were not originally considered as a part of the heat-shock response (HSR); acpD is one of these genes [62]. The physiological role of AcpD is still uncertain since its original assignment was as an ACP-phosphohydrolase. AcpD was subsequently shown to be an azoreductase [63]. The induction of acpD (A1S_1354) by ethanol supports the idea that this gene is part of a stress response. A reduction of two-fold was detected for a cluster of five genes that could form an operon from A1S_1266 to A1S_1270; unfortunately, the function of these genes is unknown.

One of the aims of this work was to identify potential virulence factors whose expression is induced in presence of ethanol. In this regard, two general traits were observed. First, there was the mild induction of Hsp90, GroEL, and Lon. In many bacterial species, these genes are part of the heat-shock stress response (HSR) [64]–[69]. Second, several genes known to be important for survival under diverse stress conditions exhibited increased expression (Table 1). Members of the HSR are chaperones that refold or prevent aggregation of misfolded proteins [27],[70], and Lon is a protease that hydrolyzes proteins with unstructured regions [71]. In many bacteria, the control of the HSR is mediated by the sigma factor σ³², encoded by the rpoH gene [27]. It has been shown that the HSR is required for full virulence in some pathogenic bacteria. For instance, DnaJ-like (HSP40) from Vibrio tapetis is required for cytotoxicity of hemocytes [28], σ³² is required for the invasion of epithelial cells by Neisseria gonorrhoeae [29] and the chaperons HSP90 and GroEL of many pathogenic bacteria induce the production of interleukin-8, modulating the immune response [30],[31],[72]. Consistent with these reports, a strain of A. baumannii carrying a transposon insertion in the gene encoding for σ³² (rpoH) was shown previously to be avirulent in the presence of ethanol towards C. elegans and D. discoideum [20]. Therefore, it is conceivable that ethanol could exacerbate the virulence of A. baumannii through the induction of heat-shock proteins, such as Hsp90, GroEL and Lon. The products of other genes listed in Table 1 may also help A. baumannii to tolerate stress conditions. Since it has been shown that one stress response might help bacteria to contend with other stress conditions [73]–[76], it is attractive to hypothesize that ethanol could improve the ability of A. baumannii to survive in the host since that several pathways of stress responses are activated.

Among the genes that we detected as induced by ethanol (Table 1), A1S_0043 encoding a phospholipase C deserves particular attention. This protein has been recognized as a virulence factor in other pathogenic bacteria [77]–[79]. For this reason, we further analyzed this gene as described below.

Quantitative RT-PCR of selected targets

To validate the induction of some of the genes identified by RNA-Seq (Table 1), we carried out qRT-PCR experiments. The expression of A1S_2664, A1S_0294, and A1S_0043 that encode for GroEL, HSP90 and phospholipase C, respectively, was measured, along with several genes whose expression was induced by ethanol but showed a p-value above the threshold (Table 2). These latter genes were A1S_0482, A1S_2148, A1S_2710, and A1S_1601 which encode acetate kinase, acetyl_CoA synthetase, citrate synthase, and malate dehydrogenase G, respectively. Ethanol dehydrogenase (A1S_2098) was used as a positive control. The down-regulated gene A1S_1266 was also included in this analysis. A1S_2846 and A1S_0880 were used as internal controls to calculate the fold-change after treatment with ethanol (see methods section). To test the expression of the genes above mentioned, we used total RNA isolated from exponential cultures of A. baumannii grown in the absence or presence of ethanol.

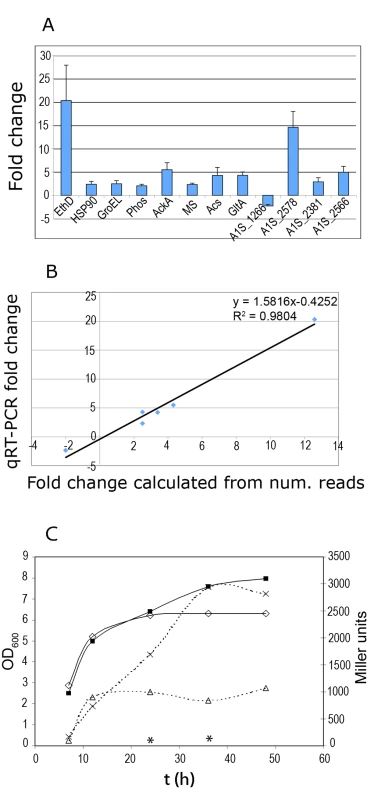

As shown in Fig. 3A, qRT-PCR experiments confirmed that the expression of all these genes was regulated by ethanol. Moreover, the fold change detected for each gene was similar to the ratio of induction and repression observed by RNA-Seq (Fig. 3B). These results support the conclusions outlined in the previous section regarding ethanol metabolism.

To validate the high expression level of the genes detected in the samples obtained from stationary phase cultures grown in the presence of ethanol, we also measured the expression levels of A1S_2381, A1S_2566, and A1S_2578 by qRT-PCR. These genes were randomly chosen among the genes that are related to Fe uptake and showed a high number of reads (NRR) (Table S2). A1S_2381 is required for acinetobactin synthesis and is located within a locus of 13 genes that are involved in the synthesis and transport of acinetobactin in A. baumannii ATCC19606 and A. baumannii ATCC17978. In contrast, A1S_2566 and A1S_2578 (encoding a protein required for siderophore synthesis and a siderophore receptor, respectively) are part of a second locus for Fe acquisition that is present in A. baumannii ATCC17978 but not in A. baumannii ATCC19606 [17]–[19]. To test the expression of these genes, we used total RNA from stationary phase cells that were grown in the presence or absence of ethanol (see methods). As shown in Fig. 3B, the expression of these genes was induced by the presence of ethanol in the culture medium, although this effect could be indirect given that a higher O.D.₆₀₀ is reached when ethanol is included in the culture medium [24] (see panel C in Figure 3).

We also tested the induction of expression for the genes that belong to the putative pts operon (A1S_2448 to A1S_2445) which encode a high-affinity phosphate transport system. For this study, we used lacZ as reporter gene. The promoter region upstream of A1S_2448 (homologous to pstS) was cloned into pMP220. The amount of β-galactosidase produced by A. baumannii transformed with this construction was low when 10 mM PO₄ was included in the culture medium (Fig. 3C, measures indicated by asterisks). The expression of lacZ was evaluated in A. baumannii cells grown in the absence or presence of ethanol at different time points of incubation. As shown in Fig. 3C, a low level of β-galactosidase activity was detected for both cultures at OD₆₀₀ <3, but higher activities were observed as the cultures approached stationary phase. At 24 h of incubation, in the presence of ethanol higher amounts of β-galactosidase were detected nevertheless both cultures showed a similar OD indicating that increased β-galactosidase was not due to higher cell numbers (Fig. 3C). To ensure that plasmid integrity was intact through these experiments, we rescued the plasmids from both ethanol treated and untreated cultures at the end of the experiment and found that in each case the plasmid were functional and without detectable rearrangements. Thus, these results indicate that the high-affinity phosphate transport system of A. baumannii is highly expressed at high cell densities and that A1S_2448 is induced after incubation with ethanol.

The induction of the transport genes A1S_2448-45 is of particular significance since it has been demonstrated previously that a strain of A. baumannii carrying an insertion in A1S_2447 (homologue of ptsC) was avirulent towards C. elegans and D. discoideum [20]. Therefore, it is conceivable that ethanol could exacerbate the virulence of A. baumannii taking advantage of the induction of these uptake systems (Fe and phosphate) that in other bacteria have also been related with virulence [26].

It has been reported that community-acquired Acinetobacter infections are associated with underlying conditions such as alcoholism, smoking, chronic obstructive pulmonary disease and diabetes [80]–[82]. Our results provide mechanistic insight into how ethanol may modulate A. baumannii infections. Furthermore, the molecular mechanism underlying this effect could be multifactorial, given that ethanol up regulates TLR2 causing inflammation of the airway epithelium [83]. Ethanol also induces a delay of viability loss in stationary-phase cultures of bacteria [84], and we demonstrate that ethanol induces a stress response that may give the pathogen a better fitness to survive in the host.

Generation of a plc1 mutant strain

One of the genes that was induced by ethanol encoded a phospholipase C (plc; A1S_0043). A. baumannii has another gene encoding a phospholipase C (A1S_2055). Both genes are absent in the non-pathogenic A. baylyi ADP1 but present in other strains of A. baumannii that have been sequenced [23]. The proteins encoded by A1S_0043 and A1S_2055, show a similarity of 72%, and both are highly similar (75% similarity) to the phospholipases reported for Burkholderia pseudomallei. As is the case for phospholipase C proteins in other bacteria [85],[86], the N-terminal region contains the conserved residues that are recognized by the twin-arginine secretion system; therefore both phospholipases may be secreted. In addition, from the gene arrangement it can be proposed that A1S_0043 is expressed as a monocistronic mRNA since no other coding region is predicted to be located in the adjacent 404 bp downstream A1S_0043, and the upstream ORF, A1S_3479, is transcribed in opposite direction.

To evaluate the contribution of the phospholipase C (encoded by A1S_0043, from here on referred to as plc1) to A. baumannii virulence, we isolated a mutant strain carrying the insertion of a kanamycin cassette in the coding region of plc1 (see methods). This mutant strain did not show any apparent growth defects upon growth in liquid medium (data not shown). The ability of this strain to produce cellular damage on a monolayer of epithelial cells was tested as described below.

Infection of epithelial cells

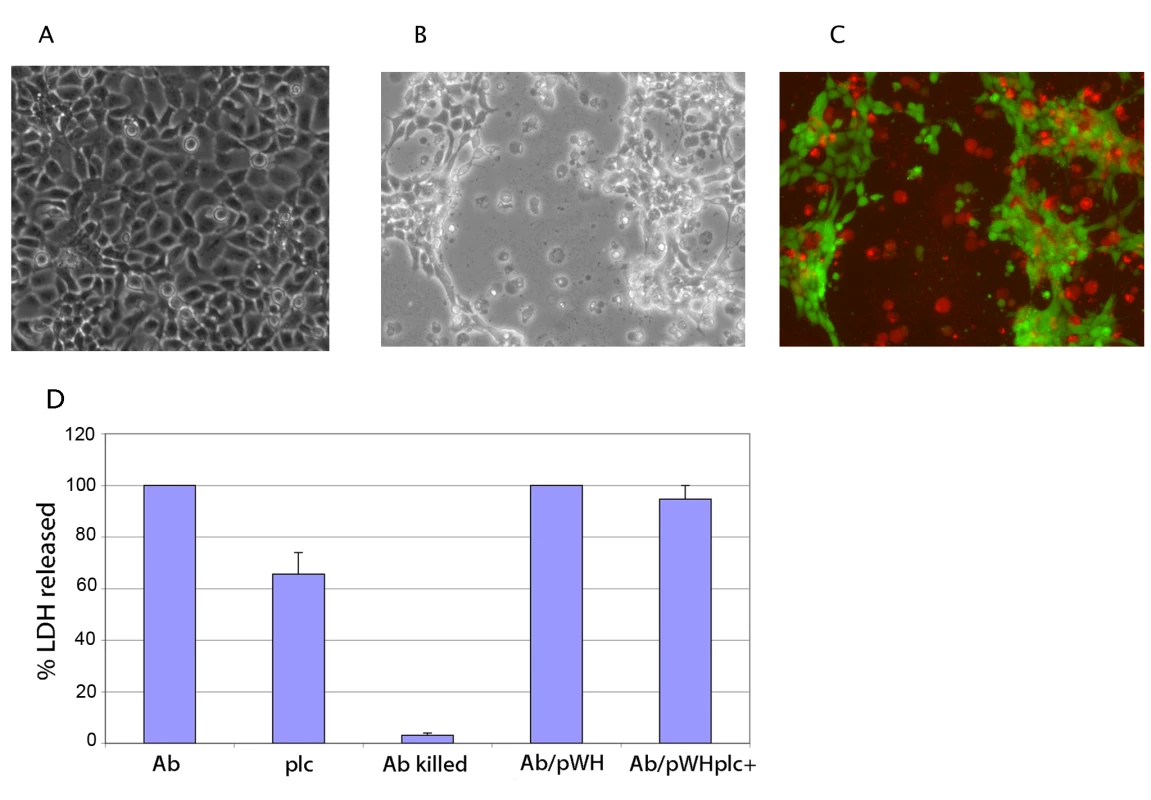

Incubating a monolayer of epithelial cells in the presence of A. baumannii has been reported to elicit several morphological and physiological changes, such as loss of viability as revealed by trypan blue staining, detachment from the culture plate, and a general shrinking of the cells [14],[87]. Consistent with these reports we found that after infection, FaDu epithelial cells became permeable to trypan blue indicating that A. baumannii compromises the membrane permeability. Furthermore, after 18 h of infection we observed extensive detachment of the cell monolayer and cellular death in many of the remaining cells (Fig. 4B and C; stained non-infected controls are shown in Fig. S1). It has been shown that the intracellular enzyme lactate dehydrogenase (LDH) is released into the culture medium after any insult that compromises the integrity of the plasma membrane. Therefore, we assessed cell damage by measuring LDH release upon infection with A. baumannii. For this assay, a monolayer of FaDu cells was infected with A. baumannii and the amount of LDH released was measured after 22 h of incubation. The amount of damage produced by the different strains was estimated as percent of the amount LDH released when the cells were infected with wild-type A. baumannii. As shown in Fig. 4D, only live bacteria triggered LDH release indicating that cell damage is a consequence of the bacterial infection.

Using this assay, the cytotoxic effect produced by the strain carrying the plc1Δ::kan allele was determined. A reduction in the amount of LDH released into the culture medium upon infection with this strain was observed (Fig. 4D). To further validate this result an infection was carried out with either the wild-type or the plc1 mutant transformed with pWH1266-Gm (empty vector) and pWH1266-Gm containing the plc1 gene, respectively. Cells infected with wild-type and plc mutant strain containing the plc1+ gene released a similar amount of LDH (Fig. 4D), indicating that phospholipase C contributes to cause cellular damage. Bacteria recovered from the infection plate were used to confirm that the complementing plasmid was stably maintained without detectable rearrangements (data not shown).

Phospholipase C has been reported as a virulence factor in many bacteria, such as Pseudomonas aeruginosa, Legionella monocytogenes and in the Gram-positive bacteria Clostridium perfringens [77],[88]. P. aeruginosa has an acidic phospholipase that shows strong hemolytic activity, and contributes to its ability to cause cellular damage [89]. Recently it has been shown that L. monocytogenes uses a phosphatidylinositol-specific phospholipase C to escape efficiently from the phagosome in macrophages [79],[90], and it also has a phosphatidylcholine-prefering phospholipase C that is involved in the escape from the phagosome in epithelial cells [91],[92]. B. pseudomallei has two phospholipases C that hydrolyze phosphatidylcholine and sphingomyelin and neither is hemolytic for human erythrocytes. However, it was reported that Plc-2 has a significant role in the virulence of this pathogen towards HeLa cells, whereas Plc-1 seems to have a minor one [78]. Thus, our results demonstrating that A. baumannii phospholipase C is important for virulence is consistent with finding with several other organisms.

Overall our results demonstrate a number of important conclusions:

First, RNA-Seq provides a comprehensive, detailed overview of the bacterial transcriptome. Even though contaminating rDNA reads can be present in large numbers, large numbers of unique reads can still be obtained by deep sequencing.

Second, in A. baumannii, ethanol is efficiently assimilated as a carbon source through the glyoxylate cycle that is a pathway required for full virulence in many pathogens.

Third, ethanol induces the expression of many proteins related to stress, including UspA, Hsp90, GroEL, Lon. Specific stress responses may help bacteria to contend with adverse condition pathogens face during infection.

Fourth, ethanol induces the expression of a phospholipase C that contributes to A. baumannii cytotoxicity.

Fifth, ethanol promotes the growth of A. baumannii, and presumably during stationary phase the resources of the medium are more efficiently utilized by the induction of the two Fe uptake systems and the high-affinity phosphate transporter system. Thus, overall these studies contribute a wealth of new information into the pathogenic response of Acinetobacter baumannii.

Methods

Bacterial strains, plasmids, oligonucleotides, and growth conditions

A. baumannii ATCC17978 was grown in YPDA culture medium (1% yeast extract, 2% peptone, 2% dextrose, and 0.012% adenine sulfate) at room temperature, or at the temperature indicated. When indicated, 1.1% ethanol was added to the culture medium. In this study 1.1% ethanol was used instead of 1% ethanol as previously published [20] because 1.1% ethanol caused more reproducible effects previous reported on A. baumannii growth. Bacterial strains were also grown in LB. When required, antibiotics were added at the following concentrations: ampicillin (100 µg/ml), kanamycin (50 µg/ml), gentamicin (20 µg/ml), tetracycline (10 µg/ml). Cloning were performed using the plasmids pCR2.1-TOPO (Invitrogen) and pUC19R (Invitrogen). pUC4K was used as source of the kanamycin cassette (GE Healtcare Life Sciences). pJQ200 was used as suicide plasmid [93]. pJQ200 confers Gm^R and carries the sacB gene from Bacillus subtilis to counterselect the presence of the plasmid in the presence of sucrose. This plasmid was also used as a source of the Gm^R cassette. pWH1266 was used as a shuttle vector for E. coli and A. baumannii [94]. pMP220 was used to construct transcriptional fusions to the promoter-less lacZ [95]. The sequences of the oligonucleotides used in this work are in Table S3.

Recombinant DNA techniques

Chromosomal DNA was obtained using the GenElute Bacterial Genomic DNA kit from Sigma-Aldrich. Plasmids were purified using the plasmid purification kit from Qiagen. DNA was amplified using PrimeStar HS Taq polymerase or LA Taq polymerase (Takara) according to the recommendations of the manufacturer. Transformation of E. coli was carried out using CaCl₂ competent cells [96]. Electroporation was used to transform A. baumannii cells, following the protocols previously reported [97].

RNA isolation

A baumannii cultures were grown to mid-log phase (OD_{600 nm} = 1.8) in YPDA or YPDA with 1.1% ethanol, at room temperature and shaking of 150 rpm. The cells were collected at 4°C and the RNA was isolated using the RiboPure-Bacteria kit (Ambion) according to the manufacturer's instructions. Residual DNA in the samples was removed using DNaseI. The integrity of the RNA was analyzed using an Agilent bioanalyzer (Agilent technologies). The MICROBExpress kit (Ambion) was used to remove the 23S and 16S rRNA from the total RNA samples. When indicated, the samples of enriched mRNA were subject to a final step of purification using the Megaclear kit from Ambion. To evaluate the degree of rRNA depletion the samples were analyzed on an Agilent bioanalyzer. The same protocol was used to isolate RNA from A. baumannii cultures from stationary phase. In this case, the cells were collected three hours after the OD₆₀₀ of the cultures did not show any further increase.

cDNA synthesis and preparation of the library for high-throughput sequencing

The first two libraries (corresponding to the cultures with or without ethanol) were obtained using 2 µg of enriched mRNA that was depleted only once with the ribo-minus beads included in the MICROBExpress kit. For the samples corresponding to the biological duplicates, we performed two steps of depletion with ribo-minus beads and an additional purification step using the Megaclear kit. Double-stranded cDNA was obtained using hexameric random primers and the Super-script double-stranded cDNA synthesis kit from Invitrogen. The cDNA was purified using the Qiaquick PCR Purification kit from Qiagen, and subject to a partial digestion with DNaseI in order to obtain a substantial enrichment of fragments between 100 and 300 bp. After digestion, the sample was loaded on a 1.2% agarose gel, and the fragments between 100 and 300 bp were purified using the Qiaquick Gel Extraction kit from Qiagen. The ends of the fragments were end-repaired and A-tailed. For this, the End-It kit (Epicenter) was used according to the manufacturer's instructions. The repaired cDNA was purified using the Qiaquick PCR purification kit and A-tailed using the Klenow fragment of the DNase polymerase (NewEngland-BioLabs) and dATP. The sample was purified and ligated to the genomic adapters provided by Illumina. After ligation, the sample was loaded on a 2% agarose E-gel (Invitrogen), and the fragments between 150 and 350 bp were excised from the gel and purified using the Qiaquick gel extraction kit. A PCR reaction of the gel-purified cDNA was performed in 50 µl using the 1X master mix Phusion-High Fidelity DNA polymerase, and the primers 1.1 and 2.1 provided by Ilumina. The reaction was amplified with 17 cycles, and the sample loaded on a 1.2% agarose gel and the fragments between 150 and 350 bp were excised from the gel and purified. The sample was quantified spectrophotometrically using a nanodrop (Thermo) and sequenced in a Genome analyzer II (Illumina).

Data analysis

The raw reads of 35 bp were truncated as 28-mers and remapped with the Efficient Local Alignment of Nucleotide Data (ELAND) allowing for 1 and 2 nt mismatches. The output file containing only the sequences that mapped once in the genome was further analyzed to ascertain genome coverage and to assign the number of reads per locus (orf or intercistronic region). To identify the genes regulated by ethanol, the libraries were initially compared by pairs; for this, the number of reads for each coding region was determined, the number of total reads was normalized between these libraries and the ratio of reads between ethanol and no ethanol was calculated. The genes that showed a ratio larger than 1.9 and lower that 0.5 were considered potential candidates. Finally, the number of reads for the four libraries was normalized and the Student's t-test was applied for each gene. Those genes that showed a P-value lower or equal to 0.05 were considered as genes regulated by ethanol. To obtain information regarding the level of expression among the genes, we calculate the number of relative reads (NRR) per coding region using a window of 250 bp.

Quantitative RT-PCR

The RNA was isolated as described in the previous section. As templates for this assay we used the same RNA samples that were used for the synthesis of first Illumina libraries and two additional pair of samples that were independently obtained. The reverse transcription step was carried out using the iScript Select cDNA Synthesis Kit from Bio-Rad, according to the manufacturer's instructions. The primer3 software [98] was used to select primers that would amplify a product of approximately 200 bp. The quantitative real-time PCR assay was performed with SYBR-Green I master mix (Applied Biosystems) in a LightCycler 480 system. Reactions were set up according to the manufacturer's instructions, and three technical replicates for each sample were included. The amplification conditions were: 95°C, 5 min (ramp/rate of 4.8°C/s), followed by 45 cycles of 95°C 10 sec (ramp/rate 4.8°C/s), 55°C 20 sec (ramp/rate 2.5°C/s), and 72°C 30 sec (ramp/rate 4.8°C/s). The specificity of the reaction was confirmed by obtaining a melting curve from 95 to 55°C and visualizing the amplified product in a 5% polyacrylamide/TAE gel. The absence of product using only RNA in the PCR reaction (without reverse transcriptase) was also verified. The Cp value was defined as the cycle in which the fluorescence value was above the background. The efficiency of the amplifications for each pair of primers was determined obtaining a standard curve using serial dilutions of DNA. The efficiency was calculated using the formula E = 10(1/-s)X100 where s is the slope of the curve. The fold change was calculated using the 2^−ΔΔCt (2^−ΔΔCp) method [99]. A1S_2846 encoding a putative sulfite reductase was used as internal control. Similar results were obtained if A1S_0880 encoding MinC was used as internal control instead of A1S_2846.

Isolation of mutant strains and recombinant plasmids

To obtain the A. baumannii mutant strain in the plc1 gene, a fragment of 2579 bp carrying the plc1 gene was amplified by PCR using the oligonucleotides A1S_0043.1 and A1S_0043.2 and cloned into pCR2.1-TOPO plasmid. An internal fragment of 519 bp from the coding region of plc1 was removed by inverse PCR using the oligonucleotides A1S_0043.A and A1S_0043.B and substituted with a kanamycin resistance cassette. The DNA fragment carrying the plc1Δ::kan allele was subcloned into pJQ200. The resultant plasmid was used to electroporate A. baumannii cells. Single recombinants appeared after overnight incubation on LB plates in the presence of gentamicin. Double recombinants were selected plating serial dilutions of different Gm^R colonies on LB plates with kanamycin and 3% sucrose. The proper replacement was confirmed by PCR. Plasmid pWH1266 (Ap^R Tc^R) that is stable in A. baumannii was used to carry the plc1 gene. To generate this construct a PCR fragment carrying plc1 (oligonucleotides A1S_0043.1 and A1S_0043.2) was cloned into pWH1266 using the BamH1 and SalI sites. It has been shown that a gene cloned in these sites is expressed under control of the Tet promoter. The resulting plasmid does not confer any Tc resistance and given that A. baumannii ATCC17978 is Ap^R, we proceeded to construct the plasmids pWH1266-Kan and pWH1266-Gm, in which a kanamycin or gentamicin resistance cassette was cloned into the EcoRI site of pWH1266. The gene conferring Gm^R resistance was obtained by PCR using the oligonucleotides acc3 and acc4. The gene conferring Kan^R was obtained by PCR using the oligonucleotides Kanfw1 and Kanrev1. The plc1 gene was cloned in pWH1266-Kan^R and pMH266-Gm^R. As a control the gfp gene was cloned in pWH1266-Kan and introduced to A. baumannii; as expected, green-fluorescent cells were observed. The pMP220/2248p plasmid carrying the transcriptional fusion of lacZ to the control region of A1S_2448 was constructed by cloning a PCR fragment of 913 bp obtained by PCR using the oligonucleotides AB2448up2 and AB2448dw5. This fragment carries the promoter region located upstream of A1S_2448.

β-Galactosidase assay

A. baumannii cells carrying pMP220/2248p were grown in YPDA-Tc, or YPDA-Tc supplemented with 1% ethanol, or 10 mM PO₄ buffer pH 7. The cultures were grown aerobically at 30°C and aliquots were assay at different time points. β-galactosidase activity was determined in Chloroform/SDS-permeabilised cells. Hydrolysis of o-nitrophenyl-β-D-galactopyranoside was carried out at 37°C. Activities are expressed in terms of cell density using the formula of Miller [100].

Lactate dehydrogenase (LDH) assay

The FaDu cell line originating from a hypopharyngeal carcinoma was obtained from ATCC (ATCC HTB-43). The cell line was grown under 5% CO₂ at 37°C in Eagle's minimum essential medium with Earle's balanced salt solution (ATCC 30–203) supplemented with 10% heat-inactivated fetal bovine serum (Gibco 16140) and 1% of a solution containing penicillin/streptomycin at 10,000 U/ml and 10 mg/ml, respectively (Gibco 15140). The cells were seeded in 12 well-plates and infected when they reached 5×10⁵–7×10⁵ cells per well. Before infection, the monolayer of epithelial cells was carefully washed with PBS, and fresh medium without antibiotics was added. Bacterial strains were grown on plates of LB or LB with the appropriate antibiotic and incubated overnight at 37°C. The next day a suspension of bacterial cells was prepared in PBS, and the OD₆₀₀ was registered and adjusted (2 OD_{600 nm} = 1×10⁹ cells/ml). Formaldehyde-fixed bacteria were prepared by incubation of the suspension in 1% formaldehyde for 4 h at 4°C as described [101]. The epithelial cells were infected at an MOI of 100 with no more than 10 µl of bacterial suspension. Mock-infections and infections were done in duplicate. The plates were centrifuged at 1,500 rpm for 5 min and then incubated for 22 hrs at 37°C and 5% CO₂. The amount of LDH released into the culture medium was determined according to the manufacturer's instructions (BioVision Research Products. Mountain View, CA). Each set of experiments was performed in triplicate. Bacteria recovered from the infection plate were used to determine the number of colony forming units on plates with and without gentamicin. The restriction pattern of the plasmid obtained from these cells was analyzed by double digestions with EcoRI and SalI or EcoRI and BamHI.
