The and Genetic Modules Interact to Regulate Ciliogenesis and Ciliary Microtubule Patterning in

Summary

Cilia are sensory organelles that are found on most types of human cells and play essential roles in diverse processes ranging from vision and olfaction to embryonic symmetry breaking and kidney development. Individual cilia are divided into multiple functionally and compositionally distinct compartments, including a proximal “Inversin” compartment, which is located near the base of cilia. We used the nematode C. elegans, a well-defined animal model of cilia biology, to characterize the genetics, components, and defining properties of the proximal cilium. The Inversin compartment is conserved in C. elegans, and is established independent of another proximal ciliary region, the microtubule doublet-based region. We showed how components of both the doublet region and the Inversin compartment genetically interact to regulate many pathways linked to core aspects of cilia biology, including ciliogenesis, cilia placement, cilia ultrastructure, microtubule stability, and the protein composition of ciliary compartments. In addition to expanding and clarifying our knowledge of basic cilia biology, these results also have direct implications for human health research because several of the genes and pathways explored in our work are linked to ciliopathies, a group of diseases caused by dysfunctional cilia.

Introduction

Cilia are cellular “antennae” that mediate the transduction of environmental signals into intracellular pathways. Cilia play an integral role in many cellular functions, including developmental signaling, symmetry breaking, cell-cell adhesion, cell-cycle control, stress response, and DNA damage response (e.g., [1]–[6]). The vast majority of cilia share a set of evolutionarily conserved features: cilia are supported by a microtubule-based backbone, the axoneme; are built by intraflagellar transport (IFT), a microtubule motor driven cargo transport system [7]; and can be divided into structurally and functionally distinct compartments. These compartments include the microtubule triplet basal body which roots the cilium to the cell, the microtubule doublet transition zone (TZ) which anchors the cilium to the membrane, and the microtubule doublet cilia shaft where IFT occurs. The basal body and TZ also act as selective filters for inbound and outbound ciliary cargo, functioning through physical occlusion and cargo-specific recognition mechanisms [7]–[9]. The cilia shaft has traditionally been treated as an undifferentiated whole [10], though recent evidence has shed light on subdivisions of the cilia shaft [11].

Inversin/Nephrocystin-2 specifically localizes to the Inversin compartment (InvC), a proximal portion of the cilia shaft adjacent to the TZ [12]. This region has been suggested to play a role in signal transduction and amplification [13]–[15], cilia placement, and ciliogenesis [16], [17]. Products of several genes—including INVS/NPHP2, NPHP3, NEK8/NPHP9, and ANKS6/NPHP16—localize to the InvC. Interactions between InvC genes and other cilia genes have only recently begun to be explored and have not been well generalized across animal and cell culture models [18]–[22].

The mechanisms that initially establish the InvC are currently unknown, though recruitment pathways for several InvC components are known. Work in vertebrate models has shed light on an InvC-specific physical interaction complex composed of Inversin, Nek8, Nphp3, and Anks6 [23]–[25]. Nek8, Nphp3, and Anks6 localize to the InvC in an Inversin-dependent manner, but Inversin itself localizes independently of the other proteins [23], [24]. Unc119b—a possible, though not proven, InvC component—may mediate an InvC-targeting pathway. In mammalian cells, Unc119b binds myristoylated cargo, including Nphp3, and shuttles it into the cilium. Once the Unc119b-Nphp3 complex has translocated into the cilium, the small GTPase Arl3 triggers Unc119b to release bound cargo [26]. InvC components other than Nphp3 are not known to be myristoylated and shuttled via Unc119b, suggesting additional InvC targeting pathways must exist. Whether Unc119b is required for the localization of Inversin and how Unc119b itself is targeted to the proximal cilium is unknown.

The nematode Caenorhabditis elegans is a well-studied model of cilia biology [27]. C. elegans possesses a ciliated nervous system [28]–[31] which is primarily used by the roundworm to detect internal and external cues and signals. Amphid channel cilia in the head and phasmid cilia in the tail are exposed to and sense the external environment through cuticular pores [32], [33]. Unlike most mammalian primary cilia, the cilia shafts of C. elegans amphid channel and phasmid cilia are divided into two regions: a proximal microtubule doublet-based region attached to the TZ, and a distal microtubule singlet-based region that extends from the doublet region [32], [33]. As both the doublet region of C. elegans cilia and the InvC of mammalian primary cilia lie at the proximal end of the cilium, directly adjacent to the TZ at the cilia base, and constitute only a portion of the length of the cilia shaft, previous work has viewed them as compositionally and functionally similar [13], [17], [34]. The relationship between the mammalian InvC and the C. elegans doublet region of cilia has not been well characterized; Here we present evidence that the InvC and the doublet region are distinct, but overlapping, ciliary regions.

The C. elegans genome encodes orthologs for several of the mammalian InvC-associated proteins, including Inversin itself (NPHP-2), Unc119b (UNC-119), Arl3 (ARL-3), and possibly Nek8 (the uncharacterized paralogous pair NEKL-1 and NEKL-2), but likely not Nphp3 or Anks6. Of these, NPHP-2 and ARL-3 have previously been shown to be doublet region-localizing in C. elegans [17], [35]. C. elegans also possess several doublet region-enriched proteins, which are not InvC restricted in mammalian primary cilia; these include the kinesin-II IFT motor KLP-11 and the membrane-associated small GTPase ARL-13 [35]. The IFT motors Kinesin-II and OSM-3 work cooperatively to carry the IFT assemblies IFT-A and IFT-B and to build the doublet region—OSM-3 alone is sufficient to build the singlet region [36]. ARL-13 likely stabilizes the interaction between IFT-A and IFT-B particles and is required for ultrastructural integrity of the doublet region [35], [37]. arl-13 mutants exhibit multiple ciliary defects, some of which can be suppressed by deletion of histone deacetylase hdac-6, through an unknown mechanism [35]. Mammalian HDAC6 also antagonizes ciliogenesis in mammalian primary cilia: HDAC6 knockouts can suppress ciliogenesis defects arising from INVS/NPHP2 RNAi in MDCK cells [16].

In this work, we aimed to molecularly dissect the proximal cilium of C. elegans and to gain insight into the nature of the InvC and doublet region. We examined interactions between genes associated with the doublet region, determined the territories and localization dependencies of the protein products of these genes, and performed ultrastructural analysis of deletion mutants of these genes. We find that the InvC is conserved in C. elegans, is established early in development, and is distinct from the doublet region. nphp-2 interacts with doublet region genes to regulate cilia placement, microtubule ultrastructural patterning, tubulin glutamylation, and territory sizes of NPHP-2 and ARL-13. Finally, we show that nphp-2, arl-13, klp-11, and unc-119 fall into two parallel redundant genetic modules, and that interactions between the two modules are modulated by hdac-6 and arl-3. Together, the InvC and the doublet region function in concert to regulate many critical aspects of ciliogenesis and cilia biology.

Results

Genetic interactions between nphp-2 and arl-13 are modulated specifically by hdac-6

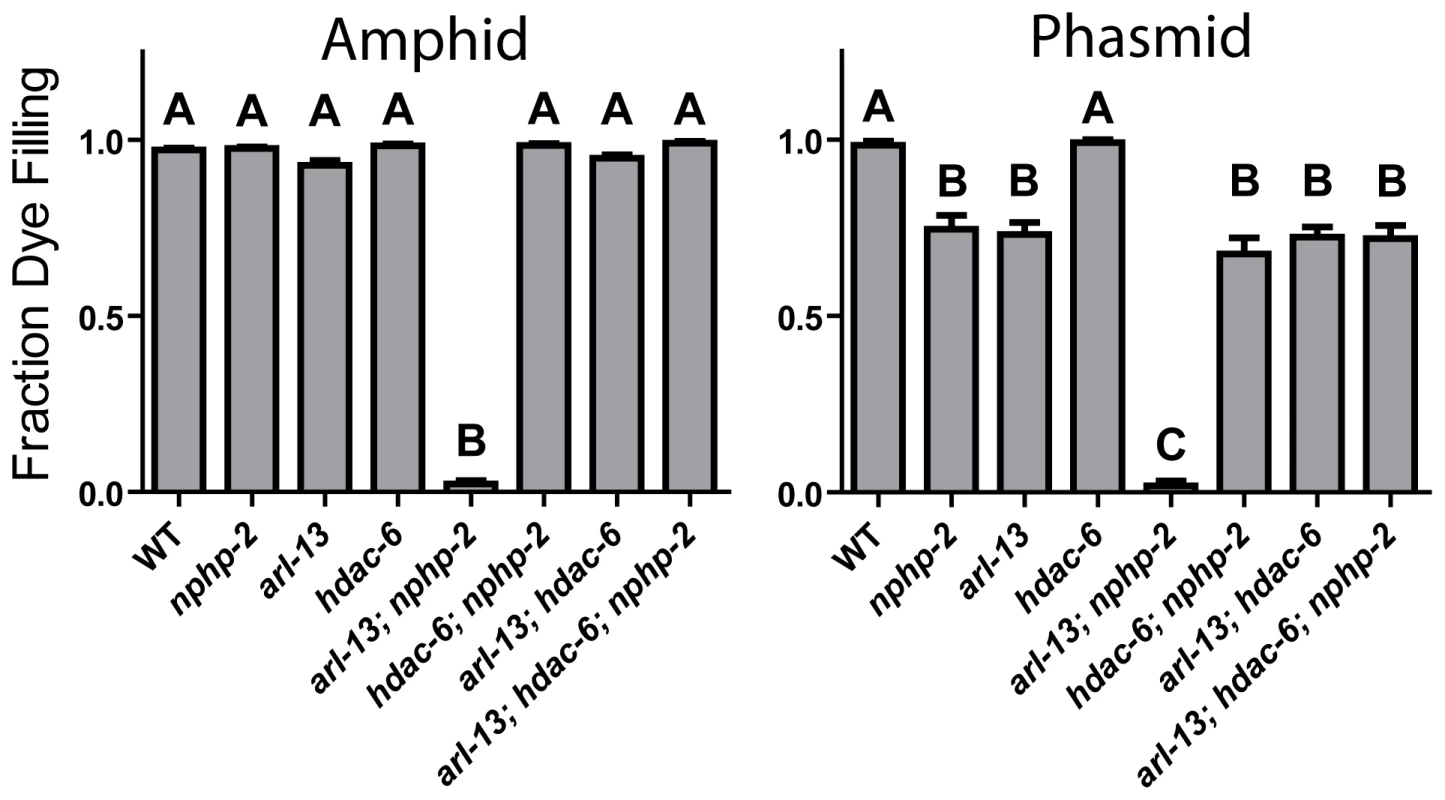

nphp-2 and arl-13 single mutants have statistically similar, moderate ciliogenic defects (Fig. 1). As hdac-6 and arl-3 modulate several arl-13 phenotypes [35], we sought to determine if nphp-2 and arl-13 genetically interact and if hdac-6 and arl-3 modulate nphp-2 phenotypes. We examined double, triple, and quadruple mutant combinations using “dye filling” of ciliated neurons as a gross indicator of ciliogenesis and cilia integrity [32]. Properly formed and placed cilia are environmentally exposed and take up fluorescent DiI dye, whereas stunted and misplaced cilia are not exposed and cannot take up DiI. Unlike the mild dye-filling defects (Dyf) of nphp-2 and arl-13 single mutants, arl-13; nphp-2 double mutants were severely synthetic dye-filling defective (SynDyf) in both the amphids and phasmids (Fig. 1). hdac-6 deletion did not suppress nphp-2 or arl-13 Dyf; this is contrary to previously published data indicating that hdac-6 can partially suppress the weak arl-13 single mutant Dyf, and may be due to a difference in dye filling or scoring method [35] (Materials and Methods). However, hdac-6 suppressed the arl-13; nphp-2 severe SynDyf phenotype to the mild Dyf severity of the single mutants in both amphids and phasmids (Fig. 1). hdac-6 may function by suppressing defects arising from one of the pathways or at a point where the two pathways converge. Combined, this data indicates that arl-13 and nphp-2 act in partially redundant parallel pathways antagonized by hdac-6.

arl-3 has also been implicated as a modulator of the arl-13 pathway [35]. We found that, unlike the interactions with hdac-6, interactions with arl-3 are cell-type specific (S1A Figure). Both arl-3 single mutants and arl-3; hdac-6 double mutants were nonDyf in both amphids and phasmids. In amphids, arl-13; arl-3 was mildly SynDyf, whereas arl-3; nphp-2 is nonDyf (cf. Fig. 1 and S1A Figure). hdac-6 deletion suppressed the arl-13; arl-3 phenotype to a severity similar to that of the arl-13 single mutants. In phasmids, both arl-13; arl-3 and arl-3; nphp-2 double mutants exhibited a moderate SynDyf phenotype. hdac-6 suppressed arl-13; arl-3 defects, but not arl-3; nphp-2 defects. Strikingly, in both amphids and phasmids, arl-3 deletion prevented the hdac-6 Dyf suppression in the arl-13; hdac-6; nphp-2 triple mutant described above. The SynDyf phenotype of arl-13; arl-3 is qualitatively different from the suppression of arl-13 Dyf defects by arl-3 found previously [35]. Similarly to the difference in hdac-6 suppression of arl-13 defects discussed above, this may be due to different scoring methods or assay conditions. We conclude that arl-3 functions parallel to both nphp-2 and arl-13 pathways, and likely lies in the same regulatory pathway as, but acts antagonistically to, hdac-6.

nphp-2 and arl-13 genetically interact to regulate amphid cilia ultrastructure

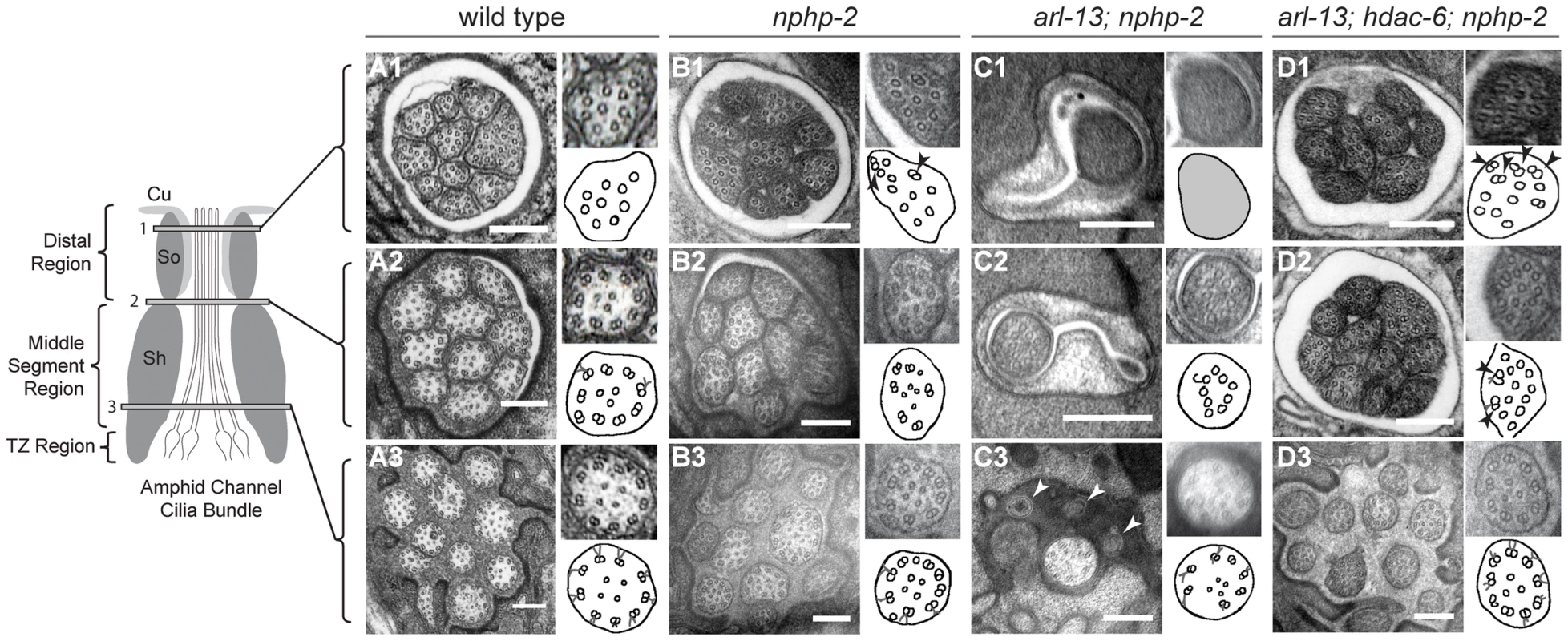

To gain a better understanding of the defects present in nphp-2 single and arl-13; nphp-2 double mutants, and to examine the effects of hdac-6 mediated suppression of the double mutant defects, we used serial-section transmission electron microscopy (TEM) to examine the ultrastructure of amphid channel cilia. Wild-type amphid cilia are divided into three segments based on microtubule ultrastructure: the TZ, the doublet region, and the singlet region (Fig. 2A). One of the two microtubules within a doublet, the A-tubule, extends to form the microtubule singlet seen in the distal cilium (Fig. 2A1); the second tubule of the doublet, the B-tubule, terminates at the distal end of the doublet region. The doublet microtubules of the TZ and doublet region are arranged in a circular pattern in close proximity to the ciliary membrane (Fig. 2A2, 2A3). Within a particular cilium, microtubule ultrastructural characteristics—the location in the lumen, membrane association, and singlet/doublet architecture—are similar across all nine outer microtubule doublets.

In nphp-2 single mutants, in a given amphid cross-section at a single level, we observe singlet regions of some cilia, doublet regions of other cilia, and TZs of the remaining cilia. This is consistent with amphid cilia that were shifted lengthwise with respect to each other, indicating a potential anchoring defect (Fig. 2B3). Additionally, within a given cilium, doublet and singlet microtubule spans were no longer aligned. In sections across the proximal axoneme, this appeared as singlets amongst the expected doublets, and in sections across the distal axoneme, this appeared as doublets interspersed between the expected singlets (Fig. 2B1–3). These defects indicate that nphp-2 is required both for microtubule patterning and for cilia anchoring. While the chemical fixation method utilized here does not preserve Y-link ultrastructure well, nphp-2 mutants exhibited significantly greater Y-link disorder than observed in wild-type animals. The TZ defects seen in nphp-2 animals may be related to both the lengthwise cilia shift and the TZ-placement defect previously reported in nphp-2 mutants [17]. This set of defects has not been reported in any other C. elegans cilia mutant, suggesting that nphp-2 functions in a novel capacity.

arl-13 single mutants also exhibit a range of ultrastructural defects [35], [37]. Doublets are observed in the central lumen of the cilium, which may originate from either displaced outer doublets or mispatterned inner singlets. In both C. elegans arl-13 and hennin/ARL13B mouse mutants, there is also an increased frequency of early B-tubule detachment from the A-tubule, indicative of microtubule stability or patterning defects [38]. Similar to nphp-2 mutants, ectopic microtubule singlets were sometimes visible in the doublet region of arl-13 worms [35], [37]. arl-13; nphp-2 double mutants exhibited extreme ultrastructural defects, likely causative of the severe Dyf phenotype (Fig. 2C1–3). Cilia were almost completely absent from the amphid channel pore. No other cilia were visible even at the distal dendritic level. In one instance, a single cilium was visible in TEM sections. At the TZ level, an incomplete set of doublets was visible within the single cilium (Fig. 2C3). Closer to the socket cell/sheath cell transition, a set of singlets was visible (Fig. 2C2). At the distal pore, we were unable to resolve any internal structure due to electron dense material filling the cilium (Fig. 2C1).

Remarkably, in arl-13; hdac-6; nphp-2 triple mutants almost all defects observed in the double mutant were suppressed (Fig. 2D1–3). The only defects remaining were misplaced TZs (Fig. 2D3), ectopic singlets in the doublet region (Fig. 2D2), and ectopic doublets in the singlet region (Fig. 2D1), similar to those present in the nphp-2 single mutant. We did not observe inner doublets as reported in arl-13 single mutants [35], [37]. These results are consistent with the observed hdac-6 suppression of arl-13; nphp-2 Dyf defects.

Because nphp-2 and arl-13 both exhibit ectopic microtubule singlets, nphp-2 mutants exhibit ectopic microtubule doublets, and nphp-2; arl-13 double mutants exhibit severe defects in ciliogenesis, we conclude that nphp-2 and arl-13 function together redundantly in regulation of microtubule patterning and ciliogenesis. Because ciliogenic defects are suppressed by hdac-6, but ectopic doublets and singlets are not, ciliogenesis and microtubule patterning may be independently regulated.

NPHP-2 and ARL-13 do not require TZ- and doublet region-associated genes for ciliary targeting

Localization of InvC and doublet region components can be broken down into three steps: first the protein is targeted to the cilia base, second, the protein is imported into the cilium, and third, the protein is restricted to a subdomain of the cilium [23]. The factors required for the initial establishment of the InvC and doublet region cilia targeting and localization restriction are unknown. The TZ functions as a regulator of ciliary protein import (Reviewed in [39]), and has been implicated in the import of InvC and doublet region components in mammalian cilia [40], [41]. As both nphp-2 and arl-13 genetically interact with TZ-associated genes [17], [37], we wanted to determine if NPHP-2 and ARL-13 ciliary targeting and import requires TZ components. In C. elegans, TZ genes are organized into two genetic and physical modules—the mks module and the nphp-1+nphp-4 module [8], [17], [25], [42]. We examined the localization of NPHP-2 and ARL-13 in mutants missing a component of each module (Fig. 3A,C).

NPHP-2::GFP signal length is similar in wild-type and nphp-2 backgrounds (1.77±0.23 um vs 1.74±0.22 um, st. dev.) and NPHP-2::GFP rescues the SynDyf phenotype of the nphp-2 nphp-4 double mutant (Fig. 4B) [17]. These results indicate that this reporter reflects NPHP-2 functional and endogenous localization. In both nphp-4 and mks-3 single mutants, NPHP-2::GFP was properly targeted to and imported into the cilium. Mislocalized NPHP-2::GFP puncta in the periciliary region were sometimes visible (Fig. 3A). In mks-3; nphp-4 double mutants, there were severe ciliogenic and dendritic extension errors, as previously reported [17], [42]; in phasmid cilia that were visible and placed properly, NPHP-2::GFP localization appeared as in mks-3 and nphp-4 single mutants (S2A Figure). In a wild-type background, ARL-13::GFP localized exclusively to the doublet region in amphid channel and phasmid neurons (Fig. 3C). Like NPHP-2::GFP, ARL-13::GFP was targeted to and imported into the cilium properly in mks-3 and nphp-4 mutants. Similar to published reports, we also observed ARL-13::GFP mislocalization to the periciliary membrane, as judged by a fluorescent “fringe” surrounding the periciliary region where the membrane lies (Fig. 3C, enhanced contrast in S2B Figure), which has been suggested to be due to a failure of the TZ diffusion barrier [34]. In amphid cilia, like in phasmid cilia, both NPHP-2 and ARL-13 were targeted to the cilium and imported properly, and both infrequently exhibited mild mislocalization (S3 Figure).

We investigated whether doublet region-associated genes were required for doublet region restriction of NPHP-2::GFP and ARL-13::GFP. hdac-6 had no obvious effect on the localization of NPHP-2::GFP (S2A Figure). NPHP-2::GFP was targeted and restricted to the proximal cilium in both klp-11 and arl-13 mutants. In both mutants, periciliary puncta similar to those seen in TZ-associated mutants were visible (Fig. 3B). unc-119 mutants also exhibited proper NPHP-2::GFP ciliary targeting. In unc-119 mutants, NPHP-2::GFP exhibited a unique distal dendrite mislocalization pattern, distinct from the periciliary puncta seen in other TZ and doublet region mutants (Fig. 3B).

In klp-11 and nphp-2 mutants, ARL-13::GFP was restricted to a proximal portion of the cilium as in wild type, but with a periciliary membrane mislocalization pattern similar to TZ mutants. ARL-13::GFP also did not require unc-119 for ciliary localization. In unc-119 mutants, ARL-13::GFP and NPHP-2::GFP localized along the distal dendrite in a similar manner (Fig. 3D).

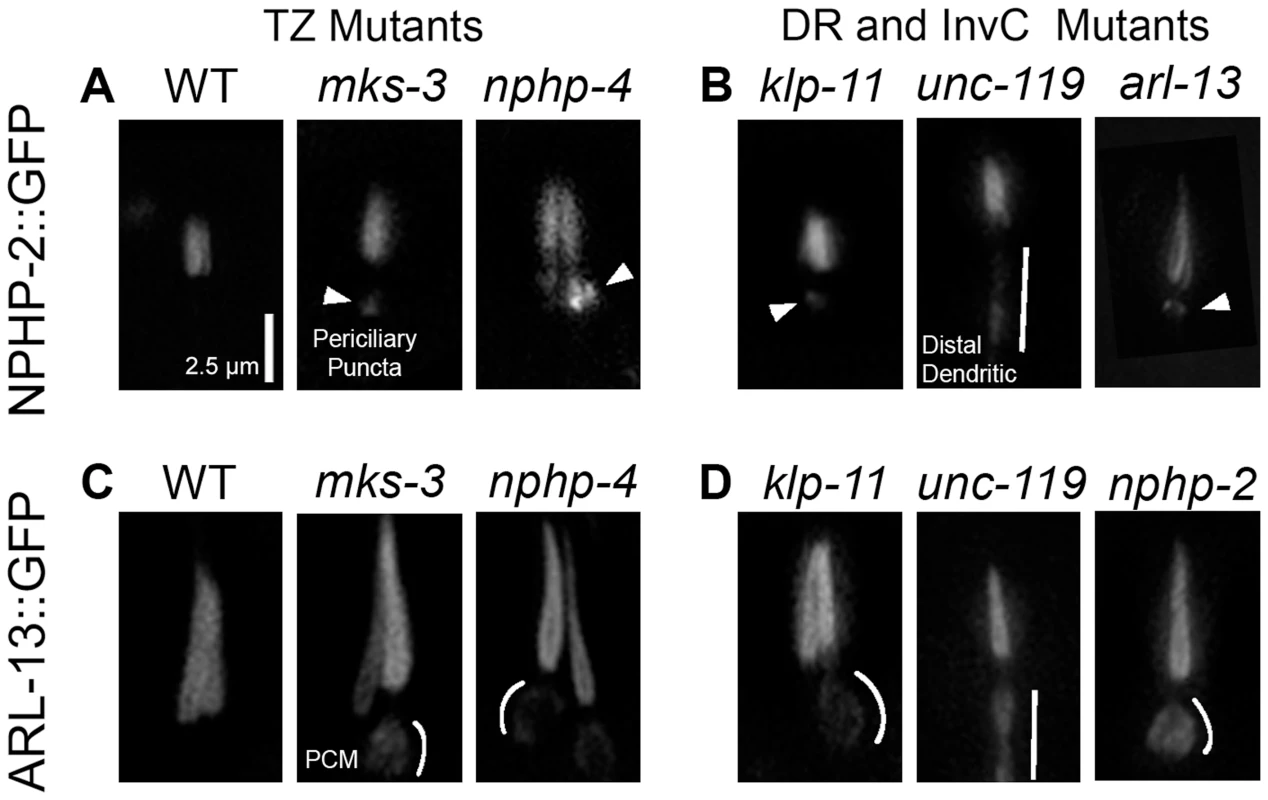

In all TZ, doublet region, and InvC mutants examined, NPHP-2::GFP and ARL-13::GFP still localized to the cilium, suggesting that either unknown factors or redundant pathways are required for establishing ciliary territories. Periciliary mislocalization was observed for both reporters across all mutant backgrounds. This suggests that either a delicate, easily perturbed interaction network is required for NPHP-2 and ARL-13 ciliary import/export, or that the overexpressed reporter constructs are “leaking” out of the cilium in sensitized mutant backgrounds, or a combination of both possibilities.

NPHP-2 requires its EF-hand for proper localization and function

We next looked to determine which domains of NPHP-2 were required for InvC localization. In mammalian models, several domains in Inversin are required for ciliary targeting and InvC restriction: the ankyrin repeat region, IQ2 domain, and ninein-homologous region (Fig. 4A) [12], [43]. The IQ and ninein homology domains are not conserved in C. elegans NPHP-2; only the ankyrin repeat region, hydroxylation motif (S8 Figure), and two nuclear localization signals (NLSs) are conserved (Fig. 4A) [17]. NLS motifs are hypothesized to play a role in ciliary protein import, and are required for ciliary import of the IFT motor KIF17 [9]. NPHP-2 also contains a predicted calcium binding EF-hand which may function in the same calcium detection capacity as the IQ domain of Inversin [17].

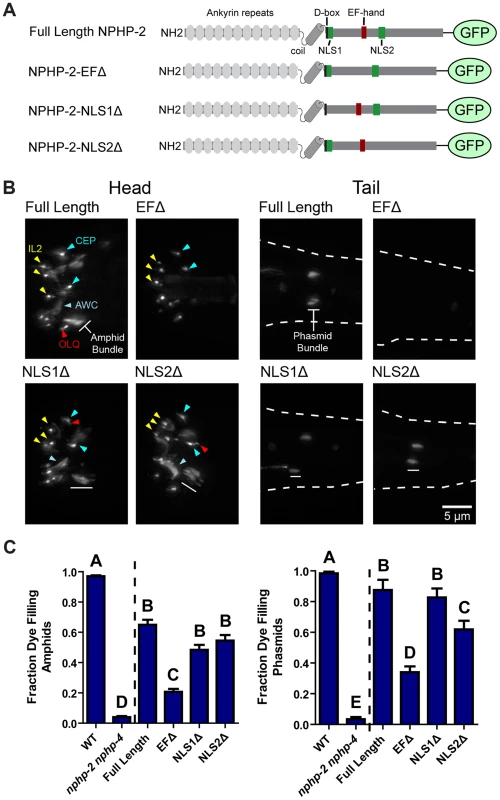

We built NPHP-2::GFP constructs missing the EF-hand (NPHP-2-EFΔ::GFP, residues 520–533), NLS1 (NPHP-2-NLS1Δ::GFP, residues 441–446), or NLS2 (NPHP-2-NLS2Δ::GFP, residues 598–603) (Fig. 4A). Full-length NPHP-2::GFP localized to a short proximal region of amphid channel and phasmid cilia as well as IL, CEP, OLQ, amphid channel and phasmid cilia, and the AWC wing cilia (Fig. 4B). Native promoter driven NPHP-2::GFP was not visible in AWB cilia, as reported previously for AWB-specific promoter driven NPHP-2 [13]. NPHP-2-EFΔ::GFP was generally faint or absent in amphid channel, AWC, and phasmid cilia, indicating that the EF-hand is strictly required for normal localization of NPHP-2 in these cell types. NPHP-2-EFΔ::GFP properly localized in IL cilia, indicating that the fluorescent reporter was being synthesized and folded correctly. NPHP-2-EFΔ::GFP was additionally present in either CEP or OLQ cilia, though specific identification was difficult due to their close proximity. Deletion of either NLS1 or NLS2 did not perturb NPHP-2 localization (Fig. 4B).

We next tested whether these domain deletion constructs were functional by attempting to rescue the severe Dyf phenotype of nphp-2 nphp-4 mutants; nphp-4 single mutants are nonDyf, allowing for easy determination of rescue [17]. Rescue of the nphp-2 nphp-4 SynDyf phenotype by NPHP-2-NLS1Δ::GFP and NPHP-2-NLS2Δ::GFP was comparable to rescue by full length NPHP-2::GFP. NPHP-2-EFΔ::GFP only weakly rescued the SynDyf phenotype, indicating that the EF-hand is critical for both normal function and localization of NPHP-2 (Fig. 4C). These results indicate that the calcium-binding EF-hand plays a significant role in both localization and function of NPHP-2 in amphid channel and phasmid cilia, but is dispensable for localization in cilia of CEP, OLQ, and inner labial neurons.

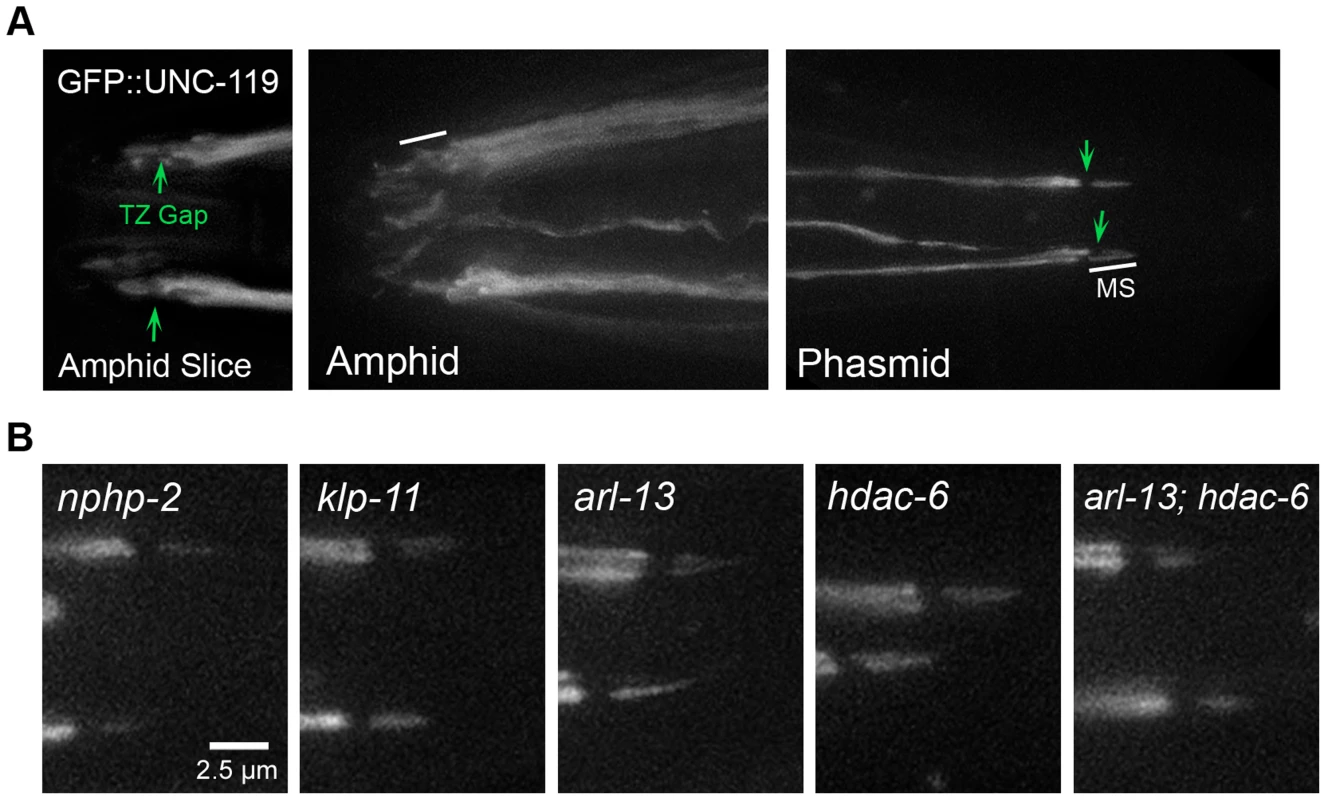

UNC-119 is associated with the doublet region

Mammalian Unc119b localizes to the proximal cilium and is required for the targeting of several proteins to the InvC [26], and C. elegans unc-119 is required for singlet region biogenesis in amphid cilia [44], suggesting a compartment-specific role. We therefore examined the localization of posm-6::GFP::UNC-119. In phasmid cilia, GFP::UNC-119 localization was similar to NPHP-2::GFP and ARL-13::GFP: its localization was restricted only to a small proximal portion of the cilium and was excluded from the TZ. Similar to localization in phasmid cilia, GFP::UNC-119 likely localized to the doublet region and not the entire cilium of amphid cilia (Fig. 5A). GFP::UNC-119 was not motile in cilia.

We also examined the dependence of UNC-119 localization on doublet region-associated genes. Specific amphid mislocalization was difficult to determine, and we therefore focused on phasmid cilia (S4 Figure). In phasmid cilia, GFP::UNC-119 did not require nphp-2, arl-13, hdac-6, or klp-11 for ciliary targeting or restriction to the proximal cilium (Fig. 5B).

IFT motors and unc-119 genetically interact with doublet region-associated genes

We examined the genetic interactions between the doublet region-associated genes nphp-2, arl-13, and their modulators hdac-6 and arl-3 with the two IFT motors, osm-3 and klp-11. In both amphids and phasmids, arl-13; klp-11 was SynDyf [37]. arl-13; klp-11 dye-filling defects were slightly suppressed by deletion of hdac-6 (Fig. 6A, S5A Figure). klp-11; arl-3 double mutants yielded a very mild SynDyf phenotype (S1B Figure). osm-3 single mutants are missing a singlet region and are completely Dyf, which precludes searching for synthetic interactors of osm-3. Instead, we assayed osm-3 double mutants for suppression of the severe dye-filling defect; in no mutant background examined was the defect suppressed (Fig. 6B, S5B Figure).

We next examined genetic interactions between unc-119 and other doublet region-associated genes. unc-119 single mutants were severely Dyf, with the phasmid phenotype being less severe than the amphids (Fig. 6B, S5A Figure) [44]. In phasmids, both nphp-2 and klp-11 were SynDyf with unc-119. Surprisingly, we found that hdac-6 suppressed Dyf defects in the unc-119; nphp-2 double mutant to the level of the nphp-2 single mutant (Fig. 6B). arl-3 deletion was also able to significantly suppress the unc-119 Dyf phenotype in both amphids and phasmids (S1B Figure).

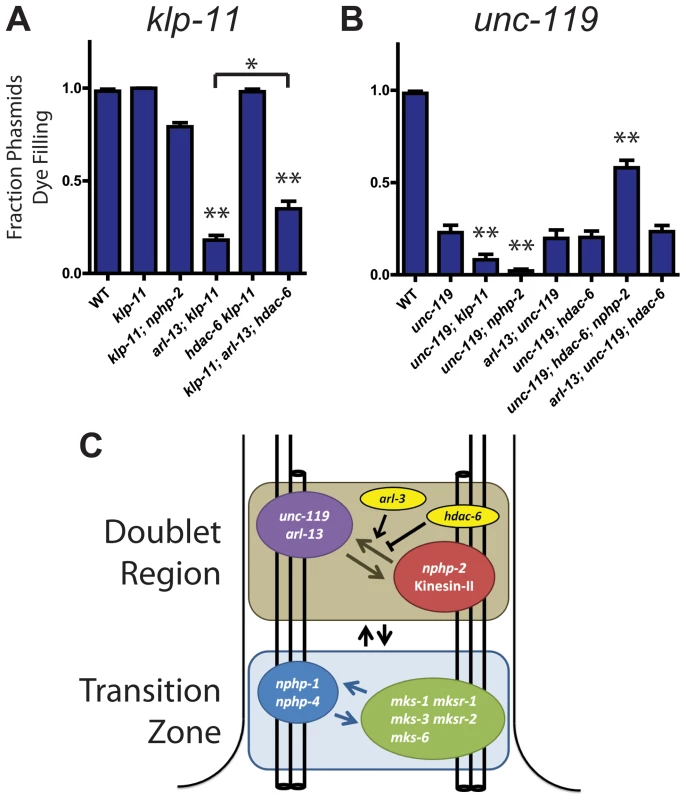

Genetic interactions between nphp-2, arl-13, klp-11, unc-119, hdac-6, and arl-3 are summarized in Fig. 6C. Doublet region-associated genes fall into two redundant pathways or modules: nphp-2+klp-11 and arl-13+unc-119. Deletion of two genes within a module does not result in an increase in Dyf severity over that present in single mutants, but deletion of any two genes from different modules yields a SynDyf phenotype. Interactions between these modules are regulated by hdac-6 and arl-3.

Double mutants with a deletion in a single TZ gene and a single doublet region gene are SynDyf. To determine whether hdac-6 mediated suppression of SynDyf defects extended to these cross-compartmental genetic interactions, we assayed for suppression of SynDyf defects in nphp-2 nphp-4 mutants by hdac-6 and arl-3. We found that neither hdac-6 nor arl-3 suppressed the severe nphp-2 nphp-4 SynDyf defect (S5D Figure). This suggests that hdac-6 functions specifically in doublet region pathways.

Axonemal glutamylation is downstream of the action of nphp-2, arl-13, unc-119, and hdac-6

Post-translational glutamylation predominantly occurs on the C-terminal tails of α- and β-tubulin of axonemal B-tubules [45]–[49], and regulates microtubule stability and IFT motor function [50]. Glutamylation is specifically associated with the doublet region, as B-tubules define and are only present in the doublet region. Additionally, in Chlamydomonas and Paramecium, TZ microtubules are not glutamylated [45], [51]. In C. elegans and vertebrates, mutants with defects in tubulin glutamylation or arl-13 exhibit B-tubule degeneration [38], [50], [52]. We therefore determined whether doublet region associated genes regulated tubulin glutamylation, or whether tubulin glutamylation specified the localization of doublet region proteins.

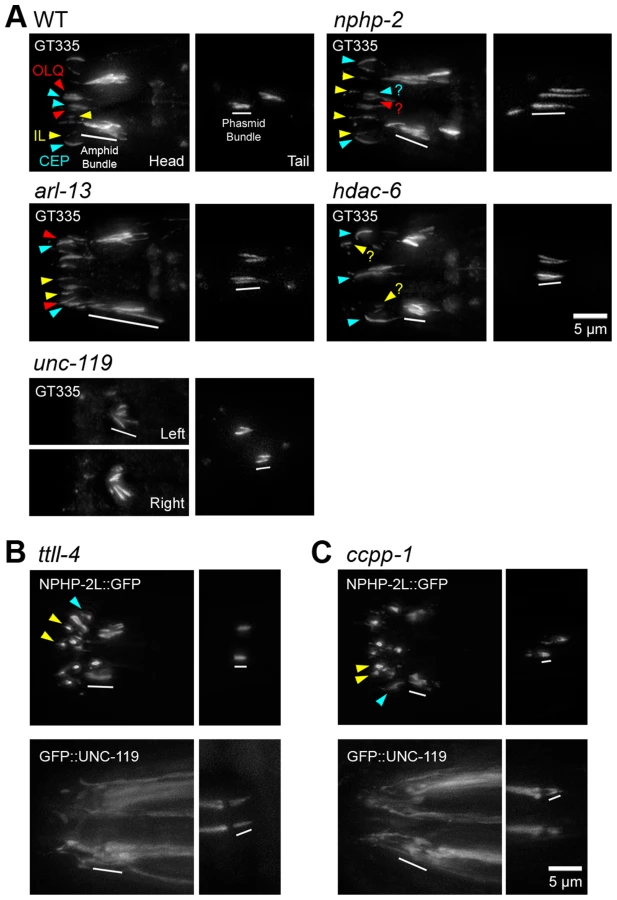

In wild-type animals, the anti-glutamylated tubulin antibody GT335 labeled the doublet region of amphid channel and phasmid cilia (Fig. 7A) [52]. nphp-2 mutants exhibited characteristic cilia displacement in the amphids, but no qualitative changes in head cilia glutamylation. The glutamylation signal in nphp-2 phasmid cilia ranged from wild-type-like to extremely elongated, which is consistent with the TEM observation of B-tubules extending into the distal axoneme (Fig. 2B). arl-13 mutants exhibited elongated staining in amphid channel cilia. Amphid staining in unc-119 mutants was extremely shortened and cilia were angled inwards. hdac-6 mutants appeared to have shortened GT335 staining of amphid channel cilia. We also observed significant differences in the length of the phasmid GT335 ciliary signal. Both arl-13 (3.95±0.25 µm) and nphp-2 (4.30±0.32 µm) mutants had phasmid staining significantly longer than in wild type (2.79±0.07 µm), while unc-119 (2.40±0.05 µm) mutants had staining significantly shorter (S7E Figure). The length of GT335 staining in amphid cilia was not quantified due to the difficulty of unbiased measurement of a single cilium within the amphid bundle.

To determine if doublet region-associated protein localization was dependent on tubulin glutamylation status, we examined the localization of NPHP-2::GFP and GFP::UNC-119 in ccpp-1 and ttll-4 mutants. Mutants of ccpp-1, which encodes a tubulin deglutamylase, display degenerating amphid channel and phasmid cilia with a concomitant dye-filling defect; this is suppressed by deletion of the opposing glutamylase, encoded by the tubulin tyrosine ligase-like gene ttll-4 [50]. In each mutant, NPHP-2::GFP and GFP::UNC-119 reporters were targeted to cilia and were restricted to the proximal cilium similarly to wild-type (Fig. 7B,C). This was surprising in the case of ccpp-1 mutants, as cilia degenerate as the worm ages (Fig. 7B,C). These reporters were still doublet region-associated in earlier larval stages of ccpp-1 mutants when ciliary degeneration was not as severe (S9C-D Figure). Combined, these results indicate that nphp-2, arl-13, unc-119, and hdac-6 lie upstream in regulation of tubulin glutamylation pathways, and the localization patterns of their protein products are not defined by tubulin glutamylation.

Doublet region protein territories are genetically regulated

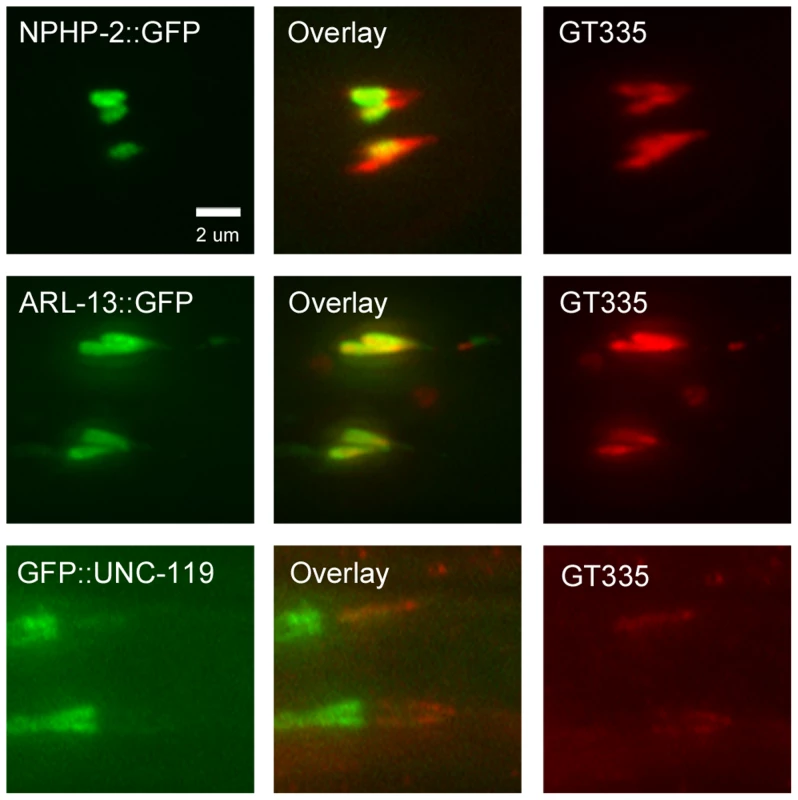

To allow for a more direct comparison of subciliary localization, we stained transgenic NPHP-2::GFP, ARL-13::GFP, and GFP::UNC-119 strains with GT335 (Fig. 8). NPHP-2::GFP did not fully overlap with GT335, only colabelling the proximal portion of the doublet region of amphid and phasmid cilia. However, ARL-13::GFP colabelled with a greater portion of the GT335 doublet region signal in amphid cilia than did NPHP-2::GFP, and completely colabelled with GT335 in phasmid cilia (Fig. 8, S6A Figure); this suggests that ARL-13 is associated with the microtubule doublets that define the doublet region. GFP::UNC-119 colabelled with either a significant fraction of the length of the GT335 signal. Additionally, GFP::UNC-119 did not extend beyond the GT335 labelled doublet region, indicating that GFP::UNC-119 is excluded from the TZ, which is not labelled by GT335.

We also examined the territory length of each of the fluorescent reporters as a fraction of the total cilia length. Transgenic animals were incubated with DiI to label the length of the cilium. NPHP-2::GFP marked a significantly shorter fraction of the length of the cilium than did ARL-13::GFP or GFP::UNC-119 (S6C Figure).

To understand how the localization of doublet region-associated proteins is genetically regulated, we measured the length of the cilium marked by NPHP-2::GFP, ARL-13::GFP, GFP::UNC-119, and KAP-1::GFP—a component of Kinesin-II—in different mutant backgrounds (S7 Figure). ARL-13::GFP and NPHP-2::GFP have interdependent localizations: in arl-13 mutants, the NPHP-2::GFP territory was extended along the cilium, and in nphp-2 mutants, the ARL-13::GFP territory was extended. unc-119 mutants exhibited shortened ARL-13::GFP and NPHP-2::GFP territories (S7A-B Figure). Additionally, klp-11 mutants had a shorter NPHP-2::GFP, but not ARL-13::GFP, localization signal (S7A Figure). No significant differences were found in the territory lengths of GFP::UNC-119 and KAP-1::GFP in any of the mutant backgrounds (S7C-D Figure). The length of the tubulin glutamylation signal is also genetically controlled; the GT335 signal is shortened in unc-119 mutants, and elongated in nphp-2 and arl-13 mutants (S7E Figure).

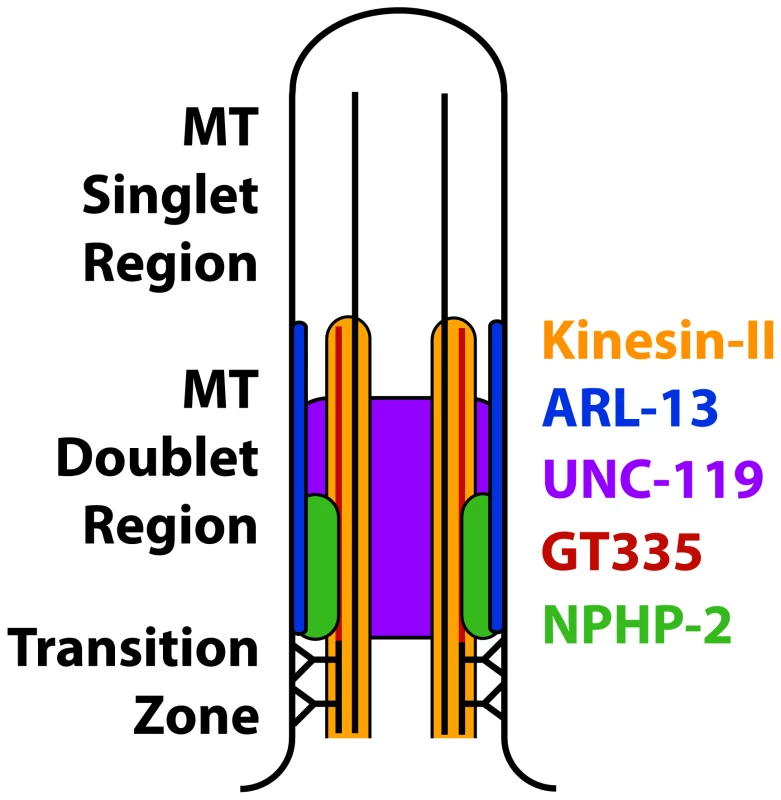

In sum, the NPHP-2::GFP territory size is shorter than the territories of doublet region components ARL-13 and Kinesin-II, marks a shorter length of the cilium than ARL-13 and UNC-119, is shorter than the doublet region-linked glutamylated tubulin signal, and colabels only a portion of both amphid channel and phasmid GT335 staining. We conclude that NPHP-2 marks a region of the cilium distinct from the doublet region, and propose that this region is analogous to the InvC of mammalian cilia.

Discussion

In this study, we present evidence that (1) C. elegans possesses a conserved InvC compartment, (2) interactions between nphp-2 and arl-13 regulate microtubule ultrastructural patterning, (3) InvC and doublet region sizes are distinct and genetically regulated, (4) hdac-6 and arl-3 modulate interactions between nphp-2, arl-13, klp-11, and unc-119, (5) and that microtubule glutamylation is downstream of the action of InvC and doublet region genes. Additionally, we found that genes associated with the proximal cilium (TZ, InvC, and doublet region) can be grouped into parallel genetic modules, which interact to drive ciliary anchoring and proper ciliogenesis. Finally, we addressed several possible mechanisms for the ciliary targeting and InvC restriction of NPHP-2.

Limitations of overexpression reporter constructs

In the last twenty years, fluorescent tagging of proteins has allowed for unparalleled insight into in vivo localization and transport mechanisms. However, the primary method of introducing transgenes into C. elegans, microinjection, yields extrachromosomal arrays containing many copies of the reporter construct [53]. Many aspects of ciliogenesis are tightly regulated, and may require stoichiometric quantities of components for proper function. We previously showed that overexpression of proteins may lead to defects in ciliogenesis and IFT, resulting in the SynDyf phenotype [17], [54].

We sought to minimize these effects on our conclusions by avoiding direct comparisons between multiple reporters, and using antibody colabeling when comparisons were required. In wild-type and mutant backgrounds, we tested all constructs for dominant defects in ciliogenesis (S1 Table). In the respective mutant background, we routinely test for rescue of mutant phenotype, which indicates that the reporter is functional (Fig. 4A) [17], [29], [50], [54]–[57]. For example, NPHP-2::GFP localization is similar in wild-type and nphp-2 mutant backgrounds, and rescues the nphp-2 nphp-4 SynDyf phenotype (Fig. 4B) [17]. Therefore we can conclude that NPHP-2::GFP provides and accurate and functional reflection of the endogenous localization pattern.

The use of ARL-13::GFP is well established in the literature, with five papers examining ARL-13::GFP localization in amphid and phasmid cilia [34], [35], [37], [58], [59], and a sixth paper examining ARL-13::GFP localization in AFD cilia [60]. In two papers, the ARL-13::GFP construct is the same as was used in our work [35], [59]. Moreover, this ARL-13::GFP reporter is functional [35] and displays a similar localization in wild-type and arl-13 backgrounds (Jinghua Hu, personal communication). In three papers, ARL-13::GFP reporters are used to determine subciliary localization of ARL-13::GFP [34], [59], [60]. Additionally, the ARL-13::GFP transgenic lines used in the papers by the Hu and Blacque labs were built independently and exhibit similar localizations.

In the future, genomic engineering (e.g., CRISPR) will allow for easy single-copy fluorescent tagging of proteins and in vivo analysis, addressing many of these concerns [61]. These techniques are not a panacea though, as several genes, including nphp-2, may be expressed at too low a level for single-copy tagged constructs to be visible without advanced microscopic techniques (personal communication, Knudra Transgenics).

The nature of the doublet region

The C. elegans doublet region and the mammalian proximal InvC have been considered analogous [11], [13], [17], [34], [37]. In C. elegans, a number of factors have been associated with the doublet region, including NPHP-2, ARL-13, UNC-119, ARL-3, HDAC-6, the Kinesin-II components KAP-1/KLP-11/KLP-20 [35]–[37], and glutamylated tubulin [50]. However, mammalian orthologs of many C. elegans doublet region proteins localize along the entire cilium [26], [62]–[71]; this casts doubt on the equivalence between the C. elegans doublet region and the mammalian InvC. It is likely that the C. elegans ciliary doublet region is analogous to the entire mammalian ciliary doublet-based cilia shaft, and that the mammalian InvC is analogous to a C. elegans InvC (modelled in Fig. 9).

NPHP-2 localization requires an EF-hand

Calcium signaling plays a crucial role in signal transduction and ciliary function [72], [73]; cilia have high intraciliary calcium concentrations, and many TZ proteins possess calcium binding domains [74]. The NPHP-2 vertebrate homolog, Inversin, has two identified calmodulin-binding IQ domains [75], [76], one of which is required for proper localization [12]. Calmodulin detects intracellular calcium concentrations through a calcium-binding EF-hand. Though C. elegans NPHP-2 does not encode a predicted IQ domain, it does possess an EF-hand. This EF-hand is required for the localization and function of NPHP-2 in amphid and phasmid cilia, similarly to the IQ2 domain of Inversin. A significant difference exists between the EF-hand of NPHP-2 and the IQ2 domain of Inversin: deletion of the EF-hand of NPHP-2 results in a complete lack of ciliary localization, whereas deletion of the IQ2 domain of Inversin results in a mislocalization of Inversin along the entire cilium. In both systems, Inversin/NPHP-2 no longer localizes to the InvC. This suggests that Ca²⁺ detection/binding by and the subsequent hypothetical modulation of the activity of Inversin/NPHP-2 is a critical, conserved feature of the protein. Two possibilities arise for the function of these domains: Ca²⁺ specifies the localization of NPHP-2, modulates the activity of the protein, or both.

UNC-119 is a proximal ciliary protein

We found that UNC-119 localizes to the proximal cilium and is excluded from the distal region. GFP::UNC-119 and GT335 colabel, indicating that GFP::UNC-119 is excluded from the TZ, as TZ microtubules are not glutamylated (See Fig. 8, in which GT335 colabels with TZ-excluded ARL-13::GFP and NPHP-2::GFP). In C. elegans, UNC-119 labels a shorter portion of the cilium than ARL-13 or GT335, markers associated with the doublet region. Additionally, mammalian Unc119b physically interacts with the InvC component Nphp3 and is proximally restricted in cilia of RPE cells, suggesting that Unc119b is associated with the InvC [26]. However, GFP::UNC-119 marked a larger portion of the cilium than did NPHP-2::GFP.

The C. elegans genome encodes homologs of many of many Unc119b shuttle proteins, including Unc119b, Arl3, and RP2, and two myristoylated ciliary proteins which require unc-119 for ciliary localization [77]. arl-3 genetically interacts with unc-119 and nphp-2, suggesting that in C. elegans the components of the shuttle are in place. These shuttle components do not appear to be required for the localization of NPHP-2, as NPHP-2 is imported into the cilium in unc-119 and arl-3 mutants. In unc-119 mutants, NPHP-2 exhibited a unique distal dendritic localization pattern that cannot be attributable to TZ leakage; it is unknown whether this population represents NPHP-2 that has not been properly imported into the cilium or is mistargeted NPHP-2.

The function of hdac-6

In both mammalian systems and C. elegans, Hdac6/hdac-6 functions as an antagonist of ciliogenesis and cilia stability [16], [62]. In mammalian primary cilia, Hdac6 functions as an α-tubulin K40 deacetylase regulates microtubule function and stability [62], [78]–[81]. The C. elegans genome encodes a single α-tubulin with the acetylatable residue K40, MEC-12. However, there is no direct evidence for mec-12 expression in amphid and phasmid neurons, and the anti-α-tubulin-K40 antibody 6-11b-1 does not label amphid and phasmid cilia in wild-type animals or hdac-6 mutants (S10 Figure) [82]. Alternative tubulin acetylation sites may exist, including on β-tubulin [83]; hdac-6 could deacetylate these secondary sites. NPHP-2 contains a predicted N-terminal acetylation site (at 2S) which may be deacetylated by HDAC-6; this may modulate binding between NPHP-2 and its targets [84]. Additionally, HDAC-6 may have other unidentified ciliary targets [35]. Determining the mechanism by which HDAC-6 acts as a genetic modifier of InvC and doublet region gene defects is an important future direction.

Doublet region and InvC components modulate tubulin post-translational modification

Tubulin glutamylation is associated with the proximal portions of microtubule B-tubules in C. elegans cilia, mouse spermatozoa flagella, and Chlamydomonas flagella [47], [50], [85]. In C. elegans, microtubule glutamylation is linked to microtubule ultrastructure, stability, and maintenance [50], [86]. Multiple doublet region genes regulate microtubule glutamylation, and we observed a correlation between ectopic glutamylation and ectopic microtubule doublets. Additionally, ciliary targeting of doublet region proteins is not dependent on glutamylation status. Therefore, nphp-2, arl-13, hdac-6, and unc-119 function upstream of microtubule glutamylation, which may enable them to exert an influence on microtubule patterning, IFT, ciliogenesis, and, in the case of unc-119, singlet region biogenesis. These pathways may be conserved: in Arl13b/hennin mutant mice, ciliary microtubule glutamylation intensity is reduced, and microtubule B-tubules have ultrastructural defects [38], [64].

Doublet region- and InvC-associated genes form genetic modules

In C. elegans, TZ-associated genes can be grouped into two distinct, partially redundant genetic and physical modules [8], [17], [42]. Doublet region- and InvC-associated genes may be grouped in a similar manner into a nphp-2+klp-11 module and an arl-13+unc-119 module. hdac-6 appears to function outside the two modules, negatively regulating both: deletion of hdac-6 in SynDyf double mutants suppresses the SynDyf phenotype. In mammalian primary cilia, Hdac6 also plays an antagonistic role, destabilizing cilia through deacetylation of tubulin, a pathway suppressed by Inversin [16]. arl-3 may function outside of the two modules in a cell-type specific manner; in phasmids it genetically interacts with components from both modules, but in amphids arl-3 only genetically interacts with only the arl-13+unc-119 module and not the nphp-2+klp-11 module. In amphid cilia, nphp-2 also does not interact with the TZ SynDyf network.

Curiously, a further two genetic module organization exists between TZ genes and the InvC/doublet region genes. nphp-2 nphp-4, mks-3; nphp-2, and arl-13; nphp-4 double mutants exhibit severe ciliogenic defects [17]. Deletion of one TZ gene from either TZ module and one doublet region gene from either doublet region module yields a SynDyf phenotype, though not all combinations have been tested. The TZ SynDyf network and the doublet region SynDyf network can be thought of as two genetically interacting “super-modules”, each consisting of two to three sub-modules described in this and previous work [8], [17], [25], [42].

Origin of the Inversin Compartment

The localization requirements for multiple InvC localizing components have been previously determined, but how the InvC is initially established is not known.

In C. elegans, the InvC is likely established early in cilia development, as NPHP-2 is proximally restricted in phasmid cilia as early as the first larval L1 stage immediately following hatching (S9A Figure), and is not motile (S9B Figure), unlike the larval stage-dependent dynamic localization of ARL-13 [34]. We have eliminated several mechanisms for the establishment of the InvC. Ciliary ultrastructure does not seem to play a role, as in both mammals and C. elegans, the localization of Inversin/NPHP-2 is associated with only a sub-portion of the doublet region where there are no identifiable ultrastructural features [12]. Tubulin post-translational modifications also do not appear to specify the InvC, as nphp-2 (and genetically interacting doublet region components) lies upstream of glutamylation pathways. The TZ does not appear to play a major role in specifying the InvC. NPHP-2 still localizes and is restricted to the proximal cilium in TZ single and double mutants. IFT is another candidate mechanism, but we found that although IFT components genetically interact with InvC and doublet region associated genes, Kinesin-II is not required for NPHP-2 localization. In mammalian cilia, the Unc119b shuttle is required for the ciliary import of Nphp3; this activity is upstream of the action of Inversin in Nphp3 localization. In C. elegans phasmid cilia, NPHP-2 does not require either unc-119 or its effector arl-3 for ciliary import or InvC restriction (S2A Figure).

Several mechanisms for establishing the InvC remain. First, calcium may play a role. Both Inversin and NPHP-2 require a calcium binding domain for InvC localization [12]; the origin and nature of the calcium signal these domains detect is unknown. Second, the InvC may also be initially established by a diffusion of factors from the cilia base. A third possibility is that cilia membrane composition may help define the InvC. The cilium has a distinct membrane composition from the plasma membrane, and the different ciliary subregions may also have differential membrane composition.

Final summary

We propose that the logic underlying the establishment of the NPHP-2/Inversin compartment may be similar in C. elegans and mammals, in a manner independent of microtubule ultrastructure. We have shown that doublet region- and InvC-associated genes interact to guide ciliogenesis, cilia placement, cilia ultrastructure, protein composition, and tubulin post-translational modification. The next challenge is to determine what initially patterns the doublet region and InvC, and to understand the function of these cilia regions.

Materials and Methods

General molecular biology

Standard protocols were followed for all molecular biological procedures. PCR amplification using Taq polymerase (New England BioLabs, Ipswich, MA, USA) was used for genotyping deletion alleles, and was followed by restriction digest for SNP diagnosis. PCR amplification for construction of transgenic constructs was performed with Phusion High fidelity DNA polymerase (New England BioLabs), templated off C. elegans genomic DNA. Sequencing was performed offsite (GeneWiz, South Plainfield, NJ, USA). PCR primer and construct sequences are available upon request.

Bioinformatics and computer tools

Protein BLAST was used to find sequence orthologs [87]. All protein sequence information other than that of C. elegans was provided by NCBI, and all C. elegans nucleotide and protein sequences were provided by WormBase (Releases WS229 and WS234). Structural motif and domain predictions were generated by MotifScan [88]. Acetylation motifs were identified using NetAcet 1.0 [84]. Coiled-coil regions were identified with COILS [89]. ApE 2.0.36 was used for sequence manipulation, annotation, and restriction site identification.

Strains and maintenance

All strains were cultured at room temperature, unless otherwise noted, under standard conditions [90]. Transgenic strains using pha-1 selection were grown at 25°C, and pha-1(e2123) mutants were grown at 15°C. Deletion alleles were outcrossed to him-5 at least four times. Strains used in this study are listed in S2A Table. Alleles used were as follows: nphp-2(gk653), nphp-4(tm925), mks-3(tm2547), arl-13(gk513), unc-119(ed3), hdac-6(ok3203), arl-3(tm1703), him-5(e1490), osm-3(p802), klp-11(tm324), ccpp-1(ok1821), and ttll-4(tm3310). Primers used for diagnosis are listed in S2B Table. All transgenic strains used in Fig. 1–9 were tested using dye-filling for dominant negative defects in ciliogenesis. We observed no adverse effects in NPHP-2::GFP and GFP::UNC-119 transgenic strains but did find dominant negative defects in ARL-13::GFP transgenic strains (S1 Table).

The full length isoform of NPHP-2 was used in all NPHP-2 reporter constructs. The full length isoform, NPHP-2L, differs from the shorter isoform, NPHP-2S, in that the shorter isoform is missing 22 non-conserved amino acids of unknown function. Both isoforms have similar subciliary localization [17].

Electron microscopy

nphp-2 and arl-13; hdac-6; nphp-2 young adult animals were fixed using 3.5% glutaraldehyde +1% PFA in 0.1M HEPES and then in 1% OsO4+1.25% K4Fe(CN)4 in 0.1M HEPES. Samples were infiltrated and embedded in Embed-812 plastic resin. arl-13; nphp-2 young adult animals were fixed using high-pressure freeze fixation and freeze substitution in 2% OsO4+2% water in acetone as the primary fixative [91]. Samples were slowly freeze substituted in an RMC freeze substitution device, before infiltration with Embed-812 plastic resin. Images for wild-type animals fixed by a comparable immersion fixation method (cf. [32]) are now curated by the Hall lab at Einstein courtesy of E. Hedgecock. These wild type images are also available online at www.wormimage.org.

For TEM, serial sections (70 nm thickness) of fixed animals were collected on copper slot grids coated with formvar and evaporated carbon and stained with 4% uranyl acetate in 70% methanol, followed by washing and incubating with aqueous lead citrate. Images were captured on a Philips CM10 transmission electron microscope at 80 kV with a Morada 11 megapixel TEM CCD camera driven by iTEM software (Olympus Soft Imaging Solutions).

For each strain, we imaged three individuals that were fixed chemically. Additionally, we were concerned that the severe defects seen in the arl-13; nphp-2 double mutant were partially due to the harsh chemical fixation method. We fixed a fourth double mutant using high pressure freeze (HPF) fixation, which introduced fewer artifacts to confirm the validity of the chemical fixation data. We used the same strain in the construction of the double arl-13; nphp-2 and triple arl-13; hdac-6; nphp-2 mutants as was used in the previously published EM of the arl-13 single mutant.

Imaging

Animals were mounted on 5% Noble agar pads on standard microscope slides, and immobilized with a five minute incubation in 10 mM sodium azide. Worms were imaged using a Zeiss Plan-AXIOCHROMA 100X 1.4NA oil objective on a Zeiss Axio Imager.D1M (Zeiss, Oberkochen, Germany) with a Retiga-SRV Fast 1394 digital camera (Q-Imaging, Surrey, BC, Canada). Exposure time for antibodies was 100 ms, and exposure time for GFP fluorophores was 250 ms. Images were captured and manipulated using Metamorph software (Version 7.6.1.0, MDS Analytical technologies, Sunnyvale, CA, USA). Image stacks were 3D deconvolved using Auto Deblur software (Version 1.4.1, Media Cybernetics, Bethesda, MD, USA). Figures and diagrams were created with Adobe Photoshop CS3 (Version 10.0, Adobe Systems, San Jose, CA, USA) and Adobe Illustrator (Version 13.0.0, Adobe Systems). Image brightness and contrast were modified uniformly across an image, but gamma was not adjusted from 1.00. Brightness manipulations are similar, but not identical, across panels and figures. Significant variations in absolute intensity are noted where appropriate. For all strains, unless noted, worms were picked at L4 stage 24 hours before imaging.

Statistical analysis

All statistical analysis was performed with a combination of GraphPad Prism (Version 5.01, GraphPad Software, La Jolla, CA, USA) and Microsoft Excel (Version 14.0.7106, 32-Bit, Microsoft Corporation, Seattle, WA, USA). Sample size (n) for all figures is listed in S3 Table. Minimum p value for significance was set at 0.01 for all analyses unless otherwise specified. All parametric and continuous data types were analyzed using unpaired t-tests with Welch's correction to avoid assumption of equal variance. When multiple t-tests were performed on related data sets presented together, the Holm-Bonferroni multiple comparison adjustment was used to ensure the total alpha for the analysis did not exceed 0.01. All nonparametric and discontinuous data types were analyzed using Mann-Whitney U-test. Similar to the analysis of continuous data types, the Holm-Bonferroni multiple comparison adjustment was employed to ensure total alpha for all related comparisons did not exceed 0.01. Specific pairwise comparisons made are described in figure legends. Letters on graphs indicate statistically distinct groups, e.g., all groups marked ‘A’ are significantly different from all groups marked ‘B’.

Dye-filling assays

Staged young adult hermaphrodites were washed of plates with M9, and then rinsed three further times in M9, using gentle centrifugation to pellet the worms between rinses. Worms were then incubated in 40 µg/mL DiI (2.5 mg/mL dimethyl formamide stock, diluted 1∶1000 in M9) (Invitrogen) for 30 minutes in the dark. Worms were then rinsed three times in M9 as before, and were then placed on a seeded plate for a further 30-60 minutes to recover and flush dye from the digestive tract. Animals were anesthetized with 10 mM sodium azide and then immediately scored on a compound microscope (see Imaging section) using for dye-filling by manual counting of filled cell bodies. Cell body counts within the amphid or phasmid organs were averaged together to yield the average number of cells filling per organ per worm, and subjected to statistical analysis. Ectopically dye-filled neurons (e.g., IL2s) were not included in the total count.

Antibody staining

Antibody staining was performed under the standard Ruvkun-Finney protocol (Anatomical Methods, [92]) using GT335, an antibody against branch point single and polyglutamylated tubulin. Both primary (GT335, mouse, 1∶100, Enzo Life Sciences) and secondary antibody (Alexa Flour 568 goat anti-mouse, 1∶2000 dilution, Life Technologies) washes were performed at 4°C overnight. Young adult hermaphrodites were selected for imaging using the number of eggs in the animal—between one and ten—as a proxy for age.
