Discovery of a Modified Tetrapolar Sexual Cycle in and the Evolution of in the Species Complex

Summary

Sexual reproduction in fungi is governed by a specialized genomic region called the mating-type locus (MAT). The human fungal pathogenic and basidiomycetous yeast Cryptococcus neoformans has evolved a bipolar mating system (a, α) in which the MAT locus is unusually large (>100 kb) and encodes >20 genes including homeodomain (HD) and pheromone/receptor (P/R) genes. To understand how this unique bipolar mating system evolved, we investigated MAT in the closely related species Tsuchiyaea wingfieldii and Cryptococcus amylolentus and discovered two physically unlinked loci encoding the HD and P/R genes. Interestingly, the HD (B) locus sex-specific region is restricted (∼2 kb) and encodes two linked and divergently oriented homeodomain genes in contrast to the solo HD genes (SXI1α, SXI2a) of C. neoformans and Cryptococcus gattii. The P/R (A) locus contains the pheromone and pheromone receptor genes but has expanded considerably compared to other outgroup species (Cryptococcus heveanensis) and is linked to many of the genes also found in the MAT locus of the pathogenic Cryptococcus species. Our discovery of a heterothallic sexual cycle for C. amylolentus allowed us to establish the biological roles of the sex-determining regions. Matings between two strains of opposite mating-types (A1B1×A2B2) produced dikaryotic hyphae with fused clamp connections, basidia, and basidiospores. Genotyping progeny using markers linked and unlinked to MAT revealed that meiosis and uniparental mitochondrial inheritance occur during the sexual cycle of C. amylolentus. The sexual cycle is tetrapolar and produces fertile progeny of four mating-types (A1B1, A1B2, A2B1, and A2B2), but a high proportion of progeny are infertile, and fertility is biased towards one parental mating-type (A1B1). Our studies reveal insights into the plasticity and transitions in both mechanisms of sex determination (bipolar versus tetrapolar) and sexual reproduction (outcrossing versus inbreeding) with implications for similar evolutionary transitions and processes in fungi, plants, and animals.

Introduction

Sexual reproduction is ubiquitous throughout nature, generates population diversity, and has been described extensively in plants, animals, and microorganisms [1]. Sex is both costly and advantageous, and the ubiquity of sexual reproduction suggests that in general its benefits outweigh its costs [2]. In sexually reproducing populations, outbreeding is common, but inbreeding forms of sex also occur that promote clonality. Additionally, unisexual reproduction may be an adaptive virulence strategy for several microbial pathogens [3].

Fungi occur in two mating configurations: bipolar and tetrapolar [4]. In bipolar species, transcription factors that establish mating-type (MAT) are encoded by a single locus; in some examples genes encoding pheromones and their receptors are also present [4]. For mating to occur compatible cells must differ at MAT (a and α), although there are examples of bipolar fungi that also undergo same-sex mating (e.g. Candida albicans and Cryptococcus neoformans [5]). In tetrapolar species, two physically unlinked genomic regions (i.e. MAT loci A and B) control and establish cell identity. These loci are often multiallelic, and alleles must differ at both loci for sexual reproduction to occur. Bipolar mating systems support more efficient inbreeding (50%) and also outbreeding (50%), while tetrapolar systems promote more efficient outbreeding (>99%) and restrict inbreeding (25%) [6]. Ascomycetous yeasts such as Saccharomyces cerevisiae and Candida albicans are bipolar while basidiomycetous yeasts like Tremella mesenterica and Ustilago maydis are typically tetrapolar [7]. In contrast to most basidiomycetous species, Ustilago hordei, Coprinellus disseminatus, C. neoformans, and Cryptococcus gattii have bipolar mating systems [8], [9], [10], [11], [12].

C. neoformans is a haploid, dimorphic fungus that has a bipolar mating system, represented by two alleles, α and a [10]. MAT spans 100 to 120 kb, and encodes more than 20 genes, many of which are involved in mating. Comparison of the MAT gene cluster among the members of the pathogenic Cryptococcus species complex revealed that extensive rearrangements and gene conversions have occurred over time even though recombination in this gene cluster is generally suppressed [13], [14], [15], [16]. The sexual cycle and the structure of MAT in the pathogenic Cryptococcus species have been extensively examined and are well defined [4], [15]. In a laboratory setting, Cryptococcus reproduces via either opposite-sex or unisexual reproduction [5], [11], [12], [14], [17], [18]. Mating (α-a) initiates with cell-cell fusion, followed by production of a filamentous dikaryon with fused clamp cell connections, and culminates in nuclear fusion and meiosis in the basidia [4], [19]. Meiosis produces four haploid nuclei that undergo mitotic division to produce four chains of basidiospores that germinate into fertile yeasts that can mate with a partner/parent of the opposite mating-type. The major differences in α-α unisexual reproduction is that a monokaryon (instead of a dikaryon) forms, mating can involve two genetically distinct isolates (α₁-α₂) or two genetically identical genomes (α₁-α₁), and the resulting meiotic spore products are all α.

Fraser et al. proposed that the ancestral form of MAT to the pathogenic Cryptococcus species was tetrapolar, with the homeodomain (HD) and pheromone/receptor (P/R) genes present in two unlinked sex-determining regions [16]. Sequential rounds of gene acquisition led to the expansion of the ancestral tetrapolar MAT loci. In this model, a chromosomal translocation event then fused the unlinked loci into a contiguous region resulting in the formation of a transient tripolar intermediate in which MAT is linked in one partner yet unlinked in the other. This unstable intermediate underwent gene conversion to link the other MAT locus alleles, one or the other homeodomain gene was lost, and MAT was subjected to multiple inversions and gene conversions events to yield the extant bipolar MAT locus of Cryptococcus 16,20.

The pathogenic Cryptococcus species form a monophyletic cluster composed of at least two but possibly as many as six species: C. neoformans var. neoformans, C. neoformans var. grubii, and the sibling species C. gattii (VGI, VGII, VGIII, VGIV) that all have the potential to infect humans and other animals [21]. A recent multi-locus sequence typing (MLST) phylogenetic study resolved the species relationships in this complex [22]. The monophyletic sensu stricto Filobasidiella clade is comprised of the pathogenic species and three closely related saprobic species: Tsuchiyaea wingfieldii, Cryptococcus amylolentus, and Filobasidiella depauperata [22], [23]. The more distantly related sensu lato sister clade Kwoniella encompasses several saprobic and one aquatic-associated species: Bullera dendrophila, Cryptococcus heveanensis, Cryptococcus bestiolae, Cryptococcus dejecticola, and Kwoniella mangroviensis [22].

Of these species that are phylogenetically closely related to the pathogenic Cryptococcus species complex, sex has recently been described for C. heveanensis and K. mangroviensis [24], [25]. Specifically, a heterothallic sexual cycle was observed in these two members of the Kwoniella clade and basidiospores associated with cruciate-septated basidia are produced during mating. Additionally in F. depauperata and T. mesenterica, the nature of sex has also been revealed in previous studies and exemplifies homothallic and heterothallic sexual cycles, respectively [12], [26], [27], [28]. The mating structures of F. depauperata resemble the basidia and basidiospores of C. neoformans and C. gattii while T. mesenterica mating products are similar to C. heveanensis and K. mangroviensis [12], [26], [27], [28], [29]. However, no sexual reproduction had been observed in either C. amylolentus or T. wingfieldii.

A recent study of C. heveanensis revealed it has a tetrapolar mating system, i.e. its sexual reproduction is governed by MAT comprised of two physically unlinked gene clusters: a multiallelic HD locus (B locus) and a P/R locus (A locus) that is at least biallelic [24]. However, it still remains unclear when the bipolar mating system in Cryptococcus pathogenic species first appeared, that is, did it emerge earlier in the common ancestor of the sensu stricto group when it split from the sensu lato group, or did it evolve later and only in the Cryptococcus pathogenic species? Given the close relationship of T. wingfieldii and C. amylolentus to the pathogenic Cryptococcus species complex, understanding their life cycles, as well as their MAT loci configurations can provide key insights into the evolution of MAT and sexual reproduction in C. neoformans and C. gattii.

In this study, we provide a detailed description of the heterothallic sexual cycle of C. amylolentus that we observed under laboratory conditions. Additionally, we characterized the MAT loci of T. wingfieldii and C. amylolentus, and discovered in both species two physically unlinked gene clusters, one encoding the HD locus and the other encoding the P/R locus. Genes within these clusters include many homologs of Cryptococcus MAT-associated genes. Furthermore, our mating assay and genetic analyses of C. amylolentus meiotic progeny showed that many meiotic progeny are sterile and one parental type is overrepresented in the meiotic products, suggesting its tetrapolar mating system deviates from the classic model. We discuss the implications of our findings in the context of the evolution of the mating type locus as well as of bipolar sexuality in the Cryptococcus species complex. Our findings also provide insights into similar evolutionary processes that drive the formation and function of sex chromosomes in algae, fish, insects, and mammals [14].

Results

Characterizing MAT in T. wingfieldii and C. amylolentus

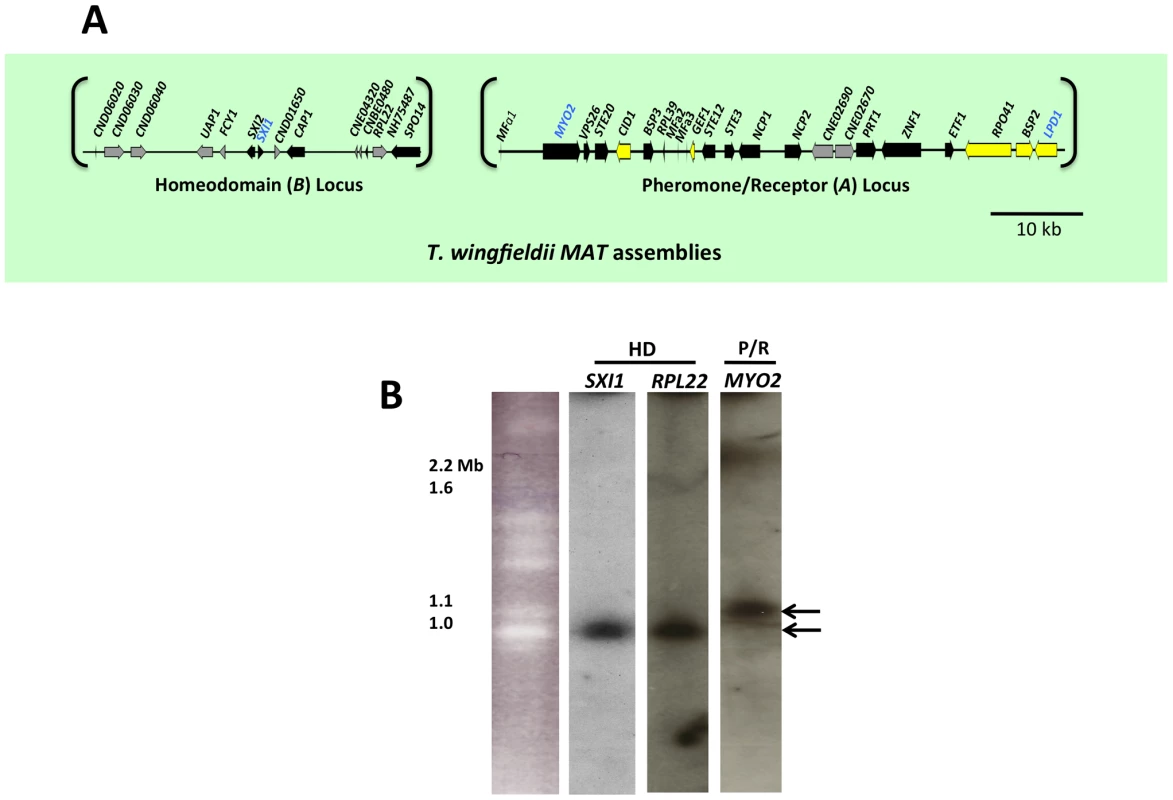

To determine the structure of MAT in T. wingfieldii, fosmid libraries were constructed from the type strain CBS7118 and probed with several genes within (MYO2, LPD1, and SXI1) or flanking (FAO1 and NOG2) the C. neoformans MAT locus. Positive clones (3F11-3A15-5J15 (P/R locus), 2B23-2K10 (HD locus), and 4E07 (FAO1), see Figure S1) were pooled and sequenced, resulting in the identification of two candidate MAT loci. The FAO1 gene lies on a distinct fosmid and appears to be unlinked or distant from MAT. The region obtained containing the P/R locus spans ∼70 kb and the region obtained containing the HD locus spans ∼40 kb (Figure 1A).

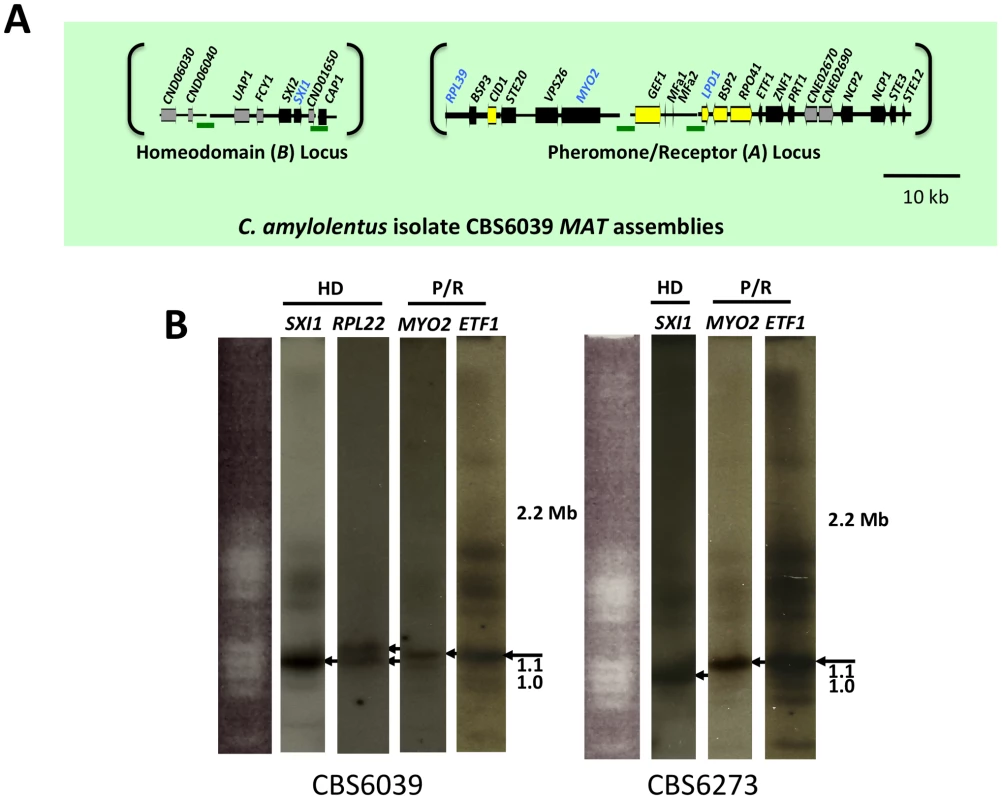

We also cloned and sequenced MAT in the saprobic yeast-like, sibling species C. amylolentus (type strain CBS6039) employing the same approach. Fosmid libraries were generated and probed with MYO2, LPD1, RPL39, and SXI1. Primers specific for MAT genes in T. wingfieldii were used to generate probes for C. amylolentus and the identity of each probe was confirmed via cloning and sequencing. Positive clones (4E01 (SXI1), 4E22 (MYO2), and 3H19 (LPD1), see Figure S2) were individually sequenced and assembled into two MAT loci. An additional fosmid (3N14 (RPL39), see Figure S2) was later identified and sequenced via primer walking. The regions that were sequenced span ∼20 kb and ∼60 kb respectively, and each contain two small sequence gaps (Figure 2A and Figures S3 and S4). The linear order of the fragments in the P/R locus was determined based on Southern blotting. Specifically, genomic DNA from CBS6039 and CBS6273 was digested with five restriction enzymes (BamHI, BglI, ClaI, EcoRI, and NcoI) and Southern blot analysis was performed with probes hybridizing to the ends of each contig in the P/R assembly of C. amylolentus. The gene content in MAT appears to be largely conserved between T. wingfieldii and C. amylolentus. However, our Southern blot analysis indicated at least two major inversions exist between the P/R regions of these two species (Figure 3).

Analysis of the MAT sequences obtained from T. wingfieldii and C. amylolentus revealed that the gene content of these regions are similar to the C. neoformans and C. gattii MAT alleles [10], [16]. In both sibling species, orthologs of both SXI1 and SXI2 are present in the HD locus implicating this as the ancestral configuration (Figure 1 and Figure 2). The orientation of the homeodomain transcription factors mirrors the organization of the paired, divergently transcribed genes, bE and bW, in the tetrapolar basidiomycete U. maydis [29], [30]. In contrast, in C. neoformans and C. gattii, only one HD gene is present and SXI1α is specific to the α allele while SXI2a is specific to the a allele. The region corresponding to the P/R locus contains the mating pheromone genes, the pheromone receptor gene STE3, and the five genes that were hypothesized to be those most recently acquired by the Cryptococcus MAT locus (LPD1, RPO41, BSP2, CID1, and GEF1). In T. wingfieldii, three pheromone genes (MFa1 and MFa3 are identical while MFa2 differs in only one amino acid) are present and share greater identity with the MFa genes of C. gattii with an identity of 80% compared to 70–75% shared with the MFα pheromone gene (Figure 4A). The P/R region in C. amylolentus differs from C. heveanensis in that the pheromone genes are located >30 kb away from STE3 whereas in C. heveanensis these genes are closely linked [24]. Moreover LPD1, STE11, ZNF1, and IKS1 are not within the P/R locus of C. heveanensis [24], while the P/R region is more extensive in C. amylolentus and spans >60 kb (Figure 2 and Figure S2). In C. amylolentus, two pheromone genes (MFa1 and MFa2 differ in only two amino acids) have been identified and share 73% identity with the MFa protein product of C. neoformans and 65–70% identity with the MFα pheromone gene. In summary, both SXI1 and SXI2 were present in the ancestral HD locus of the sensu stricto Filobasidiella clade. Thus, loss of one or the other HD gene occurred during the evolution of MAT in the pathogenic Cryptococcus species. Additionally, the five genes most recently acquired by the Cryptococcus MAT locus are linked to the ancestral P/R locus and thus appear to have been acquired into the expanding MAT A locus rather than entrapped by the MAT fusion event, in contrast to an earlier evolutionary model, suggesting a revision to the model (Figure 5) [16].

In T. wingfieldii and C. amylolentus, the FCY1 and UAP1 genes flank the 5′ end of the MAT HD locus, similar to C. neoformans/C. gattii, but FAO1 is unlinked and present elsewhere in the genome. We observed that STE11 is not present in the P/R locus but, based on PCR analysis, it is located elsewhere in the genome in both T. wingfieldii and C. amylolentus (data not shown). In the MAT locus of the pathogenic Cryptococcus species, STE11 is present. In C. heveanensis, STE11 is linked to but distant from the P/R locus and this may represent the ancestral configuration with retention in C. neoformans and C. gattii and translocation out of MAT in C. amylolentus and T. wingfieldii [24]. In T. wingfieldii, the flanking gene at the 3′ end of MAT, NOG2, was used as a probe. It was present in a single contig within the larger fosmid assembly of T. wingfieldii, but has not been linked to either the HD or P/R loci contigs. PCR analysis (using gap closure) revealed that LPD1 is linked to the P/R locus, although this gap remains to be sequenced. Interestingly, NCP1 and NCP2 are duplicated genes in T. wingfieldii and C. amylolentus but not in the pathogenic Cryptococcus species. The NCP1/2 genes are also duplicated in C. heveanensis [24], suggesting this configuration might be ancestral.

We also identified several hypothetical genes (CND06020, CND06030, CND06040, CND01650, CNBE0480, CNE02690, and CNE02670) with C. neoformans genes as the most closely related homolog in other sequenced fungal genomes. Four of these genes reside on chromosome 4 and two on chromosome 5 of C. neoformans, indicating that translocation (intra- and inter-chromosomal) events may have occurred between these two chromosomes during the evolution of MAT in the pathogenic Cryptococcus species [16], [28]. In C. heveanensis, F. depauperata, and T. mesenterica there is additional evidence for similar exchanges between chromosomes [14], [24], [28].

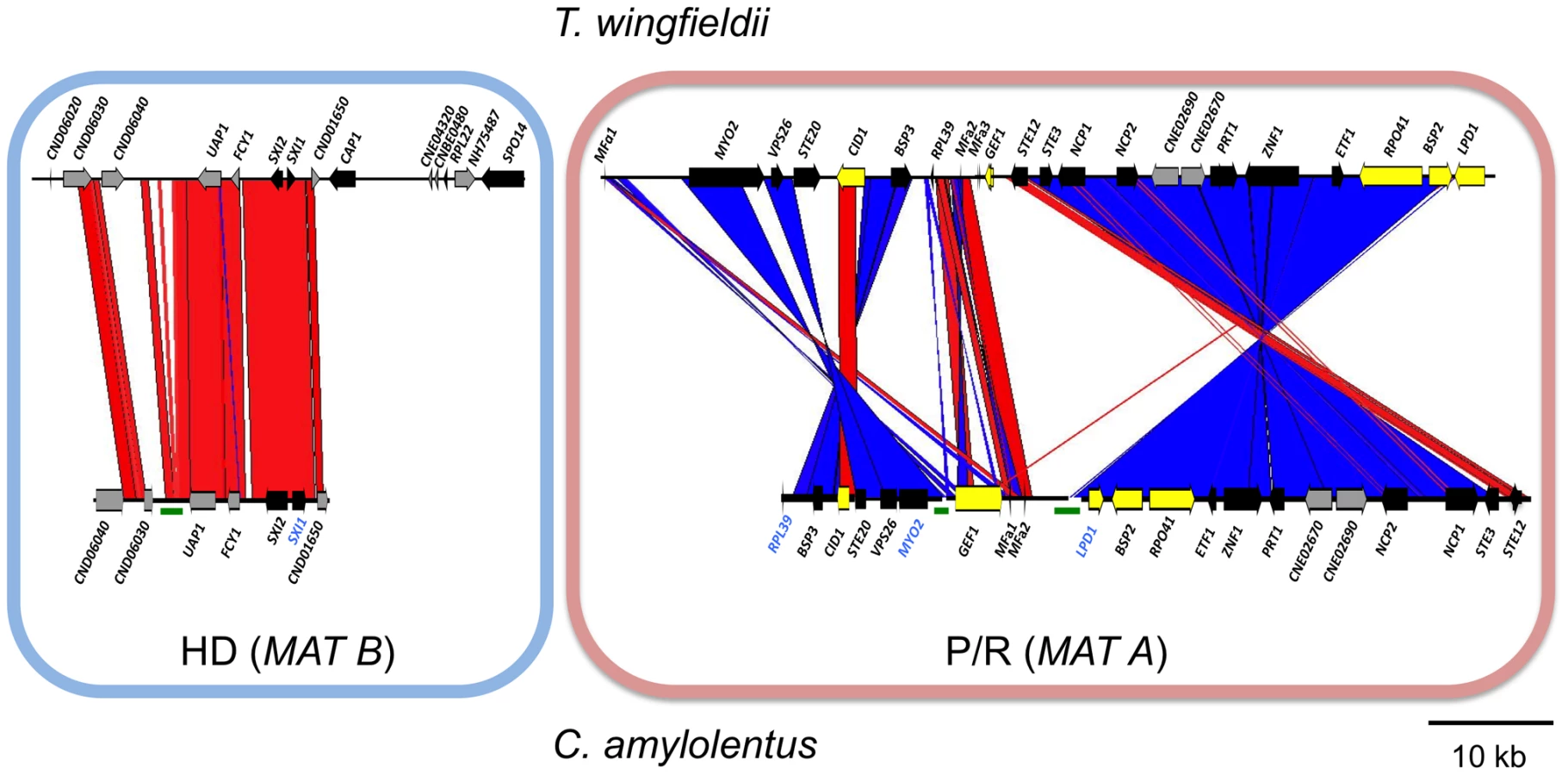

A considerable level of synteny exists across both MAT loci in T. wingfieldii and C. amylolentus, but we also observed at least two major inversion events that have occurred between the two genomes (highlighted in blue in the P/R locus, Figure 3). Comparison of each sibling species to the C. neoformans serotype D strain JEC21 revealed extensive gene rearrangements and inversions present throughout MAT (Figure S5), similar to the comparisons of MAT within the C. neoformans/C. gattii species complex. The arrangement of the MAT loci in T. wingfieldii and C. amylolentus corresponds to an evolutionary intermediate in MAT evolution in which the loci (or their linked gene repertoire) have expanded but not yet fused.

The HD and P/R loci are physically unlinked in T. wingfieldii and C. amylolentus

Analysis using pulsed-field gel electrophoresis and Southern hybridization demonstrated that the HD and P/R loci are physically unlinked in T. wingfieldii, as well as in both strains of C. amylolentus (CBS6039 and CBS6273). Each genome has approximately 10–12 chromosomes ranging in size from 800 kb to 2.2 Mb. Three genes were used to probe the T. wingfieldii chromosomes, two from the HD locus, SXI1 and RPL22, and one from the P/R locus, MYO2 (Figure 1B). For C. amylolentus, a total of three genes were used as probes: one from the HD locus, SXI1, and two from the P/R locus, MYO2 and ETF1 (Figure 2B). From the chromoblot analysis, the two loci are located on separate chromosomes (∼1.1 and 1.15 Mb) in both of the sibling species. That the HD and P/R loci are located on different chromosomes suggests a tetrapolar mating configuration for both sensu stricto species T. wingfieldii and C. amylolentus. Moreover, given the finding that other more distant outgroup species (C. heveanensis, T. mesenterica) are also tetrapolar [24], the most parsimonious interpretation is that the tetrapolar configuration represents the ancestral form of MAT and the bipolar state observed for the pathogenic Cryptococcus species therefore arose even more recently than revealed by previous studies of the more distantly related sensu lato species C. heveanensis [24]. Thus, the organization of MAT in the sibling species resembles key aspects of the proposed intermediates in the evolution of bipolar MAT in the pathogenic Cryptococcus species from a tetrapolar ancestor.

Identification of key genes that define MAT

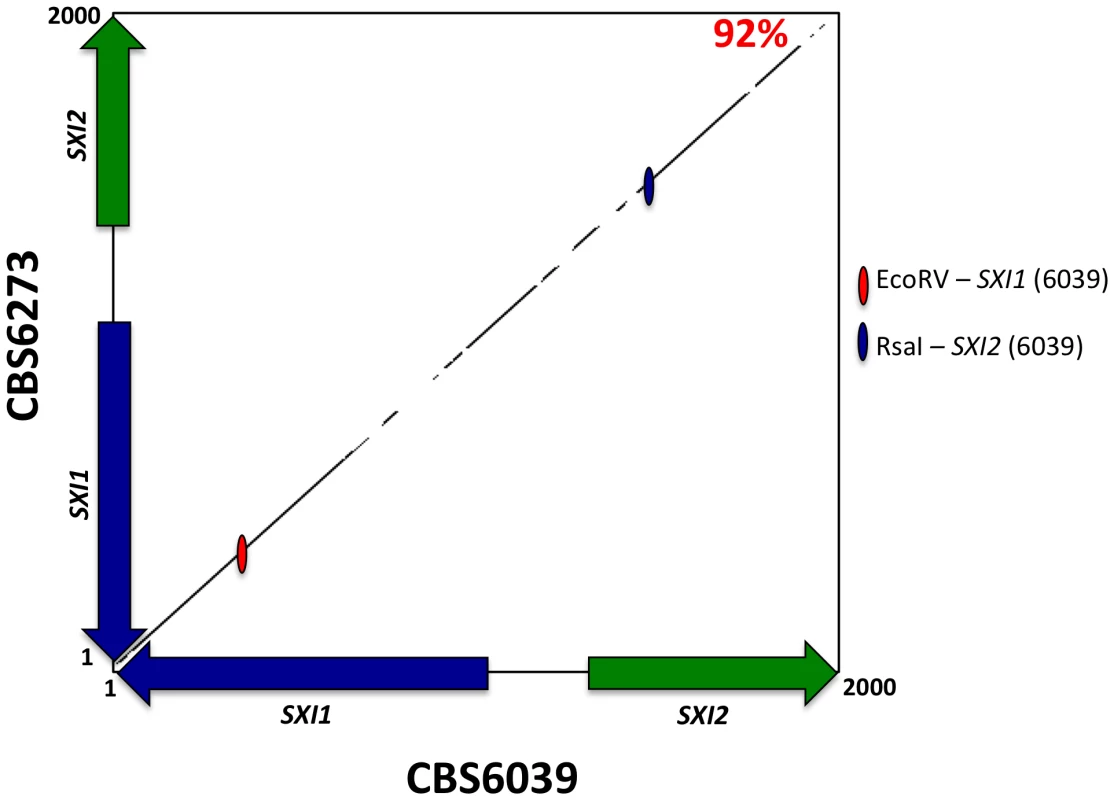

MAT is defined as a gene cluster (containing either HD and/or P/R genes) whose sequence is divergent between two strains of opposite mating-types. Based on the characterized structure of MAT in both species, we sought to determine which genes in each region govern and control sexual identity. The lack of additional T. wingfieldii strains has made it difficult to assess experimentally whether it has a sexual cycle and, if so, which genes are involved. Fortunately, in C. amylolentus two strains are available and this enabled our analysis of MAT and sex in this species resulting in the discovery of an extant sexual cycle (described below).

Regions that define MAT typically display polymorphisms when comparing sequences from strains of opposite mating-type while the genes that flank MAT share a much higher level of identity (≥99%). The SXI1 and SXI2 dimorphic region defines the diverged region of the MAT B HD locus in C. amylolentus. We aligned the nucleotide sequences and performed a matrix comparison for the dimorphic region (∼2 kb) spanning the SXI1 and SXI2 genes in CBS6039 and CBS6273. The diversity lies in the region between the two genes, and their divergently oriented 5′ regions span roughly 600 bp with a similarity score of 92% (Figure 6). This region encodes the N-terminal dimerization regions known to be variable and which also defines alleles in other species (please see Text S1, and Figures S10, S11, S12, S13 for further information on analyses of HD dimorphic region in meiotic progeny). Moreover, the sequence length for CBS6273 is slightly shorter than for CBS6039 at the 3′ end of the region we sequenced for the SXI2 gene. In summary, the SXI1 and SXI2 genes span ∼2 kb and define the B MAT locus in C. amylolentus. Although it is not yet clear whether there are any other sexually dimorphic regions beyond SXI1 and SXI2 (which could reflect expansion of the HD locus), our analysis based on PCR assay showed that the areas flanking the SXI1 and SXI2 genes are conserved enough between CBS6039 and CBS6273 that primers designed based on CBS6039 sequence amplify corresponding regions from CBS6273 (data not shown).

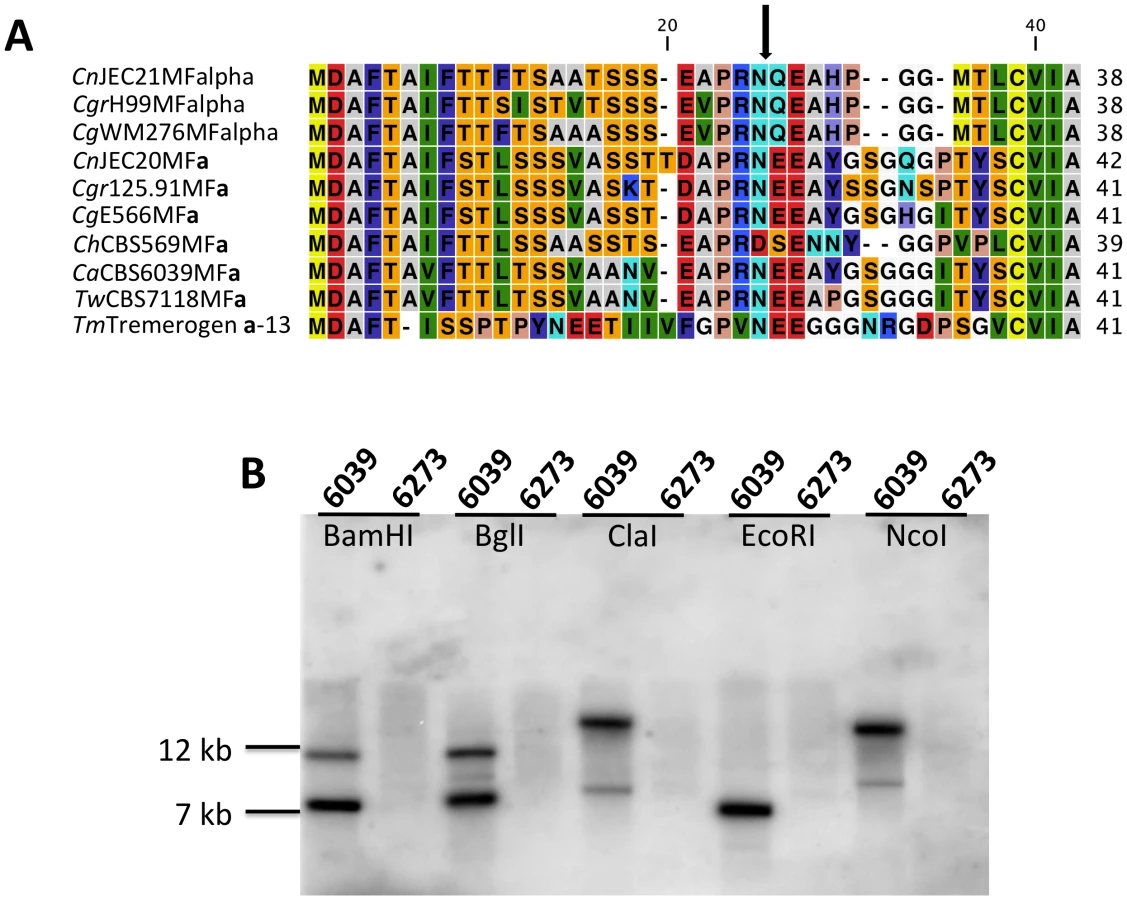

To determine whether the pheromone receptor gene STE3 lies within the A P/R mating-type locus, we performed Southern blot analysis using genomic DNA from the two strains of C. amylolentus. The STE3 PCR product derived from CBS6039 was used as a probe, and only hybridized to the lanes containing CBS6039 DNA with no hybridization to CBS6273 (Figure 4B). This analysis provides evidence that the STE3 gene differs between the two C. amylolentus strains and the pheromone receptor gene is also linked to mating-type. Extensive additional Southern and PCR data (summarized in Figures S2, S3, S4) document that the sequence divergent region of the P/R locus spans more than 60 kb encompassing multiple genes (mating pheromone genes, STE3, STE12, and STE20 among others). This contrasts with C. heveanensis in which the P/R locus is more restricted, STE3 and the MF pheromone genes are closely linked, and the LPD1, STE11, ZNF1, MYO2, and IKS1 genes are linked to but not within MAT [24]. In conclusion, in C. amylolentus a tetrapolar mating system with physically unlinked HD and P/R loci appears to define mating-type identity, and the P/R locus has expanded considerably compared to C. heveanensis, revealing an evolutionary intermediate in the transition from the tetrapolar to bipolar state that is even more closely related to the pathogenic species complex.

Phylogenetic analysis of MAT related genes in C. amylolentus and T. wingfieldii

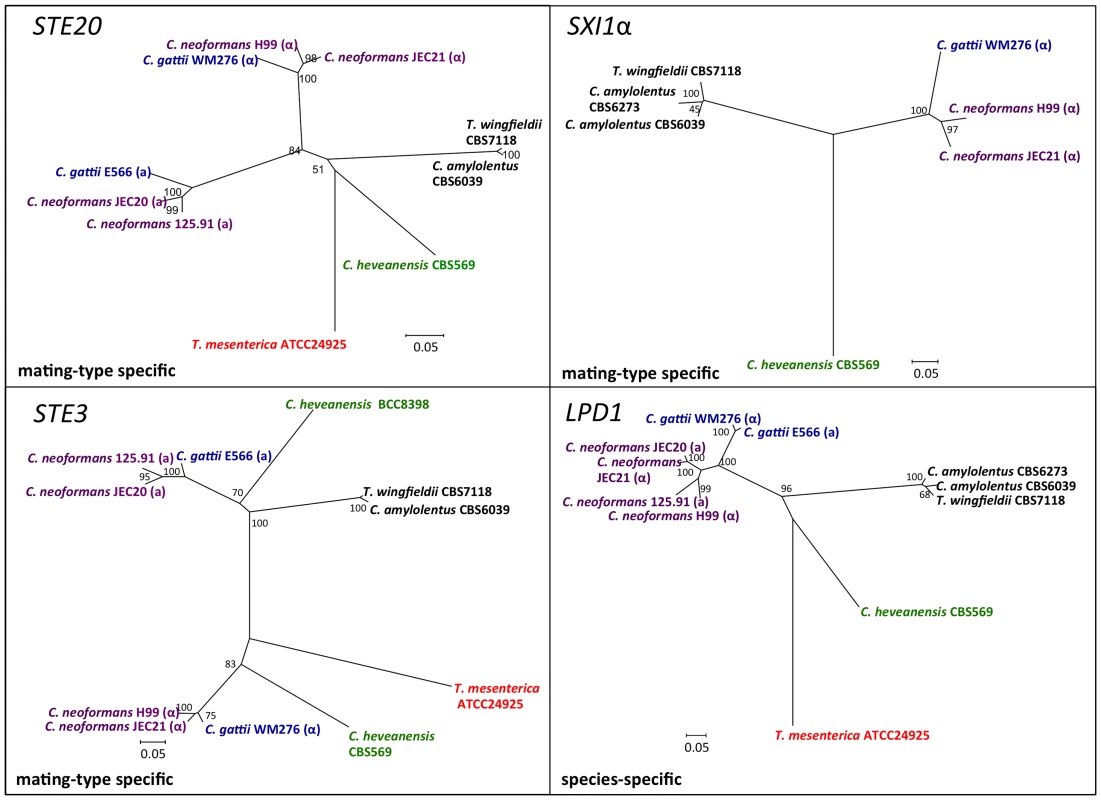

We conducted phylogenetic analysis of several genes that are located within the MAT locus of C. neoformans (CID1, ETF1, GEF1, LPD1, STE3, STE12, STE20, SXI1, and SXI2). This analysis included C. neoformans var. neoformans, C. neoformans var. grubii, and C. gattii representatives from the pathogenic species cluster [10] and the closely related sibling species C. amylolentus and T. wingfieldii, as well as the outgroup species C. heveanensis and T. mesenterica [24]. Based on the phylogeny of the species within the C. neoformans pathogenic species cluster, these genes can be classified into three different groups: species specific (CID1, GEF1, LPD1), mating-type specific (ETF1, STE3, STE12, STE20), and mating-type unique genes (SXI1, SXI2) (Figure 7 and Figures S6 and S7).

The species- specific phylogeny of CID1, GEF1, and LPD1 is consistent with the hypothesis that this region has been recruited into the MAT locus of C. neoformans during the transition from a tetrapolar to a bipolar mating system. For the sex-unique genes in the C. neoformans species complex, SXI1 and SXI2, SXI2 showed a considerably higher level of polymorphism between the two alleles from the CBS6039 and CBS6273 C. amylolentus isolates (Figure S7). ETF1 might have gained its mating-type specific divergence in the C. neoformans species complex after the common ancestor of the species complex split from the other sibling species while STE3, STE12, and STE20 all have mating type specific phylogenetic patterns within the C. neoformans species complex. In C. amylolentus, PCR primers designed based on CBS6039 sequences were only able to amplify these genes from CBS6039, but not from CBS6273, indicating the existence of considerable polymorphisms between the two alleles of CBS6039 and CBS6273 for each of these three genes. This is consistent with the mating type specific pattern observed within the C. neoformans species complex. Additionally, for STE3 and STE12, the clusters of C. amylolentus and T. wingfieldii are more closely related to the MATa alleles of C. neoformans species complex, suggesting a possible common origin of these alleles, as well as an early involvement of the STE3 and STE12 genes in the evolution of mating type determination.

Discovery of the sexual cycle in C. amylolentus

Following definition of the mating-type locus for both sibling species, we sought to identify a sexual cycle for C. amylolentus and T. wingfieldii to determine whether the A, B, or both A and B MAT loci control sexual reproduction. It was previously thought that both of these sibling species were asexual [31]; however, we discovered an extant heterothallic sexual cycle for C. amylolentus. We conducted mating assays and found the following optimal conditions: V8 pH = 5 solid medium with incubation for one week or longer at room temperature in the dark. The cross between C. amylolentus strains CBS6039 and CBS6273 produced hyphae with fused clamp connections and aseptated basidia terminating in four long individual spore chains (please see further discussion on strains CBS6039 and CBS6273 in Text S1, and formal description of mating in Materials and Methods section), similar to matings in C. neoformans and C. gattii. Sterigmata were not observed (Figure 8A–8F). A marked, obvious feature is the shape of the spores which are ellipsoid in the pathogenic species [32] whereas C. amylolentus spores are round and similar in size to yeast cells. Crosses of either C. amylolentus strain with T. wingfieldii were infertile. Because there is only one strain of T. wingfieldii available, T. wingfieldii might be fertile in the presence of a suitable partner, similar to the two interfertile C. amylolentus strains, or it could be a sterile isolate.

In C. amylolentus, we observed that the periphery of some mating patches contains a mixture of both monokaryotic hyphae and sectors in which mating occurs to produce dikaryotic hyphae indicative of sexual reproduction. The dikaryotic sectoring phenotype is present in most mating patches and also serves as a visual assay for mating. The structures produced during the sexual cycle of C. amylolentus were visualized in greater detail by microscopy. The four spore chains are each very long consisting of >15 (quantified by counting 10 individual basidia) spores per chain and clamp cell connections are visible by light microscopy and SEM (Figure 8A–8F). Based on fluorescence microscopy with Hoechst 33258 or Sytox green, dikaryotic hyphae and both uni- and occasional bi-nucleate spores were observed (Figure S8A–S8D). In the Filobasidiella lineage, C. neoformans and C. gattii produce both dikaryotic (heterothallic) and monokaryotic (homothallic) hyphae while F. depauperata produces only monokaryotic hyphae. The presence of dikaryotic hyphae in C. amylolentus provides evidence that opposite-sex mating occurs during the sexual cycle [11], [12]. Additionally, the presence of two nuclei in some basidiospores could result from either a mitotic nuclear division in the spore or packaging of two nuclei into some spores (as occurs in pseudo-homothallic species) [33].

Interestingly, the cap of the spore chain represents a quartet of basidiospores. These spores are the oldest in the spore chain and remain tightly attached to each other. Younger spores in the four spore chains remain attached to the preceding and following spores in the chain but often not to their meiotic siblings in the other three spore chains. Thus, the quartet spore cap appears to tether the ends of the spore chains together. This feature has not been described in the pathogenic Cryptococcus species. In summary, microscopic examination of mating structures in C. amylolentus has revealed both shared hallmarks with sexual reproduction in the pathogenic Cryptococcus species and novel features.

Genotypic analysis of meiotic progeny

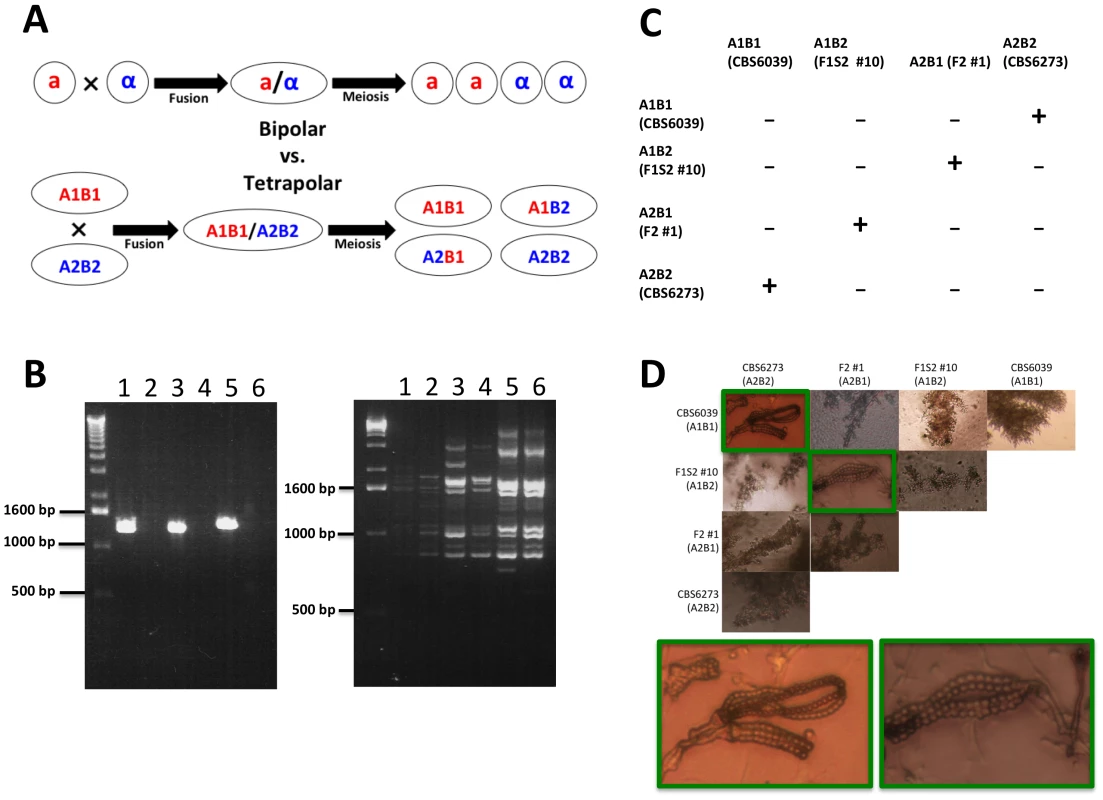

To determine if recombination occurs, and to further assess whether the mating system of C. amylolentus is tetrapolar or bipolar, we performed microdissection of random progeny (F1 set 1) and individual spore chains (F1 set 2) followed by molecular genotyping analysis for both MAT markers and a genome-wide set of RAPD markers. We designate the CBS6039 parent as A1B1 and the CBS6273 parent as A2B2, according to the designation used for a tetrapolar mating system and our findings, assigning A as the P/R locus and B as the HD locus (as in T. mesenterica, C. heveanensis, and U. maydis [24], [26]).

For F1 set 1 (F1S1), a total of 40 spores were dissected and 28 (70%) germinated (Tables S1 and S2). The progeny were all haploid based on FACS analysis with C. neoformans as reference (data not shown). Genotyping using MAT markers and RAPD markers revealed that most of the progeny inherited all of the parental alleles from CBS6039 (A1B1) (Tables S1 and S2) and did not appear to be meiotic recombinants. Of the 28 progeny, three (11%) did show recombination within the P/R locus (#17, 27, and 28), whereas only one additional progeny (3.5%) exhibited reassortment between the P/R and HD loci (#18). We hypothesize that this is likely due to the dissection of a mixture of yeast cells, blastospores (mitotic pre-meiotic cells produced by budding from the hyphae or clamp cells), and basidiospores (meiotic sexual spores) [5], [34], which are all morphologically similar for this species. Similar to C. neoformans, in C. amylolentus blastospores can be generated from the clamp cell, and the following repeated mitotic events tend to produce a cluster of cells at the hyphal septa. This may explain why we did not observe an equal distribution of markers from the two parental strains among the blastospores, as they could have been mitotic products from one common parental blastospore. That many isolates in F1S1 could be blastospores is also supported by analysis of the mitochondrial genome segregation (as shown below) that revealed a majority of this progeny set possess nuclear and mitochondrial genomes inherited from different parents. Remarkably, 22 (78%) of the progeny are sterile and unable to undergo sexual reproduction with either parent or their F1 siblings. It is interesting that progeny that appear to be derived from blastospores are, for unknown reasons, frequently sterile.

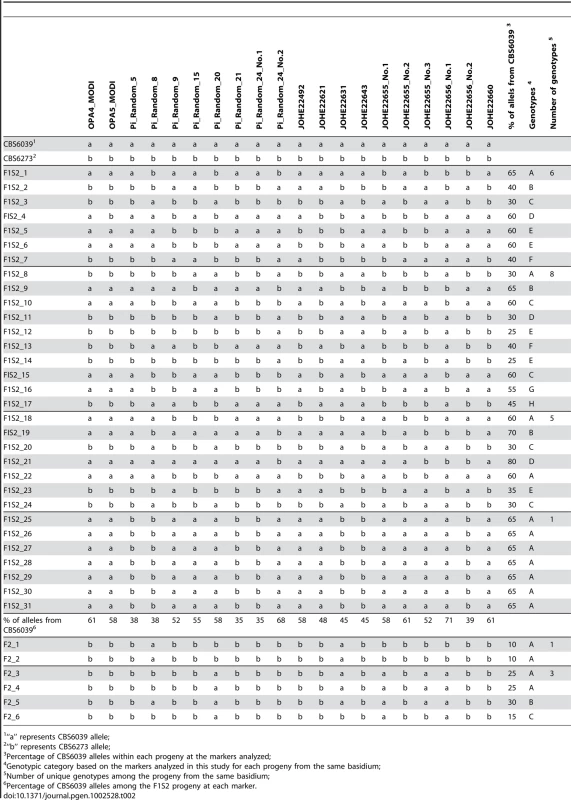

To analyze meiotic basidiospores specifically, we dissected F1 set 2 (F1S2) from four well-resolved individual spore chains (one chain each from four different basidia). The germination frequency was 91% (31/34), and 58% (18/31) of the progeny were sterile with both parents (Table 1). All of this progeny set were also haploid based on FACS analysis (data not shown). Molecular analysis of this set using the same six MAT A or B genes revealed that 64.5% (20/31) of the progeny resembled one or the other parent (A1B1 or A2B2) while the other ∼35% exhibit evidence of recombination within the P/R locus and/or between the HD and P/R loci (i.e. A1B2 or A2B1 progeny) (Table 1). In contrast to the first F1 progeny set (F1S1), genotyping of the spore chain derived progeny set (F1S2) using RAPD markers revealed extensive recombination (Table 2). Linkage analyses clustered markers analyzed in this study into several linkage groups, indicating independent inheritance of markers (data not shown). In addition, analysis of the markers implemented in this study revealed that for each marker, the two parental alleles were equally inherited across the entire progeny set (Table 2). Specifically, for each marker, the percentages of the CBS6039 allele ranged between 35% and 71%, which did not show any significant bias toward one parental allele (chi-square test, P>0.05). Similarly, the percentage of the CBS6039 allele that each progeny inherited ranged from 25% to 80%, and again these values reflect equivalent inheritance of alleles from either parent (chi-square test, P>0.05). Moreover, we observed that meiotic recombination in C. amylolentus resulted in the generation of new combinations of alleles in the progeny given the multiple genotypes present in the different spore chains analyzed. The observed high level of recombination and equivalent inheritance of the two parental alleles support the conclusion that meiosis occurs in C. amylolentus.

Mating ability of meiotic progeny

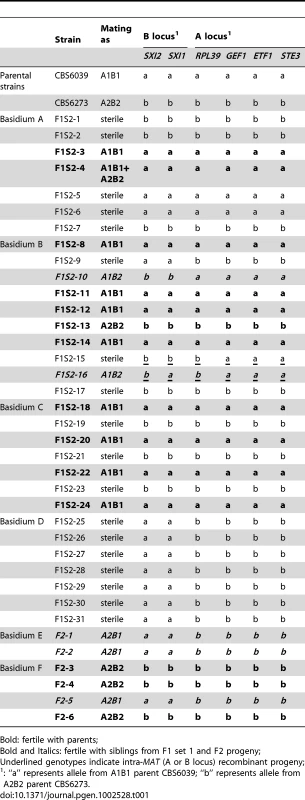

We discovered that some of the progeny that are sterile with either parent are in fact interfertile with other progeny. Specifically, of the 59 F1 progeny (mixture of blastospores and basidiospores), there are 14 A1B1 F1 progeny that are fertile with the A2B2 parent CBS6273, one A2B2 progeny that is fertile with the A1B1 parent CBS6039, and one that is fertile with both parents. Among the spore chain derived (F1S2), progeny #13 (A2B2) was found to be able to mate with progeny #3 and #24 (A1B1). Successful mating was also observed between some MAT recombinant progeny. Specifically, successful mating was observed when A1B2 progeny (F1S2 #10 and #16) and A2B1 progeny (F1S1 #18, F2 #1, #2, and #5) were co-cultured together (with the exception of mating between F1S2 #16 and F1S1 #18). None of these MAT recombinant progeny mated with either parent, further confirming that C. amylolentus possesses a tetrapolar mating system (Figure 9).

Because only 32% (19/59) of the progeny are fertile in both progeny sets, we assessed whether fertility increases with an additional sexual cross or mitotic passage. Even after several passages on YPD, the sterile phenotype remained stable (data not shown). We crossed F1S2 progeny #3 and CBS6273 to generate a backcross progeny set (F2). Interestingly, most of the basidia in the cross were barren and if spore chains were present, the number of spores per chain was significantly reduced when compared to matings between the parental strains. We were successful in dissecting spores from two individual spore chains. The germination rate was 54% (6/11) and all of the progeny were fertile (50% with the CBS6039 parent and the remaining A2B1 progeny are interfertile with the F1S2 progeny #10 and #16 (Table 1)). All of the progeny examined are haploid with the exception of F2 #4, which is diploid by FACS yet remains self-sterile (data not shown).

In summary, taken together our genotyping data indicates that meiotic recombinants are present among the sexually produced progeny and our evidence is that the sexual cycle of C. amylolentus conforms to a modified tetrapolar mating system in that 1) sterile progeny are also frequently produced, and 2) the ratio of the four mating types is unbalanced.

Uniparental mitochondrial DNA inheritance

To assess the mitochondrial inheritance pattern during sexual reproduction of C. amylolentus, SNPs were first identified in two mitochondrial genes, NAD4 and NAD5, between the two parental strains, CBS6039 and CBS6273, by PCR amplification and sequencing. Of the 65 progeny screened, no intra- or inter-genic recombination between the two genes was observed, and all of the progeny (with the exception of two from F1S1) typed as the CBS6273 (A2B2) parent (Table S3). The two progeny (F1S1 #13 and #16) that contain the A1B1 mitochondrial genome are likely dissected parental yeast cells, because they also both possessed A1B1 alleles at all of the other markers that were typed. For the other nuclear non-recombinant progeny that type as the A1B1 parent, the fact that they have the A1B1 nuclear genome and the A2B2 mitochondrial genome suggests that they descend from blastospores produced after cell-cell fusion and a result from cytoduction of the CBS6039 nuclear genome and CBS6273 mitochondrial genome. All other progeny that are derived from meiotic basidiospores contained a recombinant nuclear genome paired with the mitochondrial genome exclusively from the A2B2 parent (CBS6273). These results demonstrate that mitochondria are uniparentally inherited from the A2B2 parent during C. amylolentus sexual reproduction, similar to C. neoformans in which mtDNA is inherited uniparentally from the a parent [35], [36], [37], [38].

Discussion

The current study extends the previous analyses of the MAT locus in the pathogenic Cryptococcus species to the closest known species, T. wingfieldii and C. amylolentus. To determine the structure of MAT in both species, we cloned and sequenced the HD and P/R loci. Due to their close phylogenetic relatedness [22], characterization of MAT has provided key insights into the evolution of MAT and revealed important aspects of the transition from an ancestral tetrapolar to a bipolar mating system in C. neoformans and C. gattii [13], [14], [39], [40].

A previous phylogenetic analysis using a six-gene multi-locus sequencing (MLS) approach identified the most closely related species to the pathogenic Cryptococcus species complex [22]. This analysis identified the sensu stricto (closely related) and sensu lato (more distantly related) species that provide unique vantage points to address questions such as: when and how did the bipolar mating system evolve? And what, if any, affects does the emergence of bipolar mating systems have on the pathogenesis of C. neoformans and C. gattii? Previous studies on a more distantly related sensu lato species, Cryptococcus heveanensis, revealed it to be tetrapolar [24]. The key advances presented here provide additional critical insights. First, as sensu stricto strains, C. amylolentus and T. wingfieldii are much more closely related to the pathogenic species C. neoformans/C. gattii than is C. heveanensis; hence the transition to bipolarity in the pathogens was even more recent than could be concluded based on the studies of C. heveanensis alone. Second, by providing additional tetrapolar outgroup species, we can conclude that the transition was from tetrapolar to bipolar, not vice versa. Third, the P/R locus is much more expanded in C. amylolentus compared to C. heveanensis, providing further insights on the evolution of the MAT and this key step in the process. Furthermore, the tetrapolar mating system in C. amylolentus showed indications of deviation from the classic tetrapolar model in that many MAT loci recombinant progeny are sterile and progeny that resemble one parent at the MAT loci dominate the progeny population. Moreover, the organization of MAT in these sibling species mirrors key aspects (gene acquisitions, chromosomal rearrangements, etc.), which shaped the evolution of the mating-type locus in the pathogenic Cryptococcus species complex.

Previous analysis resolved the phylogeny surrounding the pathogenic Cryptococcus species cluster and revealed that T. wingfieldii and C. amylolentus are sibling species, the closest relatives of the pathogenic species, and members of the Filobasidiella clade [22]. The MAT loci of T. wingfieldii and C. amylolentus share overall synteny, with two major inversion events present between the P/R loci of the two species (Figure 3). For this analysis, the type strain, the only isolate of T. wingfieldii available, was employed. Two strains of C. amylolentus are available and we characterized MAT for the type strain CBS6039 and representative sequences for CBS6273. The two MAT loci of T. wingfieldii and C. amylolentus are physically unlinked and present on different chromosomes (Figure 1B and Figure 2B). The MAT assembly for C. amylolentus is similar to T. wingfieldii in that both homeodomain transcription factors are present and opposite in their orientations, similar to the paired, divergently oriented bE and bW genes in U. maydis. Several other key genes (SPO14, RPL22, and CAP1) are present and these lie within MAT in C. neoformans but appear to lie outside of MAT in C. amylolentus. The configuration of the HD genes in the sibling species provides evidence that the ancestral form of the HD locus contained both SXI1 and SXI2, similar to tetrapolar mating systems in other basidiomycetes, and that loss of one or the other of the HD genes punctuated the formation of a bipolar mating system.

Of the >20 genes identified in the HD (B) and P/R (A) loci of the sibling species, we determined which genes define MAT. Because only one strain of T. wingfieldii is available, we were unable to establish which of the genes in the B and the A loci are MAT-specific. By comparing sequences from the two strains of C. amylolentus, we determined that the MAT-specific region in the HD locus is likely restricted to the ∼3 kb SXI1 and SXI2 dimorphic region. The divergence is present in the 5′ regions of SXI1 and SXI2, similar to recent findings on the B MAT locus alleles of C. heveanensis [24]. This is also consistent with findings in other fungi where the N-terminal regions of the homeodomain proteins are typically variable and heterodimerization only occurs when compatible (or different allelic versions) of the proteins are brought together promoting activation of genes required for sexual development [30], [41].

We also sought to define the extent of the sex-specific region in the MAT A locus. Our extensive Southern and PCR analysis document that the P/R locus has been expanded to encompass >60 kb in C. amylolentus, including the STE3 and MF pheromone genes that lie >30 kb apart in contrast to their close linkage in the P/R MAT A locus of C. heveanensis (Figures S2, S3, S4). In addition, several genes encompassed within this expanded C. amylolentus P/R locus are linked to but outside the defined P/R locus of C. heveanensis [24]. Thus, one of the two MAT loci has expanded in C. amylolentus but the two remain unfused.

We also report the discovery of sexual reproduction in C. amylolentus. Fortunately, the only two strains of C. amylolentus available in the world are of opposite mating-type and fertile, enabling us to define the sexual cycle for C. amylolentus. Mating structures in C. amylolentus resemble those observed in C. neoformans, and differed from C. heveanensis, consistent with its closer phylogenetic relationship with C. neoformans than with C. heveanensis.

Mating in C. amylolentus produces many sterile progeny, suggesting that sexual reproduction may pose a risk in which not all of the progeny produced are fertile. Although the underlying mechanism(s) causing sterility in the C. amylolentus progeny is not clear, there are several possible explanations. First, it is possible that aneuploids (1N+1) are generated during meiosis that could be sterile. FACS analysis of the examined progeny suggested that all of the progeny are haploid with the exception of a single diploid (F2 progeny #4), but FACS is not sensitive enough to detect 1N+1 aneuploids. Employing comparative genomic hybridization (CGH) of the C. amylolentus parental strains with the sterile progeny will be necessary to address the issue of possible aneuploidy generated during mating. Second, meiosis is mutagenic and sexual reproduction may also increase transposition in the genome. The resulted mutations and/or the insertion of transposons in MAT or elsewhere might result in sterility. Third, the increased sterility among progeny could be due to sex induced silencing of repetitive elements within MAT and linked fertility genes [42] or damage to MAT caused by gene conversion events. Sex induced silencing requires the RNAi machinery. However it is not known yet if C. amylolentus possesses these genes. The C. amylolentus genome sequence will allow this question to be answered. Additionally, we cannot exclude the possibility that the sterility observed among the progeny is due to divergence/incompatibility between the mating machineries of the two C. amylolentus strains, or to nuclear-mitochondrial incompatibility that has been observed in other yeasts [43].

From the genotyping analysis, it is evident that extensive recombination occurred among the progeny produced by sexual reproduction. Additionally, we observed a 1∶1 segregation pattern of the two parental alleles in the progeny population. This segregation data and the high level of genetic exchange in the progeny (especially the F1S2 spore chain derived progeny set) provide strong evidence that meiosis occurs within the basidium during sexual reproduction. Additionally, RAPD analysis revealed that in some spore chains from the F1S2 and the F2 progeny sets, more than four genotypes are present in a single chain. There are several possible explanations. In C. neoformans, meiosis typically gives rise to four meiotic products and it was recently shown that a single meiotic event occurs in each basidium [44]. In C. amylolentus, more than one meiotic event could occur in the basidium. However, this would have to involve post meiotic nuclear fusion and a second round of meiosis. In this case, up to eight genotypes could be produced from one basidium. Also, high gene conversion events favoring some alleles over others could result in a non-Mendelian inheritance pattern and skew the resulting genotypes in each individual spore chain.

Another possible explanation for the observed >4 genotypes/basidium that we favor is the presence of aneuploids in the progeny population. The RAPD markers employed in this analysis differentiate the two parental strains by the presence or absence of a PCR product. If progeny are aneuploid for one or more chromosome, they could appear unique and differ from the two parental strains. In this aneuploidy model we expect the basidiospores from one basidium to share four common genotypes with the exception of a few rarer genotypes (potential aneuploids). This model is consistent with our RAPD data (Table 2 and Table S2) in which several spore chains contain four distinct major genotypes and several anomalous minority genotypes that are closely related to one of the four consensus majority genotypes in a given spore chain (Figure S9). One limitation is that we are currently unable to score the heterozygous state of the aneuploids, which can be detected by co-dominant markers such as PCR-RFLP and CGH, and this provides fertile ground for future studies.

Micromanipulation of the individual spore chains representing F1S2 and the F2 progeny generated progeny that are recombinant at the MAT loci (A1B2 and A2B1), and these MAT recombinant progeny are inter-fertile, but cannot mate with either of the two parental strains, proving that C. amylolentus has a tetrapolar mating system. However, among those isolates that were fertile the A1B1 genotype was overrepresented, whereas the other three genotypes were underrepresented (Table 1 and Table S1).

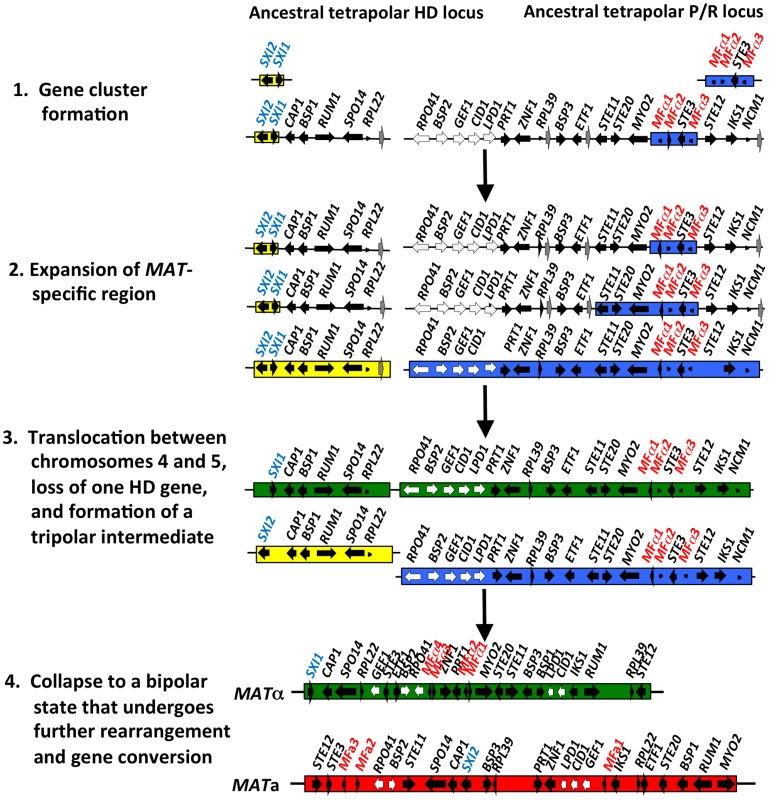

MAT in the pathogenic Cryptococcus species evolved from an ancestral tetrapolar system with physically unlinked B and A loci and these loci fused into a large bipolar MAT locus. In C. amylolentus, the structure of MAT indicates a tetrapolar mating system with allelic diversity in both the B and A loci. Although evidence from T. wingfieldii, C. amylolentus, C. heveanensis [24], and C. disseminatus [9] suggests that MAT evolved from a tetrapolar to a bipolar system, an alternative hypothesis could be just the opposite: namely that the ancestral form of MAT was bipolar and instead evolved into a tetrapolar mating system in these species. In such a scenario, a bipolar locus could have suffered a chromosomal break resulting in the formation of physically unlinked HD and P/R loci in a derived rather than ancestral tetrapolar fungal species. In this model, the tetrapolar state would then be ancestral in some species and derived in others. We do not favor this alternative model and the one we propose (Figure 5) instead illustrates the evolution of the bipolar MAT in the pathogenic Cryptococcus species from an ancestral tetrapolar system. The evidence adduced now for three sibling species supports the more parsimonious model that C. amylolentus, T. wingfieldii, and C. heveanensis all reflect a common, shared ancestral tetrapolar state rather than multiple independent derived states.

MAT evolution in fungi has defined a continuum of transitions in modes of sexual reproduction from outcrossing tetrapolar multiallelic systems to bipolar biallelic systems that promote inbreeding to unipolar uniallelic same-sex mating that promotes extreme inbreeding and clonality [15], [45]. Aside from bipolar and tetrapolar mating systems, some deviations from these classic mating systems have been reported recently. For example, a pseudo-bipolar mating system has been recently found in the red yeast Sporidiobolus salmonicolor [46], [47]. The authors found that in this species, mating is normally bipolar and governed by a large continuous MAT locus with the A and B regions located at either end. However, meiotic recombination may occur between the MAT locus alleles, generating novel mating types, and thus increasing MAT allele number and evolutionary rates for some MAT genes.

Results from our studies illustrate features of both the transition from tetrapolarity to bipolarity in the closely aligned saprobic and pathogenic Cryptococcus species, and also the emergence of sexual reproduction in which one mating-type has an advantage resulting in a higher proportion of fertile progeny of one mating-type (A1B1) that might have ultimately led to the emergence of unisexual same-sex mating in C. neoformans. In conclusion, C. amylolentus and C. heveanensis have physically unlinked HD and P/R loci and this arrangement further supports tetrapolarity as the ancestral configuration, and that the transition to bipolarity occurred recently and concomitantly with the emergence of the pathogenic C. neoformans/C. gattii species cluster.

These studies on the molecular events leading to the fusion of two unlinked sex determining regions of the genome in the ancestral tetrapolar state to the derived bipolar mating systems mirror aspects in the hypothesized origin of sex chromosomes of more complex multicellular eukaryotes, including plants, insects, fish, and mammals. Namely, Ohno hypothesized that sex determinants arise on an autosome, and then gradually capture this chromosome, which evolves to become a sex chromosome [39]. These steps include the original emergence of the sex determinant, the recruitment of other genes that function in sex to the incipient sex chromosome, and rearrangements and the acquisition of repetitive elements that lead to two sexually dimorphic chromosomes. The transition from two unlinked sex determinants in tetrapolar fungi to two linked sex determinants in bipolar fungi, and the fact that this transition has occurred repeatedly and independently, provides further support for the hypothesis that sex determinants arise at distant genomic locations and then become linked through gene movement or chromosomal translocations in both mating type loci and sex chromosomes.

Materials and Methods

Strains and media

The two strains of C. amylolentus, CBS6039 and CBS6273, and the one T. wingfieldii isolate, CBS7118, were obtained from the Centraalbureau voor Schimmelcultures (CBS) Fungal Biodiversity Centre in the Netherlands. Both CBS6039 and CBS6273 were originally isolated from insect frass in South Africa, while CBS7118 was originally isolated from rubber sheet in Indonesia. All species were grown and maintained on yeast extract-peptone-dextrose (YPD) medium at 24°C. Mating assays were performed on V8 medium pH = 5 in the dark and also at 24°C. Random spore dissection was performed on YPD medium as previously described [44]. Spore chain dissection was performed by first transferring a well separated spore chain onto a drop of zymolyase on YPD, and after incubation at 24°C for 15 minutes, individual spore from the spore chain was dissected as previously described [44].

DNA extraction

To isolate genomic DNA from T. wingfieldii and C. amylolentus, cells were cultured in 50 ml of liquid YPD shaking overnight at 24°C. The pellets were then lyophilized overnight and the CTAB method of fungal DNA isolation was performed as described before [24]. Plasmid DNA from positive TOPO clones was extracted using the QIAprep Spin Miniprep Kit (Qiagen, Valencia, CA), fosmid DNA was isolated using a modified miniprep protocol, and DNA from the shot-gun sequencing libraries was extracted using the DirectPrep96 Miniprep Kit (Qiagen, Valencia, CA). Additionally, progeny DNA was isolated using a modified miniprep protocol and colony lifts were performed to isolate DNA from individual colonies in each fosmid library according to the protocol described in [28].

Degenerate PCR

We designed degenerate PCR primers using the online computer program, COnsensus-DEgenerate Hybrid Oligonucleotide Primer (CODEHOP, http://blocks.fhcrc.org/codehop.html) to identify MAT specific genes in T. wingfieldii. The primers consist of a relatively short 3′ degenerate core and a longer 5′ non-degenerate consensus clamp designed by multiple sequence alignments [48]. We aligned sequences for two flanking genes (FAO1 and NOG2) and two recently acquired MAT genes (RPO41 and LPD1) from C. neoformans var. neoformans and var. grubii, C. gattii, U. maydis, and C. cinerea to design the degenerate PCR primers (see Table S4 for primer information). PCR was performed on genomic DNA isolated by the CTAB extraction method as template and products were separated by gel electrophoresis. Products with the strongest ethidium bromide-staining signal were then gel extracted using the QIAquick Gel Extraction Kit (Qiagen, Valencia, CA) followed by transformation into E. coli using the TOPO-TA cloning Kit (Invitrogen, Carlsbad, CA). Plasmid DNA was purified from transformants and then sequenced. For C. amylolentus, degenerate primers were not used. Instead, primers from T. wingfieldii were directly used to amplify MYO2, LPD1, SXI1, and SXI2 in both C. amylolentus strains (see Table S4 for primer information).

Fosmid library preparation and fosmid library screening

We employed the CopyControl Fosmid Library Production Kit (Epicentre, Madison, WI) to generate fosmid libraries for T. wingfieldii and C. amylolentus strain CBS6039. At least 2.5 µg of CTAB isolated genomic DNA was randomly sheared using a 200 µl small bore pipette tip and sheared DNA was end-repair converted to blunt 5′ phosphorylated ends using End-Repair Enzyme Mix, dNTPs, and ATP. We then separated the end-repaired DNA overnight using a Contour-clamped Homogenous Electric Field (CHEF) on a CHEF DR-II apparatus (Bio-Rad, Hercules, CA). The following conditions were used: 1- to 6-second switch time, 6 V/cm, 14°C for 14–15 hrs in 0.5X TBE. The size-fractionated DNA, 25 to 40 kb fragments, was recovered by gel extraction and the DNA was precipitated with sodium acetate and ethanol. The precipitated insert DNA was then ligated into the CopyControl pCC1FOS cloning-ready vector and incubated overnight at 24°C. The ligated DNA was packaged in phage particles and plated on E. coli phage-resistant cells (EPI100-T1R plating strain) overnight at 37°C (detailed protocol can found at http://www.epibio.com/item.asp?ID=385). Approximately 16,000 fosmid clones were picked into 96-well plates and transferred to 384-well plates for long-term storage at −80°C. The 384-well plates were replicated onto high-density filters for hybridizations using the MAT genes.

Sequencing and assembly

Positive fosmid clones were sequenced using the shot-gun sequencing method described by Metin et al. [24]. Six fosmids were pooled and sequenced to generate the assembly for T. wingfieldii and four fosmids were individually sequenced to generate the assembly for C. amylolentus strain CBS6039. Sequencing reactions were performed using Big Dye chemistry v3.1 (Applied Biosystems, Foster City, California, United States) and analyzed on an Applied Biosystems 3730xl capillary sequencer in the Biological Sciences Sequencing Facility at Duke University. For each library, approximately ∼1200 sequence reads were imported into UNIX using Phred and Phrap to assemble the sequences into larger contigs of overlapping sequence [49], [50], [51]. To close gaps in the assemblies, we designed primers from contig ends using Primer 3 (http://frodo.wi.mit.edu/primer3/). The GenBank accession numbers for T. wingfieldii are HM368525 (HD locus) and HM368524 (P/R locus). The GenBank accession numbers for the HD locus and the three P/R contigs in C. amylolentus CBS6039 are: HM640220 (HD locus), HM640221 (RPL39-MYO2), HM640222 (LPD1-STE12), and HM640223 (GEF1-MFA). The GenBank accession numbers for genes from C. amylolentus CBS6273 are: HM640224 (SXI1), HM640225 (SXI2), HM640226 (GEF1), HM640227 (LPD1), and HM640228 (ETF1).

Fluorescence-activated cell sorting (FACS) analysis

To determine the ploidy of the two C. amylolentus and one T. wingfieldii strains, we cultured the isolates on YPD medium for 2 days at 24°C. Each isolate was processed for flow cytometry as previously described [5], [52] and analyzed using the FL1 channel on a Becton-Dickinson FACScan. The ∼20 Mb genome of C. neoformans/gattii was used as a reference for ploidy determination (including haploid and diploid controls).

Pulsed-field gel electrophoresis (PFGE) and chromoblot analysis

To isolate chromosomal DNA of C. amylolentus and T. wingfieldii, spheroplasts were generated following the spheroplasting protocol for C. neoformans and C. gattii [53]. The plugs containing spheroplasts were lysed at 55°C for at least 24 hrs in lysing solution (0.5 M EDTA/10 mM Tris-Cl (pH = 10) and 1% Sarcosyl) and then loaded onto a PFGE apparatus and separated for approximately 5 days on a CHEF DR-II apparatus (Bio-Rad, Hercules, CA). The following conditions were used: Block 1: 75- to 150-second switch time, 4 V/cm, 13°C for 30 hrs and Block 2: 200 to 400-second switch time, 4 V/cm, 13°C for 60 hrs in 0.5X TBE. The gel was then stained in ethidium bromide for 15 minutes, destained for an hour, and visualized using a UV lamp. The chromosomal DNA was blotted overnight onto Hybond (Amersham, Piscataway, NJ) membranes in 20X SSC using standard protocols. The membrane was then hybridized to MAT gene probes generated by PCR. We also performed Southern blot analysis on genomic DNA from C. amylolentus that was digested with EcoRV, PstI, BamHI, or NotI. The digested DNA was separated on an agarose gel and probed with the RPL22 gene probe amplified from C. amylolentus, with primers designed for T. wingfieldii (see Table S4 for primer information).

Bioinformatic analyses

We compared sequences from the HD locus of T. wingfieldii to those of C. amylolentus by employing a matrix comparison (or dot plot) analysis. To generate each dot plot, we employed the Molecular Toolkit's online nucleic acid dot plots program (http://www.vivo.colostate.edu/molkit/dnadot/). The parameters for the dot plot analyses were as follows: the window size was 51 and the mismatch limit was 6. We also employed the bioinformatic software, Artemis Comparison Tool Release 8 (http://www.sanger.ac.uk/resources/software/) to generate comparison plots across MAT of T. wingfieldii to C. amylolentus and both sibling species compared to C. neoformans serotype D strain JEC21 [54]. The input file was created using WebACT (http://www.webact.org/WebACT/home) with the Blastn algorithm [55].

Phylogenetic analysis

Phylogenetic analysis was performed on coding sequences using MEGA 5 [56]. To determine the phylogenetic relationship, the Neighbor-Joining method based on the Kimura 2-parameter model was employed [57]. For statistical support, 500 replicates were performed and bootstrap values were calculated.

Southern blot analysis

We performed Southern blot analysis using standard protocols on genomic DNA from C. amylolentus digested with BamHI, BglI, ClaI, EcoRI, or NcoI. The digested DNA was separated on an agarose gel and probed with the STE3 gene, stripped (0.1% SDS and 0.1X SSC in boiling water, 3 times for 15 minutes each), and probed with the contig ends from the P/R assembly in C. amylolentus amplified by PCR (see Table S4 for primer information).

Description of the sexual cycle as Filobasidiella amylolenta

Standard description: Filobasidiella amylolenta Findley & Heitman sp. nov.

Etymology: The epithet is chosen to be identical with that of C. amylolentus (Van der Walt, D.B. Scott & Klift) Golubev 1981 [58]. Heterothallic fungus. Hyphae dikaryotic, clamped connections fused. Aseptate basidia, 3–5 µm diameter, terminating in four chains of basidiospores. Basidiospores are aerial, round, and 2–2.5 µm in diameter.

Holotype: Mounted teleomorph is paired cultures of C. amylolentus type strain, CBS6039^T (A1B1) crossed to CBS6273 (A2B2) on V8 medium (pH = 5). These strains were originally isolated from insect frass in South Africa [58]. A slide preparation of mating structures, basidia and basidiospores, is deposited in the USDA's Systematic Mycology and Microbiology Laboratory in Beltsville, Maryland (deposit number: BPI 881008). Strains CBS6039 (mating-type A1B1) and CBS6273 (mating-type A2B2) should be designated as the ex-type strain and the isotype strain, respectively, for the teleomorph Filobasidiella amylolenta.

Latin description: Filobasidiella amylolenta Findley & Heitman sp. nov.

Fungus heterothallicus. Hyphae dikaryoticae, fibulis fusis. Basidia aseptata, 3–5 µm lata, quatuor catenas basidiosporarum producentia. Basidiosporae aeriae, globosae, 2–2.5 µm diametro.

Microscopy

Spores and yeast cells were cultured on slides coated with V8 pH = 5 medium for one week or longer to allow production of mating structures. The slide was first washed with phosphate buffered saline (PBS) followed by staining the cell wall using a solution of Calcofluor white (fluorescent brightener 28 F-3397; Sigma) for 15 minutes. Slides were rinsed with PBS and fixed for 15 minutes in fixing solution (3.7% formaldehyde and 1% Triton-X100 in PBS). After permeabilization of the fungal cells, nuclear content was examined by staining with Sytox green (Molecular Probes) for 30 minutes. Slides were washed with PBS and a cover slip was applied to the slide for observation. In addition to staining spores and yeasts, mating filaments were also stained. Agar pieces were removed from mating plates and washed several times with PBS. Calcofluor white was added directly to the agar piece for 30 minutes, followed by washing with PBS, and fixing for 45 minutes. After permeabilizing samples, filaments were washed with PBS and stained with 1 mg/ml Hoechst 33258 (Invitrogen, Carlsbad, CA) overnight at 4°C. The next day, samples were washed with PBS, a thin slice of the agar (containing the mating filaments) was removed using a razor blade and a mounting solution containing anti-fade (Invitrogen, Carlsbad, CA) was added to the agar slice on a slide. The slides were sealed with nail polish and stored at 4°C in the dark after microscopic evaluation. All staining was performed at 24°C, unless otherwise noted. SEM was performed on C. amylolentus matings incubated on V8 pH = 5 medium for 2 weeks. The specimen was prepared and analyzed as described in [28]. Microscopy was performed with an Axioskop 2 plus upright microscope (Zeiss). Images were captured using an AxioCam MRm camera. Scanning electron microscopy was performed and viewed on a JEOL JSM 5900LV (JEOL U.S.A., Peabody, MA) SEM at 15 kV.

Spore dissection and genotyping

Microdissection of spores (random or individual spore chains using zymolyase (Zymo Research Corp., Orange, CA, USA)) was performed on YPD medium incubated at 24°C for two days to allow spores to germinate.

Genotyping of the MAT loci was achieved using a set of PCR markers (RPL39, GEF1, and STE3) and PCR-RFLP markers (SXI1 (enzyme EcoRV), SXI2 (enzyme RsaI), and ETF1 (enzyme DdeI)). To genotype other genomic regions, we used a set of 20 RAPD markers (Table S4). Linkage analyses indicated 18 of these 20 markers are not derived from the C. amylolentus MAT loci, with exception of markers Pi_Random_24_No.2 and JOHE22656_No.1, which were positioned in the same linkage group with HD markers. Non-MAT-association of nine of these 18 markers were further confirmed by cloning and sequencing of the polymorphic bands, as none of them was MAT specific sequence (data not shown). We designate the CBS6039 parent as A1B1 and the CBS6273 parent as A2B2, according to the designation used for a tetrapolar mating system and our findings, assigning A as the P/R locus and B as the HD locus (as in T. mesenterica, C. heveanensis, and U. maydis [24], [26]). Recombination was scored according to marker exchange for the P/R and/or HD locus. Recombination frequency among RAPD markers was inferred using program MapMaker.

These genotyping data was further analyzed using program MapMaker to generate genetic linkage groups. Additionally, the UPGMA clustering method implemented in the software MEGA 5 was used to analyze the genetic relationships among F1S2 progeny isolated from the same basidium.
