Suppression of RNA Silencing by a Plant DNA Virus Satellite Requires a Host Calmodulin-Like Protein to Repress Expression

Summary

In plants, RNA silencing plays a key role in antiviral defense. To counteract host defense, plant viruses encode viral suppressors of RNA silencing (VSRs) that target different effector molecules in the RNA silencing pathway. Evidence has shown that plants also encode endogenous suppressors of RNA silencing (ESRs) that function in proper regulation of RNA silencing. The possibility that these cellular proteins can be subverted by viruses to thwart host defense is intriguing but has not been fully explored. Here we report that the Nicotiana benthamiana calmodulin-like protein Nbrgs-CaM is required for the functions of the VSR βC1, the sole protein encoded by the DNA satellite associated with the geminivirus Tomato yellow leaf curl China virus (TYLCCNV). Nbrgs-CaM expression is up-regulated by the βC1. Transgenic plants over-expressing Nbrgs-CaM displayed developmental abnormities reminiscent of βC1-associated morphological alterations. Nbrgs-CaM suppressed RNA silencing in an Agrobacterium infiltration assay and, when over-expressed, blocked TYLCCNV-induced gene silencing. Genetic evidence showed that Nbrgs-CaM mediated the βC1 functions in silencing suppression and symptom modulation, and was required for efficient virus infection. Moreover, the tobacco and tomato orthologs of Nbrgs-CaM also possessed ESR activity, and were induced by betasatellite to promote virus infection in these Solanaceae hosts. We further demonstrated that βC1-induced Nbrgs-CaM suppressed the production of secondary siRNAs, likely through repressing RNA-DEPENDENT RNA POLYMERASE 6 (RDR6) expression. RDR6-deficient N. benthamiana plants were defective in antiviral response and were hypersensitive to TYLCCNV infection. More significantly, TYLCCNV could overcome host range restrictions to infect Arabidopsis thaliana when the plants carried a RDR6 mutation. These findings demonstrate a distinct mechanism of VSR for suppressing PTGS through usurpation of a host ESR, and highlight an essential role for RDR6 in RNA silencing defense response against geminivirus infection.

Introduction

Viruses are obligate molecular parasites that have limited coding capacity and depend on host resources to survive. To successfully infect their hosts, viruses have evolved strategies to exploit cellular functions for multiplication, as well as mechanisms to evade or subvert elaborate host defense mechanisms. In plants, RNA silencing, also called post-transcriptional gene silencing (PTGS), represents an important antiviral immunity mechanism that operates in a sequence-specific manner. Double-stranded RNAs (dsRNAs) derived from virus replication products serve as pathogen-associated molecular patterns for defense recognition and are processed into primary small interfering RNAs (siRNAs) of 21 to 25 nucleotides (nt) by ribonuclease III-like enzymes, termed DICER-like proteins (DCLs) in plants. The siRNAs then interact with members of the ARGONAUTE (AGO) family of proteins to form RNA-induced silencing complexes (RISCs), which use the siRNAs as guides to target cognate viral RNAs for cleavage. In plants, fungi and nematodes, viral RNAs or their cleavage products can serve as templates for host RNA-dependent RNA-polymerases (RDRs) to produce dsRNAs that subsequently generate secondary siRNA by DCLs cleavage [1], [2]. Two RDRs have been implicated in plant virus defense [2]–[4]: Tobacco RDR1 is induced by salicylic acid or virus infection and functions to restrict systemic spread of Tobacco mosaic virus (TMV) and Potato virus X (PVX) [5]; in Arabidopsis thaliana, efficient RNA silencing also requires RDR6 and its dsRNA-binding partner, Suppressor of Gene Silencing 3 (SGS3), to amplify viral siRNAs that allow plants to mount effective defense response against virus infection [6]–[10]. Likewise, Nicotiana benthamiana plants with reduced RDR6 levels develop hypersusceptibility to some RNA viruses [8], [11]–[14], emphasizing the important role of RDR6 in antiviral defense.

Despite the potency of RNA silencing in antiviral defenses, plant viruses still systemically infect diverse plant species and cause diseases. Most, if not all, plant viruses have evolved mechanisms to counterattack RNA silencing by encoding proteins termed viral suppressors of RNA silencing (VSRs) [1], [15], [16]. Various VSRs often share little sequence similarity and target different steps in the RNA silencing pathway. A common strategy employed by some VSRs is to bind to dsRNA or siRNA duplexes, thereby preventing the sensing and dicing of dsRNA trigger, or interfering with the incorporation of siRNA into RISC [17]–[20]. Other suppressors directly target component of dicing machinery. One such example is P6 of Cauliflower mosaic virus (CaMV), which interferes with viral siRNAs processing by interacting with dsRNA-binding protein 4, an essential partner of the antiviral DCL4 [21]. Alternatively, some VSRs, such as 2b of Cucumber mosaic virus (CMV), p38 of Turnip crinkle virus (TCV) and P0 of poleroviruses, either inhibit AGO functions [22], [23], or target AGO proteins for degradation [24], [25].

Several studies have shown that some VSRs suppress PTGS indirectly by affecting cellular regulators of the small RNA pathway. For instance, p19 of Cymbidium ring spot virus represses the AGO1-directed antiviral response by specific induction of miR168, which in turn, negatively regulates AGO1 mRNA levels [26]. Suppression of PTGS by HC-Pro of Tobacco etch virus (TEV) is mediated by the tobacco calmodulin-like protein rgs-CaM, the first identified endogenous suppressor of RNA silencing (ESR) [27]. In addition, an ethylene-induced transcription factor RAV2 in Arabidopsis is needed for suppression of primary RNA silencing by two unrelated VSRs, namely HC-Pro of Turnip mosaic virus (TuMV) and p38 of TCV. Although RAV2 itself has not been shown to directly suppress RNA silencing, it is necessary for TuMV HC-Pro to induce the expression of several putative ESRs including AtCML38 (Calmodulin-like protein 38), a closely related homolog of rgs-CaM in Arabidopsis [28]. Calmodulins or calmodulin-like proteins are small acidic proteins that contain varied numbers of the ‘EF-hand’ motif. These proteins sense and decode cellular calcium (Ca²⁺) cation signals through high-affinity binding of their EF-hand domains to Ca²⁺, which induces a conformation change in the proteins and exposes their hydrophobic surfaces. The activated calmodulins then interact with many downstream target proteins to modulate their activities in diverse cellular functions. Alternatively, some of the calmodulin/Ca²⁺ complexes may function directly as transcription regulators to control the expression of downstream effectors [29], [30]. Plants have evolved a diversity of calmodulins and calmodulin-like proteins that play a vital role in response to development cues and environmental stimuli [29]. The identification of the tobacco rgs-CaM as an ESR indicates that calmodulin-like proteins are involved in fine-tuning the functions of the RNA silencing pathway, which has also been implicated in developmental regulation and stress responses [31].

The Geminiviridae is a large family of plant viruses that cause economically important crop diseases worldwide. Geminiviruses contain circular, single-stranded DNA (ssDNA) genomes encapsidated in twinned icosahedral particles. [32]. Although ssDNA viruses have no dsRNA phase in their replication cycle, transcripts produced by geminiviruses can both induce and be targeted by cytoplasmic PTGS (reviewed in [33], [34]). Geminivirus-derived small RNAs of 21, 22, and 24 nt have been detected in infected hosts and all four DCLs in Arabidopsis have been implicated in the production of geminiviral siRNAs [35]. Studies of virus induced gene silencing (VIGS) triggered by Cabbage leaf curl virus (CaLCuV), a member of the Begomovirus genus belonging to the Geminiviridae family, have revealed requirements for RDR6 and SGS3 in CaLCuV-induced RNA silencing of an endogenous gene [36]. RDR6 and SGS3 are thought to convert geminivirus-derived transcripts into dsRNAs that induce RNA silencing [36]. Consequently, several proteins encoded by geminiviruses are able to suppress PTGS (reviewed in [33]), although the mechanisms in many cases are not fully understood.

Betasatellites represent novel DNA molecules that are associated with some monopartite begomoviruses in the Geminiviridae family including Tomato yellow leaf curl China virus (TYLCCNV) [37], [38]. While able to infect their hosts alone, these monopartite begomoviruses are often incapable of inducing typical symptoms, and require betasatellites for accumulation to high titers and elicitation of disease symptoms [39], [40]. The betasatellite contains a single open reading frame (βC1) that encodes a symptom determinant [41]–[44]. Earlier studies have shown that βC1 proteins are potent PTGS suppressors [43]–[49], but their modes of action have not been elucidated. In the present study, we have demonstrated that the N. benthamiana calmodulin-like protein, designated “regulator of RNA silencing” (Nbrgs-CaM) is up-regulated by βC1 of Tomato yellow leaf curl China betasatellite (TYLCCNB) and that Nbrgs-CaM is required for both PTGS suppression and symptom induction by TYLCCNB βC1. We also have determined that Nbrgs-CaM suppressed PTGS likely acting through repressing the expression of NbRDR6, an important component in the anti-geminiviral RNA silencing pathway. These data, together with previous findings with TEV HC-Pro [27], suggest that cellular regulators of RNA silencing can be subverted by evolutionarily divergent plant viruses to counteract antiviral defenses.

Results

TYLCCNV betasatellite-encoded βC1 up-regulates the expression of a host calmodulin-like protein

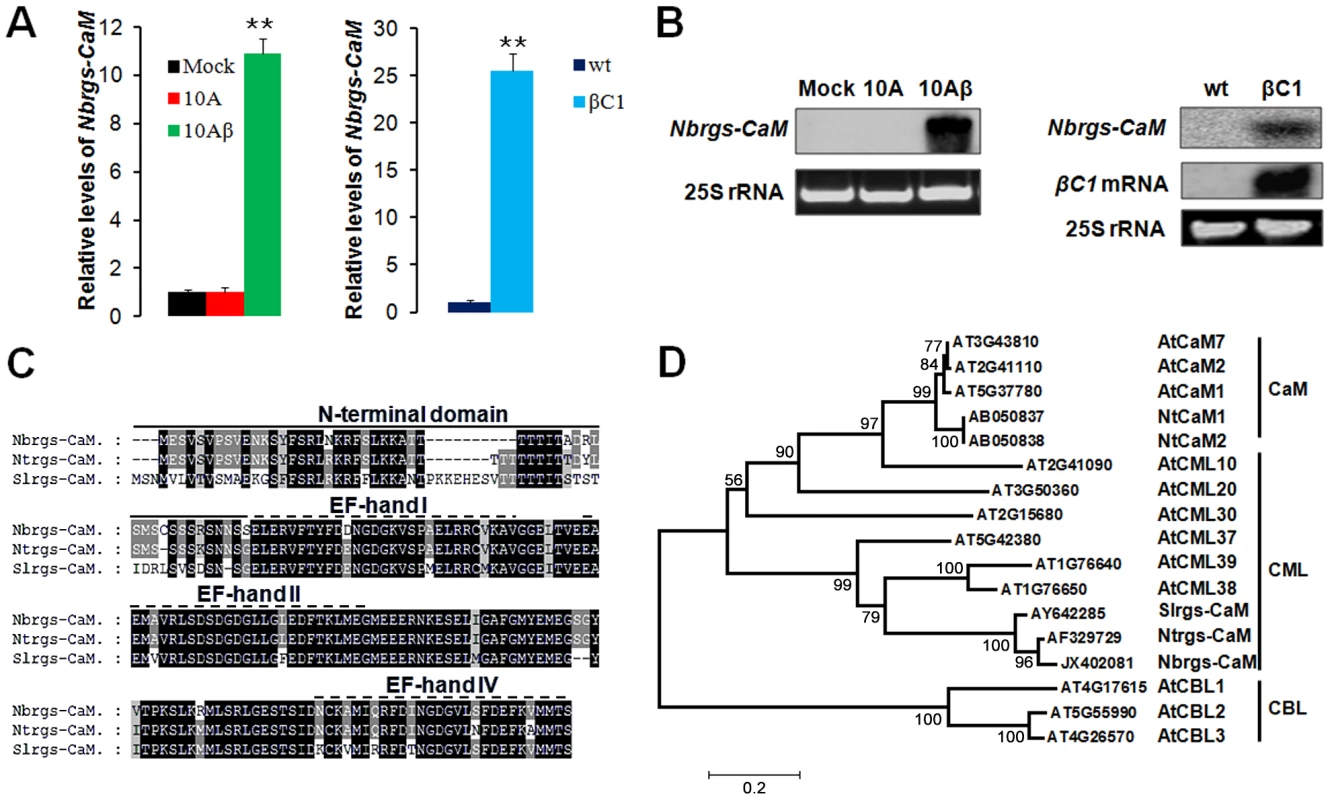

To gain more insights into the mode of action of TYLCCNB βC1 in PTGS suppression, whole genome tiling microarrays were used to probe the changes of transcriptome profile in response to TYLCCNB. The global gene expression patterns of N. benthamiana infected with TYLCCNV isolate Y10 (hereafter referred to 10A) were compared to infections with TYLCCNV and the associated TYLCCNB betasatellite (hereafter referred to 10Aβ). The most pronounced of the differentially expressed genes, was an N. benthamiana ortholog of tobacco calmodulin-like protein, which has been previously identified as an endogenous regulator of gene silencing (rgs-CaM) that is induced by the potyvirus-encoded VSR HC-Pro [27]. Relative transcript quantification by reverse transcription quantitative real-time PCR (RT-qPCR) verified that N. benthamiana rgs-CaM (Nbrgs-CaM) is substantially up-regulated in 10Aβ-infected plants as compared to plants infected by 10A alone or mock-treated plants (Fig. 1A). Northern blots analyses indicated that the levels of Nbrgs-CaM mRNA are low in mature leaves of mock-treated plants and of 10A-infected plants, but are enhanced greatly by 10Aβ infections (Fig. 1B). To determine whether βC1, the only protein known to be encoded by TYLCCNB, is responsible for the enhanced expression of Nbrgs-CaM, we measured the mRNA levels of Nbrgs-CaM in transgenic N. benthamiana plants expressing βC1 under the control of the constitutive CaMV 35S promoter [39]. Levels of Nbrgs-CaM mRNA in the βC1 transgenic plants were over 20-fold higher than those of wild-type (wt) plants (Fig. 1A–B). In addition, in other Solanaceae hosts, TYLCCNV infections containing the betasatellite also exhibited up-regulated expression of the rgs-CaM orthologs in tobacco (Ntrgs-CaM) and tomato (Slrgs-CaM) (Fig. S1).

EST sequences of Nbrgs-CaM were aligned to Ntrgs-CaM and Slrgs-CaM sequences obtained from the Genbank database, and primers were designed to amplify the full-length genes encoding the proteins. Sequencing revealed that the Nbrgs-CaM open reading frame (ORF) is 573-nt (GenBank accession number JX402081), and Blast searches against the N. benthamiana transcriptome database (http://benth-web-pro-1.ucc.usyd.edu.au/blast/blast.php) demonstrated that the ORF had a 100% identity to the Nbv3K725607008 unigene transcript. Sequence analysis also revealed that Nbrgs-CaM encodes a 188-amino acid (aa) calcium-binding protein, which has the highest similarity (94% and 80% aa identities) to Ntrgs-CaM and Slrgs-CaM ORF, respectively. These rgs-CaM orthologs contain a ∼50-aa N-terminal domain, in addition to a calmodulin (CaM) domain in the C-terminal region that has three characteristic EF-hand calcium binding motifs (EF I, II and IV) (Fig. 1C). A phylogenetic tree was constructed to compare the evolutionary relationships between the rgs-CaMs and representative calmodulins (CaM), calmodulin-like (CML) proteins and calcineurin B-like (CBL) proteins from Arabidopsis and Nicotiana spp. The Rgs-CaMs are clustered with Arabidopsis CMLs, with the closest relationships to CML38 and CML39. The three Rgs-CaMs are only distantly related to two CaMs from tobacco (NtCaM1 and NtCaM2), which formed a separate branch with CaMs from Arabidopsis (Fig. 1D).

Nbrgs-CaM-overexpression in N. benthamiana plants phenocopies βC1-transgenic plants

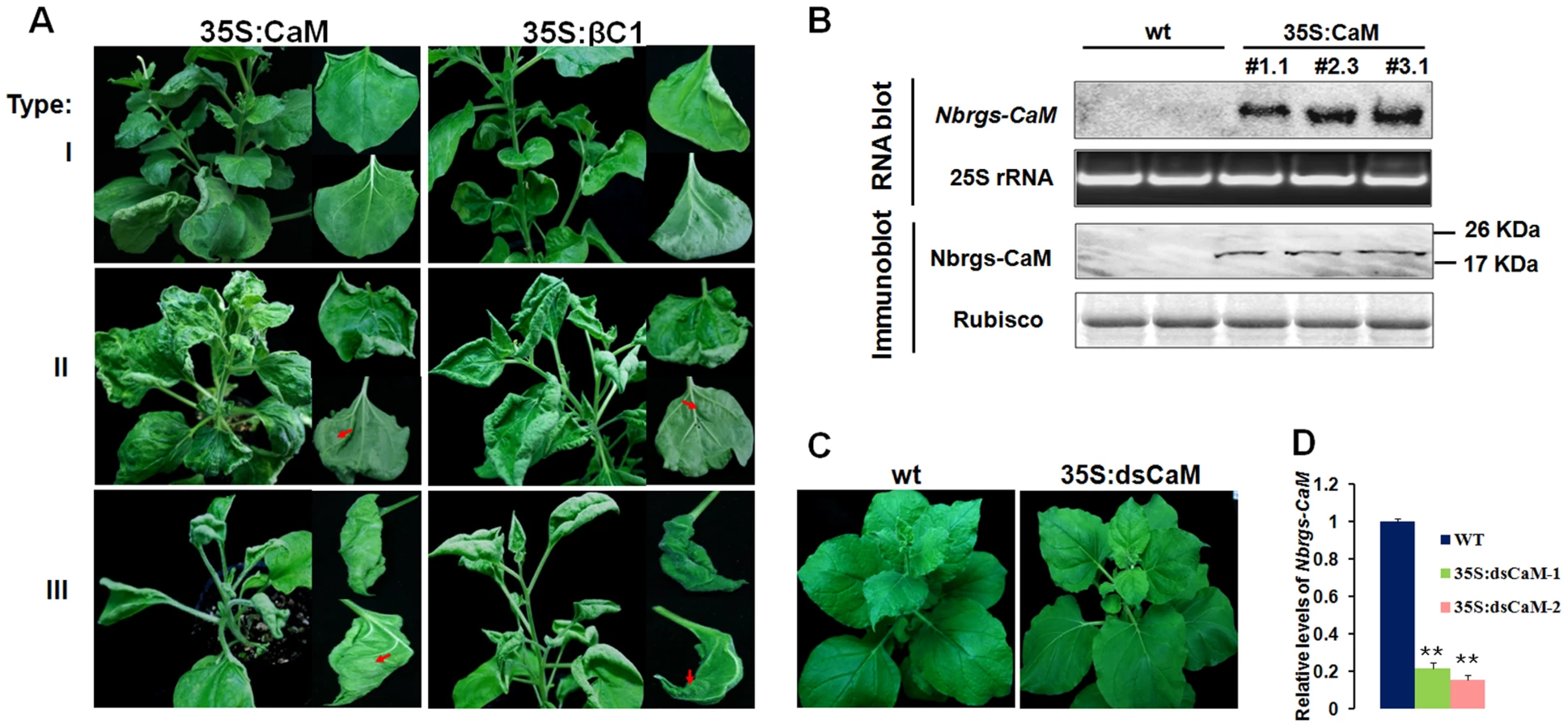

To investigate functional links between Nbrgs-CaM and βC1, we generated transgenic N. benthamiana lines over-expressing Nbrgs-CaM under the control of the CaMV 35S promoter (35S:CaM). Many of the Nbrgs-CaM primary transgenic plants displayed developmental abnormities that could be grouped into three types based on phenotypic severity. Type I plants developed mild morphological alterations with slightly upward curled leaves. Type II plants showed moderate upward leaf curling and small interveinal outgrowths from abaxial leaf surfaces (Fig. 2A). The upper leaves of the type I and II plants usually appeared normal (Fig. 2A), and these plants produced fertile inflorescence. Type III plants had severely distorted, upward curling leaves and more extensive tissues outgrowth (Fig. 2A). The upper leaves of Type III plants maintained the severe curling syndrome and most of these plants failed to produce inflorescences or produced only sterile flowers. Overall the phenotypes of 35S:CaM plants were strikingly similar to those of N. benthamiana transgenic plants expressing βC1 (35S:βC1) [39]. Both the 35S:CaM and 35S:βC1 transgenic plants developed similar abnormities including upward leaf curling, vein swelling and outgrowth of tissues (compare left panels with right panels in Fig. 2A), albeit several 35S:CaM plants lines showed a chlorotic mottling on leaves that was not routinely observed in 35S:βC1 plants (Fig. 2A, middle panel). Three independent transgenic lines #1.1, #2.3 and #3.1, which represented type I, II and III phenotype plants, respectively, were analyzed for transgene expression by Northern and Western blotting. High levels of Nbrgs-CaM accumulated in these transgenic lines compared to undetectable levels in nontransgenic (wt) plants (Fig. 2B). Although plants with severer phenotypes appeared to have slightly higher levels of Nbrgs-CaM mRNA and protein (Fig. 2B), a direct correlation between transgene expression and symptom severity was not evident. Nevertheless, the phenotypic resemblance between 35S:CaM and 35S:βC1 plants suggests that both genes may have functional similarities. For subsequent studies, line #1.1 was used unless otherwise stated due to its high levels of transgene expression and lack of severe phenotype in the plants.

Transgenic plants with reduced expression of endogenous Nbrgs-CaM were also generated by transforming N. benthamiana plants with a hairpin RNA interference (RNAi) construct under the control of CaMV 35S promoter (35S:dsCaM). These 35S:dsCaM plants appeared to be normal without discernible developmental defects (Fig. 2C). Moreover, Nbrgs-CaM transcripts in wt and 35S:dsCaM plants were low in abundance and difficult to detect by Northern blotting (data not shown), although RT-qPCR showed that RNAi had reduced the Nbrgs-CaM mRNAs to approximately 20% of wt levels (Fig. 2D).

Nbrgs-CaM suppresses PTGS and blocks geminivirus-induced gene silencing

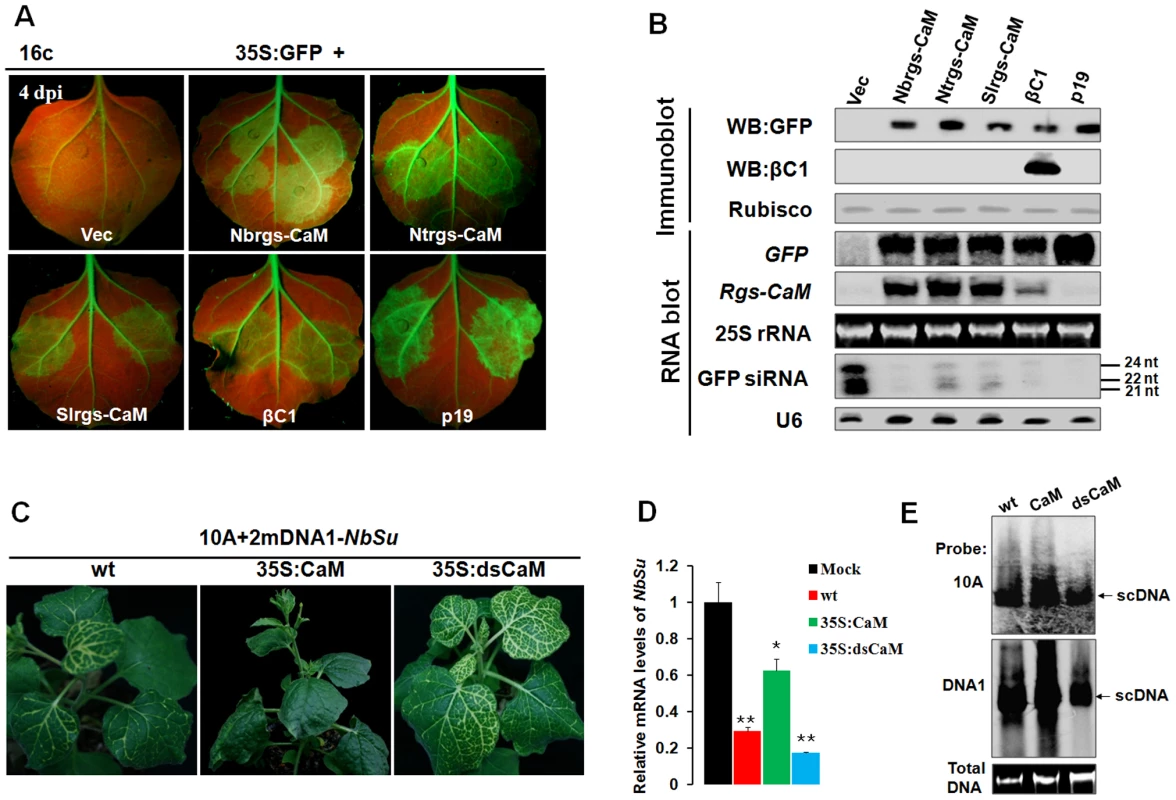

An earlier study has shown that Ntrgs-CaM suppresses PTGS, representing the first identified ESR in plants [27]. To investigate whether Nbrgs-CaM and its orthologs can suppress PTGS, we employed a transient silencing suppression assay based on the GFP transgenic N. benthamiana line 16c [50], [51] in the study. In this assay, Agrobacterium tumefaciens cultures harboring a binary vector designed to transiently express sense GFP mRNA (35S:GFP) and Agrobacterium derivative harboring a candidate suppressor gene were co-infiltrated into leaves of 16c plants. Agroinfiltration of 16c leaves with 35S:GFP and an empty vector (negative control) triggered GFP RNA silencing and resulted in weak GFP fluorescence under long-wavelength UV light at 4-days post infiltration (dpi) (Fig. 3A). As expected, co-infiltration of 35S:GFP with βC1 of TYLCCNB or p19 of Tomato bushy stunt virus (TBSV) elicited strong green fluorescence as a consequence of suppression of GFP RNA silencing (Fig. 3A). Expression of Nbrgs-CaM, Ntrgs-CaM and Slrgs-CaM also suppressed GFP silencing as indicated by appearance of green fluorescence in co-infiltrated regions (Fig. 3A). The GFP fluorescence imaging shown in Fig. 3A was also correlated with the accumulation of GFP protein and mRNA as assessed by immunoblot and RNA blot analyses (Fig. 3B). High levels of expression of Nbrgs-CaM, Ntrgs-CaM and Slrgs-CaM in agroinfiltrated leaves were also verified by RNA blotting with rgs-CaM-specific probes (Fig. 3B). Notably, transient expression of βC1 also led to increased accumulation of Nbrgs-CaM mRNA compared to undetectable basal levels in vector-infiltrated leaves. By contrast, an unrelated VSR p19 failed to induce Nbrgs-CaM expression (Fig. 3B), suggesting that induction of Nbrgs-CaM is unlikely a common feature associated with VSRs. Small RNA gel blot analysis revealed that high levels of 21, 22 and 24 nt GFP-specific siRNAs accumulated in the vector control-treated leaves as a result of GFP RNA silencing. In contrast, expressions of the three rgs-CaMs and βC1 markedly decreased the amount of GFP siRNAs (Fig. 3B). Similarly, p19 also inhibited the accumulation of the siRNAs (Fig. 3B) as previously reported [26]. Rgs-CaMs infiltrated leaves had comparable suppression activity to those of βC1 infiltrations, but were weaker than that elicited by p19 (Fig. 3A–B). Overall, these data demonstrate that, as with βC1, all three rgs-CaMs exhibit PTGS suppression activity and inhibit siRNA biogenesis.

To further examine the function of Nbrgs-CaM in RNA silencing suppression in the context of a virus infection, we tested whether Nbrgs-CaM could suppress VIGS by using a previously established VIGS vector based on 10A helper virus in association with a geminivirus alphasatellite derivative (2mDNA1) [52], [53]. The alphasatellite vector (2mDNA1-NbSu) was designed to express a fragment of the N. benthamiana sulfur (Su) reporter gene that encodes a component required for chlorophyll II biosynthesis. The recombinant viral vector (10A+2mDNA1-NbSu) triggered Su silencing in leaves of infected plants as evidenced by yellow-white leaf spots [52], [53]. In wt N. benthamiana infected by the VIGS vector, the typical Su silencing phenotype first appeared along the main veins of the newly expanded leaves at 10 dpi, and later expand to the lateral veins to produce a white lattice-like phenotype at 30 dpi (Fig. 3C). However, infected 35S:CaM transgenic line #1.1 failed to develop an Su silencing by 30 dpi (Fig. 2C). Even at late stages of infection (40 dpi), only sporadic white spots were observed in some of the newly emerged leaves in 35S:CaM plants (data not shown). On the other hand, Su silencing appeared 4 to 5 days earlier in infected Nbrgs-CaM RNAi line plants (35S:dsCaM) than in wt plants, and more extensive Su silencing was noted at 30 dpi (Fig. 3C). When additional Nbrgs-CaM transgenic lines were analyzed, similar lack of or delayed Su silencing phenotypes were observed in 35S:CaM lines, in contrast to more extensive silencing in 35S:dsCaM lines (Fig. S2). Analysis of Su mRNA levels in these plants by RT-qPCR also supported the observed silencing phenotypes (Fig. 3D). When compared to endogenous Su mRNA level in mock-silenced plants (infection with an empty VIGS vector 10A+2mDNA1), VIGS reduced the Su mRNA levels by ∼4-fold in wt plants, and ∼5-fold in 35S:dsCaM plants but less than 2-flod in 35S:CaM plants (Fig. 3D, Fig. S2). Notably, both the 10A helper virus and alphasatellite accumulated to higher levels in 35S:CaM plants and to lower levels in 35S:dsCaM plants, relative to wt plants (Fig. 3E). Therefore, the altered VIGS efficiencies in Nbrgs-CaM transgenic lines are not a consequence of differential virus accumulations. These data indicate that the cellular levels of Nbrgs-CaM are negatively correlated with the effectiveness of VIGS in N. benthamiana, and support a model that Nbrgs-CaM functions as an endogenous negative regulator of RNA silencing.

Rgs-CaMs and βC1 target a step upstream of dsRNA generation in PTGS

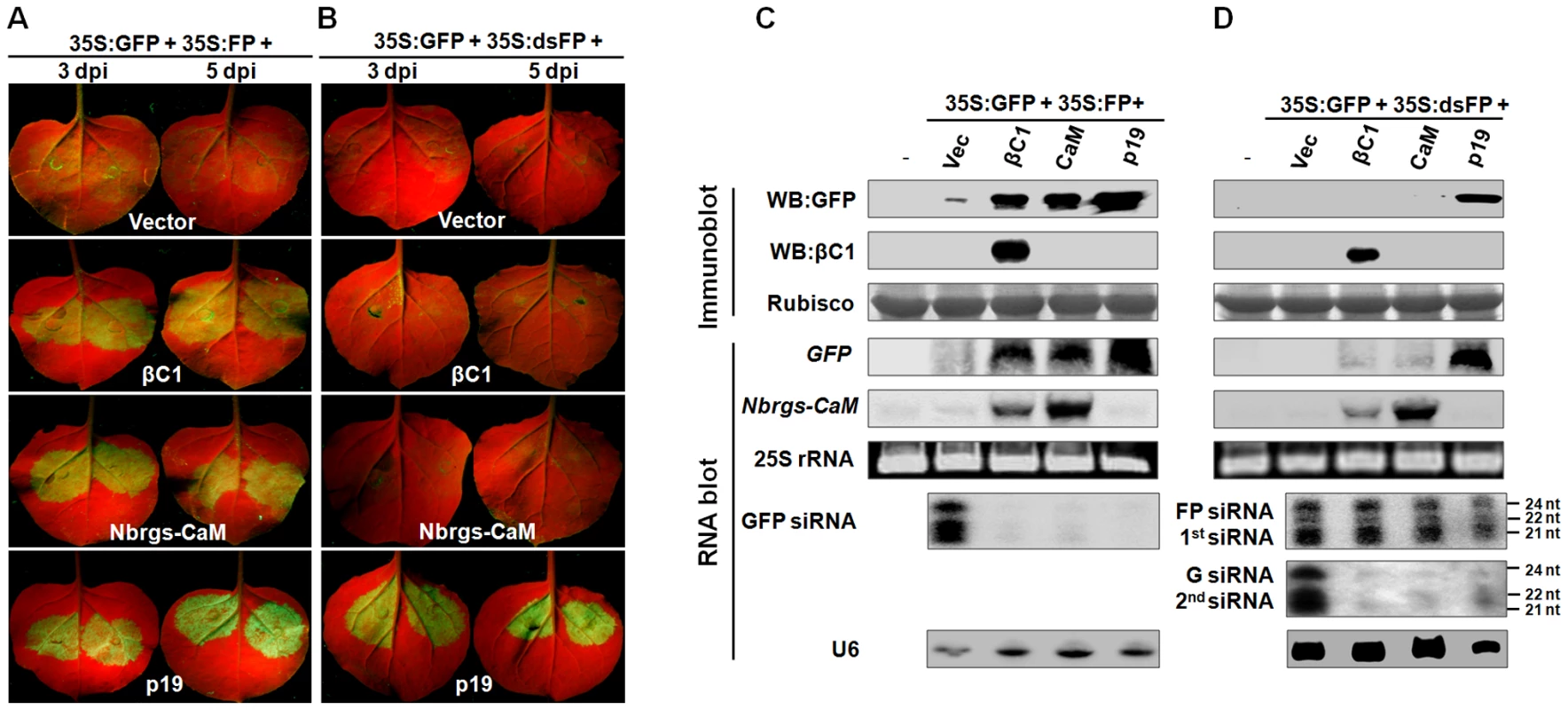

In plants, PTGS can be triggered by sense RNA (S-PTGS) or inverted repeat RNA (IR-PTGS). Gene silencing triggered by sense RNA trigger requires the host RNA copy machinery to convert target RNA into dsRNA in the initiation step, whereas inverted repeat RNA or hairpin RNA could directly trigger PTGS [3], [4]. To pinpoint the specific steps targeted by βC1 and Nbrgs-CaM in RNA silencing pathway, we investigated their abilities to suppress S-PTGS and IR-PTGS. For S-PTGS, N. benthamiana leaves were co-infiltrated with Agrobacterium cultures expressing the suppressors, GFP reporter (35S:GFP) and a C-terminal 400 bp-fragment of sense GFP RNA (35S:FP). The procedure of IR-PTGS suppression assay is similar to that of S-PTGS, except that a fragment of GFP dsRNA was expressed from binary vector (35S:dsFP) to serve as a silencing inducer. As shown in Fig. 4A–B, in the absence of a suppressor (vector control), GFP expression was efficiently silenced by simultaneous expression of either the sense RNA trigger (35:FP) or the dsRNA trigger (35S:dsFP) as indicated by red fluorescence in the infiltrated leaves (top row). Similar to the experiments in Fig. 3A, both βC1 and Nbrgs-CaM suppressed GFP silencing triggered by 35S:FP, resulting in bright green fluorescence in co-infiltrated areas of leaves (Fig. 4A, second and third row, respectively). However, neither βC1 nor Nbrgs-CaM suppressed GFP silencing in IR-PTGS, as the infiltrated areas showed red autofluorescence similar to the vector-infiltrated leaves (Fig. 4B, compare second and third rows with top row). As a positive control, p19 suppressed both S-PTGS and IR-PTGS of GFP (Fig. 4A–B, bottom row; Fig. 4C–D), which is consistent with the model that p19 suppresses RNA silencing by sequestering 21-nt siRNA [20]. The GFP imaging data were further confirmed by immunoblot and RNA blot analyses of the accumulation levels of GFP protein and mRNA in infiltrated leaf patches (Fig. 4C–D). The siRNA blots also confirmed that βC1, Nbrgs-CaM and p19 drastically reduced the GFP siRNA during S-PTGS (Fig. 4C). For detection of GFP siRNAs in IR-PTGS assays, we designed two different probes corresponding to the FP portion and G portion of GFP mRNA. The “FP siRNAs” were presumably produced from DCLs-processing of dsRNA precursors transcribed from the 35:dsFP binary vector, and thus represents primary siRNAs. The “G siRNAs” were likely generated from GFP mRNA templates by activities of plant RDRs followed by DCLs-cleavages, and hence should be regarded as secondary siRNAs. Small RNA hybridization showed that both βC1 and Nbrgs-CaM strongly inhibited G siRNA levels without obvious effect on FP siRNAs (Fig. 4D), suggesting that the two proteins suppressed secondary siRNA production. Likewise, Ntrgs-CaM and Slrgs-CaM were also found to suppress S-PTGS but not IR-PTGS of GFP (Fig. S3). Therefore, our data suggest that both βC1 and rgs-CaMs interfere with a step upstream of dsRNA generation in the PTGS pathway.

Nbrgs-CaM mediates βC1 functions in PTGS suppression and symptom induction

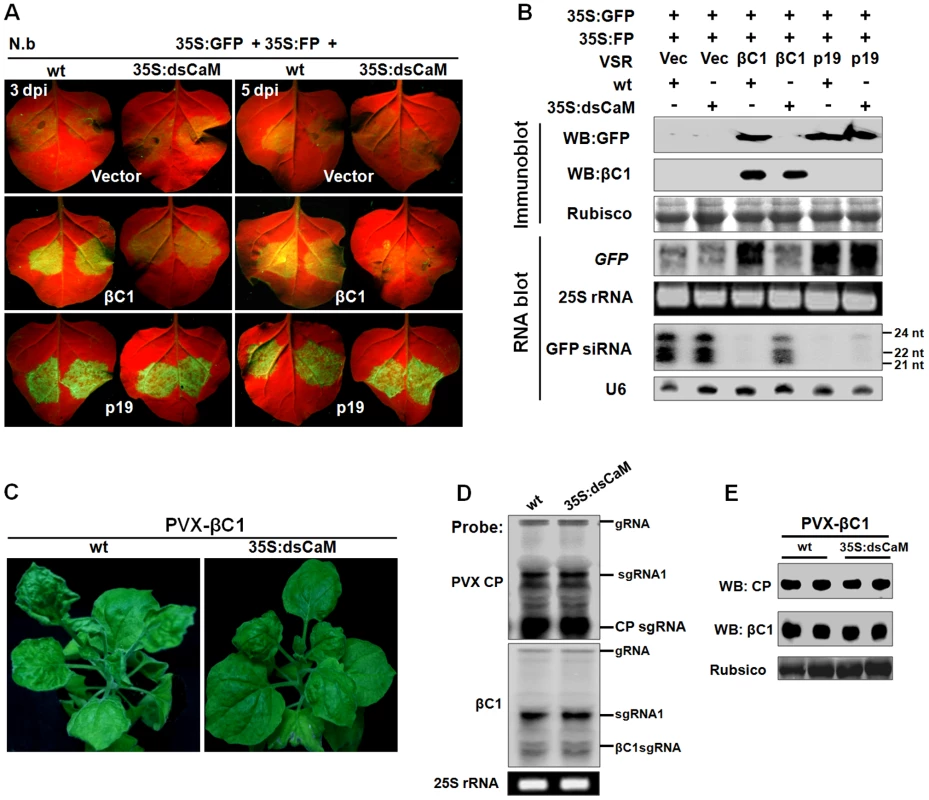

The up-regulation of Nbrgs-CaM by βC1 (Fig. 1), together with their overlapping functions in PTGS suppression and symptom modulation (Fig. 2, 3 and 4), led us to develop a model in which βC1 functions are mediated by Nbrgs-CaM. To test this hypothesis, we first analyzed the ability of βC1 to suppress S-PTGS in wt and 35S:dsCaM plants using a transient agroinfiltration assay. In wt plants, suppression of S-PTGS of GFP by βC1 was confirmed by the presence of strong GFP fluorescence in infiltrated leaf patches under UV light (Fig. 5A), the accumulation of GFP protein and mRNA and the absence of GFP siRNA (Fig. 5B). However, in 35S:dsCaM plants, βC1 failed to suppress GFP silencing (Fig. 5A–B), even though comparable amounts of βC1 were expressed in wt and 35S:dsCaM plants (Fig. 5B). As a positive control, p19 suppressed GFP silencing in both wt and 35S:dsCaM plants (Fig. 5A–B).

To exclude any unspecific defect of the 35S:dsCaM transgenic plants in the βC1 VSR function, we used N. benthamiana 16c plants in which the expression of Nbrgs-CaM was silenced by the well-characterized Tobacco rattle virus (TRV)-based VIGS vector [54], which decreased Nbrgs-CaM mRNA levels to 20% of mock-treated plants at 7 dpi (Fig. S4B). Systemically silenced leaves of these plants were then used for Agrobacterium co-infiltration in the transient PTGS suppression assay. Again, the abilities of βC1 to suppress GFP silencing and decreased GFP siRNA levels were compromised in Nbrgs-CaM-silenced plants, but not in mock-silenced plants (Fig. S4A and S4C). These data collectively suggest that Nbrgs-CaM is required for the ability of βC1 to suppress PTGS and to inhibit siRNA generation.

To further investigate whether βC1-induced developmental abnormities are mediated by Nbrgs-CaM, we infected wt and 35S:dsCaM N. benthamiana plants at 6–7 leaf stage with a recombinant PVX vector carrying the βC1 gene (PVX-βC1). As shown in Fig. 5C, PVX-βC1-infected wt plants developed typical βC1-associated phenotypes such as upward leaf curling and enation, in addition to the PVX mosaic symptoms. However, in PVX-βC1-infected 35S:dsCaM plants, symptoms characteristic of βC1 failed to appear, and only slightly downward leaf curling and mosaic symptoms indicative of PVX infection were observed. Comparable levels of the recombinant PVX genomic and subgenomic RNAs were verified by RNA blot analyses with probes specific to PVX coat protein (CP) and βC1 (Fig. 5D). Furthermore, immunoblotting also confirmed similar expression levels of βC1 and PVX CP in wt and 35S:dsCaM plants (Fig. 5E). Taken together, we conclude that βC1 functions as a VSR and symptom determinant are mediated by Nbrgs-CaM.

Rgs-CaMs are required for TYLCCNV virulence and genome amplification in Solanaceae hosts

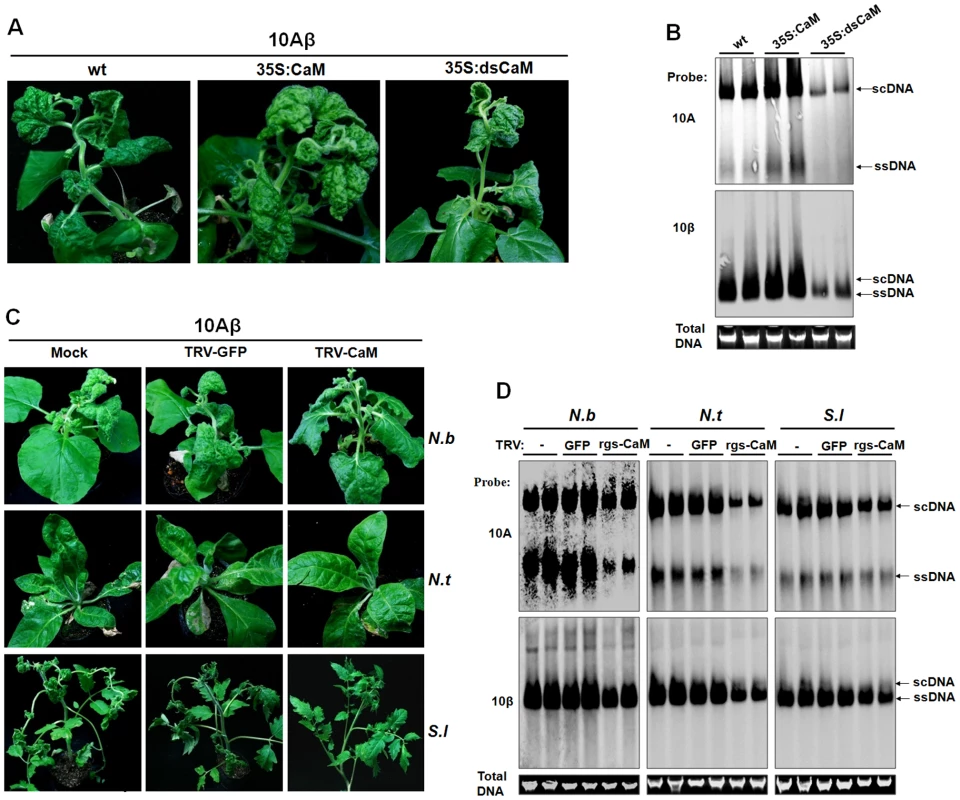

Given the important roles of βC1 in TYLCCNV pathogenesis [38], [39], and the involvement of Nbrgs-CaM in these processes (Fig. 5), we anticipated that Nbrgs-CaM has a major function in TYLCCNV infection. To this end, we compared the susceptibilities of Nbrgs-CaM transgenic plants and wt plants to 10Aβ infection. After infection, the 35S:CaM plants showed more extensive leaf curling and greater numbers of curled leaves than wt plants. In contrast, the symptoms in infected 35S:dsCaM plants were much milder than those in wt plants (Fig. 6A). The onset of disease symptoms was also advanced by 2 days in 35S:CaM plants (5 dpi compared to 7 dpi in wt plants), but was delayed to 9 to 10 days in 35S:dsCaM plants. Because the #1.1 line of the 35S:CaM plants had only minor abnormality in upper leaves prior to infection (Fig. 2A), the exacerbated symptoms observed in 35S:CaM plants were most likely due to enhanced virulence of 10Aβ in the plants. Accordingly, Southern blot analysis indicated an increased viral DNA accumulations of both helper (10A) and the betasatellite (10β) in 35S:CaM plants. This finding, plus decreased viral DNA accumulations in 35S:dsCaM plants (Fig. 6B), further supports a role of Nbrgs-CaM in TYLCCNV infection. We also tested the sensitivities of these Nbrgs-CaM transgenic plants to infection with CMV, an unrelated RNA virus. As with the case with 10A and 10Aβ, 35S:CaM plants were more prone to CMV infection whereas 35S:dsCaM plants were more recalcitrant, as judged from symptom severities and viral CP accumulations (Fig. S5). Thus, it appears that Nbrgs-CaM-mediated negative regulation of RNA silencing in plants may confer general susceptibilities to virus infections.

Given that expressions of Ntrgs-CaM and Slrgs-CaM were also induced by TYLCCNB in tobacco and tomato plants, respectively (Fig. S1), and the three rgs-CaMs possessed comparable activity in suppressing PTGS (Fig. 3A–B), we next explored whether Ntrgs-CaM and Slrgs-CaM have similar roles in 10Aβ infection. To this end, N. benthamiana, tobacco and tomato seedlings were agro-infiltrated with recombinant TRV vectors which carry partial fragments of Nbrgs-CaM, Ntrgs-CaM and Slrgs-CaM, respectively. Knowdowns of the three rgs-CaMs were verified by RT-qPCR, which showed an approximately 80% reduction in their mRNA levels as compared to TRV-GFP-treated plants or mock plants (no TRV infection) at 7 dpi (Fig. S6). Rgs-CaM-silenced N. benthamiana, tobacco and tomato plants had indistinguishable symptoms from TRV-GFP-infected plants, indicating reductions in the abundance of rgs-CaM do not cause discernible phenotype in these host plants (data not shown). The rgs-CaM-silenced plants were infected with 10Aβ and monitored for symptom appearance. As shown in Fig. 6C–D, at 20 days after 10Aβ infection, rgs-CaM-silenced plants developed much milder symptoms and accumulated lower amounts viral DNAs than TRV-GFP-treated or mock-silenced plants, suggesting similar roles of these rgs-CaMs in TYLCCNV infection in Solanaceae hosts. Overall, our data are consistent with a model that Nbrgs-CaM and its orthologs in Solanaceae hosts function as negative cellular regulators of RNA silencing that are induced by βC1 to potentiate TYLCCNV infections.

Induction of Nbrgs-CaM by βC1 represses NbRDR6 expression

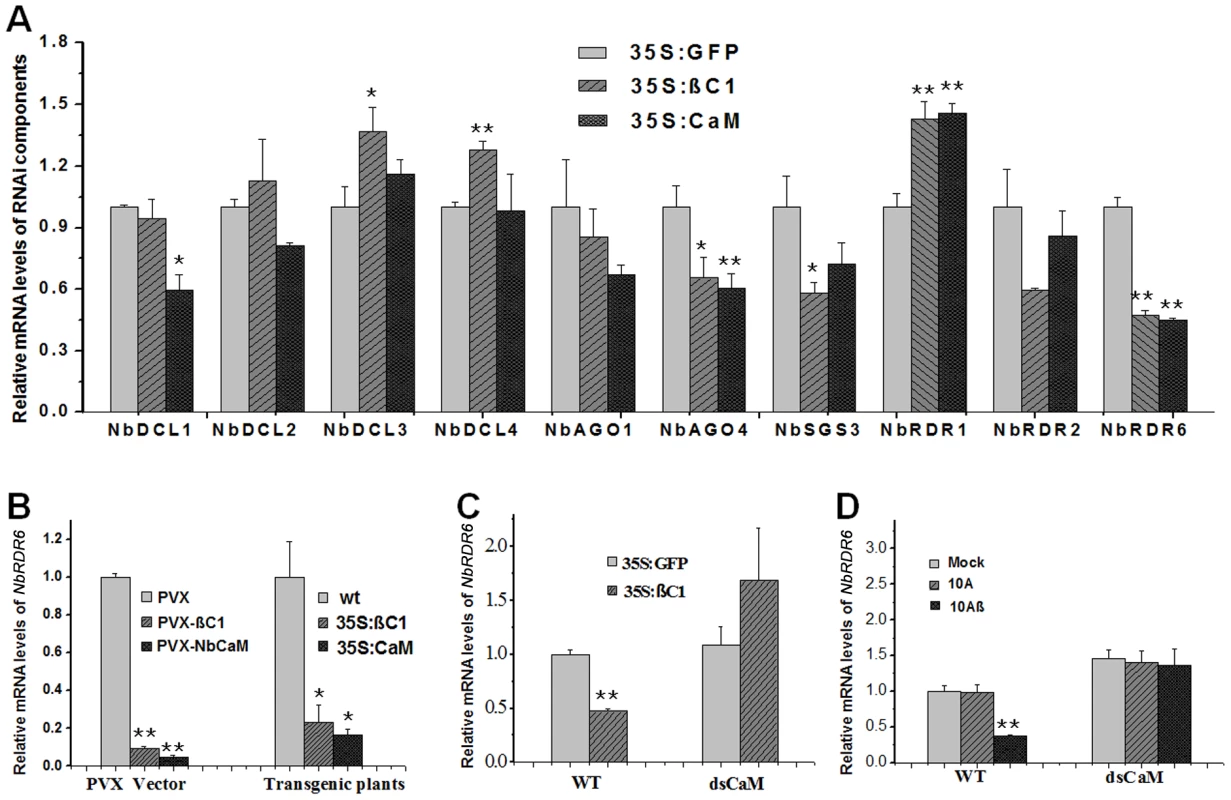

In plants, calmodulins or calmodulin-like proteins regulate a variety of cellular processes by controlling the expression of genes encoding downstream effectors [29], [30]. To investigate whether βC1-induced Nbrgs-CaM altered the expression of components in the RNA silencing pathway, specific primers for RT-qPCR detection were designed to analyze the transcription levels of N. benthamiana homologs of DICER 1 (NbDCL1), DICER 2 (NbDCL2), DICER 3 (NbDCL3), DICER 4 (NbDCL4), ARGONAUTE 1-1 (NbAGO1-1), ARGONAUTE 4-1 (NbAGO4-1), SGS3 (NbSGS3), RDR1 (NbRDR1), RDR2 (NbRDR2) and RDR6 (NbRDR6). For this purpose, individual Agrobacterium cultures expressing GFP (35S:GFP), Nbrgs-CaM (35S:CaM) or βC1 (35S:βC1) were infiltrated into N. benthamiana leaves and the transcription levels of RNAi components were measured by RT-qPCR. As compared with the GFP control, expression of βC1 or Nbrgs-CaM at 48 hours post infiltration (hpi) resulted in only moderate changes (60∼150%) in mRNA levels of the RNAi components in repeated experiments (Fig. 7A), although up-regulation of NbDCL3, NbDCL4 and NbRDR1, and down-regulation of NbDCL1, NbAGO4 or NbSGS3 expression by either βC1 or Nbrgs-CaM appeared to be significant (p≤0.05 or p≤0.01). However, the NbRDR6 mRNA level was consistently reduced by 2-fold by both Nbrgs-CaM and βC1 (Fig. 7A). The inhibitory effect was more evident when βC1 and Nbrgs-CaM were expressed from a PVX vector or from a stable transgene, and in these cases, NbRDR6 mRNA was reduced to 10∼20% of that of control plants (Fig. 7B). Infections with 10Aβ also decreased the NbRDR6 mRNA levels to ∼40% of that in 10A-infected or mock-infected plant at 7 dpi (Fig. 7D).

The parallel functions of Nbrgs-CaM and βC1 in PTGS suppression and NbRDR6 down-regulation led us to postulate that Nbrgs-CaM is required for βC1 to repress NbRDR6 expression. To test this possibility, Agrobacterium cultures harboring expression cassettes of the GFP (control) or βC1 were infiltrated into leaves of wt and 35S:dsCaM plants, and the effects on NbRDR6 transcription were measured by RT-qPCR. As compared to expression of GFP, expression of βC1 reduced the NbRDR6 mRNA levels by more than 2-fold in wt plants. However, upon transient expression of GFP and βC1 in 35S:dsCaM plants, the NbRDR6 mRNA levels were comparable (Fig. 7C). Likewise, 10Aβ infection also led to reduced NbRDR6 expression in wt plants but not in in 35S:dsCaM plants, when compared to that of 10A-infected or mock plants (Fig. 7D). These results indicate that the requirement of Nbrgs-CaM for repression of NbRDR6 transcription is likely to be biologically relevant. It is worth noting that higher basal levels of NbRDR6 mRNA (∼1.5-fold) were observed in 35S:dsCaM plants than in wt plants (Fig. 7D, compare mock-treatment in dsCaM and wt plants), suggesting that endogenous Nbrgs-CaM suppresses NbRDR6 expression. Taken together, our data suggest that Nbrgs-CaM acts downstream of βC1 to suppress NbRDR6 expression.

RDR6 mediates RNA silencing-based antiviral defense against TYLCCNV infection in N. benthamiana and Arabidopsis

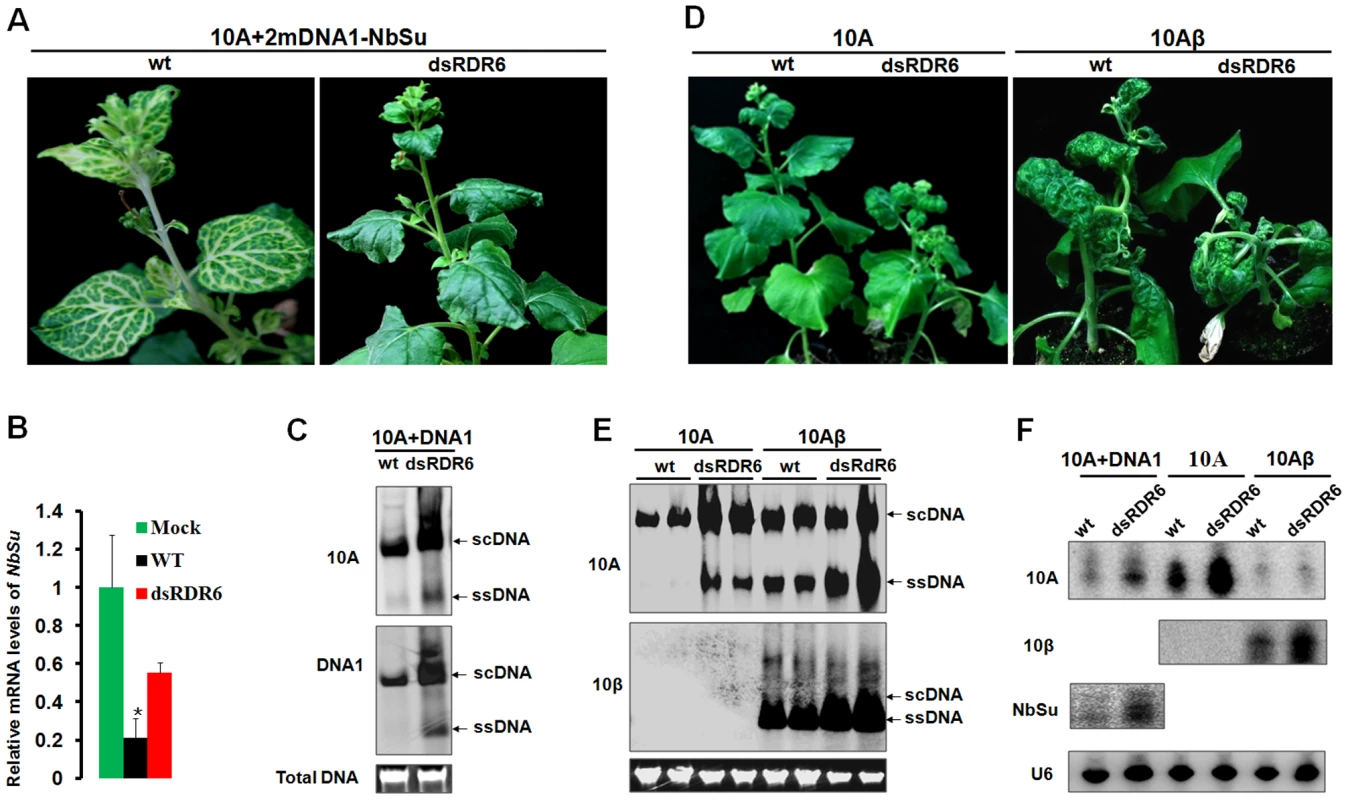

To verify the role of NbRDR6 in host antiviral defense against TYLCCNV infection, we used a N. benthamiana NbRDR6 RNAi line (dsRDR6) described earlier [13]. We first compared the efficiency of Su silencing induced by the 10A-derived VIGS vector in wt and dsRDR6 N. benthamiana plants. At 30 dpi, typical Su silencing phenotypes were developed on wt plants, but not on dsRDR6 plants (Fig. 8A). RT-qPCR analysis revealed a 5-fold reduction of Su mRNA in wt plants compared to mock-silenced plants (infected by 10A+2mDNA1), whereas in dsRDR6 plants Su mRNA was reduced less than 2-fold (Fig. 8B), confirming the defective Su silencing in dsRDR6 plants (Fig. 8A). Interestingly, in dsRDR6 plants, both DNA components of the viral vector accumulated to higher levels than in wt plants (Fig. 8C), suggesting that the compromised Su silencing in dsRDR6 plants is due to an inability to mount RNA silencing response upon TYLCCNV infection, rather than a failure to support robust virus replication.

The functions of NbRDR6 in RNA silencing-based defense were further tested by infection of 10A and 10Aβ. As described in earlier studies [38], infection of wt plants with 10A elicited very mild symptoms, which were greatly exacerbated when the pathogenesis-enhancing satellite was present (10Aβ) (Fig. 8D). Interestingly, in dsRDR6 plants, infection with the 10A helper alone resulted in severe downward leaf curling. However, the phenotypes characteristic of the betasatellite infection, including shoot bending, leaf distortion, vein thickening and enations, were not observed (Fig. 8D). Infection of dsRDR6 plants with 10Aβ produced slightly severer symptoms than those in wt plants (Fig. 8D), and the disease onset was also advanced in dsRDR6 plants (3∼4 dpi) as compared to those in wt plants (6∼7 dpi). Southern blot hybridization analysis of 10A-infections also revealed that total viral DNA accumulated at higher levels in dsRDR6 plants than in wt plants (Fig. 8E). Similarly, betasatellite co-infections also resulted in increased helper viral DNA accumulation. In particularly, the single-stranded viral DNA forms (ssDNA) were barely visible in 10A-infected wt plants, but were greatly enhanced in dsRDR6 plants and in betasatellite co-infected plants (Fig. 8E). Previously, it was thought that disease phenotypes induced by 10Aβ could be solely attributed to the expression of the pathogenesis factor βC1, because infections with 10A alone elicited negligible symptoms (Fig. 8D). However, our data here suggest that betasatellite-mediated amplification of 10A, likely as a result of repression of NbRDR6, also contributes to disease manifestation. Small RNA blot analyses also showed that betasatellite suppressed viral siRNA (vsiRNA) production (Fig. 8F, compare 10Aβ-infectd plants with 10A-infected plants). Interestingly, vsiRNAs accumulated at higher levels in dsRDR6 plants when compared with wt plants, regardless of the presence or absence of the betasatellite, so is also the case with the NbSu-derived siRNAs (Fig. 8F). Nevertheless, the abundant siRNAs observed in dsRDR6 plants apparently failed to efficiently silence their targets (Fig. 8A–C) or to confer effective antiviral defense (Fig. 8D–E).

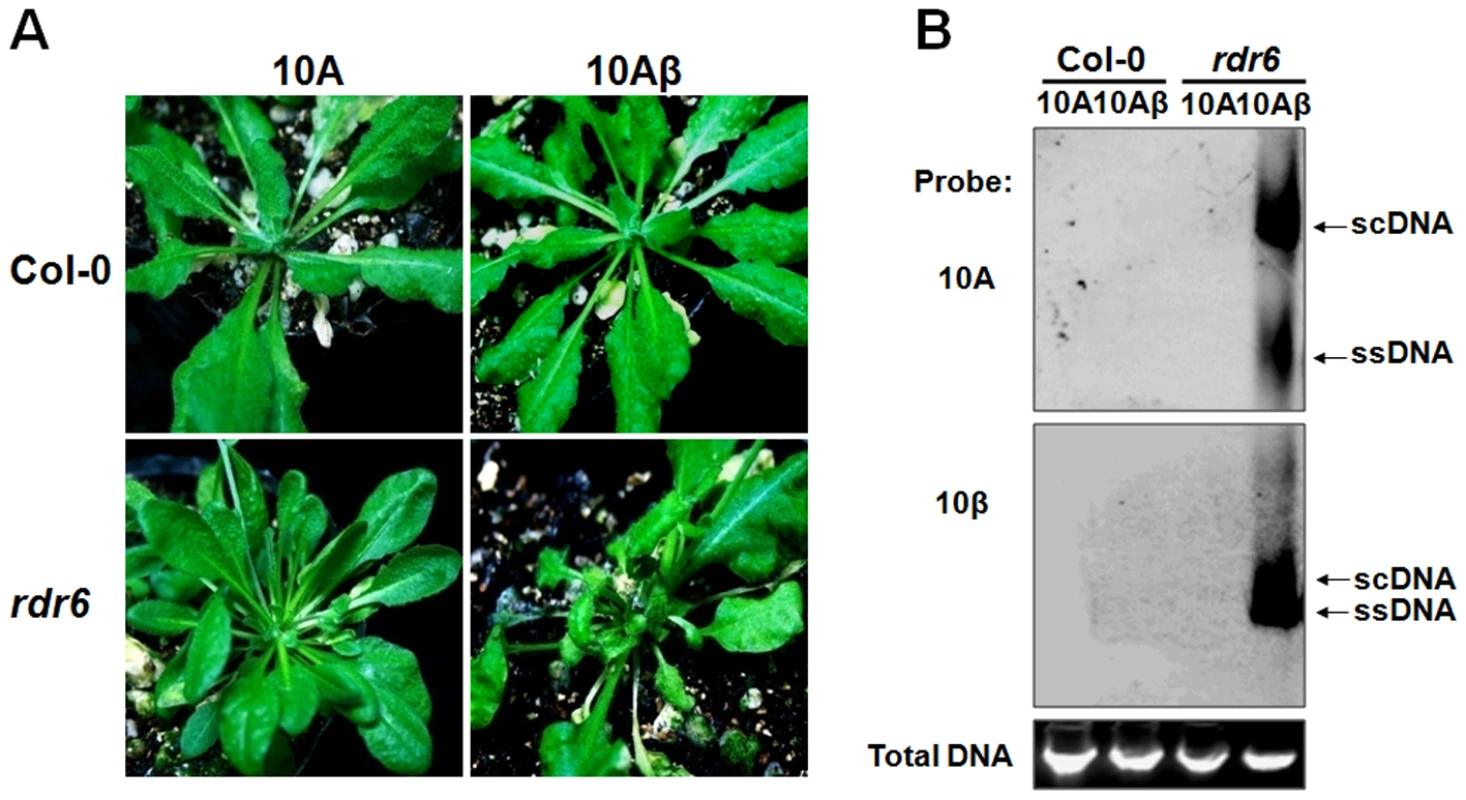

A. thaliana is known as a susceptible host for only a few geminiviruses including CaLCuV and Beet curly top virus. TYLCCNV, either alone (10A) or in association with betasatellite (10Aβ), has consistently failed to systemically infect Arabidopsis ecotype Columbia (Col-0) (Fig. 9 A–B). Remarkably, Arabidopsis rdr6 mutant plants were susceptible to infection of 10Aβ, showing typical downward leaf curling on new leaves starting at 7 dpi (Fig. 9A). The narrow curled leaves and cotyledons of infected plants were reminiscent of the phenotypes induced by transgenic expression of βC1 in Arabidopsis [55]. After 30 dpi, the infected plants began to develop necrosis on newly expanded leaves and shoots, and some of the shoots eventually died. However, in contrast to 10Aβ, 10A alone failed to systemically infect rdr6 plants (Fig. 9A). Consistent with the observed symptoms, Southern blot analysis showed high levels of helper and satellite DNA accumulations in leaves of rdr6 plants systemically infected with 10Aβ, whereas viral DNAs were absent in inoculated wt plants or 10A-inoculated rdr6 plants (Fig. 9B). These data strongly suggest a major role of RDR6 in host antiviral defense against TYLCCNV infection and underscore the function of RDR6-mediated RNA silencing in restricting the host range of a geminivirus.

Discussion

In plants, RNA silencing represents a major defense mechanism against virus infection. Consequently, plant viruses have evolved to encode VSRs as potent molecular arms to counteract antiviral RNA silencing [1], [2]. These structurally distinct VSRs often interact with various components in the RNA silencing pathway, including long or short dsRNA duplex, AGOs, DCLs and RDRs as well as their functional partners, thereby to disable the RNA silencing-based host defense systems [15], [16]. Besides an antiviral role, RNA silencing also regulates essential developmental processes such as endogenous gene expression and genome stability [31]. Given the important role of RNA silencing in normal cell physiology and its “spreading” nature by means of signal amplification, it is not surprising that this process requires appropriate controls by cellular regulatory factors or pathways. Indeed, genetic screenings have identified several endogenous silencing suppressors or anti-silencing factors involved in the negative regulation of RNA silencing [56]–[60]. These factors may function to reactivate the expression of certain silenced genes or to prevent undesirable action of RNA silencing. It is conceivable that those endogenous pathways may be explored by gene-poor viruses to counterattack host antiviral responses. Such a scenario has been suggested by the identification of the calmodulin-like protein Ntrgs-CaM in tobacco, which interacts with and is induced by the TEV-encoded VSR HC-Pro [27]. However, it is not known whether Ntrgs-CaM is required for HC-Pro VSR functions. Here we report that a DNA geminivirus-encoded βC1 protein up-regulates the endogenous Nbrgs-CaM gene and its orthologs in Solanaceae hosts. Furthermore, PTGS suppression and symptom induction by βC1 are mediated by induction of Nbrgs-CaM and likely by subsequent repression of RDR6-mediated antiviral RNA silencing defense responses. The identification of rgs-CaM as a common factor for two unrelated VSRs suggests that subversion of ESR may be a common and effective strategy whereby viruses to suppress RNA silencing.

It has previously been shown that the Ntrgs-CaM suppresses VIGS and reverses established PTGS, thus representing the first identified ESR [27]. Recently, however, an opposite effect of tobacco rgs-CaM on VSRs has been reported by Nakahara and co-workers, leading to the proposal that tobacco rgs-CaM acts as a host defense measure by interacting with and quenching VSRs that contain dsRNA binding domain [61]. Nakahara et al. have also showed that transgenic tobacco plants over-expressing rgs-CaM promote the degradation of VSRs, including HC-Pro of potyviruses and 2b of cucumoviruses, and thus are less susceptible to infections of these viruses [61]. However, here our data are not in agreement with the proposed function of rgs-CaM as a counter-VSR factor, but instead reinforce the notion that rgs-CaMs are bona fide ESRs based on the following observations: (i) rgs-CaMs suppress S-PTGS and secondary siRNA biogenesis in several transient assays based on conventional agroinfiltration (Fig. 3A–B, Fig. S3 and Fig. 4); (ii) transgenic over-expression of Nbrgs-CaM suppresses VIGS of an endogenous gene whereas down-regulation of Nbrgs-CaM enhances silencing phenotypes (Fig. 3C, Fig. S2); (iii) over-expressed Nbrgs-CaM induces phenotypes resembling those of VSR-expressing plants (Fig. 2A); (iv) Nbrgs-CaM suppresses NbRDR6 expression (Fig. 7) and consequently, down-regulation of NbRDR6 suppresses geminivirus-VIGS (Fig. 8A); (v) leaves of both 35S:CaM and dsRDR6 N. benthamiana plants inhibit S-PTGS but not IR-PTGS in an agroinfiltration assay (Fig. S7); (vi) finally, 35S:CaM plants have enhanced susceptibility to TYLCCNV and CMV infections whereas 35S:dsCaM plants are more resistant (Fig. 6, Fig. S5). We also did not observe changes in the stability of βC1 or CMV 2b in plants with altered Nbrgs-CaM mRNA levels (Fig. 5, Fig. S5), suggesting that Nbrgs-CaM do not direct these VSRs for degradation. In addition, we provide genetic evidence that Nbrgs-CaM mediated the βC1 functions in PTGS suppression and symptom induction (Fig. 5). Our findings have thus revealed a positive role for Nbrgs-CaM in VSR function and virus infection. These seemingly contradictory findings could be due to different experimental conditions employed, since Nakahara et al. also determined that Ntrgs-CaM suppresses RNAi when expressed in Drosophila S2 cells [61]. Alternatively, it is possible that rgs-CaM homeostasis contributes to the proper regulation of RNA silencing. In support of the latter hypothesis, Roth et al. observed that only moderate levels of Ntrgs-CaM suppress sense-transgene silencing when ectopically expressed in Arabidopsis, whereas highly expressed Ntrgs-CaM does not [62]. This suggests that the suppression activity of Ntrgs-CaM may be subjected to negative feedback regulation. Although several Nbrgs-CaM transgenic lines generated in our study displayed uniform activity in VIGS suppression (Fig. S2), we cannot exclude the possibility that a certain range of Nbrgs-CaM expression levels might have different effect.

Unlike HC-Pro, which is a cytoplasmic protein and binds to siRNA duplex [63], βC1 of TYLCCNB primarily localizes in nuclei and binds to single- but not double-stranded RNA [41], [64]. It is unclear how structurally unrelated HC-Pro and βC1 have evolved independently to induce rgs-CaM. Induction of rgs-CaM was not observed for p19 of TBSV (Fig. 3B), another well-characterized VSR with a siRNA-binding domain [20], suggesting that exploitation of rgs-CaM is not a common feature associated with VSRs. A recent study has shown that an ethylene inducible RAV/EDF transcription factor is required for the HC-Pro functions as a VSR and symptom modulator [28]. Subsequent microarray analyses have revealed differential expression of many biotic and abiotic stress response genes in Arabidopsis in response to HC-Pro in a RAV2-dependent manner. Among these are Arabidopsis FIERY1 (AtFRY1), which negatively regulates transitive silencing [57], and AtCML38 (Calmodulin-like protein 38), a closely related homolog of rgs-CaM in Arabidopsis (Fig. 1D), both of which were up-regulated [28]. Interestingly, our global gene expression analysis also revealed that many ethylene responsive transcription factors and stress-related genes are differentially up-regulated in βC1 transgenic plants. Notably, the list includes the N. benthamiana homolog of RAV2 (NbRAV2) (unpublished data). It has been shown that biotic and abiotic stresses, or treatment with Ethephon, a synthetic compound which decomposes into ethylene, could divert plants from antiviral silencing to cope with other stress responses [65]. Thus, it is tempting to speculate that HC-Pro and βC1 may have convergently evolved a mechanism for PTGS suppression through induction of the ethylene-mediated stress response. Further studies are needed to determine whether an N. benthamiana ortholog of RAV2 mediates the induction of Nbrgs-CaM by βC1, and whether AtFRY1 and AtCML38 are downstream mediators of HC-Pro. Alternatively, βC1 has also been shown to be a TGS suppressor and when ectopically expressed, βC1 causes global reductions in host genome cytosine methylation [66]. It is possible that the transcription of Nbrgs-CaM is silenced by a DNA methylation-related mechanism under normal conditions, which is derepressed by the TGS suppressor function of βC1.

Our data reveal that up-regulation of Nbrgs-CaM expression by βC1 represses NbRDR6 expression (Fig. 7). Consistence with this finding, both βC1 and rgs-CaMs suppress S-PTGS but not IR-PTGS, and inhibits the production of secondary siRNAs (Fig. 4, Fig. 8F and Fig. S3), suggesting that βC1 and rgs-CaMs act to inhibit dsRNA formation catalyzed by the activity of cellular RDRs. This notion is further reinforced by the observation that both 35S:CaM and dsRDR6 plants are defective in S-PTGS but not IR-PTGS in a conventional agroinfiltration assay (Fig. S7). Perhaps the most convincing genetic evidence to demonstrate a specific role for VSRs is rescue of the infections of VSR-deficient mutant viruses with host cells defective in RNA silencing [67]. Such an approach has been used to establish the antiviral role of RDRs-mediated secondary vsiRNAs biogenesis against the infections of several plant RNA viruses [6], [9], [10], and to reveal the natural antiviral functions of RNAi in mammals [68], [69]. It has been shown that 10A and some other monopartite begomoviruses are incapable of blocking host RNA silencing and inducing typical symptoms, and that their betasatellites are required for the full virulence of the helper viruses [43], [44]. Here our data showed that the 10A DNA accumulation and pathogenicity can be partially rescued in N. benthamiana plants deficient in NbRDR6 (Fig. 8D–E), underscoring the specific roles of βC1 in suppressing RDR6 functions. The essential role of RDR6 in antiviral defense has been reinforced by our observations that Arabidopsis rdr6 mutant plants were susceptible to 10Aβ, which otherwise can not establish robust infection in wt plants (Fig. 9). Previously, it has been reported that AGO2-mediated RNA silencing defense confers nonhost resistance to PVX infection of Arabidopsis [70]. To our knowledge, our data represent the first evidence that RNA silencing functions to constrain the host range of a DNA virus.

RDR6 was originally identified in Arabidopsis as required for PTGS triggered by sense-transgenes (S-PTGS) but not by inverted repeat RNA (IR-PTGS) or by RNA viruses such as PVX (RNA-VIGS) [3]. Unlike RNA viruses, geminiviruses lack a dsRNA phase in their life cycle and thus do not obligatorily trigger RNA silencing. It has been suggested that abundant geminiviral transcripts could be perceived as aberrant RNAs and subsequently be recruited by host RDRs as templates to produce dsRNA [30]. In this sense, geminivirus-induced gene silencing is similar to S-PTGS in the initial stage because both processes require the actions of host RDRs (Fig. 10). In support of this notion, VIGS of an endogenous gene in Arabidopsis by CaLCuV-derived geminiviral vector requires RDR6 as well as SGS3 [33]. Our data also shows that VIGS of the Su gene by the 10A-derived vector was compromised in NbRDR6-deficient N. benthamiana plants (Fig. 8A–B). Another hypothetic origin for geminiviral dsRNA precursor are the 3′ end overlapping transcripts generated by convergent transcription on the viral circular genome, which could be DCLs substrates for generation of vsiRNA (Fig. 10). Notably, SGS3, the dsRNA binding partner of RDR6, specifically recognizes dsRNAs with 5′ overhangs, a structure analog to 3′ end partially overlapped geminiviral transcripts [71]. This raises the intriguing possibility that such viral transcripts or their derivatives could be recruited by SGS3 and RDR6 to produce dsRNA precursors for vsiRNAs. Interestingly, TYLCV V2 suppresses PTGS likely through interacting with SGS3 and/or competing for binding to dsRNA substrates [71], [72]. As with TYLCCNV βC1, TYLCV V2 also suppresses S-PTGS but not IR-PTGS [73], indicating that interference with SGS3/RDR6-mediated dsRNA formation is a common theme for geminiviruses-encoded VSRs. Interestingly, Aregger et al. have recently found that CaLCuV-derived siRNA populations are largely unaffected by Arabidopsis rdr1/2/6 triple mutation using deep sequencing and blot hybridization [74], suggesting that the bulk of vsiRNAs are RDR1, 2 and 6-independent (i.e. primary vsiRNAs). It is worth mentioning that in addition to RDR1, 2 and 6, the Arabidopsis genome also encodes three poorly characterized RDRs of the γ class namely RDR3, RDR4 and RDR5. The prevailing assumption is that these three RDRs play no major role in antiviral defense. However, a recently study report that the tomato yellow leaf curl geminivirus Ty-1 and Ty-3 resistance genes code for a γ Class RDR that represents tomato homologs of Arabidopsis RDR3/4/5 [75], suggesting that this group of RDRs in Arabidopsis may also be involved in vsiRNA biogenesis. Here we have shown that after 10A infection (either alone, with betasatellite or with DNA1 component), even higher levels of vsiRNAs accumulated in N. benthamiana dsRDR6 plants than in wt plants (Fig. 8F), and vsiRNA levels are proportional to the viral DNA accumulations in these plants. Therefore, these abundant RDR6-independent vsiRNAs (assuming that the residual RDR6 activity is negligible in dsRDR6 plants) seem to be unable to silence their targets efficiently, as manifested by the compromised NuSu VIGS (Fig. 8A–C) and by the hypersensitivity to 10A infections in the dsRDR6 plants (Fig. 8D–E). It appears that plants defective in RDR6 are unable to mount an effective RNA silencing response upon TYLCCNV infections. As a result, TYLCCNV multiplies to higher levels, which, in turn, may produce more aberrant mRNA transcripts to generate abundant primary vsiRNAs or secondary vsiRNAs via the activities of other RDRs. It has been suggested that Arabidopsis RDR6 functions as a genome surveillance factor to monitor aberrant mRNAs derived from transgenes and targets those mRNAs for PTGS [76]. Given the resemblance of transgene-derived mRNAs and abundant geminiviral transcripts, such an RDR6-mediated protection mechanism may also operate to detect geminivirus infections. Alternatively, RDR6 may act at systemic levels to potentiate distal tissues to initiate an immediate early response against virus infection. Previously, Schwach and associates have shown that RDR6 is not required for production of PVX-derived siRNAs, but prevents systemic PVX infection likely through amplification of systemically movable silencing signals [13]. It remains to be determined whether RDR6 function at cellular level or systemic tissue, or both, to defend against geminivirus infections.

It is important to note that the betasatellite greatly suppresses vsiRNA biogenesis in infected wt and dsRDR6 plants (Fig. 8F), which is consistent with its activities on GFP siRNA production observed in agroinfiltration assays (Fig. 3B, Fig. 4C–D, Fig. 5B and Fig. S3C–D). However, the dominant effect of TYLCCNB βC1 on vsiRNA biogenesis can not be solely attributed to its function in RDR6 suppression, because knockdowns of NbRDR6 do not reduced vsiRNA production (Fig. 8F). Therefore, expression of βC1 likely has pleiotropic effects on the host RNA silencing pathway. Indeed, transient expression of βC1 also reduced the mRNA levels of NbSGS3 and NbAGO4 (P≤0.05), and in this regard, NbAGO4 is also suppressed by Nbrgs-CaM (P≤0.01) (Fig. 7A). Nuclear-replicating geminiviruses encounter host RNA silencing defense at both transcriptional (TGS) and post-transcriptional (PTGS) levels [33], [34]. Raja and associates have shown that the Arabidopsis homolog of NbAGO4 plays an important role in methylation-based epigenetic defense against geminivirus [77]. In addition, we have recently reported that TYLCCNB βC1 suppresses TGS through interactions that inhibited the activity of S-adenosyl homocysteine hydrolase (SAHH), a key enzyme in the host DNA methylation pathway [66]. Notably, the fact that 10A alone is not able to infect Arabidopsis rdr6 mutant suggests that suppression of other layers of host defense by betasatellite are required for 10A to establish robust infection in this host species.

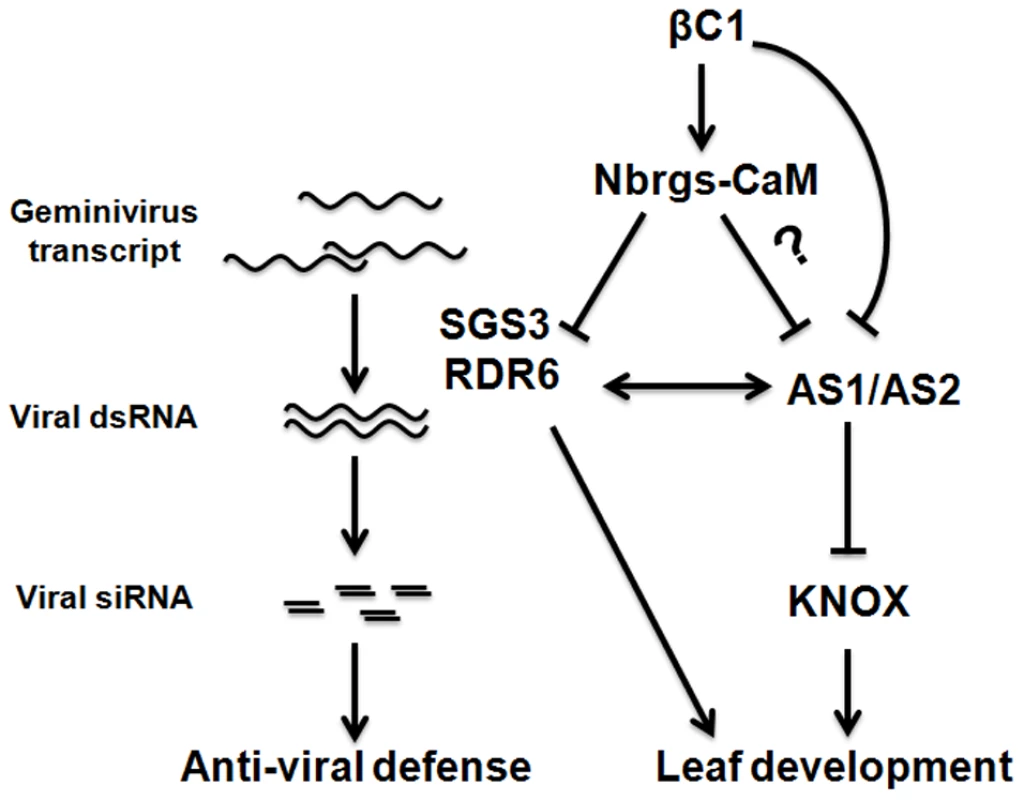

Another interesting aspect of our finding is the similar phenotypes of 35S:CaM and 35S:βC1 plants, and the genetic requirement of Nbrgs-CaM for βC1-disease manifestation (Fig. 5A–B). Down-regulation of NbRDR6 alone by Nbrgs-CaM cannot account for the observed phenotypic defects observed in βC1 and 35S:CaM plants, since dsRDR6 plants have largely normal phenotypes (data not shown; also in [12]–[13]). Therefore, other unknown targets downstream of Nbrgs-CaM may be involved in the development of βC1-induced symptoms. The upward-curled leaf phenotypes in βC1 and 35S:CaM plants suggest that these proteins may disrupt the leaf adaxial–abaxial identity. In Arabidopsis, ASYMMETRIC LEAVES1 (AS1) and AS2 are important factors for promoting the establishment of leaf adaxial-abaxial identity. AS1 and AS2 form a repressor complex that binds directly to the regulatory motifs present in promoters of the KNOX genes that specify leaf polarity [78]. It has been shown that Arabidopsis RDR6, as well as SGS3 and AGO7 in the trans-acting siRNA pathway, genetically interact with AS1/AS2 to synergistically regulate leaf development. The rdr6 and as1 or as2 double mutants display an abnormal leaf adaxial identity with a ruffled surface [79]–[80] that is reminiscent of the phenotypes shown in βC1 and 35S:CaM transgenic plants. Interestingly, Han et al. have recently showed that Arabidopsis calmodulin physically interacts with AS1 and relieves the AS1/AS2-suppression of KNOX transcription [81]. It remains to be determined whether Nbrgs-CaM has a similar effect in N. benthamiana. Yang et al. have also suggested that TYLCCNB-encoded βC1 uses molecular mimicking of AS2 to form a complex with AS1 to regulate leaf development [55]. Therefore, multiple pathways involved in leaf development may be affected by the βC1, which could lead to disease manifestations (Fig. 10). Future studies are needed to address the effects of βC1 on the transcription levels of specific downstream targets of the AS1-AS2 pathway and the RDR6-SGS3-AGO7 pathway.

Materials and Methods

Plant materials and growth conditions

N. benthamiana seedlings were potted in soil and placed in an insect-free growth chamber at 25°C and 60% relative humidity under a 16 h light/8 h dark photoperiod. 35:βC1 transgenic N. benthamiana lines were generated in a previous study [36], and the transgenic GFP 16c and dsRDR6 lines were generous gifts of David C. Baulcombe. The A. thaliana ecotype Columbia (Col-0) and rdr6-11 mutant were used for this study. Seeds were surface sterilized with 75% ethanol and 50% bleach, and then washed three times with sterile water. Sterile seeds were suspended in 0.05% agarose and plated on Murashige and Skoog (Duchefa Biochemie, Haarlem, Netherlands) medium plus 2.0% sucrose. Plates were stratified in darkness for 3 d at 4°C and then transferred to a tissue culture room at 22°C under an 8-h-light/16-h-dark photoperiod. After 2 weeks, seedlings were potted in soil and placed in a growth chamber at 22°C and with 70% relative humidity under an 8-h-light/16-h-dark photoperiod.

Cloning full-length rgs-CaM cDNAs and plasmid constructs

The tobacco rgs-CaM sequence was used to identify orthologous sequences from available N. benthamiana ESTs. BLAST searches revealed high homology between rgs-CaM from tobacco and N. benthamiana. Primers designed to anneal to conserved sequences in the 5′ and 3′ untranslated regions of tobacco rgs-CaM were used to amplify the coding region of N. benthamiana rgs-CaM by reverse transcription PCR (RT-PCR). Amplification with primer pairs CaM-cds-F/CaM-cds-R yielded a specific product of approximately 600-bp, which was cloned into pMD18-T (TaKaRa, Dalian, China) and sequenced. Detailed primer information is listed in Table S1. The full-length coding sequence of Nbrgs-CaM was deposited in GenBank under the accession number JX402081. To construct the plant Nbrgs-CaM expression vector for transgenic over-expression or transient agroinfiltration assays, a primer pair CaM-F/CaM-R was designed to amplify the full-length coding region of Nbrgs-CaM. The Nbrgs-CaM coding sequence was subcloned into the binary vector pCHF3 downstream of a CaMV 35S promoter to produce pCHF3-35S-CaM, or into the PVX-based vector (a kind gift of David Baulcombe) between the ClaI and SalI sites to produce PVX-Nbrgs-CaM.

An RNAi construct containing an Nbrgs-CaM inverted repeat sequence of spaced by a soybean intron was produced by overlapping PCR. The fragment of Nbrgs-CaM sense sequence was amplified with A-CaM-F/A-CaM-intron-R primer pair and overlapped with intron sequence amplified by B-CaM-intron-F/B-Intron-R primers. The overlapping products were cloned into pCHF3 between the SacI and BamHI sites to produce pCHF3-35S-CaM-intron. The corresponding antisense Nbrgs-CaM fragment was amplified with the primer pair C-CaM-F/C-CaM-R and subsequently cloned into pCHF3-35S-sCaM-intron between BamHI and PstI sites to produce the RNAi construct pCHF3-35S-dsCaM. To construct a TRV-based recombinant VIGS vector of Nbrgs-CaM, a partial fragment of Nbrgs-CaM was generated by PCR amplification with the primer pair TRV-CaM-F/TRV-CaM-R and then cloned into the pTRV2 vector (a kind gift of Yule Liu) between the BamHI and XhoI sites [54].

The coding sequences of Ntrgs-CaM and Slrgs-CaM were PCR-amplified from N. tabacum and S. lycopersicum and then subcloned to the pCHF3 binary vector or the TRV vectors using different primers and restriction enzyme sites listed in Table S1. The pCHF3-based vectors were used for the transient expression of rgs-CaMs in N. benthamiana leaves, and the TRV-based VIGS vectors were used to silence the expression of rgs-CaMs in N. tabacum and S. lycopersicum, respectively.

Binary vectors for the PTGS suppression assay, such as pCHF3-35S-GFP and pCHF3-35S-dsFP, were constructed previously [82]. The pCHF3-35S-FP vector for transcription of a partial sense sequence of C-terminal fragment of 400 bps of GFP was constructed by amplification with the primer pair S-FP-F/S-FP-R and cloned into pCHF3.

Plant transformation

Transgenic lines over-expressing or down-regulating Nbrgs-CaM were generated by transforming N. benthamiana with the pCHF3-CaM and pCHF3-dsCaM constructs, respectively. The binary vectors were mobilized into A. tumefaciens EHA105 strain, and then used to transformed N. benthamiana leaf discs. Selection of transformants was performed in media containing 200 µg/ml kanamycin. Kanamycin-resistant shootlets were collected, placed on rooting media, grown to a height of 5–6 cm, and then transferred to soil. Transgenic plants were first screened by PCR with specific primers targeted to promoter or intron sequences and then confirmed by Southern blot hybridization. Alterations in Nbrgs-CaM mRNA levels in transgenic plants were confirmed by RT-qPCR and Northern blot analyses.

Viral inoculation and agroinfiltration

For virus agroinoculation, equal volumes of individual A. tumefaciens cultures at an OD₆₀₀ of 1 were mixed prior to inoculations. Viral infectious clones, including TYLCCNV (pBinPLUS-Y10-1.7A), and TYLCCNV/TYLCCNB (pBinPLUS-Y10-1.7A+Y10β), were described previously [38]. The TYLCCNV-derived VIGS vectors 2mDNA1 (pBinPLUS-2mDNA1) and 2mDNA1-NbSu (pBinPLUS-2mDNA1-NbSu) were constructed previously [52], [53]. The recombinant PVX vector expressing βC1 gene (PVX-βC1) was described previously [66]. Agrobacterium cultures carrying viral infectious clone(s) were infiltrated into N. benthamiana leaves and inoculated plants were photographed with a Canon 400D digital camera at different periods.

For CMV rub-inoculation, 1 g of CMV-infected N. glutinosa leaves were ground in 1 mL of 5 mM phosphate buffer, pH 7.2. N. benthamiana plants at the 6–7 leaf stages were inoculated by rubbing leaves with freshly prepared sap. Inoculated plants were grown in an insect-free growth chamber at 25°C and monitored for symptom appearance.

For PTGS experiments, transient silencing suppression assays were performed as described previously [50], [51]. Classic two-component transient PTGS assays were performed by agroinfiltration of 35S:GFP with control or suppressor vectors into leaves of N. benthamiana 16c plants at the 6–7 leaf stages. For S-PTGS experiments, Agrobacterium cultures harboring the pCHF3-35S-GFP, pCHF3-35S-FP and VSRs-expressing vectors were mixed in equal proportions and infiltrated into N. benthamiana leaves. For IR-PTGS experiments, the pCHF3-35S-dsFP was used as an RNA silencing trigger instead of the pCHF3-35S-GF as a RNA silencing trigger. After 3 dpi, GFP fluorescence was monitored with a 100-W handheld long-wavelength UV lamp (Black Ray Model B 100A; UV products) and the infiltrated leaves were photographed with a Canon 400D digital camera with a 58-mm yellow filter. Exposures were 3 to 6 seconds long, depending on the fluorescence intensity and distance from the leaf.

DNA extraction and Southern blot analysis

Total DNA was extracted from infected plant leaves using the CTAB method (35). DNA agarose gels were stained with ethidium bromide to provide a loading control. After denaturation and neutralization, total DNA was transferred to Hybond N⁺ nylon membranes (GE Healthcare, Pittsburgh, PA) by capillary transfer. Membranes were hybridized at 55°C to specific probes labeled with [α-³²P] dCTP.

RNA extraction, northern blot, siRNA blot and RT-qPCR analysis

Total RNAs were extracted from plants with Trizol reagent (Invitrogen, Carlsbad, CA) as recommended by the manufacturer. Total RNA was stained with ethidium bromide as a loading control, and then transferred to Hybond N⁺ nylon membranes by upward capillary transfer in 20×SSC buffer. Membranes were hybridized to specific probes for rgs-CaM, βC1, GFP or PVX CP labeled with [α-³²P] dCTP using random primed labeling System (Promega, Madison, WI). The hybridization signals were detected by phosphorimaging with a Typhoon 9200 imager (GE Healthcare).

To analyze the production siRNAs, low-molecular-mass RNAs were enriched from total RNA as described previously [3]. The enriched small RNAs (15 µg) were fractionated on a 15% denaturing polyacrylamide–7 M urea gel in 0.5× Tris–borate–EDTA (TBE) buffer. The RNA was transferred to Hybond N⁺ membranes (GE Healthcare) by electroblotting in 0.5× TBE at 400 mA for 1 h. The transferred RNAs was UV crosslinked to the membrane 4 times at 1200 µJ in a UV Stratalinker 1800 (Stratagene, La Jolla, CA). Membranes were stored at 4°C until probing. One DNA oligonucleotides complementary to N. benthamiana U6 RNA and a mixture of oligonucleotides corresponding to G, F and P regions of GFP mRNA sequences were synthesized and used as probes for siRNA hybridization (Table S1). The oligos were end-labelled with [γ-³²P] ATP in 50 µL reactions containing 1 µM DNA oligo and 7 U T4 polynucleotide kinase. Hybridizations were performed overnight at 42°C and the membranes were subsequently washed three times (10 min each) at 40°C with 1× SSC (0.15 M NaCl and 0.015 M sodium citrate) supplemented with 0.1% SDS. Hybridization signals were detected as described above for Northern blot analysis.

For RT-qPCR analysis, 10 µg of total RNA was treated with DNase I (Takara) and reverse transcribed according to manufacturer's instructions. Specific primer pairs, which annealed to GFP, βC1, Nbrgs-CaM, Su or genes encoding known components in RNA silencing pathway (Table S1), were designed by Primer Premier 5 software. The GenBank accession numbers of genes analyzed in this study are as follows: Ntrgs-CaM (AF329729), Slrgs-CaM (AY642285), NbDCL1 (FM986780), NbDCL2 (FM986781), NbDCL3 (FM986782), NbDCL4 (FM986783), NbAGO1-1 (DQ321488), NbAGO4-1 (DQ321490), NtSGS3a (AB690269), NbRDR1m (AY574374), NbRDR2 (AY722009), NbRDR6 (AY722008). The lengths of amplification products were between 180–250 bp, and the Tm for each primer pair was between 55–65°C. RT-qPCR was performed using a LightCycler 480 (Roche Diagnostics, Rotkreuz, Switzerland) for 45 cycles, and NbGAPDH was used an internal control unless otherwise stated. Each experiment was performed in triplicate and repeated three times, and the results were analyzed by software supplied by the manufacturer.

Immunoblotting and antibodies

Total proteins were extracted from N. benthamiana leaves as described previously [66]. Immunoblotting was performed with primary mouse monoclonal or rabbit polyclonal antibodies, followed by goat anti-mouse or anti-rabbit secondary antibody conjugated to horseradish peroxidase (Bio-Rad, Hercules, CA). The GFP monoclonal antibody was obtained from Hua An Company, China, and the monoclonal antibodies against PVX CP, CMV CP and βC1 were generated in house. The rabbit polyclonal antibody against CMV 2b was a generous gift from Dr. Huishan Guo. Blotted membranes were washed thoroughly and visualized using chemiluminescence according to the manufacturer's manual (GE Healthcare). Nbrgs-CaM antibody was produced in rabbit with recombinant protein expressed in E. coli. In brief, we expressed Nbrgs-CaM in E. coli cells as a 6× Histidine and Maltose binding protein (MBP) fusion. The Nbrgs-CaM-MBP-His fusion protein was purified over a nickle column (Merck, Darmstadt, Germany) and eluted with a buffer containing 200 mM imidazole according to the manufacturer's manual. The purified protein was used to immunize rabbits for polyclonal antiserum. The Nbrgs-CaM-specific immunoglubin was given an additional purification step on an affinity column filled with Cyanogen bromide-activated agarose beads conjugated with the Nbrgs-CaM-MBP-His fusion proteins.
