Identification of a Mutant PfCRT-Mediated Chloroquine Tolerance Phenotype in

Summary

Mutant forms of the Plasmodium falciparum transporter PfCRT constitute the key determinant of parasite resistance to chloroquine (CQ), the former first-line antimalarial, and are ubiquitous to infections that fail CQ treatment. However, treatment can often be successful in individuals harboring mutant pfcrt alleles, raising questions about the role of host immunity or pharmacokinetics vs. the parasite genetic background in contributing to treatment outcomes. To examine whether the parasite genetic background dictates the degree of mutant pfcrt-mediated CQ resistance, we replaced the wild type pfcrt allele in three CQ-sensitive strains with mutant pfcrt of the 7G8 allelic type prevalent in South America, the Oceanic region and India. Recombinant clones exhibited strain-dependent CQ responses that ranged from high-level resistance to an incremental shift that did not meet CQ resistance criteria. Nonetheless, even in the most susceptible clones, 7G8 mutant pfcrt enabled parasites to tolerate CQ pressure and recrudesce in vitro after treatment with high concentrations of CQ. 7G8 mutant pfcrt was found to significantly impact parasite responses to other antimalarials used in artemisinin-based combination therapies, in a strain-dependent manner. We also report clinical isolates from French Guiana that harbor mutant pfcrt, identical or related to the 7G8 haplotype, and manifest a CQ tolerance phenotype. One isolate, H209, harbored a novel PfCRT C350R mutation and demonstrated reduced quinine and artemisinin susceptibility. Our data: 1) suggest that high-level CQR is a complex biological process dependent on the presence of mutant pfcrt; 2) implicate a role for variant pfcrt alleles in modulating parasite susceptibility to other clinically important antimalarials; and 3) uncover the existence of a phenotype of CQ tolerance in some strains harboring mutant pfcrt.

Introduction

The massive use of chloroquine (CQ) in the 20^th century heralded substantial gains in the global fight against malaria. These advances were later lost as CQ resistance (CQR) arose and spread throughout malaria-endemic areas [1], [2]. Today, CQ and the alternative first-line antimalarial sulfadoxine-pyrimethamine have officially been mostly replaced by artemisinin-based combination therapies (ACTs) [3]. Nevertheless, CQ continues to be widely used in parts of sub-Saharan Africa at the household level, presumably because of its ability to provide temporary relief from symptoms for patients unable to afford ACTs or other expensive drugs [4], [5]. Recent findings also suggest the possibility of reintroducing CQ-based combination therapies into African regions where an extended hiatus from CQ use has led to the dominance of CQ-sensitive Plasmodium falciparum parasites that have outcompeted the less-fit CQ-resistant strains [6]. At the cellular level, CQ is thought to act by accumulating to low millimolar concentrations in the acidic digestive vacuole of asexual intra-erythrocytic Plasmodium parasites, wherein it interferes with the detoxification of iron-bound heme moieties produced as a result of hemoglobin degradation [7].

Clinical and epidemiological studies reveal that CQR emerged on very few occasions despite its abundant use, leading researchers to initially posit a multigenic basis of resistance [8]. This theory was challenged by the finding that CQR was inherited as a single locus in a genetic cross between the CQ-resistant Dd2 (Indochina) and the CQ-sensitive HB3 (Honduras) clones [9], [10]. The causal determinant in this locus was ultimately identified as the P. falciparum chloroquine resistance transporter (pfcrt), whose 49 kDa protein product PfCRT resides on the DV membrane [11], [12]. Comparison of the Dd2 and HB3 sequence revealed eight point mutations that all mapped to sites within or near several of the 10 putative transmembrane domains [11].

Quantitative trait loci analysis of the HB3×Dd2 cross has revealed that mutant pfcrt from the Dd2 parent accounts for >95% of the CQ response variation among the progeny [13]. Further evidence supporting pfcrt as the primary determinant of CQR has come from studies of culture-adapted field isolates, which show extensive linkage disequilibrium surrounding the pfcrt locus in CQ-resistant isolates [14]. These data suggest that strong selective sweeps drove mutant pfcrt through P. falciparum populations across the globe, a notion also supported by more recent studies of nucleotide diversity in geographically distinct strains [15], [16]. The PfCRT K76T mutation, ubiquitous to CQ-resistant strains, has proven to be a highly sensitive marker of CQR in vitro and is associated with a significantly increased risk of CQ treatment failure in vivo [17]–[19].

While these studies have demonstrated the primary importance of pfcrt in CQR, other evidence suggests that additional genes might contribute to the CQR phenotype. Most notably, a strain-dependent association has been demonstrated between mutant pfcrt and point mutations in pfmdr1. This may reflect parasite physiologic adaptations to counteract the fitness cost of mutant PfCRT, or an independent role for pfmdr1 in CQR [1], [8], [19]–[22]. Nevertheless, even with identical pfcrt and pfmdr1 alleles, large variations in response to CQ can exist, suggestive of a secondary effect of additional parasite factors [13], [23]–[25].

Clinically, resistance to CQ is graded by the World Health Organization ETF-LTF-ACPR system (corresponding to early treatment failure, late treatment failure, or adequate clinical and parasitological response), based on the time to manifest clinical or parasitological evidence of treatment failure [26]. Studies aimed at dissecting the roles of pfcrt and pfmdr1 mutations in modulating the different grades of in vivo resistance have shown an increased risk of early treatment failure with PfCRT K76T, which in some reports is augmented with PfMDR1 N86Y [27], [28]. However, the PfCRT K76T molecular marker cannot reliably predict CQ treatment failure, revealing moderate specificity of this marker. Discordance between in vitro parasite responses and in vivo patient outcomes following CQ treatment can be as high as 20% [17], [29]. This discordance can be partially attributed to host and environmental factors, including patient immunity, individual pharmacokinetic differences, polyclonal infections, and limitations in obtaining repeated measurements of drug susceptibilities with patient isolates [30]. An additional explanation could be the variable presence of additional parasite determinants.

We have previously adopted allelic exchange strategies to show that different mutant pfcrt alleles could confer verapamil (VP)-reversible CQR in a single, defined genetic background, the CQ-sensitive strain GC03 [31]. A separate transfection-based study found that pfcrt-mediated CQR in two geographically distinct strains, Dd2 (from Indochina) and 7G8 (from Brazil), was entirely dependent on the presence of the K76T mutation [32]. These strains were chosen as they encode a PfCRT haplotype frequently observed in Africa and Asia (Dd2) or in Papua New Guinea, South America and India (7G8). Both alleles have been documented in multiple clinical trials to be highly specific for CQ treatment failures, with repeated evidence of significant selection for mutant pfcrt of either allelic type in early or late treatment failures. Frequencies of mutant alleles in those cases often attained 100% [17], [33]–[37]. Trials were conducted in Africa, Southeast Asia, South America or the Oceanic region.

Here, we have assessed the effect of mutant pfcrt on the CQ response of three CQ-sensitive strains. We also describe two isolates from French Guiana that provide clinical validation of our genetic investigations. Our data reveal the existence of a mutant PfCRT-mediated CQ tolerance phenotype in some strains of P. falciparum.

Results

Generation of recombinant lines expressing mutant pfcrt

To define the impact of mutant pfcrt on CQ response in diverse genetic backgrounds, we developed an allelic exchange strategy based on a single round of homologous recombination and single-site crossover integration (Figure 1A), and applied this to the CQ-sensitive P. falciparum strains 3D7 (isolated in the Netherlands), D10 (Papua New Guinea), and GC03 (a progeny of the HB3×Dd2 genetic cross). This strategy differed from an earlier approach that required two rounds of allelic exchange to generate the desired recombinants [31]. Briefly, we constructed selectable transfection plasmids that contained a 2.9 kb pfcrt insert consisting of 0.5 kb of the endogenous 5′ untranslated region (UTR), exon 1, intron 1, and the remaining exons 2–13 (Figure 1A). This truncated 5′ UTR fragment (termed Δ5′) was previously observed by luciferase assays to give insignificant levels of activity (A. Sidhu, unpublished data). Single-site crossover between the pfcrt insert and the homologous pfcrt sequence upstream of codons 72–76 was predicted to replace the endogenous pfcrt gene with a recombinant allele harboring all the single nucleotide polymorphisms from the 7G8 or Dd2 pfcrt allele. Expression of this recombinant allele was driven by the endogenous full-length (3.0 kb) 5′ UTR and a previously characterized, functional 0.7 kb 3′ UTR (termed Py3′) from the pfcrt ortholog in Plasmodium yoelii [31]. In addition to these pBSD-7G8 and pBSD-Dd2 constructs, we also generated the control pBSD-GC03 plasmid that encoded the wild type (WT) pfcrt sequence in order to obtain recombinant control parasites.

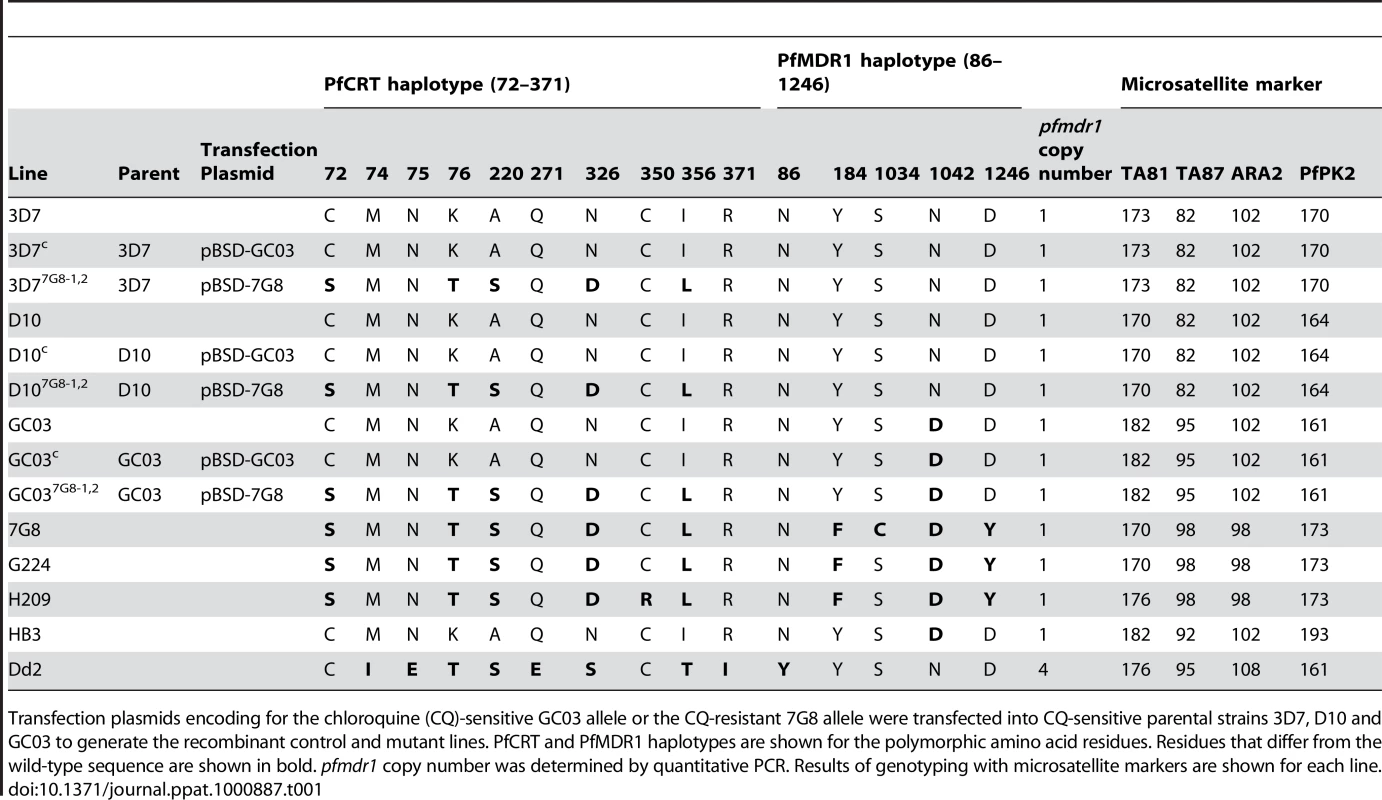

3D7, D10 and GC03 parasites were transfected with the pBSD-7G8, pBSD-Dd2, or pBSD-GC03 plasmids and screened monthly by PCR for homologous recombination at the pfcrt locus. With the 7G8 and GC03 alleles, integration into the pfcrt locus was first detected within 60 days of electroporation, and subsequently cloned by limiting dilution. In contrast, the Dd2 allele failed to show PCR evidence of homologous recombination even after 200 days of continuous culture in 3 separate transfection experiments, suggesting that this allele was detrimental to the growth of 3D7 and D10 parasites (data not shown). Repeated efforts failed to transfect 7G8 and Dd2 pfcrt alleles into the CQ-sensitive strains MAD1 and Santa Lucia (from Madagascar and Santa Lucia, a kind gift of Drs Milijaona Randrianarivelojosia and Dennis Kyle respectively), as well as HB3. Recombinant parasites either never appeared following plasmid electroporation and drug selection, or the plasmids never integrated into the pfcrt locus.

Successful transfection of the 3D7, D10 and GC03 strains produced the recombinant mutant clones 3D7^7G8-1, 3D7^7G8-2, D10^7G8-1, D10^7G8-2, GC03^7G8-1 and GC03^7G8-2 (all generated from the plasmid containing the 7G8 pfcrt sequence) or the recombinant control clones 3D7^c, D10^c and GC03^c clones (generated with the control plasmid harboring the WT pfcrt sequence; Table 1). Southern hybridization of EcoRI/BglII-digested genomic DNA samples with a pfcrt probe confirmed the expected recombinant locus, as evidenced by the loss of a 3.9 kb band present in the WT lines and the acquisition of 4.4 kb and 6.7 kb bands consistent with recombination in pfcrt (results shown for the 3D7 and D10 clones in Figure 1B). The 7.2 kb bands present in 3D7^C, D10^7G8-1, and D10^7G8-2 were indicative of integration of tandem plasmid copies into the pfcrt locus.

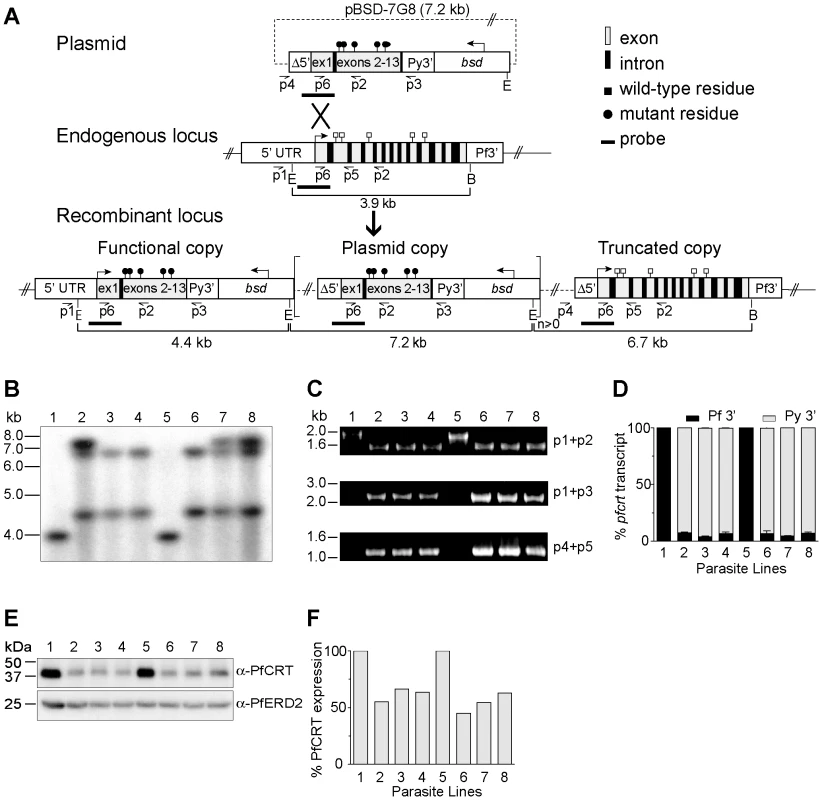

We confirmed these recombination events using PCR analyses with a 5′ UTR-specific primer (p1) and an exon 5-specific primer (p2), which revealed a change in size from the 1.8 kb WT-specific band to a shorter 1.5 kb band in the recombinant controls and mutants reflecting the loss of introns 2–4 (Figure 1C). The recombinant controls and mutants also showed the acquisition of PCR bands specific for the full-length functional copy of the pfcrt locus (2.2 kb, p1+p3) and the downstream truncated copy (1.1 kb, p4+p5) (Figure 1C). Sequencing of these PCR products (data not shown) confirmed that the integration event placed the K76T mutation in the functional locus, and that the WT allele was displaced to the downstream non-functional locus. Reverse-transcriptase (RT)-PCR assays on synchronized ring stage RNA with primers specific to exons 2 and 5 (p6+p2) produced a single band corresponding to cDNA, with no evidence of genomic DNA contamination (data not shown). Sequence analysis of those products detected transcripts only from the functional recombinant locus (under the control of the 3.0 kb full-length 5′ UTR) and not from the downstream truncated locus (data not shown). No endogenous WT locus was detected in any recombinant clone.

To precisely assess the transcriptional status of the functional vs. the truncated pfcrt copies, we performed quantitative real-time RT-PCR utilizing primers specific for transcripts containing the Py3′ vs. Pf3′ UTRs respectively. Quantification of pfcrt steady state transcript levels was made by extrapolation from a standard curve generated from genomic DNA of D10^C, which has a single copy of the pBSD-GC03 plasmid integrated into the pfcrt locus (Figure 1B). Results showed that transcription from the functional pfcrt allele with Py3′ accounted for 93–95% of the total pfcrt transcript within each line (Figure 1D). Western blot analysis showed that PfCRT protein levels in the recombinant 3D7 and D10 lines were 55–66% and 45–63% those observed in the parental controls respectively (Figures 1E and 1F). This finding of reduced pfcrt transcript and protein expression levels following allelic exchange is consistent with earlier pfcrt transfection studies [31], [32], [38]. Importantly, those studies have shown that reduced pfcrt expression in recombinant lines causes a concomitant reduction in CQ IC₅₀ values, which thus become lower than the IC₅₀ values observed in parasites harboring non-recombinant pfcrt. In our drug assays, the IC₅₀ value refers to the drug concentration that inhibits incorporation of [³H]-hypoxanthine, a marker of in vitro parasite growth, by 50%.

Mutant pfcrt is insufficient to confer high-level chloroquine resistance in the 3D7 and D10 genetic backgrounds

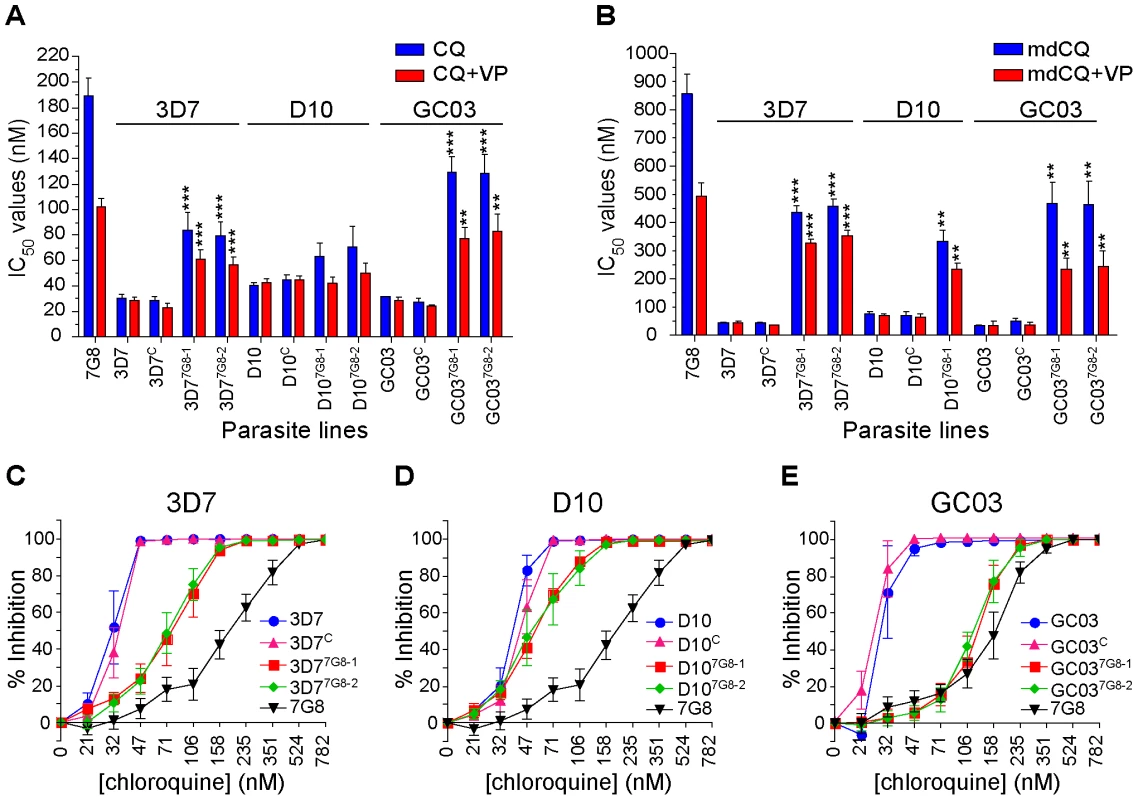

Once the desired integration events were confirmed, we assessed the effect of mutant pfcrt on the CQ response in the recombinant lines. In the 3D7 background, mutant pfcrt was found to confer a 2.7-fold increase in CQ IC₅₀ values (mean±SEM CQ IC₅₀ values of 84±14 nM and 79±11 nM for 3D7^7G8-1 and 3D7^7G8-2 respectively) compared to the 3D7 recombinant control (29±2 nM, P<0.001; Figure 2A, Table S1). These values were 2.4-fold lower than the IC₅₀ values for WT 7G8 (190±14 nM). For the D10 mutants, there was no significant increase in CQ IC₅₀ values for D10^7G8-1 and D10^7G8-2 compared to D10^C (63±11 nM, 71±16 nM, and 45±3 nM, respectively, P>0.05).

When tested against the primary in vivo metabolite monodesethyl-chloroquine (mdCQ), a significant decrease in susceptibility was found in both genetic backgrounds. The 3D7 mutant clones demonstrated a 10-fold increase in mdCQ IC₅₀ values compared to 3D7^C (P<0.001, Figure 2B). In comparison, the IC₅₀ values for the D10^7G8-1 mutant were 5-fold higher than D10^C (P<0.01, Figure 2B, D10^7G8-2 was not tested). Nevertheless, the mdCQ IC₅₀ values in both backgrounds were approximately 2–fold lower than those observed in WT 7G8, suggesting that mutant pfcrt was insufficient to confer high-level mdCQ resistance to 3D7 and D10 parasites.

These findings of a relatively moderate, strain-dependent decrease in CQ susceptibility in the 3D7 and D10 pfcrt mutants contrasted with our earlier observation that the introduction of 7G8 mutant pfcrt in the GC03 background resulted in CQ IC₅₀ values >100 nM [31]. To directly compare the effects of mutant pfcrt between strains, and to assess for any potentially confounding differences in our transfection strategies, we generated recombinant control (GC03^C) and mutant clones expressing the 7G8 allele (GC03^7G8-1 and GC03^7G8-2) using our single-round transfection strategy. These clones were confirmed by PCR, sequencing, and Southern hybridization, and were found to have similar levels of pfcrt RNA and protein expression compared to the 3D7 and D10 clones (data not shown). In the GC03 background, introduction of the 7G8 mutant pfcrt allele increased the CQ IC₅₀ values 4.7-fold (P<0.001), from 27±3 nM for GC03^C to ∼130±8 nM for both recombinant clones (Figure 2A, Table S1), and increased the mdCQ IC₅₀ values by 9-fold (P<0.01; Figure 2B). These determinations included four independent assays that directly compared GC03^7G8-1 and GC03^7G8-2 with the C6^7G8 line. The latter was produced using our earlier pfcrt modification strategy involving consecutive rounds of allelic exchange [31]. C6^7G8 also expresses the 7G8 pfcrt allele in the GC03 background, yet differs from the clones produced in the current study in that C6^7G8 contains both the human dihydrofolate reductase and the bsd selectable markers, and lacks the 0.5 kb 5′UTR present in the downstream pfcrt loci in the GC03^7G8-1 and GC03^7G8-2 clones (see Figure 1A). Drug assays with these lines produced CQ IC₅₀ values of 131±7, 129±8 and 130±7 nM for GC03^7G8-1, GC03^7G8 and C6^7G8 respectively (Table S1). These results are comparable to our published data with C6^7G8 (127±17 nM; [31]) and are consistent with both allelic exchange strategies producing the same CQ responses. Our data from all three strains also provide clear evidence that the degree of CQR conferred by mutant pfcrt is strain-dependent.

We also found that the genetic background influenced the degree of VP chemosensitization, a hallmark of P. falciparum CQR [39]. In 3D7 and D10, expression of mutant pfcrt conferred a VP reversibility of 24±1% and 28±1% (calculated as the mean±SEM of percent reversibility for all CQ and mdCQ values), compared to 44±2% for GC03 (Figure S1). Notably, significant VP reversibility occurred in the D10 mutants despite the lack of a significant increase in CQ IC₅₀ values (Figure 2D, Table S1). By comparison, VP reversibility for 7G8 CQ and mdCQ responses was 46±3% (Figure 2B). This is lower than the degree of VP reversibility that results from expression of the Dd2 pfcrt allele [31], [40].

Analysis of the dose response curves generated during these studies revealed a more complex picture than was evident from the IC₅₀ values alone. For all three genetic backgrounds, introduction of the 7G8 mutant allele into the CQ-sensitive strains caused a pronounced change in the slope of the dose-response profiles, with evidence of continued growth at high CQ concentrations (Figures 2C–E). This was particularly pronounced for the recombinant D10^7G8-1 and D10^7G8-2 lines, whose CQ IC₅₀ values were similar to those of D10 and D10^C, yet whose IC₉₀ values (i.e. the drug concentrations that inhibited [³H]-hypoxanthine uptake into cultured parasites by 90%) were greatly elevated. Indeed, analysis of the CQ IC₉₀/IC₅₀ ratios for the lines in each genetic background revealed significant increases in the mean ratios of the mutant lines (Figure S2). For the 3D7 and D10 backgrounds in particular, the relatively modest increase in CQ IC₅₀ values appeared to be compensated by an increased ability of these parasites to withstand high CQ concentrations.

The genetic background dictates whether mutant pfcrt confers chloroquine resistance or tolerance

We posited that these elevated IC₉₀ values imparted by mutant pfcrt subtly reflected a CQ tolerance phenotype. To test this, we assayed our lines for the ability to survive treatment with 50 nM CQ, a concentration that was lethal after three generations of exposure for all three WT strains, and 80 nM CQ, which substantially exceeded each of their CQ IC₉₀ values (Table S1).

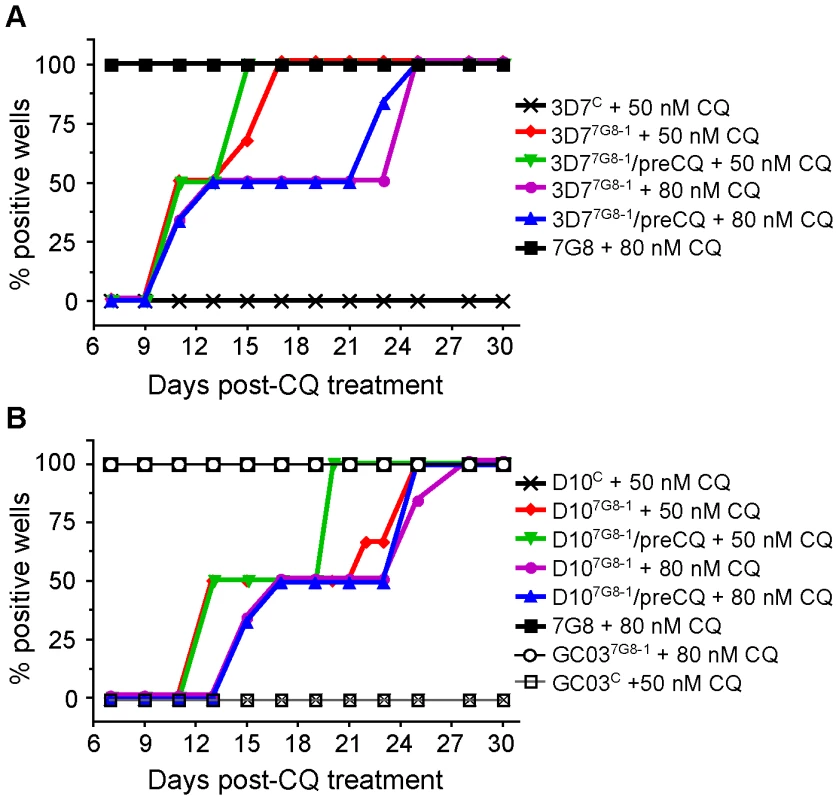

Parental, control, and mutant lines were assayed for in vitro recrudescence (defined as 50% of cultures testing positive for growth) after a six-day exposure to CQ. The parental and recombinant control lines from the 3D7, D10, and GC03 backgrounds showed no signs of growth at 30 days post-exposure to 50 nM CQ (Figures 3A and 3B). In contrast, 3D7^7G8-1 recrudesced at 9 and 13 days post-treatment with 50 nM and 80 nM CQ respectively (Figure 2A). We also tested 3D7^7G8-1 that had been pretreated with 50 nM CQ for 3 generations approximately 30 days earlier (3D7^7G8-1/preCQ), and observed similar rates of recrudescence. All untreated lines were positive at day 7, as was WT 7G8 that showed no inhibition of growth with 80 nM CQ treatment.

Although the introduction of mutant pfcrt resulted in no significant increase in CQ IC₅₀ values in the D10 background, both D10^7G8-1 and pretreated D10^7G8-1/preCQ recrudesced at days 13 and 17 with treatment with 50 nM and 80 nM CQ, respectively (Figure 3B). In the GC03 background, GC03^7G8-1 showed no inhibition of growth at 7 days with both 50 nM and 80 nM CQ treatments, reflecting the high-level CQR phenotype imparted by mutant pfcrt in this strain.

Characterization of chloroquine-sensitive P. falciparum clinical isolates from French Guiana that possess mutant pfcrt

Given the evidence that mutant pfcrt was insufficient to confer CQR in all genetic backgrounds, we asked whether there were CQ-sensitive parasites harboring mutant pfcrt in the field. After an extensive search, this led to the identification of two clinical isolates from French Guiana that express the PfCRT K76T marker for CQR but are sensitive to CQ. These isolates, G224 and H209, were harvested in 2003 and 2004, respectively, and were genotyped at the pfcrt and pfmdr1 loci. The PfCRT haplotype of G224 was found to be identical to that of 7G8, whereas H209 possessed a C350R mutation that has not been previously described (Table 1). Both G224 and H209 possessed a single copy of pfmdr1 with the same haplotype that differed from 7G8 only at position 1034. Western blot analyses revealed equivalent levels of PfCRT expression compared to 7G8 (data not shown).

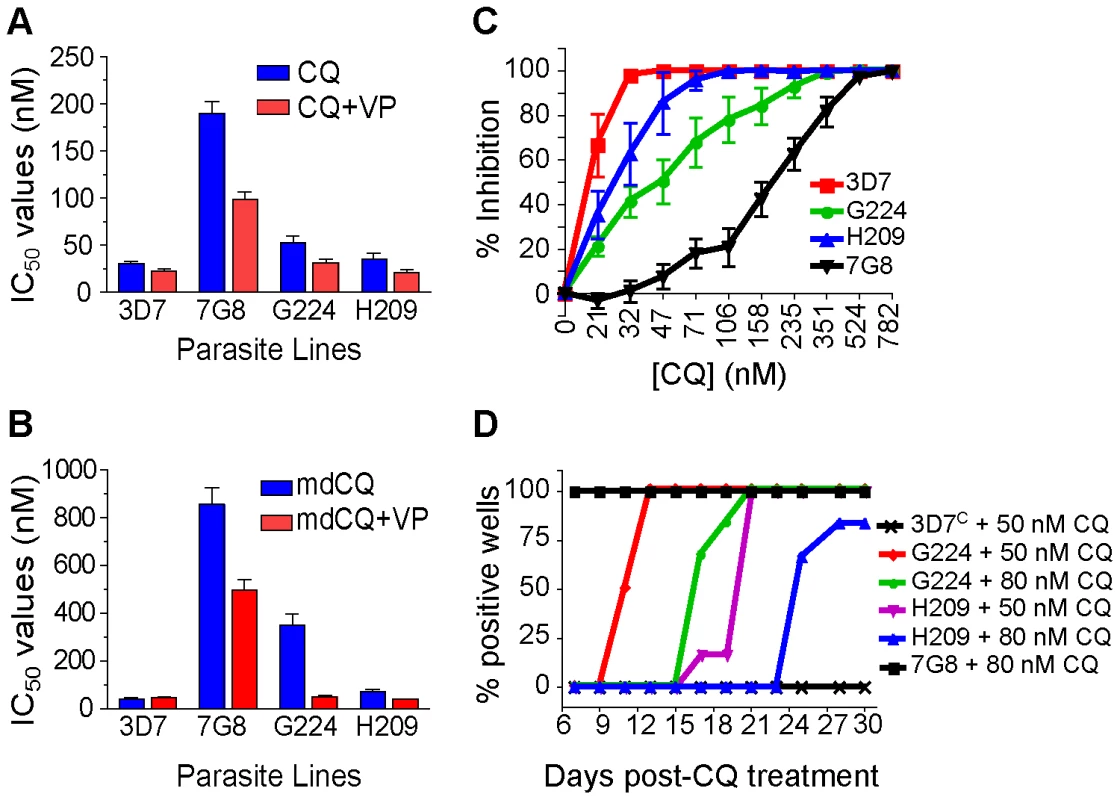

Drug susceptibility assays using CQ and mdCQ showed that these strains had low IC₅₀ values for CQ (mean IC₅₀ values of 52±8 nM and 35±7 nM for G224 and H209, respectively) and mdCQ (mean IC₅₀ values of 349±46 nM and 70±9 nM) (Figures 4A and 4B, Table S1). Further, both G224 and H209 demonstrated VP reversibility of their CQ and mdCQ response (averaging 37% and 35%, respectively; Table S1, Figure S1). Analysis of the CQ inhibition curves revealed that the IC₉₀ values were skewed towards the IC₉₀ of 7G8 (Figure 4C), reminiscent of the effect seen in our 3D7 and D10 mutant pfcrt lines (Figures 2C and 2D). This was particularly pronounced for G224, whose IC₉₀ for CQ was 123±27 nM. When tested for in vitro recrudescence after a 6-day exposure to CQ, G224 recrudesced at days 11 and 17 when treated with 50 nM and 80 nM CQ respectively (Figure 3D). Interestingly, H209 showed recrudescence at days 21 and 25 for 50 nM and 80 nM CQ respectively, despite having a very low CQ IC₉₀ value of 44±7 nM.

The genetic background also determines the effect of mutant pfcrt on response to other antimalarials

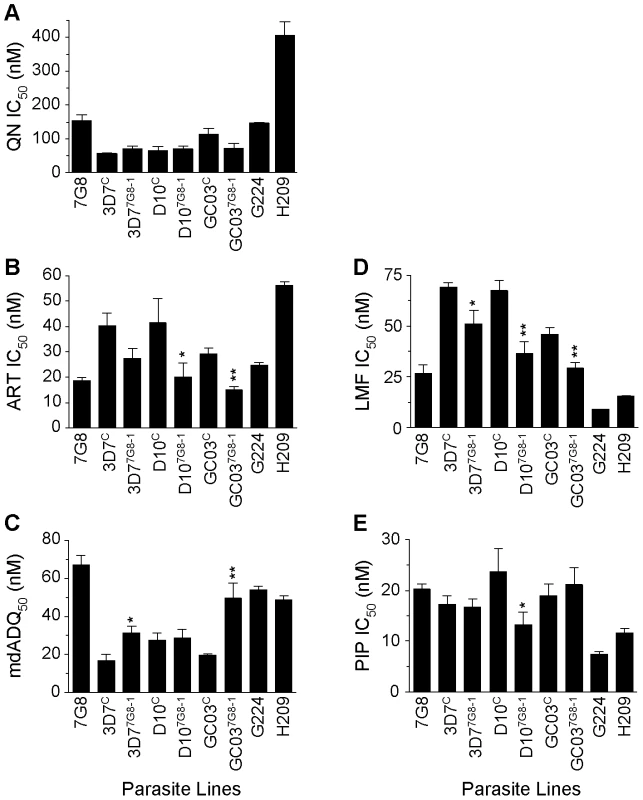

To test whether the host strain also influenced the effect of mutant pfcrt on parasite response to other drugs, particularly those currently used in ACTs, we tested our lines against quinine (QN), artemisinin (ART), monodesethyl-amodiaquine (mdADQ, the potent in vivo metabolite of amodiaquine), lumefantrine (LMF), and piperaquine (PIP). The responses of the French Guiana isolates G224 and H209 were also assessed.

In the 3D7, D10 and GC03 backgrounds, we observed no effect of mutant pfcrt on QN response (Figure 5A, Table S1). Interestingly, the highest QN IC₅₀ values were observed with H209, which showed a moderately high level of resistance (405±40 nM). When tested against ART, introduction of mutant pfcrt showed a significant 2–fold decrease in IC₅₀ values in the D10 and GC03 backgrounds, when compared to recombinant clones expressing WT pfcrt (P<0.05 and P<0.01 respectively; Figure 5B). 3D7^7G8-1 also yielded a 33% lower ART IC₅₀ compared to the 3D7^C control, however this did not attain statistical significance (P = 0.06). Again, the highest ART IC₅₀ values were observed with H209 (Table S1). For mdADQ, 3D7^7G8-1 had a 1.5-fold increase in IC₅₀ value compared to 3D7^C (P<0.05), and GC03^7G8-1 showed an even more pronounced (2.6-fold) increase compared to GC03^C (P<0.01; Figure 5C). There was no effect of mutant pfcrt on mdADQ response in the D10 background. With this drug, G224 and H209 were both moderately resistant, as was 7G8.

Introduction of mutant pfcrt was also found to confer significantly increased sensitivity to LMF in all three strains, equating to a 23%, 44%, and 35% decrease in IC₅₀ values for the 3D7, D10, and GC03 backgrounds respectively (Figure 5D). H209 was also found to be less susceptible to LMF than was G224, mirroring their responses to QN and ART. Finally, we found that mutant pfcrt had a significant effect on PIP response only in the D10 background, in which D10^7G8-1 was 1.7-fold less sensitive than D10^C (P<0.05). G224 and H209 were found to be 2.7- and 1.7-fold more sensitive to PIP when compared to 7G8.

Discussion

Here, we provide evidence that the genetic background of P. falciparum determines whether expression of mutant pfcrt allele confers a full CQR phenotype, as defined by CQ IC₅₀ values that exceed the in vitro CQR threshold [30], or instead mediates increased tolerance to CQ, as evidenced by dose-response shifts manifesting primarily at the IC₉₀ level. All our recombinant clones expressing mutant pfcrt recrudesced in vitro after being exposed for three generations to concentrations of CQ that were uniformly lethal to CQ-sensitive parasites; however the rate of recrudescence varied with the genetic background. The GC03 mutant lines, which had the highest CQ IC₅₀ values, showed no growth inhibition. In contrast, the pfcrt-mutant lines generated in the 3D7 and D10 backgrounds, as well as the clinical isolates G224 and H209, required 1–3 weeks for the detection of recrudescent parasites.

Based on our findings, we propose that IC₅₀ values, which typically constitute the sole measurement of CQ response in vitro, adequately identify high-level CQR but are insufficient to detect strains that have low-level resistance or manifest tolerance to CQ. Instead, our data suggest that accurate determinations of IC₉₀ values provide a more predictive measure of whether parasites can recrudesce in the presence of CQ concentrations that are lethal to drug-sensitive parasites, a trait that we here refer to as CQ tolerance. Tolerance is also apparent in decreased parasite susceptibility to the primary drug metabolite mdCQ. We posit that pfcrt-mediated CQ tolerance might be an important component of late treatment failures in patients. These are classified as cases where symptoms occur during a follow-up period of 4–28 days post CQ treatment, or asymptomatic infection appearing 7–28 days post-treatment (see the WHO 2006 publication on malaria treatment: http://whqlibdoc.who.int/publications/2006/9241546948_eng_full.pdf). In contrast, early treatment failures might result more often from infections with parasites in which mutant pfcrt exerts a higher degree of CQR. Early treatment failures are classified as the development of clinical or parasitological symptoms during the first three days following CQ treatment. We note that clinically, care must be taken when evaluating early failures, as these can also include patients that respond relatively slowly to treatment yet progress to full cure. Moreover, the joint effects of low-level CQ resistance reported here and acquired protective immunity might help explain why CQ treatment can successfully cure some infections harboring mutant pfcrt parasites in semi-immune individuals [1], [18]. The importance of immunity in shaping the host's ability to resolve drug-resistant infections harboring mutant pfcrt was first demonstrated in work from Mali that found that successful CQ treatment of pfcrt mutant parasites was strongly dependent on age, a known surrogate for protective immunity in endemic areas [18]. These data complement other observations in the malaria literature indicating that the immune response can allow a relatively ineffective drug to clear an infection, and even at times clear infections without therapy [41], [42]. Our data extend these reports by suggesting that successful CQ treatment of drug-resistant parasites is dependent both on the level of host immunity and the strain-dependent extent to which mutant pfcrt imparts CQR.

A review of our CQ IC₅₀ data reveals a relatively weak effect of mutant pfcrt, which attained the widely used in vitro CQR threshold of 80–100 nM only for GC03 (Figure 2, Table S1). This threshold, however, was based on studies with field isolates [30] and does not readily extrapolate to our pfcrt-modified parasite lines. Our data (Figure 1) show that these lines underexpress pfcrt, a consequence of allelic exchange into this locus that was earlier shown to cause artificially low CQ IC₅₀ values whose level of reduction was concordant with the degree of reduced expression [31], [32], [38]. In our current study, the importance is not the absolute levels of CQR that we measured, but rather the finding that the genetic background of CQ-sensitive strains dictates a spectrum of mutant pfcrt-mediated changes in CQ response that ranges from tolerance to high-level resistance.

We note that our data were obtained with the 7G8 pfcrt allele, which is known to have appeared independently in South America and the Oceanic region in or near Papua New Guinea and has recently spread throughout India [43]. The 7G8 haplotype (C72S/K76T/A220S/N326D/I356L) shares only two mutations (K76T/A220S) with the Dd2 haplotype (I74E/N75E/K76T/A220S/Q271E/N326S/I356T/R371I) that is common to Africa and SE Asia [11], [14], [44]. Our earlier allelic exchange studies on recombinant lines generated in the GC03 strain found that the 7G8 pfcrt haplotype confers a lower degree of resistance than that imparted by the Dd2 allele (averaging 15% and 45% less or CQ and mdCQ respectively). This was consistent with the intrinsic differences observed between the parental 7G8 and Dd2 strains [31]. It is possible that in the D10 and 3D7 strains, higher degrees of resistance might have been observed with the Dd2 allele, however we were unable to test this. We note that D10 originates from Papua New Guinea where the 7G8 allele is highly prevalent, and our lack of success with introducing the Dd2 pfcrt allele into either this strain or 3D7 suggests a physiologic context that precludes expression and normal viability. Other evidence of a fitness cost imparted by the Dd2 allele comes from studies in Malawi showing that this allele is progressively lost from the parasite population in the absence of sustained CQ pressure [45], [46].

Field studies have sometimes reported discordance in the association of K76T and in vitro CQR, suggesting the contribution of other genetic loci [24], [47]–[49]. However, the interpretation of these results has been confounded by potential inaccuracies stemming from measuring one-time drug responses from frequently polyclonal fresh patient isolates. Our study provides, to the best of our knowledge, the first report of culture-adapted, monoclonal isolates that harbor mutant pfcrt and that, based on multiple drug susceptibility assays, show low CQ IC₅₀ values that fail to meet the standard criteria for CQR. These findings, obtained with the G224 and H209 isolates from French Guiana, therefore provide indisputable evidence that mutant pfcrt is insufficient to confer CQR to all genetic backgrounds. Nevertheless, both isolates exhibited tolerance to high CQ concentrations and recrudesced under CQ pressure. Microsatellite typing revealed a close genetic similarity between G224 and 7G8 (Table 1), with the exception of the residue at PfMDR1 position 1034 that could potentially affect CQ response [22], [50].

Of particular interest, H209 was highly sensitive to CQ and yet demonstrated delayed recrudescence (Figure 4). This might in part be attributable to the PfCRT C350R charge substitution in transmembrane domain 9, a region postulated to function in substrate binding and translocation [51]. Studies are underway to introduce the H209 pfcrt allele, encoding the C350R mutation, into GC03 parasites to compare these to the GC03^7G8 parasites whose expressed pfcrt allele differs only at codon 350 (Table 1). We note that an adjacent charge substitution at residue 352 (Q352K/R) was previously selected by QN pressure in a CQ-resistant line, with a concomitant reversion to CQ-sensitivity [52]. The H209 line also showed elevated IC₅₀ values for QN, as well as ART, when compared to G224 and 7G8 (Figure 4). Of note, QN-doxycycline, and more recently artemether-LMF, have been implemented as first line antimalarials in French Guiana since the cessation of CQ use for the treatment of P. falciparum malaria in the mid 1990s [53]. Indeed, a recent report from French Guiana documented the existence of several field isolates with elevated artemether IC₅₀ values (>30 nM in 7 of 289 isolates), suggesting decreased susceptibility to this agent [54]. G224 was tested at that time and found to have an artemether IC₅₀ value of ∼1 nM. H209, which yielded artemisinin IC₅₀ values two-fold higher than G224 (Table S1), was isolated one year later. Our subsequent studies reveal comparable IC₅₀ values between these two lines with the more potent clinical derivatives artemether, artesunate and artemether (values provided in Table S1).

ACTs are rapidly assuming the role of first line antimalarials around the world [55]. Our studies with isogenic pfcrt-modified lines confirm previous reports that mutations in PfCRT can significantly affect parasite susceptibility to many of the antimalarials that constitute these ACTs [19], [56], and provide evidence that for certain drugs this effect is strain-dependent (Figure 5). In the case of the fast-acting ART, all three strains displayed enhanced susceptibility upon introduction of mutant pfcrt. With the amodiaquine metabolite mdADQ, elevated IC₅₀ values were noted in two of the three recipient strains, supporting earlier epidemiological evidence that mutant PfCRT might contribute to a multigenic basis of amodiaquine resistance ([57]–[59]; see below). The opposite effect was observed with the bisquinoline PIP, which is highly effective against CQ-resistant strains of P. falciparum [60], and for which we observed a strain-dependent increase in susceptibility. For LMF, significantly enhanced susceptibility was observed in all three genetic backgrounds, supporting recent field studies [59], [61]. The generally enhanced potency of LMF and artemisinin derivatives against mutant pfcrt parasites bodes well for the widely used LMF-artemether co-formulation. The enhanced susceptibility conferred by the mutant pfcrt 7G8 allele to the ACT partner drugs LMF and PIP, but not amodiaquine, has potentially important implications in regional antimalarial drug policy.

Our pfcrt and CQ data speak to a requirement for additional parasite factors that, at least in some strains, either augment the level of PfCRT-mediated CQR or on the contrary, create an intracellular physiologic environment in which PfCRT is unable to exert its full capacity to dictate CQR [62], [63]. pfmdr1 would appear to be one gene that contributes to this strain-dependent effect. Transfection-based studies have shown that in CQ-resistant strains that harbor mutant pfcrt, mutations in pfmdr1 can contribute to elevated CQ IC₅₀ values, but only in a subset of strains. Mutant pfdmr1 alone shows no effect on CQ response in sensitive parasites harboring wild-type pfcrt [19], [20]. Evidence from CQ treatment trials in African, Southeast Asia and the Oceanic region show that mutant pfmdr1 is associated with an increased risk of CQ treatment failure, however this risk is usually substantially higher in the presence of mutant pfcrt [17], [28], [36], [64], [65]. Of note, while mutant pfcrt is virtually ubiquitous to CQ treatment failures, mutant pfmdr1 is often absent ([65] and references therein). Functional assays have yet to be developed to test whether pfmdr1 can directly reduce drug toxicity, or instead is associated with CQR because of its non-random association with mutant pfcrt, which potentially could relate to improved parasite fitness [66].

We note that in our study, pfmdr1 cannot account for differences in the extent to which mutant pfcrt affects CQ response, as both the resistant 3D7 and the tolerant D10 mutants (3D7^7G8 and D10^7G8 respectively) share the same wild-type pmfdr1 haplotype (Table 1). The highly resistant GC03 mutants (GC03^7G8) differ in having the pfmdr1 N1042D mutation that in allelic exchange studies had no impact on CQ response (although it did affect a number of other antimalarials including QN, mefloquine and ART; [21]). Clear evidence that mutant forms of PfCRT and PfMDR1 can combine in a region-specific manner to create higher levels of drug resistance comes from the recent study by Sa et al. [67], showing that the 7G8 South American haplotypes of these two determinants produce high-level resistance to mdADQ. This study also found that the Asian/African Dd2 haplotype of PfCRT was associated with high level CQR with minimal apparent contribution from variant PfMDR1 haplotypes.

Why has no gene other than pfmdr1 been found associated with CQR? In the case of the HB3×Dd2 genetic cross where mutant pfcrt was clearly the primary determinant, evidence that modulatory factors must exist was provided by the 2.7-fold spread in CQ IC₅₀ values observed among the CQ-resistant progeny [13]. Such factors may be present within the 36 kb CQR-associated linkage group harboring pfcrt [10], [68], or potentially might already be present in the HB3 parent, thereby rendering this competent for CQR and masking the inheritance of a secondary determinant [8]. To test the latter hypothesis, we attempted to introduce mutant pfcrt into the HB3 strain, but were unable to obtain integrants in three independent transfection experiments (data not shown). Independent genomic approaches analyzing linkage disequilibrium in CQ-resistant isolates have also failed to identify any gene besides pfcrt [14]–[16], [69], as elaborated upon below.

The genetic identity of these secondary determinants associated with CQR may reflect the geographic distribution of distinct PfCRT haplotypes around the globe [19]. Indeed, the PfCRT 7G8 haplotype found in South America and the Pacific is typically associated with PfMDR1 N1042D/D1246Y (±S1034C), whereas the PfCRT Dd2 haplotype common to Asia and Africa is often associated in CQ-resistant isolates with PfMDR1 N86Y [43], [50]. Identifying additional genetic determinants has been complicated by the complexity of performing genome-wide association studies with large numbers of culture-adapted parasite lines from different geographic regions and comparing these to parasite drug responses [50], [70]. Major advances have recently been achieved in a seminal study by Mu et al. [69], who performed genome-wide association studies with a 3,000 single nucleotide diversity array probed with DNA from189 culture-adapted P. falciparum lines from Africa, Asia, Papua New Guinea and South America, and compared their genetic diversity with CQ response. When accounting for local population structures, the authors found associations between CQ response and changes in pfcrt, pfmdr1, and surprisingly a putative tyrosine kinase (PF11_0079). These associations could only readily be discerned in African populations where a sufficient number of CQ-sensitive strains could be identified; as opposed to South American, Asian and Papua New Guinean strains where mutant pfcrt remained at a high prevalence. Of the genes listed above, pfcrt stood out as being one of handful of genes in the parasite genome that were apparently under very substantial selection pressure in all three populations studied - Asia, Africa and South America. No other genes were convincingly associated with CQR, even though a number of genes potentially involved in drug transport (including the putative drug/metabolite transporter PF14_0260, and the ABC transporters PF13_0271 and PFA0590w) were found to be under lesser selection pressure in local populations. We note that evidence of selection was also observed in genes adjacent to pfcrt, although these may simply represent genetic hitchhiking and insufficient time for genetic recombination to have disrupted these associations.

Our conclusion from these studies is that mutant pfcrt has been the dominant genetic force that has driven CQR across the globe, with some degree of participation from mutant pfmdr1, and that even the phenotype of CQ tolerance observed herein in D10 parasites expressing mutant pfcrt would appear sufficient to confer substantial levels of viability during a course of CQ treatment. This level of protection against drug onslaught, while appearing modest in vitro, appears to have sufficed for selection and rapid mobility through parasite populations subjected to CQ treatment. Experiments to define secondary determinants that can augment CQR would require, as an example, deeper sequence coverage of the set of 189 genotypically and phenotypically characterized isolates mentioned above [69], followed by quantitative trait loci analysis that computationally subtracted the dominant effect of pfcrt to identify potential residual associations in local parasite population structures.

Other hypothesis-driven approaches to identify secondary parasite factors could involve investigations into the function of mutant PfCRT and the cellular basis of CQ mode of action. Recent studies based on heterologous expression of codon-harmonized, surface-expressed PfCRT in Xenopus laevis oocytes have recently provided compelling evidence that mutant PfCRT can transport CQ [71], a finding consistent with earlier evidence from Pichia pastoris and Dictyostelium discoideum [72], [73]. The Xenopus study also identified peptides that could interfere with transport of radiolabeled CQ through mutant PfCRT, raising the possibility that PfCRT is involved in transport of certain peptide sequences out of the DV and into the cytoplasm ([74] and references therein). Secondary factors could potentially alter the kinetics of peptide production (resulting from hemoglobin proteolysis in the DV) or their translocation into the parasite cytosol and subsequent conversion into amino acids that can be incorporated into newly synthesized proteins.

Other potential factors could relate to the tri-peptide glutathione (GSH) and redox regulation. Interestingly, an earlier study by Ginsburg and colleagues reported that altering the intracellular levels of GSH caused a corresponding shift in CQ susceptibility in P. falciparum [75]. Work from these authors led to the hypothesis that GSH could degrade iron-bound heme (a toxic byproduct of hemoglobin degradation) that might be released into the parasite cytosol as a result of CQ action [76]. Further support for a relationship between GSH and levels of CQR was recently obtained following the genetic disruption of the P. falciparum gene PfMRP (PFA0590w), whose ABC transporter product has been localized to the parasite surface. These knockout parasites, generated in the CQ-resistant W2 strain, accumulated more radioactive GSH and CQ and became less resistant to CQ as well as several other antimalarials [77]. Indirect additional evidence of a potential link between CQR and GSH comes from the recent report that PfCRT homologs in Arabidopsis thaliana can mediate GSH transport when assayed in Xenopus oocytes [78]. Collectively, these data suggest that GSH homeostasis is related to CQR, and possibly to PfCRT, in a strain-dependent manner. A multifactorial, and potentially region-specific basis for these differences would have precluded their identification to date. Further investigations into parasite cell biology, employing genomic, proteomic and metabolomic studies to compare CQ response phenotypes within regional populations, are warranted to identify these molecules and their determinants. French Guinea may well provide an ideal set of geographically restricted isolates in which to define these factors, because of its complex history of antimalarial drug usage and the existence of mutant pfcrt strains with both resistance and tolerance phenotypes.
