Analysis of Genes Reveals Redundant and Independent Functions in the Inner Ear

Summary

Lrig proteins are conserved transmembrane proteins that modulate a variety of signaling pathways from worm to humans. In mammals, there are three family members – Lrig1, Lrig2, and Lrig3 – that are defined by closely related extracellular domains with a similar arrangement of leucine rich repeats and immunoglobulin domains. However, the intracellular domains show little homology. Lrig1 inhibits EGF signaling through internalization and degradation of ErbB receptors. Although Lrig3 can also bind ErbB receptors in vitro, it is unclear whether Lrig2 and Lrig3 exhibit similar functions to Lrig1. To gain insights into Lrig gene functions in vivo, we compared the expression and function of the Lrigs in the inner ear, which offers a sensitive system for detecting effects on morphogenesis and function. We find that all three family members are expressed in the inner ear throughout development, with Lrig1 and Lrig3 restricted to subsets of cells and Lrig2 expressed more broadly. Lrig1 and Lrig3 overlap prominently in the developing vestibular apparatus and simultaneous removal of both genes disrupts inner ear morphogenesis. This suggests that these two family members act redundantly in the otic epithelium. In contrast, although Lrig1 and Lrig2 are frequently co-expressed, Lrig1^−/−;Lrig2^−/− double mutant ears show no enhanced structural abnormalities. At later stages, Lrig1 expression is sustained in non-sensory tissues, whereas Lrig2 levels are enhanced in neurons and sensory epithelia. Consistent with these distinct expression patterns, Lrig1 and Lrig2 mutant mice exhibit different forms of impaired auditory responsiveness. Notably, Lrig1^−/−;Lrig2^−/− double mutant mice display vestibular deficits and suffer from a more severe auditory defect that is accompanied by a cochlear innervation phenotype not present in single mutants. Thus, Lrig genes appear to act both redundantly and independently, with Lrig2 emerging as the most functionally distinct family member.

Introduction

Protein-protein interactions are critical for diverse and complex biological functions throughout the animal kingdom, including nervous system development, cell adhesion and signaling, tissue morphogenesis, the immune response and human disease [1]–[4]. This functional diversity is accomplished by superfamilies of proteins harboring combinations of common protein recognition motifs. For instance, the human genome encodes hundreds of proteins with extracellular leucine rich repeats (LRR), a 20–30 amino acid motif that forms a characteristic horseshoe structure for protein-protein interactions [5], [6]. Similarly, the large immunoglobulin (Ig) superfamily of cell adhesion molecules is defined by the presence of Ig domains, which can mediate highly specific homophilic and heterophilic binding [7], [8]. Despite their abundance, LRR and Ig motifs are rarely found in the same protein, with only several dozen mammalian genes encoding LRR-Ig proteins that fall into twelve gene families [3], [9], [10]. Most of these proteins are vertebrate-specific and show discrete expression in the developing nervous system, suggesting that expansion of the LRR-Ig family may have contributed to the increased complexity of the vertebrate nervous system. Consistent with this idea, several LRR-Ig proteins have been shown to control highly specific cell-cell interactions underlying synapse formation and other aspects of nervous system development [2]. The invertebrate-specific Kekkon proteins, on the other hand, modulate signaling by binding to and downregulating EGF receptors [11], [12].

Within the LRR-Ig family, only the Lrig subfamily contains both invertebrate and vertebrate members [3], indicating that analysis of this family may provide general insights into the evolution of LRR-Ig proteins. The leucine-rich repeat and immunoglobulin-like domain proteins (Lrigs) are single pass transmembrane proteins with extracellular domains containing fifteen LRRs, three Ig-like domains and intracellular domains of varying length [13]. The fly and worm genomes each contain a single Lrig gene. This family is expanded in the vertebrate genome, which encodes for three family members [14]: Lrig1 (formerly Lig1), Lrig2, and Lrig3. The extracellular domains are highly conserved within the family, but the cytoplasmic domains diverge significantly, with no motifs common to flies, worms, or vertebrates. This suggests that Lrig family members may interact with similar binding partners yet ultimately exert distinct downstream effects.

Most of what is known about Lrig function has come from analysis of Lrig1, which is downregulated in several human cancers [15]. Consistent with its proposed role as a tumor suppressor gene, Lrig1 can control the activity of several receptor tyrosine kinases (rTKs) with important effects on cell proliferation and survival. For instance, Lrig1 negatively regulates members of the ErbB family of receptors by promoting receptor degradation [16]–[18]. In support of this, Lrig1 regulates EGFR levels in primary human keratinocytes [19], and loss of Lrig1 results in increased EGF signaling and excess intestinal stem cell proliferation, tumor formation and psoriasis-like hyperplasia in mice [20]–[22]. However, Lrig1 can also inhibit Met and Ret rTK activation [23], [24], suggesting that Lrig1 activity extends beyond regulation of EGF signaling. How any Lrig protein functions at the molecular level remains a mystery.

Whether Lrig3 shares some properties with Lrig1 remains an open question. As predicted by homology in their extracellular domains, both Lrig1 and Lrig3 can bind to ErbB receptors [25]. However, although downregulation of Lrig3 in human glioma cells caused enhanced EGFR levels [26], more recent studies indicate that Lrig3 actually opposes Lrig1's effects on EGF signaling [18]. In addition, similar to Lrig1's ability to interact with a variety of receptors, Lrig3 also binds to FGF receptors and regulates FGF and Wnt signaling in Xenopus [27]. Whereas several phenotypes reported in Lrig1 mutant mice have been associated with changes in EGF signaling, loss of Lrig3 leads to a disruption in the three-dimensional structure of the inner ear that is not easily explained by altered ErbB signaling [25], [28]. Thus, it is not yet clear how the functions identified for Lrig1 and Lrig3 in vitro translate to their actions in vivo.

Comparison of Lrig1 and Lrig2, on the other hand, has suggested key differences. First, reduction of Lrig2 either lowers or has no effect on EGFR levels in vitro [18], [29]. Consistent with this observation, Lrig2 does not behave like a typical tumor suppressor in humans. For instance, Lrig2 expression can be increased in some human tumors, and a combination of high levels of Lrig2 and low levels of Lrig1 correlates with a poor prognosis for a type of early-stage squamous cell carcinoma [30]. Similarly, overexpression of Lrig2 correlates with invasiveness of pituitary adenoma [31]. In addition, studies of Lrig protein expression in human tumors have revealed fundamental differences in the subcellular distribution of these family members [32], [33]. Although Lrig2 phenotypes have not yet been described in mice, loss of LRIG2 causes Urofacial Syndrome in humans, which is characterized by abnormal bladder function and altered facial expression, possibly due to abnormal innervation [34].

In order to clarify whether Lrig genes mediate common biological functions in vivo, we have taken a genetic approach in mice. We have focused our analysis on the development and function of the inner ear, an exquisitely complex structure whose perfect form and function is crucial for the senses of hearing and balance [35], [36]. The spiral-shaped cochlea mediates the sense of hearing. Head position and motion is sensed by movement of fluid within the vestibular system, which consists of three semicircular canals oriented in the three dimensions of space, and a saccule and utricle that detect linear acceleration and gravity. The inner ear contains six sensory epithelia, which contain the sensory hair cells. Vestibular hair cells in the two maculae and three cristae detect motion of the head, whereas auditory hair cells in the organ of Corti respond to specific frequencies of sound. Vestibular and auditory information is transmitted from the inner ear to the brain by primary sensory neurons in the vestibular or spiral ganglia respectively.

The inner ear provides an unusually sensitive system for analysis of gene function since small changes in the formation or structure of the inner ear can cause profound functional deficits in hearing and balance. For instance, Lrig3 mutant mice exhibit hyperactivity and run in circles due to truncation of a single semicircular canal [28]. Further, Lrigs have been shown to modulate BMP, FGF, and Wnt signaling pathways, which all play important roles in the morphogenesis and patterning of the inner ear [35]. Thus, analysis of the inner ear provides an ideal opportunity to uncover the in vivo actions of the Lrigs.

Here, we analyzed several features of inner ear development and function in single and double Lrig mouse mutants. Our results suggest that Lrig1 and Lrig3 cooperate during morphogenesis. Lrig1 and Lrig2, on the other hand, control largely distinct aspects of inner ear development and function, yet act redundantly to ensure proper innervation of the cochlea.

Results

To be able to compare and contrast Lrig gene function in the inner ear, it is critical to know when and where each family member is expressed. Any sites of overlap offer an opportunity to examine redundancy, whereas unique sites of expression can be used to reveal the biological significance of individual family members. For instance, Lrig3 is the only family member expressed in the developing lateral semicircular canal and Lrig3 mutant mice circle due to defects in this canal. However, although Lrig3 is also expressed in other regions of the inner ear, Lrig3 mutant mice exhibit normal auditory responses, with no other obvious changes in the structure or function of the inner ear [28]. This raises the possibility that other Lrig genes compensate for the loss of Lrig3. Therefore, to begin to determine whether these three family members play overlapping functions, we compared their expression patterns in the inner ear, either by in situ hybridization (Lrig1) or by examining the expression of βgeo reporter genes inserted into the Lrig2 (Figure S1) and Lrig3 [28] loci.

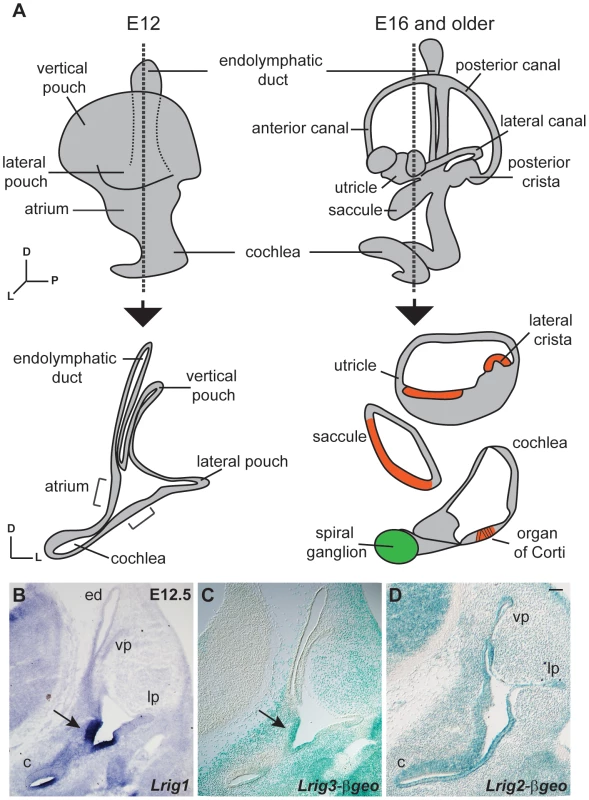

Given the known role for Lrig3 in canal morphogenesis, we first compared expression patterns at embryonic day 12.5 (E12.5), just before the canals begin to acquire their mature morphology. The inner ear develops from the otic vesicle, a simple sphere of epithelium that invaginates from the epidermis overlying the hindbrain beginning around E9 in mouse [35]. Over the next several days, the vestibular apparatus and endolymphatic duct develop from the dorsal half of the otic vesicle, while the cochlea extends ventrally (Figure 1A). Beginning around E12, the semicircular canals are sculpted from the vertical and lateral pouches. The utricle and saccule develop from an intermediate region called the atrium [37]. In parallel, signaling events establish restricted sensory regions, which ultimately produce hair cells and support cells in the mature sensory epithelia in the canals (the cristae), the utricle and saccule (the maculae), and the cochlea (the organ of Corti). Non-sensory regions in the cochlea go on to form the lateral wall, inner sulcus, and Reissner's membrane. Consistent with previous studies [28], Lrig1 and Lrig3 showed remarkably restricted yet related patterns of expression at E12.5, overlapping both in the atrium and in the non-sensory domain of the cochlea (Figure 1B, C). In contrast, Lrig2-βgeo activity was evident throughout the early otic epithelium (Figures 1C and S2). Indeed, Lrig2-βgeo expression appeared nearly ubiquitous at all stages examined, although the levels varied in different tissues (Figure S2).

To determine whether Lrig1 and Lrig2, like Lrig3, help determine the three-dimensional structure of the inner ear, we generated and analyzed Lrig1 and Lrig2 mutant mice. Lrig1 mutant mice harbor a gene trap insertion in the third intron of the Lrig1 locus, and Lrig2 mutants contain a gene trap insertion after exon 11 (Figure S1). These gene trap insertions are predicted to interfere with normal splicing of endogenous transcripts, instead producing transmembrane fusion proteins that are targeted to the lysosome and therefore unlikely to exert any effect [38]. Western blot and immunostaining studies confirmed that Lrig1 and Lrig2 protein levels are severely reduced in each mutant background (Figures S1 and S3). In contrast to Lrig3 mutants, however, both Lrig1 and Lrig2 single mutant animals exhibited normal inner ear morphologies at E14.5 (Fig. 2B, C, E).

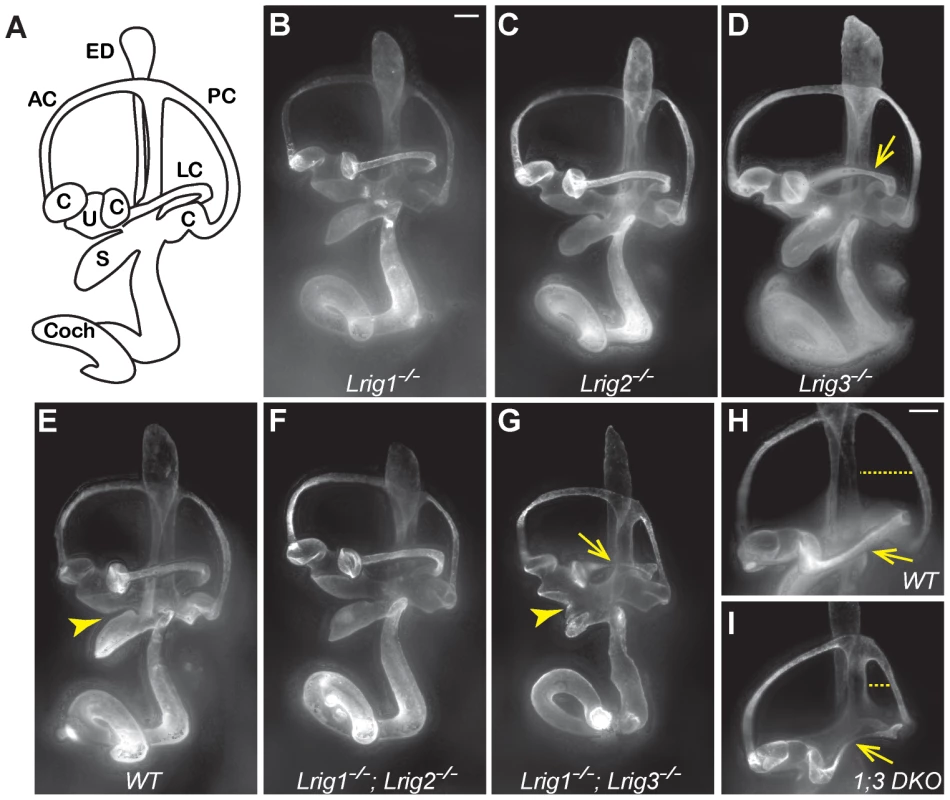

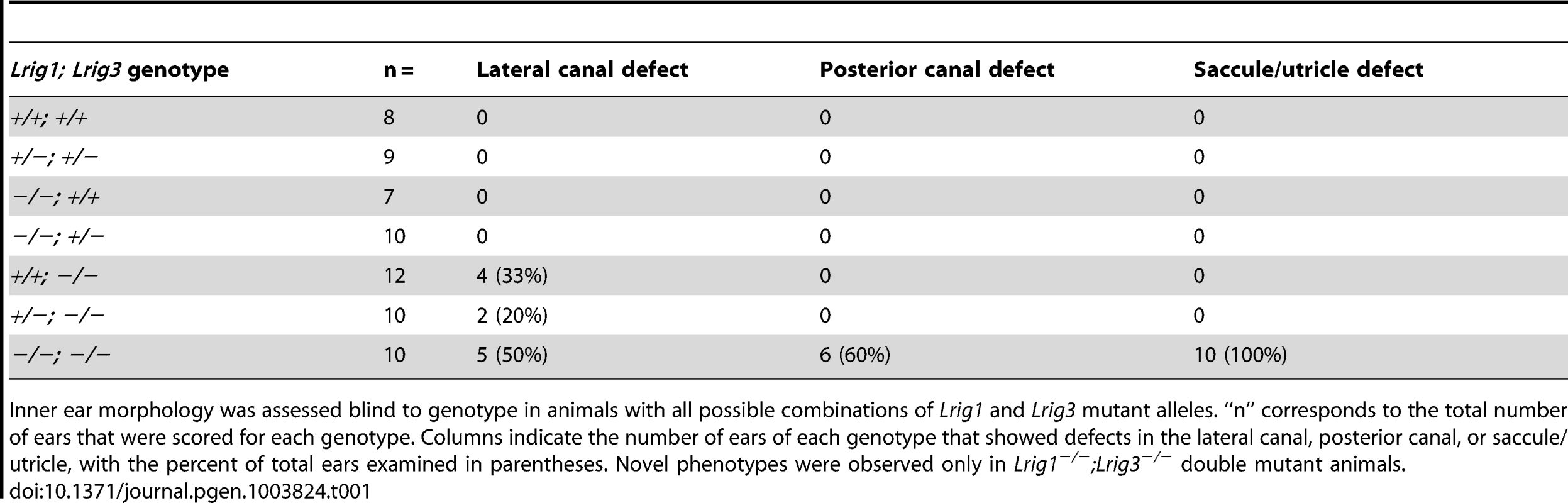

Given the striking co-expression of Lrig1 and Lrig3, we wondered whether combined loss of these two family members would provide any evidence for similar functions. Indeed, inner ear development is more severely disrupted in Lrig1^−/−;Lrig3^−/− double mutant mice than in either single mutant (Table 1). For example, the utricle and saccule fail to separate (Figure 2G, arrowhead), consistent with the co-expression of Lrig1 and Lrig3 in the embryonic atrium (Figure 1). In addition, the posterior canal is abnormally small and misshapen (Figure 2H, I). To see whether Lrig1 and Lrig3 also cooperate in the lateral canal, we took advantage of the fact that the lateral canal phenotype is only partially penetrant in Lrig3 mutants maintained on this background, with truncation or thinning observed in only 33% of the animals (Figure 2D, Table 1). However, loss of either one or two copies of Lrig1 did not strongly enhance this phenotype (Figure 2D, G, I; Table 1), consistent with the fact that Lrig1 and Lrig3 are not obviously co-expressed in the lateral canal epithelium [28]. The fact that new phenotypes emerge only in sites of Lrig1/Lrig3 co-expression strongly suggests that these two family members act redundantly during inner ear morphogenesis. In contrast, Lrig1 and Lrig2 do not appear to cooperate here, as Lrig1^−/−;Lrig2^−/− double mutant ears developed normally (Figure 2F) despite the extensive co-expression of Lrig1 and Lrig2 at E12.5 (Figure 1B, D).

To gain a broader view of genetic interactions among Lrig family members, we asked whether either Lrig2 or Lrig3 exert overlapping functions with Lrig1 in other regions of the inner ear. In support of this idea, unlike either single mutant, Lrig1^−/−; Lrig3^−/− double mutant animals die at or before birth (Table 2) and suffer from an array of morphogenetic phenotypes, including microphthalmia and skeletal malformations (data not shown). Although the presence of new defects suggests that Lrig1 and Lrig3 likely work together in many other tissues, this lethality prevented analysis of any other aspects of inner ear function. In contrast, Lrig1^−/−, Lrig2^−/−, and Lrig1^−/−;Lrig2^−/− mutant mice survive past the onset of hearing. We therefore focused the rest of the analysis on Lrig1 and Lrig2.

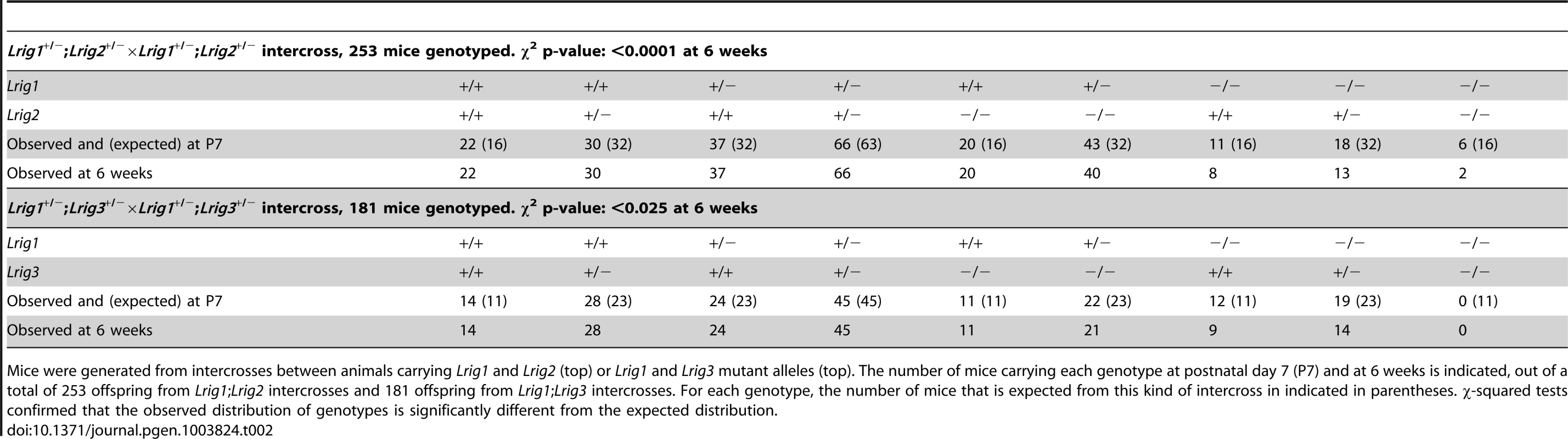

As previously reported [20], Lrig1^−/− mice frequently die within the first postnatal week when maintained on an inbred background (Table 2). Lrig2^−/− mice were born in normal Mendelian ratios and showed no obvious defects (Table 2). However, very few Lrig1^−/−;Lrig2^−/− double mutant animals survived to six weeks of age. A small percentage of Lrig1^−/−; Lrig2^−/− double mutants survived to adulthood (Table 2) and were noticeably runty during adolescence. More strikingly, half of the double mutant survivors exhibited a mild vestibular defect with circling behavior (3 of 6 animals, see video S1). Since neither surviving Lrig1^−/− nor Lrig2^−/− animals showed any signs of circling, this observation suggests that Lrig1 and Lrig2 may work together in the vestibular system.

To investigate this possibility, we performed a more detailed analysis of expression in the vestibular system by double labeling with an anti-Lrig1 antibody and an anti-β-galactosidase antibody to detect Lrig2-βgeo. Lrig2 gene trap heterozygotes were used due to the lack of antibodies that reliably detect Lrig2 protein in tissue. Lrig2-βgeo should serve as an accurate read-out of the pattern of Lrig2 expression, but it should be noted that there may be subtle differences in the stability of the Lrig2-βgeo protein compared to endogenous Lrig2. However, our observations of Lrig2-βgeo expression match previous reports of Lrig2 transcription [10], so any discrepancies are likely to be minor. No Lrig1 labeling was detected in Lrig1 mutant tissue, confirming that this antibody detects only this family member (Figure S3).

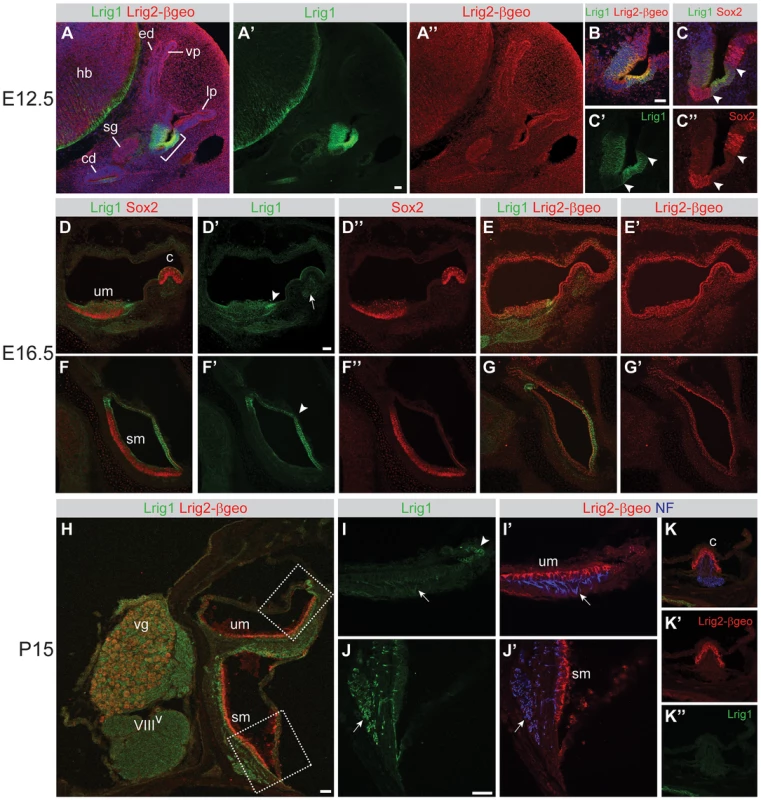

Consistent with results from in situ hybridization and X-gal staining (Figures 1 and S2), double labeling at E12.5 revealed highly restricted expression of Lrig1 protein in the atrium and cochlea, with broad Lrig2-βgeo expression throughout the otic epithelium and in the surrounding mesenchyme (Figure 3A, B). Within the atrium, Lrig1 was restricted to non-sensory regions, which flank the Sox2-positive sensory patches that eventually give rise to the maculae (Figure 3C). This pattern was maintained after formation of the utricle and saccule, with expression in the transitional epithelium adjacent to the utricular macula and in the extramacular epithelium of the saccule at E16.5 (Figure 3D, F), E18.5 (Figure S3) and P15 (Figure 3H–J). Lrig2-βgeo, in contrast, was expressed throughout sensory and non-sensory regions of the vestibular organs at E16.5 and continuing through the first postnatal week (Figure 3E, G and S2). However, by P15, Lrig2-βgeo levels were noticeably enhanced in the utricular and saccular maculae as well as the cristae (Figure 3E, G and data not shown). In contrast, Lrig1 protein was not detected in the vestibular sensory epithelia at any stage. Thus, Lrig1 and Lrig2 are co-expressed in non-sensory regions of the utricle and saccule, but only Lrig2 seems to be present in the sensory epithelia.

One prominent site of overlapping expression was the vestibular ganglion, which communicates head position information to the brain. Lrig1 was present at low levels in the neuronal cell bodies, with intense expression in projections to the utricle, saccule, and lateral crista at E16.5 (Figure 3D), E18.5 (Figure S3), and P15 (Figure 3H–J). Lrig2-βgeo was also present in the vestibular ganglion at all stages, with enriched expression at P15 (Figures 3H and S2, and data not shown). The co-expression of Lrig1 and Lrig2 in the vestibular ganglion, particularly at postnatal stages, may explain why Lrig1^−/−;Lrig2^−/− double mutant animals display occasional circling behavior, since the gross structure of the inner ear is unaffected (Figure 2F) and Lrig1 and Lrig2 are not co-expressed in the sensory epithelia at any stage (Figure 3). Thus, it is possible that Lrig1 and Lrig2 act redundantly in the vestibular ganglion neurons or non-sensory epithelium, though they do not cooperate during the initial formation of the vestibular apparatus.

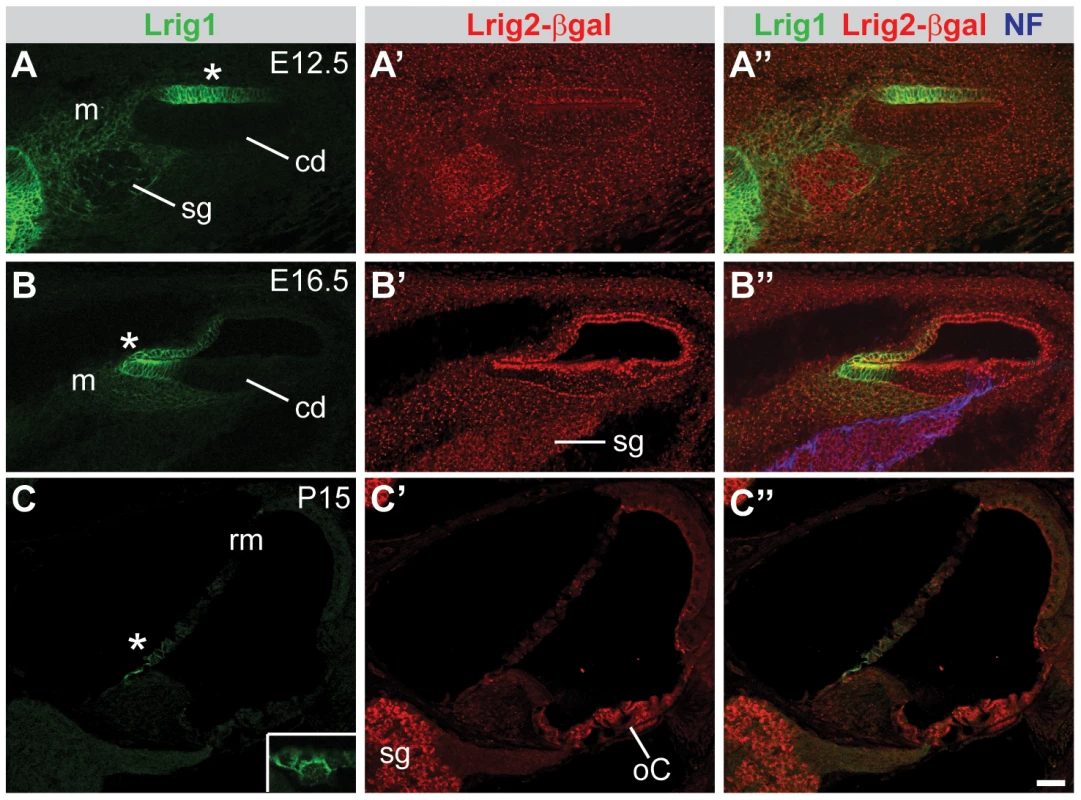

As in the vestibular system, Lrig1 and Lrig2 showed largely distinct patterns of expression in the cochlea, overlapping only in non-sensory regions. Lrig1 protein was restricted to non-sensory regions of the cochlea at all stages, with maintained expression only in Reissner's membrane, a structure that regulates the endolymph environment that is critical for cochlear function (Figure 4A–C) [39]. Lrig2-βgeo, on the other hand, appeared ubiquitous in the cochlear epithelium and surrounding mesenchyme at E12.5 and E16.5 (Figure 4A′–B′). However, similar to the vestibular system, expression was elevated in sensory and neural tissues postnatally (Figures 4C′ and S2). Although Lrig1 was not detected in the spiral ganglion neurons or their projections at any stage, expression was apparent in the mesenchyme in the region that the spiral ganglion neuron neurites grow through to reach the cochlear duct (Figure 4A, and data not shown). In summary, although Lrig1 and Lrig2 are at times co-expressed in the vestibular system and cochlea, these two family members show fundamentally different expression patterns, which contrasts with the obvious similarities in the expression of Lrig1 and Lrig3 at all stages examined (Figure 1 and [28]).

To assess the relative contributions of Lrig1 and Lrig2 to cochlear function, we tested auditory responsiveness in single and double mutant mice using two complementary assays. First, we recorded Distortion Product Otoacoustic Emissions (DPOAEs), which are generated by the cochlea in response to simultaneous presentation of two slightly dissimilar pure tone frequency stimuli. Production of DPOAEs depends on outer hair cell (OHC) function, and DPOAE thresholds will increase if hair cells are missing, damaged, or cannot be properly stimulated due to changes in cochlear mechanics. Second, we recorded Auditory Brainstem Responses (ABRs). ABRs reflect the sum of neuronal activity in response to sound stimulation, starting with the initial activation of spiral ganglion neurons (wave 1) and following with activation in the auditory brainstem (waves 2–5). Sensitivity is assessed by determining the lowest intensity sound stimulus (i.e. the threshold) that is able to generate an ABR response. In addition, the strength of the neuronal response can be evaluated by measuring the latency and amplitude of the first wave. By altering the frequency of the pure tone stimuli, function can be tested along the length of the cochlea, from high frequencies in the base to low frequencies in the apex. Together, these tests offer a sensitive way to identify impairments in the ability of the cochlea to detect and respond to acoustic stimuli.

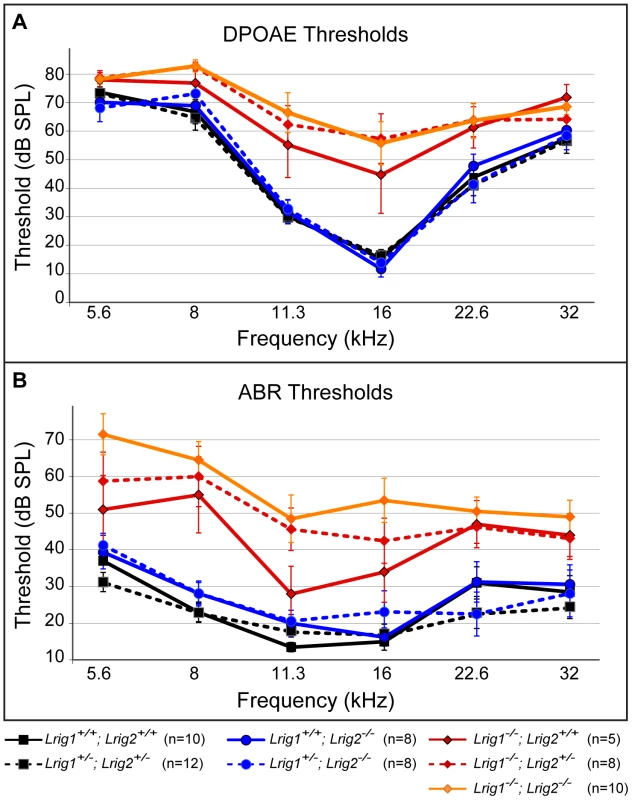

DPOAE and ABR measurements revealed that Lrig1, but not Lrig2, is necessary for normal auditory sensitivity. Lrig1 mutants showed significantly elevated DPOAE and ABR thresholds in response to 11.3 and 16 kHz stimuli, which typically elicit the lowest threshold responses in control animals (Figure 5 and Table S2). Whereas control animals reliably detected 16 kHz DPOAE stimuli as quiet as 15 dB, mutants did not respond until the sounds were 45 dB, which is ∼30 times more intense. Thresholds were also elevated in response to lower (5.6 and 8 kHz) and higher (22.6 and 32 kHz) frequencies, but these differences were not statistically significant since sensitivity is already reduced in these regions of control cochleae (for example, 57.43±2.37 dB for wild-type vs. 71.86±4.5 dB for Lrig1^−/− animals presented with a 32 kHz stimulus). Lrig2 mutants, on the other hand, responded with the same sensitivity as control littermates. Similarly, Lrig1^+/−;Lrig2^−/− mutants also demonstrated normal thresholds. However, loss of either one or two copies of Lrig2 from Lrig1 mutants strongly enhanced the effect, such that the outer hair cell response of Lrig1^−/−;Lrig2^+/− and Lrig1^−/−;Lrig2^−/− animals only occurred in response to sounds greater than 55 dB across all frequencies (Table S1).

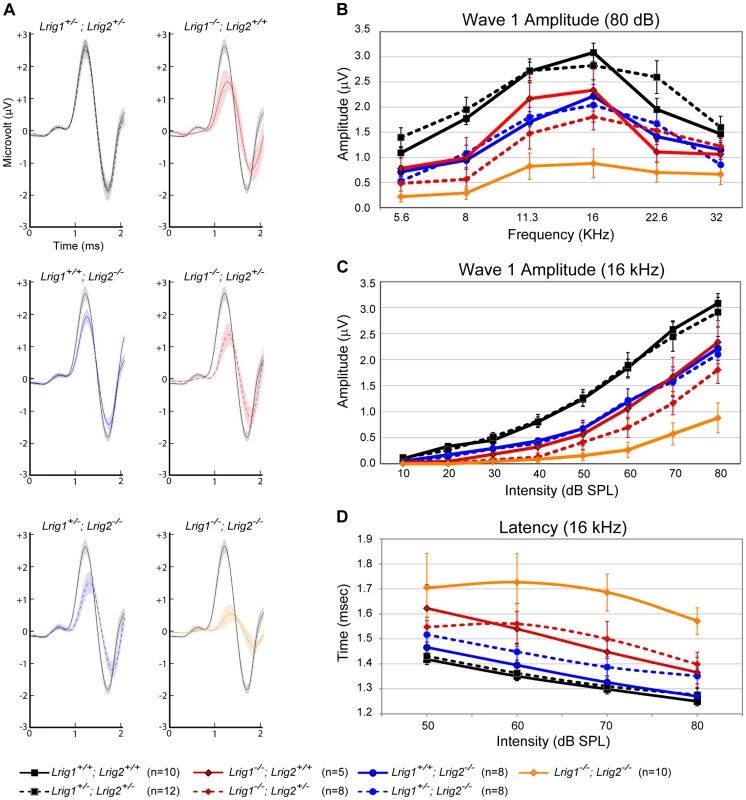

To understand how loss of Lrig2 might exacerbate the Lrig1 phenotype, we looked more closely at the nature of the ABR waveforms in all single and double mutant combinations (Figure 6). As expected, in Lrig1 mutants the amplitude of the first wave was significantly diminished in response to a range of frequencies and sound intensities (Figure 6C, D, and Tables S3 and S4). Combined with the increased thresholds, this suggests that the neural response is decreased because the cochlea is not able to detect sounds with sufficient sensitivity. Remarkably, despite the lack of any effect on thresholds, Lrig2 mutants showed a similar response: the amplitude of the first wave was significantly decreased relative to controls at multiple frequencies and across sound intensities (Figure 6C, D, and Tables S3 and S4). Latencies were also increased (Figure 6D). Thus, whereas Lrig1 is critical for the initial detection of sound, Lrig2 is required for the subsequent neuronal response. Since Lrig2 is uniquely enriched in the spiral ganglion neurons throughout life, these findings suggest that Lrig1 and Lrig2 control distinct aspects of cochlear function. Amplitudes and latencies were even more affected in double mutants, as expected based on the increased thresholds.

Although Lrig1^−/−;Lrig2^−/− double mutants exhibit a fully penetrant auditory response deficit, the cochlea showed no gross malformations either at E19 (Figure S4A, B) or in adults (data not shown). The cochlear duct had a normal histological appearance, consistent with the absence of any morphological defect at E14.5 (Figure 2). In addition, immunostaining confirmed the presence of hair cells and neurons in each turn of the cochlea, with spiral ganglion neurites extending to contact hair cells in the organ of Corti (Figure S4C, D). Similarly, in the few double mutant animals that survived past early postnatal stages, there was no obvious change in the number or organization of hair cells and spiral ganglion neurons (data not shown). However, the overall pattern of cochlear innervation was clearly disrupted in double mutants, as revealed by immunolabeling for neurofilament, which labels both afferent and efferent neurites (Figure 7A–C). Whereas control neurites aligned in regularly spaced radial bundles that were clearly separated from each other (Figure 7A), the mutant neurites were noticeably defasciculated and the gaps between the bundles were smaller and present only intermittently (Figure 7C). More strikingly, the inner spiral bundle (ISB, bracket) was reduced, indicating a possible change in the innervation of the cochlea by efferent neurons from the hindbrain. In contrast, no obvious changes were apparent in Lrig1 or Lrig2 single mutants (Figure S4E–G).

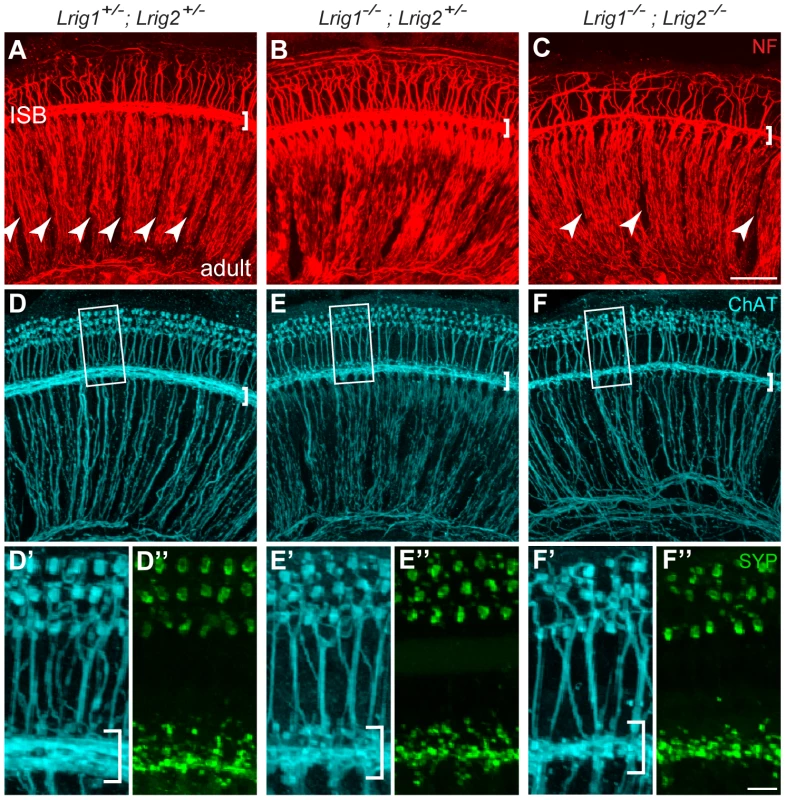

To determine whether Lrig1 and Lrig2 might act redundantly in certain contexts, we looked more closely at the efferent innervation of the cochlea by staining for choline acetyltransferase (ChAT) [40] and synaptophysin in single and double mutant animals. Consistent with results from neurofilament-staining, efferent innervation of the cochlea was noticeably sparser in double mutant animals (n = 4) compared to controls (n = 8) (Figure 7D, F). In contrast, cochleae from Lrig1^−/− (n = 2) and Lrig1^+/−;Lrig2^−/− (n = 4) animals were unaffected (Figure S4G, H). Due to the nature of the crosses used to generate sufficient numbers of double mutant animals, Lrig2^−/− single mutant animals were not available for analysis of efferent innervation. However, the normal pattern of neurofilament staining (Figure S4G) together with the lack of defects in the Lrig1^+/−;Lrig2^−/− cochlea (Figure S4H′) indicates that Lrig2 is not required on its own and that Lrig1 can fully compensate for reduced Lrig2 activity. On the other hand, cochleae from Lrig1^−/−;Lrig2^+/− animals (n = 4) exhibited an intermediate phenotype (Figure 7E), which fits with their diminished auditory responsiveness. Taken together, these findings indicate that Lrig1 and Lrig2 exert overlapping functions during cochlear innervation, perhaps uncovering a novel role for Lrig proteins in the nervous system. Moreover, the absence of any obvious morphogenetic or gross cochlear patterning defects argues against the idea that Lrig1 and Lrig2 act redundantly to control any of the major signaling pathways, consistent with their distinct effects in vitro and in cancer.

Discussion

Here, we used genetic analysis in mice to compare and contrast the effects of Lrig2 and Lrig3 to the founding member of the family, Lrig1. By analyzing multiple aspects of inner ear development and function, we found that Lrig1 and Lrig3 cooperate to control inner ear morphogenesis, whereas Lrig1 and Lrig2 appear to affect largely distinct aspects of inner ear function. Our results highlight the biological significance of all three Lrig genes in vivo and provide insights into the functional diversity of the LRR-Ig superfamily of proteins.

Our findings add to a growing body of work underscoring the similarities between Lrig1 and Lrig3. At the molecular level, both Lrig1 and Lrig3 can bind multiple members of the EGF receptor family and show a similar subcellular distribution, with expression on the cell surface and in intracellular vesicles [25], [41]. Moreover, both family members also interact with other rTKs [23], [24], [27], indicating that the Lrig ectodomain does not mediate selective binding. In addition, in vitro studies suggest that both Lrig1 and Lrig3 can act as negative regulators of signaling pathways [16], [17], [23], [24], [26], [27]. Our findings suggest that Lrig1 and Lrig3 also exhibit common activities in vivo. For instance, Lrig1 and Lrig3 show strikingly similar patterns of expression within multiple tissues throughout development [10], [28]. Moreover, Lrig1^−/−;Lrig3^−/− double mutants exhibit much more dramatic phenotypes than either single mutant. Importantly, new phenotypes emerge at sites of co-expression, such as the developing utricle and saccule. Conversely, the strongest phenotype in the Lrig3 mutant ear is in the lateral canal, which is one of the few sites where Lrig1 and Lrig3 do not overlap.

Curiously, although Netrin1 is a key effector of Lrig3 activity in the lateral canal, the atrium develops normally in Netrin1^−/− mice (A.M.N. and L.V.G., unpublished observation), suggesting that Lrig1 and Lrig3 mediate their effects through additional molecules in this region of the inner ear. Consistent with this idea, neither the anterior nor posterior canal was truncated in Lrig1^−/−;Lrig3^−/− double mutant inner ears, despite the known role of Netrin1 there [42]. One likely explanation is that Lrig1 and Lrig3 modulate a broadly active signaling pathway that controls expression of Netrin1 in the lateral canal, but that other target genes are responsible for effects elsewhere in the inner ear. Indeed, our results suggest that both of these Lrig proteins mediate their effects through key signaling pathways underlying morphogenesis, as Lrig1^−/−;Lrig3^−/− double mutants die at or before birth with obvious morphogenetic malformations in multiple tissues. A much more detailed analysis of each affected tissue will be needed to pinpoint the pathways involved.

Although Lrig1 and Lrig3 appear to cooperate during inner ear morphogenesis, each protein also has its own distinct biological functions. Indeed, the phenotypes already reported in Lrig1 mutant mice indicate that this family member may play a particularly prominent role in EGF signaling and cell proliferation [20]–[22]. Similarly, despite the extensive overlap of Lrig1 and Lrig3 in the ear, loss of Lrig1 is sufficient to cause a significant auditory phenotype, as evidenced by increased DPOAE and ABR thresholds. No auditory phenotypes were detected in Lrig3 mutant mice, in contrast [28]. Moreover, a role for ErbB receptors in inner ear morphogenesis has not been described, and in fact, broad inhibition of ErbB activity has no effect on canal formation in chicks [25]. On the other hand, BMP and FGF signaling is critical for inner ear morphogenesis [35]. Thus, one possibility is that Lrig1 and Lrig3 work together to modulate signaling through BMP or FGF pathways, but that Lrig1 is the dominant regulator of the EGF pathway in vivo. In support of this idea, Lrig1 and Lrig3 can actually exert opposing effects on ErbB receptor levels in vitro, with Lrig1 reinforcing its effects by decreasing Lrig3 levels [18]. Hence, the added loss of Lrig3 might not be expected to exacerbate the effects of Lrig1 on EGF signaling in vivo. Whether Lrig1 and Lrig3 also exert reciprocal effects on the FGF receptor or other putative targets has not yet been examined. An important step towards resolving these apparent differences will be to determine the nature of the pathways affected by both Lrig1 and Lrig3 in vivo.

Analysis of Lrig2 indicates that this family member has acquired particularly independent functions. Unlike Lrig1 and Lrig3, Lrig2 seems to be expressed nearly ubiquitously, although final confirmation awaits the production of reliable anti-Lrig2 antibodies. Such broad expression is not typical for proteins that function in developmental signaling pathways, which tend to show more restricted patterns of expression. Notably, despite the fact that Lrig2 is apparently present in every site of Lrig1 expression, no new morphogenetic phenotypes are uncovered in Lrig1^−/−;Lrig2^−/− double mutant mice. Thus, Lrig2 is not sufficient to compensate for the combined loss of Lrig1 and Lrig3, whereas Lrig3 can direct proper inner ear morphogenesis even in the absence of both Lrig1 and Lrig2. Although final proof will require analysis of triple mutant animals, the contrasting phenotypes seen in each set of double mutants strongly suggest that Lrig2 does not affect the same pathways as Lrig1 or Lrig3. These genetic results fit with previous reports that Lrig2 behaves differently in vitro and in human tumors [18], [29]–[31], [33]. It is also possible that some residual function persists in Lrig2 gene trap mice, thereby obscuring redundant effects. However, this seems unlikely given the sensitivity of the inner ear to even subtle changes in signaling levels, as well as the fact that we were able to detect effects on auditory responsiveness in Lrig2^−/− mutants. In addition, loss of just one copy of Lrig2 was sufficient to exacerbate the Lrig1^−/− phenotype, as assessed by DPOAE analysis. Although our work provides a useful starting point, analysis of independent Lrig2 alleles may reveal additional functions for this protein in the future.

Lrig2 seems to exert distinct effects from Lrig1 and Lrig3 on the basic signaling events that underlie patterning and morphogenesis, with an independent function in neurons. Indeed, although Lrig2 mutant mice are outwardly normal, they do not process sound properly. Specifically, although mutant animals can detect sounds with normal sensitivity, the subsequent neuronal response is attenuated, as evidenced by significantly decreased ABR amplitudes across multiple frequencies. Consistent with this phenotype, Lrig2 is present in spiral ganglion neurons throughout life, with particularly enhanced expression after the onset of hearing. How Lrig2 affects spiral ganglion neuron function remains unclear, though, as there were no obvious defects in the gross innervation of the cochlea in Lrig2 mutant mice. This is not entirely unexpected, as many forms of human deafness are not associated with overt changes in the structure or organization of the cochlea. A role for Lrig2 in the brainstem may exist since Lrig2 mutant mice exhibit auditory brainstem response deficits and LRIG2 is crucial for brainstem mediated bladder control and facial expressions in humans [34]. Although hearing defects have not been reported, our findings suggest that it may be worth investigating whether any patients experience subtle auditory processing defects that might not be detected using standard auditory testing methods.

Our results also imply that Lrig1 and Lrig2 may cooperate in limited contexts. Indeed, Lrig1^−/−;Lrig2^−/− double mutant mice do show enhanced phenotypes relative to the single mutants. For instance, some double mutants show mild circling behavior and hyperactivity that is not seen in either single mutant. More strikingly, acoustic responsiveness is severely impaired in all double mutants, with both DPOAE and ABR thresholds increased across frequencies. The ABR effect may be mostly additive, as Lrig1 and Lrig2 single mutants each exhibit a different kind of auditory defect: Lrig1 is required for the detection of sound and Lrig2 is required for the appropriate neuronal response. The changes in DPOAE thresholds, on the other hand, could be due to redundancy, as loss of even one copy of Lrig2 enhances the Lrig1 mutant phenotype, despite the fact that thresholds are normal in Lrig2 mutants. Since the amplification of the cochlear response by OHC activity is non-linear, DPOAEs offer an unusually sensitive measure of function. Hence, it is possible that the contribution of Lrig2 is too minor to see on its own, but that this small effect is uncovered once OHCs stop responding optimally, as occurs in Lrig1 mutants. Alternatively, Lrig1 and Lrig2 may play similar roles in Reissner's membrane, which is the only apparent site of co-expression in the mature cochlea. Reissner's membrane controls sodium homeostasis in the cochlear endolymph, and changes in the endolymph are known to lead to deafness [36], [39]. Intriguingly, Lrig1 and Lrig2 are also co-expressed in analogous non-sensory tissues in the utricle and saccule. Hence, a change in endolymph composition could also explain the mild vestibular phenotype uncovered in Lrig1^−/−;Lrig2^−/− double mutants.

An alternative explanation for the enhanced phenotypes is that Lrig1 and Lrig2 cooperate specifically in neuronal populations. In support of this idea, Lrig1 and Lrig2 are co-expressed in the vestibular ganglion and loss of both genes creates a vestibular deficit. More strikingly, efferent innervation is noticeably sparse in double mutant animals, but not obviously altered in either single mutant. The efferent neurons play an important role in modulating OHC responsiveness [43], so any change in their organization or function could cause the enhanced DPOAE phenotype. In support of this idea, an intermediate efferent phenotype was noted in Lrig1^−/−;Lrig2^+/− animals, paralleling their abnormal DPOAE responses. Understanding the origin of this defect will be challenging, however, due to the high lethality of Lrig1^−/−;Lrig2^−/− animals. Nevertheless, taken together with the proposal that the phenotypes seen in Urofacial Syndrome patients are due to abnormal innervation by neurons in the brainstem, these observations suggest that Lrig2 may play a particularly important role in the nervous system, much like the vertebrate-specific LRR-Ig proteins. Lrig1, on the other hand, may exhibit dual effects, acting like the ancient LRR-Ig proteins to regulate signaling in most contexts, but taking on new functions typical of other LRR-Ig proteins when present in neurons. Our findings underscore the need to delve more deeply into the functions of all three family members in the nervous system.

The divergence that occurs within the Lrig gene family may be analogous to the more general diversification in functions for the expanded LRR-Ig superfamily in vertebrates. Analysis of function across species strongly suggests that the original function of Lrig proteins is to bind rTKs and regulate their activity. There are single Lrig orthologs both in worms (sma-10) and flies (lambik). Although nothing is known about lambik function, sma-10 is required for normal regulation of BMP signaling and hence body size in worms [44]. Interestingly, lambik can substitute for sma-10 in vivo. Similarly, Sma-10 binds both invertebrate and vertebrate BMP receptors. However, whereas Lrig1 acts as a negative regulator, sma-10 has a positive effect on BMP signaling. Thus, Lrig proteins from diverse species appear to share the ability to bind to cell-surface receptors, but the consequences of these interactions vary. Similarly, Lrig family members within a single species may have diverged to acquire distinct signaling properties mediated by their intracellular domains. In the case of Lrig1 and Lrig3, the divergence from ancestral Lrig function is minimal. Lrig2, however, seems to have gained new and distinct functions. The presence of new behavioral phenotypes in Lrig1^−/−;Lrig2^−/− double mutant mice suggests that this poorly understood activity may in fact be shared by Lrig1 in some contexts. Although the view of Lrig function in vivo is far from complete, our findings may provide important insights into the origin and activities of vertebrate-specific branches of the LRR-Ig superfamily.

Materials and Methods

Mice

All mice were back-crossed and maintained for more than six generations on the C57BL/6N strain (Charles River Laboratories). The mouse line Lrig1^{Gt(GST4169C6)} contains the VICTR48 gene trap vector (Lexicon Genetics) in the Lrig1 locus (Figure S1) and was obtained from the Texas Institute for Genomic Medicine (TIGM) at Houston, TX via the Knock Out Mouse Program (KOMP) at the University of California, Davis. The RST656 mouse line contains the GTOTMpfs gene trap vector [45] in the Lrig2 locus (Figure S1). This results in production of a fusion between Lrig2 and βgeo, which mediates neomycin resistance as well as β-galactosidase activity all under the control of the endogenous Lrig2 promoter. Mice were generated by the Mouse Gene Manipulation Facility of Boston Children's Hospital Intellectual and Developmental Disabilities Research Center (IDDRC) which is supported by NIHP30-HD18655. Lrig3 mutant mice contain a deletion of exon 1 and were derived from the Lrig3^flox allele which has been previously described [25]. Genotype distribution (Table 1) was assessed for surviving animals at 1 week and 6 weeks of age. For timed pregnancies, embryonic day 0.5 (E0.5) was defined as noon on the day a copulatory plug was present. All mice were maintained in accordance with institutional and National Institutes of Health (NIH) guidelines approved by the Institutional Animal Care and Use Committee (IACUC) at Harvard Medical School.

Antisera production and Western blots

Rat polyclonal antiserum to Lrig2 was raised against the intracellular domain of mouse Lrig2 protein expressed in bacteria (Dana-Farber/Harvard Cancer Center Monoclonal Antibody Core). E12.5 littermate embryos were lysed in 50 mM Tris (pH 7.4), 150 mM NaCl, 1% Igepal CA 630 (NP-40), 0.5% sodium deoxycholate, 0.1% sodium dodecyl sulfate (SDS) and 1 mM Pefabloc (Roche). Western blot analysis was performed using standard protocols and a 1∶2000 dilution of anti-Lrig2 serum or 1∶8000 dilution of anti-actin antibody (Abcam ab8226).

In situ hybridization

Non-radioactive in situ hybridization for Lrig1 was performed on cryosections of mouse E12.5 tissue as described [28]. A detailed protocol is available at http://goodrich.med.harvard.edu/resources/resources_protocol.htm.

X-gal staining

Tissue was fixed for 1 hour in 4% paraformaldehyde (PFA)/phosphate buffered saline (PBS), equilibrated in 30% sucrose/PBS at 4°C, and embedded in Neg50 (Richard-Allan Scientific). Cryosections transverse to the ear (Figure 1A) were cut and incubated in 1 mg/ml X-Gal (Sigma-Aldrich) in X-Gal buffer, post-fixed in 4% PFA/PBS for 1 hour at 4°C, and mounted using Glycerol Gelatin mounting medium (Sigma-Aldrich).

Immunofluorescence

E12.5 and E16.5 mouse heads were collected and fixed for 1 hour at 4°C in 4% PFA/PBS, equilibrated in 30% sucrose/PBS at 4°C, and embedded in Neg50 (Richard-Allan Scientific). E19 heads were hemisected, fixed overnight at 4°C in 4% PFA/PBS and processed the same way. P15 animals were perfused with 4% PFA/PBS, the head hemisected and the brain removed, and the remaining tissue was post-fixed in 4% PFA/PBS for 1 hour at room temperature, decalcified in 0.12M EDTA/PBS overnight at room temperature followed by several days at 4°C, and embedded as before. Tissue from 6 week old animals was fixed overnight at 4°C in 4% PFA/PBS and decalcified for 5 to 7 days in 0.12M EDTA/PBS at 4°C prior to immunostaining. Cryosections cut transverse to the ear were blocked in PBS+3% bovine serum albumin (BSA) and permeabilized in wash solution (PBS+1% BSA+0.1% Triton X-100). Primary antibodies were added in wash solution at the following concentrations: β-galactosidase (1∶300, MP Biomedicals 08559761), Lrig1 (1∶75–300, R&D Systems AF3688), Neurofilament H (1∶1000, Millipore AB5539), and Sox2 (1∶500, Millipore AB5603). Whole cochleae were blocked in PBS with 1% Triton X-100 and 5% normal donkey serum for one hour, followed by a 20 hour incubation at 37°C in primary antibodies diluted in blocking solution at the following concentrations: Choline acetyltransferase (1∶200, Millipore AB144P), Neurofilament H (1∶1000), and Synaptophysin (1∶200, Synaptic Systems 101011). Alexa-conjugated secondary antibodies were used for signal detection. Tissue was imaged on an Olympus Fluoview FV1000 confocal microscope or a Nikon E800 compound microscope. For wholemount cochleae, the middle turn of the cochlea was imaged. The overall pattern of innervation in each image was scored as either “normal”, “intermediate”, or “abnormal” by three observers blind to genotype.

Assessment of inner ear function

Auditory brainstem recordings (ABRs) and distortion product otoacoustic emissions (DPOAE) recordings were performed on the right ears (unless otherwise indicated) of mice at 6 weeks of age in a soundproof chamber maintained at 32°C. Prior to recordings, mutant mice were observed for circling behavior. Mice were anesthetized with ketamine (100 mg/kg) and xylazine (10 mg/kg) prior to recordings, which were performed as previously described [46]. Littermate control animals were included in each round of recordings. Due to the high lethality rate of Lrig1^−/−;Lrig2^−/− double mutants, animals used for recordings were generated by Lrig1^+/−;RST656^+/− intercrosses as well as crosses using Lrig1^+/−;RST656^−/− or Lrig1^−/−;RST656^+/− animals. Additionally, recordings were made from both ears of the Lrig1^−/−;Lrig2^−/− double mutants. Average ABR waveforms were plotted using MATLAB (MathWorks) and a script written by Ann E. Hickox in the laboratory of Dr. Charles Liberman (EPL Laboratories, Massachusetts Eye and Ear Infirmary, Boston, MA).

Paintfilling

E14.5 mouse heads were fixed overnight at 4°C with Bodian's Fix, dehydrated in 100% ethanol, and then cleared overnight in methyl salicylate. Heads were hemisected, and White All Purpose Correction Fluid (Sanford Corporation) diluted in methyl salicylate was injected into the cochlea with a pulled glass pipette and Hamilton syringe. Filled ears were imaged in methyl salicylate using an Olympus MVX10 microscope to capture image stacks at approximately 30 µm intervals through the ear. Image stacks were processed using Image J software [47] and the Stack Focuser plugin (author Michael Umorin) to produce a single image representation (Figure 3).
