SPOC1-Mediated Antiviral Host Cell Response Is Antagonized Early in Human Adenovirus Type 5 Infection
Little is known about immediate phases after viral infection and how an incoming viral genome complex counteracts host cell defenses, before the start of viral gene expression. Adenovirus (Ad) serves as an ideal model, since entry and onset of gene expression are rapid and highly efficient, and mechanisms used 24–48 hours post infection to counteract host antiviral and DNA repair factors (e.g. p53, Mre11, Daxx) are well studied. Here, we identify an even earlier host cell target for Ad, the chromatin-associated factor and epigenetic reader, SPOC1, recently found recruited to double strand breaks, and playing a role in DNA damage response. SPOC1 co-localized with viral replication centers in the host cell nucleus, interacted with Ad DNA, and repressed viral gene expression at the transcriptional level. We discovered that this SPOC1-mediated restriction imposed upon Ad growth is relieved by its functional association with the Ad major core protein pVII that enters with the viral genome, followed by E1B-55K/E4orf6-dependent proteasomal degradation of SPOC1. Mimicking removal of SPOC1 in the cell, knock down of this cellular restriction factor using RNAi techniques resulted in significantly increased Ad replication, including enhanced viral gene expression. However, depletion of SPOC1 also reduced the efficiency of E1B-55K transcriptional repression of cellular promoters, with possible implications for viral transformation. Intriguingly, not exclusive to Ad infection, other human pathogenic viruses (HSV-1, HSV-2, HIV-1, and HCV) also depleted SPOC1 in infected cells. Our findings provide a general model for how pathogenic human viruses antagonize intrinsic SPOC1-mediated antiviral responses in their host cells. A better understanding of viral entry and early restrictive functions in host cells should provide new perspectives for developing antiviral agents and therapies. Conversely, for Ad vectors used in gene therapy, counteracting mechanisms eradicating incoming viral DNA would increase Ad vector efficacy and safety for the patient.
Published in the journal:
. PLoS Pathog 9(11): e32767. doi:10.1371/journal.ppat.1003775
Category:
Research Article
doi:
https://doi.org/10.1371/journal.ppat.1003775
Summary
Little is known about immediate phases after viral infection and how an incoming viral genome complex counteracts host cell defenses, before the start of viral gene expression. Adenovirus (Ad) serves as an ideal model, since entry and onset of gene expression are rapid and highly efficient, and mechanisms used 24–48 hours post infection to counteract host antiviral and DNA repair factors (e.g. p53, Mre11, Daxx) are well studied. Here, we identify an even earlier host cell target for Ad, the chromatin-associated factor and epigenetic reader, SPOC1, recently found recruited to double strand breaks, and playing a role in DNA damage response. SPOC1 co-localized with viral replication centers in the host cell nucleus, interacted with Ad DNA, and repressed viral gene expression at the transcriptional level. We discovered that this SPOC1-mediated restriction imposed upon Ad growth is relieved by its functional association with the Ad major core protein pVII that enters with the viral genome, followed by E1B-55K/E4orf6-dependent proteasomal degradation of SPOC1. Mimicking removal of SPOC1 in the cell, knock down of this cellular restriction factor using RNAi techniques resulted in significantly increased Ad replication, including enhanced viral gene expression. However, depletion of SPOC1 also reduced the efficiency of E1B-55K transcriptional repression of cellular promoters, with possible implications for viral transformation. Intriguingly, not exclusive to Ad infection, other human pathogenic viruses (HSV-1, HSV-2, HIV-1, and HCV) also depleted SPOC1 in infected cells. Our findings provide a general model for how pathogenic human viruses antagonize intrinsic SPOC1-mediated antiviral responses in their host cells. A better understanding of viral entry and early restrictive functions in host cells should provide new perspectives for developing antiviral agents and therapies. Conversely, for Ad vectors used in gene therapy, counteracting mechanisms eradicating incoming viral DNA would increase Ad vector efficacy and safety for the patient.
Introduction
DNA viruses require nuclear transport of their genomes to productively infect the host cell and initiate efficient replication. Simultaneously, introduction of viral nucleic acids into the host cell nucleus triggers danger signals, and activates DDR (DNA damage response) prior to cell cycle arrest, and apoptosis. Many viruses counteract these regulatory measures in infected cells in order to ensure productive infection, which necessitates proper viral gene expression and adequate progeny synthesis [1].
In line with this, Ad (Adenoviruses) have gained functions to modulate DSBR (double-strand break repair), apoptosis, cellular gene expression, and host cell immune responses. The incoming viral genome is complexed with core factors and capsid protein VI after endosomal release. Our recent work showed that Ad DNA remains transcriptionally inactive until protein VI mediates activation of the viral E1A promoter by functionally inhibiting chromatin-associated transcription factor Daxx [2]. Ad E1A (early region 1A protein) is the first protein expressed after infection, playing an essential role in subsequent transcriptional activation, and induction of cell cycle progression [3].
Recently, E1A was seen to interact with the cellular PML-II isoform, and together this complex elevates transcription from Ad promoters [4]. E1B-55K (early region 1B 55 kDa protein) supports efficient viral replication by inhibiting anti-proliferative processes induced by the host cell [5]. However, additional functions of E1B-55K mainly require its interaction with E4orf6 (early region 4 open reading frame protein 6). So far, several reports have demonstrated that Ad E4orf6 connects Ad E1B-55K to an E3 ubiquitin ligase complex in the nucleus, containing cellular factors Rbx1/Roc1/Hrt1, Elongin B/C, and either Cullin 2 or Cullin 5 [6]. Recent work has shown that E1B-55K is the substrate recognition unit, while E4orf6 assembles the cellular components, and this functional complex sequesters cellular target proteins into a proteasomal degradation pathway C [6], [7], [8], [9], [10], [11], [12], [13].
Another hurdle to the viability and propagation of DNA viruses is imposed by host DDR and repair machinery. To counter this, several DNA viruses have acquired early viral genes that degrade or redistribute key cellular factors of the repair machinery to protect viral genome integrity [6]. Ad-mediated DDR inhibition by the Ad E1B-55K/E4orf6 E3 ubiquitin ligase complex and E4orf3 (early region 4 open reading frame protein 3)-dependent relocalization of the MRN complex into nuclear tracks and cytoplasmic inclusions together block concatemer formation and DNA damage signaling, therefore allowing productive infection and efficient virus growth [14], [15], [16], [17], [18].
The human SPOC1 (survival-time associated PHD protein in ovarian cancer 1/PHF13) protein has been identified as a novel regulator of DDR and chromatin structure [19], [20]. The spoc1 gene is located in chromosomal region 1p36.23, a region with frequent heterozygous deletions implicated in tumor development and progression [21], [22]. Consistent with this, elevated SPOC1 RNA levels in primary and recurrent epithelial ovarian cancers have been associated with decreased survival rates in patients [23]. Moreover, SPOC1 RNA can be detected in most human tissues, with the highest levels in the testis, where it has been exclusively detected in spermatogonia [23], [24].
SPOC1 is a nuclear protein with a PHD (plant homeodomain), predicted to bind H3K4me2/3 and to regulate chromatin-specific interactions [20], [25]. In line with this, Kinkley and co-workers observed that SPOC1 is dynamically associated with chromatin and induces chromosome condensation to regulate proper cell division [20]. Particularly, SPOC1 plays a role in radiosensitivity and DNA repair by selective modulation of, and functional cooperation with chromatin modifiers and DDR regulators [19].
There is also evidence that SPOC1 is recruited to DSBs and regulates the kinetics of DSB repair and cellular radiosensitivity. It is proposed that H3K4me2/3-containing chromatin can be converted into more compact chromatin by SPOC1-mediated increase of H3K9 KMTs and H3K9me3. Hence, loss of SPOC1 promotes chromatin decondensation, and is associated with increased levels of DDR transducers and efficient DNA repair. The correlation between SPOC1 protein levels and H3K9me3, as well as expression of several H3K9 KMTs, implicates SPOC1 functions in both chromatin condensation and DDR [19]. In sum, SPOC1 is a multifunctional protein with a additional role in stem cell differentiation, oncogenesis, chromatin structure, and DNA repair processes.
Here, we identified SPOC1 as a novel host restriction factor targeted during viral infection. SPOC1 protein levels decreased in Ad infected cells, which we could attribute to proteasomal degradation mediated by the E1B-55K/E4orf6 E3 ligase complex. Not only did SPOC1 interact with E1B-55K, but also Ad5 E2A-DBP, a marker for nuclear Ad replication sites, as seen by co-immunoprecipitation and immunofluorescence assays. When SPOC1 was overepressed, Ad virus yield, viral DNA synthesis, and viral protein synthesis decreased; reporter gene and chromatin immunoprecipitation assays showed that SPOC1 repressed gene expression at the level of transcription. Intriguingly, interaction with structural viral core protein pVII initially stabilized SPOC1 protein levels before expression of any viral early proteins.
Results

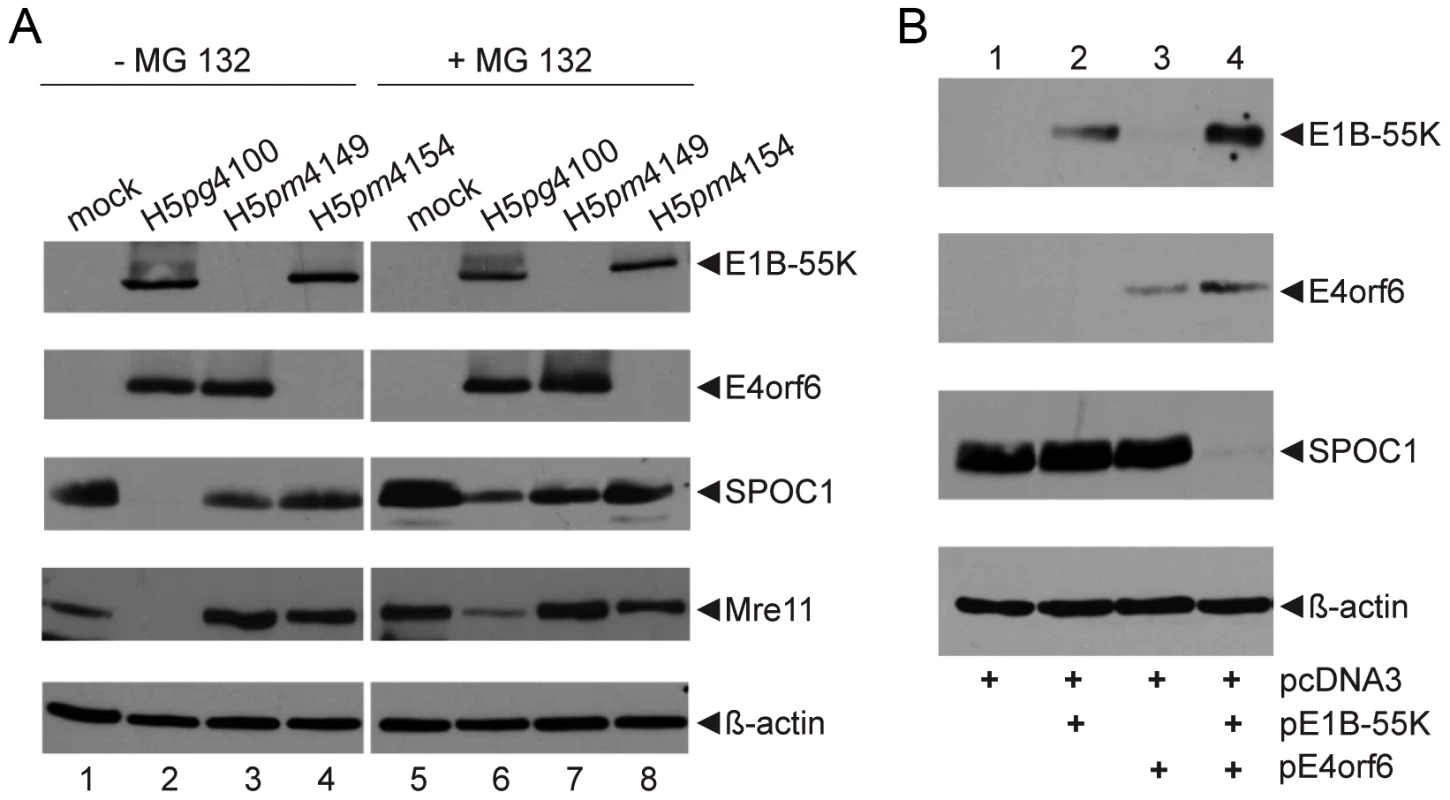

Ad5 E3 ubiquitin ligase complex targets SPOC1 for proteasomal degradation
SPOC1 induces chromosome condensation [20], stimulates cellular gene silencing and influences DDR, which potentially contributes to its transformation potential [19]. Since host DDR prevents viability and propagation of DNA viruses, Ad efficiently targets a multitude of host cell DSB repair regulatory factors in order to promote productive infection [9], [10], [17], [26], [27]. Based on these data, we examined SPOC1 protein levels in infected human cells, and observed SPOC1 levels reproducibly reduced after 24 hours post infection (Fig. 1A). This decrease was even more pronounced at a higher multiplicity of infection (data not shown), and was comparable to the reduction of already known targets of the E1B-55K/E4orf6 E3-ubiquitin ligase complex [6].
To discover whether SPOC1 is a new host cell substrate of the Ad5 E3 ubiquitin ligase complex, we determined SPOC1 protein concentrations in wild type (H5pg4100), and mutant-virus infected cells lacking either E1B-55K (H5pm4149) or E4orf6 (H5pm4154) (Fig. 1B). As anticipated, SPOC1 was dramatically reduced in cells infected with the wild type virus H5pg4100 (Fig. 1B, lane 2), whereas the cellular protein accumulated to levels comparable to non-treated cells in infected cells lacking E1B-55K (H5pm4149; Fig. 1B, lane 3). Similarly, SPOC1 was not reduced in cells infected with the E4orf6-minus virus mutant H5pm4154 (Fig. 1B, lane 4). We further examined SPOC1 protein levels in H1299 cells infected with an E4orf6 virus mutant (H5pm4139) carrying point mutations in the BC Box that abrogate the formation of the Ad5 E3 ubiquitin ligase complex, by inhibition of E4orf6 binding to Elongins B and C. Again activity of the E1B-55K/E4orf6 E3 ligase complex apparently played a role in reducing SPOC1 protein concentrations (Fig. 1B, lane 5). Consistent with previous publications, Mre11 was not degraded during lytic infection with the BC Box virus mutant H5pm4139 (Fig. 1B, lane 5). Our results confirm that the formation and ligase activity of the E1B-55K/E4orf6 ubiquitin complex are essential to reduce SPOC1 protein levels.
To confirm that we had identified SPOC1 as a novel target of virus-induced proteasomal degradation via E1B-55K/E4orf6-dependent E3 ligases, we treated infected cells with the proteasome inhibitor MG-132 (Fig. 2A). Functionally inhibiting host cell proteasomes abolished Mre11 and SPOC1 reduction seen in wild type infected cells, supporting the role of ubiquitin proteasome system in SPOC1 degradation.

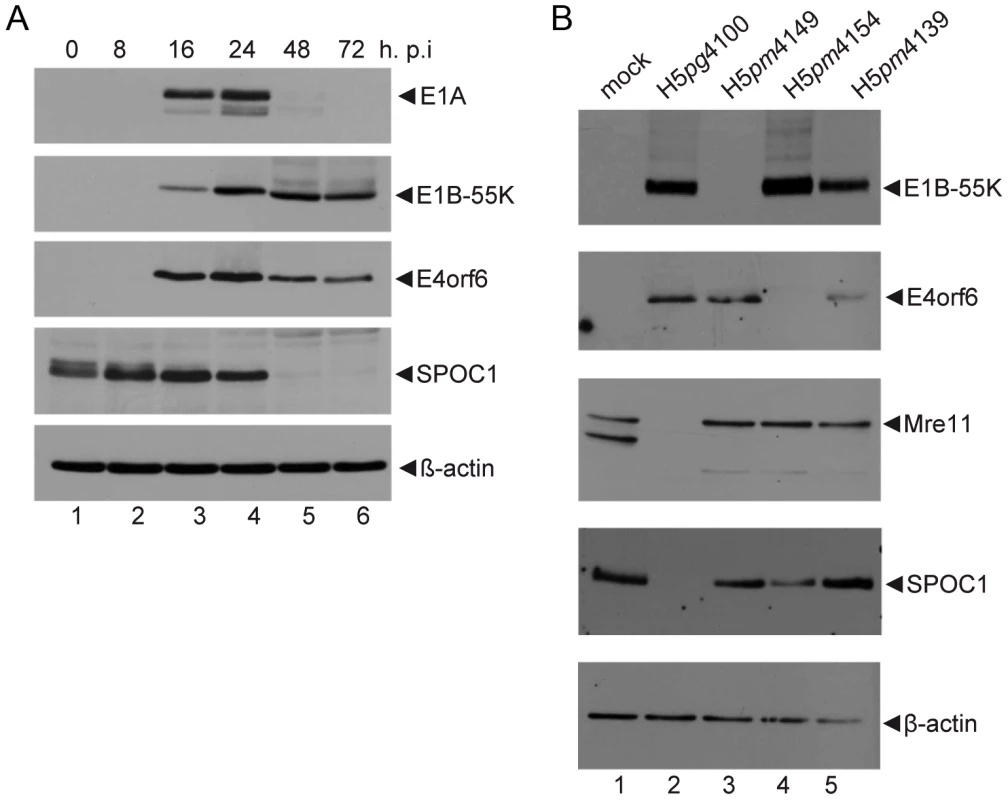

We finally validated our findings by analyzing the levels of SPOC1 protein in transfected cells (Fig. 2B). Expression of E1B-55K alone (Fig. 2B, lane 2) or E4orf6 alone (Fig. 2B, lane 3) had no effect on steady-state concentrations of endogenous SPOC1 protein, while expression of both E1B-55K and E4orf6 (Fig. 2B, lane 4) diminished SPOC1 steady-state concentrations to levels similar to virus-infected cells (Fig. 1 and 2A).

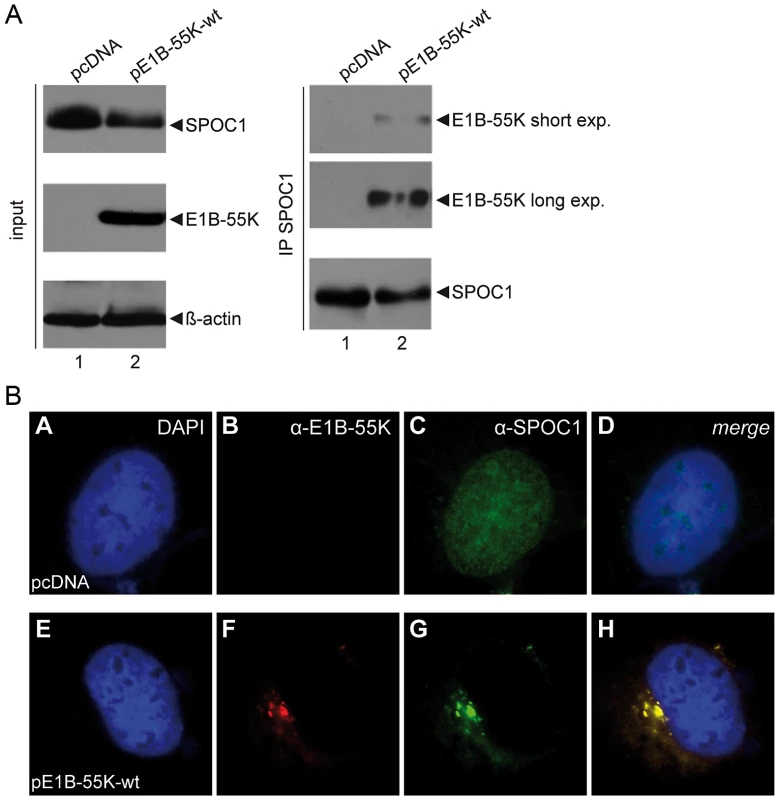

Ad5 E1B-55K binds and induces cytoplasmic relocalization of SPOC1

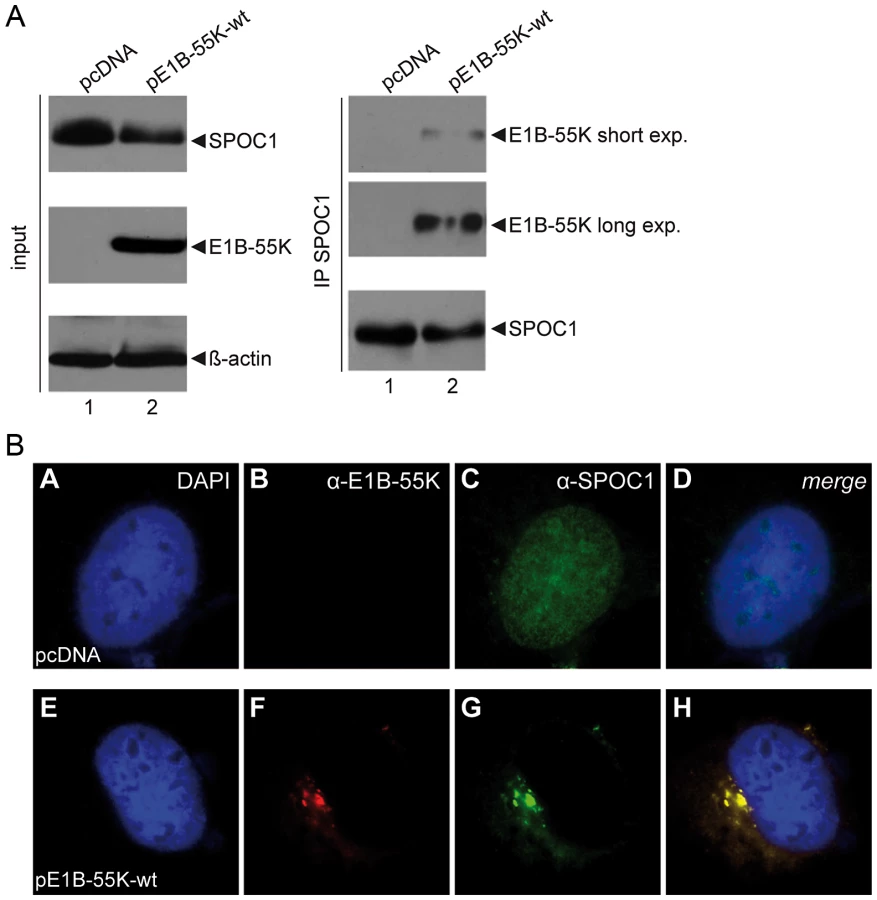

Since E1B-55K is the substrate recognition unit of the SCF-like E3 ubiquitin ligase, we next tested whether E1B-55K interacts with the endogenous SPOC1 protein. As anticipated, in E1B-55K-transfected human H1299 cells E1B-55K co-immunoprecipitated with SPOC1-specific antibody, revealing an interaction between these factors (Fig. 3A, lane 2). No E1B-55K signal was observed in the corresponding negative controls (Fig. 3A, lane 1).
The next question was whether E1B-55K interferes with the intracellular localization of SPOC1. Consistent with previous findings, immunofluorescence analysis in E1B-transfected human cells revealed that wild type E1B-55K protein localizes in the cytoplasm, mostly concentrated in perinuclear bodies Fig. 3B, panel F, H; [28], [29], [30], [31], [32], [33], [34]. In contrast to the diffuse nuclear localization in non-treated cells (Fig. 3B, panel C, D), SPOC1 was completely sequestered into the E1B-containing aggregates in the presence of the viral protein (Fig. 3B, panel G, H).

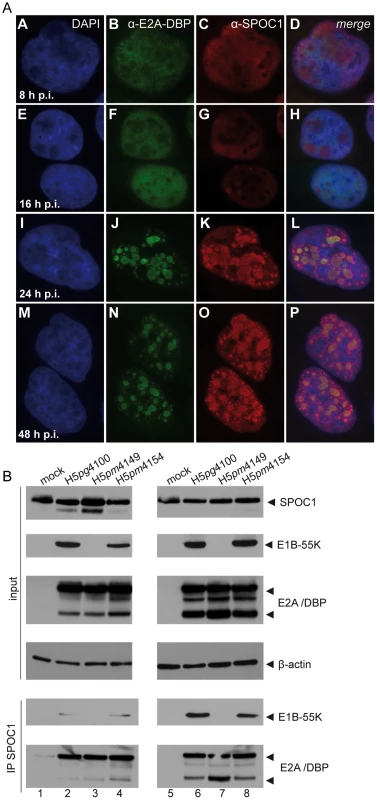

SPOC1 is recruited into Ad replication centers
To gain better understanding of SPOC1 role during Ad infection, we investigated the subcellular localization of SPOC1 in infected human DLD1 cells, which stably overexpress SPOC1 after doxycyclin treatment to overcome degradation of the cellular factor (Fig. S1). In mock-infected cells, SPOC1 is diffusely distributed inside the nucleus in approximately 90% of the cells investigated (n = 50; data not shown). When monitored together with Ad5 E2A-DBP, a marker for Ad replication sites in the nucleus, at 24 to 48 hours post infection SPOC1 colocalized with sites of viral replication in approximately 60% of cells (n = 50; Fig. 4A, panels D, H, L and P).
We confirmed our observation by monitoring SPOC1/E2A-DBP association using immunoprecipitation analysis after wild type and mutant virus infection in DLD1 and U2OS cells stably overexpressing SPOC1 after doxycyclin treatment (Fig. 4B). As expected, E2A-DBP co-immunoprecipitated with SPOC1-specific antibody, revealing an interaction in all infected SPOC1-overexpressing human cells (Fig. 4B, lanes 2, 3, 4, 6, 7, 8), whereas no signal was obtained in the corresponding negative controls (Fig. 4B, lanes 1 and 5). We also were able to confirm the SPOC1/E1B-55K interaction within the infected SPOC1-induced cells. To further test specificity of the SPOC1 antibody used in all of the coIPs, we tested SPOC1 binding after proteasomal degradation of SPOC1 (Fig. S2). Therefore, we infected H1299 cells with Ad5 wild type virus (H5pg4100) and virus mutants depleted for either E1B-55K (H5pm4149) or E4orf6 (H5pm4154) expression. After 24 and 48 hors post infection, total cell extracts were prepared. E1B-55K and E2A/DBP were immunoprecipitated using rabbit polyclonal SPOC1 antibody. Proteins were separated on 10% SDS-PAGE and visualized by immunoblotting. Input levels of total-cell lysates and co-precipitated proteins were detected using monoclonal antibody 2A6 (E1B-55K), B6-8 (E2A/DBP), SPOC-1-specific rat monoclonal antibody, and mouse monoclonal antibody AC-15 (β-actin) as a loading control. As expected, E2A-DBP co-immunoprecipitated with SPOC1-specific antibody (Fig. S2, lanes 3, 5–8), only revealing binding in infected cells, where SPOC1 could not be degraded due to the time point (Fig. S2, lane 3) or the absence of either E1B-55K (Fig. S2, lanes 5 and 6) or E4orf6 (Fig. S2, lanes 7 and 8). We also were able to confirm the specific SPOC1/E1B-55K interaction within the infected cells expressing SPOC1 and E1B-55K (Fig. S2, lanes 3, 7 and 8). Together these data improved our co-immunoprecpitation analysis and reassured specificity of the SPOC1 antibody usd in these experiments.
Together, our results show that the cellular factor SPOC1 associates with E2A-DBP within Ad5 replication compartments in virus-infected human cells. This novel observation prompted us to investigate whether SPOC1 is linked to Ad transcriptional regulation during productive infection. Such recruitment to nuclear sites associated with viral genome replication suggests that SPOC1 is involved in regulating Ad5 gene expression.

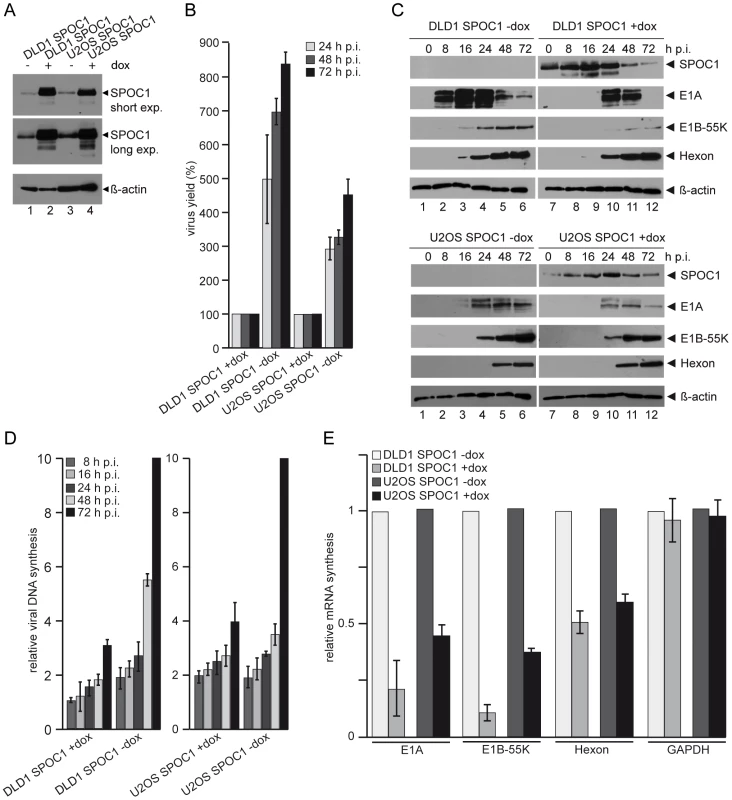

SPOC1 overexpression reduces Ad gene expression
To better analyze the role of SPOC1 during Ad5 infection, we performed experiments in SPOC1-inducible human colon carcinoma (DLD1) and osteosarcoma (U2OS) cell lines, which express exogenous SPOC1 after doxycyclin (dox) treatment. Prior to our analysis, we investigated SPOC1 protein expression in the absence and presence of dox (Fig. 5A). Additionally, proliferation of the SPOC1 overexpressing cells was quantified, revealing no significant difference in comparison to the uninduced controls (Fig. S1).
To assess the effect of SPOC1 on overall virus growth, we determined total virus yield after SPOC1 induction in DLD1 cells (Fig. 5B). SPOC1 overexpression reduced progeny production seven- (48 h p.i.) to eight-fold (72 h p.i.) compared to non-treated DLD1 control cells (Fig. 5B). When we analyzed Ad5 progeny production in SPOC1 inducible U2OS cells we observed similar effects (Fig. 5B).
These results suggest that SPOC1 mediates repressive effects during Ad5 infectious cycle. To further validate this hypothesis, expression of viral early and late proteins was monitored at different time points after infection (Fig. 5C). Consistent with Ad5 progeny production, protein synthesis was inefficient in SPOC1 overexpressing DLD1 and U2OS cells (Fig. 5C). Particularly expression of E1A was affected, since it was substantially higher in non-treated DLD1 (Fig. 5C, upper panel lanes 1–6) and U2OS (Fig. 5C, lower panel lanes 1–6). Similar effects were observed when monitoring viral DNA synthesis in infected cells. As with Ad5 progeny production (Fig. 5D), DNA synthesis was less efficient in SPOC1 induced cells than in uninduced cells (Fig. 5D). Next we investigated whether Ad transcription is negatively regulated by SPOC1 expression. Therefore, we analyzed whether early and late viral mRNA levels are affected by SPOC1 overexpression in Ad wild type virus infected cells. We observed that viral early E1A and E1B mRNA production is lower in SPOC1-induced cells, compared to cells lacking treatment with doxycyclin (Fig. 5E). Similar results were obtained for hexon mRNA expression, suggesting either an impact of enhanced synthesis of early gene products or direct repression of the late promoter (Fig. 5E). Moreover, we tested cellular mRNA levels to exclude non-specific repression of gene expression by SPOC1 expression affecting cellular RNA Pol II transcription (Fig. 5E). Our results show similar GAPDH mRNA synthesis in the cells tested, indicating that SPOC1 expression does not reflect an overall reduction in cellular RNA pol II transcription.

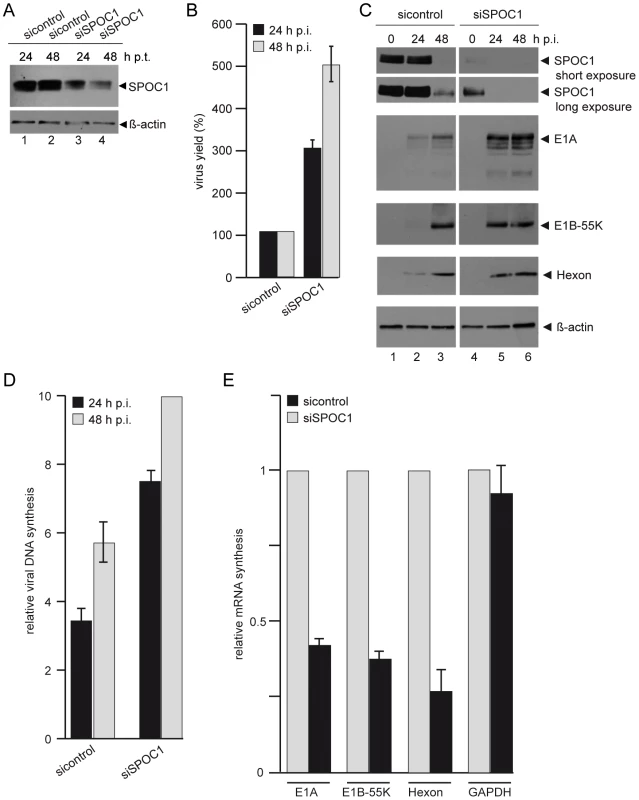

To validate these observations and to exclude non-specific impact of the overexpression studies, we depleted SPOC1 expression by transient knock-down with siRNA (Fig. 6A) and analyzed Ad5 replication. Virus growth was enhanced three-fold (24 h p.i.) to five-fold (48 h p.i.) in the absence of SPOC1, compared to control cells (Fig. 6B). Consistent with data observed in DLD1 and U2OS cells, early and late viral protein synthesis was more efficient in SPOC1-depleted cells (Fig. 6C). DNA synthesis was monitored and showed two-fold more efficient synthesis of viral DNA in SPOC1-depleted cells compared to the control cells (Fig. 6D). To further investigate a role of SPOC1 in Ad transcription and viral mRNA synthesis, we analyzed whether early and late viral mRNA levels are affected by the absence of SPOC1 expression in infected cells (Fig. 6E). We observed that viral early E1A and E1B mRNA production is two-fold reduced in SPOC1 expressing cells, compared to cells lacking this cellular transcription factor. Results obtained for hexon mRNA expression showed three-fold difference in viral mRNA expression (Fig. 6E). As shown above, we did not observe altered GAPDH mRNA levels, indicating that SPOC1 depletion does not affect cellular transcription in general (Fig. 6E).
To exclude that SPOC1 expression impacts on virus entry, we analyzed whether capsid protein VI from incoming Ad capsids show altered accumulation in the host cell nuclear fraction. Using nucleo-cytoplasmic fractionation, we observed rapid protein VI accumulation in the nuclear fraction after infection of U2OS control cells and cells treated with doxycyclin to induce SPOC1 expression (Fig. S3).
Together, these results indicate that cellular factor SPOC1 is a potent repressor of Ad5 growth and thus represents a novel host cell restriction factor during Ad productive infection.

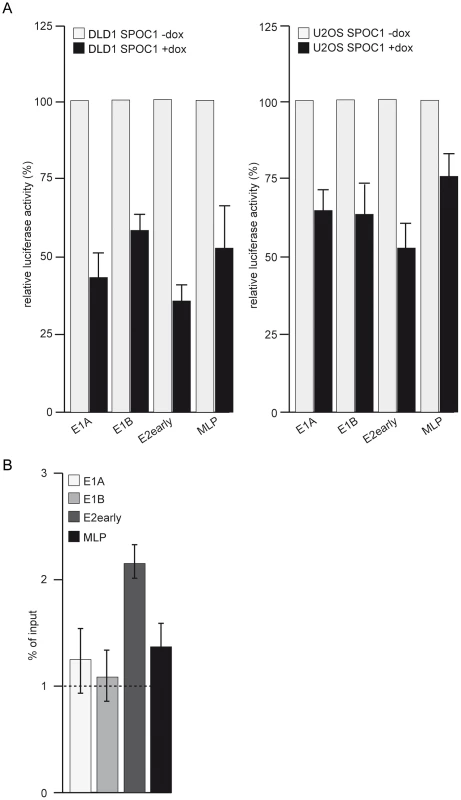

SPOC1 represses Ad promoter activity
Due to the fact that SPOC1 is a chromatin bound protein, we next questioned whether SPOC1-dependent Ad restriction occurs on the transcriptional level. To assess this, we performed reporter gene assays with luciferase expression vectors under the control of specific Ad promoters in SPOC1-induced and non-induced DLD1 and U2OS cells. In the absence of other viral factors, SPOC1 was able to repress luciferase expression from all the viral promoters tested (Fig. 7A).
To exclude non-specific repression of gene expression, we investigated whether we can detect SPOC1-dependent effects on the cellular E2F-dependent H2A promoter (Fig. S4). In contrast to the viral reporter constructs, co-expression of SPOC1 did not affect transcription from the cellular promoter (Fig. S4, lanes 3 and 4). The inhibitory effect of SPOC1 expression is specific at least for the promoter sequences tested so far.
To further demonstrate direct association of SPOC1 with Ad promoter sequences, we performed chromatin immunoprecipitation assays from wild type virus infected cells, using SPOC1-specific monoclonal antibody, unrelated IgG control antibody and Ad promoter-specific oligonucleotides (Fig. 7B). The results show that SPOC1 is associated with E1A, E1B, E2early and MLP Ad promoters in infected cells (Fig. 7B). Conclusively, these results indicate that SPOC1 is a component of host cell antiviral mechanisms, playing an important role in the Ad gene expression program through transcriptional repression of viral promoters.

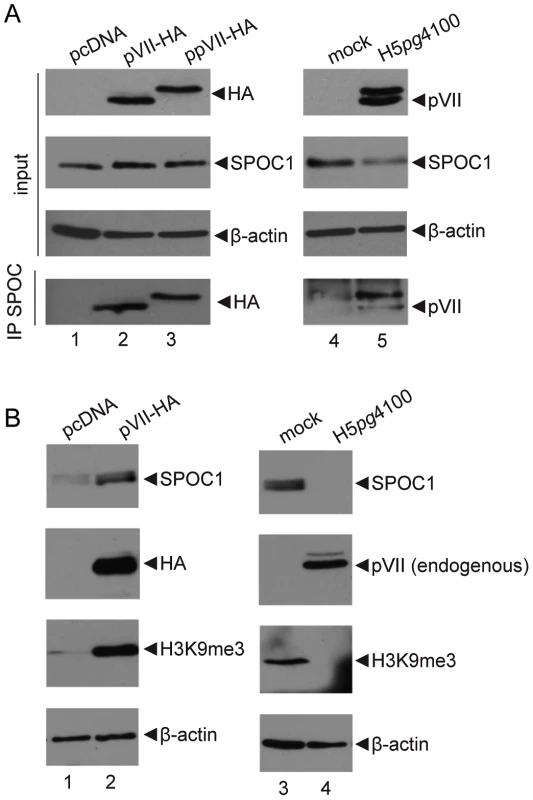

Functional cooperation between SPOC1 and Ad core protein VII
SPOC1 has been previously reported to bind histone H3 and to be capable of promoting repressive epigenetic transitions. Since Ad major core protein VII shares homology with the N-terminal regulatory tail of histone H3 [35], we investigated if SPOC1 may also associate pVII. Whole extracts from H1299 cells that had been transfected with plasmid DNA expressing pVII products (Fig. 8A, lanes 1–3) as well as Ad wild type infected lysates (Fig. 8A, lanes 4 and 5) were immunoprecipitated with SPOC1 specific ab and analyzed by Western blotting using anti-HA mab (Fig. 8A). We detected co-immunoprecipitation of SPOC1 with pVII, when both factors were present (Fig. 8A, lanes 2, 3 and 5).
As core protein pVII remains associated with the viral genome during entry [36], we performed further pVII transfection studies mimicking immediate early phase of infection (Fig. 8B). First, we observed a significant increase in SPOC1 protein levels (Fig. 8B, lane 2); and repressive H3K9me3 histone marks as expected due to other reports [19]; Fig. 8B, lane 2. Next, we carried out additional infection studies with H5pg4100 Ad wild type virus infected cells (Fig. 8C). Again, we monitored SPOC1 and H3K9me3 protein levels and detected loss of H3K9me3, most presumably due to SPOC1 reduction by proteasomal degradation via E1B-55K/E4orf6 E3 ubiquitin ligases (Fig. 8C, lane 2). As pVII was reported to occupy Ad DNA during the immediate early phase of infection [36], [37], [38], [39], our results indicate that during early Ad infection, pVII likely protects its genome from SPOC1 mediated repressive silencing, prior to the onset of transcription by pVII removal from the genome [40], [41] including loss of pVII-bound repressive factor SPOC1.

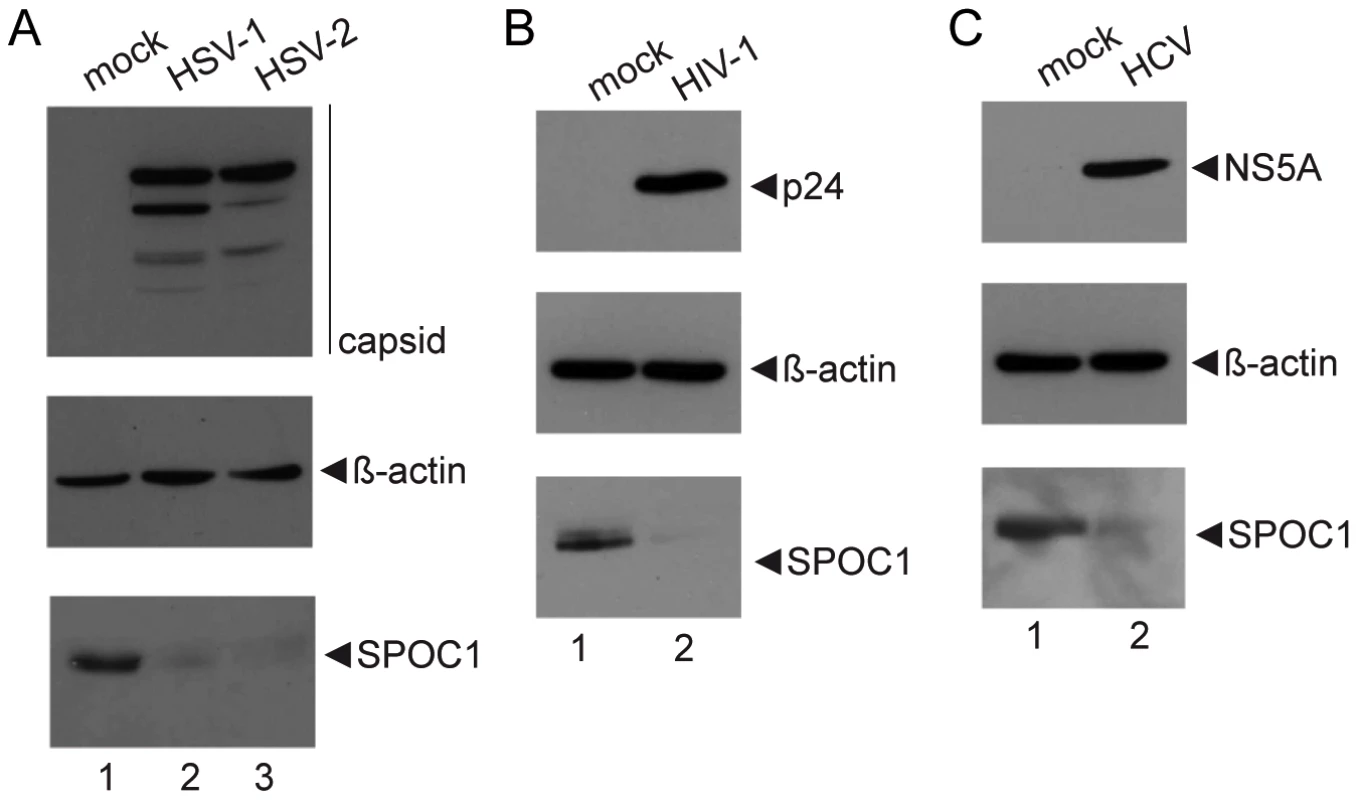

Downregulation of antiviral host factor SPOC1 is not restricted to Ad5 lytic infection
To determine whether SPOC1 is a key player in antiviral defense in general, and whether strategies to restrain SPOC1 are conserved among different human pathogenic viruses, we tested protein expression in permissive cell lines infected with HSV-1 (herpes simplex virus type 1; Fig. 9A), HSV-2 (herpes simplex virus type 2; Fig. 9A), HIV-1 (human immunodeficiency virus type 1; Fig. 9B) or HCV (human hepatitis C virus; Fig. 9C). To evaluate efficient infection, we monitored viral protein levels of HSV-1 nucleocapsid protein crossreacting with HSV-2 nuclear protein (Fig. 9A), HIV-1 p24 (Fig. 9B) or HCV NS5A (Fig. 9C). Intriguingly, we detected significantly reduced SPOC1 protein levels in all virus-infected cells (Fig. 9). Taken together, functional inhibition of the antiviral host factor SPOC1 by Ad early proteins E1B-55K and E4orf6 can also be achieved by other viral factors expressed in the course of HSV-1, HSV-2, HIV-1 and HCV infection.
Discussion
Viruses exploit cellular pathways for their own benefit, often achieved by providing high affinity binding sites on viral factors that recruit key regulatory proteins from cellular pathways to outcompete their physiological binding partner. This strategy allows viruses to infect cells and establish efficient replication with nothing more than the incoming viral genome and viral capsids. Besides transport of the genome to appropriate replication sites, viruses also need to assure decondensation and transcriptional activation of the viral genome, which in most cases has been packed and stored in the most economical way. Once the viral genome becomes transcriptionally activated new viral proteins are synthesized providing the virus with the capacity to reprogram the cell for viral replication.
All of the very early steps during viral infection represent an essential moment in establishing productive infection of all human pathogenic viruses, but are as yet poorly characterized. In this report, we show that the cellular protein SPOC1 is tightly regulated in the course of productive Ad infection, identifying SPOC1 as a antiviral restriction factor in cellular defense. Ad possesses strategies to neutralize SPOC1 via an E1B-55K/E4orf6-dependent proteasomal degradation pathway. Moreover, functional inhibition of SPOC1 seems to be conserved among different human pathogenic viruses.
Despite the well-characterized functions of Ad early genes and core/capsid proteins, it is still unclear how Ad transcription is initiated in detail. To summarise our findings we have put together a scheme of how various factors may interact at early stages after Ad infection (Fig. 10). Initially, the genome enters the cell as a highly condensed, transcriptionally inactive nucleoprotein complex, assembled with capsid and core proteins pVI and pVII, identified to recruit cellular factors to the Ad genome Fig. 10; [2], [42]. Recently, we reported transactivating properties of protein VI involving a conserved PPxY motif required for binding to ubiquitin ligases of the Nedd4 family of E3 ubiquitin ligases, prior to Ad-dependent depletion of Daxx/ATRX dependent transcriptional restriction Fig. 10; [2].
The Ad major core protein VII remains bound to the Ad genome during the early phase of infection and is subsequently released due to transcription Fig. 10; [37]; however the duration and amount of pVII complexed with the viral genome is still unclear. Moreover, it also remains elusive whether complete disassociation of pVII from viral DNA is required for active transcription. Nevertheless, pVII is the most abundant structural component of the viral core, is strongly associated with viral DNA in a sequence-independent manner [43], and shares homology with the N-terminal regulatory tail of histone H3 [35]. When this viral factor is imported into the nucleus together with the viral genome, it apparently packages the incoming viral DNA into chromatin-like structures Fig. 10; [37], [44], [45], [46], [47].
SPOC1 is a nuclear PHD-protein, predicted to bind H3K4me2/3 and to regulate chromatin-specific interactions [20], [25]. Therefore, SPOC1 is dynamically associated with chromatin, and plays a major role in chromosome condensation to regulate proper cell division [20]. It is proposed that H3K4me2/3-containing chromatin is converted into more compact chromatin by SPOC1-mediated increase of H3K9 KMTs (lysine methyltransferases) and H3K9me3 [19].
We observed an association between SPOC1 and viral promoter regions; and with Ad core protein pVII in the absence of any other viral protein, and during Ad infection (Fig. 7B; Fig. 8; Fig. 10). We also observe SPOC1-mediated pVII stabilization, 48 hours post transfection (Fig. 8) and hypothesize that pVII cooperation with viral DNA protects the incoming viral genome from immediate early checkpoint signaling. In accordance with recent observations by Karen and co-workers, we believe that pVII prevents the onset of DNA repair signals prior to efficient viral gene expression [36].
These ideas are further supported by recent evidence that SPOC1 expression levels have a strong impact on DDR, DNA repair, and cellular radiosensitivity [19]. It was observed that SPOC1 and associated factors are recruited to DSBs to modulate chromatin structure as well as DDR. Due to SPOC1 binding and stabilization of repressive factors, i.e. H3K9 KMTs and H3K9me3, this antiviral protein helps conversion into a compact chromatin status (Fig. 10). Conversely, loss of SPOC1 releases several factors and repressive histone marks, promoting chromatin decondensation.

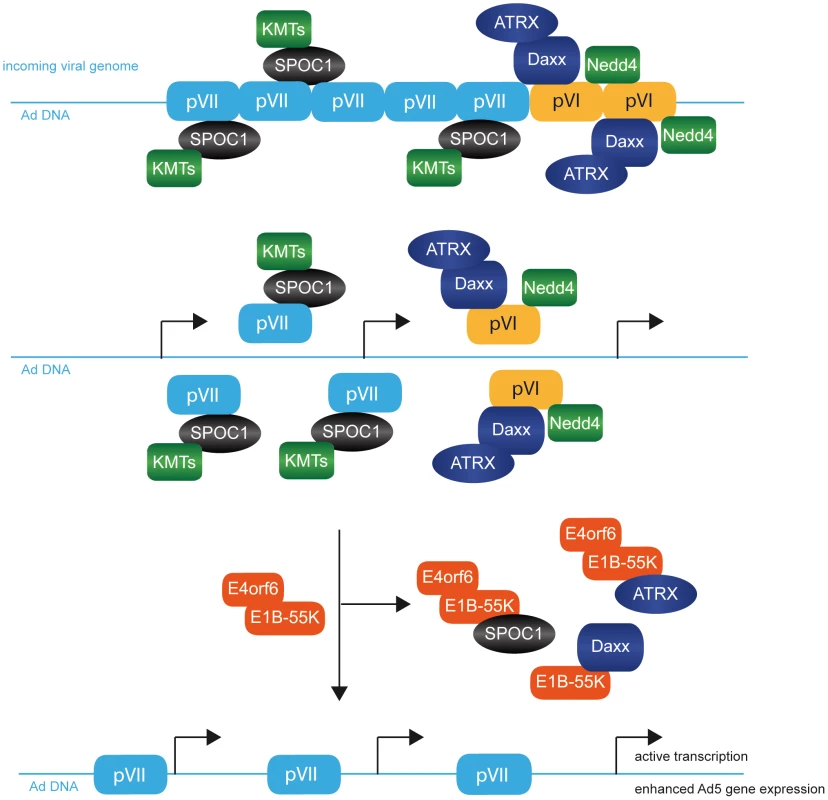

In the early phase of Ad productive infection SPOC1 is recruited to the viral genome and Ad5 replication centers (Fig. 4; Fig. 7B). The SPOC1-rich chromatin environment promotes the activation and recruitment kinetics of DDR transducers (γH2AX, pATM) [19]. However, the Ad core protein pVII masks the genome and antagonizes recognition by host cell repair factors (Fig. 10). Subsequently, core protein VII and pVII bound SPOC1 is released from viral DNA prior to synthesis of Ad replication proteins E2A-DBP, resulting in recognition of viral origins of DNA replication. The replication proteins presumably compete with components of DDR for binding to Ad sequences to form a functional preinitiation complex prior to DDR being inhibited by E1B-55K, E4orf6 and E4orf3.
Interestingly, the correlation between SPOC1 protein levels and H3K9me3 implies that Ad may regulate expression of several H3K9 KMTs. H3K9me3 is not only an epigenetic mark characteristic of heterochromatin, but is also the direct binding platform of cellular and/or viral factors that regulate heterochromatin compaction and spreading [48], [49]. In line with this, Gupta and coworkers recently showed that Ad-dependent E1B-55K/E4orf6 E3 ubiquitin ligase induces proteasomal degradation of the acetyltransferase TIP60 [10]. TIP60 chromodomain binding to H3K9me3 at DSBs is required for its activation [50], and is a prerequisite for efficient ATM activation by acetylation. E1B-55K/E4orf6 might interfere with TIP60 binding to H3K9me3 and its activation, possibly contributing to the observed reduction in activated ATM and delayed DDR.
Furthermore, Ad-mediated SPOC1 (Fig. 1 and 2) and TIP60 depletion would promote chromatin relaxation and decreases accessibility of H3K9me3 for TIP60, leading to reduction in ATM activation. So far, several histone H3K9 KMTs were shown to be modulated by SPOC1 (SETDB1, G9A, GLP) [19]. After the onset of viral transcription and efficient E1B-55K/E4orf6 expression, we observe efficient degradation of SPOC1 host factor (Fig. 1 and 2), promoting efficient reduction of H3K9me3 repressive histone marks (Fig. 8). Our findings provide hints that this complex might be altered in stability and activity due to Ad-dependent proteasomal degradation of SPOC1 (Fig. 1, 2 and 8), since these KMTs form a multi-subunit complex that is destabilized by depleting the individual components [51].
In this report, we show that SPOC1 is tightly regulated in the course of productive Ad infection to neutralize host cell defense processes. SPOC1 represents a novel antiviral restriction factor, being associated with Ad major core protein VII and therefore being removed from the viral genome during the very early phase of infection prior to the onset of gene expression during productive virus life cycle (Fig. 10). In other words SPOC1 apparently plays a biphasic role during Ad life cycle by regulating determinants of chromatin compaction and damage response immediately after viral genome entry into the host nucleus, prior to activation of Ad transcription leading to its proteasomal degradation by newly expressed viral proteins.
Besides Ad, different human pathogenic DNA and RNA viruses can impose reduction on SPOC1 protein levels. Our findings provide a model of how viruses might antagonize intrinsic SPOC1-mediated antiviral responses of their host cells, and create novel awareness for general antiviral restriction factors. These future insights into the immune evasion strategies acquired by viruses and other human pathogens mediated within the host will contribute to identifying new therapeutic strategies and targets to limit or prevent human pathogenic virus-mediated diseases and mortality of patients.
Materials and Methods
Cell culture
HEK293 [52], H1299 [53], SPOC1-inducible U2OS and DLD1 cells [19] were grown in Dulbecco's modified Eagle's medium supplemented with 10% fetal calf serum (FCS), 100 U of penicillin and 100 µg of streptomycin per ml in a 5% CO2 atmosphere at 37°C. For HepaRG cells, the media was supplemented with 5 µg/ml of bovine insulin and 0.5 µM of hydrocortisone.
Plasmids, mutagenesis and transient transfections
Ad proteins were expressed from their respective complementary DNAs under the control of the CMV immediate-early promoter, derived from the pcDNA3 vector (Invitrogen) to express Ad wild type E1B-55K and E4orf6 [54], [55]. cDNAs encoding E1B-55K-products from each Ad type were cloned as described previously [56], [57], [58]. Transient transfections with luciferase reporter constructs were performed as described previously [2]. pRE-Luc and the RGC-firefly luciferase reporter plasmids pGalTK-Luc have been described previously [59]. SPOC1 wild type protein was expressed from pcDNA4TO-SPOC1 constructs.
Viruses
H5pg4100 served as the wild type Ad5 parental virus in these studies [60]. The mutant viruses H5pm4149 and H5pm4154 were generated as described recently [61]. Both viruses carry stop codons and do not express the respective viral protein [62]. E4orf6 BC-box mutant virus H5pm4139 was generated, resulting in a drastically reduced ability to associate with the Ad5 E3 ubiquitin ligase complex compared to the E4orf6 protein from wild type virus [61]. Viruses were propagated, titrated and infected as described previously [63]. Virus yield was determined by quantitative E2A-72K immunofluorescence staining and viral DNA replication was monitored by quantitative PCR exactly as described previously [13].
Chromatin Immunoprecipitation Assay (ChIP)
ChIP analysis was performed as described previously [2]. The average Ct-value was determined from triplicate reactions and normalized with standard curves for each primer pair. The identities of the products obtained were confirmed by melting curve analysis.
Luciferase reporter assays
For dual luciferase assays, subconfluent cells were transfected prior to preparation of total cell extracts (48 h) [13]. RGC firefly luciferase and pGL-H2A-promoter activity was assayed with lysed extract in an automated luminometer (Berthold Technologies). All samples were normalized for transfection efficiency by measuring Renilla-luciferase activity. All experiments shown were performed in triplicate and data are presented as mean values.
Quantitative real-time (qRT) PCR analysis
Subconfluent cells were infected with wild-type virus and harvested at 24 h p.i.. Total RNA was isolated with Trizol reagent (Invitrogen) as described by the manufacturer. The amount of total RNA was measured and one microgram of RNA was reverse transcribed using the Transcriptor High Fidelity cDNA Synthesis Sample Kit from Roche including anchored-oligo(dT)18 primer specific to the poly(A)+RNA. Quantitative real-time PCR was performed with a first strand method in a Rotor-Gene 6000 (Corbett Life Sciences, Sydney, Australia) in 0.5 ml reaction tubes containing a 1/100 dilution of the cDNA template, 10 pmol/µl of each synthetic oligonucleotide primer, 12.5 µl/sample Power SYBR Green PCR Master Mix (Applied Biosystems). The PCR conditions were as follows: 10 min at 95°C, 55 cycles of 30 s at 95°C, 30 s at 55 to 62°C (depending upon the primer set) and 30 s at 72°C. The average Ct value was determined from triplicate reactions and levels of viral mRNA relative to cellular 18S rRNA were calculated as described recently [13]. The identities of the products obtained were confirmed by melting curve analysis.
Protein analysis and antibodies (Ab)
For protein analysis cells were resuspended in RIPA buffer as described previously [64]. After 1 h on ice, the lysates were sonicated and the insoluble debris was pelleted at 15,000×g/4°C. For immunoprecipitation and immunoblotting protein lysates were treated as described recently [2]. Primary Ab specific for Ad proteins used in this study included E1B-55K mab 2A6 [65], E2A-72K mouse mab B6-8 [66], E4orf6 mab RSA3 [67], rabbit polyclonal serum against protein VI [68] and anti-pVII rabbit polyclonal antibody (generously provided by Dan Engel, University of Virginia). To evaluate efficient infection with different RNA and DNA viruses primary antibodies specific for HSV-1 nucleocapsid protein (monoclonal mouse mab H1.4; Acris antibodies) crossreacting with HSV-2 nuclear protein, HIV-1 p24 hybridoma 183-H12-5C [69] and HCV NS5A (monoclonal mab 2F6/G11 from immunological and biochemical test systems) were used.
Primary antibodies specific for cellular proteins included SPOC1 rabbit polyclonal CR56 and rat mab [20], rabbit polyclonal ab specific for histone variant H3K9me3 (Upstate), Mre11 rabbit polyclonal antibody pNB 100–142 (Novus Biologicals, Inc.), p53 rabbit ab FL393 (Santa Cruz Biotechnology, Inc. [70]), polyclonal rabbit antibody raised against SAF-A protein [71] and ß-actin mouse mab AC-15 (Sigma-Aldrich, Inc.). HA-epitopes were detected with rat monoclonal 3F10 (Roche). Secondary Ab conjugated to horseradish peroxidase (HRP) to detect proteins by immunoblotting were anti-rabbit IgG, anti-rat IgG and anti-mouse IgG (Jackson/Dianova).
Indirect immunofluorescence
Cells were prepared and analyzed as described recently [57]. Images were cropped using Adobe Photoshop CS4 and assembled with Adobe Illustrator CS4.
