Innate Immune Sensing of DNA


article has not abstract


Published in the journal: . PLoS Pathog 7(4): e32767. doi:10.1371/journal.ppat.1001310
Category: Pearls
doi: https://doi.org/10.1371/journal.ppat.1001310

Summary

article has not abstract

DNA Is a Potent Activator of Innate Immunity

When a pathogen attacks, the immune system rapidly mobilizes host defenses in order to reduce the microbial burden and limit damage to the host [1]. Innate immunity is the first line of defense and relies on germ line–encoded pattern recognition receptors (PRRs) such as the Toll-like receptors (TLRs), which sense microbial products that are not normally found on or in mammalian cells. The considerable potency of nucleic acids as triggers of the innate immune response has gained appreciation over the last few years. In particular, nucleic acid sensing of viruses is central to anti-viral defenses through recognition of viral genomes or nucleic acids generated during viral replication. Distinct classes of nucleic acid sensing molecules have been uncovered that function in different cell types and subcellular compartments to coordinate innate defenses (reviewed in [2]).

While recognition of RNA molecules is dependent on members of the TLR family and cytosolic RNA helicases, the mechanisms underlying the sensing of DNA have been less well defined. It has been known for over a decade that DNA, the most recognizable unit of life, is a potent trigger of inflammatory responses in cells. The discovery of TLR-9, a receptor for hypomethylated CpG-rich DNA, partially explained these findings [3]. TLR9 is localized to the endosomal compartment and in humans is expressed in B cells as well as in plasmacytoid dendritic cells (pDCs). However, it became clear that the immune stimulatory activity of microbial DNA was not compromised in many cells lacking TLR9 [4]. These observations prompted new efforts to understand how DNA triggers immune responses, an endeavor that has led to the discovery of several new DNA recognition receptors and fresh insights into infectious as well as autoimmune diseases.

There Are Multiple Receptors for Microbial DNA

A significant effort from many laboratories has highlighted the importance of cytosolic DNA sensing in the innate immune response. At least six intracellular receptors have been implicated to some degree. These include DNA-dependent activator of interferon (IFN)-regulatory factors (DAI) (also called Z-DNA-binding protein 1, ZBP1) [5], absent in melanoma 2 (AIM2) [6][9], RNA polymerase III (Pol III) [10], [11], leucine-rich repeat (in Flightless I) interacting protein-1 (Lrrfip1) [12], DExD/H box helicases (DHX9 and DHX36) [13], and most recently, the IFN-inducible protein IFI16 [14]. DAI was the first to be implicated in synthetic B- and Z-form dsDNA recognition [5]; however, the role of DAI is still unclear, as DAI-deficient mice and cells coordinate normal immune responses to DNA [15]. Cytoplasmic dsDNA also triggers IFN production via RNA Pol III, which transcribes the DNA into 5′-ppp RNA, a ligand for the RNA helicase RIG-I [10], [11]. In pDCs, DHX9 and DHX36 contribute to cytosolic CpG-DNA and HSV-1-driven IFN responses [13], which likely account for previously reported TLR9-independent cytokine responses to some DNA viruses [12]. Lrrfip1 appears to bind both DNA and RNA; however, Lrrfip1 does not regulate the transcription factors that drive IFN gene transcription, but rather signals a co-activator pathway involving β-catenin and CBP/p300 histone modifying complexes to enhance the transcription of type I IFNs in the nucleus [16]. DNA from Listeria monocytogenes and RNA from vesicular stomatitis viral (VSV) activate this Lrrfip1-β-catenin pathway to mediate these effects.

Immune responses to DNA are not restricted to type I IFN-inducing pathways: cytosolic DNA also activates caspase-1-dependent maturation of the pro-inflammatory cytokines interleukin (IL)-1β and IL-18. This pathway is mediated by AIM2, a PYHIN (Pyrin- and HIN200-domain-containing) protein. Recent evidence from knockout studies has revealed the importance of AIM2 in host defense to cytosolic bacteria such as Fransicella spp., as well as DNA viruses like mouse cytomegalovirus (reviewed in [17][20]). The newest receptor identified, IFI16, binds viral DNA and is critical in the immune response to certain DNA viruses [14]. Like AIM2, IFI16 is a PYHIN protein that binds viral DNA via HIN domains; however, IFI16 does not appear to associate with ASC to regulate IL-1β maturation. Rather, IFI16 activation induces IFN-β and inflammatory cytokine production in response to cytosolically administered viral DNA or HSV1 infection.

Distinct Classes of DNA Sensors Engage Distinct Signaling Complexes

Most of these DNA sensors utilize a subset of adapter molecules, which relay signals to NF-κB and members of the interferon regulatory factor (IRF) family. TLR9 as well as DHX9 and DHX36 recruit MyD88 to activate IFN production in pDCs in response to DNA. In contrast, recognition of DNA by RNA-Pol III generates an RNA intermediate, which signals via RIG-I and MAVS. In the case of IFI16, the endoplasmic reticulum–resident protein stimulator of interferon genes (STING) relays signaling downstream [21]. Whether STING binds IFI16 directly or merely acts as a signaling intermediate for this pathway is unclear. AIM2 triggers caspase-1 activation via the PYD domain containing adapter molecule ASC. Although IFI16 also contains a PYD domain, it does not appear to utilize ASC for IFN production. It is likely that the DAI pathway also involves STING, although this has not been formally demonstrated. Downstream of STING, MAVS, or MyD88, the nucleic acid sensing pathways converge on different IKK kinases to phosphorylate and activate IRFs (reviewed in [2]). In the case of the TLRs and possibly DHX helicases, IKKα is involved in phosphorylating IRF7, while downstream of MAVS and STING, TANK-binding kinase 1 (TBK-1), an IKK-related kinase, phosphorylates and activates IRF3. There is no evidence for the involvement of adaptor proteins in the Lrrfip1-β-catenin pathway, although intermediary-signaling molecules may be required for Lrrfip1-dependent β-catenin phosphorylation.

Cytosolic DNA Recognition Pathways Also Contribute to the Pathogenesis of Autoimmune Disease

While DNA recognition receptors and associated signaling pathways are part of the normal immune response to infection, self DNA that gains access to compartments where these sensors are localized can also trigger inflammation, with deleterious consequences for the host (reviewed in [1]). Systemic lupus erythematosis (SLE) is one of the first autoimmune diseases where aberrant self-DNA recognition and type I IFNs play a role in disease pathogenesis. DNA and RNA complexed with autoantibodies trigger immune activation, leading to autoantibody production and significant cell death. Here, TLR7- and TLR9-sensing pathways in autoreactive B cells and pDCs appear to be central to disease pathogenesis [1]. Mutations in enzymes that normally degrade DNA have been linked to SLE and other diseases. For example, defective clearance of extracellular nucleic acids from dying cells due to deficiency or mutation of DNAse I causes a lupus-like syndrome in mice and humans [22], [23]. The sensing of accumulated DNAse I substrates is unclear but likely involves TLRs as well as other DNA sensors.

DNases regulate the accumulation of DNA in more than one compartment. For instance, DNase II is localized to lysosomes where it normally degrades DNA from engulfed apoptotic and necrotic cells. Interestingly, DNAse II–deficient mice are embryonic lethal due to overproduction of type I IFNs [24], [25]. However, mice deficient in both DNAse II and the type I IFN receptor are viable. The DNA sensing mechanism triggering IFN in this case is known to be TLR independent but dependent on IRF3 and IRF7. It is likely that one or more of the DNA sensors described above account for these responses. Another type of deoxyribonuclease, DNAse III, also called 3′ repair exonuclease 1 (TREX1), is found on the endoplasmic reticulum and has been shown to digest cell-intrinisic DNA generated as a result of reverse transcription from endogenous retroelements. Under normal circumstances TREX1 prevents the accumulation of this reverse transcribed DNA [26]. However, in situations where TREX1 is non-functional, DNA accumulates and can lead to activation of cytosolic sensing pathways. Mutations in TREX1 are found in patients with Aicardi-Goutières syndrome (AGS) and chilblain lupus, diseases that clinically resemble congenital viral infections [26], [27]. Mutations in the sterile a motif (SAM domain) and HD domain-containing protein 1 (SAMHD1) are also linked to this disease [27], [28]. Although there is no direct evidence linking SAMHD1 to cytosolic DNA sensing per se, it is likely that SAMHD1 also acts to counterbalance cytosolic DNA sensing and/or signaling, perhaps by interfering with one or more of the sensors above.

There Are Still Major Unknowns in the World of DNA Sensing

Fresh new insights into infectious as well as autoimmune diseases have been gained as a result of the studies on DNA sensing and signaling pathways. While there has been great progress in this area, many important questions arise from these discoveries. How these different sensors coordinate cell type–specific and or species-specific responses to DNA is still a major question and undoubtedly the focus of future research efforts in this area. Another key issue to be resolved is how DNA ligands, which are often enclosed in membrane-bound compartments (e.g., DNA viruses replicating in the nucleus), meet these cytosolic receptors. The identification of TREX1 as well as SAMHD1 suggests that in healthy cells, tightly controlled DNA levels prevent engagement of these pathways. It is likely that additional counter regulatory mechanisms that dampen these responses will be uncovered. Moreover, it is also likely that future discoveries will unveil mechanisms by which pathogens inactivate these defenses to prevent the immune response from sampling their genomes and turning on anti-viral defenses. Further characterization of these DNA sensing and counter regulatory mechanisms is likely to impact our understanding of common autoimmune and autoinflammatory diseases as well as build a framework for our understanding of infectious diseases. Future discoveries in this area will no doubt unveil new opportunities for therapeutic interventions in infectious and autoimmune disease.

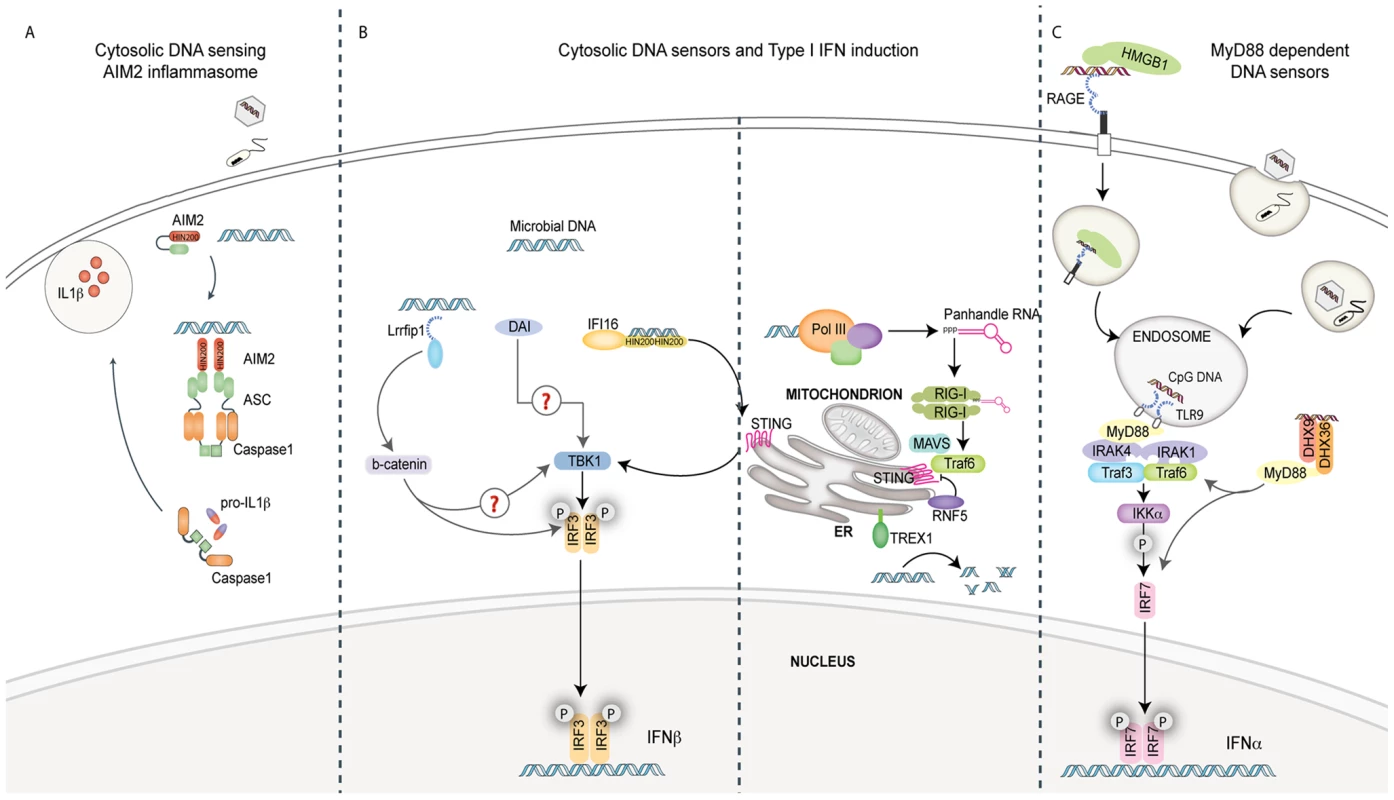

Fig. 1. Pathways of innate immune sensing of DNA.
Pathways of innate immune sensing of DNA.
(A) Cytosolic DNA from invading viruses and bacteria engage and activate AIM2 binding to the adaptor ASC. ASC mediates caspase-1-dependent pro-IL-1β/pro-IL-18 cleavage and secretion of their bioactive forms, IL-1β and IL-18. IL-1β and IL-18 are significant mediators of inflammatory responses to infection. (B) Four known cytosolic sensors are represented here. Lrrfip1 recognized viral DNA as well as RNA to induce IFNβ via a β-catenin-IRF3 transactivator pathway independently of the kinase TBK1. DAI can bind double-stranded B-form and atypical Z-form DNA to induce TBK1-IRF3-dependent IFNβ production. Evidence for the role of adaptors MAVS/STING in these pathways is lacking. IFI16 can directly bind viral DNA via its HIN200 domains and initiate IFNβ induction in a STING-TBK1- and IRF3-dependent manner. RNA polymerase III (Pol III) generates 5′ tri-phosphate RNA that is a ligand for RIG-I. RIG-I signals via the adaptor MAVS, subsequently activating ubiquitin ligase TRAF3 and subsequently TBK1 and IRF3. The ubiquitin binding protein RNF5 inhibits STING activation by targeting it to the proteasome, while TREX1 inhibits/prevents IFNβ production by degrading DNA substrate. (C) The receptor for advanced glycated end products (RAGE) and HMGB1 can bind extracellular CpG-rich DNA and transport it to a TLR9-positive compartment. Here, it is recognized by TLR9 and signals via MyD88 and the IKK kinase, IKKα, and IRF7 in pDCs to induce IFNα production. The cytosolic DExD/H box helicases DHX9/DHX36 can recognize cytosolic CpG DNA and initiate signaling to IRF7 via MyD88.


Zdroje

1. TakeuchiO

AkiraS

2010

Pattern recognition receptors and inflammation.

Cell

140

805

820

2. HornungV

LatzE

2010

Intracellular DNA recognition.

Nat Rev Immunol

10

123

130

3. HemmiH

TakeuchiO

KawaiT

KaishoT

SatoS

2000

A Toll-like receptor recognizes bacterial DNA.

Nature

408

740

745

4. IshiiKJ

CobanC

KatoH

TakahashiK

ToriiY

2006

A Toll-like receptor-independent antiviral response induced by double-stranded B-form DNA.

Nat Immunol

7

40

48

5. TakaokaA

WangZ

ChoiMK

YanaiH

NegishiH

2007

DAI (DLM-1/ZBP1) is a cytosolic DNA sensor and an activator of innate immune response.

Nature

448

501

505

6. BurckstummerT

BaumannC

BlumlS

DixitE

DurnbergerG

2009

An orthogonal proteomic-genomic screen identifies AIM2 as a cytoplasmic DNA sensor for the inflammasome.

Nat Immunol

10

266

272

7. Fernandes-AlnemriT

YuJW

DattaP

WuJ

AlnemriES

2009

AIM2 activates the inflammasome and cell death in response to cytoplasmic DNA.

Nature

458

509

513

8. HornungV

AblasserA

Charrel-DennisM

BauernfeindF

HorvathG

2009

AIM2 recognizes cytosolic dsDNA and forms a caspase-1-activating inflammasome with ASC.

Nature

458

514

518

9. RobertsTL

IdrisA

DunnJA

KellyGM

BurntonCM

2009

HIN-200 proteins regulate caspase activation in response to foreign cytoplasmic DNA.

Science

323

1057

1060

10. AblasserA

BauernfeindF

HartmannG

LatzE

FitzgeraldKA

2009

RIG-I-dependent sensing of poly(dA:dT) through the induction of an RNA polymerase III-transcribed RNA intermediate.

Nat Immunol

10

1065

1072

11. ChiuYH

MacmillanJB

ChenZJ

2009

RNA polymerase III detects cytosolic DNA and induces type I interferons through the RIG-I pathway.

Cell

138

576

591

12. YangP

AnH

LiuX

WenM

ZhengY

2010

The cytosolic nucleic acid sensor LRRFIP1 mediates the production of type I interferon via a beta-catenin-dependent pathway.

Nat Immunol

11

487

494

13. KimT

PazhoorS

BaoM

ZhangZ

HanabuchiS

2010

Aspartate-glutamate-alanine-histidine box motif (DEAH)/RNA helicase A helicases sense microbial DNA in human plasmacytoid dendritic cells.

Proc Natl Acad Sci U S A

107

15181

15186

14. UnterholznerL

KeatingSE

BaranM

HoranKA

JensenSB

2010

IFI16 is an innate immune sensor for intracellular DNA.

Nat Immunol

11

997

1004

15. IshiiKJ

KawagoeT

KoyamaS

MatsuiK

KumarH

2008

TANK-binding kinase-1 delineates innate and adaptive immune responses to DNA vaccines.

Nature

451

725

729

16. YangP

AnH

LiuX

WenM

ZhengY

2010

The cytosolic nucleic acid sensor LRRFIP1 mediates the production of type I interferon via a beta-catenin-dependent pathway.

Nat Immunol

11

487

494

17. UllandTK

BuchanBW

KettererMR

Fernandes-AlnemriT

MeyerholzDK

2010

Cutting edge: mutation of Francisella tularensis mviN leads to increased macrophage absent in melanoma 2 inflammasome activation and a loss of virulence.

J Immunol

185

2670

2674

18. JonesJW

KayagakiN

BrozP

HenryT

NewtonK

2010

Absent in melanoma 2 is required for innate immune recognition of Francisella tularensis.

Proc Natl Acad Sci U S A

107

9771

9776

19. RathinamVA

JiangZ

WaggonerSN

SharmaS

ColeLE

2010

The AIM2 inflammasome is essential for host defense against cytosolic bacteria and DNA viruses.

Nat Immunol

11

395

402

20. Fernandes-AlnemriT

YuJW

JulianaC

SolorzanoL

KangS

2010

The AIM2 inflammasome is critical for innate immunity to Francisella tularensis.

Nat Immunol

11

385

393

21. IshikawaH

MaZ

BarberGN

2009

STING regulates intracellular DNA-mediated, type I interferon-dependent innate immunity.

Nature

461

788

792

22. NapireiM

KarsunkyH

ZevnikB

StephanH

MannherzHG

2000

Features of systemic lupus erythematosus in Dnase1-deficient mice.

Nat Genet

25

177

181

23. YasutomoK

HoriuchiT

KagamiS

TsukamotoH

HashimuraC

2001

Mutation of DNASE1 in people with systemic lupus erythematosus.

Nat Genet

28

313

314

24. KawaneK

OhtaniM

MiwaK

KizawaT

KanbaraY

2006

Chronic polyarthritis caused by mammalian DNA that escapes from degradation in macrophages.

Nature

443

998

1002

25. YoshidaH

OkabeY

KawaneK

FukuyamaH

NagataS

2005

Lethal anemia caused by interferon-beta produced in mouse embryos carrying undigested DNA.

Nat Immunol

6

49

56

26. StetsonDB

KoJS

HeidmannT

MedzhitovR

2008

Trex1 prevents cell-intrinsic initiation of autoimmunity.

Cell

134

587

598

27. CrowYJ

HaywardBE

ParmarR

RobinsP

LeitchA

2006

Mutations in the gene encoding the 3′–5′ DNA exonuclease TREX1 cause Aicardi-Goutieres syndrome at the AGS1 locus.

Nat Genet

38

917

920

28. RiceGI

BondJ

AsipuA

BrunetteRL

ManfieldIW

2009

Mutations involved in Aicardi-Goutieres syndrome implicate SAMHD1 as regulator of the innate immune response.

Nat Genet

41

829

832
