Evaluating the Performance of Fine-Mapping Strategies at Common Variant GWAS Loci

Summary

Over the last few years, several approaches for fine-mapping genome-wide association studies (GWAS) loci have been proposed and used to localize potential causal variants. However, the performance of these types of tests is often poorly characterized. In this study, we used extensive simulations to show that statistical fine-mapping can indeed accurately reduce the number of likely causal variants at common GWAS loci. These approaches can be further improved by changes in study design, such as the inclusion of multiple ethnic groups in the study population. Finally, we demonstrate the utility of this type of approach on a recently published genome-wide association study for ankylosing spondylitis, where we could fine-map seven of the twenty-six loci to a number of variants (n = 10) which is tractable for follow-up in a laboratory setting.

Introduction

As a result of linkage disequilibrium (LD), loci identified by common variant genome-wide association analyses are often large and may contain hundreds of variants. Characterization of the specific variants driving these signals has clear benefits, most obviously through highlighting the specific causal molecular mechanisms, which may provide insight into complex disease pathophysiology. Progress in this endeavor has been hampered by incomplete coverage of human sequence variation (so potential causal variants are missing from genome-wide association study [GWAS] and imputation data sets), and by lingering uncertainties concerning the frequency spectrum of the underlying risk-alleles [1–3]. However, whole-genome sequence data (e.g. from the 1000 Genomes Project) now offer near complete coverage across the common and low frequency allele ranges at least (minor allele frequency [MAF] >1%) in multiple ancestry groups [4]. At the same time, evidence is accumulating—from large-scale GWAS [3,5], fine-mapping [5–7], re-sequencing [2,8] and trans-ethnic studies [9,10]–that most (though not all) GWAS signals are driven by causal variants that are themselves common, with evidence supporting alternative rare variant association models (e.g. synthetic association [1]) restricted to a few loci (e.g. NOD2/CARD15 in inflammatory bowel disease [8]).

These advances make it possible to perform systematic fine-mapping studies that interrogate the vast majority of potential causal variants at GWAS loci. Indeed, several recent studies have reported successful refinement of GWAS loci [6,7]. These efforts often include a trans-ethnic component that seeks to leverage ancestral differences in LD patterns between common SNPs to aid causal variant localization [9–11]. However, substantive questions related to the reliability, precision and performance of GWAS fine-mapping efforts remain unanswered. In this study we combined simulation-based and empirical approaches to address these questions.

Results

Evaluating fine-mapping performance using approximate Bayesian refinement

To quantify fine-mapping precision, we simulated ten association studies of 1,000 cases and 1,000 controls in 1Mb regions from the CEU haplotypes present in the 1000 Genomes Phase 1 dataset [4]. In each region we assigned a single, additive effect, causal variant of varying odds ratio (OR) and risk allele frequency (RAF). For each combination of OR and RAF, we simulated 1000 random “replicate” regions. On these data, we performed case-control association testing under an additive model, followed by meta-analysis of all ten studies for each region (such that the total sample size examined was 20,000). On the basis of the meta-analysis summary statistics for each of the variants, we generated approximate Bayes’ factors (ABFs)–describing the evidence in favor of association for a given variant–using the method proposed by Wakefield [12]. From these ABFs, the posterior probability of each variant to be causal was derived, and used to assemble “credible sets” that contained all variants with a cumulative posterior probability of a causal variant exceeding a chosen threshold (here, 95% or 99%) for each of the 1000 replicate regions [6].

The haplotypes used for the simulations are derived from whole-genome sequencing data for the 1000 Genomes project [4], and as such represent a “gold standard” scenario with nearly the entire low-frequency and common variant spectrum covered. Although whole-genome sequence data are likely to offer the most accurate framework for fine-mapping, currently available whole-genome sequencing datasets are relatively small and lack power to discriminate between highly-correlated variants. As a result, most fine-mapping studies rely on the much larger datasets available from the meta-analysis of GWAS and/or custom array datasets after imputation. To represent such designs, we filtered these whole-genome data to those present on the Illumina HumanOmni2.5 BeadChip array, corresponding to genotype data equivalent to those from dense GWAS or a custom fine mapping array such as the Metabochip [13]. For this “GWAS” scenario, these variants were subsequently imputed up to the 1000 Genomes Phase 1, all ancestries, release 3 panel. Additionally, we created a “GWAS with failure” scenario–representing a GWAS with a genotype missingness rate per cohort–where, for each of the twenty case or control cohorts (each with n = 1000) in an analysis, we removed all genotypes from 5% of the variants (after downsampling). This equates therefore to an ~0.25% missingness rate per variant across each set of 20,000 samples.

From the simulated data, we first sought to establish whether the credible sets generated from these simulations by the approximate Bayesian approach had appropriate coverage of the simulated causal variant under a model of association. In the gold standard scenario (i.e. unfiltered 1000 Genomes data), where the causal variant would always be present in the sample, we estimated the median coverage of the causal variant at 98.5% and 99.8%, for the 95% and 99% credible sets, respectively (S1 Fig). In the downsampled GWAS scenario, coverage of the causal variant was broadly comparable to that under the gold standard – 97.8% for the 95% credible set and 99.6% for the 99% credible set. The introduction of a random 5% variant drop-out per study population in the GWAS with failure scenario could result in loss from analysis, in some of the datasets, of the causal variant, or of variants that are influential with respect to the imputation scaffold. ABFs were rescaled by maximum effective sample size to compensate for genotype missingness. Results showed that the introduction of random missingness primarily affected simulations with little power to detect genome-wide significant association. At all other simulated OR and RAF combinations, missing genotype data led to only modest attrition of the causal variant coverage (S1 Fig).

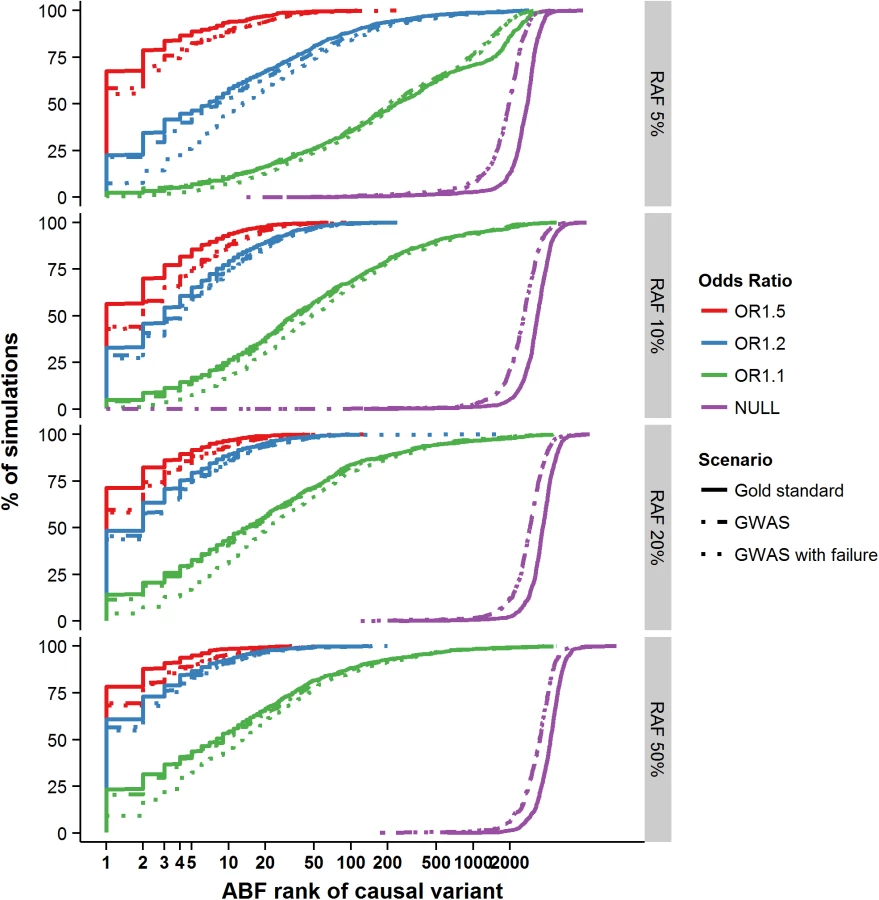

Having shown that the credible set performance was well calibrated, we next asked how often the causal variant was identical to the most strongly associated (lead) SNP. In situations where the two show near complete overlap, more sophisticated fine-mapping strategies would be unnecessary. In the gold standard scenario where the causal variant had the highest OR (1.5) and RAF (50%), 79% of the simulations accurately identified the causal variant as the most strongly associated (Fig 1). However, when the risk allele was less common (RAF 5%) and the phenotypic effect more in line with that observed at more typical GWAS loci (OR 1.1), the probability of accurately identifying the causal variant by focusing on the most associated variant dropped to just 2.4% (Fig 1). All subsequently presented results are based on the GWAS scenario, as this most closely resembles the majority of contemporary fine mapping studies. In this scenario, the numbers ranged from 70% (RAF 50% and OR 1.5) to 2.4% (RAF 5% and OR 1.1). These results confirm that focusing solely on the most significant variant is insufficient for identification of the causal variant at most common variant GWAS loci, so more elaborate approaches to fine-mapping–such as construction of credible sets–are needed.

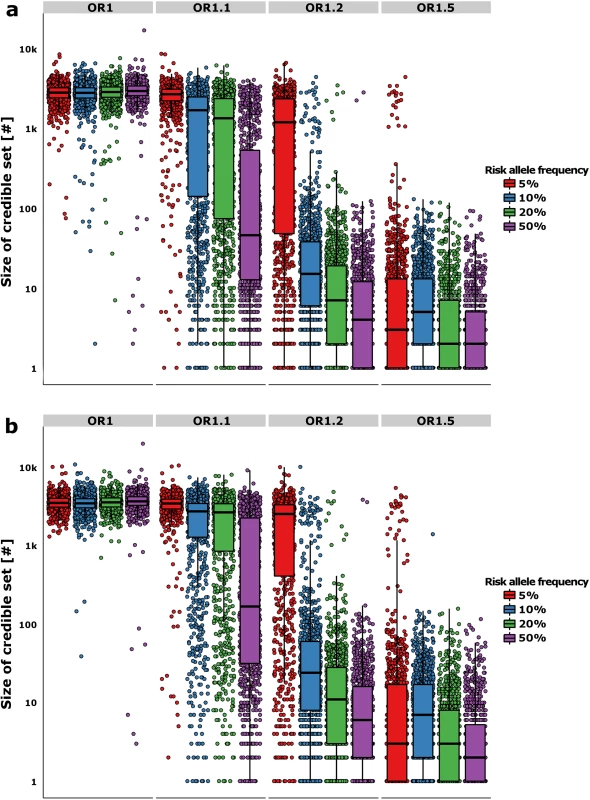

Next, we evaluated the properties of credible sets for fine-mapping over a range of association models. When the association signal was strong—e.g. RAF 50% and OR 1.5—the median 95% credible set contained only a single variant (and two in the median 99% set). Ninety percent of all replicates generated credible sets containing <11 (95%) and <14 variants (99%) (Fig 2A and 2B). In the simulations with lesser power to detect association (RAF 10%, OR 1.2–58.5% power), the median set contained 15 variants at 95% and 24 variants at the 99% posterior probability cut-off, but the range was far larger (the 90^th centiles now were 96 and 183 variants–Fig 2A and 2B). Overall, the size of the credible set had a strong log-negative correlation with the power to detect genome-wide association (r² = 0.61 and r² = 0.68 for the 95% and 99% credible sets–S2 Fig); at lower power, fine-mapping ability was mostly attenuated.

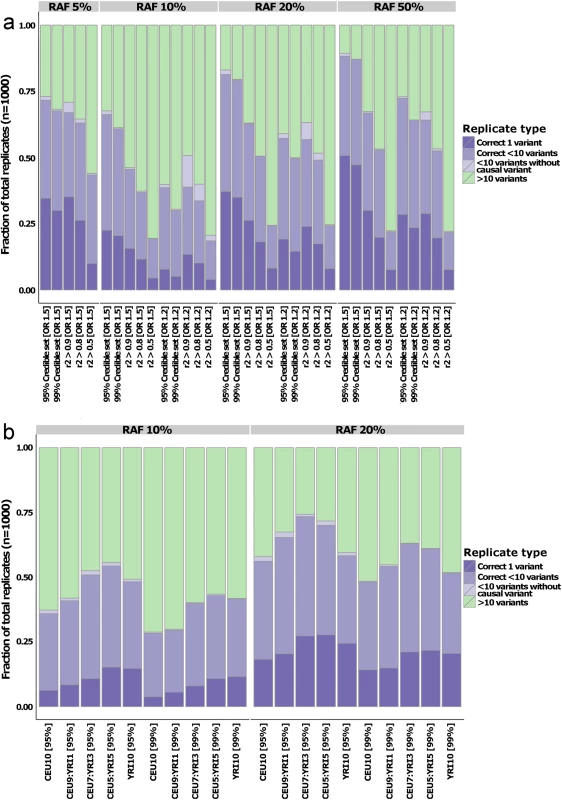

We then asked how many of the loci could be successfully fine-mapped. For this purpose, we deemed resolution of the credible set to fewer than ten variants to constitute success, on the grounds that this is a tractable number that would encourage researchers to undertake detailed functional evaluation. The success-rate for the 95% credible sets ranged from 88.4% for RAF 50% variants (OR = 1.5) to 36.9% for RAF 10% (OR = 1.2) variants in simulations with >50% power. The equivalent figures for the 99% credible sets were 85.5% and 28.4% respectively. In the least well performing simulation setting overall (RAF 5% at OR = 1.1), 95.3% of the replicates did not fine-map at all, with the credible sets containing > 500 variants within the 1Mb region. However, the results showed that the approximate Bayesian fine-mapping approach provided both good coverage of the causal variant and was often able to successfully refine loci to credible sets of a size that would support exhaustive functional follow-up.

Impact of different fine-mapping strategies on refinement results

To establish the impact of different fine-mapping strategies and causal variant scenarios, we compared the approximate Bayesian fine-mapping approach to a more simplistic strategy of retaining all variants with r² to the lead variant exceeding some pre-defined threshold (0.5, 0.8 or 0.9). We found that, in simulations with great power to detect genome-wide significant association, the approximate Bayesian approach resulted in smaller credible sets than sets based on r² thresholds (e.g. 0.8-fold reduction of r² >0.9 variant set containing fewer than 10 variants compared to 95% credible sets at RAF 50% and OR 1.5 –Fig 3A). At replicates with less strong association signal, stringent r² thresholds (0.9, and, to a lesser extent, 0.8) often resulted in smaller fine-mapped variant sets than those generated by the approximate Bayesian approach (Fig 3A). However, the smaller sets for the r² approach at lower OR and RAF were accompanied by a substantial increase in the false-positive rate (e.g. 24% of r² >0.9 sets with fewer than 10 variants do not actually contain the causal variant at RAF 10% and OR 1.2 –Fig 3A). This increase in false-positives was not seen using approximate Bayesian credible sets (Fig 3A).

Trans-ethnic fine-mapping

Trans-ethnic datasets are widely promoted as a useful adjunct to fine-mapping approaches. We therefore explored the value of adding samples from a distinct ancestral group, focusing on individuals of African descent. The reduced LD typically observed in African-descent populations should support improved fine-mapping, at least at those loci where the same causal variants are segregating across ancestries. To investigate this, we took the same design of 10 studies, each of 1000 cases and 1000 controls, but generated some to all of these studies (1, 3, 5 or 10) using the Yoruba (YRI) component of 1000 Genomes. The simulated causal variant was kept identical to that in the CEU simulations, and with the same effect size. However, the RAF for the causal variant in the YRI haplotypes diverged, and was typically lower than that observed in CEU. We focused these simulations on the less extreme GWAS scenarios–causal variant RAFs of 10%, 20% at OR = 1.2 (defined by CEU data)–and saw a marked improvement in fine-mapping resolution compared to the equivalent CEU-only study. For example, in an analysis of 5 CEU and 5 YRI samples, the probability that the lead GWAS variant was also the causal variant increased 1.7-fold (27% to 46%; S3 Fig) for RAF of 10% and 1.3-fold (45% to 60%; S3 Fig) for RAF of 20%. The increased fine-mapping resolution was also reflected in the credible sets: the number of successfully refined loci (< 10 variants) increased on average by 1.5-fold (RAF 10%) and 1.3-fold (RAF 20%) in the 50% YRI design compared to a CEU-only study (Fig 3B). Failure to see incremental improvements in fine-mapping resolution as YRI proportion increased (the results for 50% YRI are better than for 100% YRI) could reflect the advantage in signal localization possible from analyses that can benefit from the divergent LD patterns across the two ethnicities. However, it might also be due to the causal variant RAF being derived from the CEU population: as demonstrated in the broad evaluation of the properties of approximate Bayesian fine-mapping above, ABFs are dependent on power, and substantially lower risk allele frequencies in the YRI population result in loss of association signal. Overall, these results confirm the utility of multi-ethnic design for fine-mapping purposes, at least when the assumption of a shared causal allele is realized.

Inclusion of functional priors in fine-mapping

With the emergence of genome-wide functional annotations, such as those generated by the ENCODE, GENCODE and NIH Roadmap Epigenomics projects, these data can now be used to inform fine-mapping [14]. We considered whether including such prior information in the approximate Bayesian framework would further improve its performance. For illustration purposes, we chose to set an elevated prior on exonic variants, but any other functional annotation for which there is evidence of disproportionate functional impact, such as islet enhancers in type 2 diabetes [15], could also have been used. We simulated one thousand 1Mb random regions containing a causal coding variant of OR 1.2 and RAF 10% as described (see Methods), but in these replicates the causal variant was limited to exonic sequence. This was followed by fine-mapping with or without a functional prior of ten-fold greater probability on coding variants–roughly corresponding to the fold over-representation of coding variants observed in GWAS studies [16]. The weighted approach resulted in a 1.4-fold reduction in the 95%, and 1.5-fold reduction in the 99% credible set size compared to non-weighted sets derived from the same data (S4A Fig). In line with this, there was an increase in the percentage of successfully fine-mapped loci in the weighted scenario, with 35.8% of the weighted 95% credible sets containing fewer than ten variants, compared to 26.9% for the non-weighted sets (S4B Fig). For the 99% credible sets, the rates of successful fine-mapping were 25.4% and 17.0% respectively (S4B Fig). Using a model-based approach, it has been shown that, when causal variation was limited to small genomic regions (100 loci of 10kb each) containing a large amount of the total trait variance (25%)[16], functional priors increased fine-mapping performance. Our results show that similar improvements in fine-mapping results can be obtained using the approximate Bayesian approach at loci containing variants which explain much less of the total heritability.

Fine-mapping in loci with multiple causal variants

All the above simulations assume a single causal variant at each locus. To determine how the approximate Bayesian approach would deal with the presence of multiple signals at a locus, unbeknown to the investigator, we simulated 1000 random regions containing two distinct causal variants of equal RAF (10%) and effect size (OR 1.2). As might be expected, the size of the 95% credible sets showed a 1.3-fold increase (median 15 versus 19 variants with a single versus two causal variants present), whereas the 99% credible sets increased by 1.5-fold (24 versus 35 variants–S3C Fig). This was accompanied by a reduction in the number of successfully refined loci (1.3-fold; S3D Fig). However, this still meant that at 30.5% of replicate loci at least one causal variant was included in a 95% credible set containing fewer than ten variants–only in 5.2% were both causal variants present in such a set. In practice, a preliminary round of conditional analysis would allow such instances of multiple association signals at the same locus to be detected, and fine-mapping efficiency could then be maximized by considering each of the component signals separately.

Fine-mapping behavior on empirical data

Finally, we used an empirical data set to investigate if we could recapitulate the effectiveness of the fine-mapping observed in the simulations. We applied the approximate Bayesian approach (as described in the Methods) to data for twenty six non-MHC loci genotyped at high density (using the Illumina Immunochip with subsequent 1000 Genomes European ancestry imputation) for 9,049 cases and 13,607 controls of European origin from a published association study for ankylosing spondylitis (AS) [5]. The mean RAF 32% (range 5–48%) and OR 1.17 (1.11–1.65) of the reported lead variants at these loci were broadly in line with the simulated datasets. Approximate Bayesian fine-mapping resulted in median 95% and 99% credible sets containing 20 (1–295) and 38 (2–1,113) variants, respectively (S1 Table).

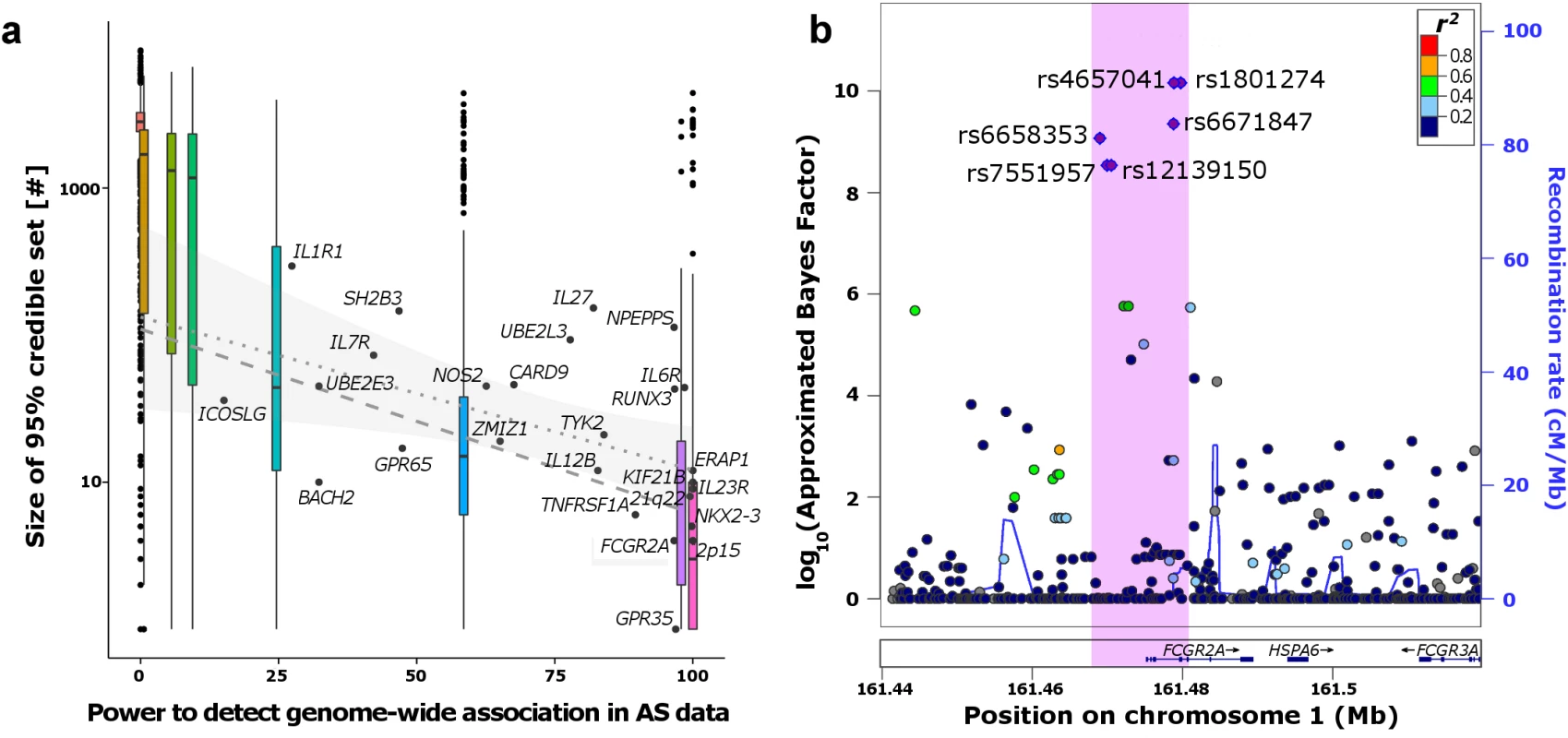

In line with the simulations, the success of fine-mapping across these 26 loci was correlated with the effect size and RAF at each locus (and hence with the power to detect the locus in association testing–Fig 4A). Several of the loci that lie most outside the interquartile range of observed 95% credible set sizes in the simulations show extensive LD: index variants at the IL27, NPEPPS and SH2B3 loci all are in LD (r²>0.1) with a proportion of variants in the 1Mb interval that compare to the top 10 quantile of simulated loci.

Seven of the twenty six loci (27%) were reduced to fewer than ten 95% credible variants (S1 Table). Overall, twenty four of the twenty six credible sets derived from our European-only analysis included the lead variant reported in the larger multi-ethnic meta-analysis from Cortes et al. [5]. One example of our approximate Bayesian approach revealing strong functional candidates can be found at the FCGR2A locus. The 99% credible set for this locus, which is associated not only with AS, but with a range of other autoimmune conditions [5,17], contained only six variants spanning 11kb of the promoter region and first 3 exons of FCGR2A (Figs 4B and S5). One of these six variants within the credible set was a missense variant (rs1801274) in FCGR2A, which encodes an immunoglobulin Fc receptor gene found on the surface of many immune response cells.

In conclusion, simulated and empirical data analyses demonstrate that fine-mapping represents an effective strategy for causal variant localization, at a subset of loci at least. The simulations also emphasize that trans-ethnic study designs can improve resolution further. It is still true that the vast majority of GWAS data is generated from individuals of European descent, and even trans-ethnic studies such as Cortes et al. generally contains only a modest non-European contribution (~14% of the total sample size). Therefore, empirical assessment of the full value of trans-ethnic over ethnic-specific fine-mapping will ultimately depend on the generation of large scale non-European GWAS data.

The simulations clearly show that fine-mapping is sample size dependent, so the utility of this approach is dictated by the availability of large-scale data. Fine-mapping resolution is most precise at strong association signals, such that for a variant with allelic OR of 1.2 and RAF of 50%, fine-mapping in 10,000 cases and 10,000 controls of European origin can be expected to reduce the credible set to fewer than ten variants at around 60% of loci. For less strong signals, resolution is typically less good, but, even here, the generation of well-calibrated credible sets facilitates integration with genomic annotation data. Indeed, one advantage of the approximate Bayesian framework used here is that prior information from external data resources such as ENCODE [18], can readily be included to upweight highly-annotated variants. This can help prioritize specific signals and aid the selection of appropriate functional assays for follow-up. In addition, fine-mapping strategies utilizing ABFs are computationally inexpensive and can be applied to publicly available association summary statistics from GWAS data without the need to access individual level genotypes. This should allow rapid deployment of fine-mapping analyses to existing GWAS data sets, and encourage efforts to convert common variant GWAS data into an improved understanding of disease biology.

Methods

Design of the simulations pipeline

We used sequence data from 85 CEU individuals from 1000 Genomes Phase 1, release 3[4] (single nucleotide variants only), to simulate 1Mb autosomal genomic regions with HAPGEN2 [19]–an algorithm which resamples known haplotypes and thus maintains experimentally-derived LD patterns. When evaluating the effect of multi-ethnic study design on the fine-mapping resolution, one, three, five or all of the ten studies were simulated based on haplotypes from 88 YRI rather than 85 CEU individuals from 1000 Genomes Phase 1, release 3.

One thousand non-overlapping 1Mb regions were randomly selected from the mappable human genome reference. In the center of each region, causality was assigned to a single causal variant of specified risk allele frequency (RAF; 50%, 20%, 10% or 5%) with an additive phenotypic effect (OR 1.5, 1.2, 1.1 and 1.0, the last corresponding to the null model of no association). In the evaluation of the impact on fine-mapping of multiple causal variants in a region, 1000 regions containing two distinct variants (CEU r²<0.05) with a MAF~10% in the central 750kb of the 1Mb interval were selected. Haplotypes were simulated using HAPGEN2 with, with each of the two variants assigned an additive phenotypic effect (OR = 1.2). For each RAF/OR parameter setting, genotypes were generated for ten “studies” of 1,000 cases and 1,000 controls for each of the one thousand “replicate” genomic regions. Case-control association analysis was performed by logistic regression under an additive model, implemented in SNPTEST, and summary statistics from the ten studies aggregated by fixed-effects meta-analysis using GWAMA [20].

We performed these analyses using an unfiltered set of 1000 Genome-derived genotypes, equivalent to an association study performed on genome-wide sequence data (“gold standard” scenario). To represent a more typical fine-mapping scenario, variants from each study were downsampled to the content of an Illumina HumanOmni2.5 BeadChip array (“GWAS” scenario). This is also a similar density to that achieved within established GWAS regions using recent custom arrays such as Metabochip [13] or Immunochip [21]. To capture the effects of genotyping failure, downsampling was performed with and without 5% random variant failure per cohort (n = 1000 cases or controls) in each simulated GWAS (“GWAS with failure” scenario). These GWAS genotypes were then imputed (using IMPUTE2 [22]) up to the 1000G Phase 1, all ancestries release 3 panel before analysis as above. Only well-imputed variants (INFO score >0.4) with a MAF > = 1% were included in further analyses.

Deriving approximate Bayesian factors from GWAS summary statistics

While privacy concerns mean that individual-level genotype data for GWAS are generally unavailable to researchers, large amounts of summary statistics are available online. Summary data do not allow full specification of disease and null models, but the information contained within can be used in a Bayesian framework by instead approximating Bayes’ factors as proposed by Wakefield in 2007 [12]. This approximation assumes that the likelihood distribution for association is summarized by the regression parameters with a prior for association centered on 0 (which corresponds to the null of no association) and variance dependent on W, which describes the strength of association conditional on its existence. The value for W is set at 0.4, which equates to a 95% belief that the relative risk corresponding to departure from the null model is less than 1.5.

As demonstrated by Wakefield [12], this results in an equation for the approximate Bayes Factor (ABF) given as

where Z is the Z-statistic describing the strength of association derived from the regression and r a shrinkage factor

defining the ratio of prior variance to total variance. The resulting ABF is dependent the effect size through Z and the power of the study through the variance of the effect V. ABFs for variants with missing genotype data were corrected by rescaling variance to the maximum observed effective sample size (provided sample size was within 30% of the maximum observed sample size). Posterior probabilities for association were calculated based on the ABFs all variants in each of the simulated regions.

Power calculations

For assessing the relation between fine-mapping performance and power to detect genome-wide association, we used Quanto v1.2.4 (available from http://biostats.usc.edu/Quanto.html). The software was run in “Gene only” setting, assuming a disease prevalence of 0.55% in line with that of ankylosing spondylitis. The power for each combination of OR and RAF, for both simulations and empirical data, was calculated individually.
