Preferential Genome Targeting of the CBP Co-Activator by Rel and Smad Proteins in Early Embryos

Summary

CBP and the related p300 protein are widely used transcriptional co-activators in metazoans that interact with multiple transcription factors. Whether CBP/p300 occupies the genome equally with all factors or preferentially binds together with some factors is not known. We therefore compared Drosophila melanogaster CBP (nejire) ChIP–seq peaks with regions bound by 40 different transcription factors in early embryos, and we found high co-occupancy with the Rel-family protein Dorsal. Dorsal is required for CBP occupancy in the embryo, but only at regions where few other factors are present. CBP peaks in mutant embryos lacking nuclear Dorsal are best correlated with TGF-ß/Dpp-signaling and Smad-protein binding. Differences in CBP occupancy in mutant embryos reflect gene expression changes genome-wide, but CBP also occupies some non-expressed genes. The presence of CBP at silent genes does not result in histone acetylation. We find that Polycomb-repressed H3K27me3 chromatin does not preclude CBP binding, but restricts histone acetylation at CBP-bound genomic sites. We conclude that CBP occupancy in Drosophila embryos preferentially overlaps factors controlling dorso-ventral patterning and that CBP binds silent genes without causing histone hyperacetylation.

Introduction

CREB-binding protein (CBP) and its paralog p300 are widely used transcriptional co-regulators with histone acetyltransferase (HAT) activity (reviewed in [1]). Over 400 interaction partners have been described for these proteins, including transcription factors of all major families, and they are therefore believed to be present at many transcriptional regulatory regions. Indeed, chromatin immunoprecipitation (ChIP) of p300/CBP has been used to successfully predict novel enhancers (e.g. [2], [3]). Although p300/CBP can interact with most transcription factors in vitro, it is not known whether p300/CBP preferentially associates with some factors in vivo. Here, we use the early Drosophila melanogaster embryo to compare the genomic distribution of p300/CBP with 40 transcription factors involved in embryonic patterning and cell differentiation.

Drosophila has one CBP/p300 ortholog, also known as nejire [4]. Chromatin binding of Drosophila CBP has recently been used to identify novel enhancers that are active in embryos [5]. By comparing CBP occupancy at different stages of Drosophila development, around 14 000 CBP peaks were identified that may represent regulatory DNA sequences. CBP binding was found to correlate with active chromatin, including histone acetylation and H3K4 methylation [5]. Drosophila CBP has been implicated in Hedgheog, Wnt, and TGF-ß signaling, as well as in dorsal-ventral patterning of early embryos [reviewed in 6]. The loss of function allele nejire³ (nej³) is cell-lethal, whereas the hypomorphic nej¹ allele reduces CBP expression approximately two-fold, and causes embryonic patterning phenotypes [7]–[11]. These can be attributed to reduced signaling by the TGF-ß molecule Decapentaplegic (Dpp), in turn caused by impaired expression of the Tolloid (Tld) protease in nej¹ embryos [10]. In the absence of Tld, the Short-gastrulation (Sog) inhibitor prevents the Dpp ligand from signaling through its receptors. Interestingly, the acetyltranferase activity of CBP appears dispensable for tld gene activation [9].

Embryonic dorsal-ventral patterning is controlled by an intra-nuclear concentration gradient of Dorsal, a Rel-family transcription factor related to NF-κB. Over 50 Dorsal target genes are known, constituting one of the best understood gene regulatory networks in animal development (reviewed by [12]). Dorsal enters ventral nuclei at high levels in response to signaling by the transmembrane receptor Toll. The Toll ligand Spätzle is present in the periviteline space surrounding the embryo, at high concentrations on the ventral side and progressively lower concentration in lateral and dorsal regions [13]. A proteolytic cascade is responsible for generating active Spätzle ligand, and mutations that disrupt this cascade, such as in the Pipe sulfotransferase and in the protease Gastrulation defective (gd), result in absence of Toll signaling and failure of Dorsal to enter the nucleus (reviewed in [14]). In such mutants, the entire embryo is converted to presumptive dorsal ectoderm tissue. By contrast, a constitutively active form of Toll [15], Toll^10B, results in high Dorsal concentration in all embryonic nuclei, generating embryos consisting entirely of presumptive mesoderm. In embryos derived from Toll^rm9/rm10 mutant mothers [15], Dorsal enters all nuclei at an intermediate level corresponding to that found in the lateral, neuroectoderm region. Dorsal regulates gene expression in a concentration-dependent manner (reviewed by [16]). Target genes such as twist (twi) and snail (sna) with low-affinity bindning sites are turned on in ventral, presumptive mesodermal cells where Dorsal concentration is highest. When Dorsal sites are positioned in proximity to AT-rich binding sites, Dorsal is converted to a repressor that recruits the co-repressor Groucho and thereby prevents expression of dorsal ectoderm targets such as zerknüllt (zen), tld, and dpp in lateral and ventral parts of the embryo [17]–[19]. This restricts Dpp-signaling to the dorsal ectoderm where it sub-divides this tissue by regulating gene expression in a concentration-dependent manner [8].

CBP can function as a Dorsal co-activator as they genetically interact and bind each other in vitro [7]. However, to what extent Dorsal relies on CBP for gene activation in vivo is not known. Here, we describe a high concordance in genome occupancy of CBP and Dorsal. We show that CBP occupancy differs in mutant embryos where Dorsal fails to enter the nucleus, and that this difference often correlates with changes in gene expression. Moreover, CBP occupancy in mutant embryos coincides with regions bound by the Smad protein Medea, a mediator of Dpp-signaling (reviewed in [20]). Thus, genome occupancy of CBP is most strongly associated with dorsal-ventral axis specification in Drosophila embryos, consistent with earlier studies on CBP mutant phenotypes. Although CBP associates with some Dorsal-target genes in tissues where they are not expressed, this does not result in histone acetylation. We find that Polycomb-repressed H3K27me3 chromatin is present at the Dorsal-target genes, which does not preclude CBP binding, but restricts histone acetylation at these CBP-bound genomic sites.

Results

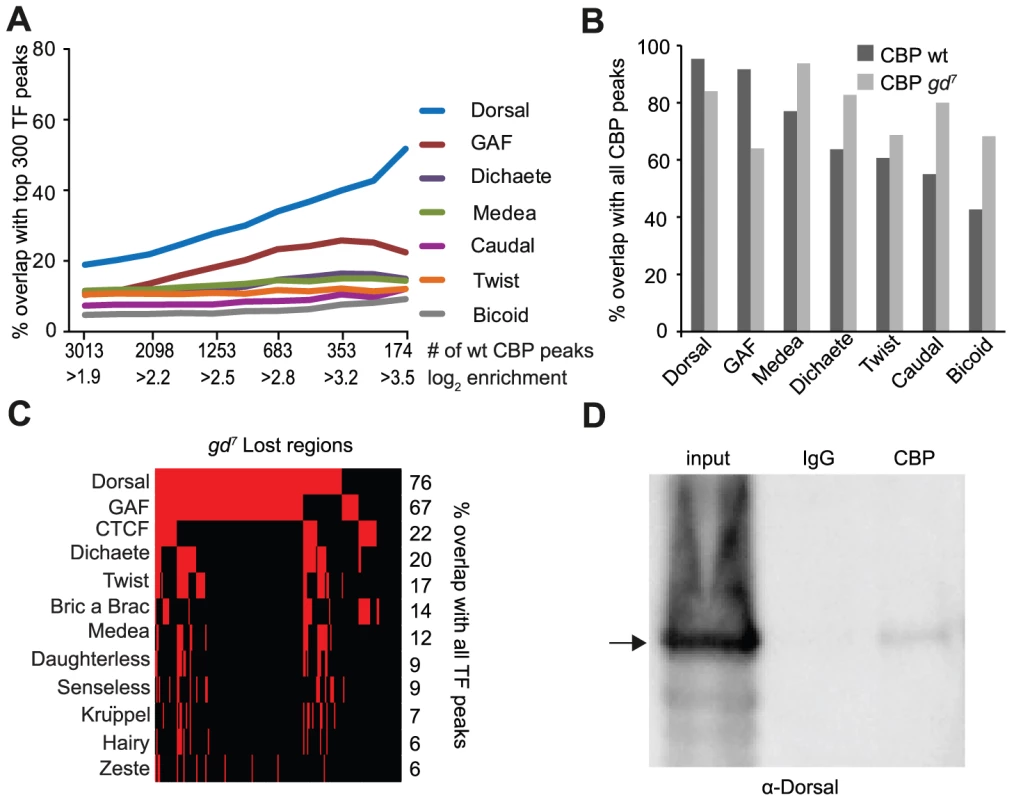

CBP-binding sites highly overlap Dorsal-bound genomic regions in early Drosophila embryos

We compared the published CBP binding data in Drosophila 0–4 hour embryos [5] to regions bound by 40 sequence-specific transcription factors mapped at a similar stage of embryo development [21], [22]. There is a particularly strong correlation between genome occupancy of CBP and the key activator of dorsal-ventral patterning, the transcription factor Dorsal. Eighty-two percent of the CBP peaks overlap a Dorsal-bound region (Table S1). To normalize for different number of identified regions for the 40 factors, we used the 300 most strongly bound regions for each factor in comparison with all CBP peaks. This shows that the CBP peaks still overlap best with regions occupied by Dorsal (Table S1). To further investigate this overlap of CBP and Dorsal occupancy, we performed CBP ChIP-seq with chromatin extracts from 2–4 hour old wild-type and mutant embryos where Dorsal fails to enter the nucleus (gd⁷). The CBP serum is affinity-purified and CBP-specific, and quantitatively similar levels of CBP occupancy is found at several loci with another CBP antibody (Figure S1). To calculate peaks and bound regions, the 5% highest enrichment values in both wild-type and gd⁷ embryos were extracted, corresponding to a cut-off of 1.9 in wild-type and 1.9 in gd⁷. High-confidence peaks were then defined as regions of at least 200 bp with enrichment values of at least 1.9 (in log₂ scale).

We identified 3013 high-confidence peaks in wild-type and 1939 CBP peaks in gd⁷ embryos. These CBP peaks were compared to the occupancy of the previously mapped 40 transcription factors [21], [22]. We divided the CBP peaks into bins of increasing cut-off, so that fewer but stronger CBP peaks are shown along the x-axis, and plotted the overlap with the 300 strongest regions for each factor. As shown in Figure 1A and Table S2, the CBP-peaks in wild-type embryos overlap most extensively with Dorsal. Furthermore, the stronger the CBP-peaks, the better the overlap with Dorsal. Fifty-two percent of the 174 strongest CBP-peaks overlap the top 300 Dorsal-bound regions (Figure 1A). By contrast, the CBP peaks do not overlap regions bound by transcriptional activators that pattern the anterior-posterior axis, such as Bicoid and Caudal, to more than 10–15 percent (Figure 1A). Similar results were obtained with unprocessed CBP data, showing that the high overlap with Dorsal is not due to the way we defined the CBP-bound regions (Table S3). We then determined how many of the 300 strongest regions for each factor overlap all CBP peaks in wild-type. As shown in Figure 1B, 95% of the 300 strongest Dorsal peaks overlap any of the 3013 regions bound by CBP in wild-type embryos. Thus, virtually all of the strong Dorsal-binding regions in the genome are also occupied by CBP. Since a lot of transcription factors bind to many of the same genomic sites [reviewed in 23], we expected other factors to overlap the CBP peaks to a similar degree as Dorsal. However, we find that other factors do not overlap CBP-bound regions to the same extent as Dorsal in wild-type embryos, although GAGA-factor (GAF) binding regions also overlap the CBP-peaks extensively (Figure 1A, 1B and Table S4). We conclude that Dorsal and GAF are associated with CBP to a larger extent than other factors in early embryos.

To investigate if Dorsal is required for CBP's association with the genome, we next compared CBP occupancy in wild-type and gd⁷ mutant embryos. As shown in Figure 1B, fewer of the Dorsal and GAF binding regions overlap CBP peaks in gd⁷ mutant embryos than CBP peaks in wild-type. By contrast, many other factors overlap the gd⁷ CBP peaks better than wild-type peaks. This indicates that CBP occupies regions bound by multiple factors to a larger extent in gd⁷ than in wild-type embryos (see below). In gd⁷ embryos that lack Dorsal in the nucleus, CBP continues to associate with 84% of Dorsal-binding regions, suggesting that other factors maintain CBP binding at these places in the absence of Dorsal. However, CBP occupancy at the top 300 Dorsal-binding regions is significantly lower in gd⁷ embryos compared to wild-type (paired T-test p = 5.22×10⁻⁹), showing that CBP occupies many Dorsal targets in gd⁷ embryos less strongly. We therefore extracted the regions where the CBP-peaks were completely lost in gd⁷ embryos, and compared them to all of the regions bound by the 40 factors in wild-type (not only the top 300 regions). High-confidence CBP peaks in wild-type with a CBP enrichment of less than 0.5 (in log₂ scale) in gd⁷ were considered to be completely lost. It was found that 76% and 67% of the peaks that are lost in gd⁷ embryos overlap Dorsal or GAF respectively, but that no other factor overlaps these CBP-peaks to more than 22% (Figure 1C and Table S5). This indicates that Dorsal is important for targeting CBP to chromatin in Drosophila embryos, and since Dorsal and GAF co-occupy many of these regions (Figure 1C), that GAF may cooperate with Dorsal in specifying CBP binding. CBP and Dorsal can be co-immunoprecipitated from wild-type embryos (Figure 1D), indicating that Dorsal may directly bring CBP to its genomic binding sites. Taken together, our results suggest that Dorsal targets CBP to many sites throughout the genome.

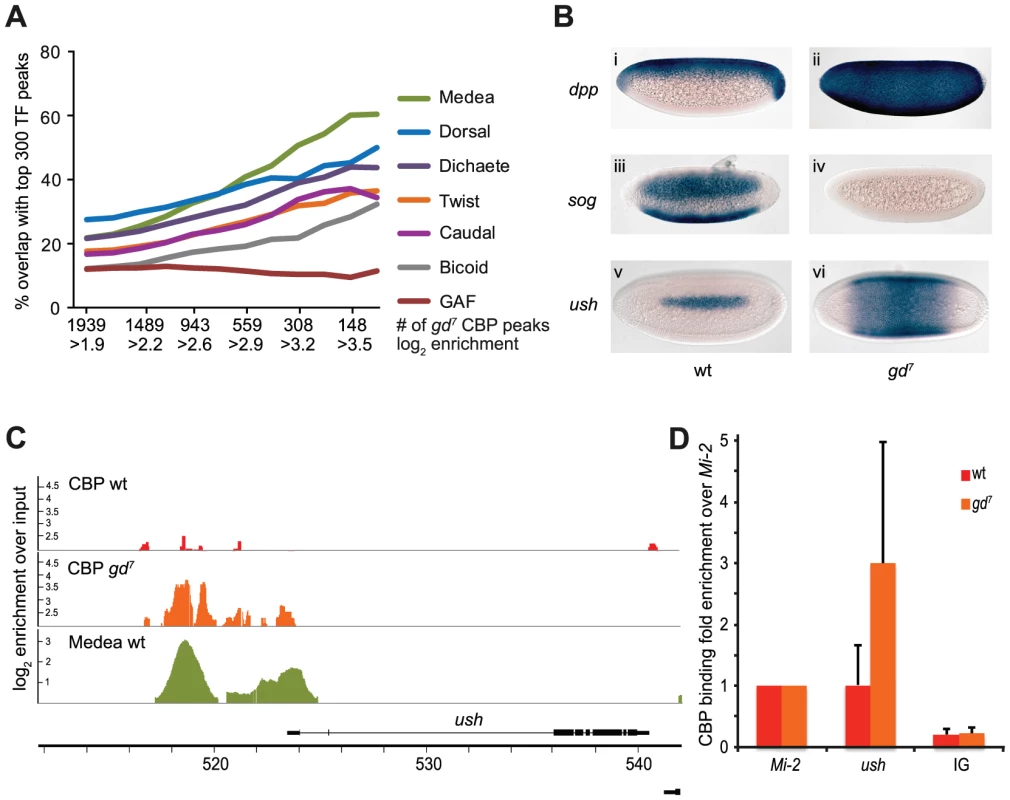

Dpp-target genes are highly occupied by CBP in embryos lacking nuclear Dorsal

To identify Dorsal-independent transcription factor sites that are co-occupied by CBP, we next compared the CBP peaks in gd⁷ embryos to regions bound by the 40 transcription factors in wild-type embryos. Figure 2 shows that the best overlap of the strong CBP peaks in gd⁷ embryos is with the Smad4 protein Medea (Med), a transducer of Dpp-signaling (Figure 2A and Table S2). In gd⁷ embryos, all cells are converted to dorsal ectoderm, the tissue where Dpp-signaling occurs. Consequently, expression of dpp is expanded, whereas the expression of the Dpp-inhibitor sog is absent (Figure 2B). This results in expanded expression of Dpp-target genes in gd⁷ mutant embryos (u-shaped (ush) in Figure 2B, as well as Race and pannier in Figure S2). In wild-type embryos, these Dpp-target genes are expressed in a restricted number of cells in dorsal parts of the embryo, whereas in gd⁷ mutants they become expressed throughout the entire circumference of the embryo. Thus, Dpp-signaling occurs in the entire embryo in gd⁷ mutants, thereby providing a genetic background in which binding of CBP to Dpp-target genes can be visualized.

As illustrated in Figure 2C, CBP occupancy of the Dpp-target gene ush is hardly detectable in wild-type embryos, but highly evident in gd⁷ embryos. Similar results were obtained for other Dpp-target genes, including Race, tail-up, GATAc, and pannier (Figure S2). As expected, the CBP peaks are found at Med-binding regions at Dpp-target genes (Figure 2C and Figure S2). We confirmed that CBP occupies Dpp-target genes to a larger extent in gd⁷ embryos than in wild-type by ChIP-qPCR (Figure 2D and Figure S2, T-test of CBP at ush in gd⁷ vs wild-type, p = 0.045, at pnr p = 0.012). Our results indicate that CBP becomes recruited to Dpp-target genes upon signaling, consistent with previous observations that Dpp-signaling is impaired in CBP mutant embryos [8], [10], [11]. We conclude that whereas Dorsal and CBP binding strongly coincide genome-wide in wild-type embryos, CBP associates with Smad binding sites genome-wide upon increased TGF-ß signaling. This shows that the gene regulatory networks controlled by the two key morphogens in dorsal-ventral patterning, Toll/Dorsal and Dpp/Medea, are to a larger extent than others associated with CBP in early embryos.

In embryos lacking nuclear Dorsal, CBP occupancy is reduced at regions where Dorsal, but few other factors, binds in wild-type embryos

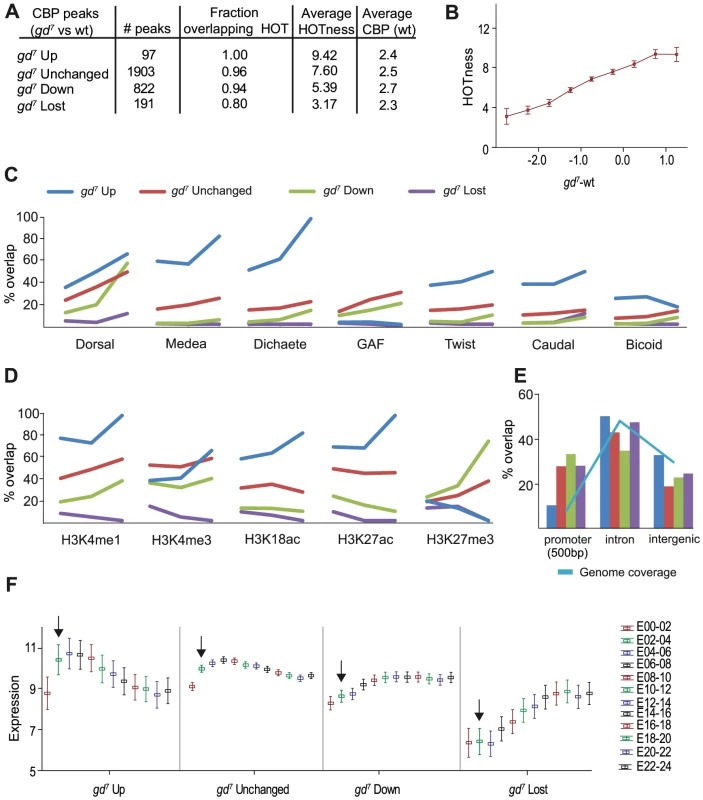

We next separated the CBP-peaks into those that remain unchanged between wild-type and gd⁷, those where CBP binding increases at least 2-fold in gd⁷ versus wild-type (gd⁷ Up), those where CBP binding decreases at least 2-fold in gd⁷ versus wild-type (gd⁷ Down), and those that are completely lost in gd⁷. We first looked at how many other factors that occupy these CBP-bound regions, measured in their HOTness. High occupancy target (HOT) regions are defined as genomic sites binding at least one of the 40 transcription factors [22]. The minimum HOTness value is 1 and increases with the number of factors and the number of sites for each factor found within the genomic region. Very HOT regions, or hotspots, are found across the Drosophila, C. elegans, and human genomes, and are associated with open chromatin, but their function is not understood [22]. As shown in Figure 3A, most CBP-peaks overlap a HOT region. CBP-peaks that increase in gd⁷ have a high HOTness, whereas unchanged, down and lost in gd⁷ are decreasingly HOT. This is also illustrated in Figure 3B, where the change in CBP occupancy in gd⁷ versus wild-type is plotted against HOTness. Remarkably, there is an almost perfect correlation between the difference in CBP occupancy in gd⁷ versus wild-type embryos and mean HOTness. Thus, in gd⁷ embryos, CBP is present at regions where many factors are bound, but decreases or is lost at regions bound by only few factors. However, the highest mean CBP occupancy in wild-type is found at regions where CBP binding decreases in gd⁷ embryos (Figure 3A), suggesting that HOTness alone does not determine how much CBP that binds a particular genomic region. Rather, the HOTness determines if CBP occupancy will change in the absence of Dorsal.

We then compared the different classes of CBP-bound regions with the top 300 regions bound by the 40 transcription factors, as well as with histone modifications, gene features, and gene expression. We divided the CBP peaks into three bins of increasing cut-off, so that fewer but stronger CBP peaks are shown along the x-axis. The first bin represents all CBP peaks within the respective class, and the third bin the ∼5% strongest peaks. For the second bin we used an enrichment cut-off midway between the cut-offs for bin one and three. The bins were used to calculate % overlap with other genomic features.

Regions where CBP binding increases in gd⁷ mutants overlap most factors extensively, consistent with the gd⁷ Up regions having the highest HOTness (Figure 3A and 3C). However, the gd⁷ Up regions do not overlap the top 300 GAF-binding sites (Figure 3C). As expected from the analysis in Figure 2, CBP-peaks that increase in gd⁷ show a high overlap with Medea. Surprisingly, the gd⁷ Up peaks that are strongest in wild-type overlap the Sox-protein Dichaete even better than binding regions for Medea (Figure 3C). Dichaete is involved in both anterior-posterior patterning by regulating pair-rule gene expression, and in dorsal-ventral pattering where it is expressed in medial and lateral regions of the neuroectoderm [reviewed by 24]. Our results indicate that Dichaete-regulated genes become associated with CBP in gd⁷ embryos.

CBP-peaks that increase in strength in gd⁷ embryos (gd⁷ Up) strongly overlap H3K4me1, a histone modification associated with enhancer sequences, as well as the “active” histone marks H3K18ac and H3K27ac, but are depleted of H3K27me3-repressed chromatin (Figure 3D). Almost all of the gd⁷ Up CBP-peaks map to introns and intergenic sites, and very few to promoter sequences (Figure 3E). Interestingly, mean expression in 2–4 hour wild-type embryos for genes associated with gd⁷ Up regions are higher than for genes associated with regions where CBP binding decreases or is lost in gd⁷ (Figure 3F). Furthermore, there is a decrease in mean expression of genes associated with gd⁷ Up regions during the course of development, whereas expression of genes where CBP binding is reduced or lost increases during development (Figure 3F). Taken together, these analyses suggest that the genomic regions where CBP-binding increases in gd⁷ embryos are HOT intronic and intergenic enhancer sequences of highly expressed genes regulated by Medea and Dicheate.

Regions where CBP binding does not change between wild-type and gd⁷ overlap best with Dorsal, GAF, and Medea, but some overlap is also found with other factors, in agreement with the high HOTness of these regions. Unchanged regions overlap well with most histone modifications, including H3K4me1 (enhancers) and H3K4me3 (active promoters), histone acetylation, but also with H3K27me3 (Polycomb-repressed chromatin) (Figure 3D). Unchanged peaks are found in introns and intergenic regions, but they are also common in promoters (Figure 3E). Like gd⁷ Up regions, mean expression for genes associated with unchanged regions is high in 2–4 hour wild-type embryos, and decreases at later stages of development.

Regions where CBP binding is decreased in gd⁷ embryos overlap mainly Dorsal and GAF (Figure 3C). Especially the gd⁷ Down CBP peaks that are strongest in wild-type overlap Dorsal extensively, but show little overlap with other factors. Thus, in embryos where Dorsal fails to enter the nucleus (gd⁷), CBP binding is selectively reduced at regions where Dorsal, but few other factors bind. Interestingly, strong CBP-peaks that are decreased in gd⁷ embryos (gd⁷ Down) overlap more with the inactive chromatin mark H3K27me3 than with the active histone marks H3K18ac, H3K27ac, and H3K4me3 (Figure 3D). The regions where CBP binding decreases in gd⁷ embryos are more often than other CBP regions found in promoters, but they also occur frequently in intronic and intergenic sequences (Figure 3E). Regions where CBP is reduced in gd⁷ embryos are associated with genes that are medium-expressed in wild-type 2–4 hour embryos, but whose expression increase during development. Together, this indicates that regions where CBP-binding decreases in gd⁷ embryos are associated with Dorsal-regulated tissue-specific genes that are silenced by repressive chromatin in tissues where they are not expressed (compare with the Dorsal-target gene twist below).

Unexpectedly, we found that the CBP peaks that are lost in gd⁷ overlap virtually none of the top 300 sites for the 40 transcription factors (Figure 3C and Table S2), although 76% of these peaks overlap a Dorsal-binding region (Figure 1C). Thus, CBP binding is lost in gd⁷ embryos from regions where Dorsal binds weakly in wild-type. Surprisingly, CBP-bound regions that are lost in gd⁷ poorly overlap all types of histone modifications (Figure 3D). The gd⁷ Lost regions are found in introns and intergenic sequences, but also in promoters (Figure 3E). Genes where CBP occupancy is lost in gd⁷ show the lowest mean expression in wild-type 2–4 hour embryos, but increases at later stages of embryogenesis (Figure 3F). It appears that regions where CBP occupancy is lost in gd⁷ embryos are found in low- and non-expressed genes that bind few other factors except Dorsal and GAF, and which are depleted in histone modifications.

Together, these analyses suggest that the four categories of CBP peaks occur at very different genomic sites. Regions where CBP occupancy is increased in gd⁷ embryos are found in intronic and intergenic HOT regions of highly expressed Medea- and Dicheate-regulated genes, and are depleted of GAF. Unchanged regions are found in both promoters and enhancers of highly expressed genes, and are associated with many different factors. Regions with decreased CBP occupancy in gd⁷ embryos are found in both promoters and enhancers of medium expressed genes. They are found predominantly where Dorsal, but few other factors bind and are regulated by H3K27 methylation. Finally, regions where CBP occupancy is lost are found in genes with low expression at regions devoid of chromatin modifications and most transcription factors except Dorsal and GAF.

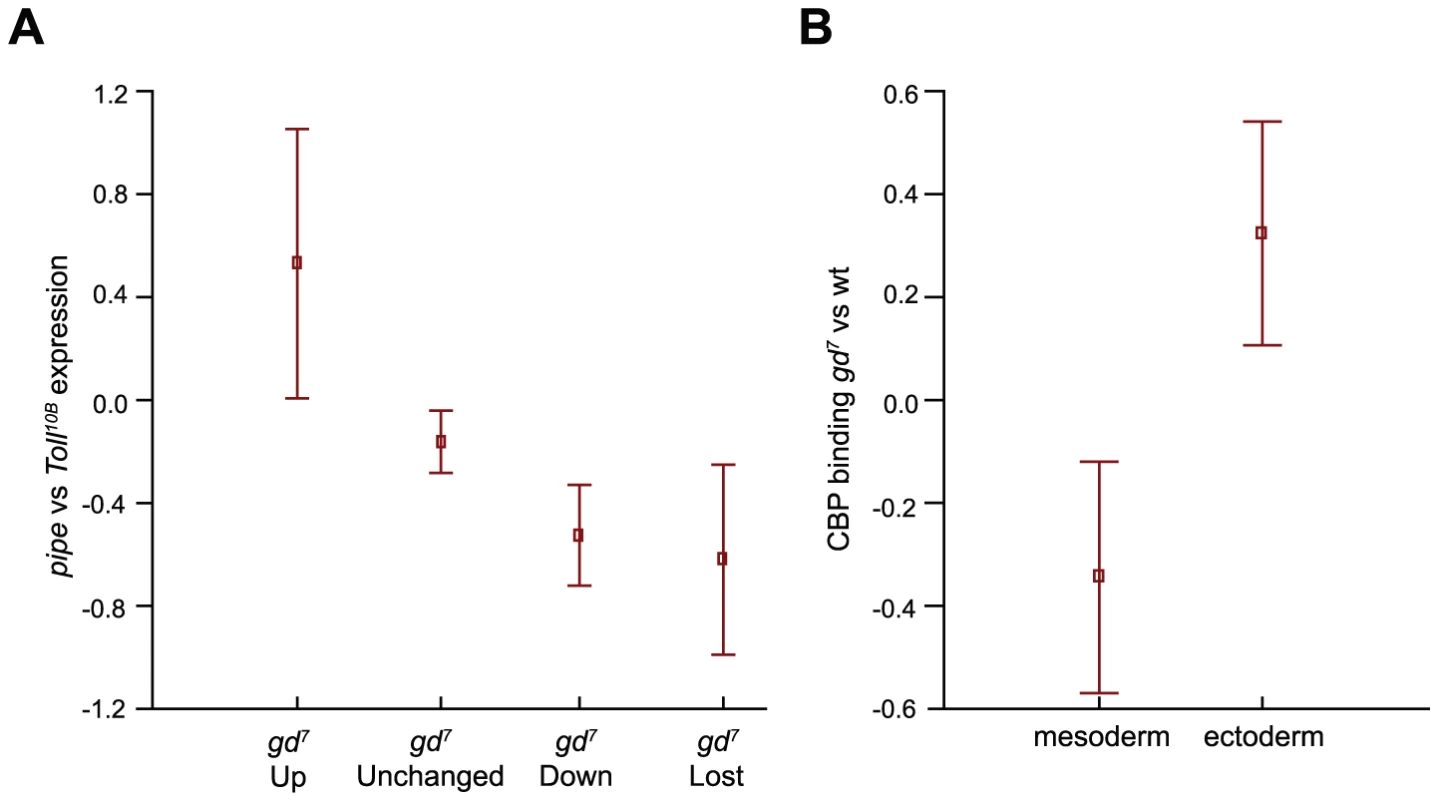

Differences in CBP binding between wild-type and mutant embryos correlate with changes in gene expression

Dorsal-regulated genes have previously been identified by comparing the difference in gene expression in pipe versus Toll^10B mutant embryos [25]. In pipe mutants, the proteolytic cascade leading to Toll ligand activation is not initiated, and just as in gd⁷ mutants, Dorsal protein does not enter the nuclei in these embryos. Toll^10B mutants on the other hand contain high levels of Dorsal in all nuclei. The difference in gene expression between the two represents Dorsal-dependent expression, and was plotted against changes in CBP occupancy between wild-type and gd⁷ mutant embryos (Figure 4A). All genes on the arrays used by Stathopoulos et al. [25] that overlapped a CBP bound region in wild-type or that had a CBP region within 500 bp were considered. This shows that at sites where CBP occupancy is increased in gd⁷ mutants compared to wild-type, the corresponding genes are on average up-regulated in pipe mutant embryos. Genes associated with regions where CBP occupancy does not change in gd⁷ embryos do not alter their expression significantly between pipe and Toll^10B mutants. By contrast, at regions where CBP occupancy is reduced or lost in gd⁷ mutants compared to wild-type, mean gene expression is decreased (Figure 4A). We then examined the difference in CBP occupancy between gd⁷ mutants and wild-type at regions that overlap Dorsal binding at mesoderm-targets (down-regulated in pipe and gd⁷) and dorsal ectoderm-targets (up-regulated in pipe and gd⁷) as defined in [25]. Figure 4B shows that mean CBP occupancy is decreased at Dorsal-targets in the mesoderm and increased at targets in the dorsal ectoderm in gd⁷ mutant embryos. Taken together, our results show that differences in CBP occupancy correlate well with changes in gene expression genome-wide.

Binding of CBP to silent genes does not lead to histone acetylation

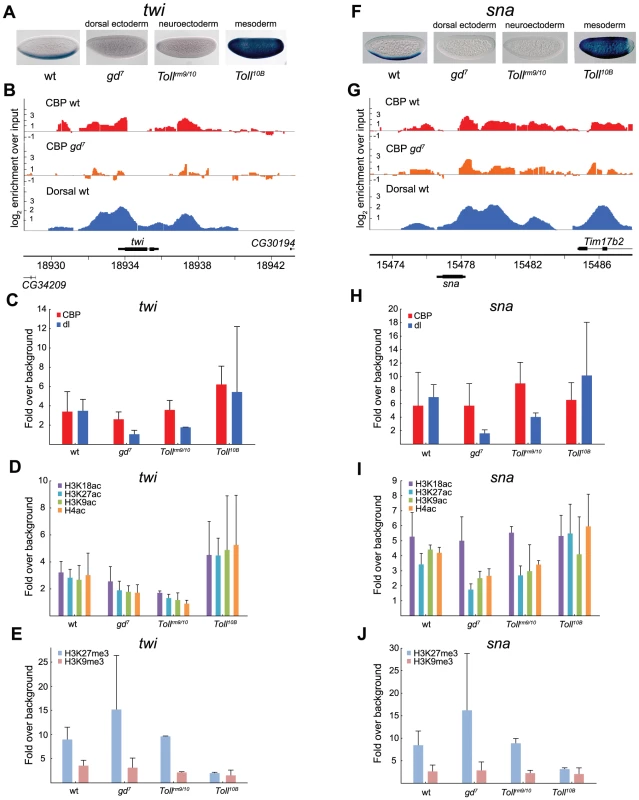

We wanted to compare changes in CBP occupancy to histone acetylation levels, and therefore looked closer at some of the best known Dorsal targets in the mesoderm and dorsal ectoderm. We compared histone modifications with CBP binding at these genes in gd⁷, Toll^rm9/rm10, and Toll^10B mutant embryos by ChIP-qPCR. In these mutant backgrounds the entire embryo is converted to dorsal ectoderm (gd⁷), neuroectoderm (Toll^rm9/rm10), or mesoderm (Toll^10B). We normalized the binding of Dorsal, CBP, and histone modifications to two intergenic regions, selected based on the absence of protein binding and histone modifications, and plotted the fold enrichment relative these intergenic sites. The histone modifications were additionally normalized to histone H3 levels (Table S6).

In the mesoderm, Dorsal targets such as twi and sna, are activated by high levels of Dorsal. These genes are therefore not expressed in gd⁷ and Toll^rm9/rm10 mutant embryos that contain no Dorsal or an intermediate concentration of nuclear Dorsal in the entire embryo. In Toll^10B mutant embryos Dorsal is present in high amounts and twi and sna are therefore expressed throughout the embryo (Figure 5A and 5F). Less CBP and less histone acetylation on H3K9, H3K18, H3K27, and on histone H4 is found at the twi promoter in gd⁷ embryos as compared to wild-type (Figure 5B–5D, T-test of all four histone acetylations in gd⁷ vs wild-type, p = 0.0042). This is consistent with the genome-wide correlation of reduced CBP occupancy with lower gene expression and lack of Dorsal protein (Figure 3 and Figure 4). Interestingly, in Toll^rm9/rm10 embryos, there is a further reduction in histone acetylation without a corresponding decrease in CBP binding, as compared to gd⁷ embryos (Figure 5D, T-test of histone acetylations in Toll^rm9/rm10 vs gd⁷, p = 0.020). This shows that the amount of CBP bound to a genomic region is not the only determinant of histone acetylation levels. In Toll^10B embryos, twi expression is turned on in the entire embryo, and CBP as well as histone acetylations are present in high amounts (Figure 5B–5D, T-test of CBP in gd⁷ vs Toll^10B, p = 0.0028, histone acetylations in gd⁷ vs Toll^10B, p = 0.00072).

Unexpectedly, CBP binding to the sna promoter is not decreased in gd⁷ mutant embryos compared to wild-type (Figure 5G and 5H), although Dorsal is absent and the gene not expressed (Figure 5F). By contrast, with the exception of H3K18ac, histone acetylation levels change in the different genetic backgrounds (Figure 5I, T-test of H3K9ac, H3K27ac, plus H4ac in wild-type vs gd⁷, p = 0.000011, gd⁷ vs Toll^rm9/rm10, p = 0.037, gd⁷ vs Toll^10B, p = 0.00033, Toll^rm9/rm10 vs Toll^10B, p = 0.041). We therefore measured histone lysine methylation at Dorsal-target genes, a modification mutually exclusive to lysine acetylation. Interestingly, we observed high amounts of H3K27me3 in gd⁷ and Toll^rm9/rm10 embryos (Figure 5E and 5J). This indicates that Polycomb-mediated repression is involved in keeping twi and sna off in the neuroectoderm and dorsal ectoderm. By contrast, H3K9me3, a mark for HP1-mediated repression, is absent on the twi and sna promoters in all three tissues (Figure 5E and 5J).

Interestingly, the high levels of H3K27me3 over the sna promoter in gd⁷ embryos does not prevent CBP binding, indicating that Polycomb-repressed H3K27me3 chromatin is compatible with CBP binding. We therefore conclude that whereas CBP binding is not prevented by H3K27me3-repressed chromatin, histone acetylation is restricted. This conclusion is reinforced by our results from Toll^rm9/rm10 mutants, where sna is also repressed and H3K27me3 present, and CBP binding not significantly different from that in other genotypes. Relative Toll^10B mutants, histone acetylation remains low in Toll^rm9/rm10 embryos (T-test of H3K9ac, H3K27ac, plus H4ac in Toll^rm9/rm10 vs Toll^10B, p = 0.041), which is likely explained by the higher amounts of H3K27me3 in Toll^rm9/rm10 as compared to Toll^10B embryos (Figure 5I and 5J, T-test of H3K27me3 in Toll^rm9/rm10 vs Toll^10B, p = 0.0025). We note that H3K18ac levels in mutant embryos correlate with changes in CBP amount to a better extent than other histone acetylations, indicating that H3K18 may be a major in vivo target for CBP's HAT activity.

The dorsal ectoderm targets tld and zen are repressed by Dorsal, and therefore more highly expressed in gd⁷ mutants that lack nuclear Dorsal, but completely repressed in Toll^rm9/rm10 and Toll^10B mutants, except at the embryonic poles (Figure 6A and 6F). In gd⁷ embryos, where these genes are expressed in more cells than in wild-type, binding of CBP is higher according to ChIP-seq (although not statistically significant by ChIP-qPCR) and acetylation of histones increases (Figure 6B–6D and 6G–6I, T-test of histone acetylations at tld in wild-type vs gd⁷, p = 0.00046, at zen in wild-type vs gd⁷, p = 0.0094). This is consistent with the genome-wide correlation of CBP occupancy and gene expression (Figure 4). In both Toll^rm9/rm10 and Toll^10B mutant embryos, tld and zen are repressed. Surprisingly, although CBP binding is stronger in Toll^rm9/rm10 than in Toll^10B embryos (T-test of CBP at tld in Toll^rm9/rm10 vs Toll^10B, p = 0.037, but not significantly so at zen), there is equivalent amounts of histone acetylation in Toll^10B embryos (Figure 6C, 6D and 6H, 6I). This may result from the high level of H3K27me3 in Toll^rm9/rm10 relative Toll^10B embryos (Figure 6E and 6J, T-test of H3K27me3 at tld in Toll^rm9/rm10 vs Toll^10B, p = 0.037, at zen in Toll^rm9/rm10 vs Toll^10B, p = 0.0016). Taken together, our analysis of Dorsal-target genes in different tissues shows that CBP can bind to these genes when they are silenced, but that this does not result in high levels of histone acetylation.

In conclusion, our results suggest, 1) that CBP binding does not always correlate with gene expression or Dorsal binding, 2) that H3K18 acetylation levels closely follow CBP-binding, 3) that changes in histone acetylation can occur without a corresponding change in CBP binding, 4) that CBP binding is not prevented by the presence of H3K27me3 (Polycomb)-repressed chromatin, 5) but that H3K27me3-chromatin may restrict histone acetylation by CBP and other HATs.

Discussion

CBP and the related p300 protein are widely used transcriptional co-activators in metazoans that interact with transcription factors of all major families [reviewed in 1], and they are for this reason believed to be present at many transcriptional regulatory regions. Therefore, CBP/p300 is expected to contribute to gene activation by most transcription factors, and not selectively regulate a subset of transcriptional programs. By contrast, we found that the gene regulatory networks controlling dorsal-ventral pattering of the Drosophila embryo are associated with CBP to a larger extent than e.g. anterior-posterior patterning.

CBP is primarily involved in dorsal-ventral patterning of early Drosophila embryos

By comparison of CBP-bound regions in 2–4 hour old Drosophila embryos to previously mapped transcription factors [21], [22], we found an extensive overlap of CBP peaks with the key activator of dorsal-ventral patterning, the Rel-family transcription factor Dorsal. We then determined the genome-wide distribution of CBP in embryos where Dorsal cannot enter the nucleus (gd⁷ mutants), and found that CBP peaks that overlap regions where Dorsal, but few other factors bind in wild-type are selectively reduced in gd⁷ mutant embryos. Instead, strong CBP-bound regions in gd⁷ mutants overlap best with regions bound by the Smad protein Medea, a mediator of Dpp-signaling. We and others have previously shown that signaling by the TGF-ß molecule Dpp is exceptionally sensitive to a small decline in the level of CBP in Drosophila embryos [10], [11]. Our present results are consistent with a function for CBP in the genomic response to Dpp-signaling.

Less overlap of the CBP peaks is found with mapped activators of anterior-posterior patterning such as Stat92E, Fushi-tarazu (Ftz), Paired, Caudal, and Bicoid (Table S2). Previous work has indicated that CBP may function as a Bicoid co-activator. When Bicoid and CBP are expressed in S2 cells, they can interact, and Bicoid-mediated activation of reporter genes in these cells is influenced by CBP levels [26], [27]. We find that 43% of the 300 strongest Bicoid-binding regions overlap a CBP peak in wild-type embryos, indicating that CBP may participate in Bicoid-mediated activation in vivo. However, many of the Bicoid peaks are found in HOT regions that bind several transcription factors. Therefore, it may not be Bicoid that targets CBP to these sites. Furthermore, although the shape of the Bicoid gradient is slightly changed in embryos from the CBP hypomorph nej¹, activation of Bicoid-target genes is not compromised by the decrease in CBP levels in nej¹ embryos [28]. Consistent with a non-essential function for CBP in Bicoid-mediated activation, there is no co-occupancy of CBP and Bicoid at the known target genes hb, otd, kni, and eve (Figure S3). Thus, although CBP may contribute to Bicoid-mediated activation of some target genes, it seems to make a more widespread contribution to Dorsal-mediated activation. In conclusion, both genetic and genomic evidence points to a particularly important function for CBP in controlling the two key events in dorsal-ventral patterning of Drosophila embryos, the Dorsal gene regulatory network and Dpp-signaling. Perhaps CBP serves to coordinate the Dorsal and Dpp pathways in dorsal-ventral patterning (Figure 7A).

CBP binds strongly to enhancers of upregulated genes in mutant embryos

In embryos where Dorsal cannot enter the nucleus, we found places where CBP occupancy is increased, unchanged, decreased or lost. Regions that are unchanged bind several transcription factors, evident in their high HOTness, indicating that in the absence of Dorsal, other factors maintain CBP binding at these sites (Figure 3). Surprisingly, regions where CBP binding is increased are even HOTer, and therefore associated with even more factors in wild-type embryos. Although many CBP peaks in the genome are found where also GAF binds, the regions where CBP occupancy increases in gd⁷ embryos are lacking strong GAF binding, despite their high HOTness (Figure 3C). Perhaps binding of GAF to these sites is not compatible with proper regulation of the corresponding genes. Instead, many of these regions bind Medea and Dichaete, especially the places where CBP binding is strong already in wild-type. We show that in gd⁷ embryos, Dpp/Medea-regulated genes are expressed in more cells, resulting in increased CBP signal (Figure 2). Our data indicate that also Dichaete-regulated genes are more highly expressed in gd⁷ mutants, and that CBP-binding therefore increases at these regions.

Unexpectedly, median gene expression level of genes associated with gd⁷ Up regions is high in wild-type embryos. Most genes associated with these regions increase in expression even further in the absence of Dorsal (Figure 4), in most cases probably due to an expansion in the number of cells expressing the gene. We therefore expected that these CBP-binding sites would be situated in promoter regions, and the increase in CBP binding a consequence of increased gene activity. However, we found that these sites are mainly found in intronic and intergenic regions associated with H3K4me1, a mark of transcriptional enhancers. This indicates that CBP becomes recruited to these enhancers to mediate gene activation, rather than passively associating with active gene regions.

CBP occupancy in mutant embryos is related to HOTness and dependent on Dorsal

CBP occupancy in gd⁷ embryos is reduced at regions where only few factors bind. The bigger the reduction in CBP occupancy compared to wild-type, the fewer the factors that are associated with such a region in wild-type, i.e. the lower the HOTness of the region (Figure 3B). CBP peaks that are reduced in gd⁷ embryos are much more common at regions where Dorsal binds in wild-type compared to other factors, consistent with a requirement for Dorsal in targeting CBP to chromatin. Although not all of the gd⁷ Down CBP peaks overlap the top 300 Dorsal-binding regions, 92% overlap Dorsal when all Dorsal-binding regions are considered (Table S5). Peaks where CBP is reduced in gd⁷ embryos are found in several known Dorsal target genes, such as twi, brk, htl, and Mef2 (Figure 5 and Figure S4). Furthermore, 10 of the 20 strongest Dorsal peaks overlap a region where CBP binding is reduced in gd⁷ embryos. Together, these data show that in early embryos, chromatin binding of CBP to many sites in the genome is dependent on Dorsal.

We found a number of genomic regions where CBP occupancy in gd⁷ embryos is reduced to a level approaching background, the gd⁷ Lost regions. These regions are mostly devoid of histone modifications and occupied by very few or none of the 40 transcription factors (Figure 3). The factors found at these regions bind at very low levels, indicating that they may not contribute to regulation of the corresponding genes at this stage of development. Further, most genes associated with the gd⁷ Lost regions are expressed at very low levels or completely silent. These CBP-binding regions may therefore represent regulatory sequences that are poised for subsequent activation. Consistent with this interpretation, mean expression of the corresponding genes increases at later stages of development (Figure 3F). Why is CBP occupancy lost from these regions in gd⁷ embryos? Perhaps these genes are not, and will not be expressed in the dorsal ectoderm, and are therefore not associated with CBP in gd⁷ mutants that convert the entire embryo into dorsal ectoderm. Alternatively, CBP binding to these regions is dependent on Dorsal. Although binding is weak, Dorsal occupies many of these regions in wild-type (Figure 1C). It is possible that even small amounts of Dorsal is sufficient and necessary for CBP recruitment to these sites, and that CBP binding is consequently lost in the absence of Dorsal.

Although CBP occupancy is reduced predominantly at Dorsal-binding regions in gd⁷ mutant embryos, expression of Dorsal target genes is also altered. The decrease in CBP occupancy in mutant embryos may therefore be a consequence of transcriptional inactivity, rather than a lack of recruitment by Dorsal. Indeed, as shown in Figure 4, CBP occupancy is on average reduced at down-regulated genes and increased at up-regulated genes. Therefore, although Dorsal and CBP occupancy often coincide, Dorsal may not directly recruit CBP to regulatory DNA sequences. However, there are also places where CBP occupancy is reduced without a corresponding change in gene expression. One such example is at the promoter of the caudal (cad) gene, which is co-occupied by Dorsal and CBP but where CBP binding is reduced more than two-fold in gd⁷ embryos (Table S7), although the gene continues to be expressed [25]. Furthermore, as shown in Figure 1, Dorsal and CBP associate in vivo. We believe, therefore, that Dorsal may directly recruit CBP to many sites in the genome.

Dorsal-independent CBP binding

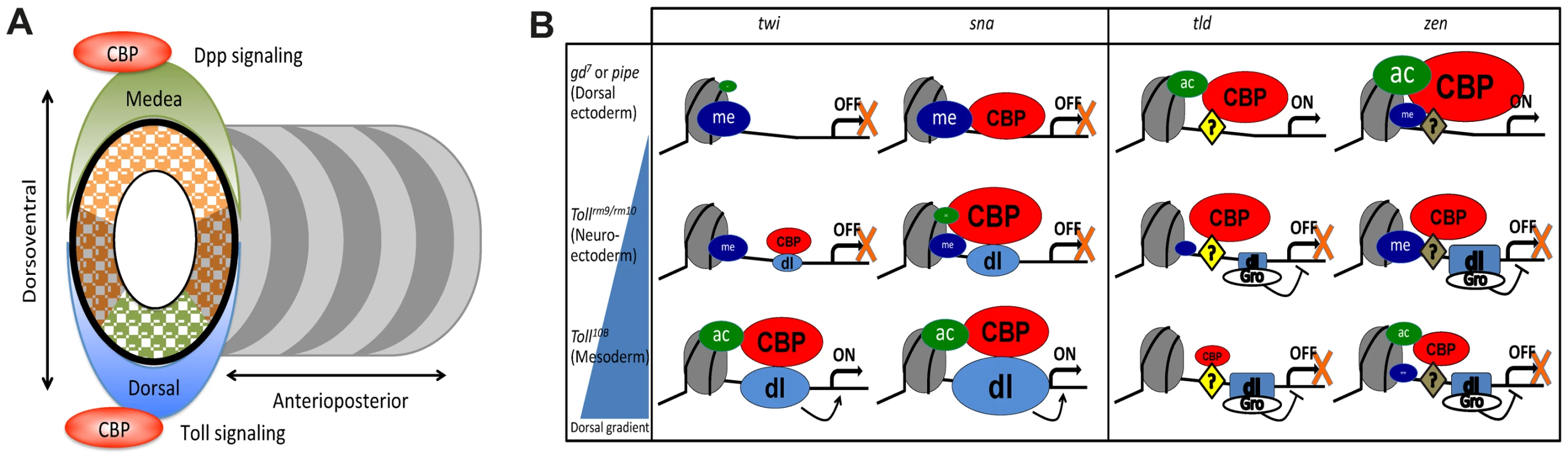

As summarized in Figure 7B, there are also genomic sites where CBP occupancy is not dependent on either Dorsal or gene expression. Several known Dorsal target genes, including sna, neur, ind and ths, continue to associate with CBP in gd⁷ embryos (Figure 5 and Figure S4). Although in general, HOTness is major determinant of CBP occupancy (Figure 3B), there is no big difference in HOTness of the Dorsal target gene regions where CBP-binding is reduced (e.g. twi, htl, brk) compared to Dorsal target gene regions where CBP binding is not changed (e.g. sna, ind, ths). What maintains CBP binding on these genes in the absence of Dorsal is not clear. Presumably, other factors recruit CBP to these sites in the absence of Dorsal, but we have not found a common factor for the regions where CBP binding is unchanged. We note, however, that GAGA-factor (GAF) associates with many of the CBP-binding regions in wild-type embryos, but much less with CBP-binding regions in gd⁷ embryos. It is possible that GAF contributes to the recruitment of CBP to chromatin.

Dorsal is converted to a repressor when it binds in proximity to AT-rich sequences, and thereby prevents expression of dorsal ectoderm target genes in the neuroectoderm and mesoderm [17]–[19]. Consequently, these target genes, e.g. dpp, zen, and tld, are activated in all cells of gd⁷ mutant embryos (Figure 2 and Figure 6). As expected, CBP occupancy increases at these target genes in gd⁷ embryos, since more cells express the genes. The Zelda protein is a maternally contributed activator of these genes [29]–[31]. We have previously shown that in nej¹ embryos containing reduced amounts of CBP, tld expression is diminished, whereas dpp and zen expression remains unaffected [10]. It is possible, therefore, that more activators than Zelda contribute to activation of tld, zen, and dpp in the dorsal ectoderm. Until these factors are identified, it may not be possible to explain why tld expression is particularly sensitive to a reduction in CBP amount in early embryos.

Silent genes bound by CBP are hypoacetylated

When Dorsal functions as a repressor, it recruits the Groucho co-repressor [19]. The yeast Tup1 protein, which is related to Groucho, was recently shown to block recruitment of co-activators to target genes [32]. By contrast, we find that CBP continues to associate with the tld and zen genes in the neuroectoderm although they are being repressed by Dorsal/Groucho (Figure 6). Groucho binds the histone deacetylase Rpd3 (HDAC1), which may be important for repression [33]. Indeed, we find that when tld and zen are repressed by Dorsal in the neuroectoderm and mesoderm, the genes are hypoacetylated despite the presence of CBP (Figure 6).

Contrary to the general trend, some genes recruit CBP even though they are silent. Why are these genes not activated? In the cases we have examined, histone acetylation is low despite the presence of CBP when the genes are not expressed (summarized in Figure 7B). Since lysine methylation and acetylation are mutually exclusive, we measured histone methylation at CBP-bound regions and found that Polycomb-repressed H3K27me3 chromatin is present at Dorsal-target genes in some tissues where these genes are not expressed. Although H3K27me3-decorated chromatin restricts DNA accessibility [34], we find that H3K27me3-chromatin does not preclude CBP binding, but restrains histone acetylation at these CBP-bound genomic sites. Interestingly, all histone acetylations that we measured are blocked by H3K27me3-chromatin, not only the mutually exclusive H3K27ac. This indicates that despite the ability of CBP to bind to genes enclosed in H3K27me3-chromatin, the histones are not accessible for acetylation by CBP and other HATs. Our data are consistent with a model for Polycomb silencing that allows access of proteins and pol II to DNA, but that restrains pol II elongation [reviewed in 35]. Perhaps high levels of histone acetylation are necessary for release of pol II from the promoter, for example by recruiting the bromodomain protein Brd4 that brings in the P-TEFb kinase to phosphorylate pol II [36].

Regulation of CBP's HAT activity

In cells depleted of CBP and p300, global levels of H3K18ac and H3K27ac are greatly diminished whereas other histone acetylations remain unaffected, suggesting that these are in vivo targets of CBP acetylation [37], [38]. CBP can also acetylate H3K56, which occurs in response to DNA damage [39]. We find that H3K18ac and H3K27ac levels do not always correlate with changes in CBP occupancy at Dorsal target genes, although H3K18ac levels are most similar to CBP abundance (Figure 5 and Figure 6). In part, this can be explained by the presence of H3K27me3-chromatin, that precludes histone acetylation. However, in the neuroectoderm (Toll^rm9/rm10 embryos), the twi promoter contains less histone acetylation than in the dorsal ectoderm (gd⁷ embryos) although H3K27me3 levels are reduced and CBP binding not decreased compared to dorsal ectoderm (Figure 5). Together, our results show that CBP's HAT activity is regulated by substrate availability, but that it may also be regulated by genomic context or signaling.

Implications for enhancer prediction

Genome occupancy of CBP/p300 and H3K4me1 can be used to predict cis-regulatory DNA sequences [reviewed in 40]. However, what fraction of regulatory sequences that can be identified in this way is not known. We find that CBP binding to many known enhancer sequences that are active in early embryos is below our cut-off for high-confidence peaks, although we determined average CBP occupancy to be 1.73 times the genomic background at 97 previously described early embryonic enhancers [41]. Our results also show that CBP binding differs greatly between wild-type and mutant embryos, and that some gene regulatory networks rely on CBP to a much larger extent than others. Together, these results suggest that although CBP/p300 binding can be used to successfully identify transcriptional regulatory sequences, many enhancer sequences will be missed because they are not bound by CBP/p300 or bound at levels below criteria for high-confidence peaks. Even though mapping CBP/p300 binding in different cell-types will increase the number of putative regulatory sequences, we anticipate that a substantial number of enhancers will require alternative strategies for their identification, e.g. genome occupancy of other HATs [42].

In conclusion, we show that association of CBP with the genome is dependent on the number and types of transcription factors that bind the DNA sequence, that CBP preferentially associates with some gene regulatory networks, that CBP binding correlates with gene activity, but that CBP also binds silent genes without causing histone hyperacetylation.

Materials and Methods

Antibodies

A GST-dCBP amino acids (aa) 2540–3190 fusion protein was used to immunize rabbits and the resulting serum affinity-purified as described in [9]. This antibody has been used by modENCODE to map CBP binding during Drosophila development [5]. Its specificity was determined by Western blot in CBP RNAi-treated Drosophila S2 cells (Figure S1). The rabbit antibody was further compared to an affinity-purified guinea-pig anti-dCBP aa 1–178 serum [9]. ChIP experiments show that the two CBP antibodies precipitate DNA in a quantitatively similar manner (Figure S1). A guinea-pig anti-Dorsal serum (Su3) was provided by Christos Samakovlis (Stockholm University). The following antibodies recognizing histone modifications were used: H3 (ab1791), H3K9ac (ab4441), H3K9me3 (ab8898), H3K18ac (ab1191), H3K27ac (ab4729), H3K27me3 (ab6002), and IgG (ab6722) were from Abcam, and H4Ac (Upstate 06-598) was from Millipore.

Drosophila embryo collections

Two- to four-hour old Drosophila embryos were collected on grape-juice plates, dechorionated, and used to prepare chromatin extracts as described below or fixed for in situ hybridization. Wild-type embryos were collected from w¹¹¹⁸ flies, and embryos where Dorsal fails to enter nuclei were collected from gd⁷ homozygous mothers. Embryos with uniformly high levels of Dorsal in all nuclei were collected from Toll^10B heterozygous females obtained directly from the balanced stock (Toll^10B/TM3 Sb Ser/OR60). Toll^rm9/Toll^rm10 trans-heterozygous females were used to collect embryos with intermediate levels of Dorsal in all nuclei.

In situ hybridization

Whole-mount RNA in situ hybridization using digoxigenin-labeled probes was performed as described previously [43], [44].

Co-immunoprecipitation

Two to four hour old embryos were dechorionated and crushed in a Dounce homogeniser in Lysis buffer (10 mM Tris pH 8, 140 mM NaCl, 1.5 mM MgCl₂, 1% NP40, and proteinase inhibitors (Roche)). Lysate was shaken at 4°C and centrifuged. Pre-clearing and immunoprecipitation with the CBP antibody was done as previously described [45], except that Protein A Dynabeads (Invitrogen) were used. The immunoprecipitate was separated on 12% SDS-PAGE, transferred to nitrocellulose membrane, and probed with the Dorsal antibody diluted 1∶1000.

ChIP

Two to four hour embryos were dechorionated, crushed in a Dounce homogeniser, and cross-linked with 1.8% formaldehyde in Buffer A1 (60 mM KCl, 15 mM NaCl, 15 mM Hepes pH 7.9, 4 mM MgCl₂, 0.5 M DTT, 0.5% Triton X100, supplemented with proteinase inhibitor tablets, Roche) for 15 minutes at room temperature. The reaction was stopped with 0.225 M glycine and nuclei washed 3 times in Buffer A1 and once in Lysis buffer (140 mM NaCl, 15 mM Hepes pH 7.9, 1 mM EDTA, 0.5 mM EGTA, 0.1% sodium deoxycholate, 1% Triton X100, 0.5 M DTT, supplemented with proteinase inhibitor tablets, Roche). Nuclei were resuspended in Lysis buffer with 0.1% SDS and 0.5% N-lauroylsarcosine and sonicated in a Bioruptor (Diagenode). Chromatin extract was centrifuged to remove debris and diluted in an equal amount of lysis buffer, followed by snap freezing in liquid nitrogen and stored at −80°C.

A mix of Protein A and G Dynabeads (Invitrogen) blocked with 1 mg/ml BSA (Sigma Aldrich) were mixed with indicated antibodies. A bead-antibody complex was formed at 4°C for at least 4 hours. Beads with bound antibody were captured on magnet, and beads were resuspended in chromatin extract corresponding to 30–40 µl of embryos followed by incubation at 4°C over night. Beads were washed 5 minutes each with sonication buffer (50 mM Hepes, 140 mM NaCl, 1 mM EDTA, 1% Triton, 0.1% sodium deoxycholate, 0.1% SDS), WashA (as sonication buffer, but with 500 mM NaCl), WashB (20 mM Tris pH 8, 1 mM EDTA, 250 mM LiCl, 0.5% NP-40, 0.5% sodium deoxycholate) and TE. Beads were transferred in TE to new tubes and resuspended in Elution buffer (50 mM Tris pH 8, 50 mM NaCl, 2 mM EDTA, 0.75% SDS, 20 µg/ml RNase A, 20 µg/ml glycogen). Cross-linking was reversed at 68°C for at least 4 hours and Proteinase K treated followed by DNA purification with phenol-chloroform extraction and ethanol precipitation. The DNA was resuspended in 200 µl 0.1×TE.

The ChIP material was analysed either by qPCR or sent to the Uppsala Genome Center for SOLiD (TM) ChIP-Seq Library preparation (Rev date 18 March 2010), size selection (100–150 bp+adapters 90 bp ≈250 bp), and sequencing using SOLiD4 50 bp fragment run. Approximately 10 ChIPs for each genotype were pooled and used for the ChIP-seq libraries.

For ChIP-qPCR, duplicates with 2 µl DNA each were used for analysis by qPCR, using 300 nM primers (Table S8), and iQ SYBR green supermix, run on a CFX96 Real-Time system from BioRad. Average of the two duplicates were compared to input, and then normalized to the Mi-2 locus or to two intergenic sites with background levels of binding. For histone antibodies, values were further normalized to total amount of histone H3.

Processing of ChIP–seq data

Reads were aligned against the Drosophila melanogaster reference sequence (release 5) using the classical mapping in Applied Biosystems Bioscope software v1.2.1. The number of uniquely mapping reads was 21,667,438 (wild-type input), 17,131,635 (wild type CBP), 25,683,953 (gd⁷ input) and 18,325,130 (gd⁷ CBP). Average read-count per nucleotide was calculated for IP and input samples. For regions where the IP sample had at least the average read-count, a ratio of IP-input (in log₂ scale) was calculated. If the read count in the input was below the average read-count (in the input sample) it was set to the average. All ratio values were then adjusted by reducing each value with the average read-count in IP minus the average read-count in input. This linear adjustment was to normalize for differences in sequencing depth of IP and input. Then the ratio value at an interval of 35 bp was extracted across the genome and median smoothed using a window size of 350 bp. Windows with fewer than 5 data points were discarded. The dynamic range of CBP in wild type was −2.0 to +5.1 and CBP in gd7 −1.8 to +5.1.

To calculate peaks and bound regions, the 5% highest ratio values in both wild-type and gd⁷ were extracted, corresponding to a cut-off of 1.9 in wild type and 1.9 in gd⁷. Bound regions were then defined as regions of at least 200 bp and a region was extended as long as there was a value within 200 bp of the previous value. The value of each detected region was set to the average of the highest five consecutive ratio values. The center of the peak was set to the middle position of the five highest consecutive ratio values. When comparing CBP in gd⁷ to CBP in wild type we did not normalize the two data sets to each other since the dynamic range and the 5% cut-off was more or less identical.

Calculating overlap between data sets

When the overlap of bound regions of dataset X was to be compared to bound regions of other datasets first all regions of dataset X was used. Overlaps of at least one nucleotide were scored. Then an increasing cut-off for the binding values of data set X was applied. We used 20 cut-offs from the lowest to the highest binding value of dataset X in steps of maximum value minus minimum value then divided by 20. We plotted percent overlap using an increasing cut-off until about five percent of the binding regions of dataset X remained. In plots where only three cut-offs are shown, the cut-offs are; 1) no cut-off (all regions included), 2) an average of cut-offs 1 and 3, 3) the highest cut-off where only the ∼5% most enriched regions remained.

Defining regions that have an altered CBP enrichment in gd⁷ embryos

CBP peak values in gd⁷ embryos were calculated (as described above) within each CBP bound region from WT embryos. In regions for which the gd⁷ peak values were below 0.5 (data in log₂ scale) CBP was considered lost. Next, a ratio of gd⁷ and WT peak values was calculated. Regions with less than a two-fold difference (−1 to 1 in log₂ ratio) were considered unchanged. Regions with more than two-fold higher gd⁷ peaks were defined as going up and regions with more than two-fold higher WT peaks where defined as going down. When CBP peak values in WT embryos were determined within CBP bound regions in gd⁷ embryos we found only two regions where no CBP could be detected in WT. We therefore did not define a class of regions unique for gd⁷ embryos.

Statistics

All statistics was performed using Statistica 10.0 (Statsoft). All reported T-tests are two-tailed without assuming equal variance. When multiple histone acetylations were compared between genotypes, all replicates from each acetylation were treated as one sample.

Accession number

The ChIP-seq data is deposited in GEO under accession number GSE34221.
