New Partners in Regulation of Gene Expression: The Enhancer of Trithorax and Polycomb Corto Interacts with Methylated Ribosomal Protein L12 Its Chromodomain

Summary

Chromodomains are found in many regulators of chromatin structure, and most of them recognize methylated lysines on histones. Here, we investigate the role of the Drosophila melanogaster protein Corto's chromodomain. The Enhancer of Trithorax and Polycomb Corto is involved in both silencing and activation of gene expression. Over-expression of the Corto chromodomain (CortoCD) in transgenic flies shows that it is a chromatin-targeting module, critical for Corto function. Unexpectedly, mass spectrometry analysis reveals that polypeptides pulled down by CortoCD from nuclear extracts correspond to ribosomal proteins. Furthermore, real-time interaction analyses demonstrate that CortoCD binds with high affinity RPL12 tri-methylated on lysine 3. Corto and RPL12 co-localize with active epigenetic marks on polytene chromosomes, suggesting that both are involved in fine-tuning transcription of genes in open chromatin. RNA–seq based transcriptomes of wing imaginal discs over-expressing either CortoCD or RPL12 reveal that both factors deregulate large sets of common genes, which are enriched in heat-response and ribosomal protein genes, suggesting that they could be implicated in dynamic coordination of ribosome biogenesis. Chromatin immunoprecipitation experiments show that Corto and RPL12 bind hsp70 and are similarly recruited on gene body after heat shock. Hence, Corto and RPL12 could be involved together in regulation of gene transcription. We discuss whether pseudo-ribosomal complexes composed of various ribosomal proteins might participate in regulation of gene expression in connection with chromatin regulators.

Introduction

Chromatin structure strongly impacts on regulation of gene expression. Indeed, post-translational histone modifications (methylations, acetylations, phosphorylations etc…) called epigenetic marks, are recognized by protein complexes that shape chromatin (reviewed in [1]). A number of protein domains specifically interact with these modifications, thus inducing recruitment of chromatin remodeling or transcriptional complexes. Bromodomains recognize acetylated histones (reviewed in [2]) whereas 14-3-3 domains recognize phosphorylated histones (reviewed in [3]). Methylated histones are recognized by chromodomains (chromatin organization modifier) [4], which therefore belong to the Royal family of domains, known for their methylated lysine or arginine binding activity (reviewed in [5]). Chromodomains share a common structure encompassing a folded three-stranded anti-parallel ß-sheet supported by an α-helix that runs across the sheet. This structure contains two to four well-conserved aromatic residues that form a cage around the methylated ligand [5], [6].

Chromodomains were first identified in Polycomb (PC) and Heterochromatin Protein 1 (HP1) [4]. They are found in many other chromatin-associated proteins that belong to three classes according to their global structure: (1) PC/CBX family proteins harbor a single N-terminal chromodomain, (2) HP1 family proteins have an N-terminal chromodomain followed by a region termed a chromoshadow domain, and (3) CHD (Chromodomain/Helicase/DNA-binding domain) family proteins present two tandem chromodomains (reviewed in [5]). Most chromodomains specifically recognize particular methylated residues on histones. For instance, the chromodomain of PC, which is a subunit of the PRC1 complex (Polycomb Responsive Complex 1), binds specifically H3K27me3 [7], [8]. Once recruited, PRC1 prevents RNA Polymerase II recruitment or transcriptional elongation and therefore mediates gene silencing (reviewed in [9]). The chromodomain of HP1 binds H3K9me2 and H3K9me3, which are epigenetic marks characteristic of heterochromatin, and thus participates in heterochromatin shaping [10], [11]. Very few cases of non-histone chromodomain substrates are known [12]. For example, the HP1 chromodomain also recognizes an autocatalytically methylated residue of the G9a histone H3 methyl-transferase [13].

The D. melanogaster corto gene encodes an Enhancer of Trithorax and Polycomb (ETP), i.e. a Polycomb (PcG) and Trithorax (TrxG) complex co-factor, involved in both silencing and activation of gene expression [14], [15]. Indeed, Corto participates in transcriptional regulation of several homeotic genes together with these complexes and other ETPs [16], [17]. Corto binds chromatin and contains in its N-terminal part a single structured domain identified by hydrophobic cluster analysis and structural comparison as a chromodomain [18]. Hence, Corto would be closer to CBX proteins of the PcG class [5]. However, its chromodomain is rather divergent, since only two aromatic residues are conserved among the four that make a cage around the methylated residue. How Corto anchors to chromatin and more specifically, whether the chromodomain addresses Corto to chromatin, is not known. Here, we address this question by expressing a tagged Corto chromodomain in flies or in S2 cells. We show that the Corto chromodomain is a functional chromatin-targeting module. Surprisingly, peptide pull-down, mass spectrometry and Biacore show that the Corto chromodomain interacts with nuclear ribosomal proteins, and notably binds with high affinity RPL12 tri-methylated on lysine 3 (RPL12K3me3). Co-localization of Corto and RPL12 with active transcriptional epigenetic marks on polytene chromosomes suggests that both proteins are involved in fine-tuning transcription of genes located in open chromatin. Investigation of Corto and RPL12 transcriptional targets by RNA-seq reveals that many are shared by both factors. Analysis of hsp70 occupancy by chromatin immunoprecipitation suggests that Corto and RPL12 cooperate in transcriptional regulation. Interestingly, the potential common targets of Corto and RPL12 are enriched in genes involved in heat response and ribosomal biogenesis.

Results

The Corto chromodomain genetically mimics full-length Corto function

To address the role of the Corto chromodomain in vivo, we used germline transformation and the binary UAS/Gal4 system to produce transgenic flies. These lines expressed either FLAG and HA double-tagged cortoCD fused to a nuclear localization signal coding sequence to force its entry into nuclei (FH-cortoCD), FLAG and HA double-tagged corto deleted of the chromodomain sequence (FH-cortoΔCD), or corto full-length (both FH-CortoΔCD and Corto full-length spontaneously enter the nucleus although no nuclear localization signal was detected, data not shown). Whereas transgenic flies ubiquitously over-expressing cortoΔCD [using either Actin5C (Act::Gal4>UAS::FH-cortoΔCD) or daughterless (da::Gal4>UAS::FH-cortoΔCD) drivers] were perfectly viable and had no visible phenotype, over-expression of corto using the same drivers was 100% lethal. Over-expression of cortoCD using again these drivers also induced high lethality at all developmental stages (from 63% to 100% depending on the transgenic line and the driver, Table S1). Escaper flies displayed rotated genitalia and duplicated macrochaetae as well as very penetrant homeotic phenotypes (Figure 1). Many flies presented a partial transformation of arista into leg, a homeotic phenotype called Aristapedia that could reflect down-regulation of the spineless-aristapedia gene [19]. Similar phenotypes were observed when over-expressing full-length corto using the weaker ubiquitous driver armadillo (arm::Gal4) (Table S1). Males over-expressing cortoCD also displayed smaller sex combs, a phenotype opposed to that of corto mutant males who have ectopic sex combs [15], [20], and which could reflect reduced expression of the homeotic gene Sex combs reduced (Scr) [21]. Taken together, these results suggest that the chromodomain is critical for Corto function.

The Corto chromodomain is a chromatin-targeting module

Corto binds polytene chromosomes of third instar larva salivary glands at many sites [18]. To test the role of Corto chromodomain in chromatin binding, we immunostained polytene chromosomes of larvae over-expressing cortoCD in salivary glands [escargot Gal4 driver, (esg::Gal4>UAS::FH-cortoCD)] with anti-FLAG antibodies. FH-CortoCD bound polytene chromosomes at many discrete sites (Figure 2A). Like endogenous Corto, FH-CortoCD preferentially bound DAPI interbands and puffs, i.e. regions corresponding to open or actively transcribed chromatin. Comparison of endogenous Corto binding in wild-type larvae and FH-CortoCD binding in esg::Gal4>UAS::FH-cortoCD larvae at the tip of chromosome 3L showed that these proteins shared most of their binding sites (Figure 2B).

These results indicate that FH-CortoCD mimics Corto binding on polytene chromosomes and that the Corto chromodomain is a genuine chromatin-addressing module.

The Corto chromodomain interacts with Ribosomal Protein L12

These results prompted us to identify the anchor(s) of Corto chromodomain on chromatin. We incubated GST-CortoCD covalently bound on agarose beads with nuclear or cytoplasmic extracts from embryos and resolved retained polypeptides by SDS-PAGE. Four bands between 30 and 15 kDa (P30, P21, P20 and P15) were consistently retained by GST-CortoCD and were enriched in peptide pull-down experiments performed with nuclear extracts versus cytoplasmic extracts (Figure 3A). The contents of the bands were identified by mass spectrometry. Surprisingly, all four bands contained ribosomal proteins (RPs): RPL7 for P30, RPS11 for P21, RPS10, RPL12 and RPL27 for P20, and RPS14 for P15 (Table S2). Although RPs are usually considered as contaminants, their consistent enrichment after incubation with nuclear extracts as well as the previously shown association of RPS11, RPL12 and RPS14 with polytene chromosomes [22] prompted us to consider their binding to CortoCD. These proteins might then interact with Corto directly on chromatin. To verify the interaction between RPs and CortoCD, we generated vectors to produce FLAG-tagged CortoCD supplied with a nuclear localization signal and Myc-tagged RPs in Drosophila S2 cells. Co-immunoprecipitations were performed on cell extracts from transfected cells, using either anti-FLAG or anti-Myc antibodies. No co-immunoprecipitation was observed between CortoCD and RPL7, RPS10 or RPS14 (Figure S1). However, anti-FLAG co-immunoprecipitated Myc-RPL12 with FLAG-CortoCD whereas anti-Myc co-immunoprecipitated FLAG-CortoCD with Myc-RPL12 (Figure 3B). In a similar experiment using FLAG-tagged full-length Corto, co-immunoprecipitation was again observed in both directions (Figure 3C). However, no co-immunoprecipitation was observed between FLAG-tagged CortoΔCD and Myc-tagged RPL12 (Figure 3D). These experiments demonstrate that RPL12 and Corto interact and that the Corto chromodomain is necessary and sufficient for this interaction. The identification of other RPs among the pulled-down polypeptides suggests that CortoCD interacts with a complex of RPs via a direct interaction with RPL12.

The Corto chromodomain interacts with RPL12 tri-methylated on lysine 3

Since chromodomains typically recognize methylated lysines, we asked whether Corto chromodomain could bind a methylated form of RPL12. D. melanogaster RPL12 was aligned with RPL12 from several other species to identify conserved residues described to be methylated in some of them [23]–[25] (Figure 4A). Lysines 3, 10, 39 and 83, as well as arginine 67 fulfilled these criteria. Using site-directed mutagenesis, we replaced their codons with alanine codons in the Drosophila RPL12 cDNA, thus generating a series of mutants (RPL12K3A, RPL12K10A, RPL12K39A, RPL12R67A and RPL12K83A). These mutant cDNAs were introduced into a plasmid allowing their expression as mRFP-tagged proteins in Drosophila S2 cells. Similarly, the cortoCD cDNA, supplied with a nuclear localization signal, was introduced into a plasmid allowing its expression as an EGFP-tagged protein in S2 cells. When expressed in these cells, EGFP-CortoCD artificially entered the nucleus where it exhibited a punctuated pattern that recalled Polycomb bodies (Figure 4B) [26]. A similar nuclear pattern was observed after immunostaining untransfected S2 cells with anti-Corto antibodies. However, these “Corto bodies” did not overlap with Polyhomeotic (PH), a component of the PRC1 complex, but with RNA Polymerase II suggesting that they were transcriptional factories rather than Polycomb bodies (Figure S2). RPL12-mRFP expressed alone was present in the cytoplasm and the nucleus, where it appeared slightly punctuated (Figure 4B). Interestingly, when co-expressed with EGFP-CortoCD, all RPL12-mRFP localized in the nucleus (Figure 4C). Both proteins perfectly colocalized in a punctuated nuclear pattern, corroborating the interaction between CortoCD and RPL12 and suggesting that Corto could drive RPL12 in the nucleus. Similar experiments were carried out using the RPL12 mutant forms. Whereas RPL12K10A, RPL12K39A, RPL12R67A and RPL12K83A co-localized with CortoCD, RPL12K3A did not, strongly suggesting that RPL12 lysine 3 is required for Corto chromodomain-RPL12 interaction (Figure 4C).

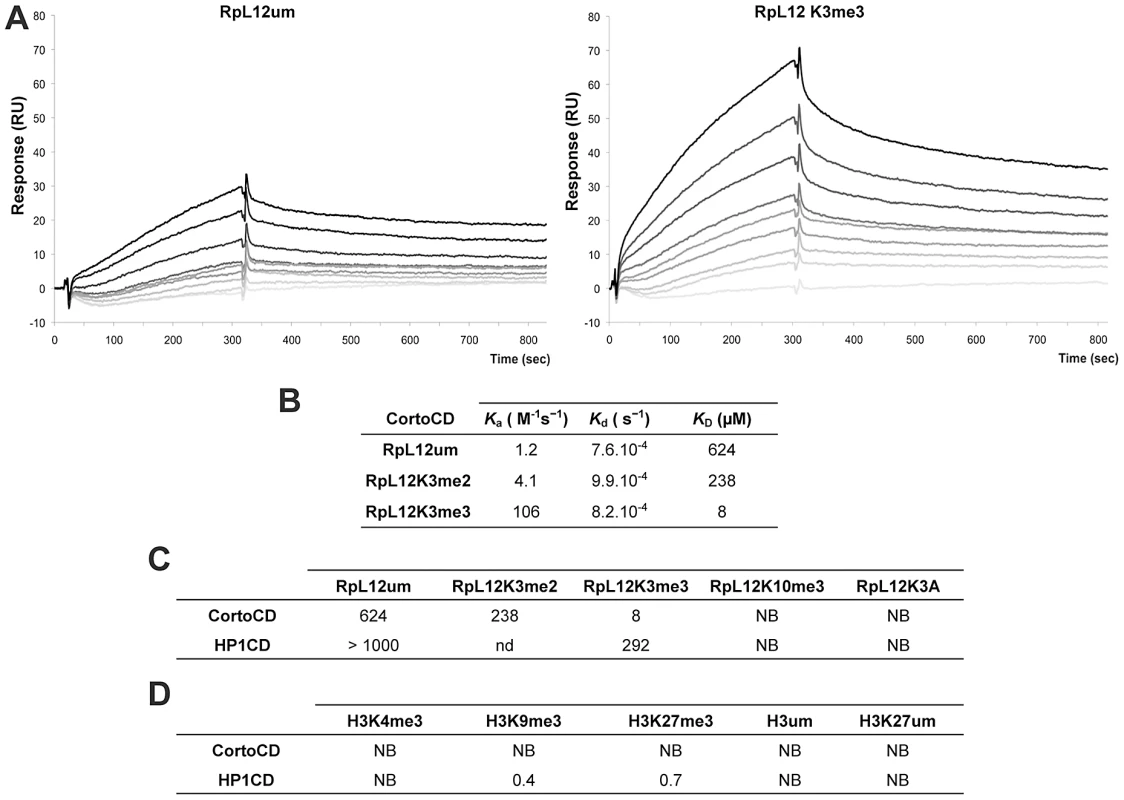

To test whether Corto directly interacted with RPL12 lysine 3, we measured real-time binding between CortoCD and several RPL12 peptides using Biacore. GST-CortoCD and GST were immobilized on a CM5 sensor chip. Then, several RPL12 peptides [unmodified (RPL12um), methylated on lysine 3 (RPL12K3me2, RPL12K3me3), methylated on lysine 10 (RPL12K10me3) or lysine 3 mutated (RPL12K3A)] were assayed for their binding to GST-CortoCD or GST (Figure 5, Figure S3). None of these peptides bound GST. Furthermore, unmodified RPL12, RPL12K3me2, RPL12K10me3 and RPL12K3A peptides did not interact with CortoCD (no binding or unspecific binding i.e. K_D>200 µM; Figure 5C). Only RPL12K3me3 interacted with high specificity with CortoCD (K_D = 8 µM).

To investigate whether RPL12K3me3 could bind to other chromodomains, we repeated these experiments using that of HP1 (HP1CD). GST-HP1CD was immobilized on the sensor chip and binding of either RPL12, RPL12K3me3, RPL12K10me3 or RPL12K3A was tested. None of these peptides specifically interacted with HP1CD (K_D>200 µM) (Figure 5C, Figure S3). Although no histones were revealed among peptides pulled down by CortoCD, we monitored binding of several histone H3 peptides to CortoCD. No binding of unmodified H3, H3K27me3, H3K9me3 or H3K4me3 peptides was observed (Figure 5D) while, as expected, the H3K9me3 peptide bound HP1CD with high affinity (K_D = 0.4 µM). Surprisingly, the H3K27me3 peptide bound HP1CD with a similar affinity (K_D = 0.7 µM), probably because sequences adjacent to the chromodomain (i.e. the hinge region) are required for selective targeting [27].

Altogether these data demonstrate that the Corto chromodomain specifically recognizes RPL12 trimethylated on lysine 3 (RPL12K3me3).

Chromatin environment of Corto and RPL12

RPL12, along with 19 other ribosomal proteins, is known to bind polytene chromosomes of Drosophila larval salivary glands where it specifically associates with sites of transcription [22]. To investigate the potential role of the Corto-RPL12 interaction in gene expression regulation, we first analyzed the binding of these proteins on polytene chromosomes. For this, we generated Myc-tagged RPL12 transgenic fly lines (UAS::RpL12-Myc). Unlike corto or cortoCD, RpL12-Myc over-expression using ubiquitous Gal4 drivers (da::Gal4>UAS::RpL12-Myc or Act::Gal4>UAS::RpL12-Myc) induced no lethality and adult flies presented no visible phenotype except a shortened development (data not shown). RpL12-Myc was then expressed in salivary glands with the esg driver (esg::Gal4>UAS::RpL12-Myc) to test its binding to polytene chromosomes. RPL12-Myc bound polytene chromosomes at numerous sites, preferentially at DAPI interbands and puffs, suggesting that it mimics the binding of endogenous RPL12 [22] (Figure 6A). Co-immunostaining of RPL12 and the endogenous Corto protein showed that about 40% of the Corto sites were bound by RPL12 (Figure 6A, 6C). Simultaneous over-expression of FH-CortoCD and RPL12-Myc (esg::Gal4>UAS::FH-cortoCD,UAS::RpL12-Myc) established that CortoCD co-localized with RPL12 on a similar number of sites (Figure 6B).

Chromatin environment of Corto and RPL12 was further analyzed using antibodies against epigenetic marks (H3K27me3, H3K4me3) and RNA Polymerase II (paused, i.e. phosphorylated on serine 5: RNAPolIIS5p; elongating i.e. phosphorylated on serine 2: RNAPolIIS2p) (Figure 7 and Figure 8). In agreement with our Biacore analyses, Corto did not bind centromeric heterochromatin – marked by H3K9me3 – and did not overlap with H3K27me3 (except at the tip of chromosome X) (Figure 7A). Similarly, very few co-localizations with H3K27me3 were observed for RPL12-Myc (Figure 8A). Corto, as well as RPL12-Myc, partially co-localized with H3K4me3 (Figure 7B, Figure 8B). However, whereas Corto showed preferential co-localization with RNAPolIIS5p versus RNAPolIIS2p (Figure 7), RPL12 shared but few sites with RNAPolIIS5p and strongly co-localized with RNAPolIIS2p (Figure 8), as previously described [22].

Taken together, these data suggest that Corto and RPL12 mostly bind open, transcriptionally permissive chromatin.

Genome-wide transcriptome analysis of wing imaginal discs over-expressing cortoCD or RpL12

To address the role of Corto and RPL12 in transcriptional regulation, we deep-sequenced transcripts from wing imaginal discs of third instar larvae over-expressing either FH-cortoCD or RpL12-Myc under control of the wing-specific scalloped::Gal4 driver (sd::Gal4>UAS::FH-cortoCD or sd::Gal4>UAS::RpL12-Myc) (hereafter called assays). Total RNA from the assays, the sd::Gal4/+ control or a w¹¹¹⁸ reference line were isolated from pools of wing imaginal discs and subjected to RNA-seq on an Illumina high throughput sequencer. Sequence reads were aligned with the D. melanogaster genome to generate global gene expression profiles. Sequence reads of the assays were compared to sequence reads of the sd::Gal4/+ control. Differential analyses were performed to obtain adjusted P-values associated to expression changes for the assays compared to the sd::Gal4/+ control. In addition, sequence reads from the w¹¹¹⁸ reference line were compared to sequence reads of the sd::Gal4/+ control. This reference was used to fix the threshold of the adjusted P-value to get only 1% of transcripts as differentially expressed in this control experiment (false discovery rate). By doing so, we obtained an adjusted P-value cutoff of 4.10⁻¹⁸. Using this threshold, we retrieved the highest expression variations from the two assays [with absolute log₂(assay/control)>1]. 463 genes were upregulated when over-expressing cortoCD (Table S3). Among them, 314 were also upregulated when over-expressing RpL12, representing 75% of all genes upregulated by RpL12 over-expression (Table S4). Furthermore, 211 genes were down-regulated when over-expressing cortoCD (Table S5). Among them, 197 were also down-regulated when over-expressing RpL12, representing 67% of all genes down-regulated by RpL12 over-expression (Table S6). These results are summarized on Figure 9 and Table S7. They suggest that Corto and RPL12 share many transcriptional targets. Strikingly, analysis of Gene Ontology (GO) revealed that common upregulated genes were enriched in the “translation” (54.4% for Corto and 38.3% for RPL12) and “response to heat” (11.9% for Corto and 9.8% for RPL12) categories (Figure 10 and Tables S8, S9, S10, S11).

hsp70 is a direct transcriptional target of Corto and RPL12

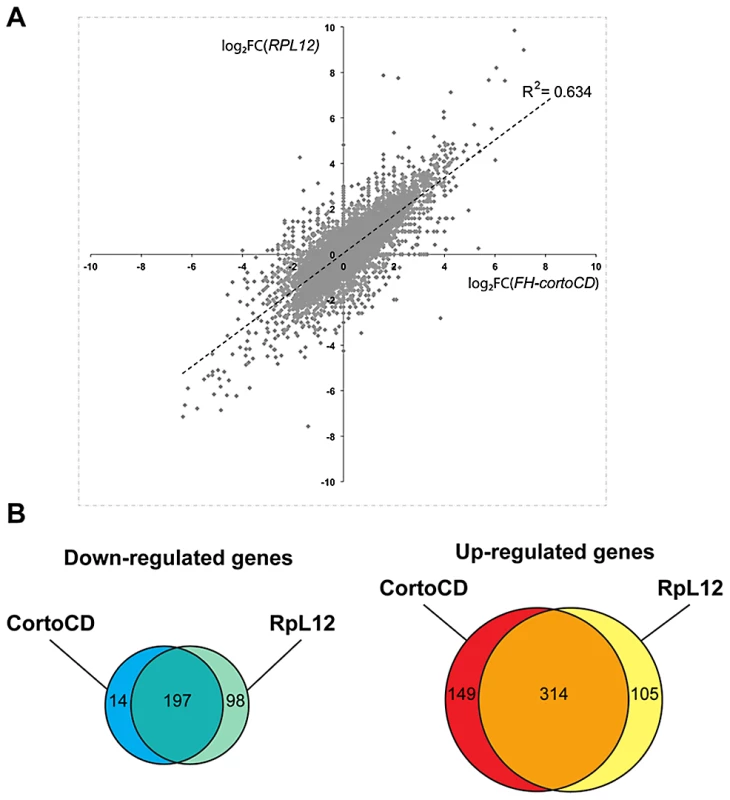

The high correlation between genes deregulated when over-expressing either cortoCD or RpL12 (R² = 0.634) (Figure 9) as well as the numerous co-localizations of CortoCD and RPL12 on polytene chromosomes suggest that some deregulated genes were direct targets of Corto and RpL12. To test this hypothesis and to get insight in the functional interaction between Corto and RPL12, we focused on hsp70 that was one of the shared upregulated genes (Figure S4). We analyzed binding of CortoCD and RPL12 by chromatin immunoprecipitation before and after heat shock in wing imaginal discs (Figure 11). qPCR analyses were performed using a set of primers that cover the promoter and gene body of hsp70 [28].

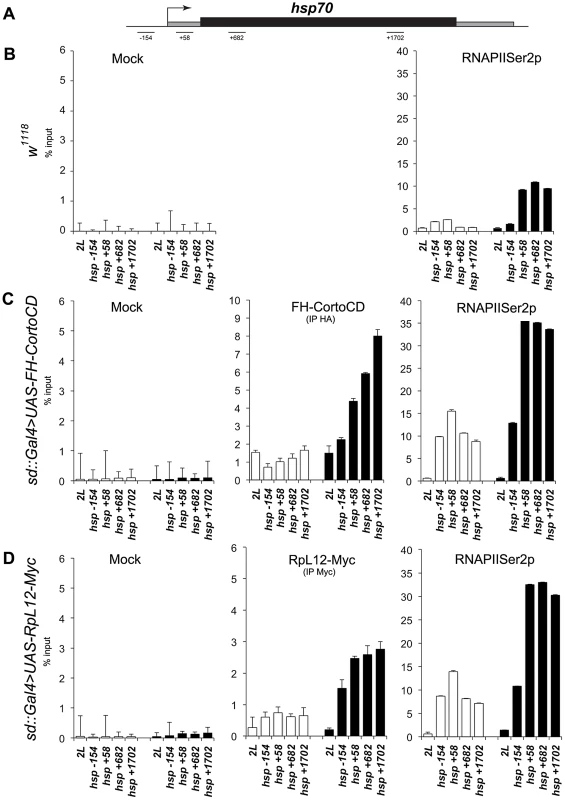

At 25°C, in control w¹¹¹⁸ discs, higher RNAPolII occupancy of the promoter as compared to the gene body suggests that hsp70 was paused, corroborating previous results [28]. In wing imaginal discs overexpressing either cortoCD or RpL12 (sd::gal4>UAS-FH-CortoCD or sd::gal4>UAS-RpL12-Myc), CortoCD and RPL12 bound hsp70 indicating that this gene was a direct target of both proteins. Simultaneously, RNAPolII binding was increased but kept the same profile suggesting that the gene was still paused but more loaded with RNAPolII. This could explain why more transcripts were generated. Thus, these data suggest that Corto, as well as RPL12, favors recruitment of RNAPolII on hsp70 in absence of heat shock.

After a short heat shock (5 minutes), CortoCD, as well as RPL12, were massively recruited on hsp70. Interestingly, CortoCD and RPL12 displayed the same binding profile i.e. increased binding from 5′ to 3′ of the gene body. CortoCD and RPL12 recruitment followed hsp70 transcription as revealed by enhancement of RNAPolII on gene body. Strikingly, recruitment of RNAPolII was higher in wing discs expressing cortoCD or RpL12 than in control wing discs, suggesting that Corto and RPL12 control transcriptional activation of hsp70.

Discussion

Chromodomains play a critical role in addressing transcriptional regulators to chromatin. Investigating the role of the ETP Corto's chromodomain, we found that it is a typical chromodomain, acting as a chromatin-targeting module. Surprisingly, the Corto chromodomain does not bind methylated histones, as most known chromodomains do, but Ribosomal Protein L12 trimethylated on lysine 3 (RPL12K3me3). In agreement, RPL12 and Corto share many sites on polytene chromosomes. Transcriptomic analyses of wing imaginal tissues in which either cortoCD or RpL12 were over-expressed reveal that a large fraction of deregulated genes are common. Chromatin immunoprecipitation experiments reveal that CortoCD and RPL12 similarly bind one of these shared upregulated genes, hsp70, and are massively loaded on the promoter and gene body after heat shock. Hence, the ETP Corto and RPL12 might indeed be partners in regulation of some transcriptional targets.

RPs and regulation of gene expression

The ETP Corto is a partner of Polycomb and Trithorax complexes and participates in epigenetic maintenance of gene expression, notably of homeotic genes [15],[17]. Multiple Corto binding sites on polytene chromosomes as well as pleiotropic phenotypes of corto mutants show that Corto transcriptional targets are numerous and involved in many developmental pathways. The interaction reported here between Corto and RPL12 raises the interesting possibility of a connection between RPs and epigenetic regulation of gene expression. Our previous investigations into Corto partners have highlighted its interaction with several PcG proteins, leading to the conclusion that Corto might regulate PRC1 and PRC2 functions [18]. Strikingly, RPs also co-purify with PRC1 [29]. Moreover, the ETP DSP1, that binds Corto, directly interacts with RPS11 [30]. Another ETP, ASXL1, belongs to the repressor complex H1.2 that also contains RPs [31]. Presence of RPs in the direct environment of chromatin binding factors, notably ETP, seems then to be a widespread situation. However, the role of RPs in these cases could be related to structure preservation and not to transcriptional regulation per se.

Apart from protein synthesis, RPs are involved in many cellular functions referred to as “extra-ribosomal” (reviewed in [32]). The first report on an RP's role in transcriptional regulation came from E. coli where RPS10 is involved in anti-termination of transcription [33]. Many eukaryotic RPs, notably RPL12, regulate their own transcription, basically by regulating their own splicing (reviewed in [34]).

For more than 40 years, many genetic screens to isolate new Polycomb (PcG) and trithorax (trxG) genes in flies have identified Minute mutants as PcG and trxG modifiers [14]. Indeed, Minute mutations suppress the ectopic sex comb phenotype of Polycomb or polyhomeotic mutants [35], [36]. D. melanogaster Minute loci are disseminated throughout the genome and many correspond to RP genes ([37] and references therein). Minute mutations might indirectly suppress phenotypes of PcG mutants by lengthening development, thus globally counteracting homeosis. However, Minute mutants can exhibit PcG mutant phenotypes, which is at variance with this assumption. For example, mutants in stubarista that encodes RP40 exhibit transformation of arista into legs [38].

Quasi-systematic presence of RPs at sites of transcription on Drosophila polytene chromosomes [22] as well as direct interaction between several RPs and histone H1 in transcriptional repression [39], suggest that RPs could actively participate in transcription modulation. Massive recruitment of Corto and RPL12 on hsp70 upon transcriptional activation as well as similarity between their occupancy profiles and the one of RNA polymerase II suggest that these two proteins could travel along the gene body together with the transcriptional machinery. Interestingly, BRM, the catalytic subunit of the SWI/SNF TrxG complex, associates with components of the spliceosome [40] that contains several RPs including RPL12 [41]. Overall, these findings lead us to favor the hypothesis of an active involvement of RPs in regulation of gene expression.

RP combinations and post-translational modifications, a ribosomal code for transcription?

Whether individual RPs regulate transcription independently of other RPs or in the context of a ribosome-like complex is an interesting and much debated question (reviewed in [42]). Many data point to a collaborative role of RPs in transcription. In D. melanogaster, at least 20 RPs as well as rRNAs are present at transcription sites on polytene chromosomes, suggesting that they could be components of ribosome-like subunits [22]. Genome-wide ChIP-on-chip analyses of RPL7, L11 and L25 in S. pombe reveal a striking similarity of their binding sites, suggesting that they might bind chromatin as complexes [43]. Along the same line, mass spectrometry of Corto partners identified not only RPL12 but also RPL7, L27, S10, S11 and S14, indicating that Corto might interact via RPL12 with several RPs that could form a complex. Interestingly, RPL12 and L7 form a flexible protruding stalk in ribosomes that acts as a recruitment platform for translation factors [44]. Our results might point to the existence of pseudo-ribosomes composed of several RPs on chromatin. The role of RPs in nuclear translation has been very much debated and whether these pseudo-ribosomes are involved in translation is still unknown [45]. However, this possibility seems unlikely in view of the numerous data showing lack of translation factors in nuclei as well as association on chromatin between RPs and both nascent coding and non-coding RNAs [46]. Overall, these data suggest that pseudo-ribosomal complexes composed of various RPs are associated on chromatin and could thus participate in transcriptional regulation.

Like histones, RPs are subjected to a plethora of post-translational modifications including ubiquitinylations, phosphorylations, acetylations and methylations ([47] and references therein). We show here that the Corto chromodomain binds RPL12K3me3. Strikingly, the chromodomain protein CBX1, a human homolog of Drosophila HP1β, also interacts with RPL12 [48], suggesting that chromodomain binding to methylated RPL12 might be conserved. It is tempting to speculate about a role for RPL12 methylation in chromodomain protein recruitment to chromatin. This mechanism might be analogous to the one by which histone methylation marks, such as H3K27me3, recruit the PRC1 complex, i.e. by binding of the Polycomb chromodomain to methyl groups. Under this hypothesis, RPL12K3me3 might recruit Corto to chromatin. In yeast and A. thaliana, RPL12 can be trimethylated on lysine 3 by methyl-transferase SET11/Rkm2 [25], [47], [49]. Rkm2 is conserved in Drosophila and abundantly transcribed in S2 cells as well as all along development [50]. It would be interesting to determine whether this enzyme is an RPL12K3 methyl-tranferase in Drosophila.

Based on the existence of a panel of ribosomes composed of diverse RPs bearing various post-translational modifications, it was proposed that selective mRNA translation might depend on a ribosome code similar to the histone code [51]. Our results lead us to suggest that such a ribosome code might also concern regulation of gene transcription.

Ribosomal homeostasis by coordinated transcriptional regulation of RPs

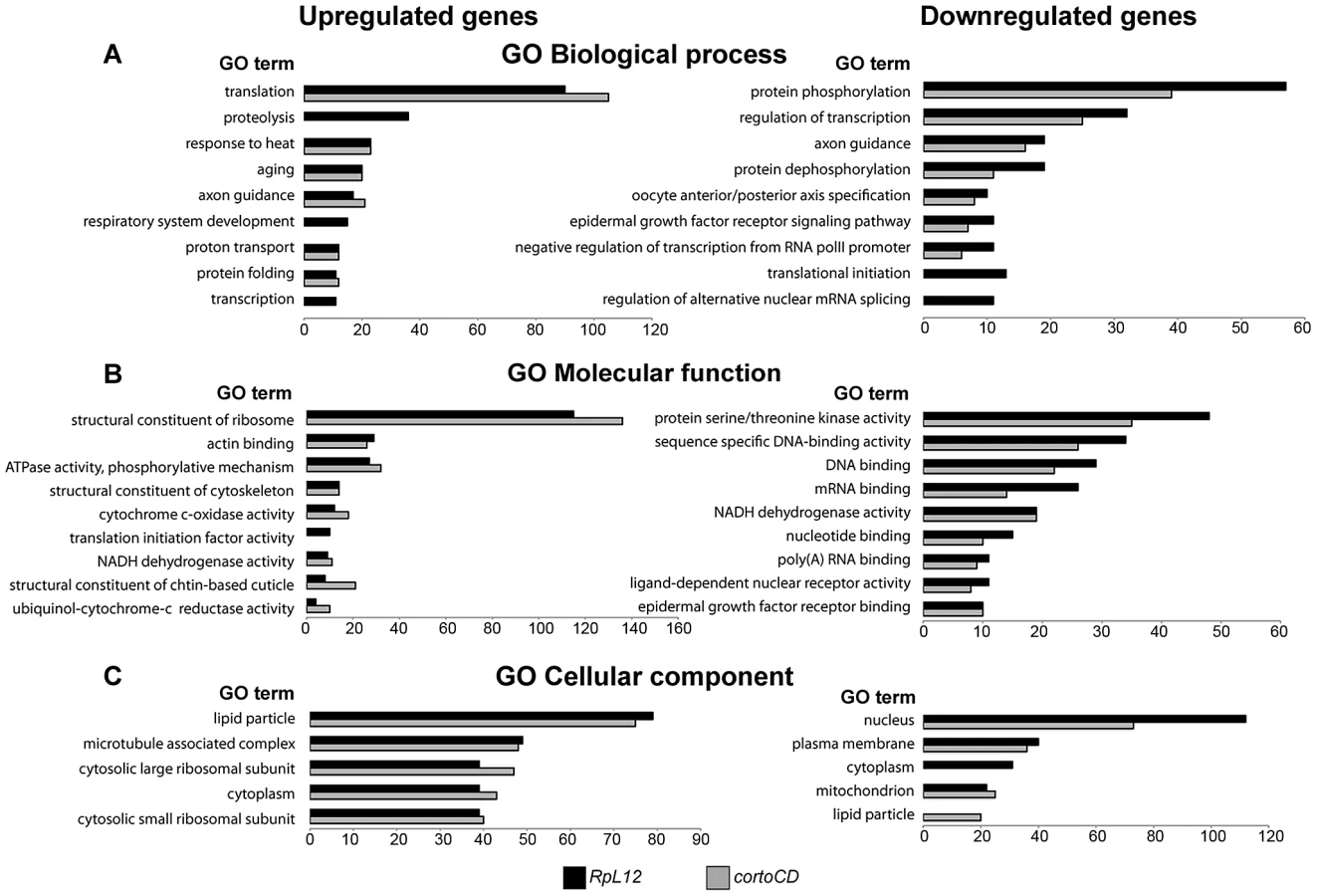

Surprisingly, GO analysis of RPL12 and Corto upregulated genes reveals that the “translation” and “structural component of ribosomes” categories are over-represented. Interestingly, the expression of RP genes decreases in RPL12A mutants in yeast [51]. Our finding that over-expression of Drosophila RpL12 increased RP gene expression reinforces the idea that RPL12 can activate RPs at the transcriptional level. Moreover, up-regulation of ribosome related genes is also observed in mutants of ash2 that encodes a TrxG protein, and that genetically interacts with corto [15], [52]. Hence RPL12, Corto and chromatin regulators of the TrxG family might all participate in dynamic coordination of ribosome biogenesis thus controlling cell growth. Intriguingly, we have recently shown that Corto interacts with an atypical cyclin, namely Cyclin G that also binds chromatin. This cyclin is suspected to control transcription of many genes, and controls cell growth [17], [53], [54]. These combined findings provide new avenues of research concerning transcriptional regulation of tissue growth homeostasis. Global regulation of genes involved in ribosome biogenesis could be a way to maintain this homeostasis. Co-regulation of genes involved in a given function has already been documented in eukaryotes. In Drosophila, housekeeping genes are co-regulated by the NSL complex and, in yeast, RPL12 coordinates transcription of genes involved in phosphate assimilation as well as RP genes [51], [55], [56]. As regulation of ribosome biogenesis is essential for cellular health and growth homeostasis [57], such a transcriptional co-regulation of RP genes might have evolved to insure that the cell's protein synthesis capacity can be rapidly adjusted to changing environmental conditions.

Materials and Methods

Cloning and site-directed mutagenesis

Clones and site-directed mutagenesis are described in Text S1. Primers are described in Table S12.

Drosophila strains and genetics

D. melanogaster stocks and crosses were kept on standard medium at 25°C. UAS::FH-cortoCD, UAS::FH-cortoΔCD and UAS::RpL12-Myc transgenic lines were established by standard P-element mediated transformation. Over-expression was carried out using Gal4 drivers either ubiquitous [daughterless (da::Gal4); Actin5C (Act::Gal4)], expressed in salivary glands [escargot (esg::Gal4)], or wing-specific [scalloped (sd::Gal4)]. Five females bearing the Gal4 driver were crossed with three males bearing the UAS transgene or w¹¹¹⁸ as a control. Crosses were transferred to new vials every third day. The sd::Gal4, UAS::FH-cortoCD and UAS::RpL12-Myc lines were isogenized for six rounds with the isogenic w¹¹¹⁸ line, prior to deep-sequencing, as described [58]. Lethality was calculated as described [59].

Peptide pull-down experiments and mass spectrometry

Cytoplasmic and nuclear extracts were prepared from 0–16 h embryos as described in [60]. GST or GST-CortoCD were covalently linked on agarose beads using the GST orientation kit (Pierce) following the manufacturer's instructions. 1 mg of protein extract was incubated with 200 µg of purified GST or GST-CortoCD in binding buffer [0.5 mM DTT, 0.1 mM EDTA, 4 mM MgCl₂, 0.05% Igepal, 20 mM Hepes, 300 mM KCl, 10% glycerol, protease inhibitor cocktail (Roche)] for 1 h at 25°C. After 5 washes in binding buffer, bound polypeptides were resolved on a large 15% SDS–polyacrylamide gel and stained either with EZblue (Sigma) or with SilverQuest staining kit (Invitrogen). Bands were excised from the gel and were analyzed by LC-MS/MS mass spectrometry.

Cell culture and transfection

S2 cells were cultured at 25°C in Schneider's Drosophila medium (Lonza) supplemented with 10% heat inactivated fetal bovine serum and 100 units.mL⁻¹ of penicillin and streptomycin. Cells were transfected using Effecten (Qiagen) as described [61].

Co-immunoprecipitations

Co-immunoprecipitations were performed as described [61] using anti-FLAG (Sigma F-3165) or anti-Myc (Santa Cruz, sc-40).

Confocal imaging

S2 cells were harvested 24 h after transfection and treated as described [62]. For each transfection, 30 to 60 nuclei were analyzed with an SP5 confocal microscope (Leica microsystems) using LAS (Image Analysis Software).

Real-time protein interaction assays (Surface Plasmon Resonance)

GST or GST fusion proteins were dialyzed using a Slide-A-Lyser cassette (Thermo Scientific) in running buffer (10 mM Hepes pH7.4, 150 mM NaCl, 3 mM EDTA, 0.005% P20 surfactant) (GE Healthcare). Real-time protein interaction assays were performed using a Biacore 3000. Kinetics and binding tests were first performed on empty surfaces. Data presented here result from substraction of empty surface RU (1 to 5 depending on the experiment) from active surface RU. GST was covalently coupled to a CM5 sensor chip (GE Healthcare) via its N-terminal amino acid. The carboxymethylated dextran surface was activated by injecting a mixture of 0.2 M 1-ethyl-3-(3-dimethylaminopropyl) and 0.05 M N-hydroxysuccinimide. GST was immobilized on the chip by injecting a 30 µg.mL⁻¹ solution in NaAc pH5 buffer. GST-CortoCD and GST-HP1CD were immobilized by injecting a 100 µg.mL⁻¹ solution in the same buffer. Binding tests were performed by injecting peptides at 1 or 10 µM in running buffer at a flow rate of 5 µL.min⁻¹ during 5 min. Kinetic assays were performed only when the binding test was positive. Real-time monitoring was displayed in a sensorgram as the optical response (RU) versus time (s). To calculate association constants, peptides were diluted in series from 1 to 10 µM in running buffer and dilutions were injected sequentially at a flow rate of 5 µL.mn⁻¹ during 5 min. Dissociation kinetics were then run during 10 min to calculate dissociation constants. Between assays, the chip was regenerated with 10 mM glycine pH2.0. Kinetic constants were calculated with BIAevaluation Software (Biacore) using the Fit kinetic simultaneous ka/kd (1∶1 binding; Langmuir algorithm). RPL12 peptides were synthesized at the IFR83 Peptide synthesis facility (Table S13). Histone peptides were provided by Diagenode (H3K27me3: sp-069-050; H3K4me3: sp-003-050; H3K9me3: sp-056-050; H3K4/K9um: sp-999-050; H3K27um: sp-998-050).

Immunostaining of polytene chromosomes

Polytene chromosome immunostainings were performed as described [63] for all antigens except RNA Pol II, for which we used experimental conditions described in [64]. Mouse anti-FLAG (1∶20) (Sigma, F-3165), mouse anti-Myc (1∶20) (Santa Cruz, sc-40), rabbit anti-H3K4me3 (1∶40) (Diagenode, pAB-003), rabbit anti-H3K27me3 (1∶70) (Diagenode, pAB-069), rabbit anti-RNA Pol II Ser2p (1∶200) (Abcam, an5095), rabbit anti-RNA Pol II Ser5p (1∶40) (Covance, MMS-134R) and rabbit anti-Corto (1∶30) [18] were used as primary antibodies. Secondary antibodies [Alexa Fluor 488 goat anti-rabbit IgG (Molecular Probes, A-11008), Alexa Fluor 594 goat anti-mouse IgG (Molecular probes, A-11005) and Alexa Fluor 488 goat anti-mouse IgG, IgA and IgM (Molecular Probes, A-10667)] were used at a 1∶1000 dilution.

RNA–seq and bioinformatics analysis

Wing imaginal discs of third instar female larvae (one disc per larva) were dissected by batches of 50 in ice-cold PBS and frozen in liquid nitrogen. 300 discs (6 batches) were pooled and homogenized in lysis buffer using a FastPrep-24 during 20 s at 4 m.s⁻¹ (MP Biomedicals, Lysing Matrix D). Total RNA were extracted using RNeasy kit (Qiagen). Library preparation and Illumina sequencing (multiplexed 50 bp paired-end sequencing on HiSeq 2000) were performed at the BC Cancer Agency Genome Sciences Center (Canada). Messenger (polyA+) RNAs were purified from 4 µg of total RNA with oligo(dT). Libraries were prepared using the bi-directional RNA-Seq library preparation kit (Illumina). A mean of 46±11 million reads was obtained for each of the 4 samples (w¹¹¹⁸, sd::Gal4/+; sd::Gal4>UAS::cortoCD; sd::Gal4>UAS::RpL12). Detailed informations on Paired-End read counts at each step of the analysis workflow are available in Table S14. Before mapping, poly N read tails were trimmed, reads ≤11 bases were removed, and reads with quality mean ≤12 were discarded. Reads were then aligned against the D. melanogaster genome (dm3 genome assembly, BDGP Release 5.38) using Bowtie mapper (version 0.12.7) [65]. Alignments from reads matching more than once on the reference genome were removed using Java version of samtools. To compute gene expression, D. melanogaster GFF3 genome annotation from FlyBase (version 5.38) was used. All overlapping regions between alignments and referenced exons were counted.

Technical replicates coming from paired-end reads were first summed. Then, all samples were normalized together. Data were normalized according to the scaling normalization proposed by Robinson and Oshlack and implemented in the edgeR package version 1.6.10 [66]. A Fisher's Exact Test was then performed using the sage.test function of the statmod package version 1.4.6. Finally, a Benjamini and Hochberg (BH) P-value adjustment was made. The RNA-Seq gene expression data and raw fastq files are available at the GEO repository (www.ncbi.nlm.nih.gov/geo/) under accession number: GSE38435.

Chromatin immunoprecipitation

Wing imaginal discs of third instar larvae were dissected by batches of 100 in serum-free Schneider medium at room temperature. They were fixed in 500 µL of paraformaldehyde 1% in PBS for 10 minutes at room temperature under gentle agitation. Cross-link reaction was stopped by adding 50 µL of glycine 1.25 M. Fixed wing discs were washed 3 times with PBS, dried, flash-freezed in liquid nitrogen and stored at −80°C. Cell lysis was performed by adding 100 µL of lysis buffer (140 mM NaCl, 10 mM Tris-HCl pH8.0, 1 mM EDTA, 1% Triton X-100, 0.1% sodium deoxycholate, Roche complete EDTA-free protease inhibitor cocktail) complemented with 1% SDS, and sonicated in a Bioruptor sonifier (Diagenode). Conditions were established to obtain chromatin fragments from 200 to 1000 bp in length (30″ ON 30″ OFF, high power, 15 cycles). Pooled chromatin was centrifuged for 10 min at 13000 g at 4°C. The supernatant (soluble chromatin) was recovered and 5 µL were kept as input sample. For each IP, 10 µl of 50% (v/v) protein A or G coated paramagnetic beads (Diagenode) were washed once in lysis buffer, 1 µg of antibody was added, and beads were incubated for 2 h at 4°C on a rotating wheel. After washing, antibody coated beads were resuspended in 450 µL of lysis buffer and 50 µl of chromatin were added. After incubation on a rotating wheel overnight at 4°C, beads were washed at 4°C five times for 10 min each in lysis buffer, once in LiCl buffer (Tris-HCl 10 mM pH8, LiCl 0.25 M, 0.5% NP-40, 0.5% sodium deoxycholate, 1 mM EDTA) and twice in TE (10 mM Tris-HCl, pH 8.0, 1 mM EDTA). Immunoprecipitated as well as input DNAs were purified with the IPure kit following the manufacturer's instructions (Diagenode). Elution was performed twice with 35 µl of water. 2 µl of DNA were used per PCR. Real-time PCR data were normalized against Input sample and depicted as percentage of Input (see Table S12 for primers).

Antibodies used for chromatin immunoprecipitation were anti-RNA Polymerase II S2p (Abcam, ab5095), anti-HA tag (Abcam, ab9110) and anti-Myc tag (Abcam, ab9132). Mouse IgGs were used as a negative control (Mock, Diagenode).

Heat shock treatments were performed as previously described [28]. Briefly, wing discs were subjected to instantaneous heat shock by addition of an equal volume of 48°C pre-heated Schneider medium. After keeping tubes at 37°C for 5 minutes, discs were immediately cooled down by addition of 1/3 total volume of 4°C medium.
