Highly Efficient Prion Transmission by Blood Transfusion

Summary

It is now clearly established that the transfusion of blood from variant CJD (v-CJD) infected individuals can transmit the disease. Since the number of asymptomatic infected donors remains unresolved, inter-individual v-CJD transmission through blood and blood derived products is a major public health concern. Current risk assessments for transmission of v-CJD by blood and blood derived products by transfusion rely on infectious titers measured in rodent models of Transmissible Spongiform Encephalopathies (TSE) using intra-cerebral (IC) inoculation of blood components. To address the biological relevance of this approach, we compared the efficiency of TSE transmission by blood and blood components when administrated either through transfusion in sheep or by intra-cerebral inoculation (IC) in transgenic mice (tg338) over-expressing ovine PrP. Transfusion of 200 µL of blood from asymptomatic infected donor sheep transmitted prion disease with 100% efficiency thereby displaying greater virulence than the transfusion of 200 mL of normal blood spiked with brain homogenate material containing 10³ID₅₀ as measured by intracerebral inoculation of tg338 mice (ID₅₀ IC in tg338). This was consistent with a whole blood titer greater than 10^3.6 ID₅₀ IC in tg338 per mL. However, when the same blood samples were assayed by IC inoculation into tg338 the infectious titers were less than 32 ID per mL. Whereas the transfusion of crude plasma to sheep transmitted the disease with limited efficacy, White Blood Cells (WBC) displayed a similar ability to whole blood to infect recipients. Strikingly, fixation of WBC with paraformaldehyde did not affect the infectivity titer as measured in tg338 but dramatically impaired disease transmission by transfusion in sheep. These results demonstrate that TSE transmission by blood transfusion can be highly efficient and that this efficiency is more dependent on the viability of transfused cells than the level of infectivity measured by IC inoculation.

Introduction

In 1996, a new form of CJD, named variant CJD (v-CJD) was identified in humans [1], [2]. The presence of the v-CJD agent in lymphoid tissues of patients incubating the disease raised the possibility of blood borne v-CJD transmission. Since then, four v-CJD cases were reported in patients transfused with labile blood products from asymptomatic donors who later developed v-CJD [3].

Current measures for prevention of v-CJD transmission by blood products rely on risk assessments based on infectious titers reported for the blood of rodent models of TSE [4]. These infectious titers were established by inoculating blood components by the intracerebral (IC) route in homologous species. All these experiments concur in indicating that infectivity in the blood of symptomatic rodents varies between 1 and 10 ID₅₀ per mL and that both plasma and leukocytes were infectious [5], [6], [7], [8], [9], [10].

However, the IC inoculation route is unlikely to reflect the specifics of the transfusion exposure route; i.e. the administration of large numbers of living cells and a large volume intravenously to the recipient.

In early 2000, transmission of both experimental BSE and natural scrapie were reported to occur following transfusion of whole blood collected in asymptomatic incubating sheep [11], [12]. The greater similarity in size between humans and sheep allows the transfusion of blood volumes in sheep that are closer to those used in human medicine. Moreover, the pathogenesis of variant CJD in humans is very similar to that in classical scrapie or BSE in sheep. As a consequence sheep TSE models are accepted as relevant for assessing v-CJD transmission risk through the transfusion route [13], [14].

In this study, using a TSE sheep infection model, we investigated the ability of blood and blood components to transmit the disease when administered by the transfusion route and measured their relative infectious titer by IC inoculation in transgenic mice (tg338) over-expressing ovine PrP. Our findings show that the disease is transmitted with high efficiency by transfusion of infected blood and blood components and requires revision of some of the key assumptions used for assessing the risk of blood borne transmission of v-CJD.

Materials and Methods

Ethic statement

All animal experiments have been performed in compliance with our institutional and French national guidelines, in accordance with the European Community Council Directive 86/609/EEC. The experimental protocol was approved by the INRA Toulouse/ENVT ethics committee.

Infection of sheep with classical scrapie strain PG127 by oral inoculation

VRQ/VRQ sheep were produced in a biosecure unit from a flock that was sourced originally from New Zealand by Veterinary Laboratory Agency in the United Kingdom (UK). This TSE free flock is a unique source of VRQ/VRQ animals that are considered free of classical scrapie [15]. The scrapie inoculum was prepared from symptomatic VRQ/VRQ sheep experimentally infected with PG127 scrapie isolate. This stock was previously titrated by end-point dilution in tg338 mice inoculated by the intracerebral (IC) route [16]. TSE-free Cheviot sheep (6–10 months old) were orally challenged with a 2 g equivalent of brain (administered as 1% brain homogenate in glucose). Animals were then observed until the occurrence of clinical signs (around 200 days post inoculation) and euthanized when exhibiting locomotor signs of the disease that impaired feeding. In this model clinical phase (first clinical signs occurrence to recumbency) is short (one to two weeks). After culling, each sheep was necropsied and lymphoid tissues (spleen, third eye-lid, mesenteric lymph node, prescapular lymph node, tonsil) were sampled in addition to the CNS for PrP^Sc detection. The PrP genotype was obtained for every animal by sequencing Exon 3 of the Prnp gene as previously described [17].

Blood collection and separation

Blood was collected in vigil animals from jugular vein into Macopharma MSE3500 collection bags. To separate plasma, buffy coat and red cells, blood units were centrifuged at 3640 rpm for 12 minutes (including acceleration and deceleration) at 20°C in a Jouan LR5-22 centrifuge. For each sample, packed cell volume and cell numeration were measured using IdeXX Vet-station automat and Sysmex XT2000i. White blood cells (WBC) were obtained from buffy coat fraction, by osmotic lysis of erythrocytes with ACK solution (NH4CL 0,15 M, KHCO3 1 mM, Na2EDTA 0,1 mM, pH 7.4). Briefly, buffy coat (1 volume) was gently mixed (by rolling tubes) with ACK (1 volume) and incubated for 5 min RT. WBC were then washed 3 times with 50 mL PBS to remove erythrocytes debris and plasma.

WBC fixation was performed using paraformaldehyde (PFA)/PBS solution. WBC cells were re-suspended in a 50 mL conic tube using 10 mL of PBS and 10 mL of a PBS/PFA 4% solution was added (final concentration 2%). Tubes were then rolled on bench during 20 seconds and incubated for 10 min on ice. Cells were then washed four times in PBS (50 mL) and their morphology (lack of clumps and cellular integrity) was checked by direct microscopic examination and flow cytometry.

Transfusion and intravenous administration

Recipient sheep were anesthetized by IV administration of Ketamine/Diazepam (2 mg and 0.1 mg per kg respectively) and a catheter (16G) was installed in the jugular vein. This catheter was used for all transfusions and intravenous administrations of blood and blood products. Whole blood (200 mL), plasma (100–150 mL) or WBC (re-suspended in 100 mL 5% glucose) were transfused/intravenously administered by gravity in individual recipients over a 30–40 min period.

In the whole blood spiking experiment, the titrated PG127 brain homogenate was diluted in isotonic (5%) glucose solution to obtain the desired number of Infectious Dose 50 as measured by IC inoculation in tg338 mice (ID₅₀ IC in tg338) in a 20 mL volume. Each inoculum was then mixed with 200 mL of freshly collected whole blood by 30 minutes of continuous rocking before transfusion back into the same donor sheep. In the whole blood titration by transfusion route, the required whole blood volumes were sampled from the collection bag using a sterile syringe and either transferred into a new pouch or gently re-suspended in a sterile 5% glucose solution (QSP 200 mL), before administration (gravity) to recipients. In the WBC experiment, WBC (fresh or fixed) were gently re-suspended in a 200 mL sterile pouch of isotonic (5%) glucose before infusion (gravity) over a 20–30 min period. All transfusions were performed within the 6 hours following blood collection.

Sheep monitoring and necropsy

Sheep were housed in a category 2 animal facility. Donor and recipient sheep were kept separated. Contact controls (n = 5) were housed in the same pen as transfusion recipients throughout the experiment. None displayed any TSE symptoms. Orally inoculated sheep (donors) and transfused sheep (recipients) were monitored daily. When displaying symptoms that could impair their ability to feed, the animals were euthanized by an intravenous injection of T61 (Intervet). Transfused animals that had not displayed clinical signs after 400–450 days were also euthanized. Upon completion of the experiment, the contact controls were also euthanized. All animals were systematically necropsied and a panel of tissues (brain, spleen, mesenteric lymph node, tonsil, third eyelid, prescapular lymph node, ileum was collected. Each sample was divided in two parts, the first one was formalin fixed for abnormal PrP (PrP^Sc) immunohistochemistry investigation while the other was snap frozen at −80°C for WB PrP^Sc detection.

Bioassay in tg338 mice

Bioassay experiments were carried out in transgenic mice (tg338) over-expressing the VRQ allele of the ovine prion protein (PrP) [18]. At least six mice were inoculated intracerebrally with each sample (20 µL). Mice were then monitored for the appearance of TSE clinical signs. Mice that did not succumb to TSE were euthanized at 200 days post inoculation (dpi). The last positive transmission was observed 150 dpi during an end-point dilution titration of a PG127 brain stock [16]. CNS and spleen samples collected from each individual animal were tested by Western blot (WB).

Whole blood, plasma and red blood cell concentrate were high speed homogenized for 90 seconds (Precess 48- Bertin, France) and inoculated neat (20 µl IC) in tg338 (n = 18). No acute toxicity was observed at inoculation during this experiment. The infectious titer per mL of blood (number of ID/mL) was estimated by the limiting dilution titration (application of Poisson model) described by Brown et al to estimate the infectious titer in TSE affected rodents' blood and classically used in this type of study [5], [7]. Percentage volume of packed blood cells and plasma were used to calculate the infectious titer per mL of blood.

WBC corresponding to known quantity of whole blood was high speed homogenized for 90 seconds (Precess 48- Bertin, France) in 5% glucose solution. The resulting suspension was then titrated by end point dilution by intracerebral (IC) inoculation of 1/10 successive dilutions into groups of 6 tg338 mice (20 µL/mouse). The infectious titer (Infectious Dose 50, most likely value and 95% confidence intervals) were determined by the Spearman-Kärber method [19].

According to Fischer [20] and as previously used for Prion infectivity ID/ID50 comparison [21] one ID₅₀ per mL was considered in average equivalent to 0.693 ID.

PrP^Sc Western-blot (WB) and immunohistochemistry

A Western blot kit (TeSeE Western Blot, Bio-Rad) was used following the manufacturer's recommendations. For each sample, 250 µL of 10% tissue homogenate was subjected to PrP^Sc extraction. Immunodetection was performed using Sha31 monoclonal antibody conjugated to horseradish peroxidase (0,06 µg per mL) which recognizes amino acids 145–152 (YEDRYYRE) of the sheep PrP sequence. Peroxidase activity was detected using ECL substrate (Pierce). Immunohistochemistry was performed as previously described [22], using 8G8 antibody which specifically recognises amino acids 95–108 (SQWNKP) of the sheep PrP protein.

Results

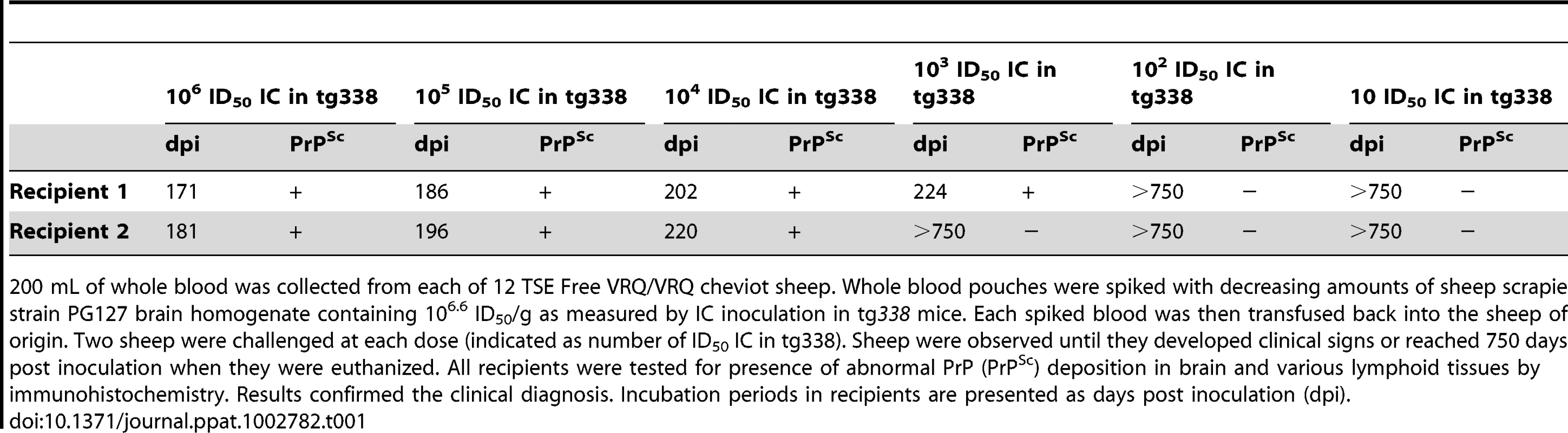

The first experiment was to determine the minimum infectious dose (ID₅₀ as measured by end point dilution titration in tg338 mice by the IC route) able to transmit TSE infection in sheep by transfusion. This was done by transfusing groups of two TSE free VRQ/VRQ recipient sheep with whole blood that had been spiked with successive 1/10 dilutions of a brain homogenate prepared from scrapie affected sheep (PG127 isolate). This brain homogenate had been previously titrated by end point dilution in tg338 mice, and had a titer of 10^6.6 ID₅₀ IC/g [16]. The lowest dose resulting in transmission was observed in sheep (1 infection out of 2 challenged individuals) that were transfused with blood containing 10³ ID₅₀ IC in tg338 mice (Table 1). No clinical signs or abnormal PrP deposition were observed in animals that were challenged with lower doses and observed for at least 750 days post challenge.

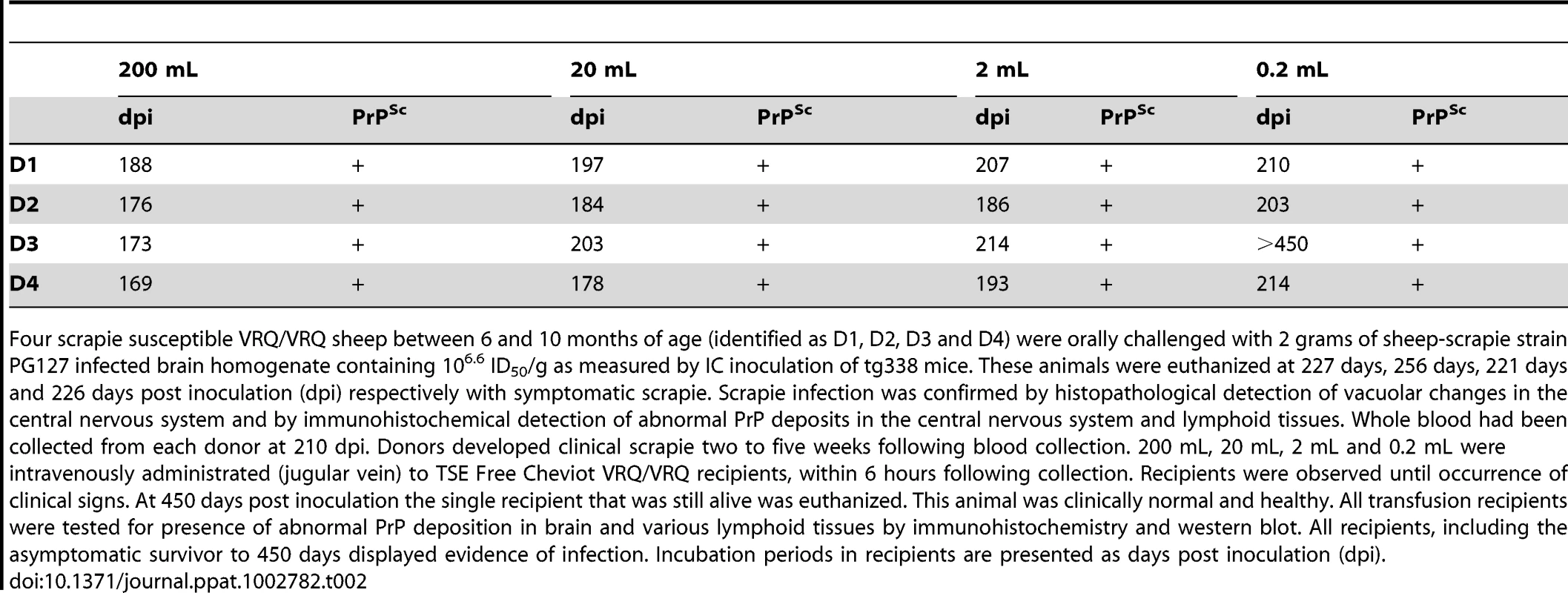

In parallel, seven VRQ/VRQ sheep were orally challenged with 10^6.7 ID₅₀ IC in tg338 of the same PG127 brain homogenate stock. Whole blood samples were collected in four of these animals (D1–D4) at a late stage of the incubation period (two to five weeks before clinical onset). 200 mL, 20 mL, 2 mL and 0.2 mL of each donor's fresh whole blood were transfused into TSE free VRQ/VRQ recipients (Table 2). All animals that received 200 mL, 20 mL or 2 mL of blood developed clinical TSE. Three out of the four recipients that received the 0.2 mL dose also developed clinical scrapie. The fourth recipient was apparently healthy when euthanized after 450 days of incubation but had abnormal PrP depositions in both lymphoid tissues and the central nervous system.

These results, when considered together, indicate that the transfusion of 0.2 mL of whole blood transmitted scrapie more efficiently than the IV administration of 10³ ID₅₀ IC in tg338 (brain homogenate material). It therefore suggested that in scrapie infected sheep (close to symptomatic phase) the infectious load per mL of blood should be higher than 10^3.6 ID₅₀ IC in tg338.

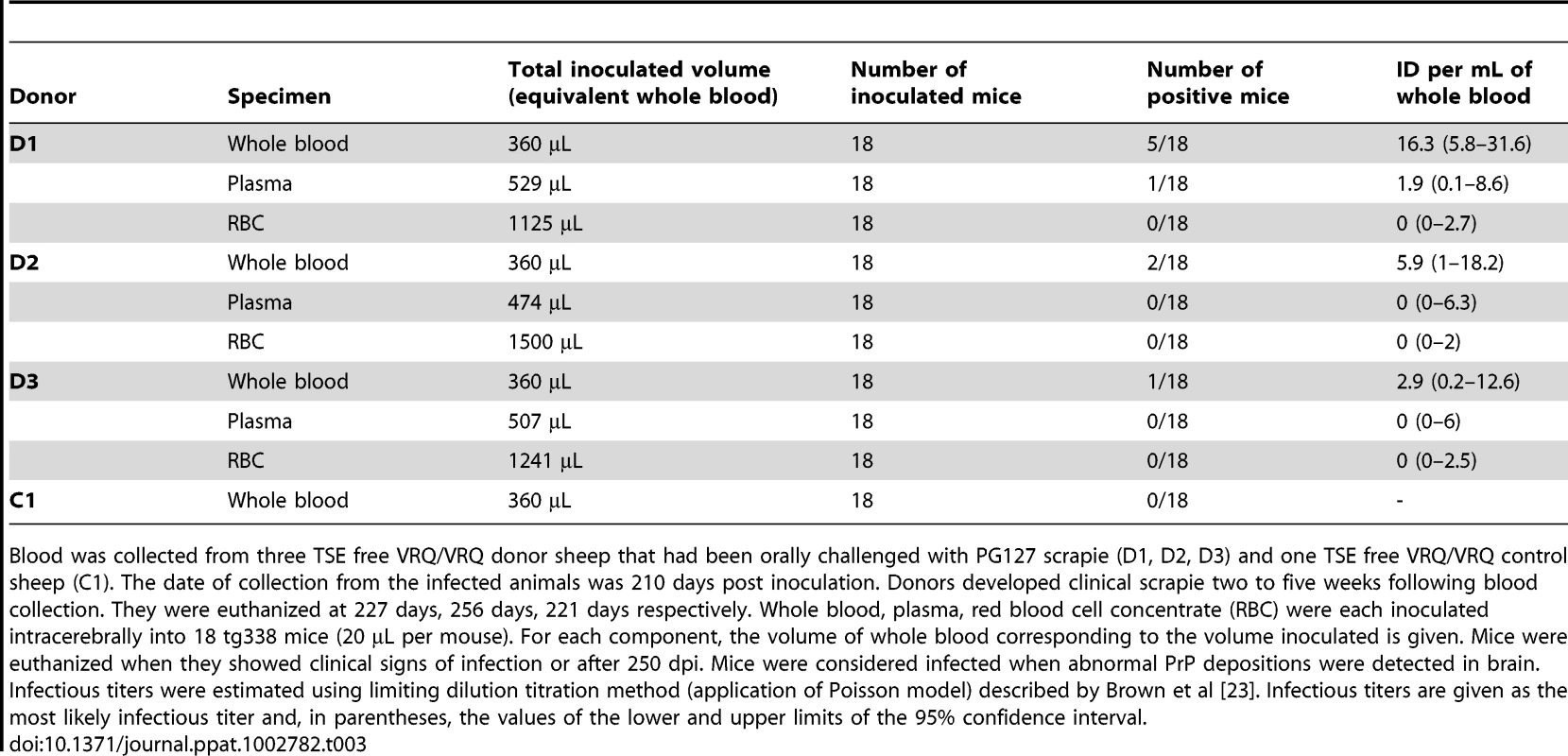

To confirm this estimate, whole blood from three donors (D1 to D3) and one TSE free control (C1) were each inoculated intracerebrally into eighteen tg338 mice (20 µL per mouse). An incomplete attack rate was observed in the inoculated mice (Table 3) and infectious titers were estimated by a statistical method previously used to calculate the concentration of infectivity in blood of TSE infected rodents models [5], [23]. Whole blood titers ranged between 3 and 16 ID IC in tg338 mice per mL (Table 3).

Plasma, red blood cells and WBC were prepared from the same blood samples. Plasma and RBC were inoculated undiluted intracerebrally into eighteen tg338 mice. Only a single infection was observed (D1 plasma). The infectivity titers in plasma and red blood cells expressed as the equivalent volume of whole blood were computed to have a 0.95 probability of contributing less than 8.6 and 2.7 ID IC in tg338 per mL of blood respectively.

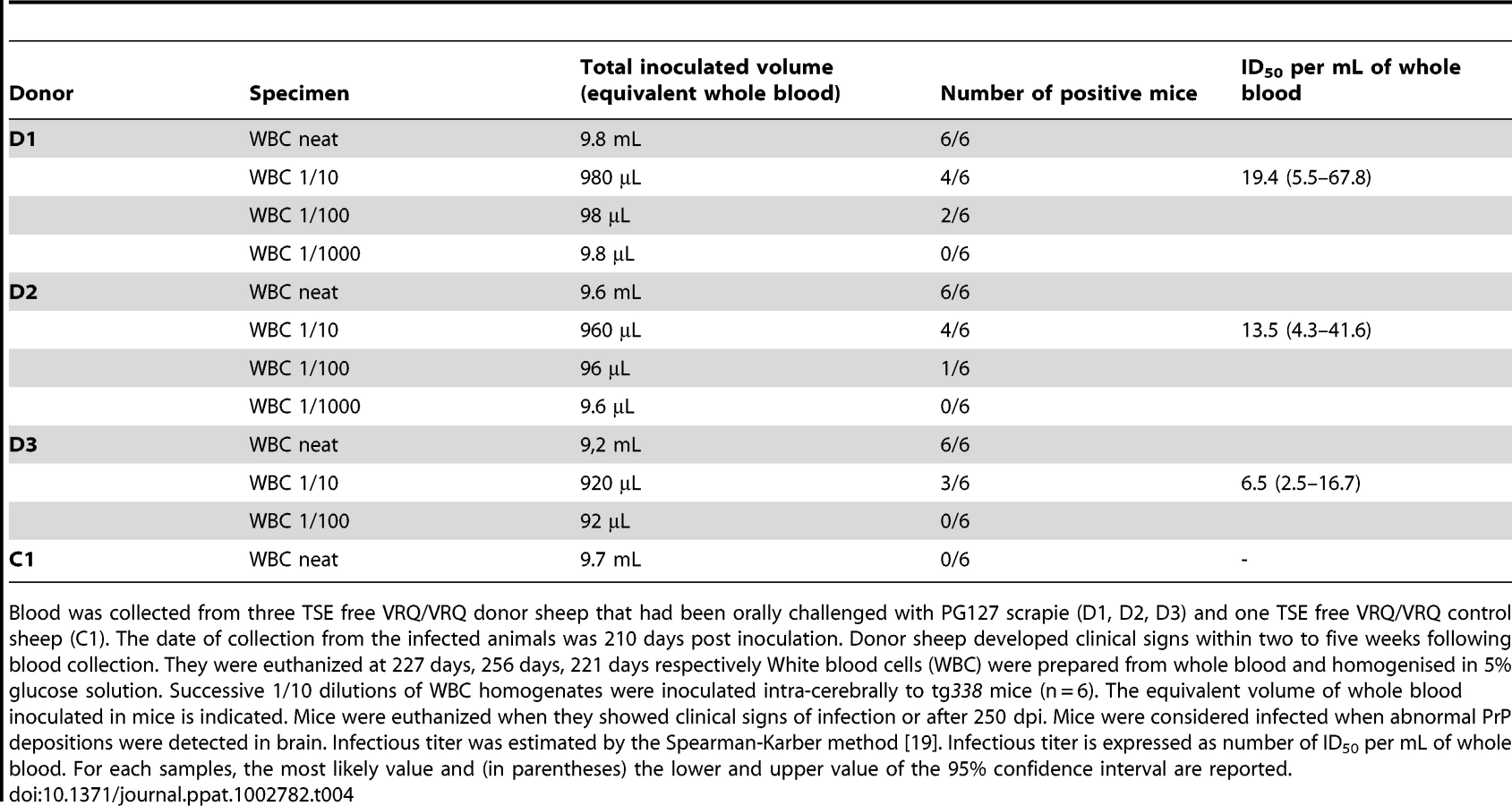

The infectivity in WBC was measured by end point dilution titration by IC inoculation of ten folds serial dilutions in tg338 mice (Table 4). Titers calculated by the Spearman-Karber method and expressed as the equivalent volume of whole blood ranged between 7 and 24 ID₅₀ IC in tg338 per mL of blood, i.e between 4.5 and 13.4 ID per mL (one ID₅₀/mL being in average equivalent to 0.693 ID/mL).

The infectious titers of whole blood in sheep incubating scrapie were comparable with those previously reported in hamster and mouse models [6], [7], [8], [9], [10]. However, these titers were at least 100 fold lower than those initially suggested by the transfusion experiments.

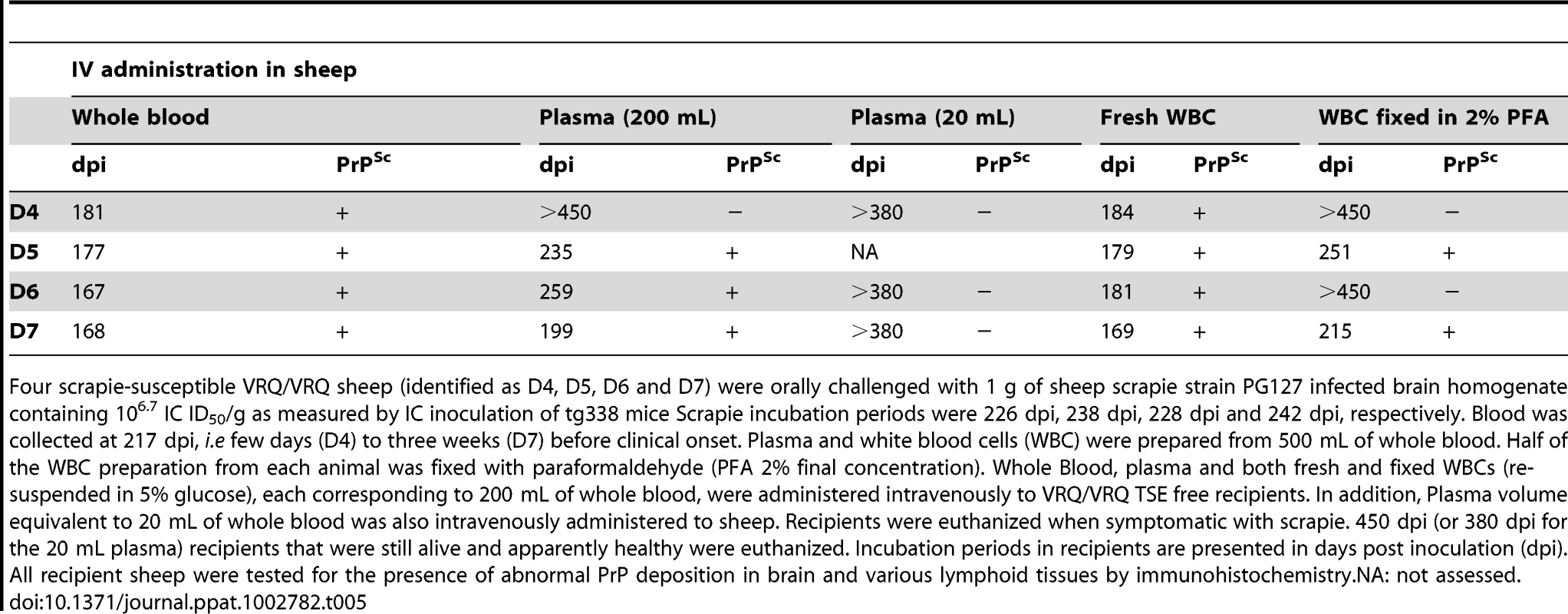

In an attempt to resolve this discrepancy we investigated the relative abilities of whole blood, plasma and white blood cells to transmit the disease by the transfusion route in sheep. Over 700 mL of blood was collected, few days (D4) to three weeks (D7) before clinical onset, from each of four orally challenged VRQ/VRQ sheep (D4 to D7) (Tables 5, 6). 500 mL of each blood was used to prepare plasma and WBC. The WBCs were divided into two equal parts; the first half was untreated while the other half was fixed with PBS-paraformaldehyde (PFA). Fresh whole blood (200 mL), fresh WBC and PFA fixed WBC (each equivalent to 200 mL of starting blood) and plasma prepared from 200 mL and 20 mL of blood were administrated intravenously to TSE free VRQ/VRQ recipient sheep (Table 5).

Whole blood and fresh WBC produced clinical scrapie in all recipients. The incubation periods of recipient sheep receiving whole blood or WBC were similar suggesting comparable virulence of both products (Table 4). In contrast, the intravenous administration of crude plasma resulted in infection of only three of the four recipient sheep. The incubation periods of the plasma infections were substantially longer than in sheep who received whole blood. None of the sheep that received plasma that had been prepared from 20 mL of whole blood were infected. Donor (D4), whose plasma did not transmit the disease (even when prepared from 200 ml of whole blood), was also part of the IV whole blood titration (Table 2) where 0.2 mL of its whole blood was sufficient to infect the recipient. From this it can be concluded that, in this individual, plasma was at least 10,000 fold less efficient than whole blood for transmitting the disease by the intravenous route.

Whereas all recipients that received fresh WBC succumbed to clinical disease, the IV administration of PFA fixed WBCs resulted in TSE infection of only two of four recipient sheep (Table 5) and in incubation periods that exceeded those observed for plasma recipients. This outcome might suggest that PFA fixation inactivated WBC associated infectivity. However, when inoculated IC into tg338 mice, the same fresh and PFA fixed WBC homogenates produced 100% attack rates with similar incubation periods for both groups (Table 6). The end point titration by IC inoculation in tg338 of PFA fixed and fresh WBC homogenates from two of these donors (D4 and D7) further confirmed that the fixation procedure we applied did not substantially affected the WBC's infectious titer (Table 6).

Discussion

Using TSE infection in sheep as a model, we have shown that the intravenous administration of a few hundred microliters of blood is sufficient to infect a transfusion recipient. This high efficiency of transmission by blood transfusion contrasts with the very low infectious titer measured by IC inoculation of blood into transgenic mice expressing ovine PrP.

This discrepancy shows that the infectious titer as determined by IC inoculation of rodents does not accurately predict the ability of blood and blood-derived products to transmit the disease when administered by the intravenous route. Importantly, this finding indicates that assessments of transfusion transmission risks from v-CJD that are based on IC measurements in rodents may seriously underestimate the risk.

Our results indicate that freshly prepared WBCs have a comparable capacity to whole blood to infect transfusion recipients. However WBC fixation with PFA strongly inhibited their ability to transmit the disease intravenously. Tissue fixation with aldehydes is classically described to reduce by several log10 the TSE infectivity titer (as measured by IC inoculation in rodents) [24], [25]. However this activity is dependent on the fixation procedure and in particular on its duration. For instance, while the fixation of a 263 K scrapie 10% brain homogenate with 3.7% formaldehyde during 4 hours (at room temperature) resulted in a 1.58 log10 drop in the infectivity, a 30 min fixation had no significant impact on the titer [26]. Our bioassay experiments in tg338 mice, confirmed that the fixation procedure we applied (2% PFA during 10 minutes on ice) preserved TSE infectivity. Beside this, PFA fixation stabilizes cellular morphology through cross linking of the cell surface proteins which also makes it impossible for cells to change their cell membrane molecules and impairs their capacity to develop dynamic cellular interactions [27], [28]. We therefore think that the ability of blood (or blood-derived products) to transmit the disease by the transfusion route crucially depends on the ability of blood cells to interact with the host.

This view is consistent with results obtained in in vitro prion infection models in which cell-mediated infection was reported to be more efficient than infection with cell homogenates or PFA fixed cells [29], [30]. It also concurs with the previously reported ability of living splenic cells prepared from scrapie infected C57Bl6 mice to transmit scrapie in RAG-1^0/0 mice following IV administration whereas no transmission could be observed following the IV administration of splenic cell homogenates to the same mouse model [31]. Whether the high capability of viable WBC to infect blood recipients relies on the capacity of certain cellular populations to deliver TSE agent to specific target site(s) will require further investigation.

In the PG127 scrapie sheep model, plasma was less able than whole blood and fresh WBCs to transmit the disease by the transfusion route. This observation is consistent with data obtained from similar transfusion experiments carried out in BSE infected sheep and in Chronic Wasting Disease infected cervids [32], [33]. The low transmissibility of the disease by the plasma in these animal models contrasts with the results obtained in rodents where plasma contains 40 to 60% of the infectivity in whole blood [7], [8], [34]. Together, with the infectivity measurements that we performed, these data support the contention that the partitioning of TSE agents in blood components differs between sheep and rodents models. However, the differences of infectivity load between plasma and WBC that we observed are unlikely to explain on their own the limited efficacy of plasma to transmit the disease (by comparison to whole blood and WBC). This statement is strongly supported by the WBC fixation experiment that we performed in which the PFA treatment did not alter WBCs infectious titer but reduced their capacity to transmit the disease to recipients at level which is comparable to plasma.

In this study, labile blood products containing viable WBC presented the greatest risk of transmitting Prion disease. This finding strongly supports the continuation of universal leuco-reduction as currently applied in the EU countries and Canada to reduce, amongst other potential adverse effects, the risk of v-CJD transmission [34]. Additional experiments will be necessary to determine the minimal number of WBC (leukocytes and/or platelets) that is sufficient to transmit the disease and to identify the WBC cell population(s) responsible for virulence.

Finally, our results also raise some concerns about the use of the ‘spiking’ models for investigation of blood-borne TSE transmission risk [35], [36]. Whereas this approach is very convenient to measure the TSE infectivity reduction by certain process, it is probably of limited relevance for assessing the efficacy of devices intended to mitigate the risk of Prion disease transmission by blood and blood derived products.
