Age, Spatial, and Temporal Variations in Hospital Admissions with Malaria in Kilifi County, Kenya: A 25-Year Longitudinal Observational Study

Summary

Using observational data over 25 years, Polycarp Mogeni and colleagues examine the age, spatial, and temporal variations in malaria hospital admissions in Kilifi County, Kenya.

Introduction

Some parts of Africa have seen marked reductions in malaria transmission [1–3] with associated reductions in malaria-related morbidity and mortality. Children acquire immunity to malaria following repeated infections, and hence, there is an inverse relationship between the intensity of malaria transmission and age of susceptibility to malaria [4]. Reduced transmission intensity of infectious diseases has been associated with increasing age of susceptibility [5]. This trend has been reported in malaria in both field conditions [6–8] and simulation studies incorporating acquired immunity [9]. For instance, reductions in malaria transmission led to more marked improvements in outcomes for children under 5 y than in the older age groups in Rwanda [7]. In Senegal, a rebound in malaria attacks was observed among adults and older children following a period of declining transmission [8]. These observations may be attributed to reduced population-levels of immunity due to reduced exposure. It is therefore essential to monitor outcomes following initial reductions in malaria transmission.

The objective of the analysis was to describe trends of malaria admissions by age group and examine the efficacy of community insecticide-treated net (ITN) use. We report here an analysis of 69,104 hospital admissions over 25 y from 1990 to 2014. Data for the last 6 y were linked to detailed data on ITN use collected through a demographic surveillance of ~260,000 residents. We also examined the enhanced vegetation index (EVI) as a proxy for soil moisture content, which may correlate with the presence of mosquito breeding sites [10].

Methods

Approval for human participation in the hospital surveillance and the cohorts was given by the Kenya Medical Research Institute (KEMRI) Scientific Steering Committee and the Ethical Review Committee of KEMRI. Written informed consent was obtained from the parents/guardians of the children admitted to hospital. If participants could not write, a thumb-print was obtained, with a witness countersigning that the contents of the information sheet had been explained. The studies were conducted according to the principles of the Declaration of Helsinki.

Study Area

The study was conducted at Kilifi County Hospital, which is situated at the center of the Kilifi Health and Demographic Surveillance System (KHDSS) area on the Kenyan Coast. The KHDSS covers a population of ~260,000 people living in an area of ~891 km², as described previously [11]. Screening for malaria parasites has been continuous for 25 y since the establishment of a pediatric admission ward surveillance system in 1989.

Data Collection

Children below 13 y of age were admitted to the pediatric service, where demographic details and clinical history were recorded and blood was examined for malaria parasites by microscopy. These assessments were conducted on all emergency admissions, irrespective of presumptive diagnosis, with the exception of those admitted for elective surgery.

Children with signs of severe disease such as impaired consciousness or deep breathing were admitted to the high-dependency ward, and children without such signs were admitted to the pediatric ward. Research clinicians provided 24-h clinical cover of both the high-dependency unit and the general pediatric ward.

Thick and thin blood smears were stained with 10% Giemsa and examined at 1,000x magnification for malaria parasites. One hundred microscopy fields were examined before slides could be considered negative. Microscopy standards were monitored through a quality assurance scheme. The scheme included a comprehensive microscopy training done as part of the induction and at regular intervals during the study period. The training also included the use of external quality control slides.

Data Analysis

Our prespecified protocol was to describe the variation in malaria positive fraction in space and time within Kilifi County. Here, we present a data-driven analysis of the trends observed towards increasing malaria in older children over time. The analysis included children aged from 3 mo to 13 y who were admitted to Kilifi County Hospital between 1990 and 2014 and were residents of the KHDSS area. Key metrics were the malaria positive fraction (MPF) (i.e., the fraction of slide positives among all admitted children) and the mean age of the children admitted with positive malaria slides (i.e., without applying a threshold parasitemia). Thus, “Malaria” included all acute admissions with positive slides. We examined the correlation between the MPFs from passive surveillance at the hospital with incidence data from active surveillance of two cohorts in the community, conducted as previously described [12,13]. Unpaired t-test or the Wilcoxon rank-sum test was used where appropriate to compare average/median age between groups. Multiple fractional polynomials were used to assess nonlinear associations in regression models. A sensitivity analysis was carried out with “malaria case” defined using a cut-off parasitemia of >2,500 parasites per μl.

Spatiotemporal Models

The spatiotemporal heterogeneity of malaria transmission in Kilifi County was assessed using a multivariable logistic regression model with the presence or absence of malaria parasites by microscopy among medical admissions (excluding trauma and elective surgery) as the outcome variable and time (continuous variable to capture the secular trends), year (categorical to capture year-to-year variability), region (referring to north versus south of the creek), location (referring to administrative areas within region), and space–time interactions as the independent covariates. We used the Pseudo R² to assess the contribution of the various components of the model. As a measure for the background community prevalence of parasitemia, age-standardized parasite prevalence estimates among trauma cases were determined using standard methods [14], but only when children were afebrile on admission and clinical assessment did not reveal any other acute cause for admission.

Covariate Data

EVI data available between 2000 and 2014 were used as a proxy for soil moisture [10]. They were derived from the National Aeronautics and Space Administration’s (NASA’s) remote-sensing Moderate-Resolution Imaging Spectroradiometer (MODIS) instrument on board the Terra satellites [15]. EVI data were downloaded at a pixel resolution of 250 x 250 m² for 16-d intervals and then averaged by year. Data on ITN use were obtained from yearly KHDSS surveys of all residents conducted from 2009 through 2014. We used data from responses to the question “Did you sleep under an ITN last night?” or “Did your child sleep under an ITN last night?”

We imposed regular geographical grids on the study area and concentric circles around each admitted child’s residence using longitude and latitude coordinates. The prevalence of ITN use within each concentric circle and the mean EVI within each grid space were used in multivariable models. We selected a parsimonious model from the set of EVI and ITN covariates created through a stepwise model selection criterion. We tested for the superiority of nonlinear models over linear models by plotting residuals against covariates and testing the significance of multiple fractional polynomials over linear fits where asymmetrical distributions of residuals were identified. Observations with missing locations, ages, and slide results were excluded prior to the analysis. We used multiple imputation with chained equations in STATA software with 50 imputations to impute missing data on personal ITN use. To impute personal ITN use, the outcome variable (malaria slide result) and the covariates (EVI, age, and community ITN use) were included in the multiple imputation model. Multiple fractional polynomial transformation was applied to allow for nonlinearity in continuous variable effects (EVI, age, and community ITN use) in the imputation model. The multivariable logistic regression model results for the imputed datasets (combined using Rubin’s rules) were then compared to model results from the complete case analysis. Age-standardized parasite prevalence was calculated in R (version 3.0.2) [16], and all other analyses were done using Stata 12.0 (Stata, College Station, Texas, United States).

Results

Geographical Distribution and Trends in MPF

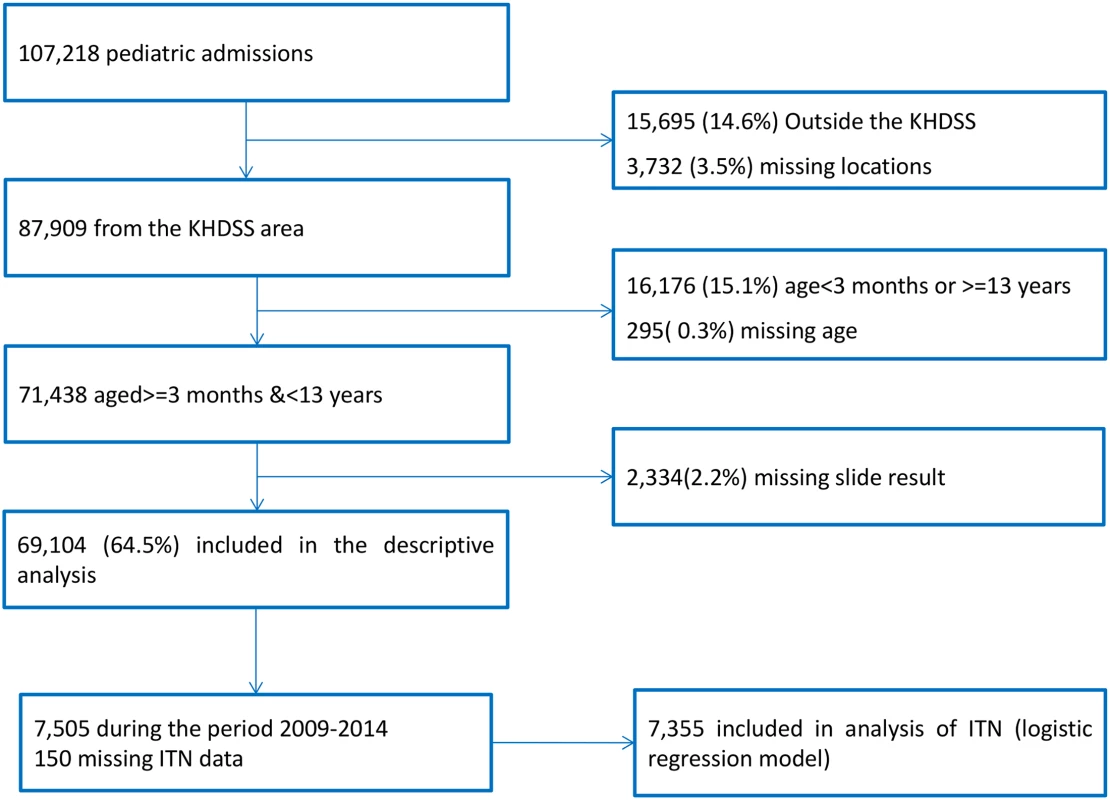

Over 25 y, there were 107,218 pediatric admissions recorded, of whom 87,909 were known residents of the KHDSS and 71,438 were ≥3 mo or <13 y of age. Malaria slide data were missing for 2,334, leaving 69,104 for our analysis (Fig 1). The characteristics of the study population are presented in Table 1. The fraction of acute admissions that were positive for malaria (i.e., the MPF) for the full dataset was 0.389 (95% CI 0.385–0.393). MPF was subject to marked spatial and temporal heterogeneity (S1 Video and Fig 2A).

The average age of children admitted with malaria-positive slides and acute illness increased gradually from 20.2 mo (95% CI 18.9–21.6) in 1990 to 45.3 mo (95% CI 42.5–48.3) in 2014 (p < 0.001). During the same period, the mean age for children with malaria-negative slides and acute illness increased only slightly from 19.8 mo (95% CI 18.6–21.1) in 1990 to 26.1 mo (95% CI 24.9–27.5, p < 0.001) in 2014 (Fig 2B). Furthermore, the mean age of children with asymptomatic parasitemia among trauma admissions did not increase significantly, ranging from a geometric mean of 52.1 mo (95% CI 49.5–54.9) in the 1990–2002 predecline period to 64.6 mo of age (95% CI 49.5–84.2) in the 2009–2014 postdecline period (p = 0.0543; the latter wide CI reflects the reduced prevalence of asymptomatic infection).

The absolute number of malaria slide-positive deaths recorded in the hospital surveillance fell over time, although the absolute number of malaria slide-negative deaths did not show a clear trend (Fig 2C). The case fatality rate (i.e., the proportion of children admitted who died) among malaria slide-positive children was static, although among slide negative-children, the case fatality rate showed a gradual decline (Fig 2D).

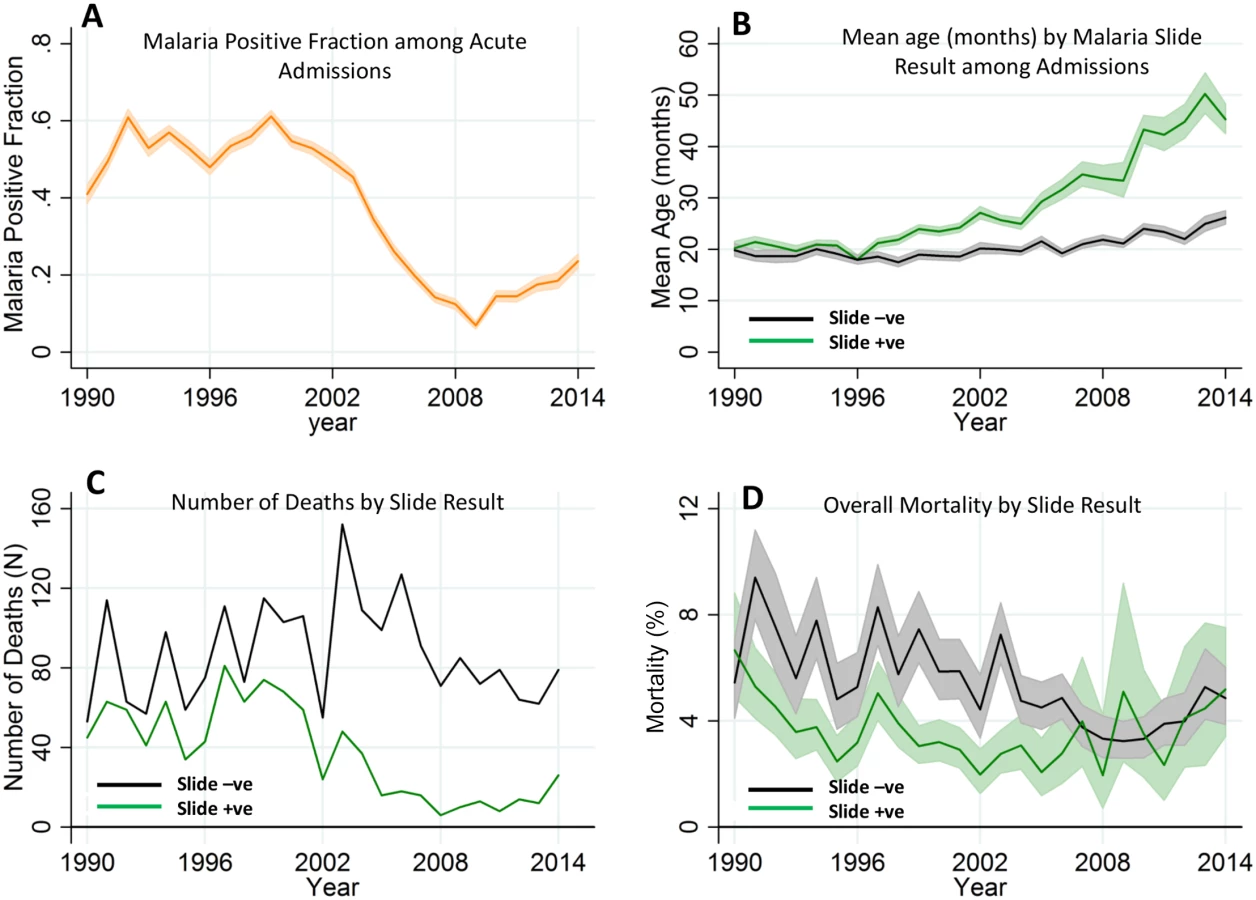

There was a decline in MPF over the years, with the lowest MPF (i.e., 0.07 [198/2,858]) being recorded in 2009, and a subsequent increase in MPF (up to 0.24 [511/2,169]) in 2014 (Fig 2A). We therefore refer to the 1990–2002, 2003–2008, and 2009–2014 as “predecline,” “decline,” and “postdecline” periods, respectively. Models accounted for variation in MPF poorly in the predecline period; however, the decline period was dominated by temporal variation, and the postdecline period was dominated by spatial variation (Fig 3A, 3B and 3C, respectively).

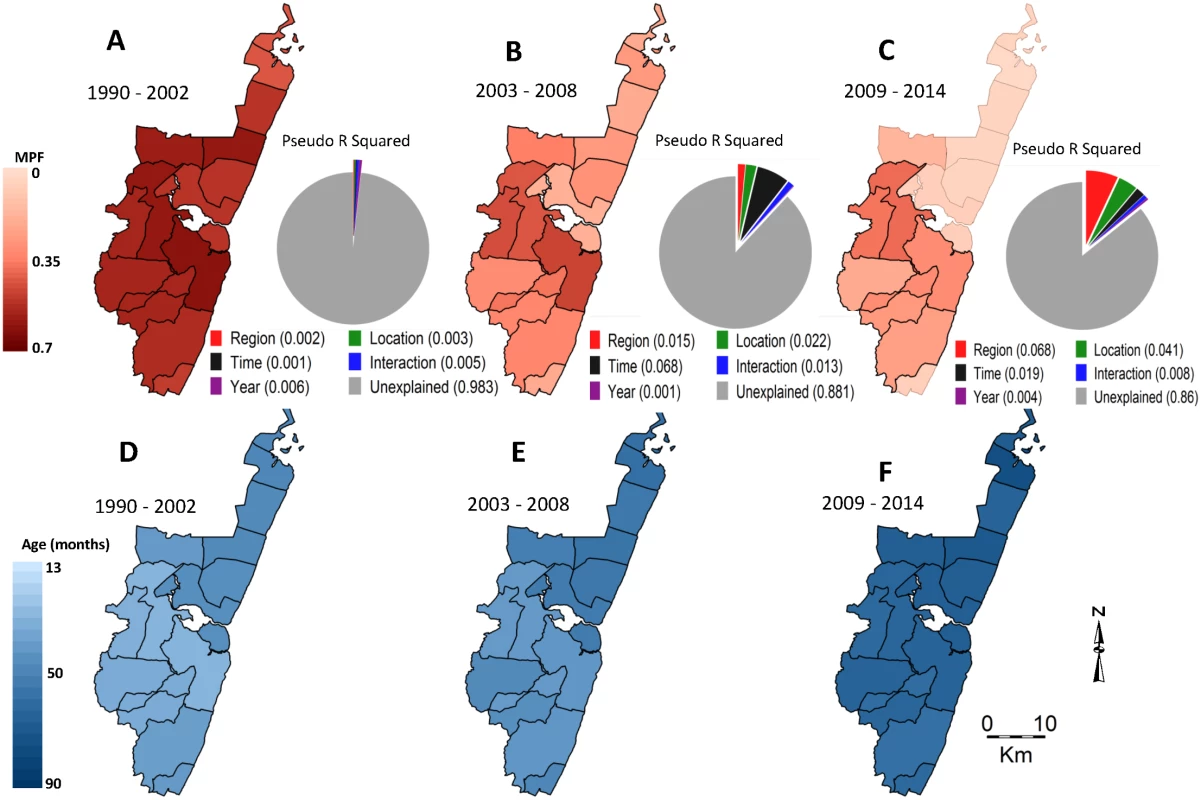

There was an inverse relationship between MPF and the average age of children with positive slides when averaged by location: areas with a higher average age of malaria tended to have lower MPF and vice versa (Fig 3A compared to 3D, 3B compared to 3E, and 3C compared to 3E). This was significant before the decline (r = −0.36, p < 0.001), but not after (r = −0.05, p = 0.66). There was a shift in the burden of disease from younger age groups to older age groups after the decline (S1 Fig).

Access to Care

In order to assess the effect of access to care, we examined the data for trends in MPF over the euclidean distance between children’s residence and the hospital (S2 Fig). Best-fit lines showed greater heterogeneity in MPF over distance than linear trend in MPF over distance (a nonsignificant gradient of –0.003 per km, [95% CI −0.006–0.0003, p = 0.08]), suggesting that geographical heterogeneity had a greater effect than any bias that may have been introduced by distance from the hospital. Furthermore, we found that the incidence of malaria on active case detection from two cohorts monitored over 10 y [12,13] correlated closely with MPF measured at the hospital (r = 0.84, p < 0.001, S3 Fig).

Is the Postdecline Increase in Malaria Due to Increasing Transmission or Falling Immunity?

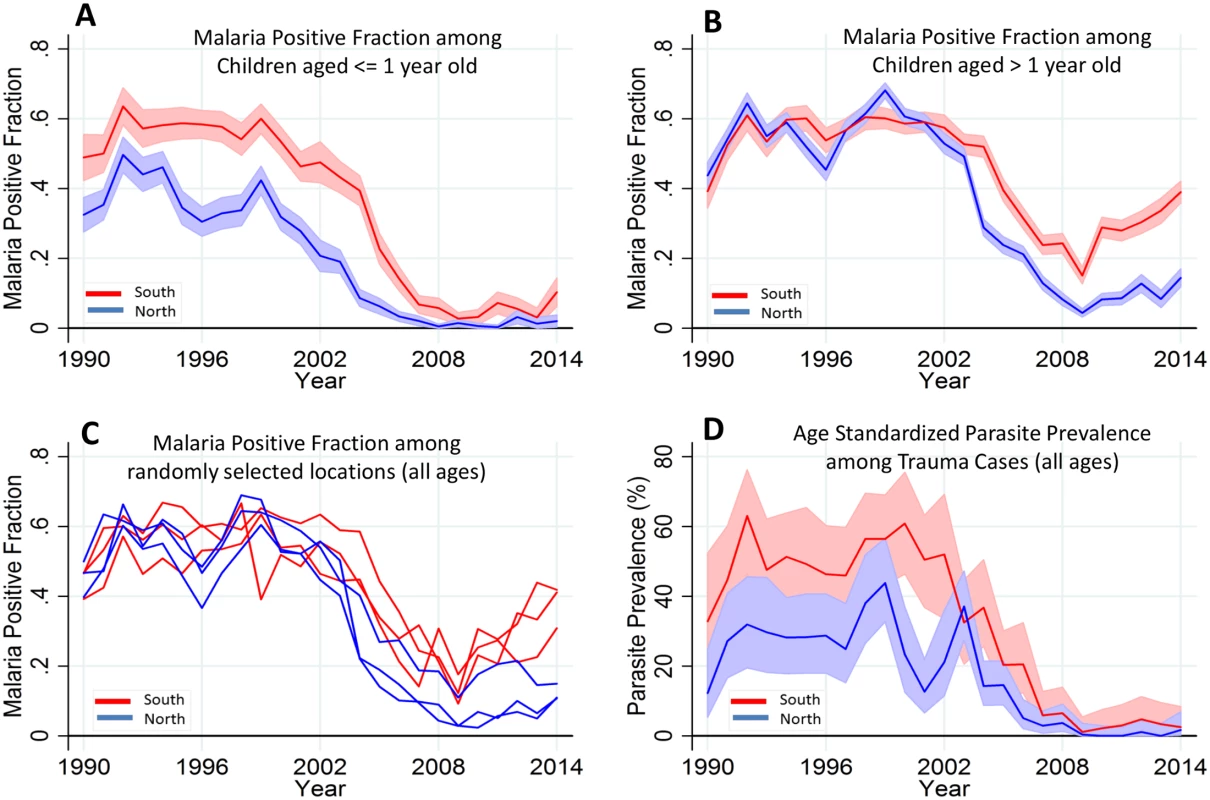

In order to disentangle the effects of loss of immunity from transmission intensity, we hypothesized that MPF for children ≤1 y old (MPF_<1yr) would indicate transmission intensity without the offsetting of acquired immunity (as has been done previously [17,18]). We examined the trends in MPF_<1yr by region (i.e., using the creek in the center of the county as the point of division into northern versus southern regions) in view of the significant effect of region on variability of MPF (Fig 3C). MPF_<1yr showed a clear decline from the mid-1990s, down to almost zero in the northern region by 2008 and to low levels in the southern region from 2008 onwards, with a very slight increase after 2009 in the North and a slightly more marked but variable increase in the South after 2009 (Fig 4A). By comparison, MPF_>1yr showed a greater increase in both regions in the postdecline period, which was particularly marked in the South (Fig 4B). Within geographical locations, malaria positivity showed substantial variability from year to year (Fig 4C).

We also examined the age-corrected parasite prevalence (PfPR_2-10) among the 5.8% (3,971/69,104) that were trauma admissions (excluding trauma cases with fever) as a proxy of community parasite prevalence (Fig 4D). PfPR_2-10 declined from 43% (30/72) and 56% (35/62) in the northern and southern regions, respectively, in 1999, to <1% (i.e., 0/151 in the North and 1/100 in the South) in both regions in 2009 but subsequently rose, reaching 2% (2/102) and 4% (3/83) in the northern and southern regions, respectively, in 2014.

Factors Predicting Malaria-Positive Slides among Admissions

Over the full monitoring period from 1990–2014, there was significant variation in MPF over space and time, and the spatial variation was most marked in the postdecline period (Fig 3C). The variation accounted for by an interaction between space and time was also more marked during this period, suggesting substantial temporal instability of the subregional spatial pattern during this period (Fig 4D). The interaction between space and time was strongly significant (p < 0.001) and accounted for ~1% of the variability in MPF. However, the regional differences (i.e., with lower MPFs in the north versus the south of the creek) remained temporally consistent despite the subregional instability.

The prevalence of ITN use among residents in the northern region was estimated at 32%, 16%, and 26% in the years 2000, 2003, and 2005, respectively (malaria indicator surveys, S1 Table), and then at 55.9% (95% CI 55.7–56.1) in 2009, rising to a high of 82.6% (95% CI 82.5–82.8) in 2013 in the surveys we conducted. Detailed spatial data were available between 2009 and 2014, including EVI and ITN use for each of the 250,000 residents in the study area (S4 and S5 Figs). We identified four independent predictors of malaria slide positivity: (a) ITN coverage in the 2 km radius around the child’s residence, (b) age of the child, (c) EVI in the 0.25 x 0.25 km square around the child (i.e., the finest resolution at which EVI was available), and (d) time (Fig 5B, S2 Table). Personal ITN use was a predictor in univariable analysis (odds ratio [OR] = 0.73, 95% CI 0.65–0.83, p < 0.001), but not after adjusting for ITN use in the 2 km radius around the admitted children’s residences (S2 Table). There were no marked differences in characteristics of missing ITN data compared to nonmissing data by age, EVI, gender, and location of residence (S3 Table). Results from multiple imputation were not significantly different from complete case analysis (S2 Table).

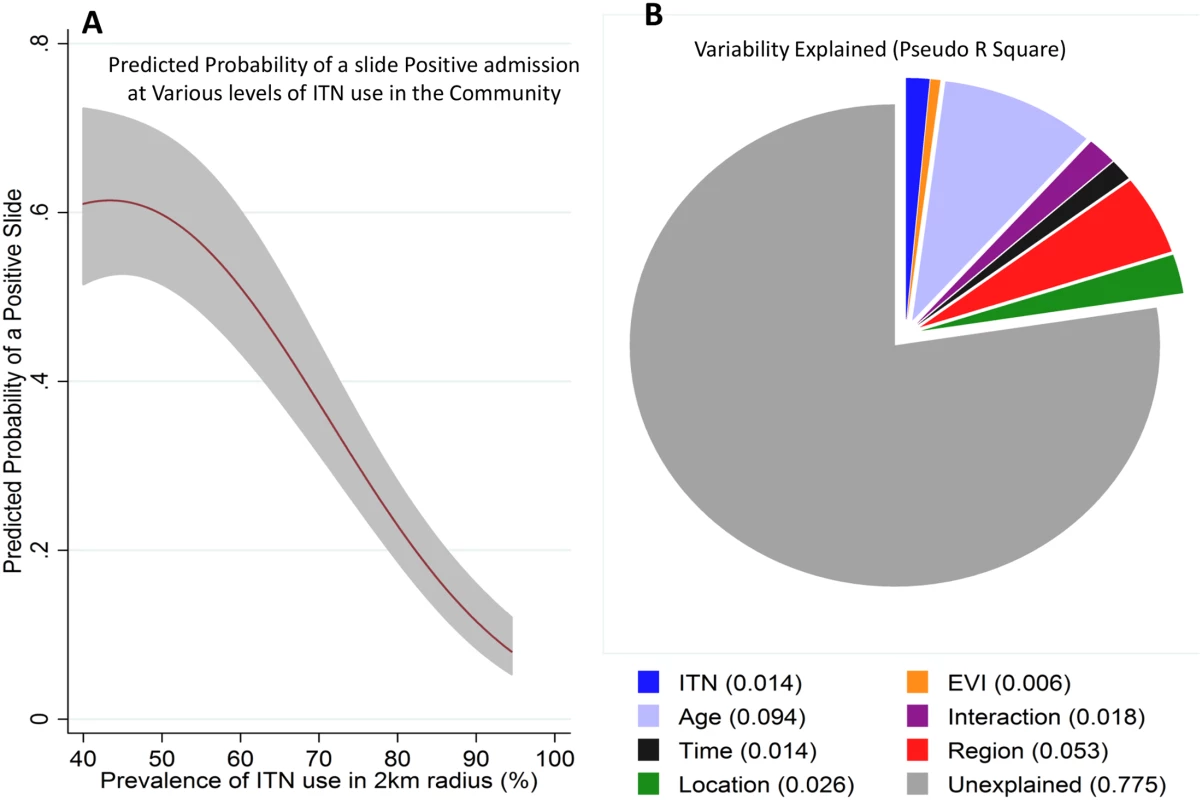

There was a strongly significant (p < 0.001) nonlinear relationship between community ITN use in the 2 km radius area around a child’s residence and a slide-positive result, such that MPF reduced substantially with increasing ITN use (Fig 5A). Similar results were obtained using a model that included clustering at 250 m² (S4 Table).

Discussion

We analyzed 69,104 hospital admissions at Kilifi County Hospital over 25 y to describe trends of malaria admissions by age group and examined the effectiveness of community ITN use. The proportion of acutely unwell children admitted to hospital with malaria-positive slides compared to all acute admissions (i.e., the MPF, also termed the “slide-positive rate”) declined from 2002 until 2009 as reported previously [19]. However, after 2009 there was an increase in MPF that continued through to 2014. This increase was mostly seen in older children: there were relatively modest increases among children less than 1 y of age (MPF_<1yr) but much greater increases among children above 1 y of age (MPF_>1yr). This combination of findings suggests that the increase in malaria is due to increasing susceptibility to disease among older children, exacerbated by a slight increase in underlying transmission intensity since 2009. Additional evidence for increasing transmission after 2009 can be seen in the increasing prevalence of asymptomatic parasitemia (PfPR) among children admitted for trauma and work showing increasing parasite prevalence throughout the Kenyan Coast [20].

Not all children admitted to hospital meet the criteria for severe malaria [21]. However, children admitted to hospital have higher parasite counts than children treated in the community by primary health care facilities, which likely reflects increased illness severity compared with cases treated in the community [12,22]. Previous analyses suggest that the presence of comorbidity does not necessarily indicate that the parasitemia is co-incident and not the proximate cause of admission [12,22], and we have therefore included all slide-positive admissions apart from those for trauma and elective surgery in our analysis. This analysis inevitably includes some cases of co-incidental asymptomatic parasitemia. Since asymptomatic parasitemia tends to be lower in density than the parasitemia associated with acute illness, we included a sensitivity analysis with a threshold parasite density of >2,500 parasites per μl to examine the impact of excluding asymptomatic parasitemia on our results.

It has been shown previously that at high transmission intensities, children acquire immunity rapidly and so are not susceptible to disease when they are older [6]. On the other hand, at low transmission there is less disease among younger children, and consequently, older children acquire less immunity and remain susceptible [6]. Therefore, we predict that the lowest malaria rates will occur just after a recent reduction in transmission: at this point, current exposure is low, but older children are immune because of their previous exposure when transmission was high. As time goes by after a reduction in transmission, a cohort of older children will emerge who are susceptible to the disease, and the rates of malaria will increase again.

Taking together our finding of (a) trends of increasing age of children admitted with positive malaria slides in parallel with falling PfPR_2-10 in the community and falling MPF_<1 among hospital admissions, (b) a geographical association in which areas with high MPF have a low average age of children admitted with malaria, and (c) previous analyses [23] and geographical analyses [4] showing the importance of the relationship between prior exposure and immunity to malaria, the most likely conclusion is that reduced exposure led to increasing susceptibility among older children and hence the subsequent increase in MPF.

Other potential explanations for increasing malaria admissions among older children could include increased prevalence of preferential ITN use among younger children rather than loss of immunity. However, multivariable models (complete case and imputed data analysis) that accounted for personal ITN use showed that age, and the interaction between age and year, were independent predictors of malaria, indicating that the increasing MPF among older children was independent of variation in ITN use by age (S2 Table). Furthermore, the difference in ITN use by age was modest (87% of children less than 1 y of age used ITNs compared with 78% of children between 1 and 5 y of age). Other interventions to prevent malaria targeted at younger children that increased over time could produce a similar pattern, but we are unaware of any interventions meeting these criteria. An increasing prevalence of outdoor biting might also preferentially affect older children. However, this would not explain the clear inverse correlations seen between MPF and average age over time and by geographical region, which suggests that immunity is an important component of the variation in MPF. In the absence of host immunity, older children may be at higher risk than younger children since mosquito biting may be proportional to surface area [24]. However, MPFs do not necessarily reflect incidence. For instance, the risk of nonmalarial fever falls as children get older, which would lead to an apparent increase in MPF.

The scale-up in ITN use occurred in 2006 and therefore is not related to the reductions in transmission seen from 2000 onwards: changing antimalarial drug use and rainfall may be relevant [20]. Regardless of the cause of the prior decline, we found clear evidence of ITN efficacy during the period in which they were used. Personal ITN use was associated with reduced MPF among children admitted to hospital. However, when multivariable models were examined, it was the prevalence of ITN use in the 2 km radius area around a child that independently reduced the probability of a malaria-positive slide, regardless of personal use. Hence, it is likely that the resurgence in malaria seen since 2009 would have been even more marked in the absence of ITNs.

The WHO and Kenyan national policy recommend universal ITN coverage to control malaria. However, operational constraints often do not allow this, and thus, many distribution strategies instead target younger children and pregnant women as high-risk groups. Our data suggest that universal coverage should be a high priority since (a) older children are increasingly in need of protection as transmission falls and (b) the mass-protective effect would achieve substantial gains in malaria control above those achieved by personal ITN use.

Fortunately, we did not identify strong evidence of an increasing case fatality rate as transmission fell (Fig 2D). The risk of mortality from severe malaria increases in older age groups across the range from children to adults [25], but this increase may be less evident within the age range of children below 10 y of age [21,26]. Furthermore, many other factors influence mortality over time, including variation in hospital use over time, access to care (and therefore earlier presentations), better care [27,28], and socioeconomic conditions. Our data do not suggest that increasing mortality is an immediate concern of the postdecline period despite the increasing rates of malaria in older children.

Study limitations include the use of MPF among acute admissions, which may be biased by varying access to care. In support of the use of MPF, we found a close correlation between location-matched MPFs with the incidence rates from active case detection data from two cohort studies conducted within the same study area. Furthermore, we showed that geographic heterogeneity was larger than any consistent bias in MPF with regards to distance to the hospital (S2 Fig), agreeing with previous work [17].

We based our analysis on the proportion of children with positive malaria slides. This case definition includes children with chronic asymptomatic parasitemia and coincident fever. To exclude a bias resulting from including these children, we repeated the analysis after applying a threshold of >2,500 parasites per μl, which excludes the majority of children with asymptomatic parasitemia (S6 Fig) [12].

Our ITN surveys were conducted annually and based on reported rather than observed use. The potential misclassification could lead to an underestimate of the protective effect of ITNs. During the study period, there were no other widespread interventions such as antimalarial prophylaxis or presumptive treatment that were targeted on younger children. ITN use has not been randomly assigned, and therefore, confounding could be present. If present, this would most likely dilute the effect size (i.e., ITN use would be better taken up in areas of higher malaria risk). Furthermore, observational studies of ITN use have consistently shown findings similar to those of randomized controlled trials (RCTs), suggesting that within specific communities confounding is not pronounced [29].

Our data were taken from a single geographical setting. However, there is evidence that immunity to malaria is dependent on exposure in a wide range of geographical settings [6], and therefore, our findings may be relevant more widely across Africa in settings where transmission is falling [2].

In conclusion, we show that despite substantial reductions in malaria transmission in Kilifi, residual malaria transmission has continued and older children are increasingly vulnerable to disease. As countries and regions make progress in malaria control [3], maintaining control measures will be essential: in fact, further progress will be required to offset the increasing rates of malaria in older children. Achieving ITN coverage close to 100% shows promise as a strategy but will require novel strategies, particularly among groups that seem less keen to use ITNs, such as adolescent males and young adults [30].
