Influences Bone Mineral Density, Cortical Bone Thickness, Bone Strength, and Osteoporotic Fracture Risk

Summary

We aimed to identify genetic variants associated with cortical bone thickness (CBT) and bone mineral density (BMD) by performing two separate genome-wide association study (GWAS) meta-analyses for CBT in 3 cohorts comprising 5,878 European subjects and for BMD in 5 cohorts comprising 5,672 individuals. We then assessed selected single-nucleotide polymorphisms (SNPs) for osteoporotic fracture in 2,023 cases and 3,740 controls. Association with CBT and forearm BMD was tested for ∼2.5 million SNPs in each cohort separately, and results were meta-analyzed using fixed effect meta-analysis. We identified a missense SNP (Thr>Ile; rs2707466) located in the WNT16 gene (7q31), associated with CBT (effect size of −0.11 standard deviations [SD] per C allele, P = 6.2×10⁻⁹). This SNP, as well as another nonsynonymous SNP rs2908004 (Gly>Arg), also had genome-wide significant association with forearm BMD (−0.14 SD per C allele, P = 2.3×10⁻¹², and −0.16 SD per G allele, P = 1.2×10⁻¹⁵, respectively). Four genome-wide significant SNPs arising from BMD meta-analysis were tested for association with forearm fracture. SNP rs7776725 in FAM3C, a gene adjacent to WNT16, was associated with a genome-wide significant increased risk of forearm fracture (OR = 1.33, P = 7.3×10⁻⁹), with genome-wide suggestive signals from the two missense variants in WNT16 (rs2908004: OR = 1.22, P = 4.9×10⁻⁶ and rs2707466: OR = 1.22, P = 7.2×10⁻⁶). We next generated a homozygous mouse with targeted disruption of Wnt16. Female Wnt16^−/− mice had 27% (P<0.001) thinner cortical bones at the femur midshaft, and bone strength measures were reduced between 43%–61% (6.5×10⁻¹³<P<5.9×10⁻⁴) at both femur and tibia, compared with their wild-type littermates. Natural variation in humans and targeted disruption in mice demonstrate that WNT16 is an important determinant of CBT, BMD, bone strength, and risk of fracture.

Introduction

Osteoporosis is a common skeletal disease characterized by reduced areal bone mineral density (BMD) and defects in the microarchitecture of bone, resulting in an increased risk of fragility fracture [1]. Osteoporotic fractures affect between one third to one half of white women [2] and currently incur direct costs exceeding $19 billion per year in the United States alone [3]; and this socio-economic burden is increasing with the ageing of industrial societies [4].

Twin and family studies have revealed that genetic factors can explain up to 85% of the variation in peak BMD [5], [6]. Since 2007, we and others have published several genome-wide association studies (GWAS) for osteoporosis and related traits [7], [8], [9], [10], [11], [12], [13], [14] identifying multiple common variants associated with BMD and highlighting biologic pathways that influence BMD.

Most osteoporotic fractures occur at peripheral sites, mainly containing cortical bone, after the age of 65 [15]. As indicated by a recent study, bone loss at this age is mainly due to loss in cortical and not trabecular bone [16]. In human cadaver femurs, cortical bone has been reported to be the main determinant of the femoral neck bone strength, while trabecular bone only contributes marginally to bone strength at this site [17]. Evidence implicating cortical thinning as a risk factor for hip fracture has also been presented [18]. The heritability for cortical thickness, measured using computed tomography, has been reported to be as high as 51% [19].

BMD is a complex trait, obtained from a 2-dimensional projectional scan of the given bone with dual x-ray absorptiometry (DXA). Although BMD is the most clinical useful measure for diagnosing bone fragility (osteoporosis), it fails to provide a detailed skeletal phenotype necessary to discern traits such as bone geometry and volumetric BMD (vBMD) [20]. Most of the loci or genes identified have been associated with BMD at lumbar spine and/or femoral neck, sites rich in trabecular bone. Therefore, we hypothesized that investigating BMD at the forearm, a primarily cortical bone site, as well cortical bone thickness, a trait with high heritability, would serve as successful strategies to identify novel bone related genetic loci.

Forearm fractures are among the most common fractures, affecting 1.7 million individuals per year. In contrast to hip fractures [21], forearm fractures have been shown to be highly heritable, with estimates of 54% [22]. To our knowledge, no GWA studies for cortical bone thickness, forearm BMD or fractures have been published. Importantly, we are aware of only one previous locus [12] that has been associated with risk of fracture even in large-scale meta-analytic efforts at a genome-wide significant level (reviewed previously) [23], [24], [25].

In this study, we performed two separate GWA meta-analyses in order to identify loci for cortical bone thickness of tibial diaphysis and BMD at the distal radius. Firstly, we performed a GWA study of three large and well-characterized independent discovery cohorts of 5,878 samples with the aim of identifying genetic loci for cortical thickness. SNPs meeting GWAS significance in the discovery meta-analysis were also tested for association in a large replication cohort (N = 1032). In the second and separate GWA meta-analysis, we combined genome-wide association results of 5,672 samples with BMD measurement at the forearm site from five cohorts; we then sought evidence of association of selected genome-wide significant signals in three cohorts comprising 5,763 individuals for forearm fracture.

To determine the possible functional role of the identified genes on cortical bone thickness and bone strength, we generated mice with inactivated genes and investigated their skeletal phenotype. The resultant findings increase our understanding of the genetic basis of osteoporosis and osteoporotic fracture.

Results

GWAS Meta-Analysis of Cortical Thickness

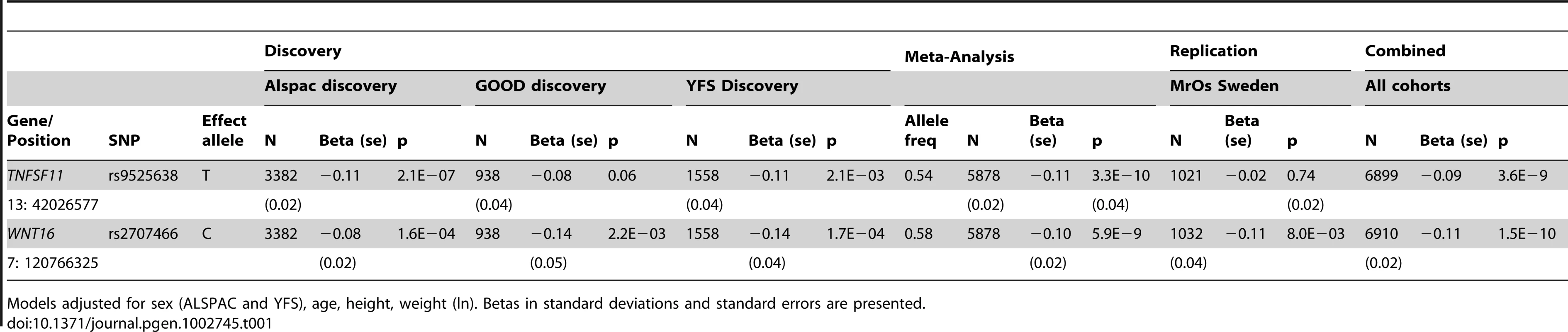

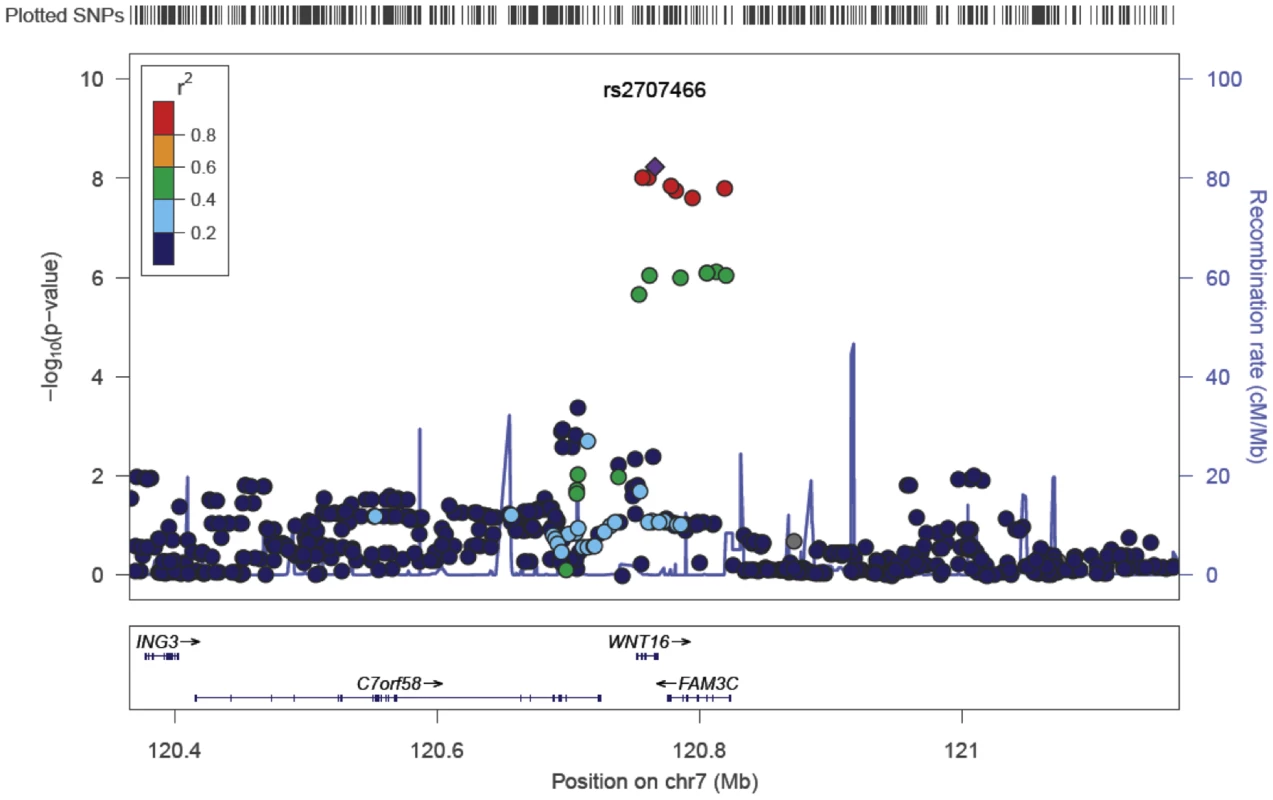

Anthropometrics, and bone variables for the three discovery GWAS cohorts and one replication cohort are presented in Table S1. Marked deviation from the null distribution amongst the lowest observed p-values were observed for the meta-analysis results (Figure S1). The results showed that the greatest evidence for association between genetic variation and tibial cortical thickness was seen for rs9525638 on chromosome 13, slightly upstream of the RANKL gene (−0.11 standard deviations [SD] per T allele, P = 3.3×10⁻¹⁰) (Table 1, Figure S2 and Figure S3). The second strongest genetic signal (rs2707466) for cortical thickness was located at the WNT16 locus (−0.10 SD per C allele, P = 5.9×10⁻⁹) (Table 1, Figure 1 and Figure S2). The SNP rs2707466 represents a missense polymorphism (Thr>Ile) located in the fourth exon of WNT16.

We selected our top two regions, the RANKL and WNT16 loci, with SNPs with P<1×10⁻⁵ and carried out analyses conditional on the most associated SNPs in each region: rs9525638 and rs2707466, respectively. When conditioning on the most significant SNP in the WNT16 region (rs2707466) an additional suggestive signal (rs12706314 in C7orf58, P condition = 7.3×10⁻⁵) appeared, but did not achieve genome-wide significance. Using a similar conditional analysis (with rs9525638) for the RANKL locus, no additional SNPs with an independent signal appeared.

Cortical Thickness Replication Study

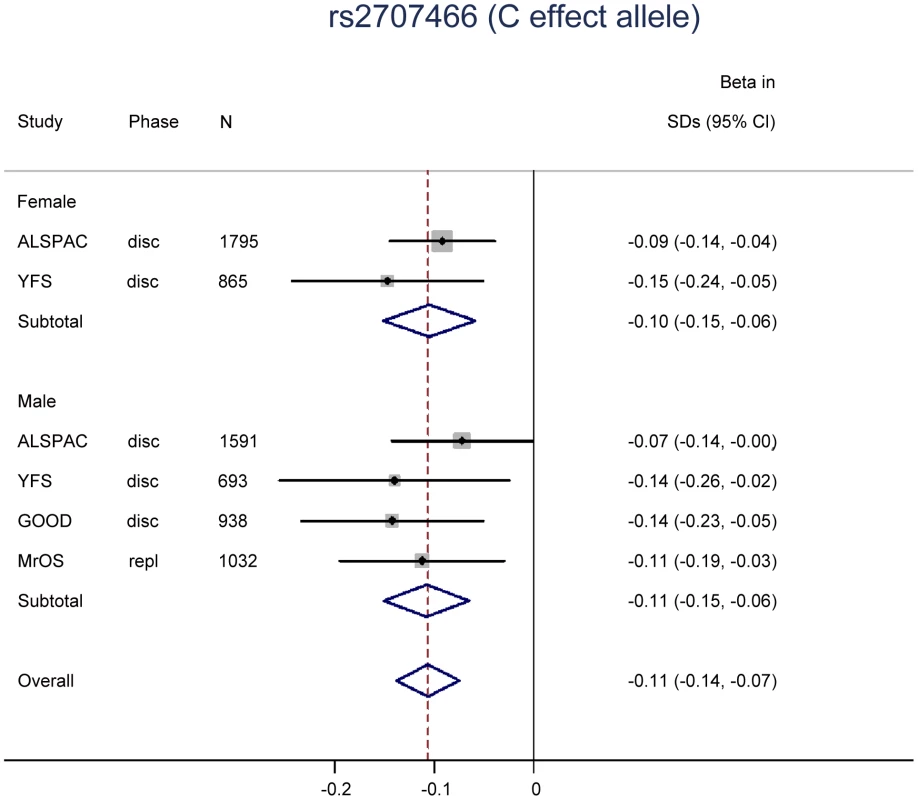

Two SNPs (rs9525638, rs2707466) were selected for replication in the MrOS Sweden cohort. In the replication stage, SNP rs2707466 at the WNT16 locus was significantly associated with tibial cortical thickness (−0.11 SD per C allele, P = 0.008), whilst no strong evidence of association was seen for rs9525638 near the RANKL locus although the estimated effect was in the same direction as in the discovery meta-analysis (Table 1). Thus, rs2707466 was the only SNP that was significantly associated with cortical thickness in both the discovery and replication cohorts (combined −0.11 SD per C allele, P = 1.5×10⁻¹⁰). Therefore, further analysis of associations with bone traits was constrained to rs2707466 at the WNT16 locus. Associations between rs2707466 and cortical thickness were highly similar when performed according to sex (Figure 2). No evidence of a significant impact of age for the association between rs2707466 and cortical thickness was found (ALSPAC (young) vs. GOOD, YFS and MrOS combined (adult and older): −0.09 SD vs. −0.13 SD per C allele, P = 0.135, for heterogeneity between the two groups). In the combined meta-analysis, rs2707466 was not associated with either cortical vBMD or periosteal circumference (Table S2). In the GOOD cohort, rs2707466 was associated with cortical bone thickness also at the radius (−0.12 SD per C allele, P = 0.008).

GWAS Meta-Analysis of Forearm BMD

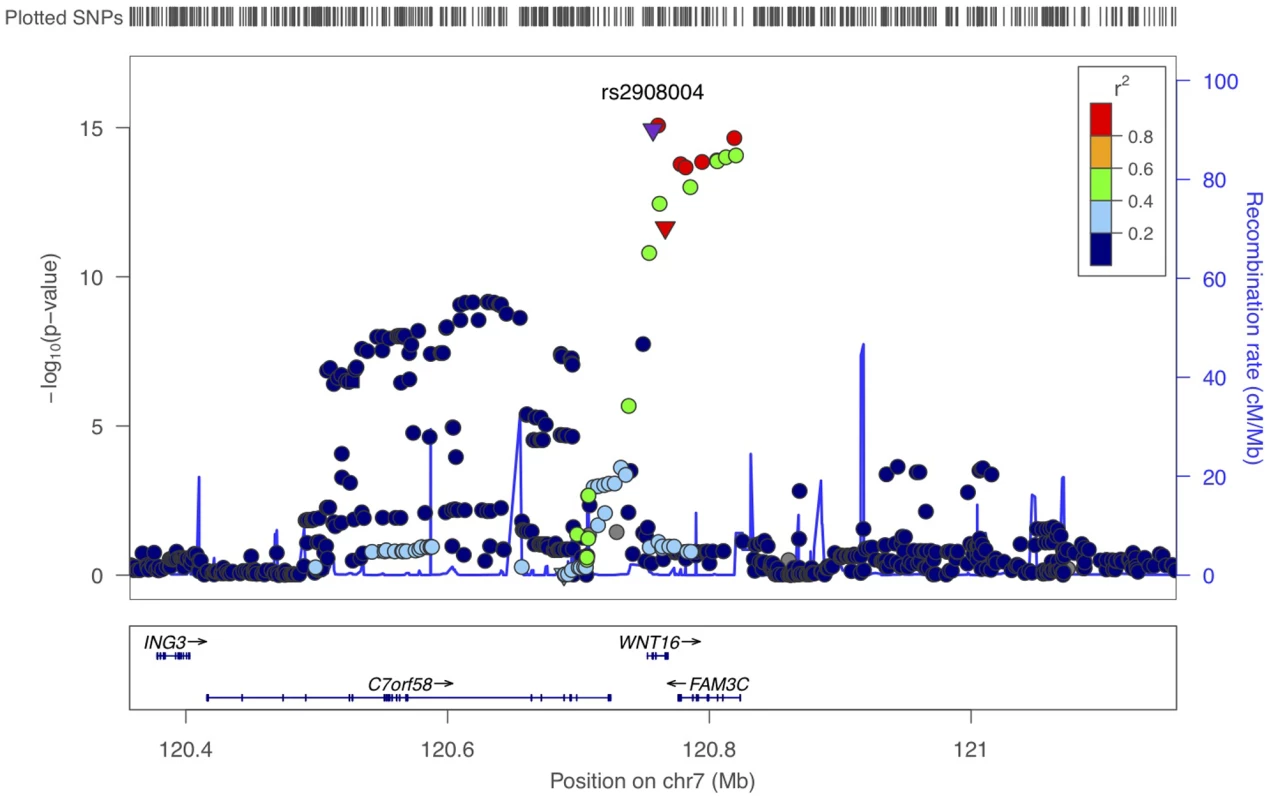

The information of the five forearm BMD cohorts is presented in Table S3. A quantile-quantile plot of the observed P values showed a clear deviation at the tail of the distribution from the null distribution (Figure S4). The meta-analysis revealed that 54 SNPs within the 7q31 locus had genome-wide significant associations (P<4.6×10⁻⁸) with forearm BMD (Table S4 and Figure S5). The most significant SNP was at rs2536189 (−0.16 SD per C allele, P = 8.5×10⁻¹⁶). Two common amino acid substitutions at WNT16, rs2908004 (Gly>Arg) (−0.16 SD per G allele, P = 1.2×10⁻¹⁵) and rs2707466 (Thr>Ile as described in cortical thickness study) (−0.14 SD per C allele, P = 2.3×10⁻¹²) also demonstrated genome-wide significance (Table 2). The highlighted locus at 7q31 locus included genome-wide significant SNPs at the WNT16 (wingless-type MMTV integration site family, member 16), FAM3C (family with sequence similarity 3, member C) and C7orf58 (chromosome 7 open reading frame 58) genes (Figure 3). To identify the possible secondary signals in this locus, we carried out a conditional analysis. When conditioning on rs2536189, the most significant SNP at WNT16 for BMD, an additional signal (rs1554634 in C7orf58, P = 7.8×10⁻⁸) was highlighted at a genome-wide suggestive level of association (Figure S6). This SNP is in LD with rs12706314 in C7orf58 (r² = 0.35 and D' = 0.72 in HapMap CEU), which showed suggestive association with cortical thickness when conditioning on the top signal for cortical thickness.

Forearm Fracture Association Study

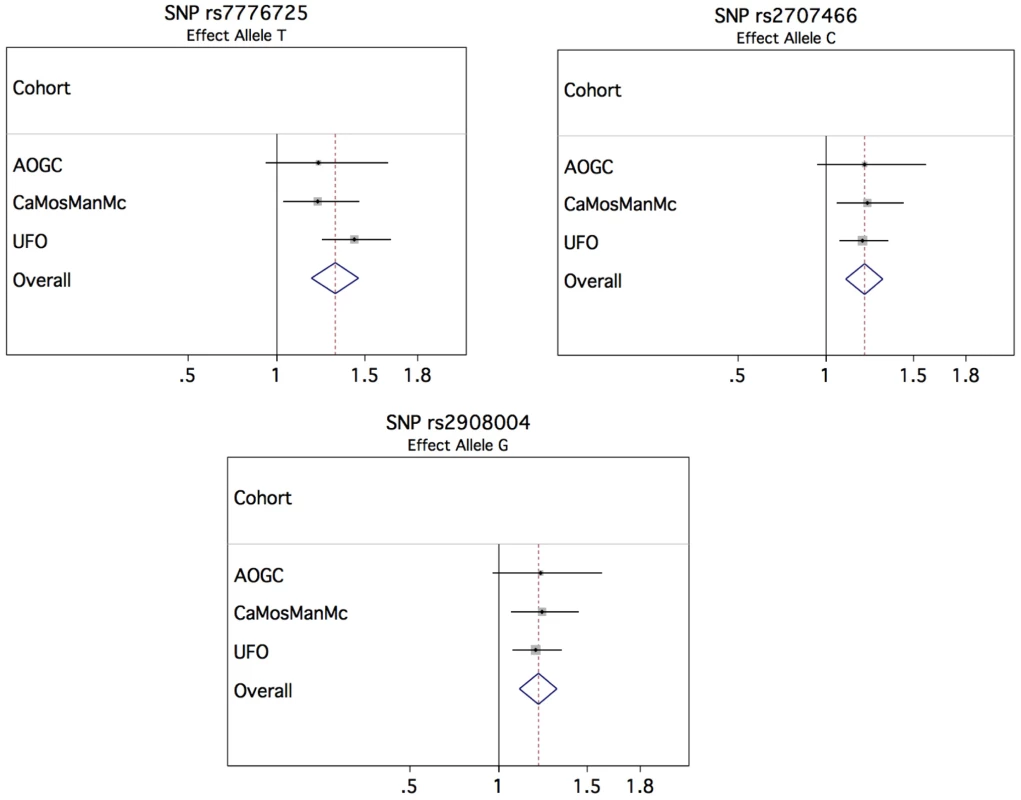

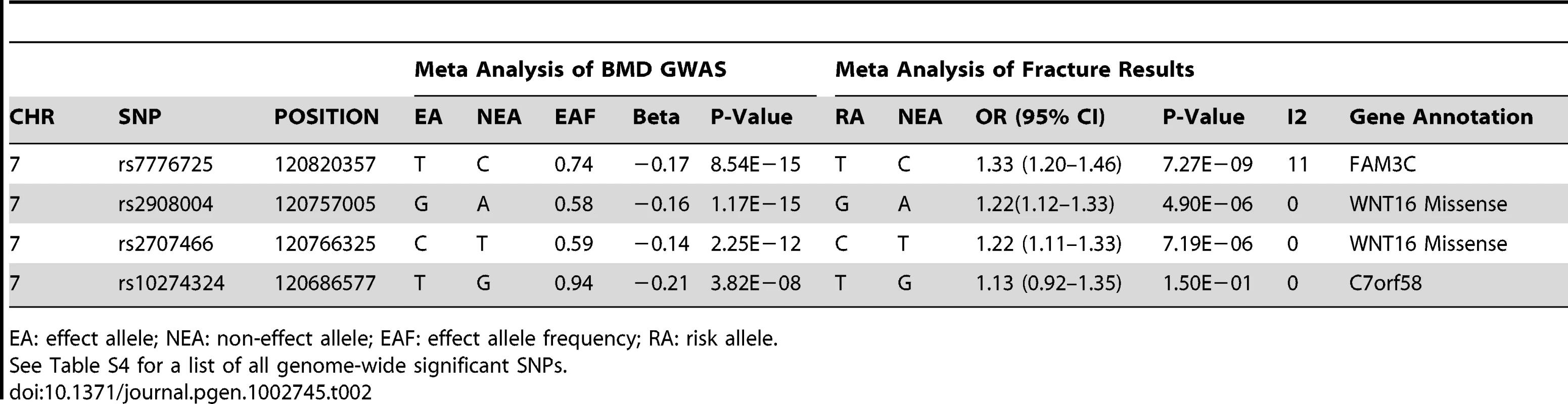

In order to investigate whether the variants showing association with forearm BMD also have an effect on the risk of forearm fracture, we selected 4 genome-wide significant SNPs from the BMD analysis for de novo genotyping in samples with forearm fracture and their controls (Table S5), including the two missense SNPs in WNT16 (rs2707466 and rs2908004), one from FAM3C (rs7776725) and one from C7orf58 (rs10274324). In the meta-analysis for osteoporotic fracture, comprising 2,023 forearm fracture cases and 3,740 controls, from 3 cohorts, we identified the rs7776725 SNP in FAM3C as being genome-wide significant for forearm fracture, with each C allele increasing the odds of fracture by 1.33 (95% confidence interval [CI]: 1.20–1.46, P-value = 7.3×10⁻⁹) (Table 2 and Figure 4). The two missense SNPs in WNT16 also demonstrated strong associations with risk of fracture (rs2908004, risk allele G, OR = 1.22 [95% CI: 1.12–1.33], P-value = 4.9×10⁻⁶ and rs2707466, risk allele C, OR = 1.22 [95% CI: 1.11–1.33], P-value 7.2×10⁻⁶). SNP rs10274324 from C7orf58 was not associated with fracture in this study (P = 0.15). These results were consistent across the three cohorts (Table S6).

Mouse Gene Deletion Studies

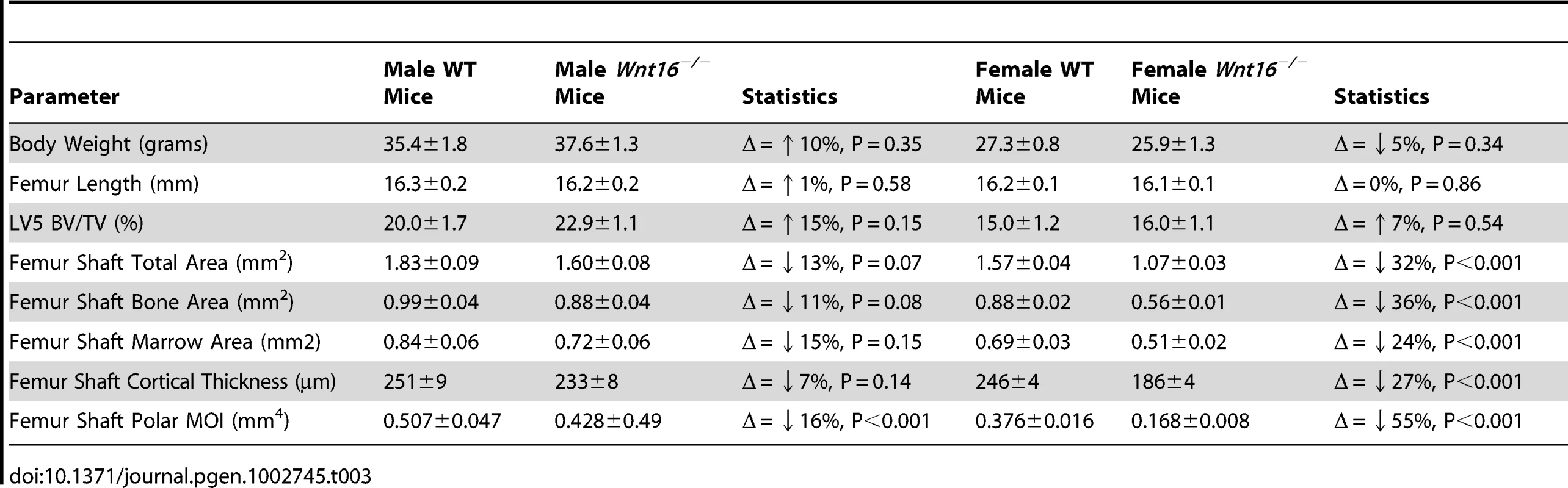

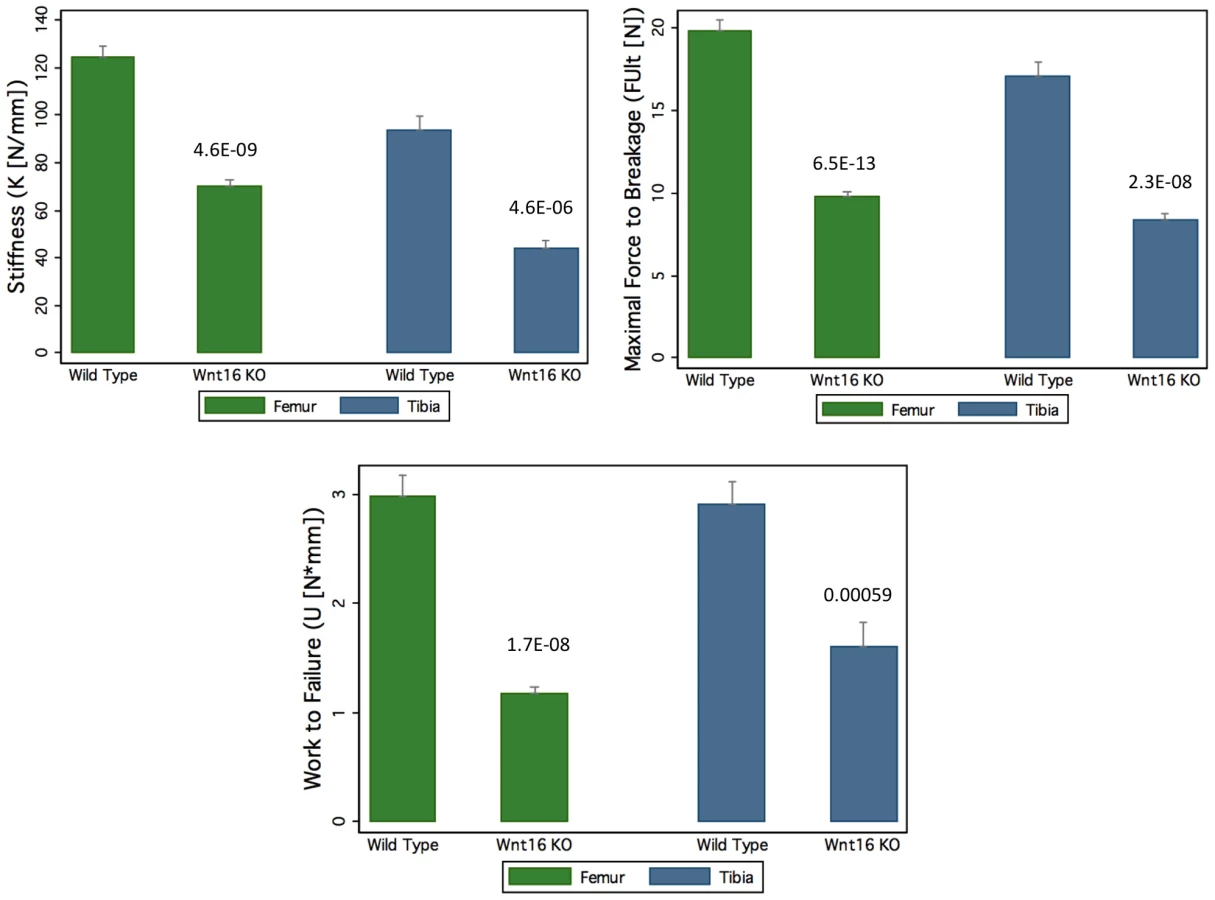

Mice with a gene deletion of Wnt16 (Wnt16^−/−) appeared healthy with no discernible morphological or growth defects, and had normal body weight and femur length at 24 weeks. In microCT analyses of the femoral diaphysis, male Wnt16^−/− mice had a trend suggestive of reduced cortical thickness (−7%, P = 0.14), and reduced cortical bone polar moment of inertia (−16%, P<0.001) (Table 3); female Wnt16^−/− mice had substantially reduced cortical cross sectional area (−36%, P<0.001) and cortical thickness (−27%, P<0.001) and calculated bone strength (polar moment of inertia, −55%) (Table 3). Trabecular bone volume fraction (bone volume/total volume), as measured by microCT of 5^th lumbar vertebrae (LV5), was similar in wild-type and Wnt16^−/− mice (Table 3). In three-point bending tests, measures of bone strength (stiffness, maximal force to breakage and work to failure) were decreased between 43–61% (6.5×10⁻¹³<P<5.9×10⁻⁴) in Wnt16^−/− female mice at both femur and tibia (Figure 5). However, microCT parameters of the femoral shaft and LV5 in male wild type and Fam3c^−/− mice did not reveal any consistent differences across the three targeting strategies (Table S7).

Discussion

Forearm fractures are a common and costly condition. In two separate GWASs for forearm BMD and cortical bone thickness we have identified variants that are genome-wide significant for these traits and, importantly, for forearm fracture at the 7q31 locus. Further, we have provided functional data from mice demonstrating that Wnt16^−/− mice have reduced cortical bone thickness and bone strength. These results are among the first to demonstrate a genome-wide significant locus for osteoporotic fracture suggesting that this locus is an important genomic determinant of cortical bone thickness and forearm BMD and fracture as well.

WNT16 is a member of the wingless-type MMTV integration site family, which has been reported to mediate signaling via canonical or non-canonical Wnt pathways. The canonical Wnt pathway has been shown to regulate bone mass. Specifically, loss of function mutations in the Wnt-co receptor LRP5, as seen in osteoporosis pseudoglioma syndrome, result in a dramatic loss in bone mass [26], while gain of function mutations give rise to extremely high BMD (5 SD above normal) [27]. Wnt16 has been proposed to signal via the non-canonical pathway [28], regulating haematopoetic stem cell specification in zebra fish, but whether this signaling system involves regulation of osteoblasts, which are of mesenchymal origin, is unclear. Little is known of the role of WNT16 in skeletal development and function, but Wnt16 has previously been implicated in synovial joint development in mice [29]. Several genes involved in the Wnt pathway have been previously identified to be associated with BMD by GWAS. These include known loci CTNNB [10], SOST [30], LRP4 [9], [10], LRP5 [8], [10], FOXC2 [10], GPR177 [10], and MEF2C [10]. Our study adds WNT16 to this list of bone-influencing Wnt factors. In addition to our GWA meta-analyses results for cortical bone thickness and forearm BMD, we present a functional study demonstrating that Wnt16^−/− mice have a substantial decrease in cortical bone thickness (27%) and bone strength (43–61%), but not bone length. Further, Medina et al (accompanying submission) provide data indicating that variation in WNT16 also influences BMD in children, suggesting that WNT16 may influence peak bone mass. Importantly, the clinical relevance of these findings at WNT16 is supported by our observation that WNT16 influences clinical fractures in humans and bone strength in mice.

In an experimental study using forearms from cadavers, cortical bone thickness was highly correlated (r = 0.93) to the 3-point bending failure load and could improve the prediction of this strength measure, in combination with bone mineral content derived from DXA [31]. Among individuals suffering a fracture at the radius, cortical bone thickness at the same site was 33% lower than in controls, which was the largest difference observed for the cortical bone traits [32]. The present study constitutes the first GWA study of cortical bone thickness, a trait with crucial importance for bone strength. The SNP rs2707466, which causes a missense amino acid substitution (Thr>Ile) at the WNT16 locus, was consistently associated with cortical thickness in a meta-analysis of three large discovery cohorts and in a replication cohort (combined P = 1.5×10⁻¹⁰). In the GOOD cohort, the rs2707466 was also associated with cortical bone thickness at the radius, with an effect size similar to what was seen for the tibia, indicating that the WNT16 locus affects cortical bone thickness at both the forearm and leg. Interestingly, the most significant 14 of the 54 genome-wide significant SNPs in the forearm BMD GWAS, were all in the WNT16 or FAM3C genes, and showed high correlation with the two WNT16 missense SNPs: rs2908004 and rs2707466 (0.58<r2<1, in HapMap CEU data). This finding might suggest that the association signals are driven by these coding SNPs in WNT16. These two missense variants were also strongly associated with risk of fracture in our study, but did not achieve genome-wide significance. All together, our results implicate the WNT16 locus as important for fracture risk, which would likely be mediated via an effect on cortical bone, particularly the thickness of the cortical shell.

FAM3C, which is predicted to be expressed in osteoblasts and encodes a newly identified cytokine necessary for epithelial to mesenchymal transition and retinal laminar formation in vertebrates [33]. We identified the SNP rs7776725 within the first intron of FAM3C to be genome-wide significant for forearm BMD (P = 8.5×10⁻¹⁵) and forearm fracture (P = 8.6×10⁻⁹). Since the fracture cohorts do not have available BMD data, except for the AOGC cohort, which comprised only 7% of the fracture case population, no meaningful conclusions could be drawn for the independence of the association between fracture and forearm BMD. While candidate gene studies have previously described relationships between genetic variants and fracture [34], [35], [36], we are aware of only one other variant that has been demonstrated to be genome-wide significant for any type of osteoporotic fracture, arising from the ALDH7A1 gene [12]. Interestingly, SNP rs7776725 in FAM3C was previously reported to be associated with speed of sound (SOS) as analyzed by quantitative ultrasound at the radius (P = 1.0×10⁻¹¹) in an un-replicated GWAS carried out in Asian populations [13]. This SNP was also associated with BMD in a Caucasian population [37]. The high-throughput DEXA and microCT screen which initially identified reduced cortical bone thickness and bone strength in Wnt16 knockout mice failed to observe any skeletal phenotype changes in three independent knockouts of mouse Fam3c. Since the sample size of Fam3c^−/− mice was small (N = 18), the possibility of a false negative result cannot be excluded. All together, our functional studies indicate that Wnt16 rather than Fam3c is responsible for the observed genetic signal arising from this locus. However, we provide no data as to whether or not gain of functions variants in Fam3c could have effects on the studied bone traits and fracture risk.

C7orf58 (FLJ21986), which codes for a hypothetical protein, has recently been identified to be associated with blood pressure in a study on Nigerians [38]. As an open reading frame, C7orf58 has no known function. In the forearm GWAS, the other 40 out of the 54 genome wide significant SNPs are from C7orf58, and show low LD with rs2908004 and rs2707466 (r2<0.2, in HapMap CEU data), when conditioning for the top SNP (rs2536189) in WNT16, resulted in an additional signal (rs1554634) in C7orf58. Similarly, conditioning for rs2707466 at the WNT16 locus, in the GWAS for cortical bone thickness, resulted in an additional, suggestive signal (rs12706314, which was in LD with rs1554634) located in C7orf58. Furthermore, Medina et al (accompanying submission) demonstrate in a conditional analysis that a separate signal, other than the signal derived from WNT16,, located in C7orf58 was associated with total body BMD. Thus, these studies reveal an independent genetic signal for several bone traits, arising from C7orf58, indicating a possible functional role of this protein. Even though our functional studies imply that Wnt16 determines the bone effects of the 7q31 locus, further studies are necessary to elucidate the role of C7orf58.

In summary, we provide the first evidence of association of common variants across the genome with cortical bone thickness, forearm BMD and forearm fracture. We also provide functional data implicating WNT16 at this locus. Importantly, our findings report one of two genome-wide significant variants for osteoporotic fracture. These results suggest a critical role of Wnt signaling pathway on cortical bone thickness and bone strength determination as well as fracture susceptibility.

Materials and Methods

Ethics Statement

All study participants provided informed written consent. Approval by local institutional review boards was obtained in all studies.

Study Samples of Bone Cortical Thickness GWAS

GOOD cohort

The Gothenburg Osteoporosis and Obesity Determinants (GOOD) study was initiated to determine both environmental and genetic factors involved in the regulation of bone and fat mass [39] [40]. Young men were randomly identified in the greater Gothenburg area in Sweden using national population registers, contacted by telephone, and invited to participate. Enrolled subjects were between 18 and 20 years of age. There were no other exclusion criteria, and 49% of the study candidates agreed to participate (n = 1068). Genotypes from 938 individuals passed the sample quality control criteria (Table S8). We carried out imputation to HapMap2 using Mach 1.0, Markov Chain Haplotyping [41], giving a total of 2,608,508 SNPs

YFS cohort

The Cardiovascular Risk in Young Finns Study (YFS) is an ongoing multi-centre follow-up of atherosclerosis risk factors in young Finns [42]. The first cross-sectional survey conducted in 1980 comprised a total of 3,596 subjects (83% of those invited) aged 3, 6, 9, 12, 15 and 18 years. The subjects were randomly selected from the national population register from five university cities in Finland (Helsinki, Turku, Tampere, Kuopio and Oulu) and the rural municipalities in their vicinity. In 2008, 1,884 subjects (1,058 women and 826 men) aged 31–46 years participated in pQCT measurements organized in five study centers (Turku, Helsinki, Tampere, Oulu and Kuopio) between February and December 2008. Trained technologists in each center performed the measurements. The same pQCT device was used in all study centers (Stratec XCT 2000R). Pregnant women were excluded from the pQCT measurements. Subjects gave written informed consent. Bone measures are described in detail elsewhere [43]. Both pQCT measurements and genotype information were available for 1558 study subjects. Genotype imputation was performed using MACH 1.0 [41] and HapMap II CEU samples as the reference set. See more detail in Table S8.

ALSPAC cohort

The Avon Longitudinal Study of Parents and their Children (ALSPAC) is a geographically based birth cohort study investigating factors influencing the health, growth, and development of children. All pregnant women resident within a defined part of the former county of Avon in South West England with an expected date of delivery between April 1991 and December 1992 were eligible for recruitment, of whom 14,541 were enrolled (http://www.alspac.bris.ac.uk) [44]. Both mothers and children have been extensively followed from the 8^th gestational week onwards using a combination of self-reported questionnaires, medical records and physical examinations. Blood samples were taken and DNA extracted as previously described [45]. 3382 study subjects had both pQCT measurements and genotype information. We carried out imputation using MACH 1.0.16, Markov Chain Haplotyping [41], using CEPH individuals from phase 2 of the HapMap project as a reference set. See more detail in Table S8.

Study Samples of Bone Cortical Thickness Replication Study

MrOS Sweden cohort

The Osteoporotic Fractures in Men (MrOS) study is a prospective multicenter study including older men in Sweden (3014), Hong Kong (>2000), and the United States (>6000). In the present study, associations between candidate polymorphisms and skeletal parameters were investigated in the Swedish cohort (Table 1), which consists of three sub-cohorts from three different Swedish cities (n = 1005 in Malmö, n = 1010 in Gothenburg, and n = 999 in Uppsala). Study subjects were randomly identified using national population registers, contacted and asked to participate. To be eligible for the study, the subjects had to be able to walk without assistance, provide self reported data, and sign an informed consent; there were no other exclusion criteria [46]. See more detail in Table S8.

Study Samples of Forearm BMD GWAS

5,672 samples from five cohorts of European descent participated in this meta-analysis (Tables S3 and S9). BMD at forearm in all cohorts was measured by dual-energy X-ray absorptiometry following standard manufacturer protocols.

TwinUK1 and TwinUK23 cohorts

TwinsUK (http://www.twinsuk.ac.uk/) is a population-based registry of British Twins representative of the general British population [8], [36], [47]. Genotyping of the TwinUK1 was done by Illumina HumanHap300, and TwinUK23 by HumanHap610Q. Imputation was performed using the IMPUTE software package version 2 [48] based on HapMap2, release 22.

AFOS cohort

The Amish Family Osteoporosis Study (AFOS) study was designed to identify genetic determinants of osteoporosis in the Old Order Amish (OOA) population from Lancaster County, PA USA [49], [50]. Genotyping was done using either the Affymetrix 500K or 6.0 genotyping chip. The Birdseed genotype-calling algorithm was used. Imputation was performed using MACH on the HapMap2, rel 22 data.

GOOD cohort

The GOOD study subjects (study inclusion criteria described under the cortical bone thickness GWA study) were contacted and invited to participate in a five-year follow-up exam [51]. Forearm BMD measurements were available in 731 men (Table S3).

AOGC cohort

The Anglo-Australasian Osteoporosis Genetics Consortium (AOGC) study collected unrelated individuals with extreme BMD phenotypes as a powerful strategy for gene discovery in quantitative traits [11], [52]. Genotyping was performed using Illumina Infinium II HumHap370CNVQuad chips at the University of Queensland Diamantina Institute, Brisbane, Australia. Subsequent imputation was done based on the HapMap2 release 22 data using MACH program.

Study Samples of Forearm Fracture Association Study

Four genome-wide significant SNPs for forearm BMD were selected to test the association with forearm fracture in 2,142 cases and 3,697 controls from three cohorts. Forearm fracture was defined as fractures resulting from low trauma (such as a fall from standing height) occurring at the wrist, ulna, radius, forearm, as well as Colles' fractures.

UFO cohort

The Umeå Fracture and Osteoporosis (UFO) study is a nested case-cohort, population-based study from Sweden designed to identify the genetic and gene-by-environmental determinants of osteoporotic fracture. This cohort is sampled from a population-based cohort study from Northern Sweden initiated to identify the risk factors for diabetes and cardiovascular disease [53], [54]. In total, 1,068 cases and 1,218 age-matched controls were included from this cohort. All fractures were confirmed by radiographic or surgical report. De-novo genotyping in the UFO study was undertaken at Kbiosciences (England).

CaMos and ManMc cohort

The Canadian MultiCentre Osteoporosis study (CaMos) is a population-based prospective study of 9,423 men and women from across Canada, followed for fourteen years for osteoporotic outcomes and risk factors [55]. All fractures in the CaMos study at forearm were confirmed with radiographic or surgical report. The Manitoba-McGill (ManMc) fracture study is a population-based cohort of women undergoing surgical repair of wrist and hip fractures within the Province of Manitoba, Canada [56]. All individuals had no prior history of concomitant disease or use of bone-altering drugs. All fractures occurred at forearm and were confirmed with surgical report. ManMc was designed to complement the CaMos cohort by recruiting individuals suffering osteoporotic fractures in the most heritable age range (prior to age 70) and compare them to controls from the CaMos cohort that had not suffered an osteoporotic fracture after up to fourteen years of follow-up and subjects reaching at least 70 years of age. Weight and height at time of fracture are not collected for these study participants. 800 cases with forearm fracture and 855 controls were included from the combined CaMos/ManMc study. De novo genotyping for the CaMos and ManMc cohorts at the 4 SNPs assessed for fracture was undertaken at Kbiosciences (England).

AOGC cohort

This in silico association study included 155 forearm fracture cases and 1,672 controls from the AOGC GWAS [11]. In some samples the level of trauma was not known. In these cases, if the fracture occurred after age 60 years, it was considered to be an osteoporotic low trauma fracture, fractures occurring prior to this age with unknown trauma level were conservatively excluded. Fracture cases were identified by self-report.

Statistical Analysis

Genome-wide meta-analysis and replication method for bone cortical thickness study

The ALSPAC (n = 3382), YFS (n = 1558) and GOOD (n = 938) discovery cohorts contributed to the genome-wide meta-analysis. We analyzed only those imputed SNPs which had a minor allele frequency of >0.01 and an r² imputation quality score of >0.3 in all 3 sets (n = 2,401,124). We carried out genome-wide association analyses for cortical thickness using additive linear regression in Mach2QTL for ALSPAC, ProbABEL [57] for YFS and using GRIMP [58] for the GOOD analyses. We included age, sex, height and weight(ln) as covariates. We carried out meta-analyses of the results from the three cohorts using the inverse variance method. Standardized betas and standard errors from each study are combined using a fixed effect model which weights the studies using the inverse variance and applying genomic control to individual studies and the combined results. Genome-wide significance was taken to be p<5×10⁻⁸. We selected one SNP from each independent region that had a p<5×10⁻⁸ for replication in the MrOS Sweden cohort. We also repeated the analyses in each of the three discovery cohorts, conditional on these top SNPs, to identify any additional independent associations in the regions. Additive linear regression analyses were carried out for the associations between these SNPs and cortical thickness in SPSS Statistics 17.0 for MrOS Sweden, using age, sex, height and weight(ln) as covariates. The results of all four cohorts were combined using a fixed effects inverse-variance meta-analysis in Stata (version 11.2). Correlations between bone traits in the MrOS cohort were tested and presented as Spearman's rank correlation coefficients (rho).

Genome-wide meta-analysis method for forearm BMD study

All cohorts independently conducted the association analysis of SNP allele dosage with standardized BMD residuals, while adjusting for age, age², gender, weight and population substructure where applicable, for centre of recruitment (AOGC), and for family structure in cohorts with family members. The analyses were performed for men and women combined. Details of each study's GWAS are found on Table S9. A meta-analysis of the GWAS results was conducted using the GWAMA software (Genome-Wide Association Meta Analysis) (http://www.well.ox.ac.uk/gwama/) [59], with which meta-analyses are performed for both directly genotyped and imputed SNPs using estimates of the allelic effect size and standard error for BMD, and estimates of the allelic odds ratio and 95% confidence interval for fracture. Poorly imputed SNPs (r2 in MACH<0.3 or proper_info in IMPUTE2<0.40) and SNPs with low MAF (<0.01) were excluded. The summary effect estimates for BMD and fracture risk were computed using fixed-effects inverse variance meta-analysis [60]. Cochran's Q statistic and I² estimates were used to evaluate the heterogeneity. To control for possible inflation of statistics due to population stratification and family relations, genomic control was applied to each study as well as the overall meta-analysis [61]. Statistical significance for genome-wide BMD association study was set at P<5×10⁻⁸.

Fracture association analysis

Four of the 54 genome-wide significant SNPs, in the forearm BMD GWAS, were selected to test the association with fracture. The rationale for picking these SNPs included: 1) Given that the Wnt pathway is central to osteoporosis etiology, two missense SNPs (rs2908004 and rs2707466) from WNT16 were selected, considering that missense SNPs may have more functional consequence than synonymous or non-coding SNPs, and that these two SNPs can fully tag the top SNP rs2536189 (r2>0.98); 2) The SNP rs7776725, which is in FAM3C, was selected because it was previously reported to be associated with speed of sound through bone, as analyzed by quantitative ultrasound at the radius [13] and was in only moderate LD with the rs2908004 (r2 = 0.58); 3) The SNP rs10274324 was selected based on its genome wide significance (−0.21 SD per T allele, P = 3.8×10⁻⁸ for forearm BMD), LD information (r2 = 0.04 with the top SNP rs2536189) and location (in C7orf58 gene). Therefore, the SNP selection provided assessment across all three genes at this locus (WNT16, FAM3C and C7orf58). SNPs were assessed for association with fracture risk using logistic regression models adjusted for sex, height and weight. Age was included as an additional covariate where this was not controlled for through the study design. Again, a fixed effect meta-analysis was undertaken assessing the effect of allelic dose on risk of fracture.

Generation of Knockout Mice

Wnt16^−/− mice

Mice with a gene deletion of Wnt16 were generated using homologous recombination techniques. The first three exons were disrupted, with confirmation by Southern hybridization analyses (Figure S7). F2 hybrid littermates, derived from C57BL/6J and 129 SvEv parental strains, were examined at 24 weeks of age.

Fam3c^−/− mice

Three separate knockout strategies were employed to inactive mouse Fam3c: 1) gene trap disrupting the intron between the first two exons with confirmation by lack of gene expression by RT-PCR in kidney and spleen (Figure S8), 2) homologous recombination removing the first two coding exons with confirmation by Southern hybridization analysis (Figure S9), 3) homologous recombination involving replacement of the mouse gene by the human gene resulting in loss of function (Figure S10). F2 hybrid littermates, derived from C57BL/6J and 129 SvEv parental strains, were examined at 16 weeks of age. All studies were performed in accordance with institutional and regulatory guidelines for animal care.

Imaging

Male and female mice were scanned using a microCT (Scanco μCT40, Switzerland). The fifth lumbar vertebrae (LV5) were scanned with a voxel size of 16 µm. Midshaft femurs were scanned with a voxel size of 20 µm. All scans used a threshold of 240, an X-ray tube voltage of 55 keV, a current of 145 microamperes and an integration time of 200 microseconds. Three-point bending tests were performed using Mach-1TM Micromechanical System A300.100 (Bio Syntech Canada inc., Laval, Quebec, Canada). The extrinsic parameters (ultimate force [Fult], stiffness [K or S], and work to failure [W or U]) were determined from a force-displacement curve. The span of two support points was 7 mm. The de-formation rate was 50 µm/s.

Statistical analysis

Two-sided student's t-test was employed to determine statistical significance of the effect of gene inactivation for each gender. Results are shown as mean+SEM.
