Intra-tumor Genetic Heterogeneity and Mortality in Head and Neck Cancer: Analysis of Data from The Cancer Genome Atlas

Summary

In this study, Rocco and colleagues examine data collected as part of a large, multi-institutional study, to validate a measure of tumor heterogeneity called MATH and determine whether intra-tumor heterogeneity is itself related to mortality.

Introduction

High intra-tumor heterogeneity has long been hypothesized to lead to worse clinical outcome [1–5]. Recent studies (reviewed in [6–11]) have documented the importance of intra-tumor heterogeneity in tumor development, metastasis, and treatment resistance.

One particularly important type of intra-tumor heterogeneity arises from differences among cancer cells that are inherited during cell division, which we refer to as genetic heterogeneity. Differences of a cancer cell’s genome from the germ line can result from unrepaired copy-number aberrations (CNAs) (amplification or loss of chromosomes, chromosome arms, or large genome segments) or smaller somatic mutations (single-nucleotide variants or short genomic insertions or deletions) that are passed on to a cell’s lineage during tumor development [12]. Even in a tumor originating from a single initiating clone, these processes can make the genome diverge among the tumor’s cancer cells, leading to cells with different CNA patterns [13] or to genetically distinct subclones [14]. This reservoir of genetically diverse cancer cells can promote metastasis or allow resistance to cytotoxic or molecularly targeted therapies [6–11].

Both CNAs and somatic mutations have been used to assess intra-tumor genetic heterogeneity and its relation to tumor development and patient outcomes. Gross CNAs seen via DNA staining in flow cytometry [15] or in fixed tissue [16] have long been associated with poor outcome. Intra-tumor differences in genome-segment amplification visualized by fluorescent in situ hybridization have been used to map the progression of breast cancers [17] and to suggest a mechanism for resistance to therapies targeted against individual receptor tyrosine kinases [18]. Analyses of CNA patterns or somatic mutations in different portions of the same tumor, even down to individual cells, have documented the importance of intra-tumor heterogeneity in tumor biology [19–22] and have supported the early hypothesis [1] that preexisting resistant subclones may be selected by therapy, leading to treatment failure [13].

The probable relation of intra-tumor genetic heterogeneity—whether from increased deviation from the germ line in cells with CNAs or from an increasing number of subclones—to poor outcome suggests that a measure of this heterogeneity would be a useful addition to cancer staging based on tumor node metastasis (TNM) [23] for prognosis. For patient care, improving prognostic accuracy would aid the development of clinical trials that stratify cancer patients according to likely outcomes under standard-of-care therapy; furthermore, patients whose tumors have low heterogeneity might be the best candidates for trials of targeted therapies or treatment de-intensification. Measurement of intra-tumor heterogeneity might thus eventually become an aid to clinical decision-making.

Incorporating information about intra-tumor genetic heterogeneity into clinical trial design and decision-making would best be done with a simple, quantitative, generally applicable measure. There have, however, been no large-scale studies on the relation of such a measure of intra-tumor heterogeneity to outcome for any type of cancer. Unfortunately, methods typically used in research on intra-tumor heterogeneity (reviewed in [24]) would be difficult to use widely in clinical research or practice. Pre-identified markers of tumor subpopulations [17,18] may not apply to tumor types other than those for which they were developed. Methods based on general CNA analysis are more widely applicable, but without multiple sampling of a tumor (as in [13]), they provide little information on intra-tumor heterogeneity caused by the presence of multiple subclones. Multiple sampling of individual tumors [13,22] or single-cell analysis [20,25] would be difficult to scale up for studies of hundreds of tumors or to assess in a timely fashion prior to beginning treatment. Methods that combine information on somatic mutations and copy-number changes to infer the subclonal composition of tumors [26–28] are still highly specialized, are computationally intensive, and typically require an underlying theoretical model or tumor-type-specific empiric examples of intra-tumor subclonal relations [29].

To overcome these difficulties, we recently developed a simple measure of intra-tumor genetic heterogeneity [30,31] based on whole-exome sequencing (WES) of tumor and matched normal DNA. With WES expected to play a significant role soon in clinical oncology [8,32], a measure of heterogeneity based on this technology could be widely used in practice. For each genomic locus having a tumor-specific mutation, WES provides the fraction of total sequenced DNA that shows the mutant allele, the mutant-allele fraction (MAF). We noted that the MAF value at any genomic locus would be influenced both by the presence of subclonal mutations and by CNAs. Typically, a locus mutated early in the clonal evolution of a tumor will be shared among later-arising subclones and have a high MAF in a bulk tumor specimen, while loci mutated later, restricted to one or a few subclones, have lower MAFs. Also, a mutation present on a DNA segment that has undergone allele-specific genomic amplification or loss should have a higher or a lower MAF, respectively, than a mutation at a locus that remains diploid. Because both subclonal mutations and CNAs would be expected to lead to differences in MAF values among genomic loci, we reasoned that the width of the distribution of MAF values among tumor-specific mutated loci within an individual tumor might capture intra-tumor genetic heterogeneity arising from both mechanisms. We thus proposed mutant-allele tumor heterogeneity (MATH), the width of this distribution (normalized by the median MAF value to correct for normal DNA in the tumor sample), as a simple quantitative measure of intra-tumor genetic heterogeneity [30].

In data from a prior study of patients with head and neck squamous cell carcinoma (HNSCC) [33], higher intra-tumor heterogeneity as measured by MATH from WES was related to worse outcome, particularly in patients who had received chemoradiotherapy [31]. Generalizability of this result, however, was limited, as all 74 patients came from a single institution. Furthermore, although human papillomavirus (HPV)–related HNSCC is of particular clinical interest because of its increasing incidence and improved clinical outcomes [34–36], only 11 cases in that dataset were HPV-positive. Consequently, although HPV-positive HNSCC tumors had significantly lower MATH values than HPV-negative tumors [30], we were limited in our ability to establish separate relations of MATH and HPV status to outcome because of the small sample size.

To examine whether this relation between intra-tumor heterogeneity and mortality could be generalized, we analyzed data on HNSCC from The Cancer Genome Atlas (TCGA) [37]. These open-access clinical and WES data provided an independent, large, multi-institutional validation dataset for testing the relation of MATH to clinical outcome. We examined the relation of MATH values to standard clinical variables, including HPV status, and to three molecular characteristics of HNSCC: mutation rate, TP53 mutations [38], and oncogenic signature [12]. Using the same methods as in our previous work, we tested the hypothesis that intra-tumor heterogeneity, as measured by MATH, was related to mortality in patients with HNSCC after accounting for these potentially associated clinical and molecular characteristics.

Methods

The de-identified, publicly available clinical data used in this study were those released by TCGA through October 8, 2013 [39]. The data tables downloaded on that date, for 360 patients, are provided as S1 Data. Initial pathologic diagnoses were between 1992 and 2011 (median, 2008). The TCGA head and neck consortium reported that the cases in the dataset were generally representative of a surgical case series of primary HNSCC, with T1 tumors underrepresented because of the tissue sample sizes needed for the multiple types of analyses performed on each tumor, and with most samples from the oral cavity or larynx [40,41]. Analysis of the data from the multiple contributing TCGA institutions and comparison against nationwide data support this characterization of the dataset (S1 Text).

For clinical data analysis, follow-up times and vital status reported in the main patient data table were updated from the follow-up tables. TNM classification was based on pathologic determination where available. Disease staging was as reported by TCGA. Radiation or chemotherapy delivered as primary therapy or adjuvant to surgery was distinguished from such therapy for recurrent disease or for palliation based on the “radiation_therapy,” “postoperative_rx_tx,” “targeted_molecular_therapy,” “regimen_indication,” and “regimen_indication_notes” fields in the TCGA patient, drug, radiation, and follow-up data tables. Absent a noted indication, radiation or chemotherapy was deemed primary/adjuvant if delivered within 180 d following initial pathologic diagnosis. As the University of Pittsburgh was the source of samples in our previous study [30,31], we verified that there was no overlap between the Pittsburgh cases we had already analyzed and the Pittsburgh TCGA cases.

Tumor-specific mutation data from WES were downloaded from the Broad Institute of MIT and Harvard [42], where WES had been performed [41]. Mutation data were available for 306 of the 360 patients with clinical data. To test and validate the results of our previous work [30,31] directly, we used identical methods for MATH analysis. The steps in determining the MATH value of an individual tumor from the WES data were (1) identifying genomic loci having tumor-specific somatic mutations, based on tumor–normal DNA comparisons; (2) tabulating the MAF (the fraction of DNA that shows the mutated allele at a locus) for mutated loci in that tumor; (3) determining the center and the width of the distribution of MAFs among those loci; and (4) taking the ratio of the width to the center of the distribution, expressed as a percentage.

Identification of tumor-specific mutations had already been performed at the Broad Institute of MIT and Harvard for TCGA, with the exome of tumor and matched normal DNA selected by Agilent SureSelect methods, followed by Illumina HiSeq sequencing. Mean sequence coverage was 95×, with 82% of bases in the targeted exome above 30× coverage [41]. The analysis pipeline was as in a previous study [33], with tumor-specific mutations for each case determined by the MuTect algorithm [43]. For each tumor, this algorithm uses the numbers of mutant and reference reads and the quality of the reads, in both tumor and patient-matched normal DNA, to estimate the likelihood that a particular locus has a tumor-specific rather than a germ-line mutation. Loci that pass the assigned threshold likelihood are deemed to have tumor-specific mutations. In total, 98.6% of mutant loci identified by MuTect in HNSCC and tested independently were validated [41].

The publicly available compilation of HNSCC mutant-allele data contained the numbers of WES reads showing the mutant allele and the number showing the reference allele at each tumor-specific mutated genomic locus for each tumor. We calculated the MAF for each locus as the ratio of mutant reads to total reads, and tabulated all MAF values for each tumor. For comparison with our earlier work [30,31], based on WES data with no reported MAF below 0.075 [33], we restricted analysis to genomic loci having MAFs at or above that value; no further restrictions were placed on the loci used for analysis. In one tumor, all mutations had MAF values below that cutoff, so 305 cases remained for this study.

For each tumor we then determined the median and the median absolute deviation (MAD) of its MAF values. The median is a robust measure of the center of the distribution of MAFs. The MAD is a robust measure of the width of the distribution that is much less sensitive to outliers than the standard deviation (SD), and is determined as follows: the absolute value of the difference of each MAF from the median MAF value is calculated, and the median of those absolute differences is taken. This median difference is then multiplied by a factor of 1.4826, so that the expected MAD of a normally distributed variable is equal to its SD.

Finally, the MATH value for each tumor was calculated as the percentage ratio of the MAD to the median of the distribution of MAFs among the tumor’s mutated genomic loci [30]: MATH = 100 × MAD/median. Simply using the width of the distribution as a measure of genomic heterogeneity would not take into account the overall lowering of MAF values by the “impurity” of normal DNA in the tumor sample. As previously described [30], dividing the MAD by the median provides a first-order correction for this “impurity,” as a more “impure” sample is expected to have a lower median MAF value.

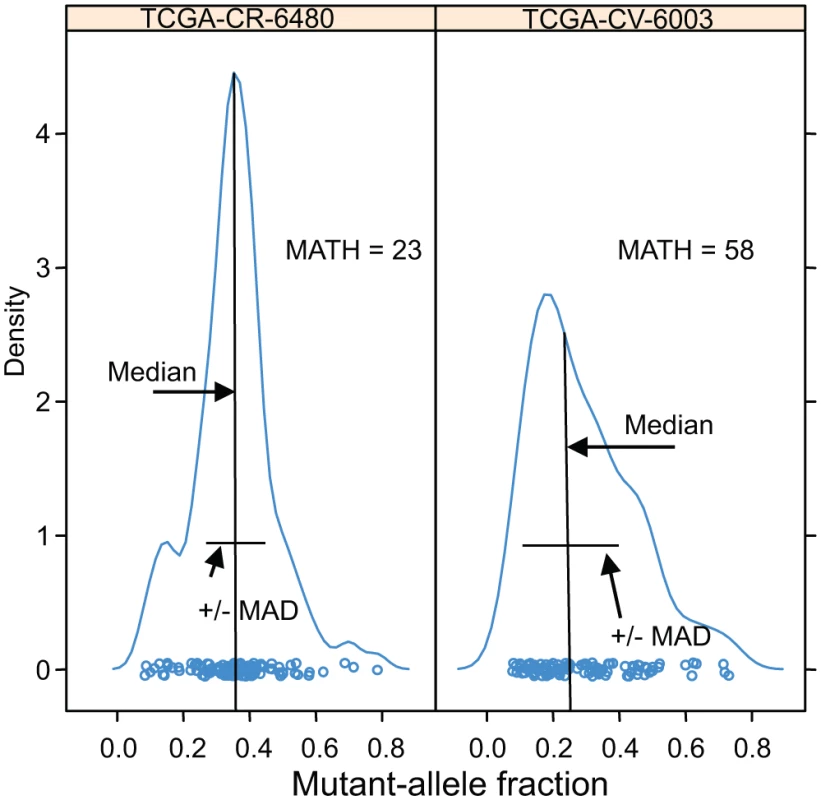

Examples of the distributions of intra-tumor MAF values and how these translate to the tumor’s MATH are shown for two cases in Fig. 1. In analyses that distinguished high- from low-heterogeneity tumors, we used the same cutoff value of 32 MATH units as in the previous study [31], without attempting to optimize the cutoff to the present data.

HPV status was based on the TCGA molecular classification, with tumor samples having more than 1,000 reads from RNA sequencing aligned to HPV sequences, or with evidence of genomically integrated HPV DNA, deemed HPV-positive [41]. A tumor was judged to have mutant TP53 if it had any non-silent mutation in that gene. M-class and C-class oncogenic signatures were as reported by Ciriello et al. [12] for 267 of these tumors.

Relations of MATH values to other clinical and molecular characteristics were examined by linear models. Relations of MATH values and these characteristics to overall survival (time between initial pathologic diagnosis and death) were assessed by Cox proportional hazards analysis.

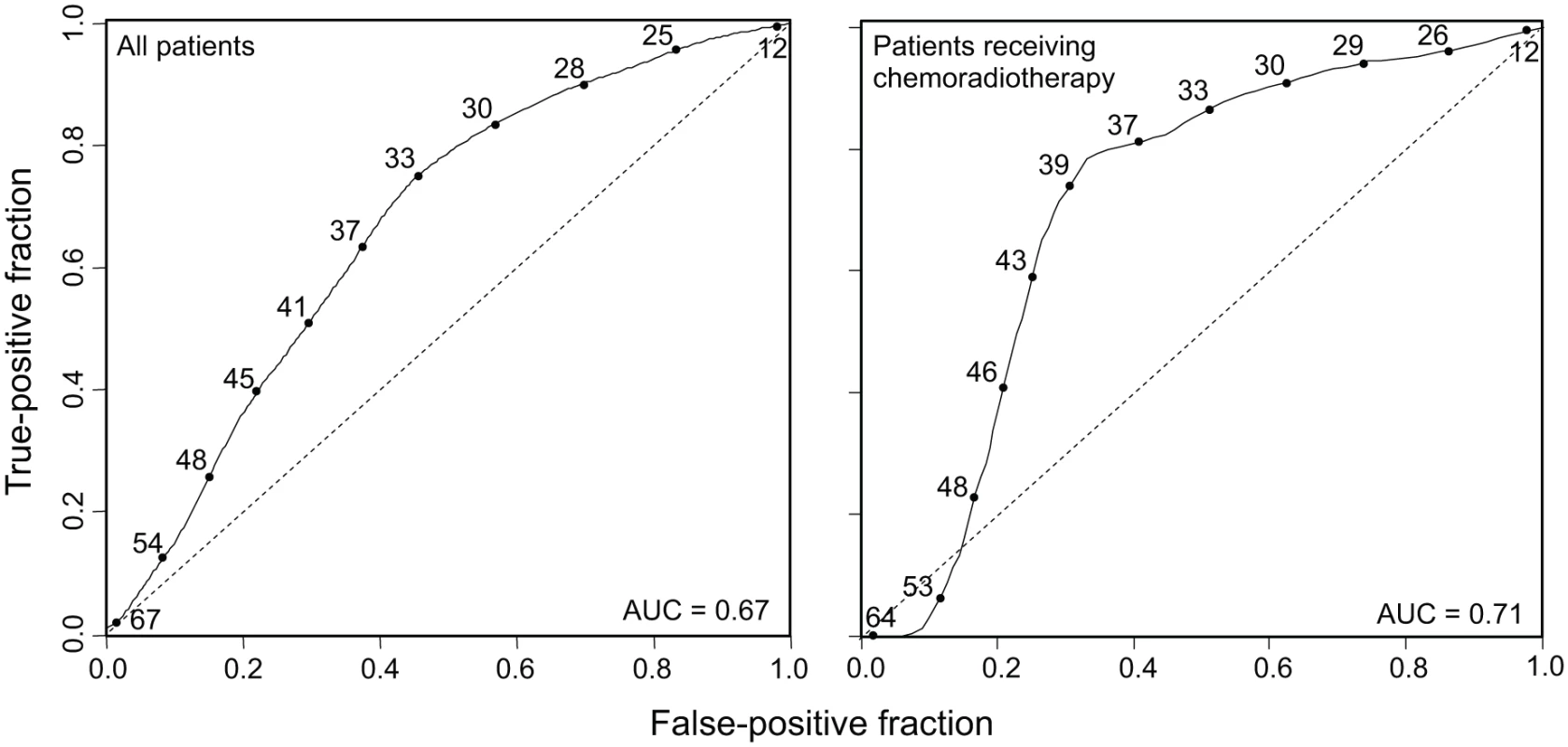

Receiver operating characteristic (ROC) curves for survival data were obtained by the nearest neighbor method of Heagerty et al. [44]. This method provides a smoothed estimate of the joint distribution of survival up to a chosen time and a continuous predictor variable. The ROC curve based on that distribution represents the tradeoff between specificity and sensitivity, in terms of survival predictions at the chosen time, as the value of the predictor variable (MATH in this case) is changed. Smoothing, by combining Kaplan-Meier survival analyses from cases that are neighbors in terms of the predictor variable, allows use of censored survival data, ensures a monotone relation between specificity and sensitivity, and makes ROC curves independent of monotone transformations of the predictor variable. We used a smoothing span of 0.1 (smoothing neighborhoods encompassing 10% of cases, except at the extremes of MATH values). Confidence intervals for the area under the curve (AUC) for ROC curves were estimated from bootstrap samples.

Calculations were performed in the R software environment [45], including its survival, boot, rms, and survivalROC packages. Significance analysis of hazard ratios (HRs) used the Wald test. Statistical significance was accepted at p < 0.05 in two-sided tests.

Results

Clinical Characteristics and Their Relations to Outcome

Among the 305 TCGA HNSCC patients with both clinical data and tumor MATH values, age ranged from 19 to 90 y, with a mean of 61.25, median of 61, SD of 12, and inter-quartile range of 16. Initial pathologic diagnoses were made between 1992 and 2011 (median, 2008). The median follow-up time for 174 patients still living at last record was 22.5 mo (overall range, 0 to 142 mo; inter-quartile range, 24.5 mo), and the median time to death for the other 131 patients was 14.3 mo (overall range, 0 to 211 mo; inter-quartile range, 16.4 mo). Thirty-six (12%) of the patients’ tumors were HPV-positive by TCGA molecular criteria.

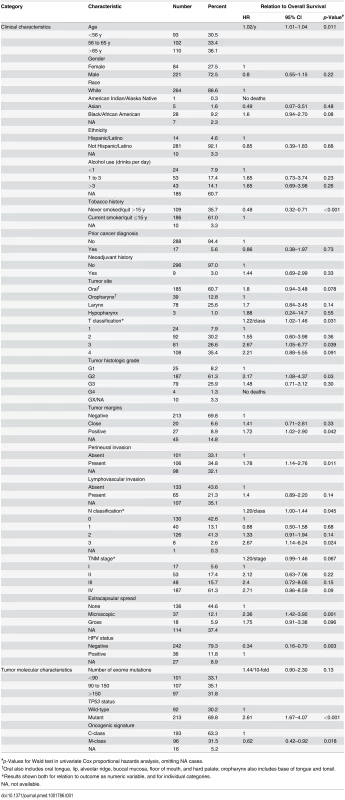

Univariate relations of clinical characteristics to overall survival are shown in Table 1. Increased age, a history of smoking, higher T and N classifications, tumor grade, positive tumor margins, and presence of perineural invasion or of extracapsular spread from lymph nodes were all associated with diminished overall survival, and as expected [34,36,46,47], survival was much better for patients with HPV-positive versus HPV-negative tumors, with an overall survival HR of 0.34.

HPV-positive HNSCC is now considered to be a different type of disease from HPV-negative HNSCC [36]. As shown in S1 Table, HPV status was significantly related to many clinical characteristics. Adjusting for HPV status did not affect the statistical significance of most relations between clinical characteristics and overall survival (S2 Table). Exceptions were T classification (no longer significant) and TNM stage (reached significance when analyzed as a numeric variable adjusted for HPV status; S2 Table). These relations between clinical variables and outcome are expected in HNSCC [46], and support the clinical relevance of these TCGA data.

We examined whether there were differences among the institutions that contributed tissue samples and patient data to TCGA. As demonstrated in S1 Text, most of the apparent differences in survival among institutions could be attributed to different mixes of patient characteristics among institutions, particularly in terms of HPV status.

MATH Values and Their Relation to Clinical Characteristics

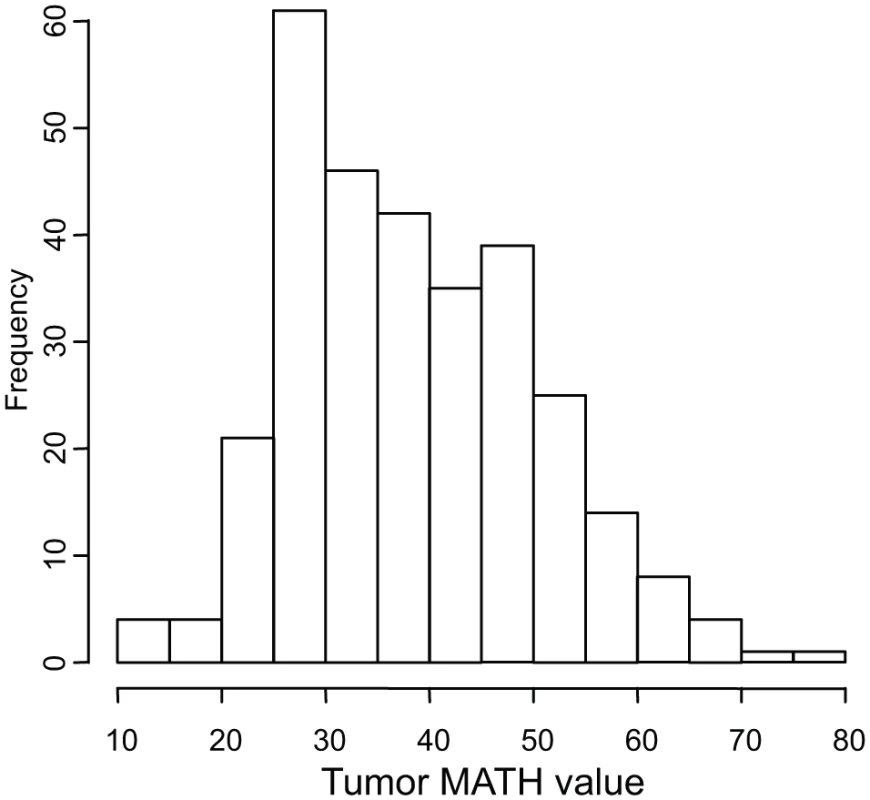

Tumor MATH values ranged from 12.0 to 77.3, with a median of 37.0, a mean of 38.4, and first and third quartiles of 29.0 and 46.4, respectively. The distribution of MATH values among tumors is shown in Fig. 2.

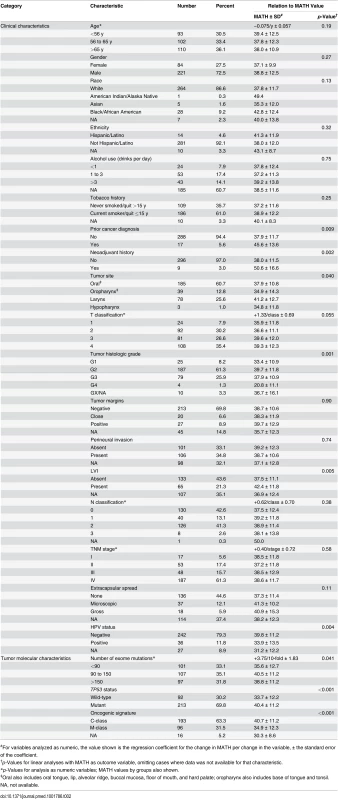

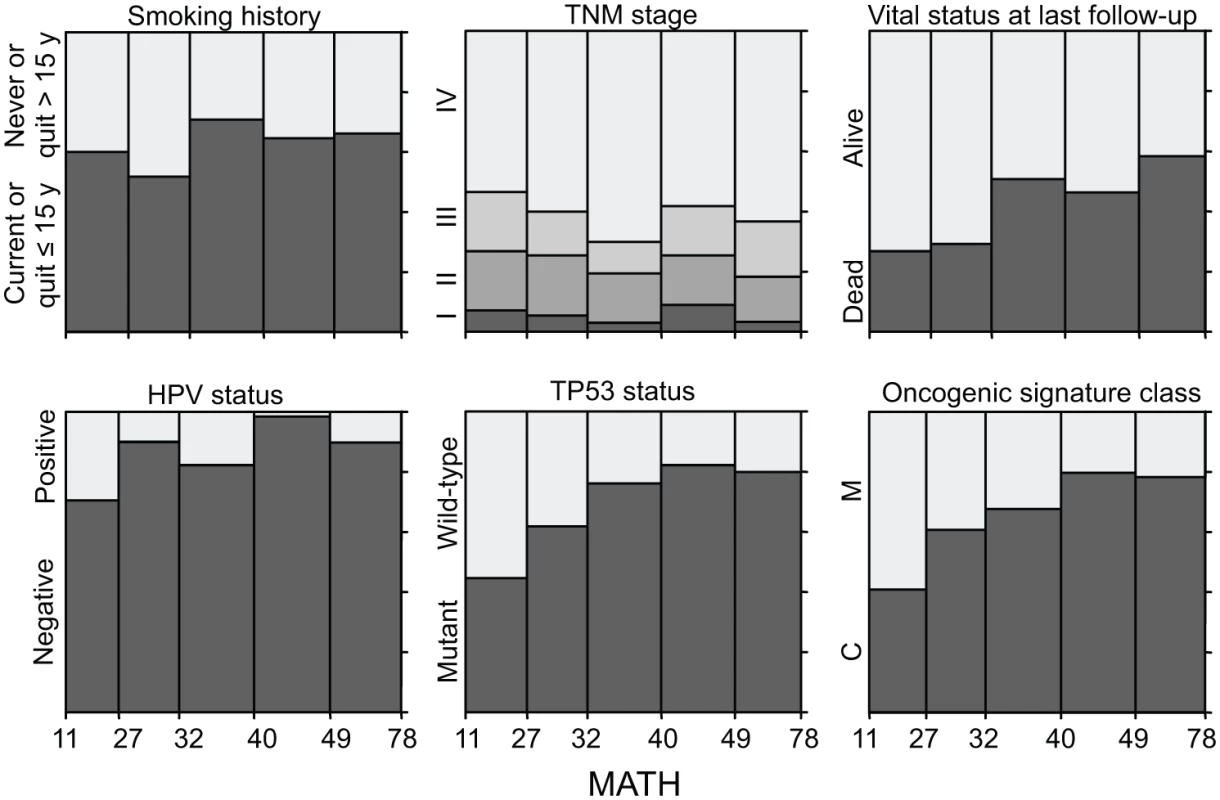

Relations between MATH values and clinical characteristics were assessed by univariate linear models in which MATH value was the outcome variable and each clinical characteristic was taken individually as a predictor variable. MATH value was significantly related to tumor site, tumor grade, presence of lymphovascular invasion (LVI), and a history of prior cancer diagnosis or neoadjuvant therapy (Table 2). It was also highly related to tumor HPV status, validating our prior report [30]. The relations of selected patient clinical characteristics and tumor molecular characteristics to MATH values are displayed in Fig. 3.

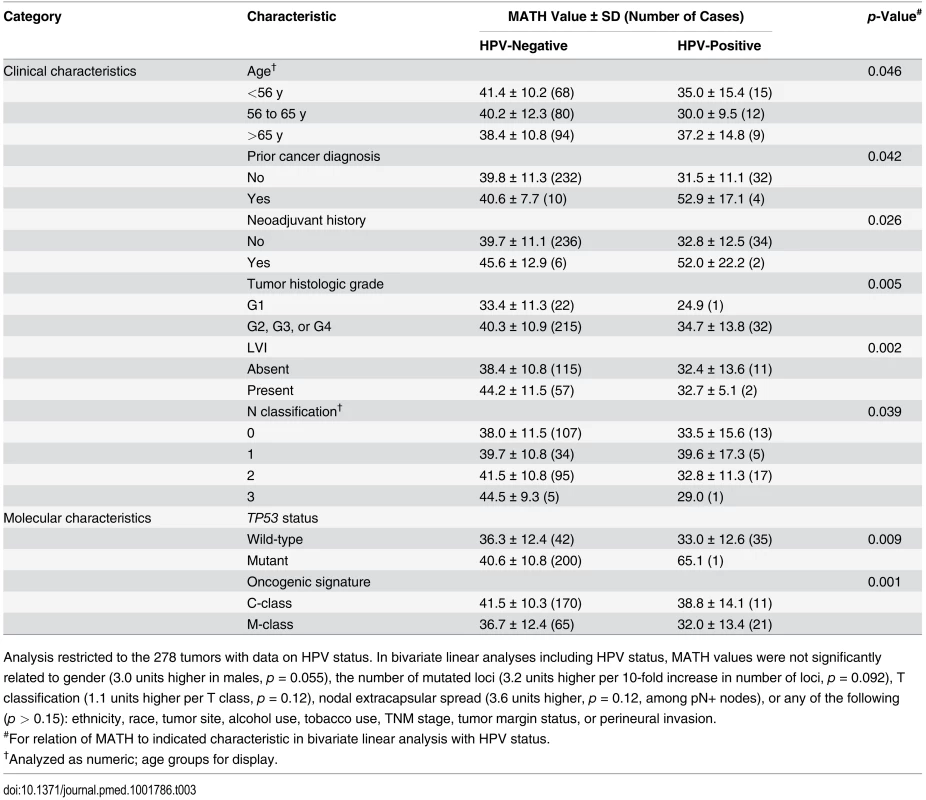

Given the importance of HPV in HNSCC, we examined whether adjusting for HPV status, by including it as a second predictor variable in each of the linear models, would affect any of the apparent relations between MATH values and clinical characteristics (Table 3). After this adjustment for HPV, the relation between MATH value and anatomic tumor site was no longer significant; the predominance of HPV-positive tumors in the oropharynx (S1 Table) apparently accounted for the low MATH values seen for oropharyngeal tumors in Table 2. This adjustment for HPV exposed relations between MATH value and age and N classification, while other clinical characteristics associated with MATH value in univariate analyses (Table 2) maintained significance. MATH value was not significantly related to T classification or to TNM stage, even after adjustment for HPV status.

We also examined whether tumor MATH values might provide information about the likelihood of regional metastases to lymph nodes. Among 194 patients with HPV-negative tumors whose cervical lymph nodes were examined pathologically, those with low-heterogeneity tumors were significantly less likely to have disease that had spread to lymph nodes. Of the 64 patients with low-heterogeneity tumors, 42% (27) had positive nodes, versus 67% (87) of the 130 patients with high-heterogeneity (high MATH value) tumors (odds ratio, 2.76; 95% CI, 1.43 to 5.38; p = 0.001, Fisher exact test).

High Intra-Tumor Heterogeneity Was Related to Increased Mortality

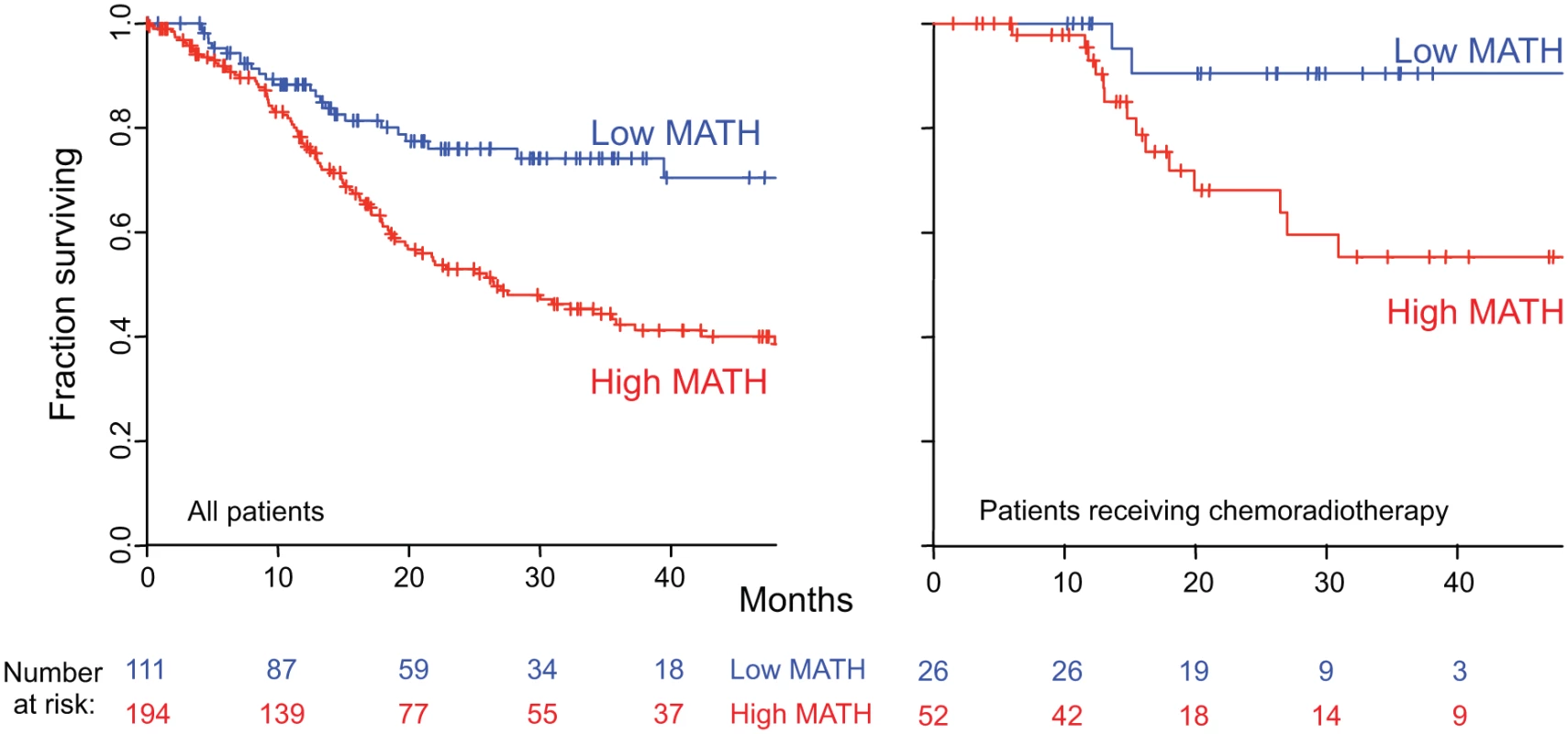

MATH, taken as a continuous variable, was strongly related to overall survival; each 10% increase in MATH value corresponded to an 8.8% increased hazard of death (95% CI, 3.3% to 15% increased hazard per 10% increase in MATH; p = 0.001). For comparison with the initial study of MATH and survival in HNSCC [31], we used the previous MATH-value cutoff of 32 to distinguish high- from low-heterogeneity tumors; 194 tumors (63.6%) were thus classified as high heterogeneity. Patients with high- versus low-heterogeneity tumors had double the hazard of death (HR, 2.18; 95% CI, 1.44 to 3.30; p < 0.001; Fig. 4, left). The tradeoff between specificity and sensitivity for 3-y survival predictions as the high/low MATH-value cutoff varied is illustrated in the ROC curve of Fig. 5 (left). A relation of intra-tumor heterogeneity to outcome has long been suspected, particularly in patients treated with systemic therapy [1,3–5], and chemoradiation is frequently used to treat advanced primary HNSCC [46]. We thus examined the relation between MATH value and survival specifically in patients identified as receiving chemoradiation as primary therapy or as an adjuvant to surgery. The relation of intra-tumor heterogeneity to outcome was also seen in this subset of 78 patients (HR, 5.2; 95% CI, 1.2 to 23; p = 0.03; Fig. 4, right; ROC curve, Fig. 5, right), validating our prior results [30].

The Relation of MATH to Mortality Was Not Due to Its Relation to HPV or to Other Clinical Characteristics

The relation of MATH values to clinical characteristics that are themselves associated with survival raised the question of whether the relation of MATH value to outcome simply represented its relation to those other characteristics. We thus examined the joint relations of MATH value and its associated characteristics to outcome, in bivariate and multivariate Cox proportional hazards analyses.

Despite the strong association of HPV-positive tumors with low MATH values (Table 2), both MATH value and HPV status were significantly related to overall survival in bivariate Cox proportional hazards analysis. Fig. 6 (left) shows survival curves for combinations of high/low MATH values and HPV status. This joint relation of MATH value and HPV status to outcome supports a role of intra-tumor heterogeneity in HNSCC mortality independent of HPV status [31].

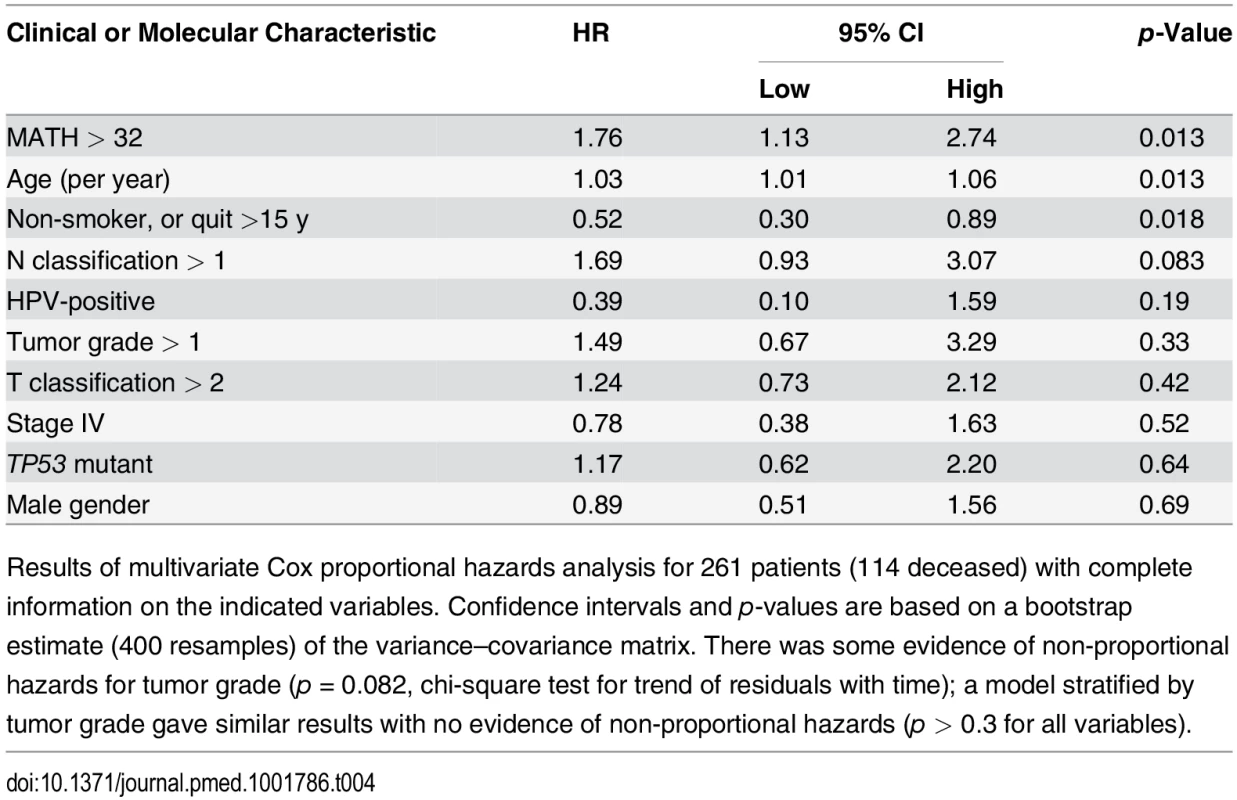

We then examined whether other clinical characteristics that were associated both with MATH values and with overall survival might account for the relation of MATH to survival. After adjustment for HPV status, only the clinical characteristics of age, tumor grade, and N classification were significantly associated with both MATH values (Table 3) and overall survival (S2 Table). To evaluate whether these correlated clinical characteristics might account for the relation of MATH to outcome, we performed multivariate survival analysis incorporating these three clinical characteristics, HPV status, and MATH value. MATH value remained significantly related to overall survival in this analysis (S3 Table). Thus, MATH value is associated with survival after adjustment for correlated clinical characteristics.

The Relation of MATH to Mortality Was Not Due to Its Relation to Other Molecular Characteristics of the Tumors

In univariate analyses, MATH values were related to three other molecular characteristics of the tumors: the number of somatic mutations in the exome (a measure of tumor mutation rate [33]), TP53 mutation status [38], and oncogenic signature class [12] (Table 2, bottom). We thus examined whether the relations of these molecular characteristics to MATH might account for its relation to overall survival.

First, although a tumor’s mutation rate as measured by its number of exome mutations was associated with MATH values in univariate analysis (Table 2), this relation was no longer significant after adjustment for HPV status (Table 3), and mutation rate was not itself significantly related to overall survival (Table 1), particularly after adjustment for HPV (S2 Table). These results ruled out mutation rate as an explanation for the relation of MATH to outcome.

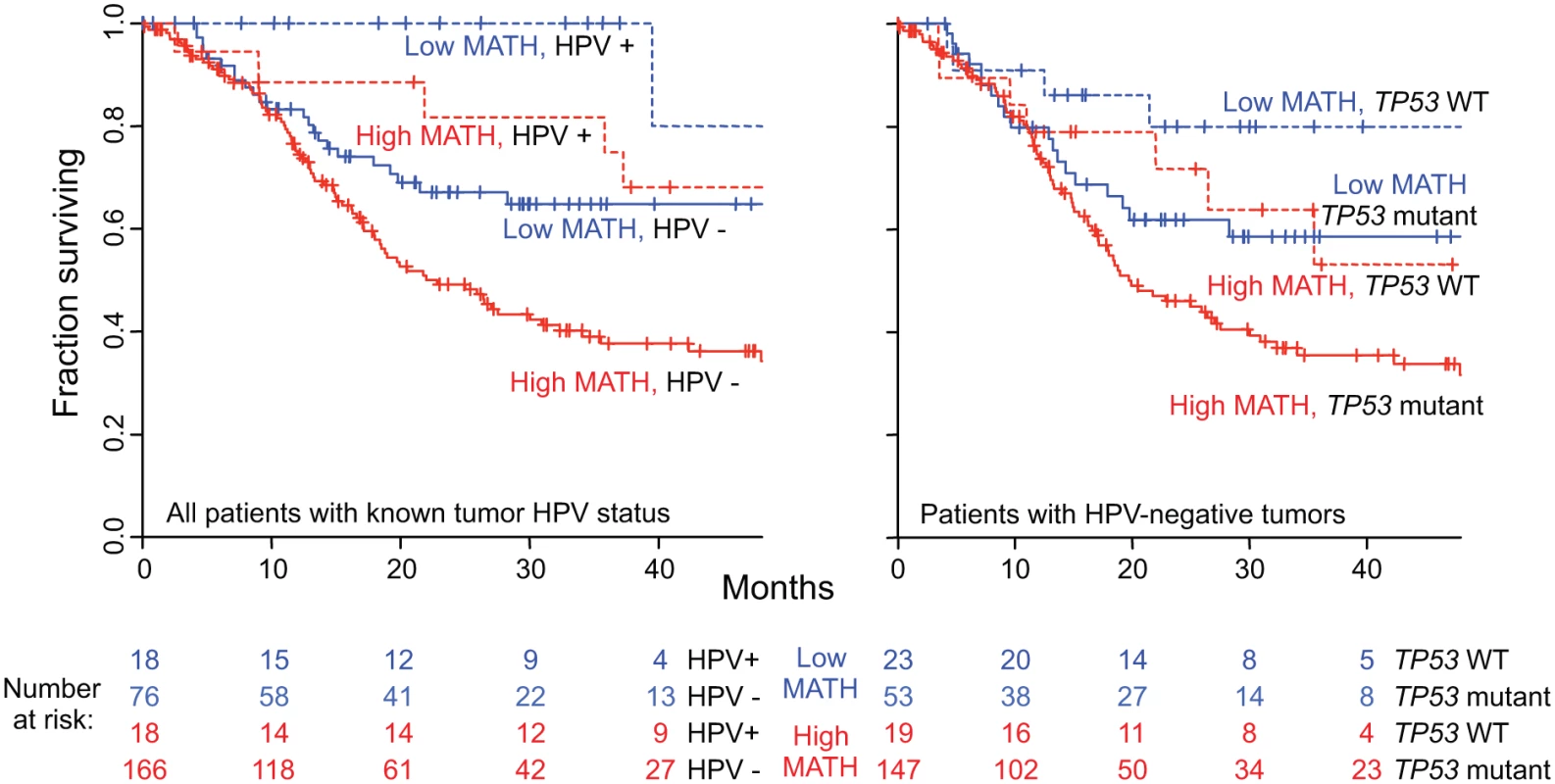

Second, MATH values were significantly higher in HPV-negative tumors that harbored TP53 mutations than in HPV-positive/TP53 wild-type tumors (Table 3), and as expected [38], mutated TP53 was significantly related to diminished overall survival (HR, 2.61; 95% CI, 1.67 to 4.07; p < 0.001). As shown in Fig. 6 (right), however, both MATH and TP53 mutation status were significantly related to survival among patients with HPV-negative tumors. (Only one HPV-positive tumor bore a mutation in TP53.) Thus, both high MATH value and mutated TP53 were associated with survival after adjustment for their relation to each other.

Third, a novel molecular classification based on frequently occurring DNA disruptions among multiple types of tumors, called the oncogenic signature [12], was related both to survival and to MATH value. Oncogenic signatures are genomic classifications based on over 3,000 TCGA tumors from multiple anatomic sites, with the major classes called “M” and “C.” Disruptions in M-class tumors are dominated by small mutations (single nucleotide variants and small indels), versus predominant CNAs in C-class tumors. Oncogenic signature class had a significant univariate relation to outcome, with better overall survival in patients with M-class tumors (Table 1). Furthermore, MATH value in M-class tumors was significantly lower than in C-class tumors, even when HPV status was taken into account (Table 3), while HPV-positive tumors were predominantly in the M class (HPV-positive tumors: 11 C-class, 21 M-class; HPV-negative tumors: 170 C-class, 65 M-class; p < 0.001, Fisher exact test). We examined the joint relation of oncogenic signature class, HPV status, and MATH value to outcome in Cox proportional hazards analysis. In this trivariate analysis, oncogenic signature class was no longer associated significantly with outcome (M-class/C-class HR, 0.88; 95% CI, 0.57 to 1.34; p = 0.54), while MATH value (high/low HR, 1.75; 95% CI, 1.11 to 2.72; p = 0.015) and HPV status (HVP-positive/-negative HR, 0.31; 95% CI, 0.13 to 0.71; p = 0.006) both remained significantly related to outcome. Thus, the relation of high MATH value to increased mortality is not due to its associations with the tumor molecular characteristics of mutation rate, TP53 mutation, and oncogenic signature.

MATH Contributes Clinically Useful Prognostic Information

Having found that the relation of high MATH value to increased mortality was not simply due to its relations to patient clinical characteristics or to other molecular characteristics of the tumors, we examined whether MATH could further aid in prognostication.

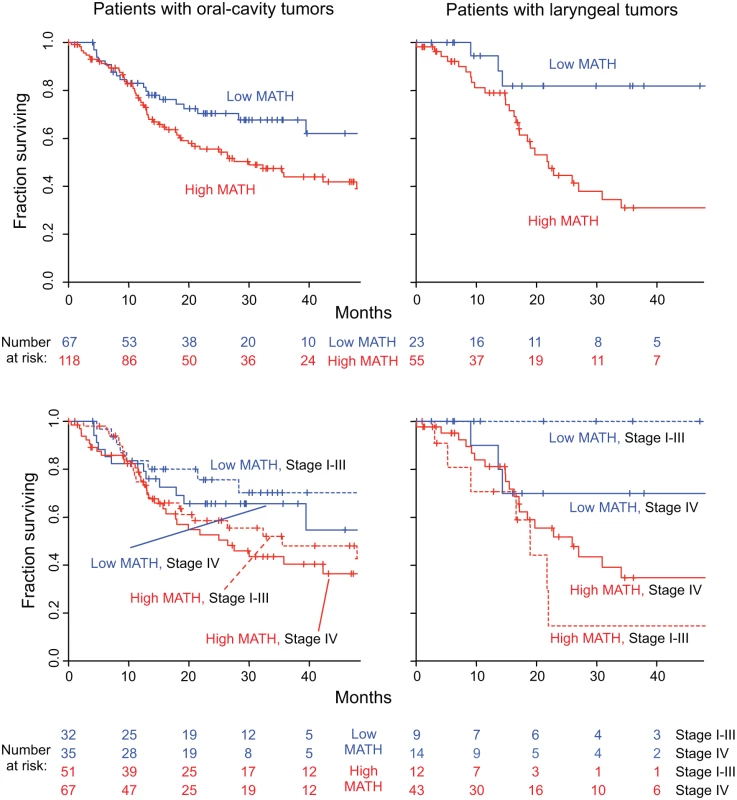

We examined whether MATH could improve prognostication in oral-cavity or laryngeal tumors. HPV and its associated better prognosis is seldom involved at these anatomic sites [36], unlike oropharyngeal tumors, so that additional prognostic information beyond that provided by TNM staging [23] is needed. High versus low MATH value significantly distinguished outcomes in patients with tumors at either site (Fig. 7, top), even when TNM staging was taken into account (Fig. 7, bottom). These results support MATH as an additional prognostic variable for patients with tumors at those sites.

Another use of MATH could be in multivariate survival models that incorporate clinical and molecular characteristics to stratify patients by expected outcome for clinical trials or clinical decision-making. We thus examined MATH along with variables known to be associated with HNSCC outcome—HPV and TP53 status, and seven standard clinical characteristics—in multivariate Cox proportional hazards analysis, which adjusts for the relations among all the predictors. In this multivariate analysis, MATH value, age, and smoking history were found to be significantly related to outcome (Table 4).

Discussion

These results validate and substantially extend our previous finding [31] that high intra-tumor heterogeneity predicts decreased overall survival in patients with HNSCC. Even after accounting for clinical and molecular characteristics of patients and their tumors, the magnitude of the mortality hazard associated with high intra-tumor heterogeneity, as measured by MATH (Table 4), was comparable to that of hazards associated with established prognostic variables (Tables 1 and 4).

What the Study Adds to Existing Research

Intra-tumor heterogeneity and cancer mortality. To our knowledge, this is the first large-scale demonstration based on data from multiple institutions that intra-tumor heterogeneity per se is clinically important in the prognosis of any type of cancer. Using identical criteria for including tumor-specific mutated loci, calculating MATH values, and distinguishing high- from low-heterogeneity tumors as in the previous single-institution study, the present study found a highly significant relation of high intra-tumor heterogeneity to outcome. In both studies, the univariate overall survival HR for high/low MATH was over 2 (previous study, 2.46; this study, 2.18), and a relation of high intra-tumor heterogeneity to decreased overall survival was seen among patients receiving chemoradiotherapy (HR in previous study, 4.1; this study, 5.2). We found this strong relation of intra-tumor heterogeneity to overall survival despite the limitations of these TCGA data. In particular, the data were not collected with this analysis of heterogeneity in mind, and the variety of institutions, head and neck tumor subsites, and treatment modalities might have been expected to minimize our ability to identify significant prognostic variables. Our results thus suggest that intra-tumor heterogeneity can have substantial clinical importance.

Sources and consequences of intra-tumor heterogeneity. The intra-tumor genetic heterogeneity captured by MATH may arise from either CNAs or from subclonal mutations. Although the present results do not distinguish CNAs from subclonality, they do shed some light on the consequences of high intra-tumor heterogeneity and the processes that promote it. High MATH values in tumors containing TP53 mutations suggest that deficiencies in DNA-damage and apoptotic responses may create an environment that is favorable to the generation or maintenance of intra-tumor genetic heterogeneity. High MATH values in tumors with the molecular C-class oncogenic signature [12], even after adjustment for HPV status, support a stronger role of CNAs than of point mutations in developing or maintaining intra-tumor heterogeneity as measured by MATH. Nevertheless, heterogeneity per se, rather than CNAs, seems most closely related to HNSCC outcome, as the low univariate M-class/C-class HR became insignificant once MATH and HPV status were taken into account. The relation of high MATH value to LVI and nodal status suggests that intra-tumor heterogeneity may foster regional metastasis. The relation of high MATH value to decreased survival in patients receiving cytotoxic therapy supports selection of preexisting resistant cancer cells by therapy [1,13] or the presence in heterogeneous tumors of subpopulations that provide resistance or promote the growth of the rest of the tumor [48] as mechanisms for evading such therapy. As these initial findings are expanded by further study on the mechanisms underlying the development of intra-tumor heterogeneity, it might become possible to turn those mechanisms into therapeutic targets.

Prognostic variables in HNSCC. These results highlight important issues to address in HNSCC prognostic models. First, some clinical characteristics related to overall survival (Table 1) are often difficult or impossible to evaluate in clinical practice in patients with low-T/high-N disease, where a tumor biopsy is performed to help choose definitive therapy. If therapy does not include surgical tumor excision or neck dissection [46], information on tumor margins, perineural invasion, LVI, and nodal extracapsular spread will be incomplete or unavailable. A MATH value, obtained from WES of a few milligrams of a tumor, does not face this limitation as a biomarker. Second, the close relations among TP53 mutation status, HPV status, MATH value, and clinical characteristics mean that care must be taken in interpreting and using prognostic models in HNSCC. For example, the lack of statistical significance of N classification, HPV status, and TP53 mutation in the ten-variable multivariate analysis shown in Table 4 does not mean that they are irrelevant to outcome; each of these characteristics bears a significant univariate relation to outcome in HNSCC (Table 1), and their apparent lack of significance in the multivariate model might simply represent the difficulty in unraveling the individual contributions of multiple highly correlated variables, particularly with only 36 HPV-positive tumors.

Strengths and Limitations of This Study

Strengths. This study was designed as a validation test of the relation between mortality and MATH that we had found in a previous smaller, single-institution study. We used the previous methods for calculating MATH values, and the previous MATH cutoff between high- and low-heterogeneity tumors, without any attempt to optimize for the present data. The large number of patients and the multiple institutions represented in the TCGA data on HNSCC provided a stringent test of our previous findings, and allowed us to adjust for many clinical and molecular variables in our analyses of overall survival. Thus, the association of high intra-tumor heterogeneity in HNSCC with increased mortality has been validated insofar as possible with this type of retrospective analysis.

Limitations. To define the usefulness of MATH in HNSCC and to extend similar analyses to other types of cancer, further work is needed to overcome several limitations of the present study. One issue is how MATH is measured in practice. In both this study and the previous report [31], MATH values were determined from WES data obtained with a consistent set of methods, from tumor processing through exome capture (and thus breadth of genomic sequencing coverage) to WES (at similar depth of sequencing) and calling of somatic mutations. As discussed previously [30], different combinations of technologies might lead to different or less reliable MATH values, in particular if a lower breadth of coverage limits the number of tumor-specific mutations found or if calling methods for somatic mutations or handling of loci with low MAFs differs from the methods in the present study. Also, given that the precision of determining a tumor’s MATH value depends on its number of tumor-specific mutated genomic loci [30], exome capture for a type of cancer with lower mutation rates than HNSCC might not provide enough tumor-specific mutations, so that a larger fraction of the genome might need to be sequenced.

Another issue is that the simplicity of the formula for calculating MATH values from WES data masks important aspects of underlying tumor biology. The MAFs observed in a bulk tumor DNA sample are determined by several factors: the “impurity” arising from normal DNA in non-cancer cells, the cancer-cell genomic ploidy arising from large-scale gain or loss of chromosomal segments or smaller-scale CNAs, and mutations specific to genetically distinct subclones within the tumor. Several methods have been developed to untangle these contributions [26–29]. The MATH measure of heterogeneity uses the median MAF value of the tumor as a first-order correction for “impurity,” and it combines heterogeneity arising from ploidy/CNAs and subclones, as both can contribute to the width of the distribution of a tumor’s MAF values [30]. More precise corrections for impurity and separate handling of ploidy and subclonal tumor inheritance patterns might ultimately lead to better measures of intra-tumor heterogeneity, but for now MATH provides a simple measure, closely related to mortality in HNSCC, that can be determined as soon as tumor-specific mutations have been called and MAF values are available.

Finally, several limitations of the TCGA clinical data need to be recognized. First, the TCGA requirement for tumor mass adequate for multiple analyses biases this dataset toward larger, surgically treated tumors and underrepresents the increasingly important HPV-positive HNSCC that often presents with low-T/high-N pathology [40] (see S1 Text); of 305 tumors, only 24 (three HPV-positive) were T1. Second, our use of statistical models to account for the contribution of HPV status to other clinical variables and to outcome might not properly capture the different biological bases and clinical history of HPV-positive and HPV-negative HNSCC. Coefficients in analyses that take HPV status into account in this way are necessarily weighted toward the more prevalent HPV-negative cases, and there were too few HPV-positive cases to allow analysis of the HPV-positive subset or of statistical interaction coefficients involving HPV status. Third, although much information about clinical treatments and outcomes was available from TCGA, these data were not collected prospectively, and many cases lacked complete treatment annotations. Thus, we could not, for example, resolve the important issue of whether high heterogeneity predicts shorter survival in patients treated solely with surgery. Finally, although Table 4 clearly demonstrates that MATH has a prognostic significance similar to that of accepted outcome markers in HNSCC, this particular multivariate model should not be used for clinical prognostication. Prospective study of homogeneously treated HNSCC at specific head and neck subsites, with appropriate model validation, will be required before such results can be used in clinical trials or in routine clinical practice. Further analysis of MATH and outcome specifically in HPV-positive oropharyngeal squamous cell carcinoma is particularly needed.

Implications

The strong relation of higher intra-tumor heterogeneity as measured by MATH to decreased overall survival means that MATH should be considered a biomarker in HNSCC. The limitations of the present study, noted above, should be addressed by analyzing tumor specimens already collected in prospective clinical studies or by incorporating MATH analysis into future studies. Once validated in this way, MATH values will be able to provide a simple high/low heterogeneity characterization (Figs. 4, 6, and 7) or a continuous measure of intra-tumor heterogeneity (Fig. 5) in models designed for prognostication or for clinical trial designs that require identifying patients who are at either particularly high or low risk of succumbing to disease under current standards of care. In particular, with its relation to outcome following chemoradiation (Fig. 4, right) and its joint relation with HPV status to outcome (Fig. 6, left), MATH should be useful in clinical trials on de-intensification of organ-preservation therapy for oropharyngeal cancer, in which chemoradiation is a standard of care and HPV status is already considered in trial design [36]. In HPV-negative HNSCC, the relation of MATH to nodal involvement suggests that MATH might assist clinical studies in evaluating the need for cervical node dissection in patients with low-T/cN0 oral cancer, a decision presently based on tumor depth and sentinel node mapping [49]. Furthermore, MATH adds usefully to TNM staging in prognosticating overall survival of patients having either oral-cavity or laryngeal tumors (Fig. 7). Consequently, MATH could direct the need for adjuvant therapy or identify candidates for laryngeal preservation protocols. As HPV status has helped stratify patients with oropharyngeal tumors according to prognosis [36,46], MATH may help stratify patients with tumors at these head and neck sites where HPV-positive tumors are infrequent.

More generally, MATH will be straightforward to apply clinically in other types of cancer, for there is nothing specific to HNSCC in the underlying analysis of exome sequence data. Unlike approaches to measuring intra-tumor heterogeneity that require pre-identification of subclone markers [17,18], detailed analysis of SNP arrays [26,50], or analysis of multiple portions down to single cells of a tumor [13,20,22,25], MATH calculations require no information beyond a list of tumor-specific mutations and their MAFs, derived directly from a patient’s tumor and normal DNA. Thus, as WES enters the practice of clinical oncology [8,32], MATH will provide a novel and straightforward way to incorporate information about intra-tumor heterogeneity into clinical research and practice.

Conclusions

Intra-tumor heterogeneity per se can be prognostically important in cancer. MATH, a novel measure of intra-tumor genetic heterogeneity, has a prognostic relation to outcome comparable to that of accepted biomarkers in HNSCC clinical oncology, adding information beyond that provided by other patient and tumor characteristics. The success in relating MATH to outcome in HNSCC supports its evaluation in other types of cancer.
