Contributions of Status and Allele Expression, But Not Copy Number Variation, to the Control of SIVmac251 Replication in Indian-Origin Rhesus Monkeys

Summary

CCL3 is a ligand for the HIV-1 co-receptor CCR5. There have recently been conflicting reports in the literature concerning whether CCL3-like gene (CCL3L) copy number variation (CNV) is associated with resistance to HIV-1 acquisition and with both viral load and disease progression following infection with HIV-1. An association has also been reported between CCL3L CNV and clinical sequelae of the simian immunodeficiency virus (SIV) infection in vivo in rhesus monkeys. The present study was initiated to explore the possibility of an association of CCL3L CNV with the control of virus replication and AIDS progression in a carefully defined cohort of SIVmac251-infected, Indian-origin rhesus monkeys. Although we demonstrated extensive variation in copy number of CCL3L in this cohort of monkeys, CCL3L CNV was not significantly associated with either peak or set-point plasma SIV RNA levels in these monkeys when MHC class I allele Mamu-A*01 was included in the models or progression to AIDS in these monkeys. With 66 monkeys in the study, there was adequate power for these tests if the correlation of CCL3L and either peak or set-point plasma SIV RNA levels was 0.34 or 0.36, respectively. These findings call into question the premise that CCL3L CNV is important in HIV/SIV pathogenesis.

Introduction

Host genetic factors influence susceptibility to HIV-1 replication and progression to AIDS. A number of genes in humans have been shown to impact the development of classical immune effector responses against HIV-1 infection and HIV-1 entry into cells. The genes associated with immune control of HIV-1 include selected MHC class I alleles, including HLA B*5701, HLA B*27 [1], HLA C alleles [2], and HLA Bw4-8OI in association with KIR3DS1 [3]. Expression of the delta 32 allelic form of the HIV-1 co-receptor CCR5 is associated with an inhibition of HIV-1 entry into cells [4]–[6].

CCL3, formerly known as macrophage inflammatory factor 1α (MIP-1α), a ligand for CCR5, is a chemokine with profound HIV-1 inhibitory activity [7]–[9]. The two functional genes coding for CCL3, CCL3 and CCL3-like 1 (CCL3L1), map to a narrow region on human chromosome 17. While CCL3 exists as two copies per diploid genome (pdg), CCL3L1 arose from CCL3 through segmental duplication, and the copy number of CCL3L1 varies among individuals as a consequence of unequal duplications [10], [11]. It has been suggested that more copies of a gene should translate into more protein expression, and higher CCL3L1 copy number has been correlated with enhanced CCL3 production [11]. Several groups reported that a low CCL3L1 copy number is associated with an increased risk of acquiring HIV-1 as well as both high viral loads and rapid progression to AIDS following infection [7], [9]. However, a recent series of reports show no effect of CCL3L1 CNV on HIV-1 infection, viral loads, or progression to AIDS following infection [12]–[14].

CNV at the CCL3L loci exists in both chimpanzees and rhesus monkeys [7], [15]. Indeed, a link between CCL3L CNV and AIDS susceptibility has recently been reported in rhesus monkeys infected with SIV [15]. The present study was initiated to explore the possibility of an association between CCL3L CNV and AIDS in rhesus monkeys.

Results

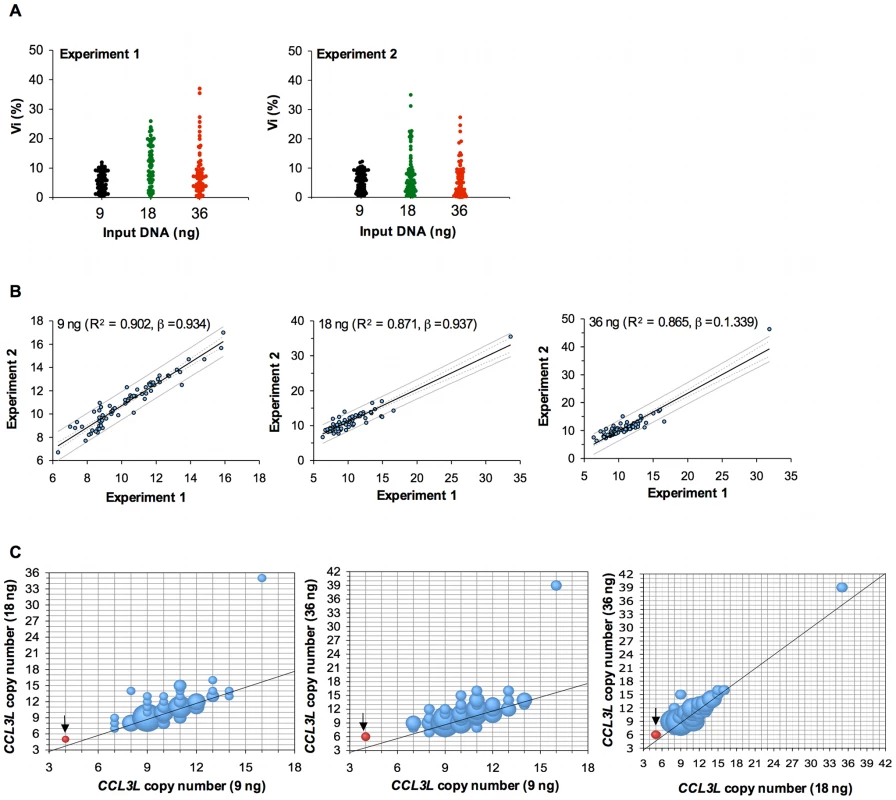

This study was done to assess the effect of CCL3L CNV on viral load and disease progression following SIVmac251 infection in Indian-origin rhesus monkeys. We first conducted experiments to standardize the technical approach for determining CCL3L copy number for this study. We assessed whether CCL3L copy number calculated from the CCL3L-derived signal in our qPCR assay systematically increased or decreased according to the quantity of input DNA as described by Urban et al. [12]. We evaluated the copy number of CCL3L using 18 ng of input DNA by the qPCR method described by Degenhardt et al. [15] and concurrently evaluated CCL3L copy number using either 9 ng or 36 ng of input DNA. We explored the reproducibility of this qPCR assay using duplicates for each of 69 DNA samples in each of two separate experiments and evaluating the percent difference (defined as the difference between CCL3L copy numbers in the duplicates divided by their average, called Vi) as described by Urban et al. [12]. Higher quantities of input DNA tended to be associated with larger ranges of Vi (Figure 1A); the averages of Vi over all 69 samples and the two experiments were 5.591 (9 ng), 9.681 (18 ng), and 7.725 (36 ng). Assessing the CCL3L copy number averaged over the two duplicates, the copy numbers obtained by the two separate experiments had greater Pearson correlations using 9 ng than either 18 ng or 36 ng of input DNA (Figure 1B for related regressions). Thus, the use of more concentrated DNA samples was associated with greater variability between replicates.

We then looked at the average (of 4 numbers – duplicates from the two experiments) of the CCL3L copy numbers and regressed the experiments using 18 ng and 36 ng of input DNA on the experiment using 9 ng of input DNA. We found that 18 ng of input DNA underestimated in 14 (20.3%) and overestimated in 20 (29.0%) samples, and also found that 36 ng of input DNA underestimated in 19 (27.5%), and overestimated in 28 (40.6%) samples (Figure 1C). Therefore, we only used determinations of CCL3L copy number generated from DNA samples diluted to 9 ng in this study.

Then, to determine the accuracy of our qPCR assay, we assessed the copy number of CCL3L in the reference A431 human cell line. The A431 cell line has previously been shown to have two copies of CCL3L1 and two copies of CCL3 pdg, for a total copy number of four CCL3L [11]. We found that the A431 human cell line had 4 CCL3L copies when 9 ng of input DNA was assessed. However, CCL3L copy number appeared to be higher than 4 when 18 or 36 ng of input DNA input were assayed (Figure 1C).

Since we have previously shown that Indian-origin and Chinese-origin rhesus monkeys differ substantially in their control of SIVmac251 replication [16], we reasoned that studying genetic determinants of SIVmac251 control in a combined population of both Indian-origin and Chinese-origin rhesus monkeys might introduce a bias into the results. We therefore chose to pursue the present study to evaluate the association of CCL3L CNV with the control of SIV replication and AIDS progression in a cohort of SIVmac251-infected Indian-origin rhesus monkeys.

The expression of particular MHC class I alleles in Indian-origin rhesus monkeys is associated with the efficient control of SIV replication and the rate of disease progression following SIV infection [17]–[19]. We also recently demonstrated a central role of TRIM5 polymorphism in limiting the replication of SIVmac251 in a primate host [20]. Although MHC class I, TRIM5 and CCL3L are located on different chromosomes, it is possible that the alleles of these genes are correlated with each other. If that were the case, a CCL3L copy number effect could be confounded or masked by either MHC class I or TRIM5 alleles associated with SIV control. In order to address this issue, we included the expression of both the MHC class I allele Mamu-A*01 and specific TRIM5 alleles in our analysis to assess the effect of CCL3L CNV on the control of SIVmac251 replication in Indian-origin rhesus monkeys.

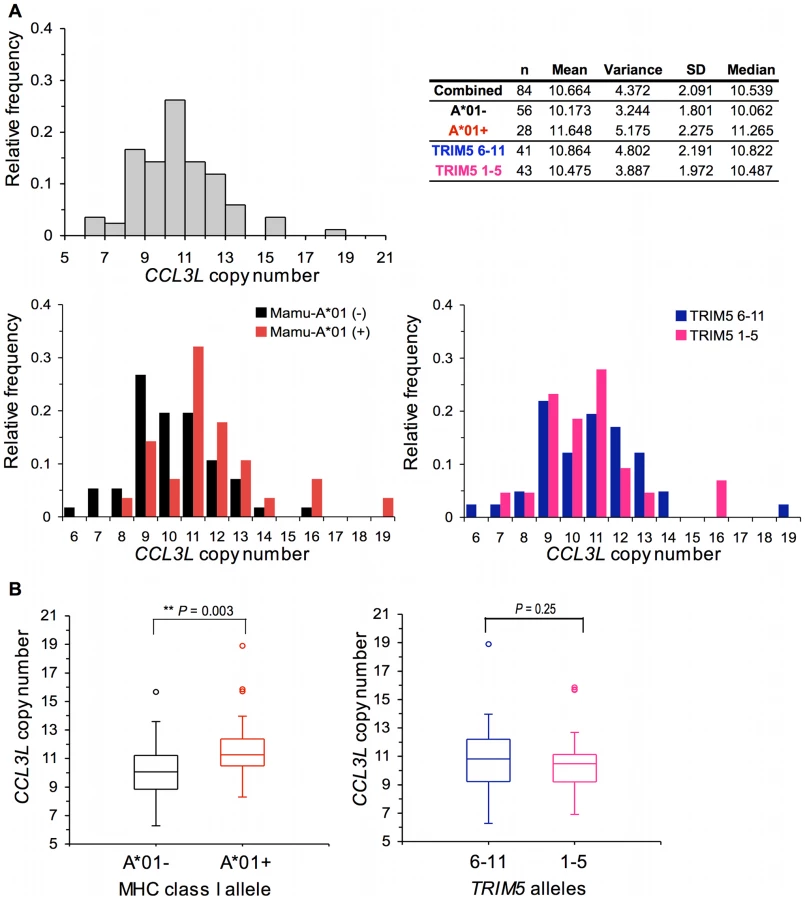

We evaluated CCL3L CNV in 84 Indian-origin rhesus monkeys. The distribution of CCL3L copy number in this cohort of rhesus monkeys is shown in Figure 2A. We observed extensive variation in CCL3L copy number in these animals, with a range of 7 to 19 copies pdg (median 10.539). Data are displayed three ways in Figure 2A: combining all monkeys, dividing the monkeys into 2 cohorts, one Mamu-A*01− and the other Mamu-A*01+, and dividing the monkeys into 2 cohorts, one of animals expressing only TRIM5 alleles 1–5 and the other of animals expressing at least 1 TRIM5 allele of the groups 6–11 as previously described [20]. CCL3L copy number did not appear to be equally distributed in subgroups defined by Mamu-A*01 and by TRIM5. Animals with high CCL3L copy number were overpresented among the Mamu-A*01+ monkeys (shift to the right in Figure 2A). Importantly, we found that Mamu-A*01+ rhesus monkeys possessed a significantly greater number of CCL3L gene copies than the Mamu-A*01- rhesus monkeys (Mann-Whitney P = 0.003). However, the expression of particular TRIM5 alleles was not significantly associated with the CCL3L copy number in the same cohort of rhesus monkeys (Figure 2B).

Using all of these findings to inform our experimental approach, we evaluated associations of CCL3L CNV with the in vivo control of SIVmac251 replication during the period of acute infection in a cohort of Indian-origin rhesus monkeys following intravenous infection with SIVmac251. Plasma virus RNA levels were assessed on day 14, at the time of peak virus replication, and on day 70, at the time of set-point virus replication following SIVmac251 infection. The peak and set-point plasma SIV RNA levels have been shown to be predictors of disease progression in SIVmac251-infected monkeys [21], [22].

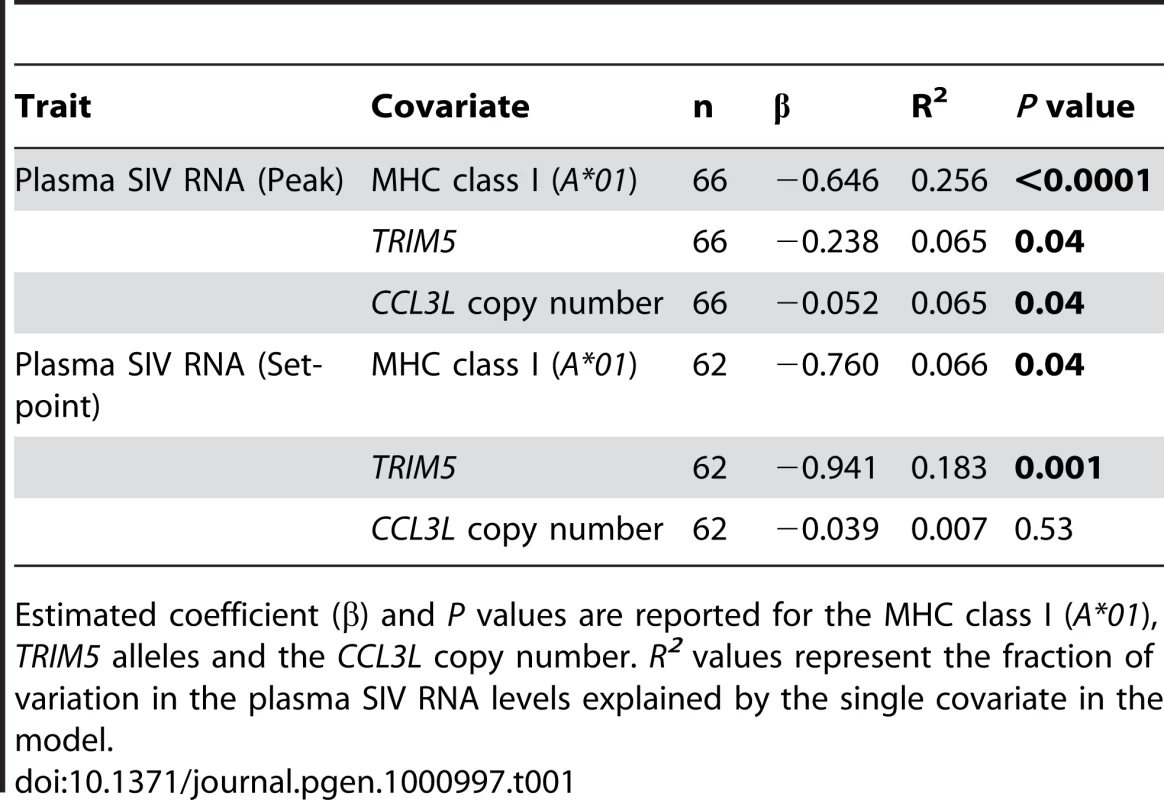

To evaluate the effects of CCL3L copy number (used as a continuous variable), Mamu-A*0l, and TRIM5 alleles (both evaluated as binary variables) separately, we first used single covariate linear regressions of log plasma SIV RNA levels at both peak and set-point. When considered individually, we found that each of the three variables were associated with log peak plasma SIV RNA levels, but Mamu-A*01 was by far the most significant (P<0.0001 vs. 0.04 for each of the other two covariates; Table 1). In the regressions for log set-point plasma SIV RNA levels, the expression of specific TRIM5 alleles was the most significant single covariate (P = 0.001) and Mamu-A*01 was significant (P = 0.04) but CCL3L copy number was not significant (P = 0.53).

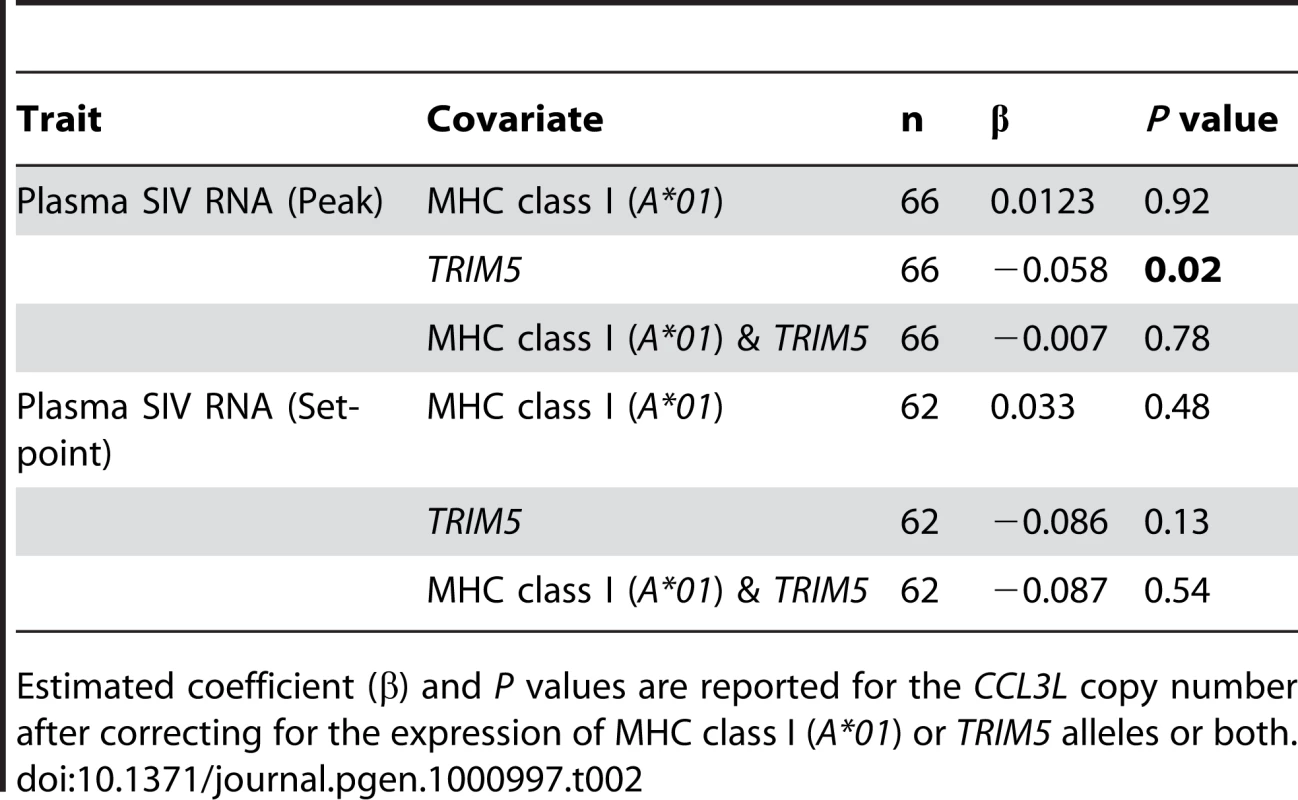

When considering several covariates together in the linear regressions, the effect of CCL3L copy number was not significantly associated with log peak plasma SIV RNA levels in any model containing Mamu-A*01 (Table 2). CCL3L copy number was significant (P = 0.02) in the model containing only TRIM5 alleles, but that model had a much smaller R² than any model involving Mamu-A*01. The effect of CCL3L copy number was not significant in any of the models for log set-point plasma SIV RNA levels (with any combination of the other two covariates, Table 2).

This analysis suggests that CCL3L copy number could simply serve as a surrogate for the expression of the MHC class I allele Mamu-A*01 and the early virus control associated with high or low CCL3L copy number might be consequence of that MHC class I allele. Therefore, our results show that it is important to control for MHC class I alleles or other factors that might be associated with CCL3L copy number in the study.

For power calculations, we considered the residual (Res) log plasma SIV RNA levels when Mamu-A*01 was in the model (i.e., for each animal, the difference between the observed viral load and that predicted by Mamu-A*01). For the peak viral load regressions, with 66 animals there is 80% power to detect as significant the contribution of CCL3L to the model if the true correlation between Res and CCL3L is at least 0.34. (For comparison, the observed value of the Pearson correlation was 0.01). For the set-point viral load regressions, there is 80% power to detect as significant the contribution of CCL3L copy number to the model if the true correlation between Res and CCL3L copy number is at least 0.36 (the observed value of the Pearson correlation was 0.13).

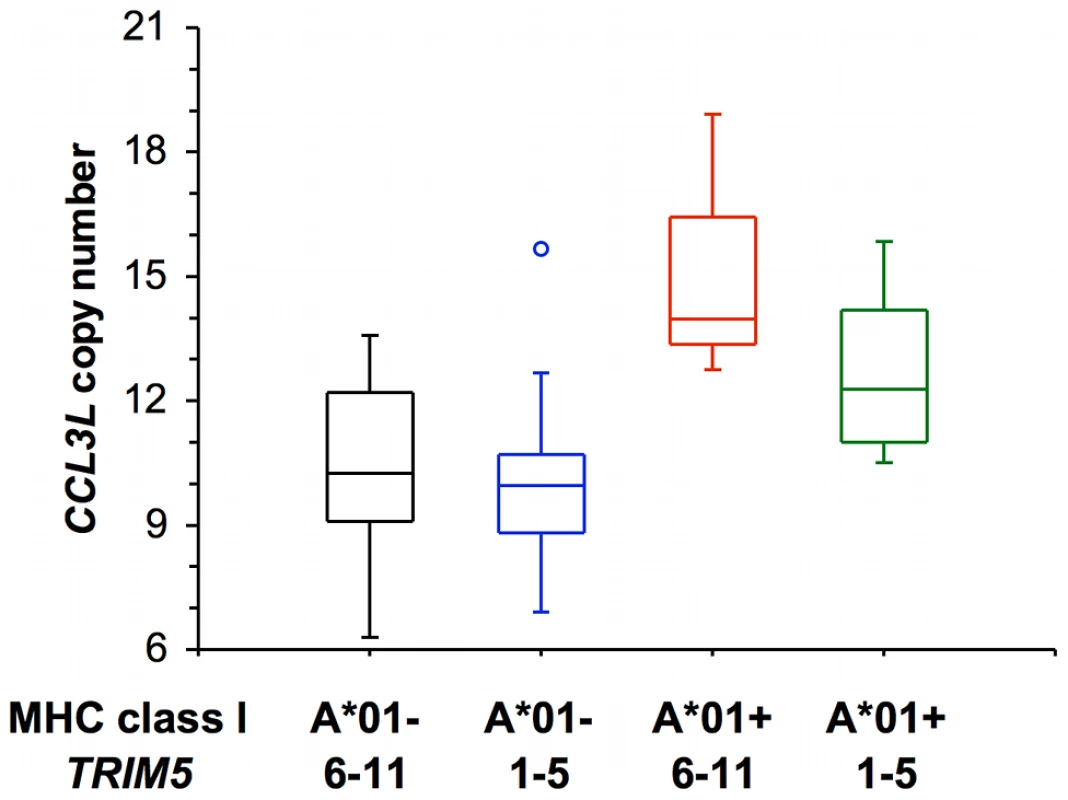

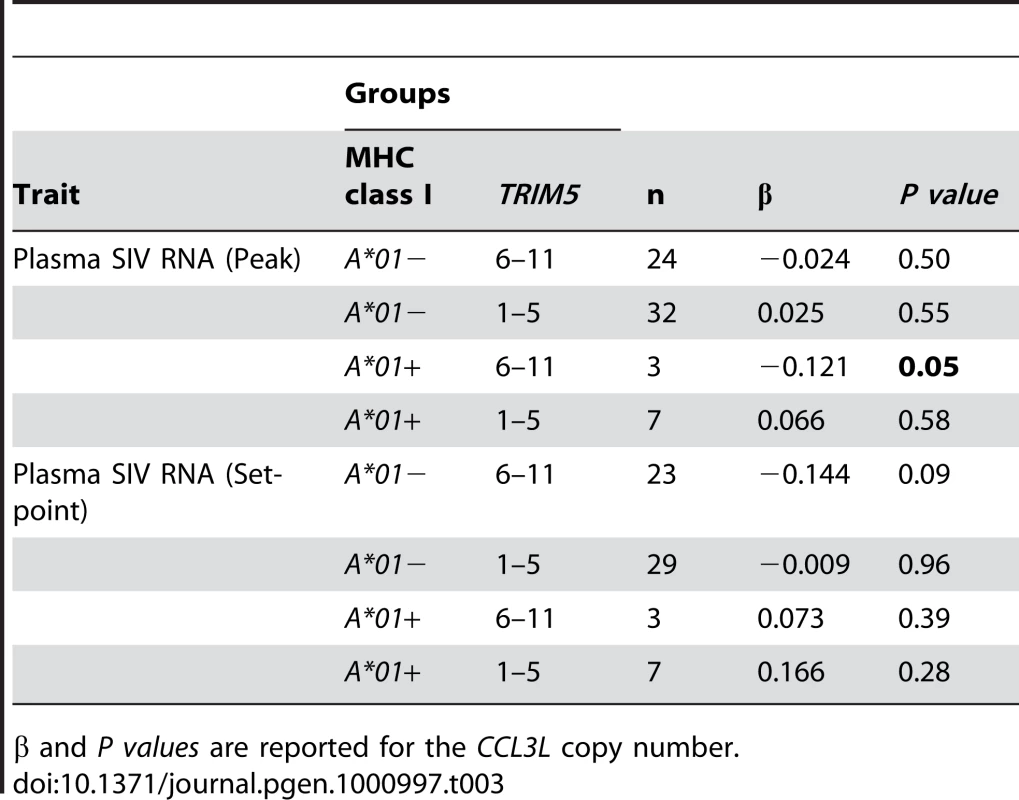

We also divided the rhesus monkeys used in this study into four separate groups according to the expression of Mamu-A*01 and TRIM5 alleles by the monkeys as shown in Figure 3. There was a significant difference in CCL3L copy number between these 4 groups (Kruskal-Wallis P = 0.0017), primarily between Mamu-A*01+ and Mamu-A*01−. The effect of CCL3L copy number was not significant (using a linear regression) for either log peak plasma SIV RNA levels or log set-point plasma SIV RNA levels for most of these subgroups. Only for the group of monkeys that expressed Mamu-A*01 and one of TRIM5 alleles from the group of allele 6–11 was the CCL3L copy number coefficient significant, but the number of monkeys in that group was very small (n = 3) (Table 3).

We assessed whether the quantitation of the copy number of CCL3L using a primer/probe set that does not differentiate between CCL3 and CCL3L gene paralogs as described by Degenhardt et al. could be subject to systematic biases. To address this possibility, we designed an alternative primer set and probe specific for CCL3-like gene 1 (CCL3L1) using the known rhesus monkey genome sequence (NCBI Reference Sequence: NW_001160084) and found that this primer set and probe are unique for CCL3L1 by “blastn” analysis (http://www.ncbi.nlm.nih.gov/BLAST/). We again observed extensive variation in CCL3L1 copy number in a cohort of animals, with a range of 3 to 13 copies pdg (median 8.04) (Supplementary Figure 3 in Text S1). Consistent with the results of CCL3L1 CNV, these results showed that there was a significant difference (Mann-Whitney P = 0.04) in the CCL3L1 copy numbers between Mamu-A*01− and Mamu-A*01+ rhesus monkeys. However, the association between CCL3L1 copy number and either log peak or log set-point plasma SIV RNA levels was not significant in linear regression analysis (Supplementary Figure 4 in Text S1).

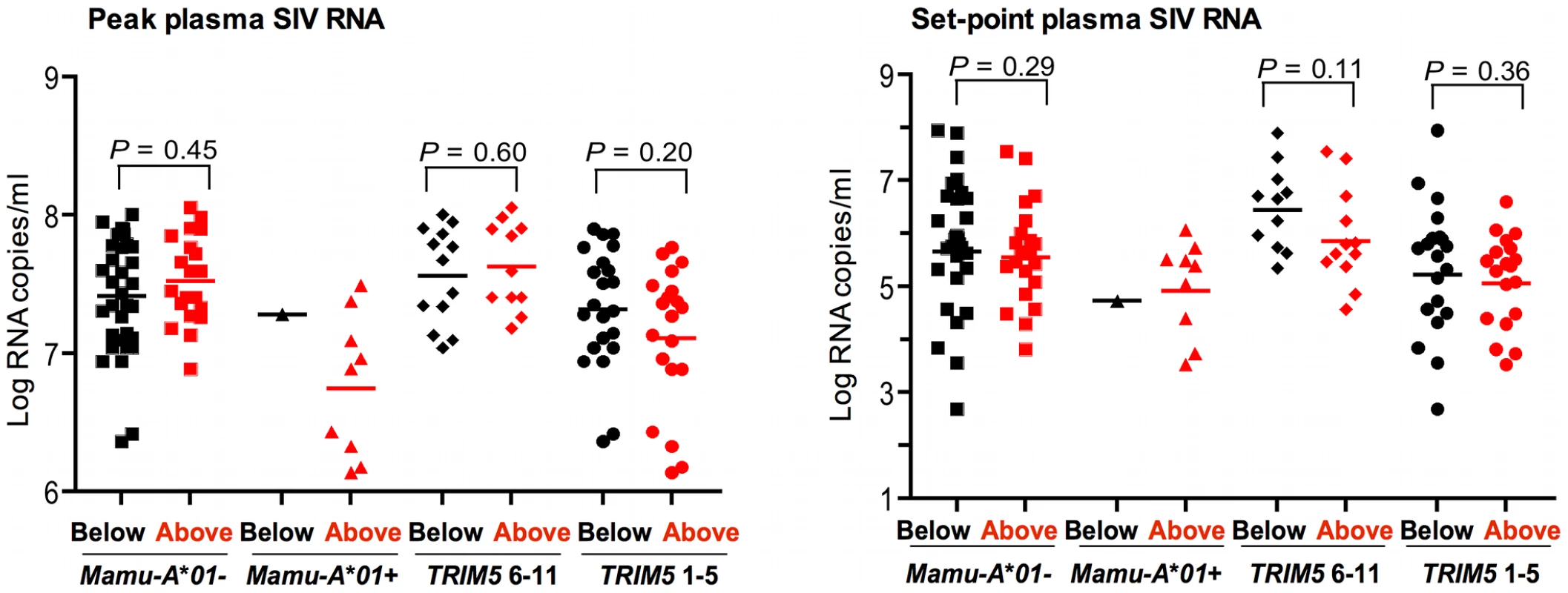

We also divided the monkeys into 2 groups according to whether the monkey's CCL3L copy number was “below” and “above” the median copy number (10.54) for the entire population of 66 monkeys. To be sure that this comparison was not affected by the expression of Mamu-A*01 or TRIM5 alleles in the two CCL3L groups, we divided each group of monkeys into four separate groups according to their expression of Mamu-A*01 (− or +) and TRIM5 alleles (6–11 or 1–5) as shown in Figure 4. In this analysis we again found no evidence for an association of CCL3L copy number with either peak or set-point plasma SIV RNA levels (Figure 4).

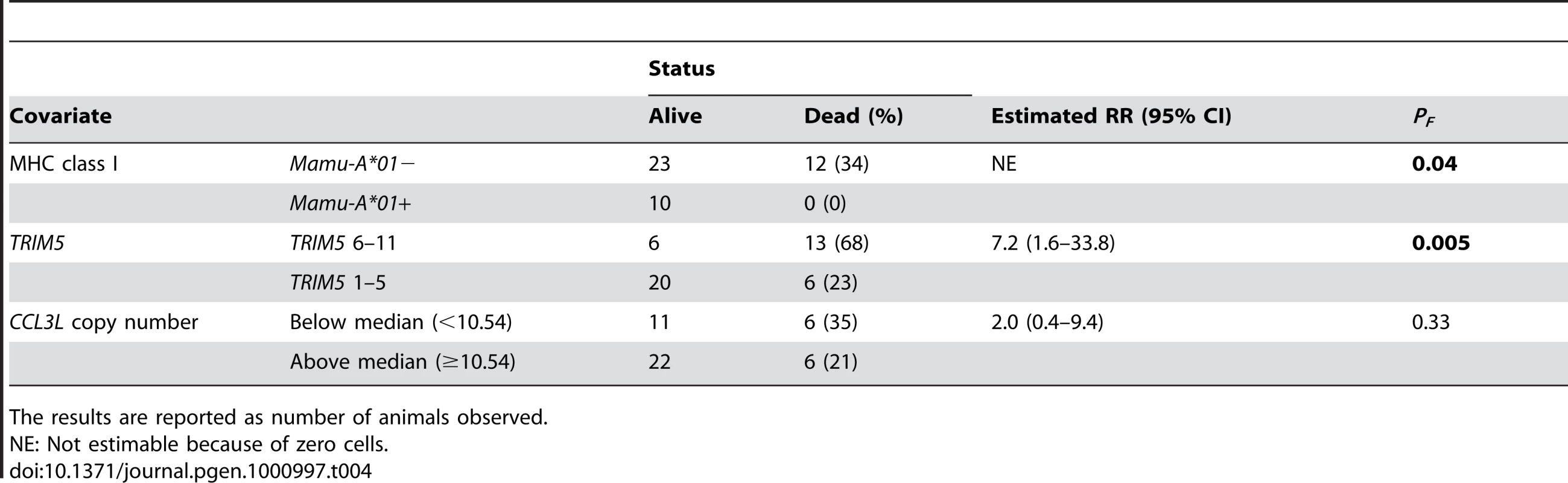

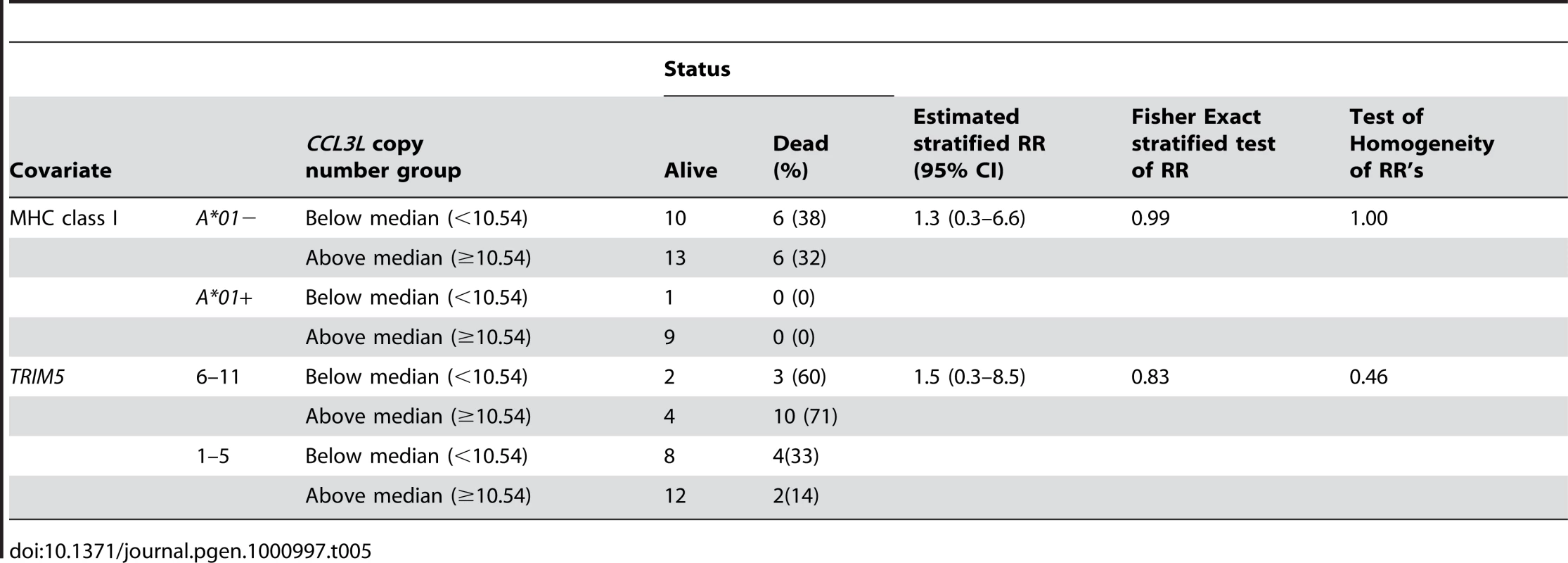

Finally, we assessed whether CCL3L copy number groups (Below, < median of 10.54, or Above, ≥ median) are associated with the percent of monkeys dying by day 235 (the follow-up time was chosen ahead of time; after 235 days some monkeys were euthanized and some were used in other experiments) in 45 monkeys from 7 experiments. These percents were compared by Fisher exact test using each covariate (Mamu-A*01, TRIM5 alleles and CCL3L) separately. CCL3L groups were not significant (P = 0.33); however, Mamu-A*01− status was associated with significantly more frequent death (P = 0.04) as was TRIM5 alleles 6–11 (P = 0.005 (Table 4). To be sure that the CCL3L comparison was not affected by an imbalance of Mamu-A*01− status or TRIM5 alleles 6–11 in the two CCL3L groups, we also did an exact stratified Fisher test for CCL3L groups, stratified separately on Mamu-A*01− status (P = 0.99) and on TRIM5 alleles (P = 0.83). There were too few death (especially among Mamu-A*01+ monkeys) to stratify on both Mamu-A*01 and on TRIM5 alleles (Table 5).

Discussion

We demonstrated extensive variation in CCL3L copy number in a cohort of SIVmac251-infected Indian-origin rhesus monkeys using real-time qPCR. However, we also showed that CCL3L copy number co-stratified in this cohort of monkeys with Mamu-A*01, an MHC class I allele associated with SIVmac251 control. Thus, Mamu-A*01+ rhesus monkeys possess a significantly greater number of CCL3L gene copies than Mamu-A*01− rhesus monkeys. These findings suggest that CCL3L copy number might simply serve as a surrogate for the Mamu-A*01 allele and the association of control of SIV/AIDS pathogenesis associated with high or low CCL3L copy number reported by Degenhardt et al. might actually be a consequence of the expression of that MHC class I allele.

Degenhardt et al. also suggested that CCL3L CNV underlies not only a significant inter-individual variation in the rate of progression to AIDS in rhesus monkeys, but also the differences in the pathogenicity of SIVmac251 between Indian-origin and Chinese-origin rhesus monkeys. Indian-origin and Chinese-origin rhesus monkeys certainly differ substantially in their control of SIVmac251 replication [20], [23]. However, these differences in control may be a consequence of other genetic factors. We therefore chose to evaluate the association of CCL3L CNV with the control of SIV replication and AIDS progression in a cohort of SIVmac251-infected Indian-origin rhesus monkeys. Exploring a possible association of CCL3L CNV with SIVmac251 control in such a defined cohort of rhesus monkeys would eliminate a bias that might be introduced into the results by the diverse genetic factors that may exist in a combined population of rhesus monkey subspecies.

There are a number of potential caveats associated with the findings in the present study. Although more copies of the CCL3L gene should translate into a higher level of CCL3L expression, we did not explore whether CCL3L copy number influences CCL3L mRNA expression in peripheral blood mononuclear cells (PBMCs) isolated from these experimental animals. Moreover, we only evaluated an association of CCL3L CNV with the clinical consequences of infection by one SIV isolate (SIVmac251). Since other SIV isolates may make use of a different array of co-receptors to infect cells, it is possible that the consequences of CCL3L copy number on SIV control may differ for different SIV isolates [24]. Finally, the interaction between chemokines and their receptors can be promiscuous; a single chemokine can bind multiple receptors and a single receptor can bind to multiple chemokines. CCR5 binds to multiple chemokine ligands as it subserves its biologic functions. These include MIP-1β (CCL4) and RANTES (CCL5). In humans, there are multiple CCL4L genes [25]; whether a similar diversity of these genes exist in rhesus monkeys and contribute to SIV pathogenesis either independently of, or in association with CCL3L in monkeys is not known.

CCL3L expression level was implicated in the control of HIV-1 replication and AIDS progression in humans as reported by Gonzalez et al. [7]. However, results from other recent studies suggest that CCL3L copy number is not associated with HIV-1 acquisition, viral loads or progression to AIDS following infection [12]–[14]. The present data are consistent with the latter findings, suggesting that CCL3L CNV is not associated with primate immunodeficiency virus containment following infection and, therefore, is not consequential in HIV/SIV pathogenesis.

Materials and Methods

Isolation of genomic DNA

Genomic DNA was isolated from freshly isolated PBMCs of 84 Indian-origin rhesus monkeys (66 animals inoculated with SIVmac and 18 uninfected animals) by using the QIAamp DNA kit (Qiagen). This group of monkeys included 56 Mamu-A*01− and 28 Mamu-A*01+ animals. Isolated total DNA quality was verified by average A₂₆₀/A₂₈₀ ratio of 1.84 (range1.77–1.98). These DNA samples were then aliquoted and stored at −20°C until use. We confirmed the integrity of selected stored DNA samples using gel electrophoresis.

Oligonucleotide primers and probes for real-time PCR

The qPCR primer and probe sequences for CCL3L were as described by Degenhardt et al. [16]. This primer set does not distinguish between CCL3 and the CCL3-like gene paralogs; therefore, CCL3 and its paralogs are referred to as CCL3L.

Estimation of CCL3L copy number using real-time PCR

We determined the gene copy number of rhesus monkey CCL3L using the method of Degenhardt et al. [15] with a few modifications. Briefly, qPCR was performed using the 7300 Real-Time PCR System (Applied Biosystems) detecting emitted fluorescence as FAM from the probe detecting CCL3L and VIC from the probe detecting the STAT6 gene during amplification. The qPCR included primers and probes with the Taqman PCR mastermix (Applied Biosystems). The amount of test DNA sample added to each PCR reaction was between 9–36 ng. Cycling conditions were: initial denaturation at 94°C for 2 min; followed by 40 cycles of 15 sec denaturation at 94°C; and 1 min annealing/extension at 60°C. The Stat6 gene was used as the internal control. Real-time qPCR results were analyzed using the SDS v1.4.0 software package (Applied Biosystems).

Generation of standard curves of C_T value

Seven serial 1∶2 dilutions (50–0.78 ng) of genomic DNA from A431 cells known to have two copies of CCL3 and CCL3L1 pdg were used to generate standard of C_T value against log DNA on each PCR plate (96 wells) for STAT6 present two copies per pdg and CCL3L. The values obtained for the target gene CCL3L in rhesus monkeys and the normalizer gene, STAT6, were similar, which makes STAT6 gene a good housekeeping standard to estimate of the copy numbers of CCL3L in rhesus monkeys. The square of the Pearson correlation coefficient (R²) for a standard curve of less than 99% was considered inadequate, and the corresponding PCR plate of DNA samples were repeated. The signal obtained for the test DNA samples always fell on the standard curve range. In Supplementary Figure 1 in Text S1, we reported the calibration curve for the A431 reference sample.

Absolute quantitation of CCL3L copy number based on reference samples

To estimate the absolute CCL3L copy number for each sample based on the real-time qPCR results as described by Degenhardt et al., we used the same reference sample, the A431 human cell line. The A431 cell line was shown to have two copies of CCL3L1 and two copies of CCL3 pdg, for a total copy number of four CCL3L using the qPCR assay. We determined the absolute CCL3L copy number in each sample by comparing qPCR results between the experimental and the reference samples. For each qPCR, triplicate wells were set up for STAT6 and CCL3L, C_T was determined, and converted into template quantity using standard curves. Copy number is the ratio of the averaged template quantity across the replicates for CCL3L to the averaged template quantity of STAT6, multiplied by four (the diploid copy number of the A431 cell line including CCL3L1 and CCL3) or two, respectively. The resulting number was then rounded to the nearest integer value to estimate absolute copy number.

In vivo infection

Animals

Indian-origin rhesus monkeys used in the analysis were maintained according to the guidelines of the NIH Guide to the Care and Use of Laboratory Animals and the approval of the Institutional Animal Care and Use Committee of Harvard Medical School and the National Institutes of Health. All monkeys (n = 66) used in this retrospective analysis were part of 9 different SIV research experiments. All animals were received 1 ml of a 1∶3000 dilution of this stock by intravenous route. Animals from 2 experiments (n = 21) were excluded from the results of survival status analysis since they were euthanized or used in other experiments soon after day 70 (before any developed AIDS-related illness).

Challenge virus

A stock of uncloned SIVmac251 was expanded on human PBMC and titered in vivo in rhesus monkeys for use in intravenous challenge studies [26].

Plasma viral RNA assay

Assays were performed using an ultrasensitive branched DNA amplification assay (Bayer Diagnostics).

Statistical analysis

All statistical analyses were conducted using the XLSTAT software (Addinsoft) and the StarXact 8 (Cytel) for Fisher exact tests and stratified Fisher exact test, and nQuery Advisor 6.0 (Statistical Solutions) for power calculations for regression. The log₁₀ SIV RNA levels in plasma at the time of peak and set-point were compared between groups by use of the exact Mann-Whitney U test as was comparing CCL3L copy number between Mamu-A*01 subgroups and between TRIM5 subgroups. The Kruskal-Wallis test was used to compare CCL3L copy number between 4 subgroups (divided by the expression of Mamu-A*01 and TRIM5 alleles by the monkeys). Linear regressions of the log₁₀ plasma SIV RNA at the time of peak and set-point were used separately on each of three covariates (the binary variable Mamu-A*01 and TRIM5 alleles and the continuous variable CCL3L copy number) and also for models of two or three of these variables together. Fisher exact tests were used to compare the percent of monkeys that died by day 235 in various subgroups (defined by CCL3L copy number being below or above the median observed and by Mamu-A*01 and TRIM5 alleles). Exact estimated relative risk (RR, similar to odds ratio but odds ratio can only be estimated when the true prevalence is known) and 95% confidence intervals (CIs) for RR were provided. Exact tests of association of CCL3L copy number groups and the probability of dying by day 235 stratified by Mamu-A*01 and TRIM5 alleles and the related stratified RR and test of homogeneity of RR used the method of Zelen [27]. P values were two-tailed and considered significant when <0.05, no corrections for multiple comparisons were used.

Supporting Information

Attachment 1
